Descripción
| Specifications | |
|---|---|

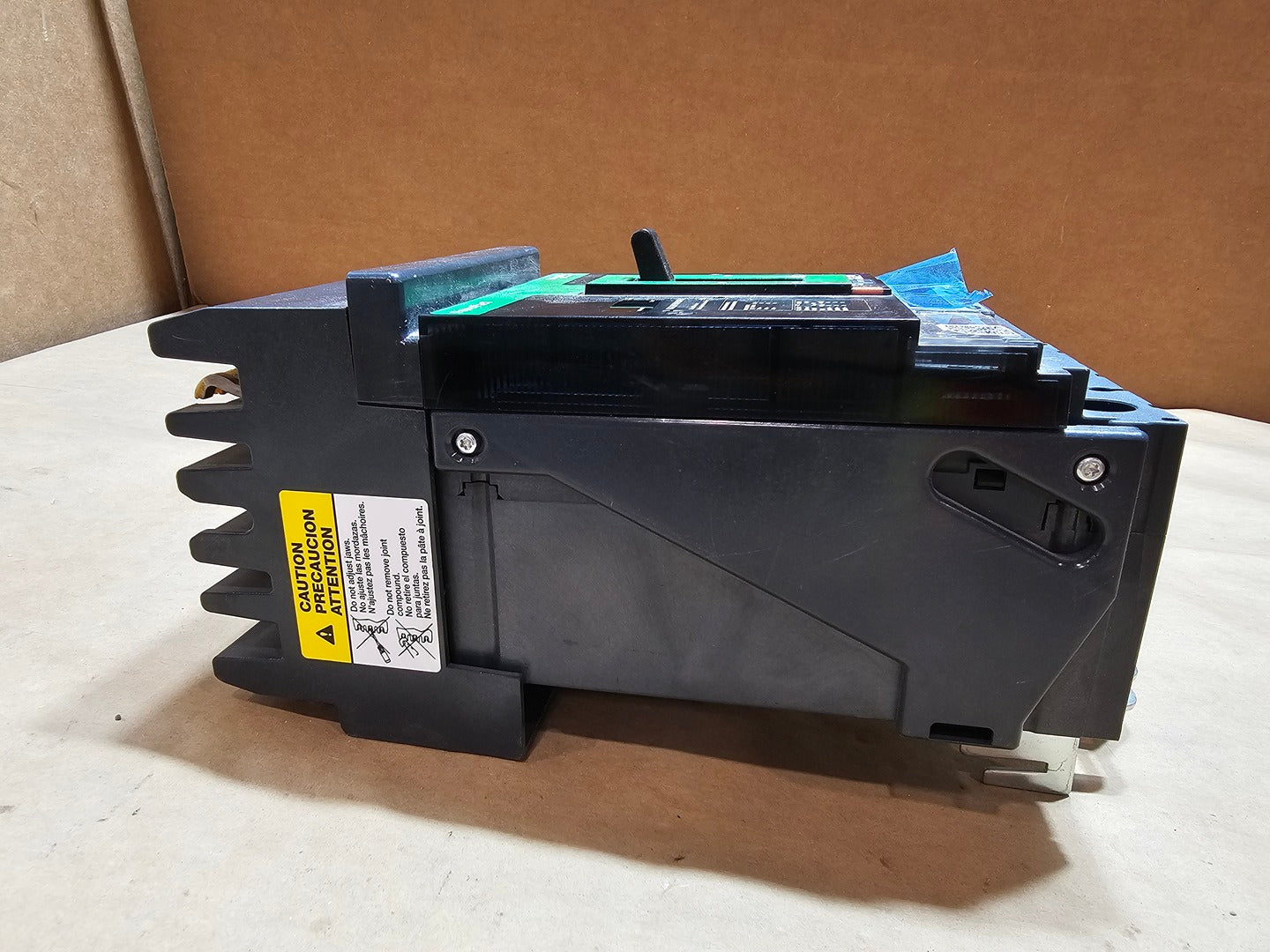

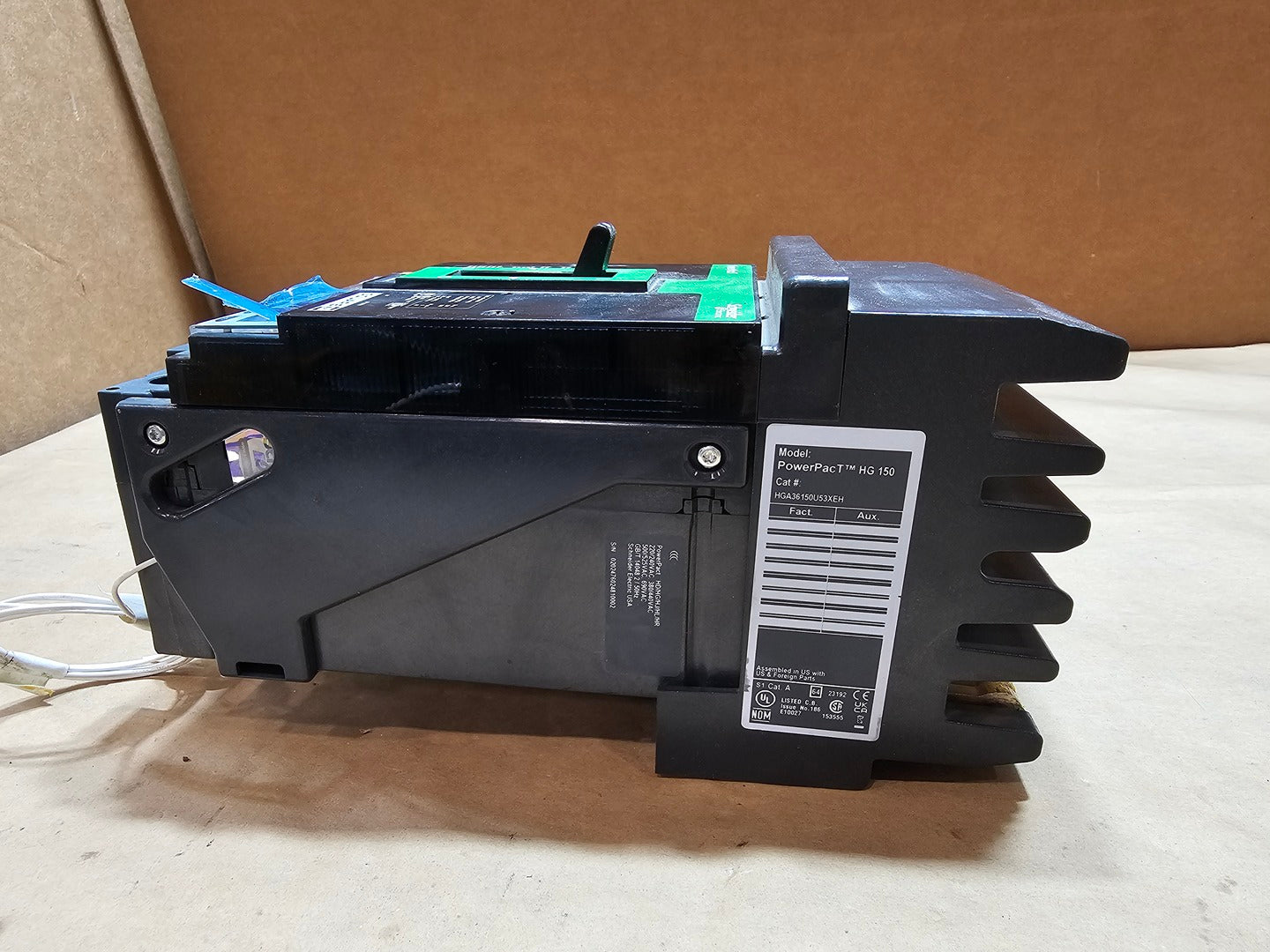

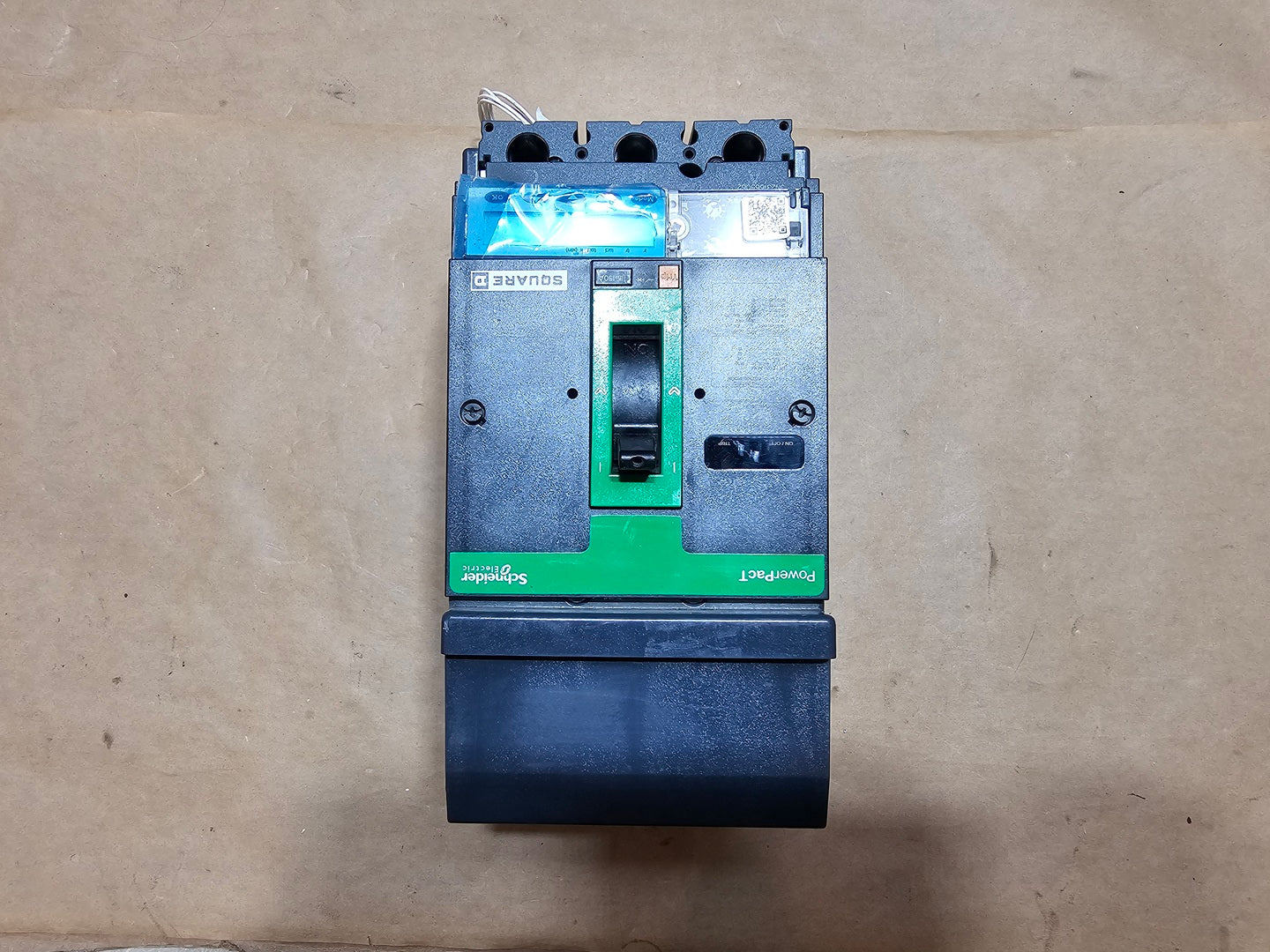

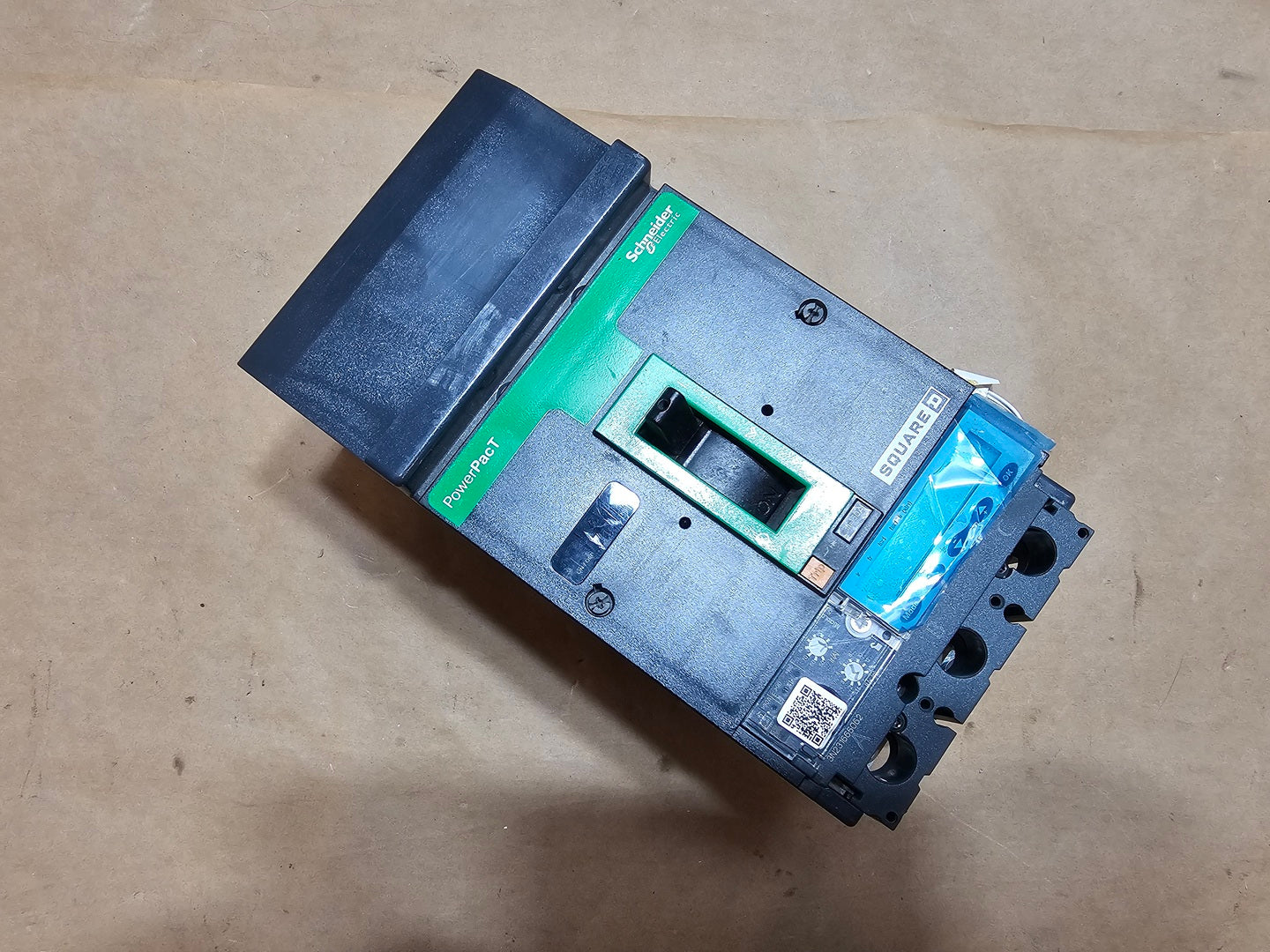

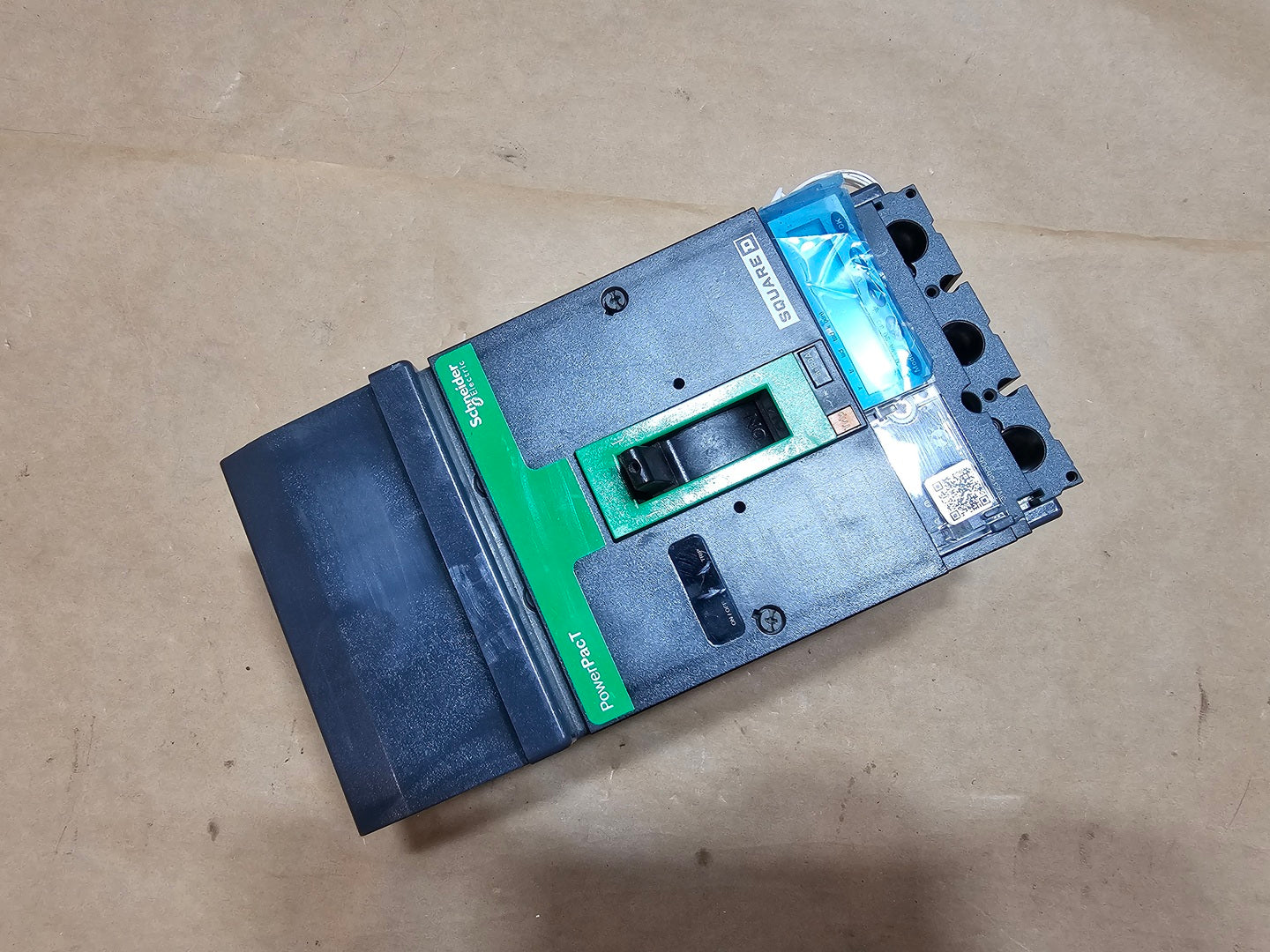

| Model | HGA36150U53XEH |
| Made In | UNITED STATES |
| Condition | Surplus New | General |
| Amps | 150 amps |

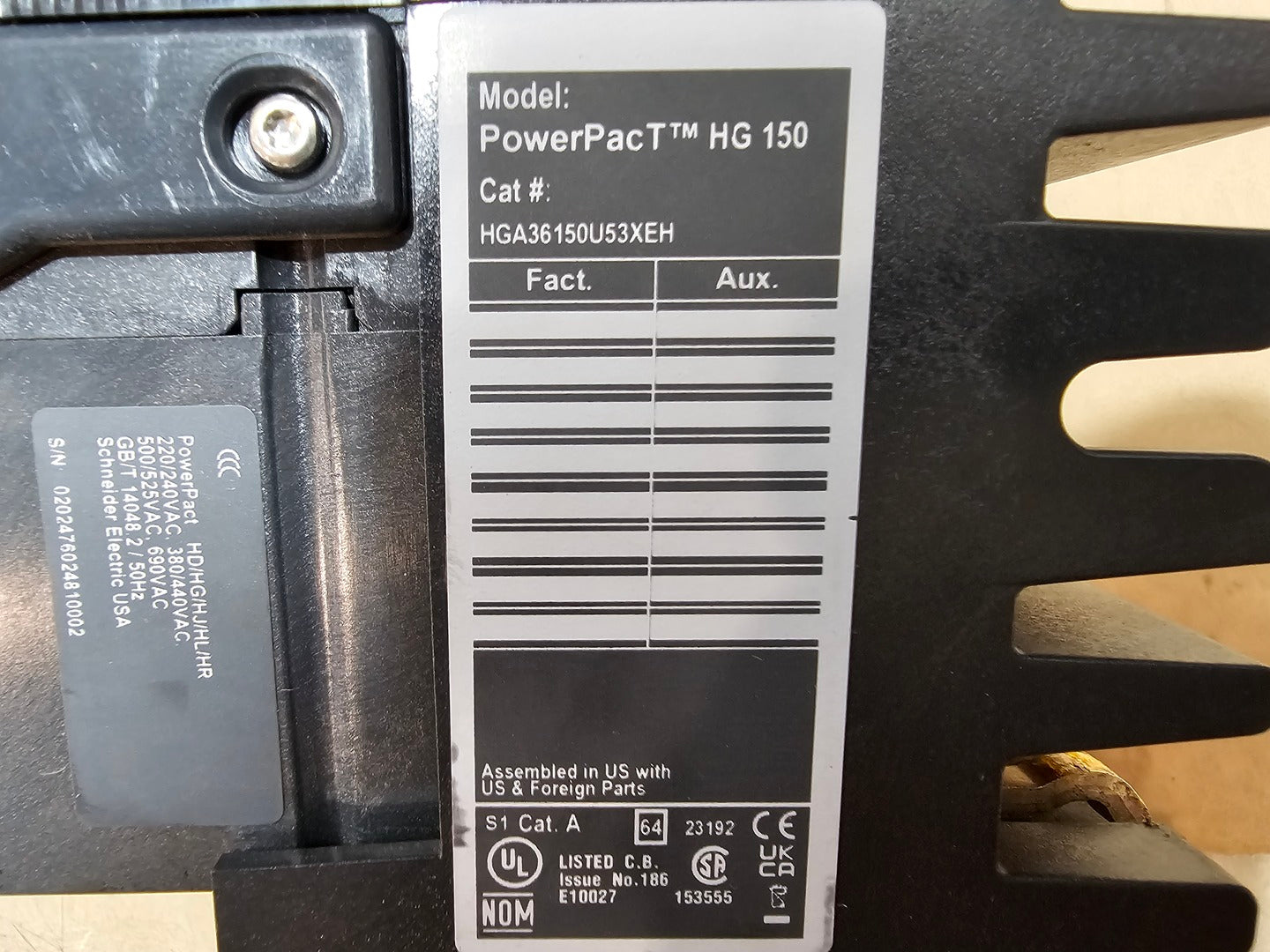

| Series | PowerPacT HG 150 |
| # of Poles | 3 |
| Mounting Style | Plug-In |
| Voltage | 600 volts |
| Phase | 3-phase |
| Other Specifications |
|---|
|

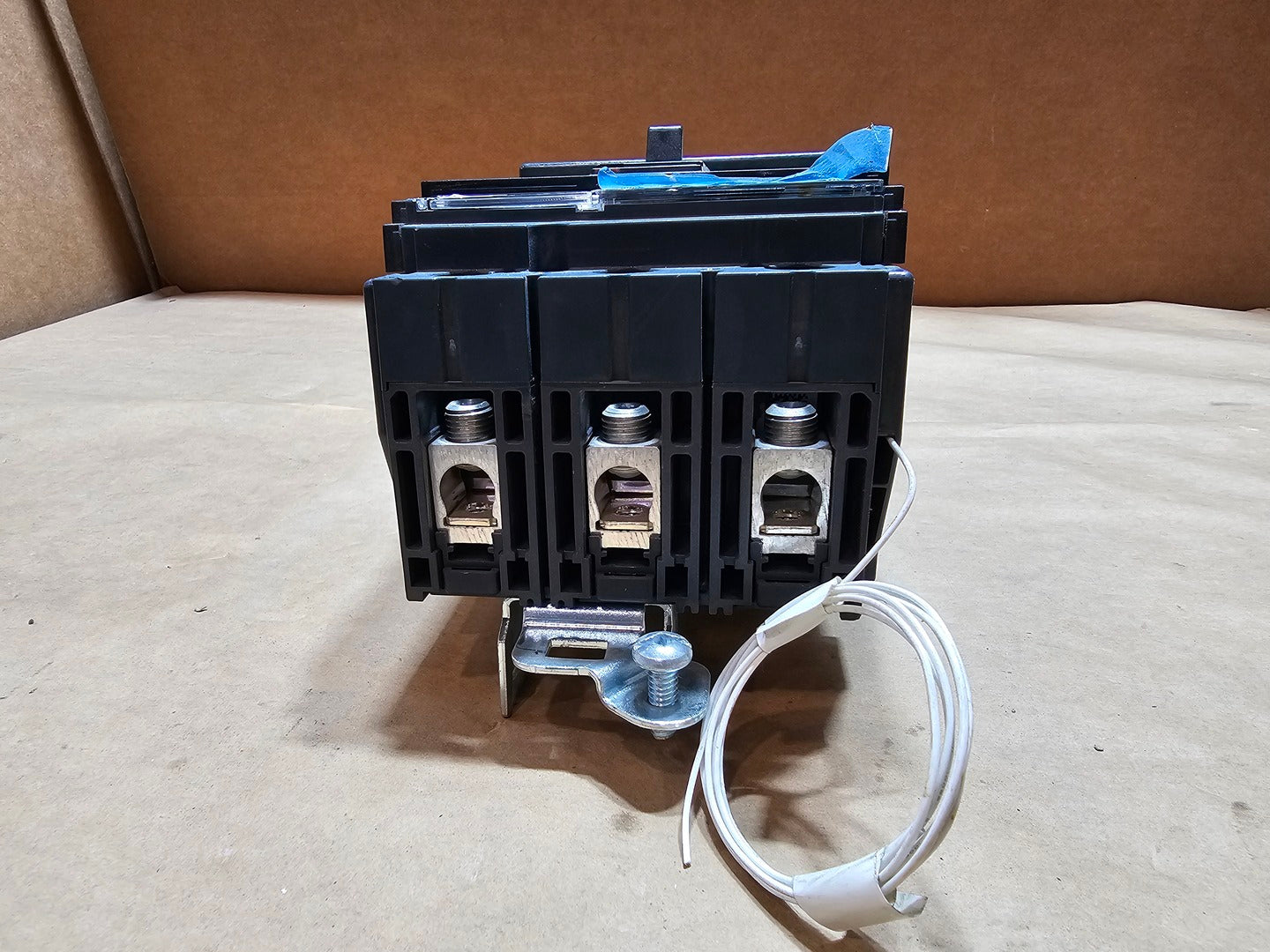

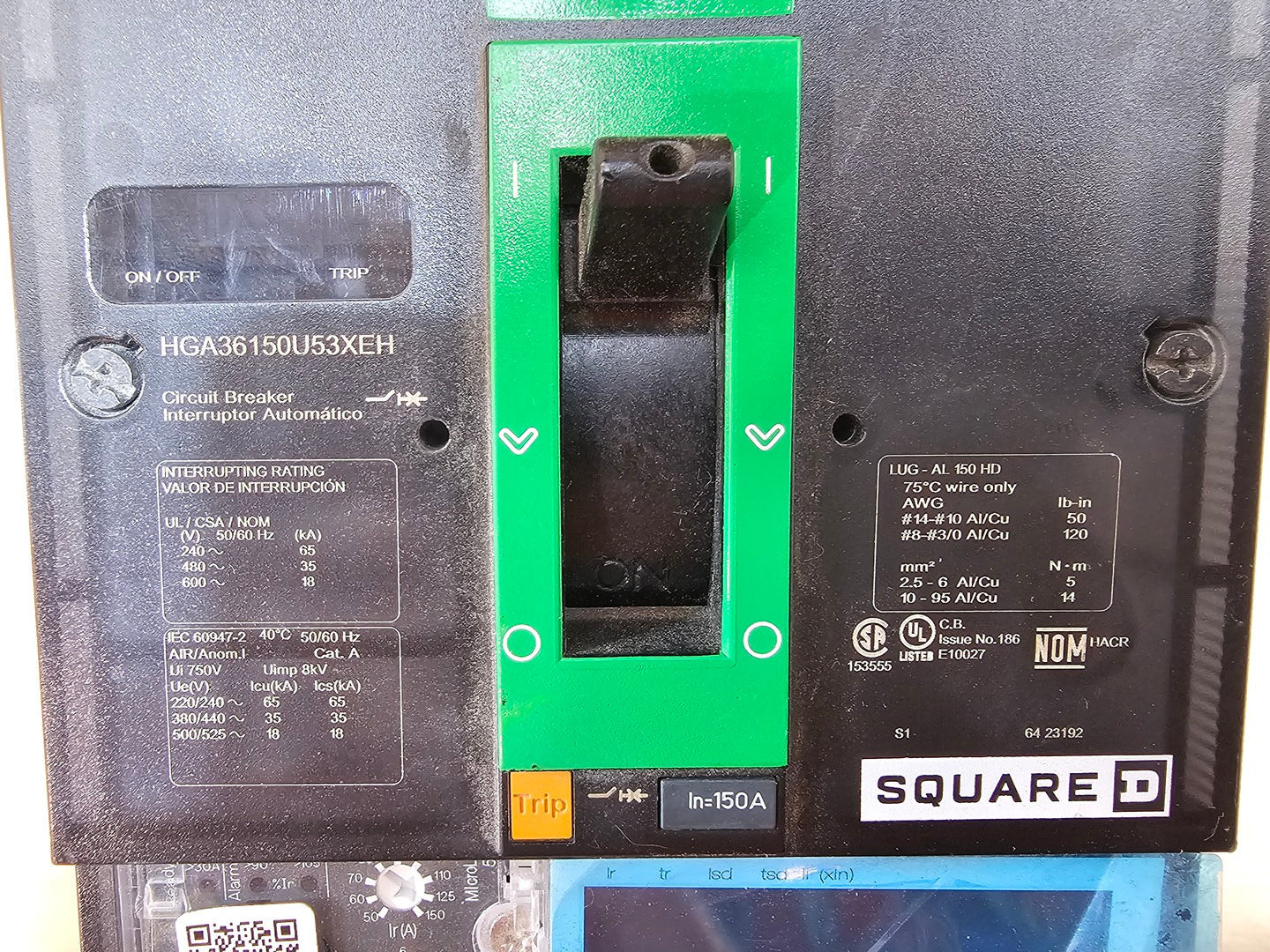

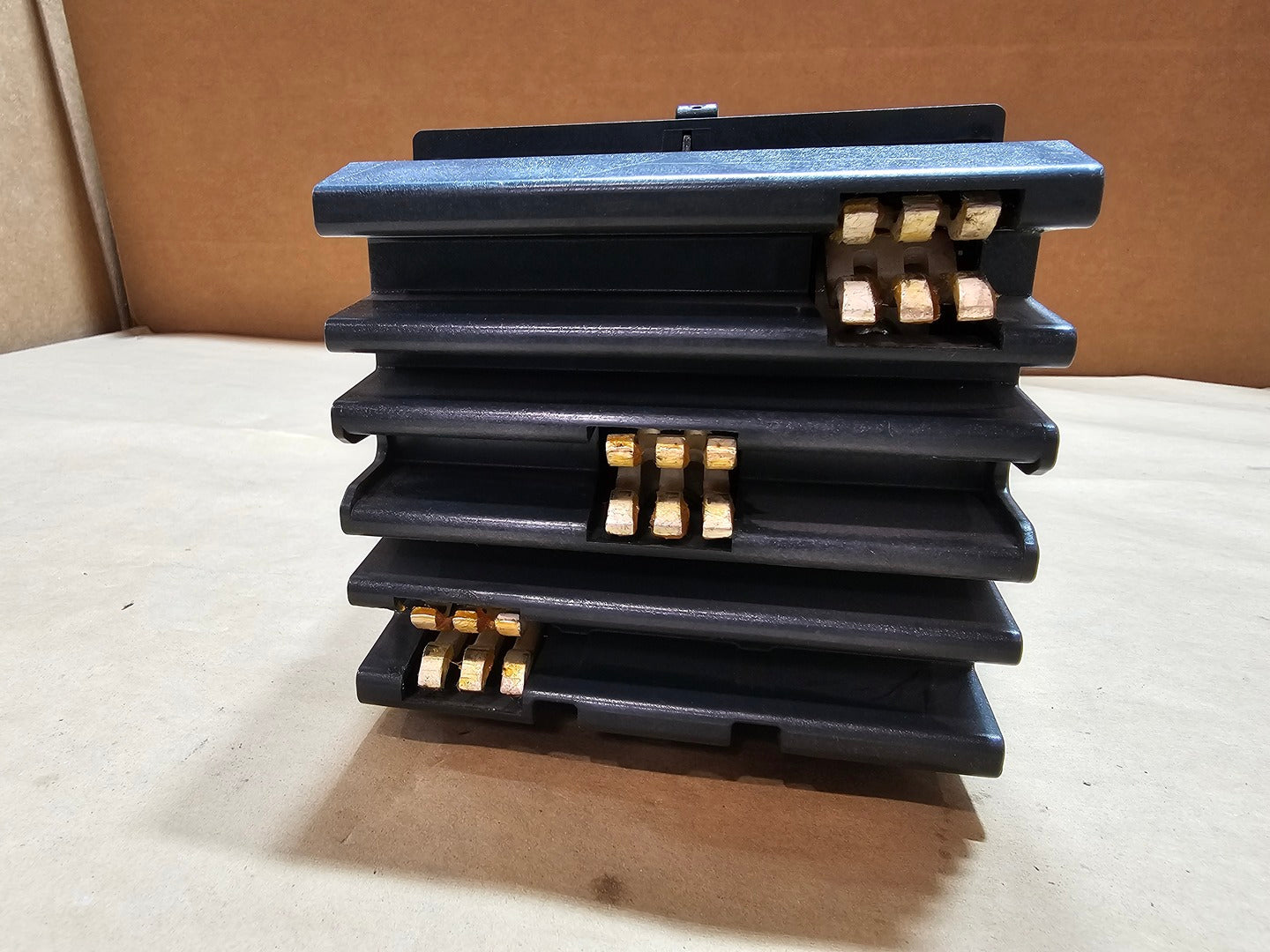

Equipment Type: Molded-case circuit breaker Frame Type: H-Frame, 150A frame Phase Connection: ABC Frequency: 50/60 Hz Continuous Current Rating: 80% Trip Technology: Solid-state electronic Trip Unit: Micrologic 5.2E Energy Protection Functions: LSI - long-time, short-time, and instantaneous Mounting Type: Square D I-Line plug-in Line-Side Connection: I-Line plug-in jaws Load-Side Connection: Three mechanical cable lugs Interrupting Rating at 240VAC: 65kA Interrupting Rating at 480VAC: 35kA Interrupting Rating at 600VAC: 18kA IEC Breaking Capacity at 220/240VAC: 65kA IEC Breaking Capacity at 380/440VAC: 35kA IEC Breaking Capacity at 500/525VAC: 18kA DC Interrupting Rating: 20kA at 250/500VDC, catalog-derived IEC Rated Insulation Voltage: 750V IEC Rated Impulse Withstand Voltage: 8kV IEC Utilization Category: Category A Operating Temperature Marking: 40°C Terminal Type: AL 150 HD Conductor Compatibility: Aluminum or copper Small Conductor Range: AWG 14-10 Al/Cu Large Conductor Range: AWG 8-3/0 Al/Cu Metric Conductor Range: 2.5-95 mm2 Al/Cu Small Conductor Torque: 50 lb-in / 5 Nm Large Conductor Torque: 120 lb-in / 14 Nm |
