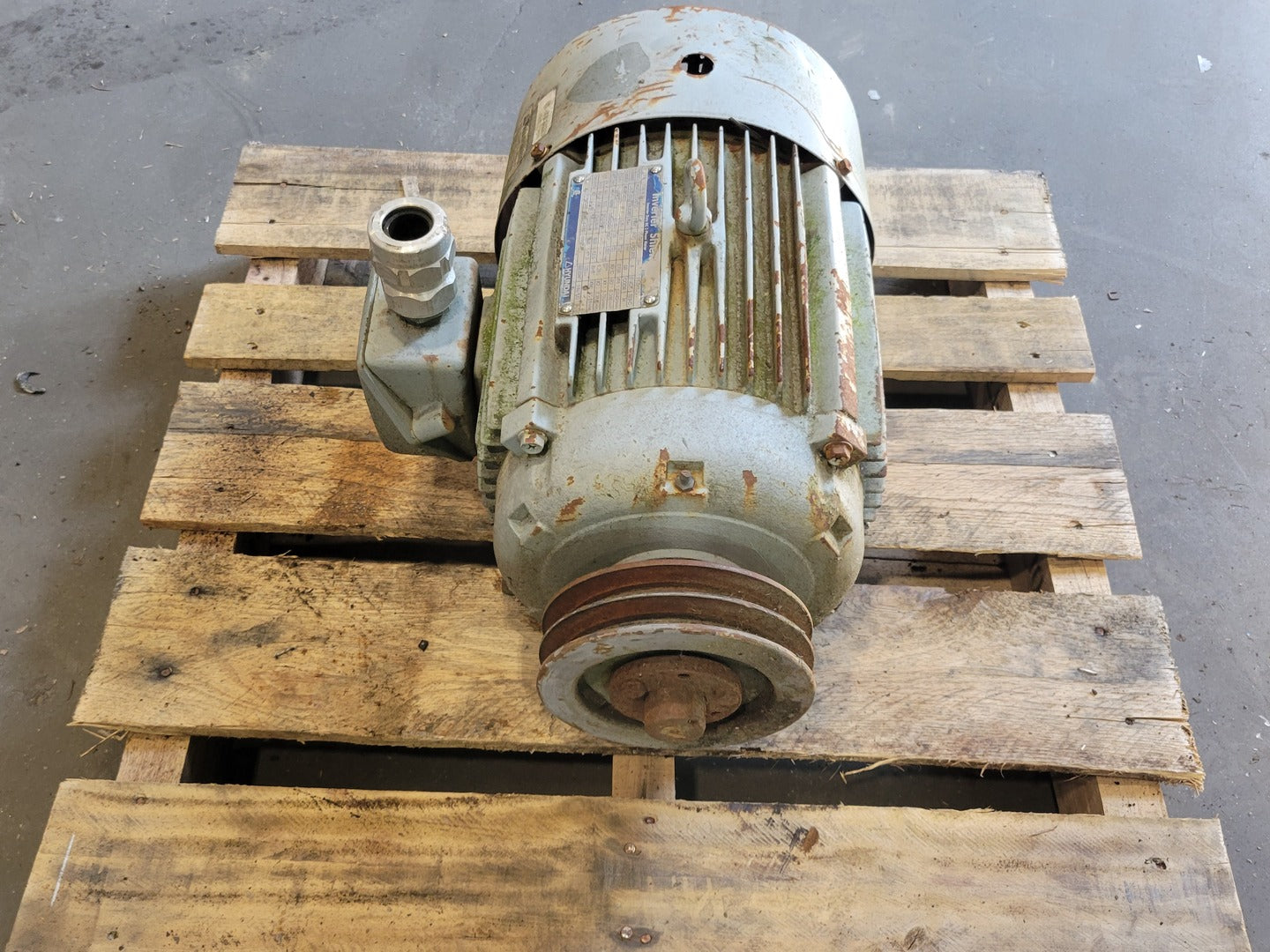

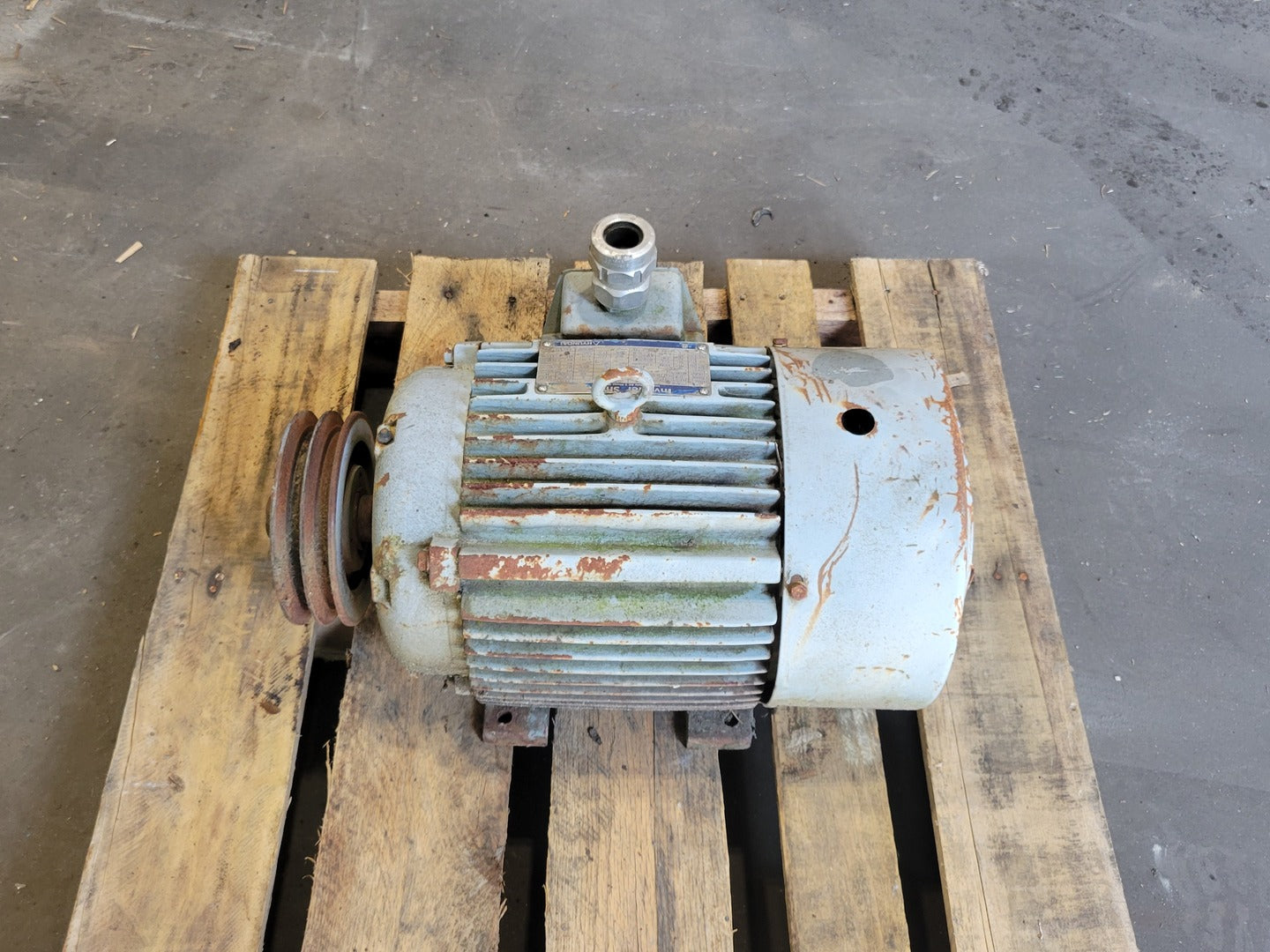

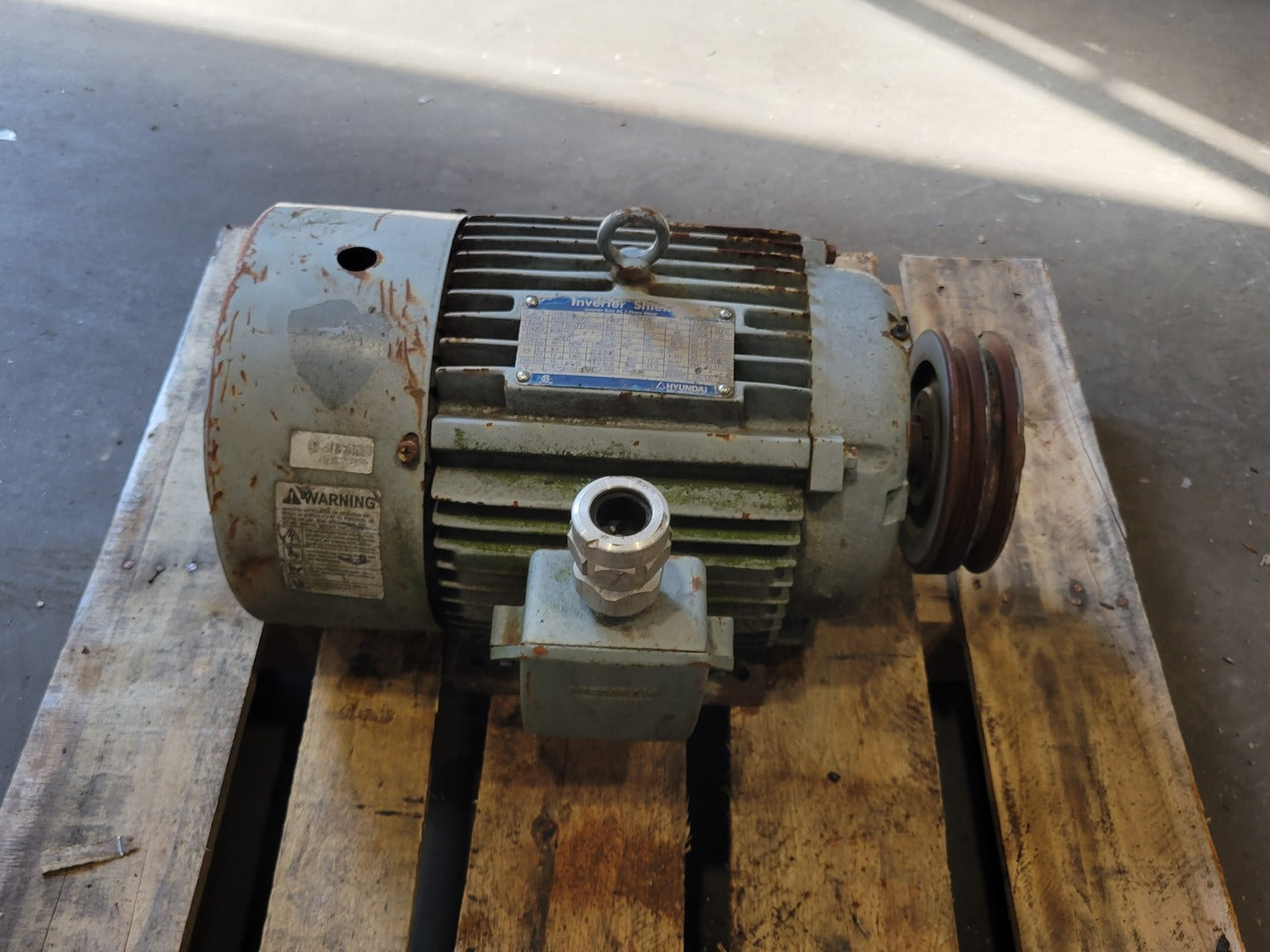

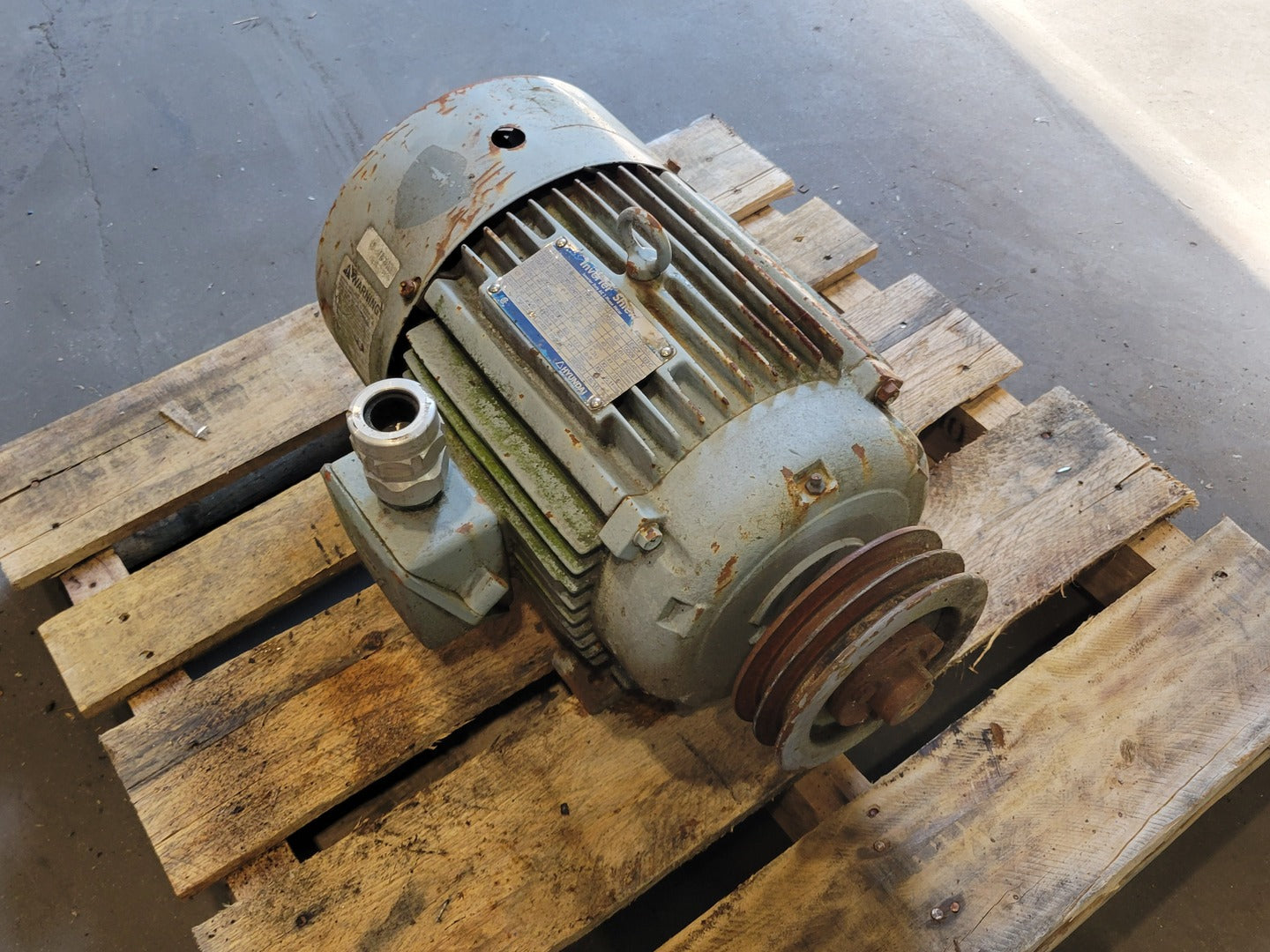

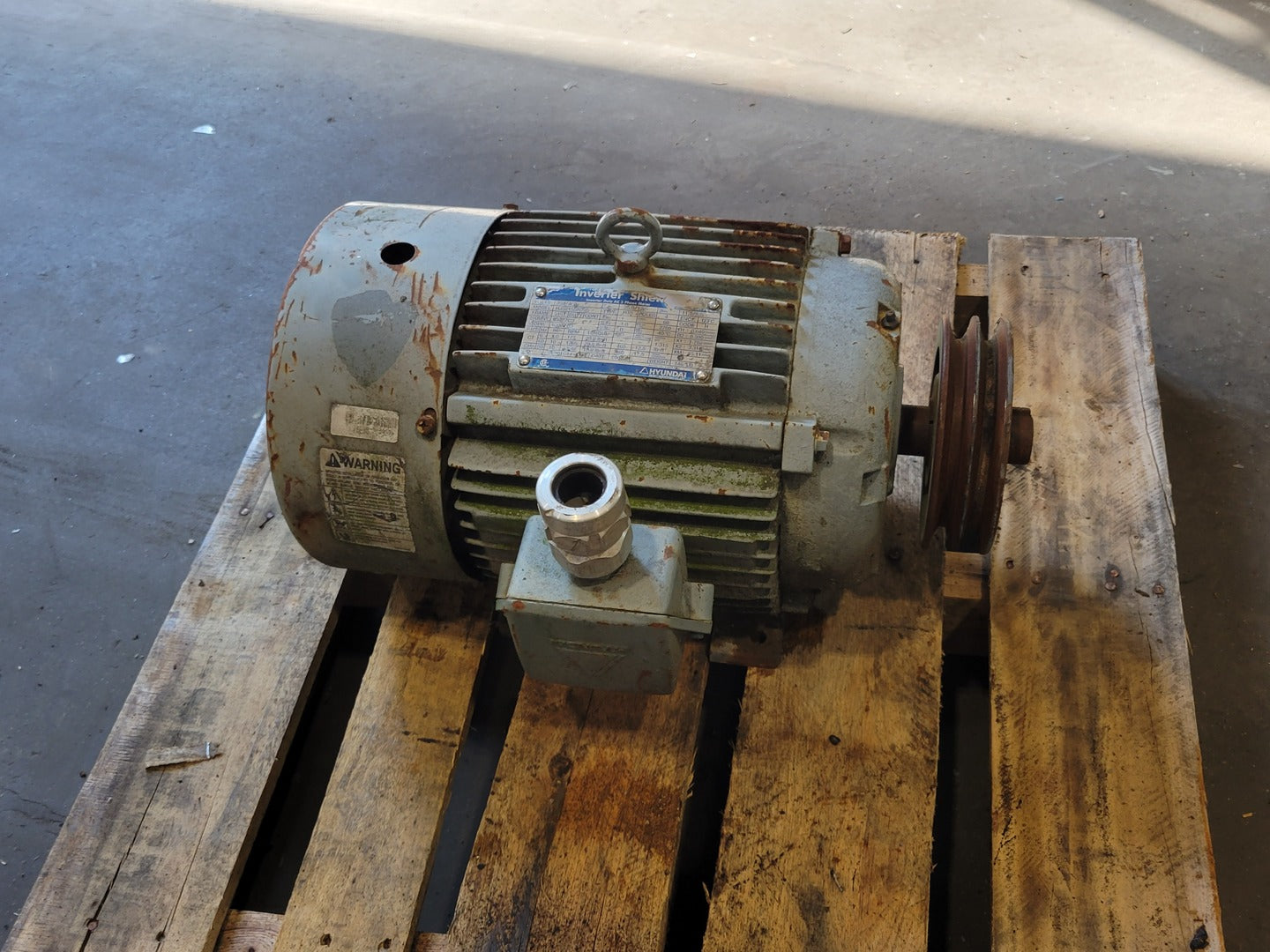

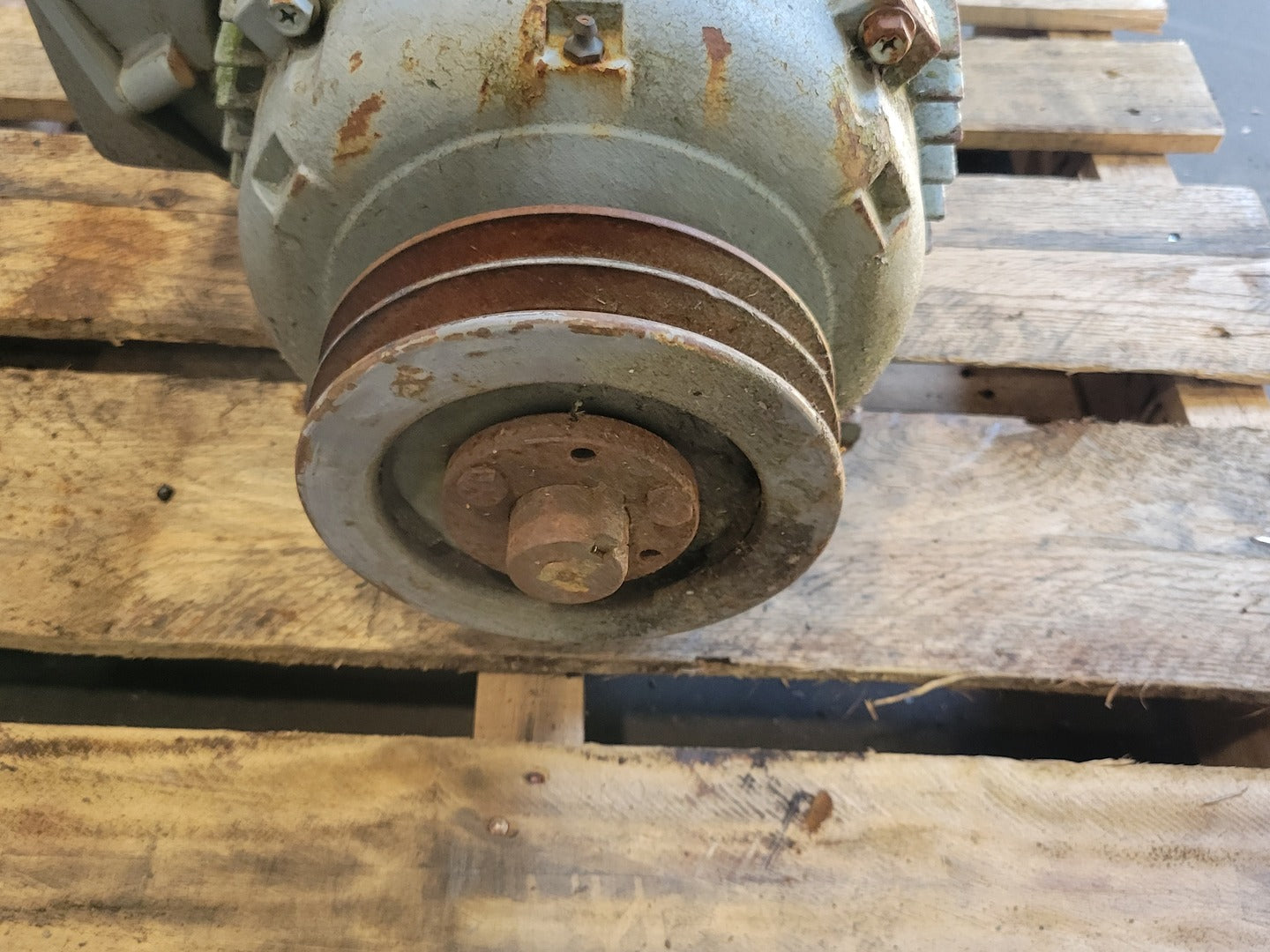

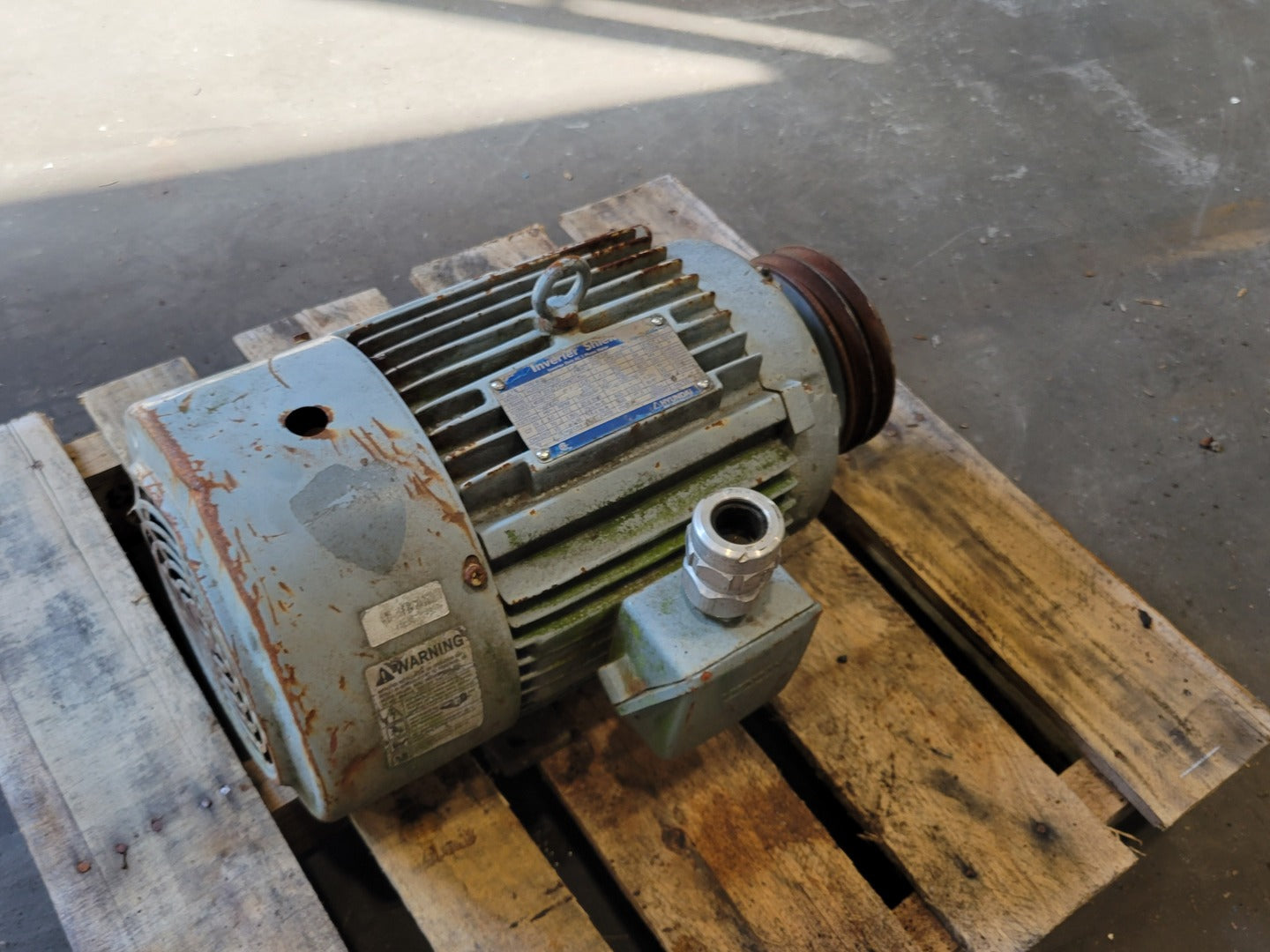

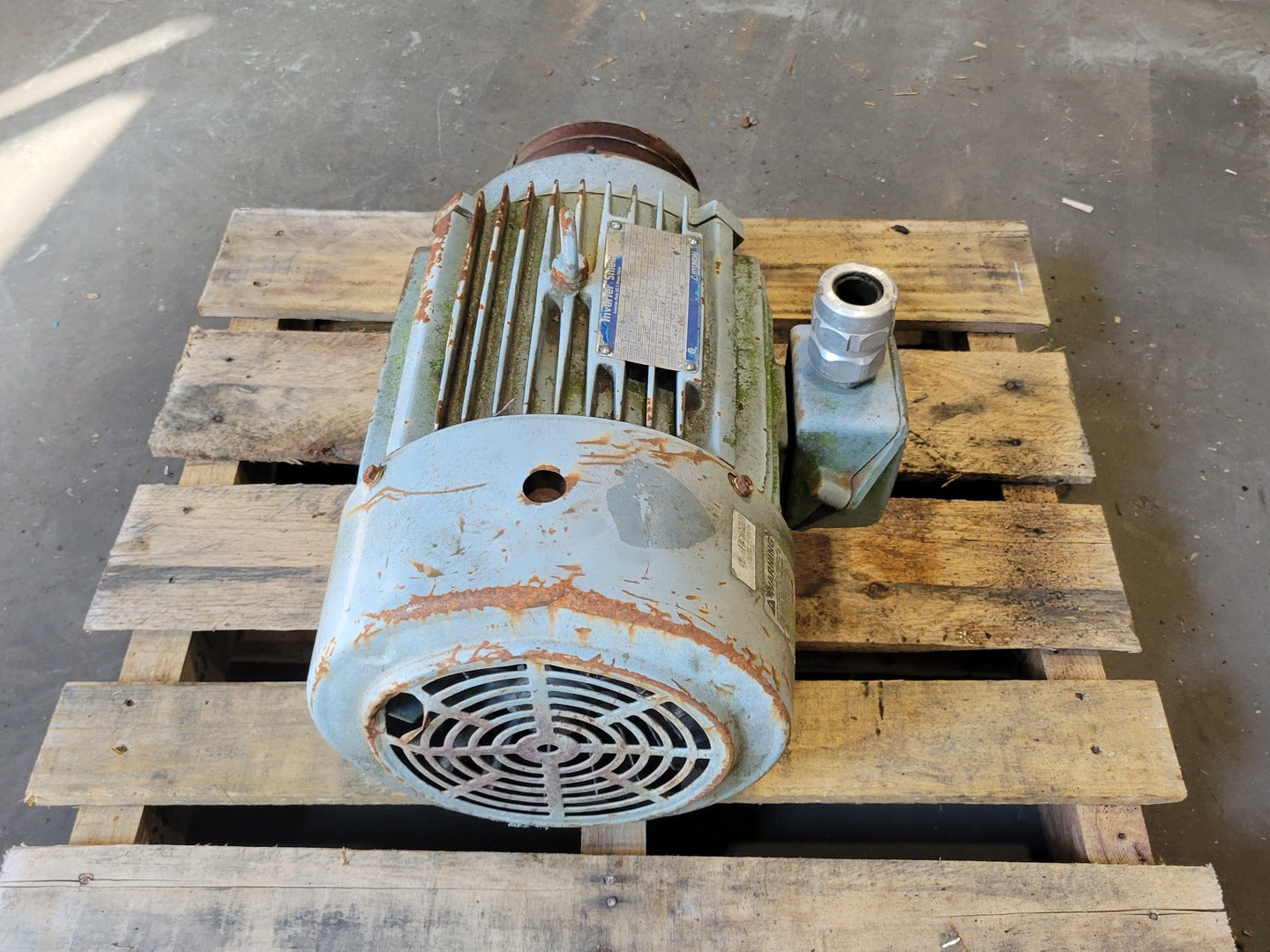

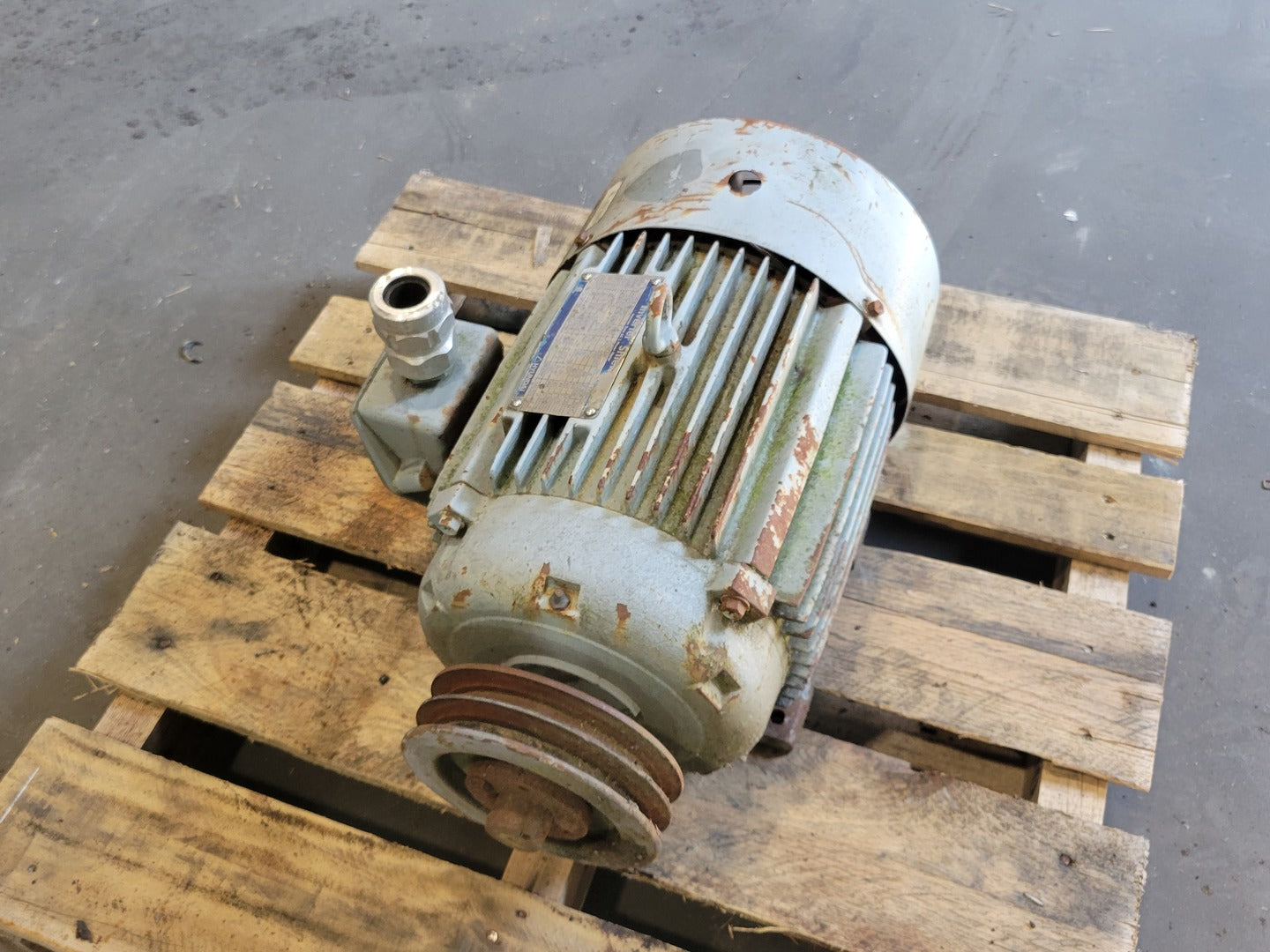

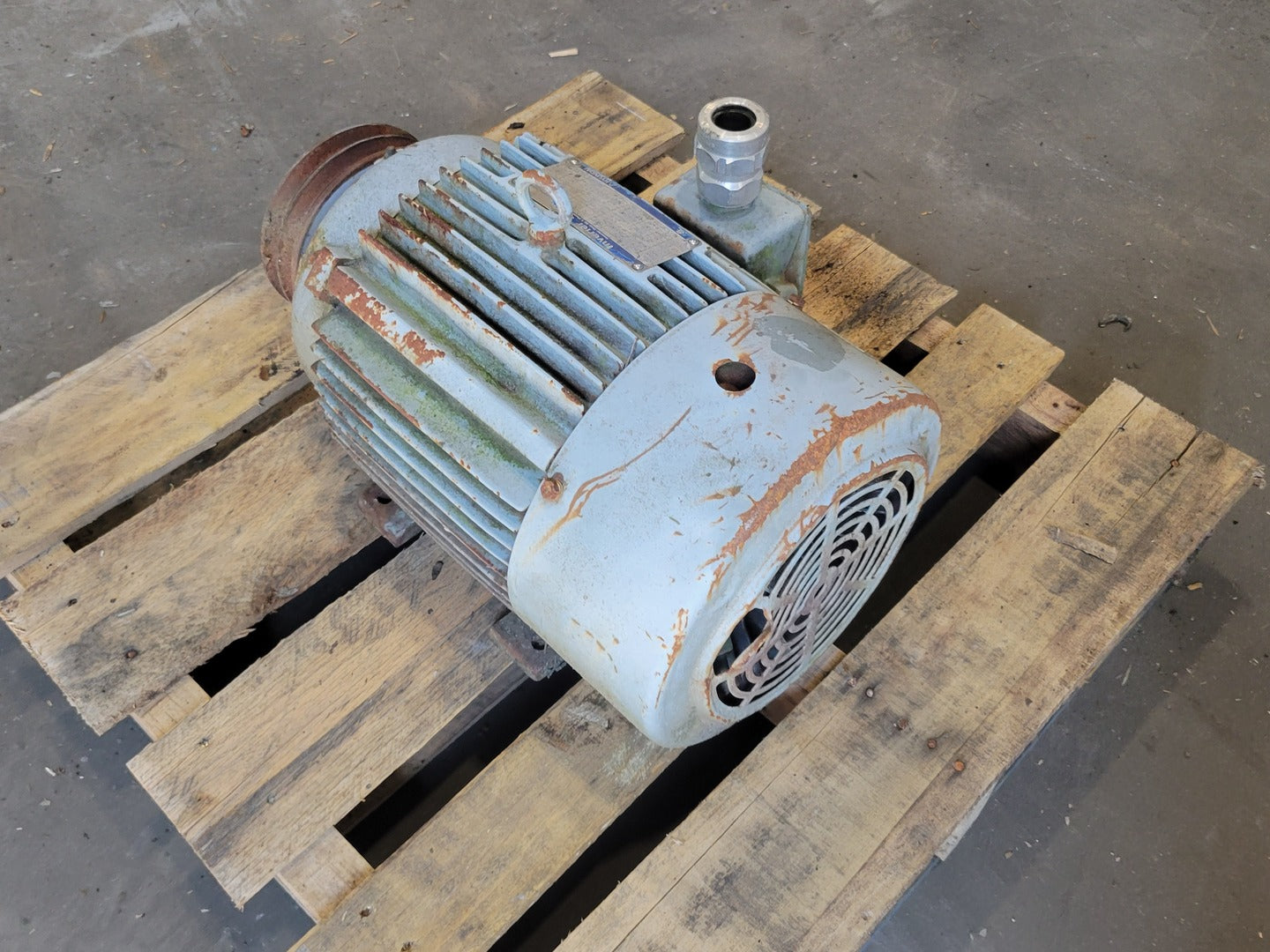

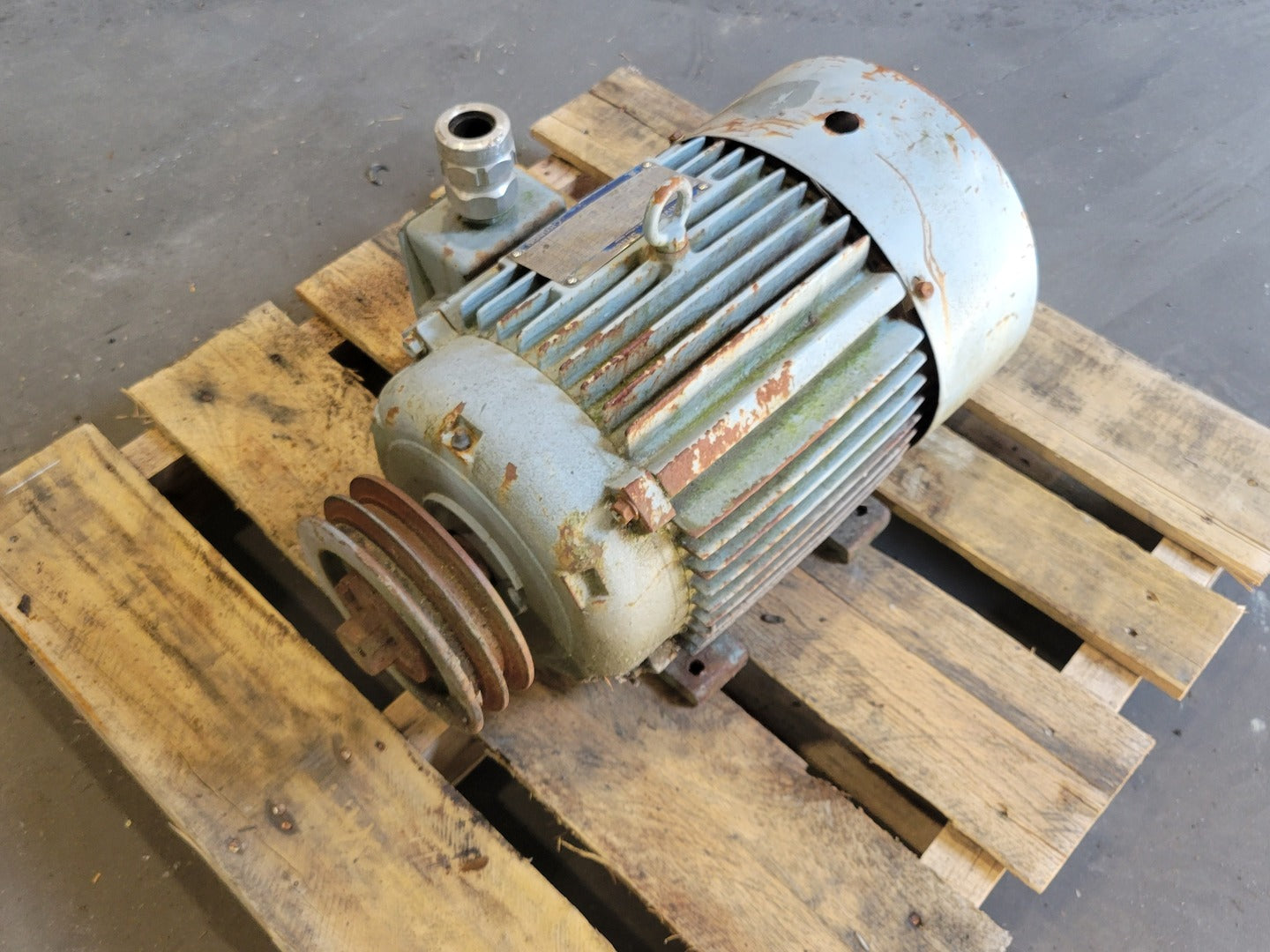

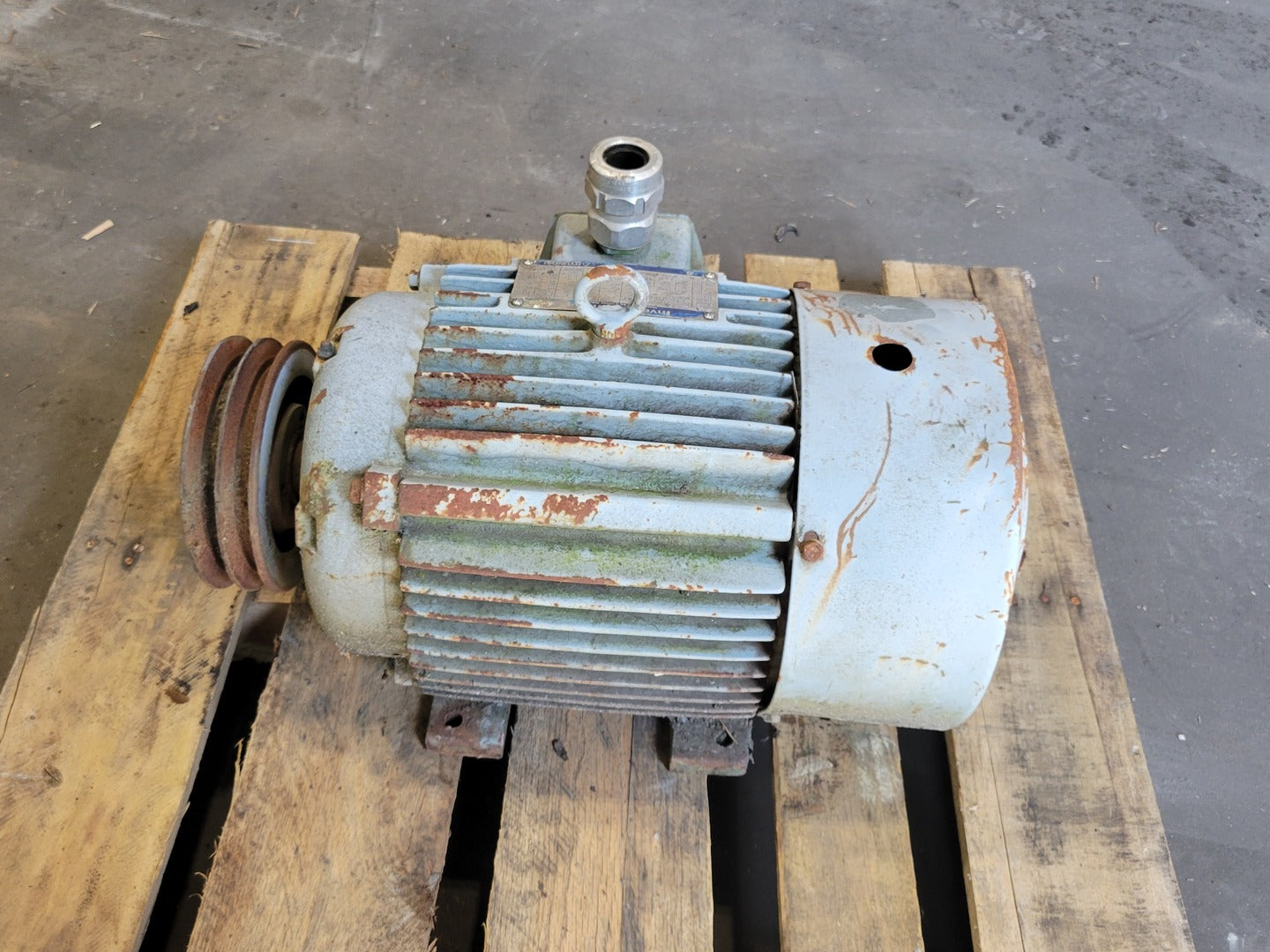

Used Hyundai Heavy Industries inverter-duty three-phase AC motor. Rated 10 HP, 230/460 VAC, 1765 RPM, 215T frame, TEFC enclosure, with a factory-mounted double-groove V-belt pulley. Shows cosmetic rust, paint loss, and surface oxidation consistent with industrial service.
| Specifications | |
|---|---|
| Model | HJS215SR235 |
| Made In | SOUTH KOREA |
| Condition | Used | General |
| Current Type | AC |
| Horsepower | 10 hp |
| Voltage | 230/460 volts |
| Phase | 3-phase |
| RPM | 1765 rpm |
| Frame | 215 | Additional Data |
| Duty | Continuous |
| Other Specifications |
|---|
|

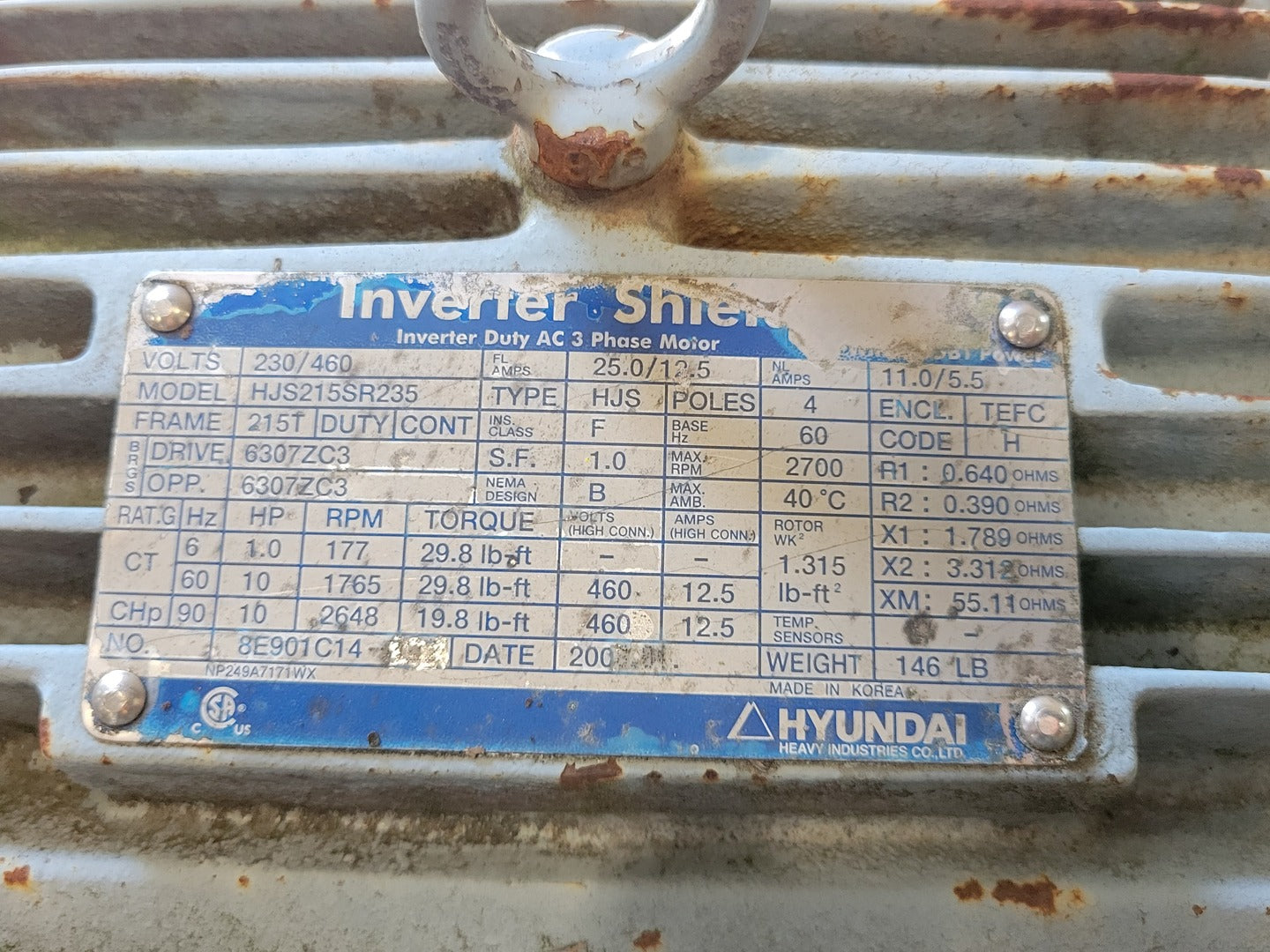

Series: Inverter-Shek Motor Type: Inverter Duty AC Induction Motor Frequency: 60 Hz Maximum Speed: 2700 RPM Poles: 4 Enclosure: TEFC (Totally Enclosed Fan Cooled) Duty: Continuous Insulation Class: F Service Factor: 1.0 NEMA Design: B Code Letter: H Full Load Amps: 25.0 / 12.5 A Rotor WK:1.315 lb-ft2 Rated Torque: 29.8 lb-ft Ambient Temperature: 40°C Max Weight: 146 lb (66 kg) Mounting: Foot Mount Pulley: Double-groove V-belt pulley installed |
