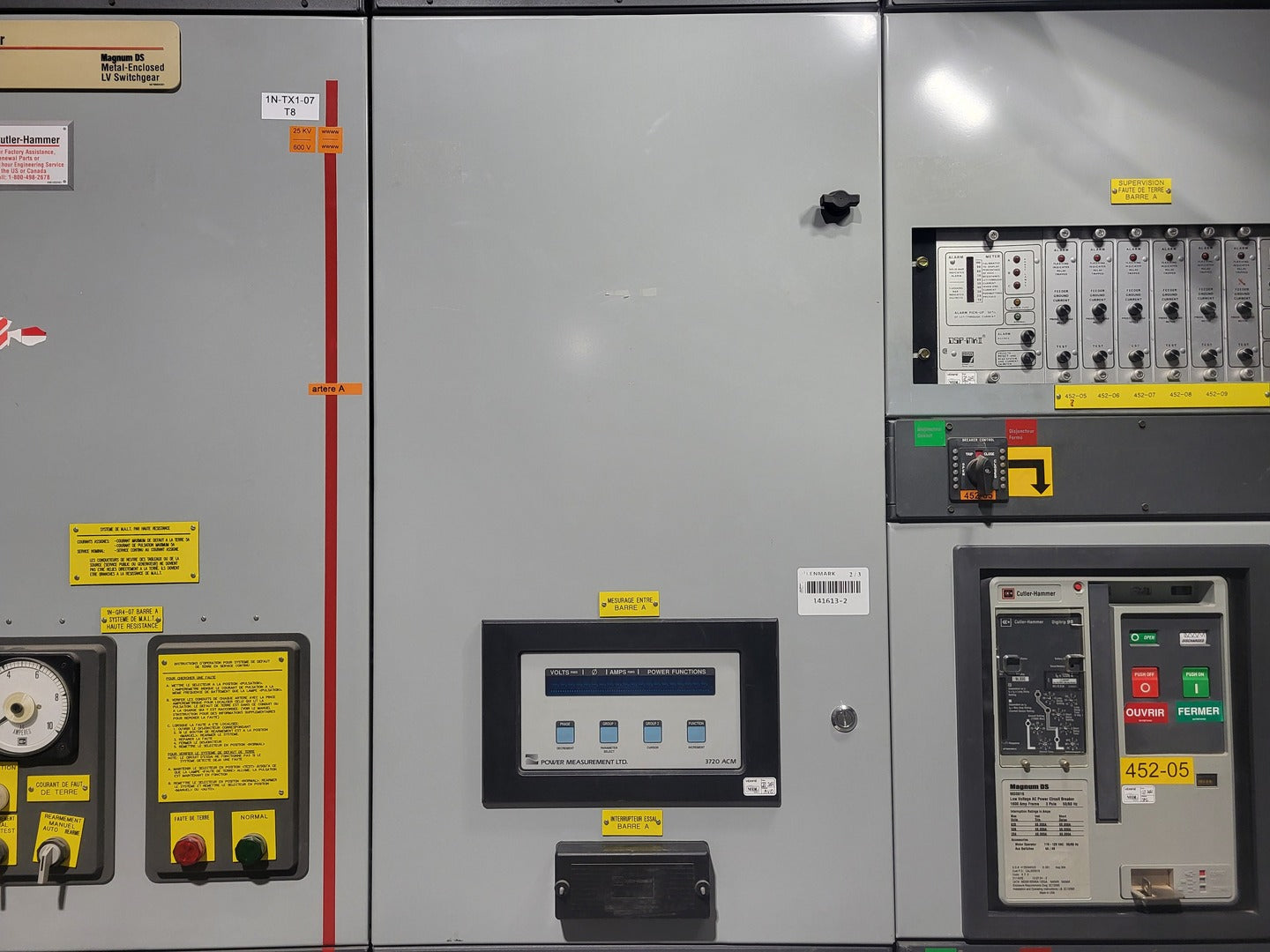

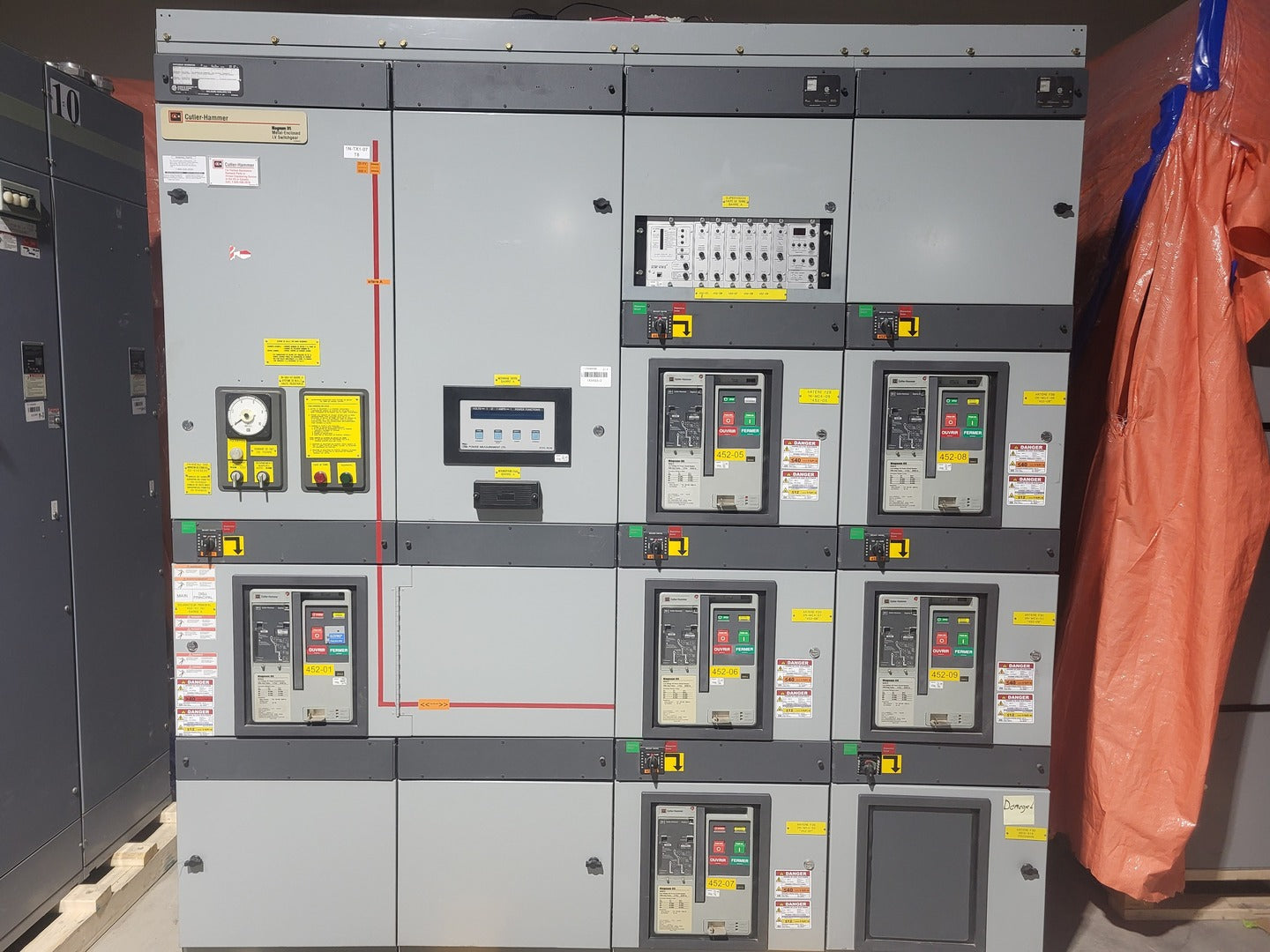

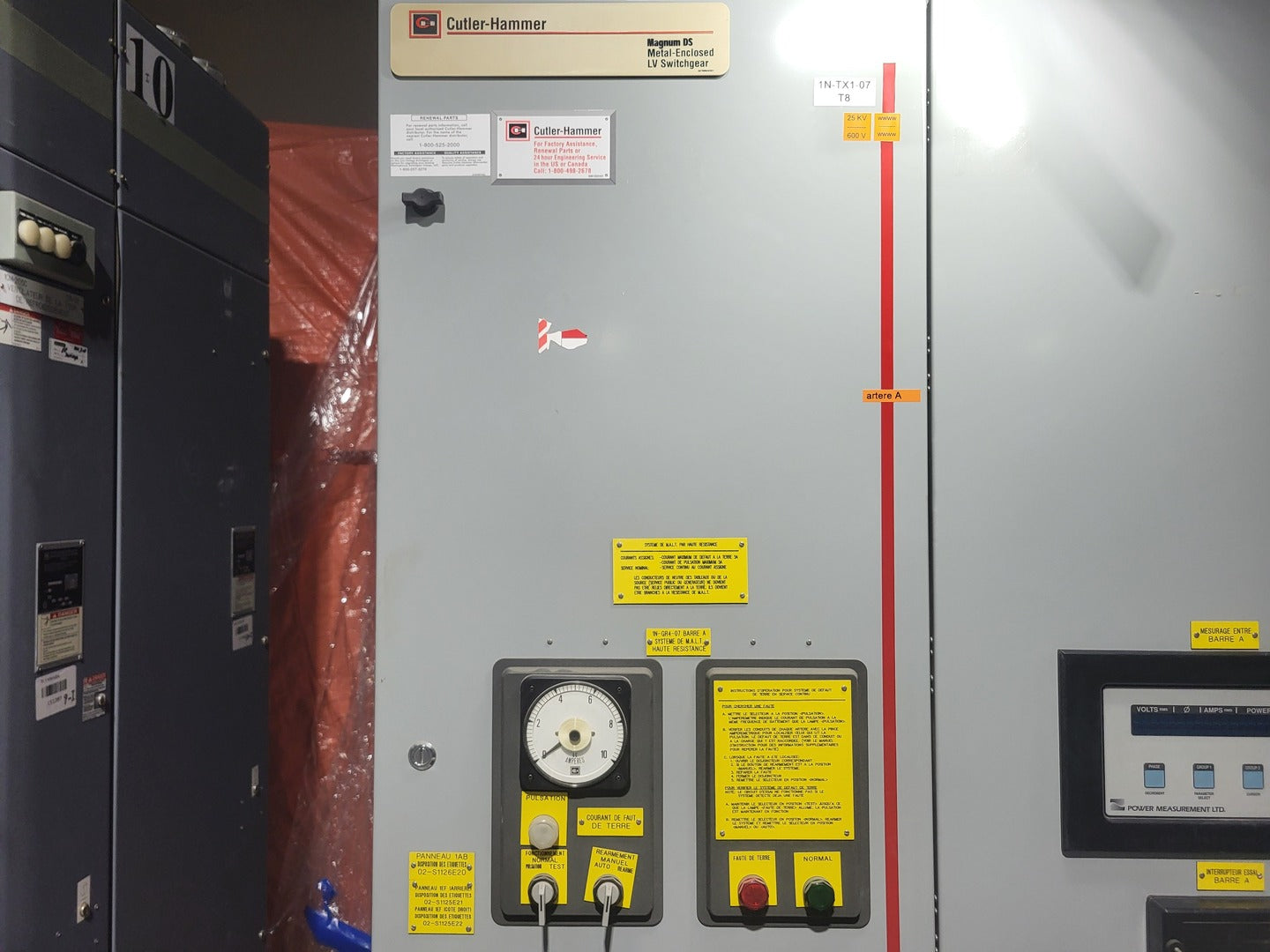

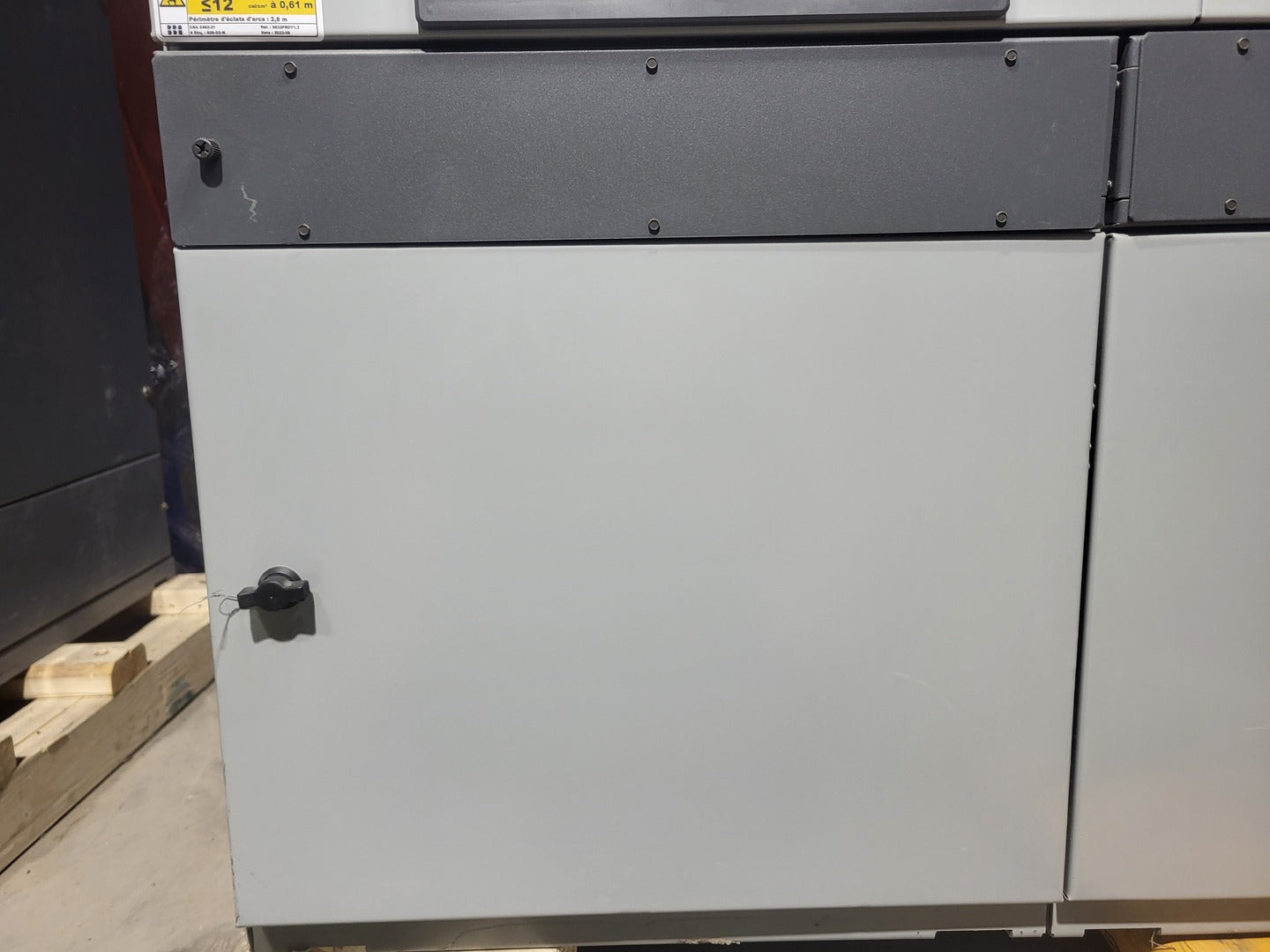

Low Voltage PDC / Switchgear Section, (1) 4000A, (5) 1200A Magnum DS Breakers, 600V 3PH

SKU: 153871
Precio:
$167,831

Gastos de envío calculados en la caja

Stock:
Solo queda 1 unidad
Make an Offer

¿Necesita una respuesta ahora?

Finance

Amount:
Email Finance

Descripción

Year: 2002
Made In UNITED STATES
Condition Used
General
Voltage 600 volts
Frequency 60 Hz
Phase 3-phase
Amps 4000 amps
Other Specifications

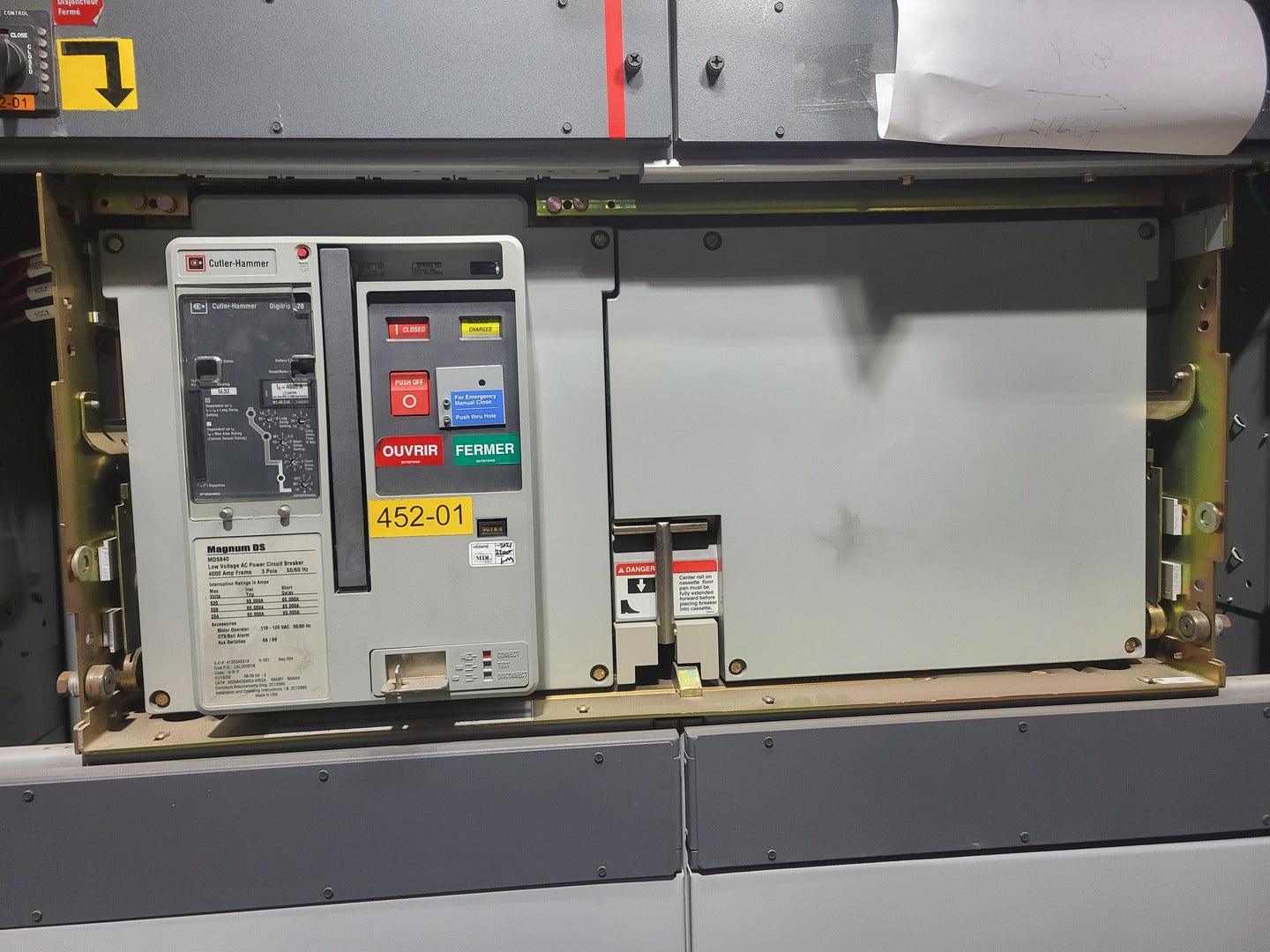

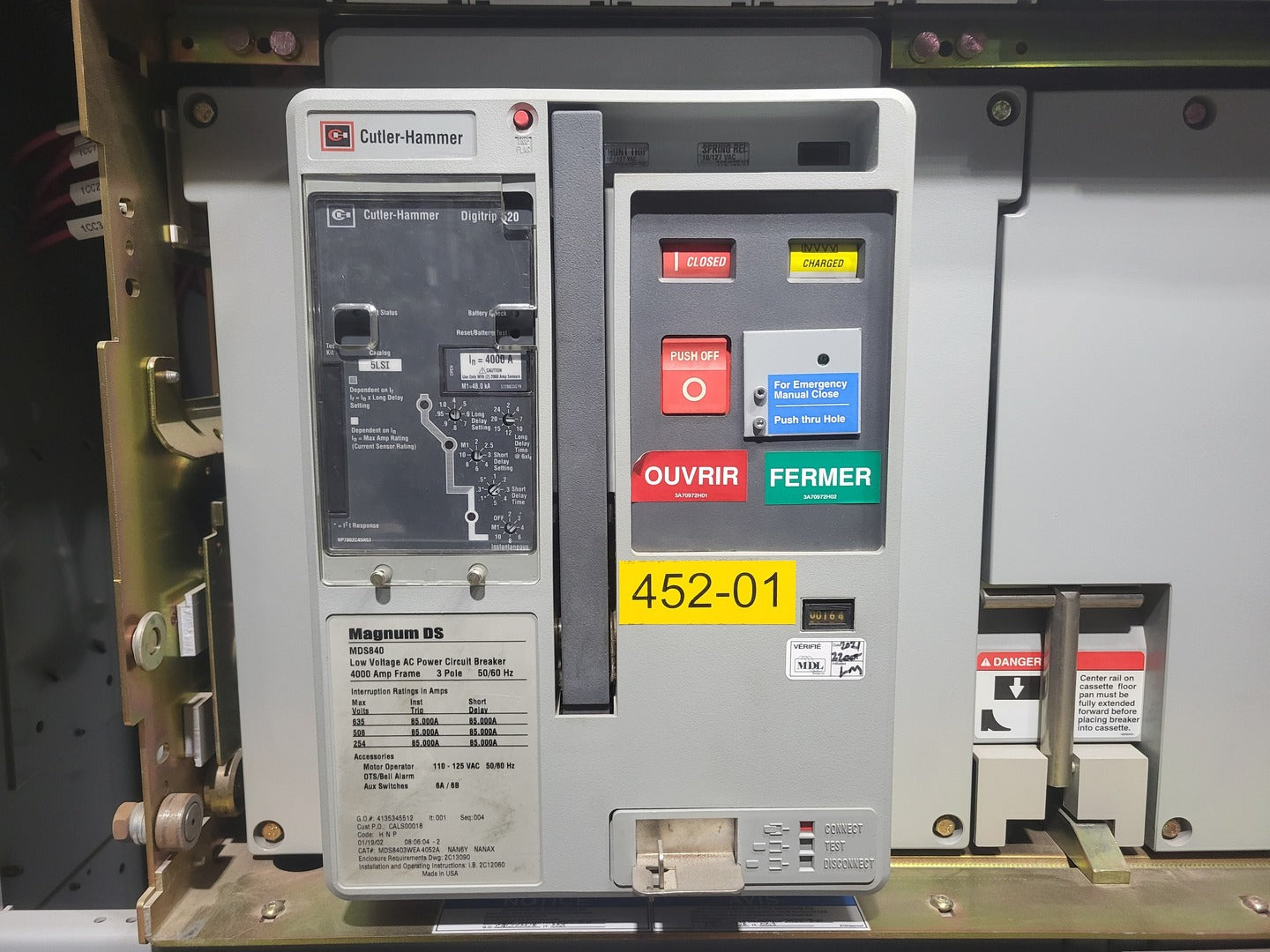

Main Breaker - 4000A (1 x unit)

Model: MDS840

Series: Magnum DS

Specs:

  1. Frame Size: 4000 Amp
  2. Poles: 3 Pole
  3. Voltage: 600V Class
  4. Interrupting Rating:
  5. 85 kA @ 635V
  6. 85 kA @ 508V
  7. 85 kA @ 254V
  8. Trip Unit: Digitrip 520
  9. Protection: LSI (Long, Short, Instantaneous)

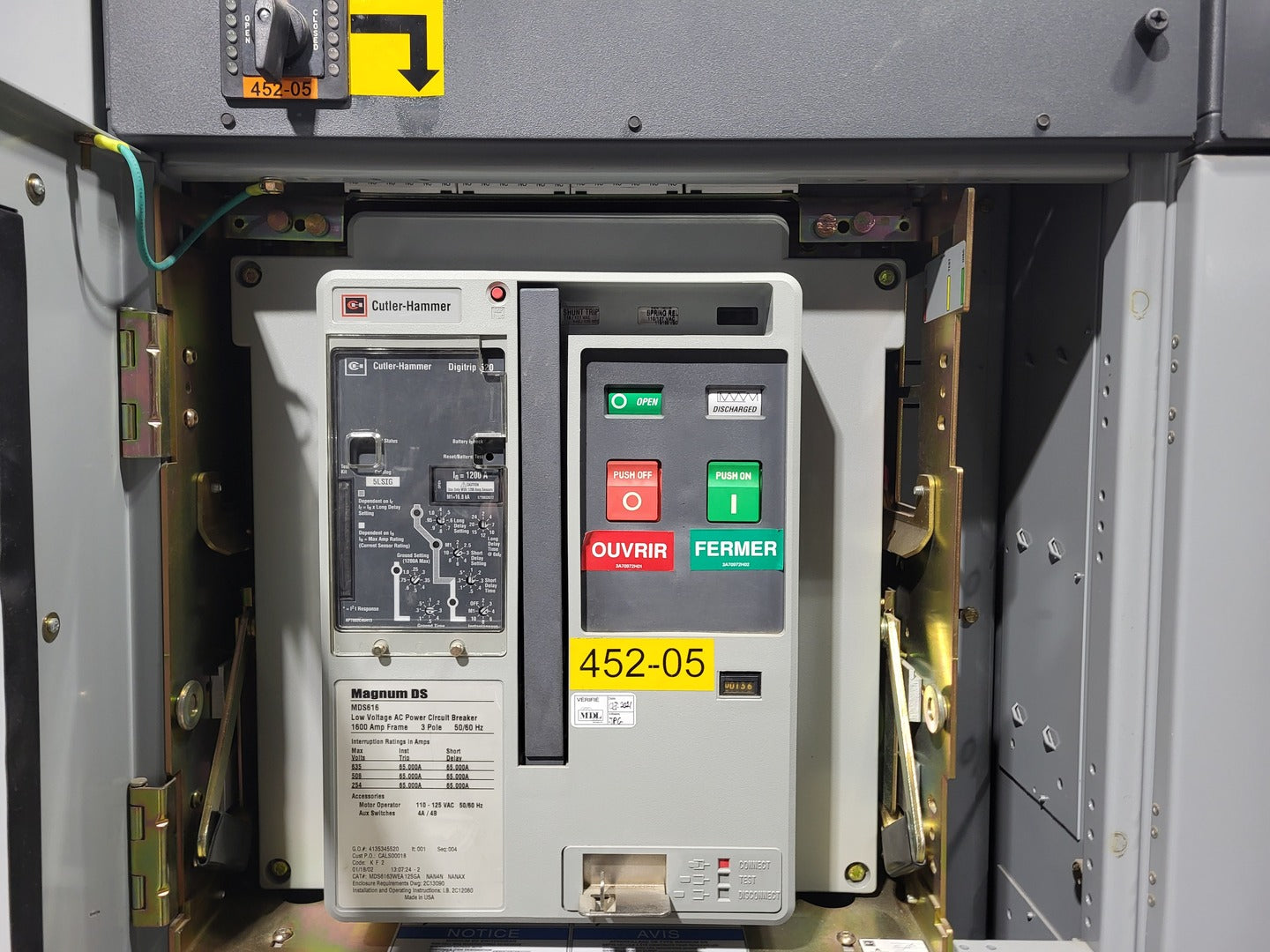

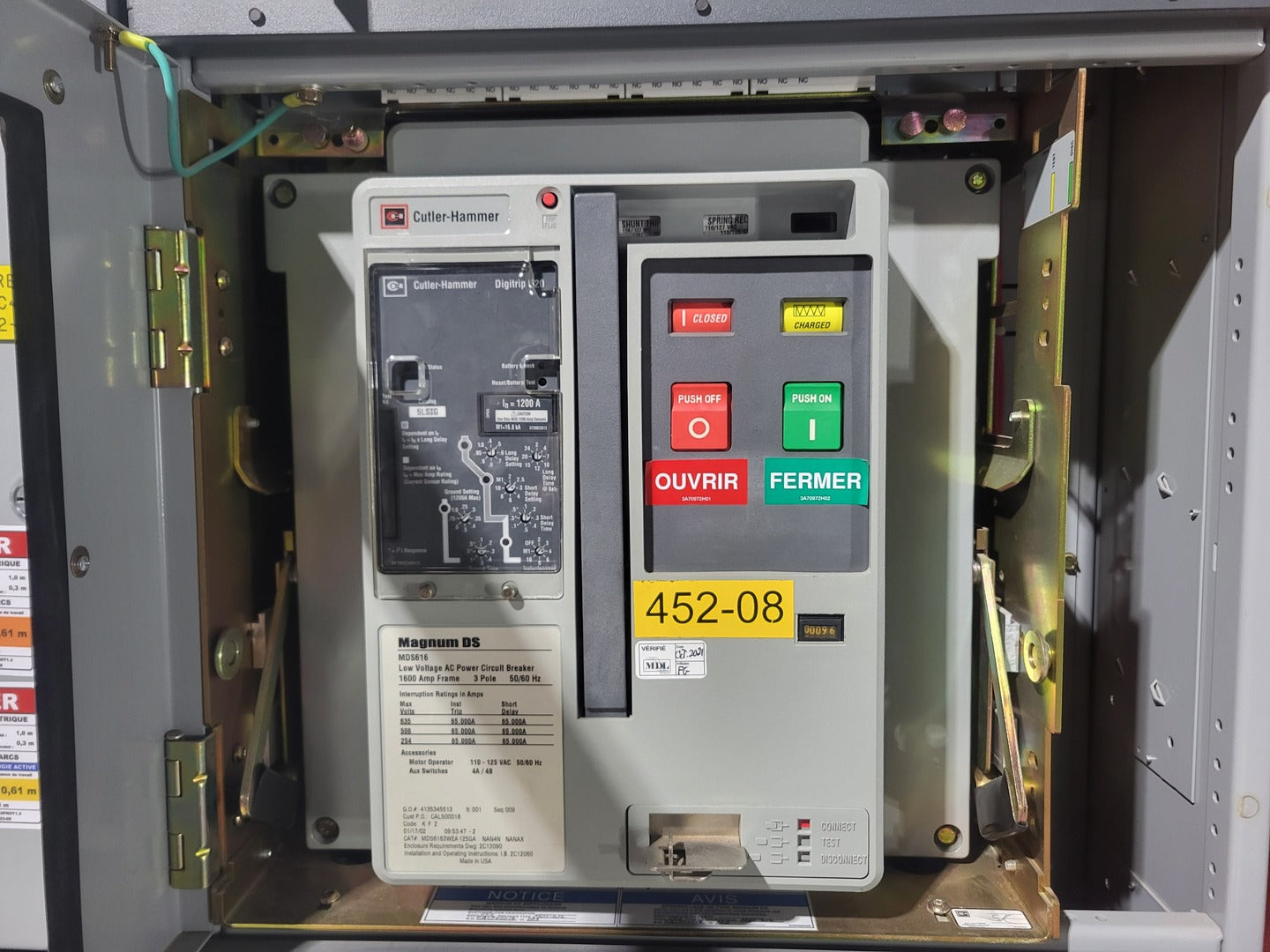

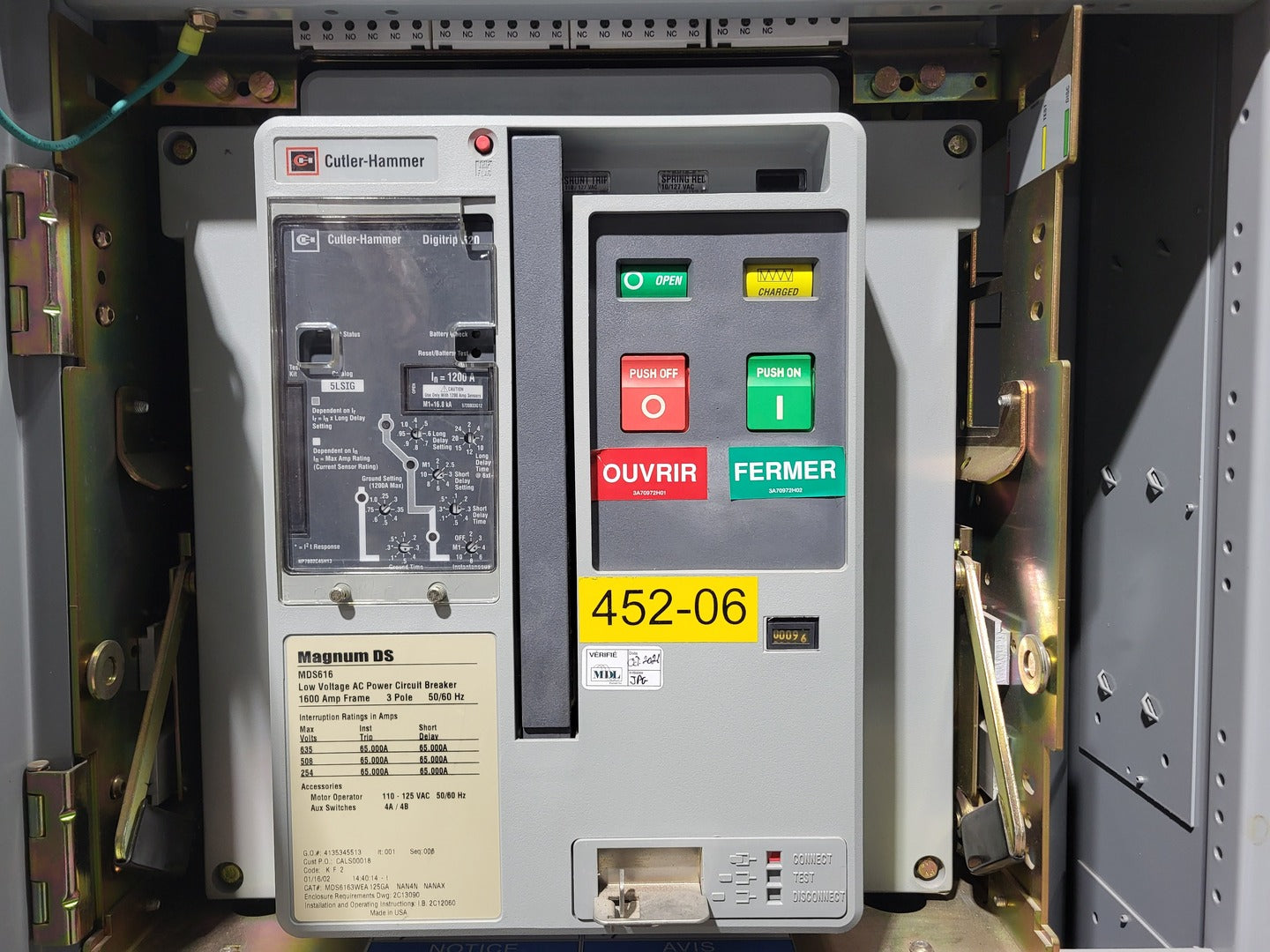

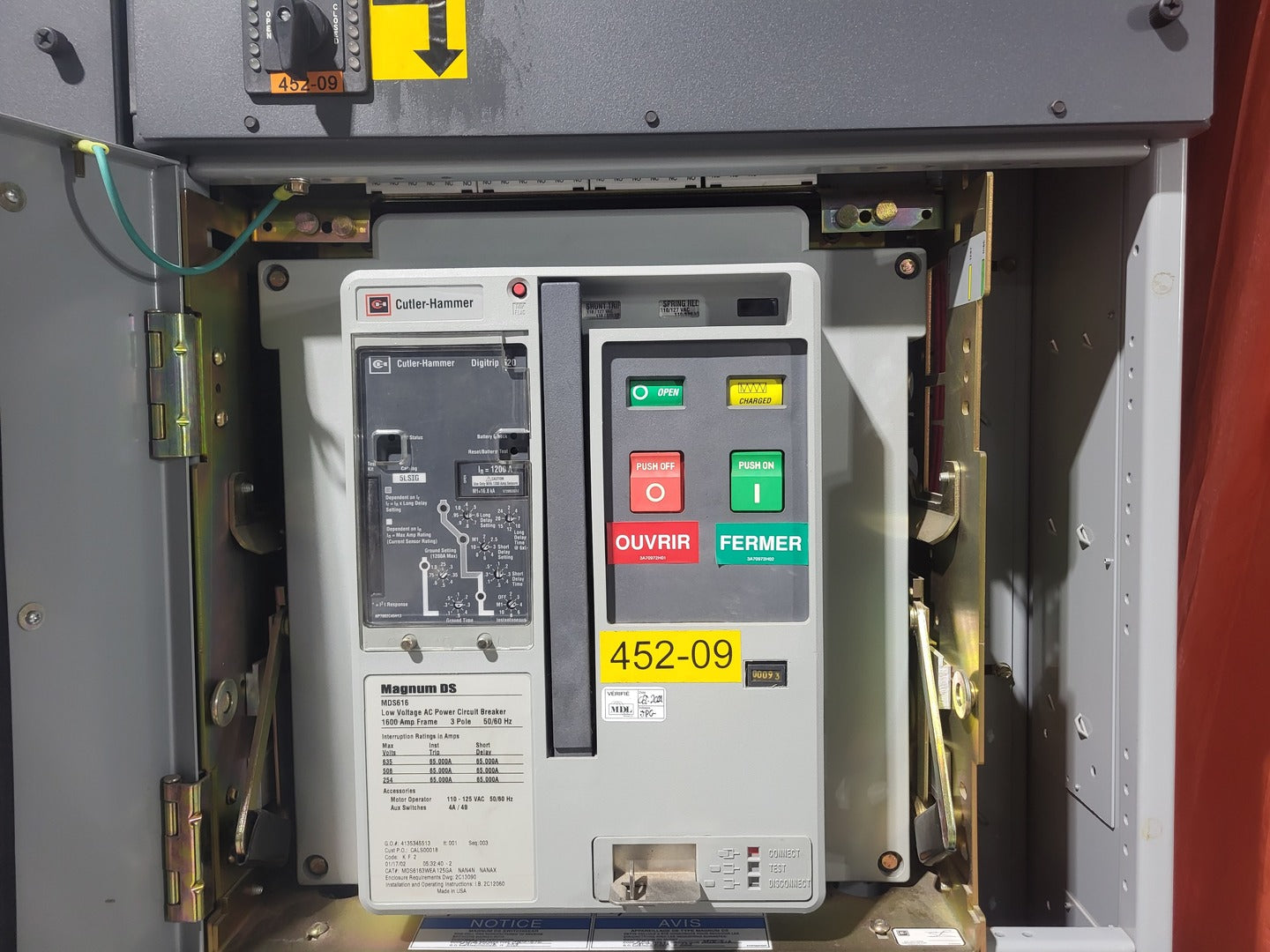

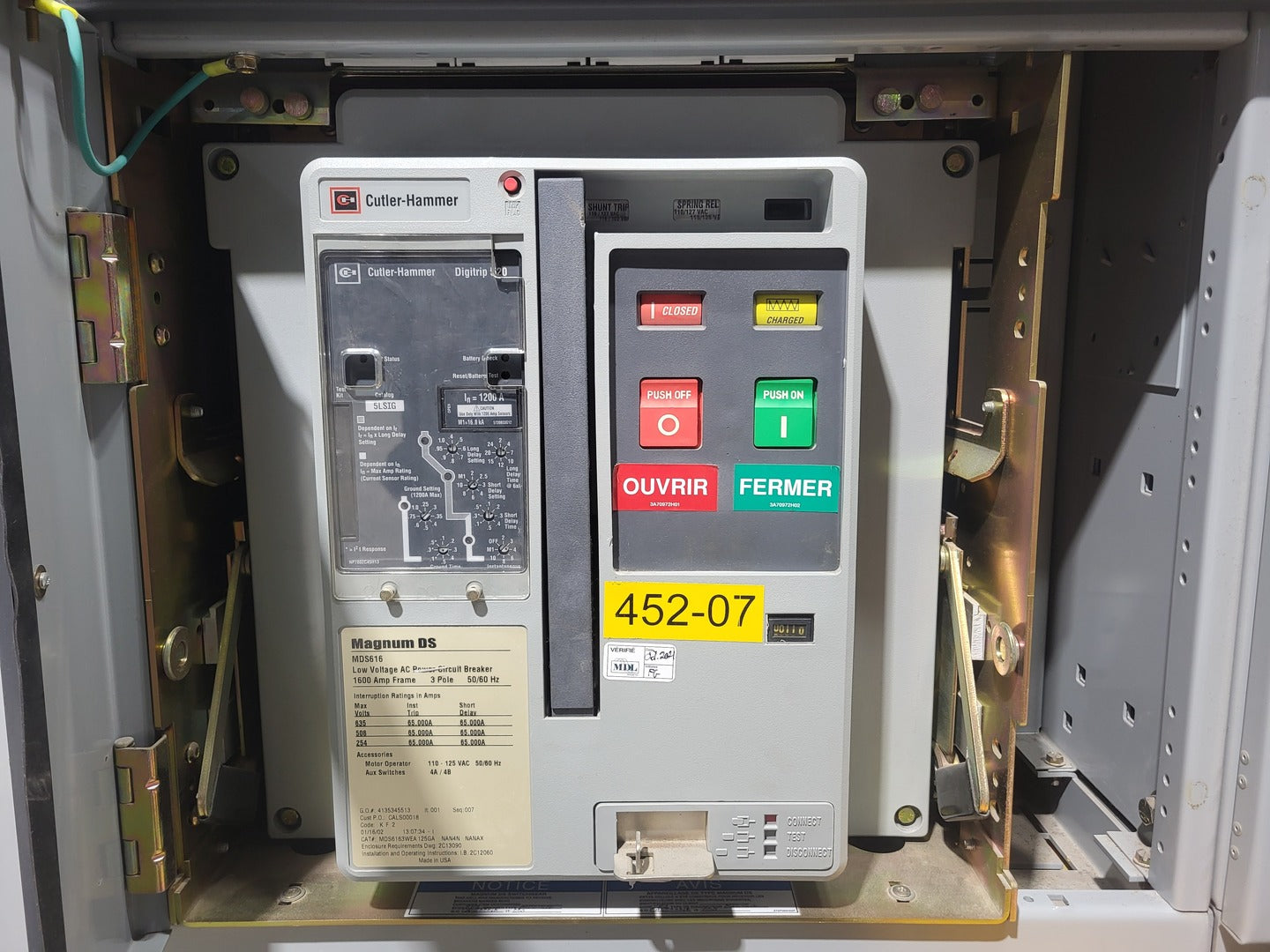

Feeder Breakers - 1200A (5 x units)

Model: MDS616

Series: Magnum DS

Specs:

  1. Frame Size: 1600 Amp
  2. Poles: 3 Pole
  3. Voltage: 600V Class
  4. Interrupting Rating:
  5. 65 kA @ 635V
  6. 65 kA @ 508V
  7. 65 kA @ 254V
  8. Trip Unit: Digitrip 520
  9. Protection: LSIG (Long, Short, Instantaneous, Ground Fault)
