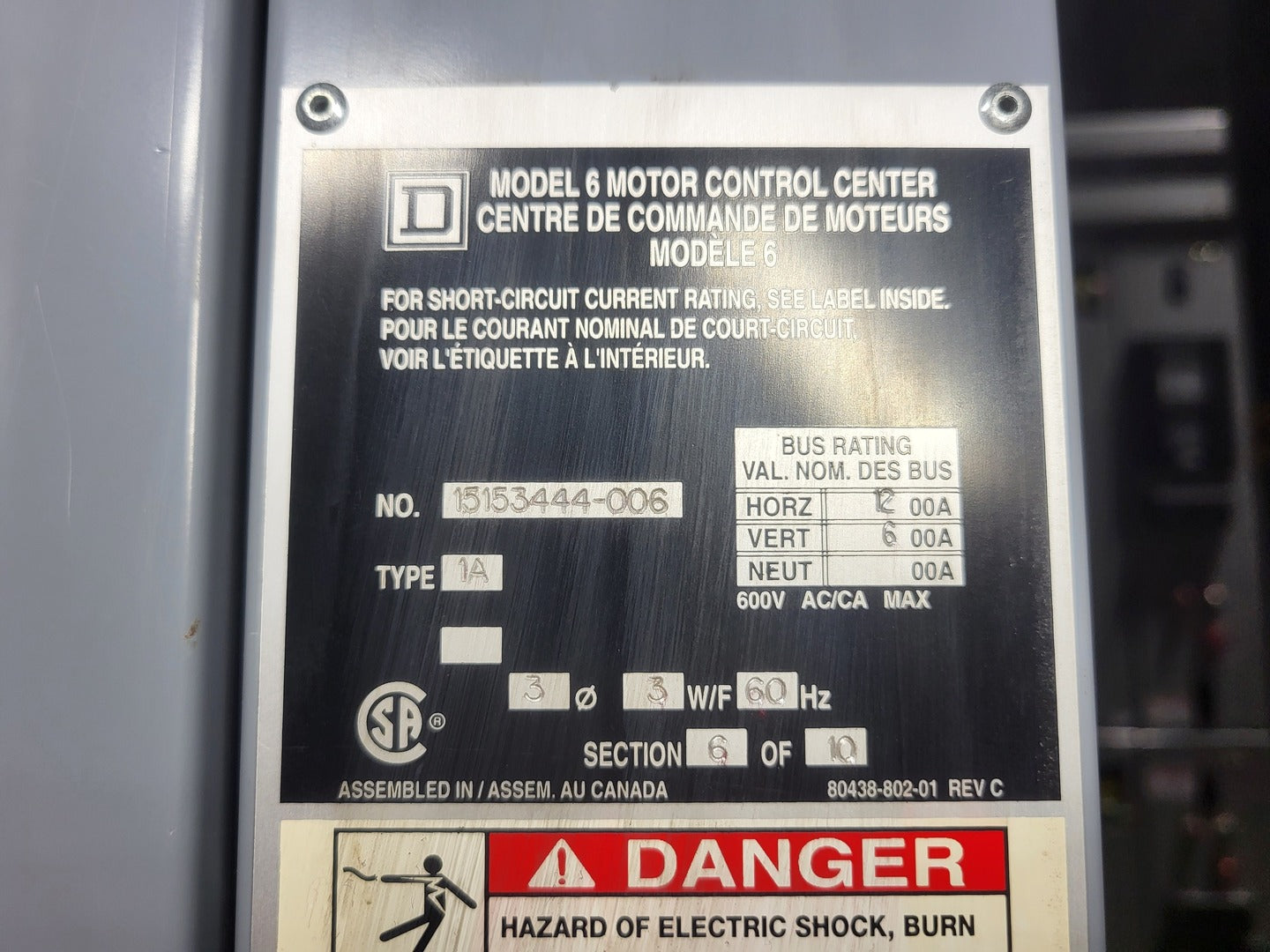

SQUARE D Model 6 Motor Control Center MCC Section, 600V, 3PH, 1200A Bus
SQUARE D

Model 6 Motor Control Center MCC Section, 600V, 3PH, 1200A Bus

SKU: 151921
Precio:
$5,960

Gastos de envío calculados en la caja

Stock:
Solo queda 1 unidad
Make an Offer

¿Necesita una respuesta ahora?

604-449-1880

Descripción

Square D Model 6 motor control center section rated for 600V, 3-phase power distribution. This MCC column includes multiple motor starter buckets with Motor Logic Plus protection modules, fused disconnects, control transformer, and Schneider Electric communication components. Ideal for industrial motor control systems, pump stations, processing plants, and heavy industrial electrical distribution.
Specifications
Model Model 6
Condition Used
Other Specifications

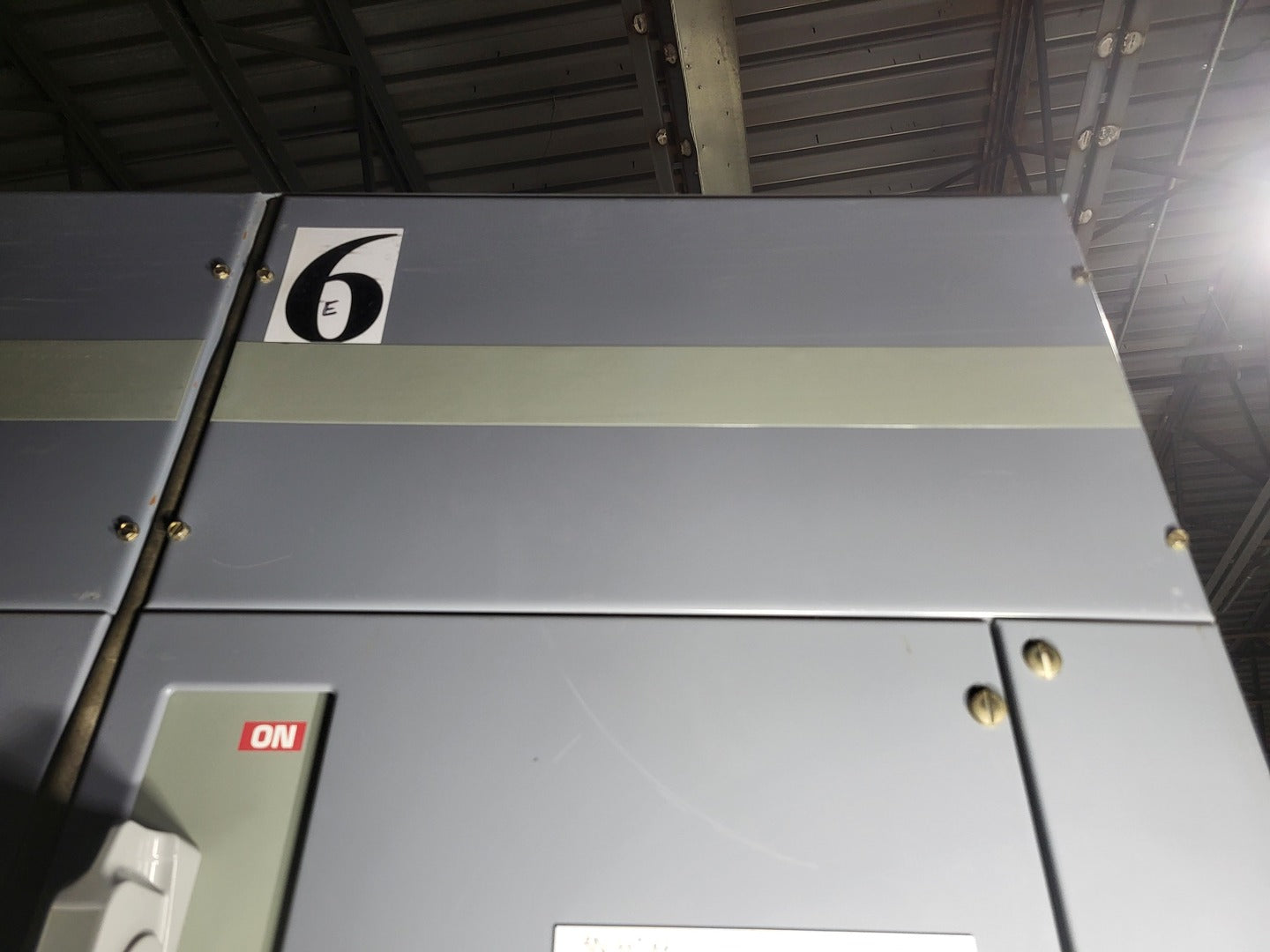

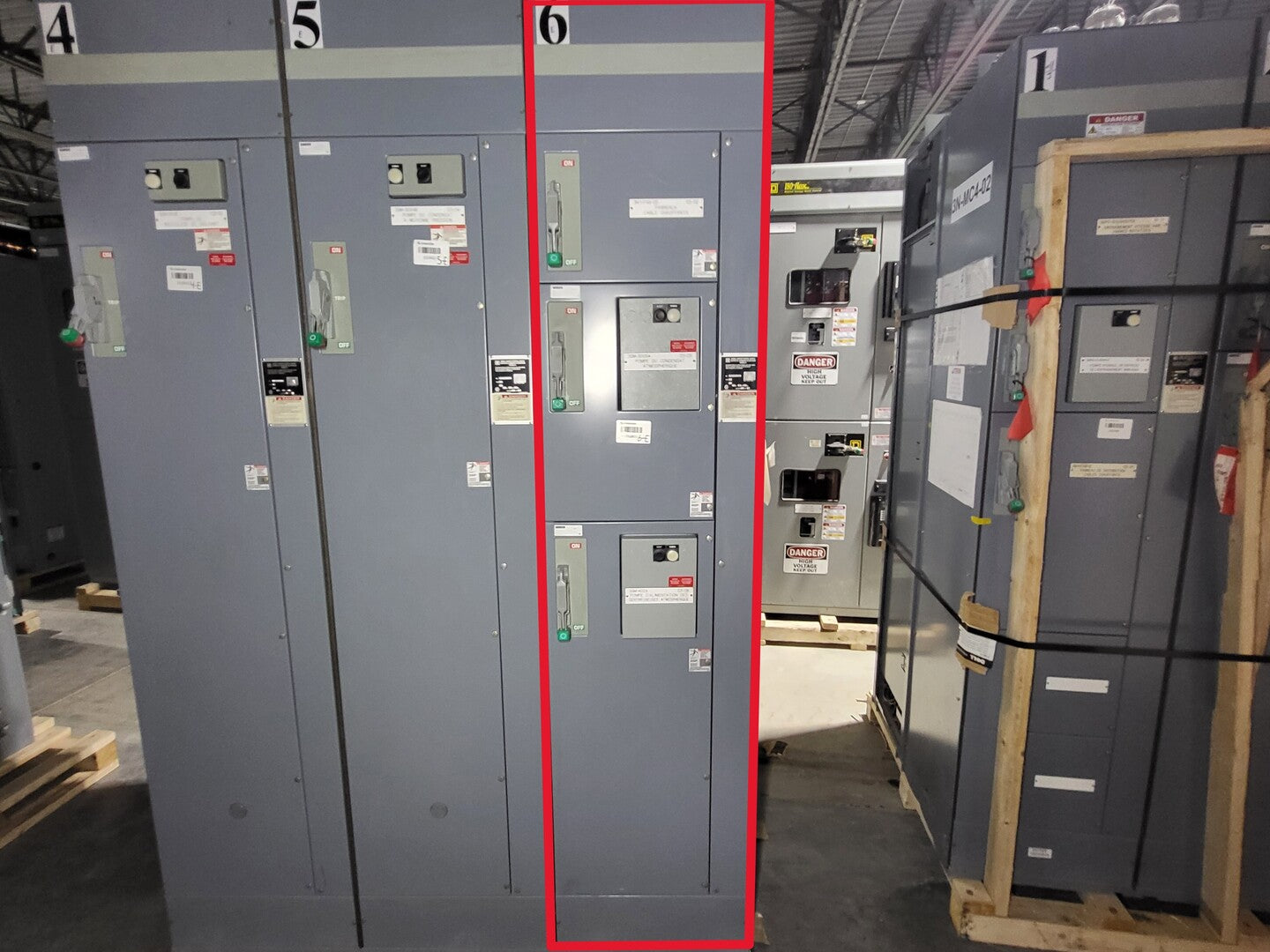

Note: Section 6 only

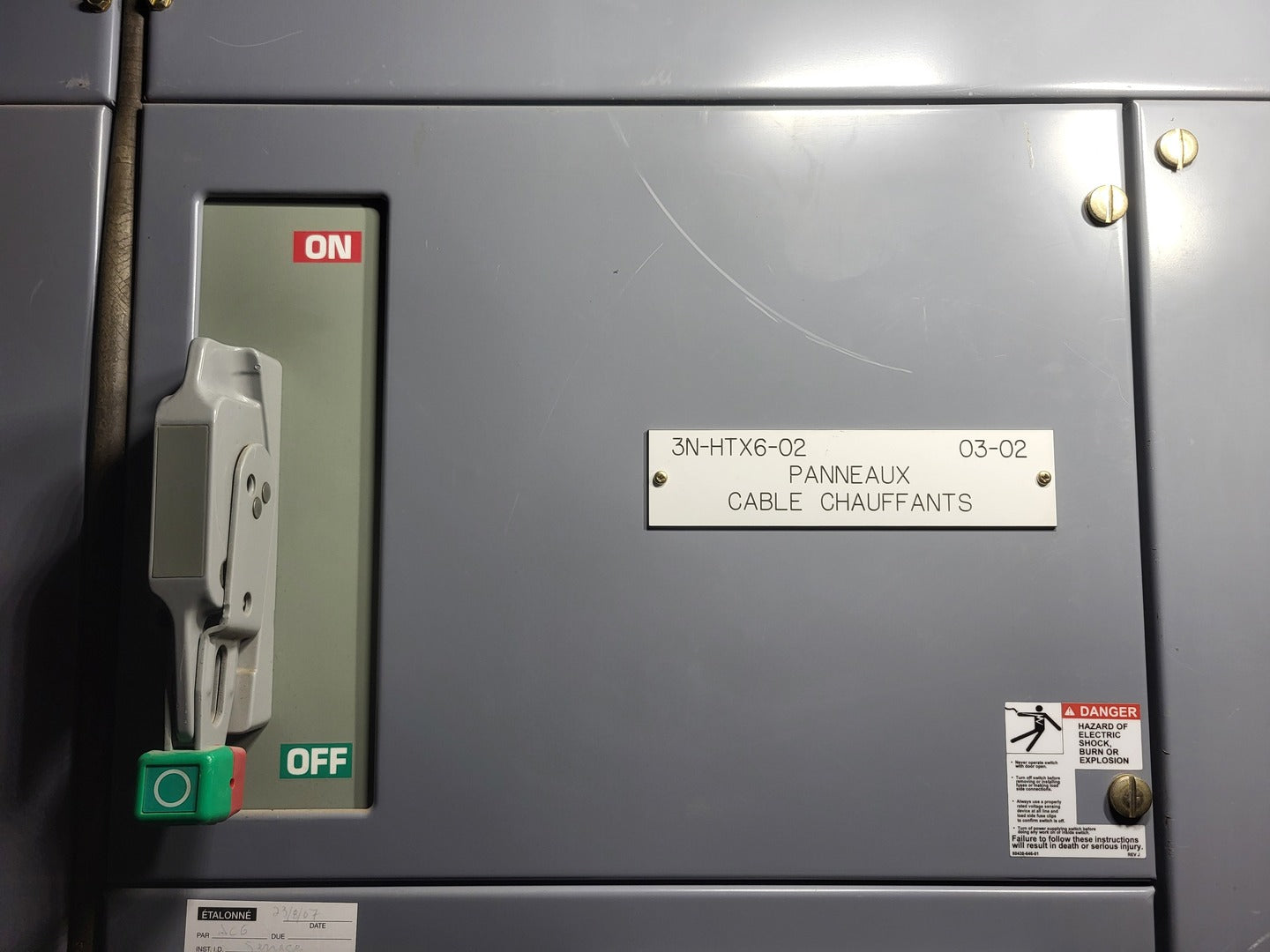

Bucket #1 3N-HTX6-02

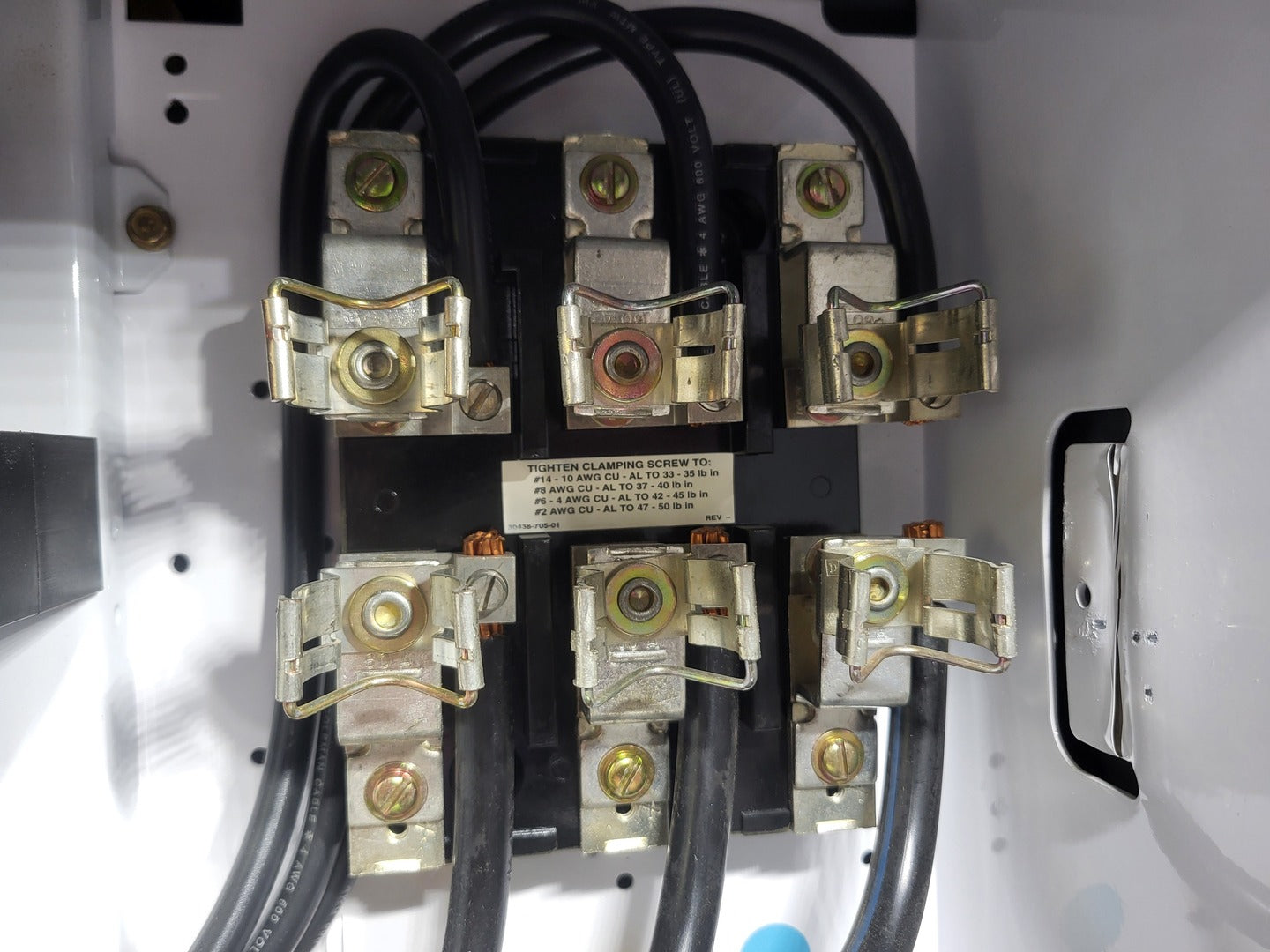

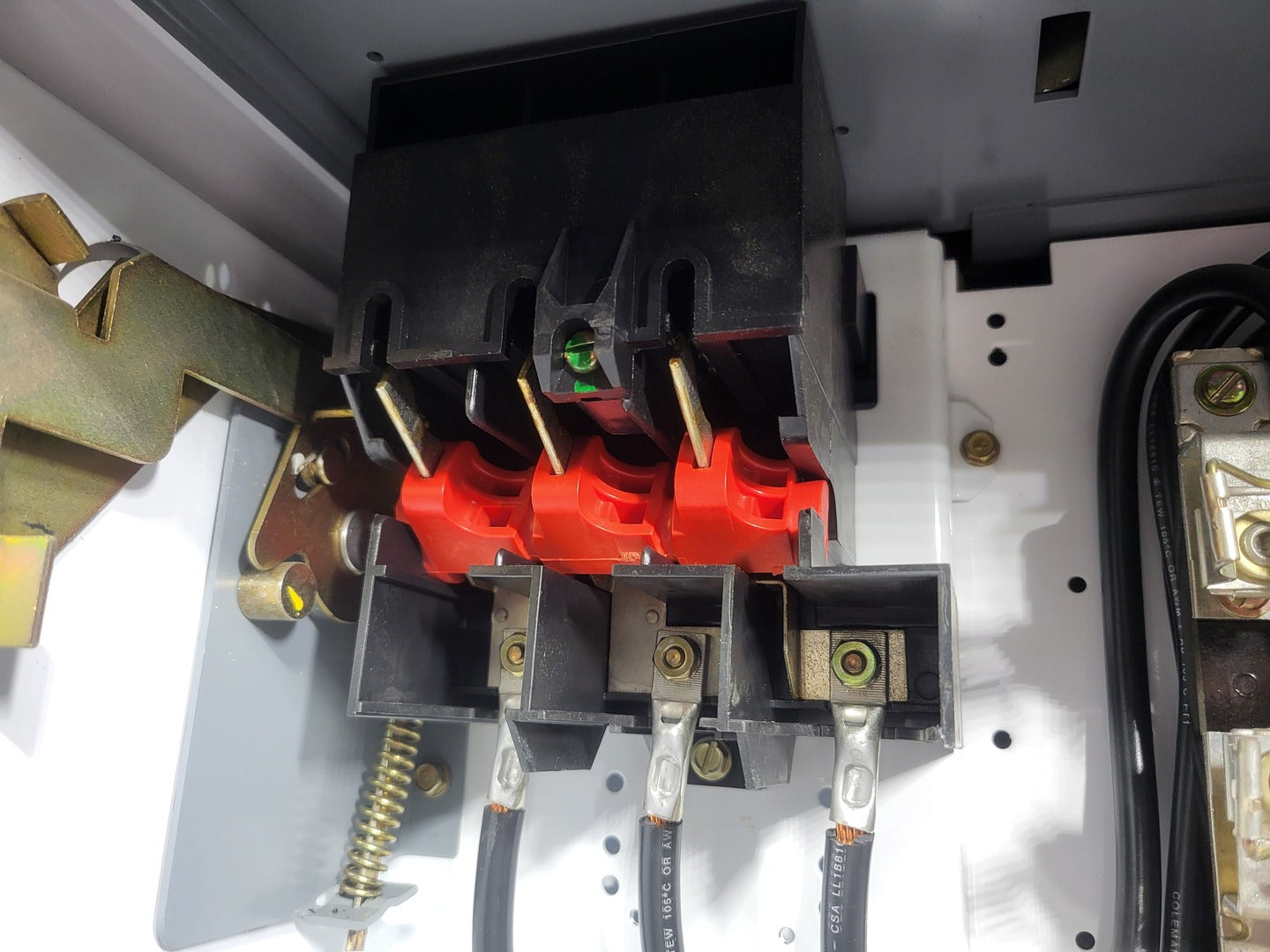

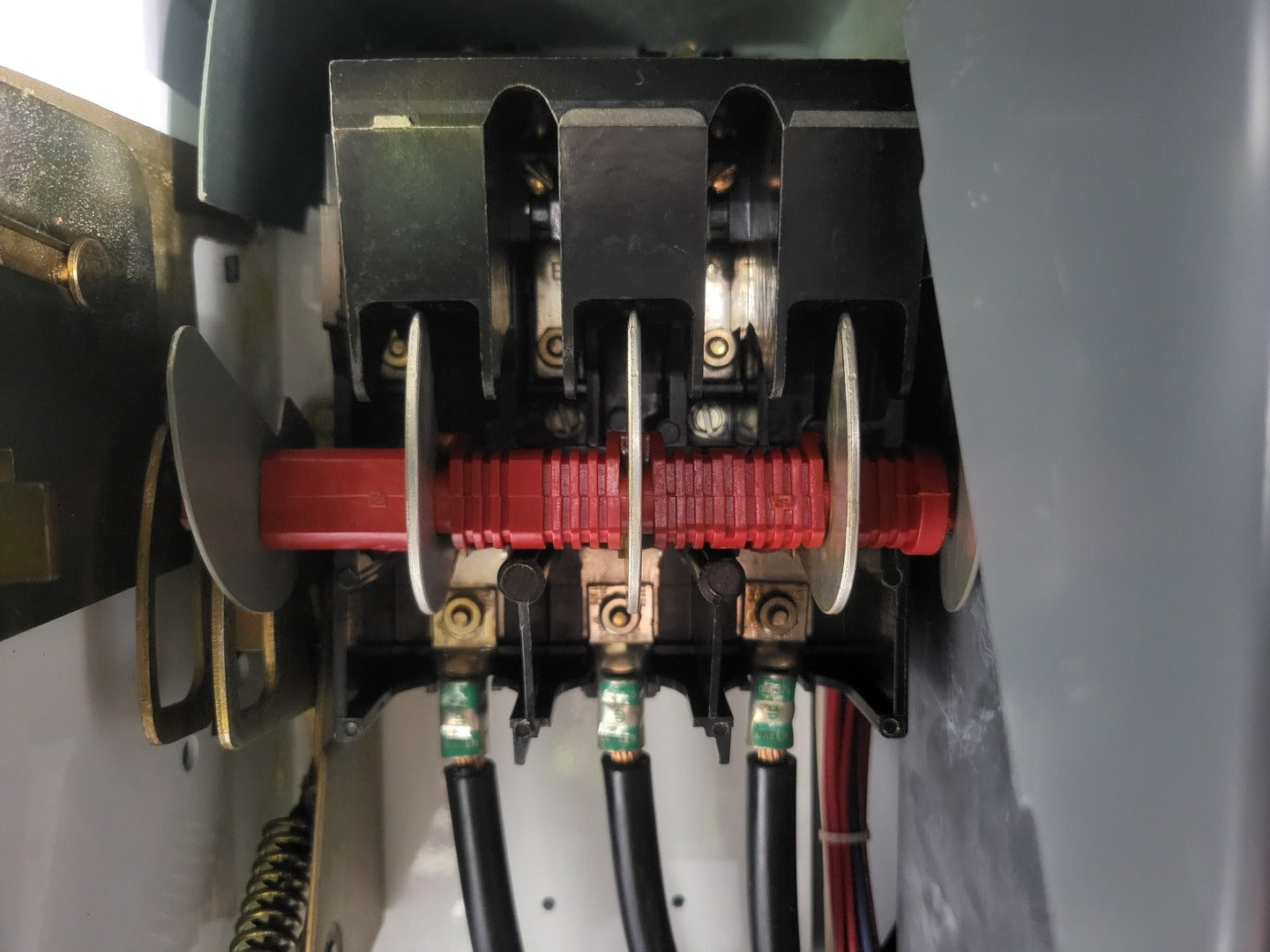

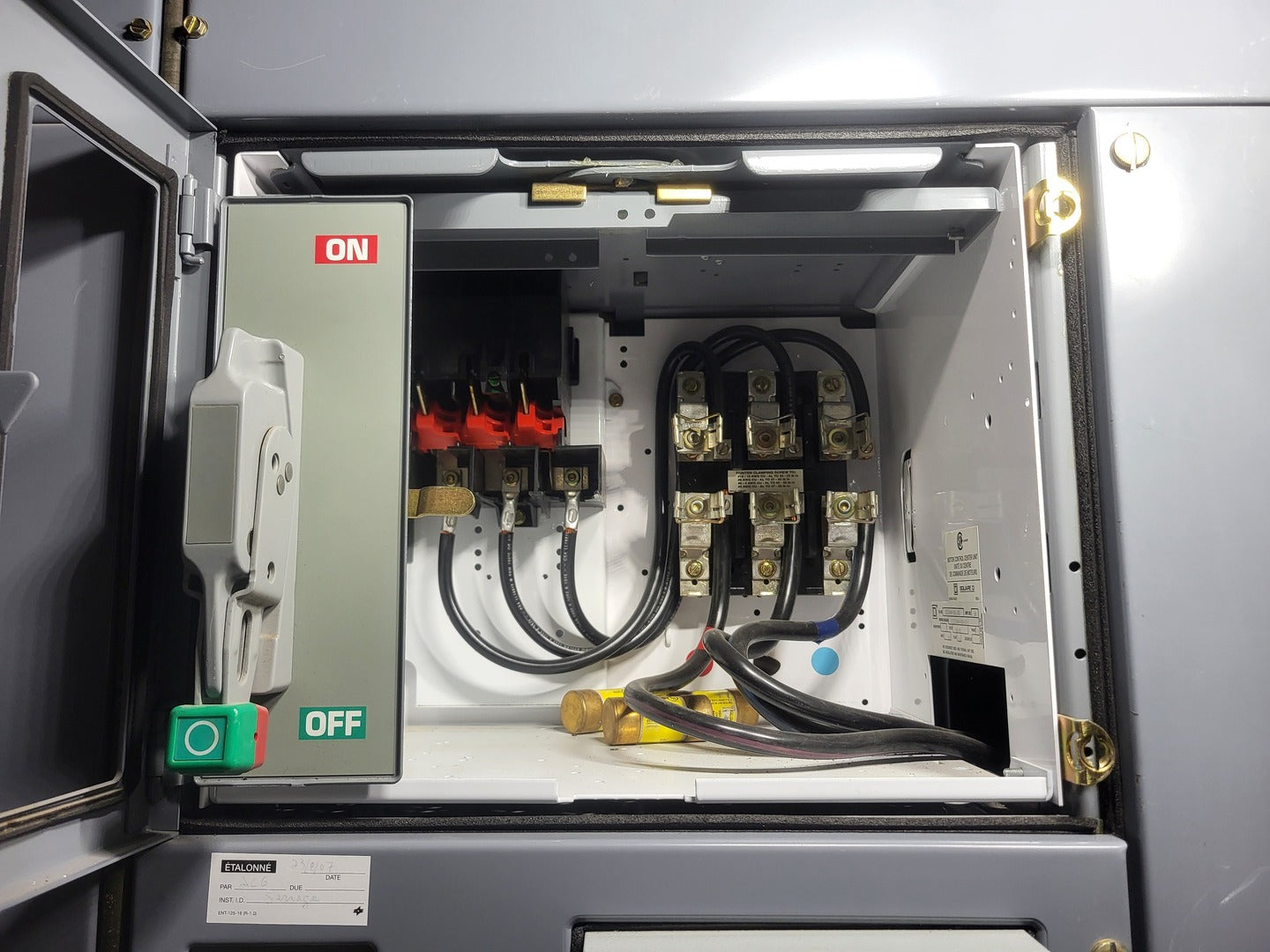

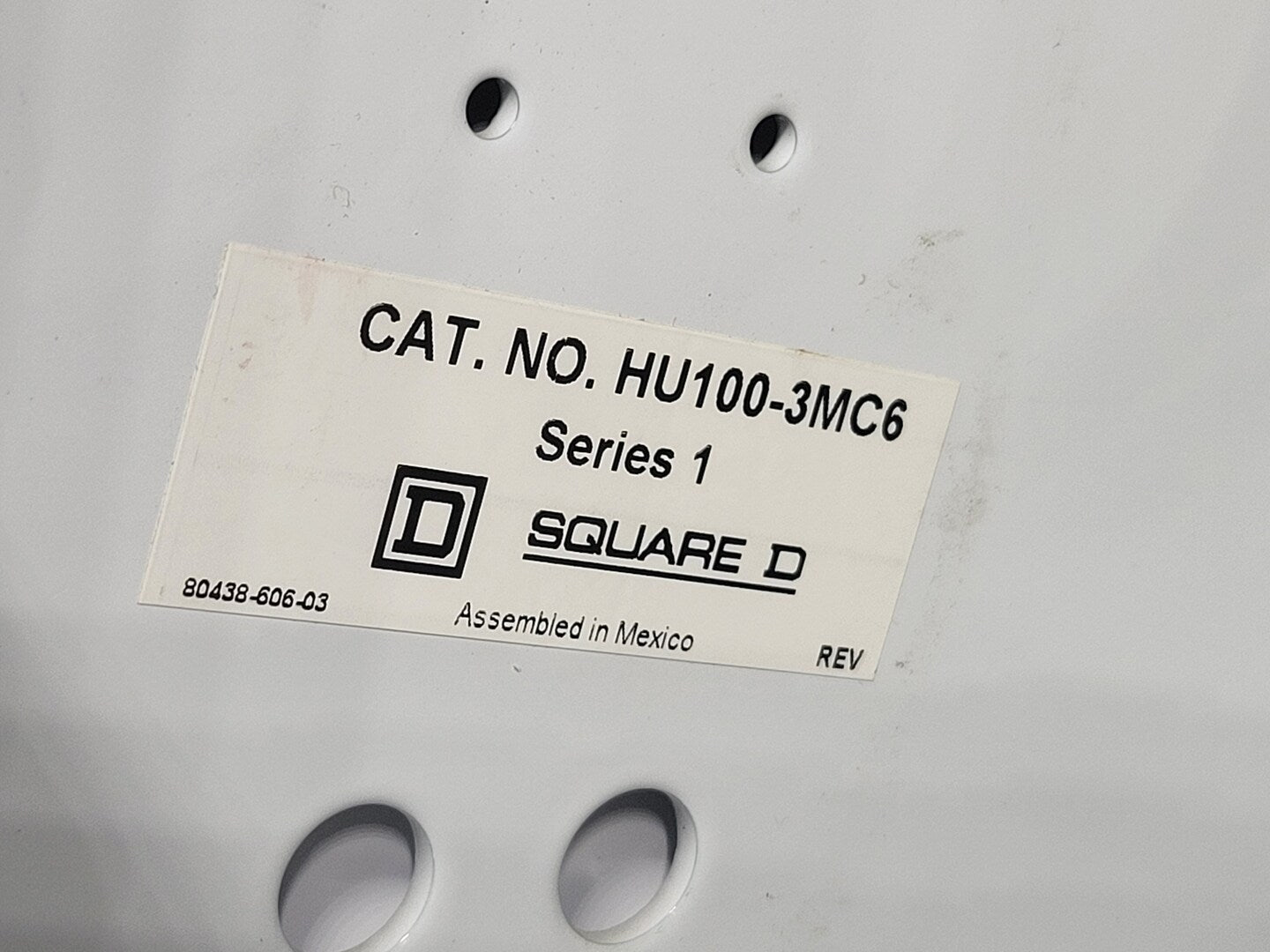

Square D HU100-3MC6, Series 1, 100A MCC bucket disconnect unit, 600VAC, 3-phase

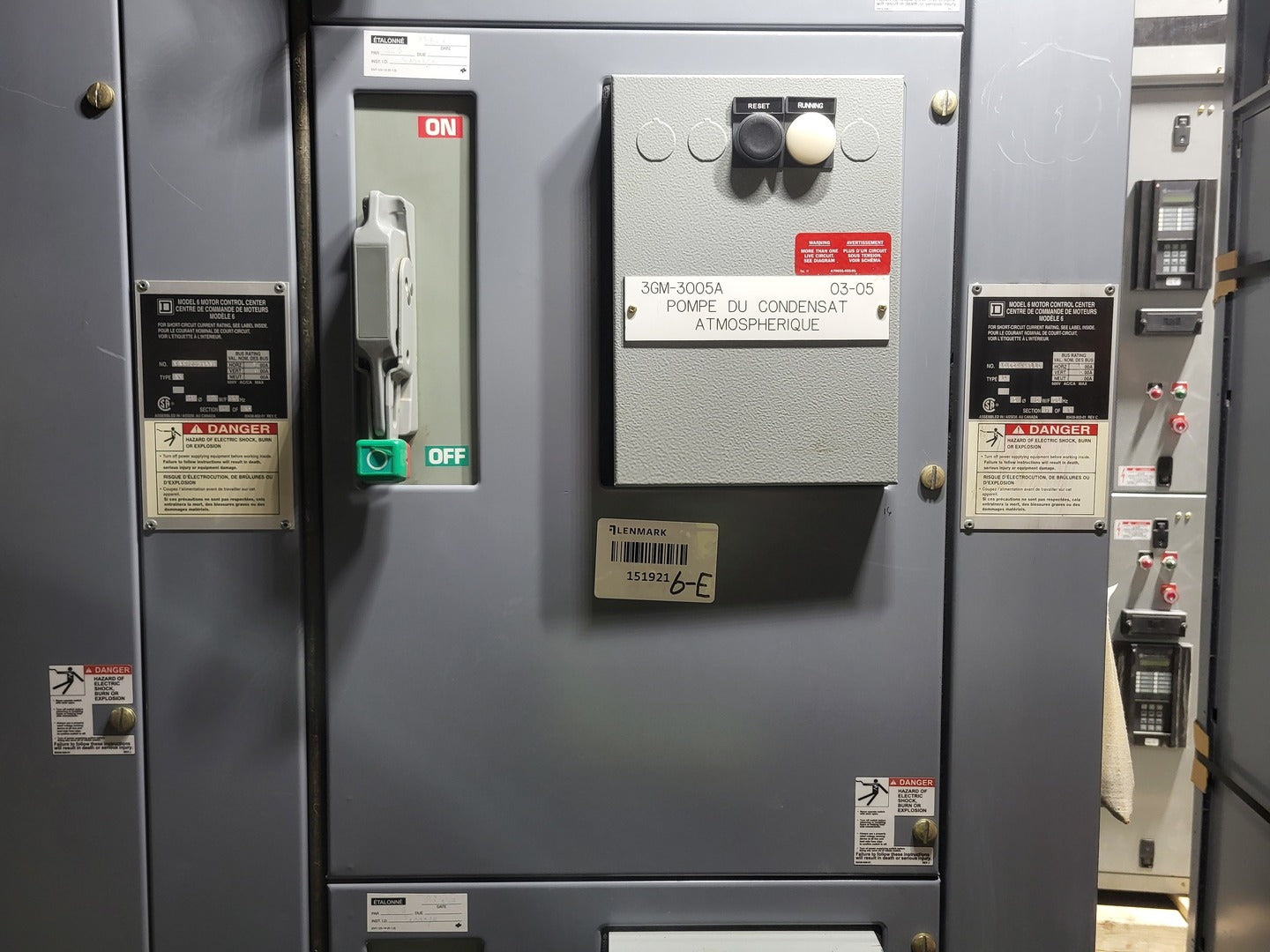

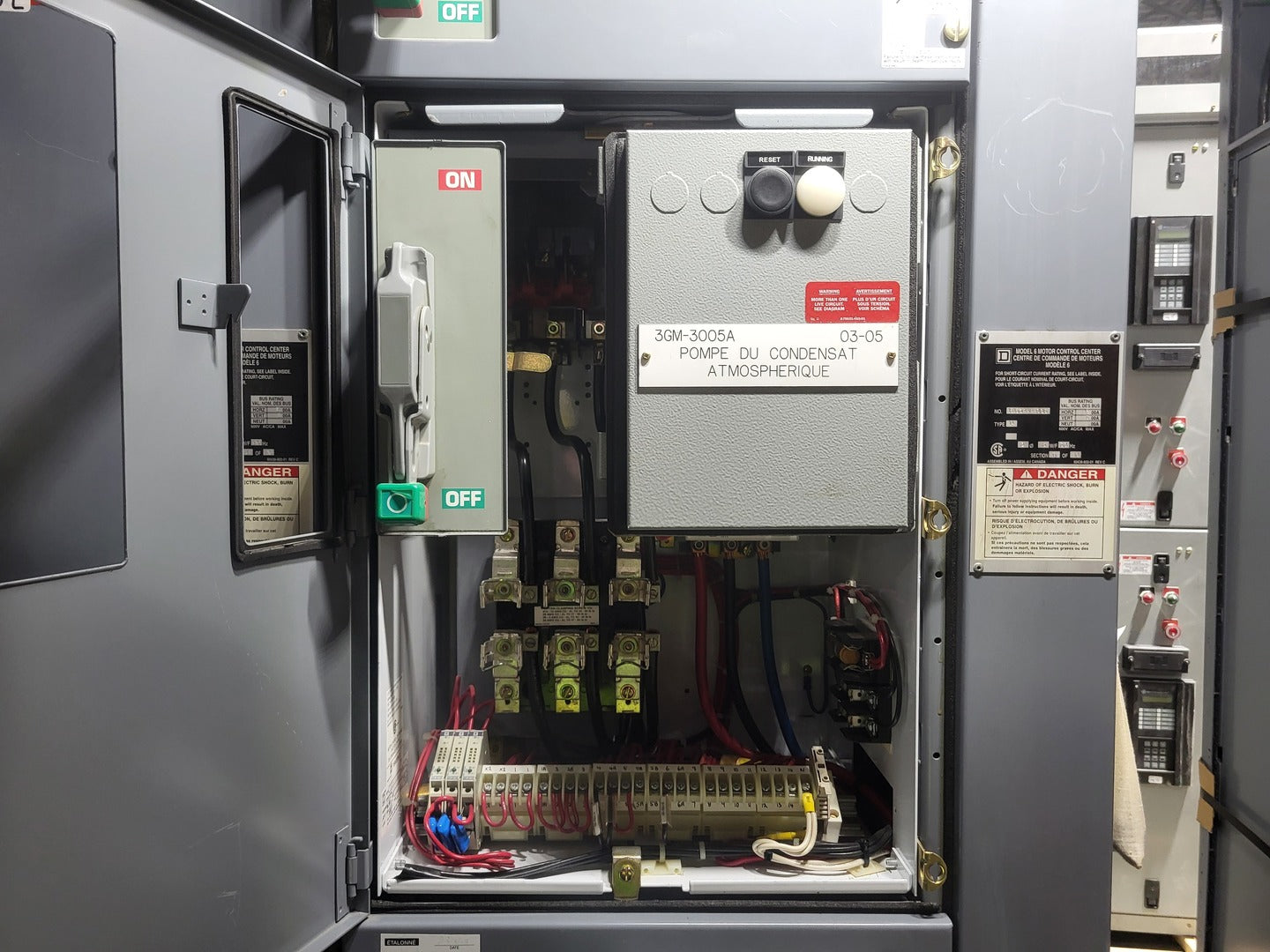

Bucket #2 3GM-3005A

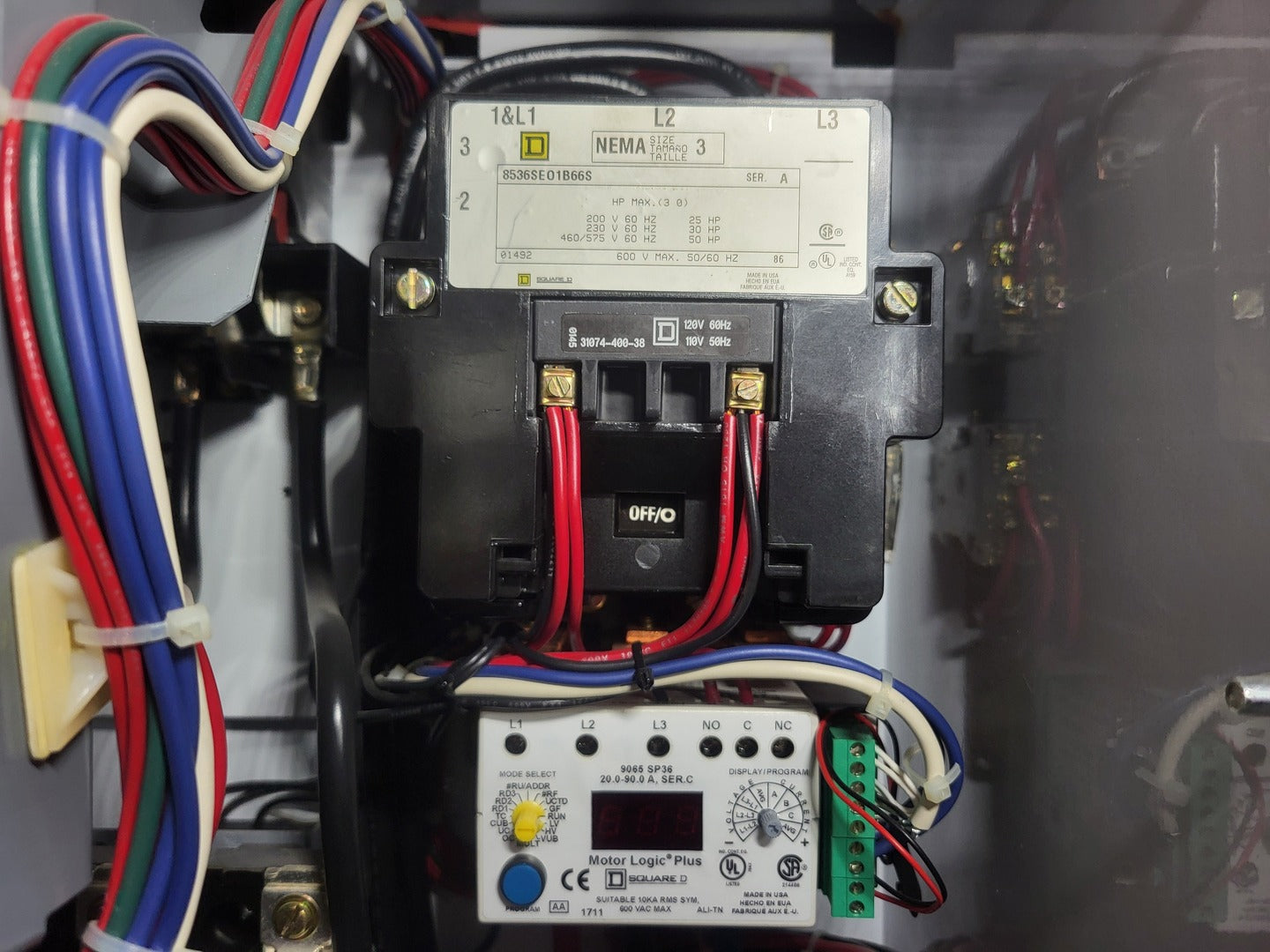

  1. Square D 8536SEO1B66S, NEMA Size 3 contactor, 25 HP @ 200V / 30 HP @ 230V / 50 HP @ 460/575V, 600V max
  2. Square D Motor Logic Plus 9065 SP36, motor protection relay, 20.0-90.0A range, 600VAC max

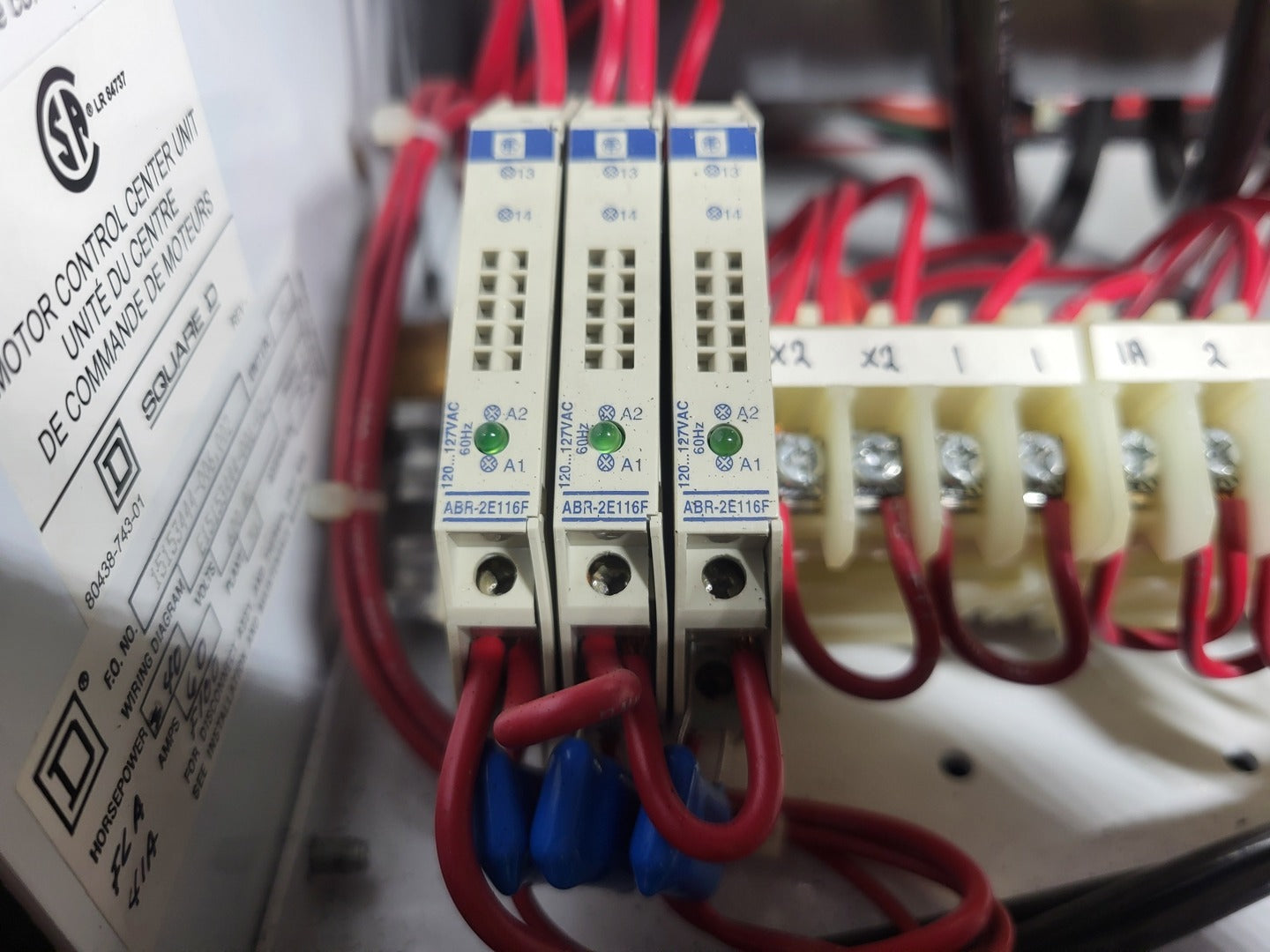

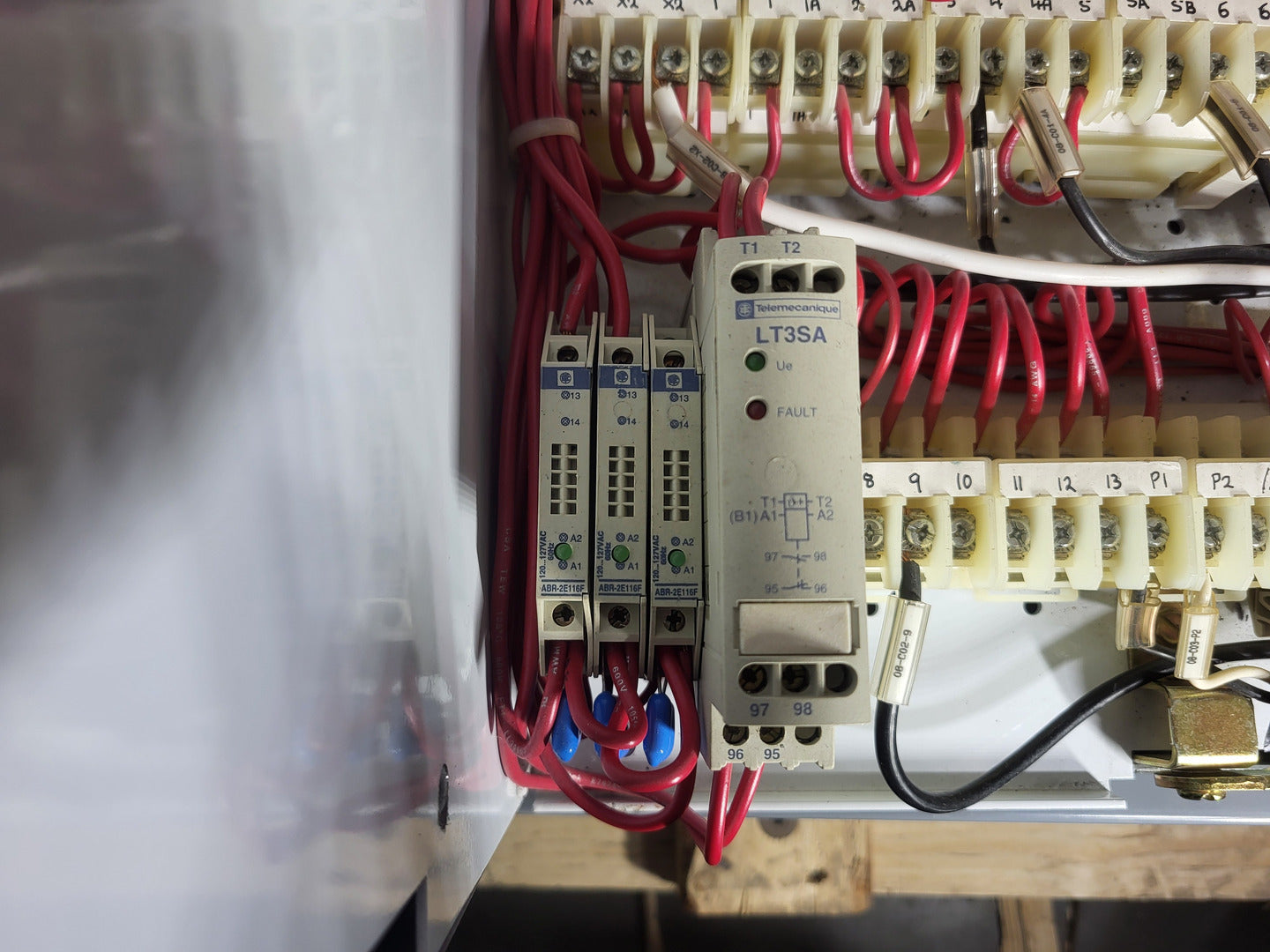

  3. 3 x Telemecanique ABR-2E116F slim relay modules, 120-127VAC coil

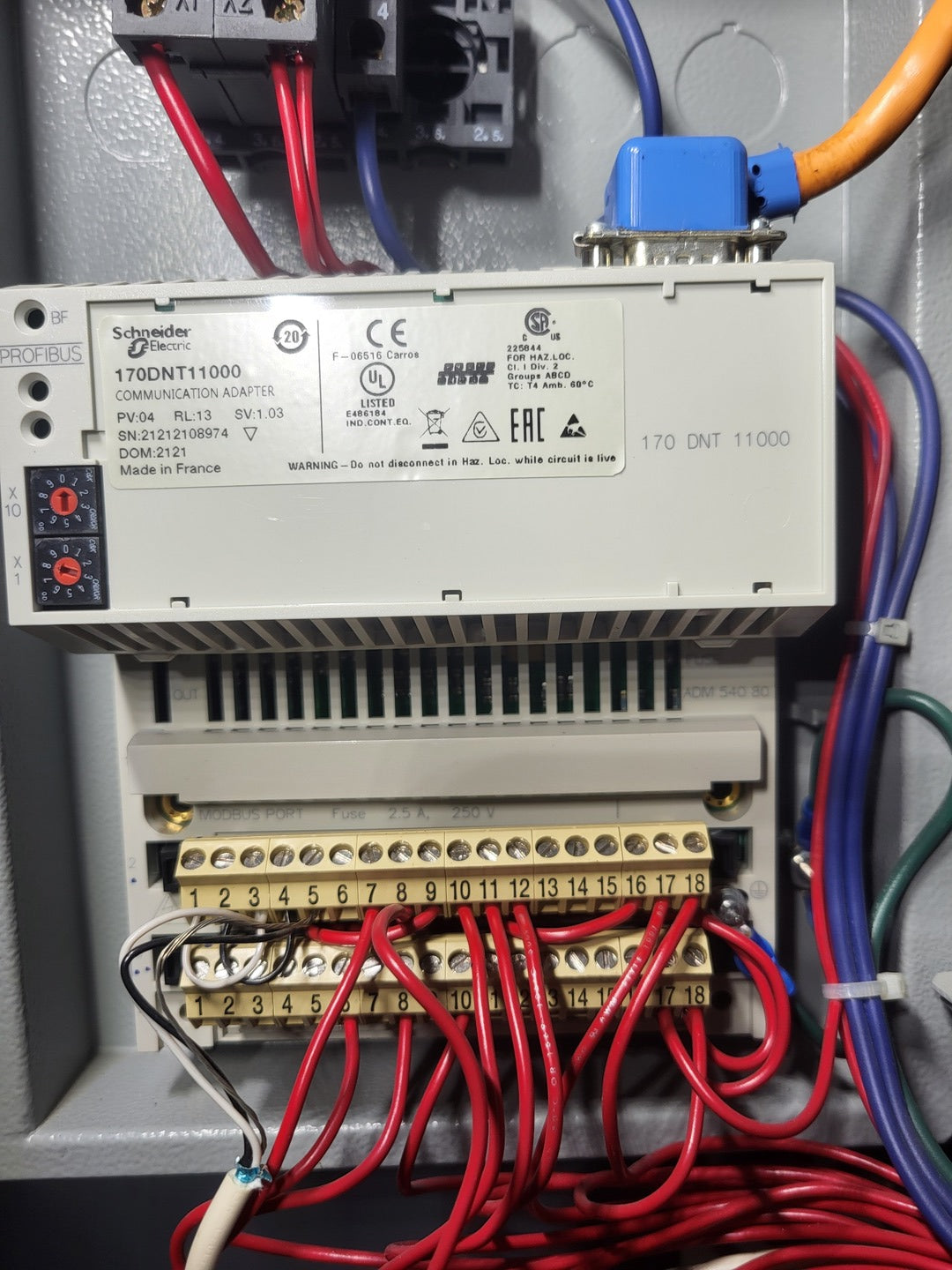

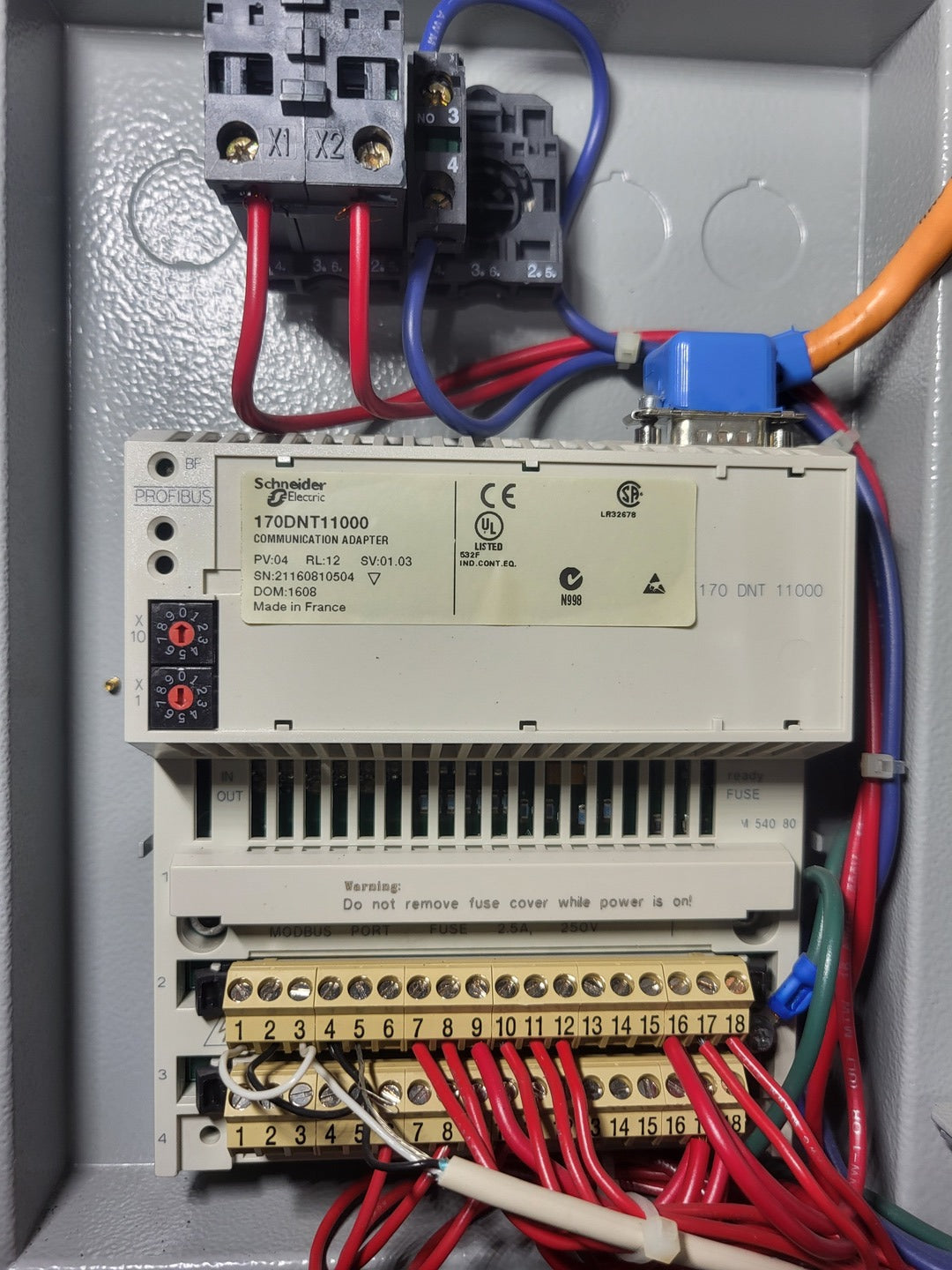

  4. Schneider Electric TSX Momentum 170DNT11000 communication adapter / PROFIBUS module

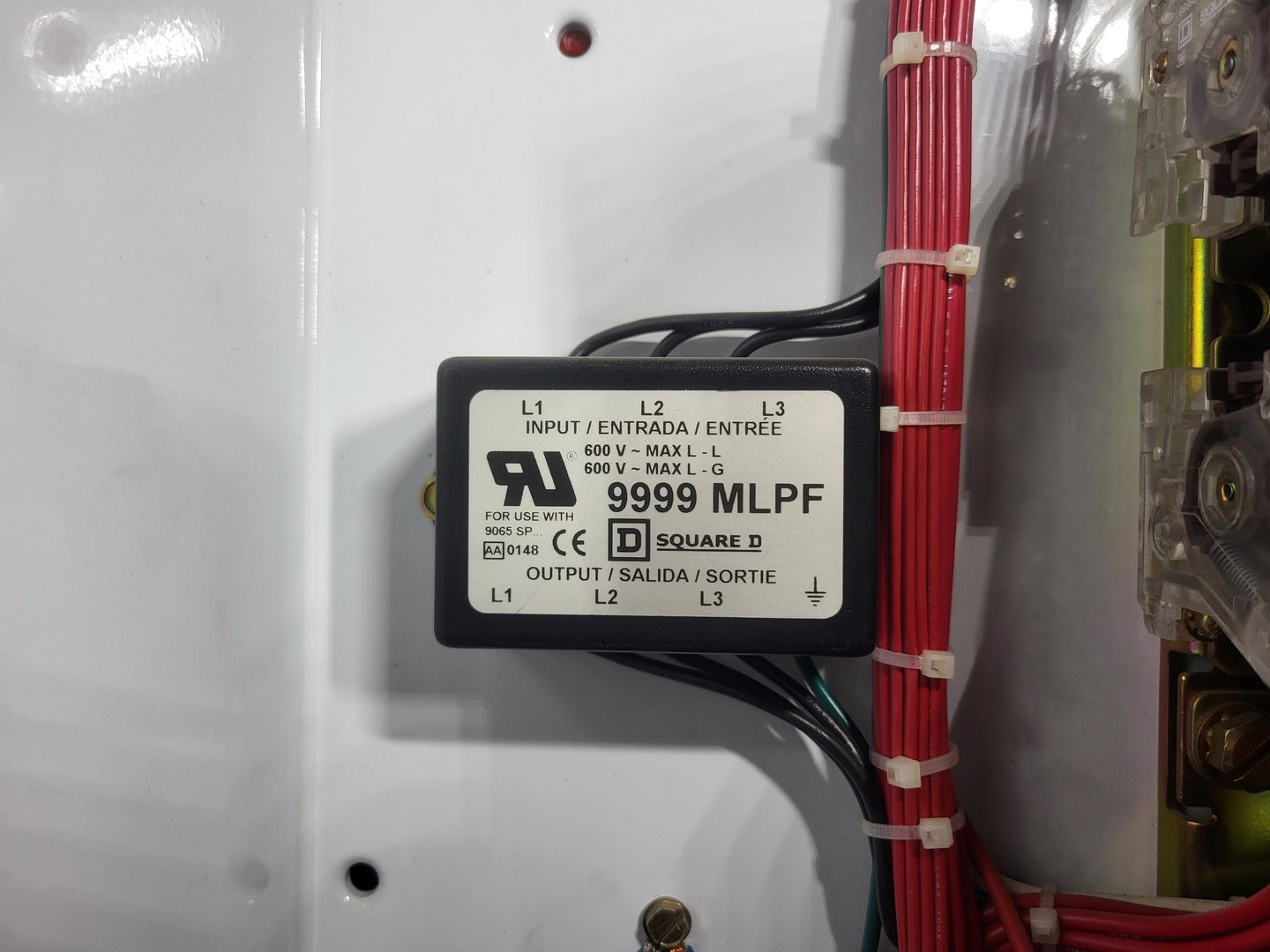

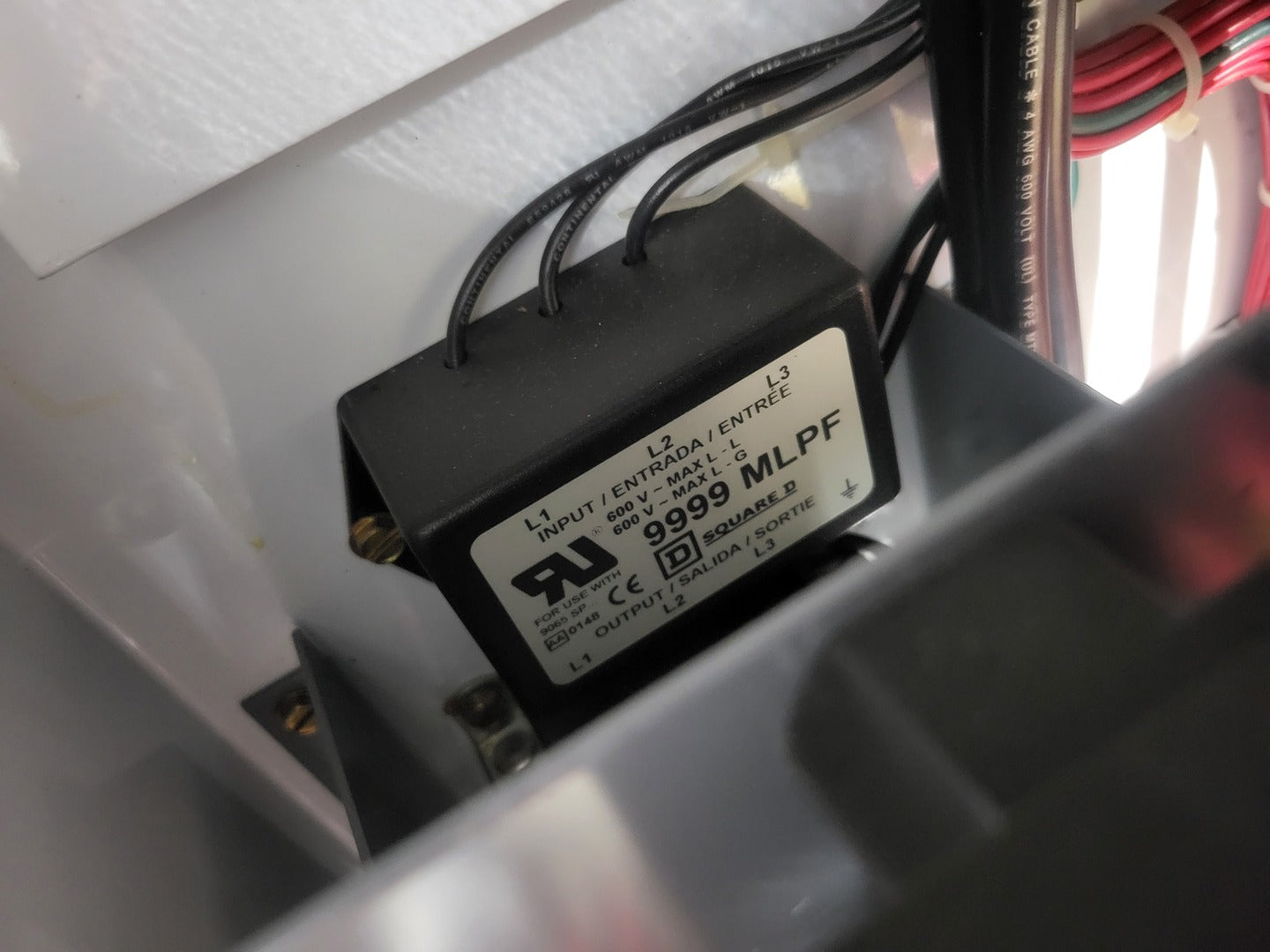

  5. Square D 9999 MLPF, 3-phase surge suppressor / MOV module, 600V max

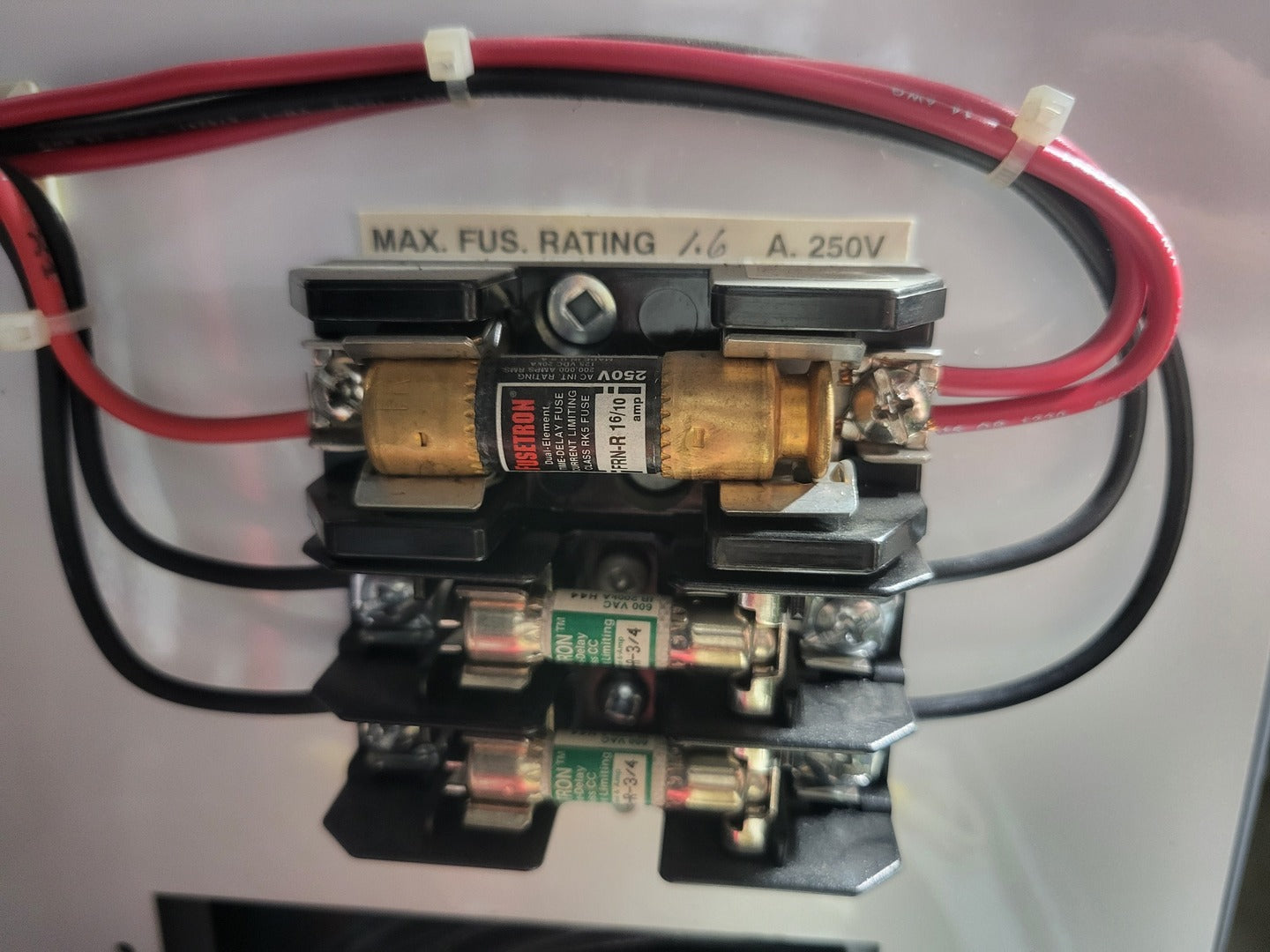

  6. 1 x Bussmann Fusetron fuse FRN-R-1-6/10
  7. 2 x Bussmann CC-Tron fuses FNQ-R-3/4

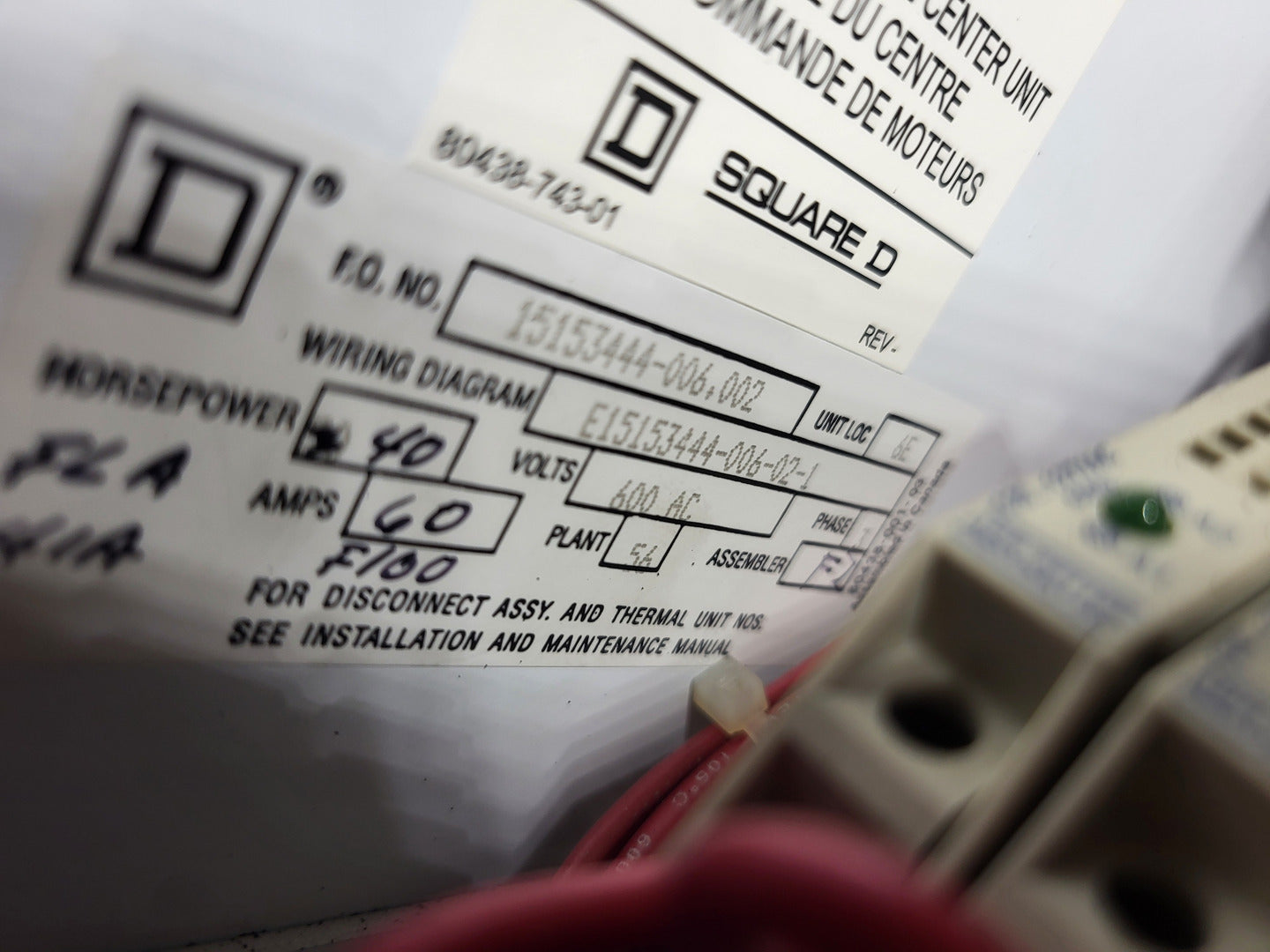

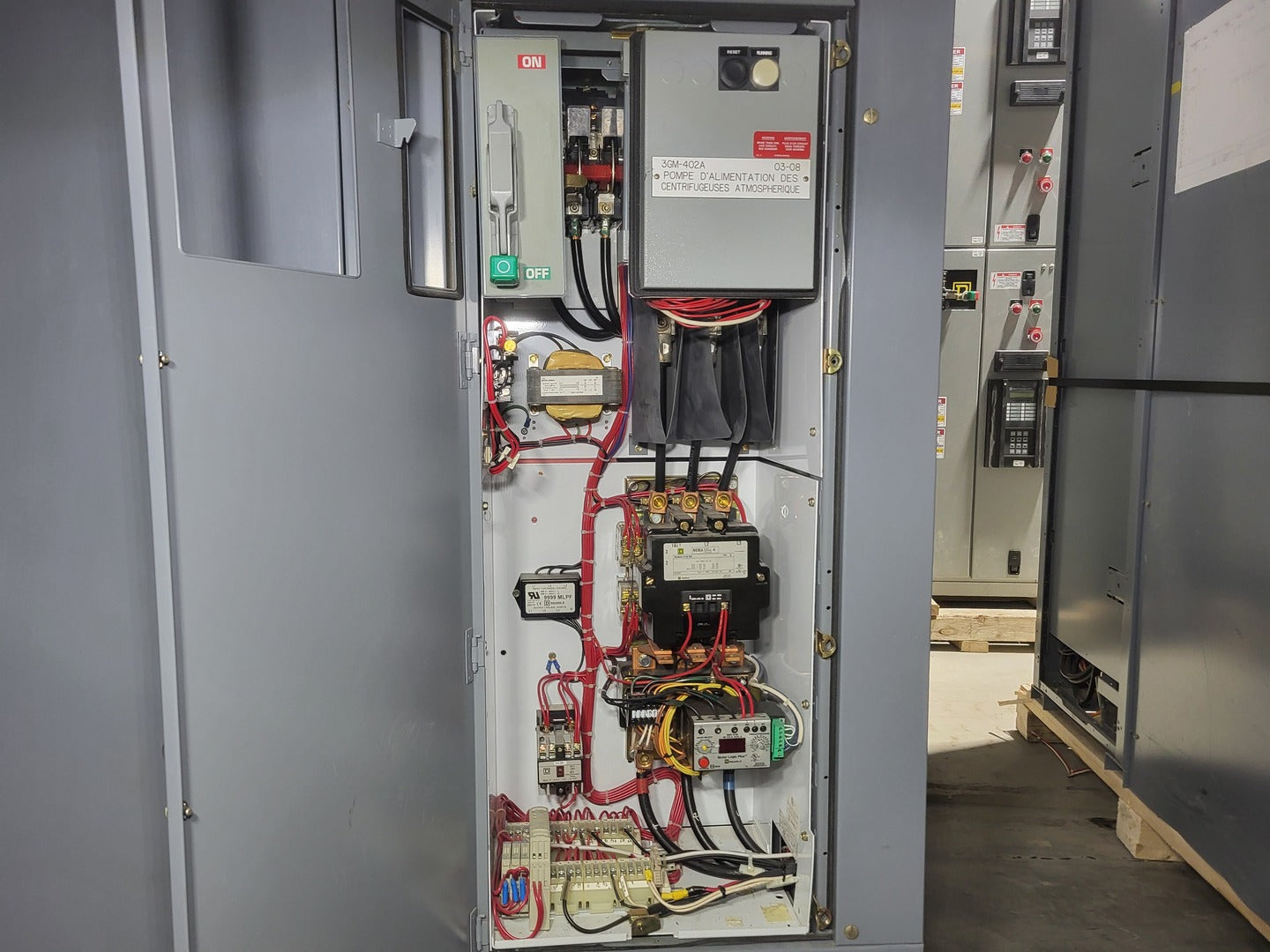

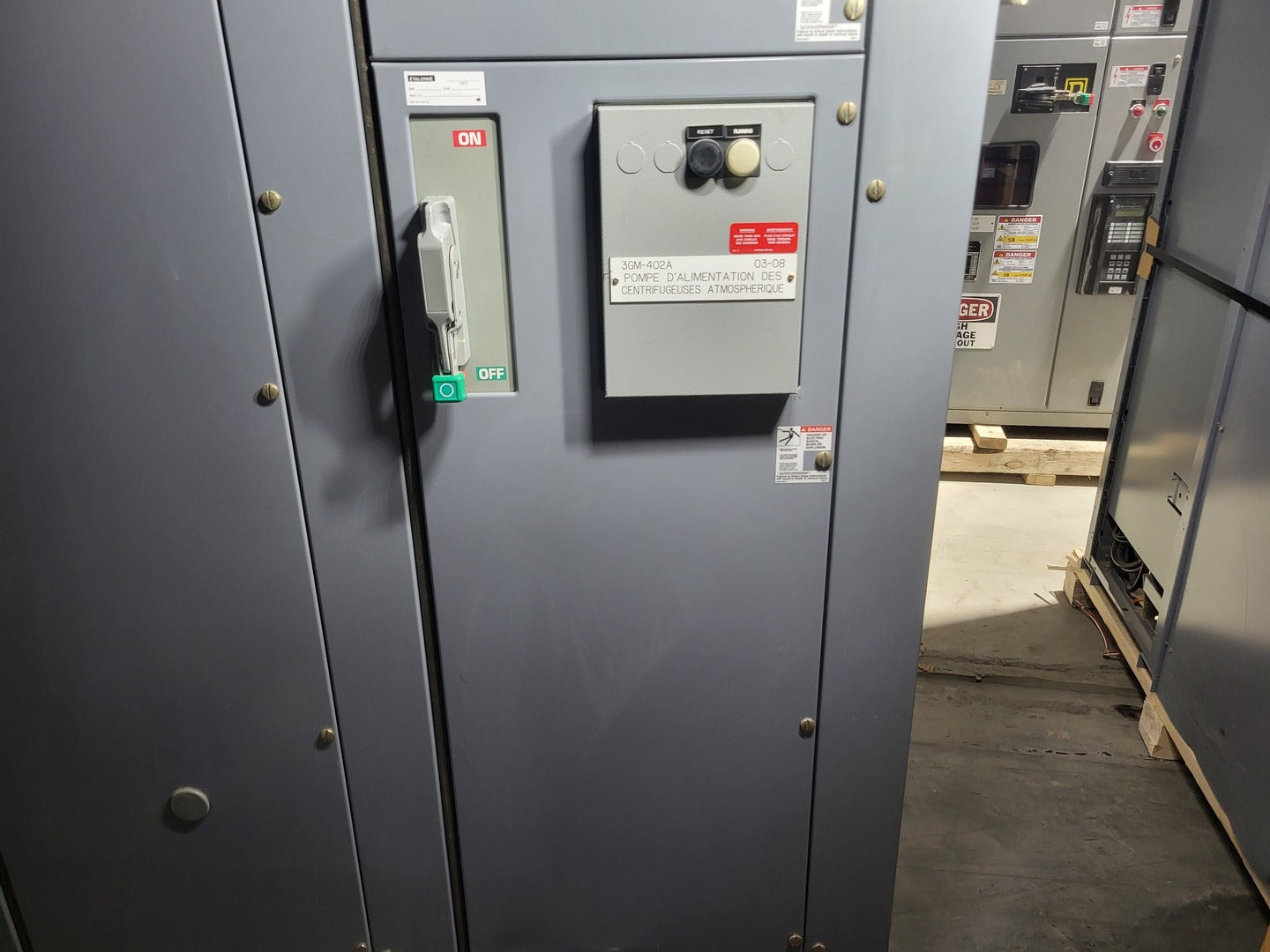

Bucket #3 3GM-402A

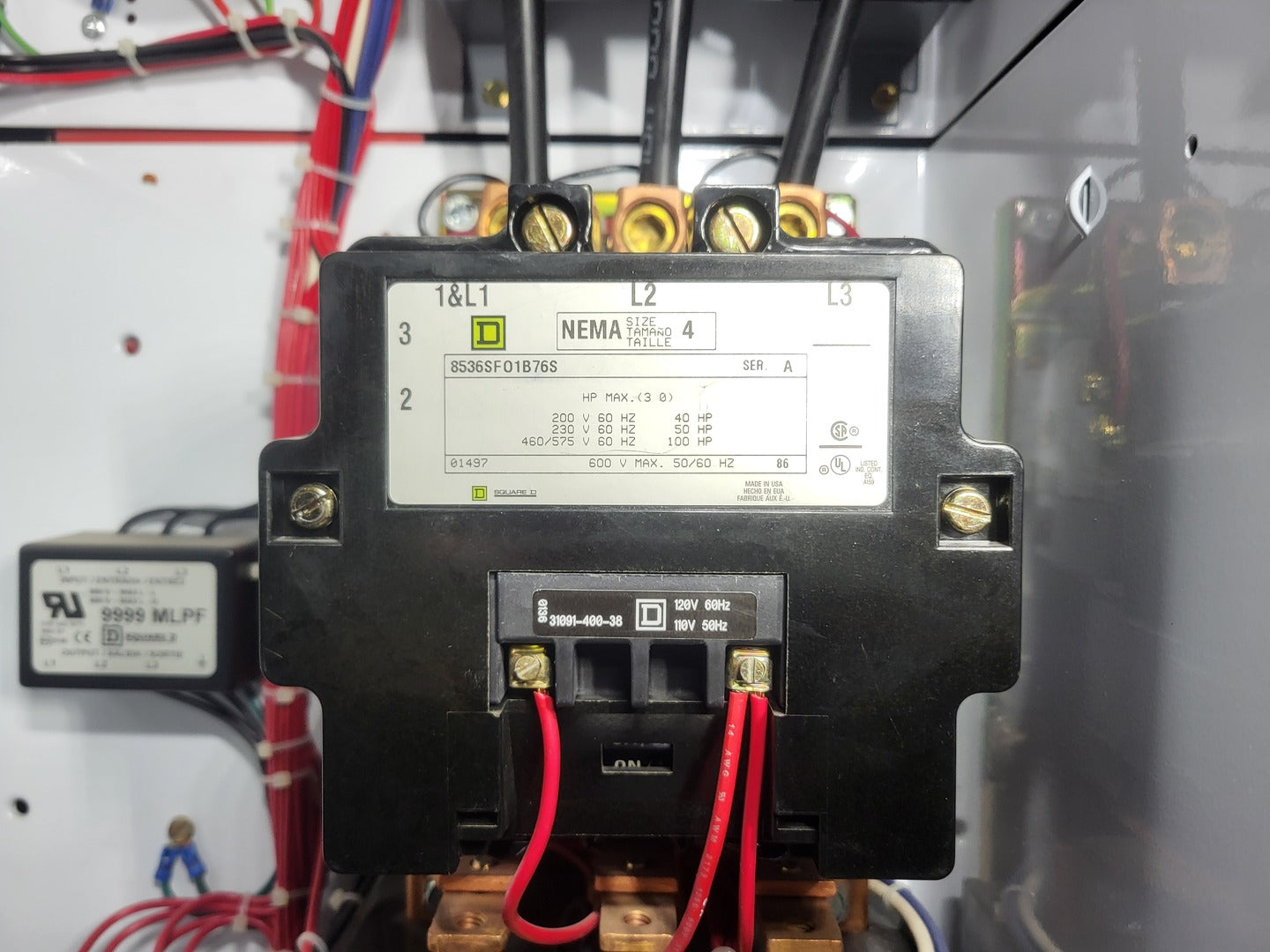

  1. Square D 8536SFO1B76S, NEMA Size 4 contactor, 40 HP @ 200V / 50 HP @ 230V / 100 HP @ 460/575V, 600V max

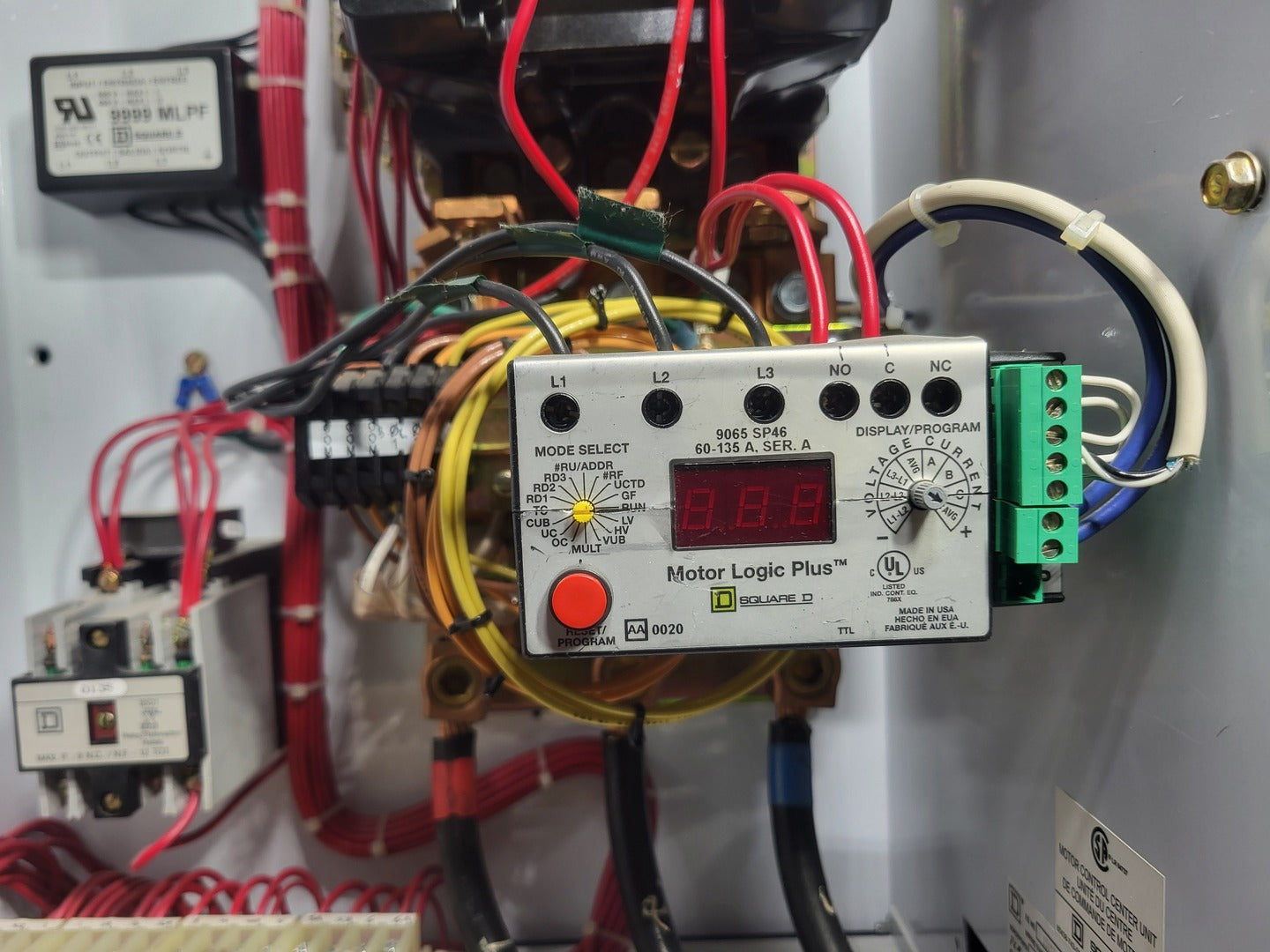

  2. Square D Motor Logic Plus 9065 SP46, motor protection relay, 60-135A range, 600VAC max

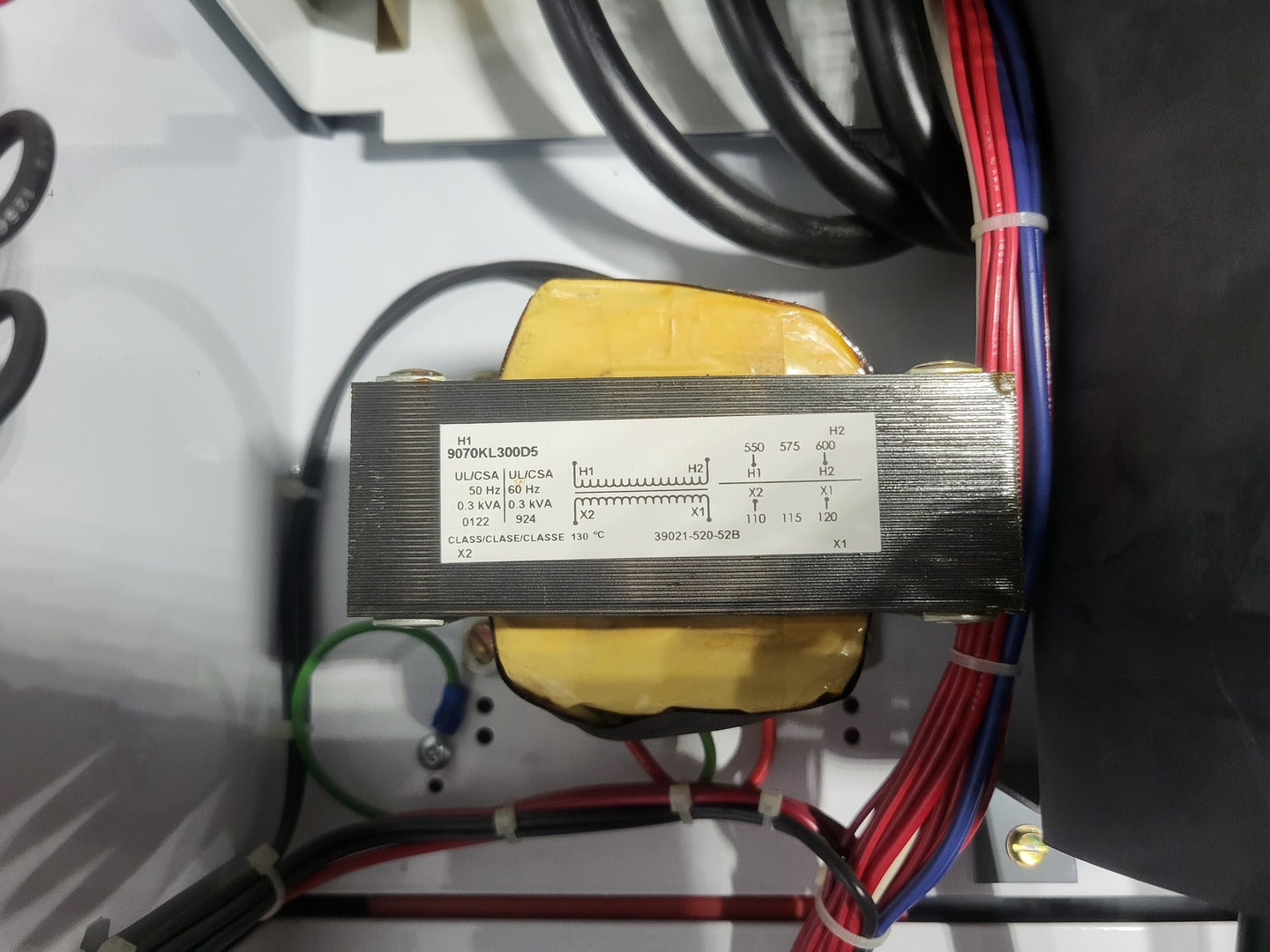

  3. Square D 9070KL300D5, control transformer, 0.3 kVA @ 50/60Hz, 550/575/600V primary, 110/115/120V secondary
  4. 3 x Telemecanique ABR-2E116F slim relay modules, 120-127VAC coil

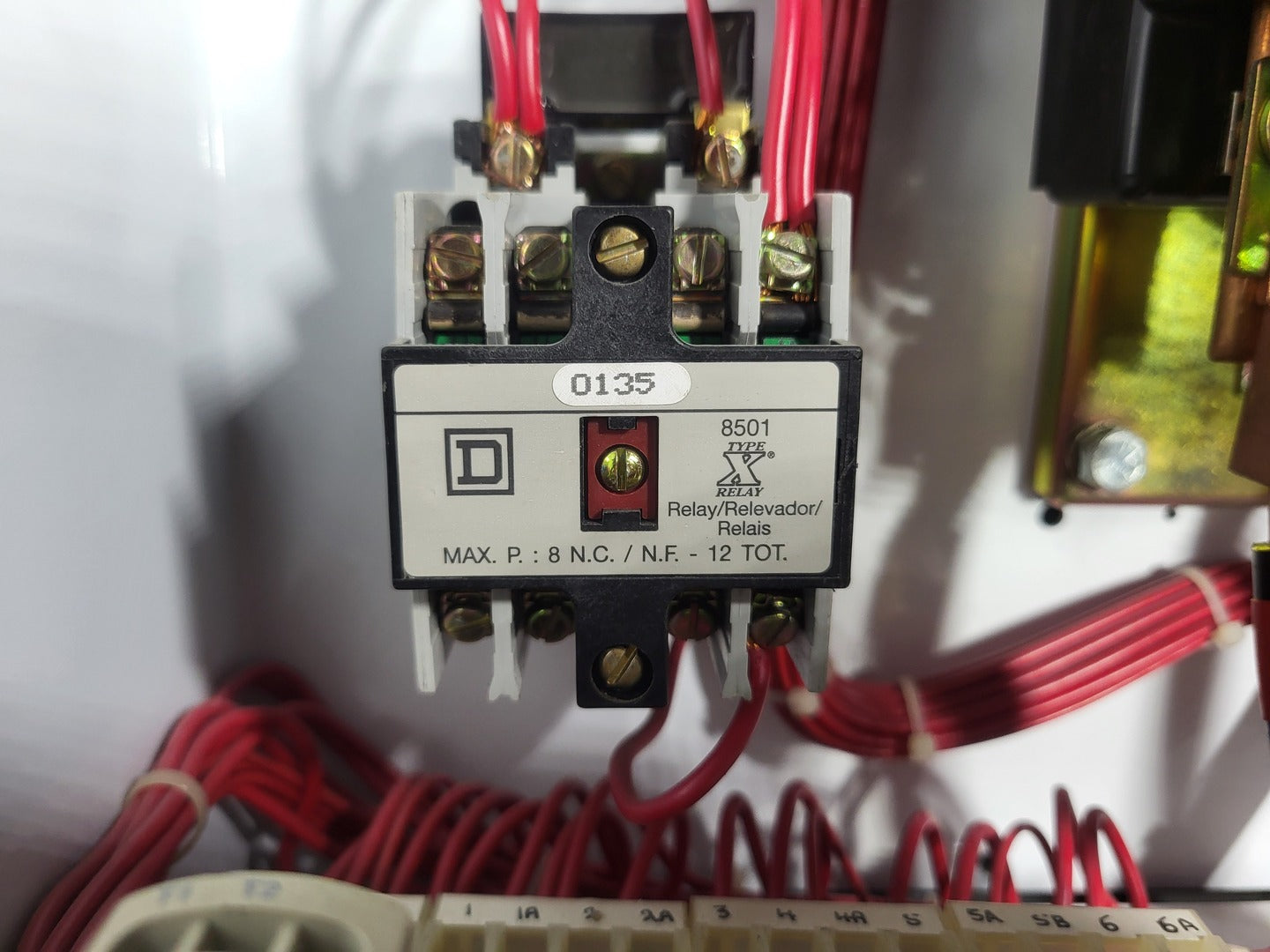

  5. Square D 8501 Type X relay, max 8 N.C. / 12 total contacts
  6. Schneider Electric TSX Momentum 170DNT11000 communication adapter / PROFIBUS module
  7. Square D 9999 MLPF, 3-phase surge suppressor / MOV module, 600V max

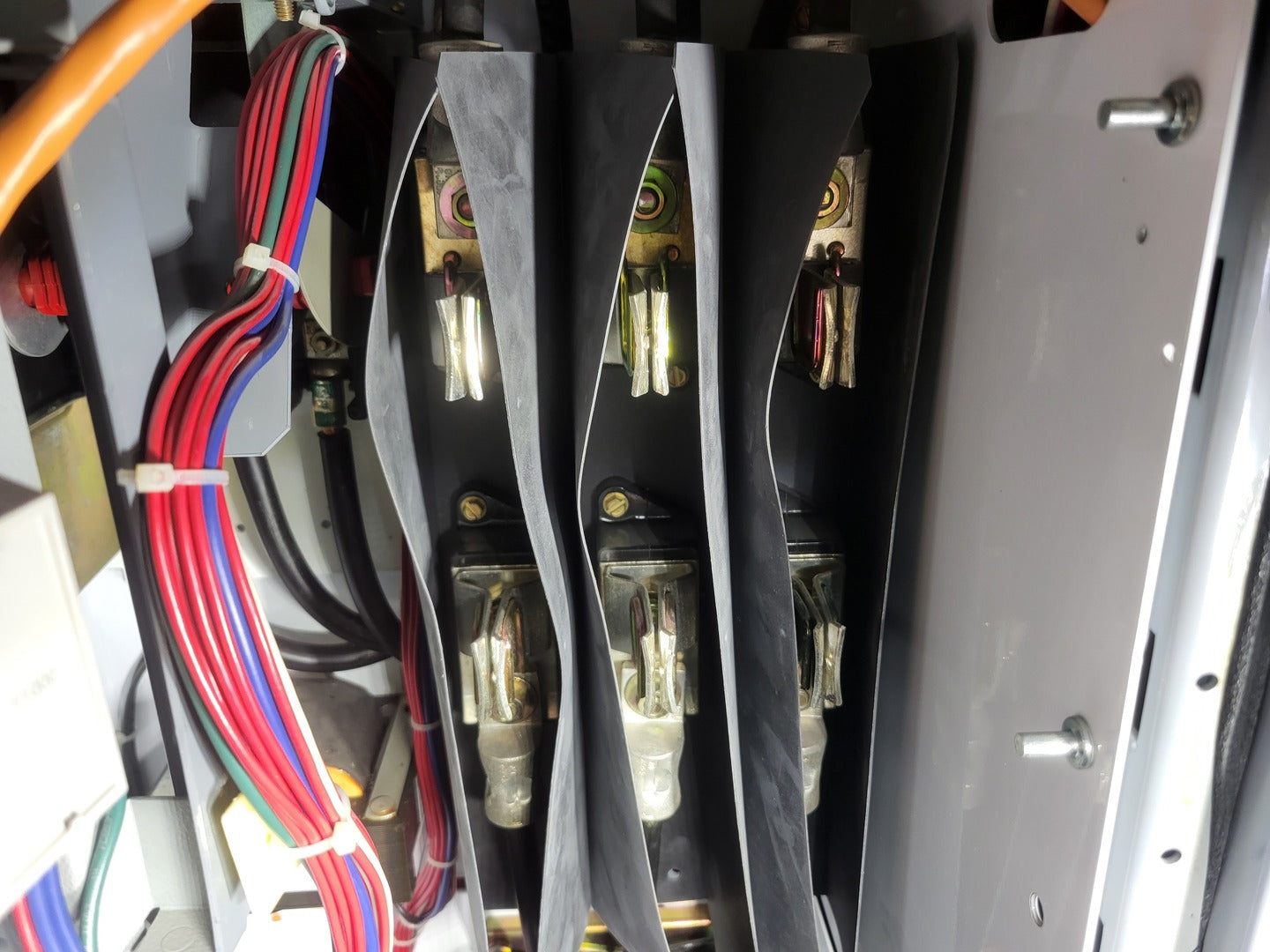

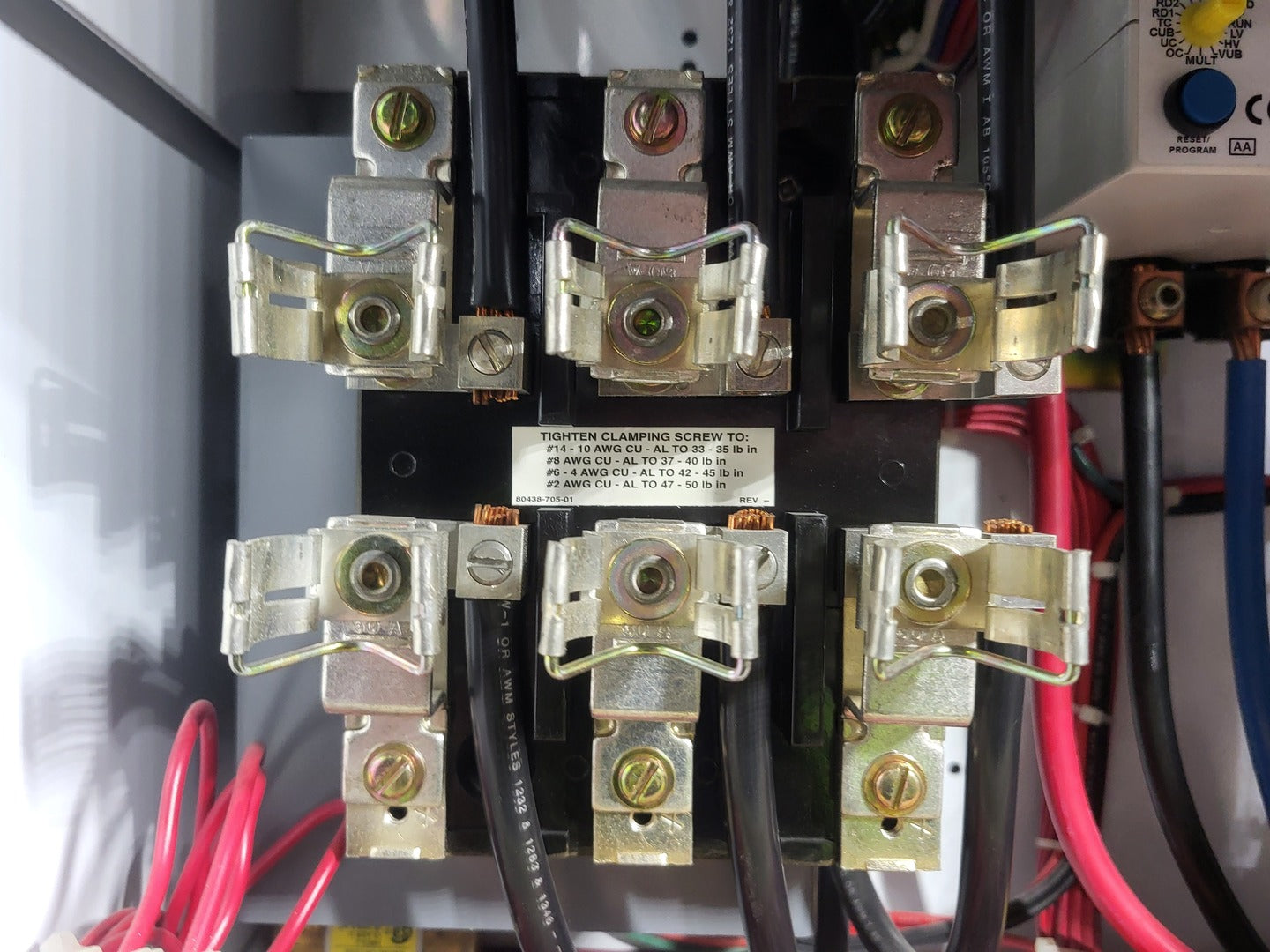

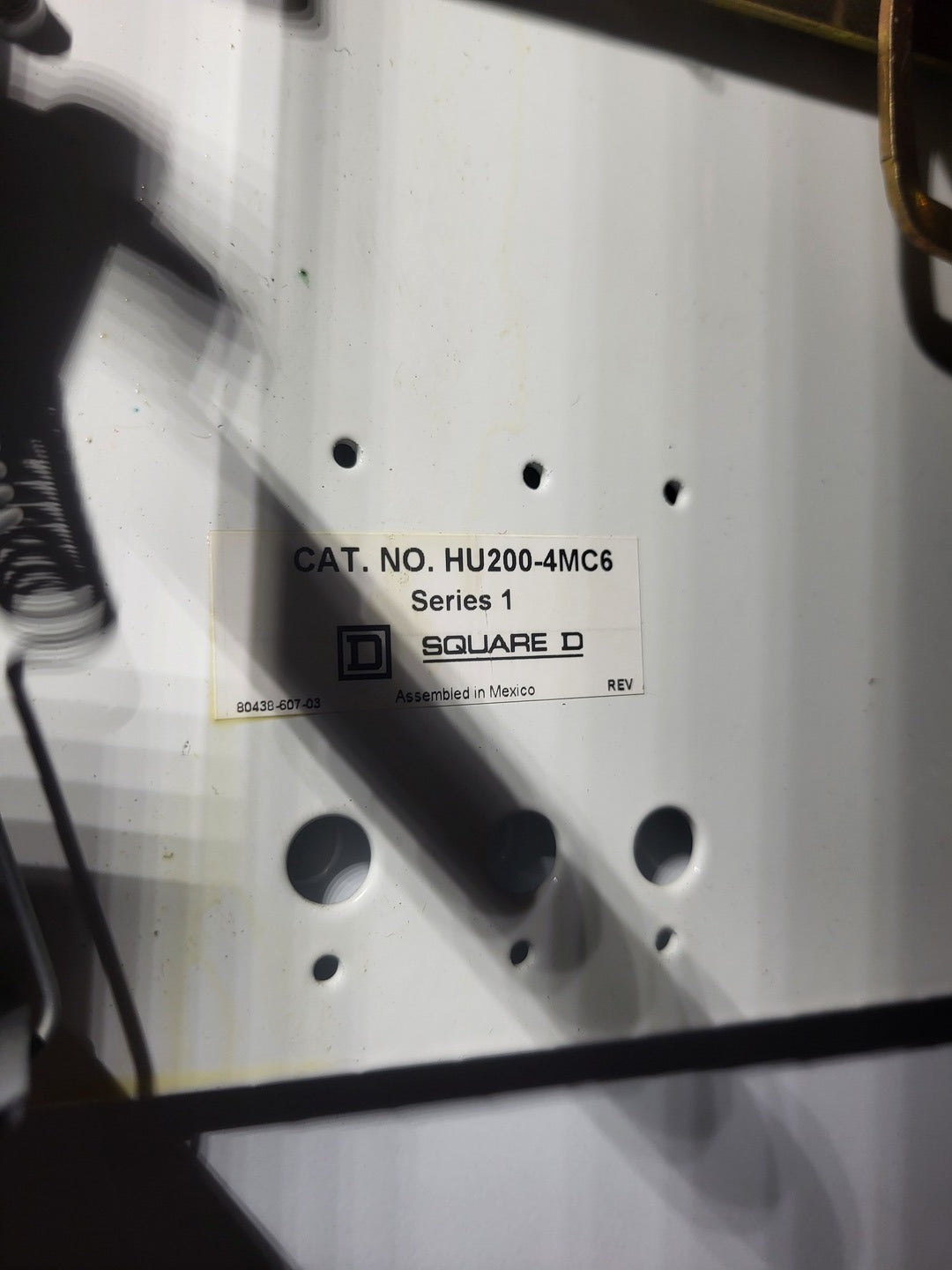

  8. Square D HU200-4MC6, Series 1, 200A MCC bucket disconnect unit

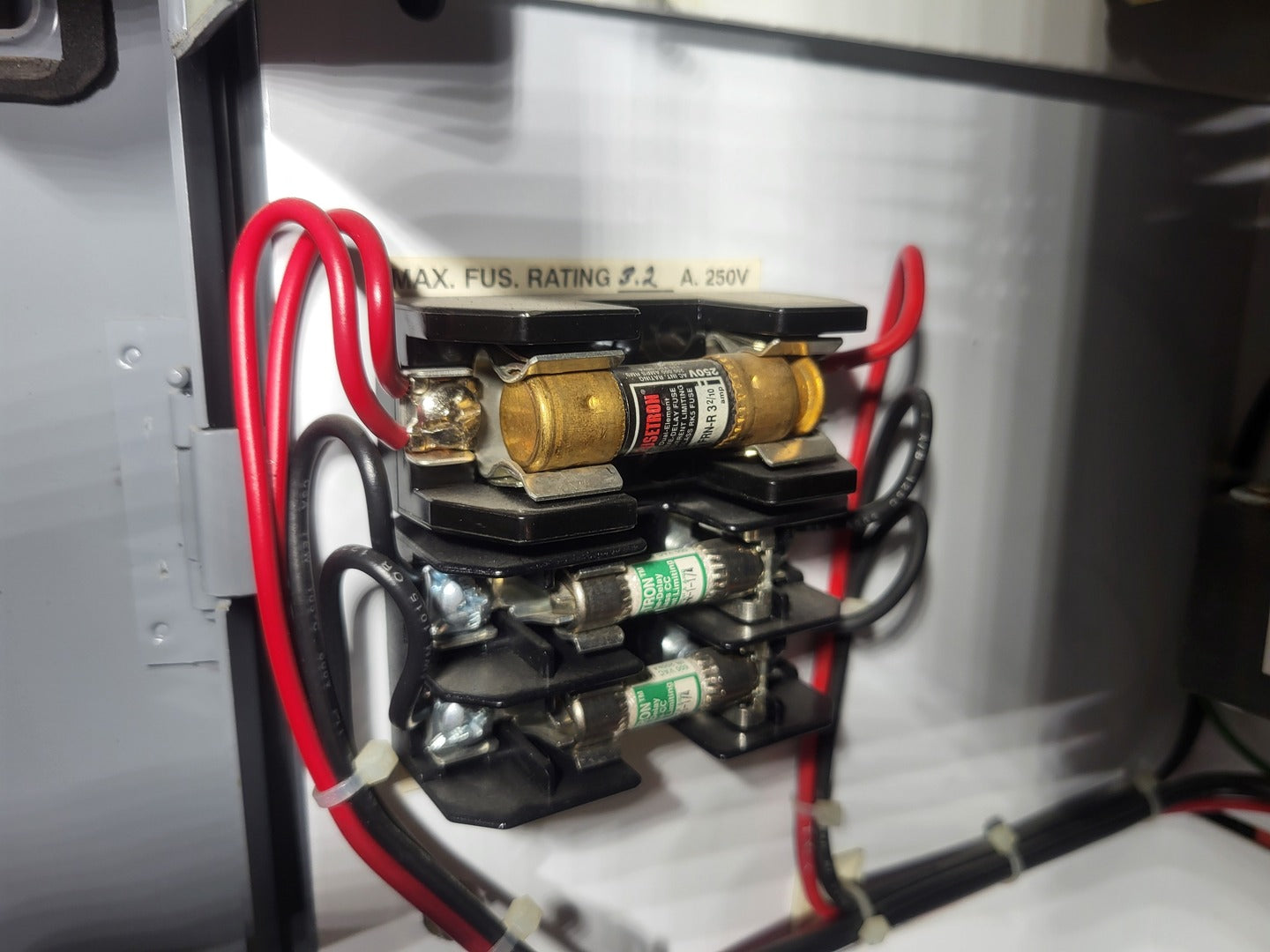

  9. 1 x Bussmann Fusetron fuse FRN-R-3-2/10
  10. 2 x Bussmann CC-Tron fuses FNQ-R-1-1/4
