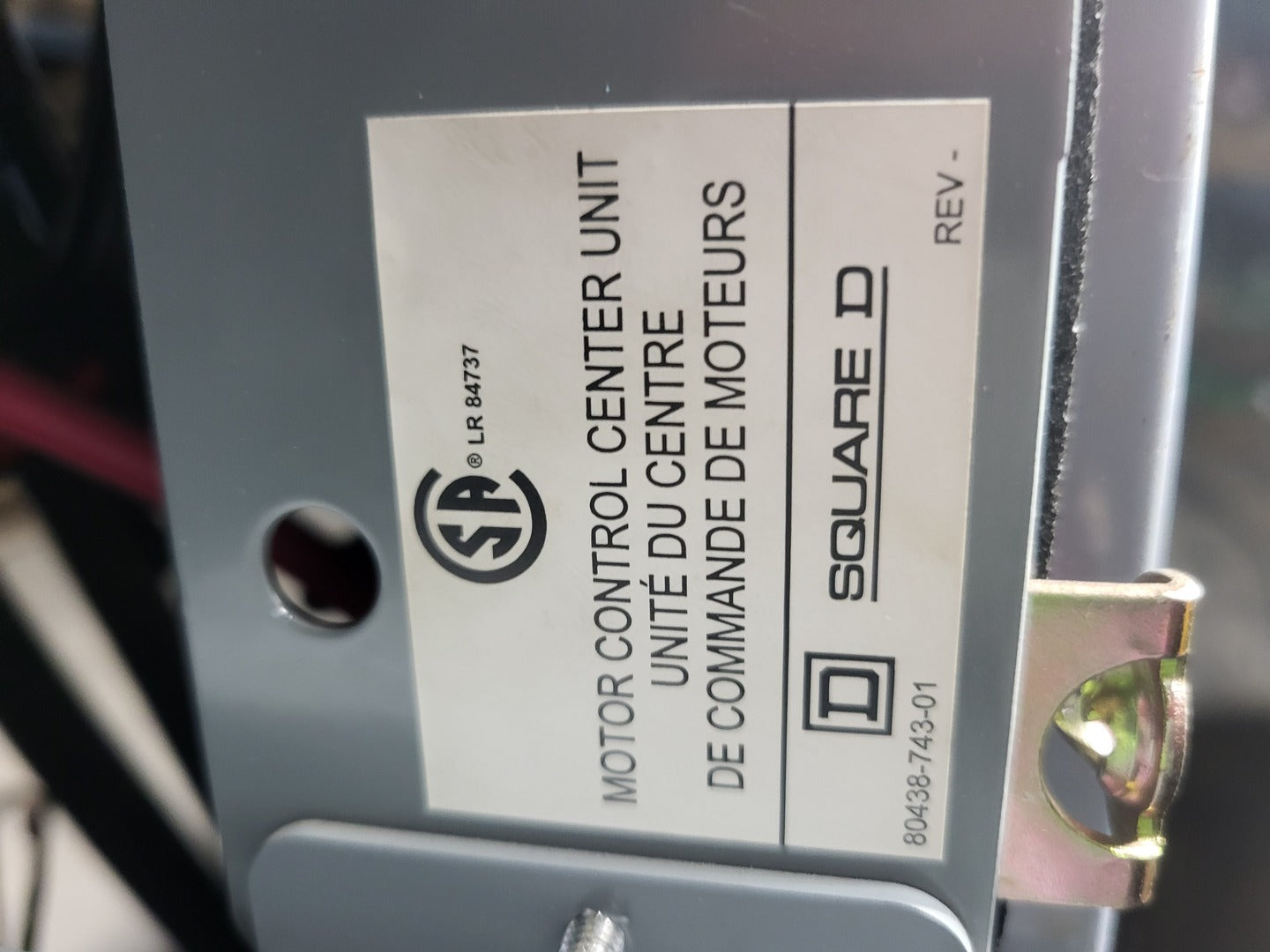

SQUARE D Model 6 Motor Control Center MCC Section, 600V, 3PH, 1200A Bus
SQUARE D

Model 6 Motor Control Center MCC Section, 600V, 3PH, 1200A Bus

SKU: 151396
Precio:
$6,212

Gastos de envío calculados en la caja

Stock:
Solo queda 1 unidad
Make an Offer

¿Necesita una respuesta ahora?

604-449-1880

Descripción

Specifications
Model Model 6
Condition Used
Other Specifications

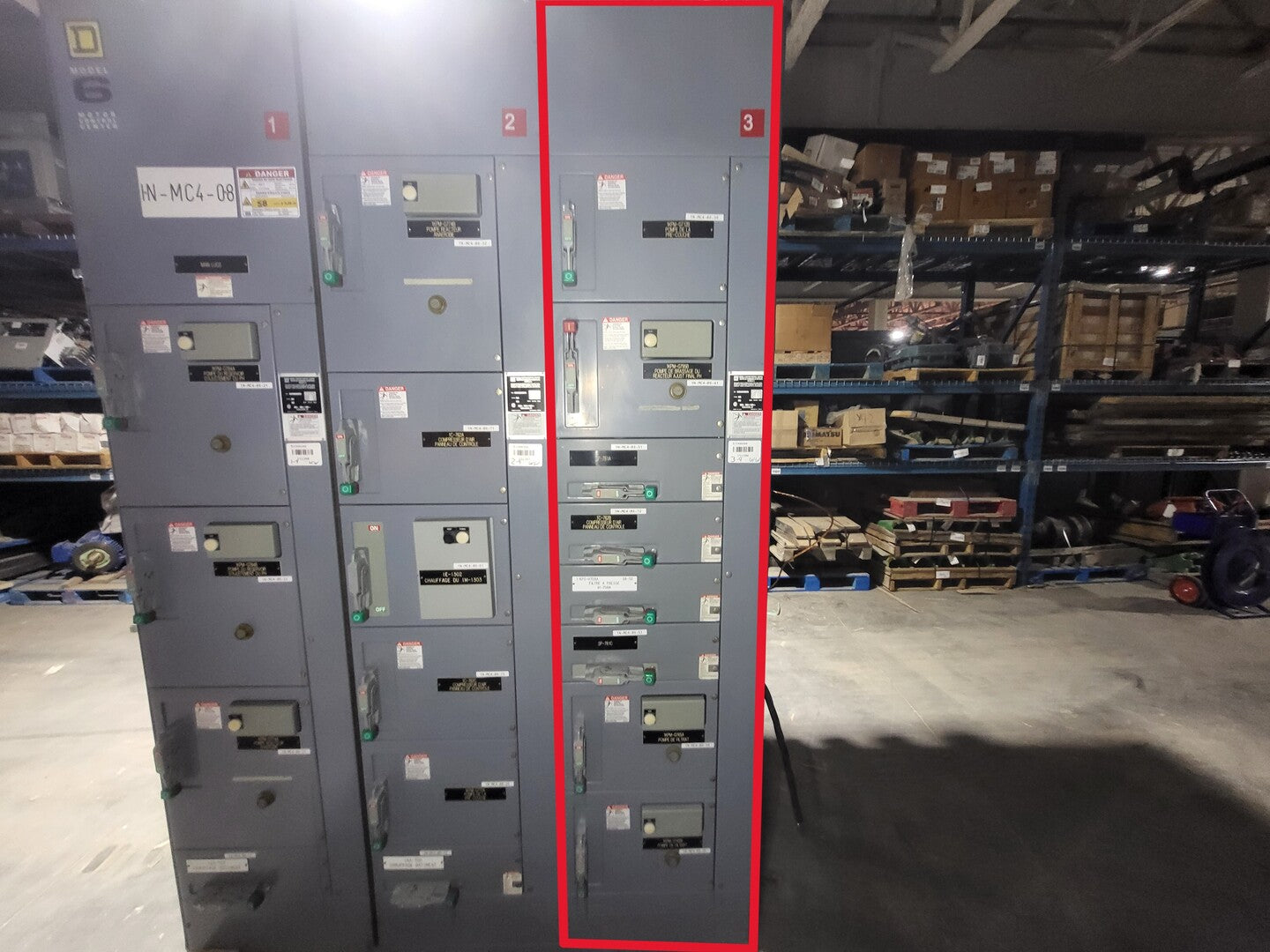

Note: Section 3 only

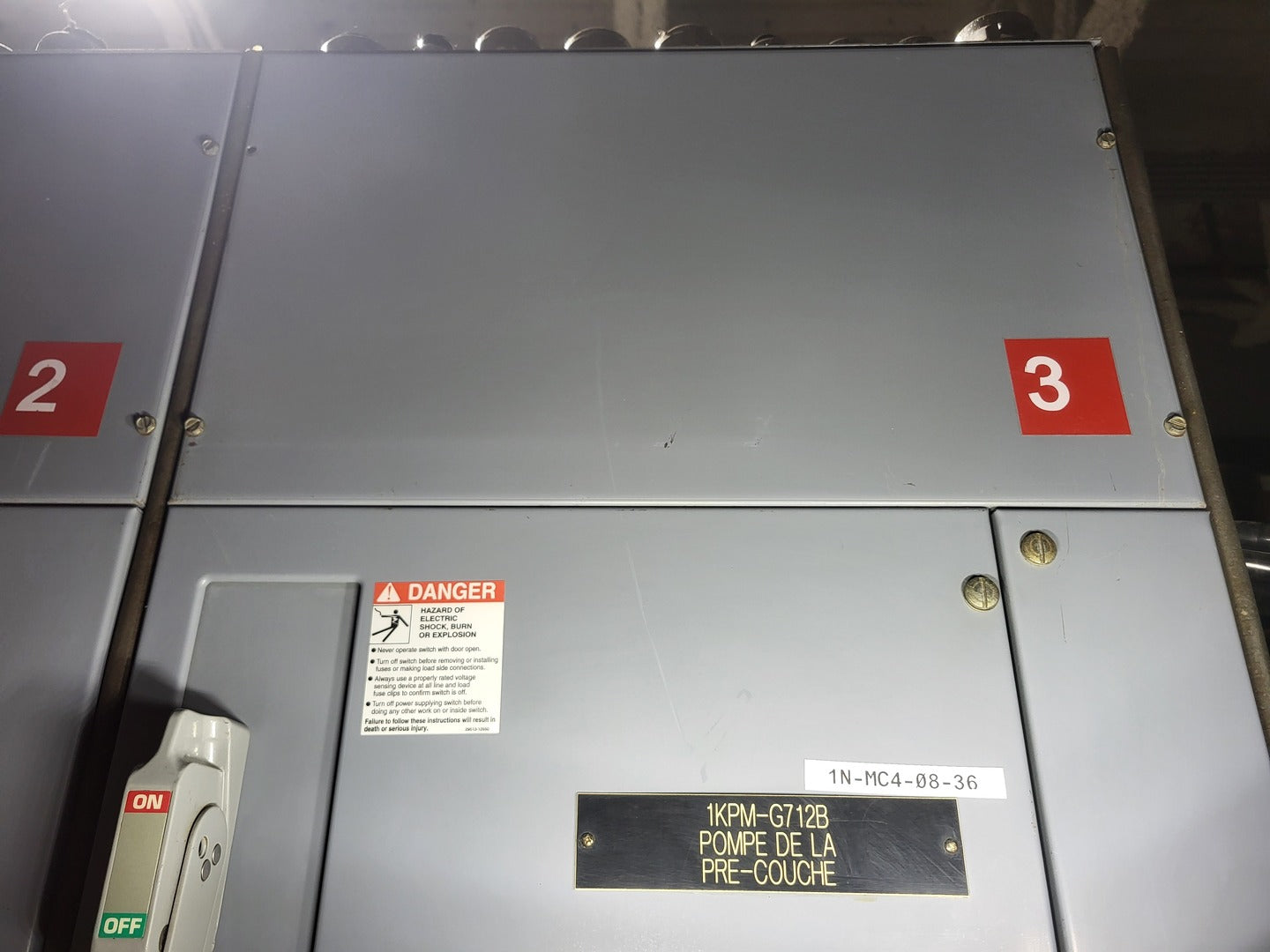

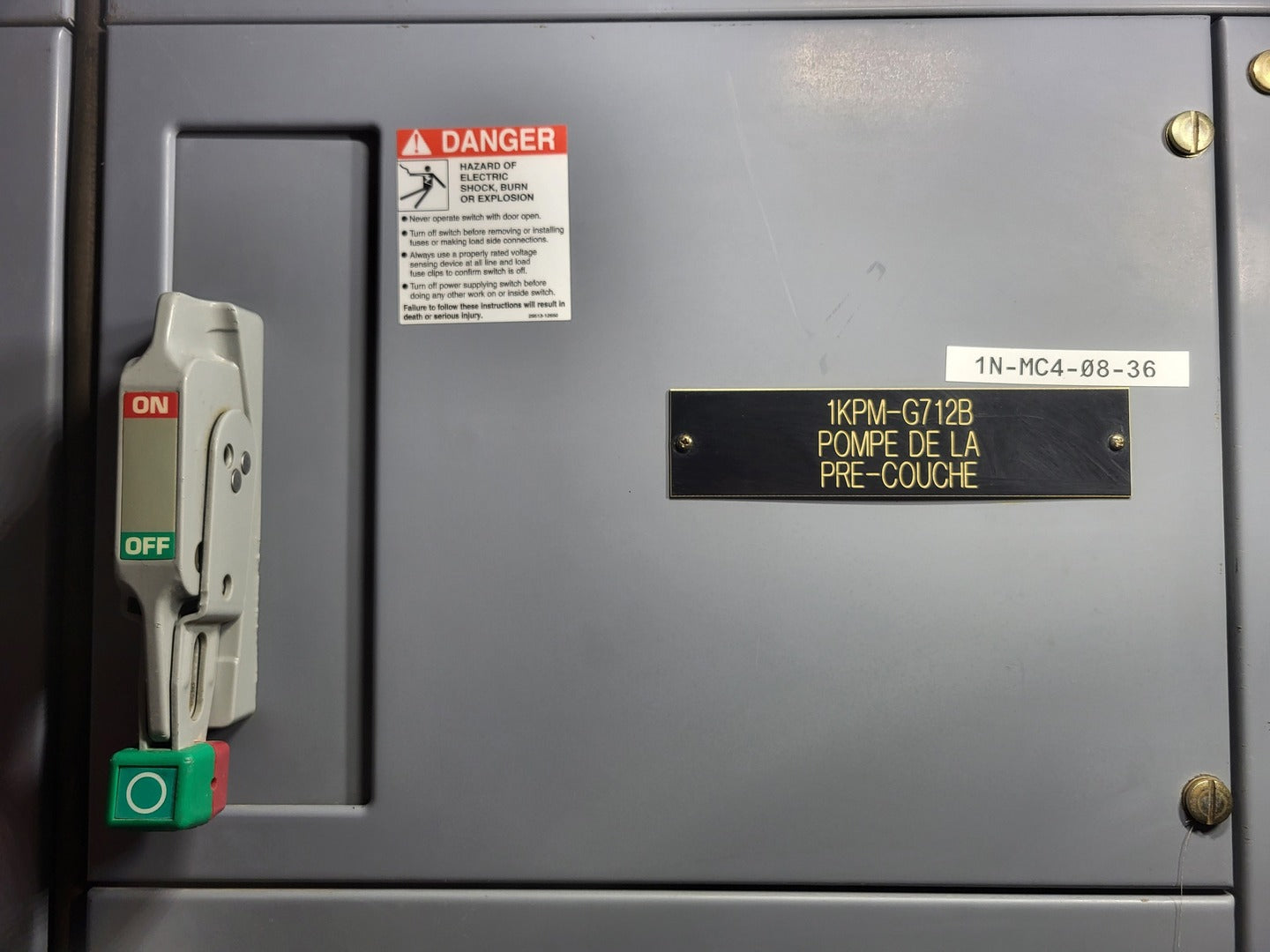

Bucket #1 1KPM-G712B

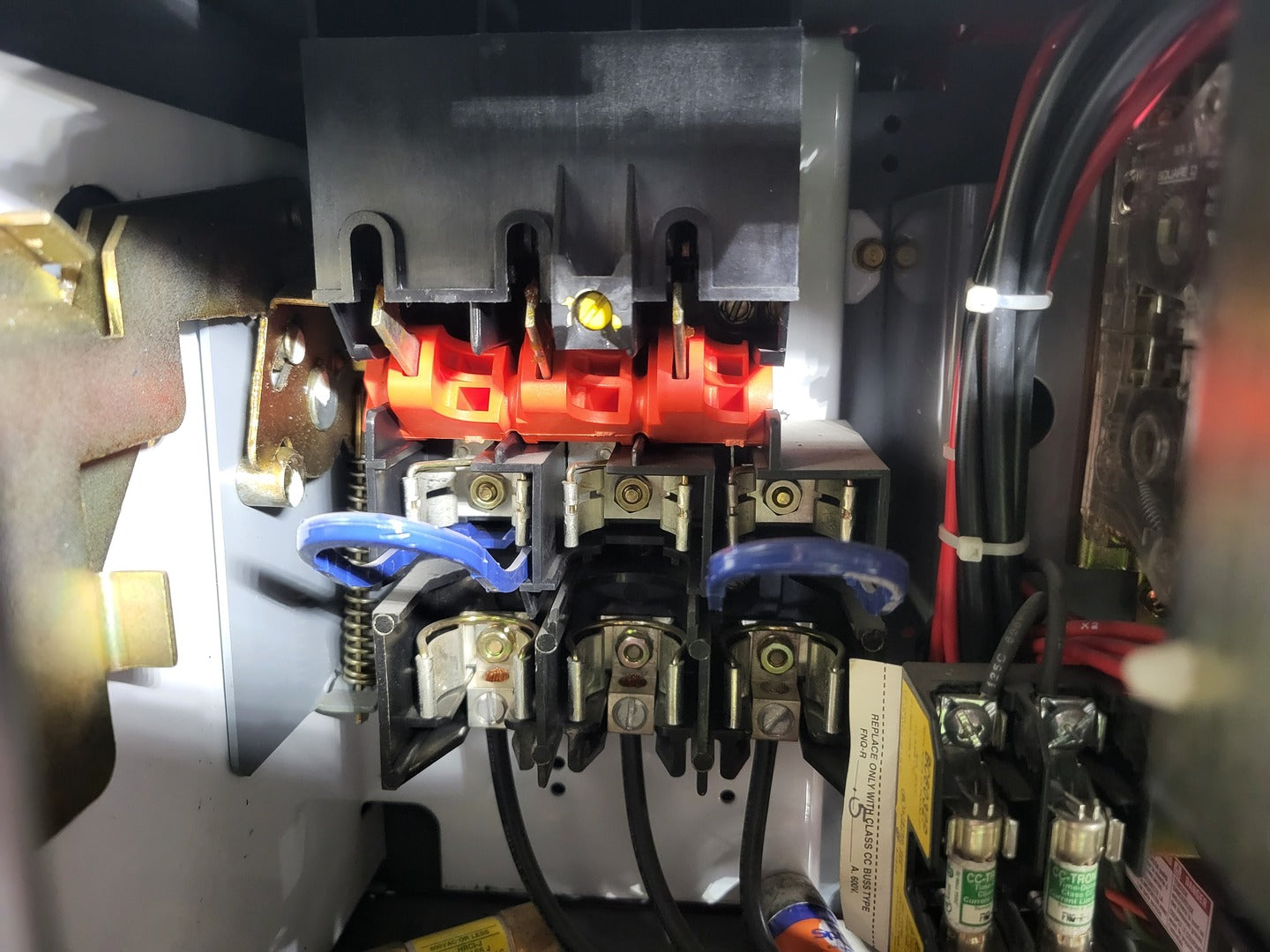

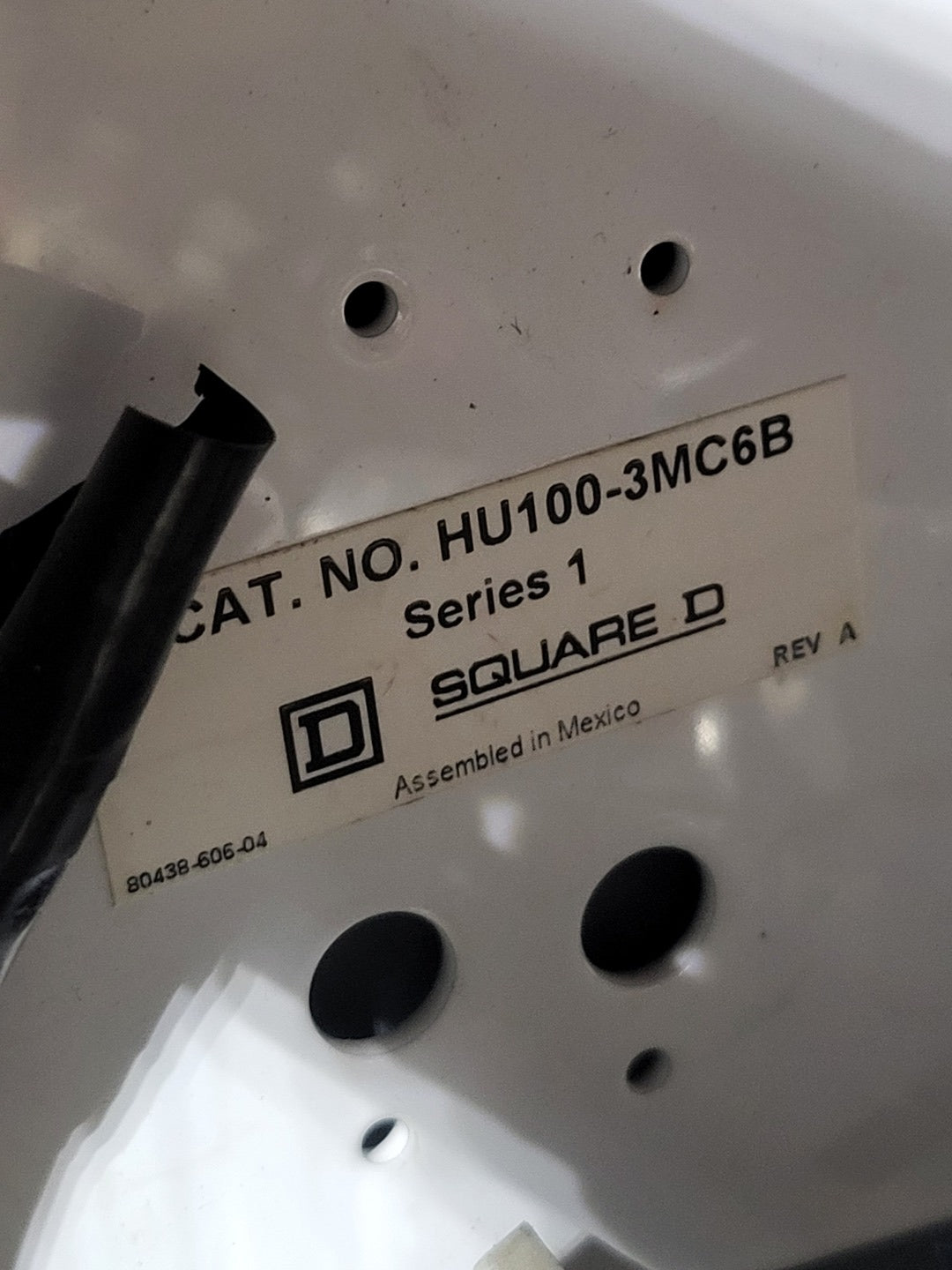

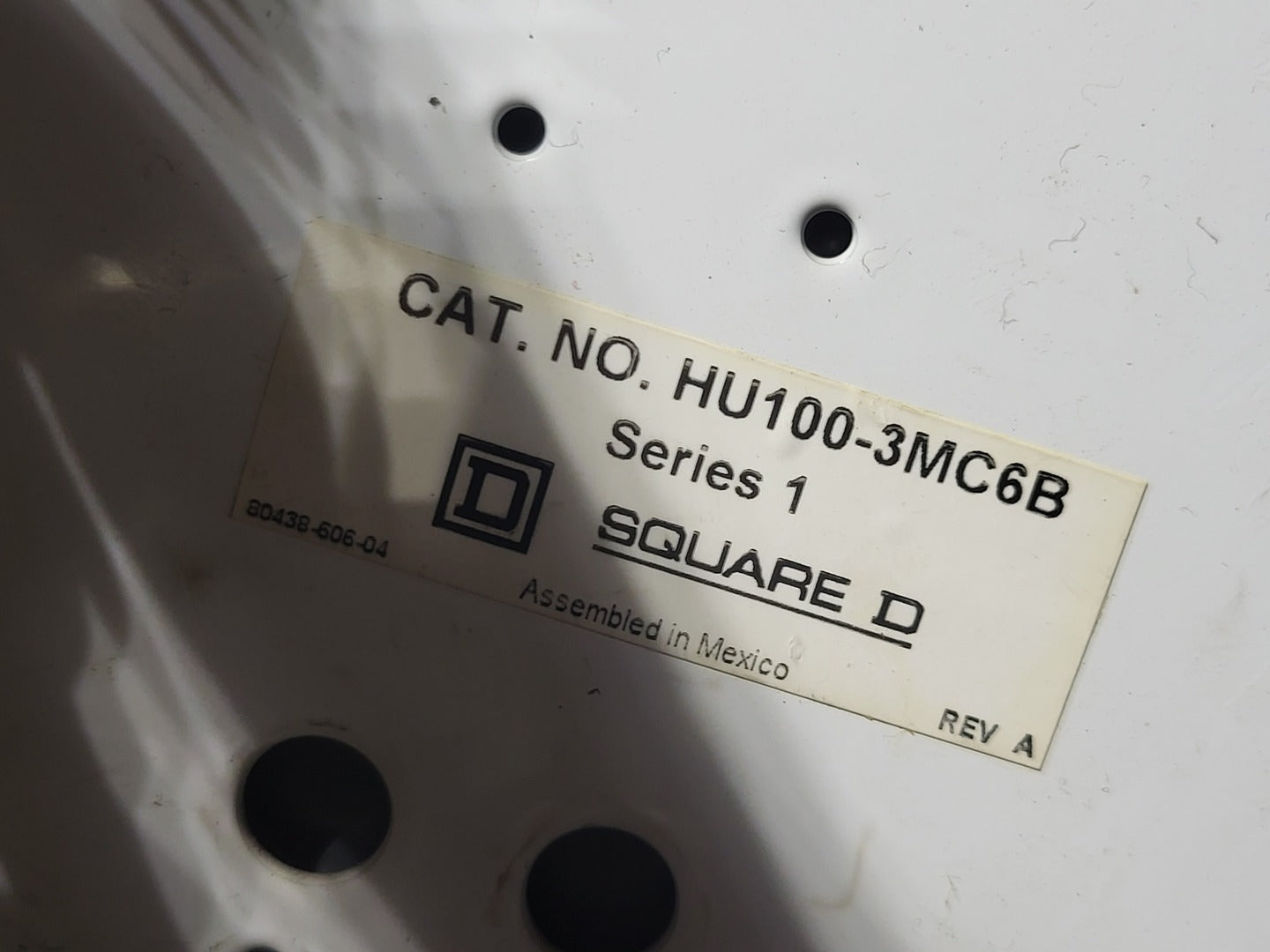

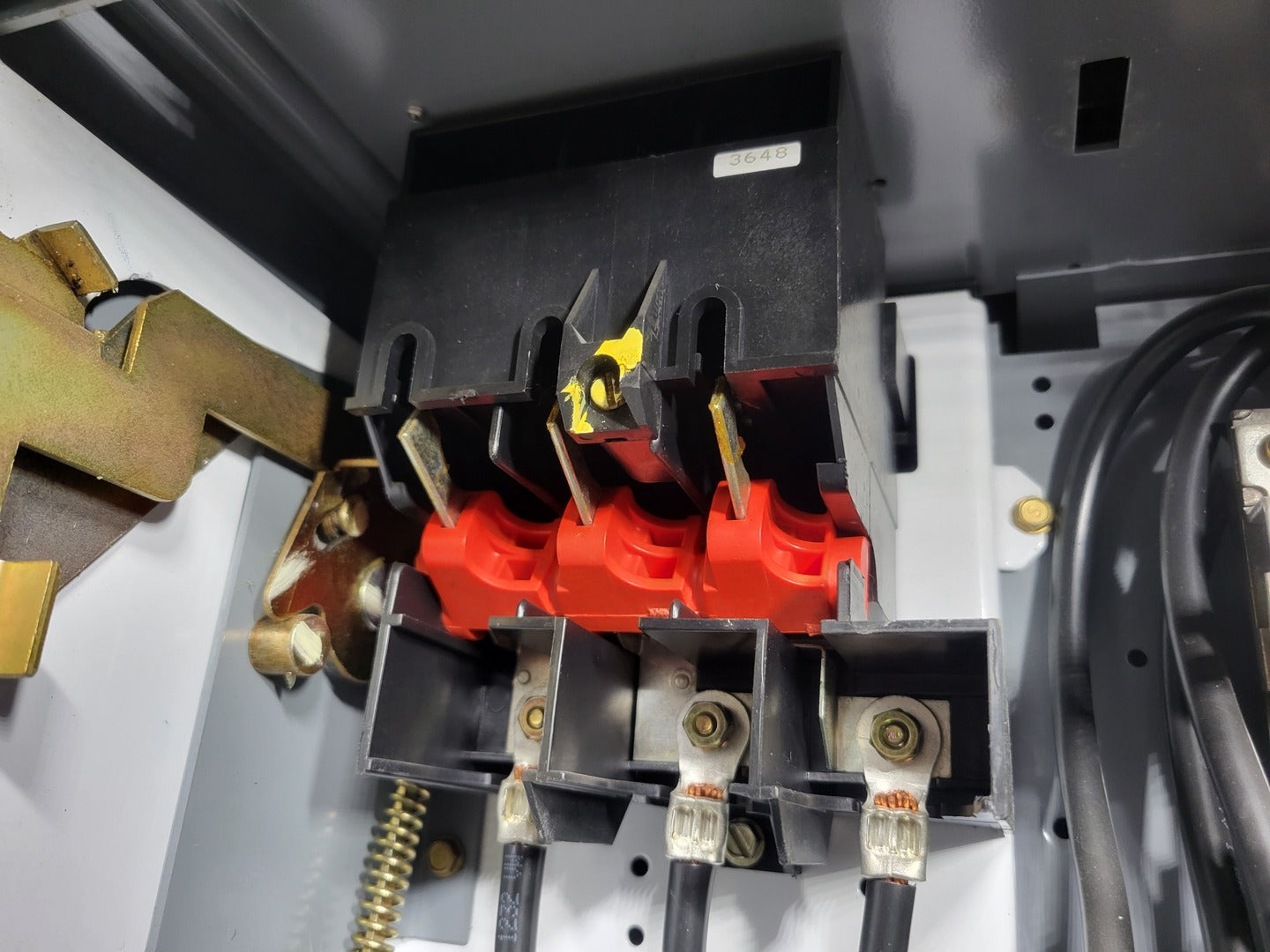

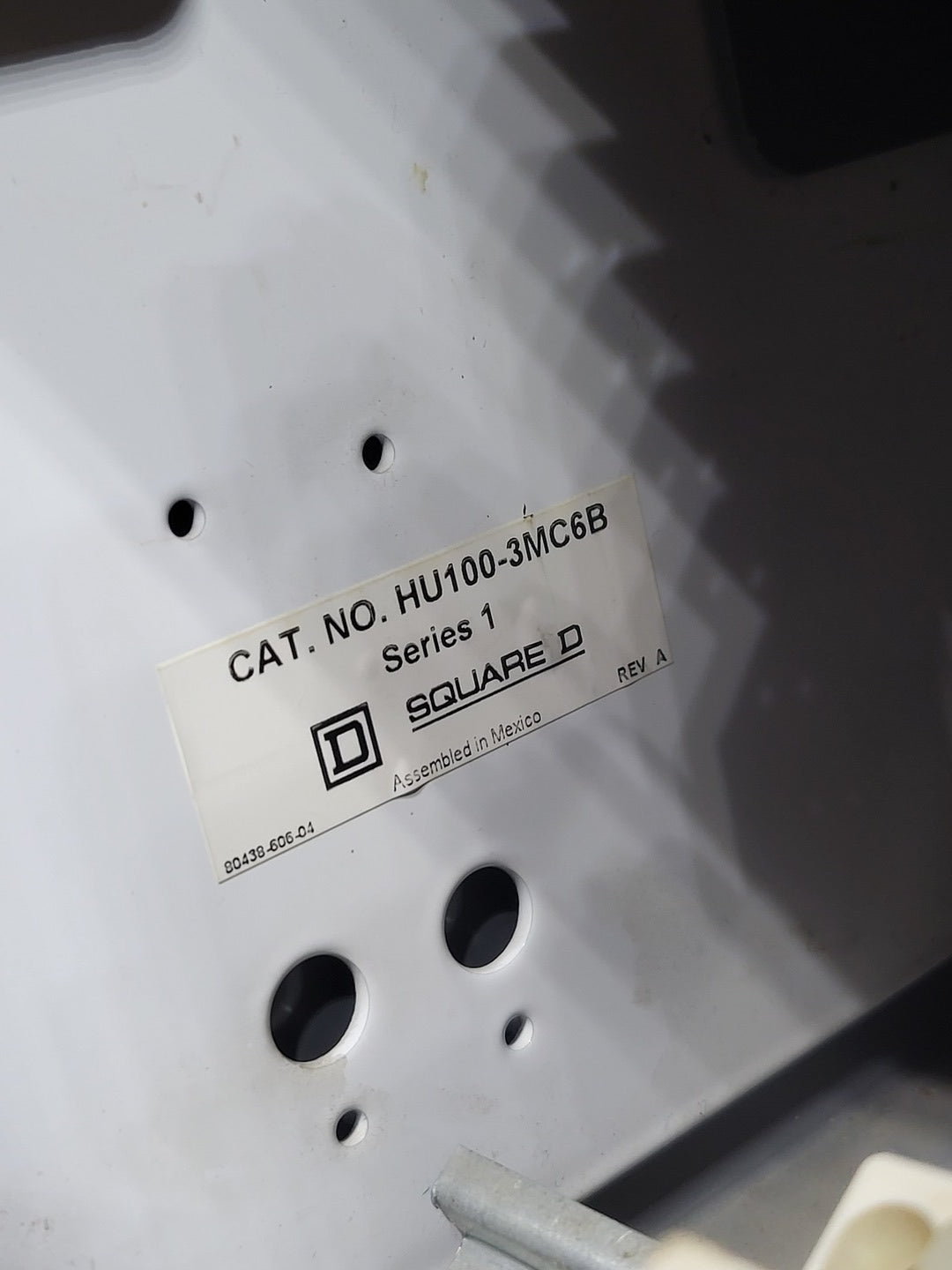

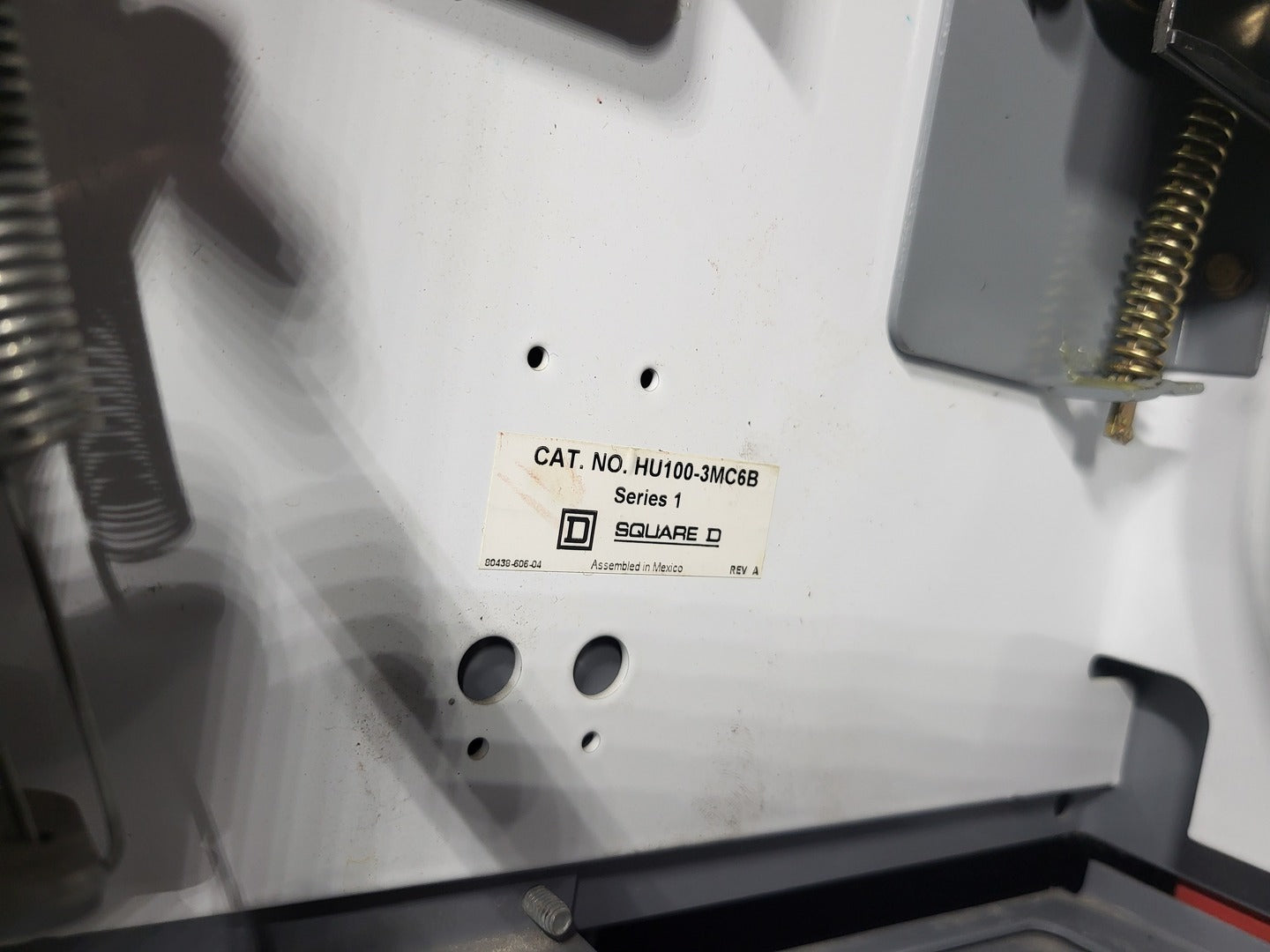

  1. Square D HU100-3MC6B, Series 1, 100A MCC bucket disconnect unit

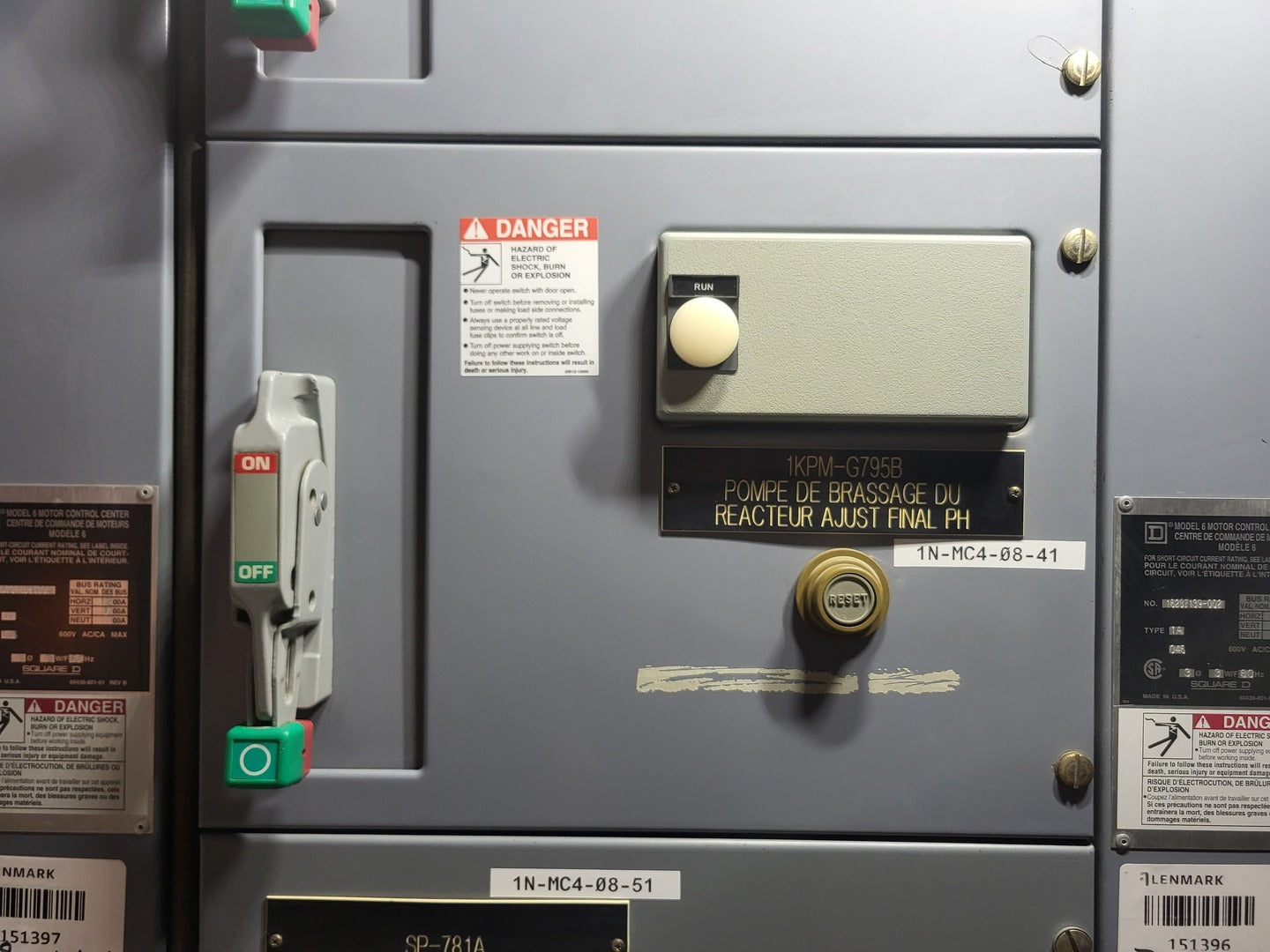

Bucket #2 1KPM-G795B

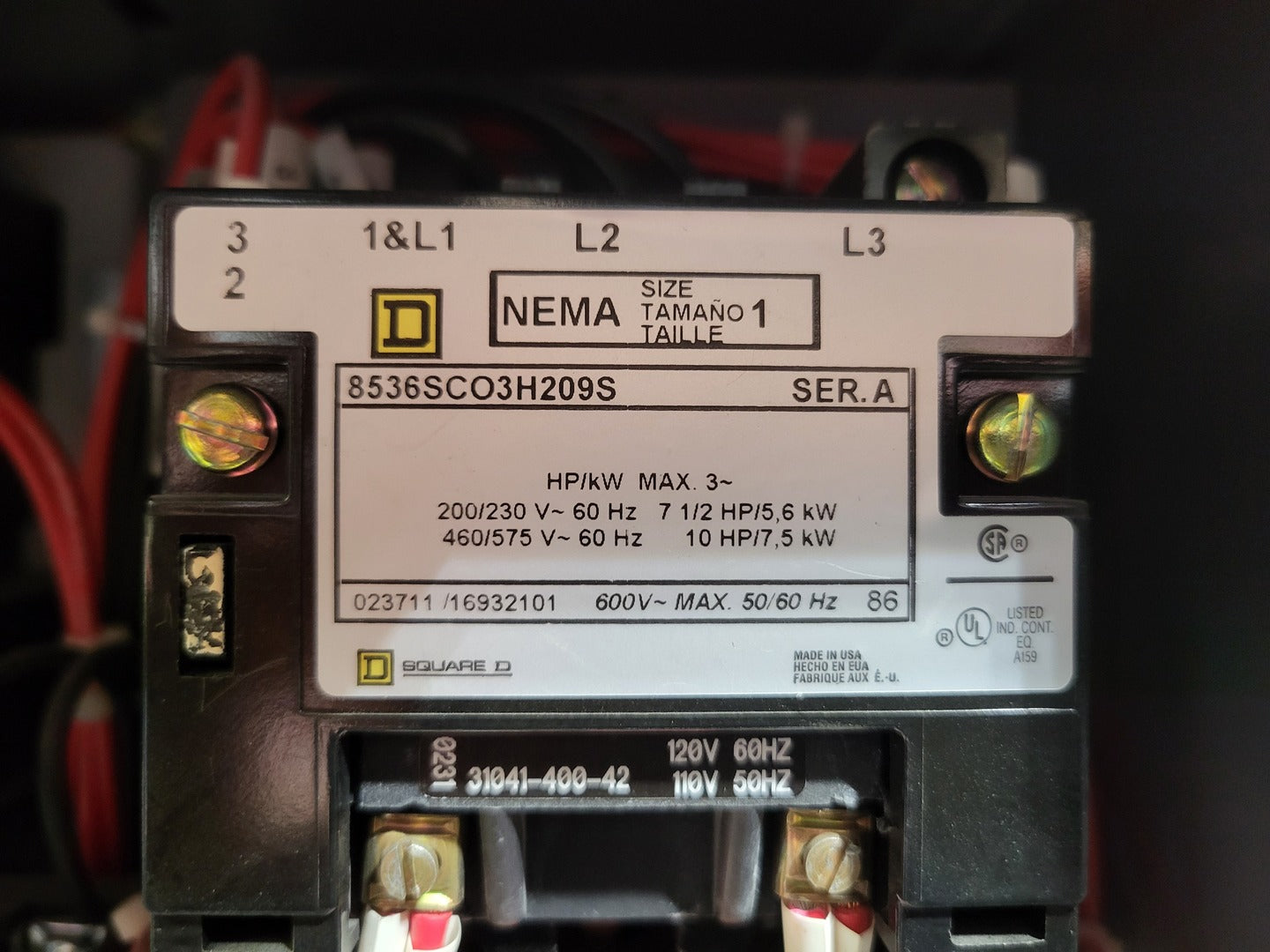

  1. Square D 8536SCO3H209S, NEMA Size 1 contactor, 10 HP @ 460/575V

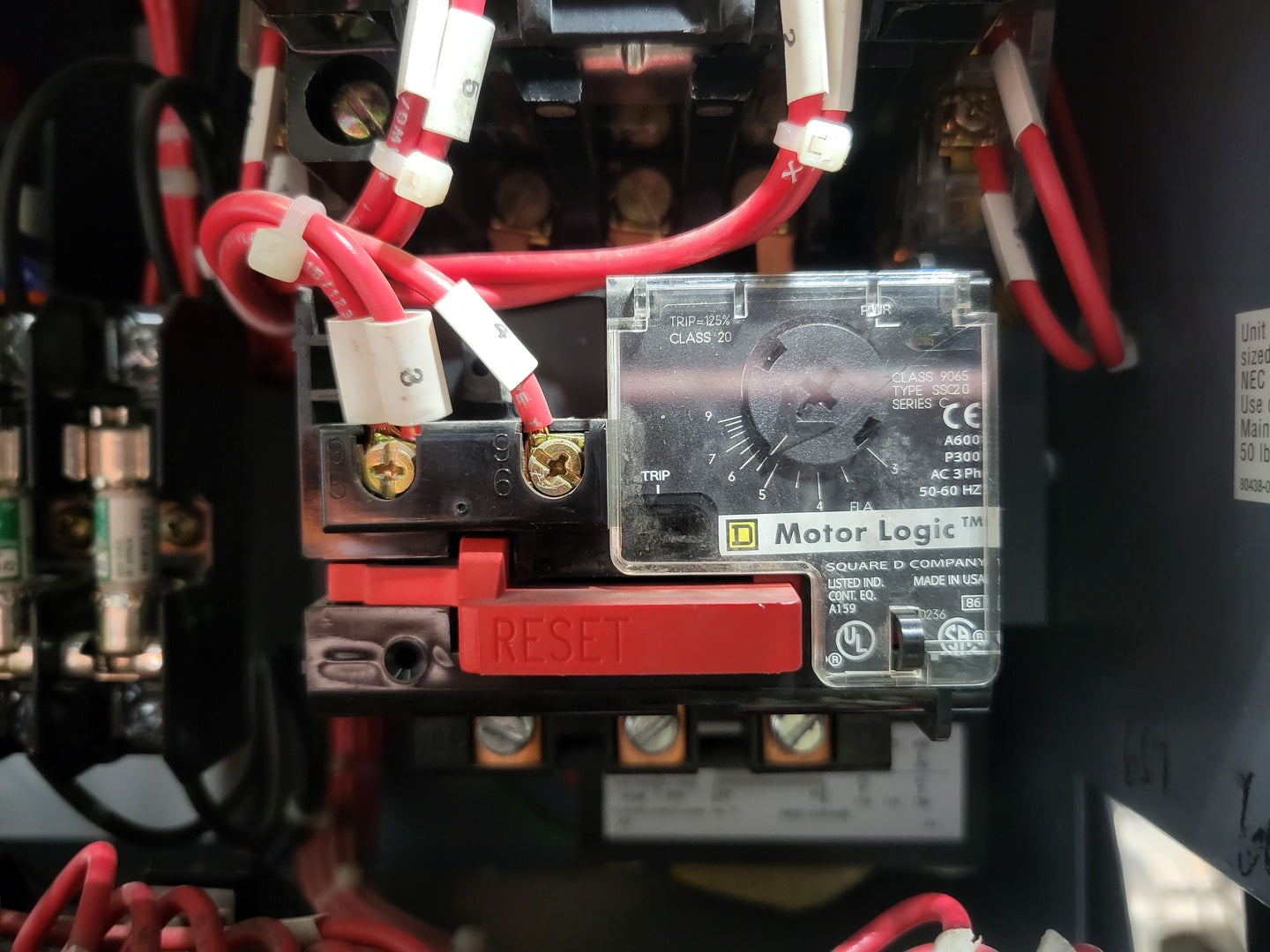

  2. Square D Motor Logic overload relay, adjustable overload module, approx. 3-9A FLA range

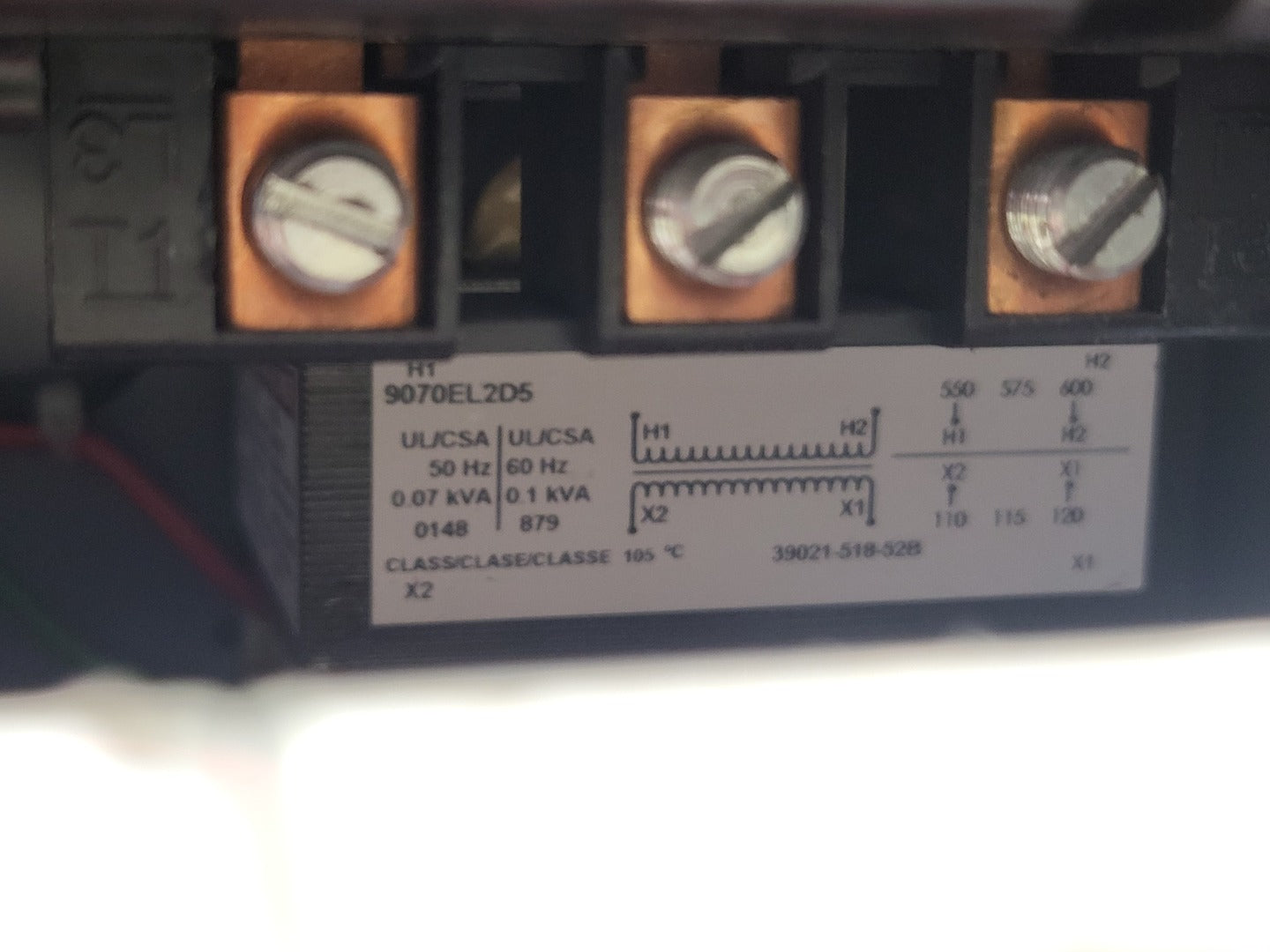

  3. Square D 9070EL2D5, control transformer, 0.07 kVA @ 50Hz / 0.1 kVA @ 60Hz
  4. Square D HU100-3MC6B, Series 1, 100A MCC bucket disconnect unit

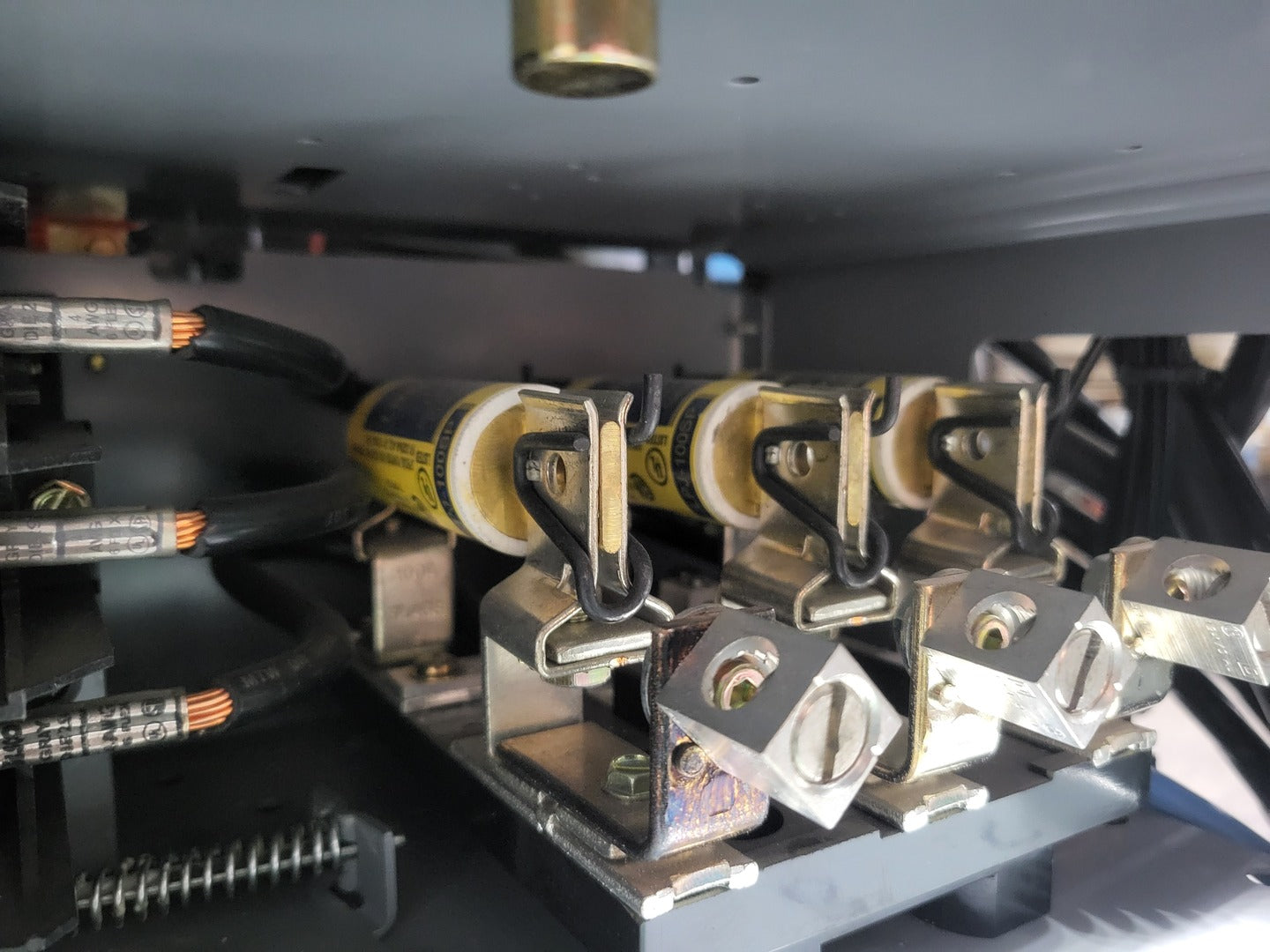

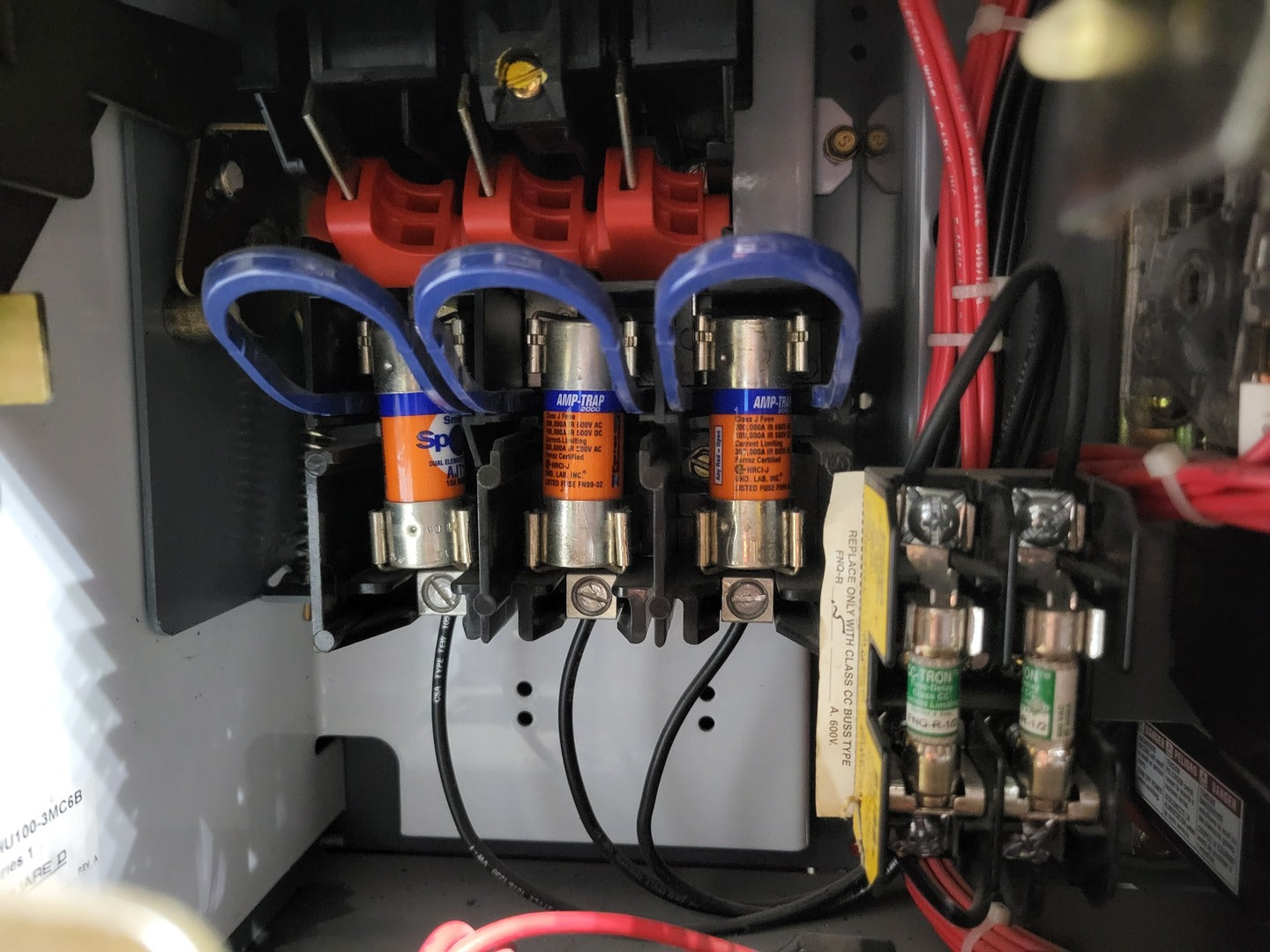

  5. 3 x Ferraz Shawmut Amp-Trap 2000 A4J10

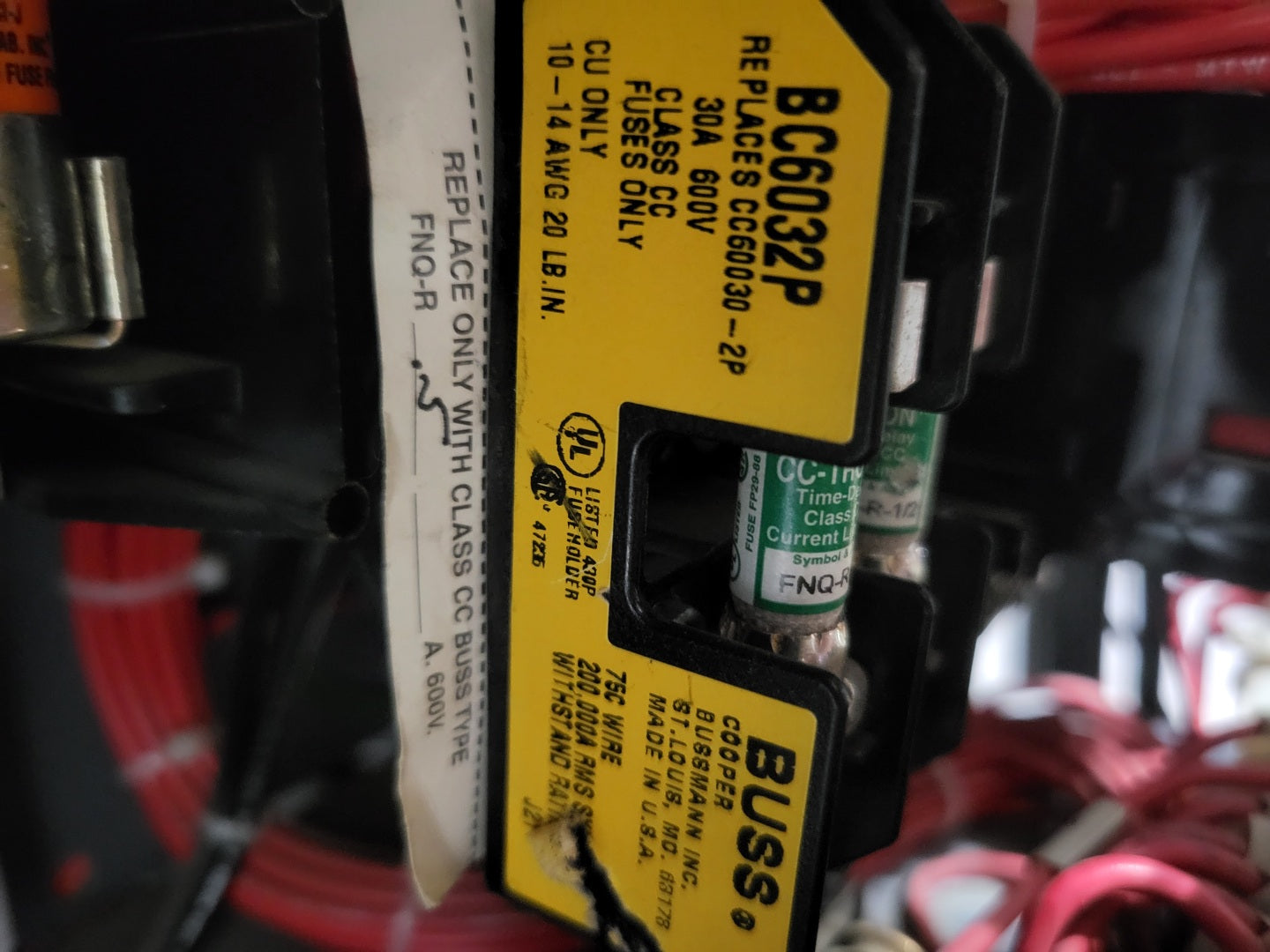

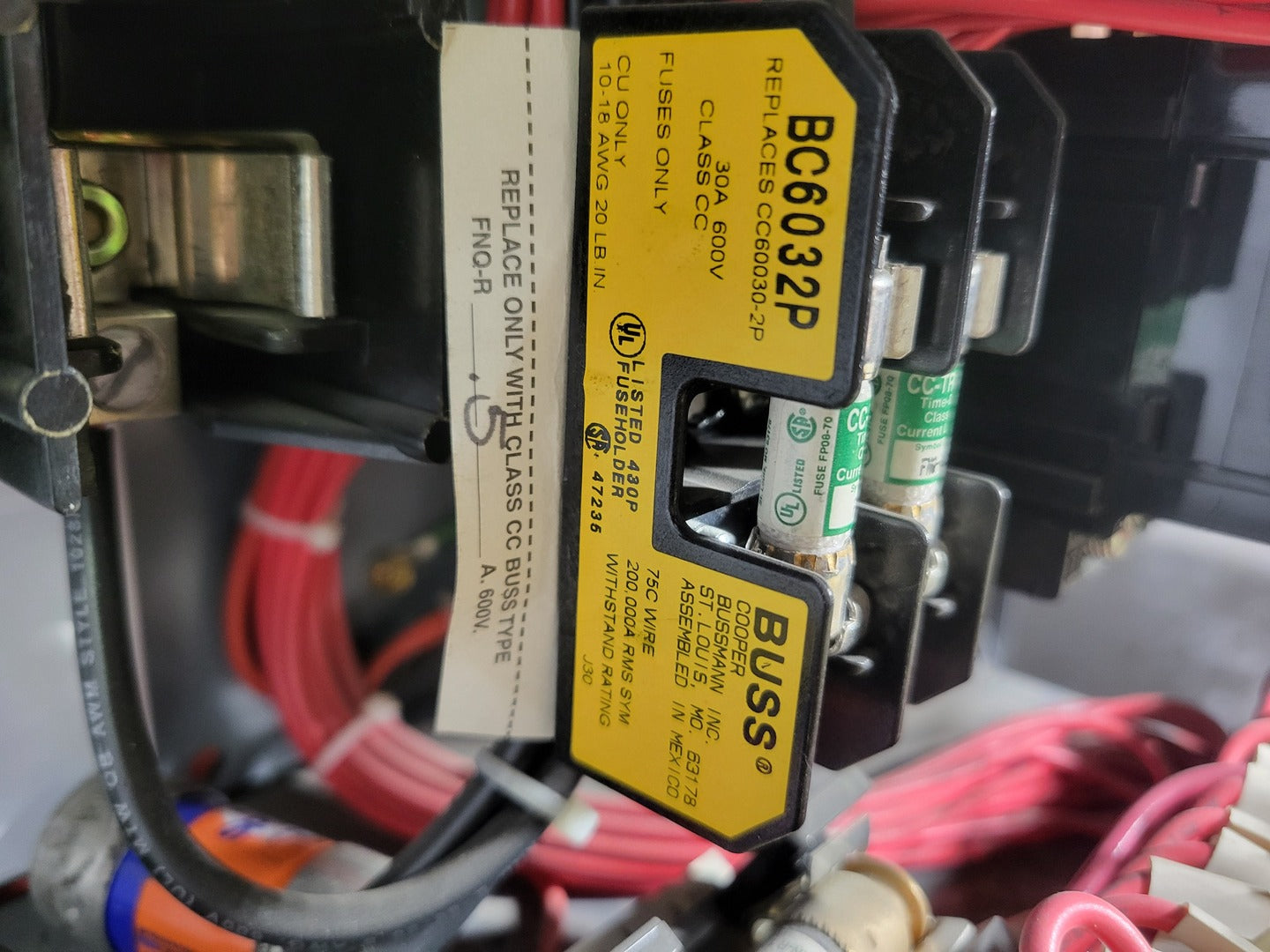

  6. 2 x Bussmann CC-Tron fuses FNQ-R-1/2

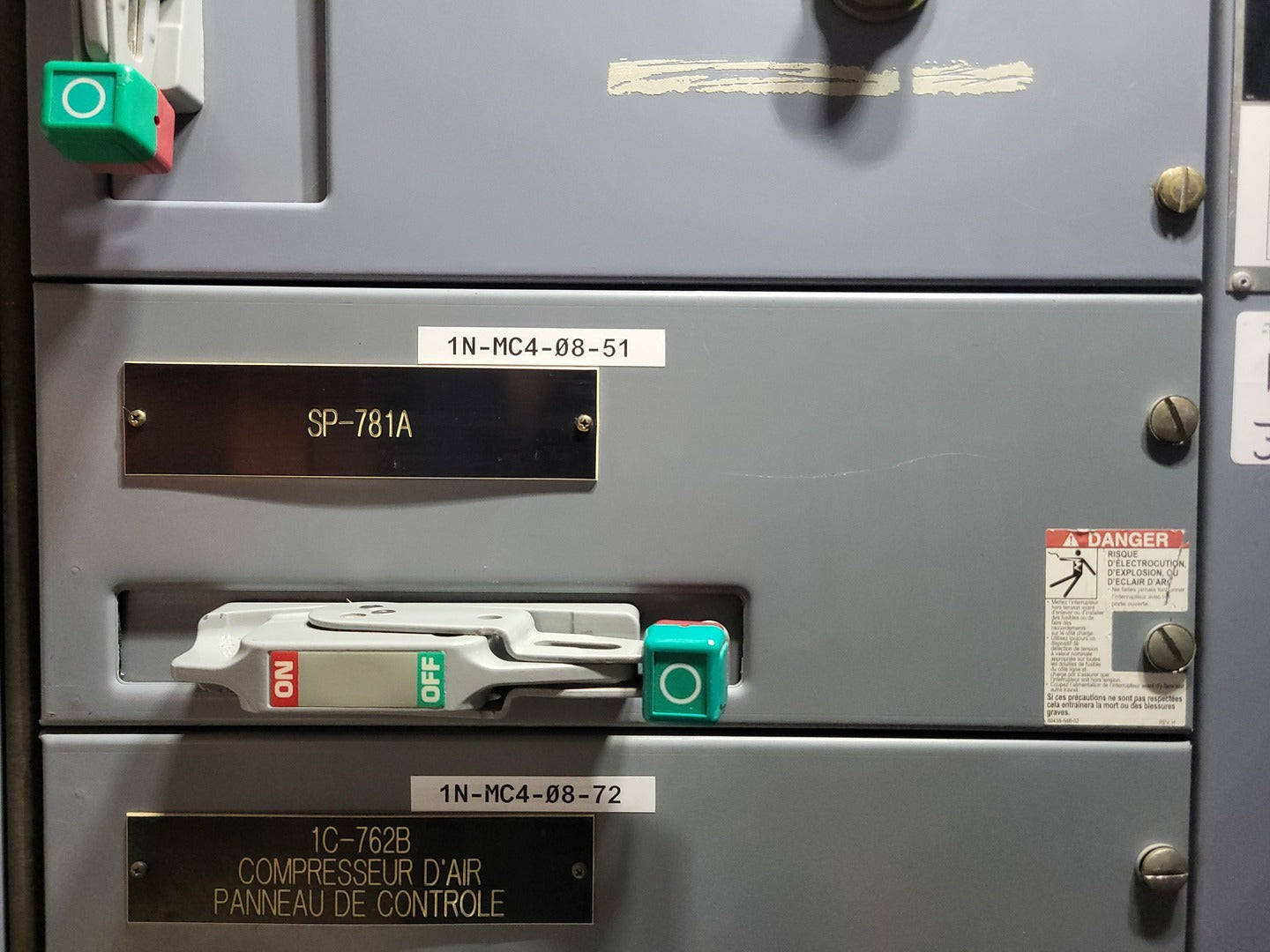

Bucket #3 SP-781A

  1. Square D MCC bucket disconnect unit

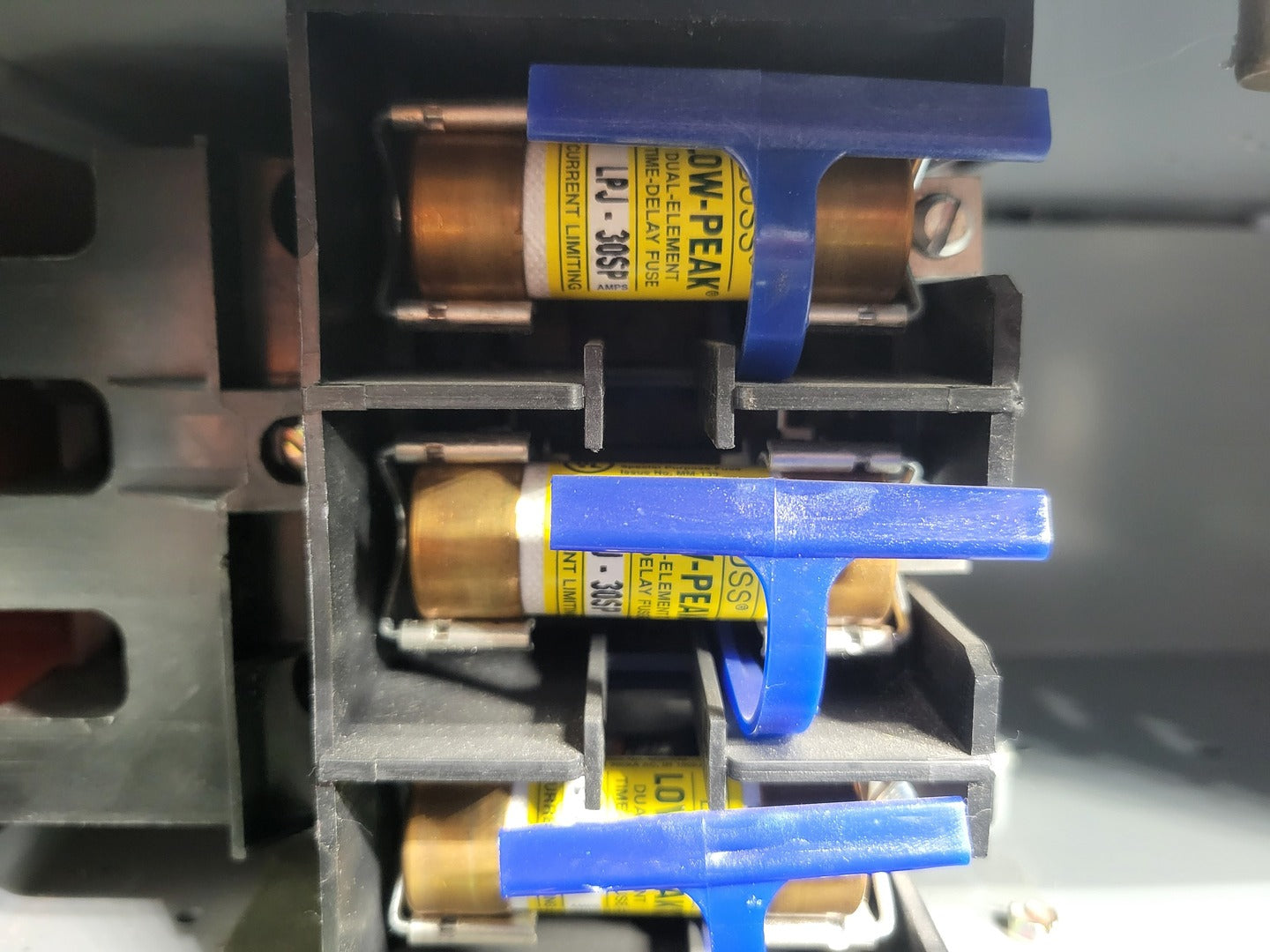

  2. 3 x Bussmann Low-Peak fuses LPJ-30SP

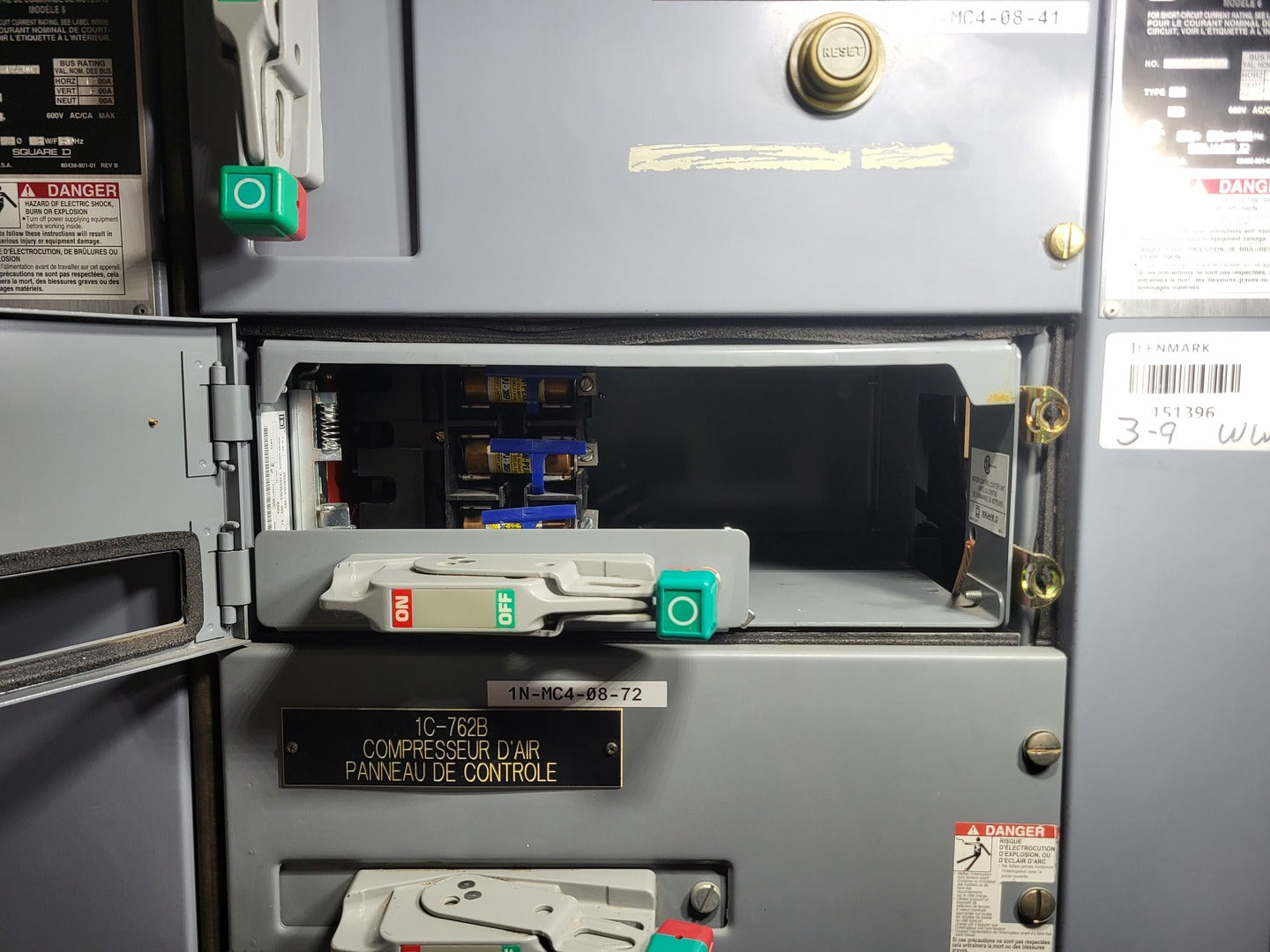

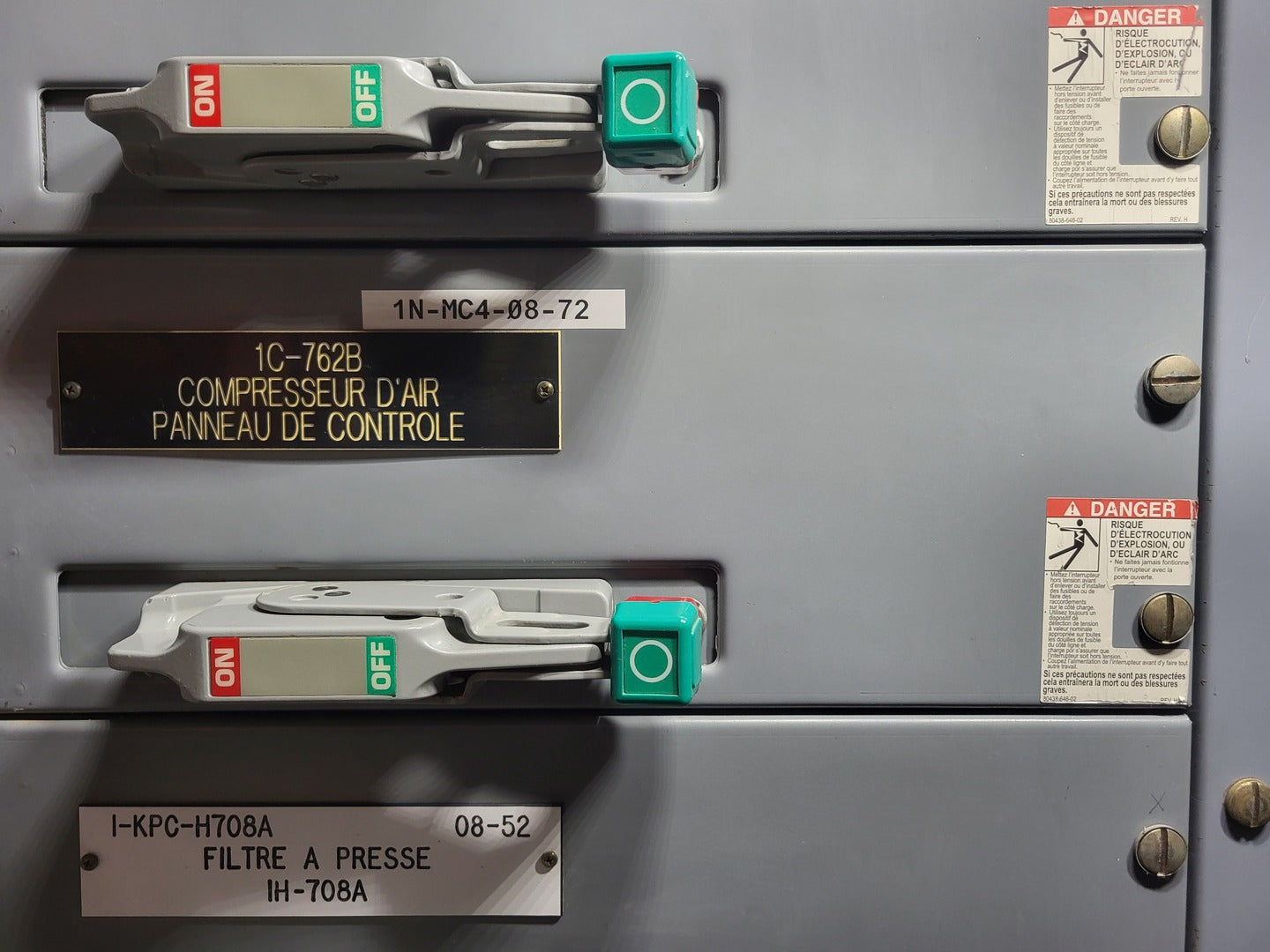

Bucket #4 1C-762B

  1. Square D MCC bucket disconnect unit

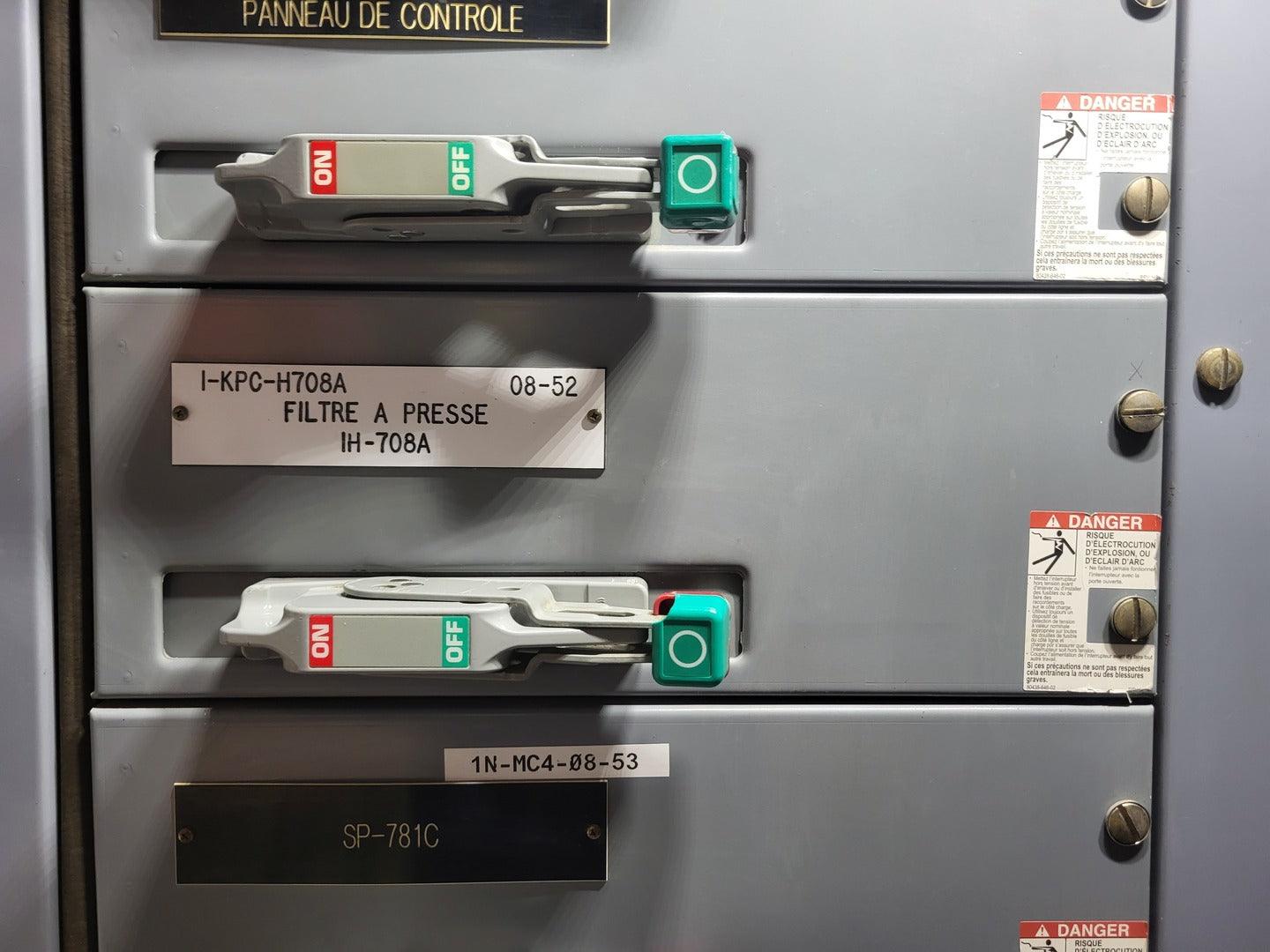

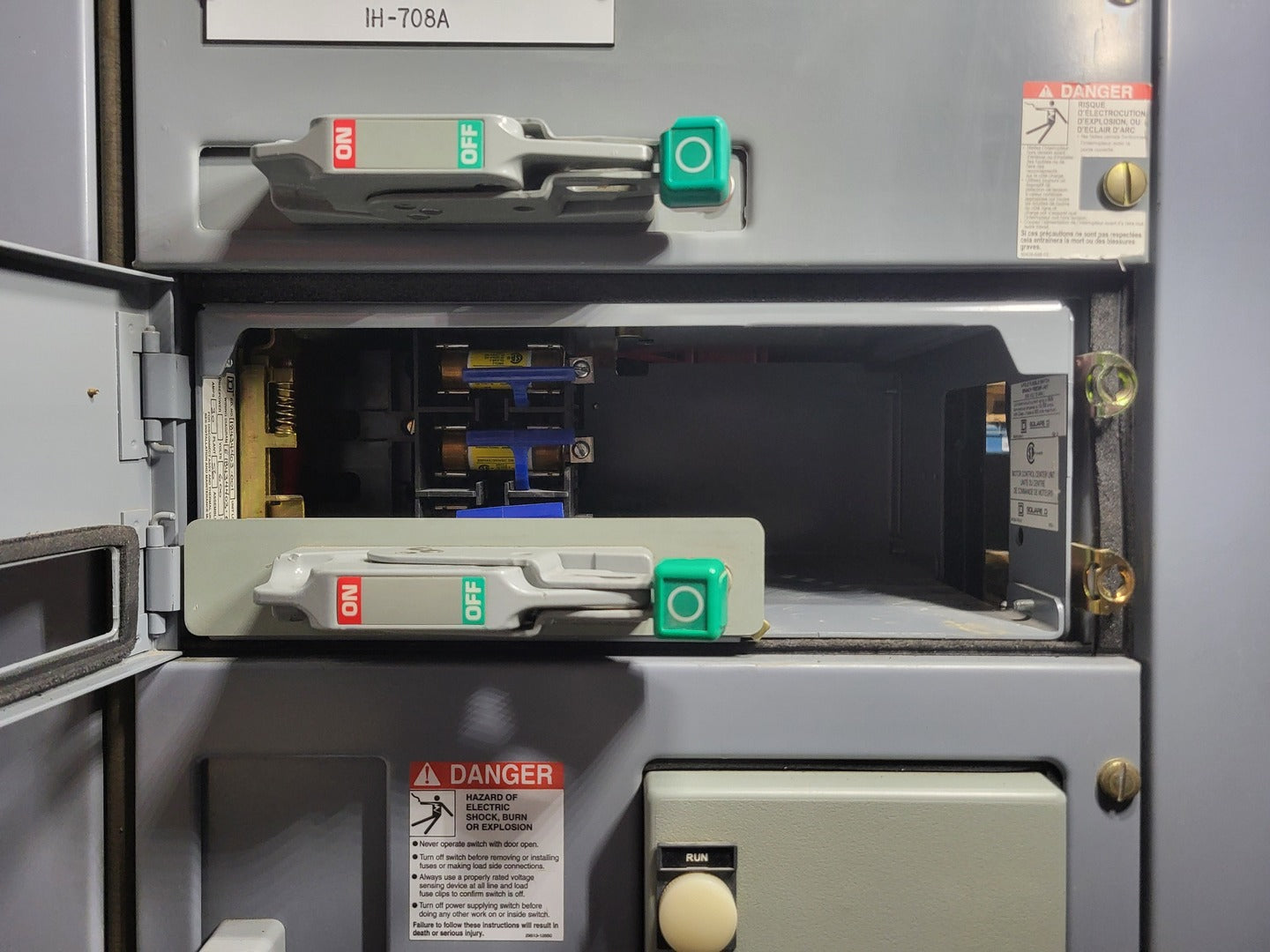

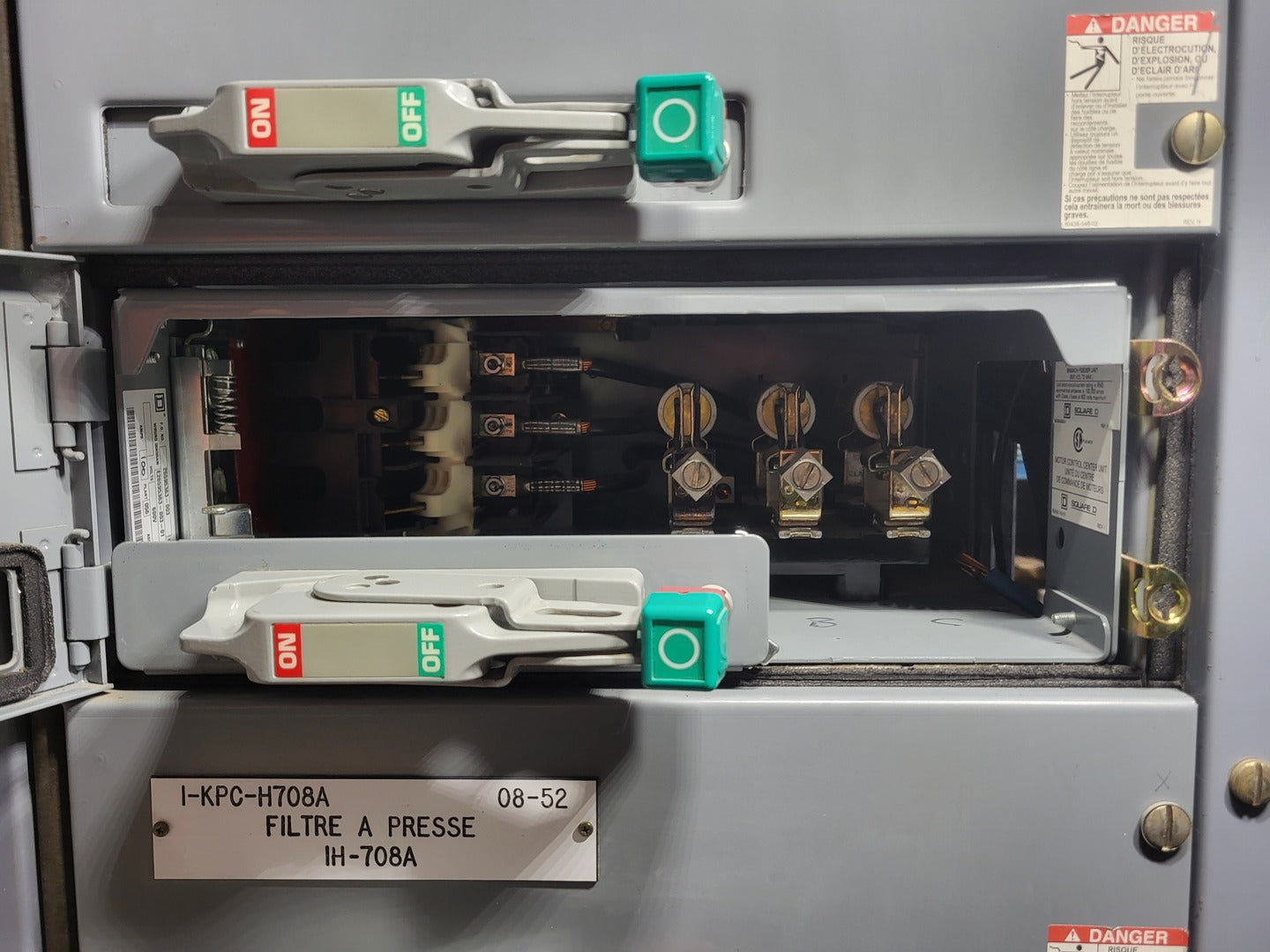

Bucket #5 IH-708A

  1. Square D MCC bucket disconnect unit

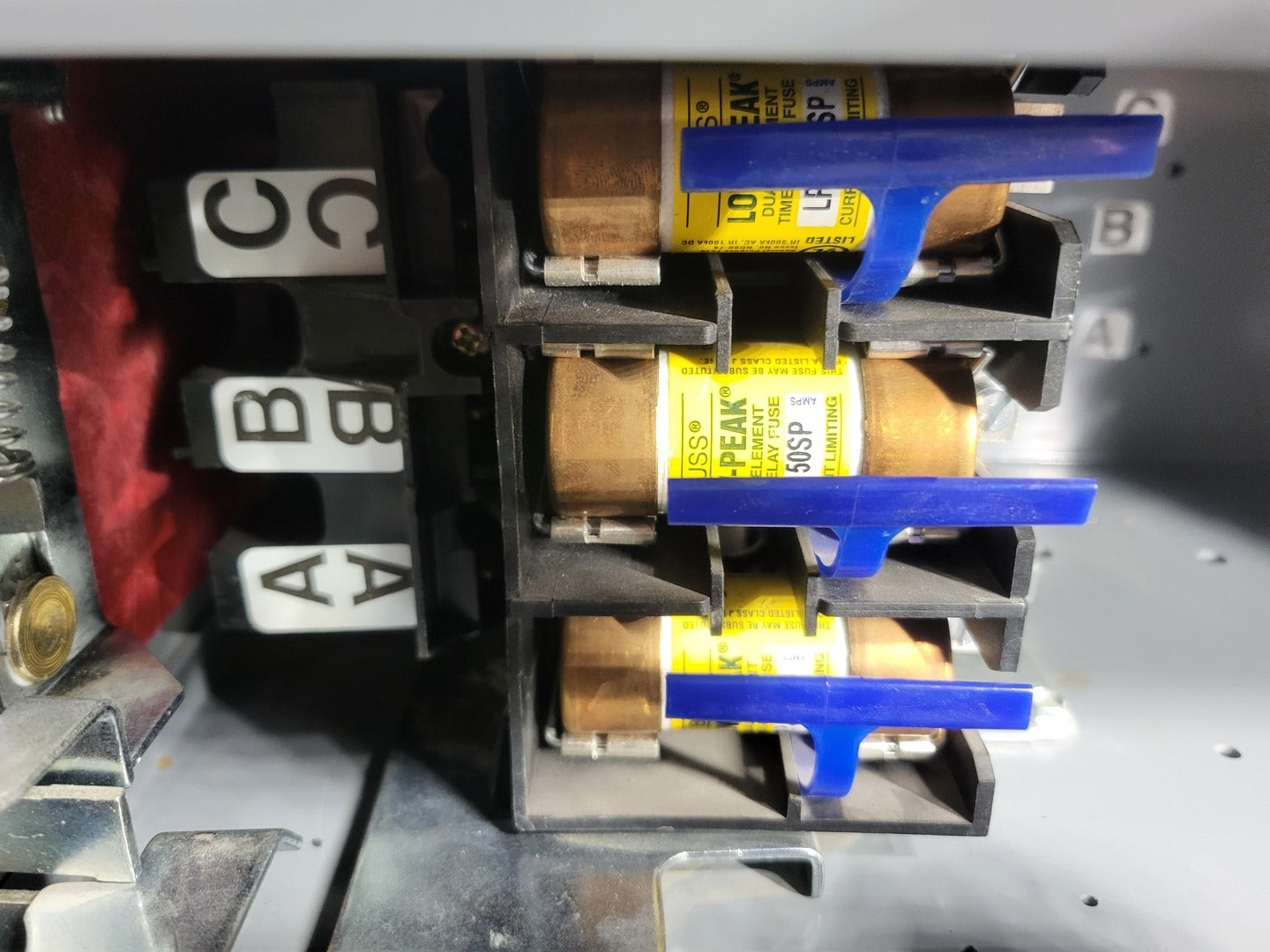

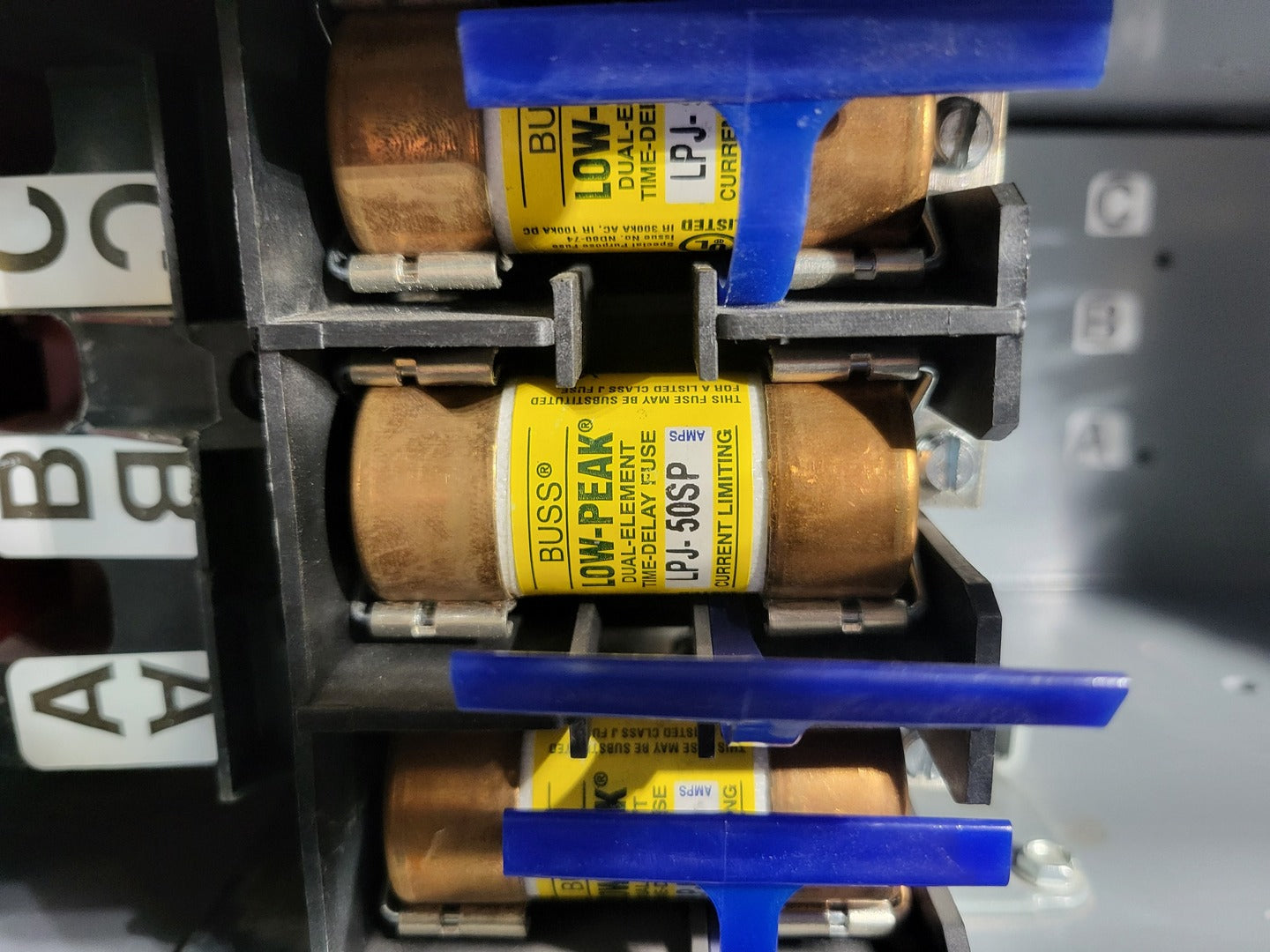

  2. 3 x Bussmann Low-Peak fuses LPJ-50SP

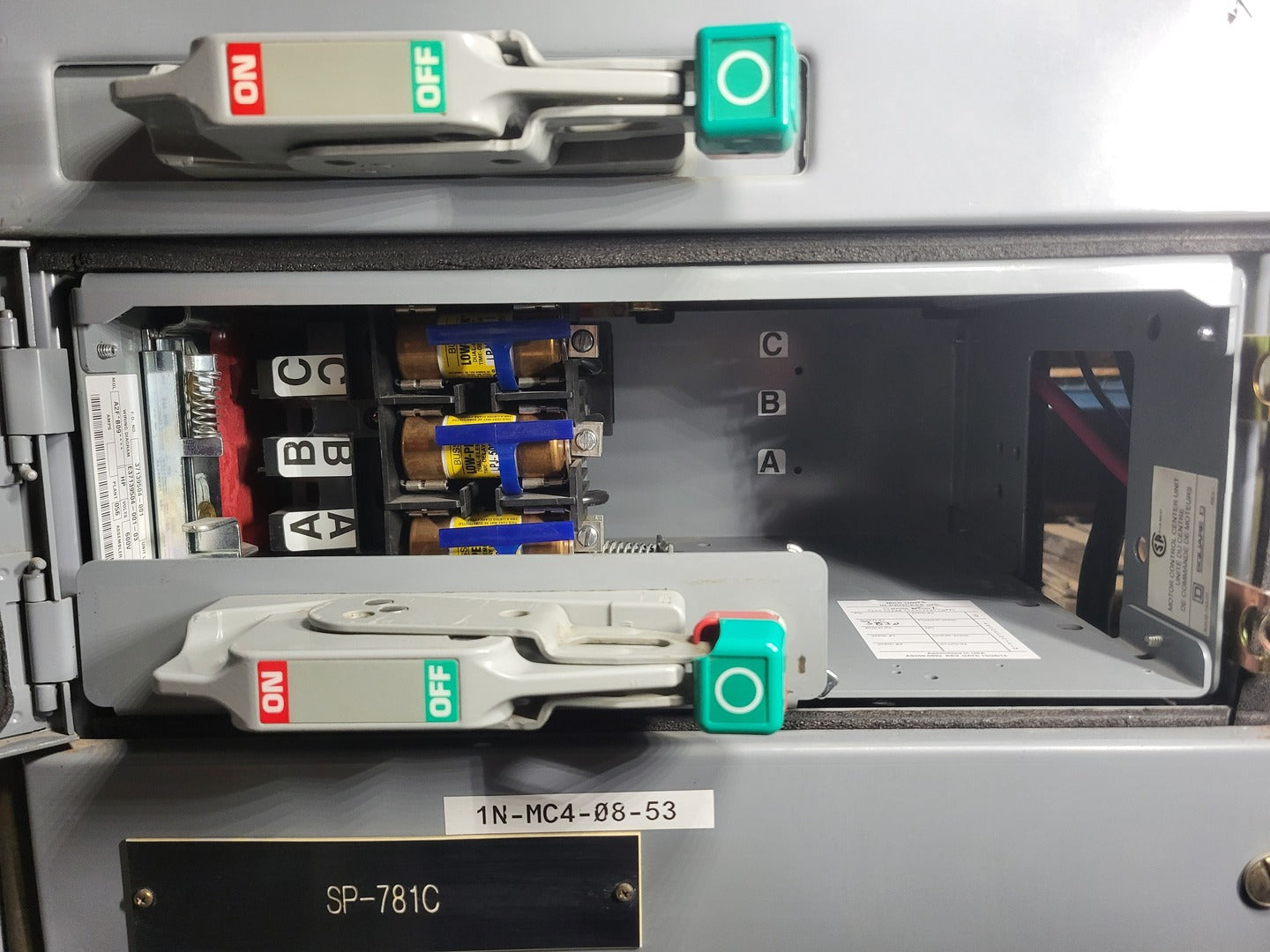

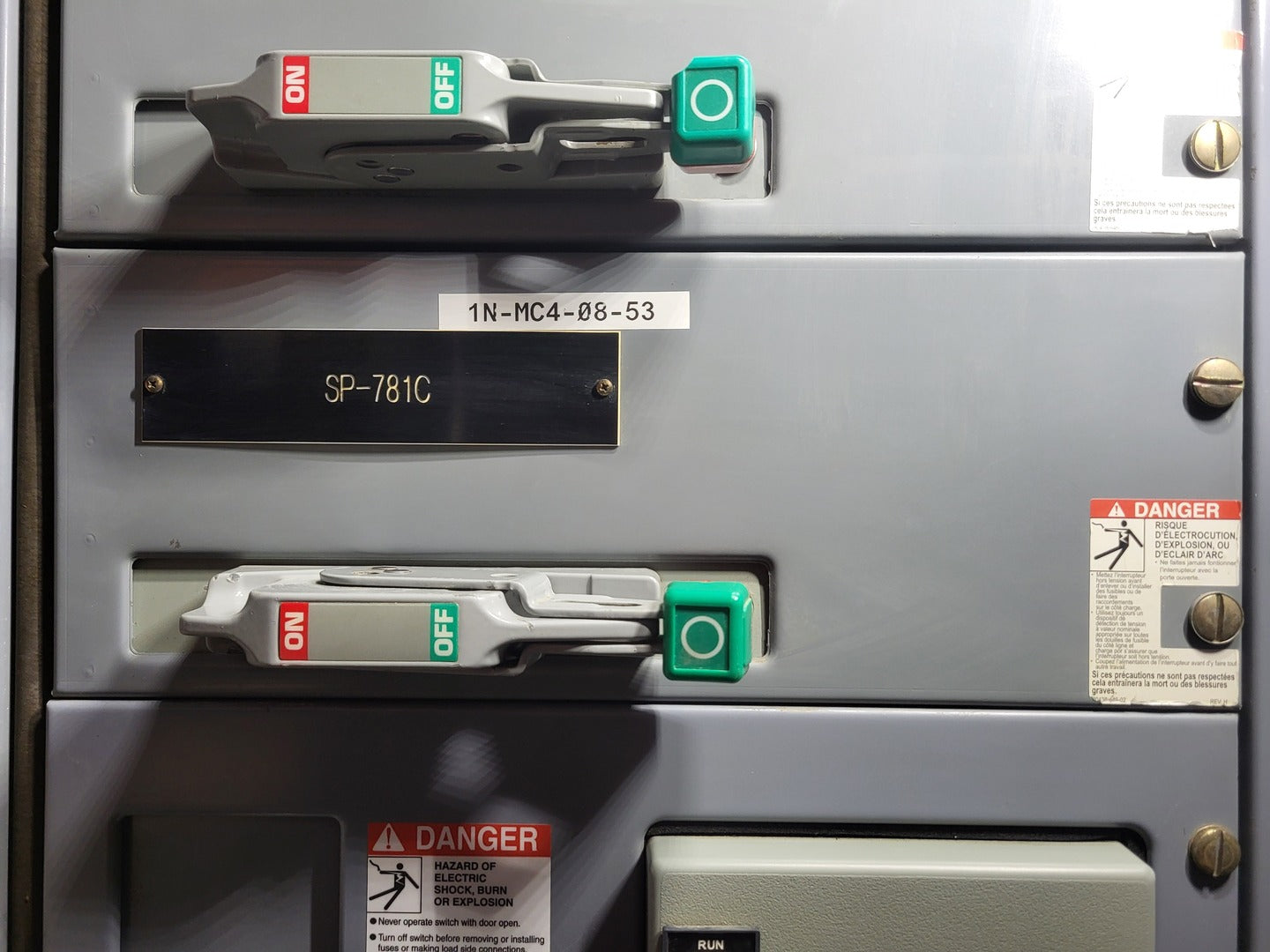

Bucket #6 SP-781C

  1. Square D MCC bucket disconnect unit
  2. 3 x Bussmann Low-Peak fuses

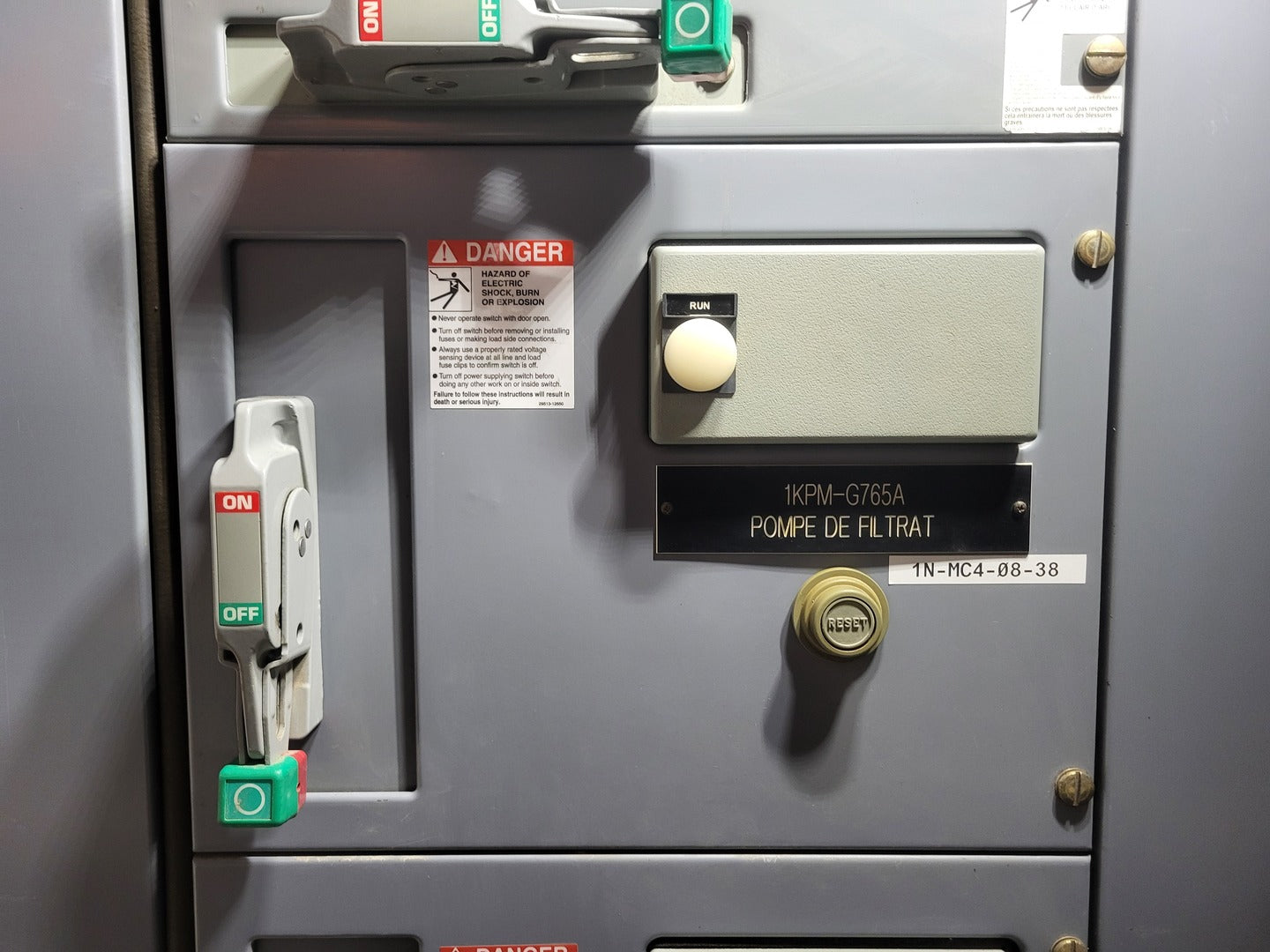

Bucket #7 1KPM-G765

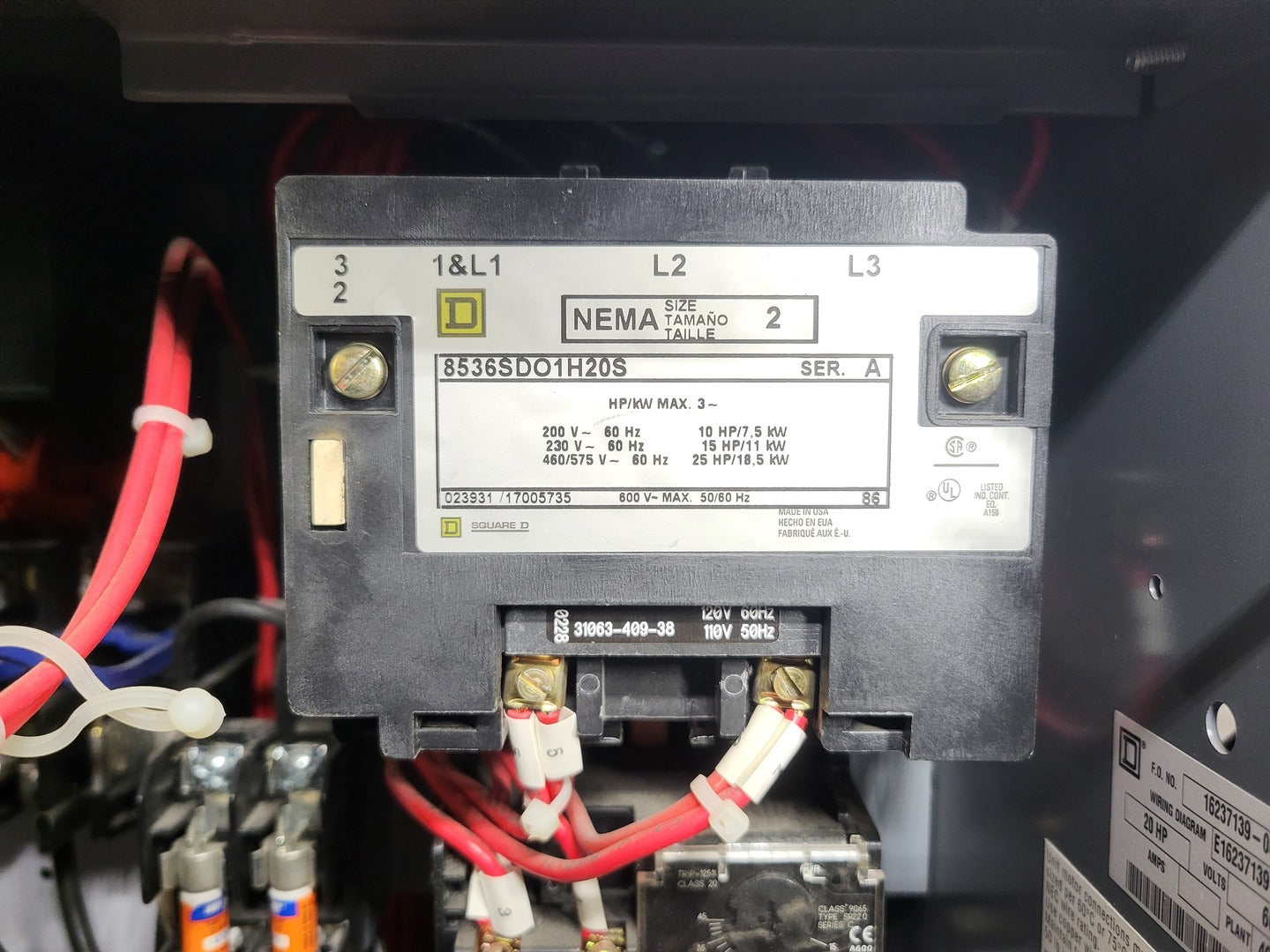

  1. Square D 8536SDO1H20S, NEMA Size 2 contactor, 25 HP @ 460/575V, 600V max

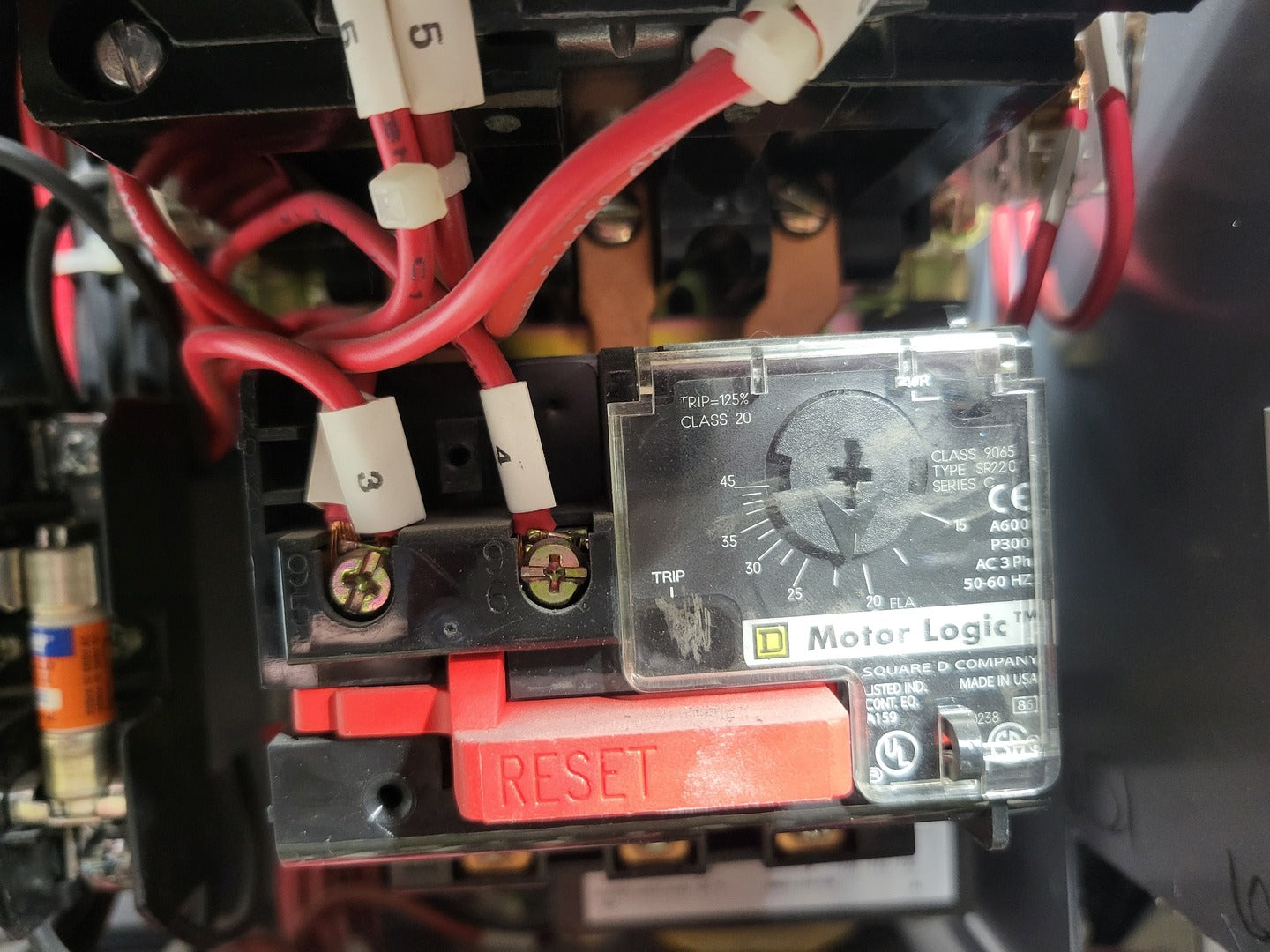

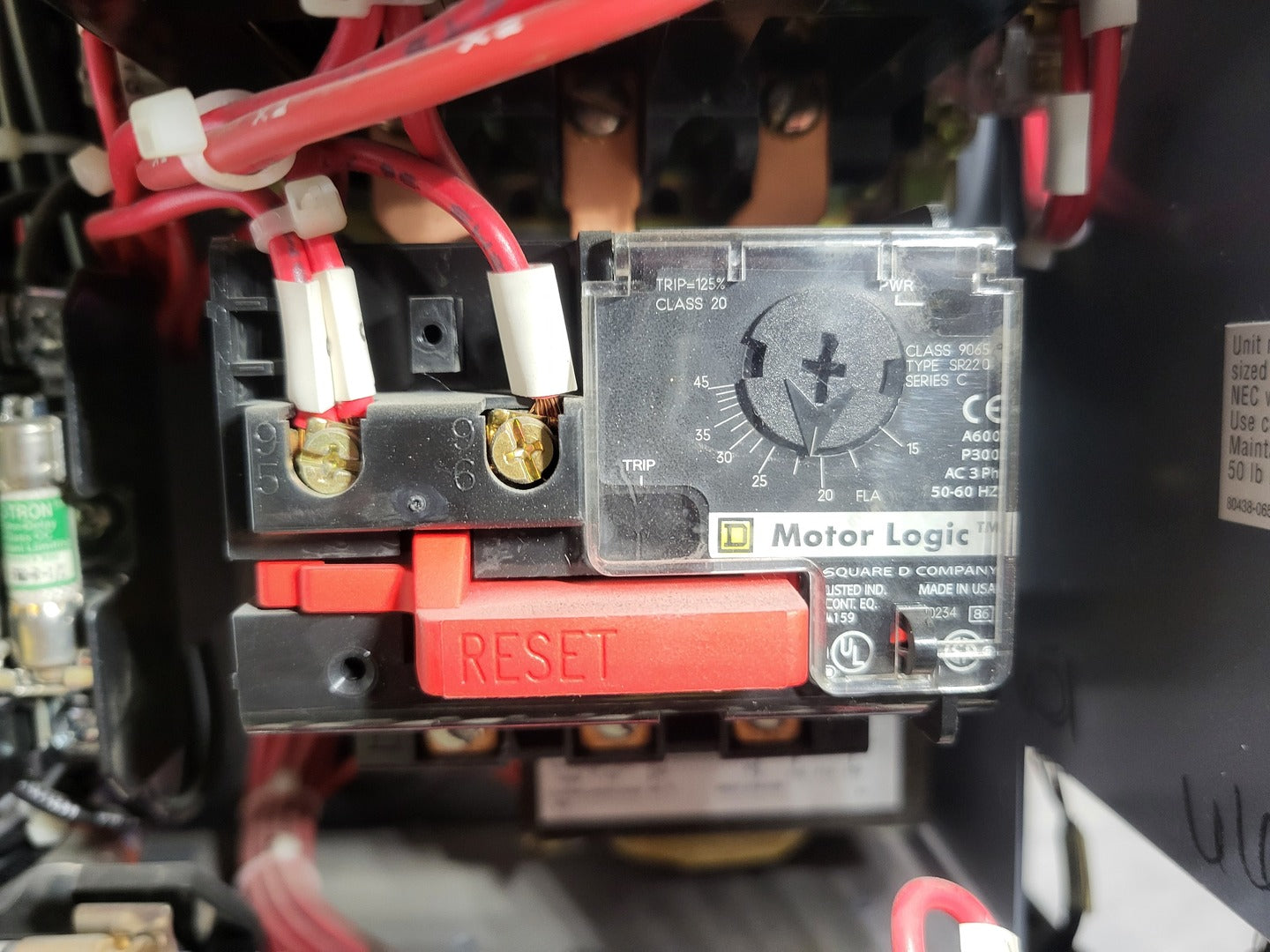

  2. Square D Motor Logic 9065 SR22O, Series C, overload relay, Class 20, approx. 15-45A FLA range, 600VAC, 3-phase

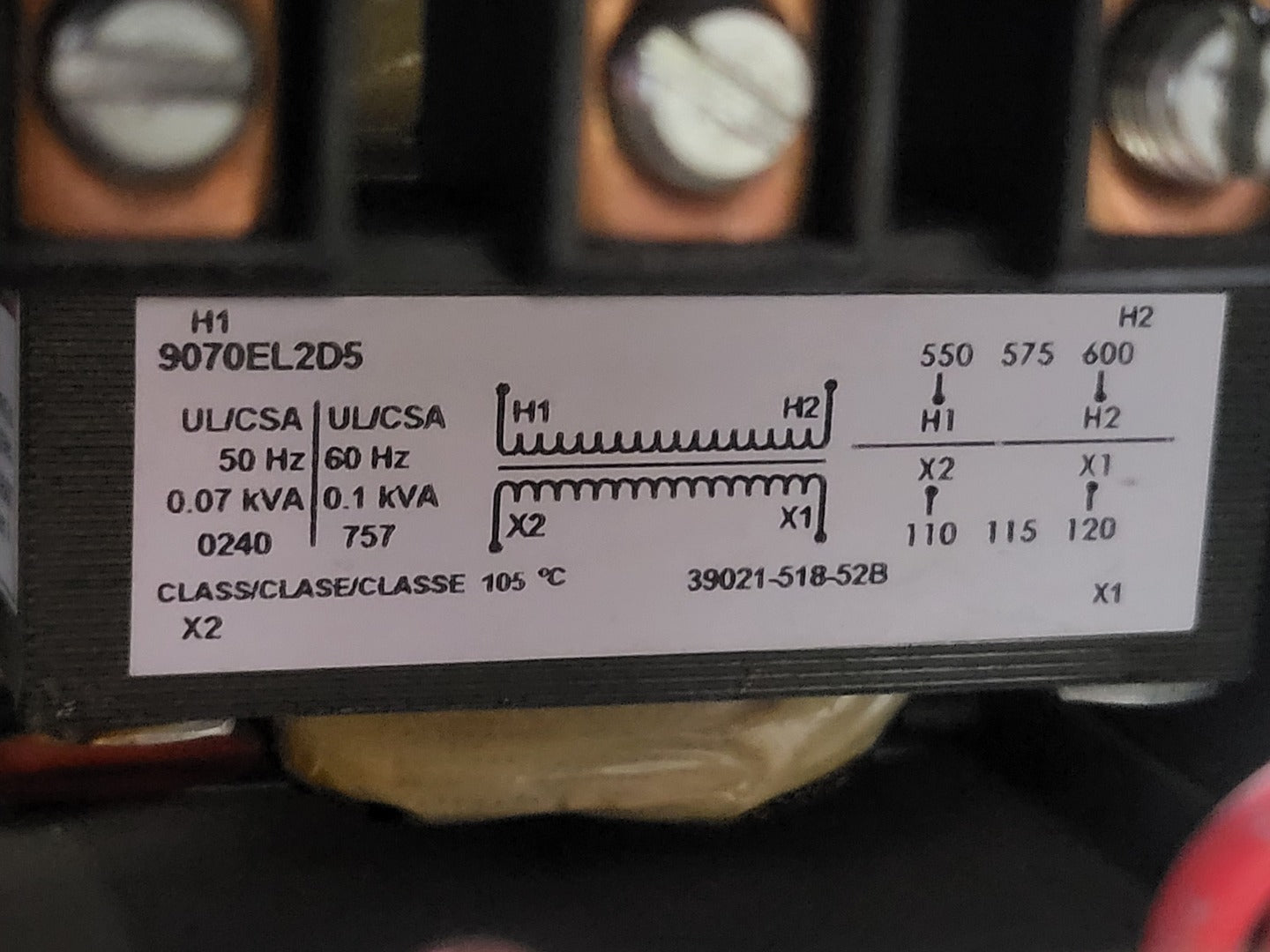

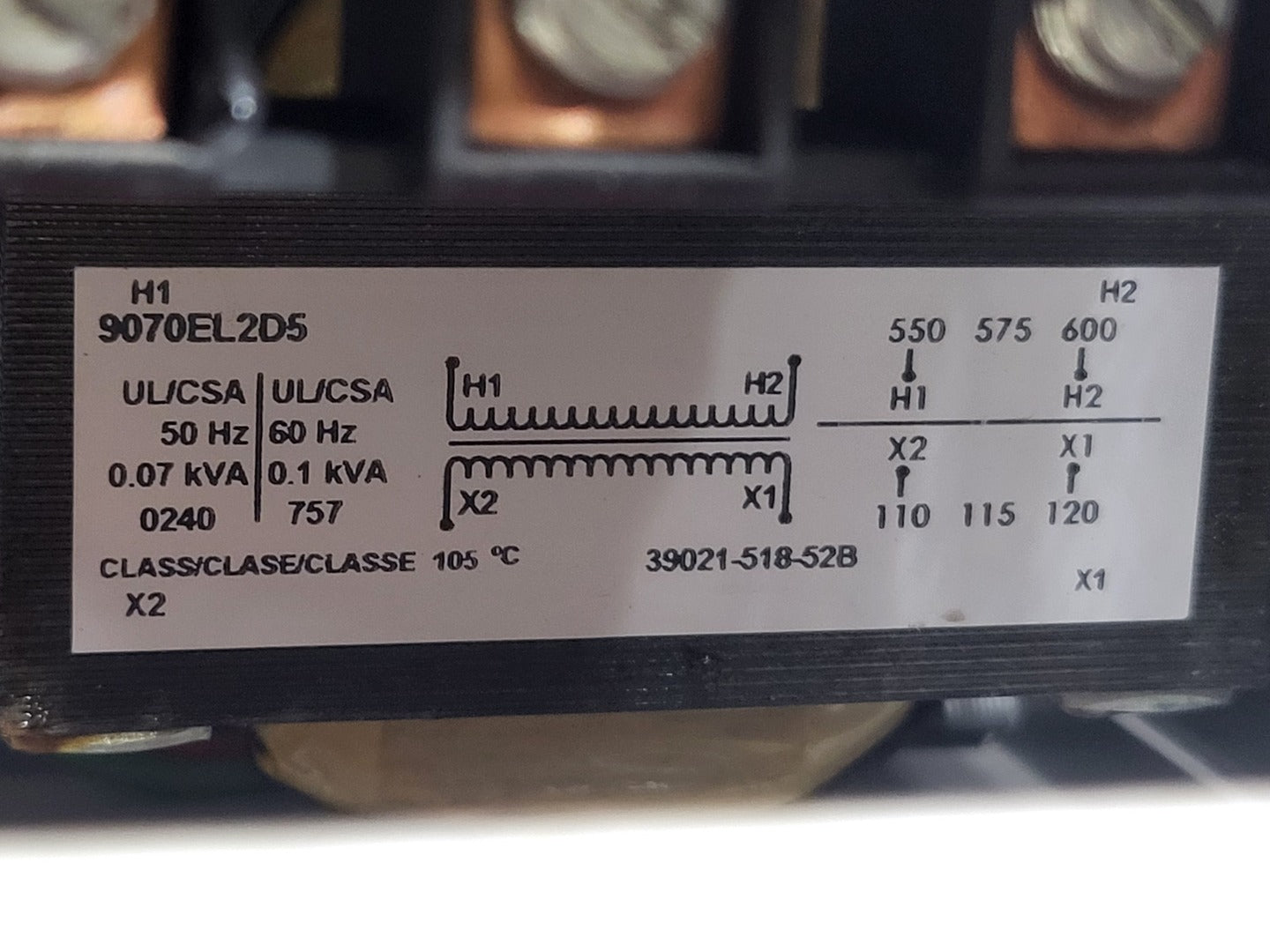

  3. Square D 9070EL2D5, control transformer, 0.07 kVA @ 50Hz / 0.1 kVA @ 60Hz, 550/575/600V primary, 110/115/120V secondary
  4. Square D HU100-3MC6B, Series 1, 100A MCC bucket disconnect unit
  5. 3 x main power fuses installed, model/rating not clearly readable
  6. 2 x Bussmann CC-Tron fuses FNQ-R-1/2

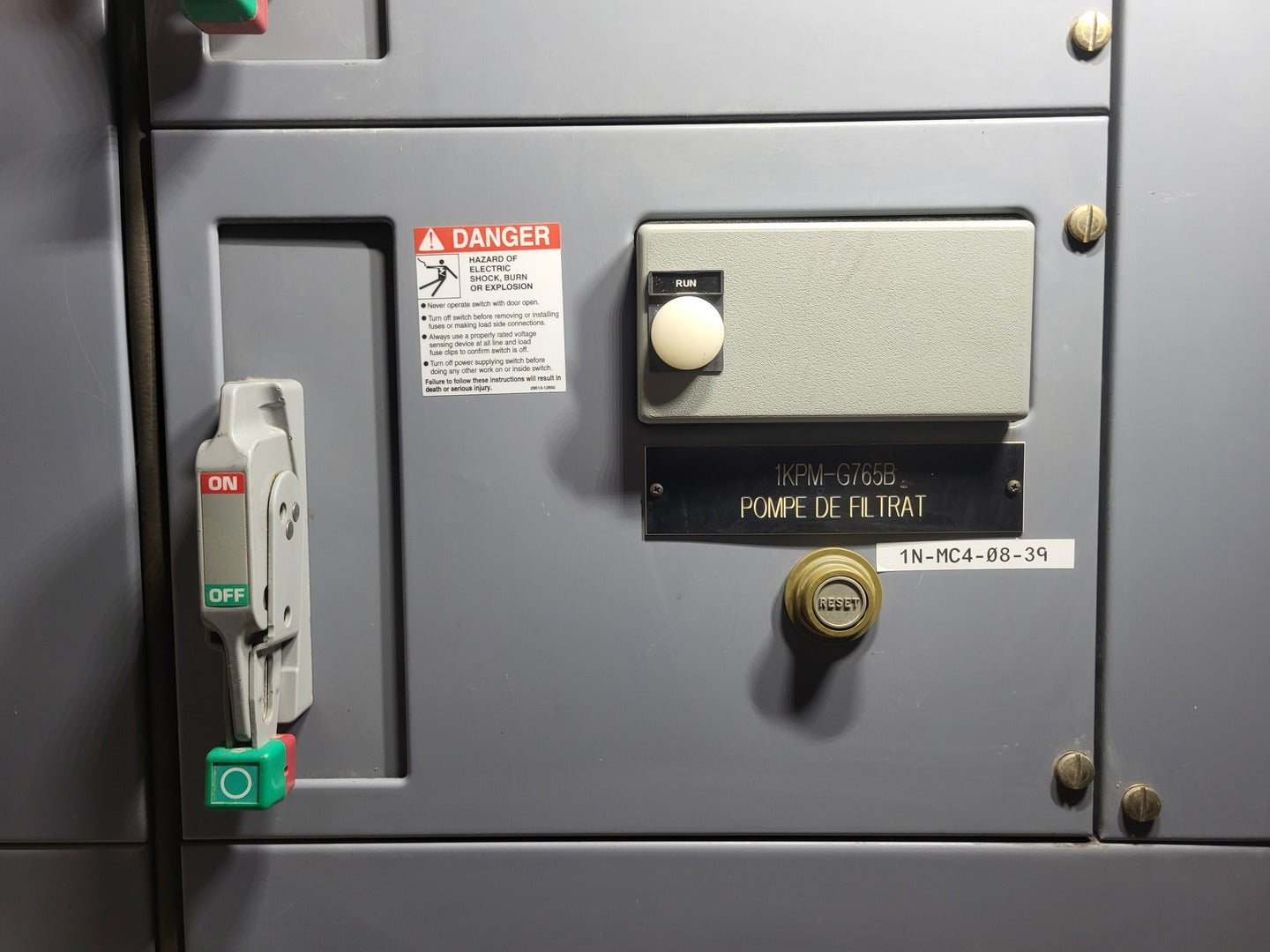

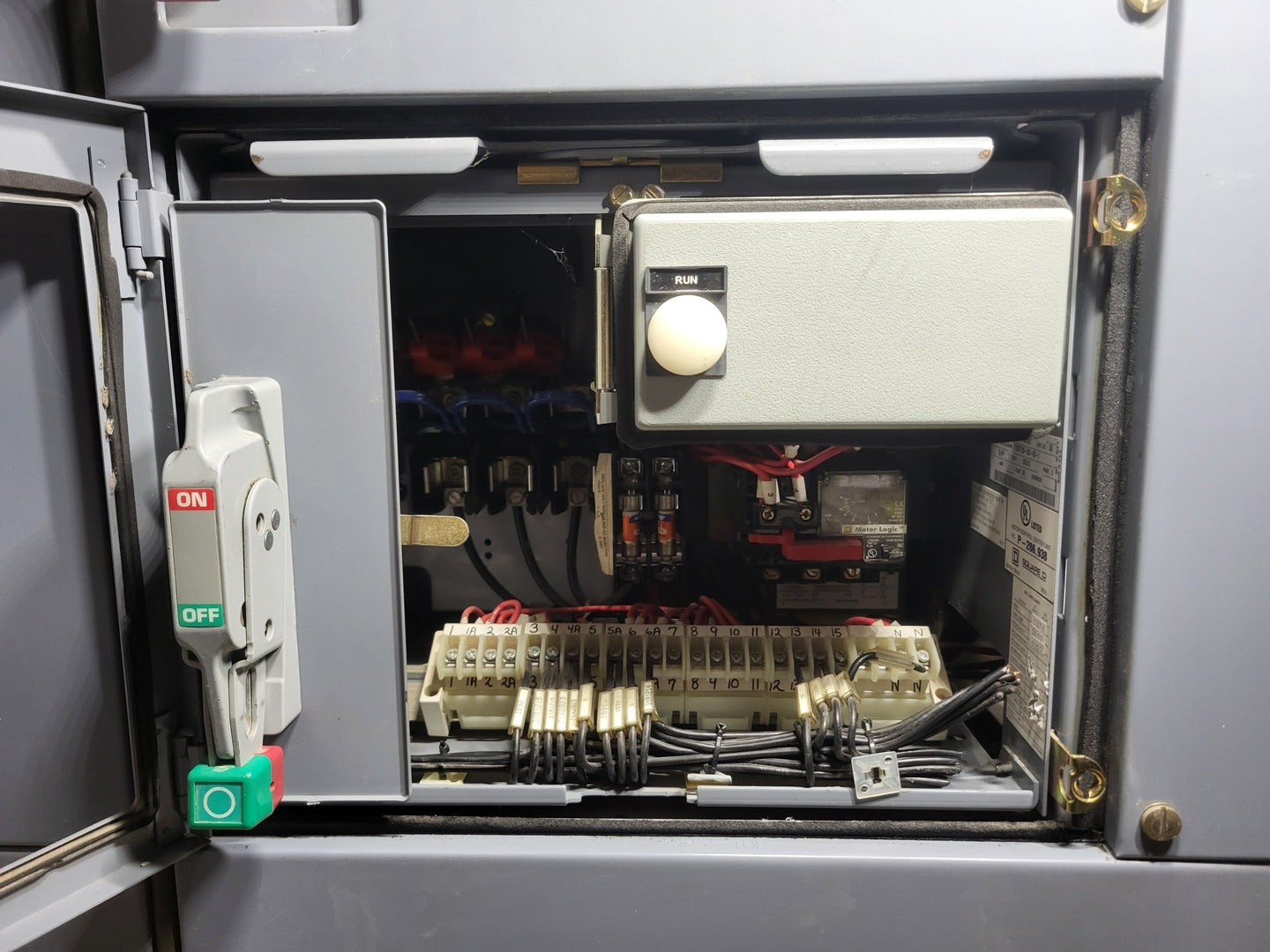

Bucket #8 1KPM-G765B

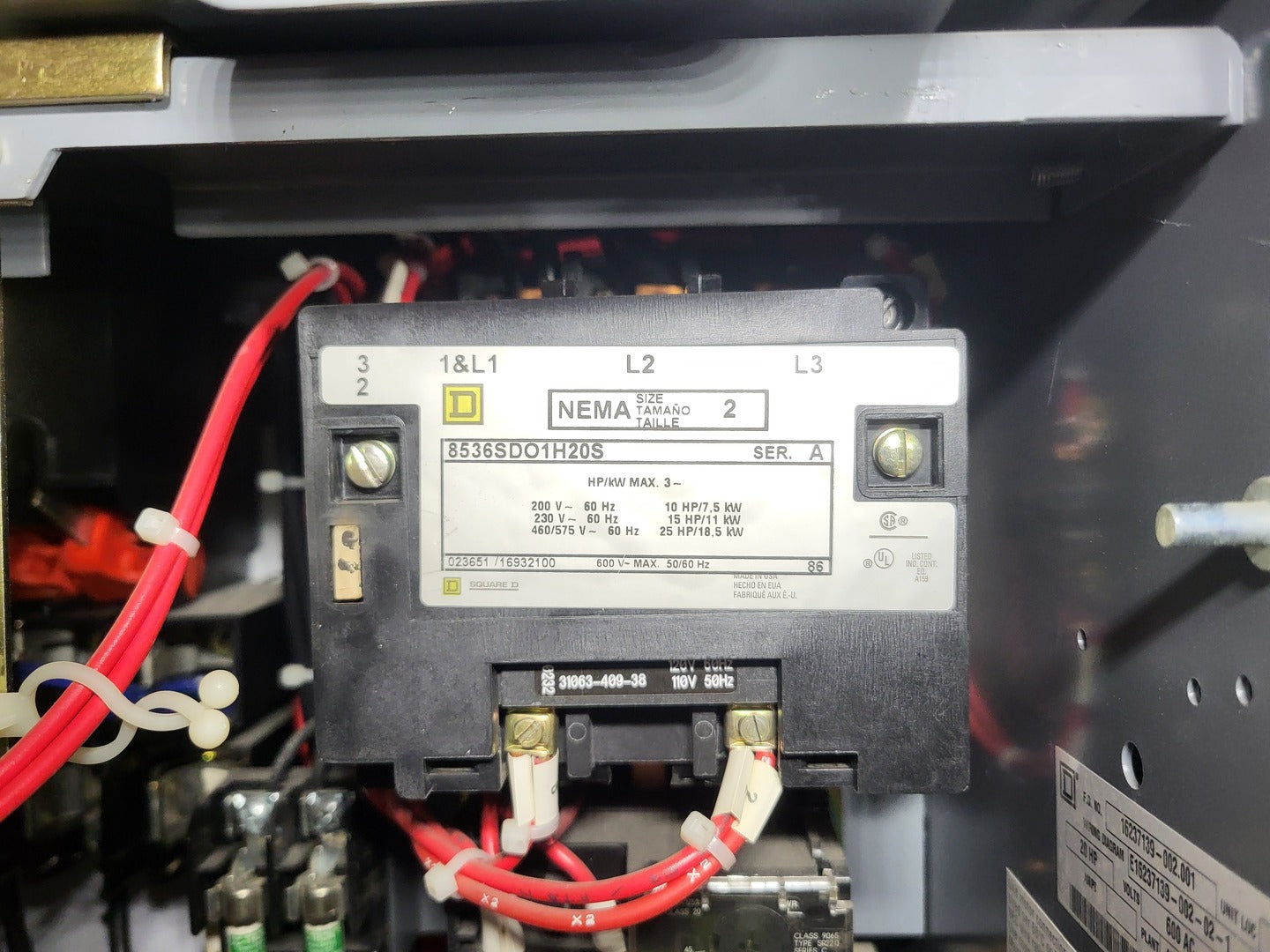

  1. Square D 8536SDO1H20S, NEMA Size 2 contactor, 25 HP @ 460/575V, 600V max
  2. Square D Motor Logic 9065 SR22O, Series C, overload relay, Class 20, approx. 15-45A FLA range, 600VAC, 3-phase
  3. Square D 9070EL2D5, control transformer, 0.07 kVA @ 50Hz / 0.1 kVA @ 60Hz, 550/575/600V primary, 110/115/120V secondary
  4. Square D HU100-3MC6B, Series 1, 100A MCC bucket disconnect unit

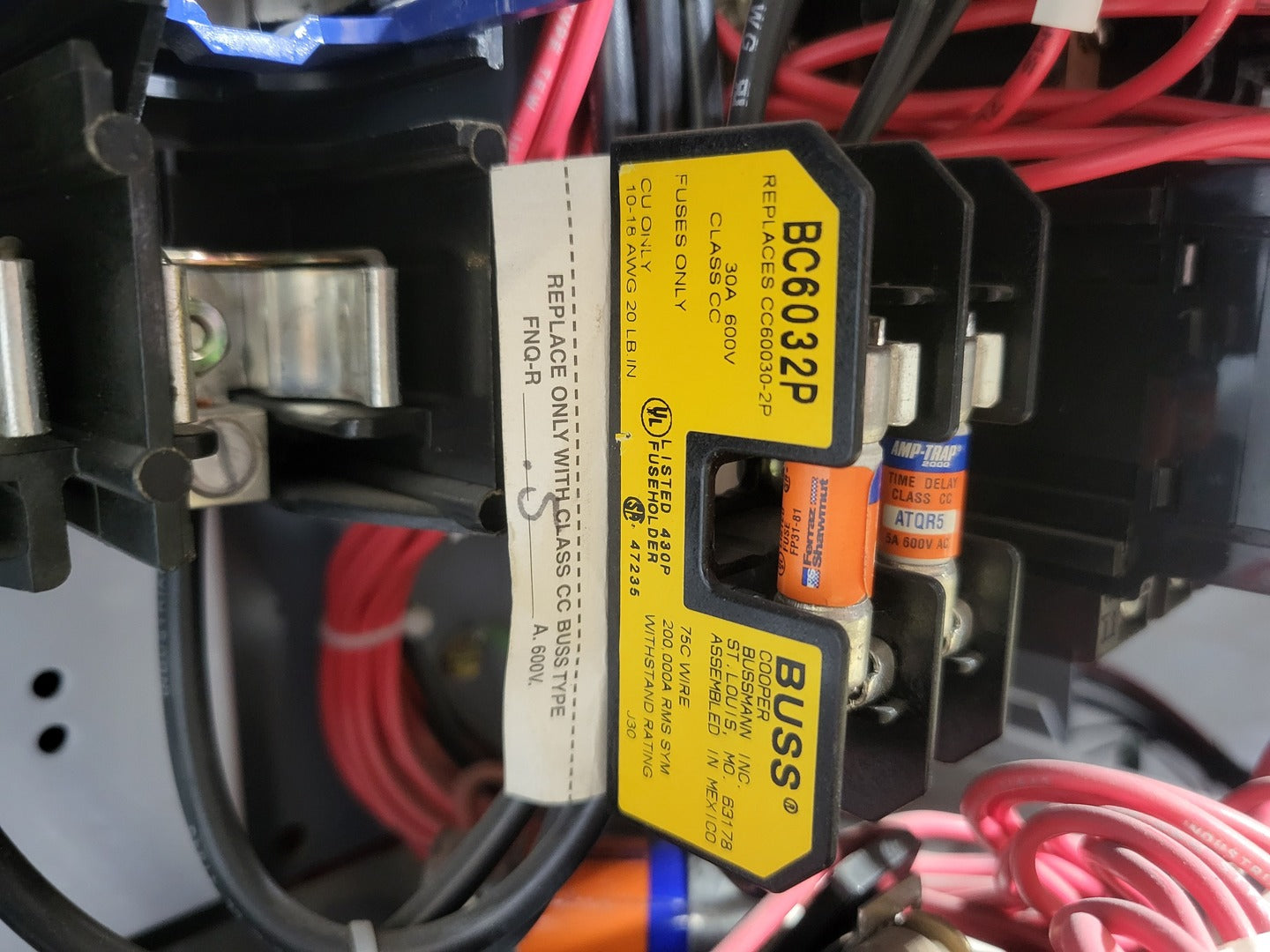

  5. 2 x Mersen / Ferraz Shawmut Amp-Trap 2000 fuses ATQR5
