SQUARE D Model 6 Motor Control Center MCC Section, 600V, 3PH, 1200A Bus
SQUARE D

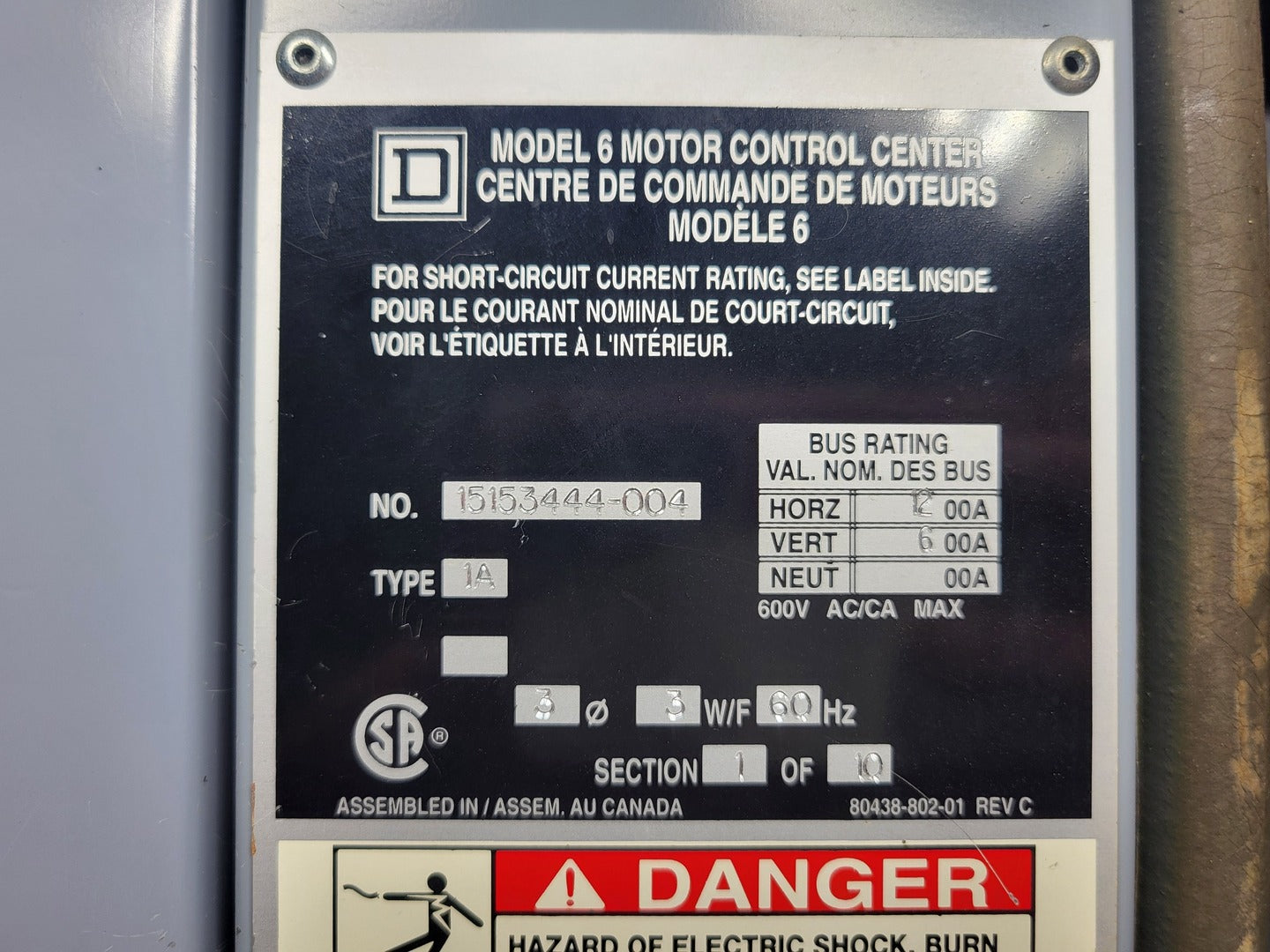

Model 6 Motor Control Center MCC Section, 600V, 3PH, 1200A Bus

SKU: 151296
Precio:
$3,375

Gastos de envío calculados en la caja

Stock:
Solo queda 1 unidad
Make an Offer

¿Necesita una respuesta ahora?

604-449-1880

Descripción

Square D Model 6 motor control center section rated for 600V, 3-phase power distribution. This MCC column includes multiple motor starter buckets with Motor Logic Plus protection modules, fused disconnects, control transformer, and Schneider Electric communication components. Ideal for industrial motor control systems, pump stations, processing plants, and heavy industrial electrical distribution.
Specifications
Model Model 6
Condition Used
Other Specifications

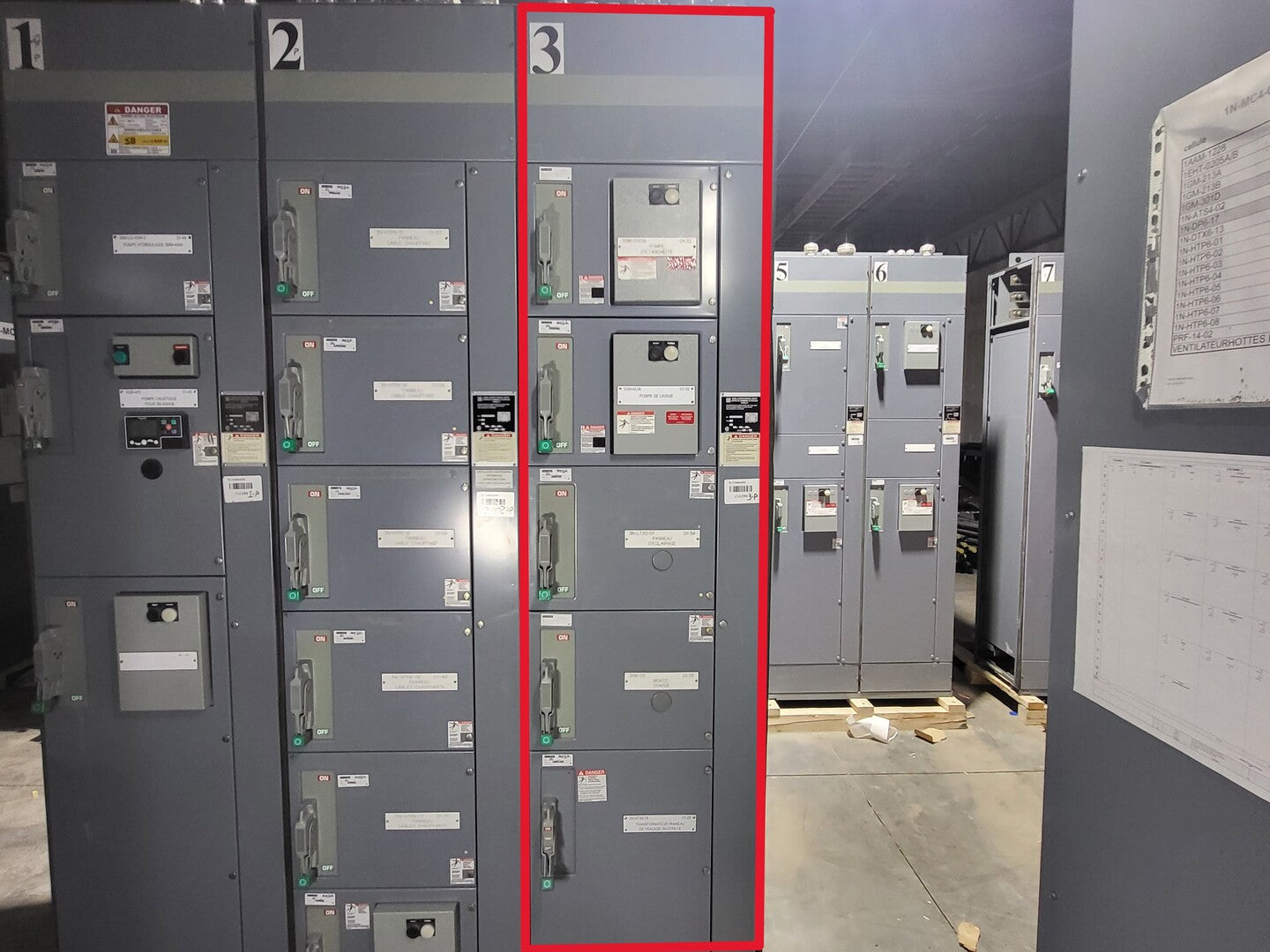

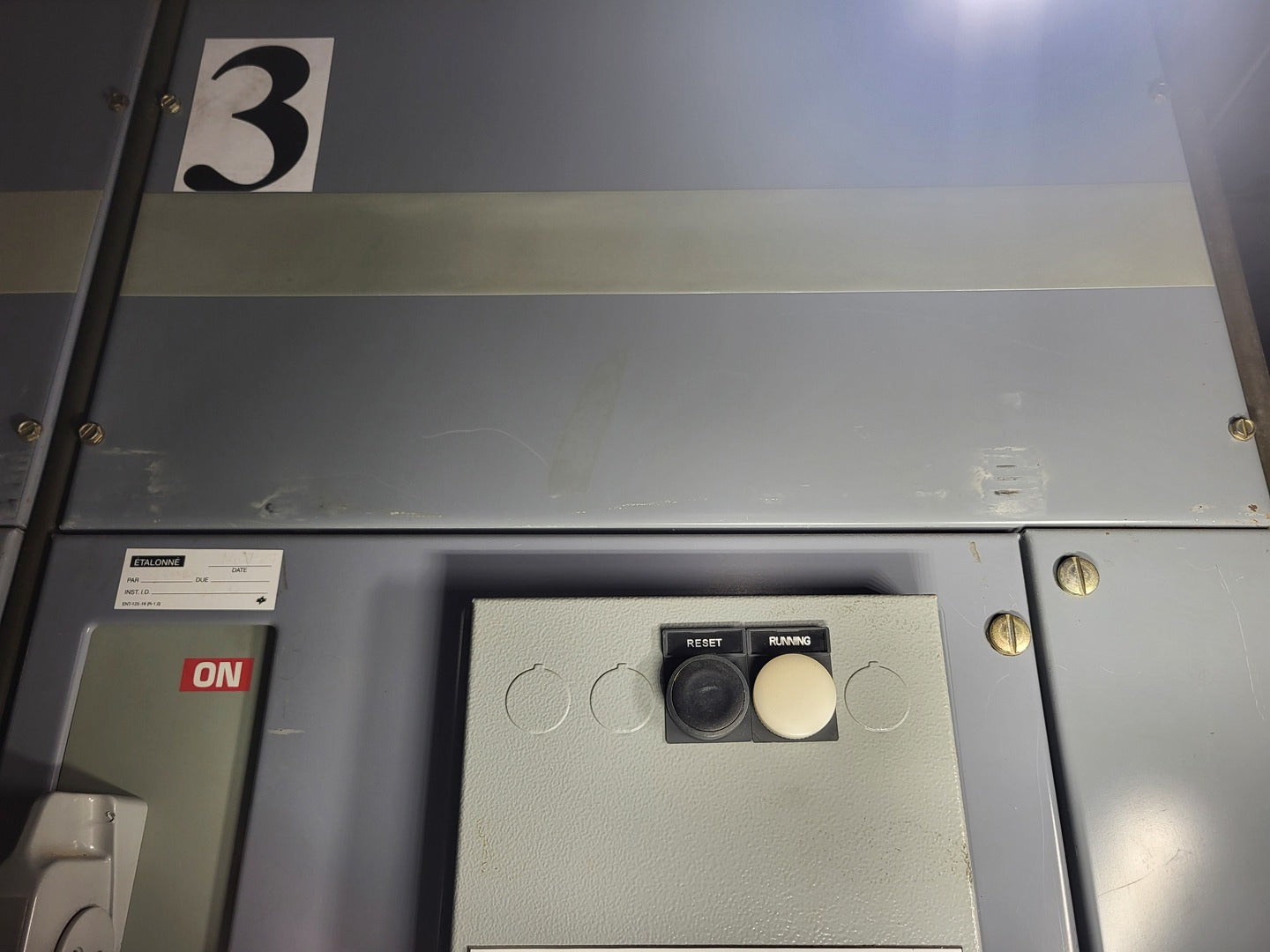

Note: Section 3 only

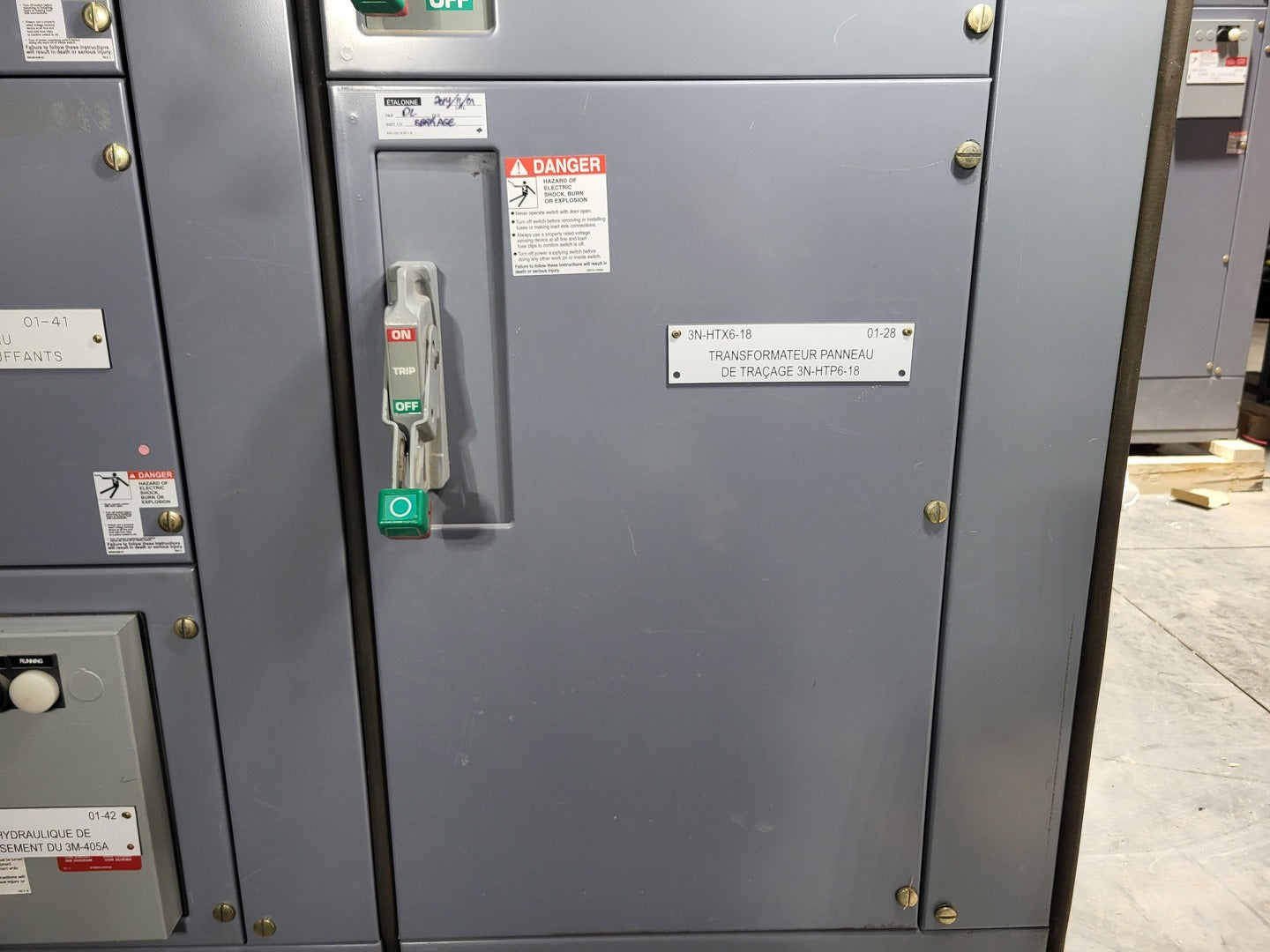

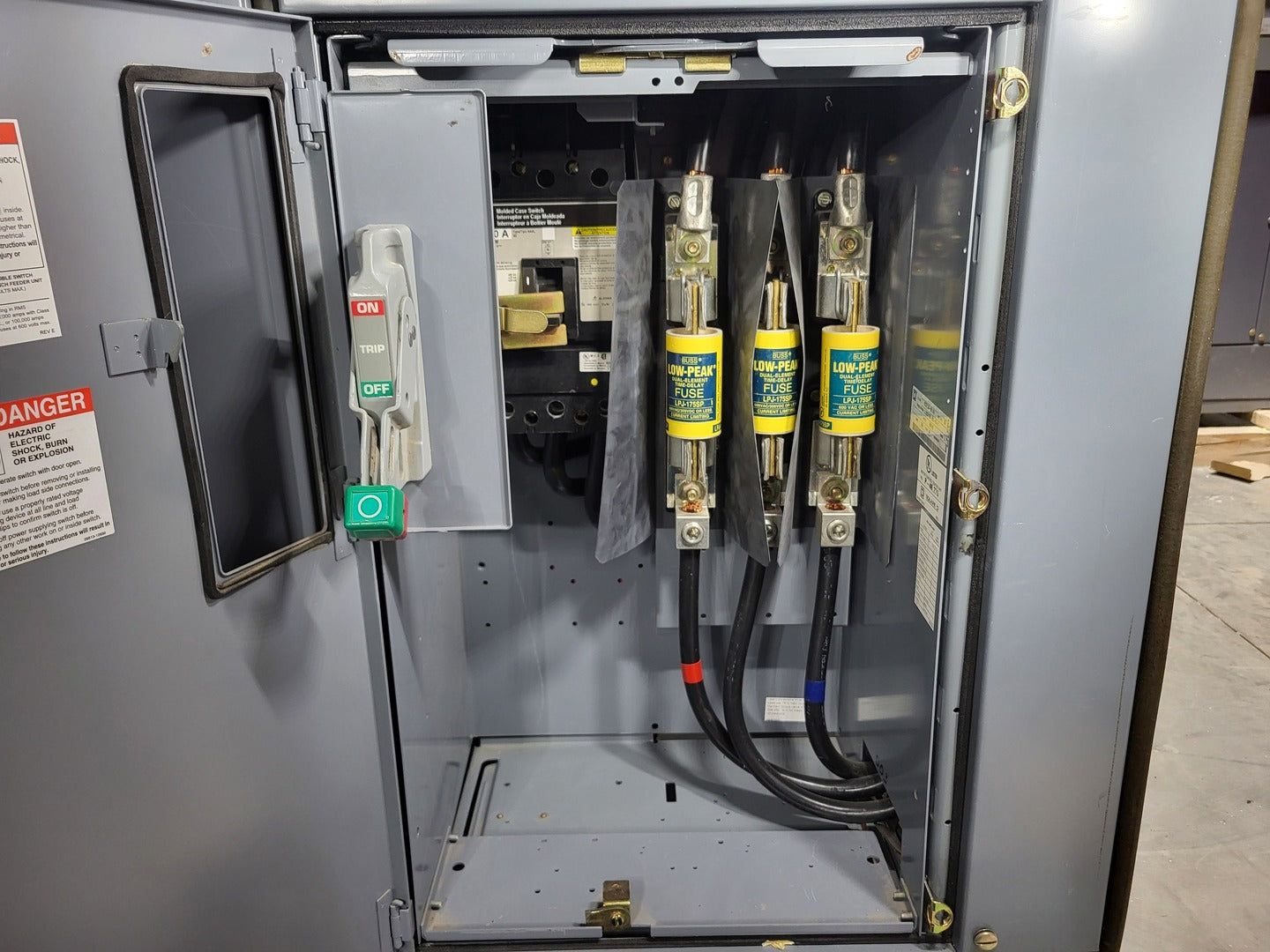

Bucket #1 3N-HTX6-18

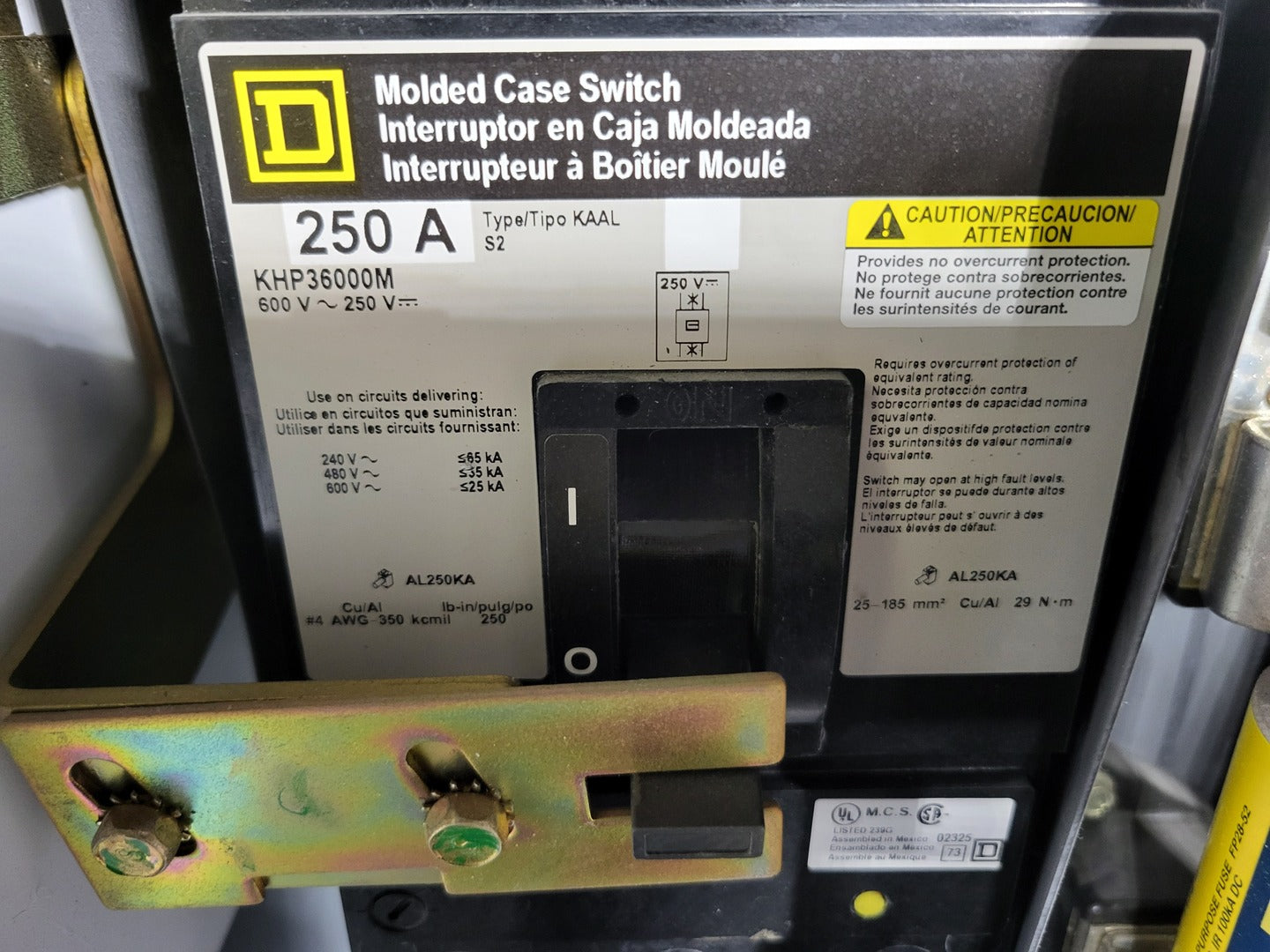

  1. Square D KHP36000M, Type KAAL molded case switch, 250A, 600VAC / 250VDC

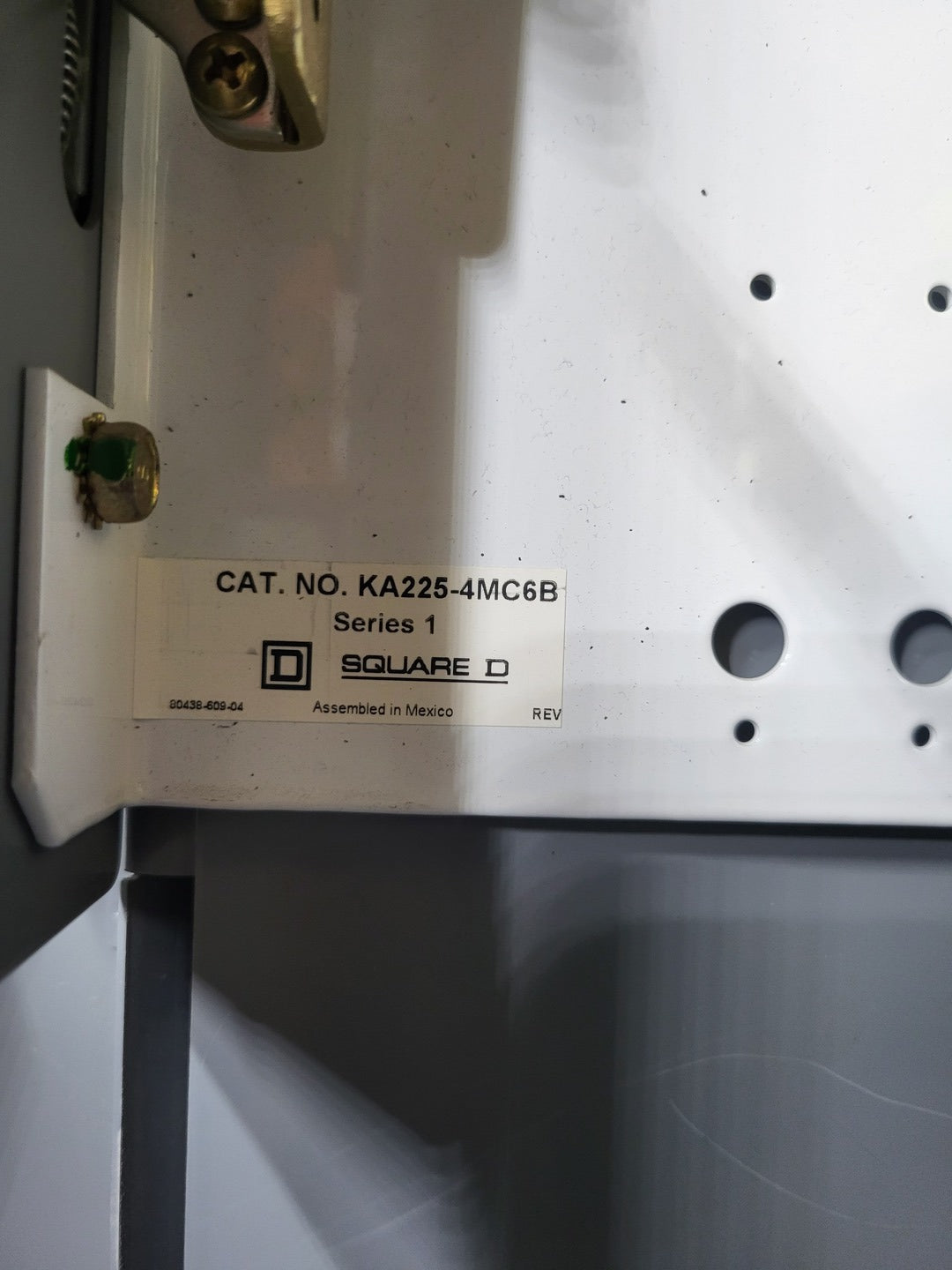

  2. Square D KA225-4MC6B, Series 1, MCC bucket disconnect unit

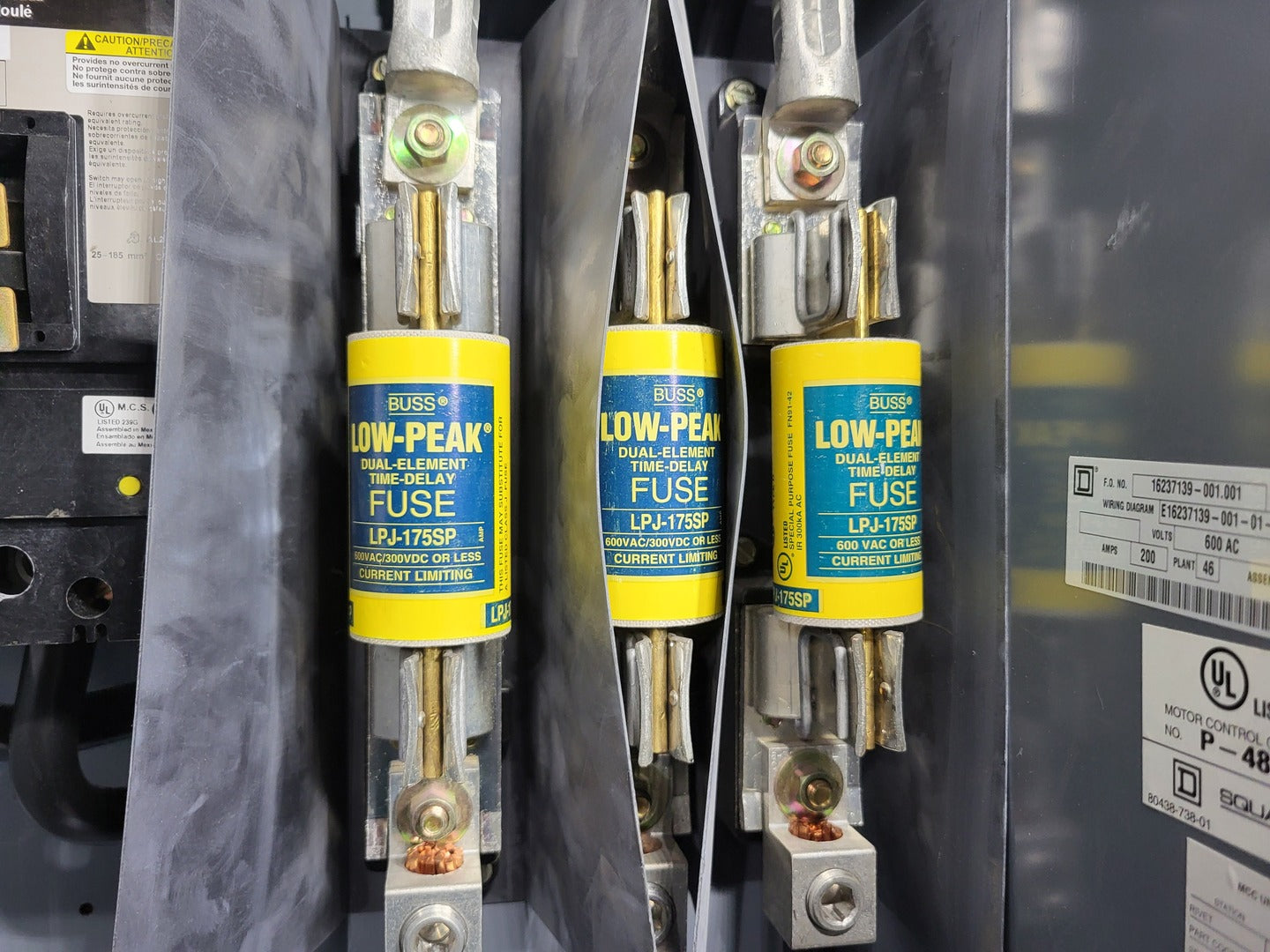

  3. 3 x Bussmann Low-Peak fuses LPJ-175SP

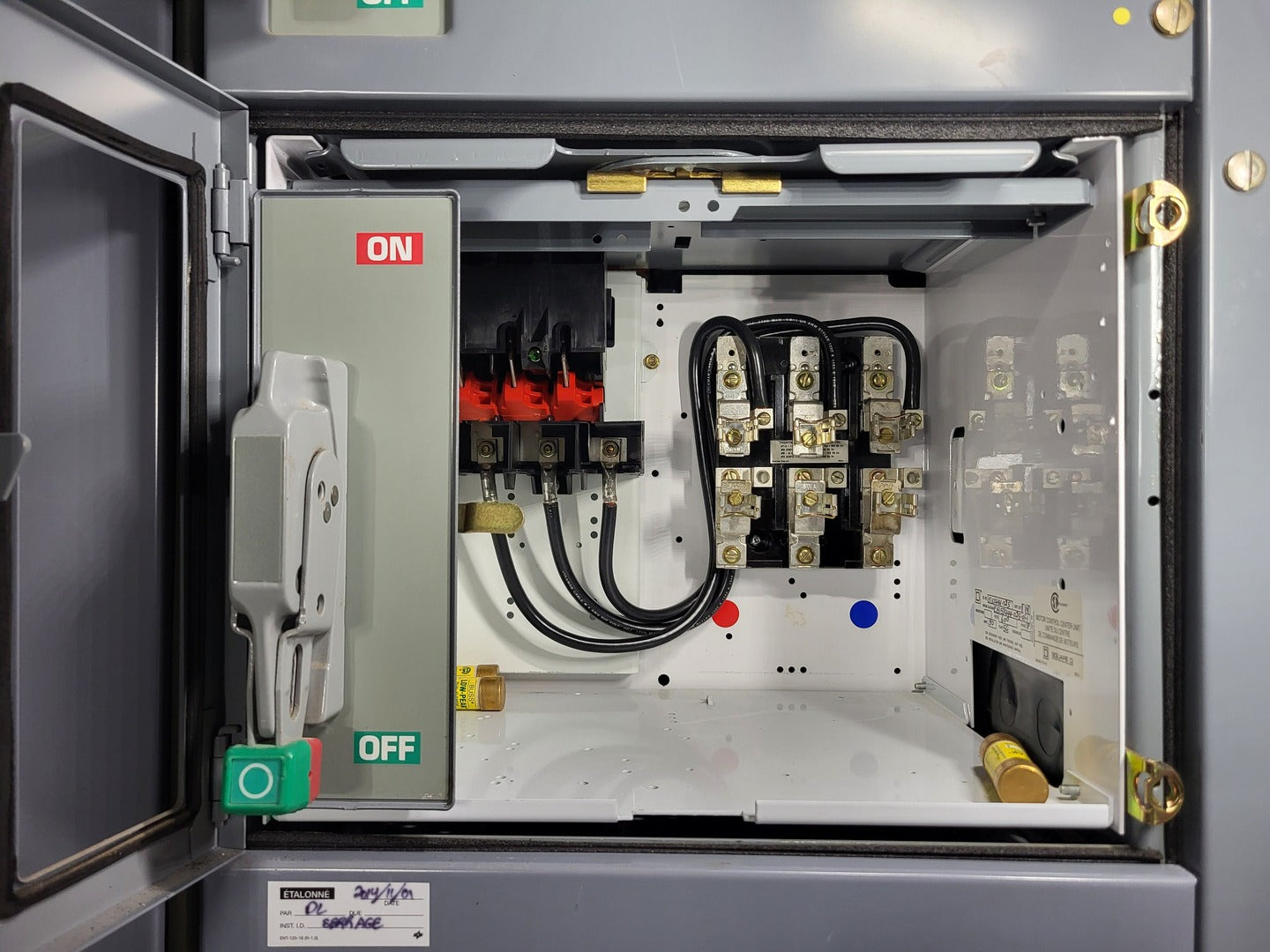

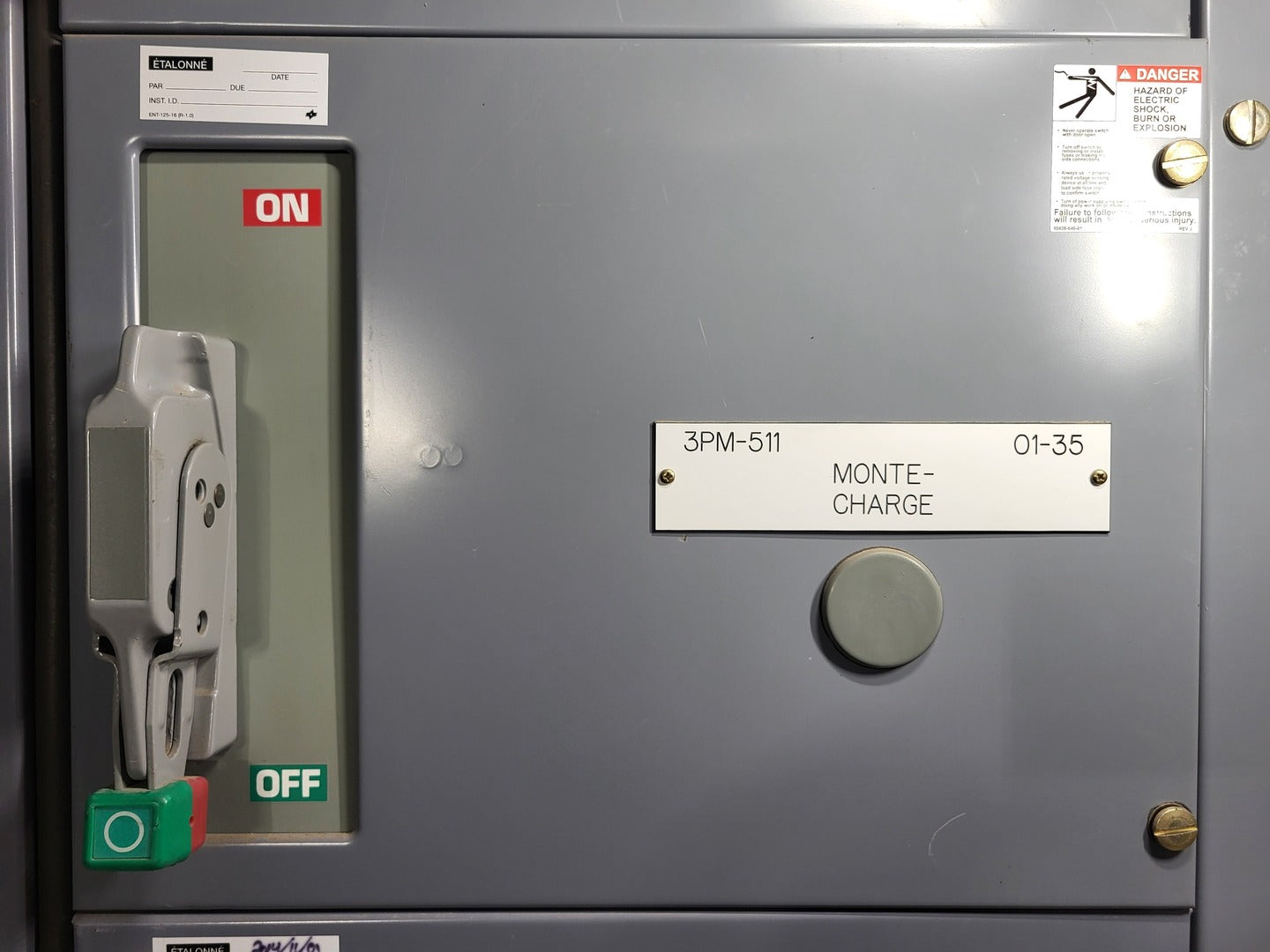

Bucket #2 3PM-511

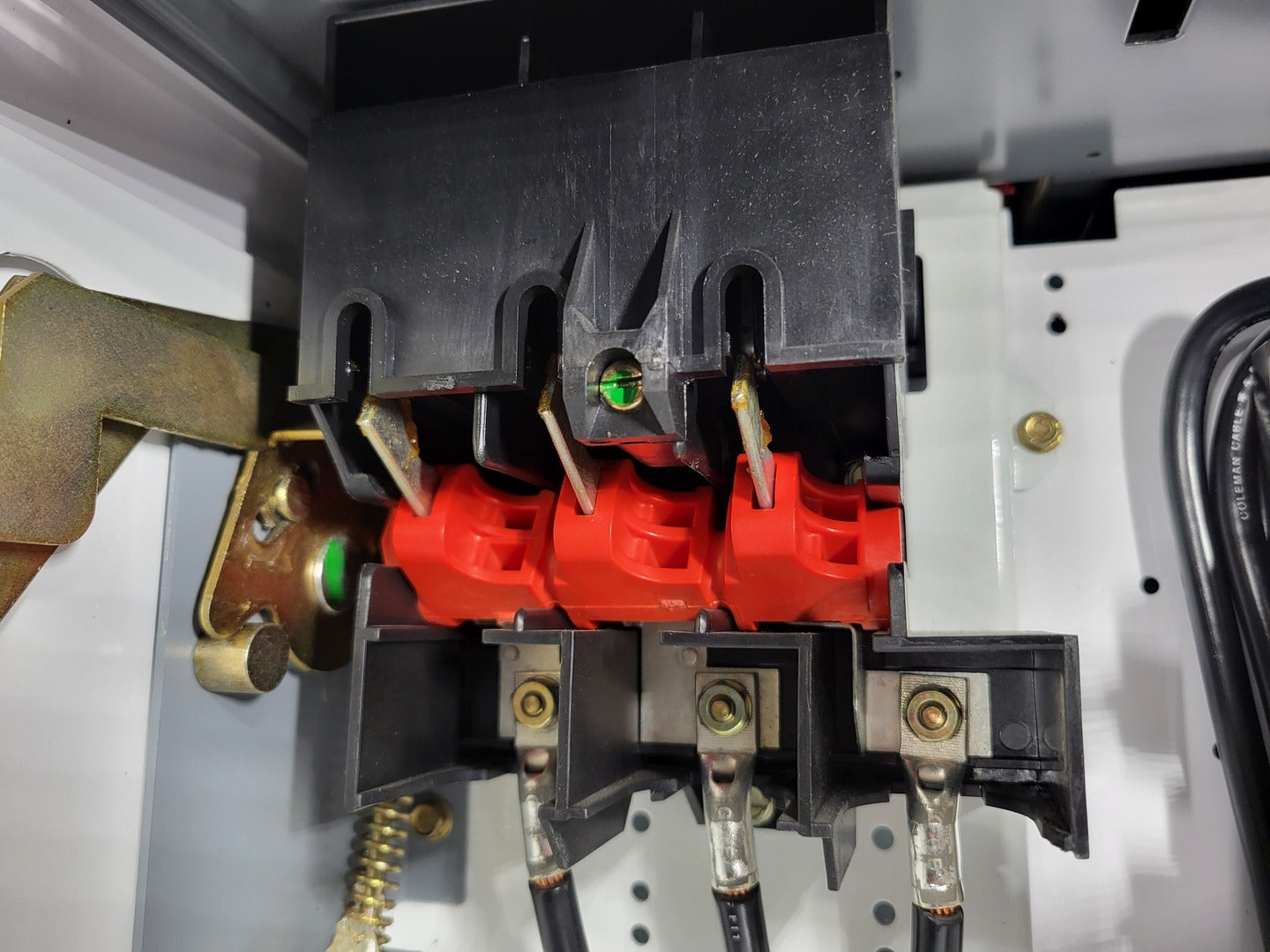

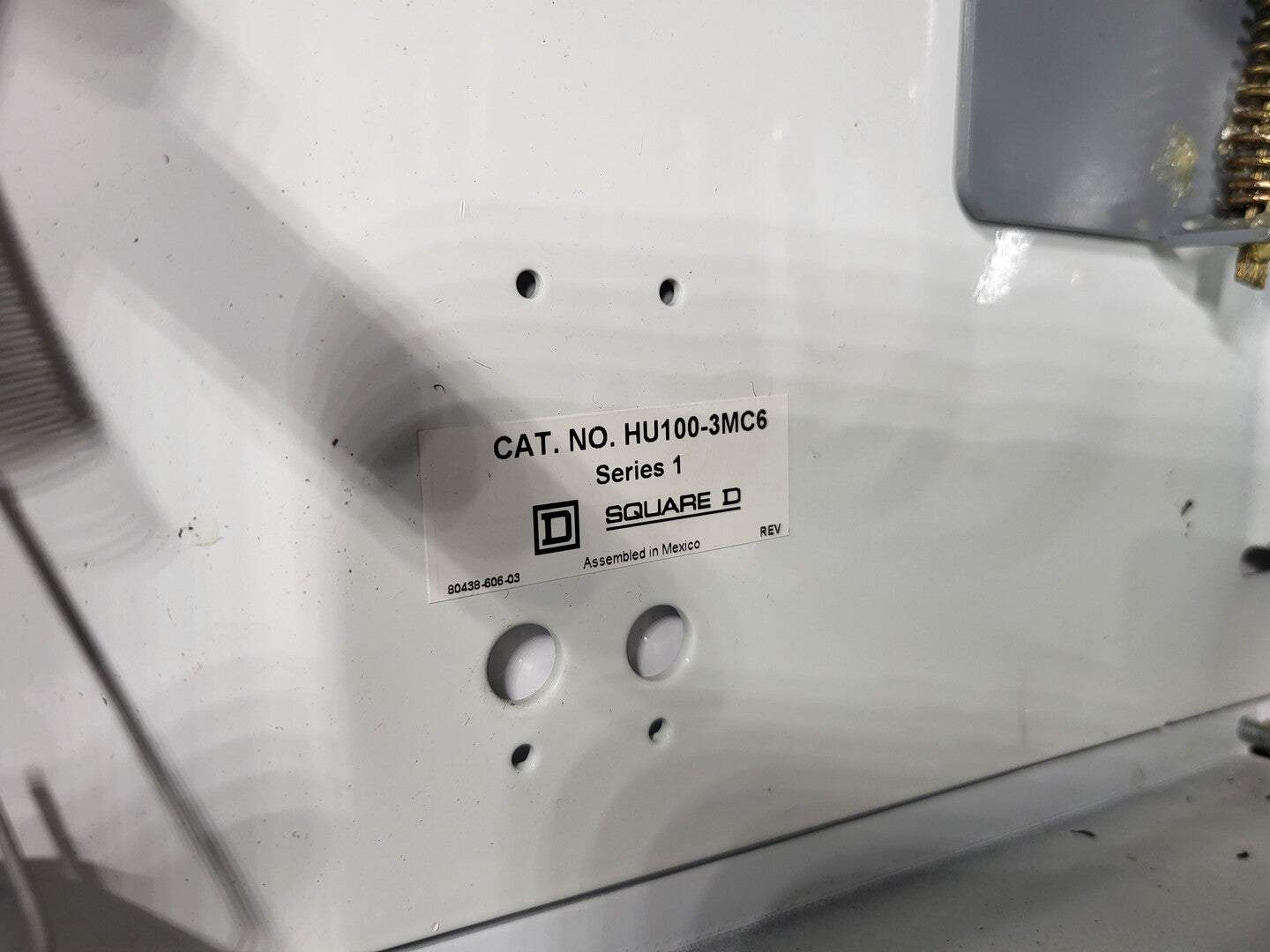

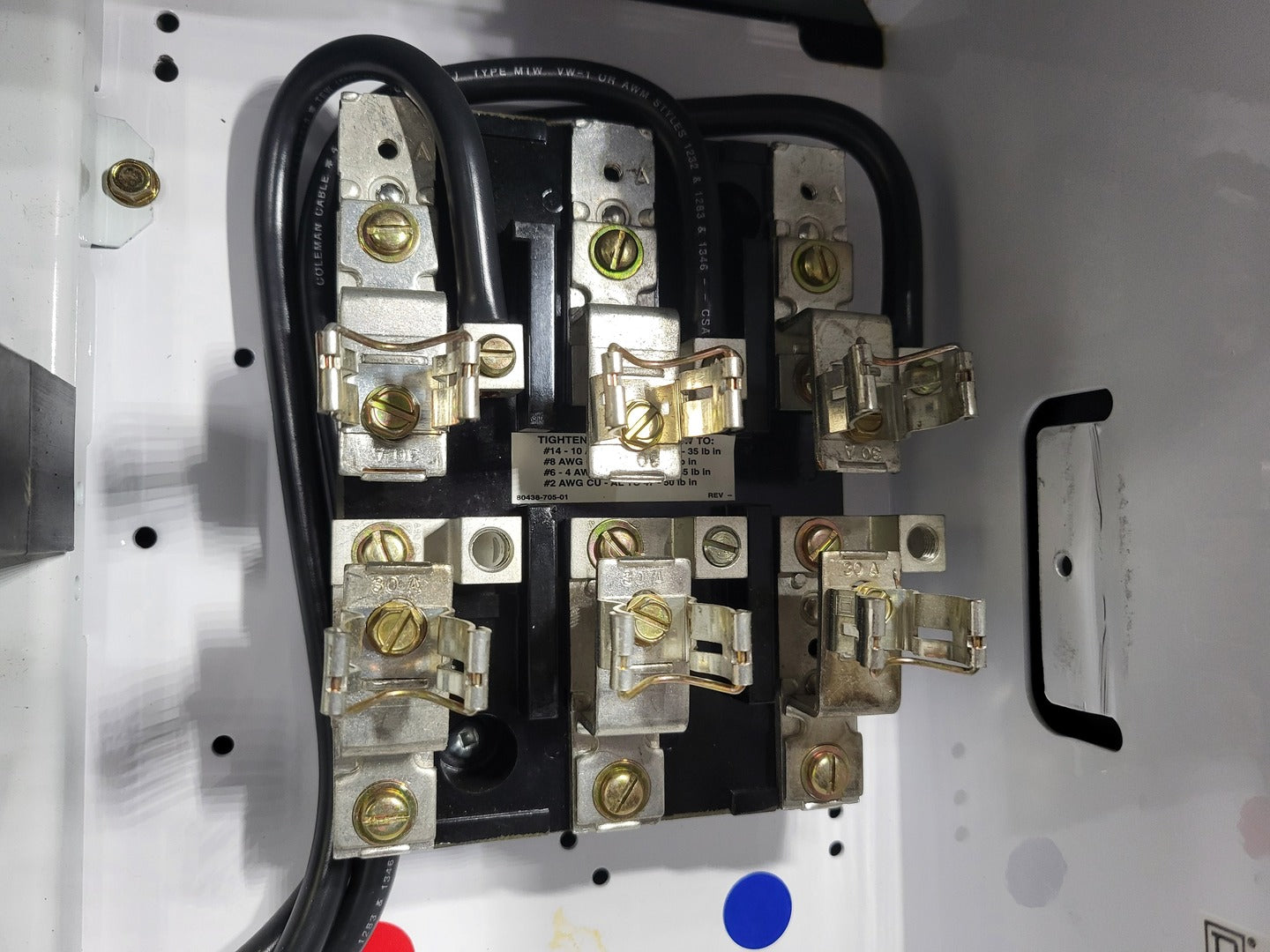

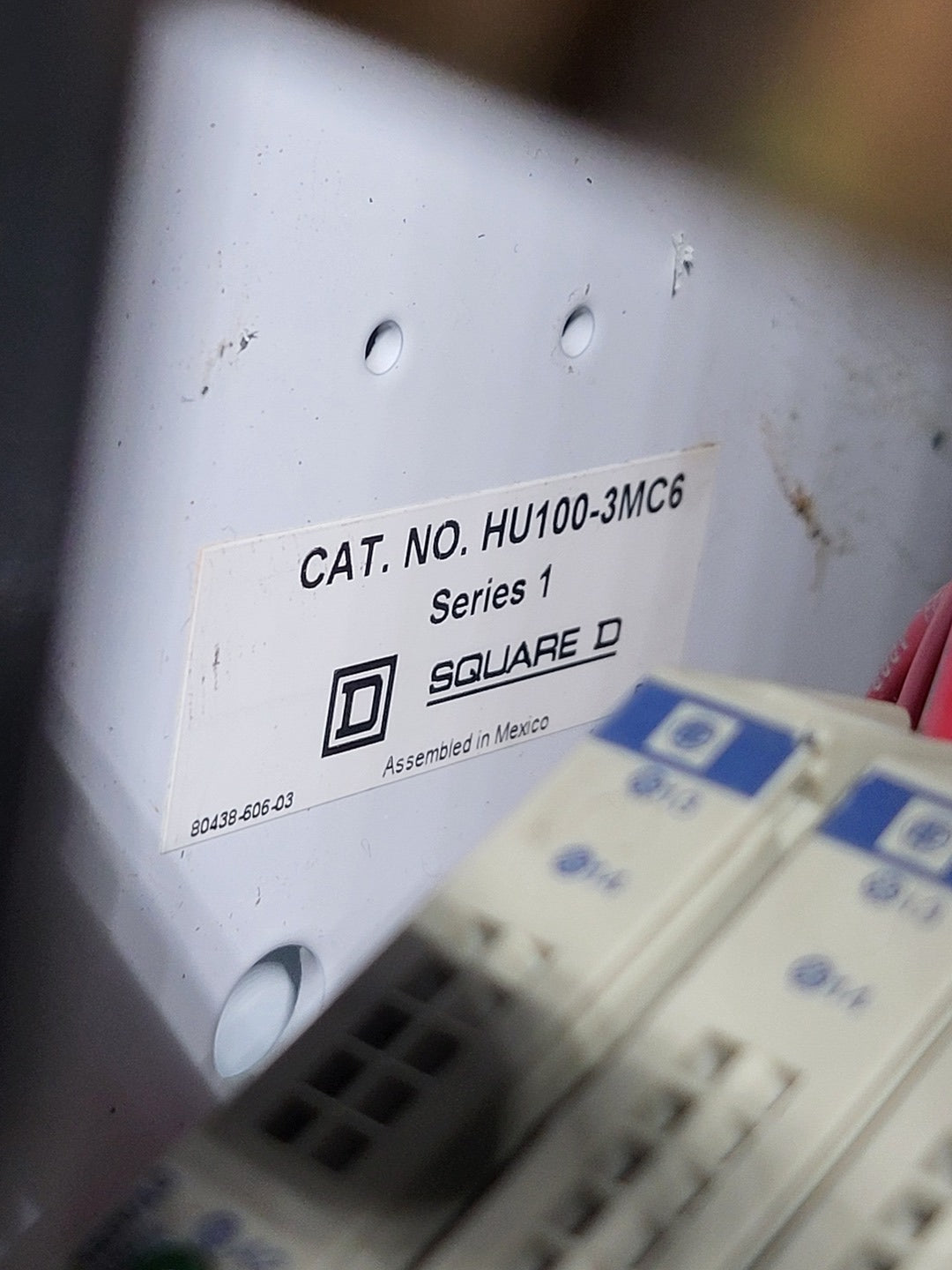

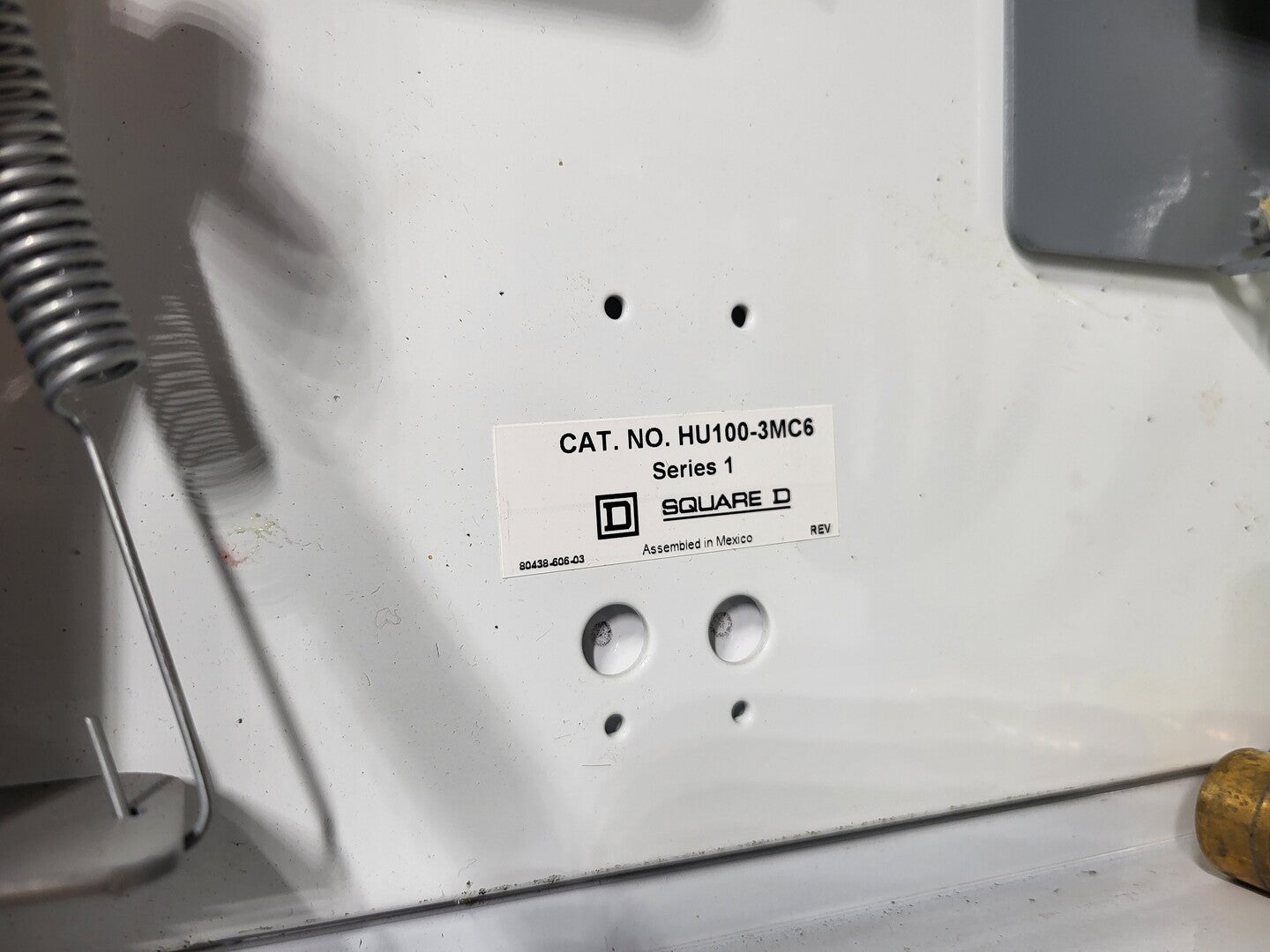

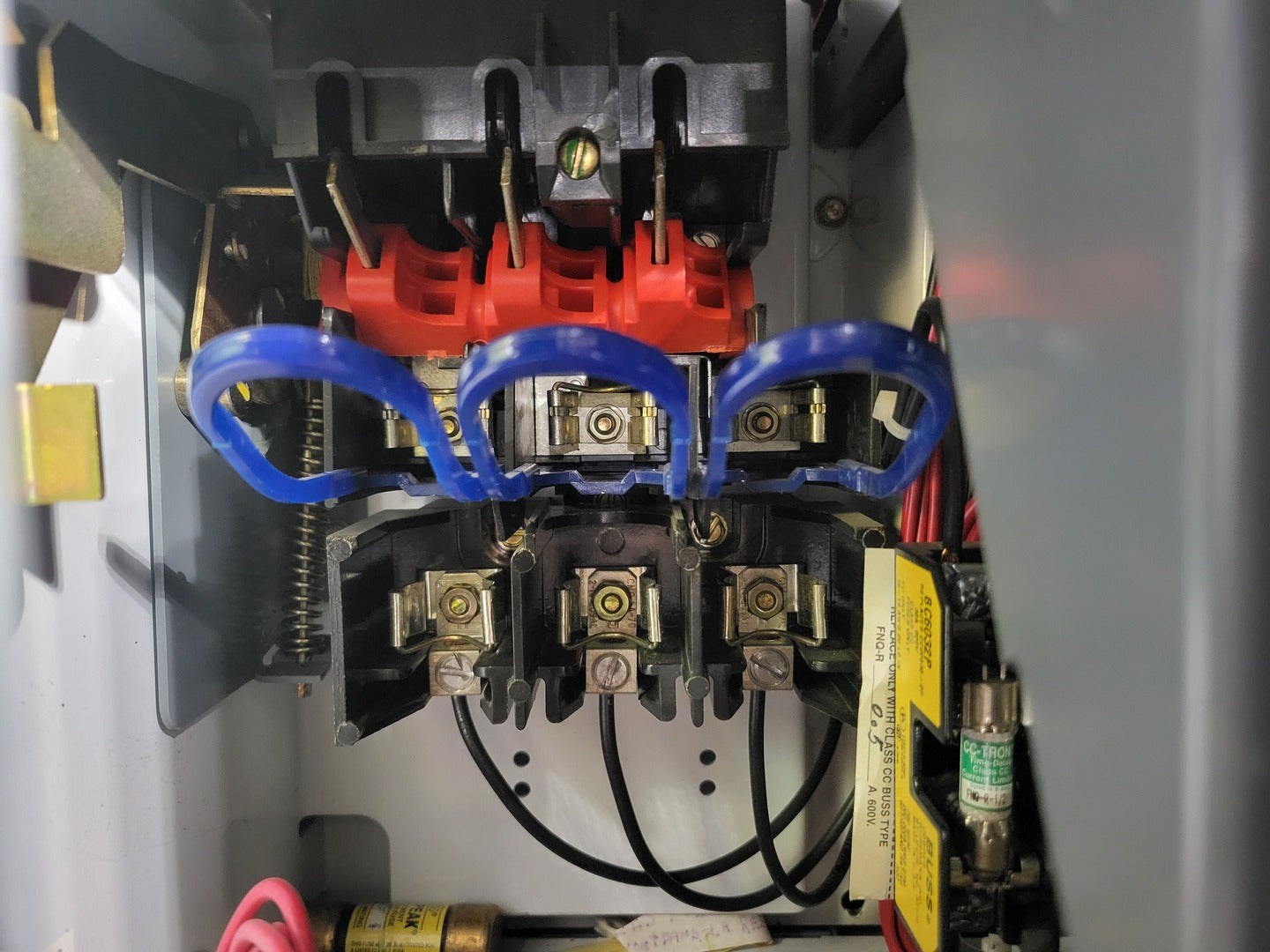

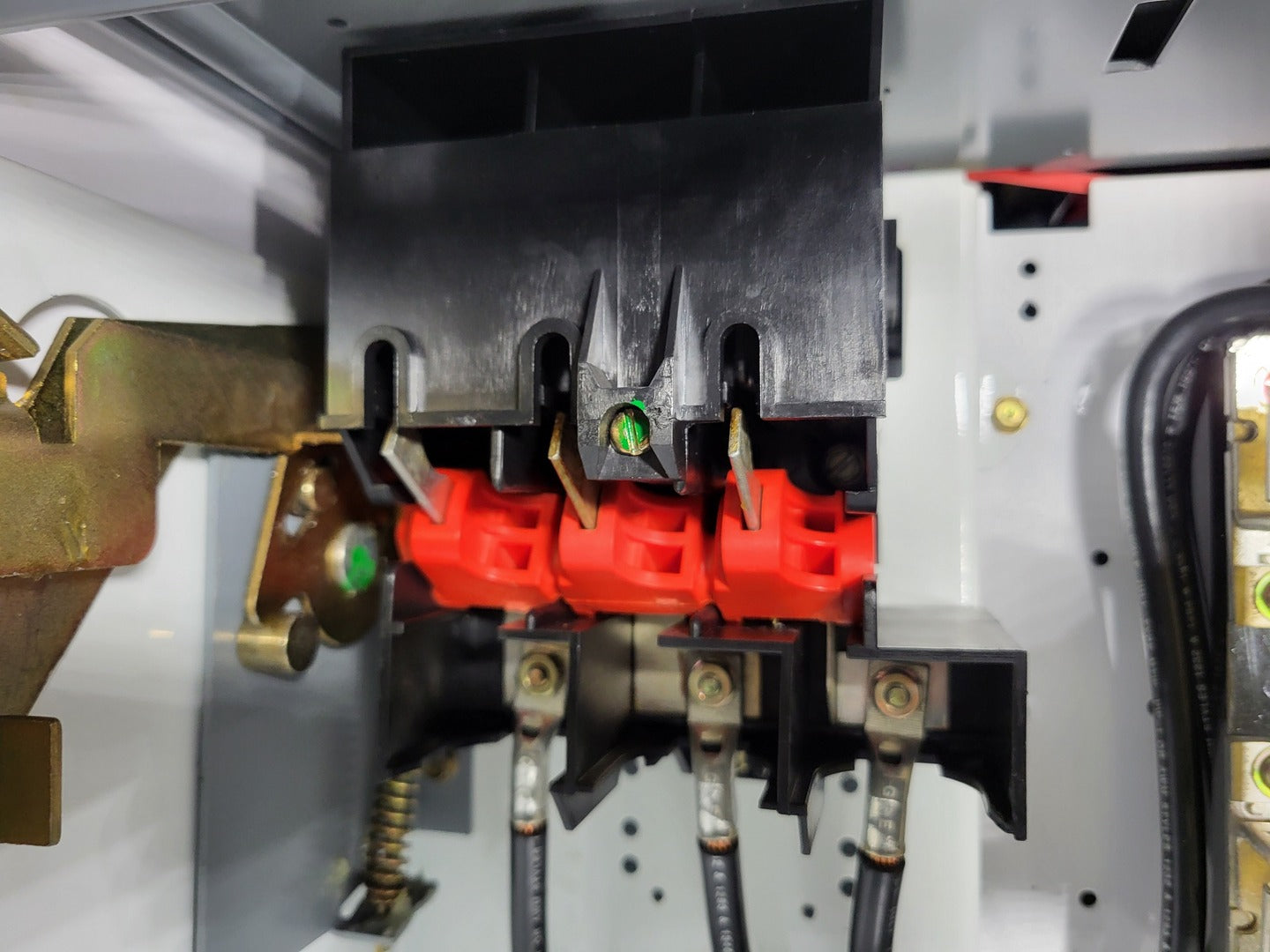

  1. Square D HU100-3MC6, Series 1, 100A MCC bucket disconnect unit

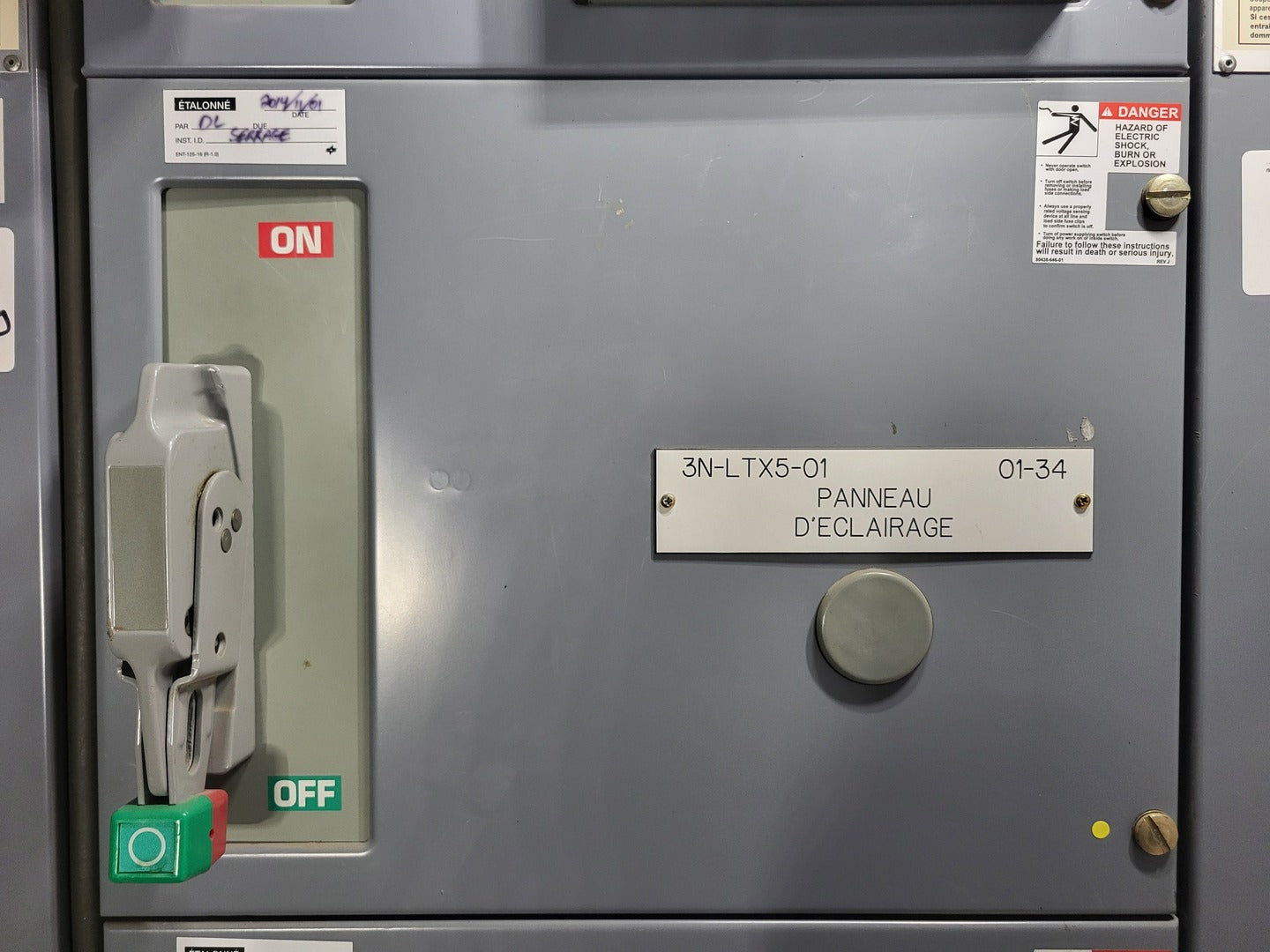

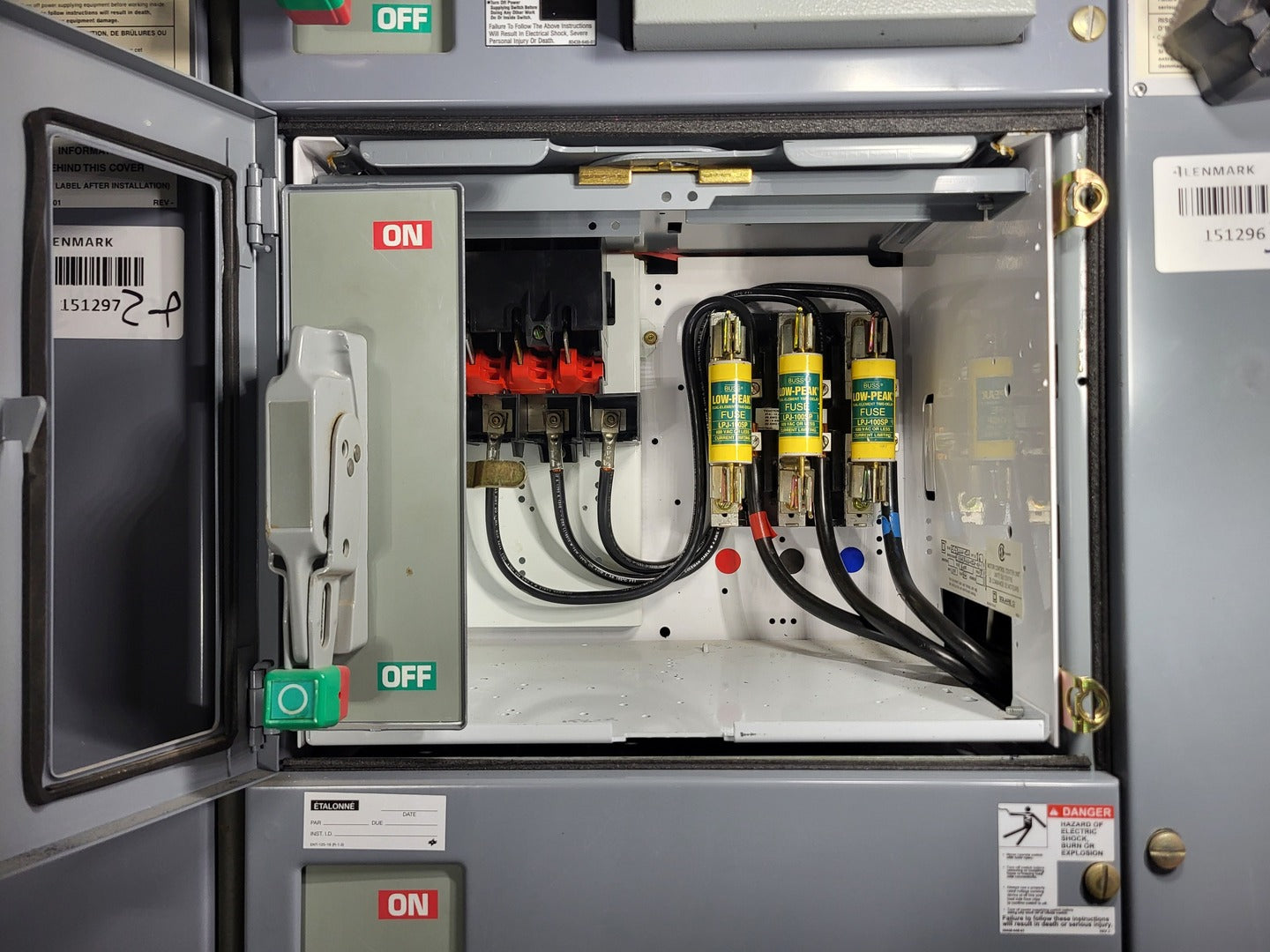

Bucket #3 3N-LTX5-01

  1. Square D HU100-3MC6, Series 1, 100A MCC bucket disconnect unit

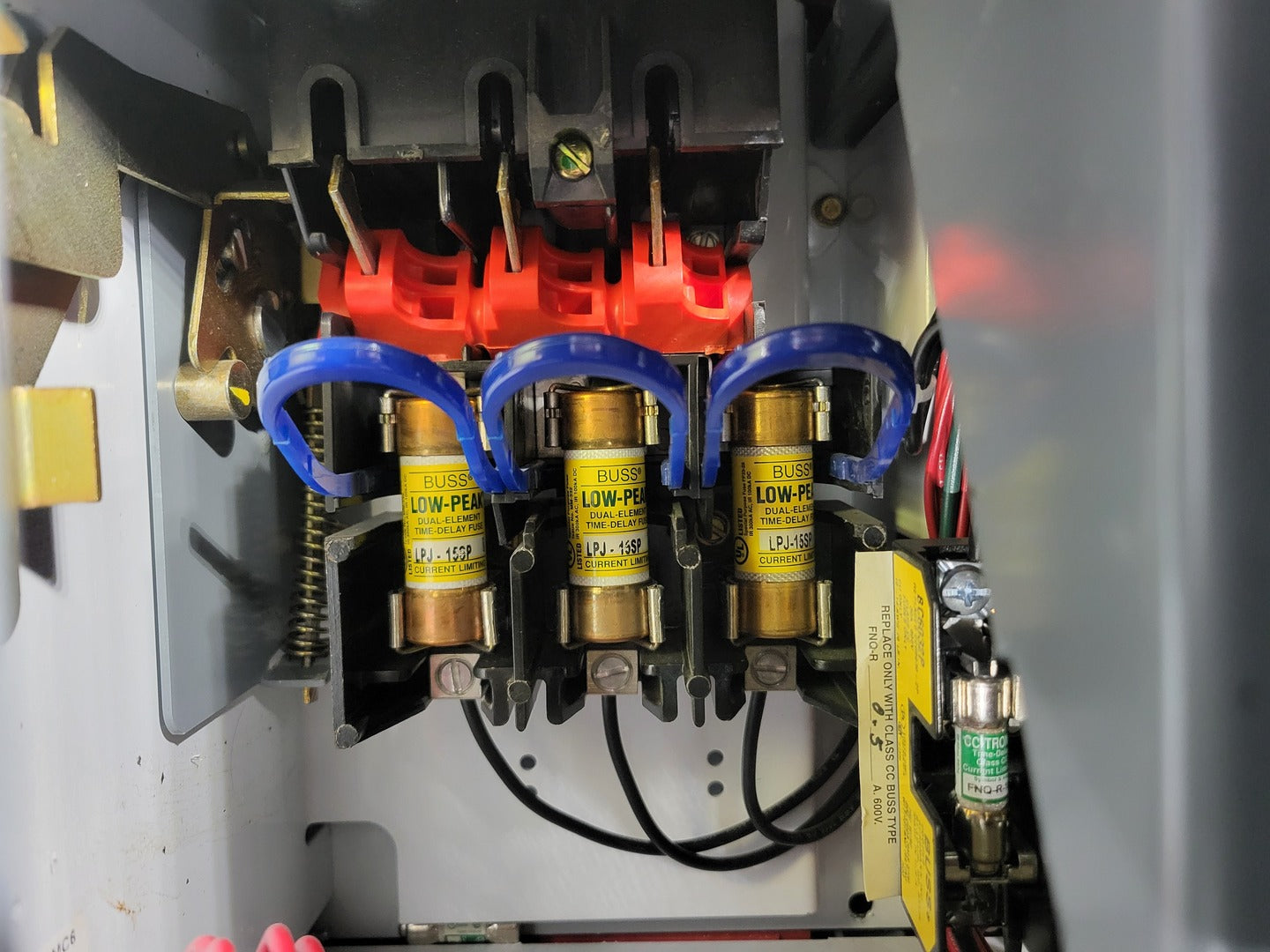

  2. 3 x Bussmann Low-Peak LPJ-100SP

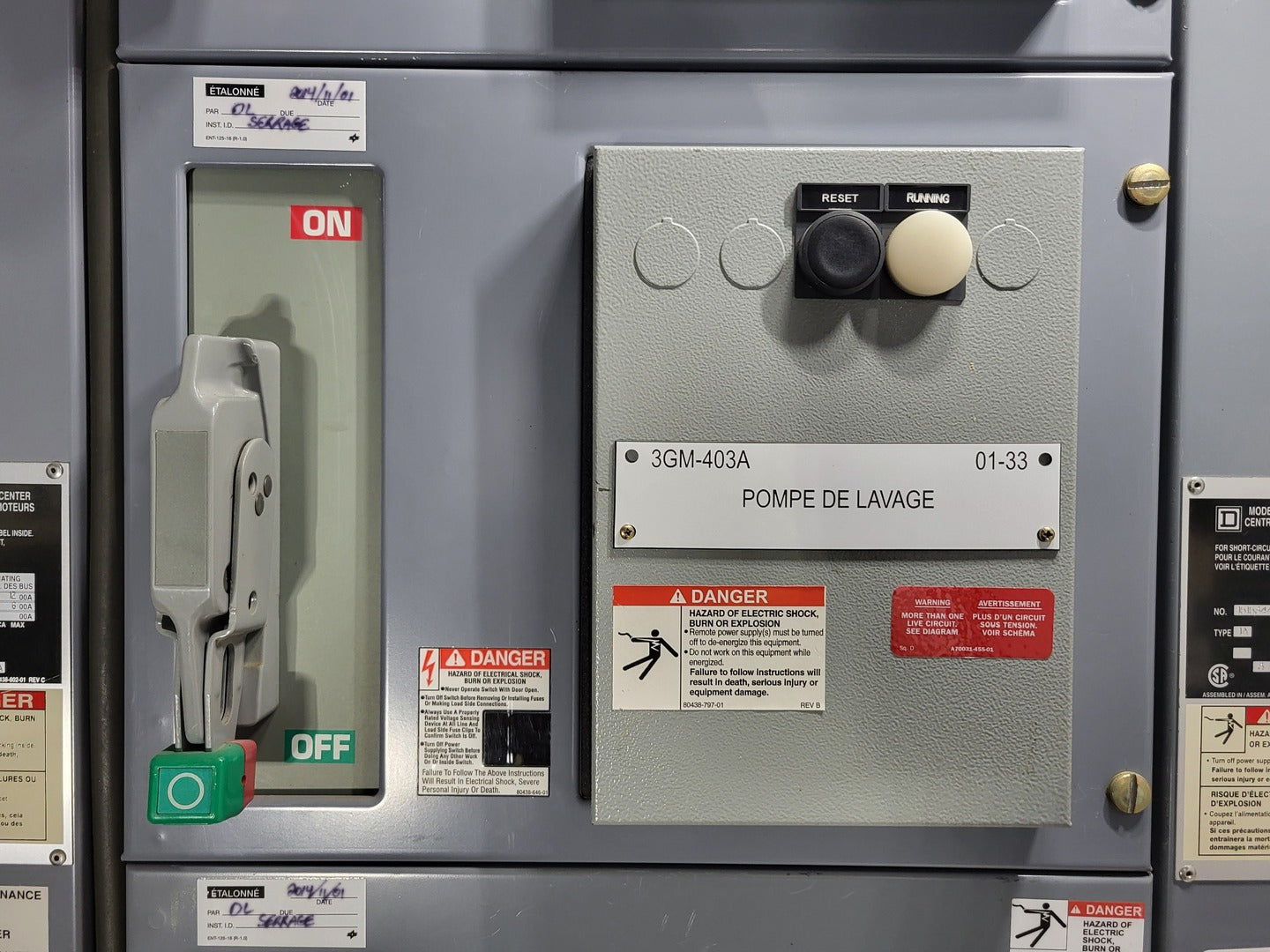

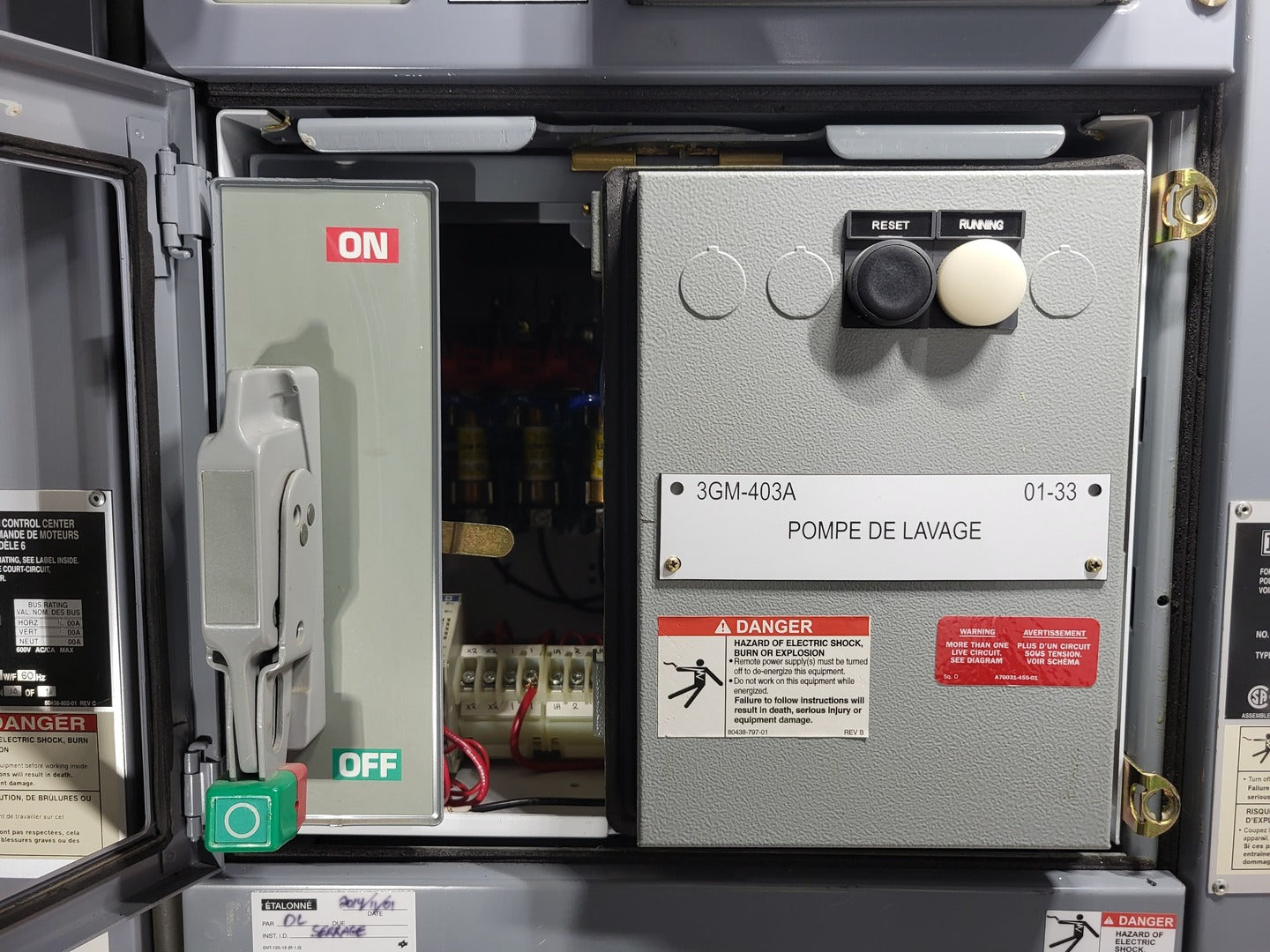

Bucket #4 3GM-403A

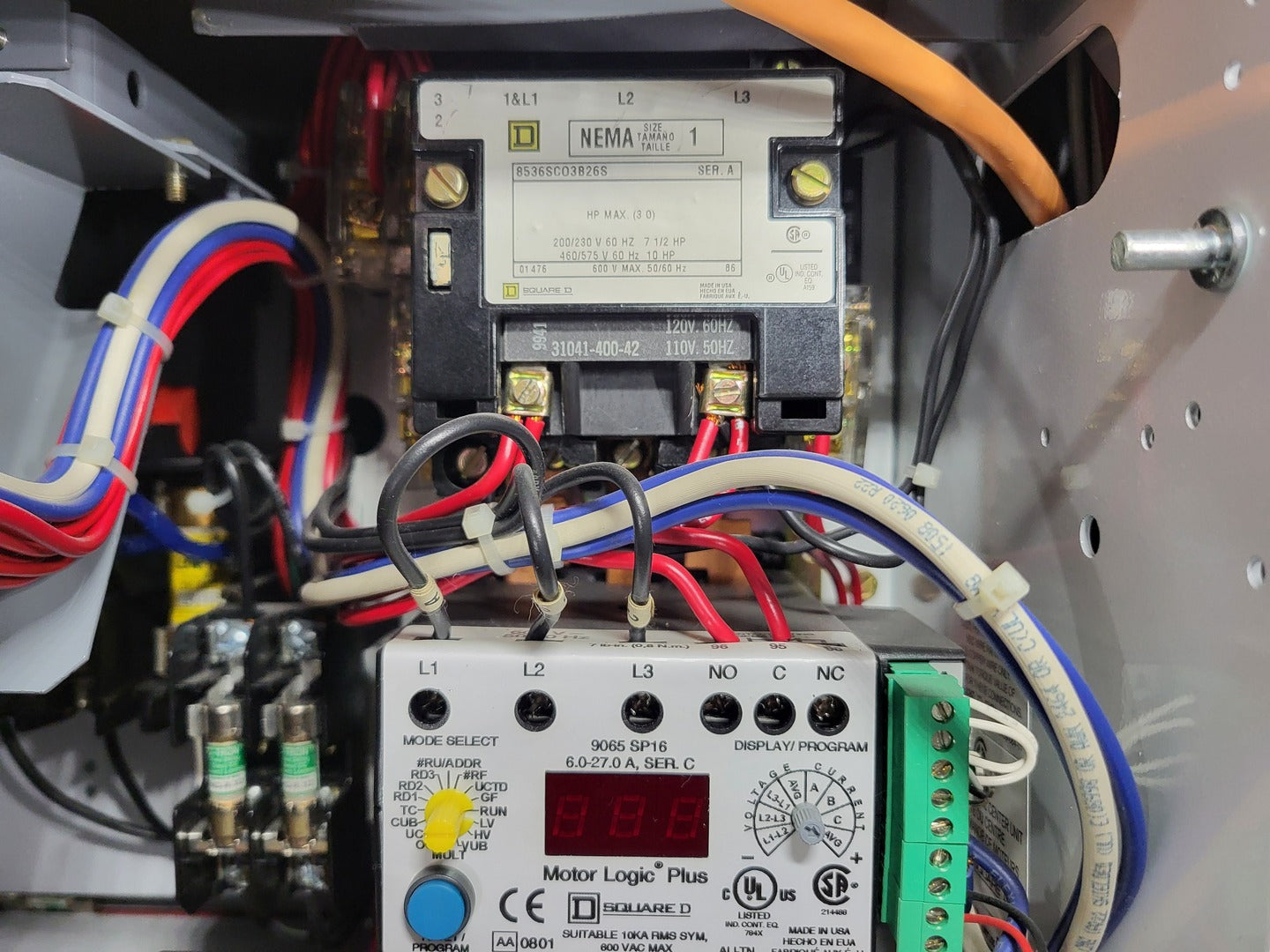

  1. Square D 8536SCO3B26S, NEMA Size 1 contactor, 7.5 HP @ 200/230V, 10 HP @ 460/575V
  2. Square D Motor Logic Plus 9065 SP16, motor protection relay, 6.0-27.0A range, 600VAC max

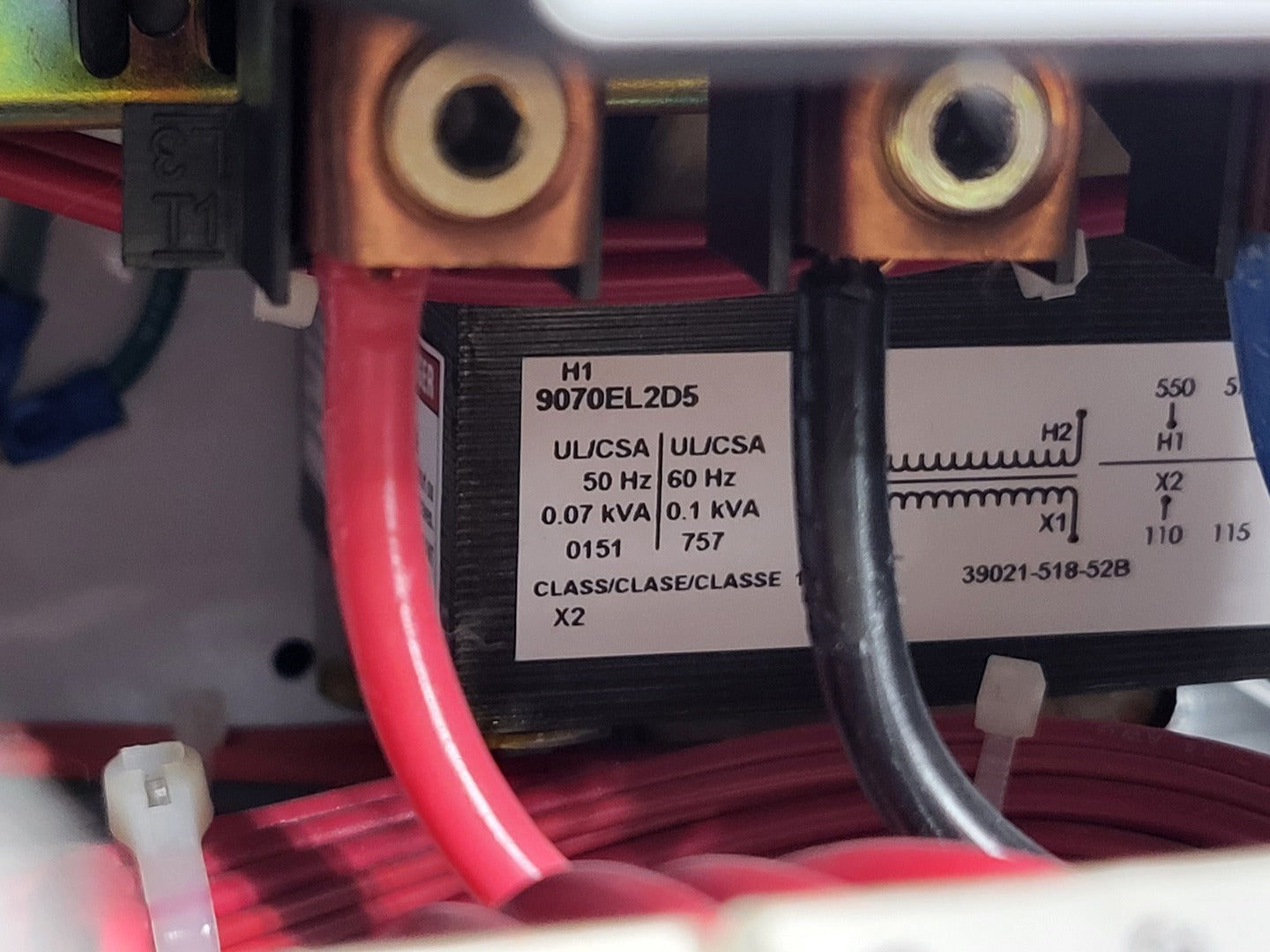

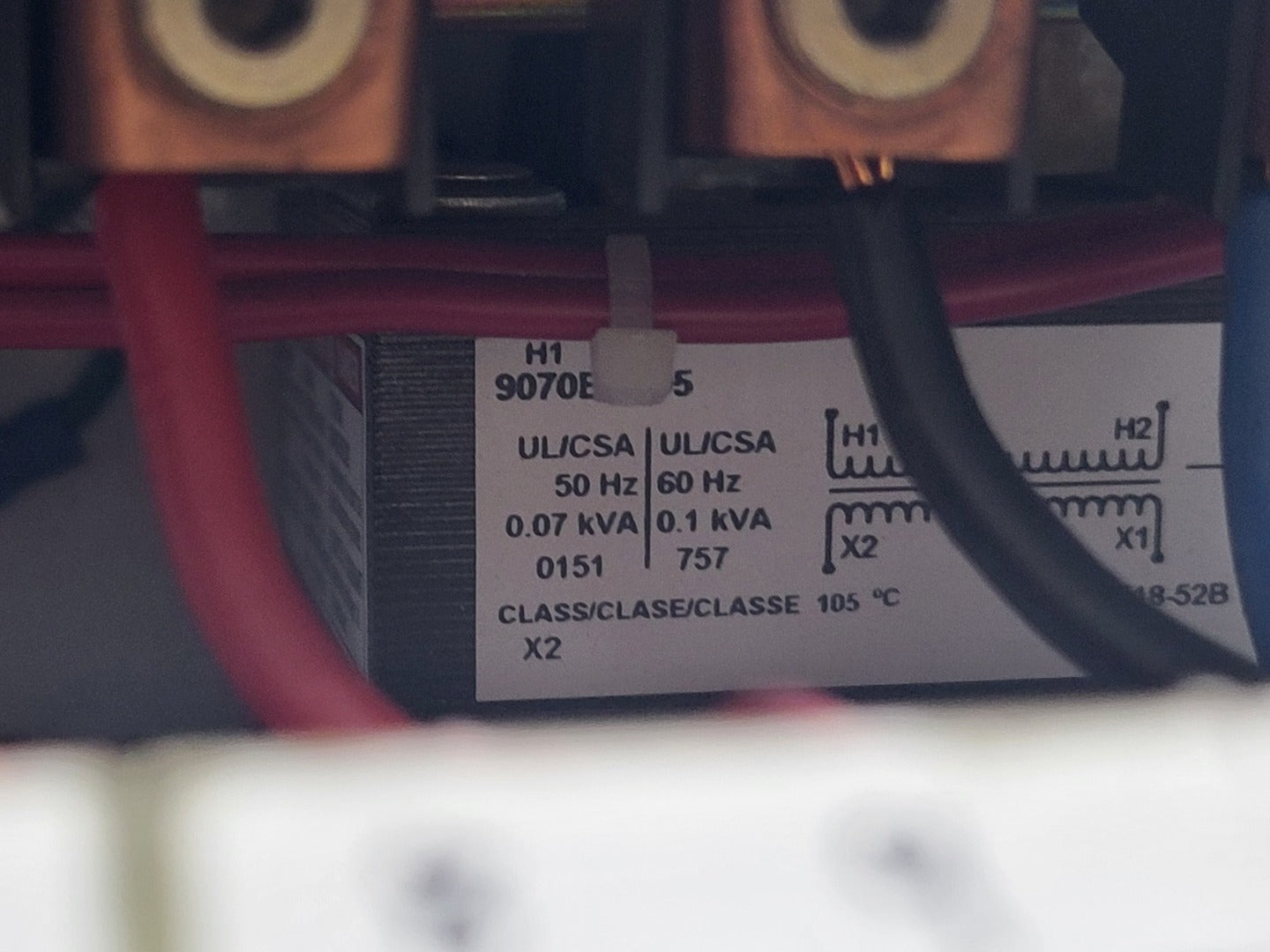

  3. Square D 9070EL2D5, control transformer, 0.07 kVA @ 50Hz / 0.1 kVA @ 60Hz

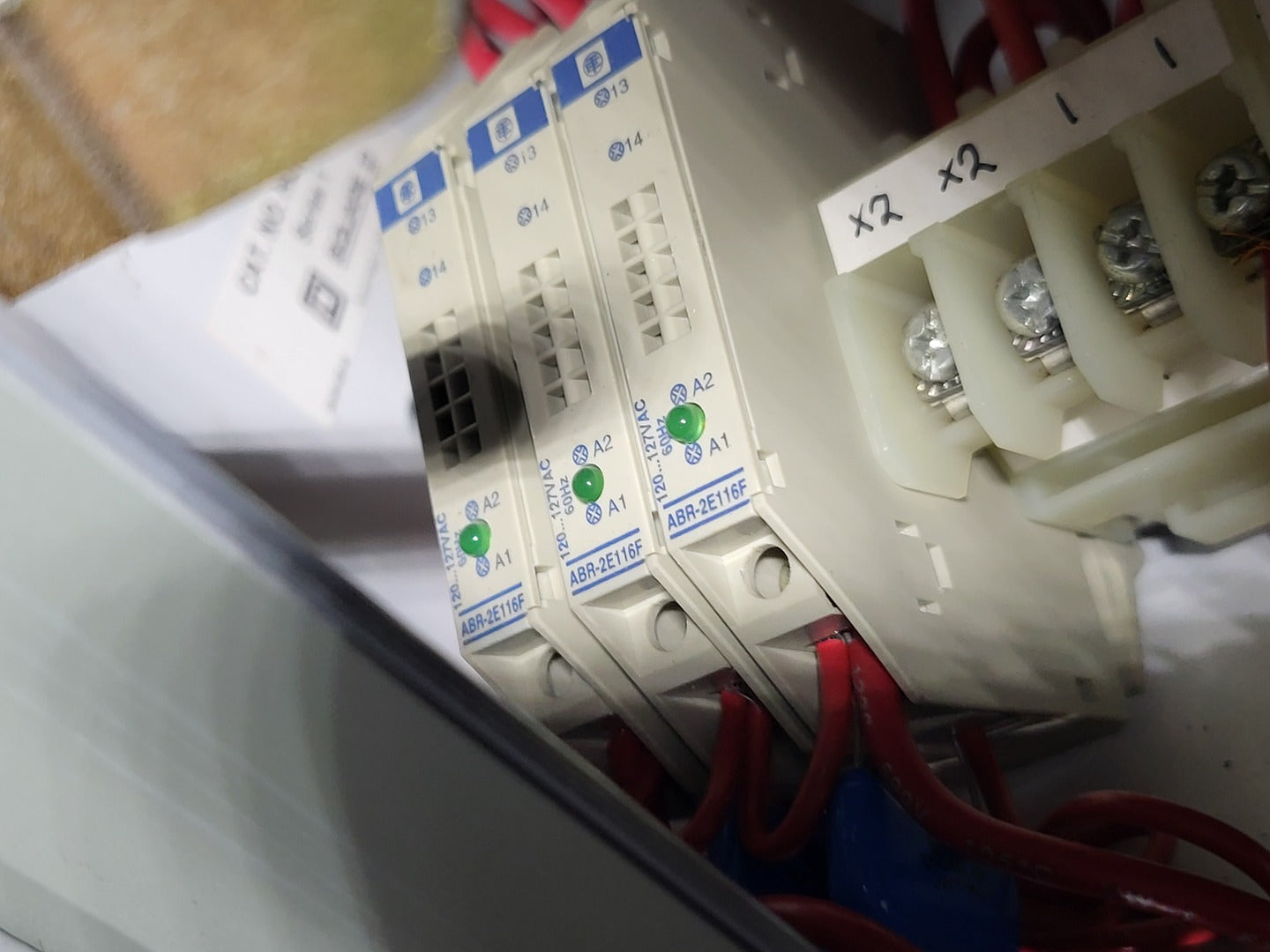

  4. 3 x Telemecanique ABR-2E116F slim relay modules, 120-127VAC coil

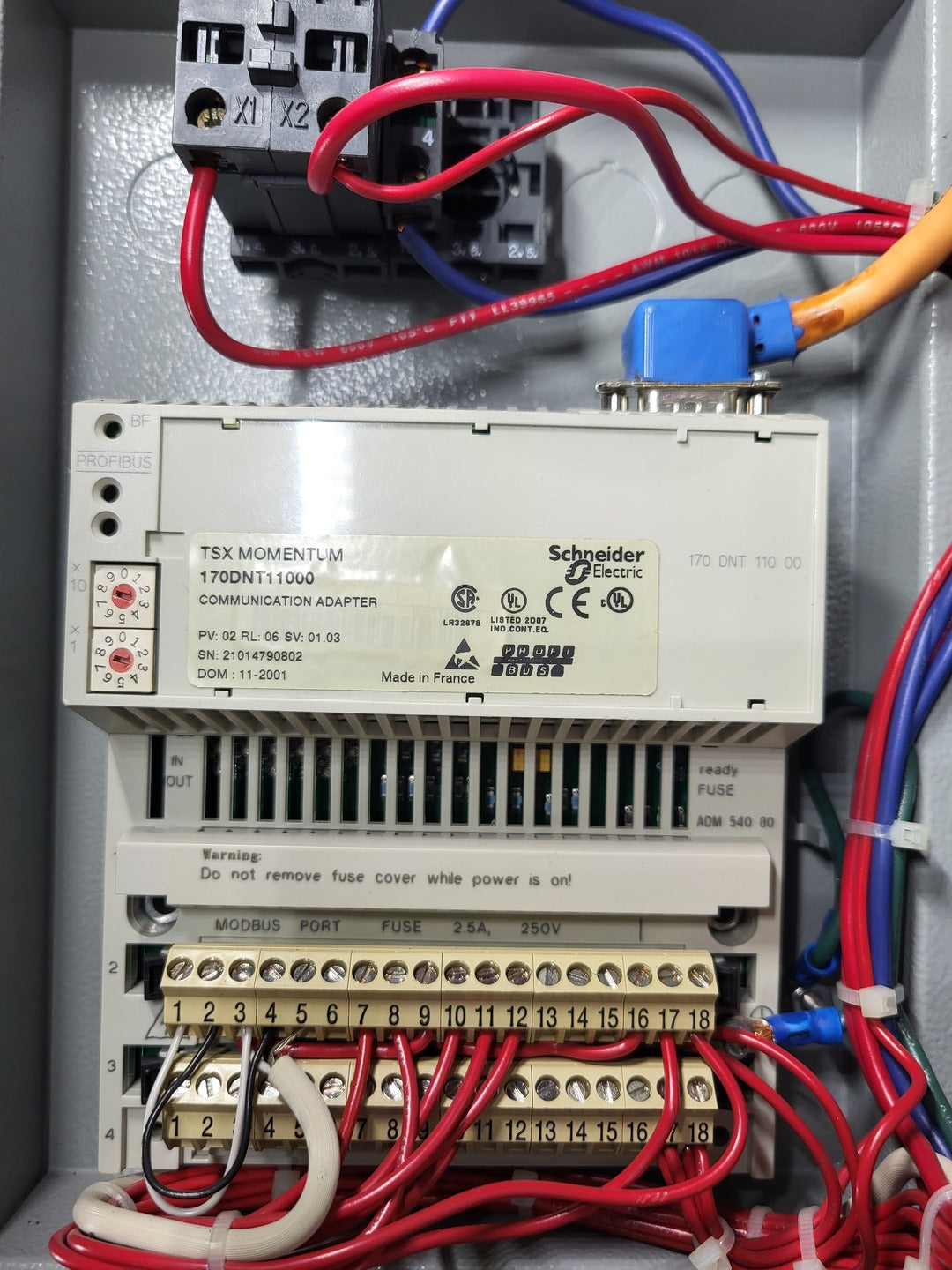

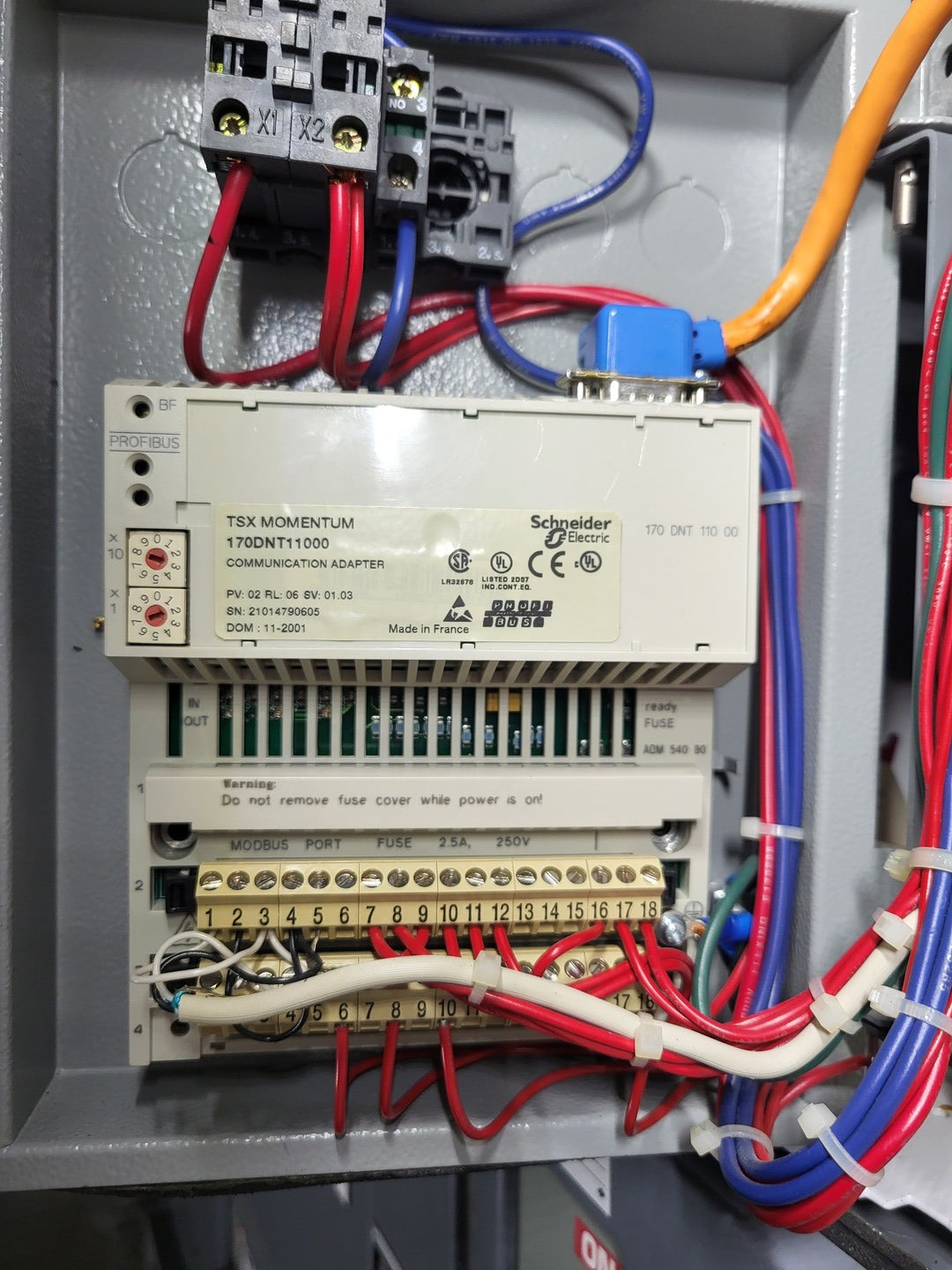

  5. Schneider Electric TSX Momentum 170DNT11000 communication adapter / PROFIBUS module
  6. Square D HU100-3MC6, Series 1, 100A MCC bucket disconnect unit
  7. 3 x Bussmann Low-Peak fuses LPJ-15SP

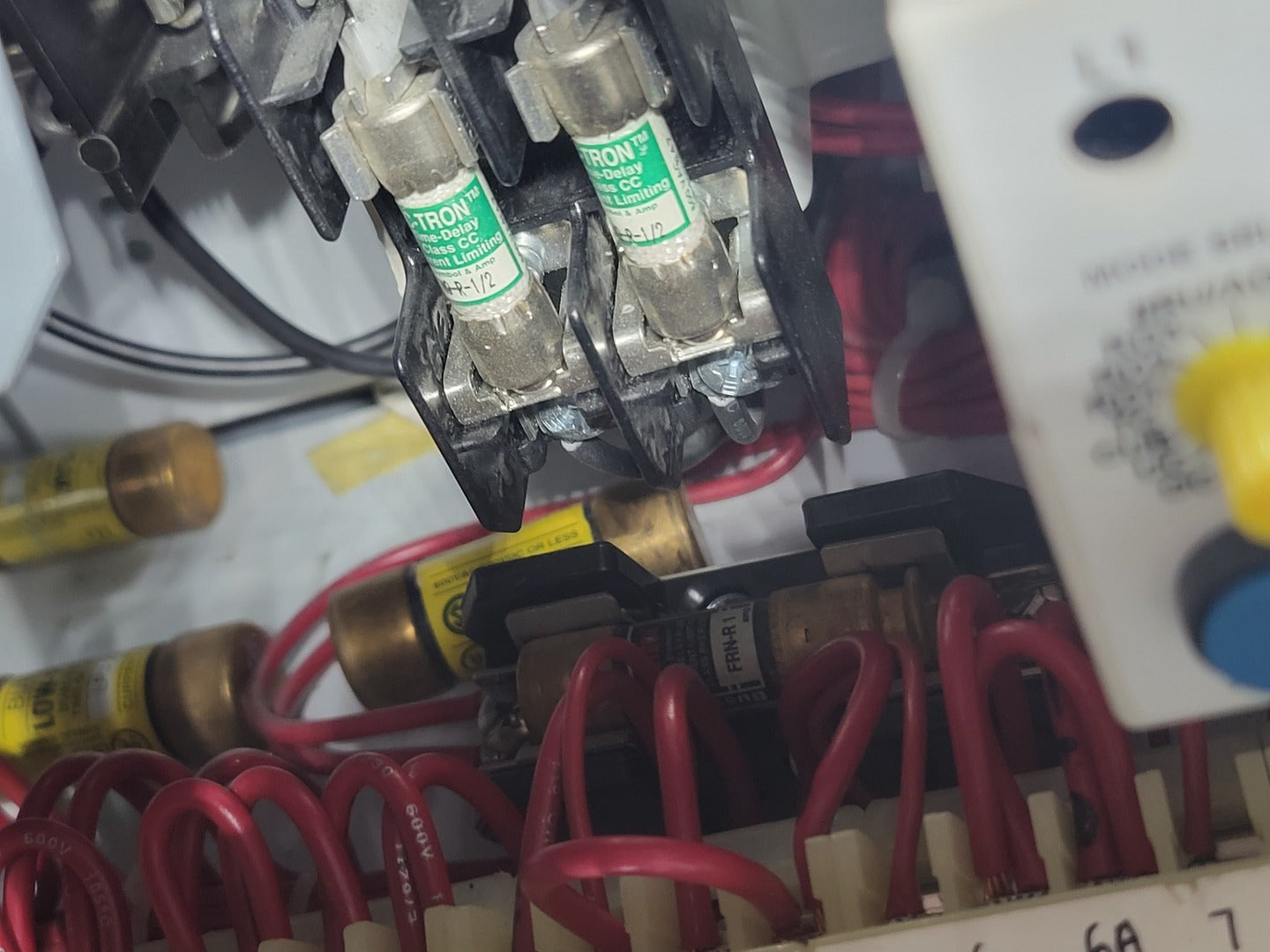

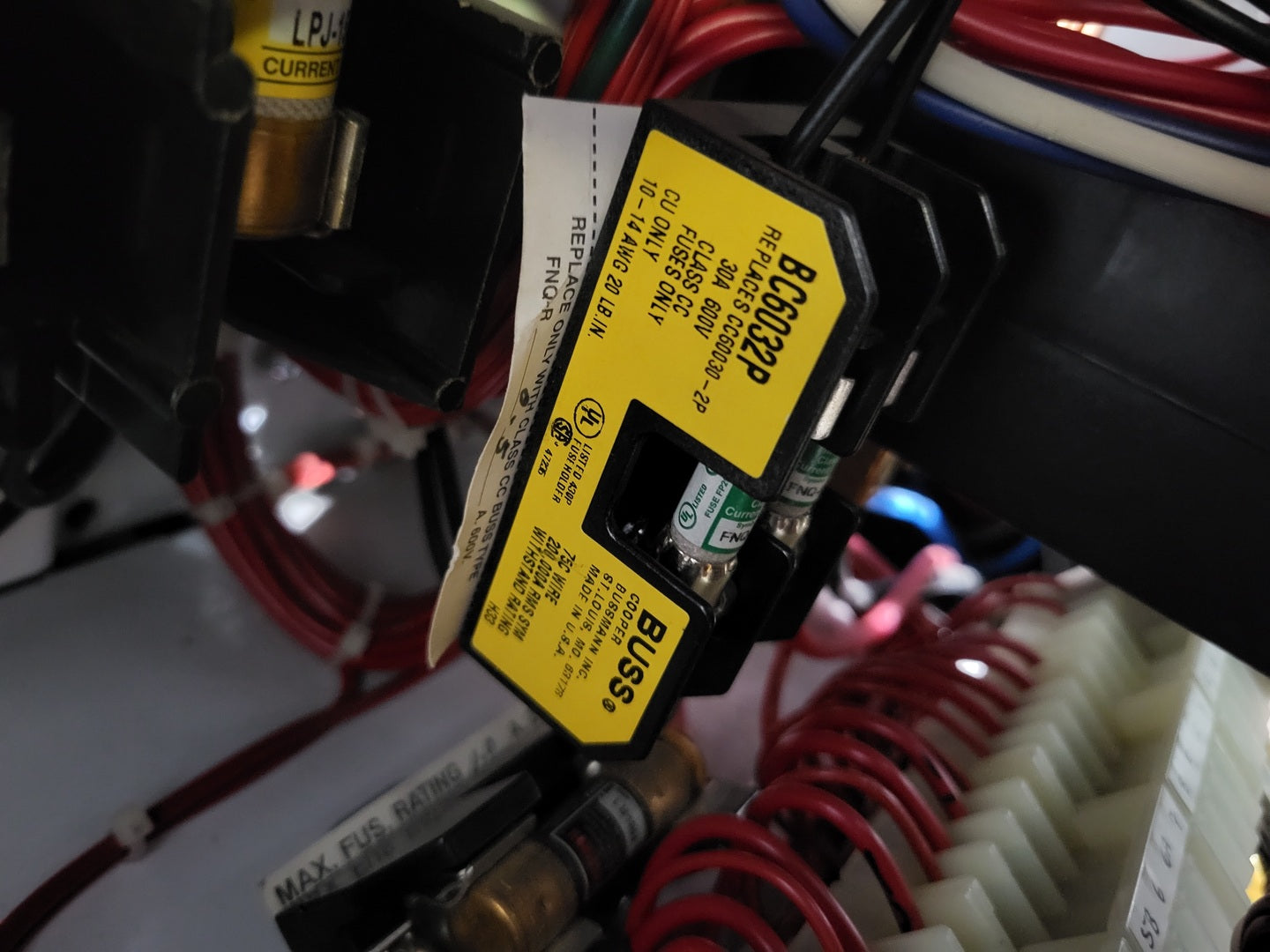

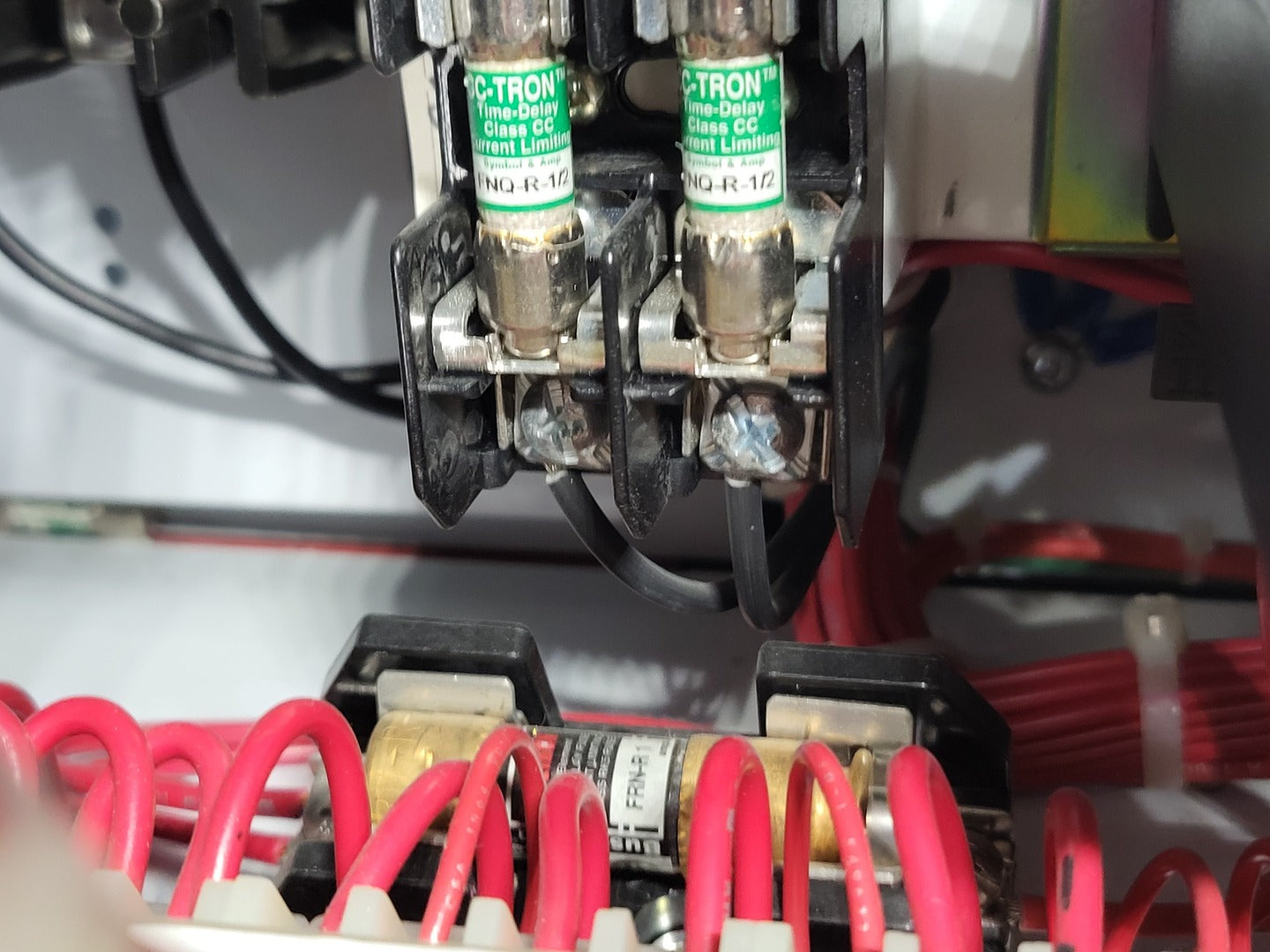

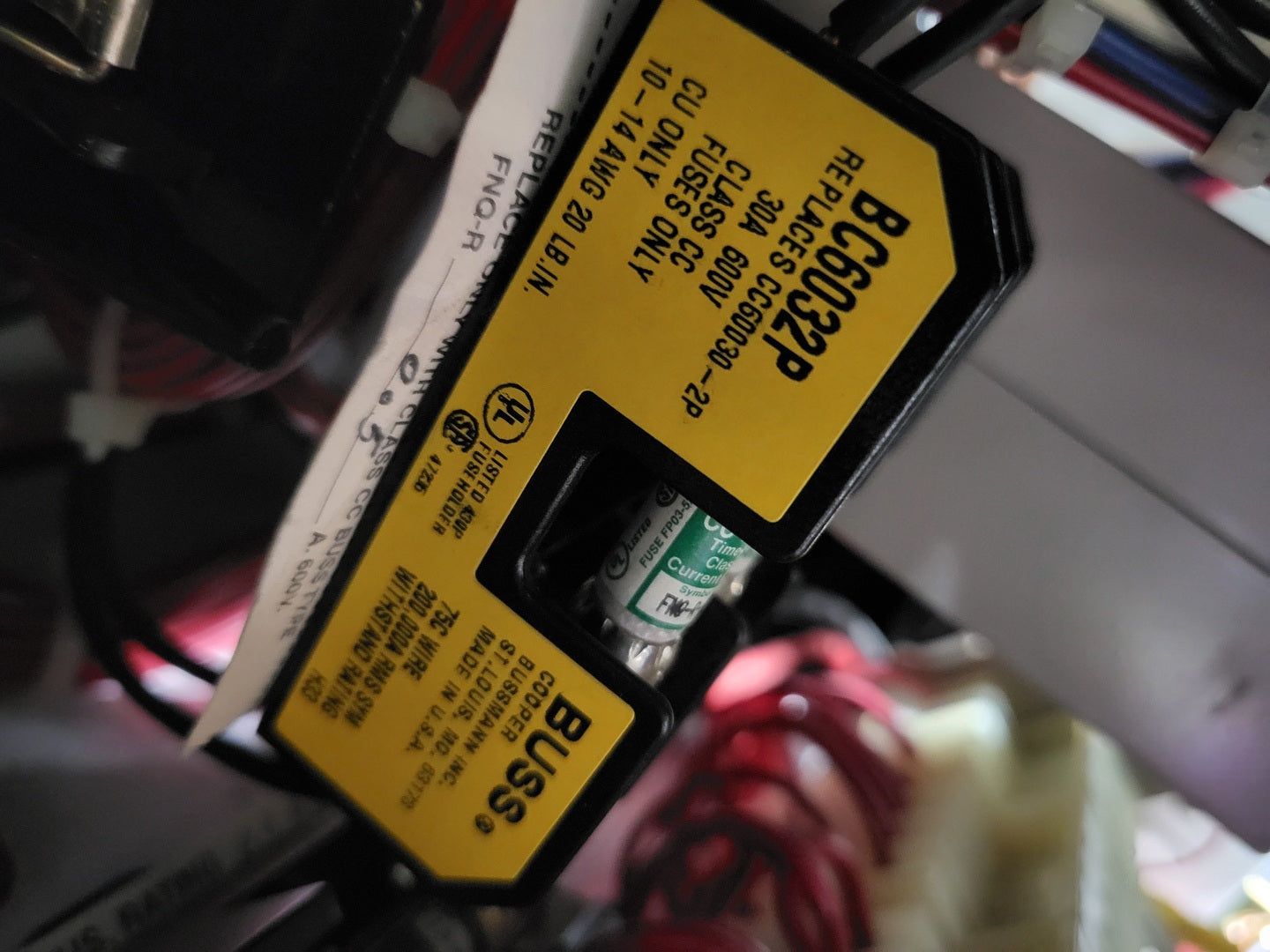

  8. 2 x Bussmann CC-Tron fuses FNQ-R-1/2
  9. 1 x Bussmann Fusetron fuse FNR-R 1

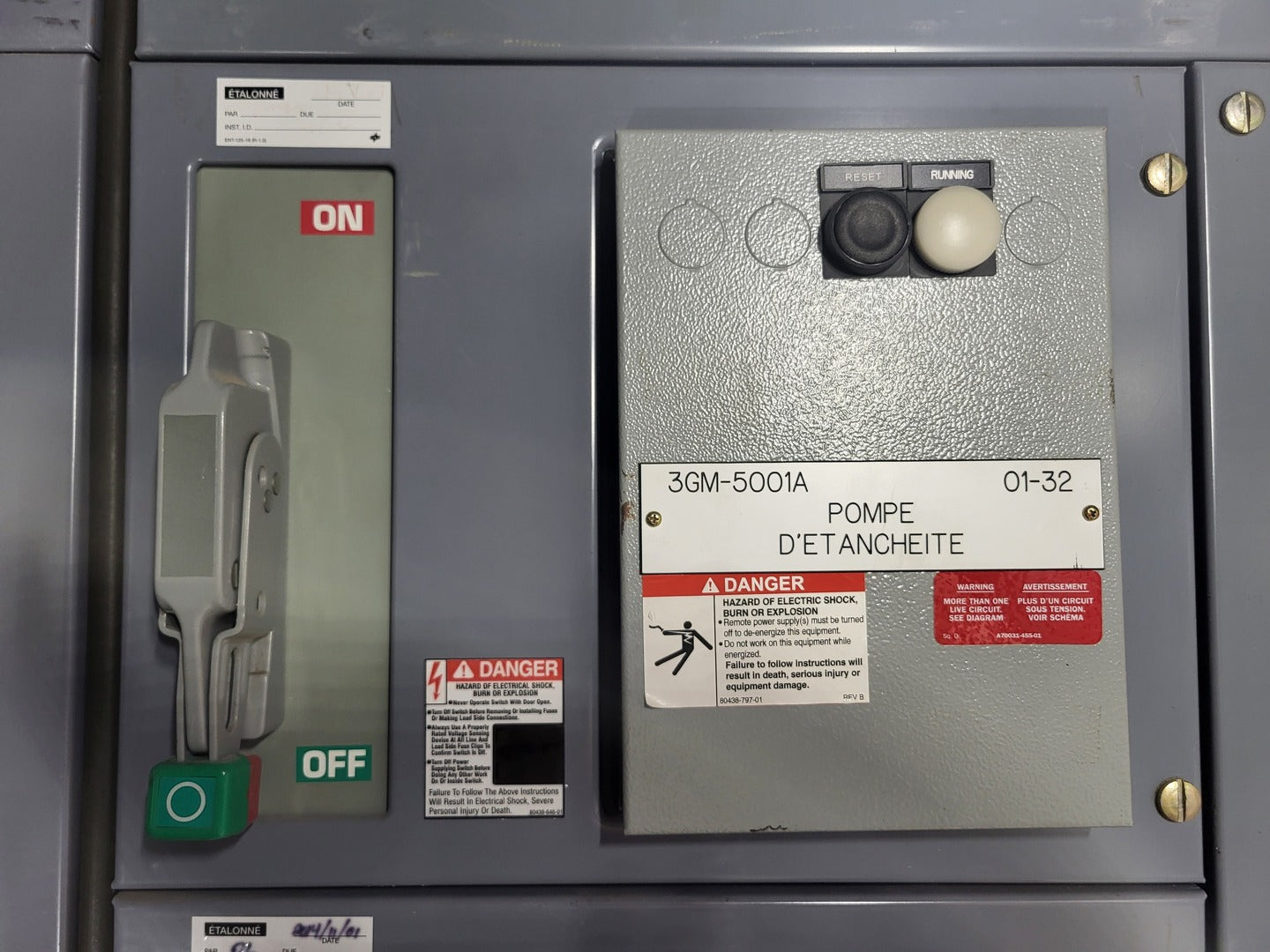

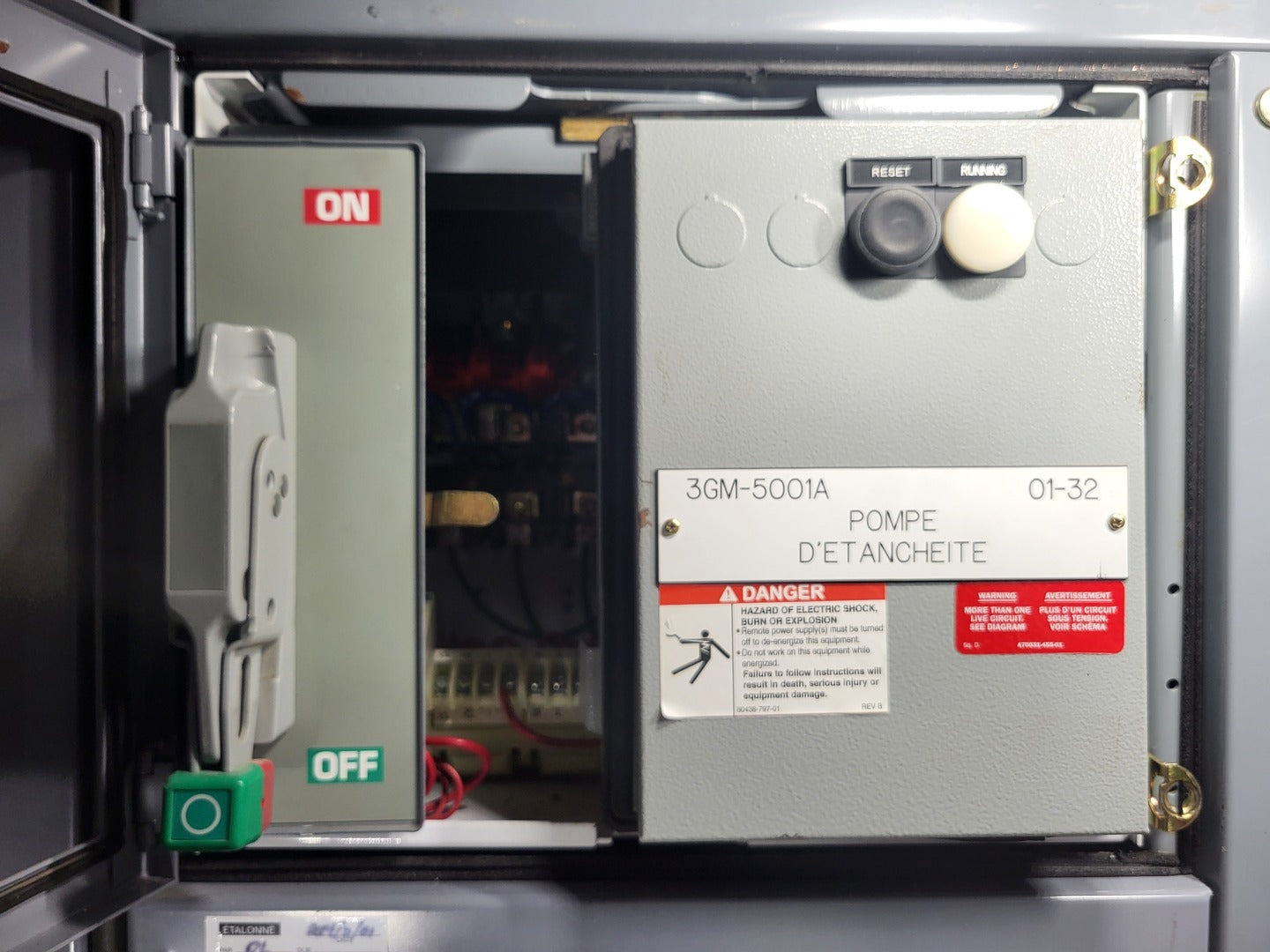

Bucket #5 3GM-5001A

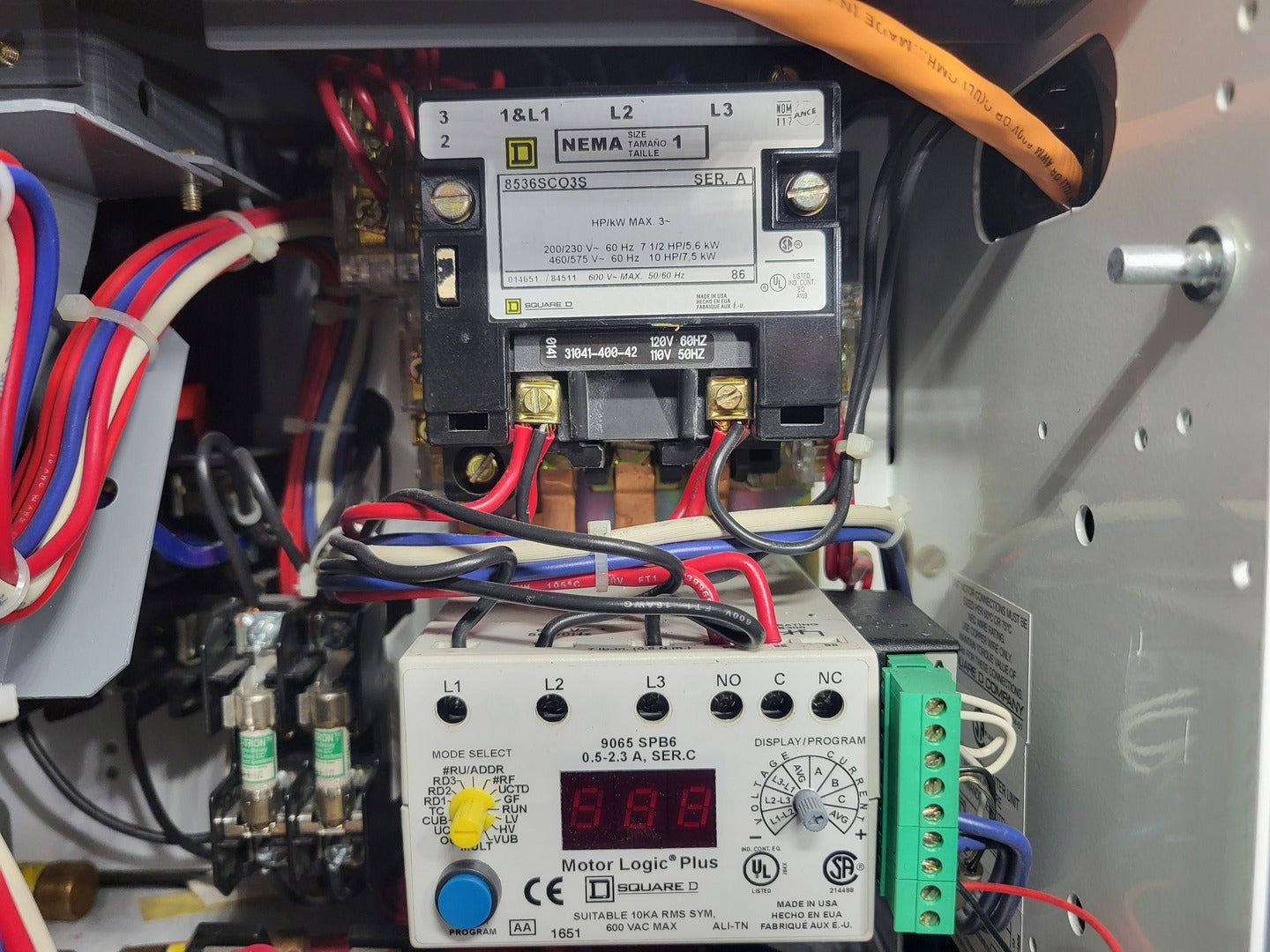

  1. Square D 8536SCO3S, NEMA Size 1 contactor, 7.5 HP @ 200/230V, 10 HP @ 460/575V
  2. Square D Motor Logic Plus 9065 SPB6, motor protection relay, 0.5-2.3A range, 600VAC max
  3. Square D 9070EL2D5, control transformer, 0.07 kVA @ 50Hz / 0.1 kVA @ 60Hz

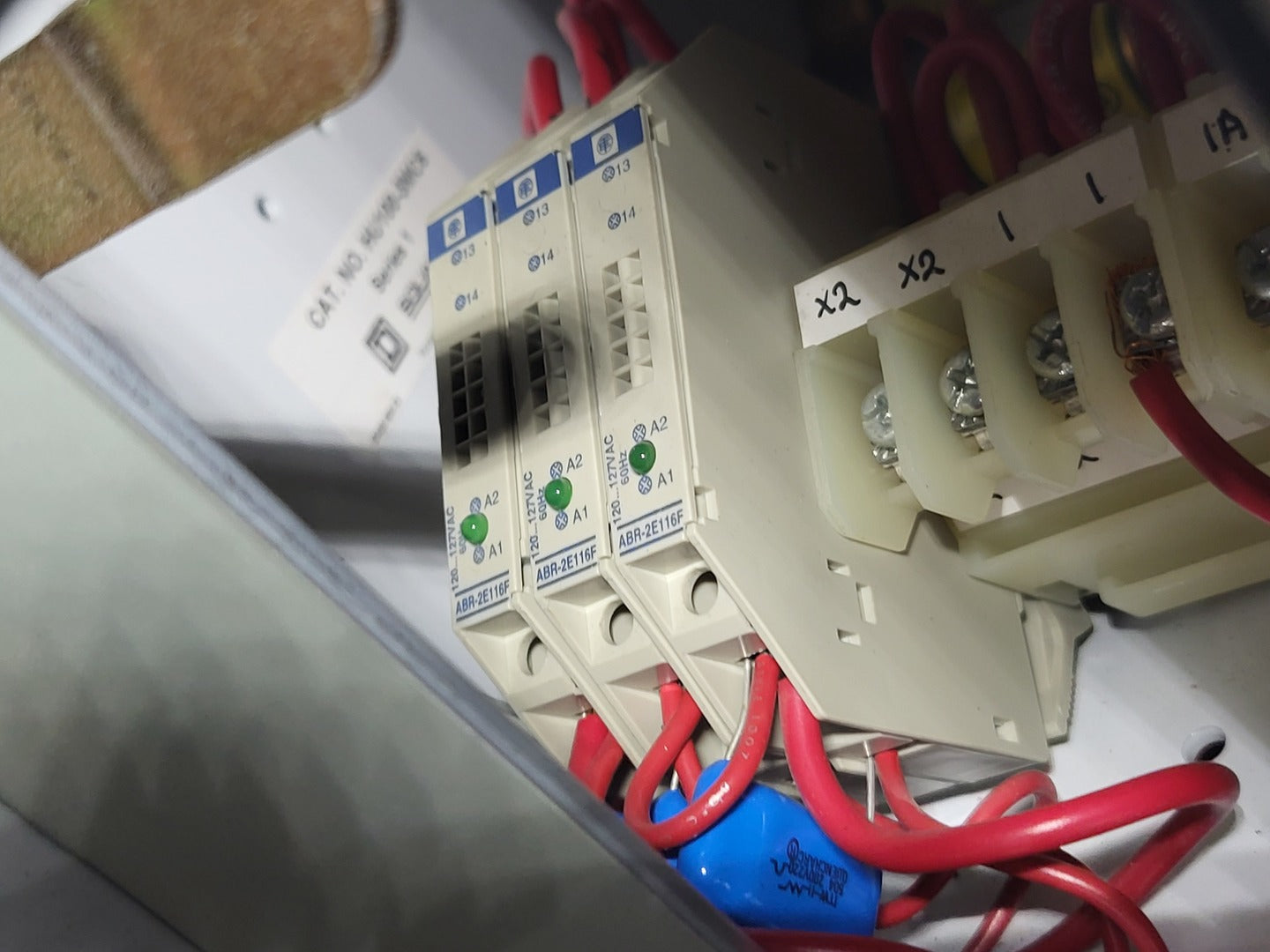

  4. 3 x Telemecanique ABR-2E116F slim relay modules, 120-127VAC coil
  5. Schneider Electric TSX Momentum 170DNT11000 communication adapter / PROFIBUS module
  6. Square D HU100-3MC6, Series 1, 100A MCC bucket disconnect unit
  7. 3 x Bussmann Low-Peak fuses
  8. 2 x Bussmann CC-Tron fuses FNQ-R-1/2
  9. 1 x Bussmann Fusetron fuse, FRN-R 1
