Descripción

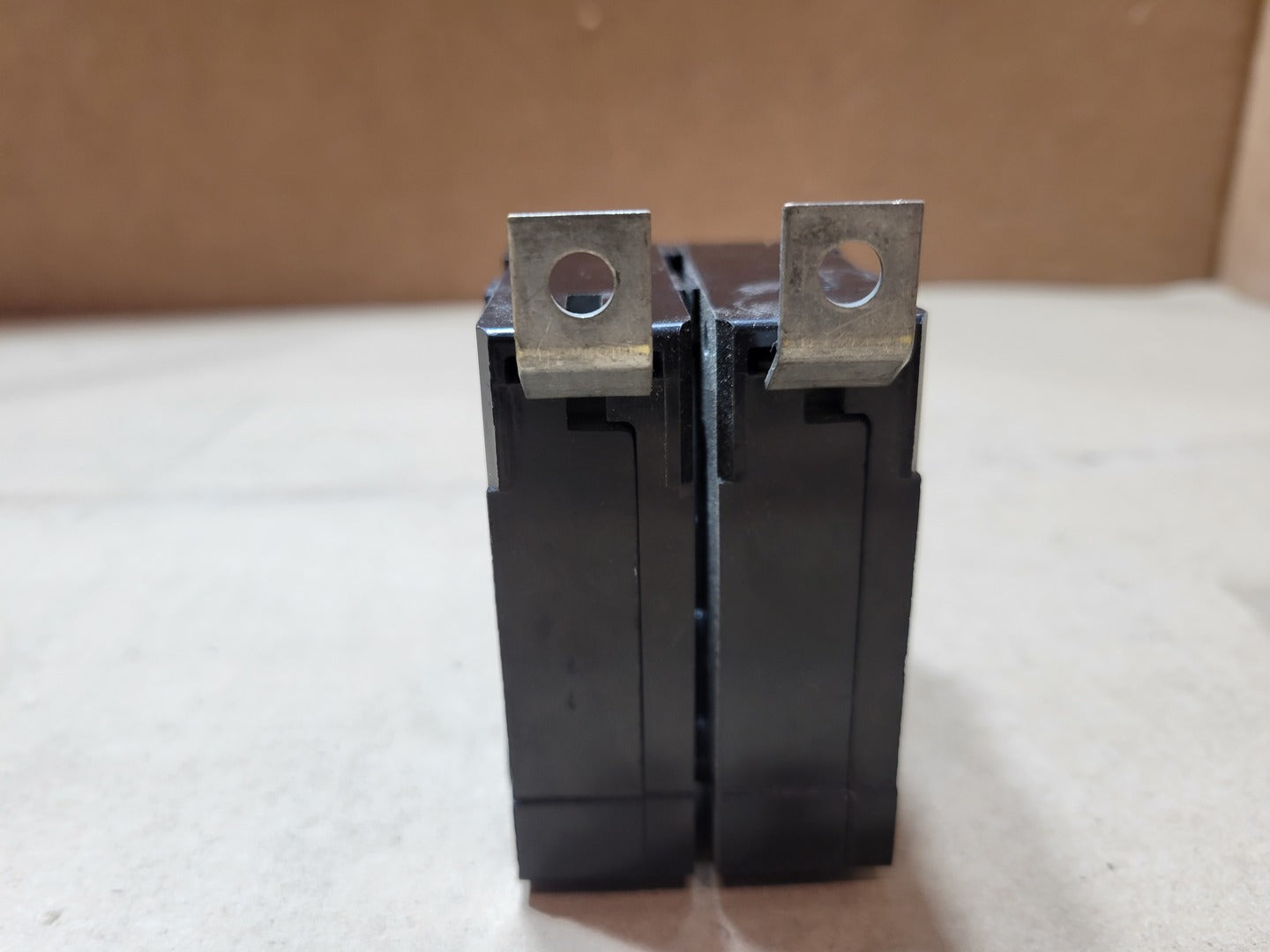

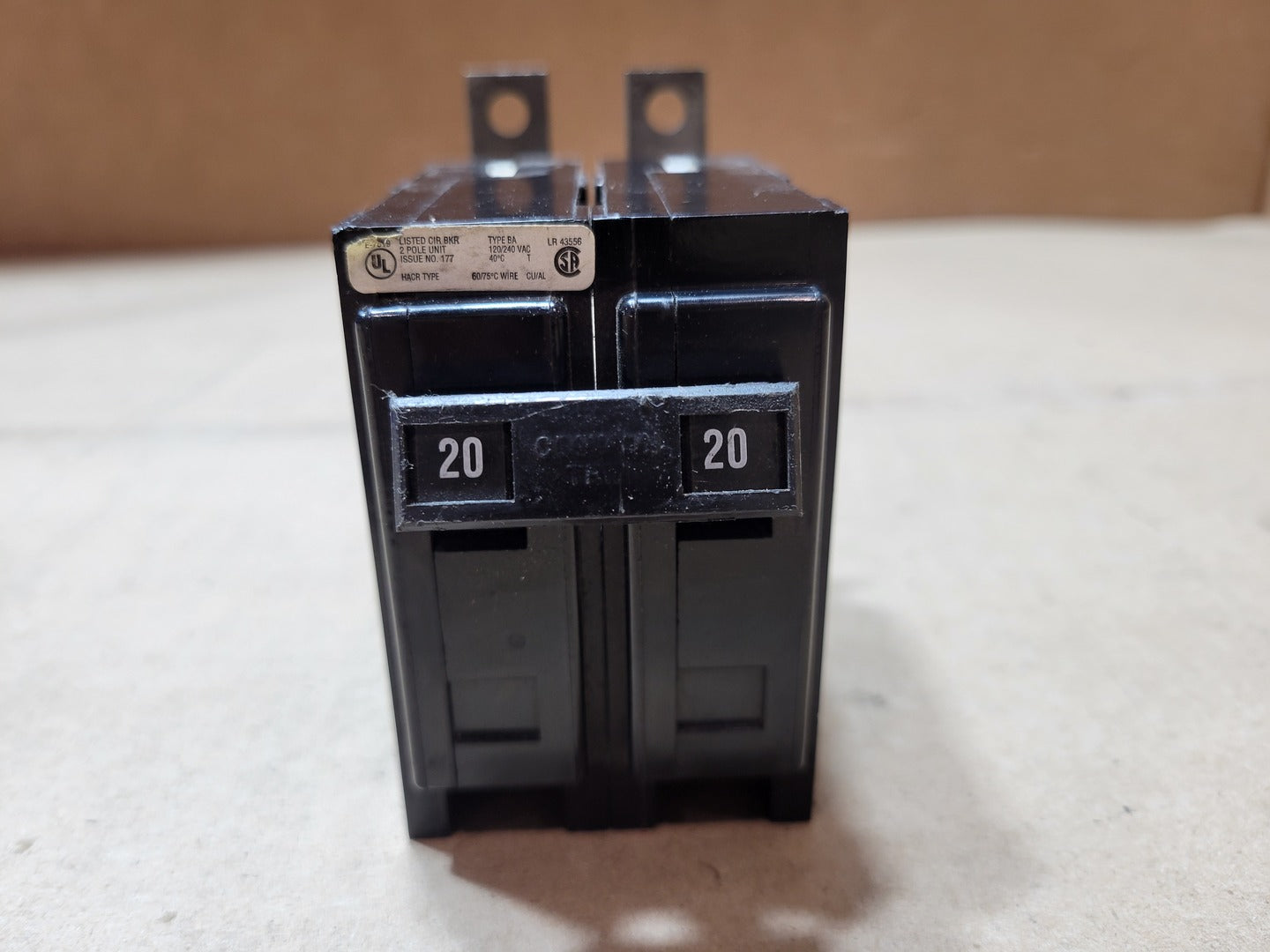

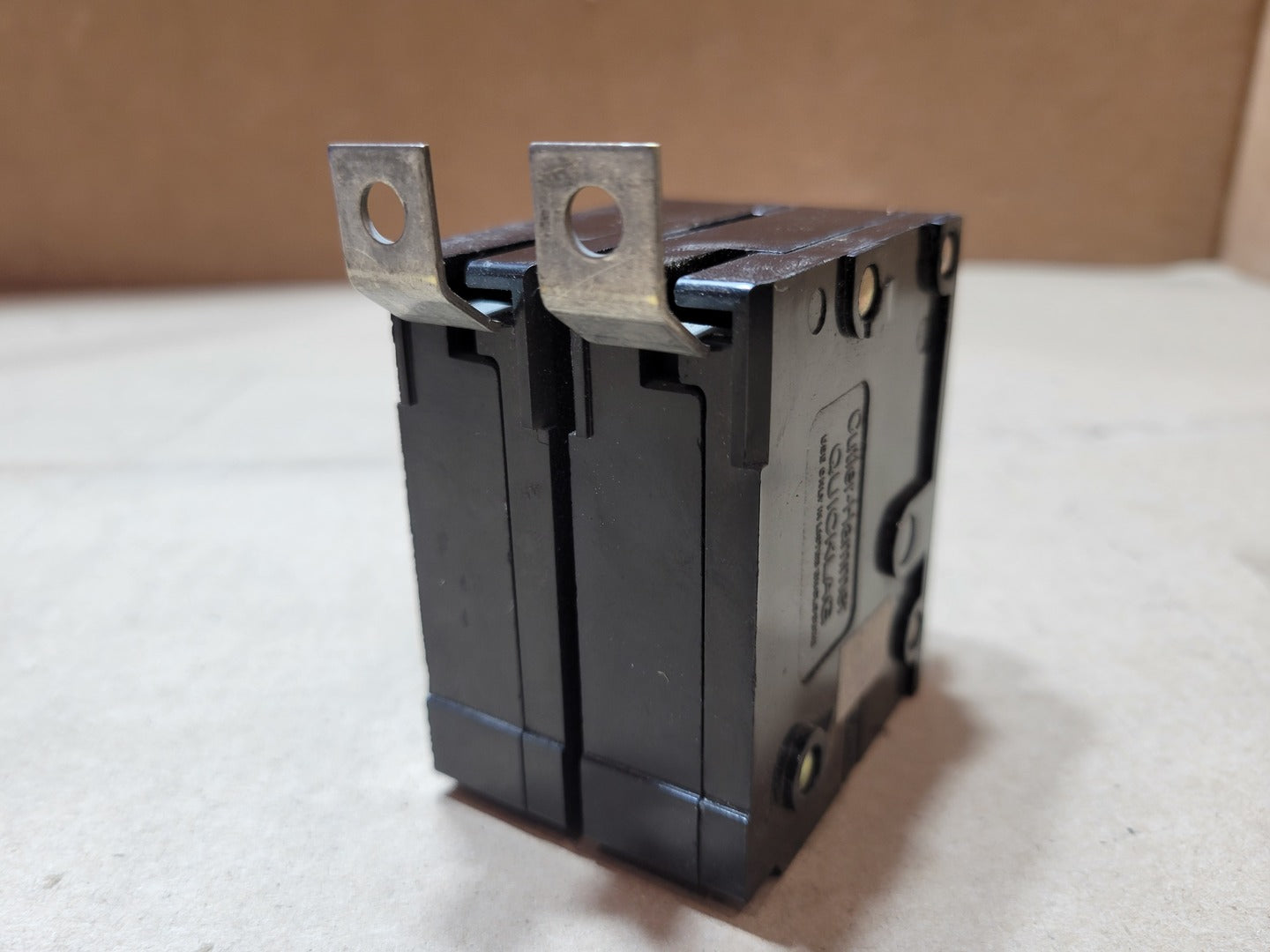

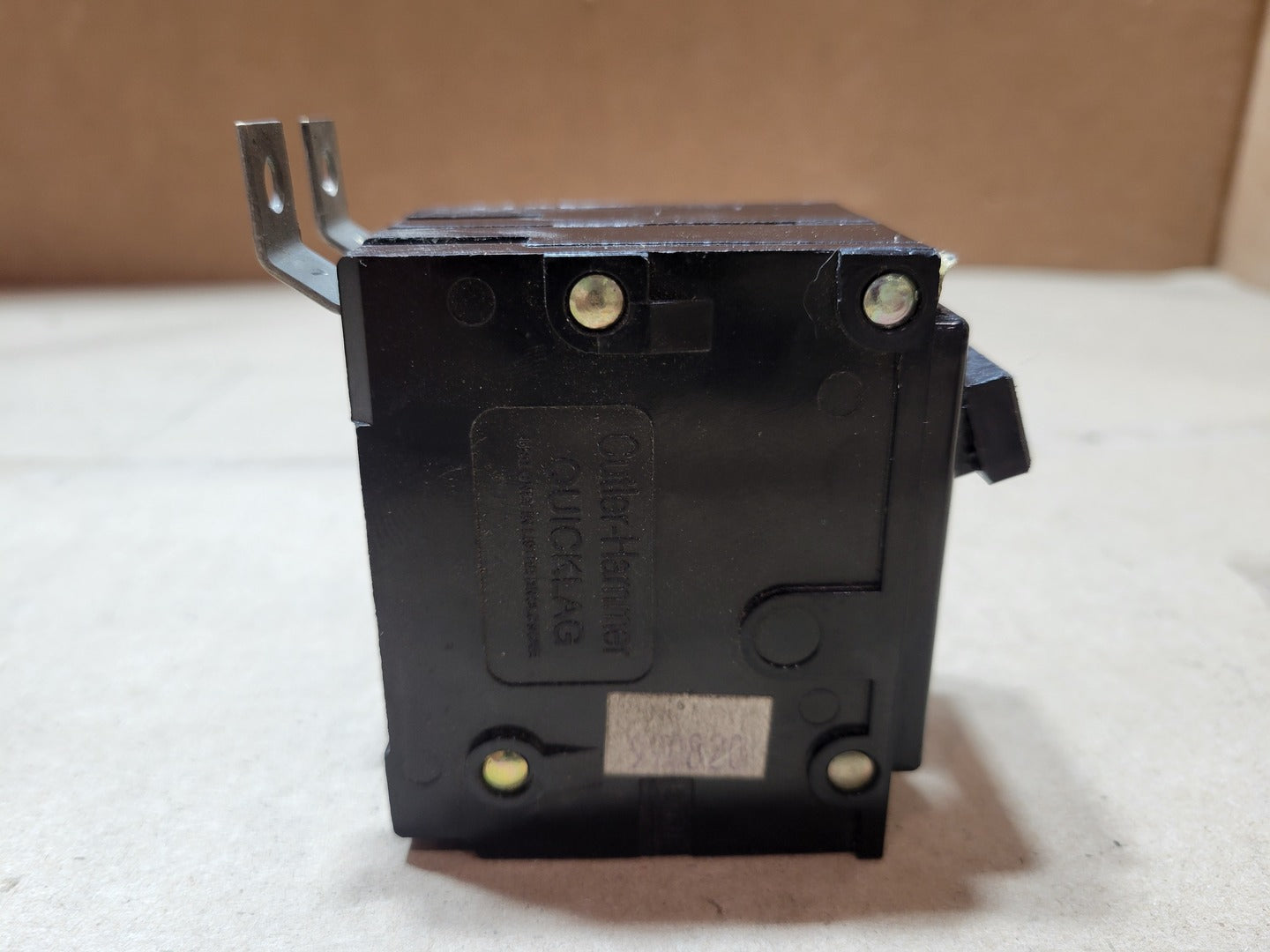

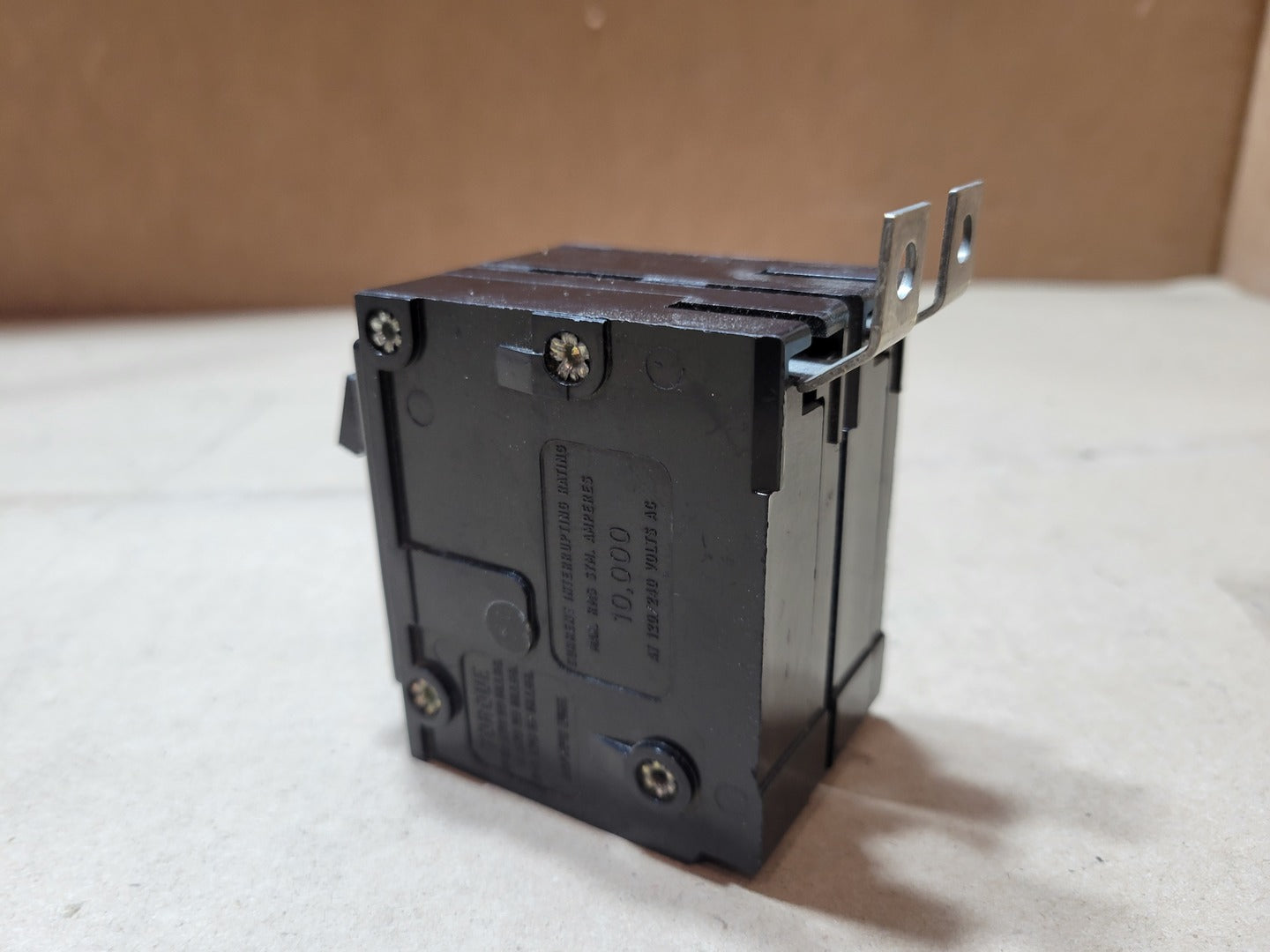

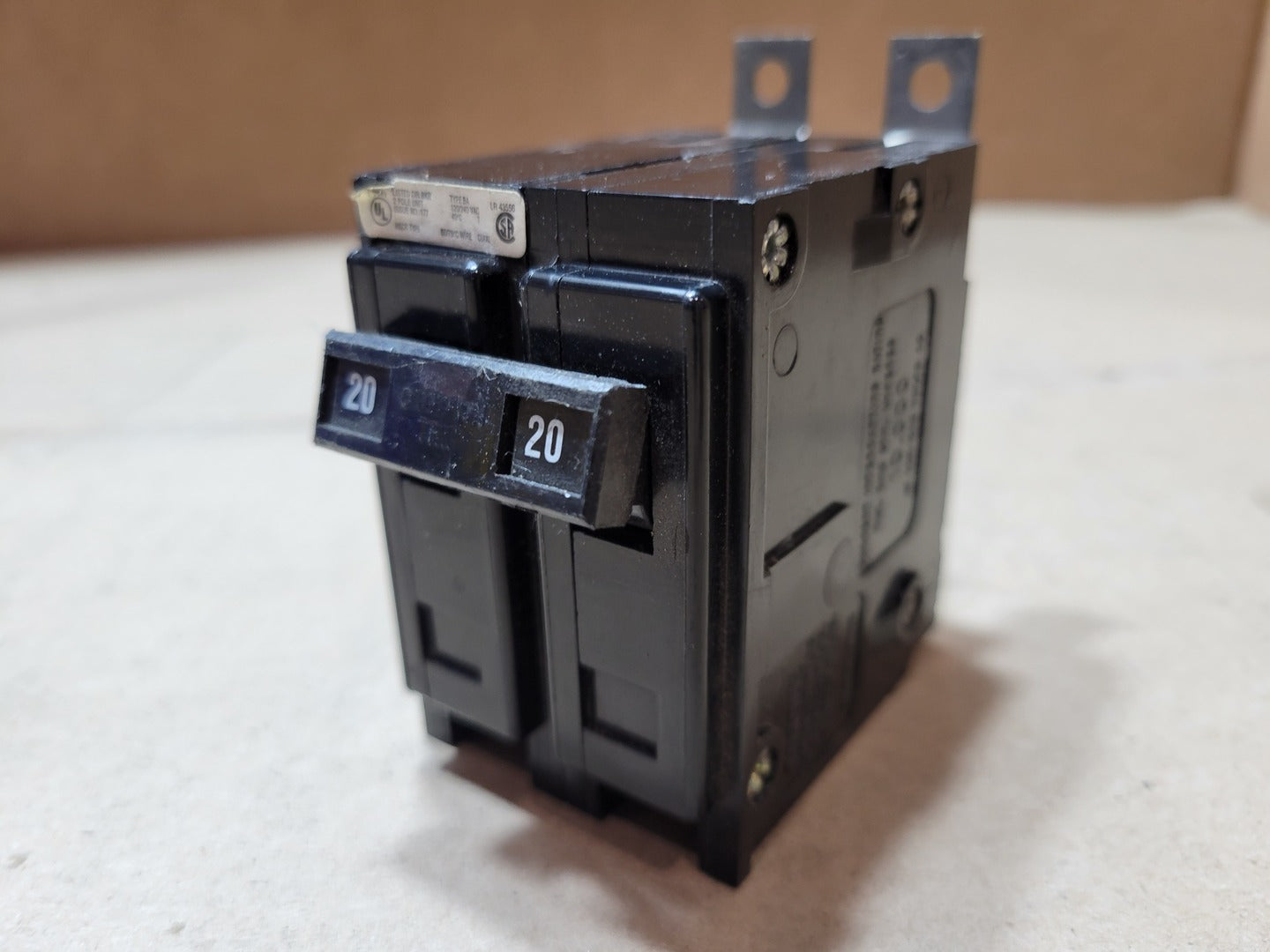

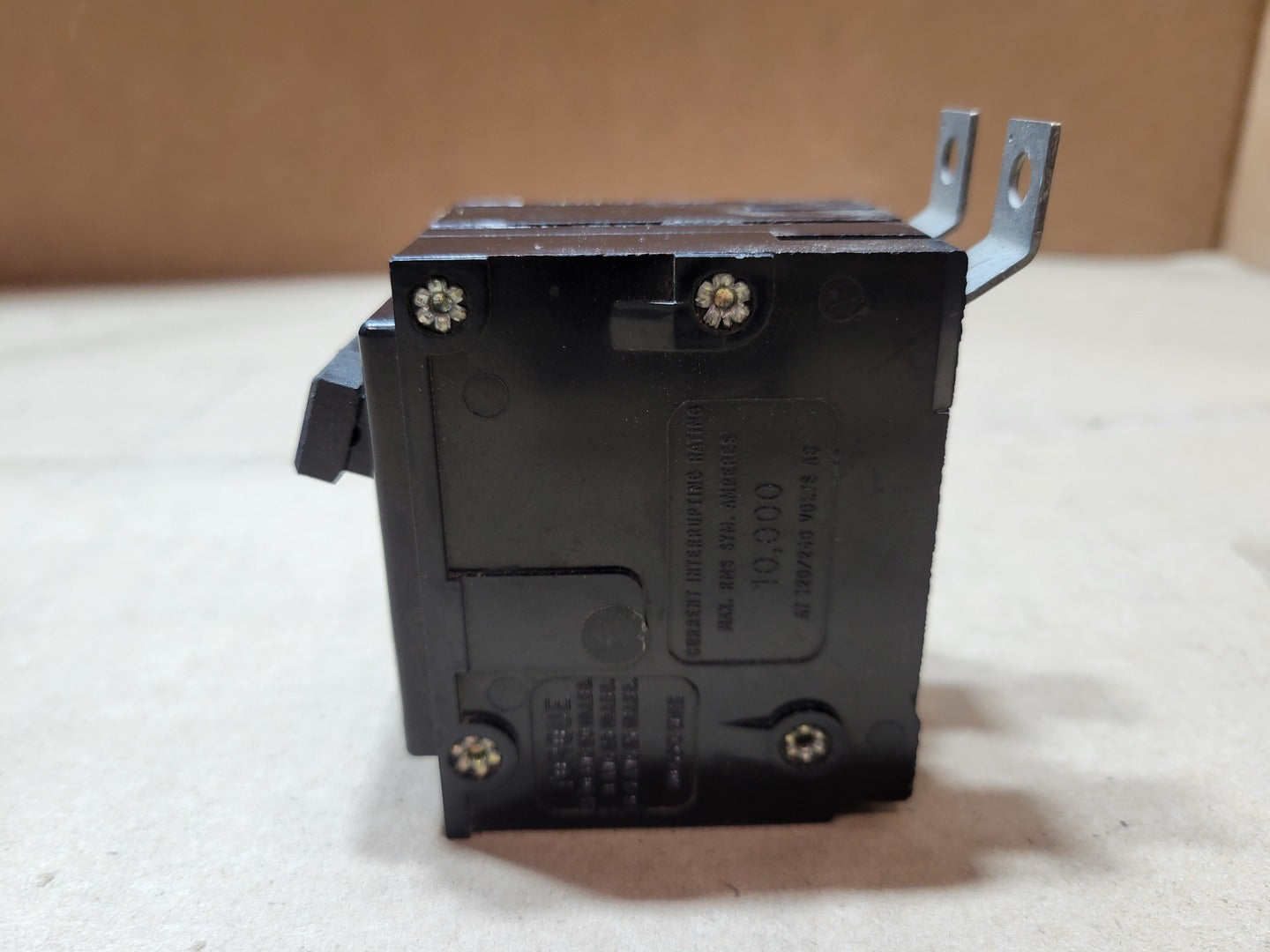

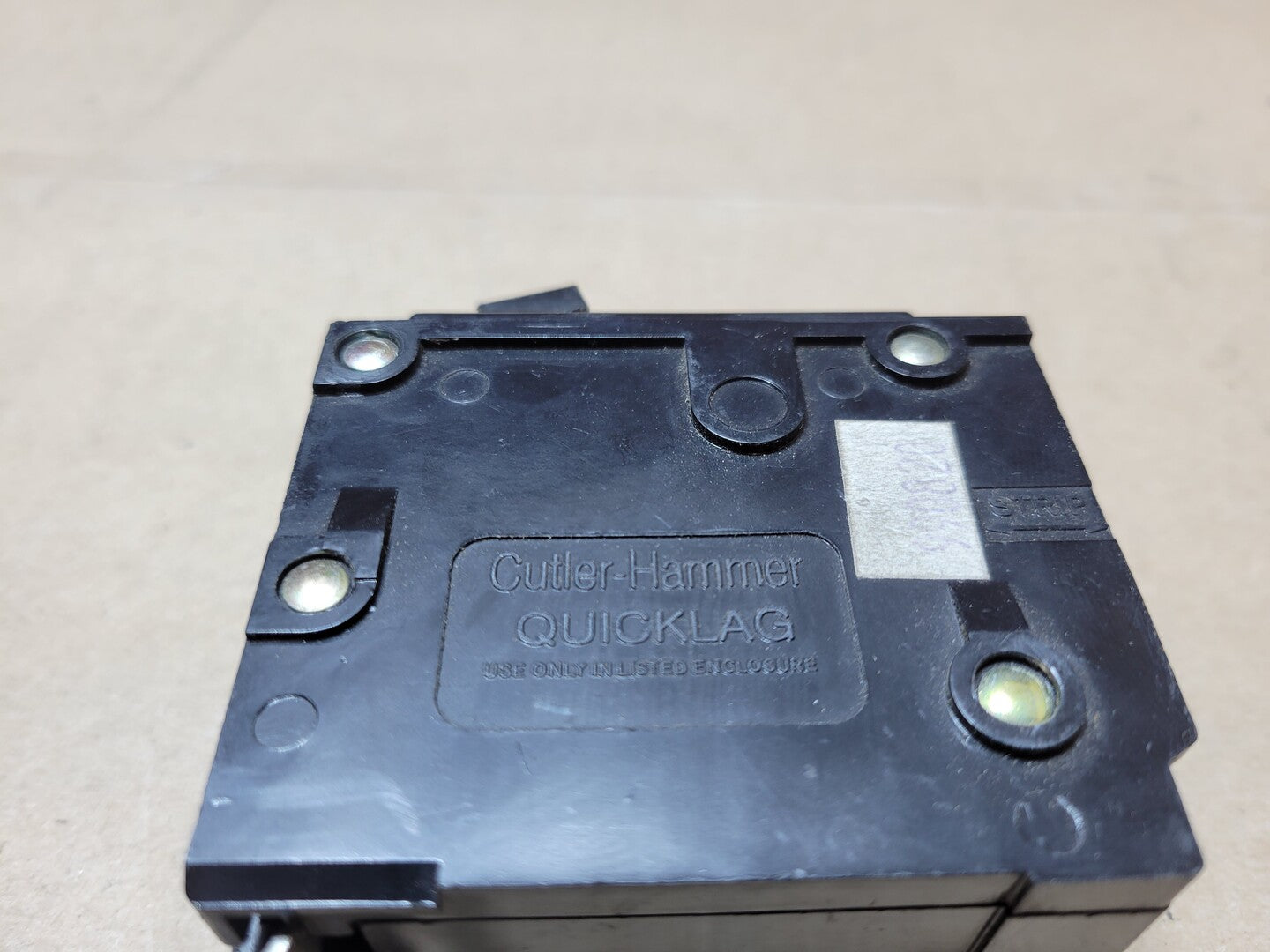

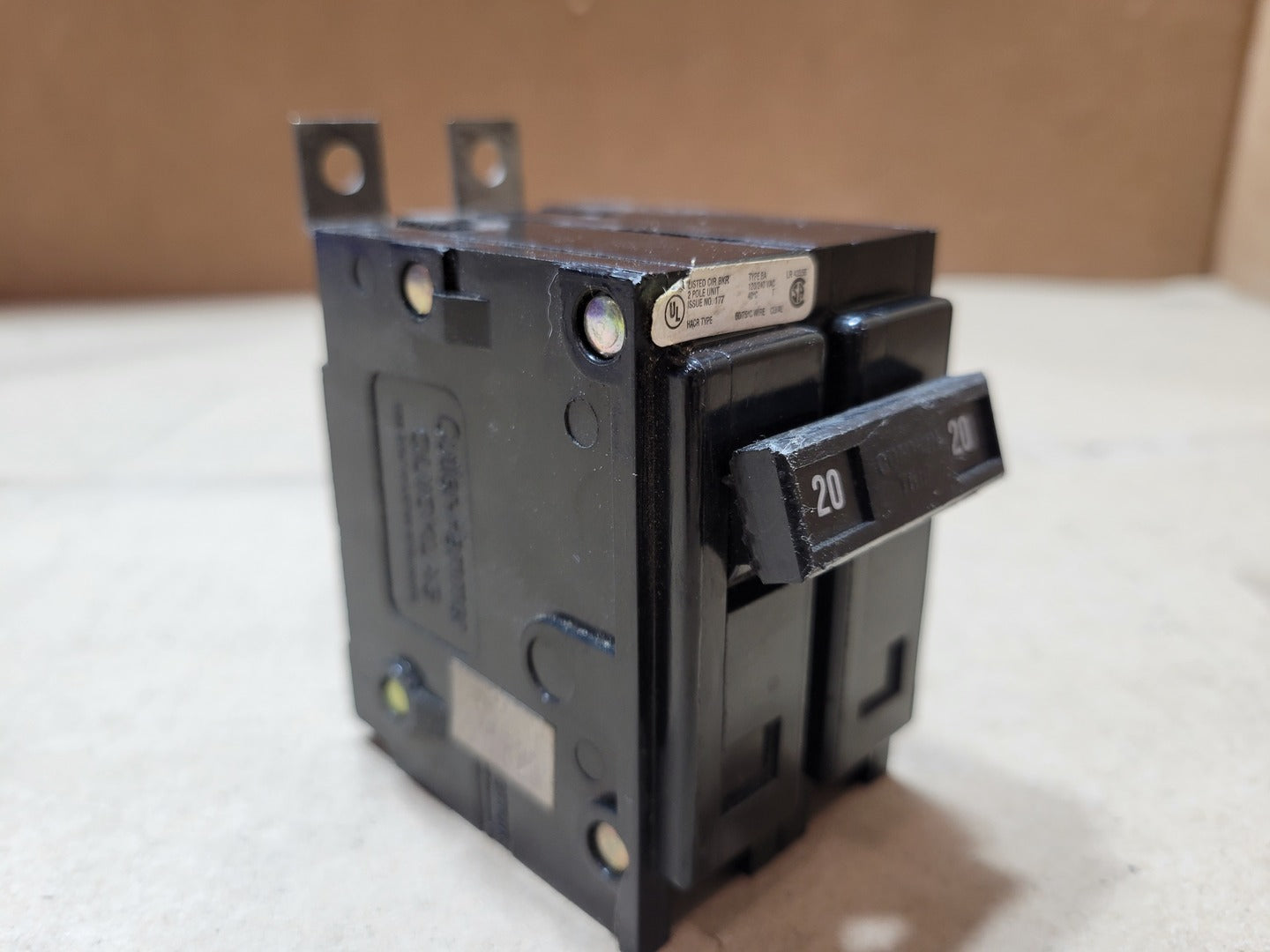

Cutler-Hammer Quicklag BA220 thermal-magnetic circuit breaker rated 20A, 2-pole, 120/240VAC and 10kA interrupting capacity. Features bolt-on mounting, HACR rating and Cu/Al conductor compatibility.
| Specifications | |
|---|---|
| Model | BA220 |
| Condition | Used | General |
| Amps | 20 amps |
| Series | BA |
| # of Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240 volts |
| Other Specifications |
|---|
|

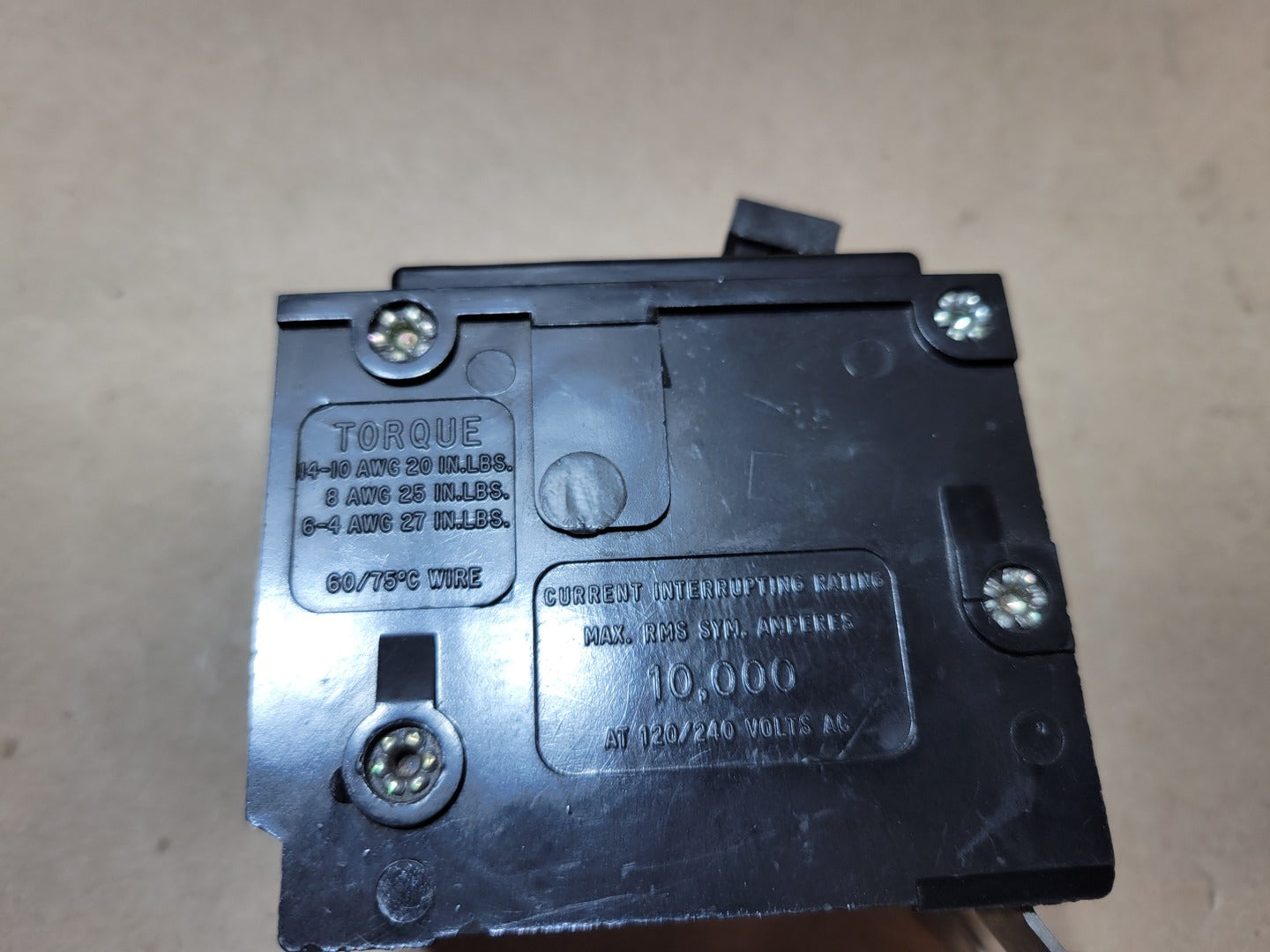

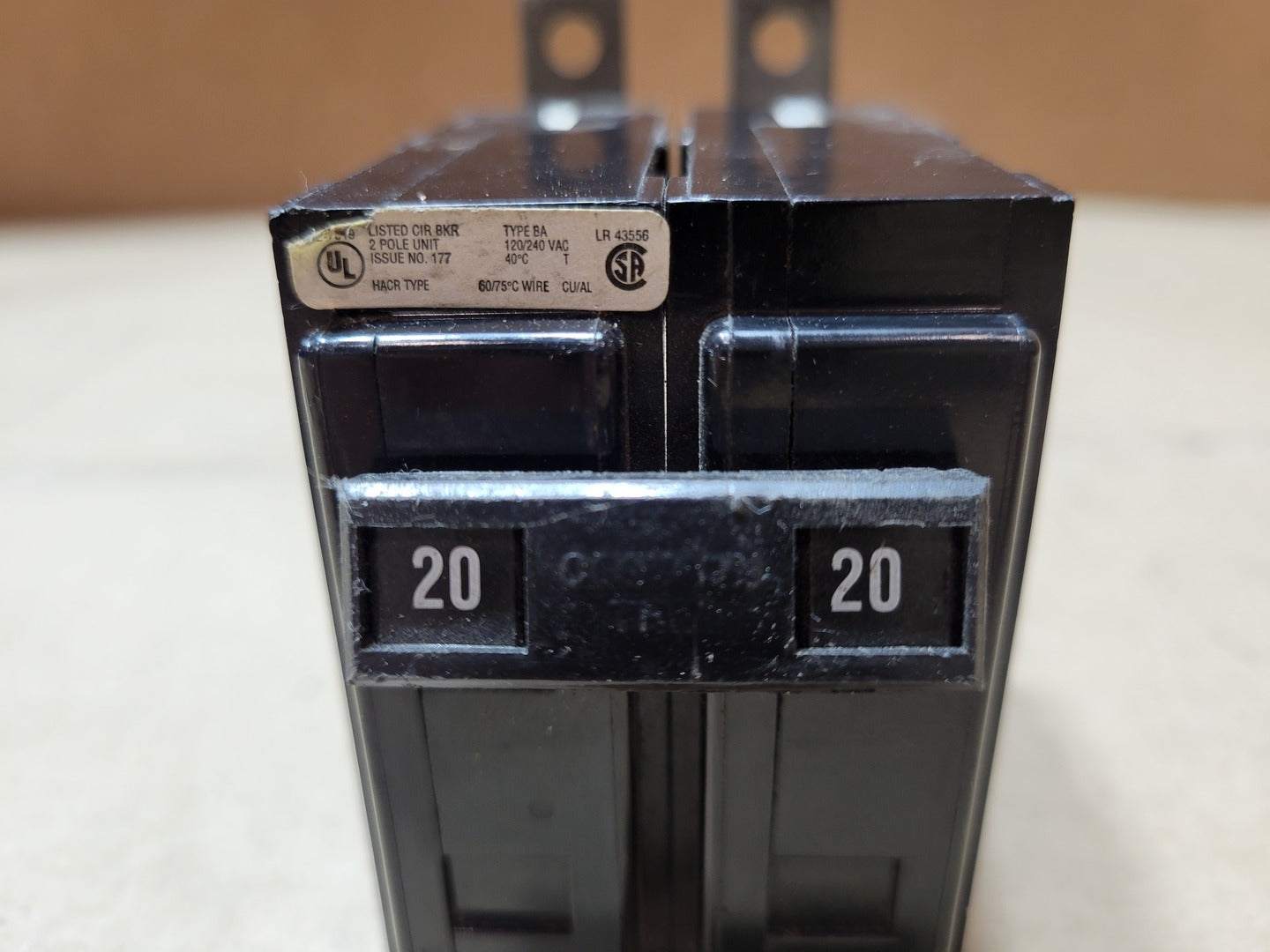

Interrupting Rating: 10,000 A RMS symmetrical / 10 kA Trip Type: Thermal-Magnetic HACR Rated: Yes Conductor Compatibility: Cu/Al Wire Temperature Rating: 60/75°C Ambient Rating: 40°C UL Listed: Yes CSA Certified: Yes UL Issue Number: 177 CSA Reference: LR 43556 Terminal Torque:
|
