FUJI ELECTRIC SC-E5 SE105AA 3-Pole Magnetic Contactor 100-127VAC Coil 150A IEC UL
FUJI ELECTRIC

SC-E5 SE105AA 3-Pole Magnetic Contactor 100-127VAC Coil 150A IEC UL

SKU: 157146
Precio:
$201

Gastos de envío calculados en la caja

Stock:
Disponibles (4 unidades), listas para ser enviadas
Make an Offer

¿Necesita una respuesta ahora?

604-449-1880

Descripción

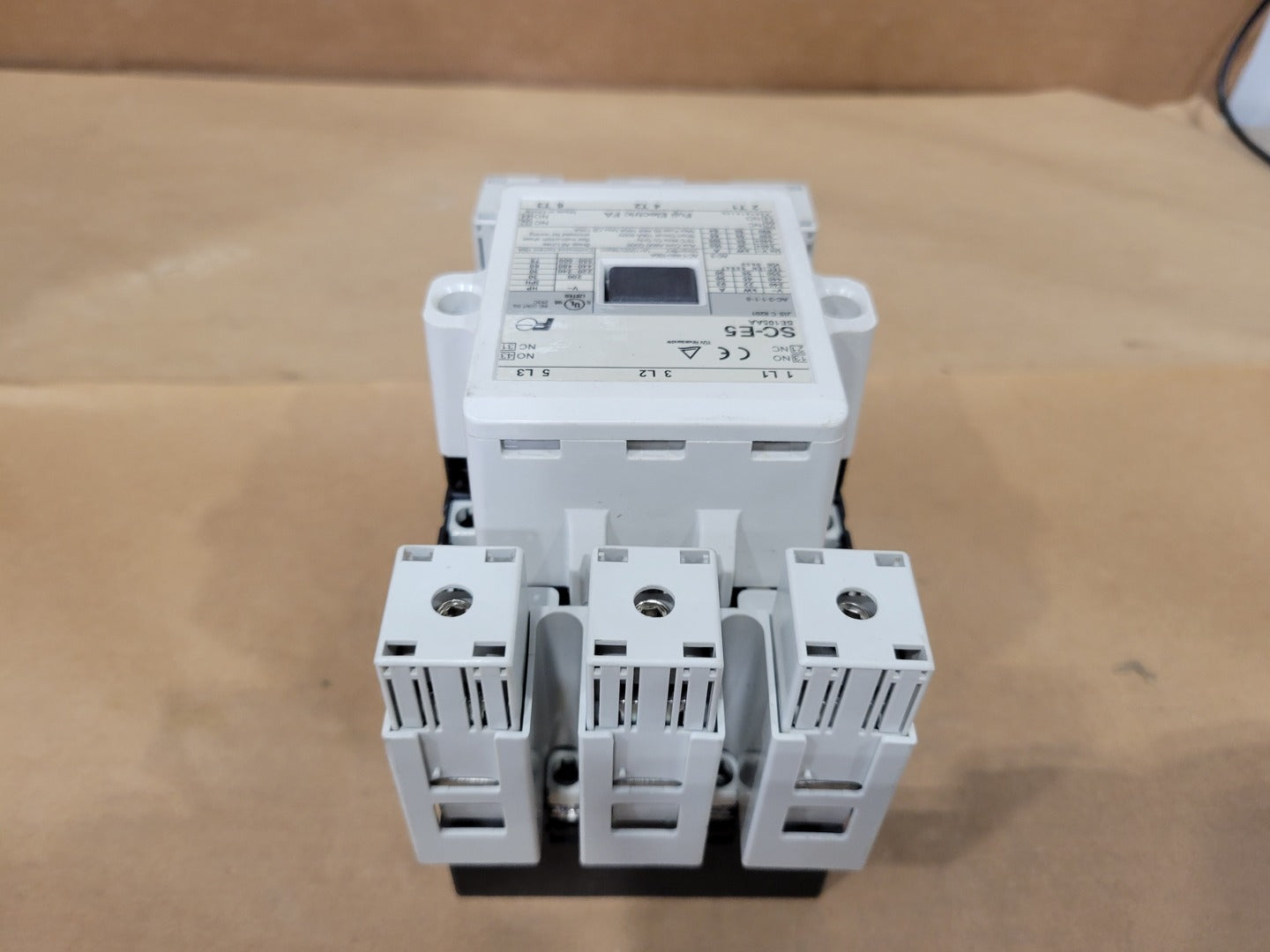

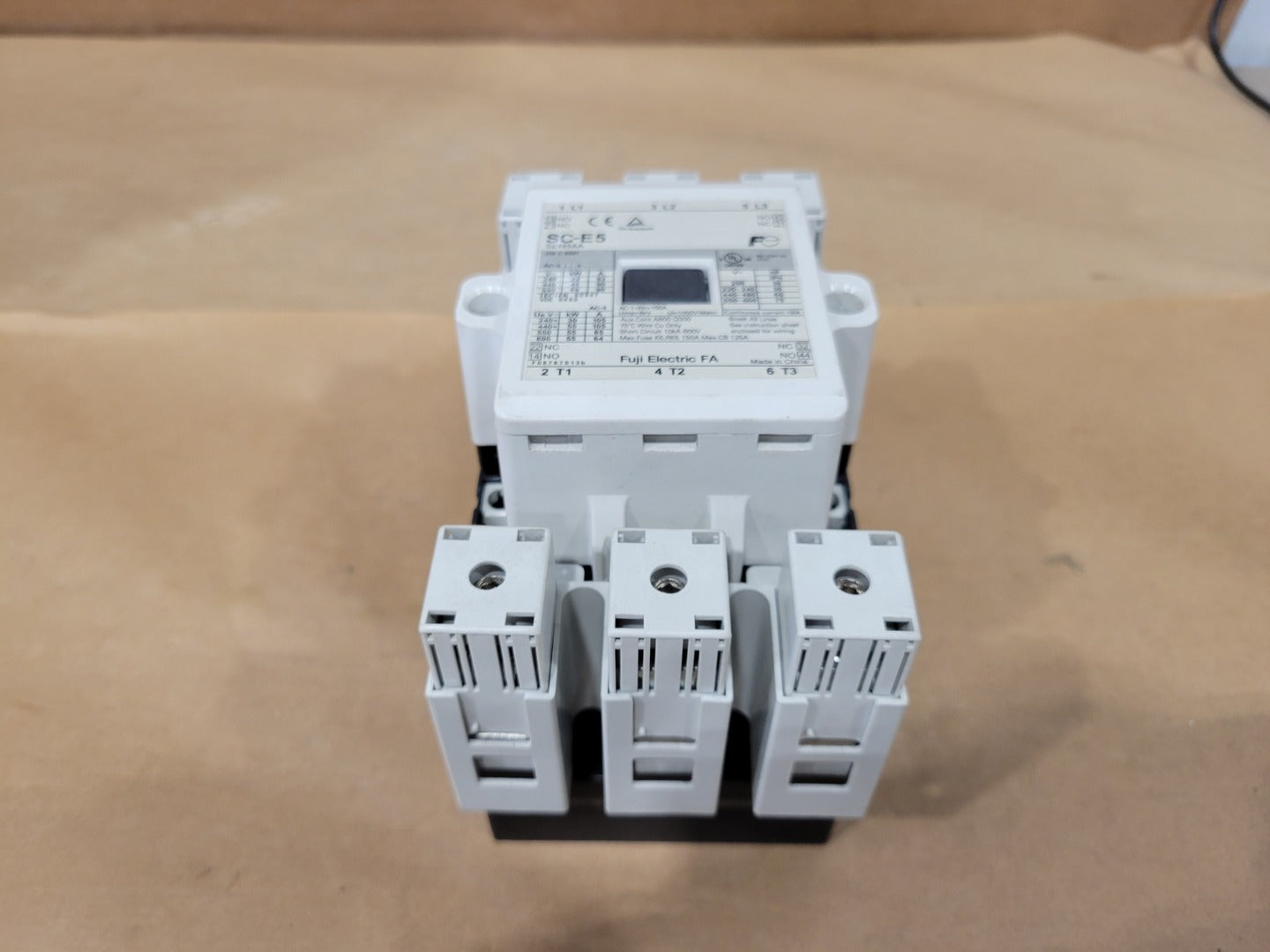

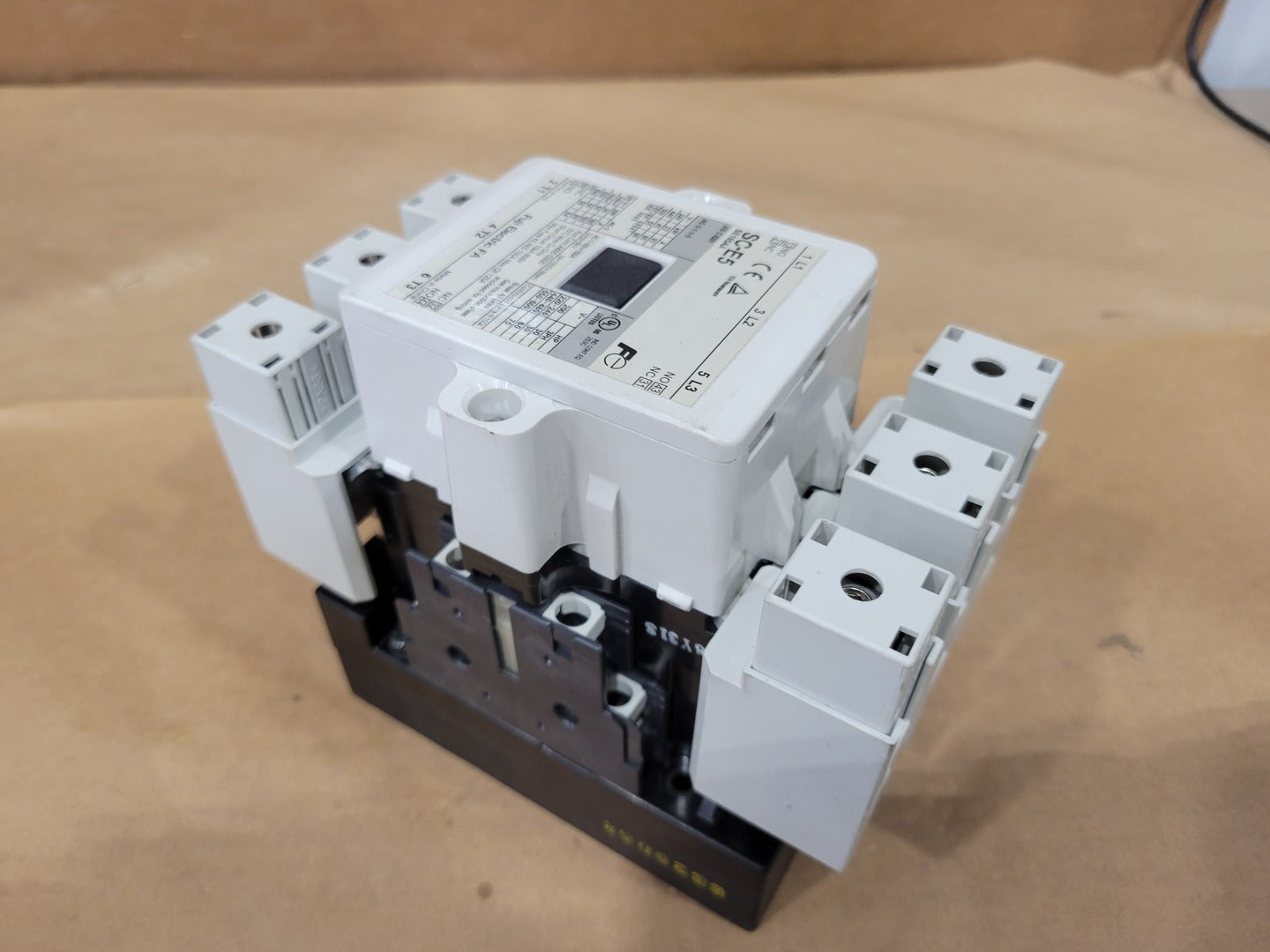

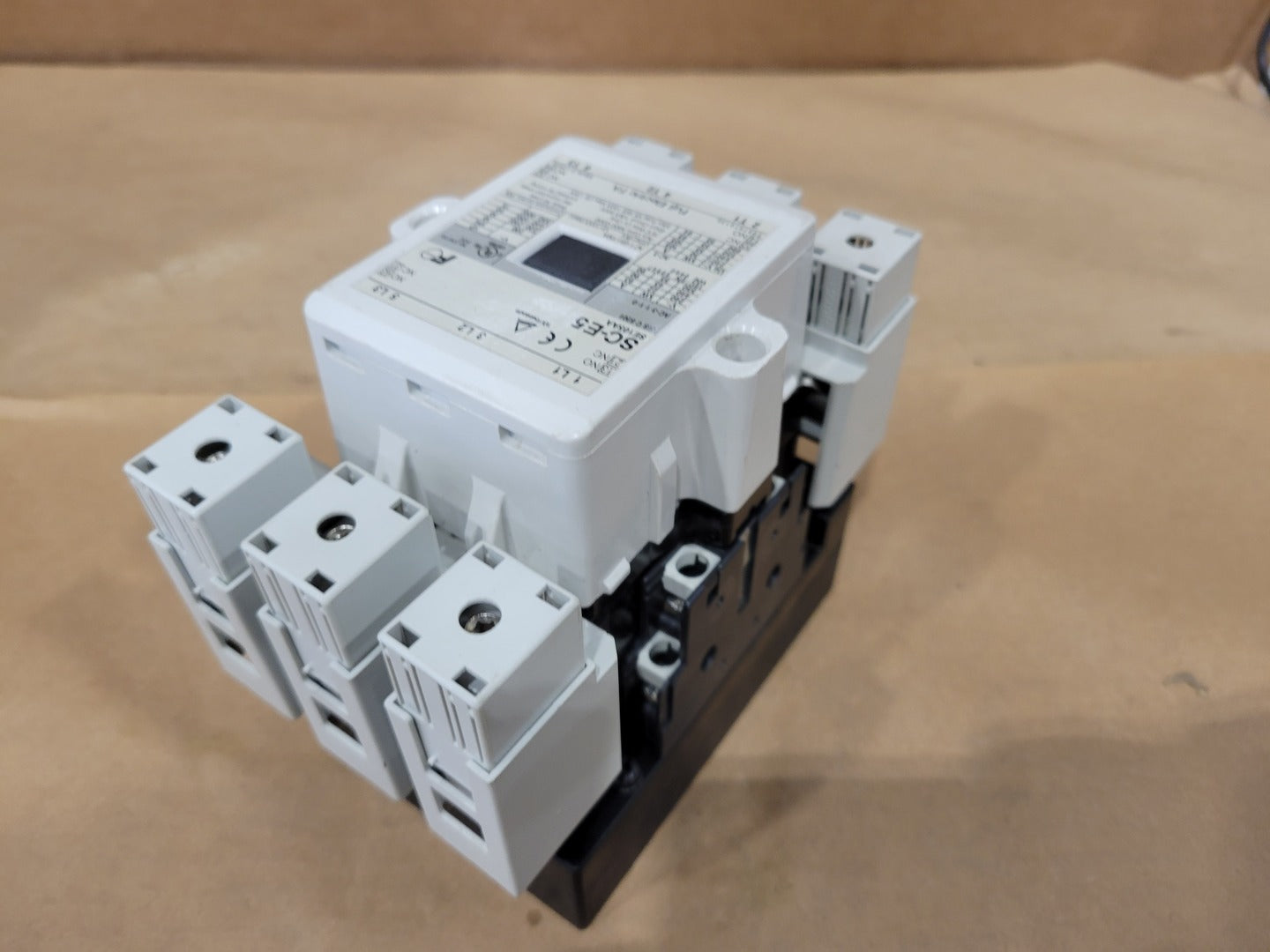

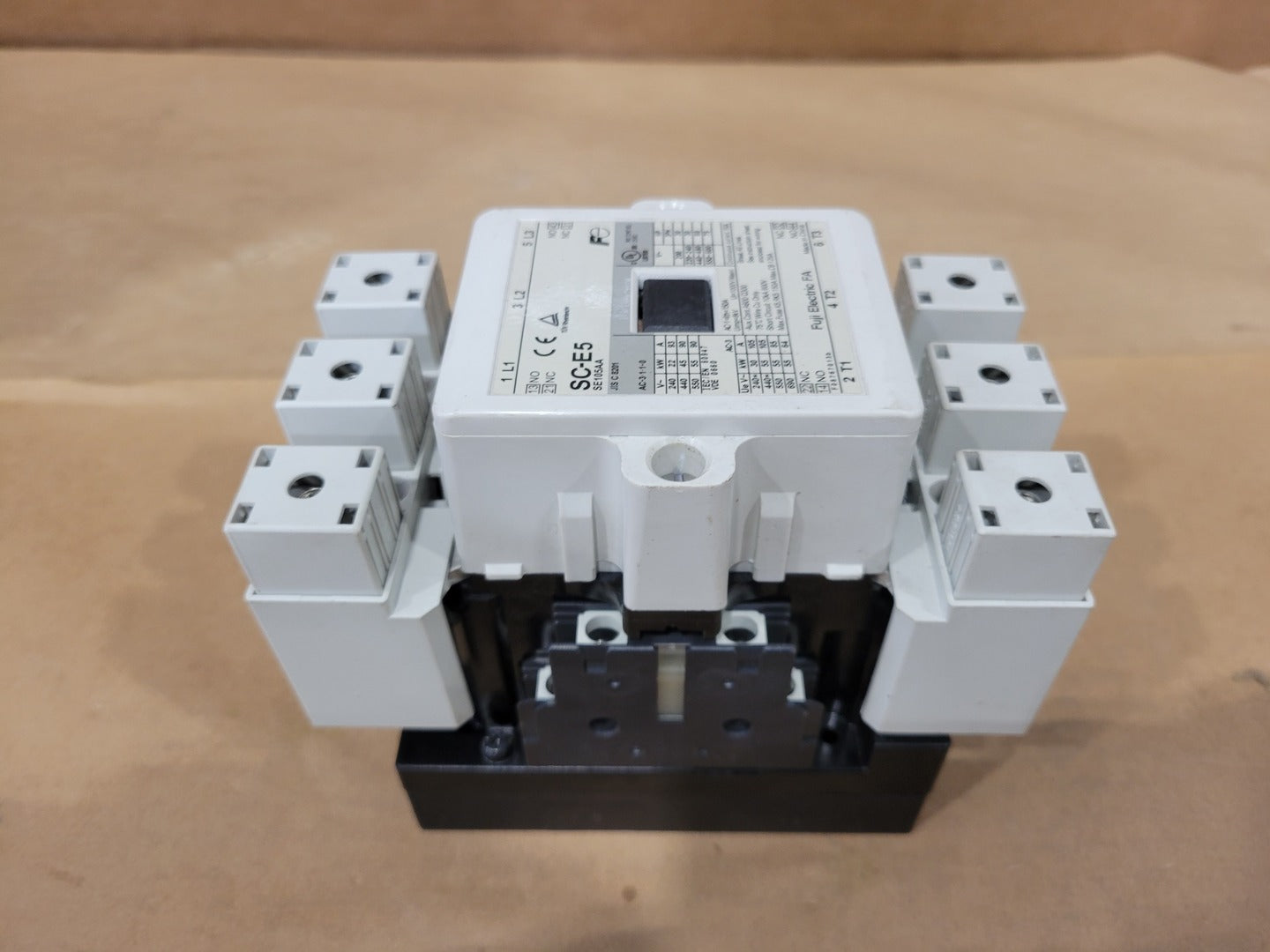

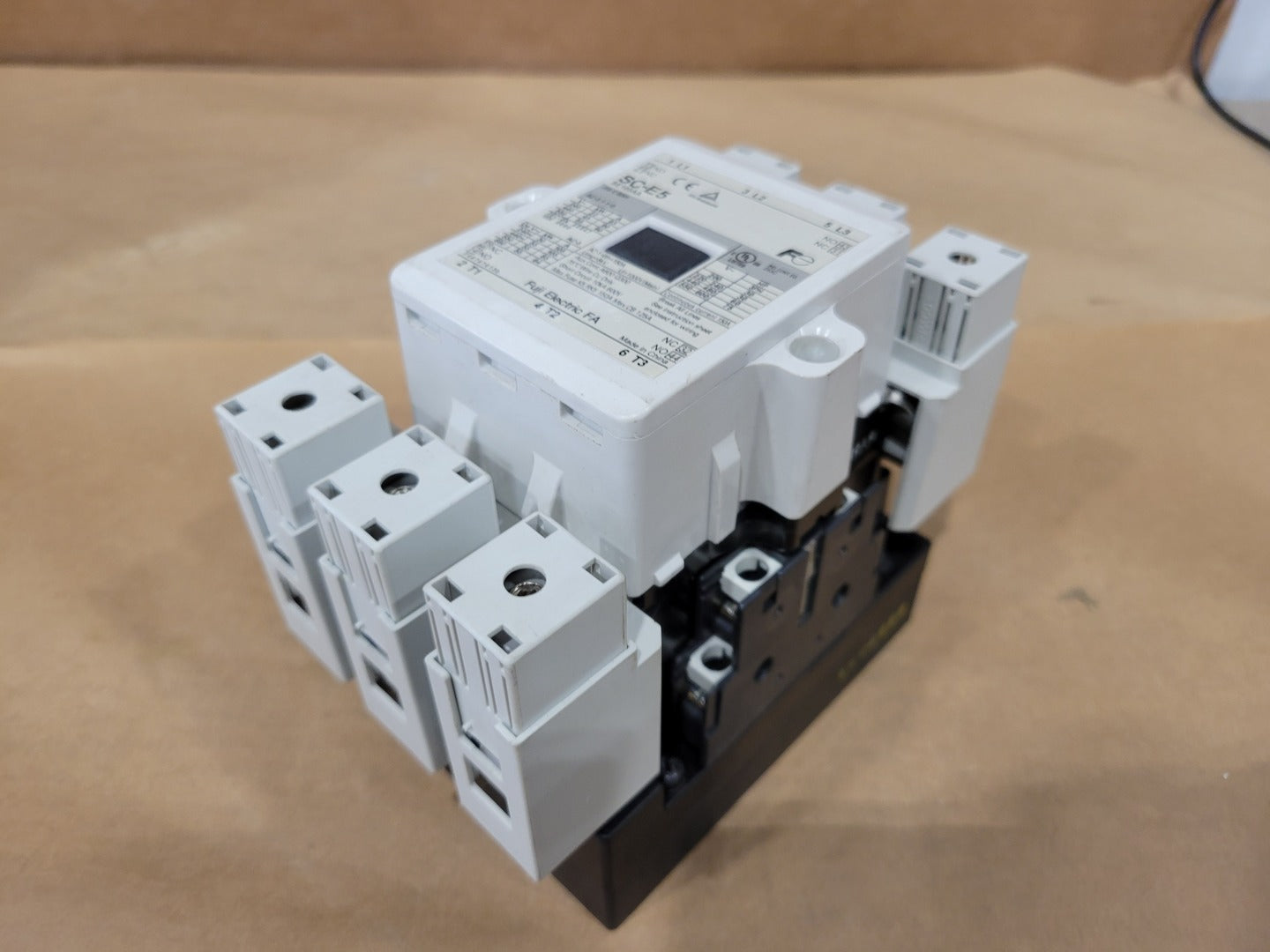

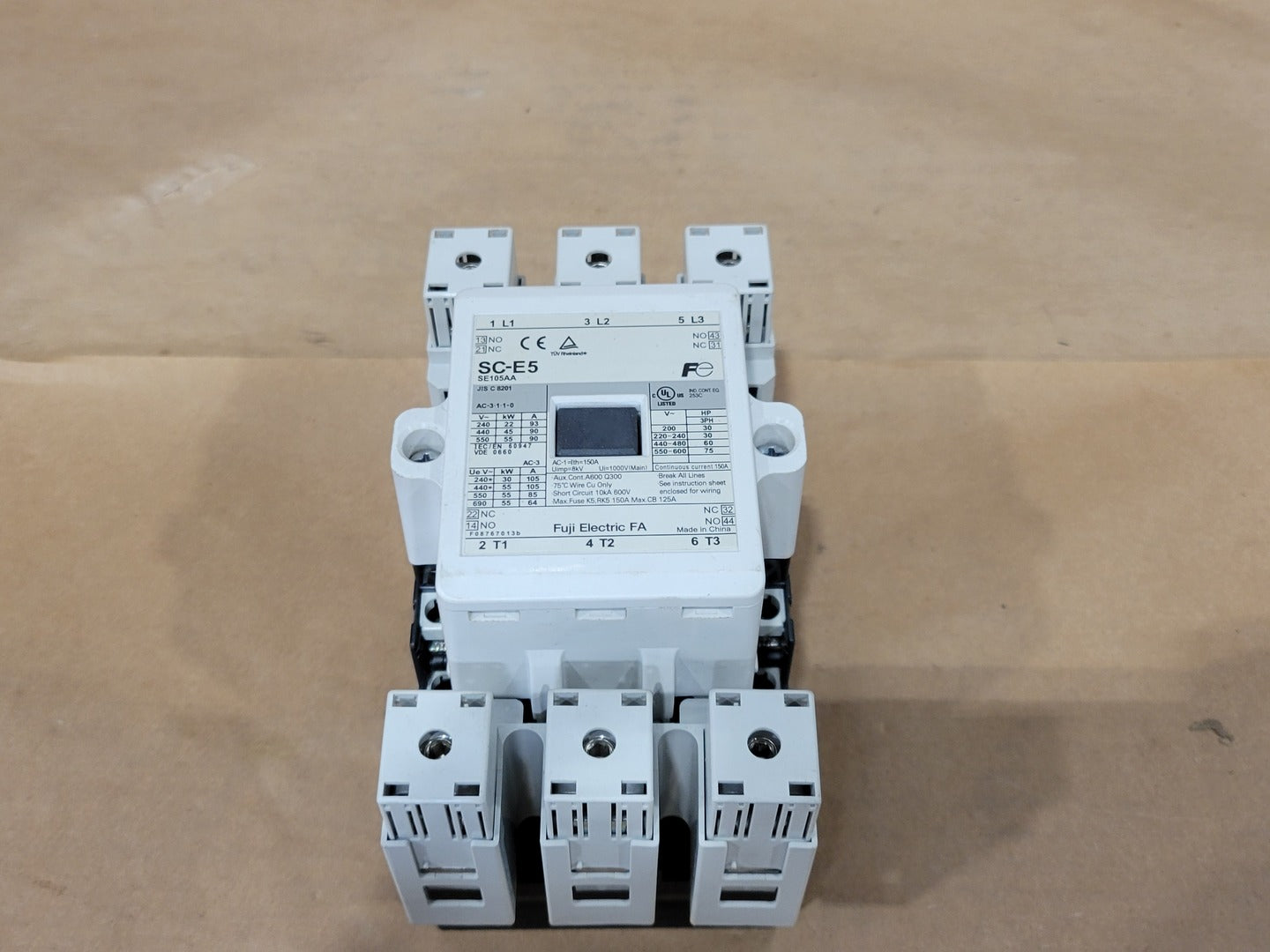

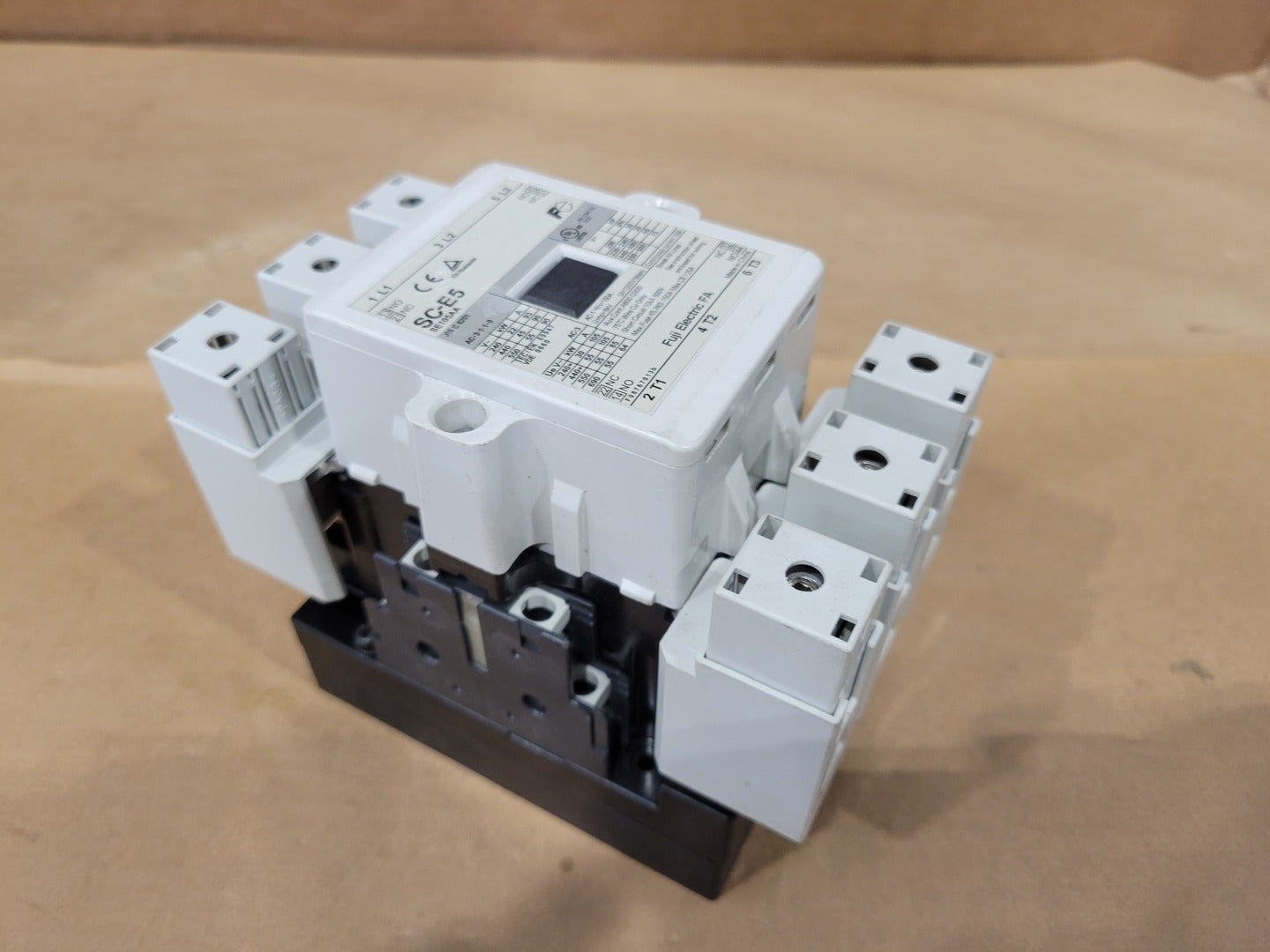

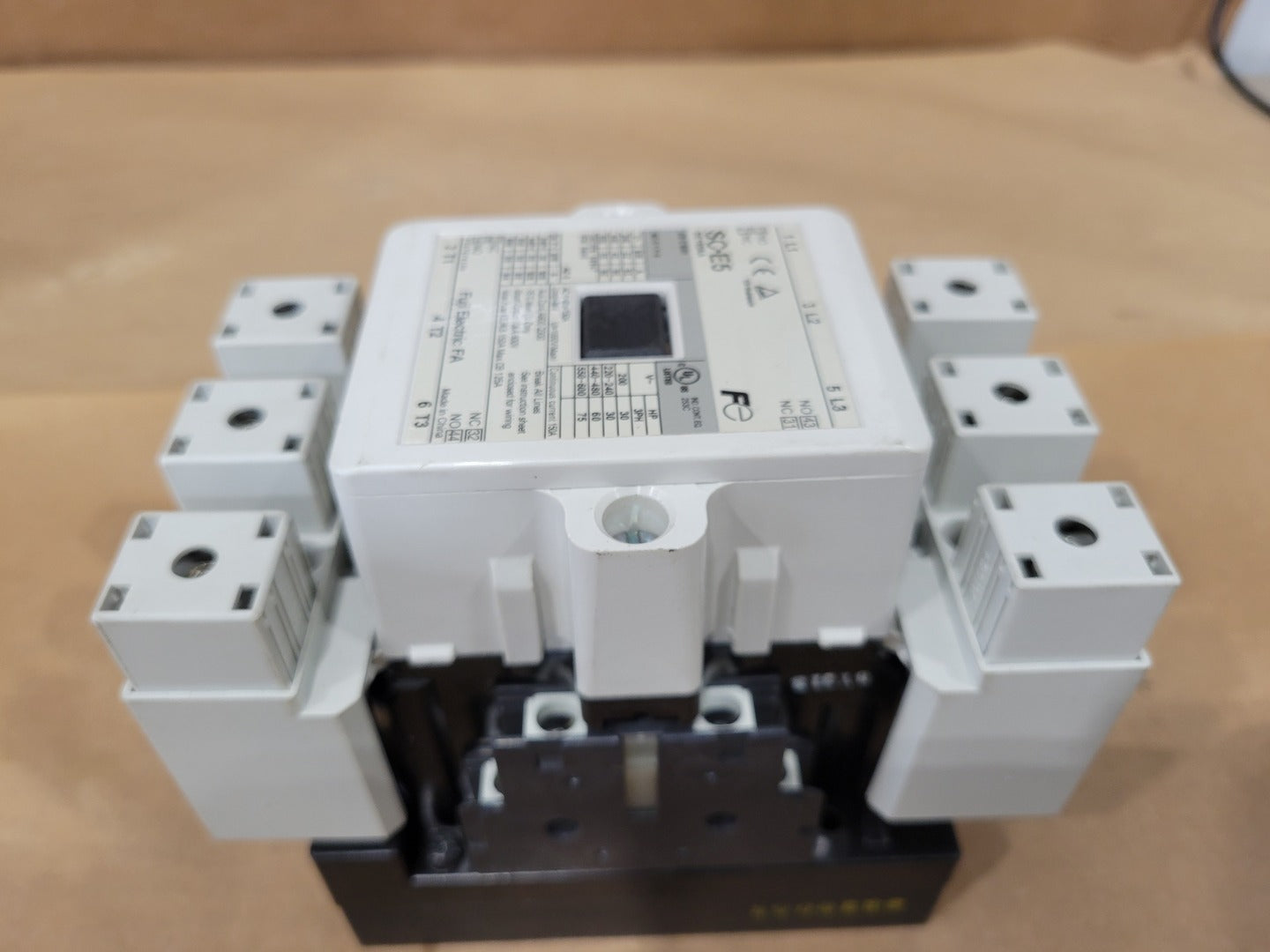

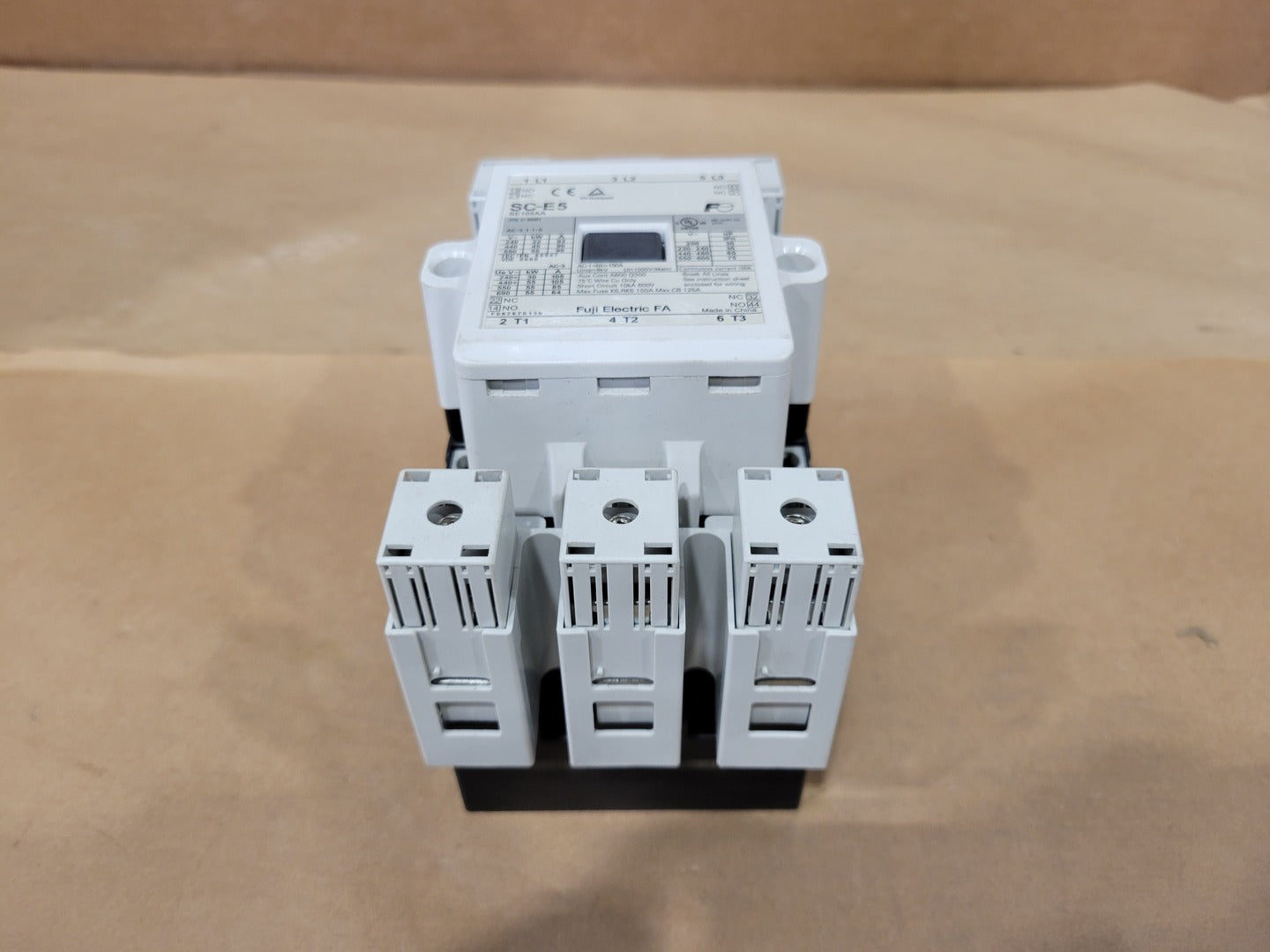

Fuji Electric SC-E5 industrial magnetic contactor with SE105AA coil assembly. This 3-pole contactor features a 100-127 VAC (50/60 Hz) or 100-120 VDC control coil and is suitable for motor starters, pump controls, HVAC systems, conveyors, compressors, and industrial automation equipment. The unit carries UL, CE, and TUV certifications and is rated for continuous current up to 150A.
Specifications

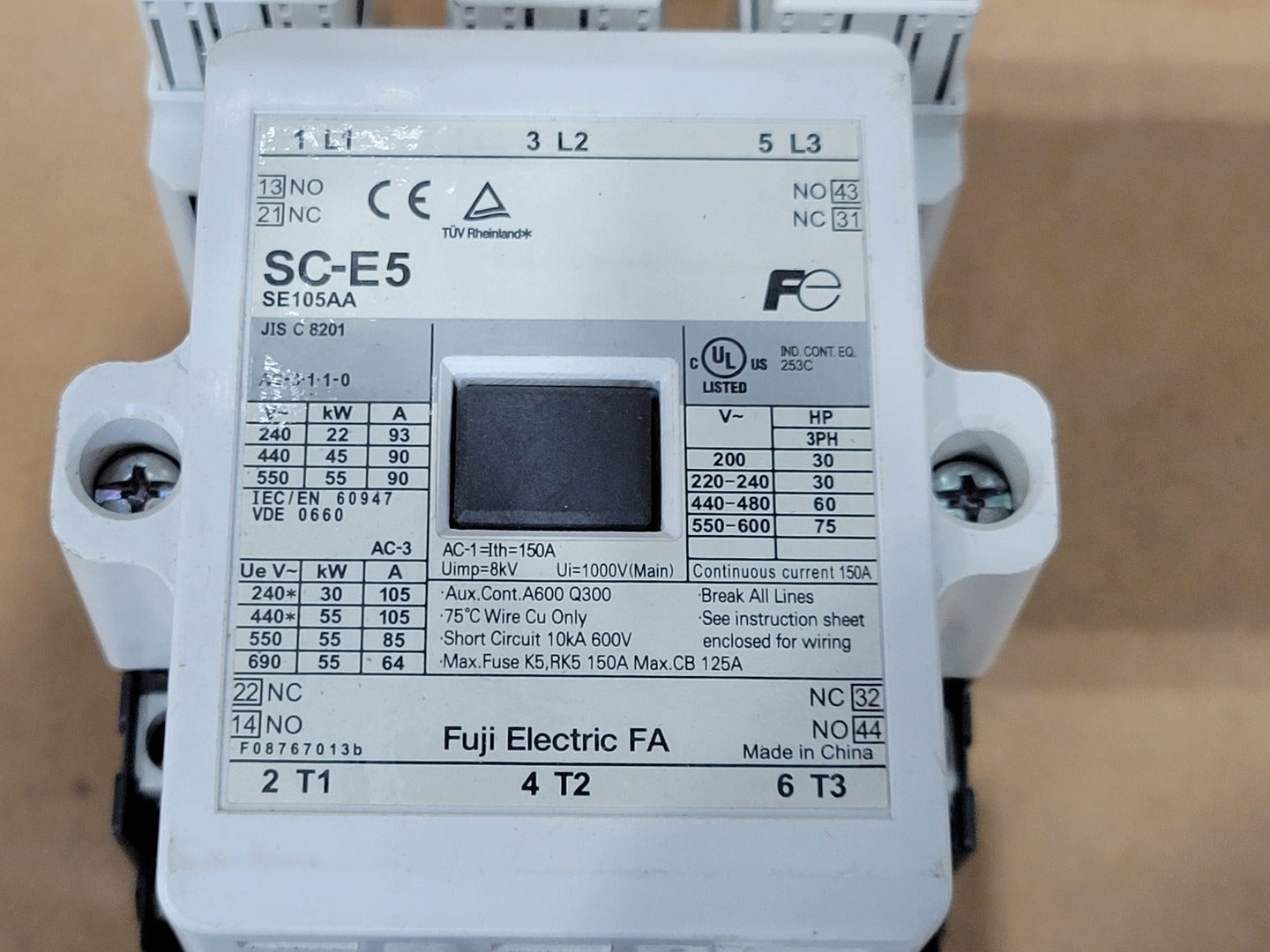

Model SC-E5
Made In CHINA
Condition Surplus New
General
Horsepower 75 hp
Electrical
Voltage 600 volts
Amps 150 amps
Other Specifications

Series: SC Series

Coil Type: SE105AA

Device Type: Magnetic Contactor

Number of Poles: 3

Main Terminals: L1, L2, L3 / T1, T2, T3

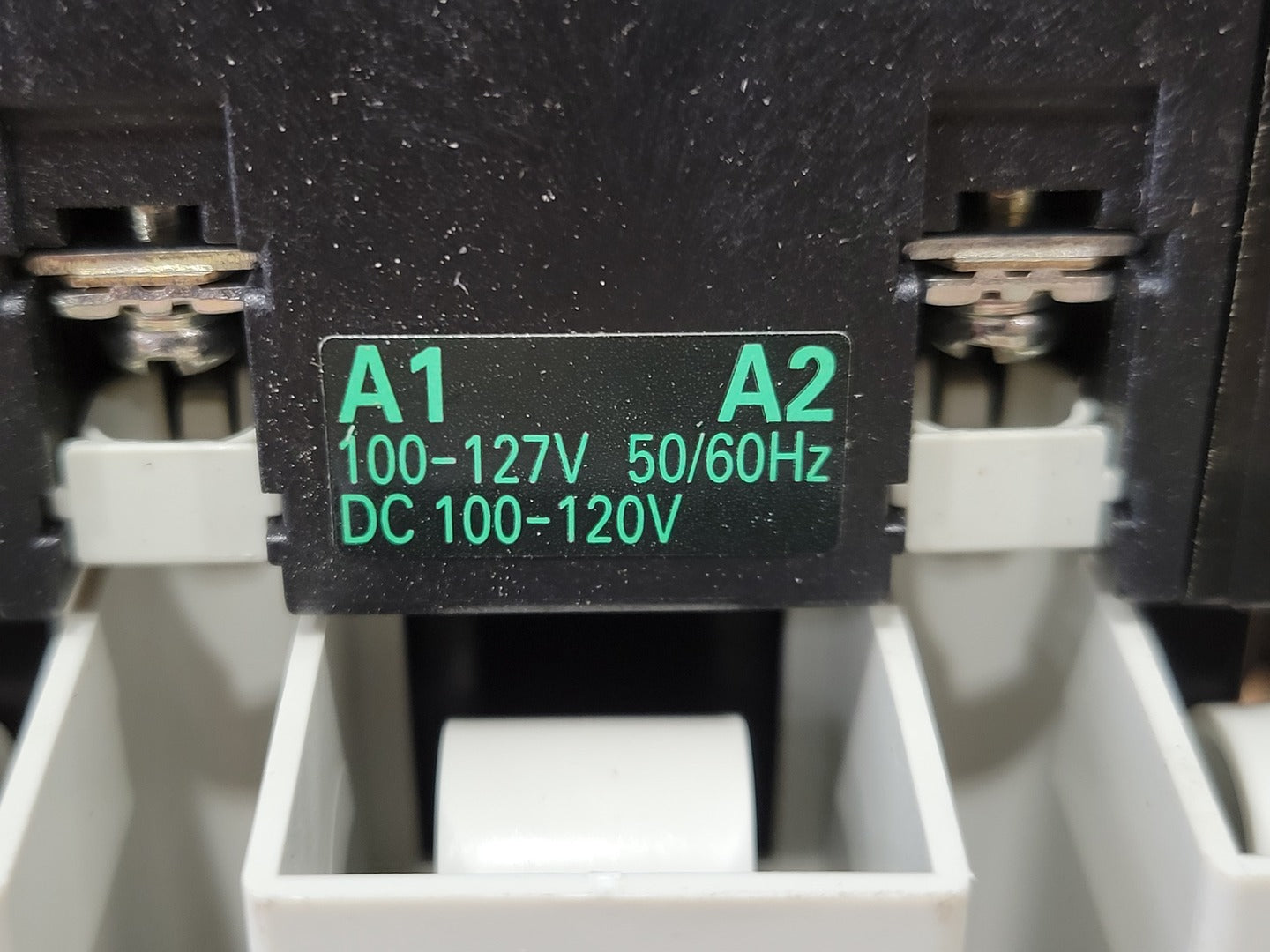

Control Coil Voltage (AC): 100-127 VAC

Frequency: 50/60 Hz

Control Coil Voltage (DC): 100-120 VDC

Continuous Current: 150 A

AC-1 Thermal Current: 150 A

Impulse Withstand Voltage (Uimp): 8 kV

Rated Insulation Voltage (Ui): 1000 V

Utilization Category: AC-3

IEC Standard: IEC/EN 60947

JIS Standard: JIS C 8201

UL Listed: Yes

Auxiliary Contact Rating: A600 / Q300

Wire Rating: 75°C Copper Conductors Only

Short Circuit Rating: 10 kA @ 600 V

Maximum Fuse: Class K5/RK5 150 A

Maximum Circuit Breaker: 125 A

Horsepower Ratings (3-Phase):

  1. 200 V: 30 HP
  2. 220-240 V: 30 HP
  3. 440-480 V: 60 HP
  4. 550-600 V: 75 HP

Motor Ratings (IEC AC-3):

  1. 240 V: 22 kW / 93 A
  2. 440 V: 45 kW / 90 A
  3. 550 V: 55 kW / 90 A

Visible Auxiliary Contacts:

  1. 2 NO
  2. 2 NC
