Descripción
| Specifications | |
|---|---|

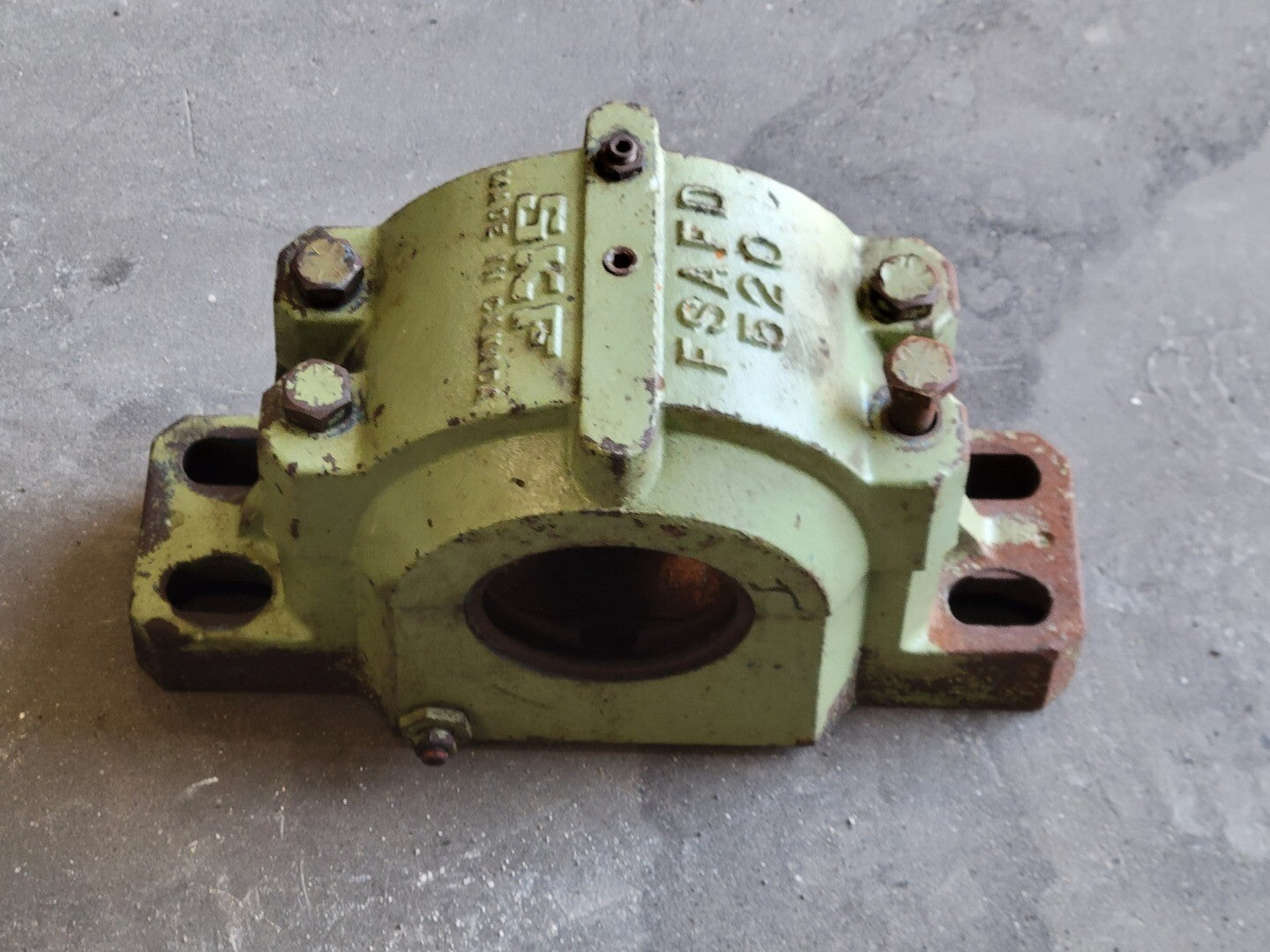

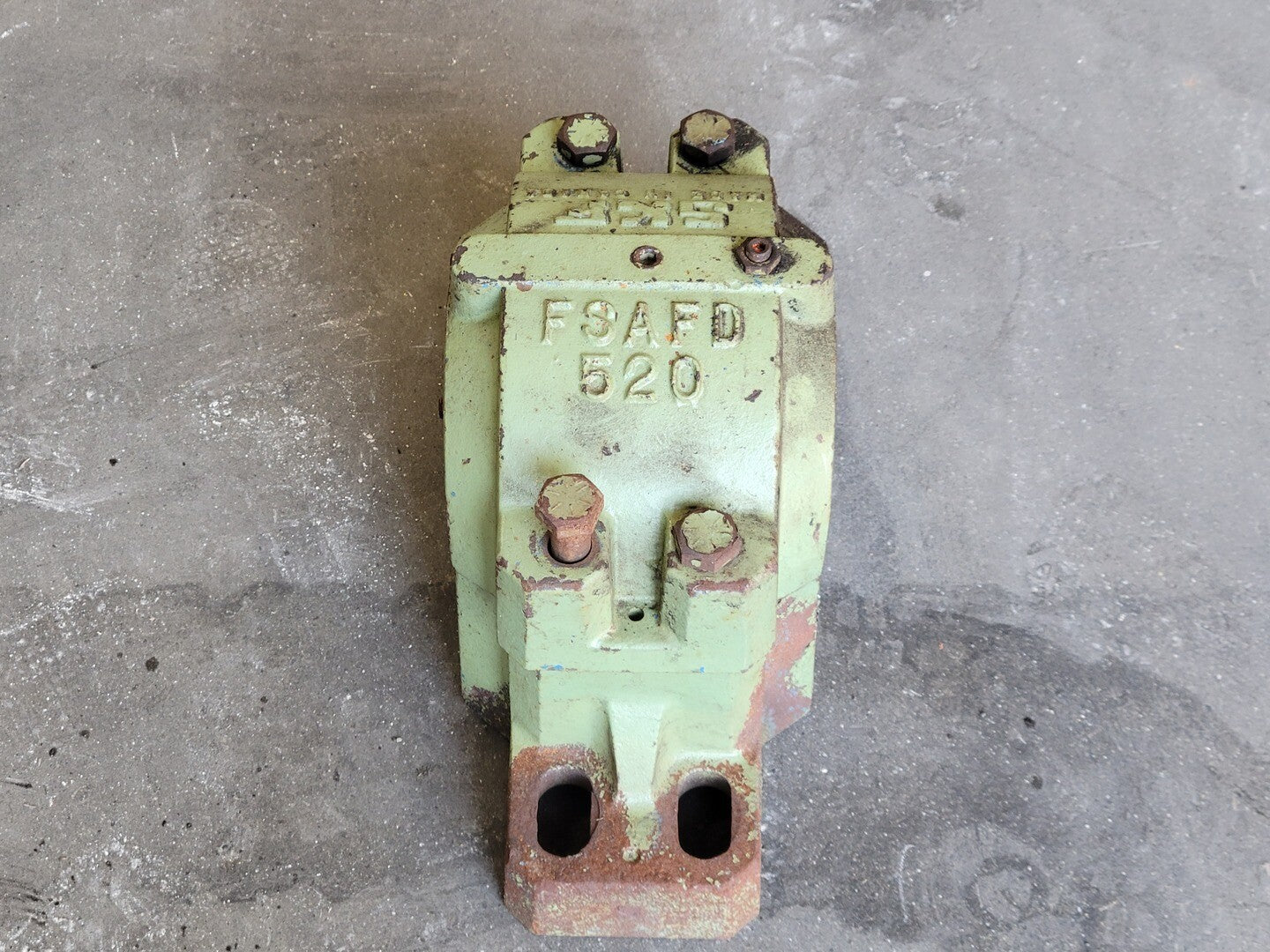

| Model | FSAFD 520 |
| Made In | CANADA |
| Condition | Used | General |
| Type | Split Plummer Block |
| Height | 9 in |
| Outside Length | 15.25 in |
| Base to Bore Centerline | 4.5 in |
| Distance Between Bolts | Min.11.625 in / Max.13.125 in |
| Housing Compatible Bore Diameter | Shaft diameter: 3.438 in / Diameter of bearing seat: 7.087 in |
| Other Specifications |
|---|
|
Properties Housing type: Pillow block Housing configuration: Two-piece Mounting arrangement: Through shaft/Shaft end Number of bolt holes for fasteners: 4 Material, housing: Spheroidal graphite cast iron Bearing housing seal type: Labyrinth seal Housing lubrication feature/possibility: Grease/Oil |
