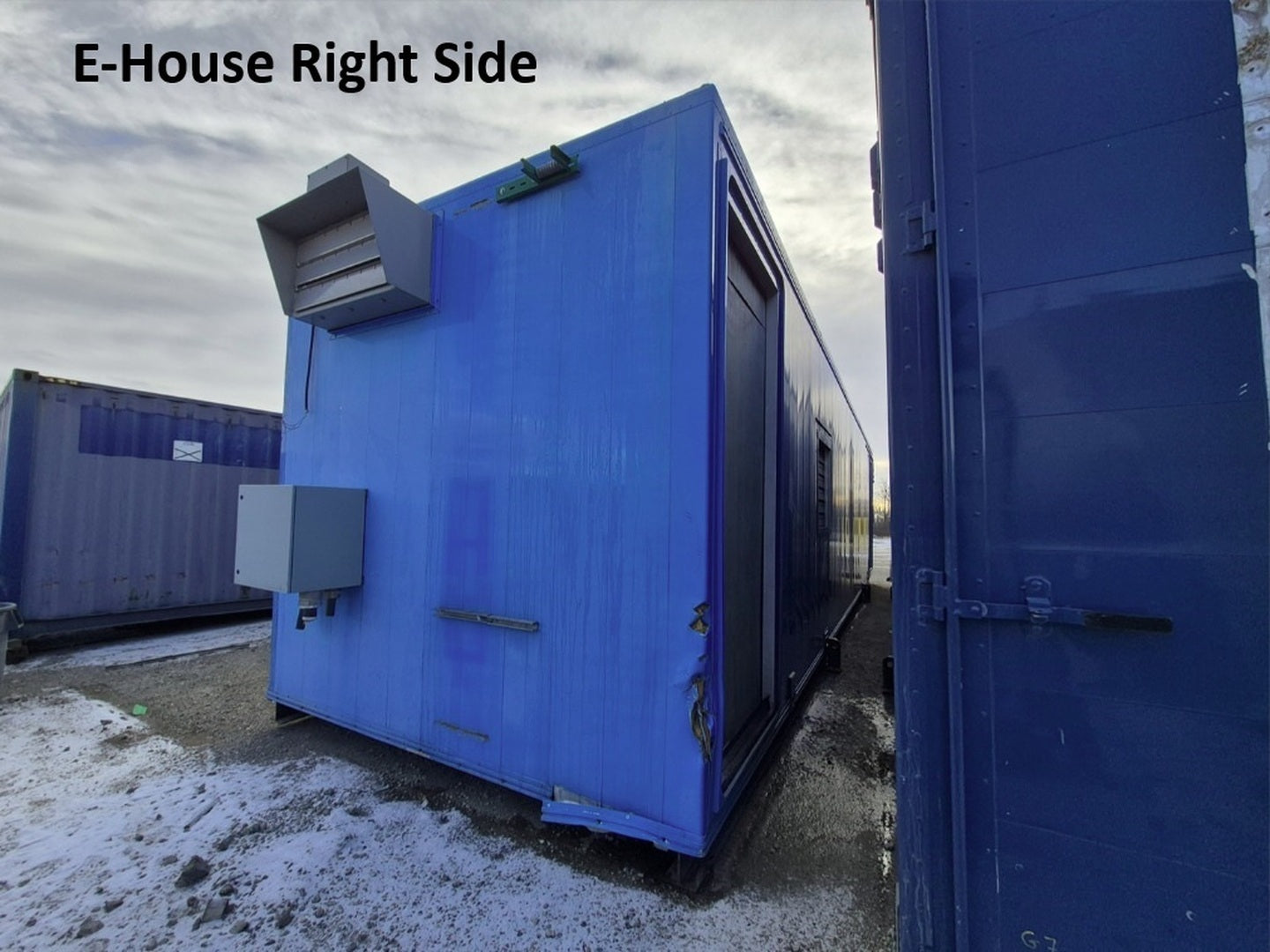

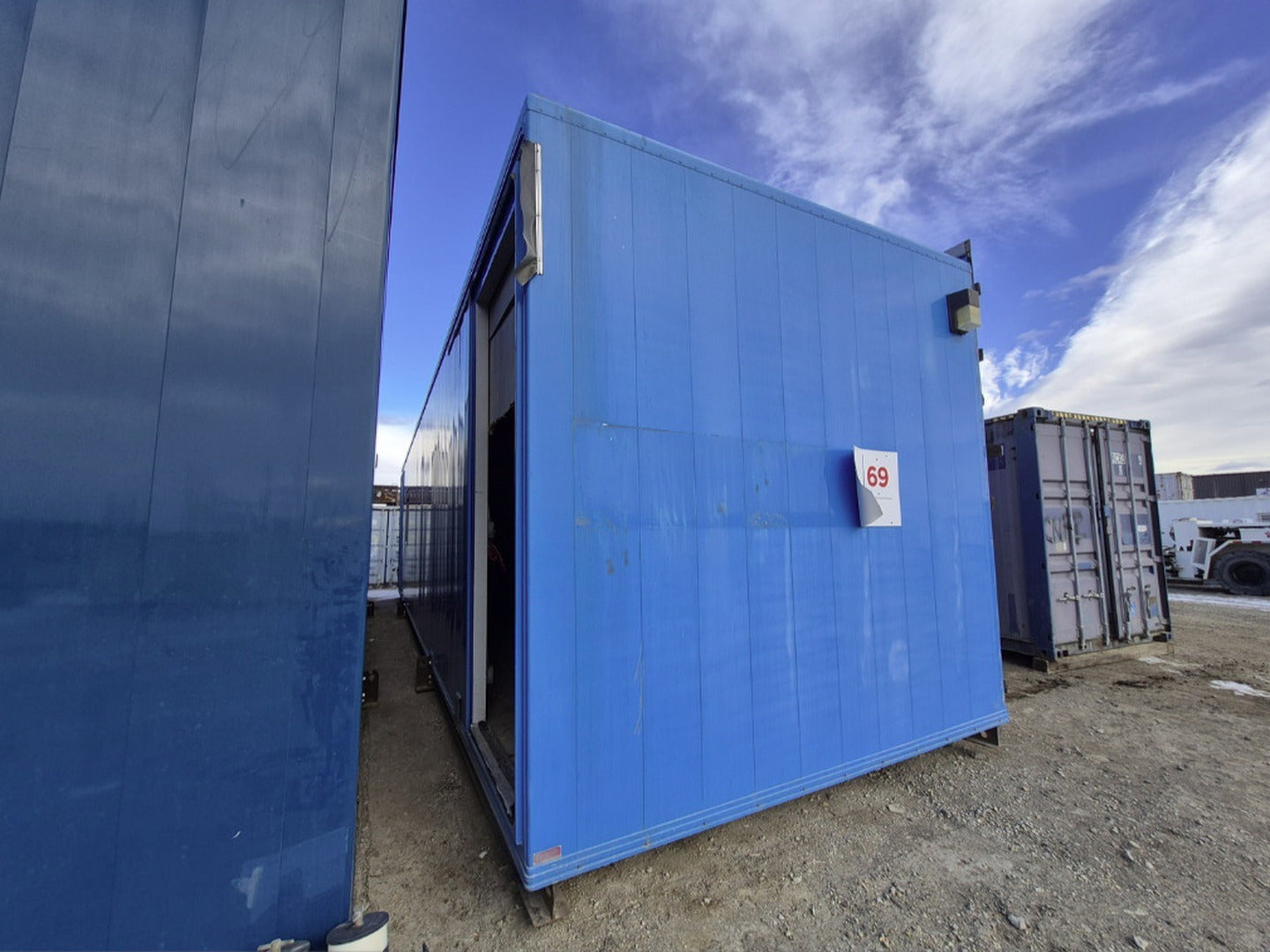

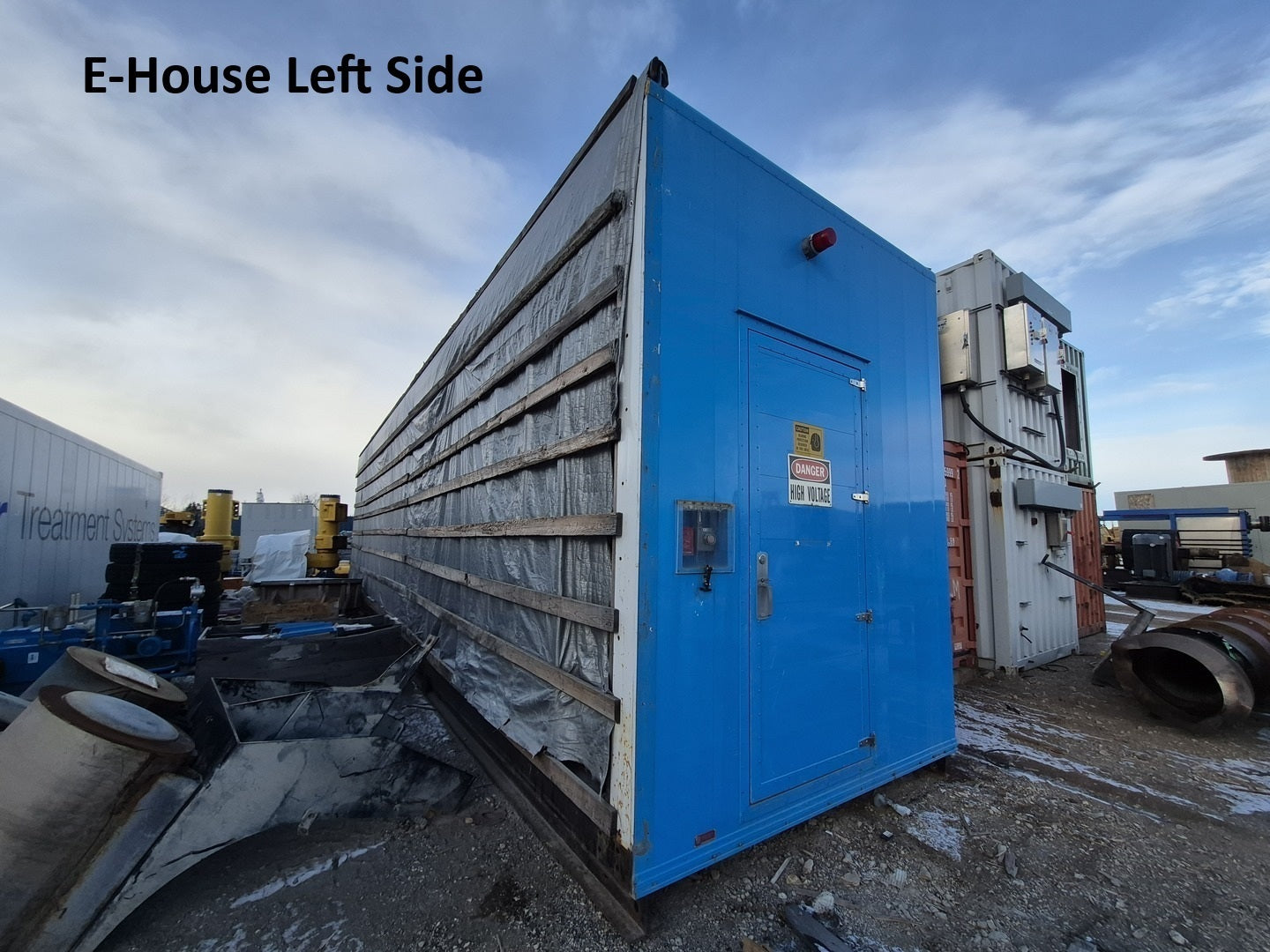

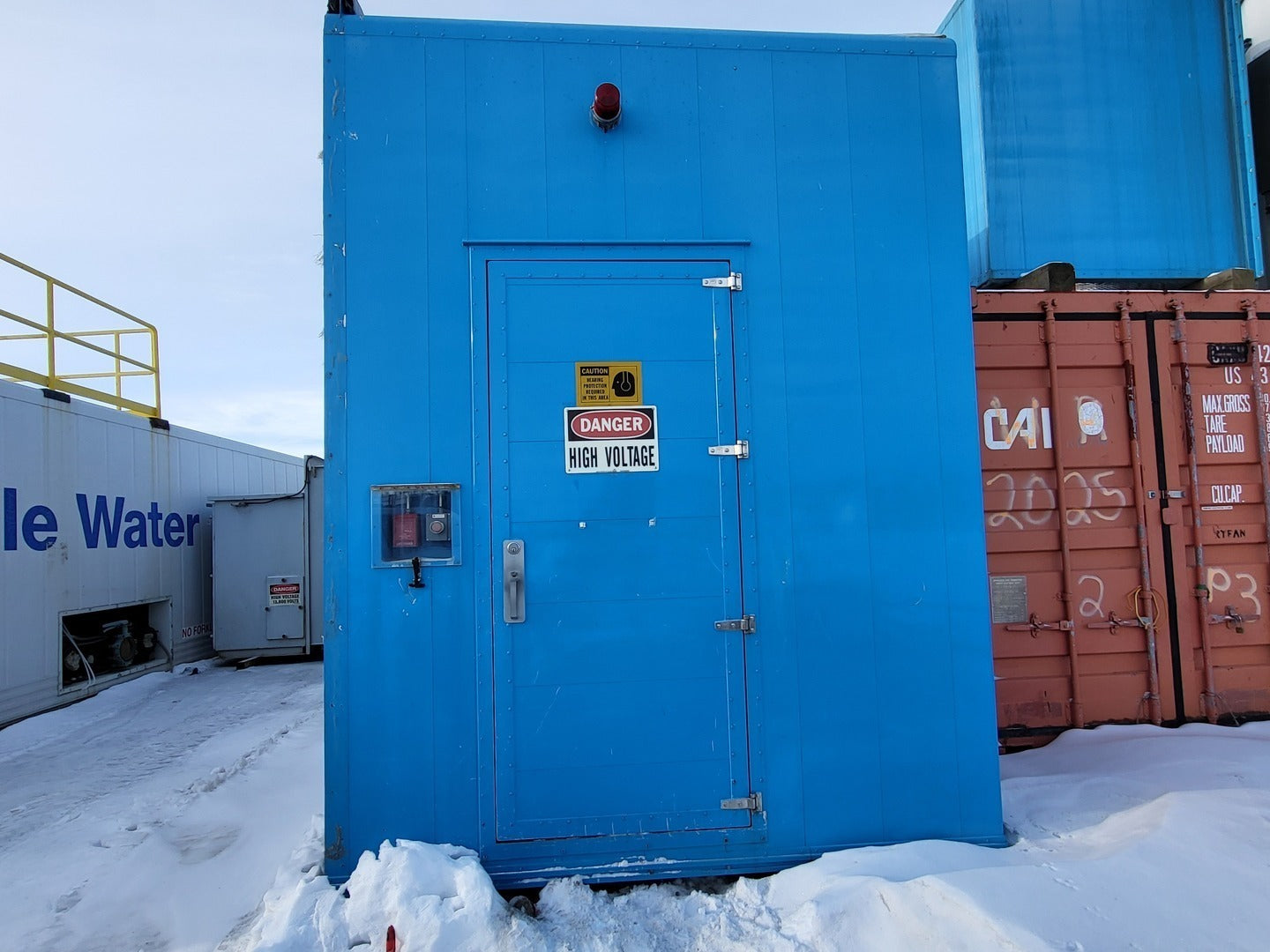

E-House Overview

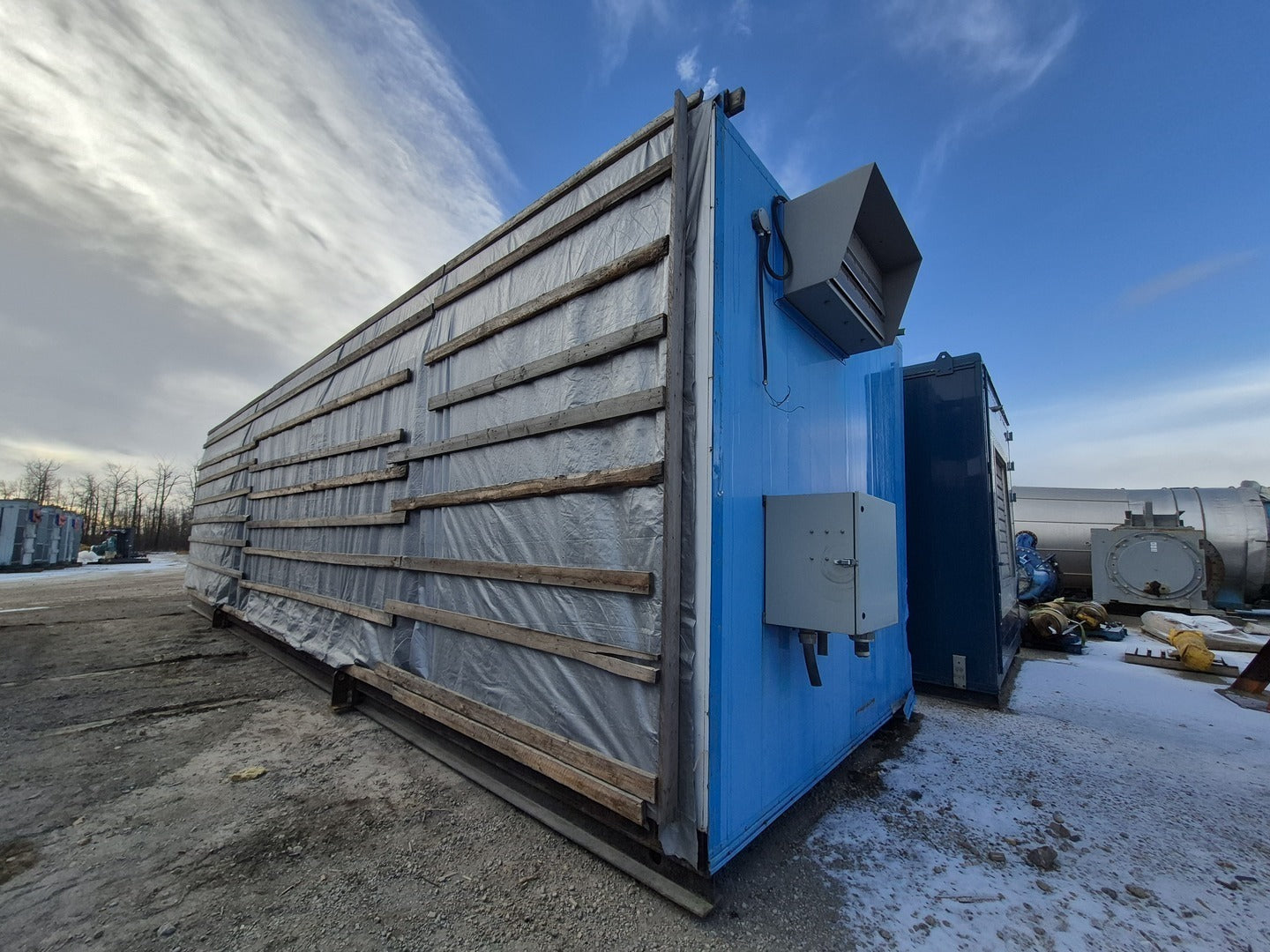

As annotated in the pictures shown, this E-House consists of:
-

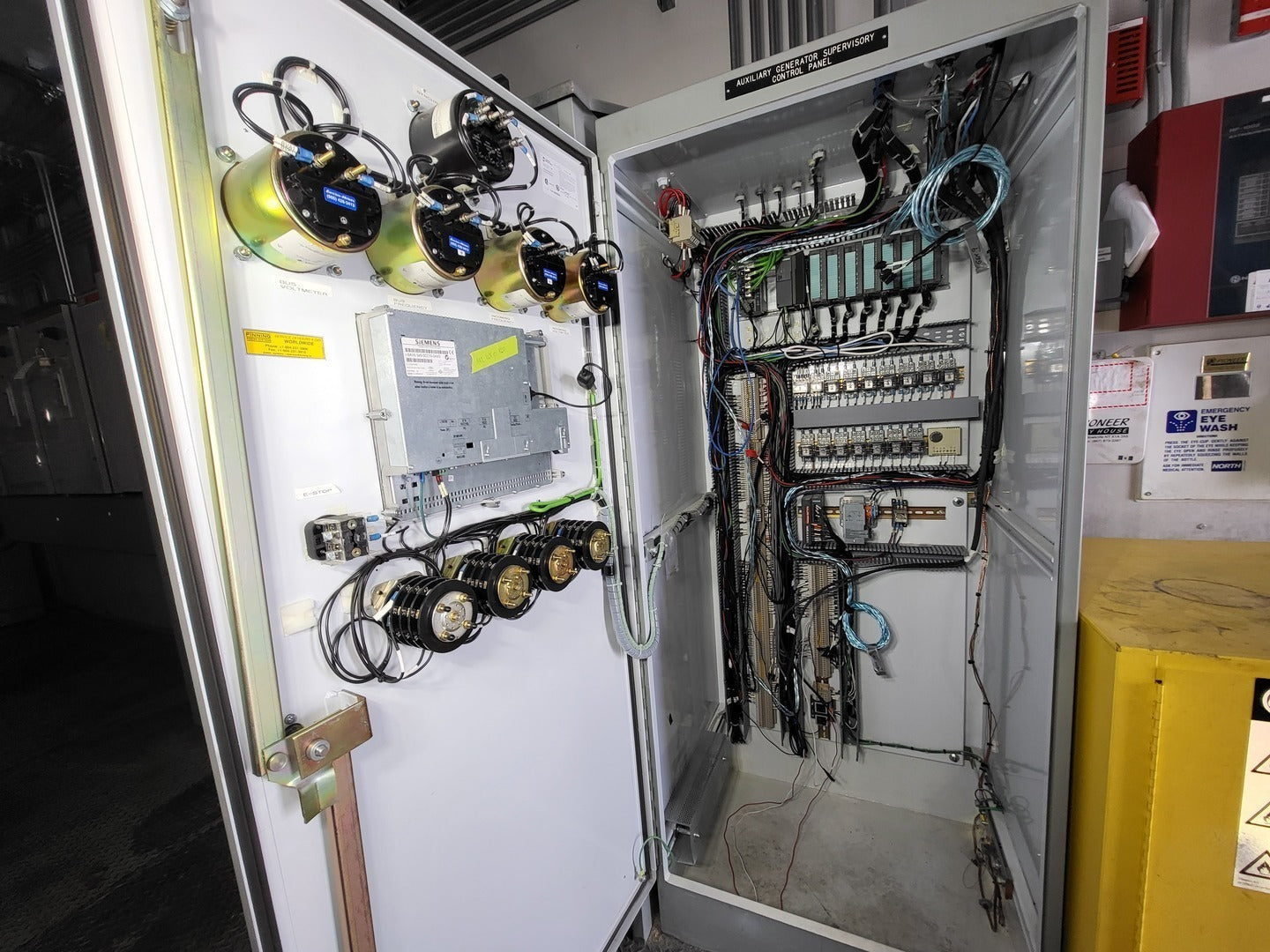

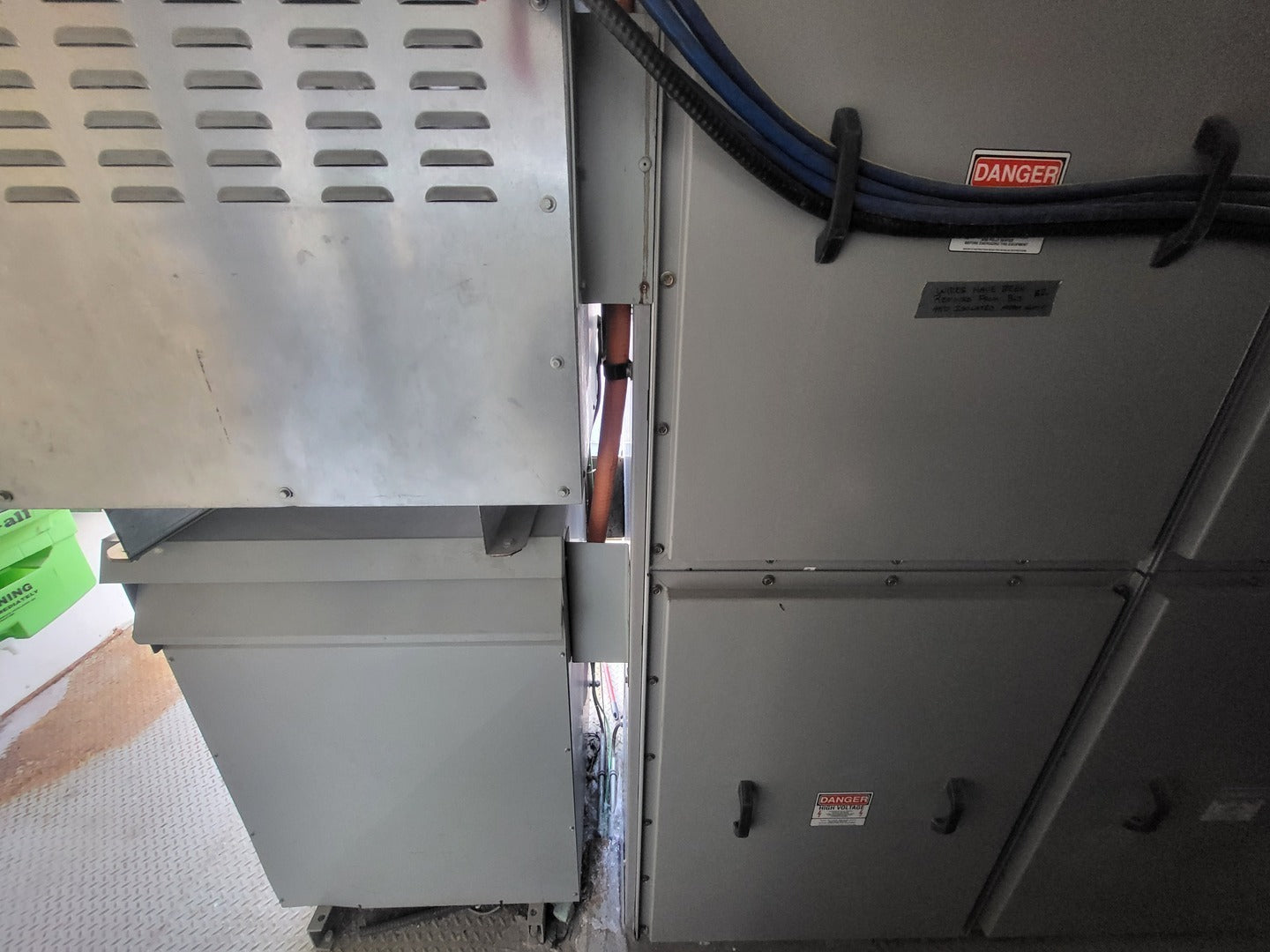

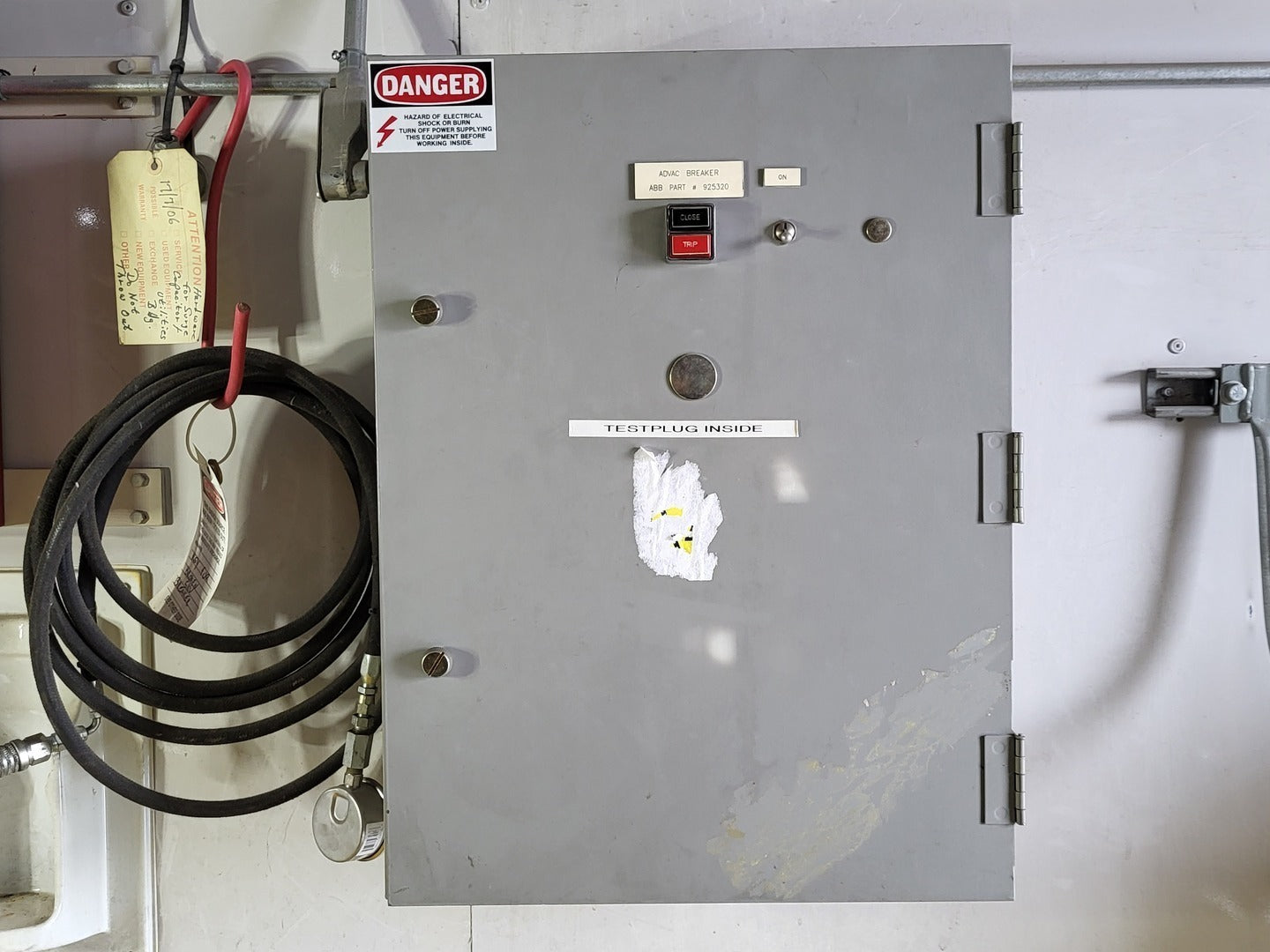

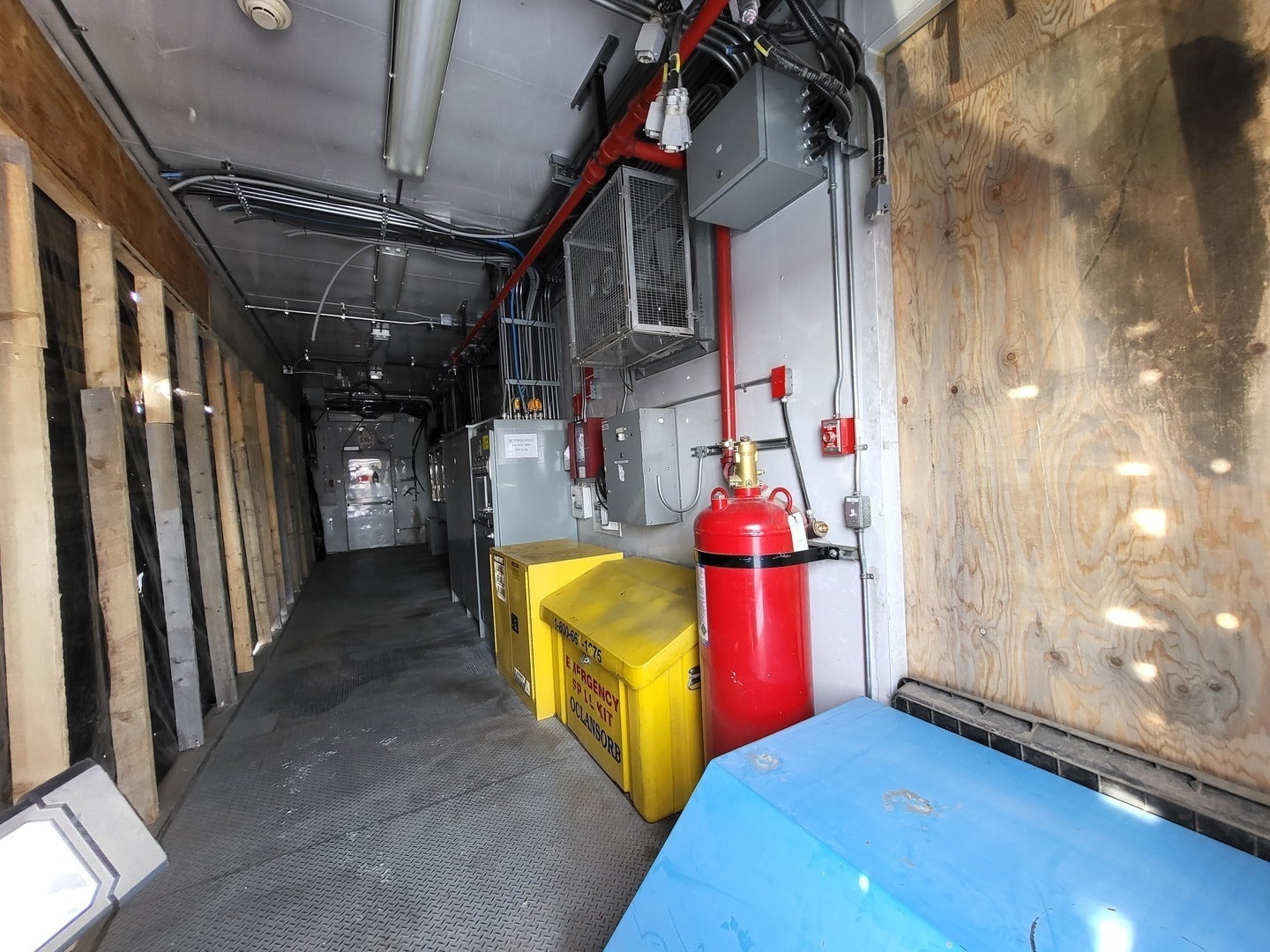

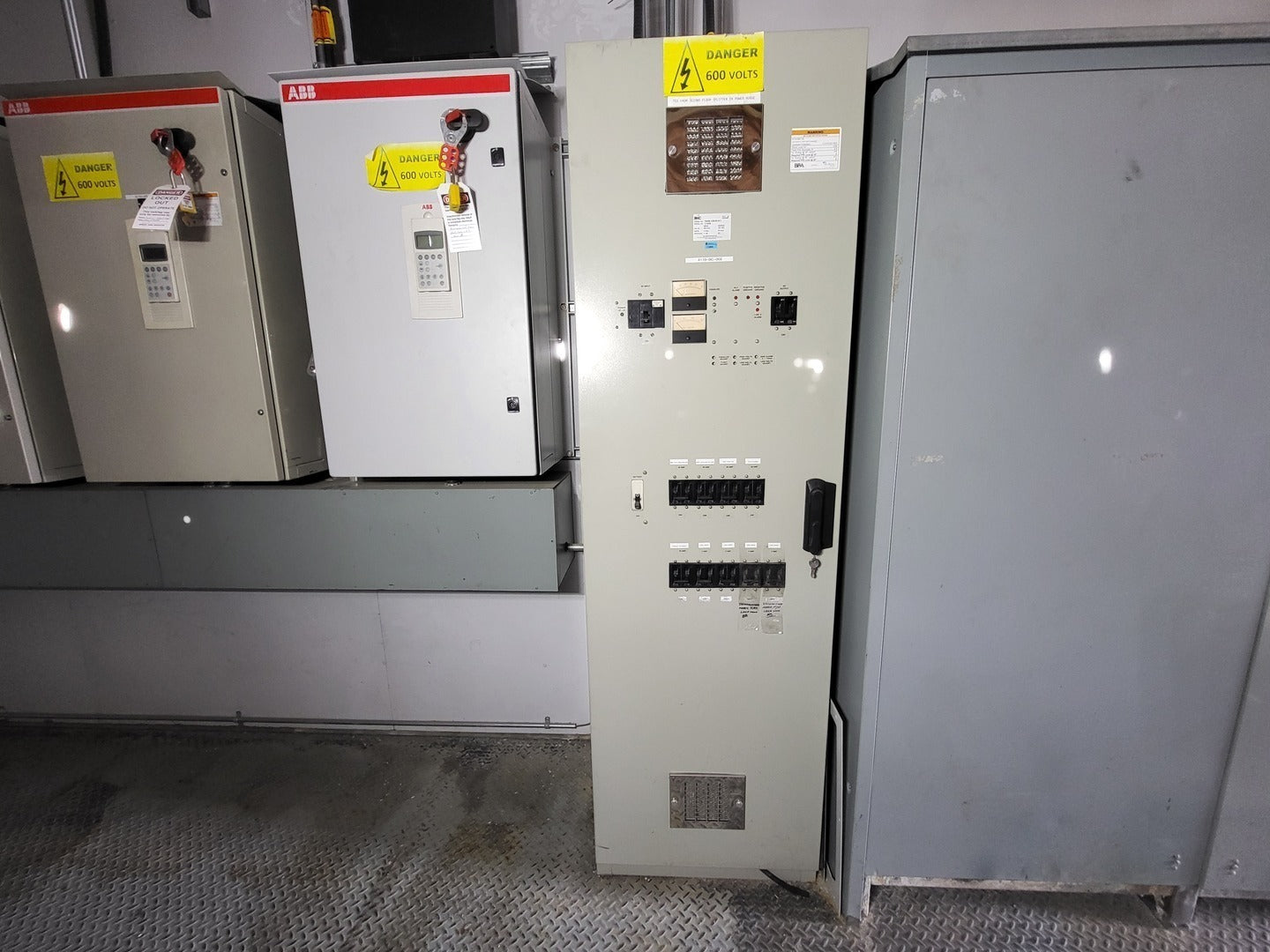

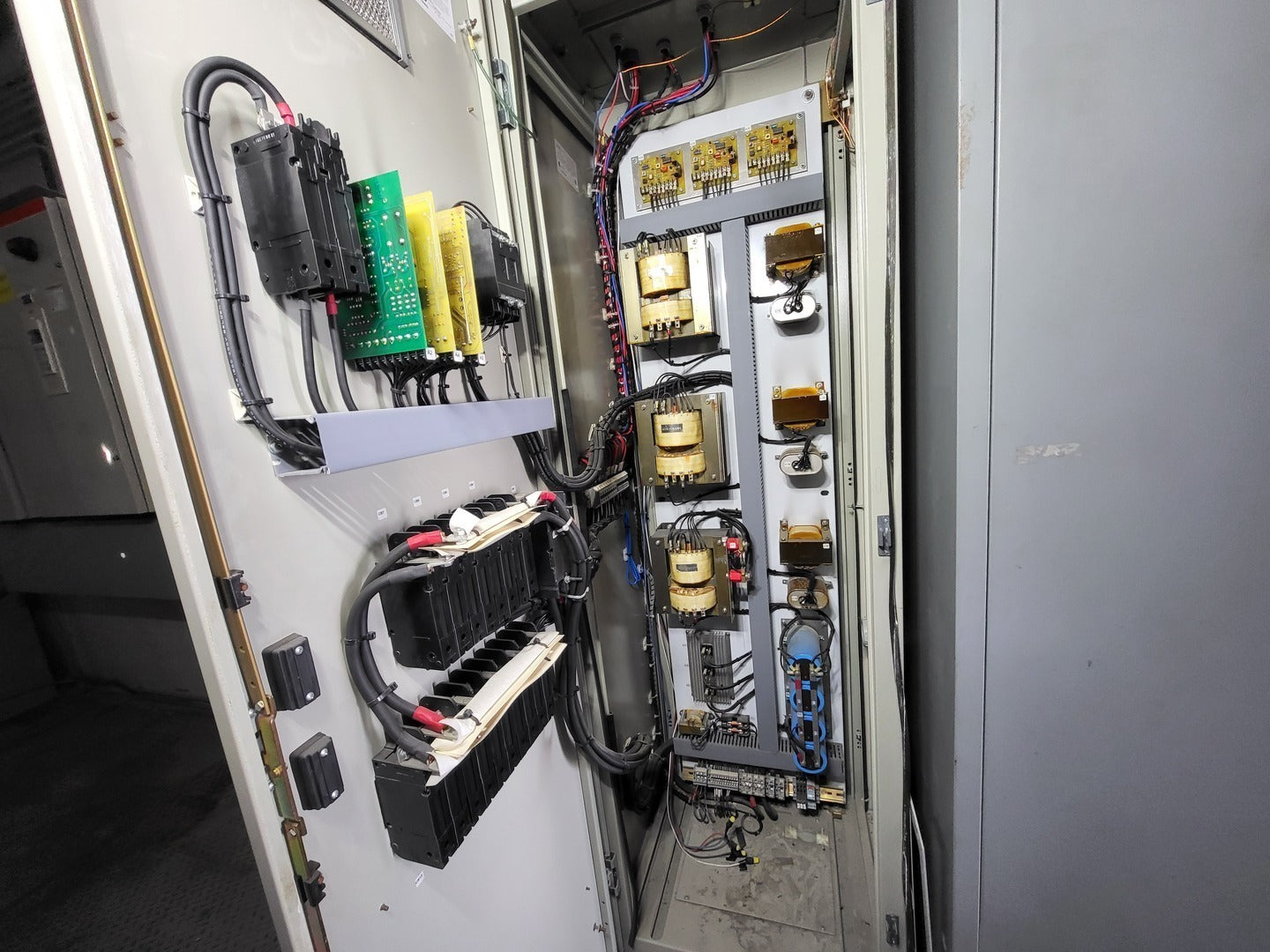

Left Side - Main Powerhouse containing Auxiliary Generator Control Panel, Battery Bank, Auxiliary Power Battery Charger, VFDs, etc.
-

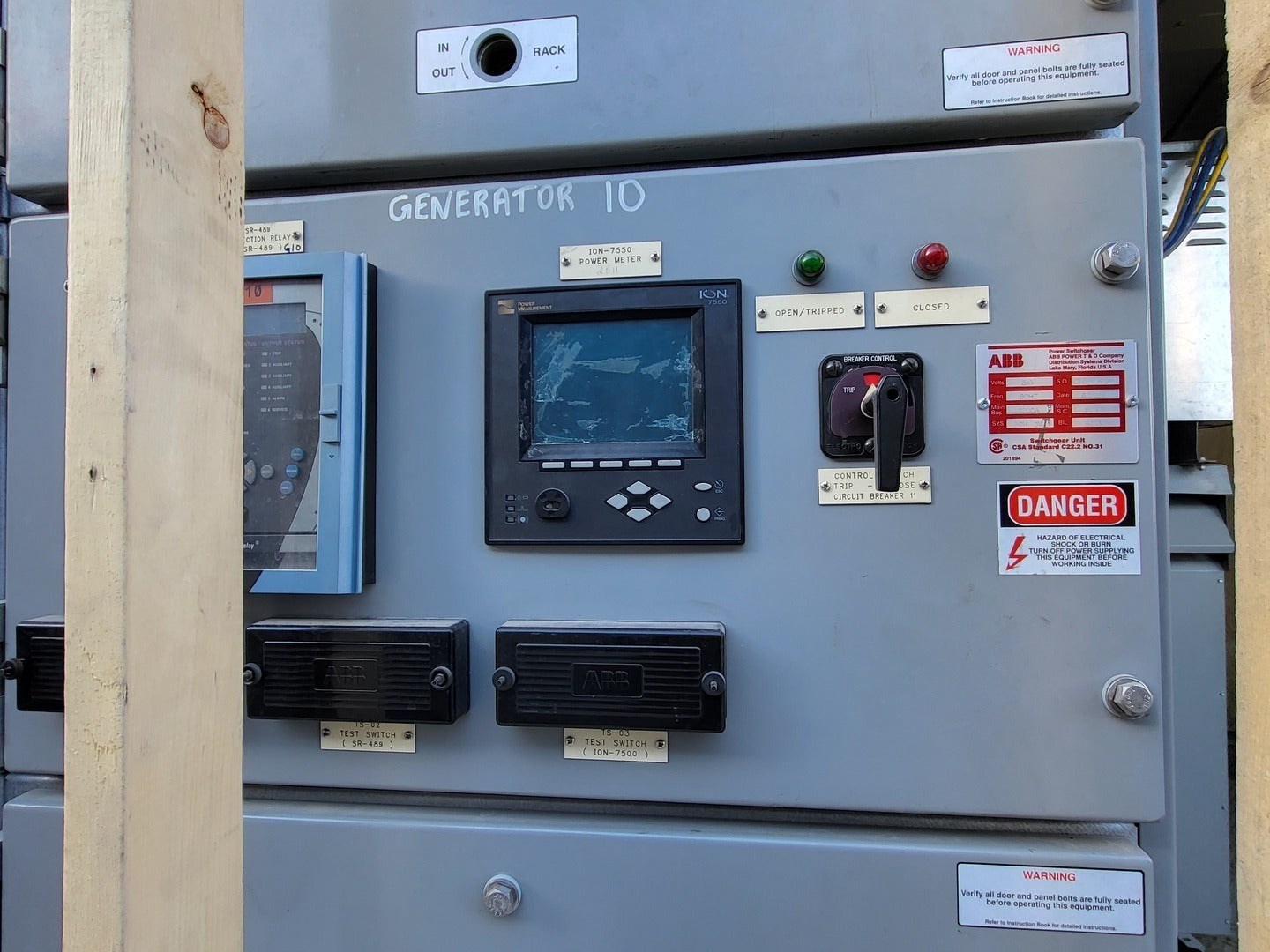

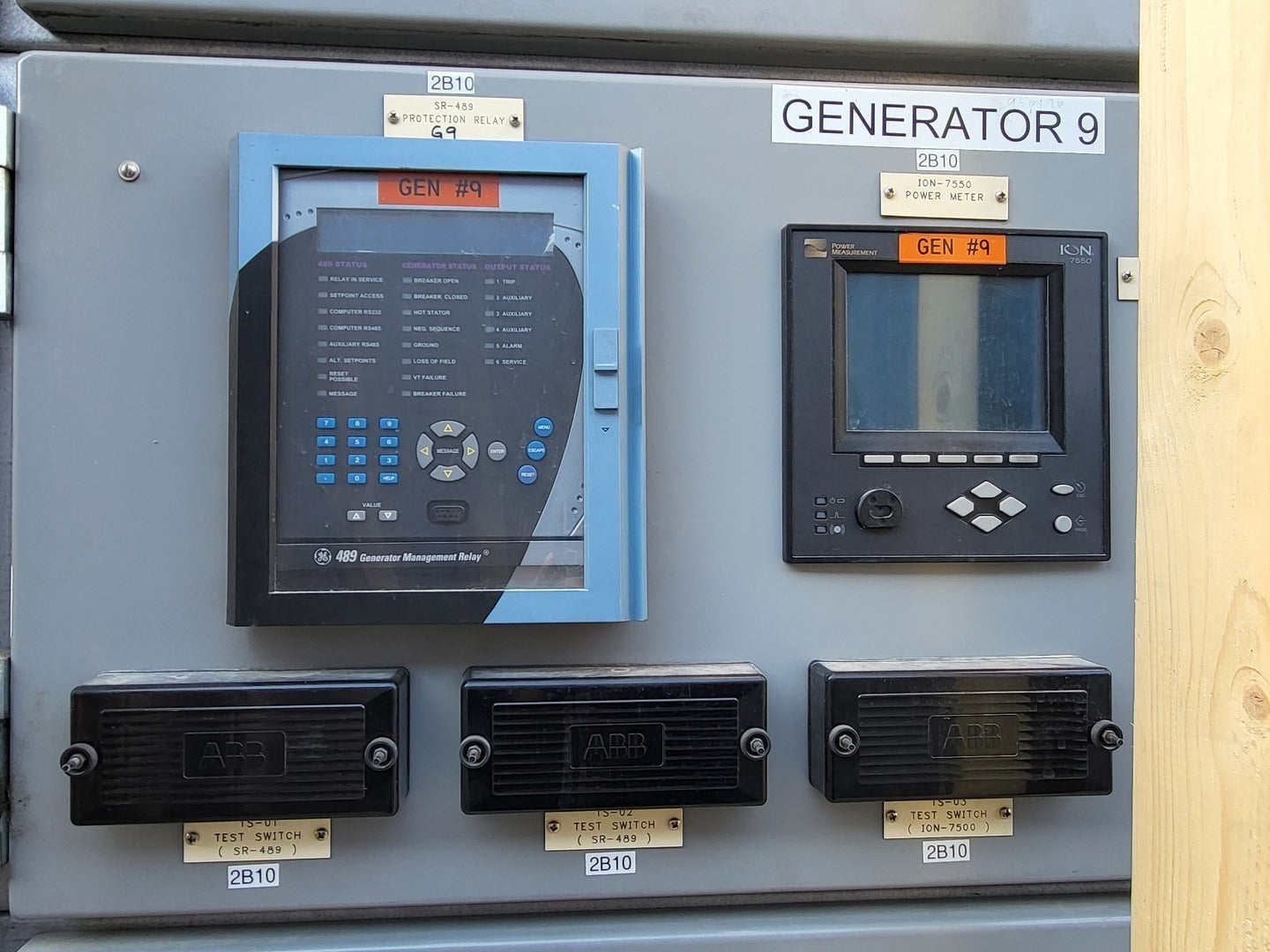

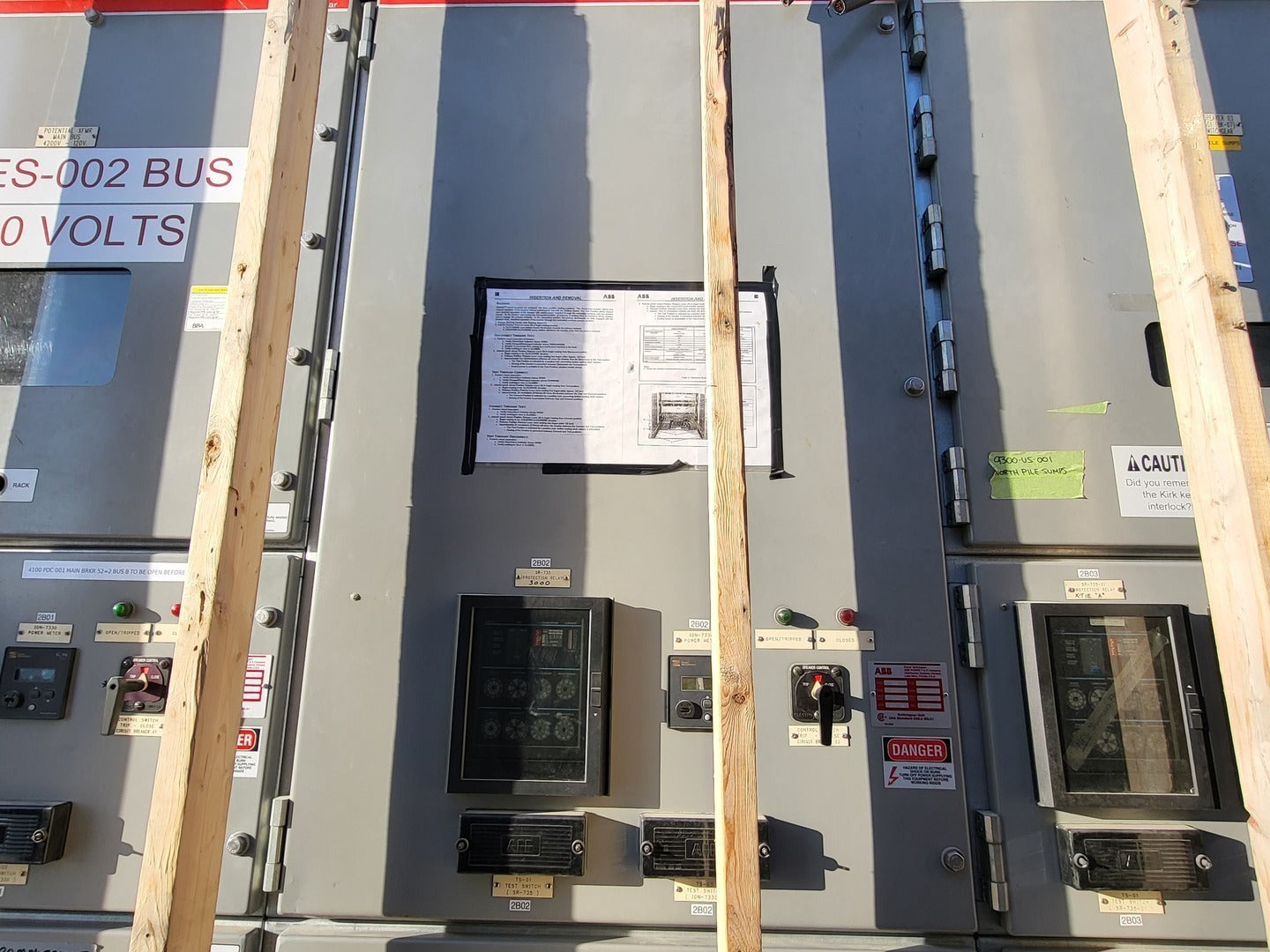

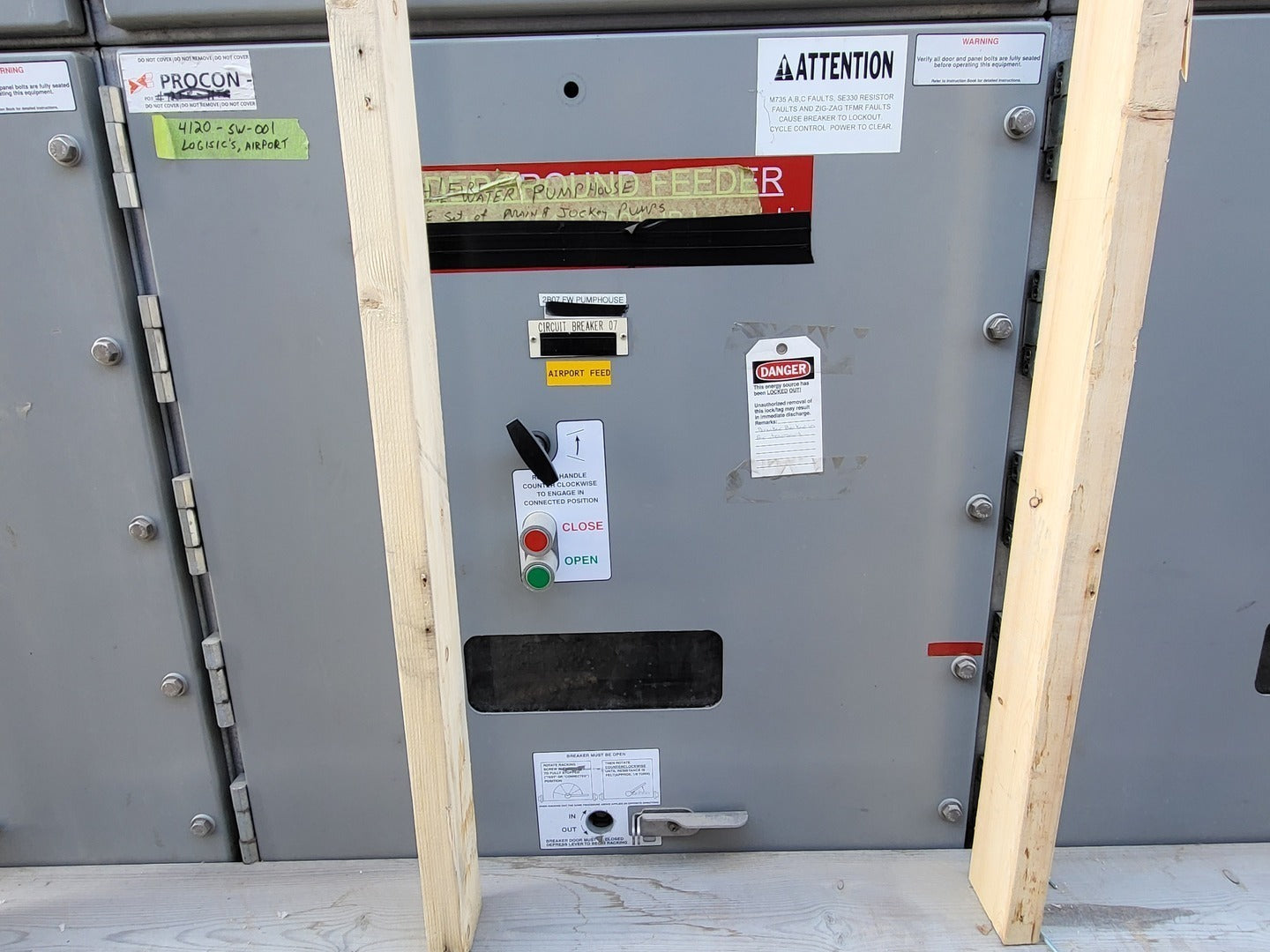

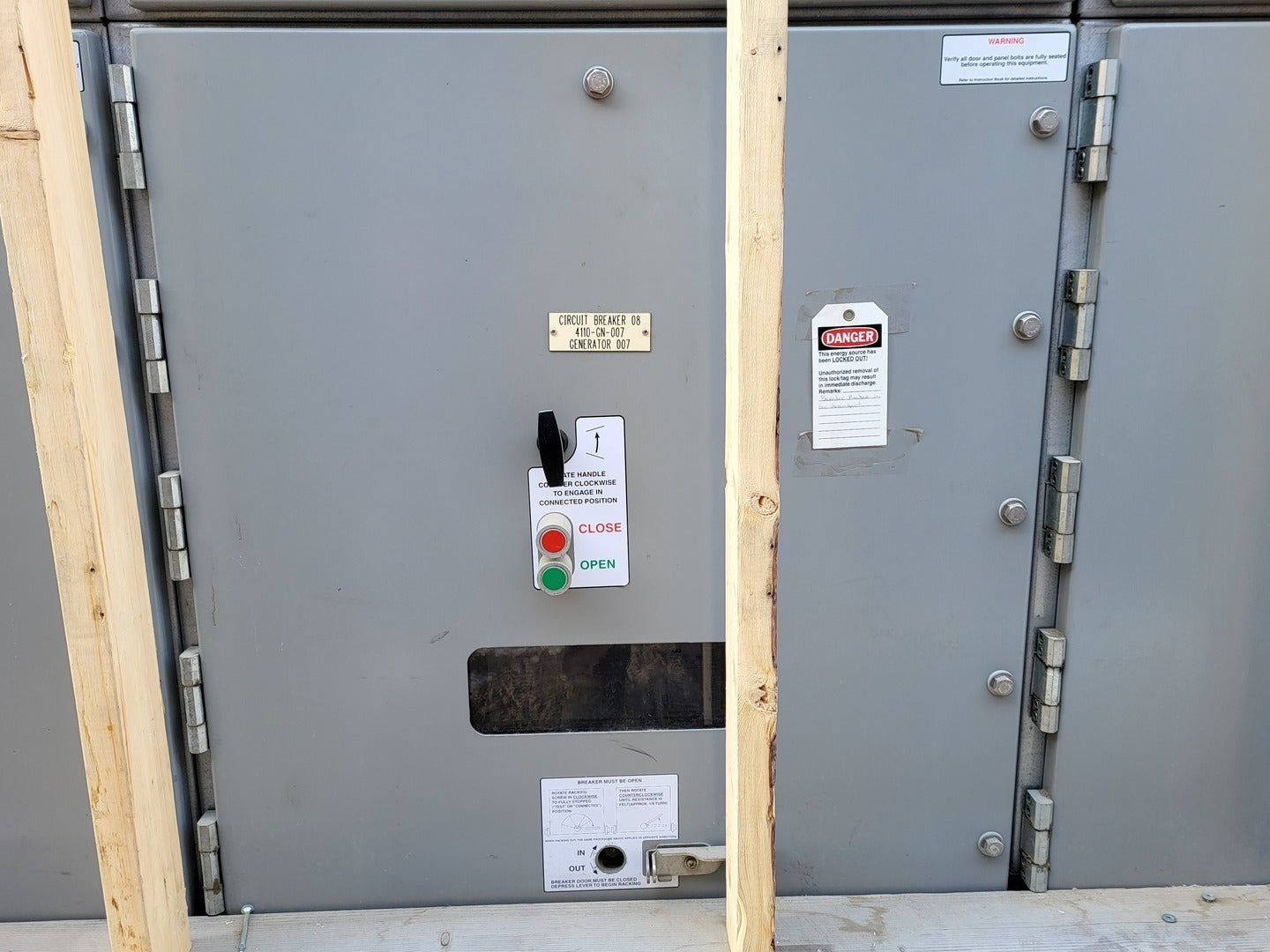

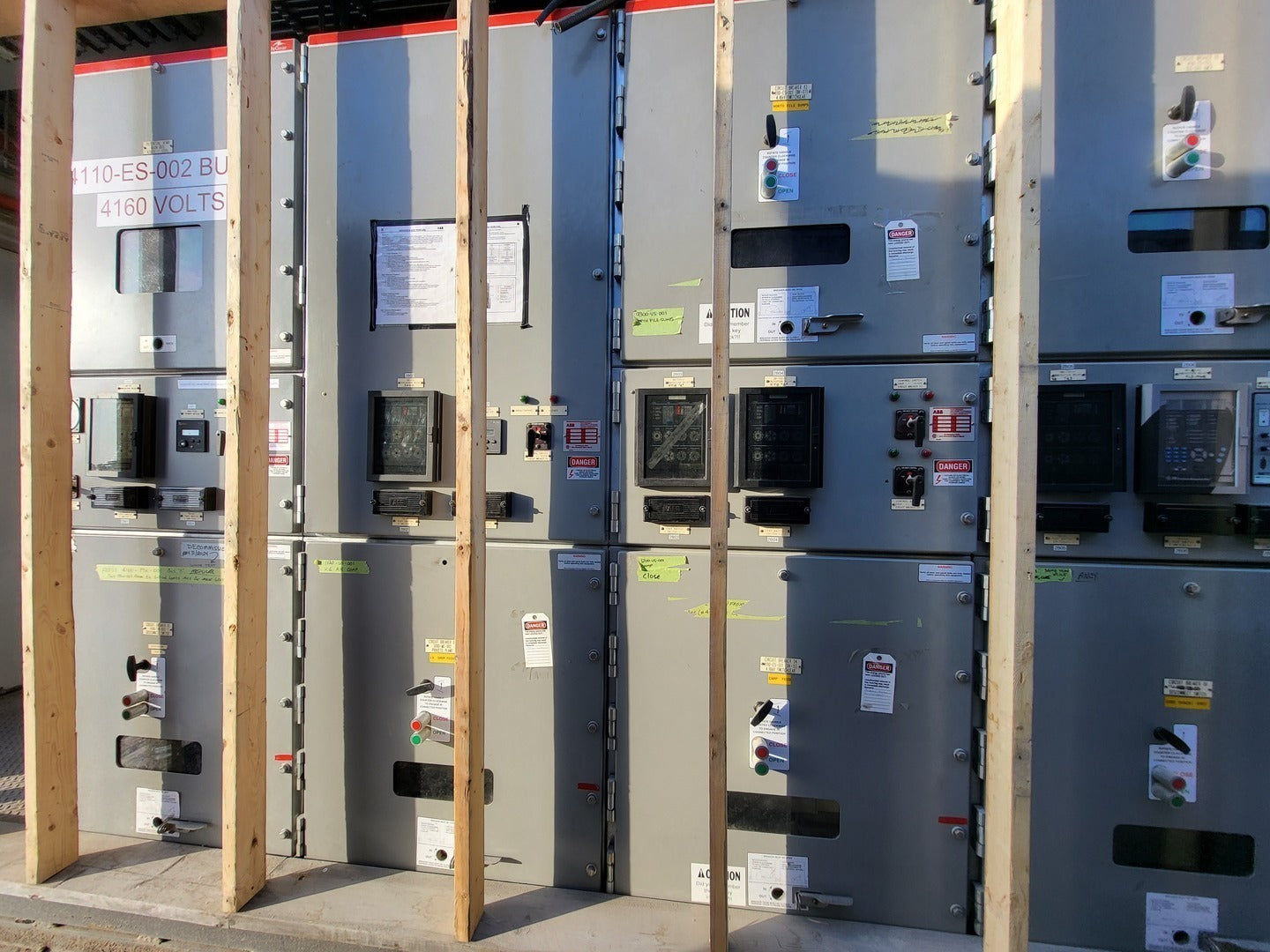

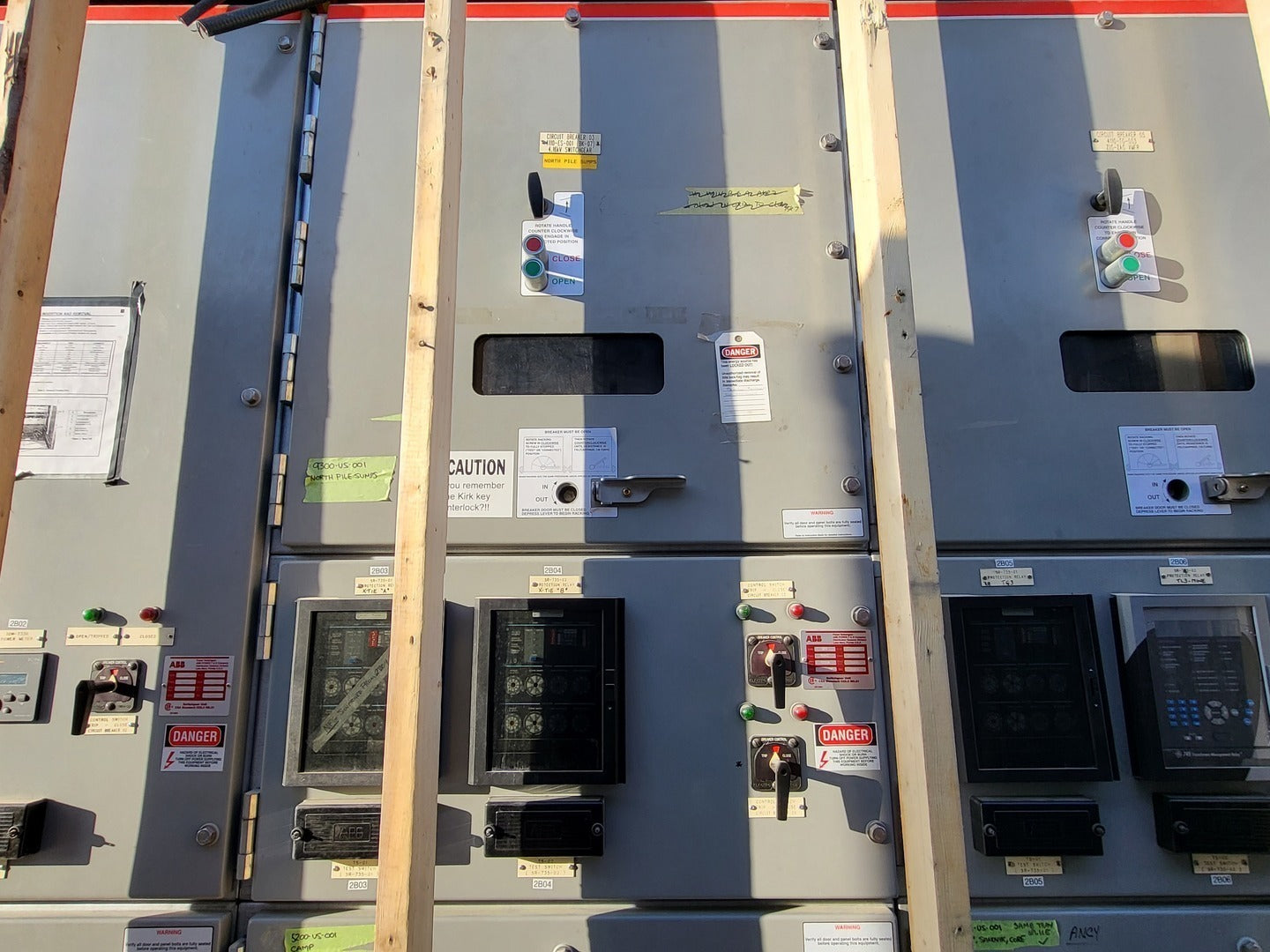

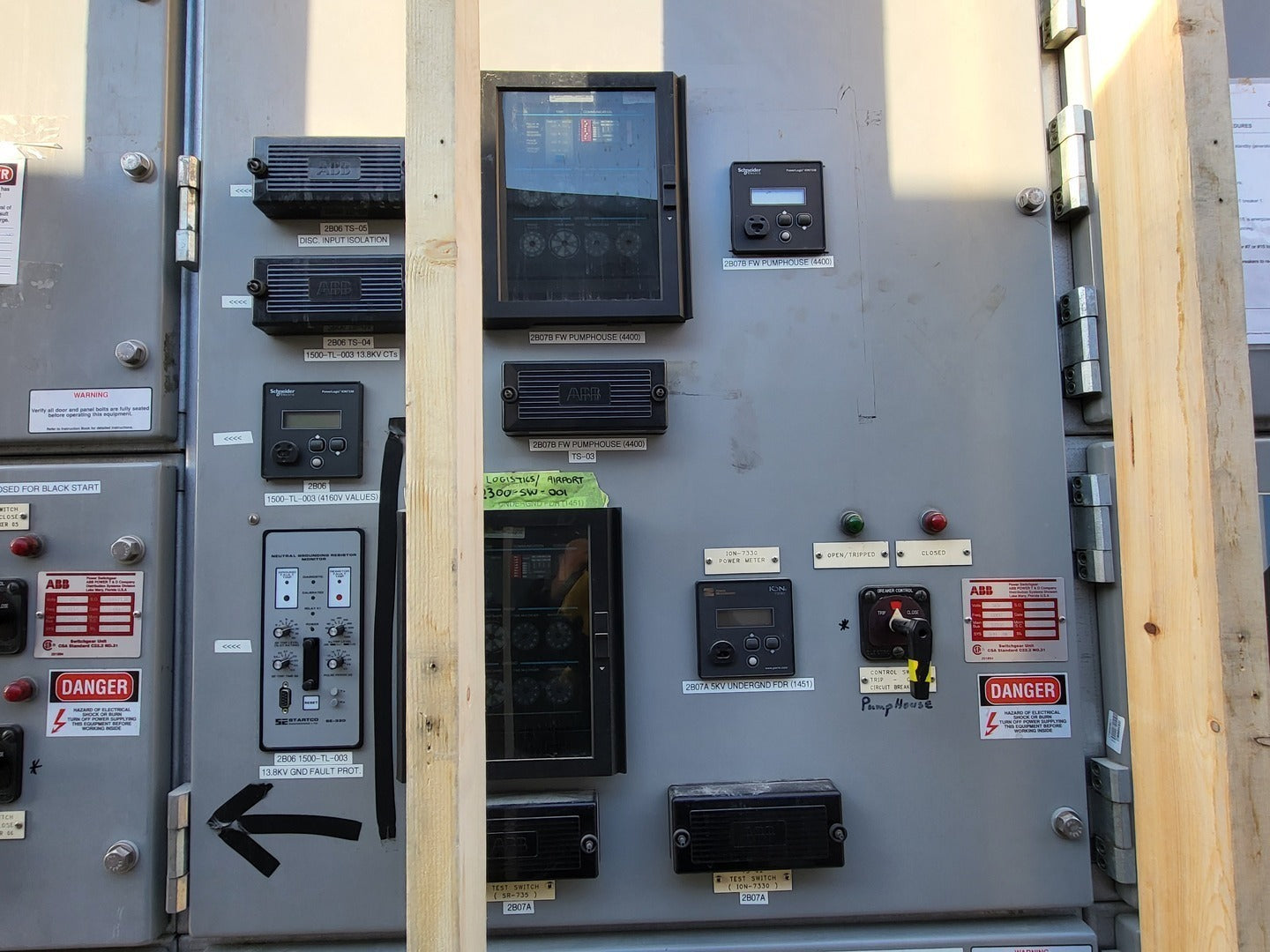

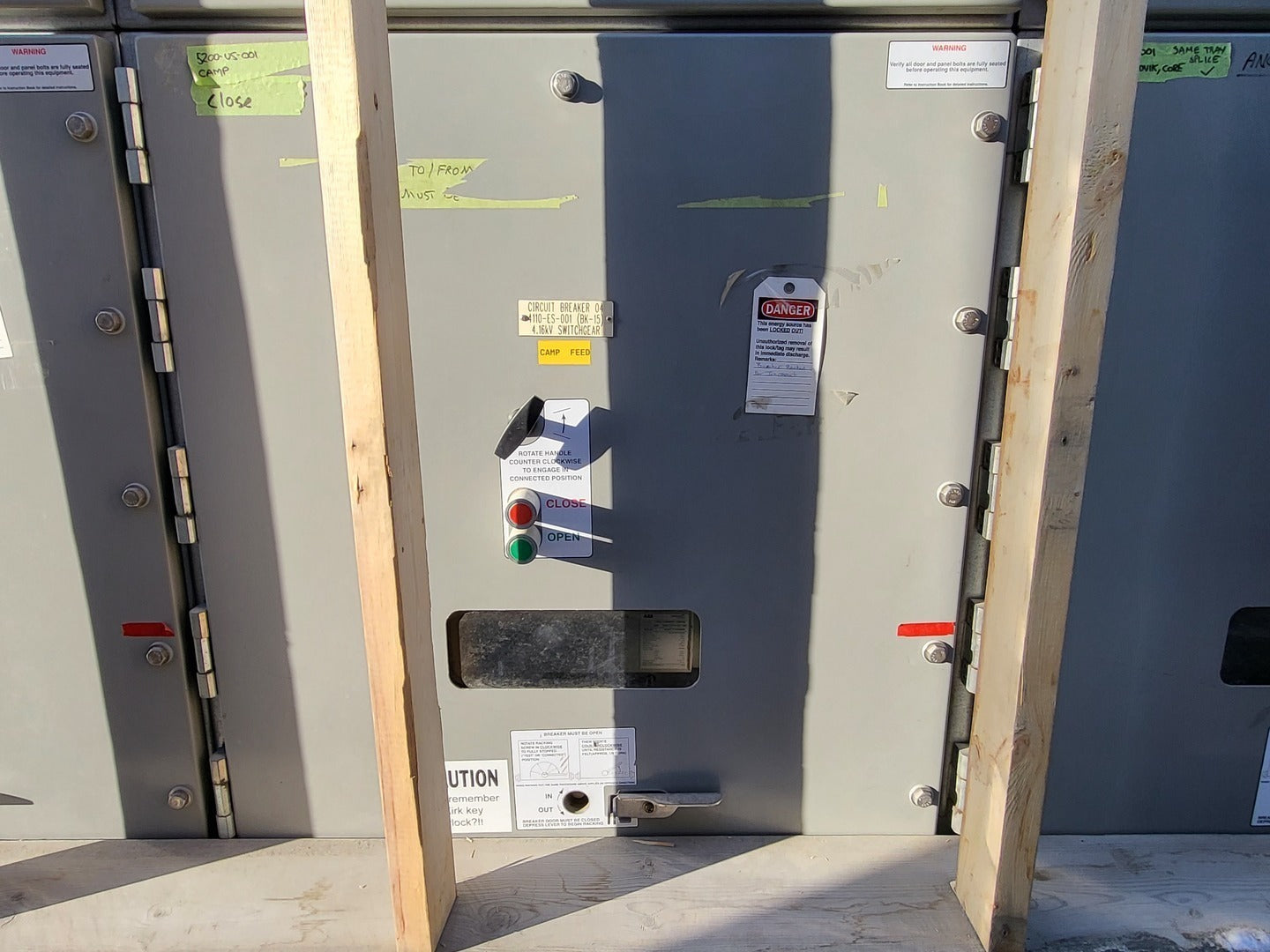

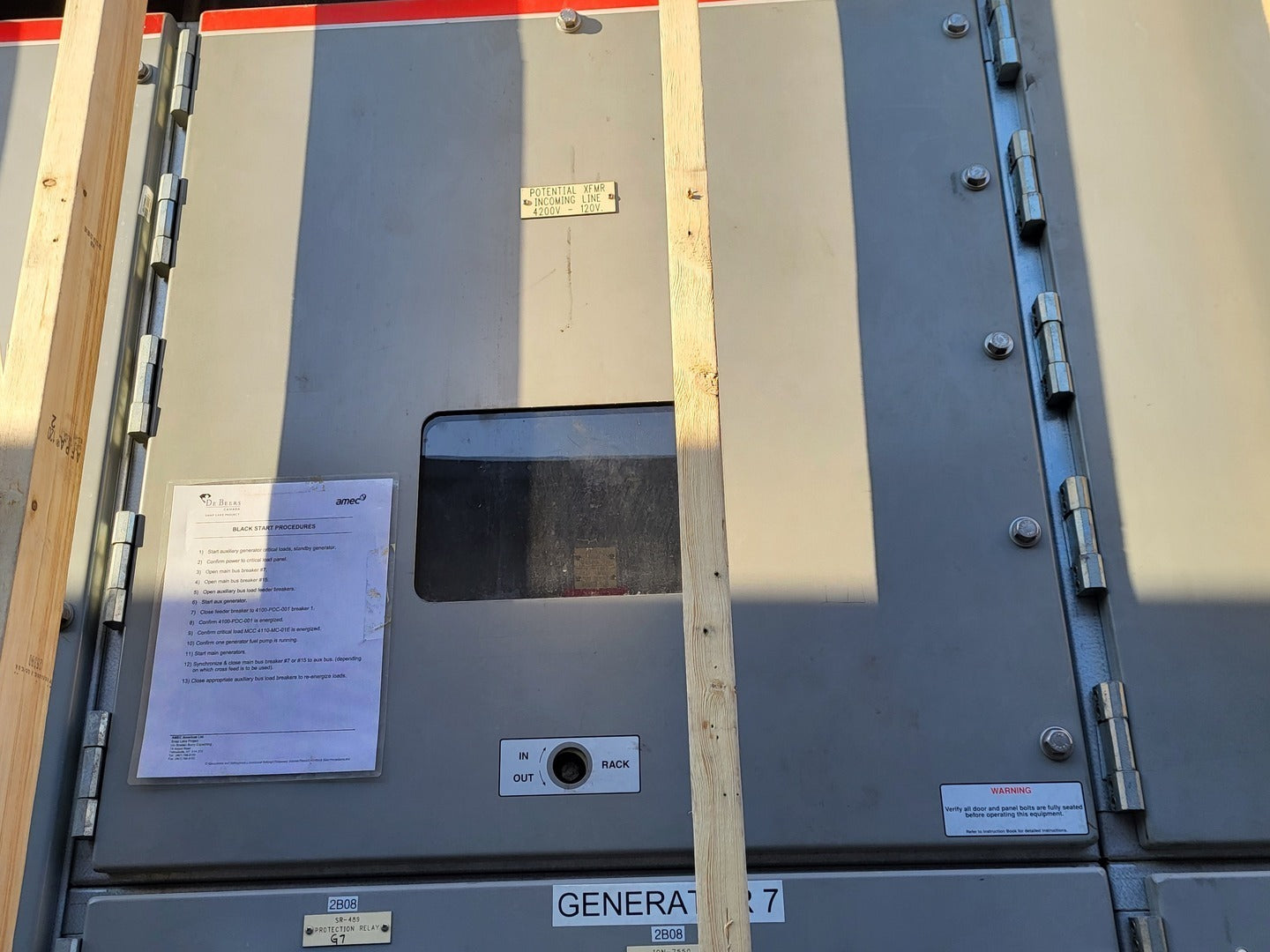

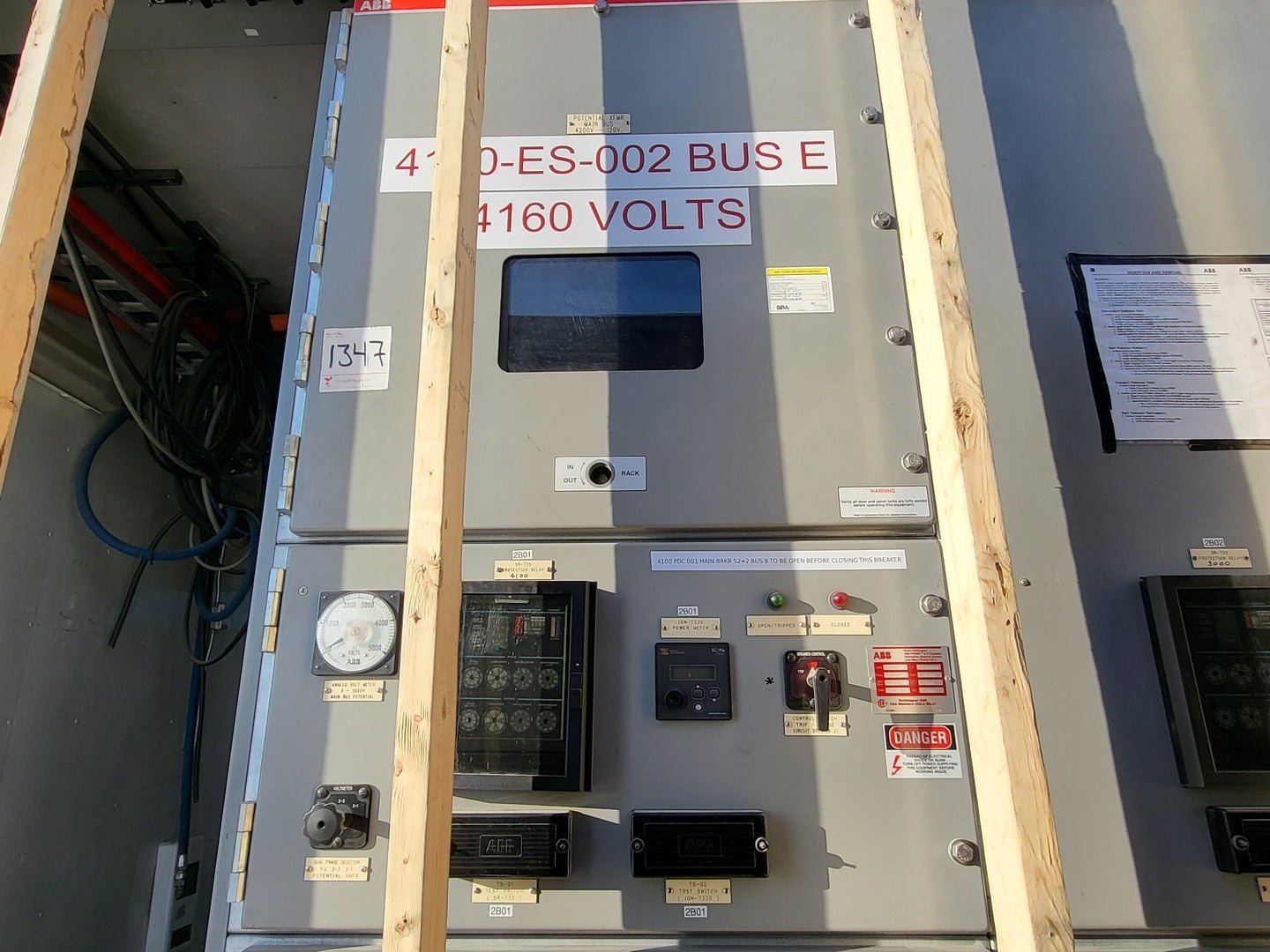

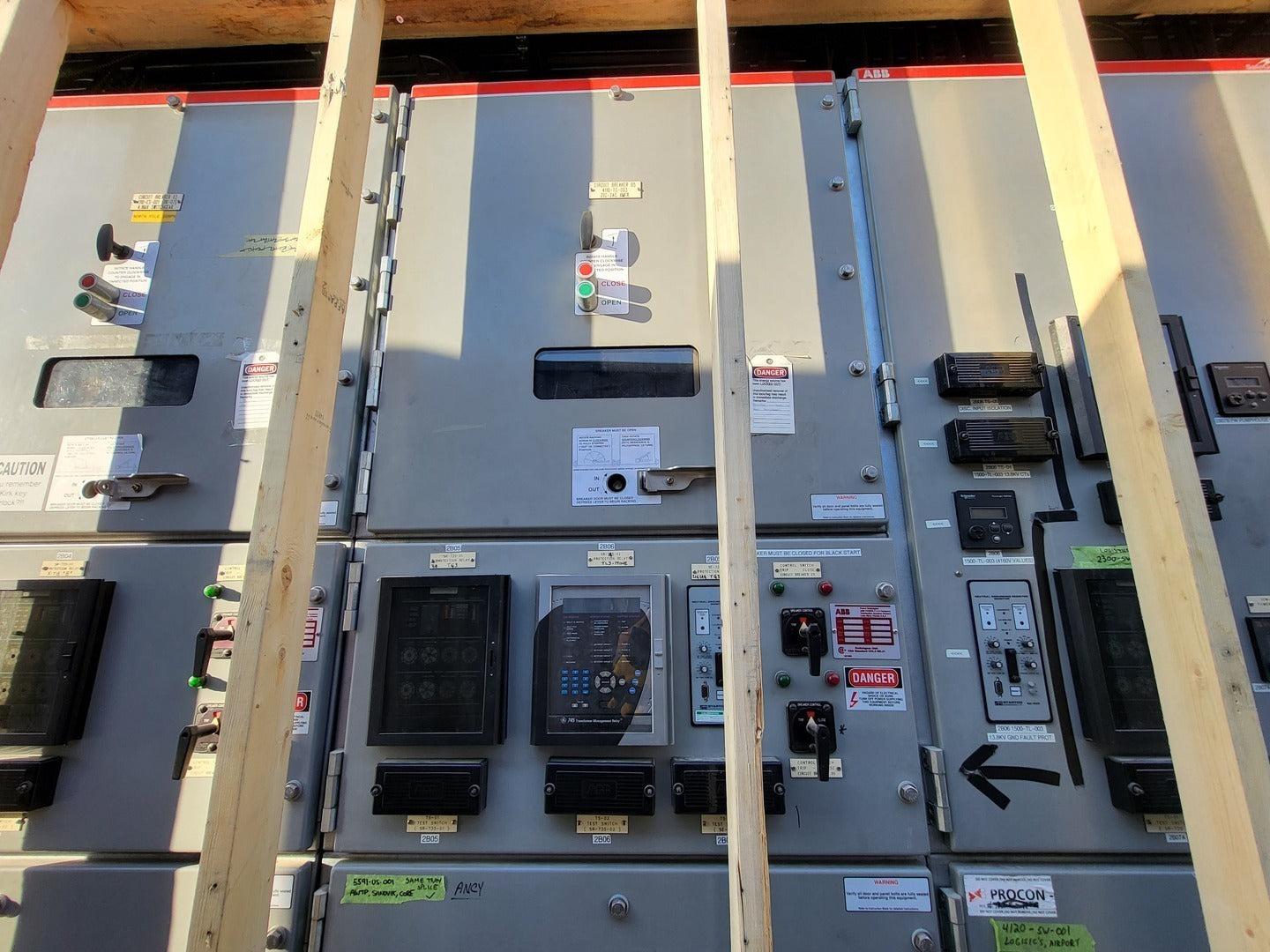

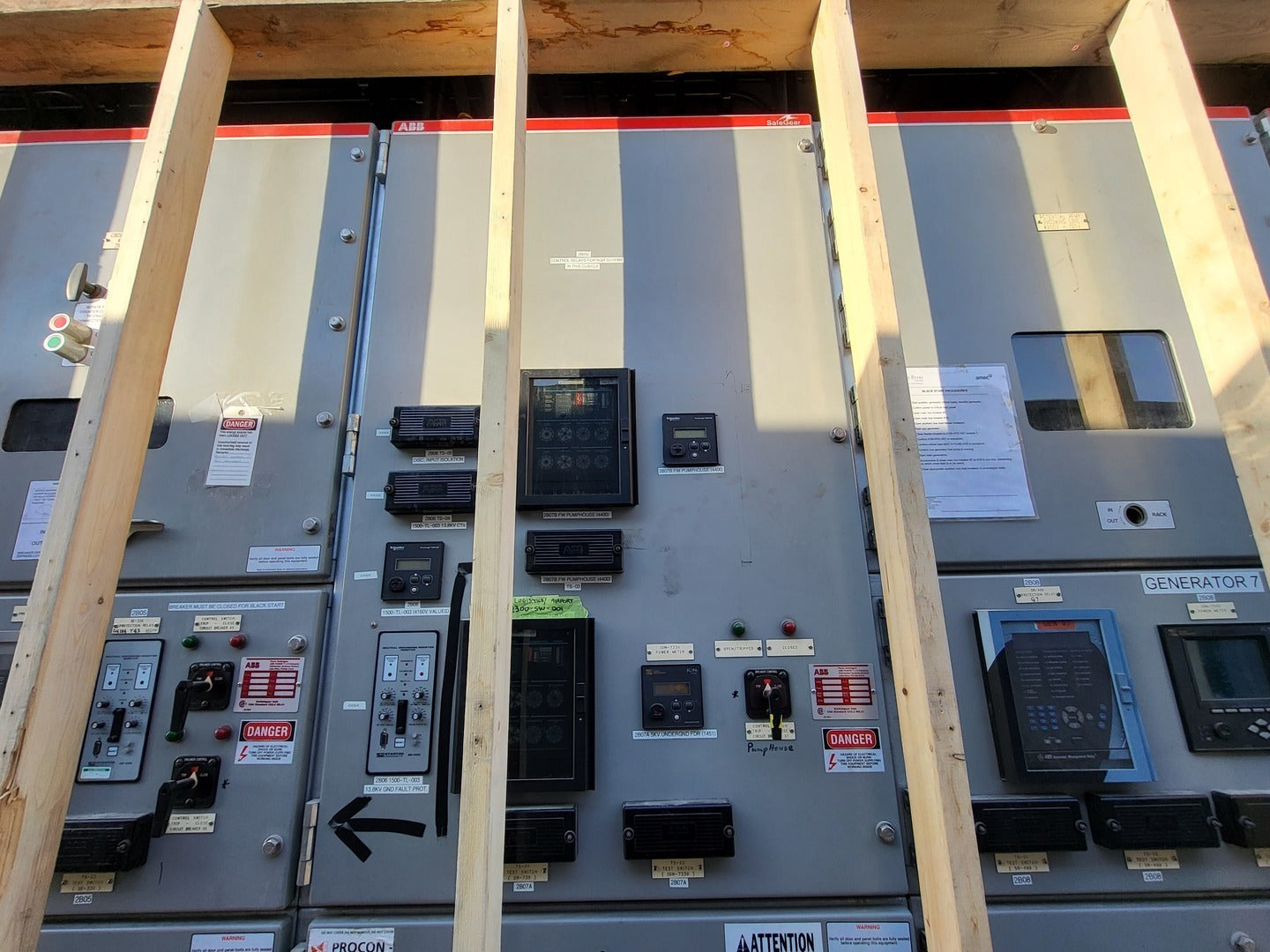

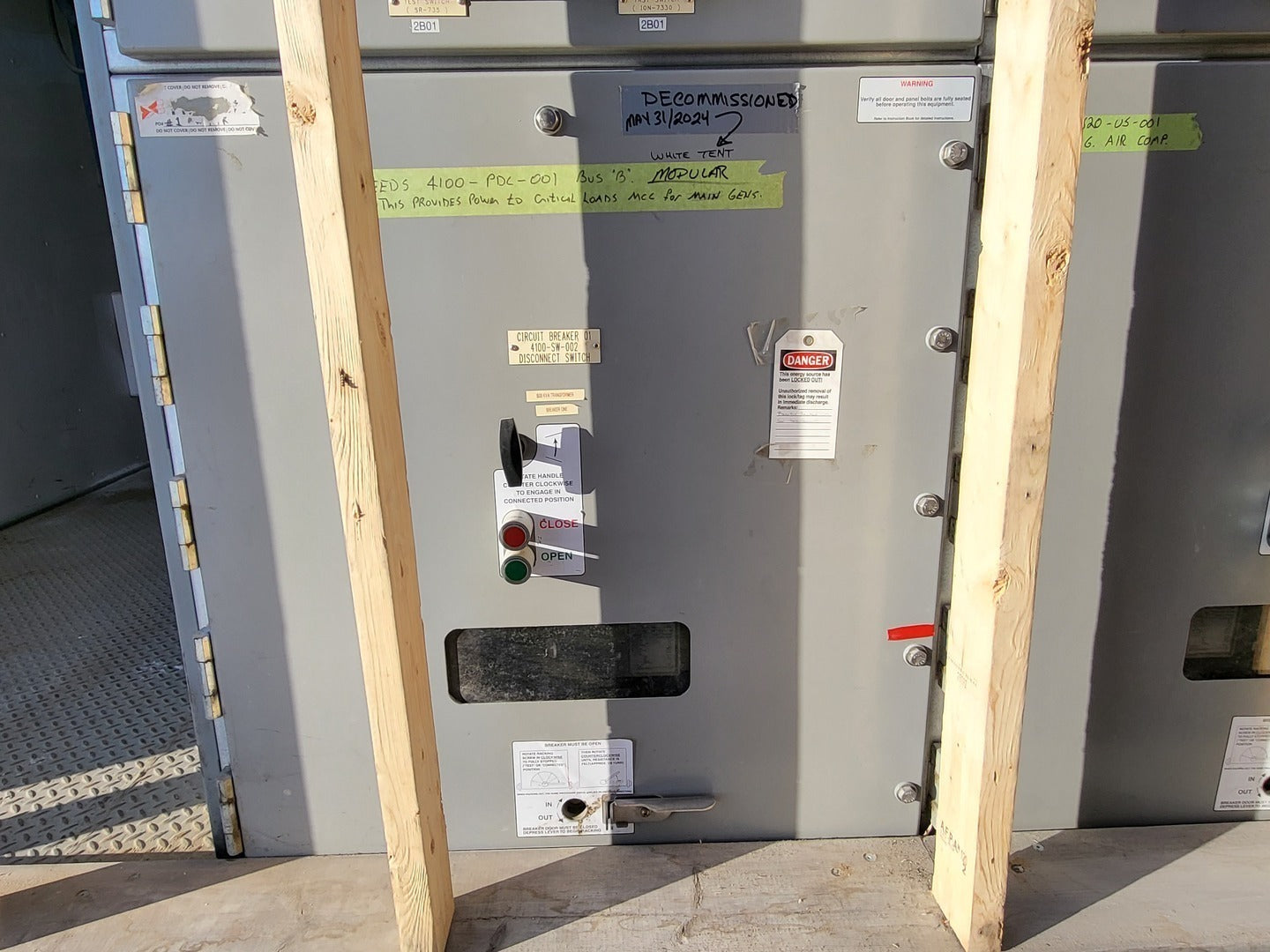

Right Side - Switchgear Room
-

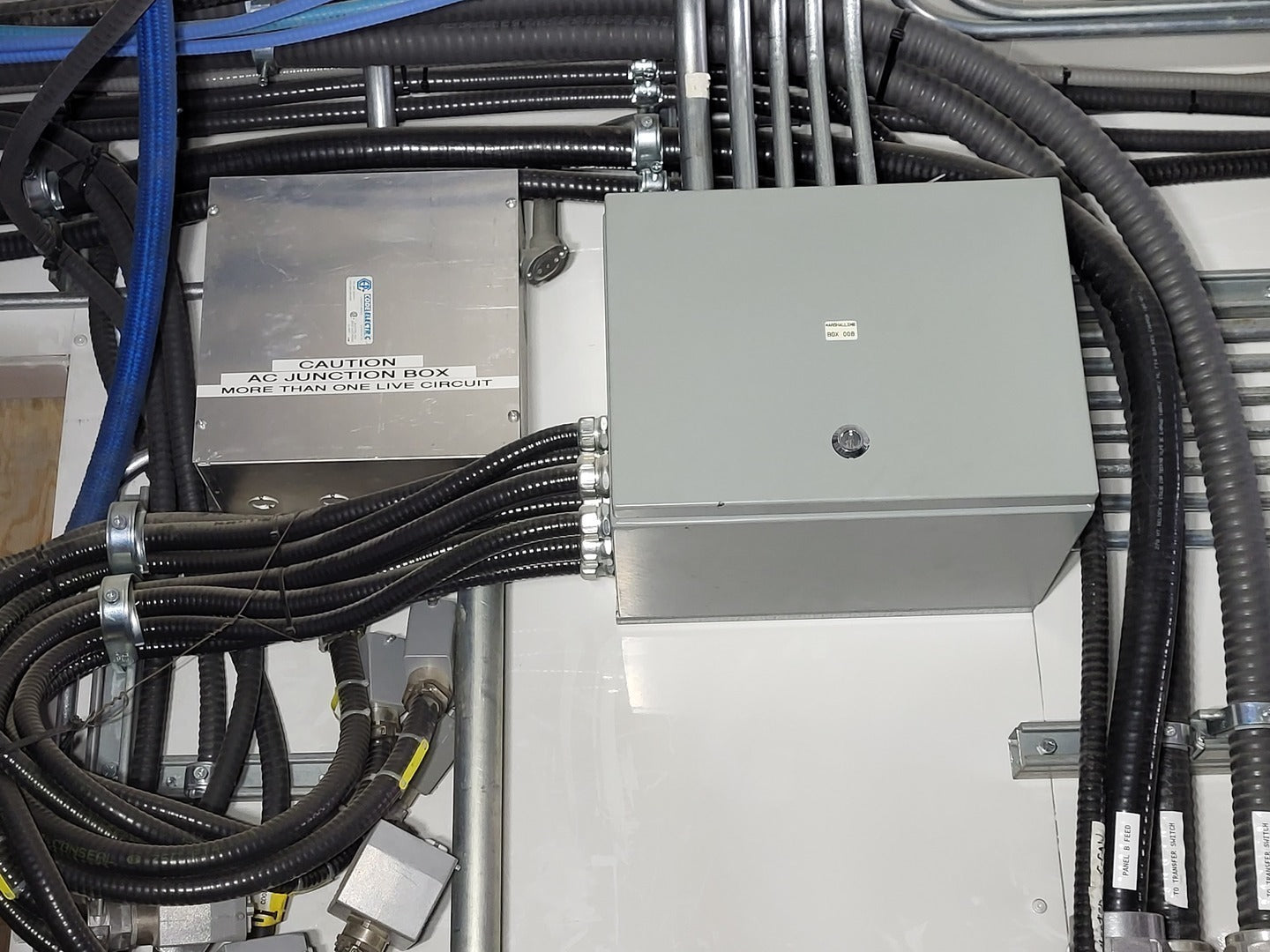

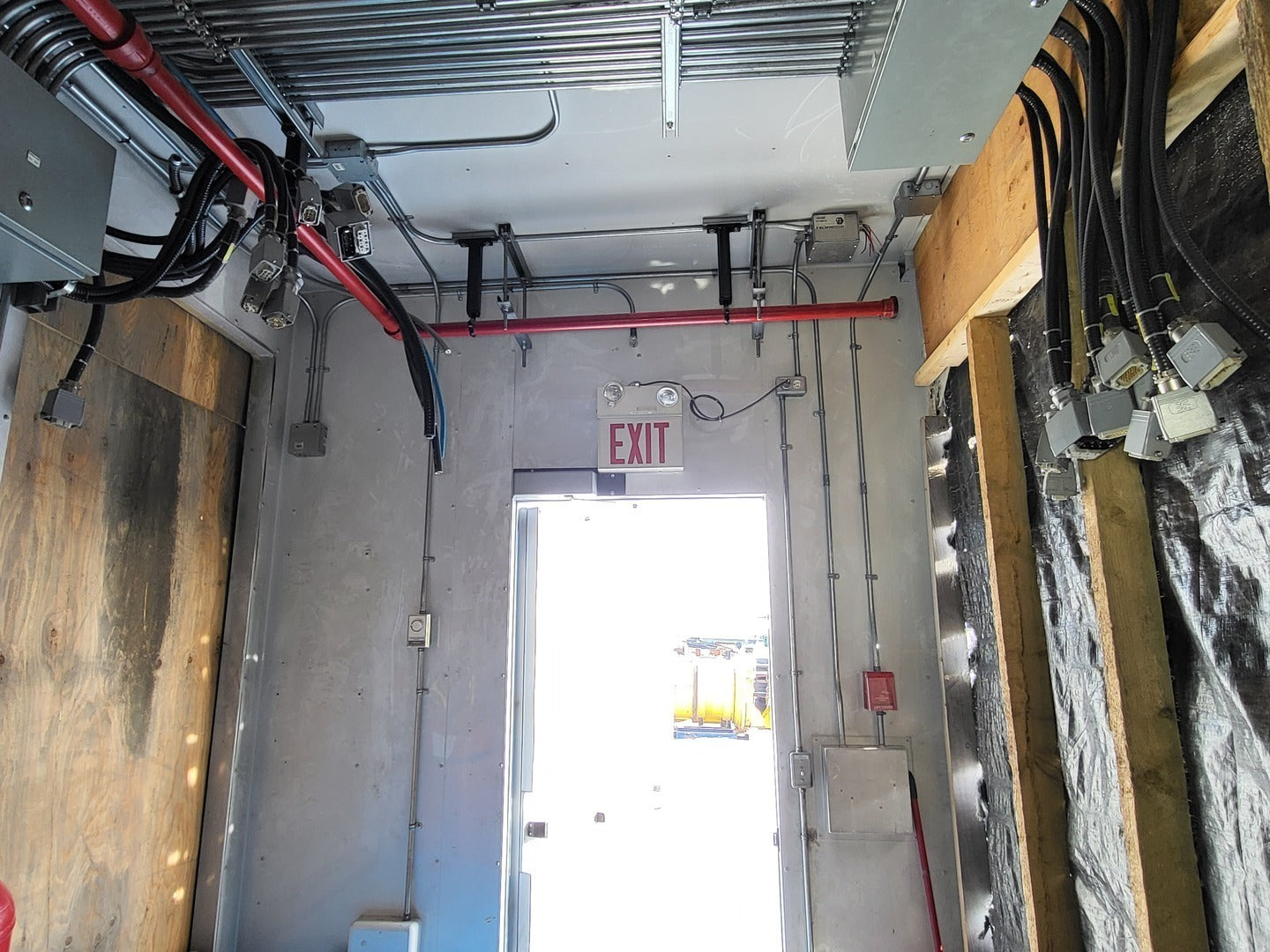

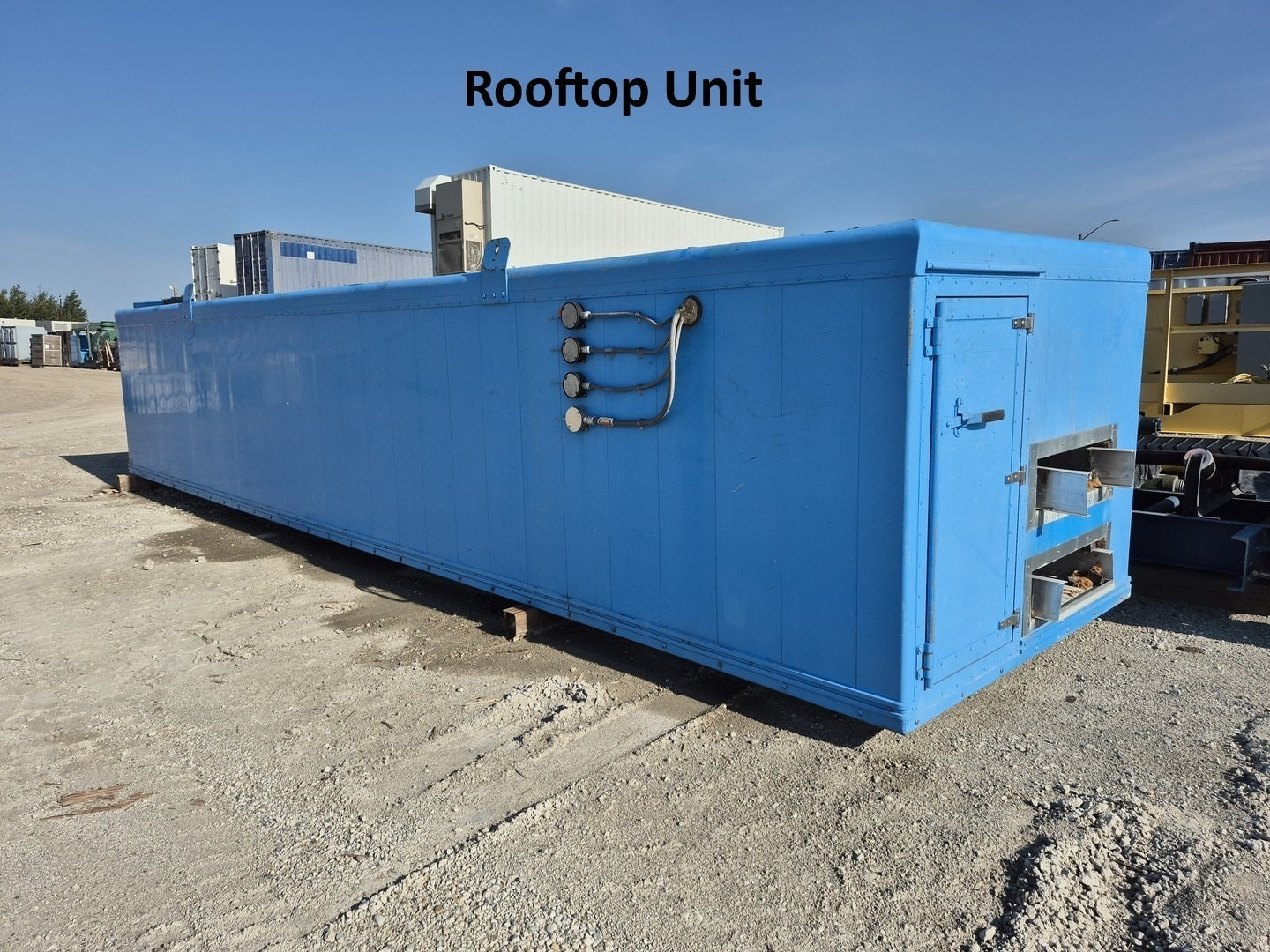

Rooftop Unit - contains COOPER B-Line Cable Trays 36A12-36-240 ST SC
-
Dimensions (Left + Right Side Together): 44' x 12' x 12' approx.
-
Dimensions (Rooftop Unit Only): 31' x 8' x 7' approx.

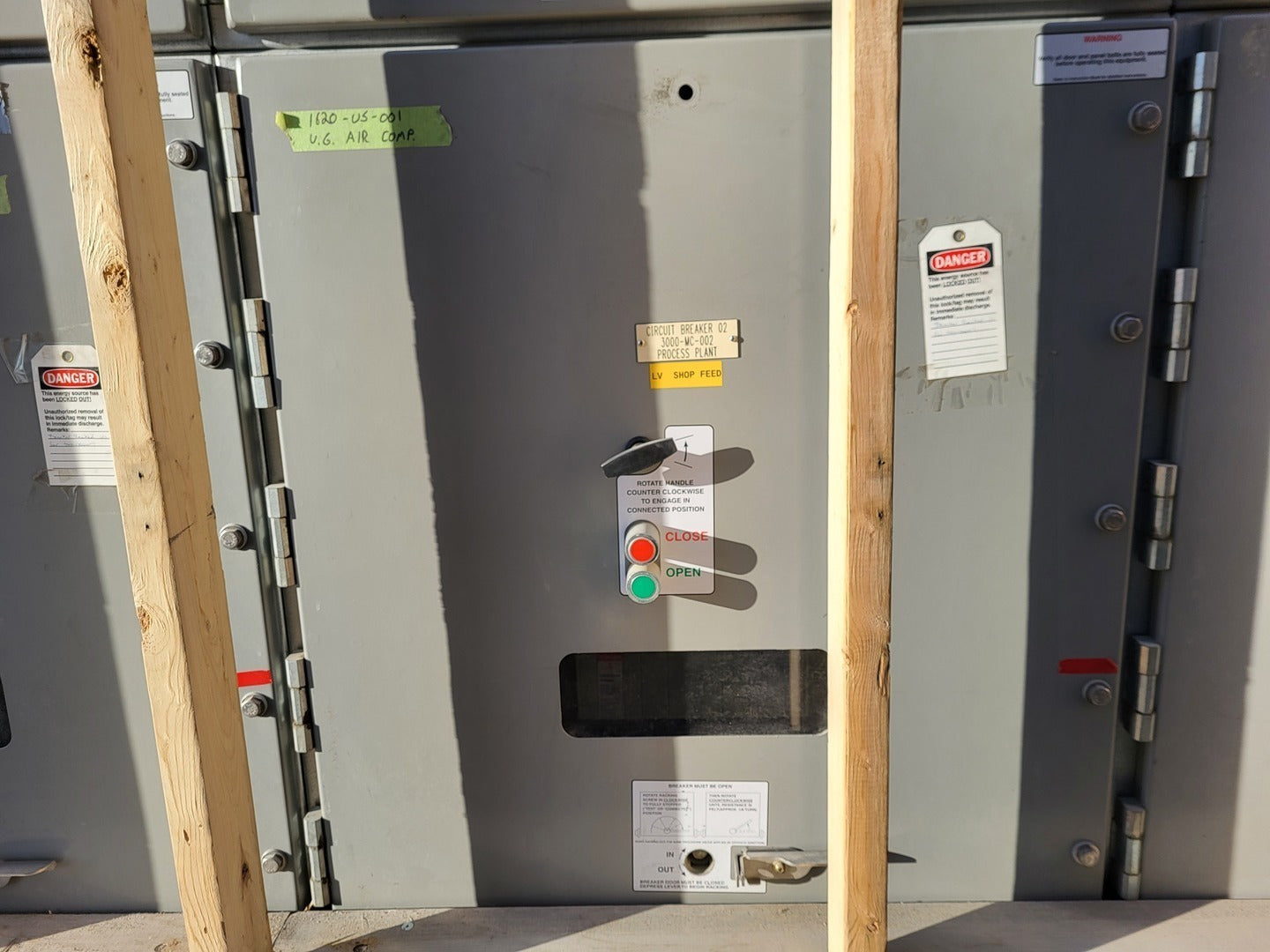

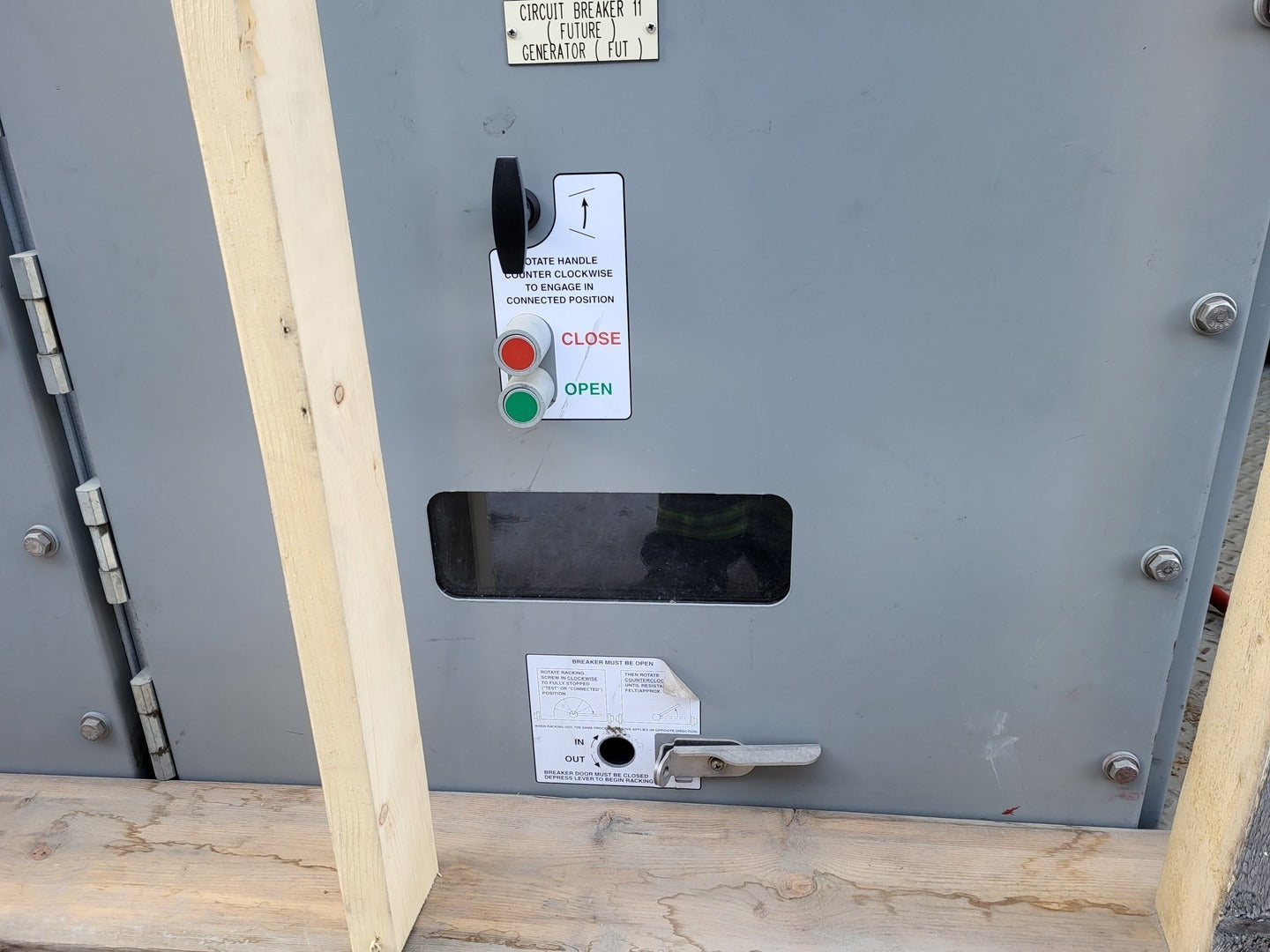

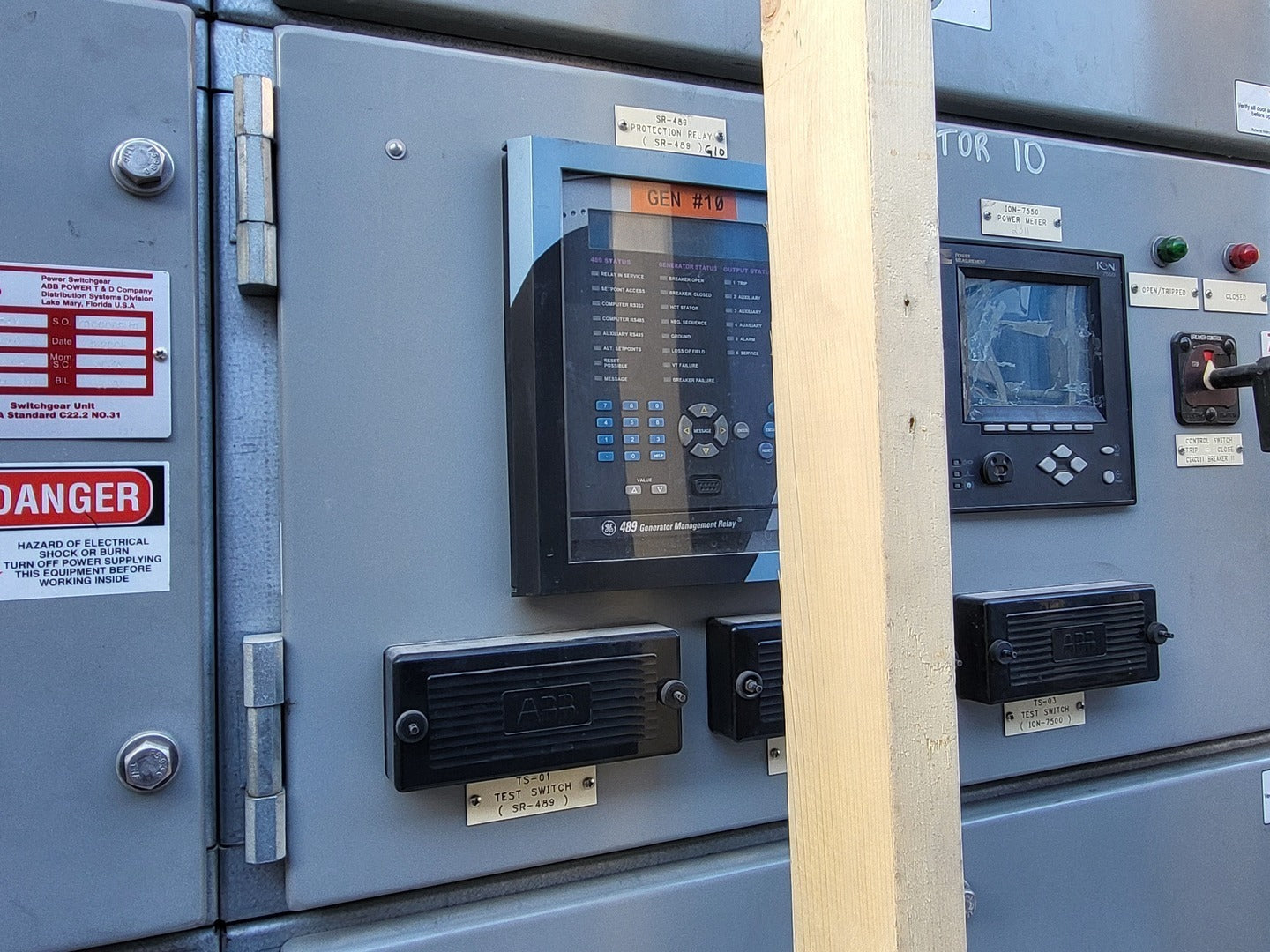

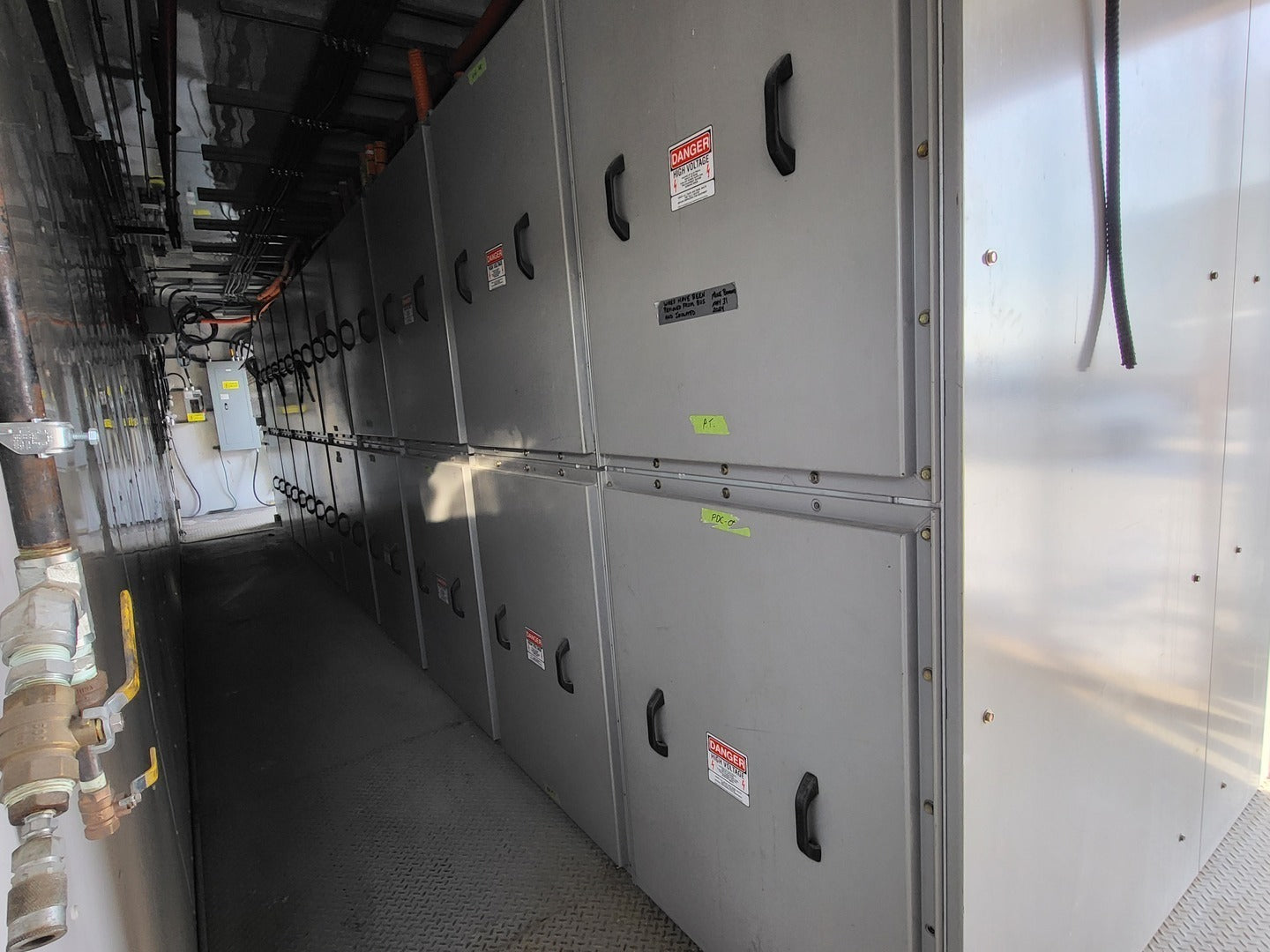

Right Side - Switchgear Room

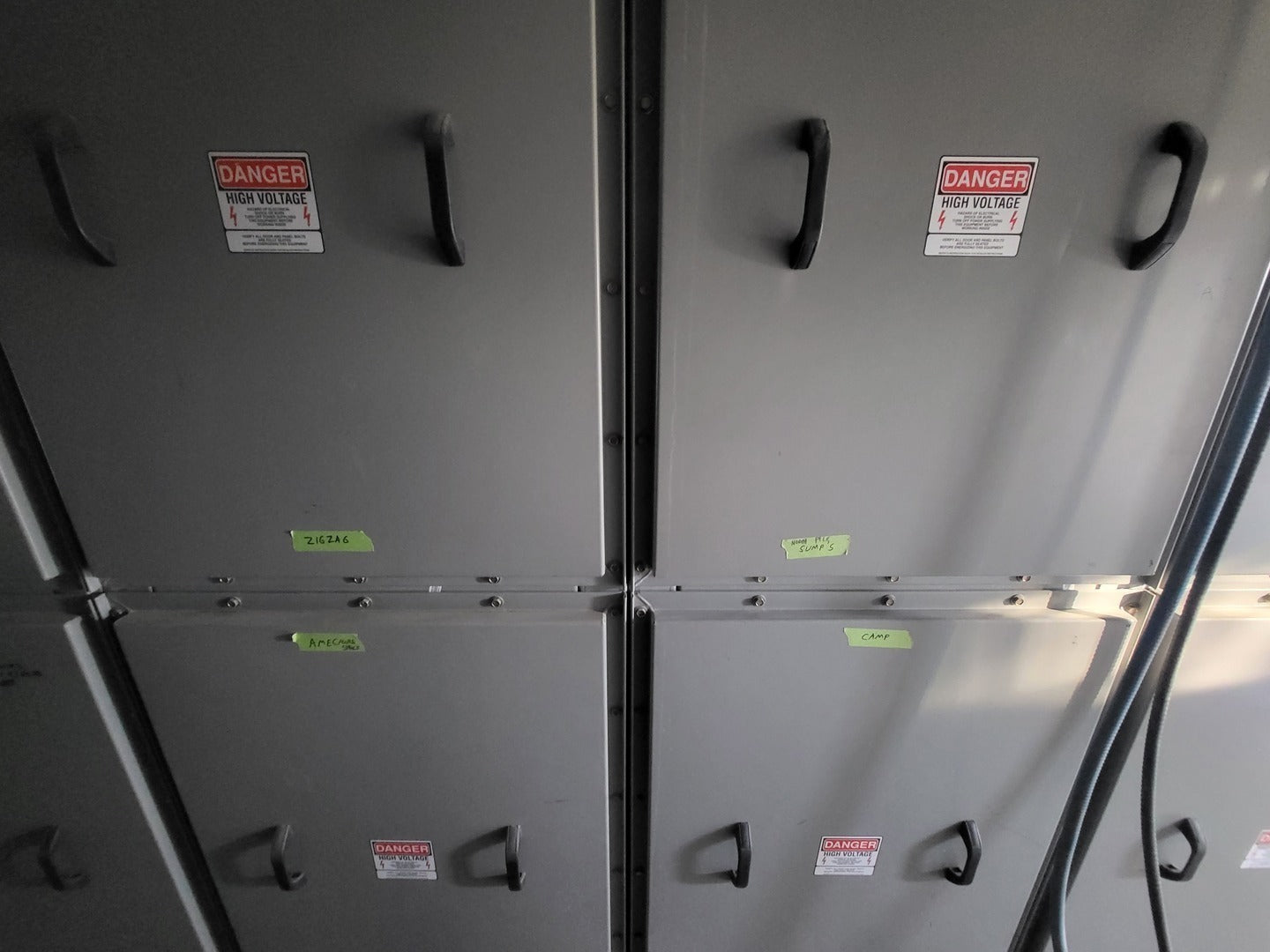

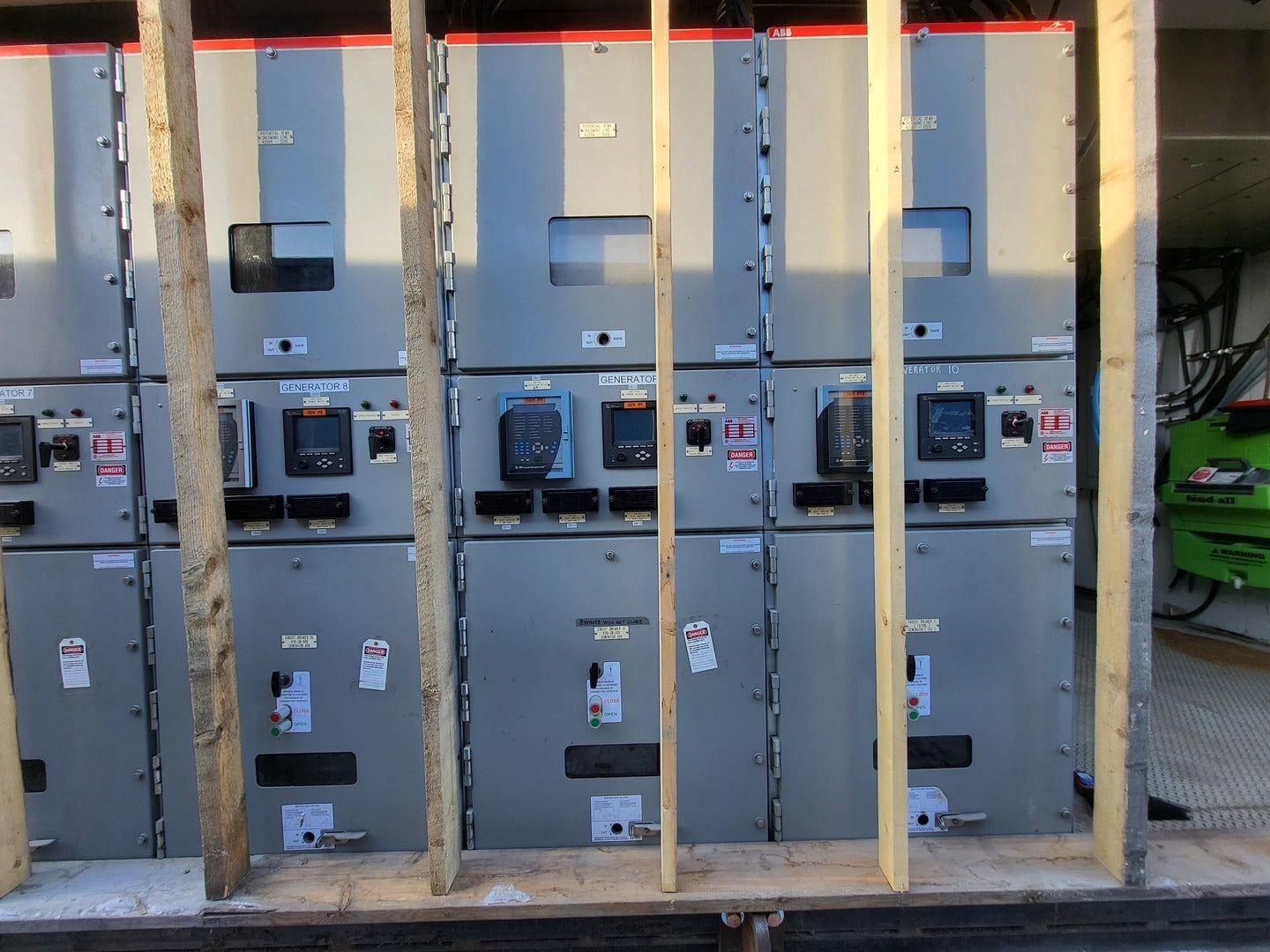

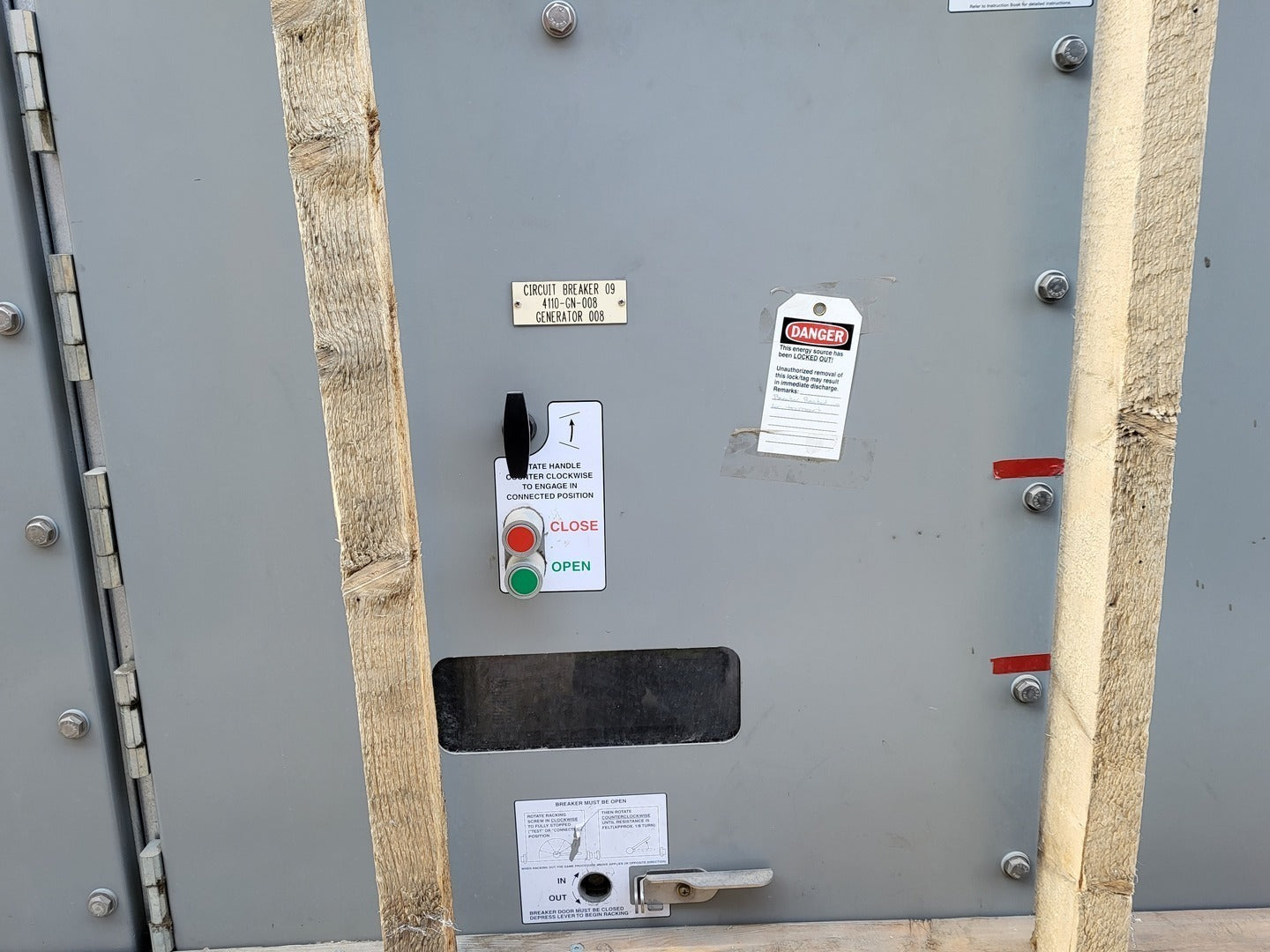

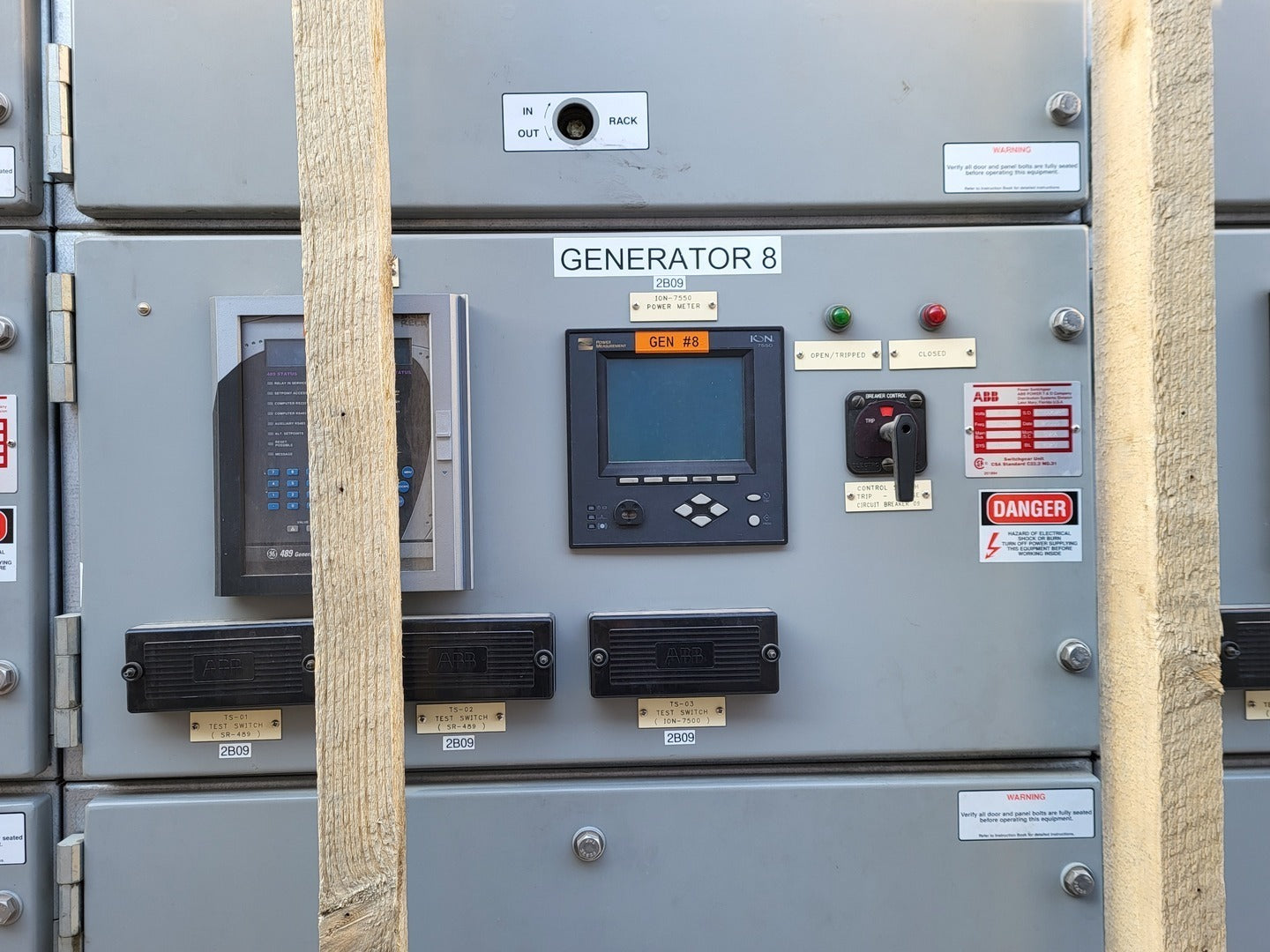

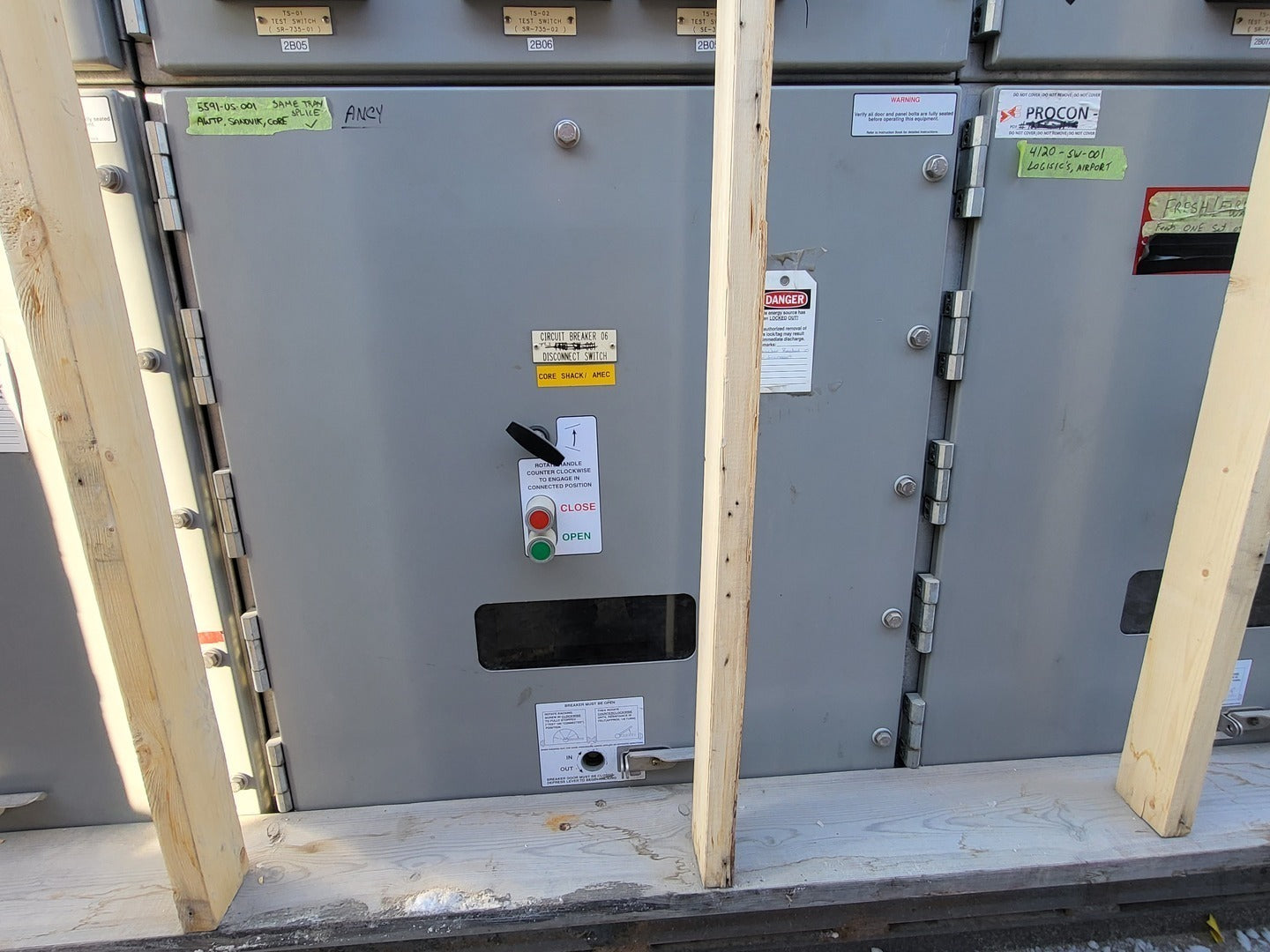

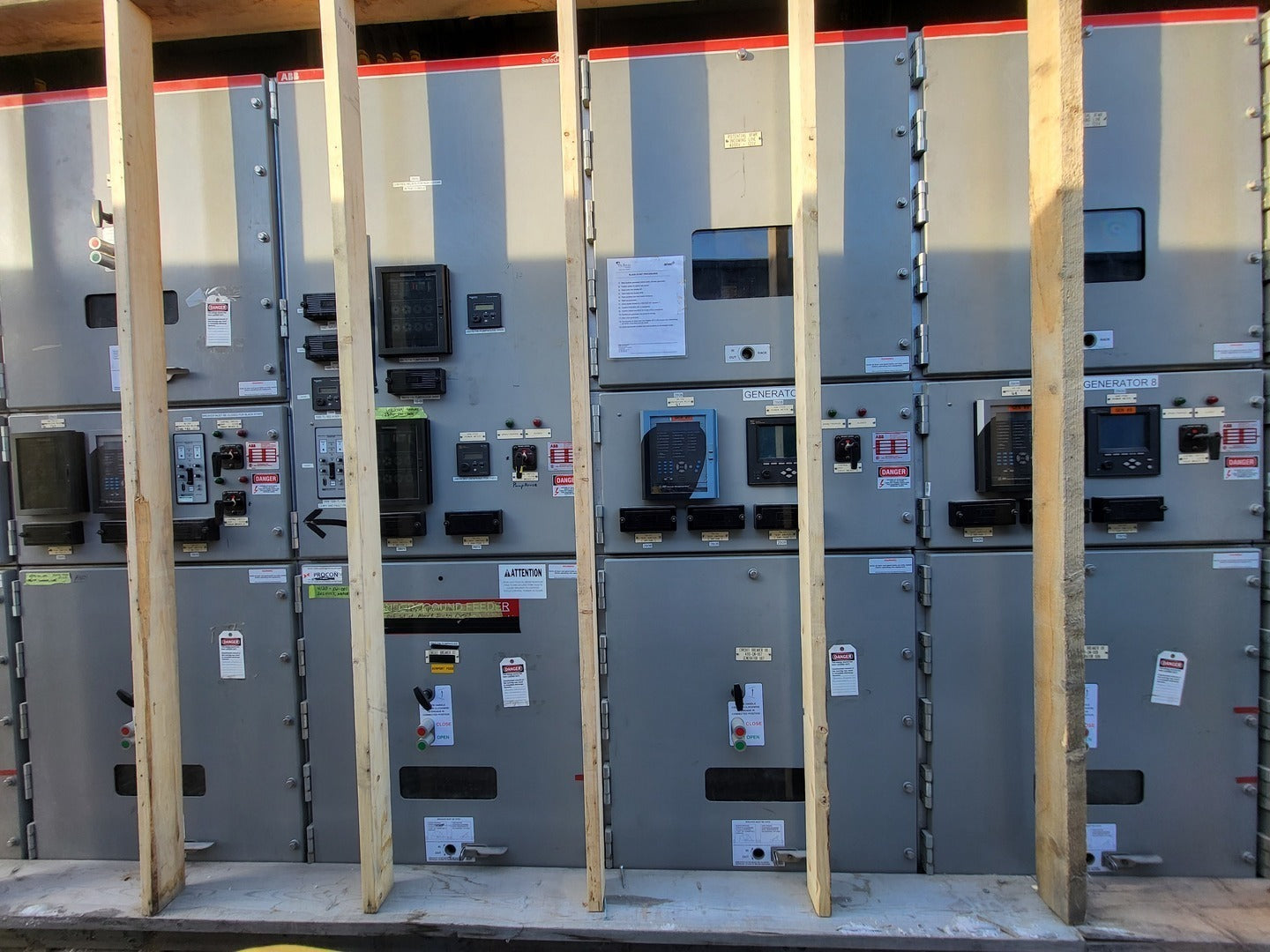

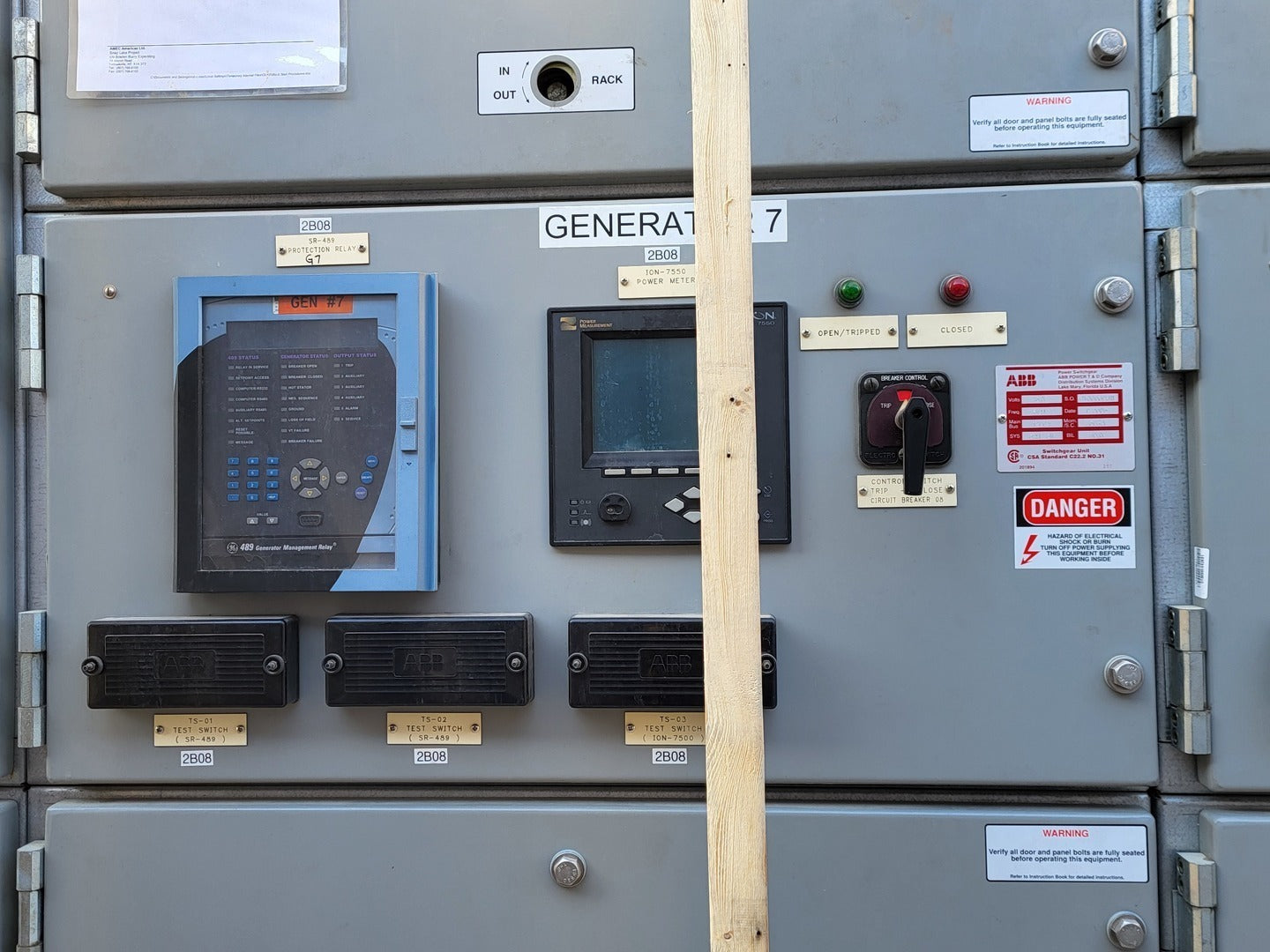

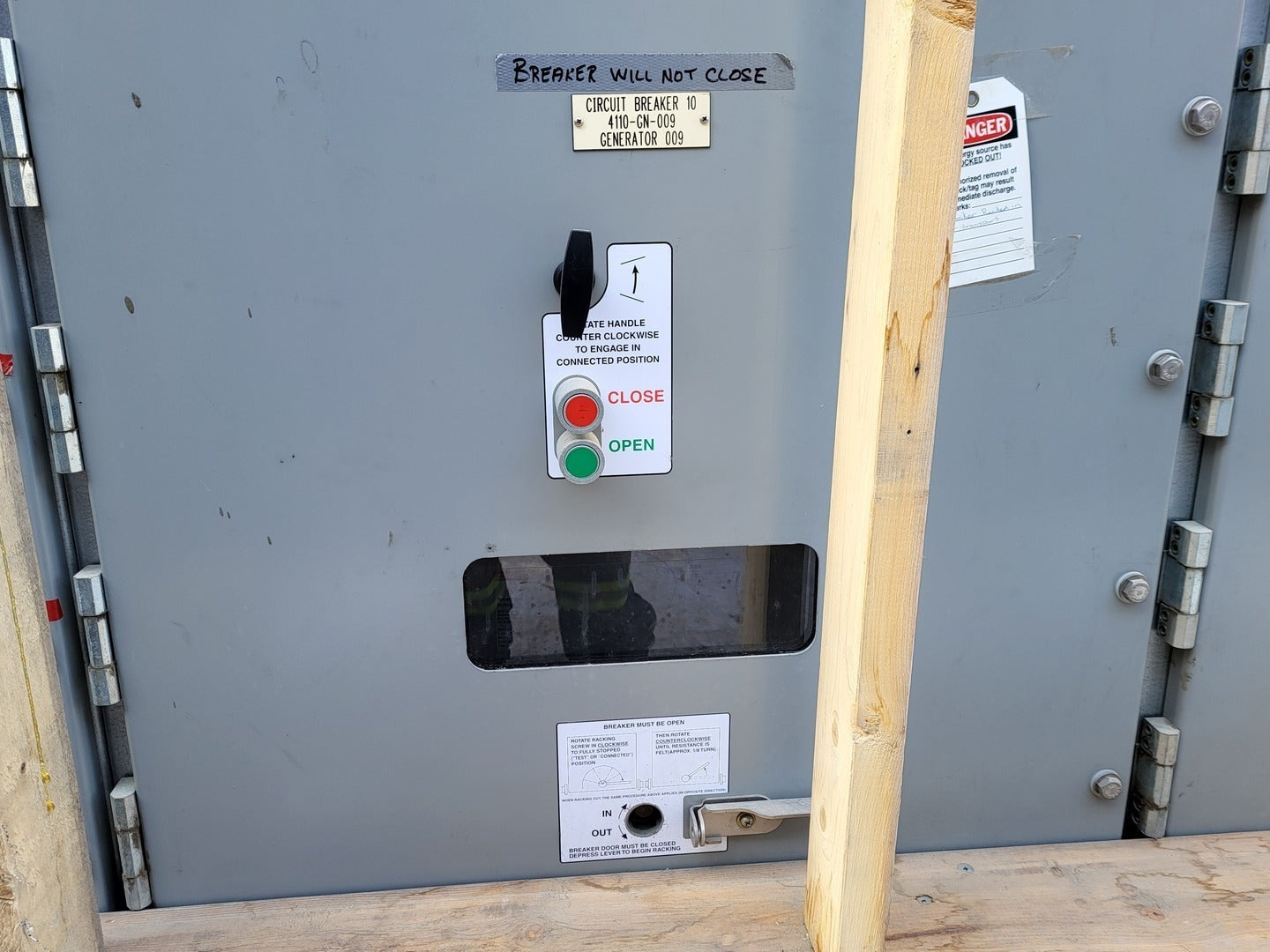

Switchgear Units: 9

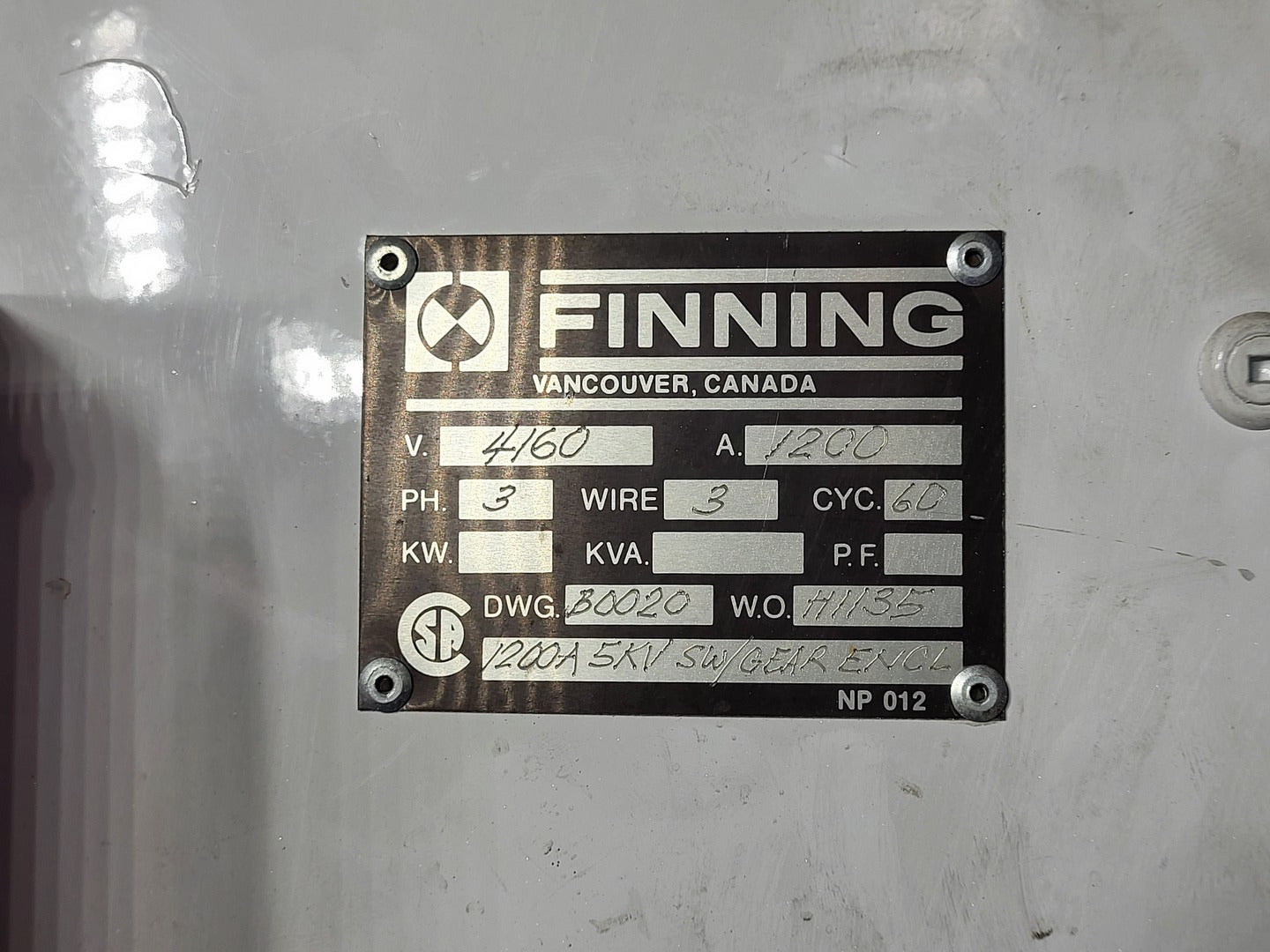

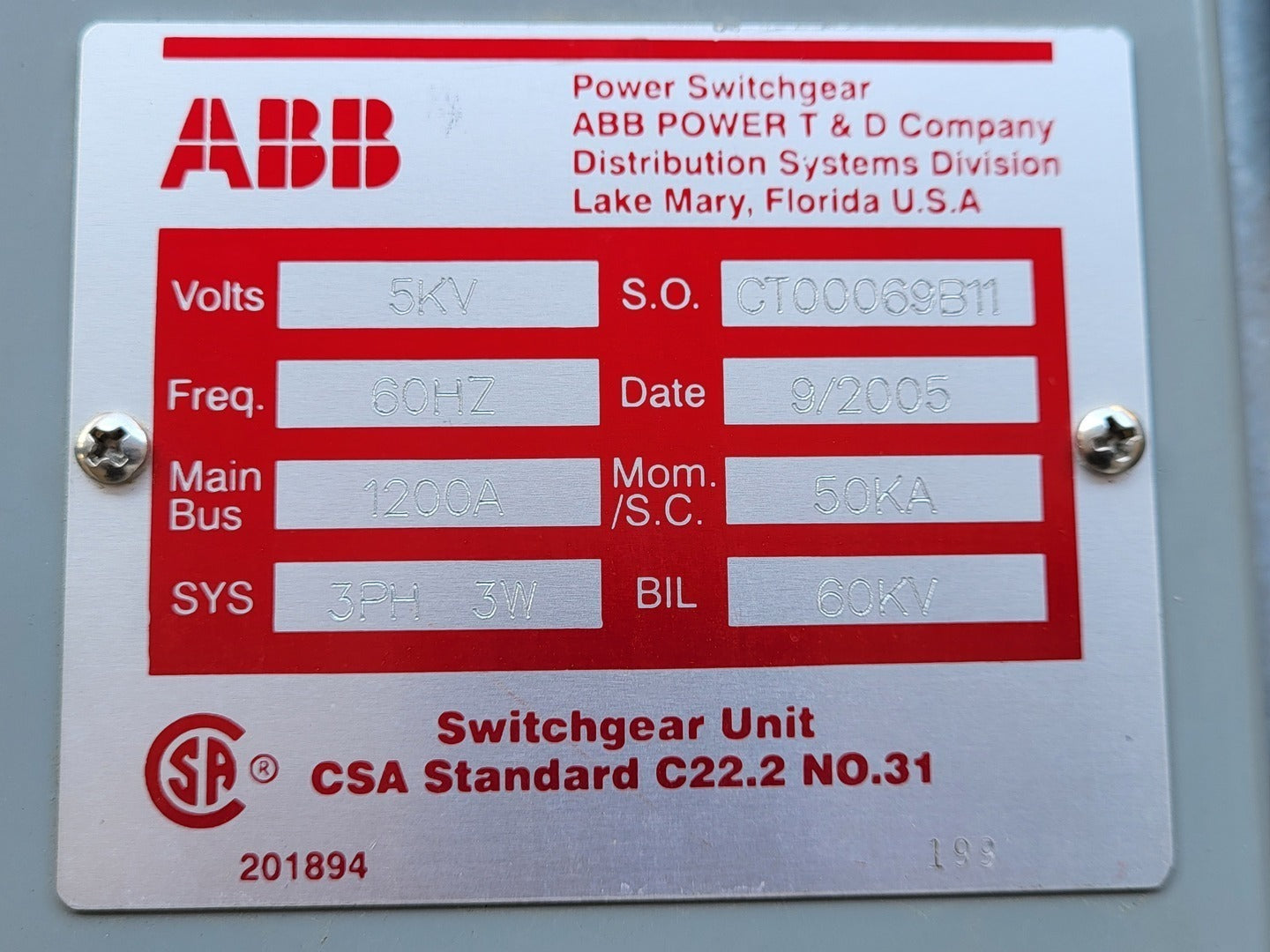

Volts: 5 kV
Phase: 3
Main Bus: 1200 A
Short Circuit: 50 kA
Additional Equipment
-

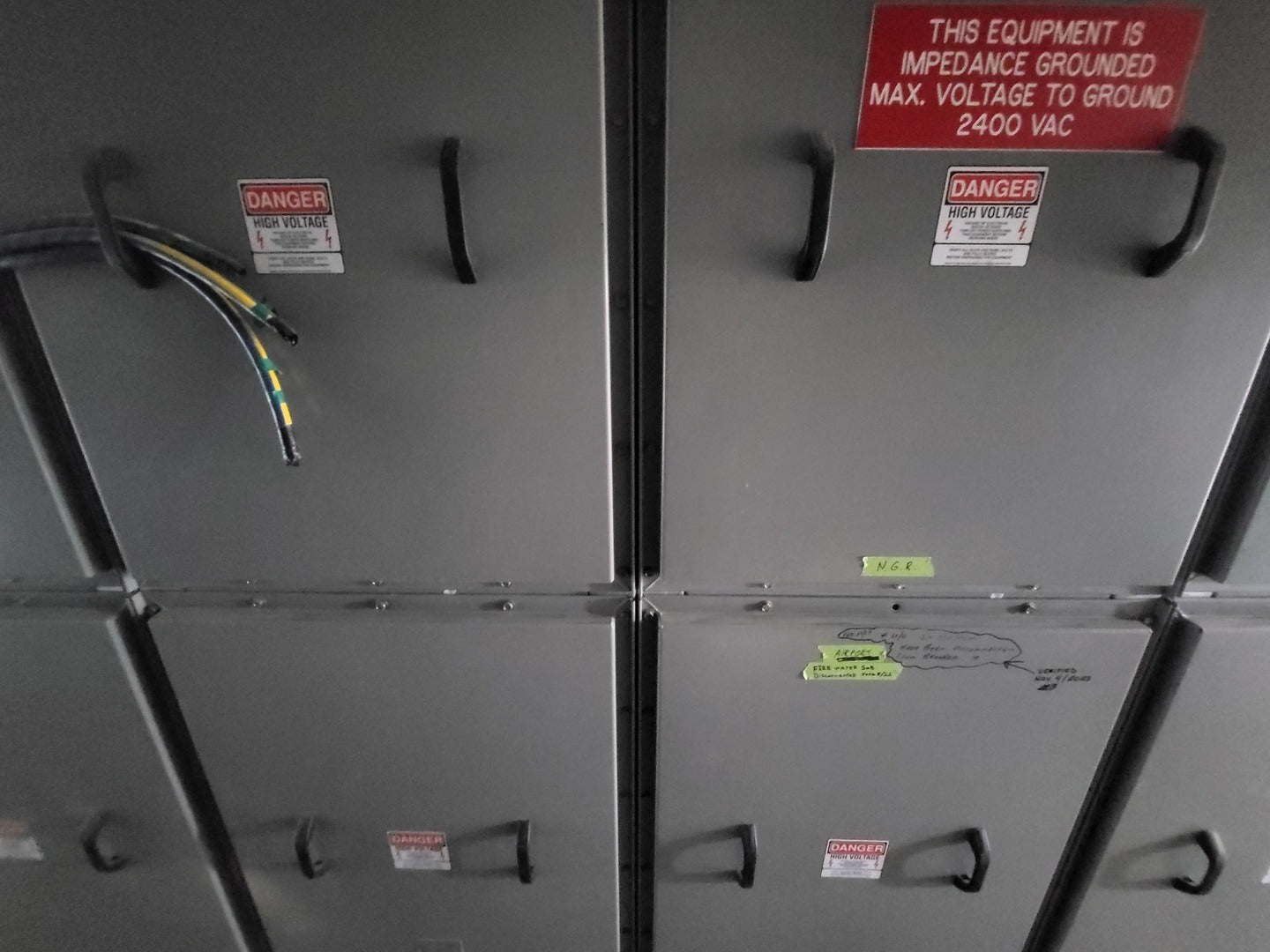

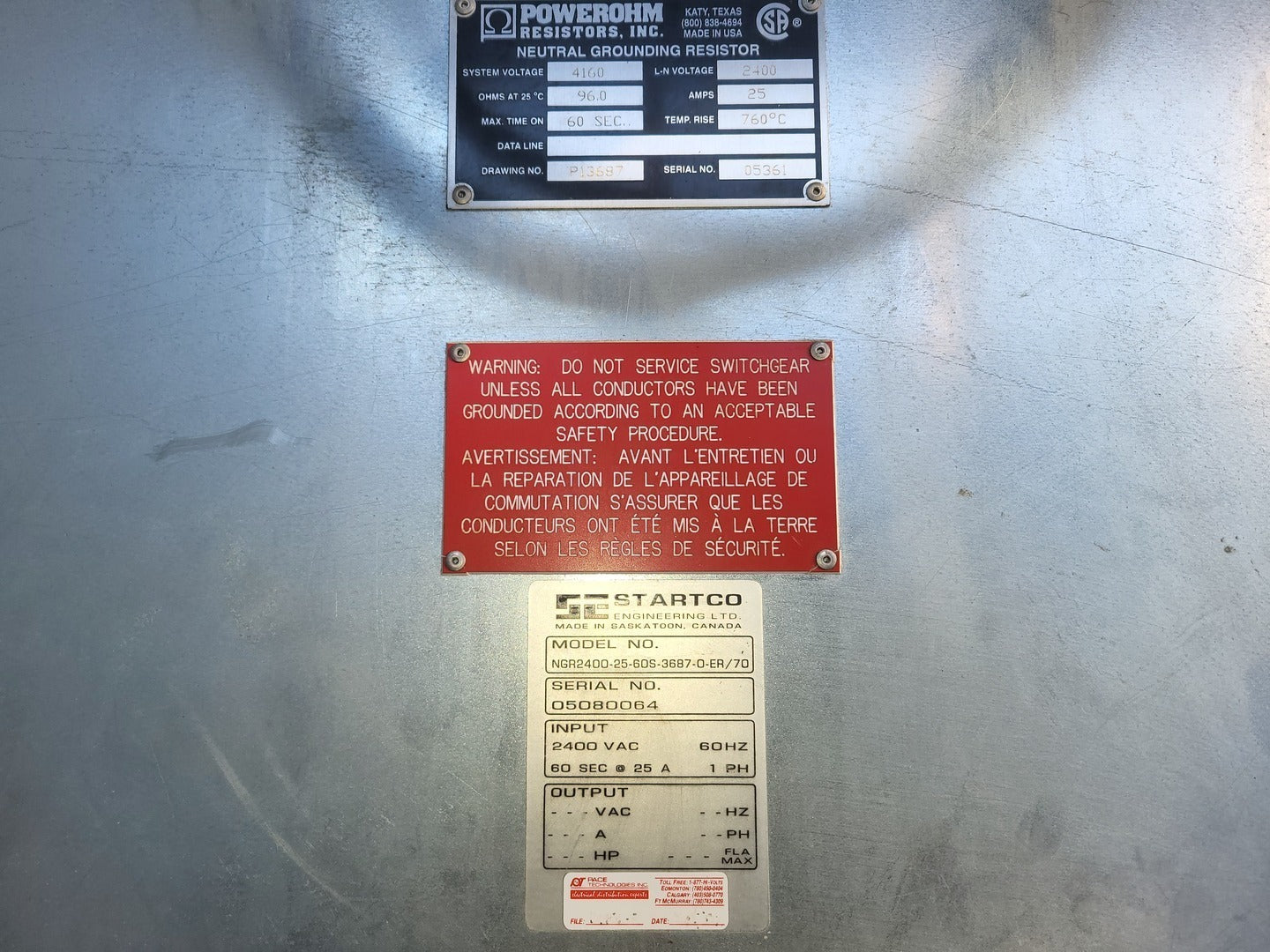

Neutral Grounding Resistor: 4160 Sys. Voltage, 2400 Line Voltage
-

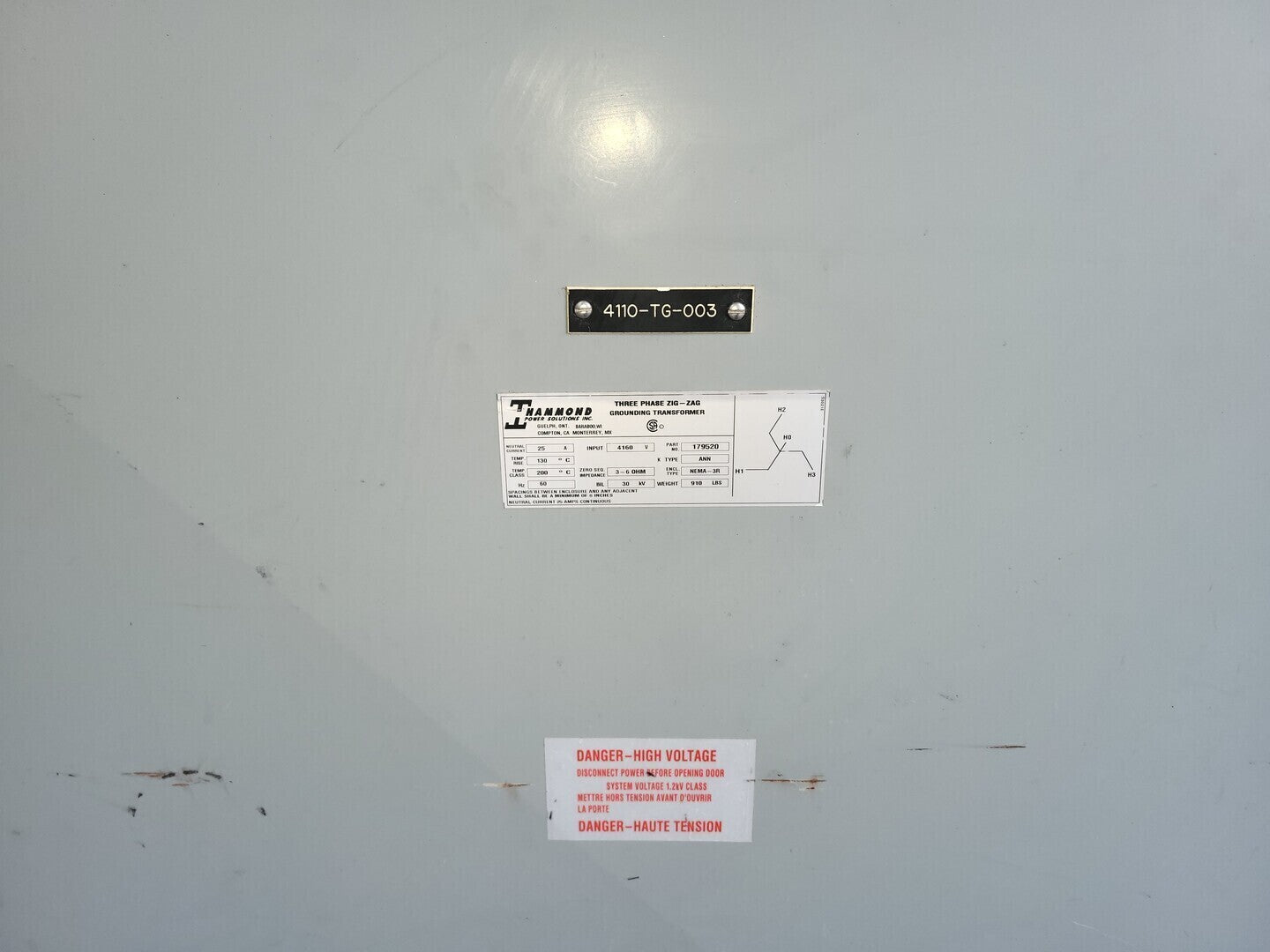

Grounding Transformer: Input 4160 Voltage, 25 A Neutral Current
-

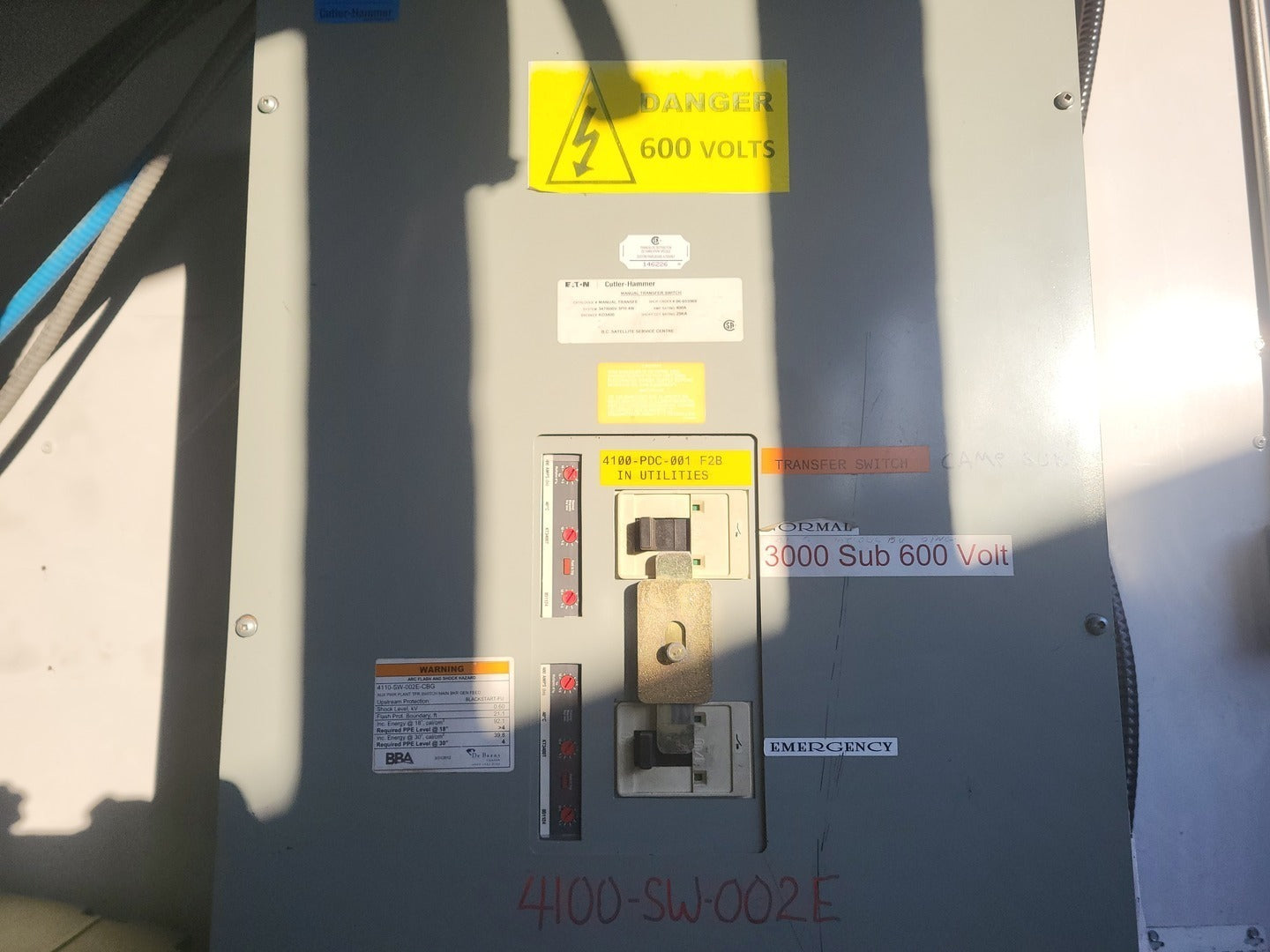

Transfer Switch
-

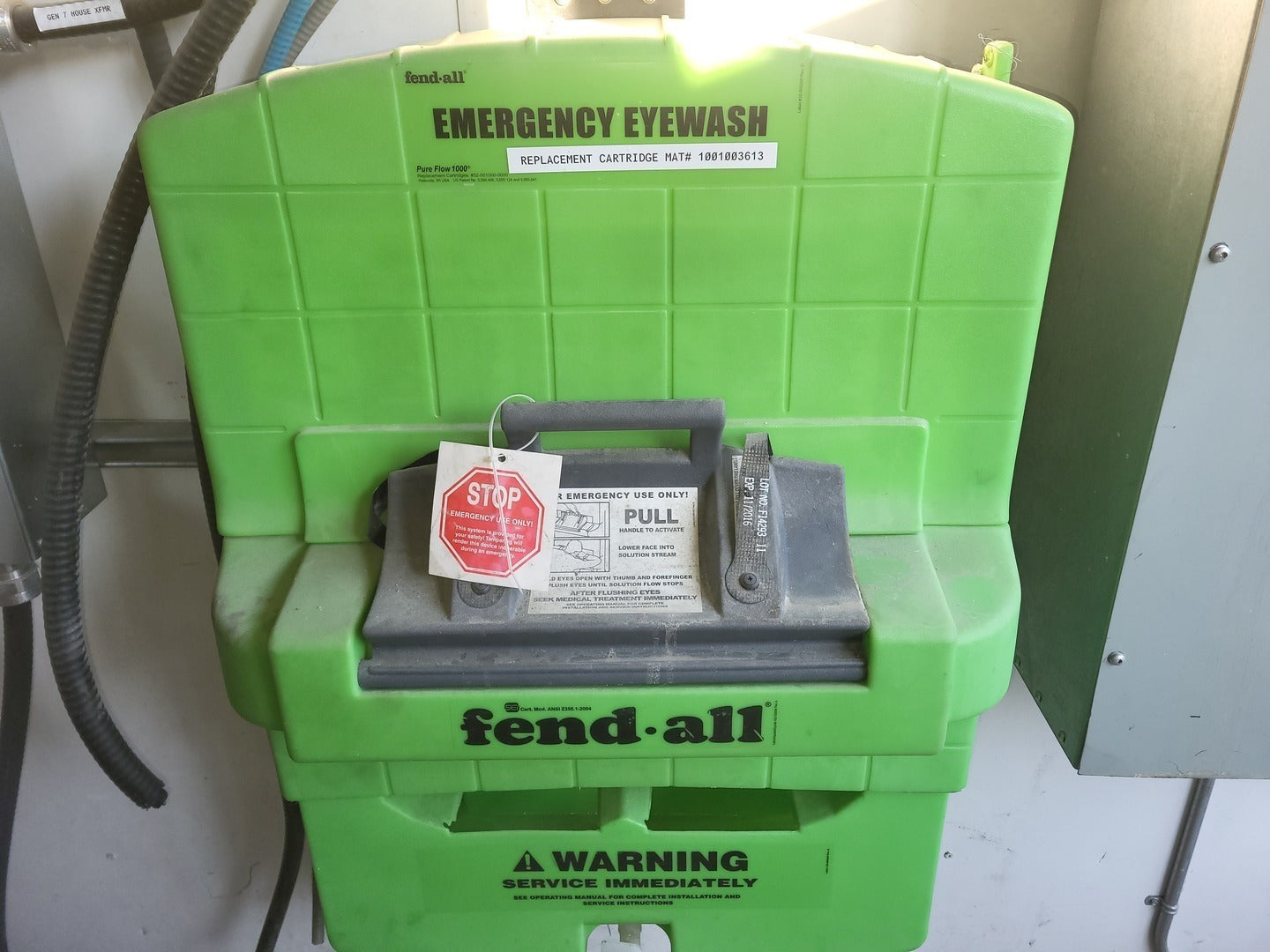

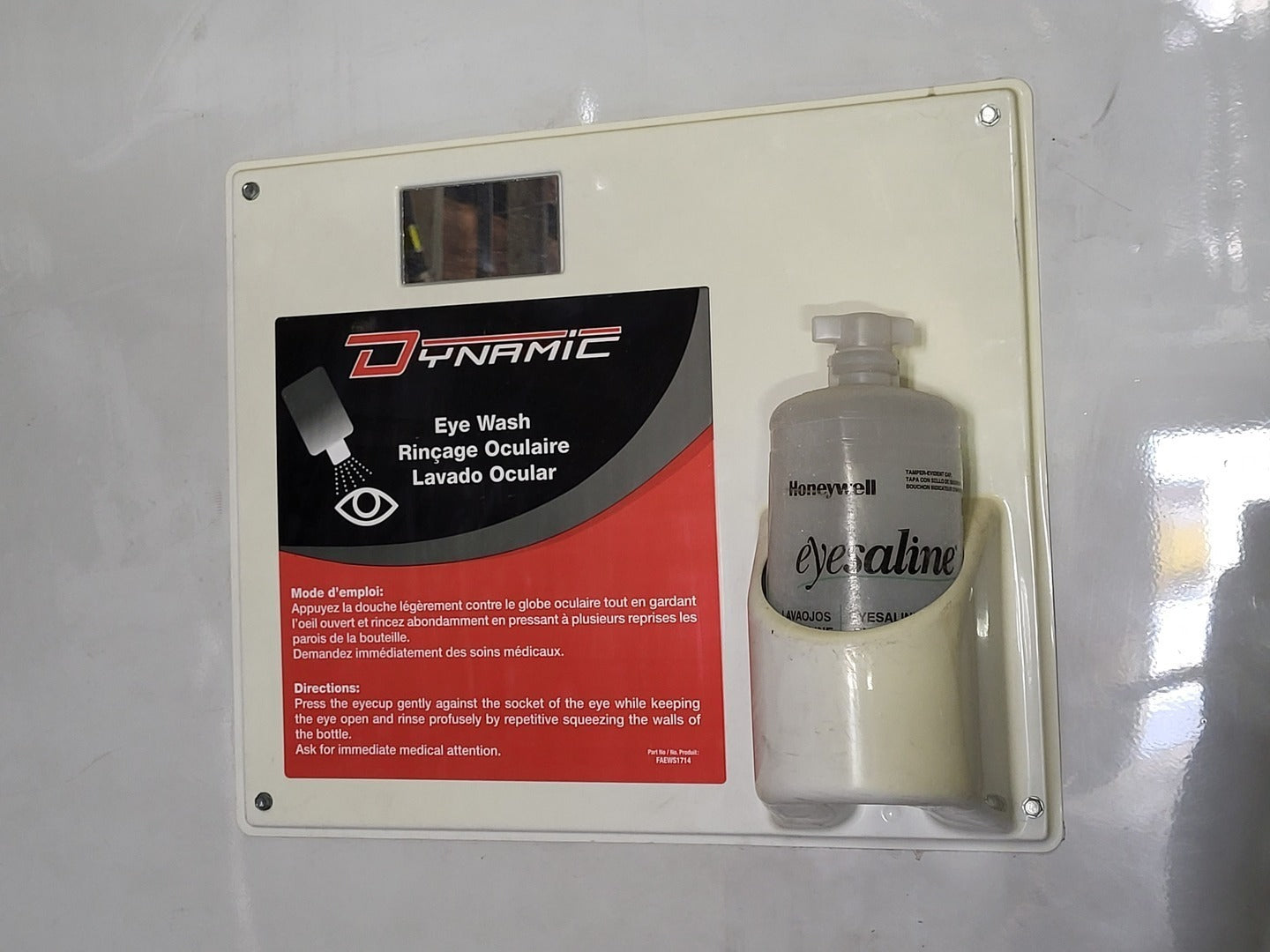

Emergency Eye Wash Station
-

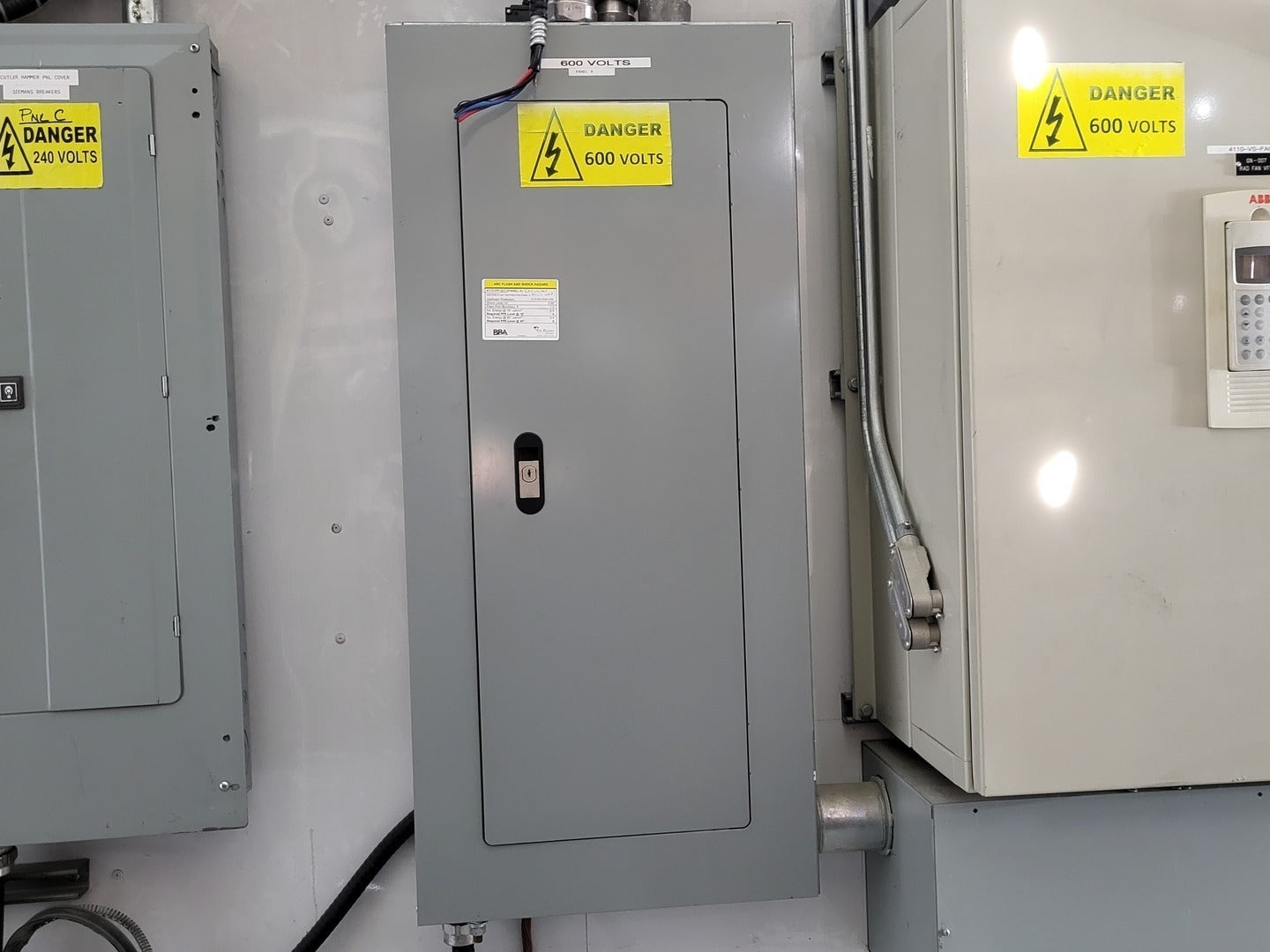

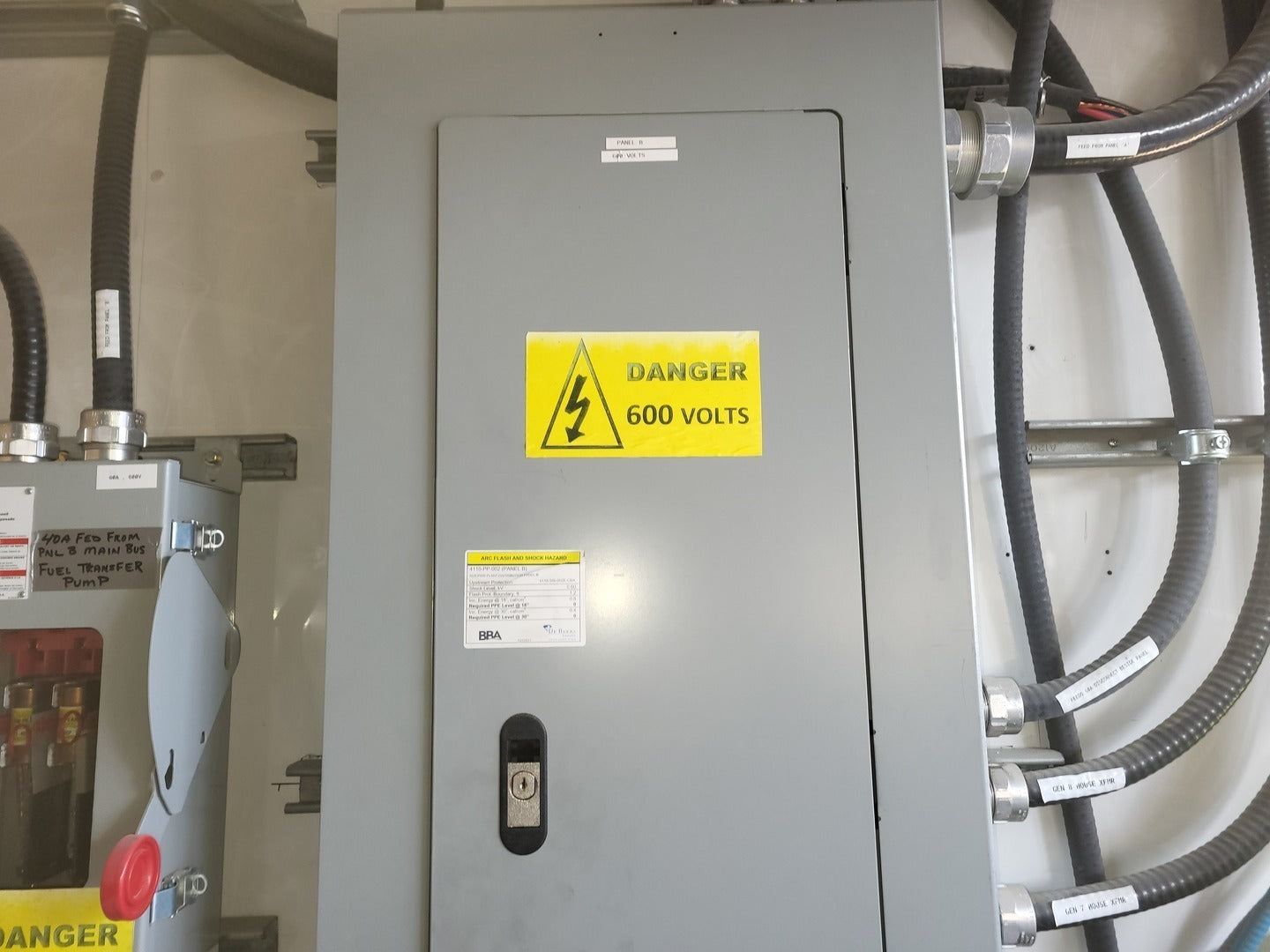

Breaker Panelboard: 42 circuits, 600 V
-

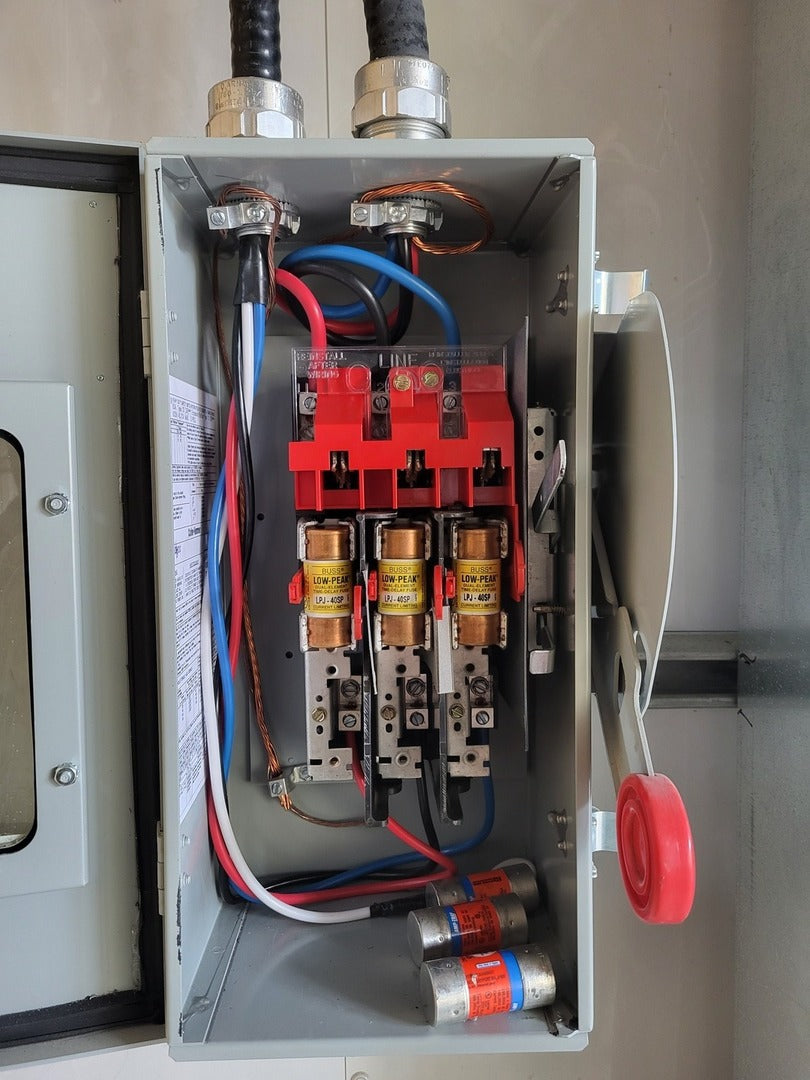

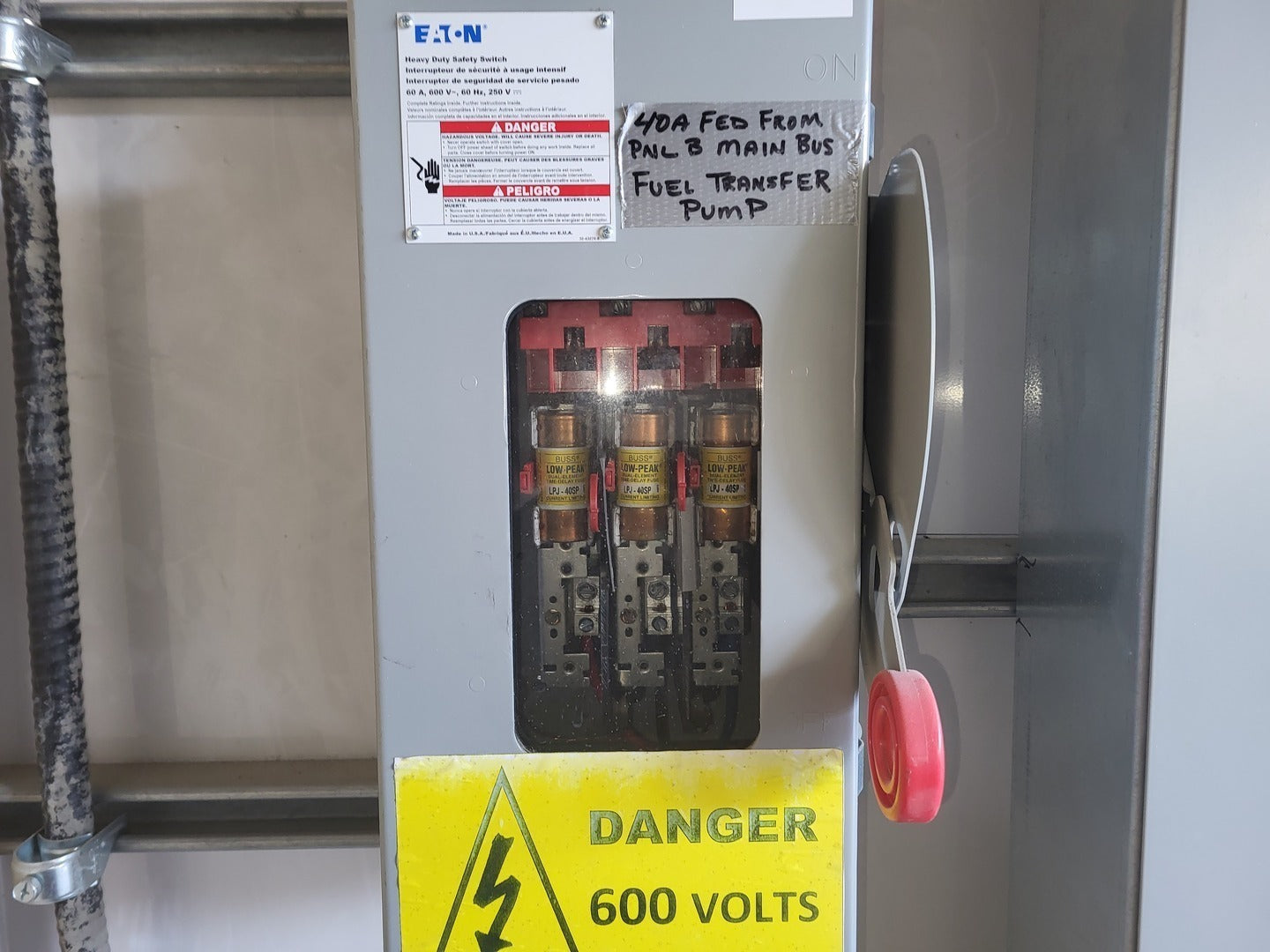

Heavy Duty Safety Switch: 60 A, 600V
Left Side - Main Powerhouse
-

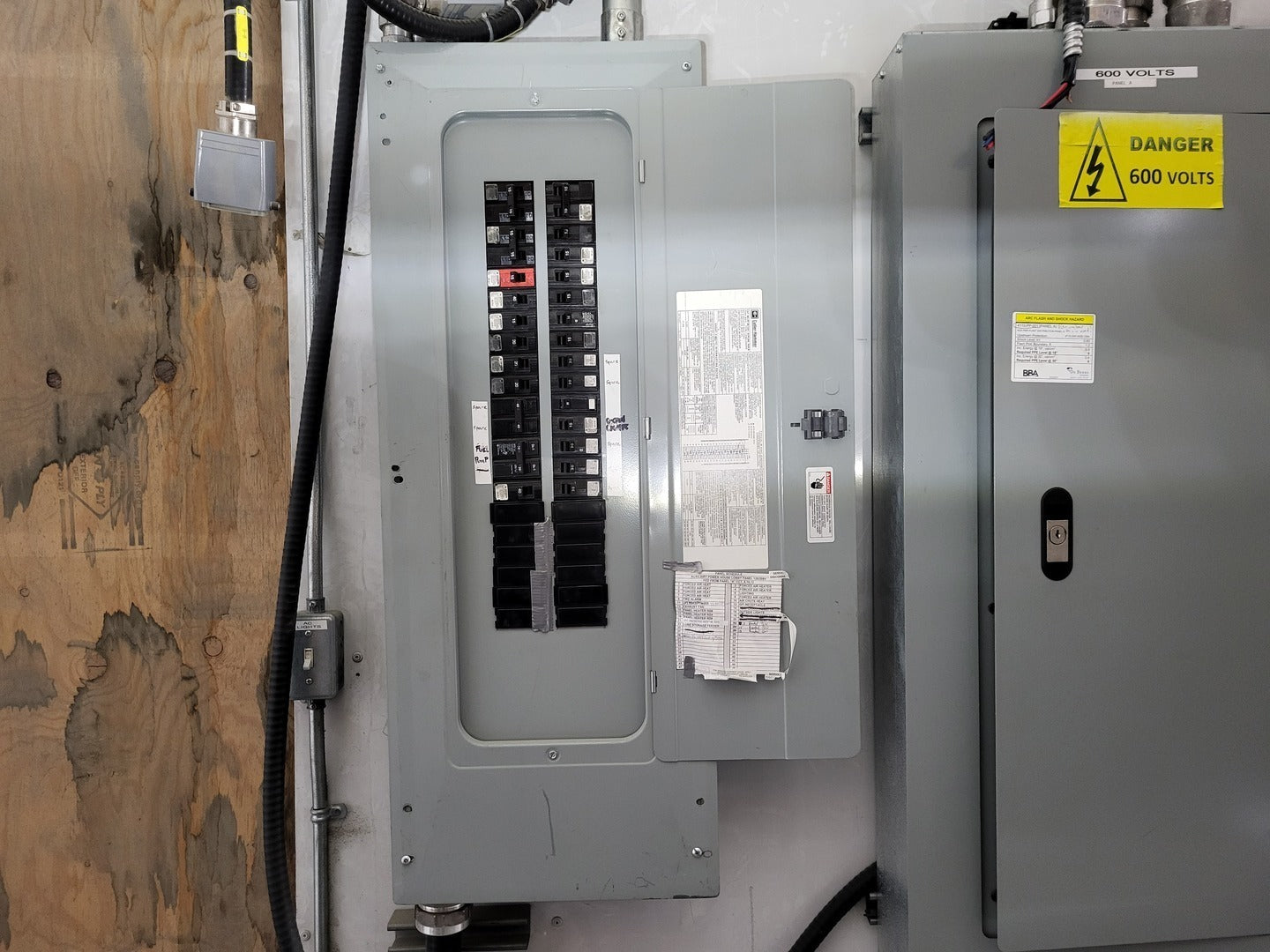

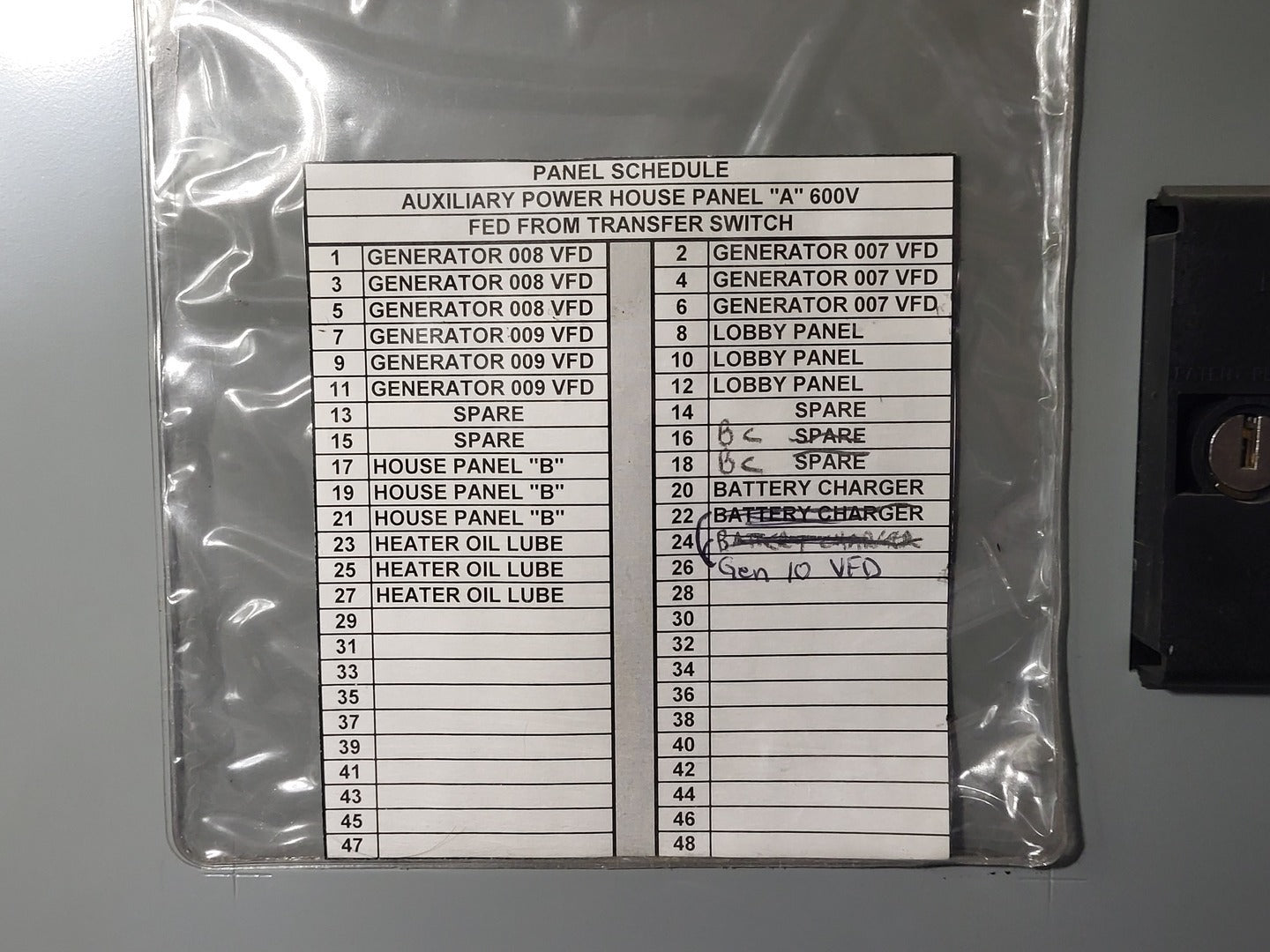

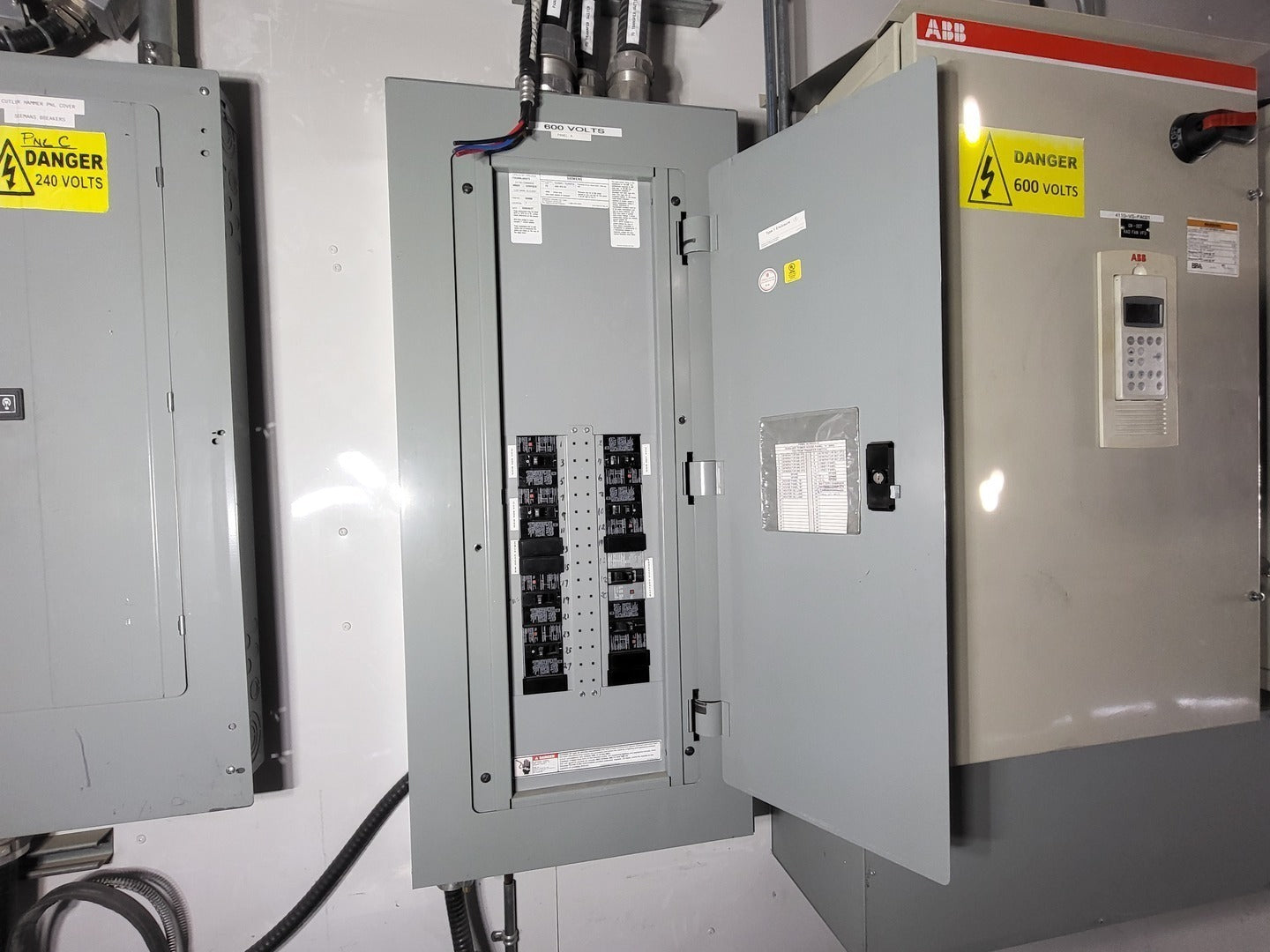

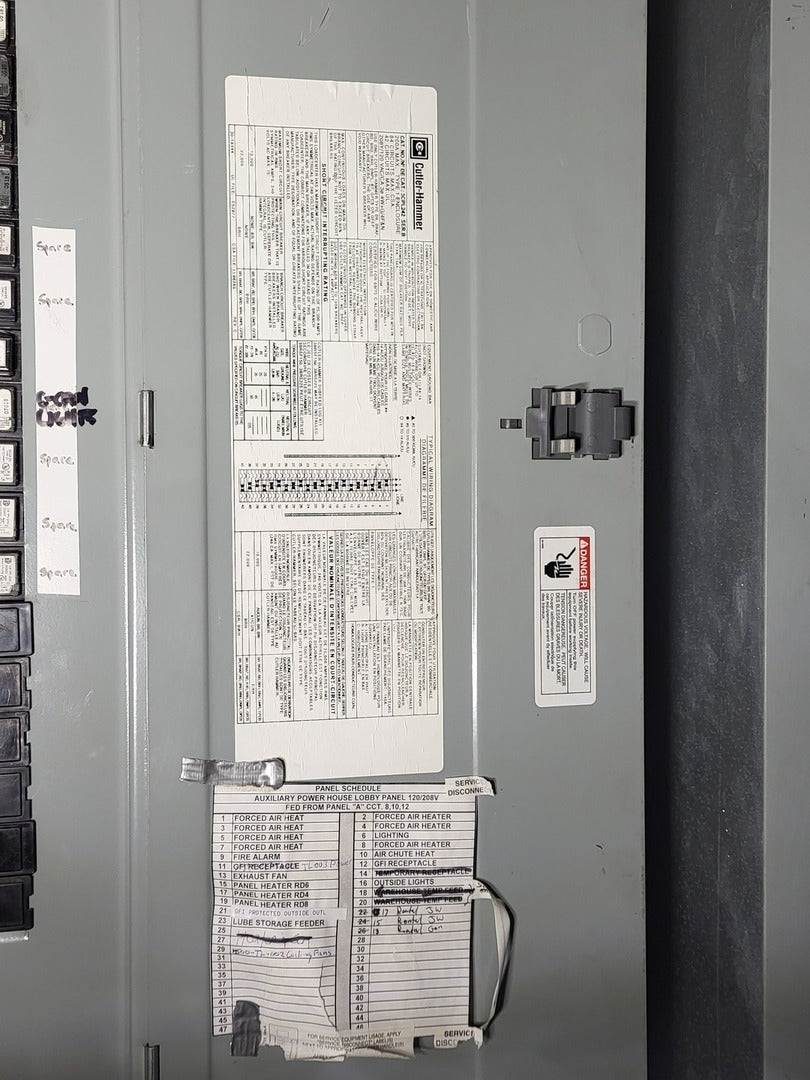

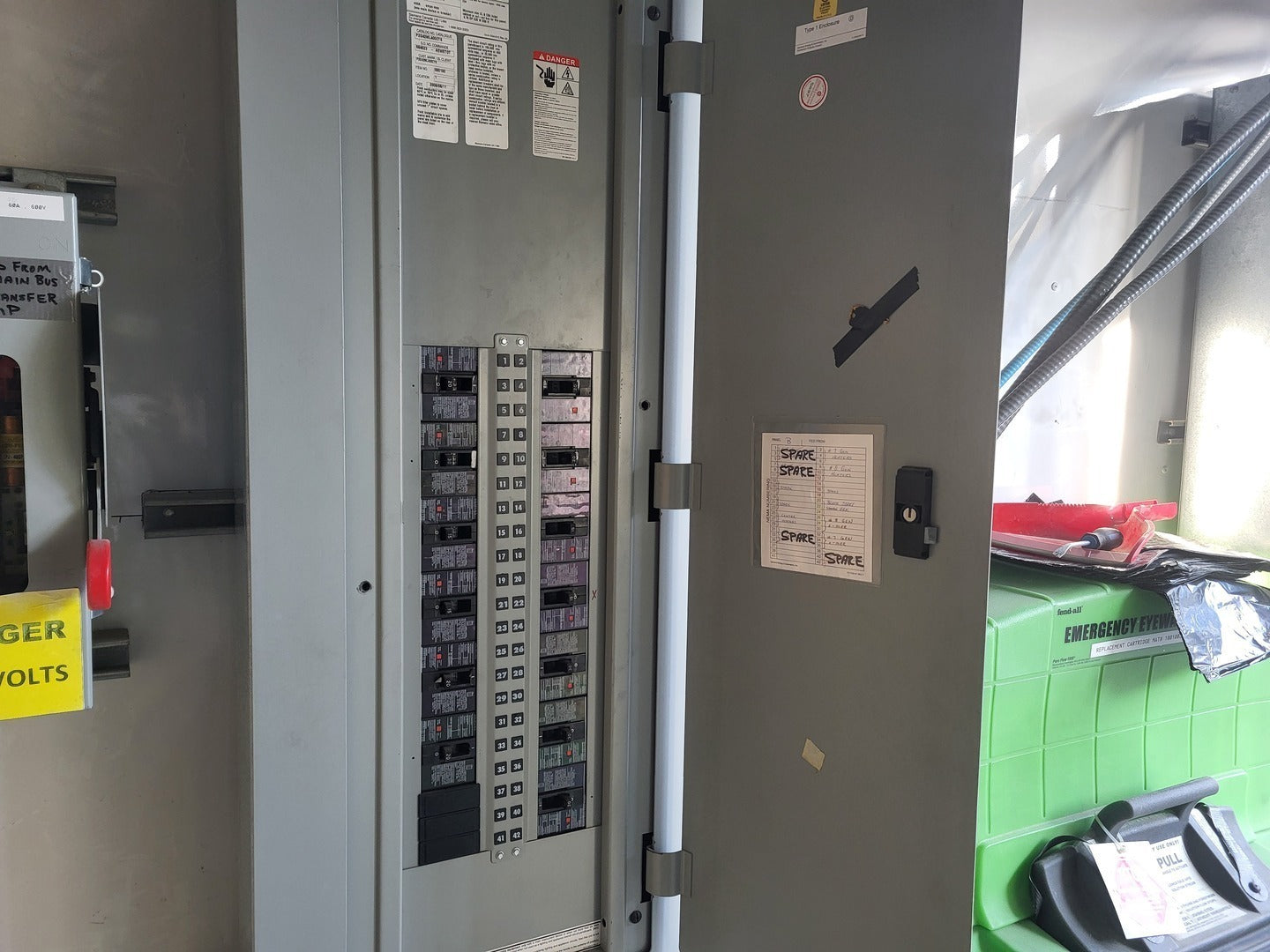

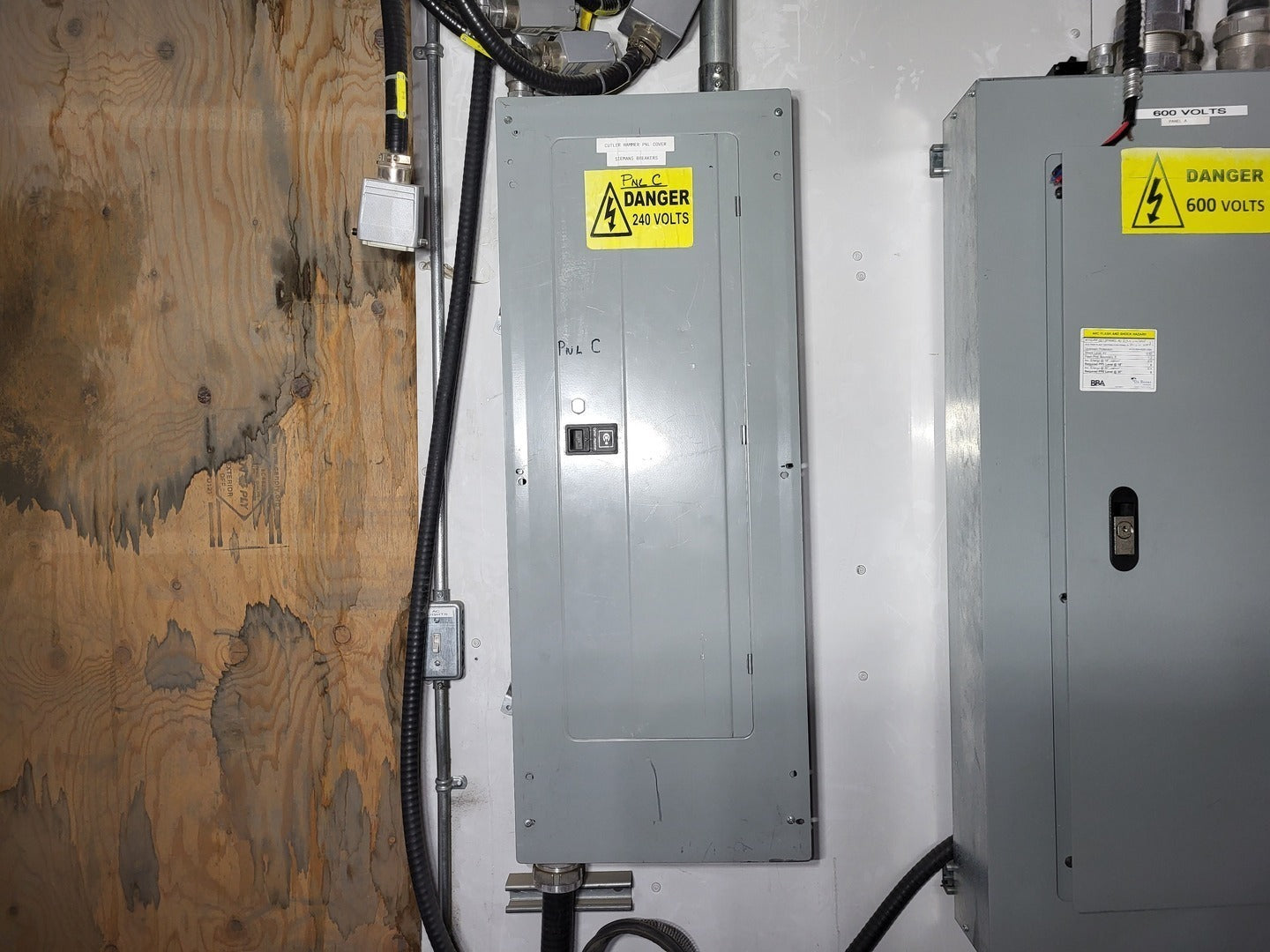

200 A Breaker Panelboard
-

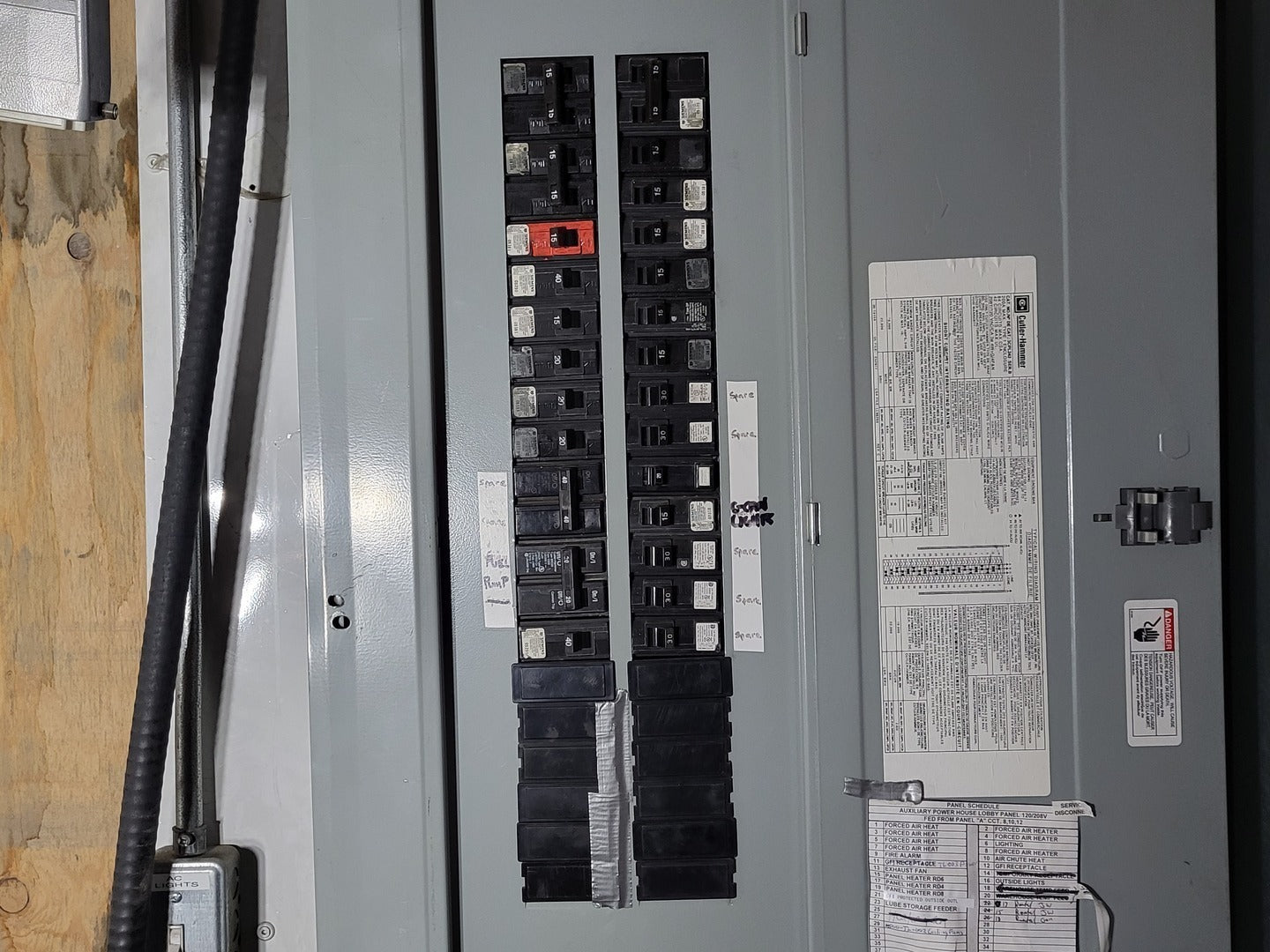

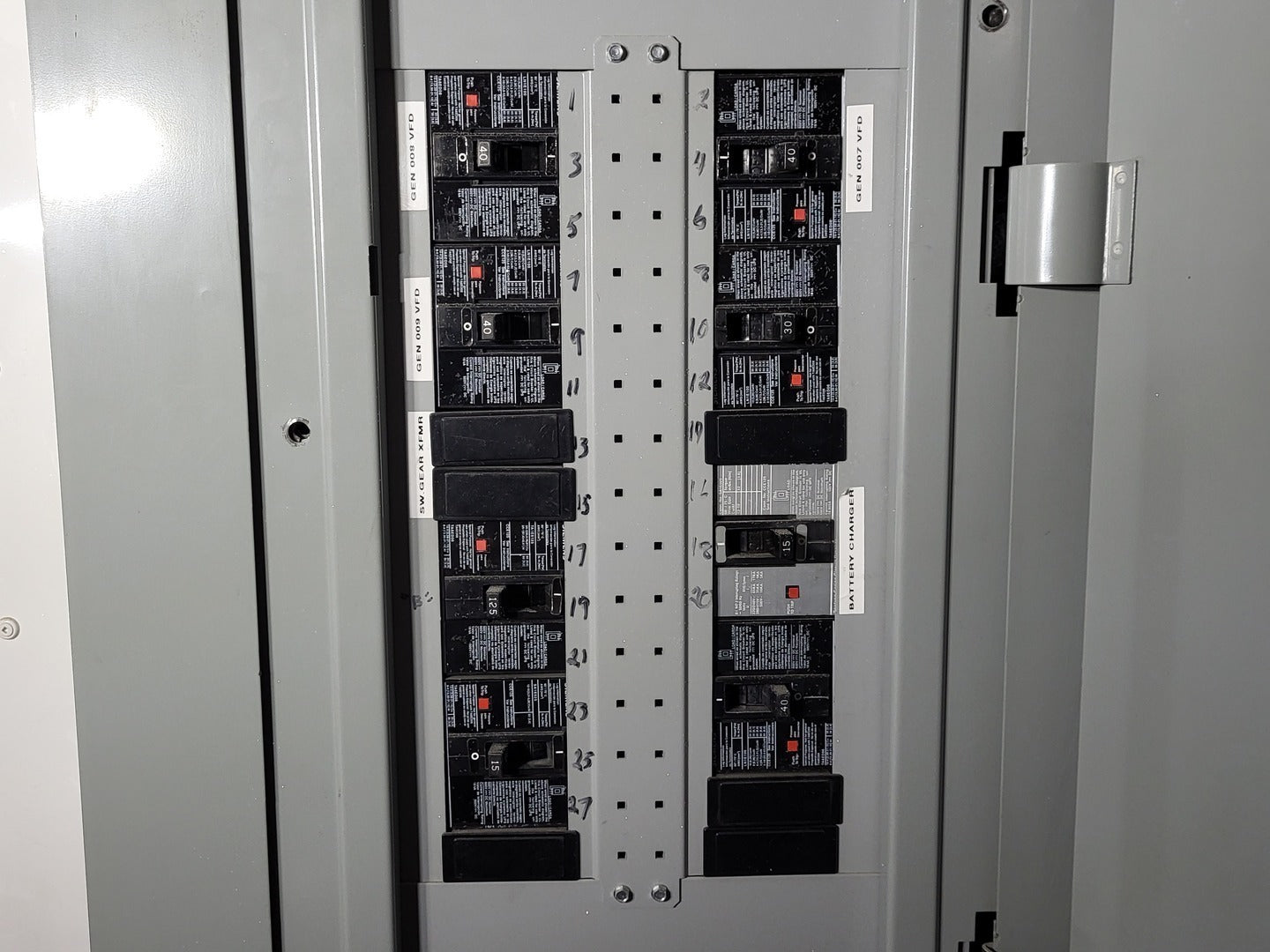

400 A Breaker Panelboard
-

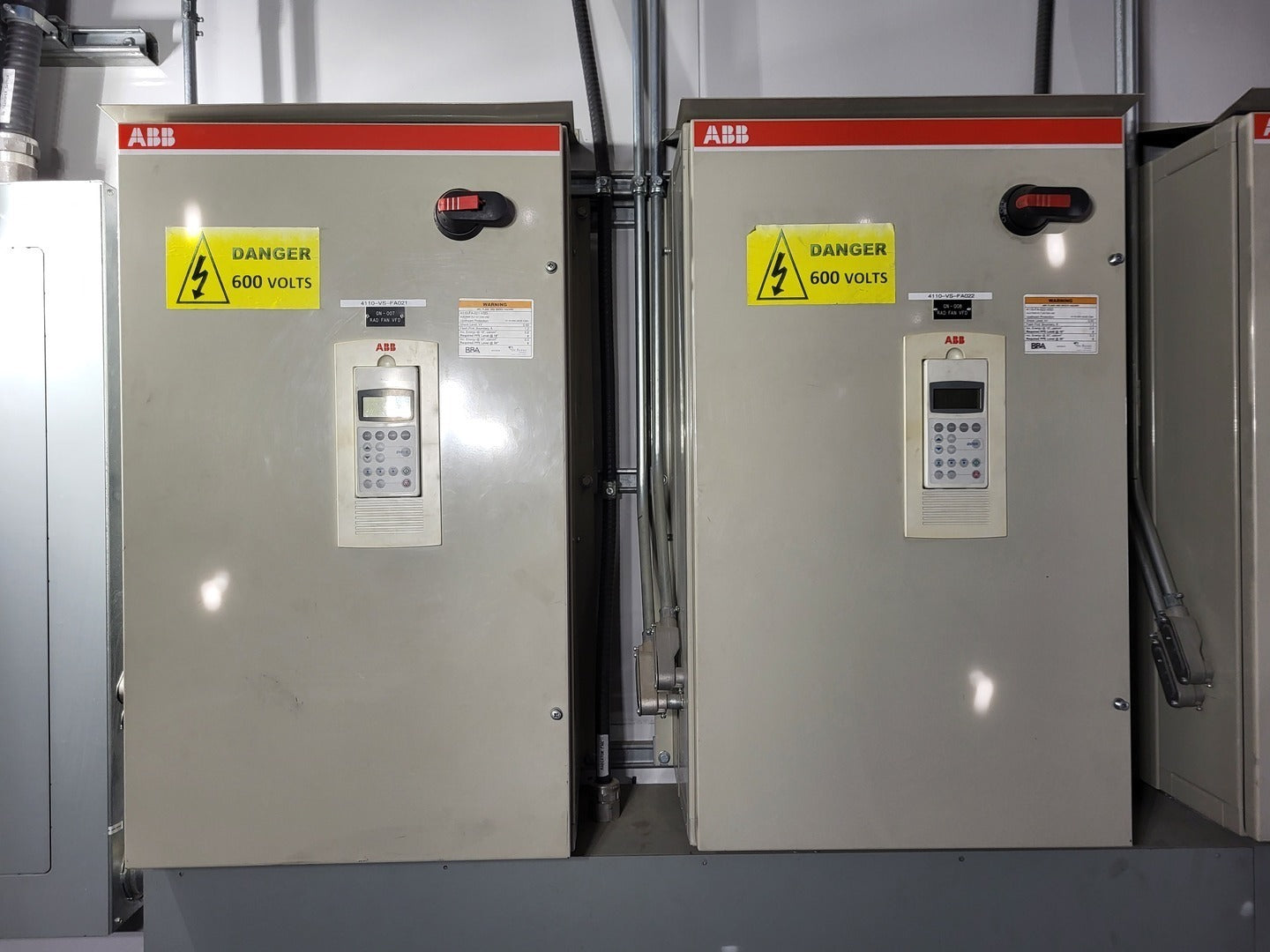

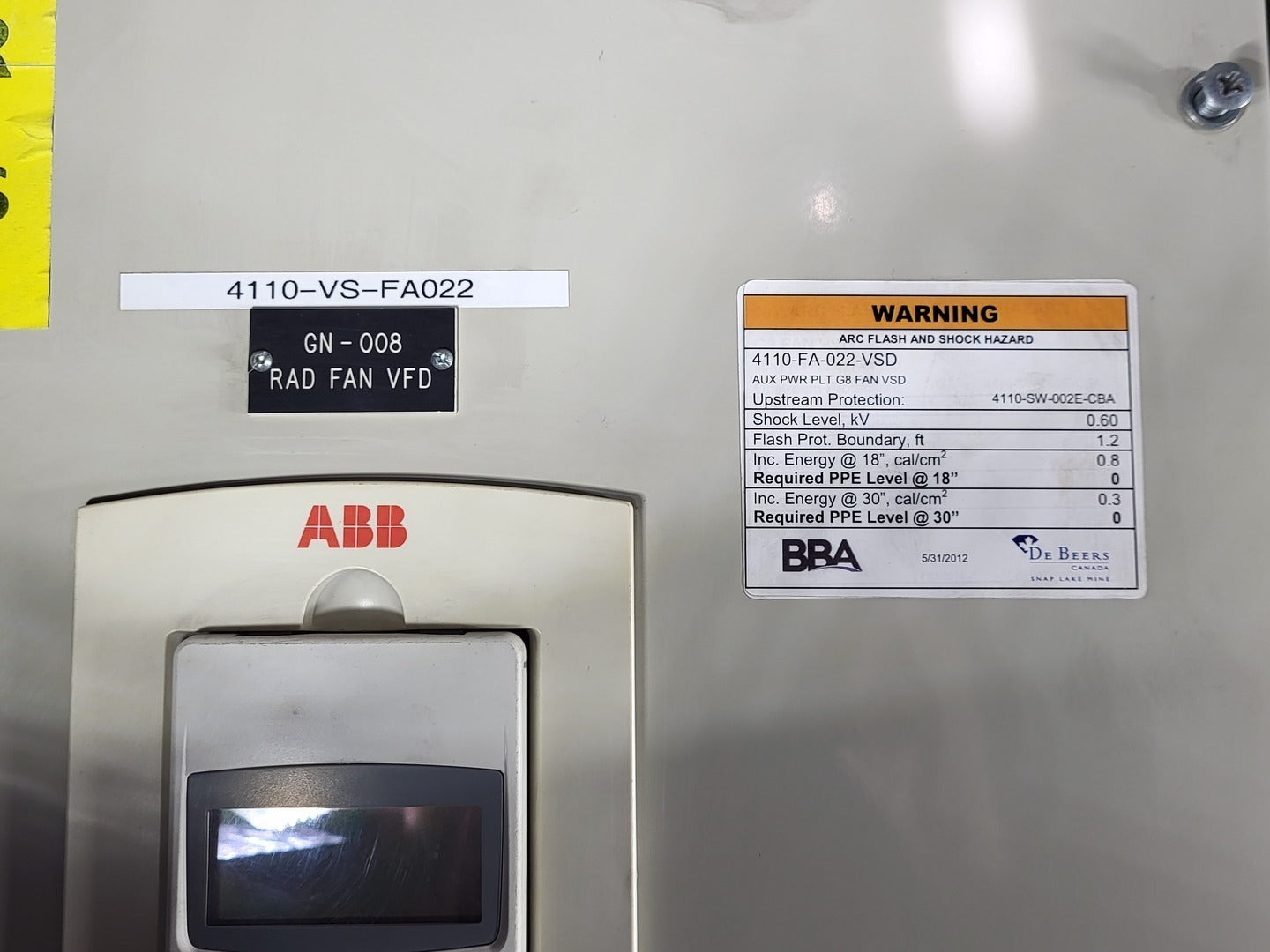

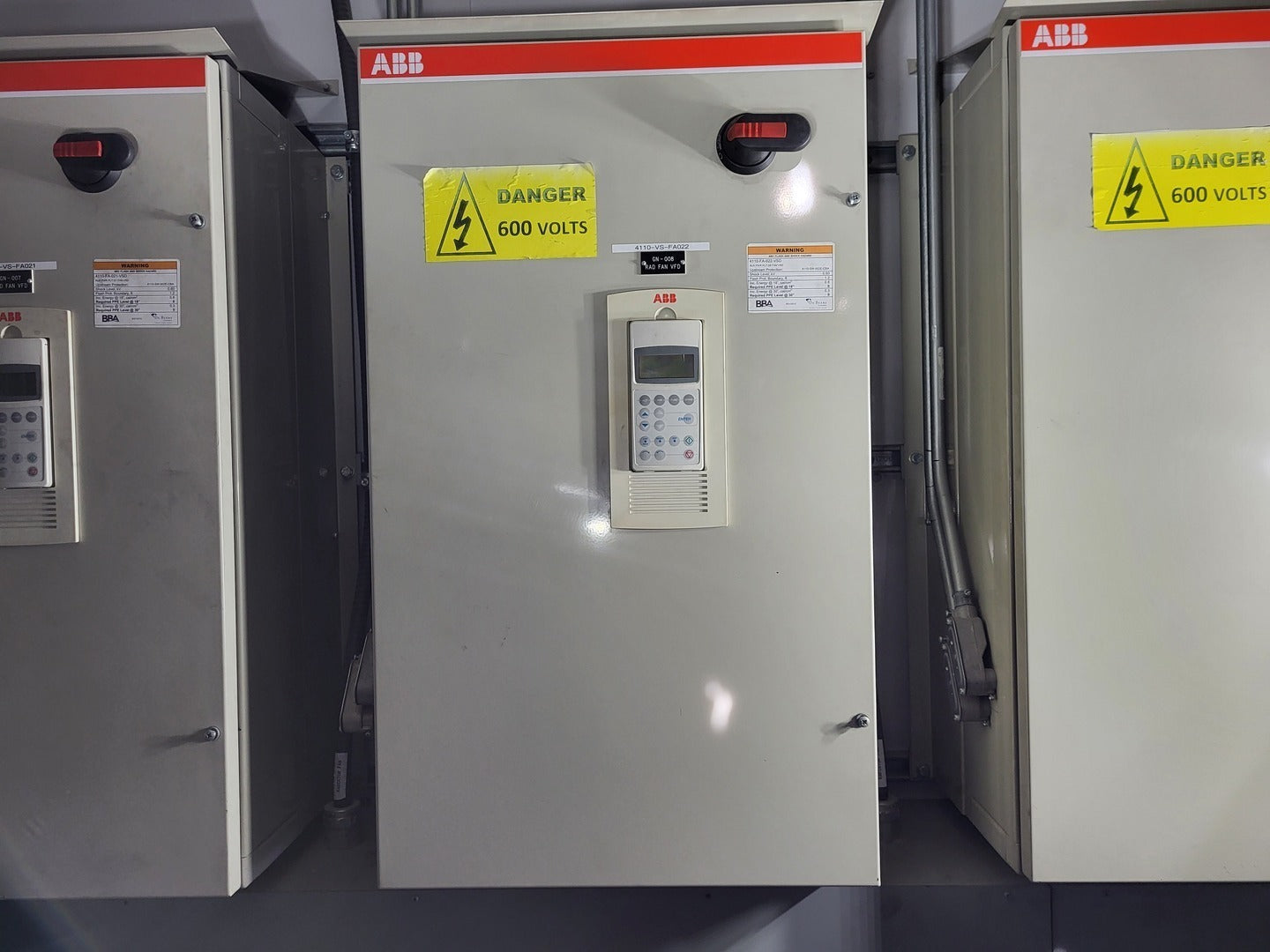

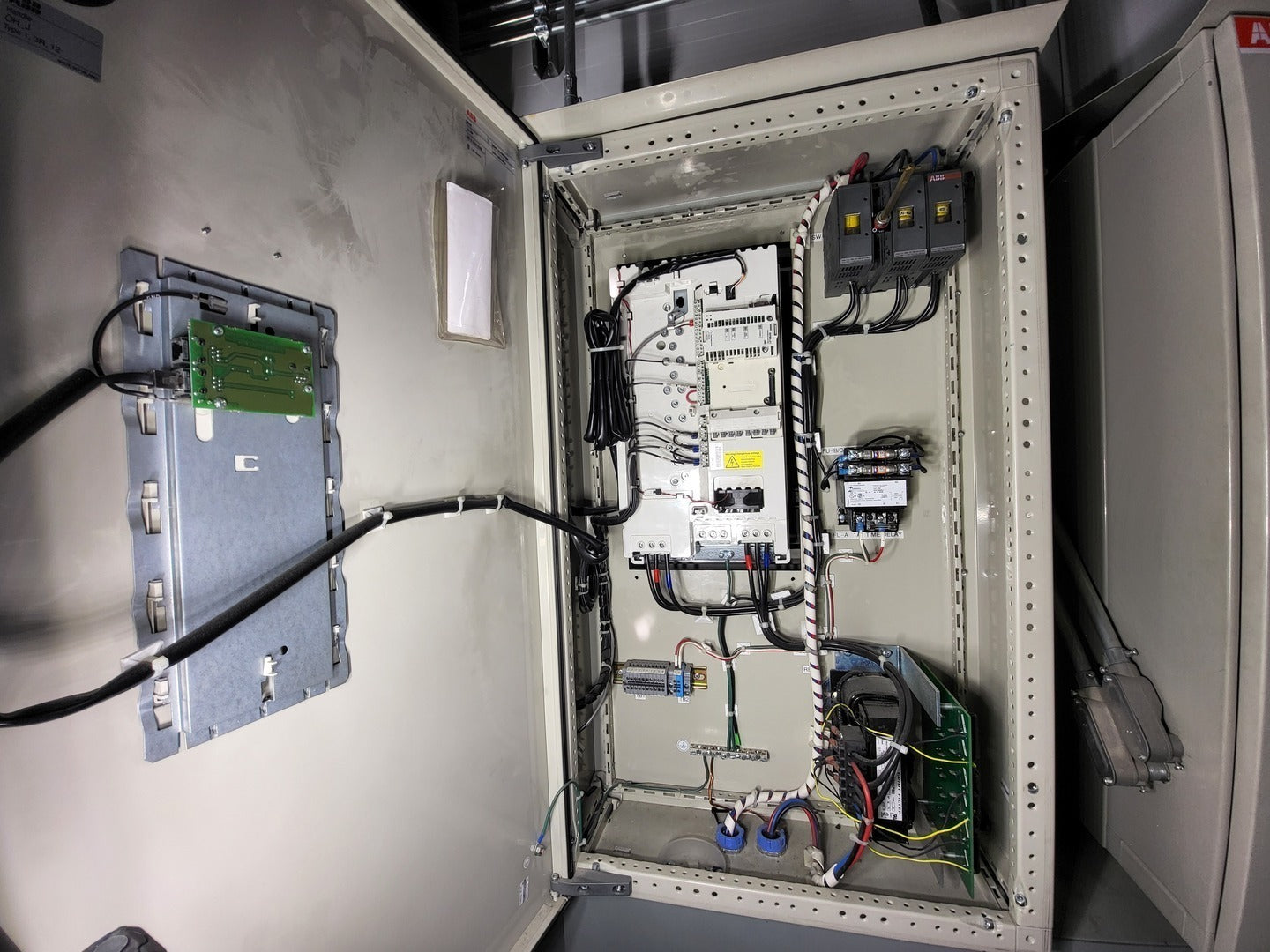

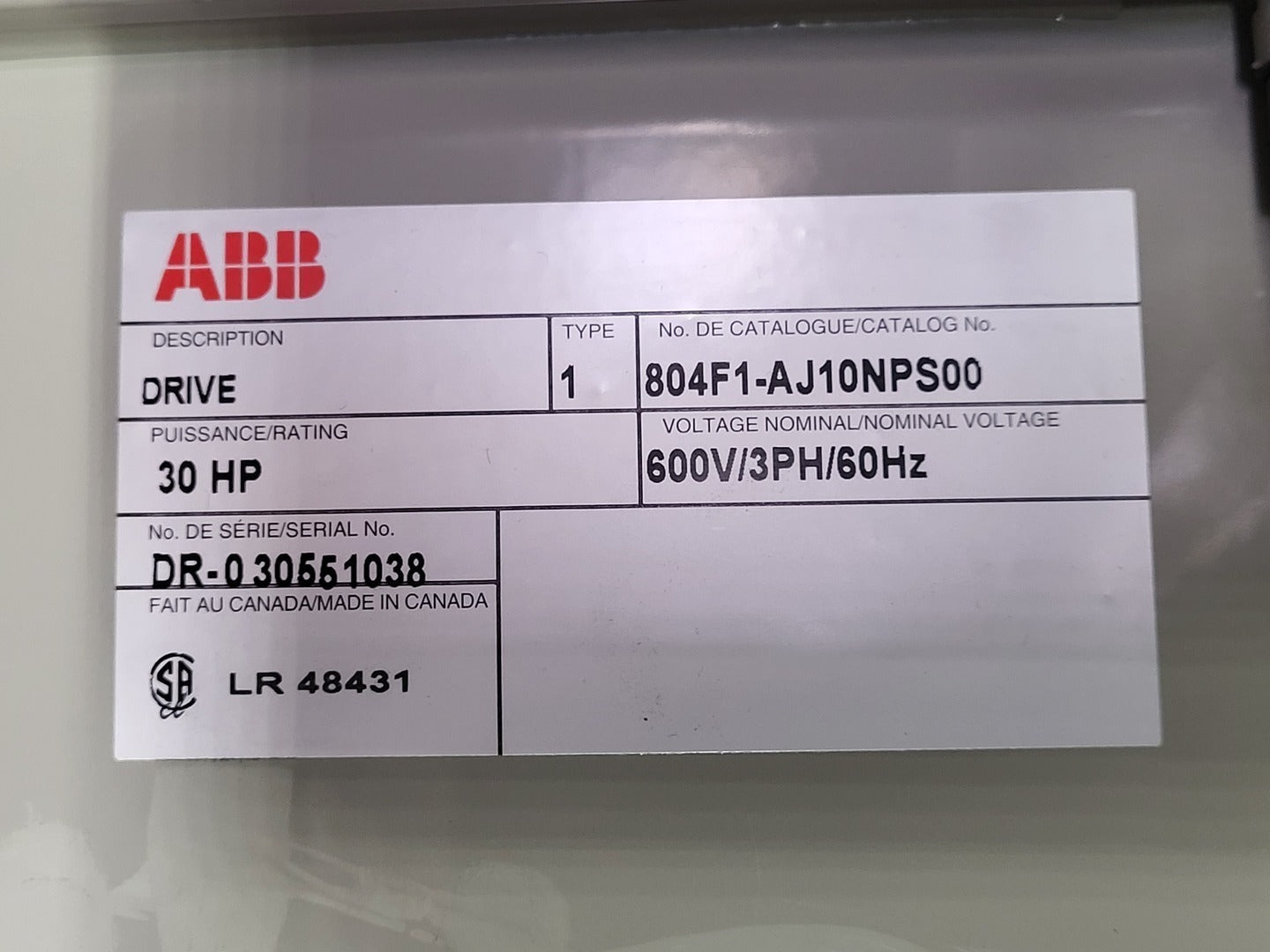

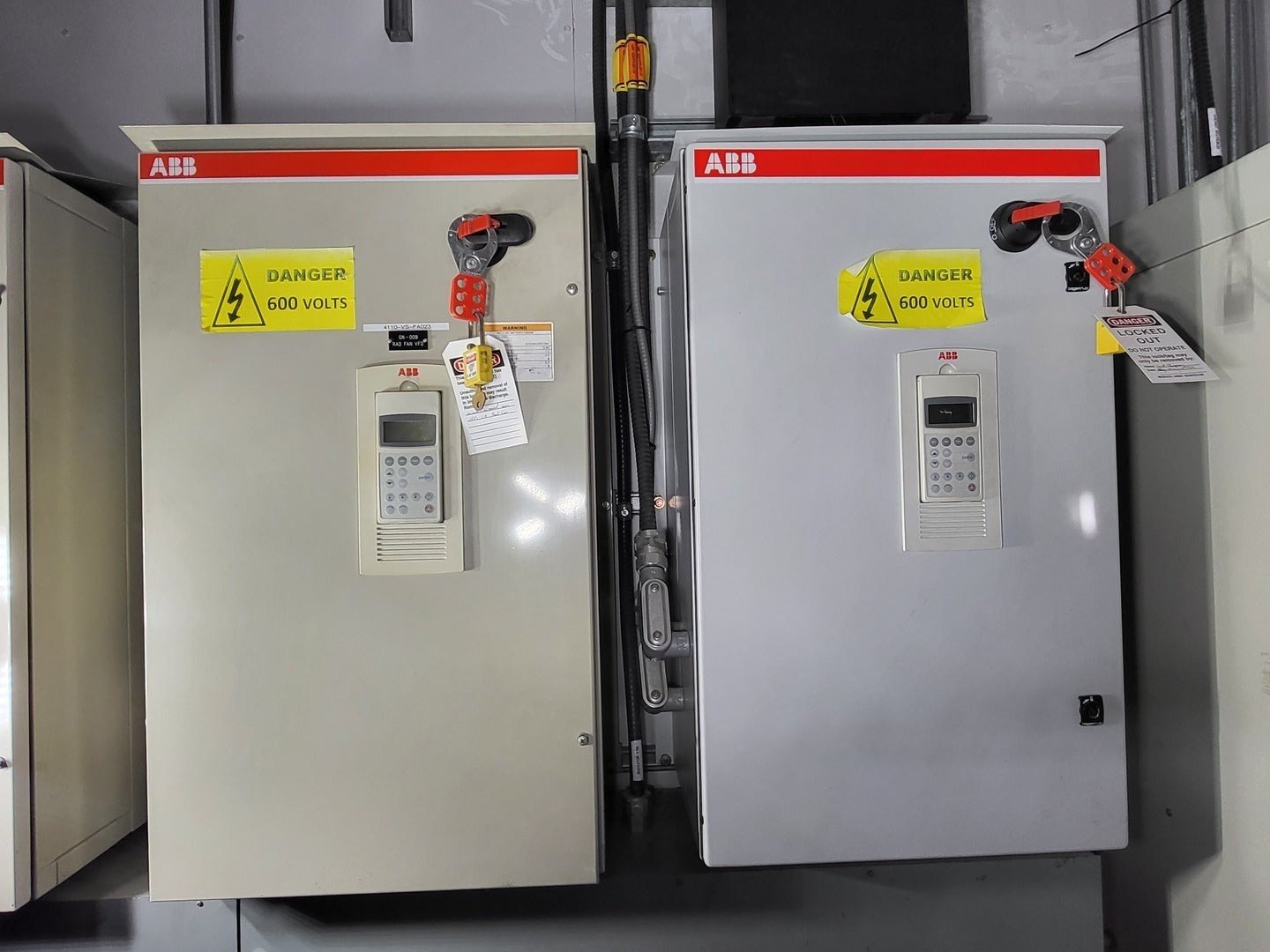

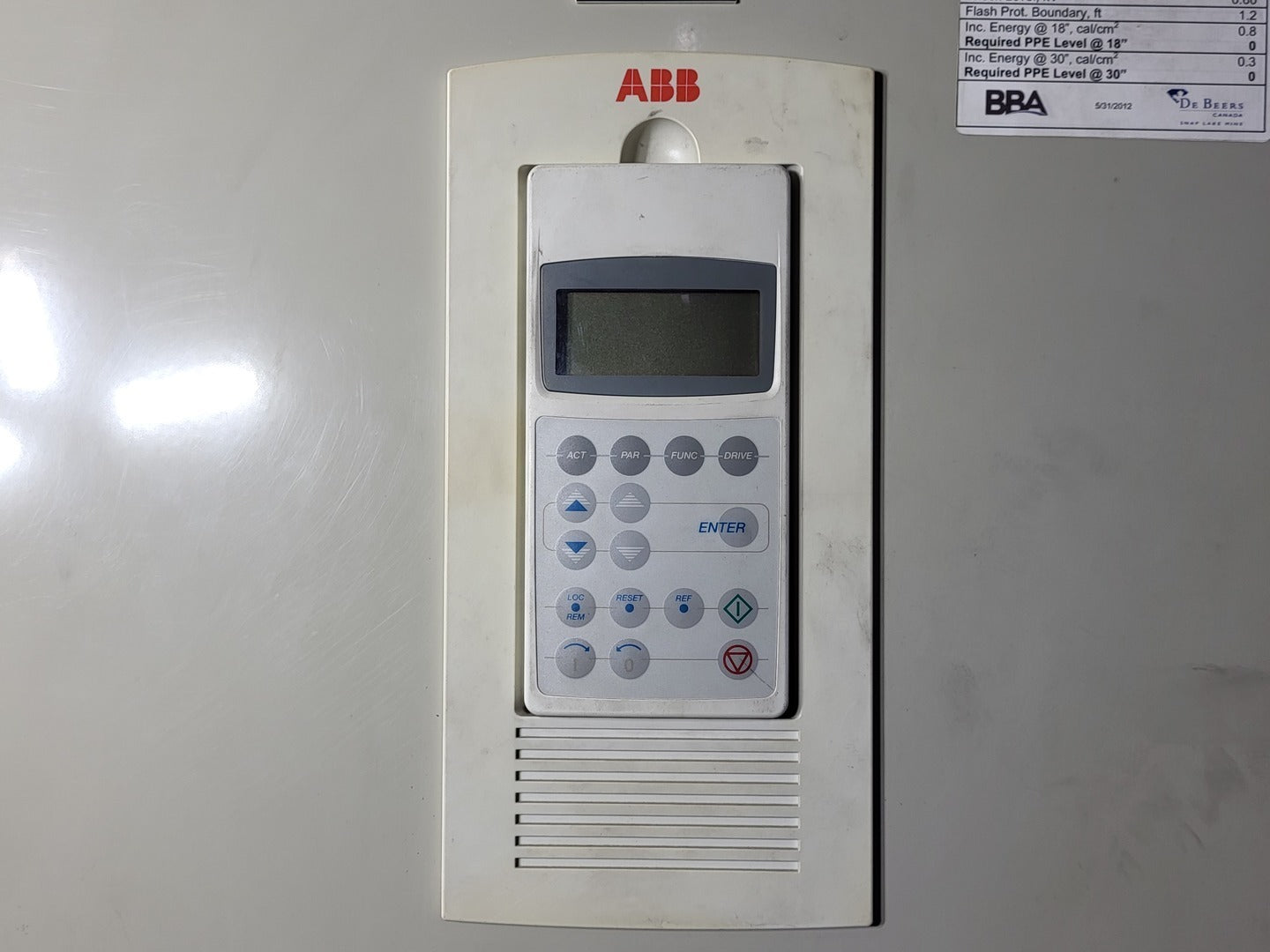

(3) ABB 30 HP 600 V Variable Frequency Drives
-

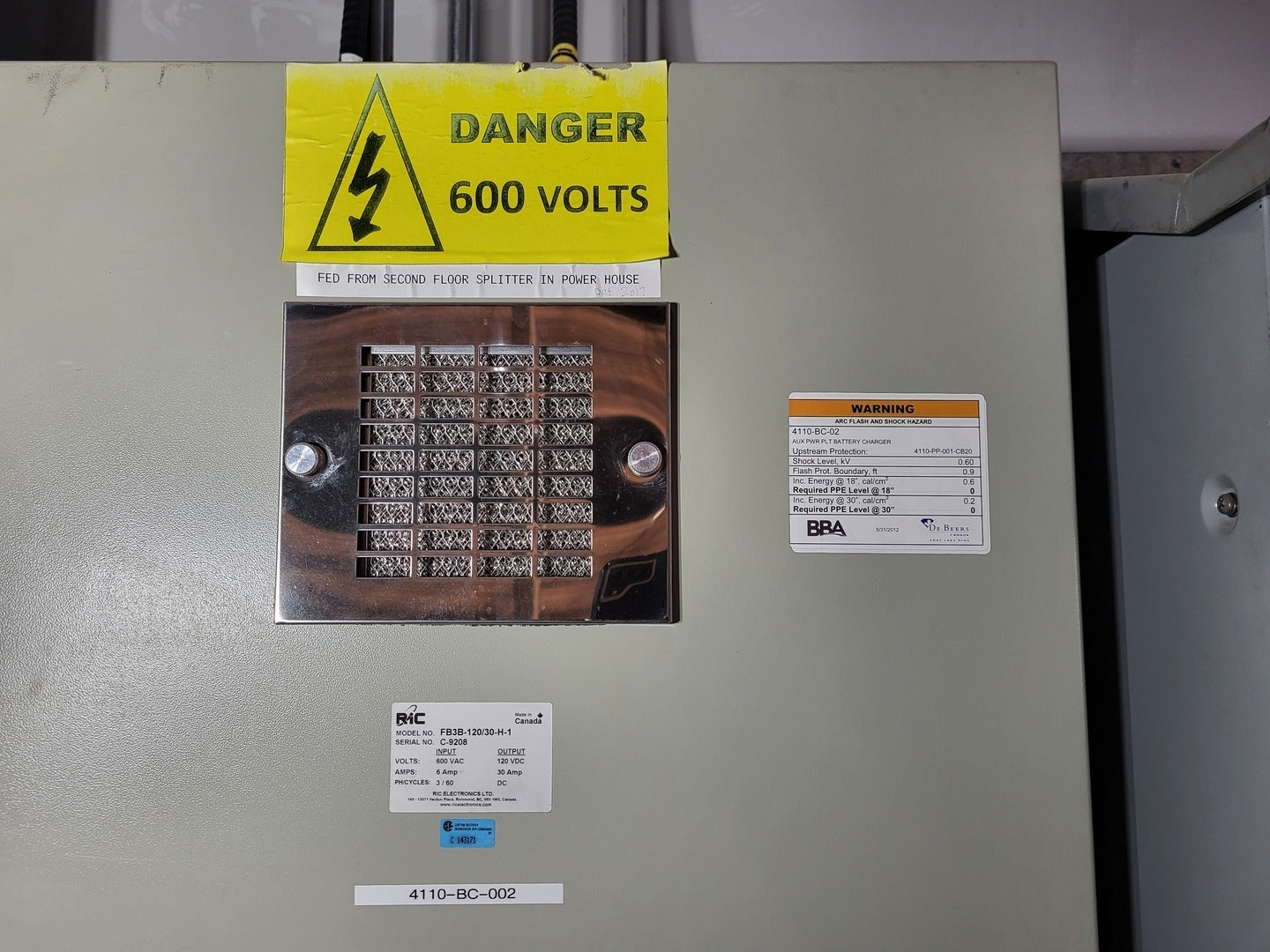

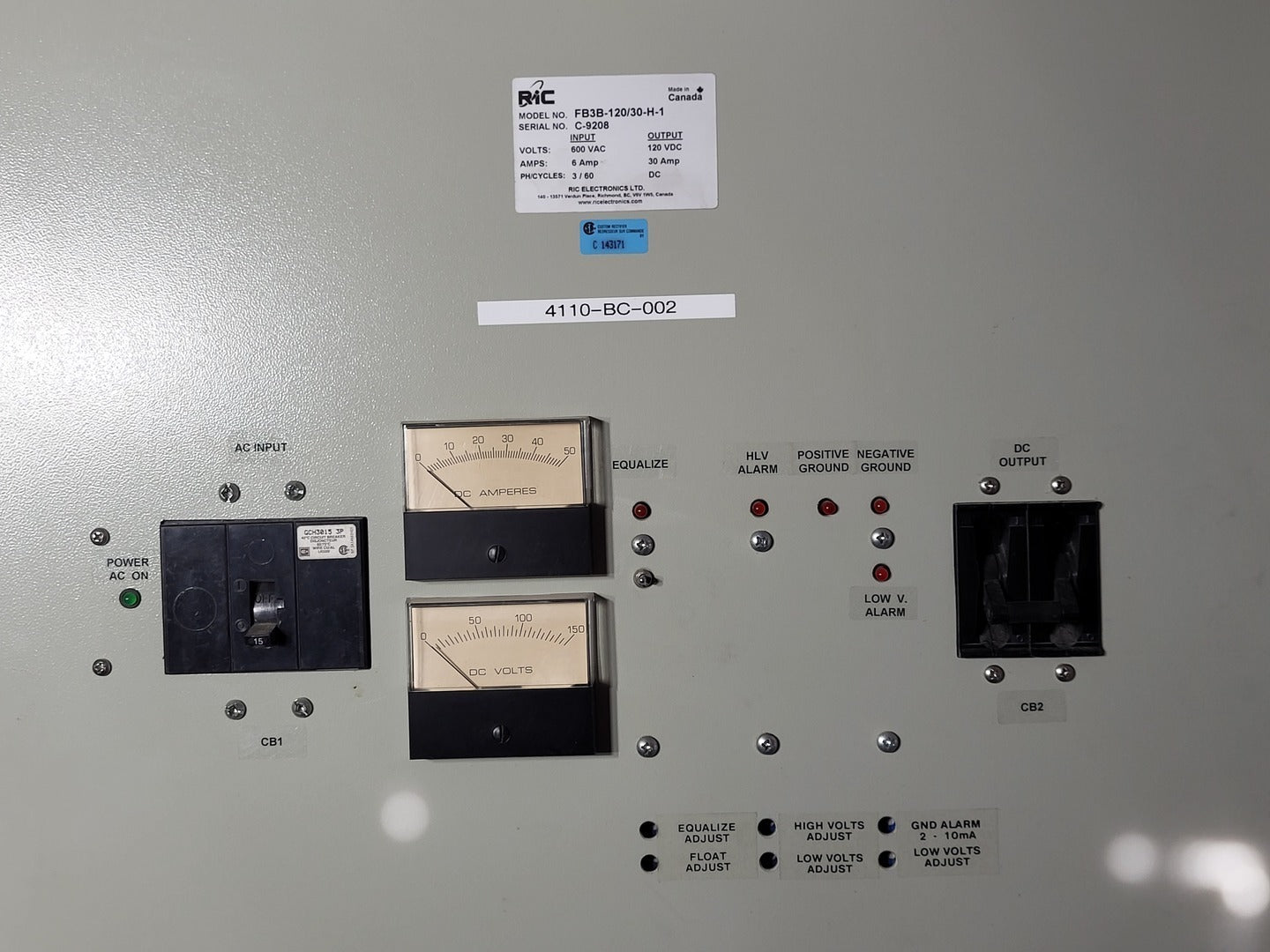

Auxiliary Power Battery Charger: Input 600 VAC, 6 A / Output 120 VDC, 30 A
-

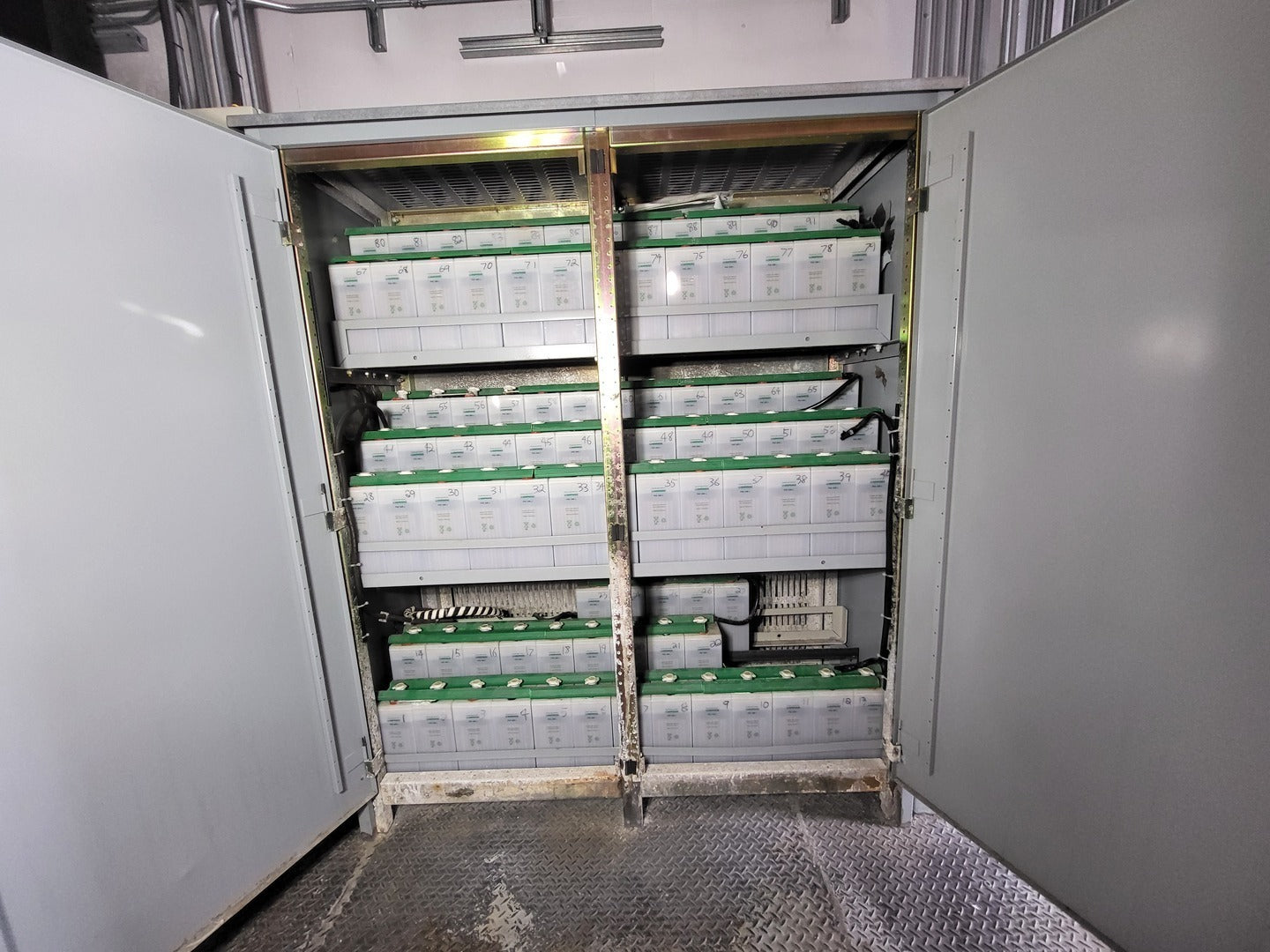

Battery Bank
-

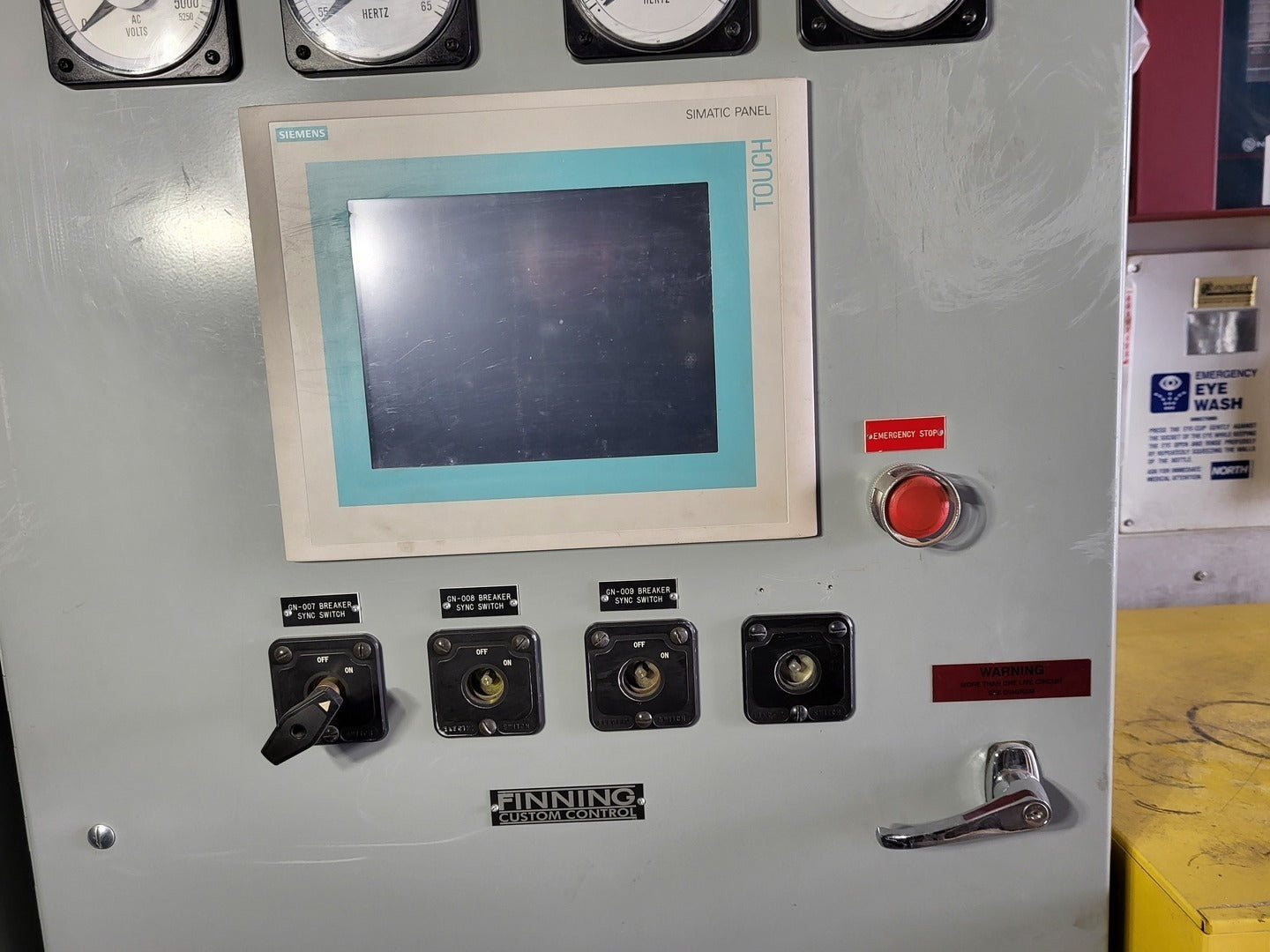

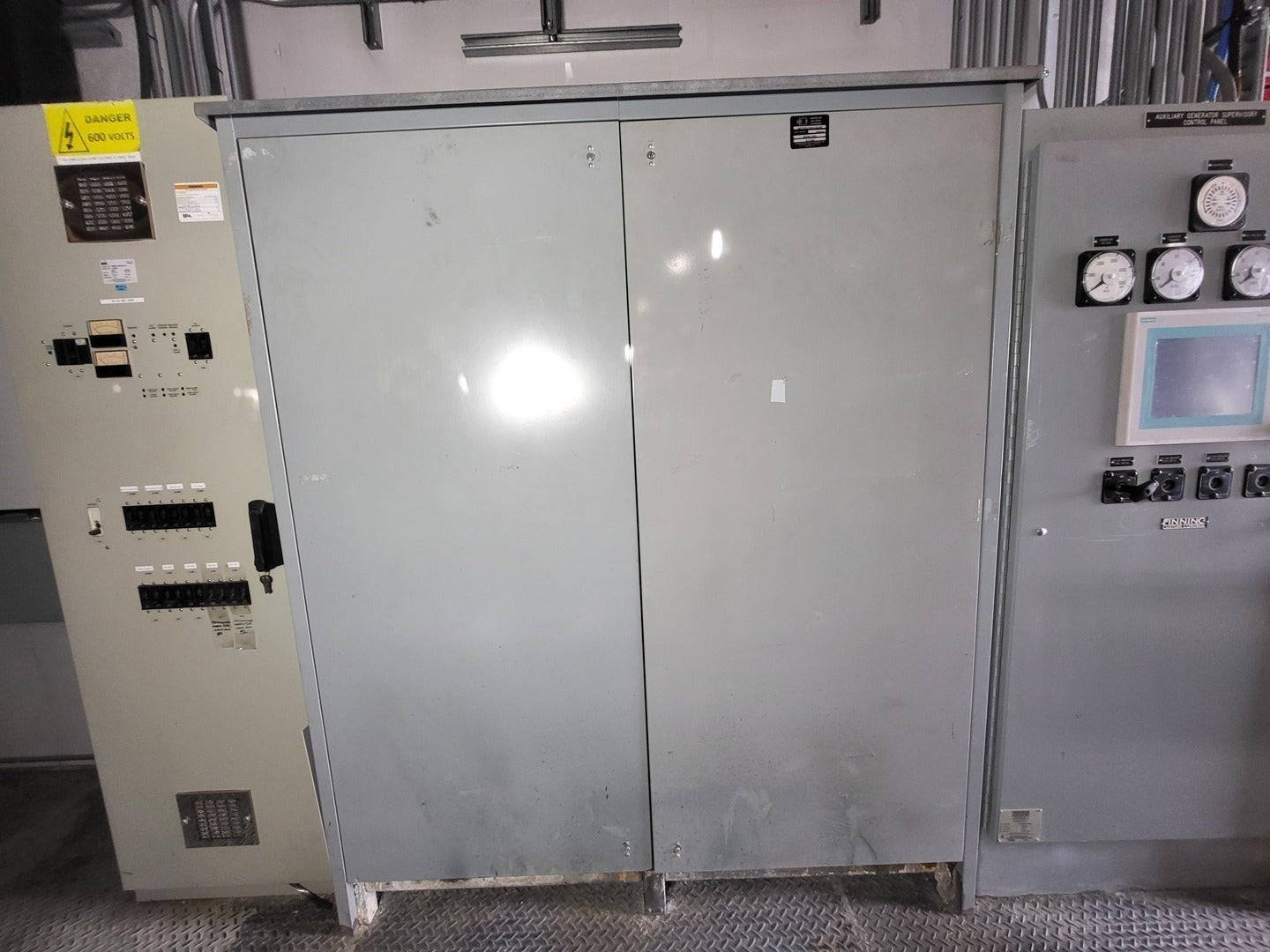

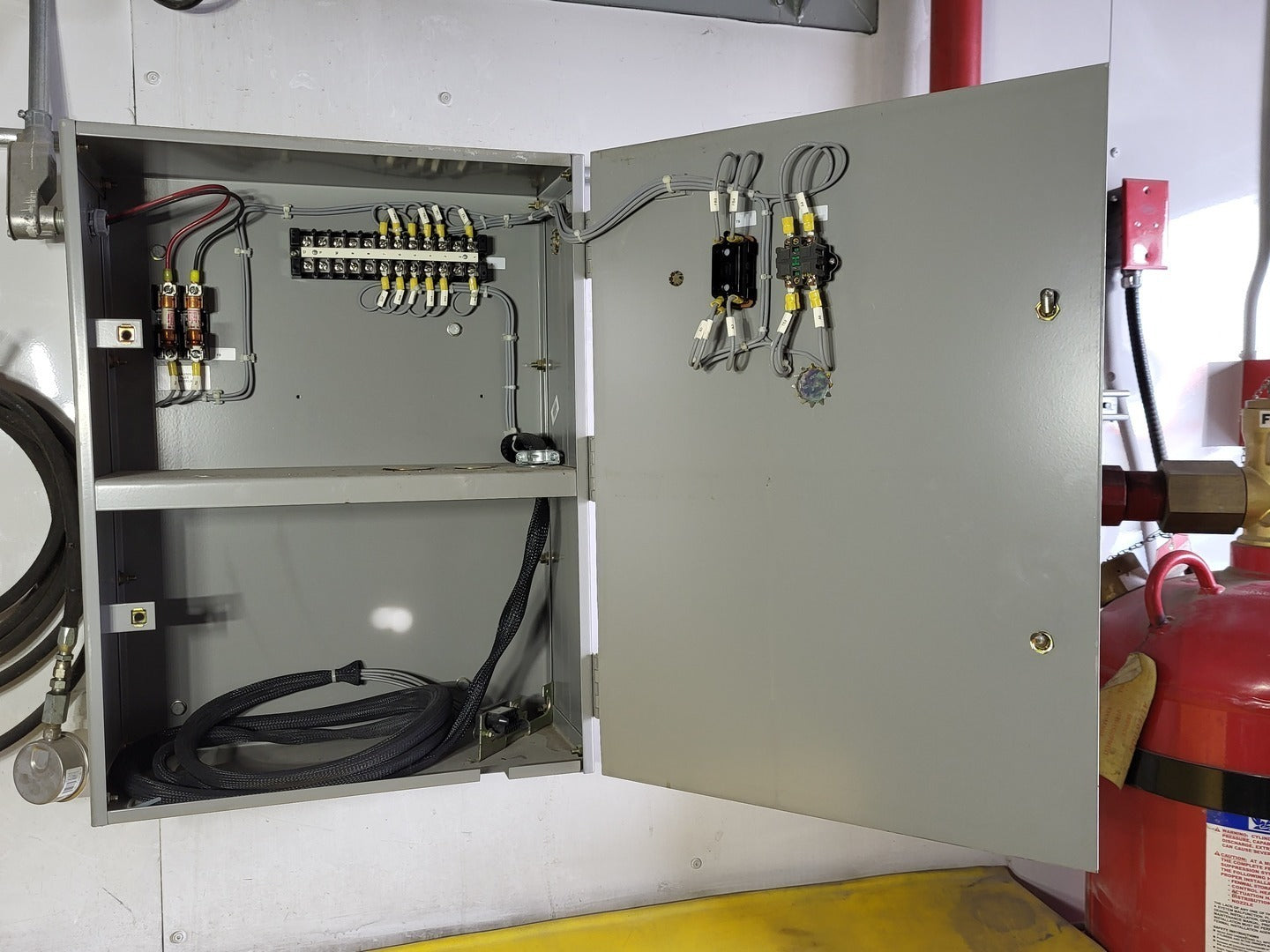

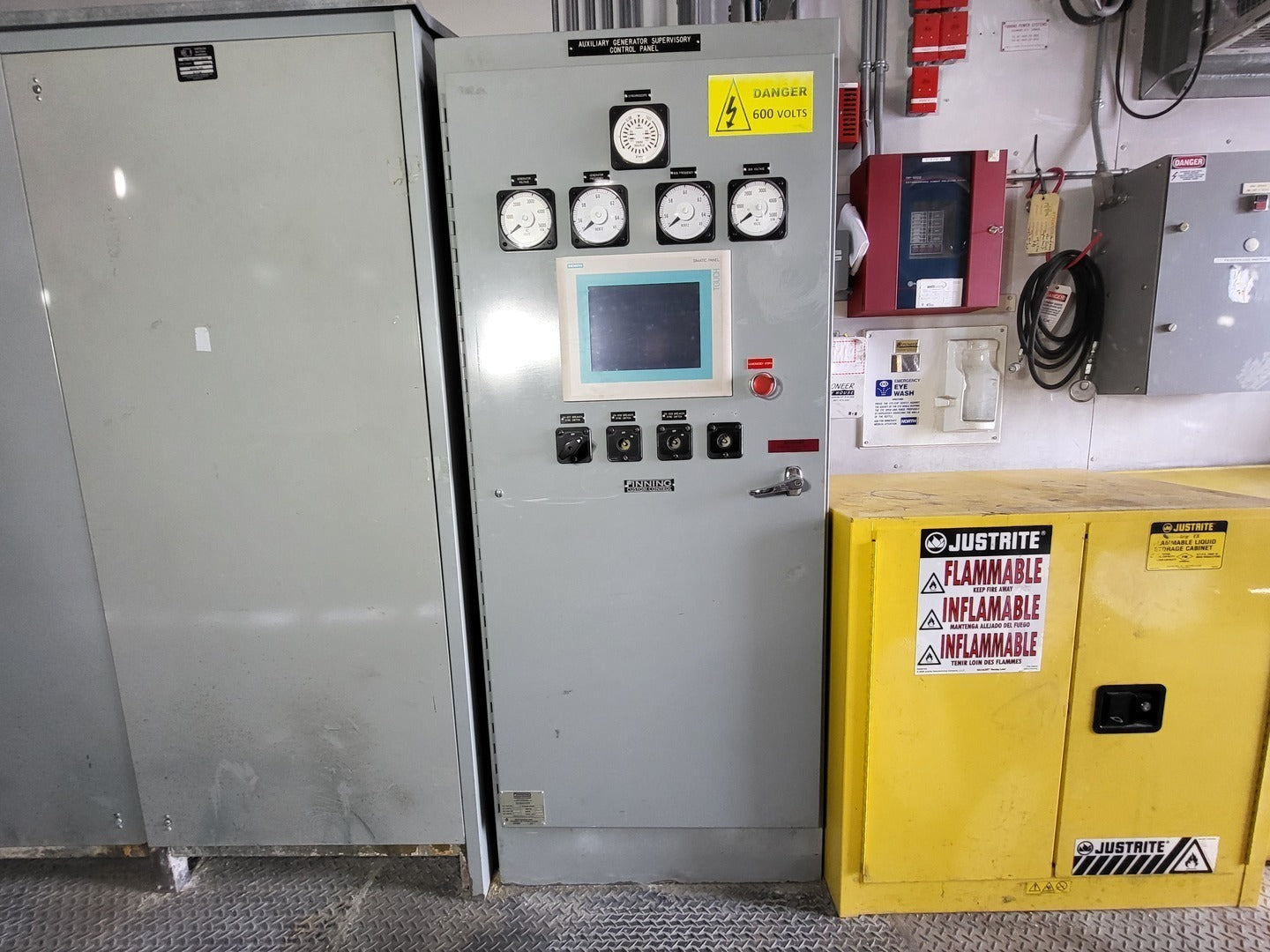

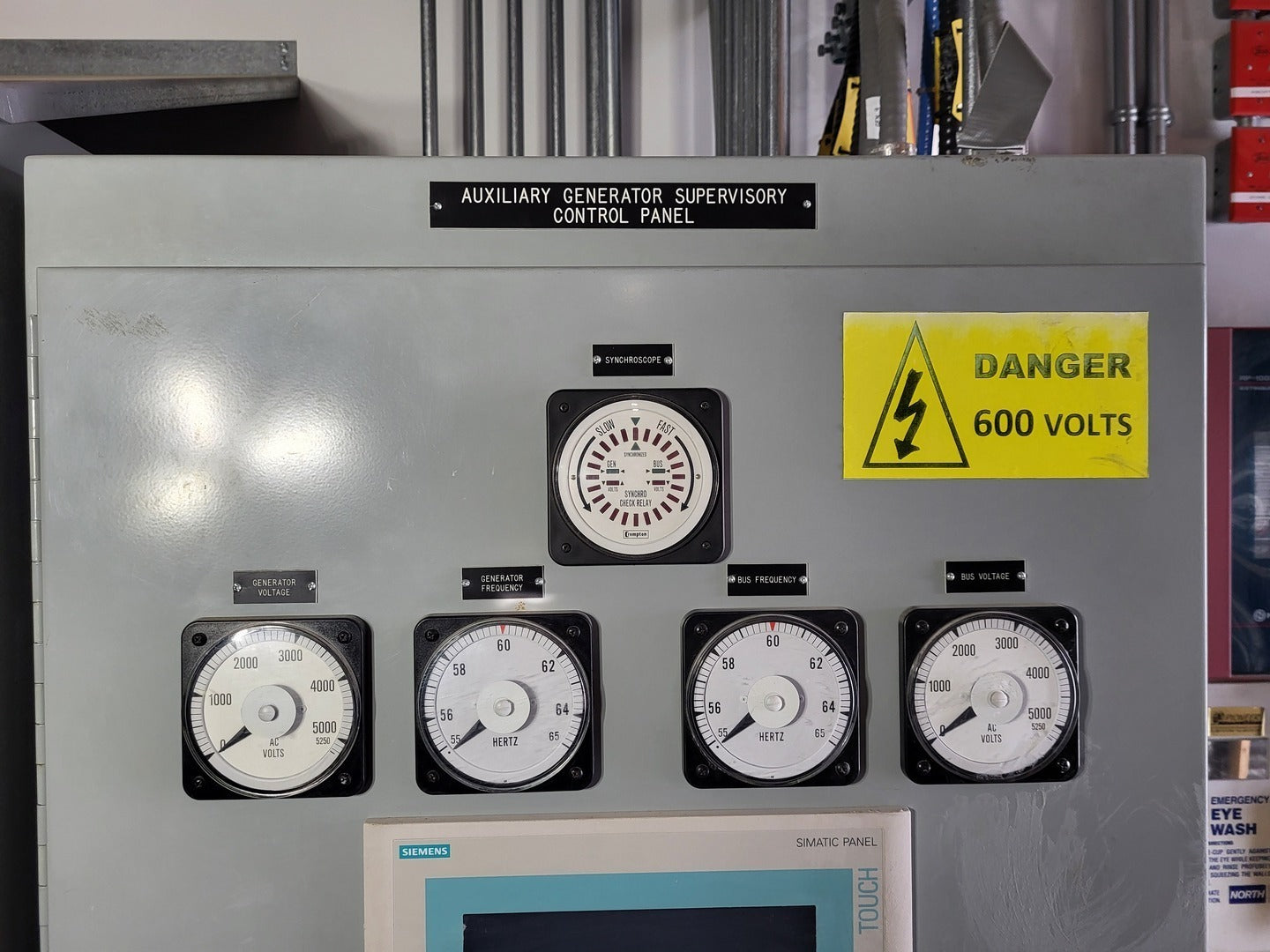

Auxiliary Generator Control Panel
-

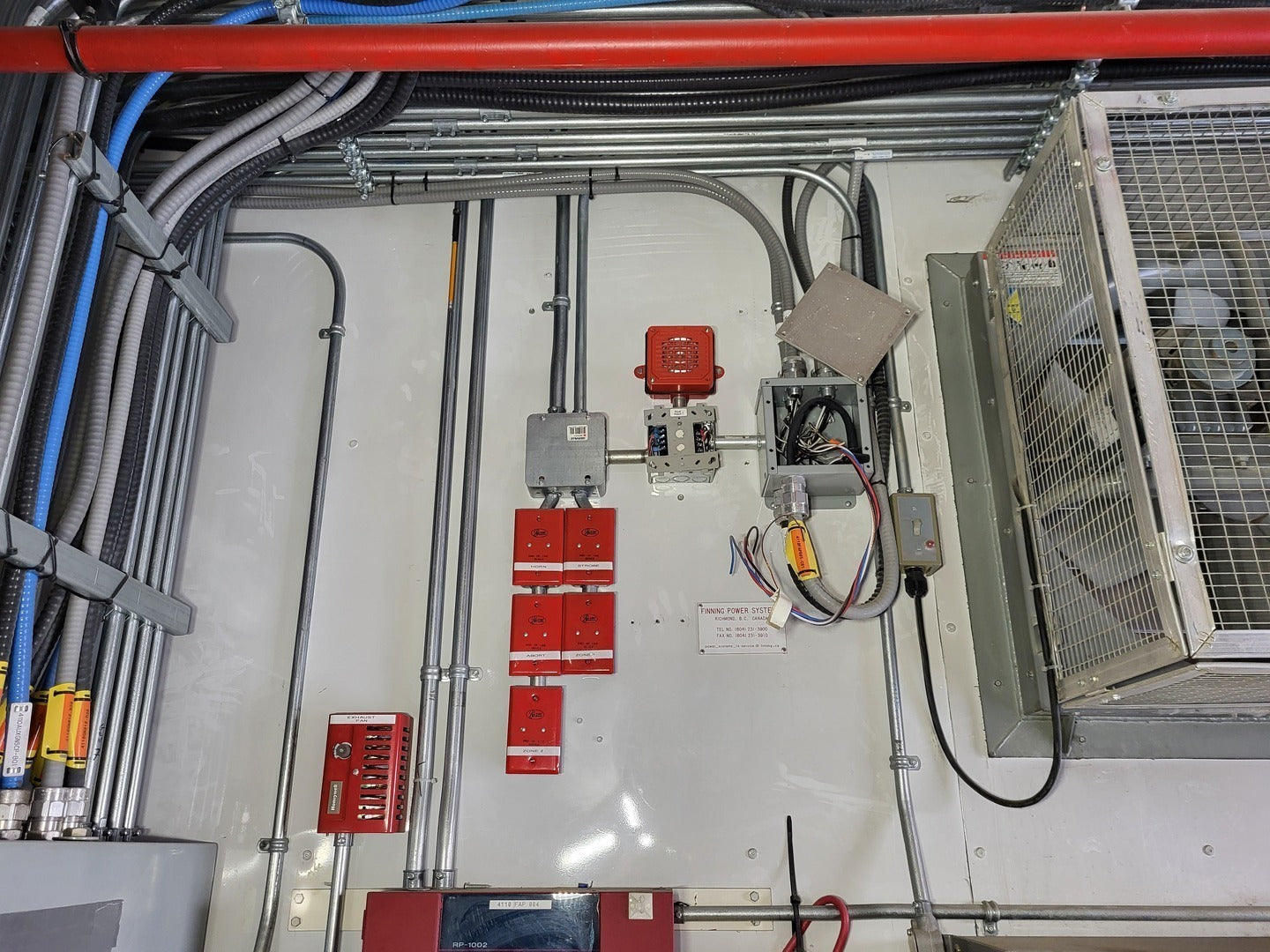

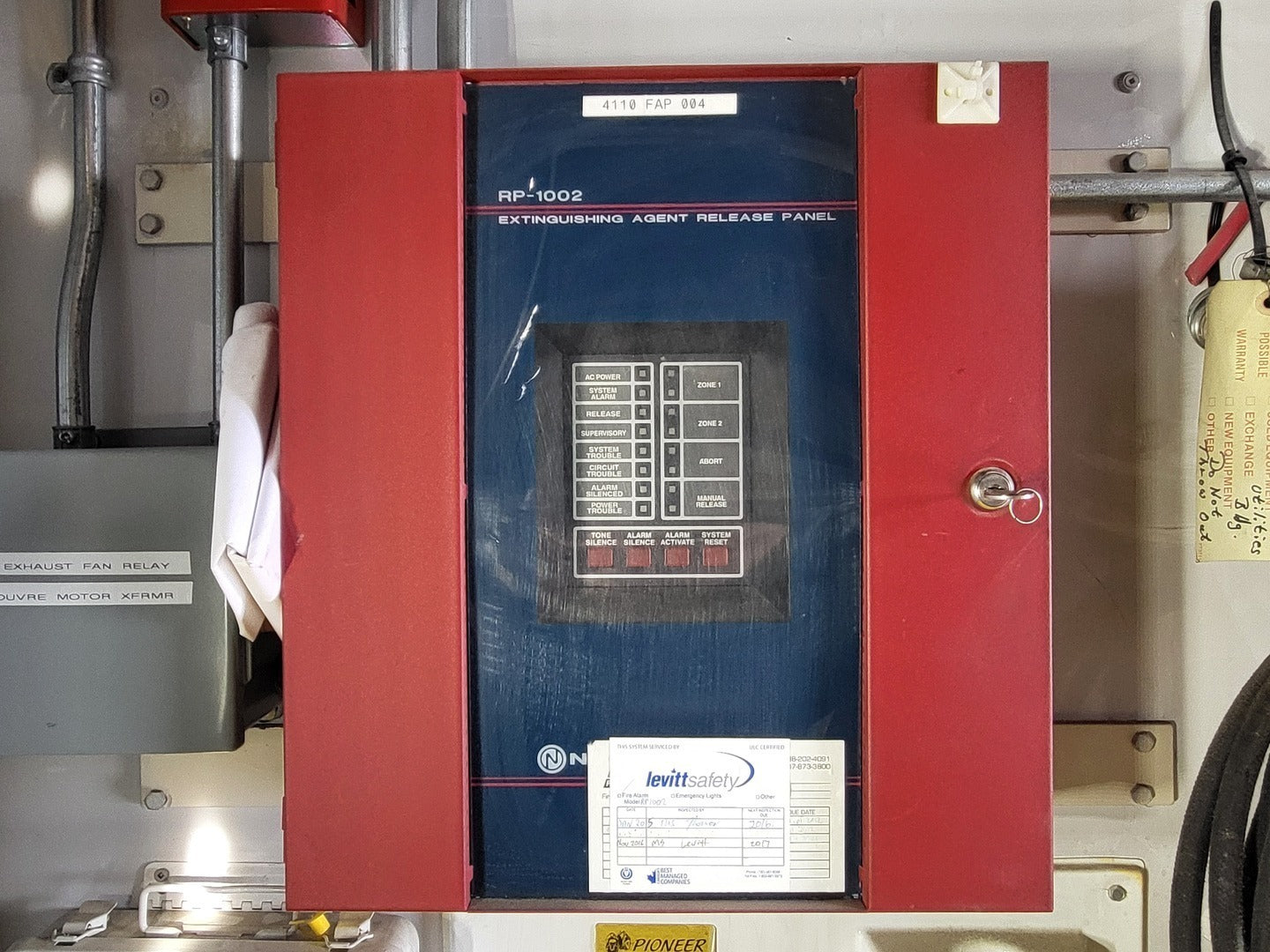

Fire Alarm
-

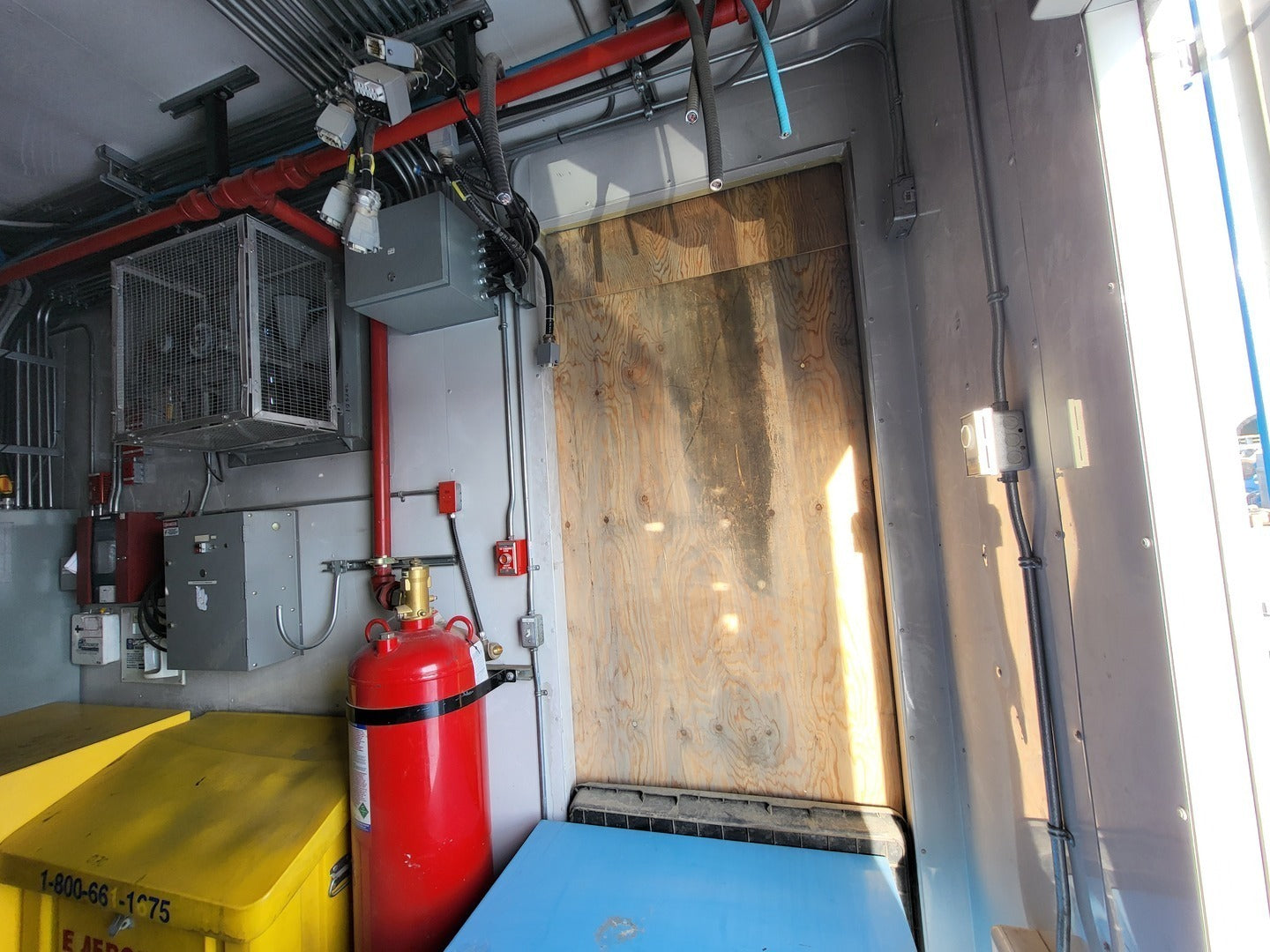

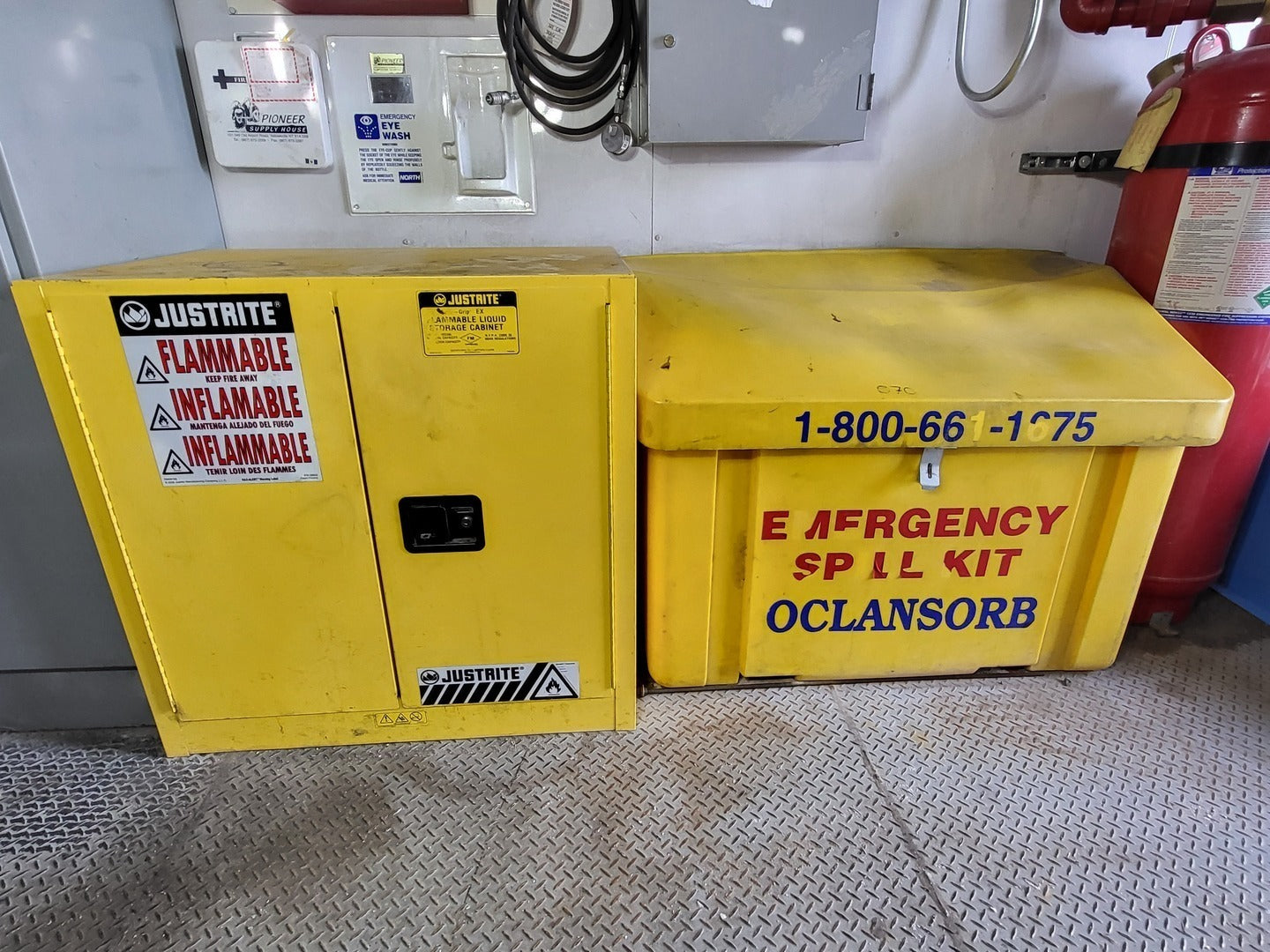

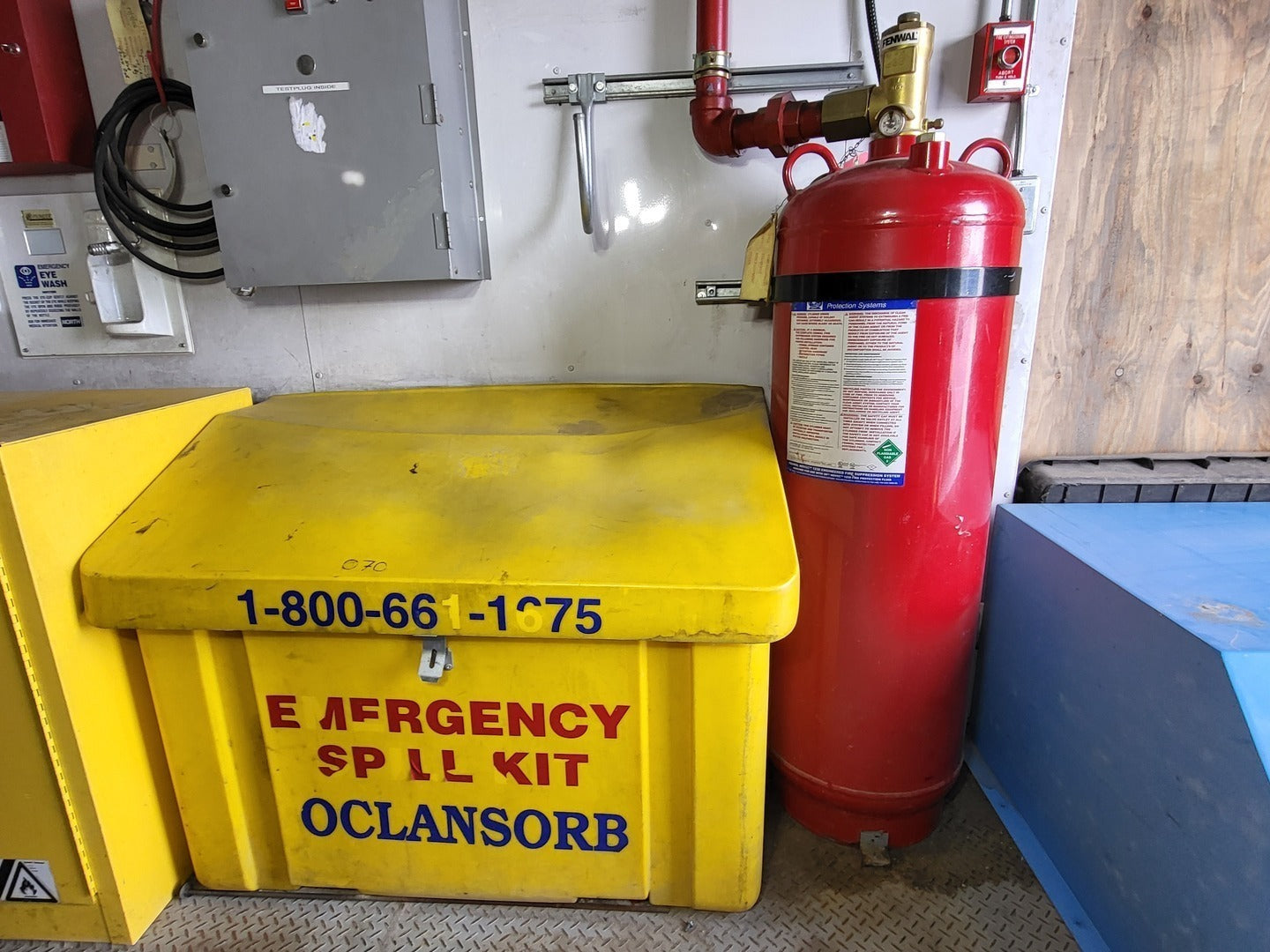

Emergency Spill Kit
-
Flammable Liquid Storage Cabinet
-

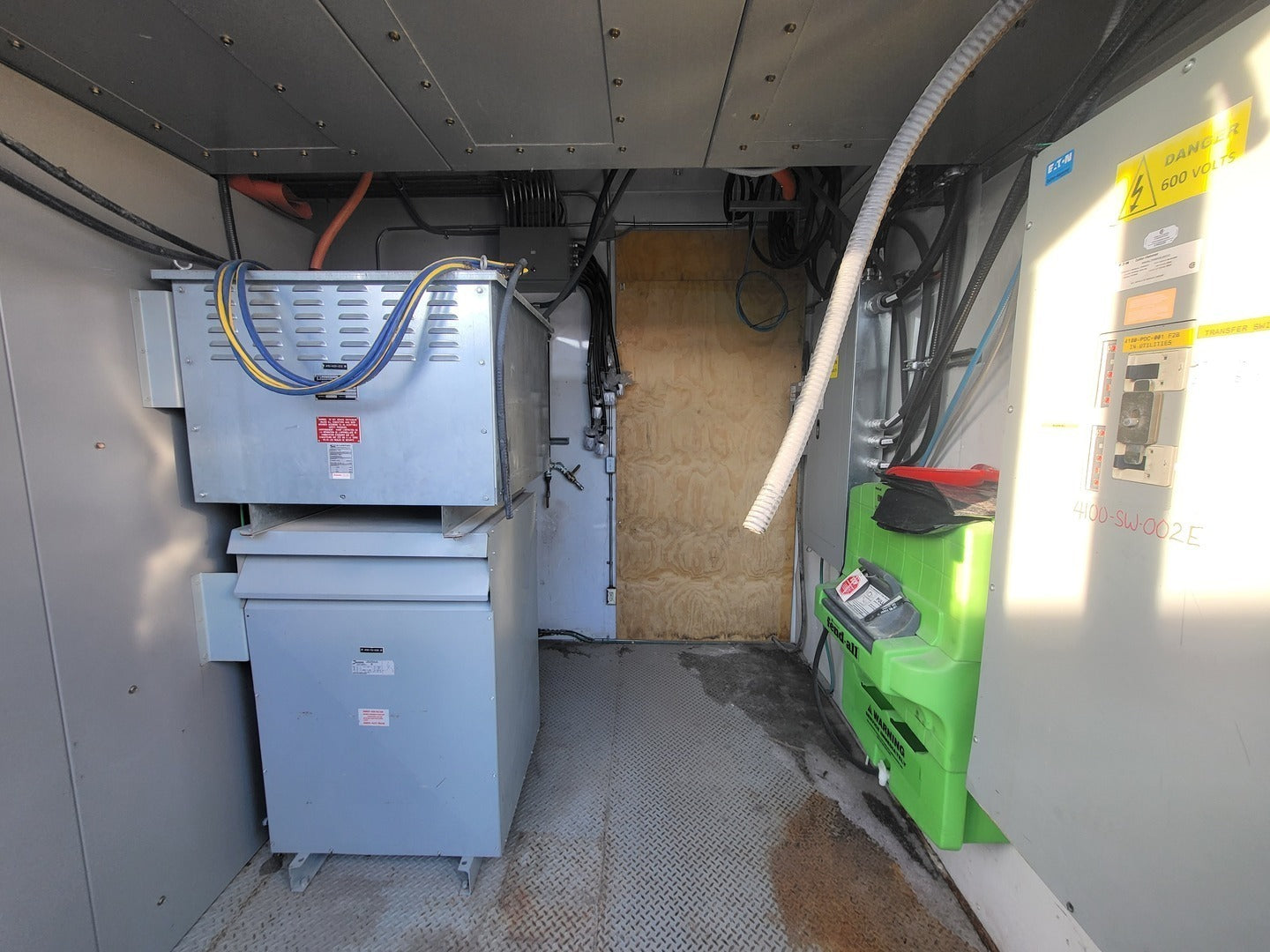

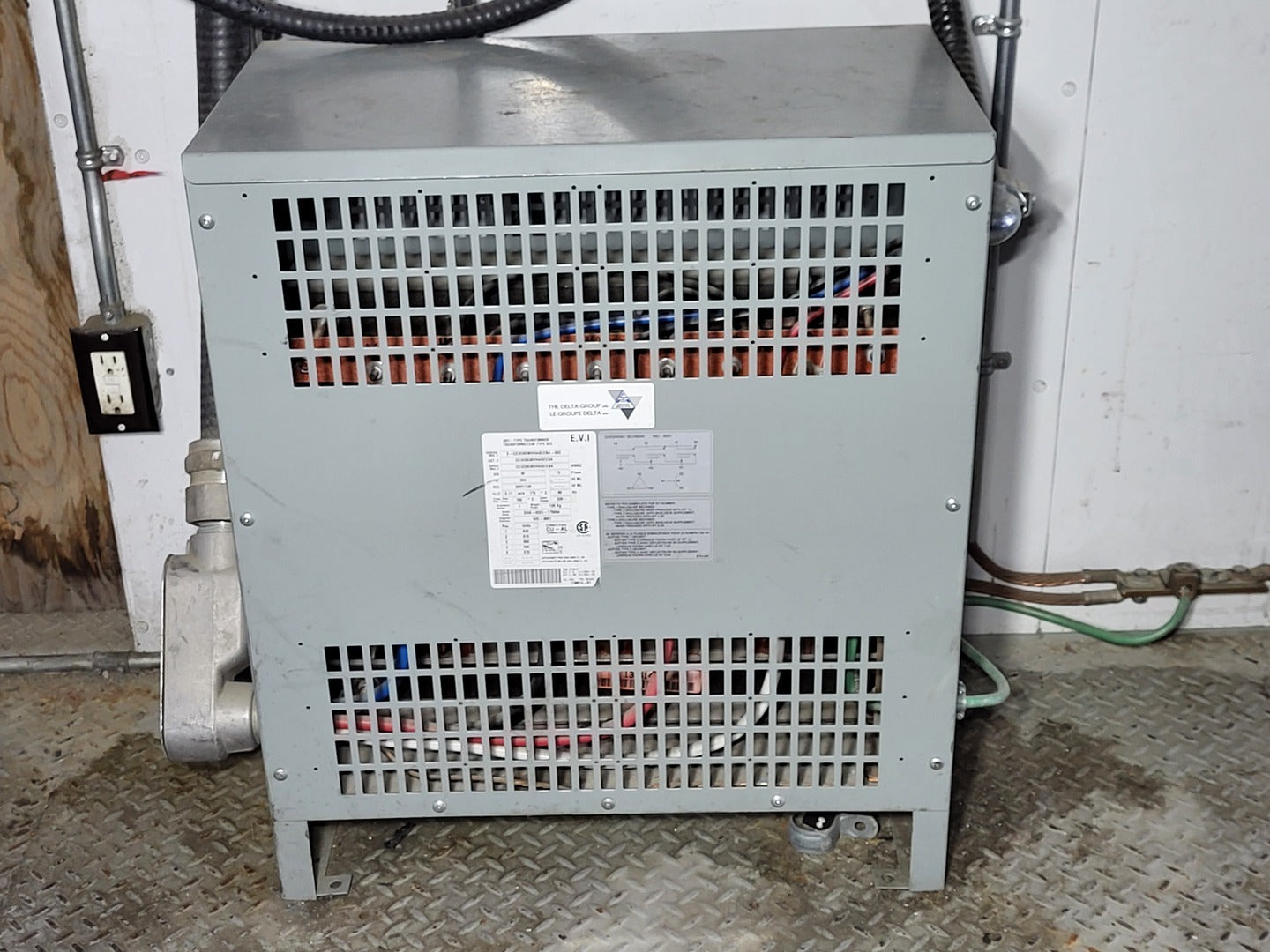

30 kVA Transformer, 600V Pri., 208Y/120V Sec.
|
