Descripción

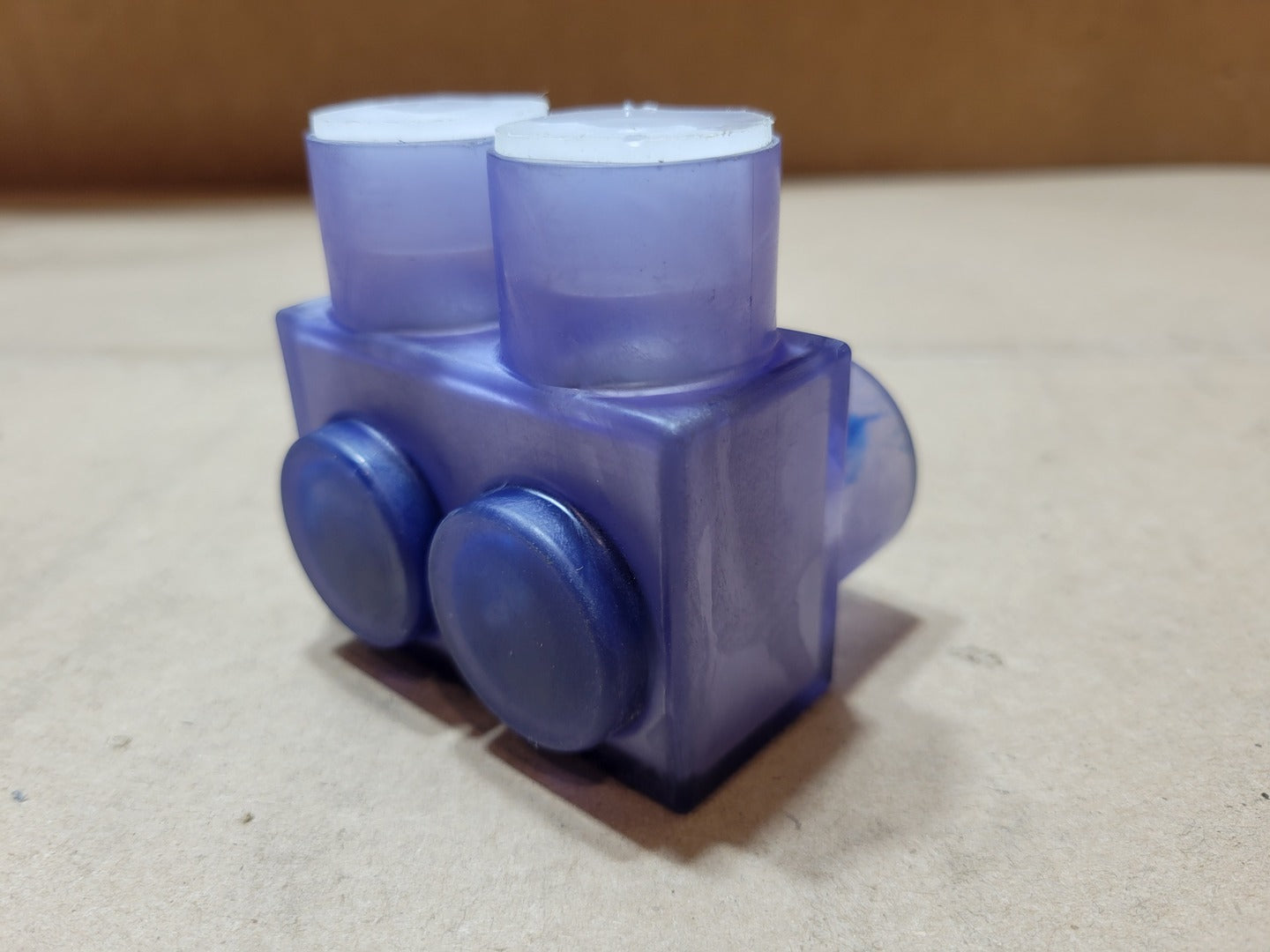

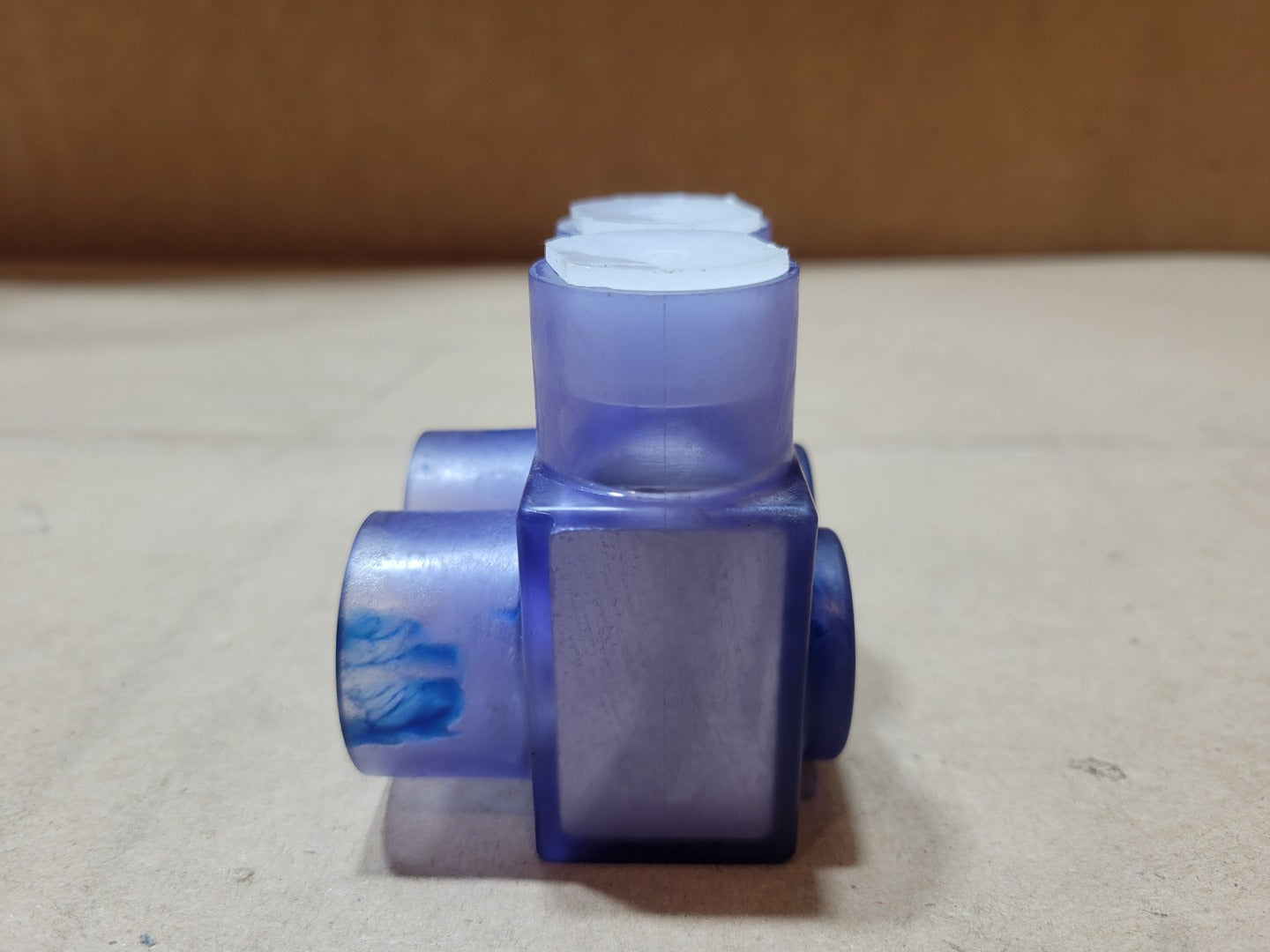

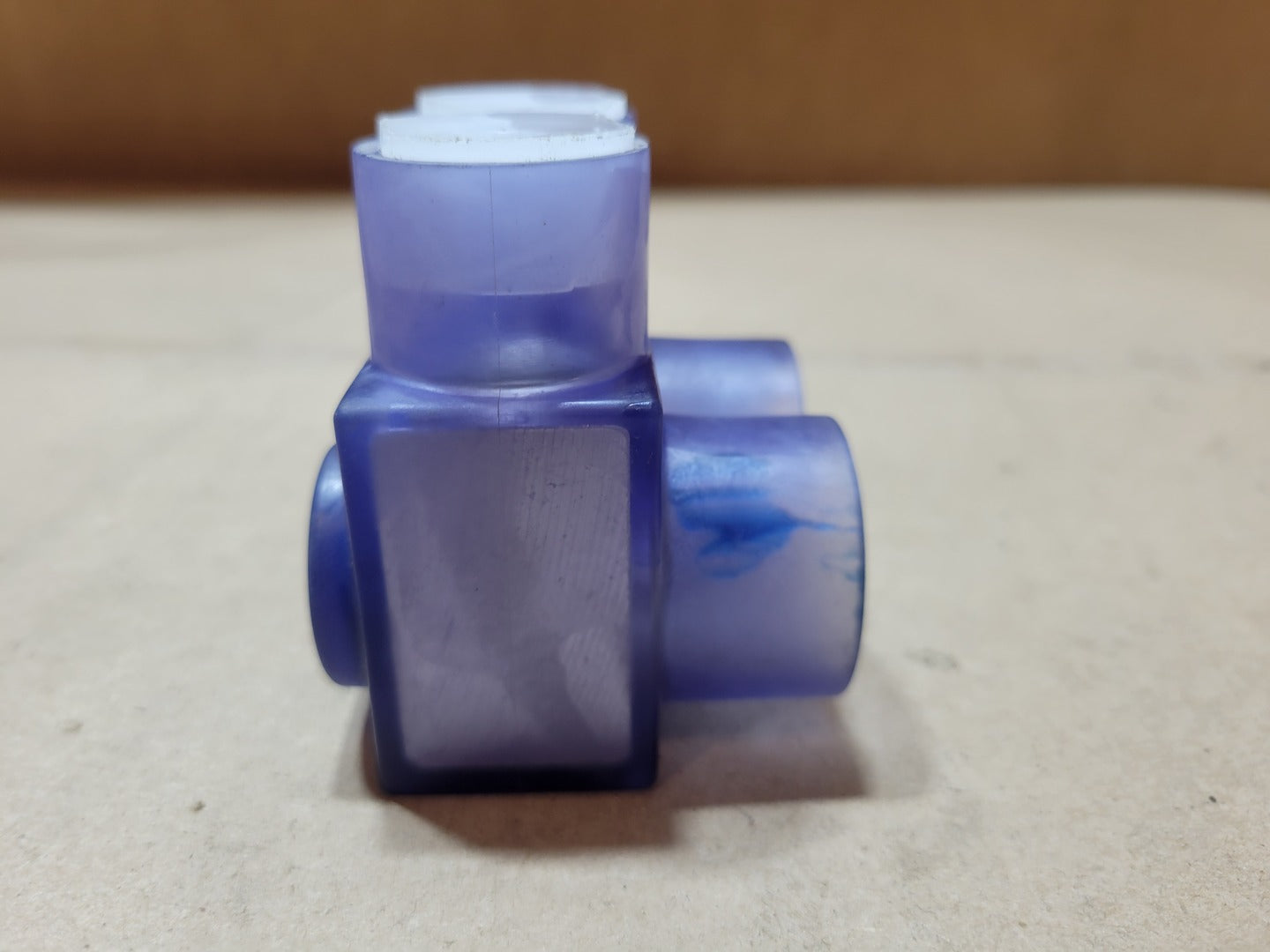

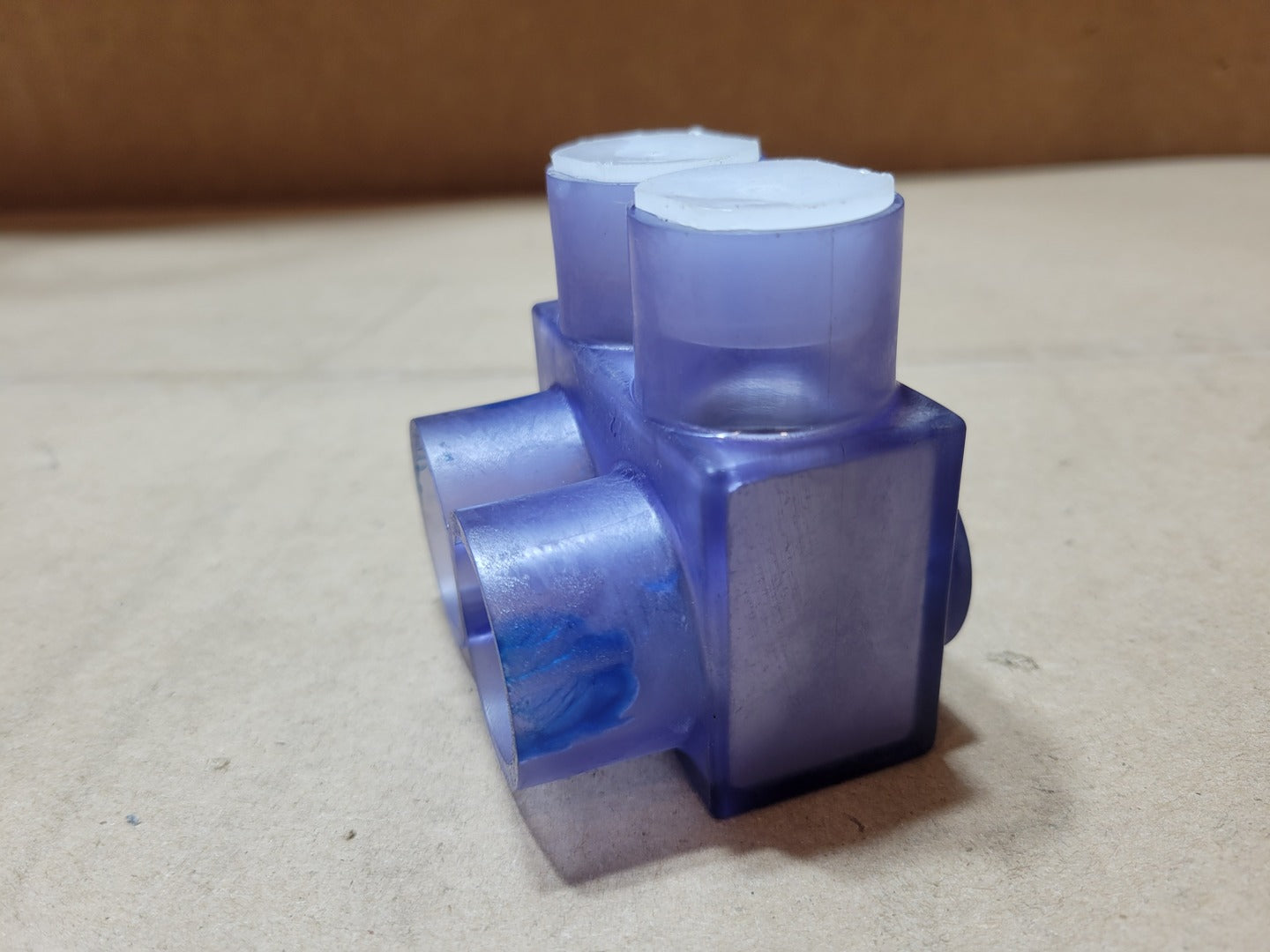

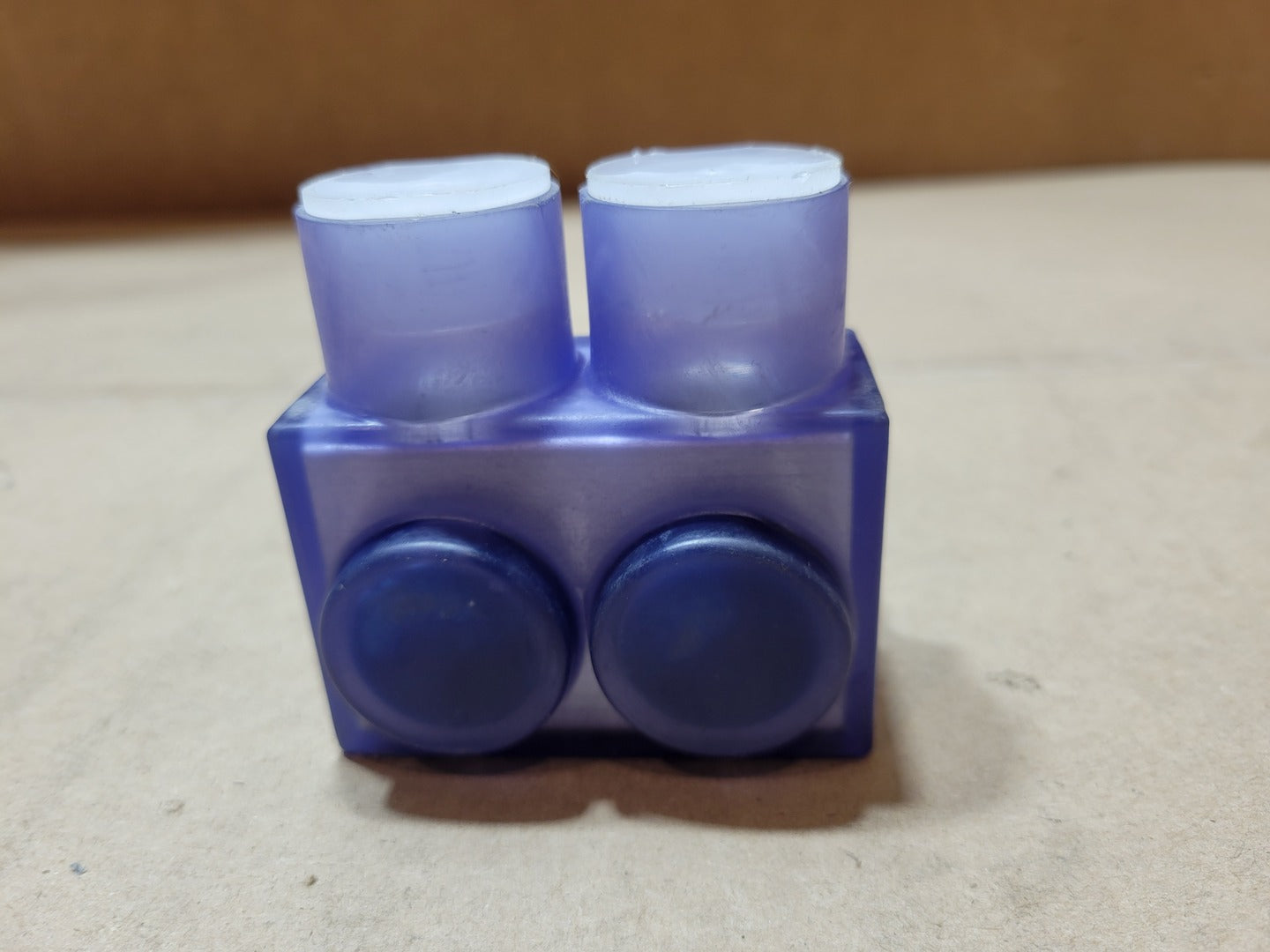

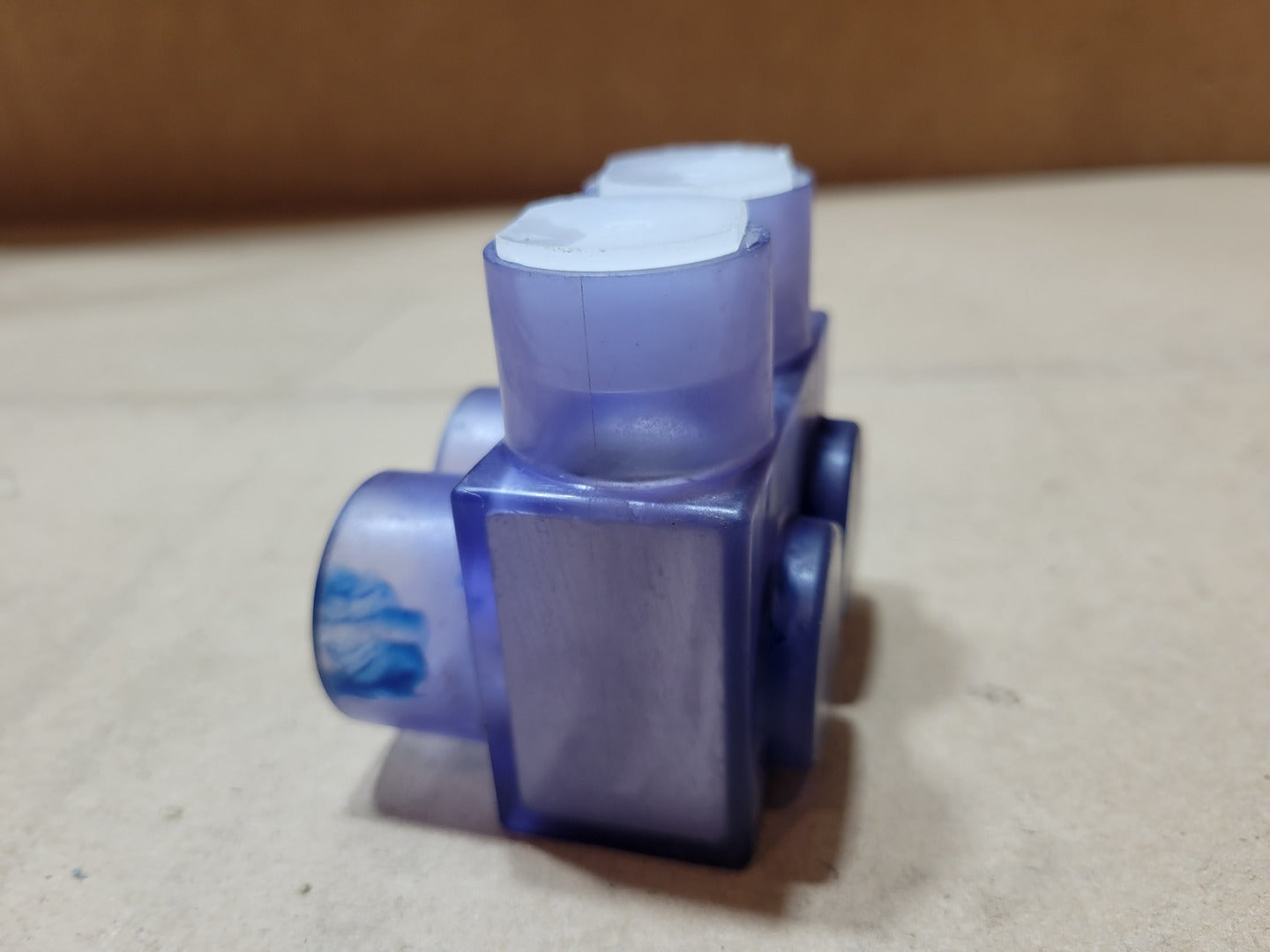

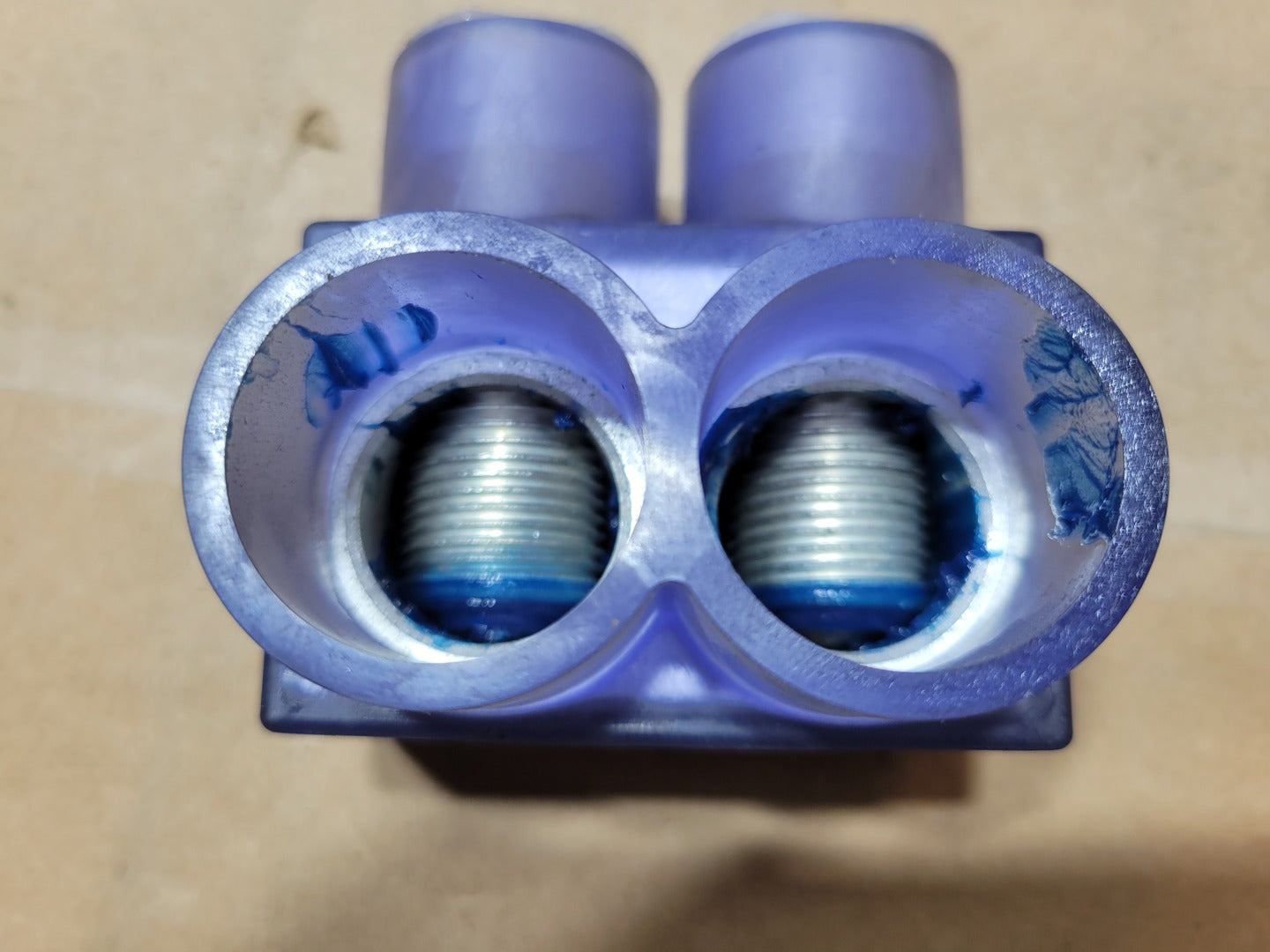

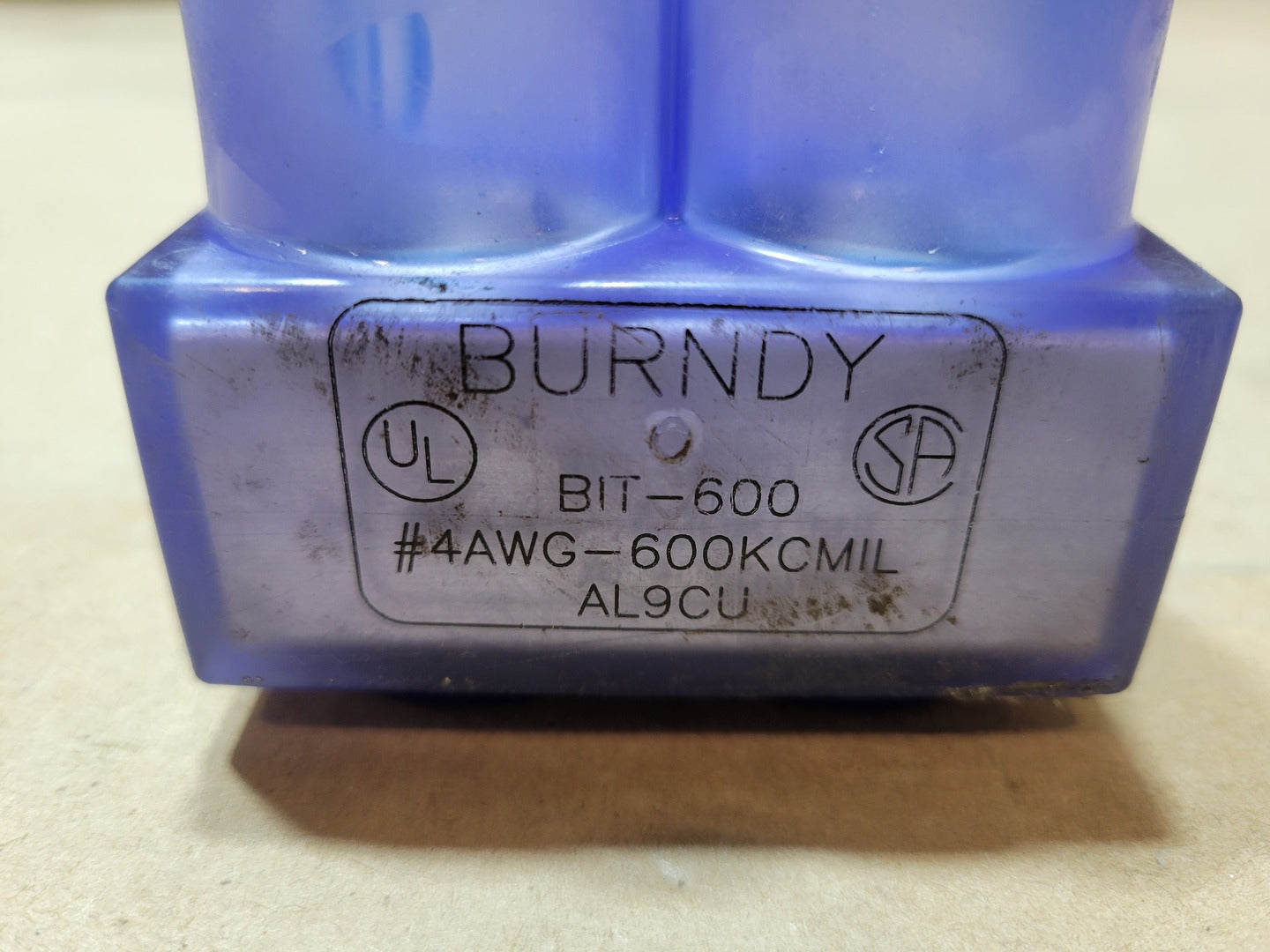

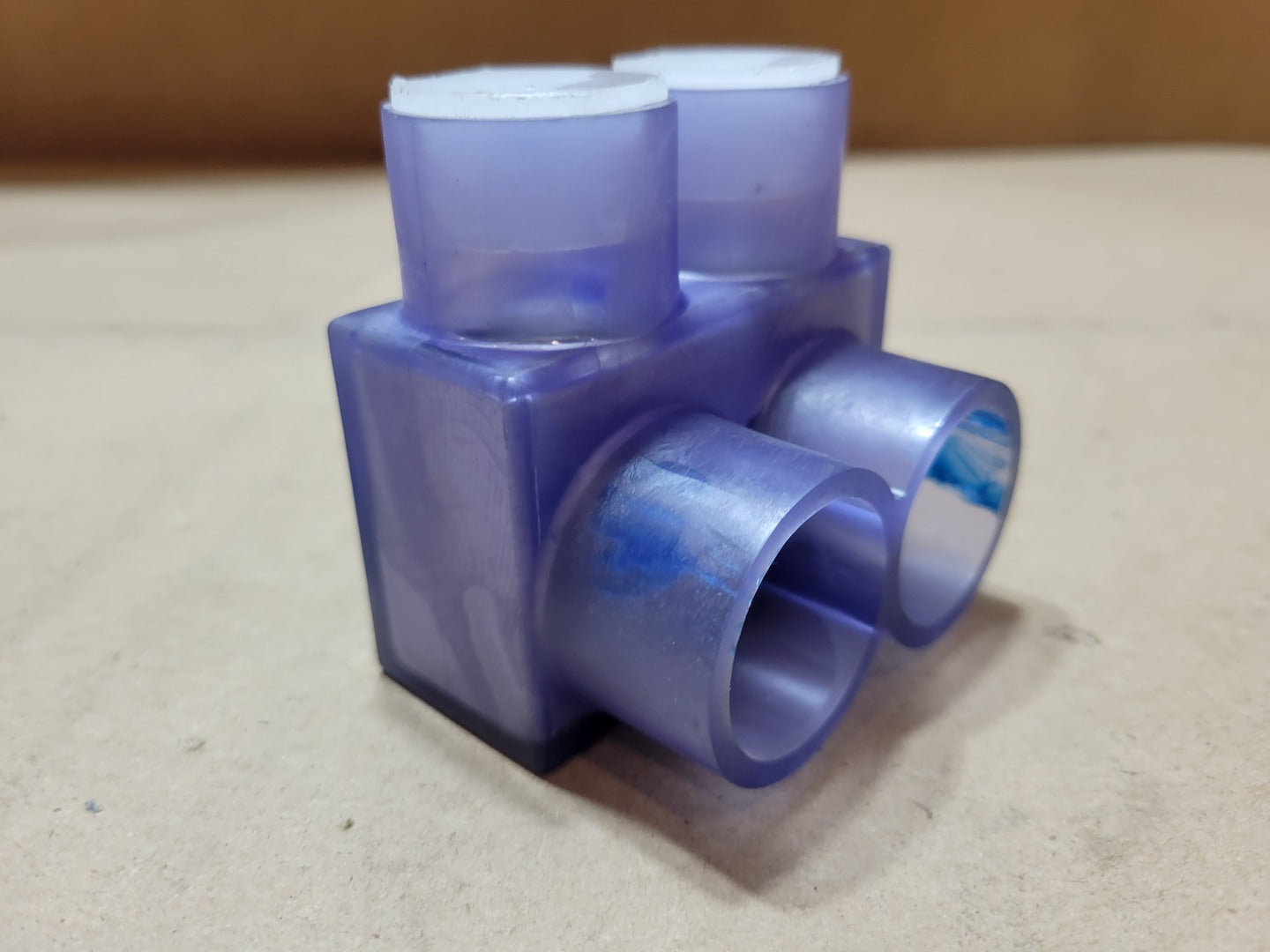

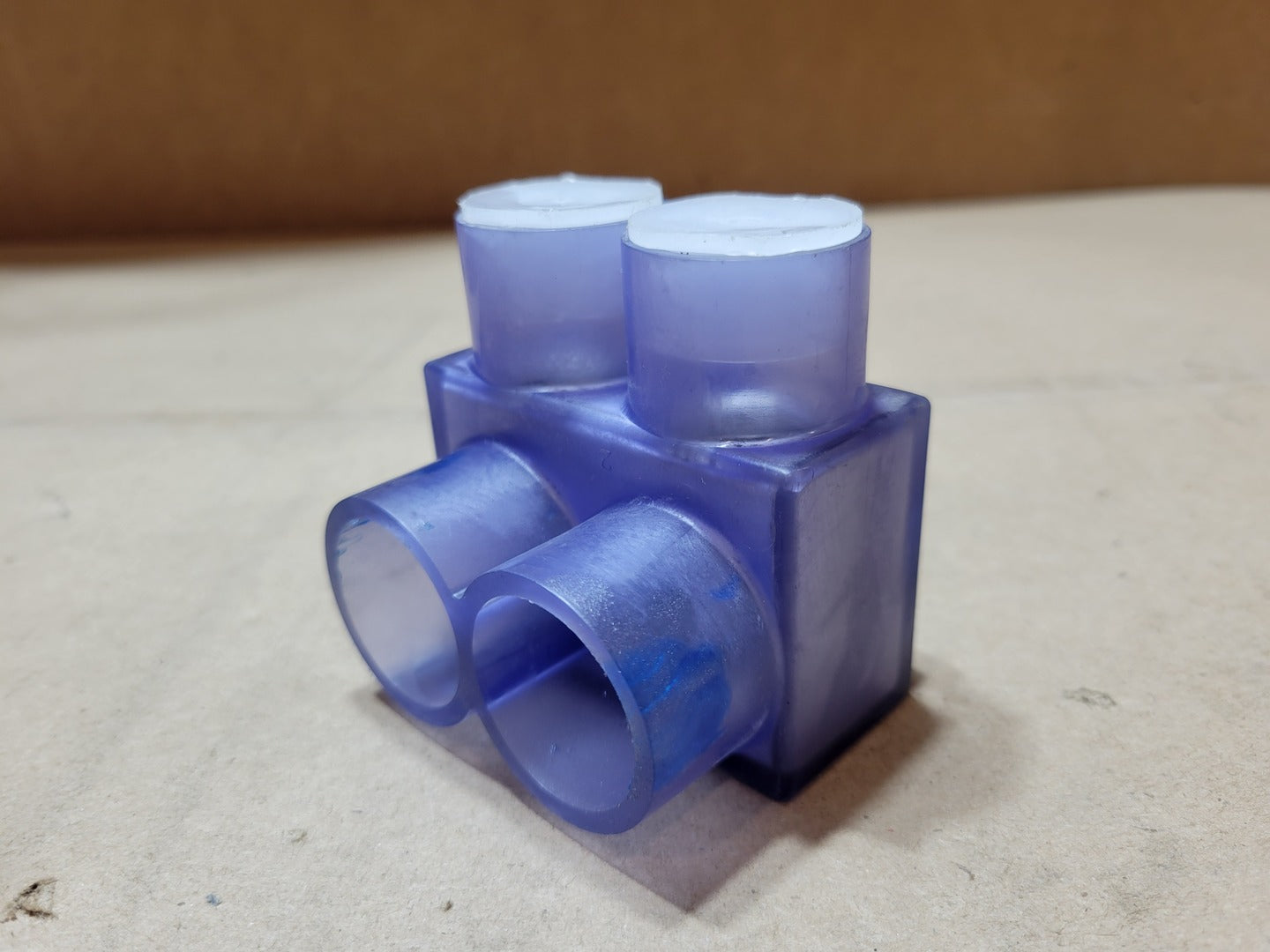

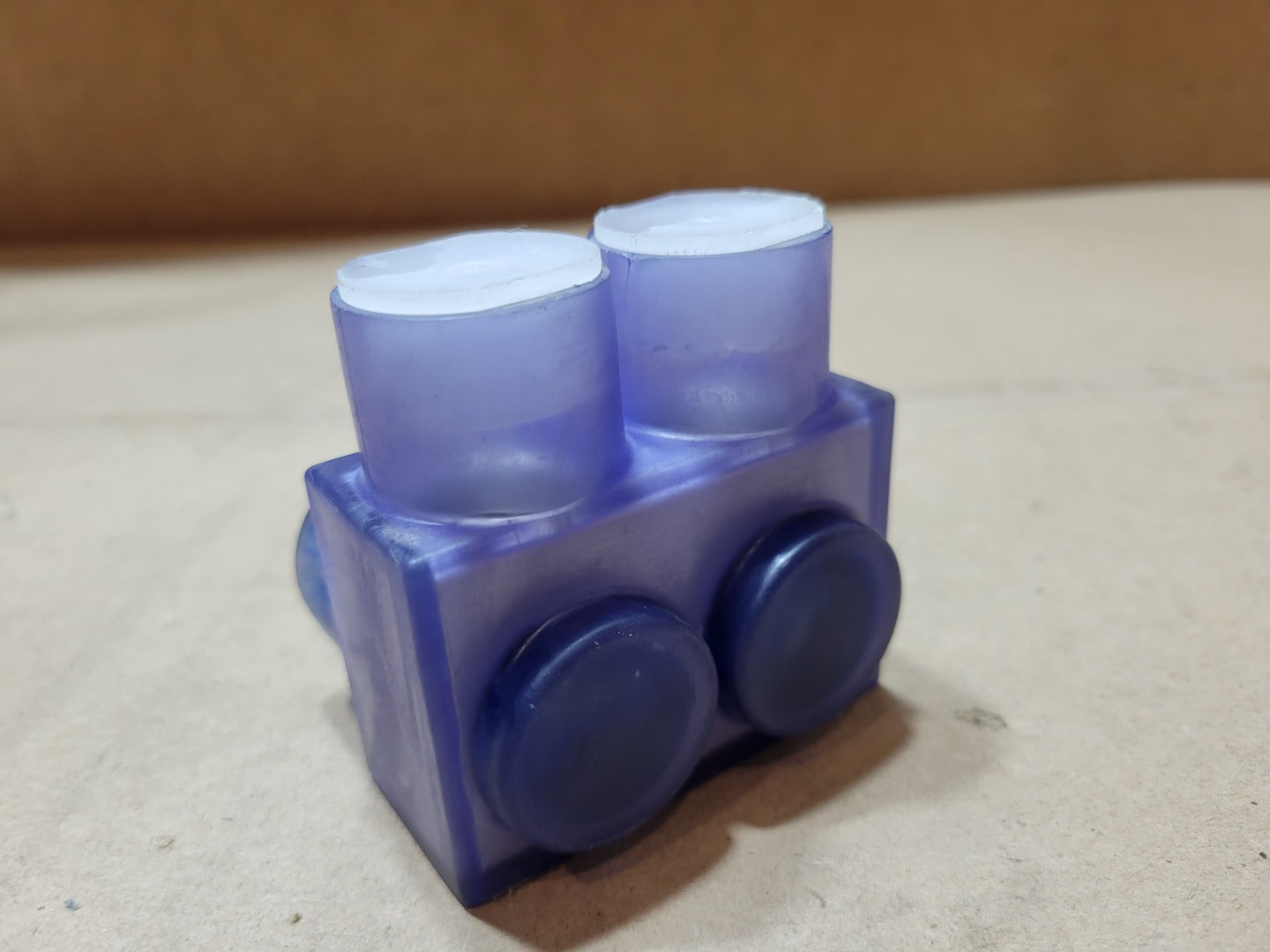

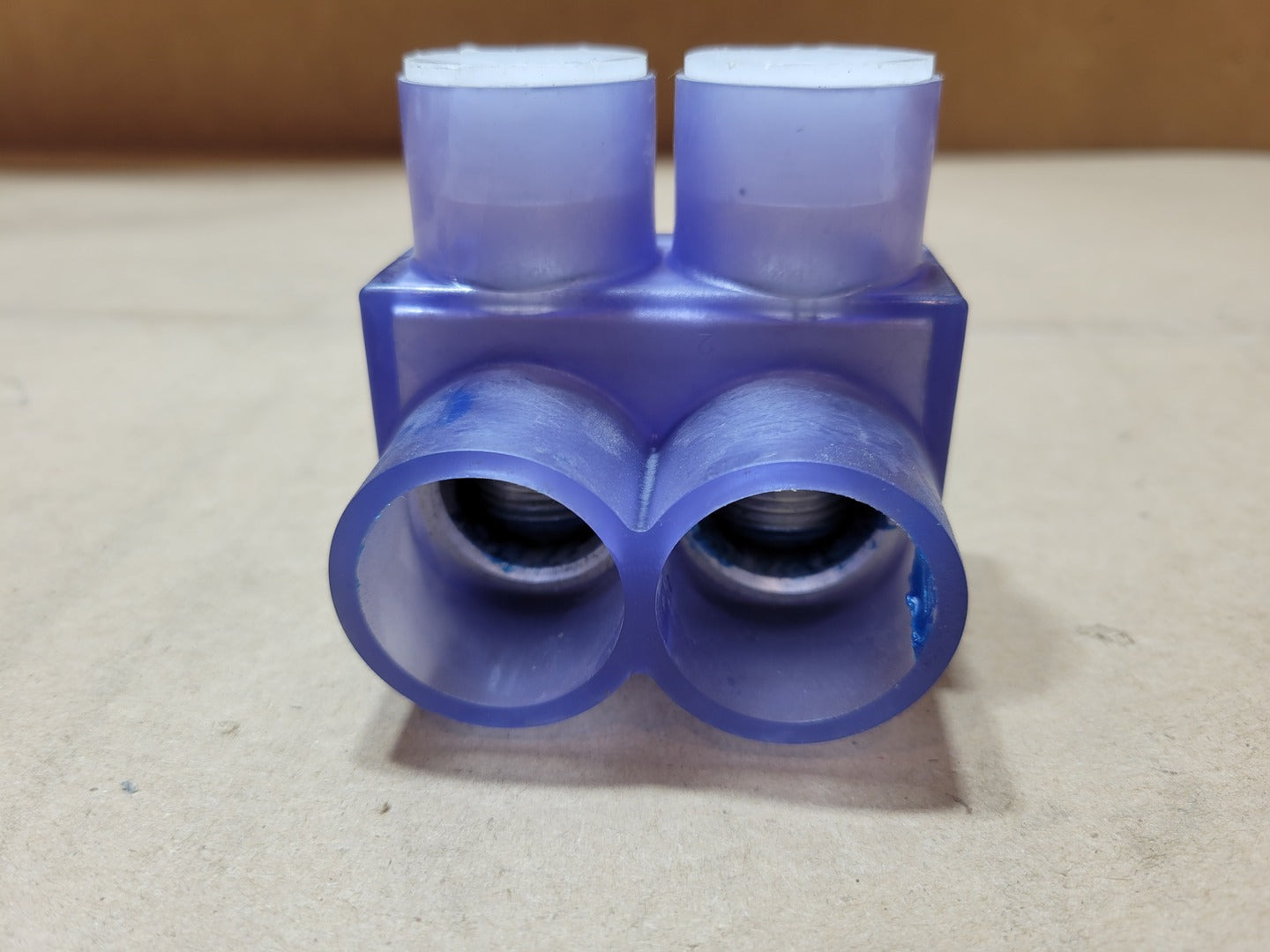

BURNDY BIT600 UNITAP clear-insulated, two-port mechanical connector for joining or tapping stranded aluminum and copper conductors ranging from #4 AWG through 600 kcmil. It features a high-strength aluminum body, two Allen-head pressure screws, pre-installed oxide-inhibiting compound, and a clear plastisol covering. Rated for indoor applications up to 600 V and 90°C.
| Specifications | |
|---|---|
| Model | BIT600 |
| Condition | Used |
| Other Specifications |
|---|
|
Connector type: Insulated multi-tap/splice connector Configuration: Two ports, single-sided entry Number of screws: 2 Screw type: Allen/hex socket Conductor range: #4 AWG-600 kcmil Compatible conductors: Stranded aluminum and copper Material: AL6061-T6 aluminum Dual rating: AL9CU Maximum voltage: 600 V Temperature rating: 90°C Insulation: Clear plastisol Wire strip length: 1-1/8 in. Recommended torque: 375 in-lb |
