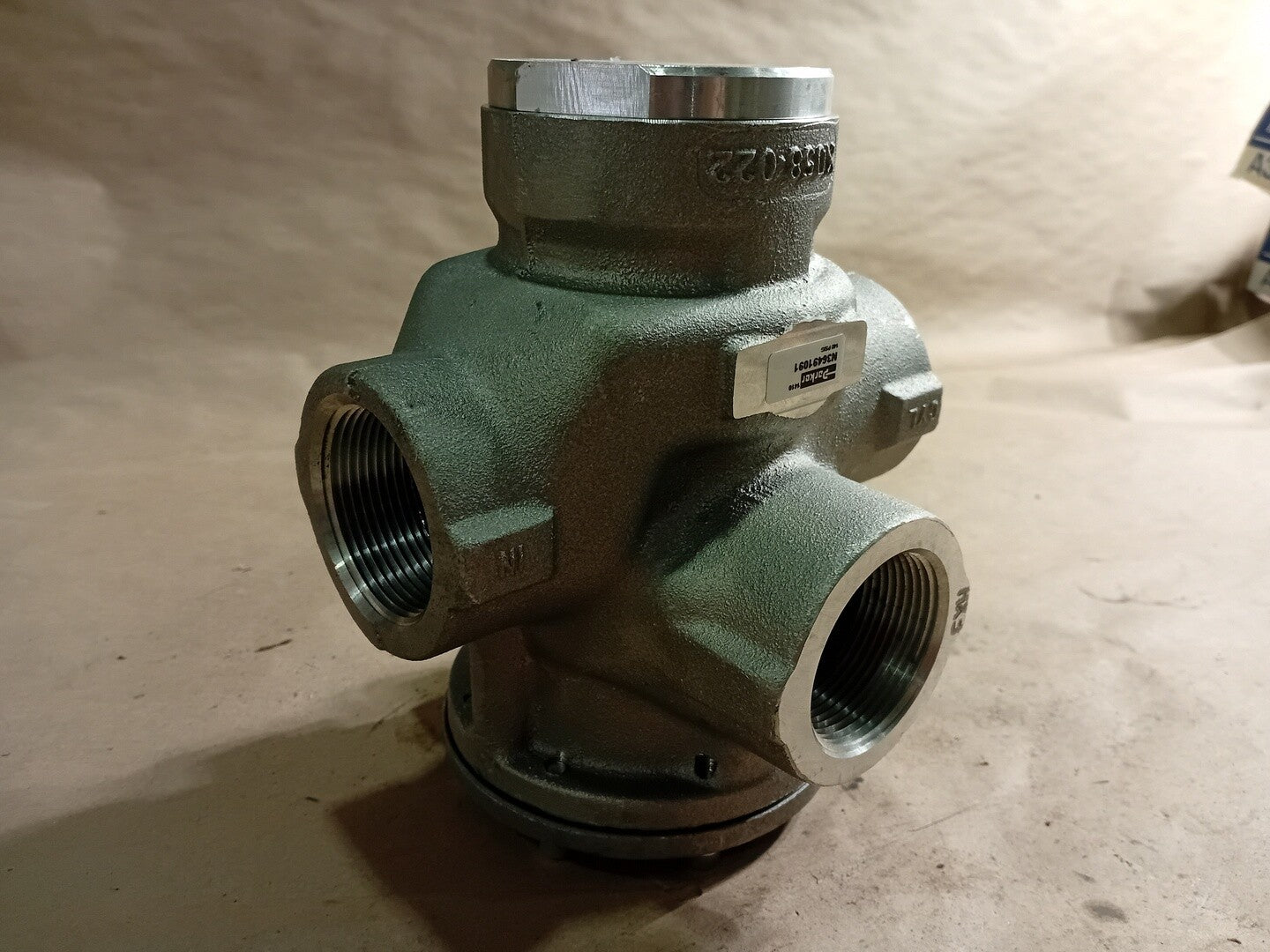

Descripción
| Specifications | |
|---|---|
| Model | N36491091 |
| Made In | UNITED STATES |
| Condition | Surplus New | General |
| Valve Style | Other |
| Other Specifications |
|---|
|
Dimensions Valve Port Size: 1 1/2 in Pilot Port Size NPT (In.): 1/4 Length (In.): 5 1/4 in Port Size (In.): 1-1/2 Inlet, 1-1/2 Exhaust Height (In.): 7 17/32 in Width (In.): 6 13/100 in Overall Width: 6 1/8 in Overall Height: 5 15/16 in Pilot Port Connection Size: 1 1/2 in Overall Length: 5 1/4 in Valve Port Connection Size: 1 1/2 in Details Valve Ways and Positions: 3-Way/2-Position Valve Actuator / Return: Air Pilot / Air Return Max. CFM - Valves: 30 cfm Max. Operating PSI: 140 psi Type: Normally Closed Coefficient of Volume: 23.3 Number of Positions: Two-Position Pilot Pressure: 25 psi Uses: General Pneumatics Applications Number of Ways: Three-Way Max. Temp. Range (F): 0 to 125 Vacuum: External Pilot Item: Pilot Air Control Valve Actuator/Return: Air Pilot/Air Return Valve Type: Poppet Body Material: Aluminum Application: Automotive, Foundries, Pulp and Paper Mills, Steel Mills Standards: CE Certifie dProduct Type: Pilot Air Control Valve Operating Temperature - Maximum: 200 Degrees F For Media: Air Operating Pressure - Maximum: 250 psi Body Style: Inline Actuator Type: Remote Pilot Coefficient of Volume (Cv): 30 SeriesNFail Position: Open Lubrication: Lubrication Not Required Valve Action: Normally Open Valve Port Connection Type: NPT Return Action: Pilot Return Override: No Override Pilot Port Connection Type: NPT Operating Temperature - Minimum: 0 Degrees F Seal Material: Nitrile Flow Rate - Maximum: 30 scfm |
