Descripción
| Specifications | |
|---|---|

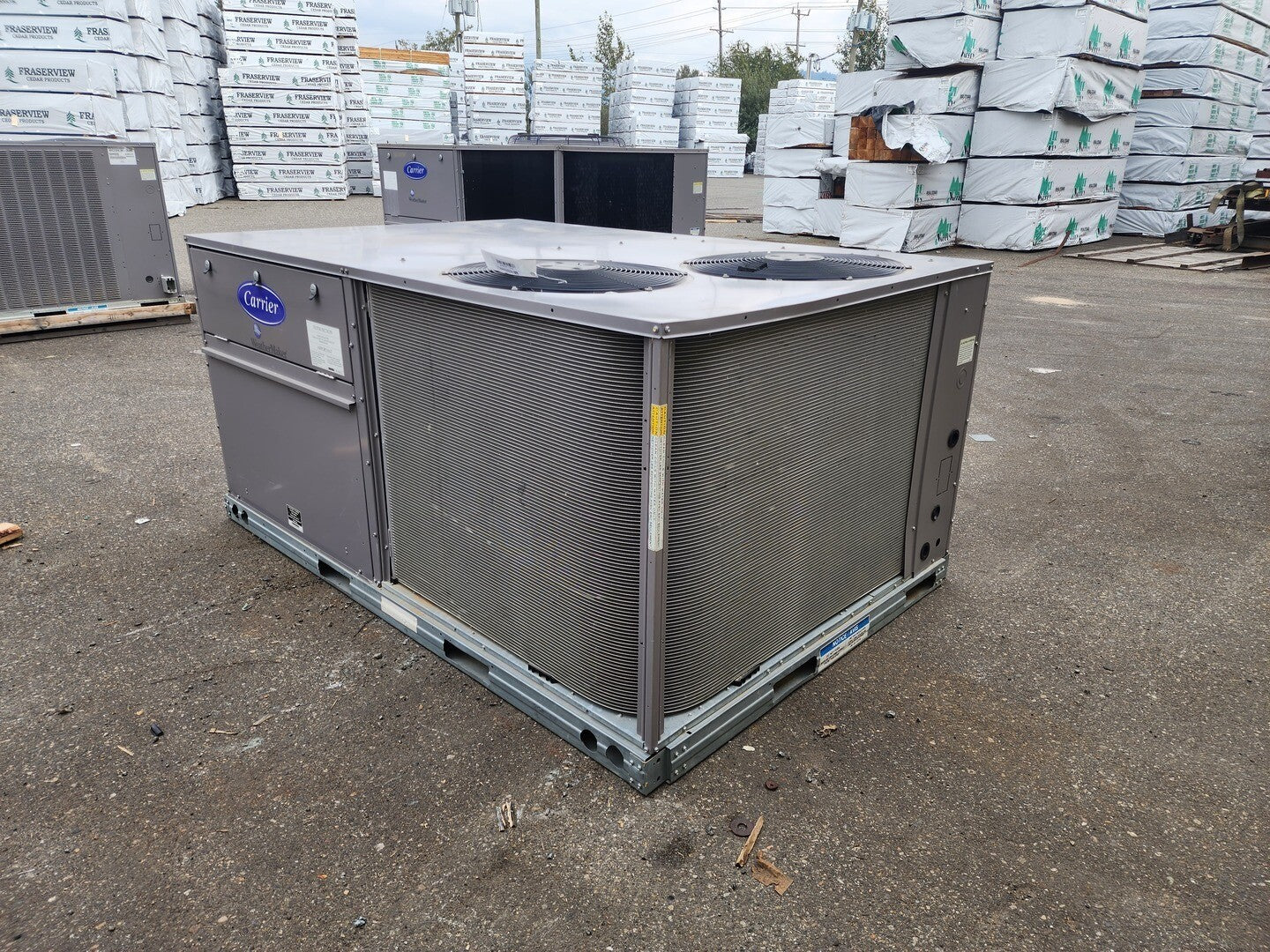

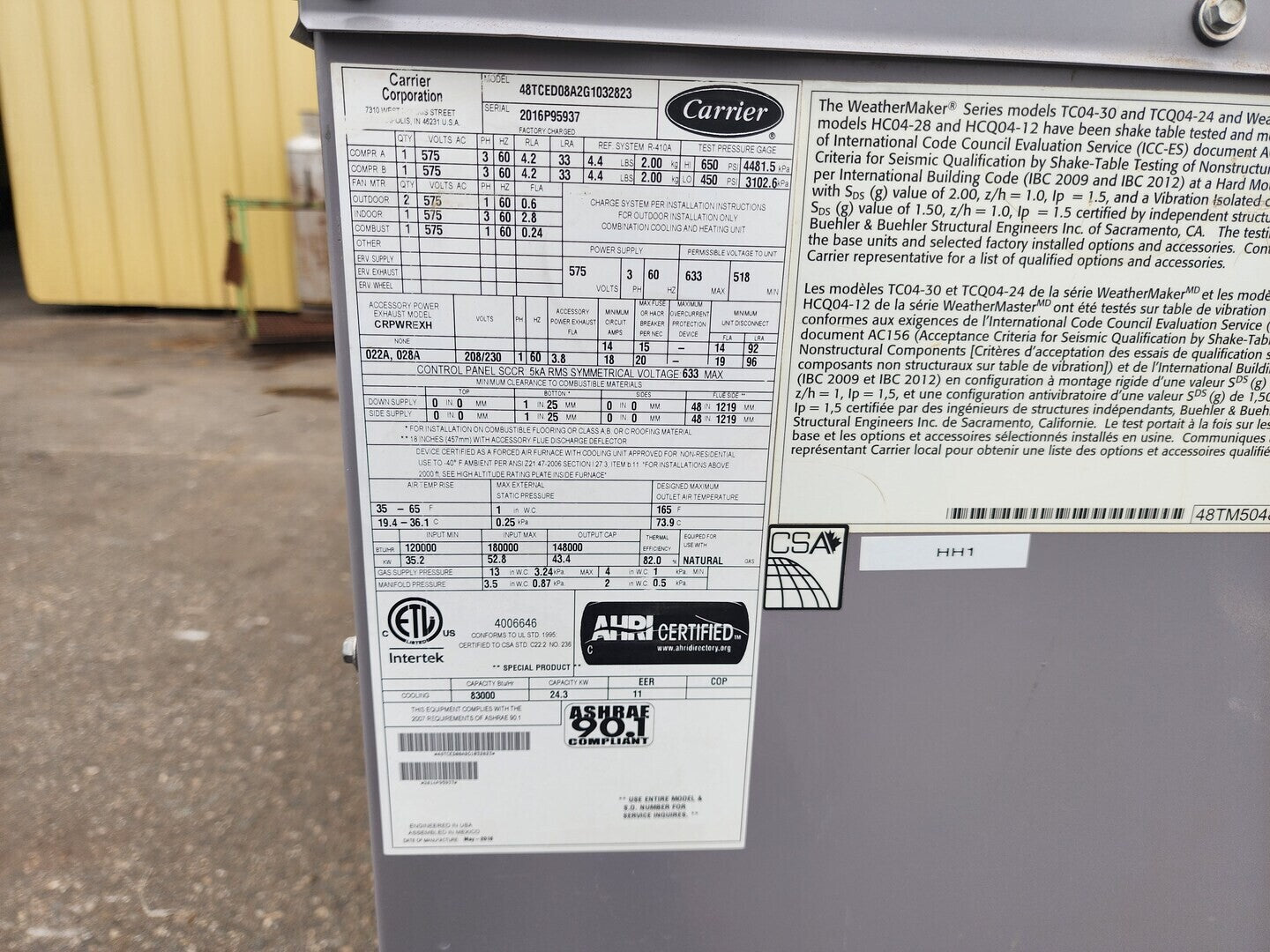

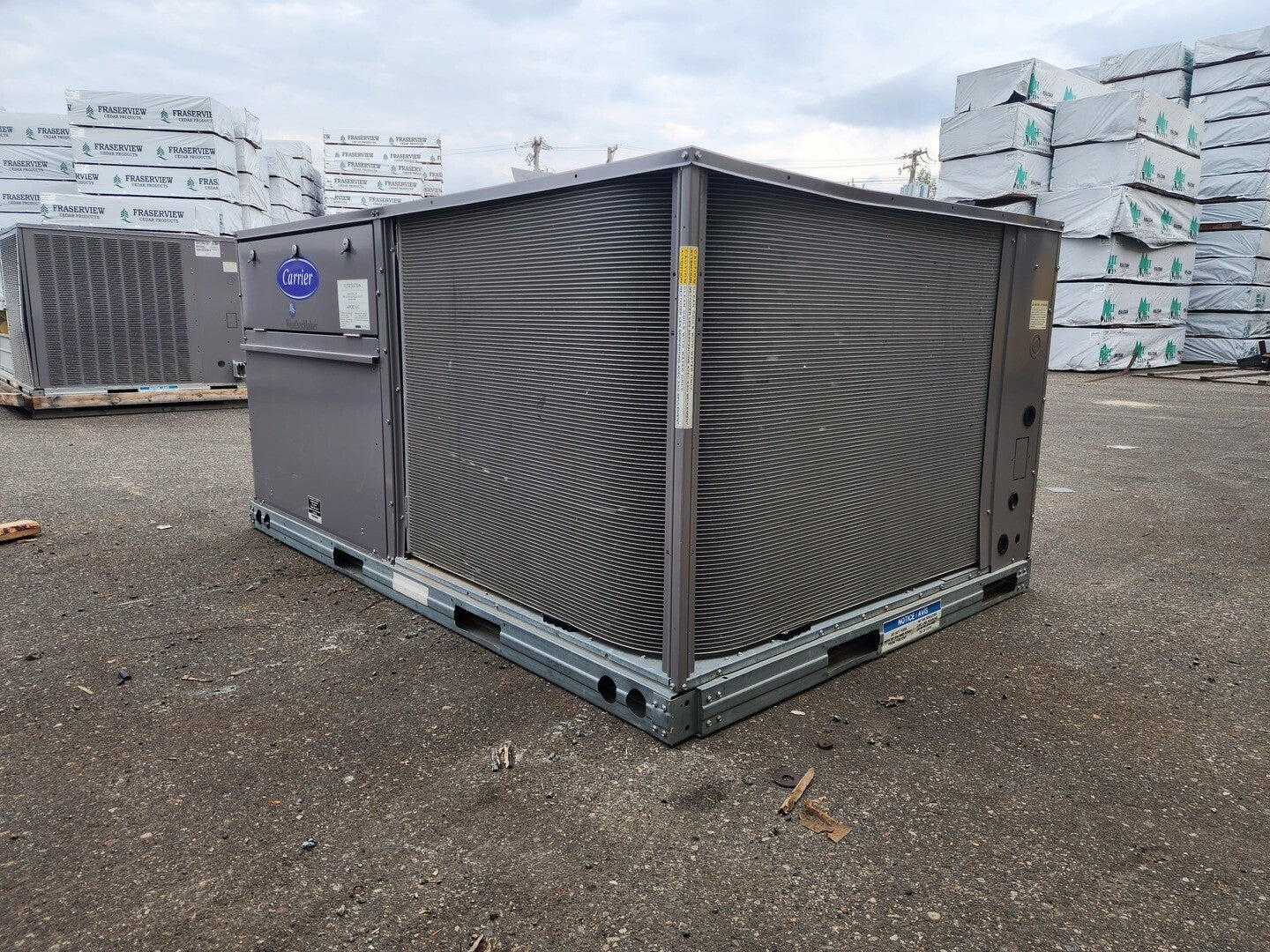

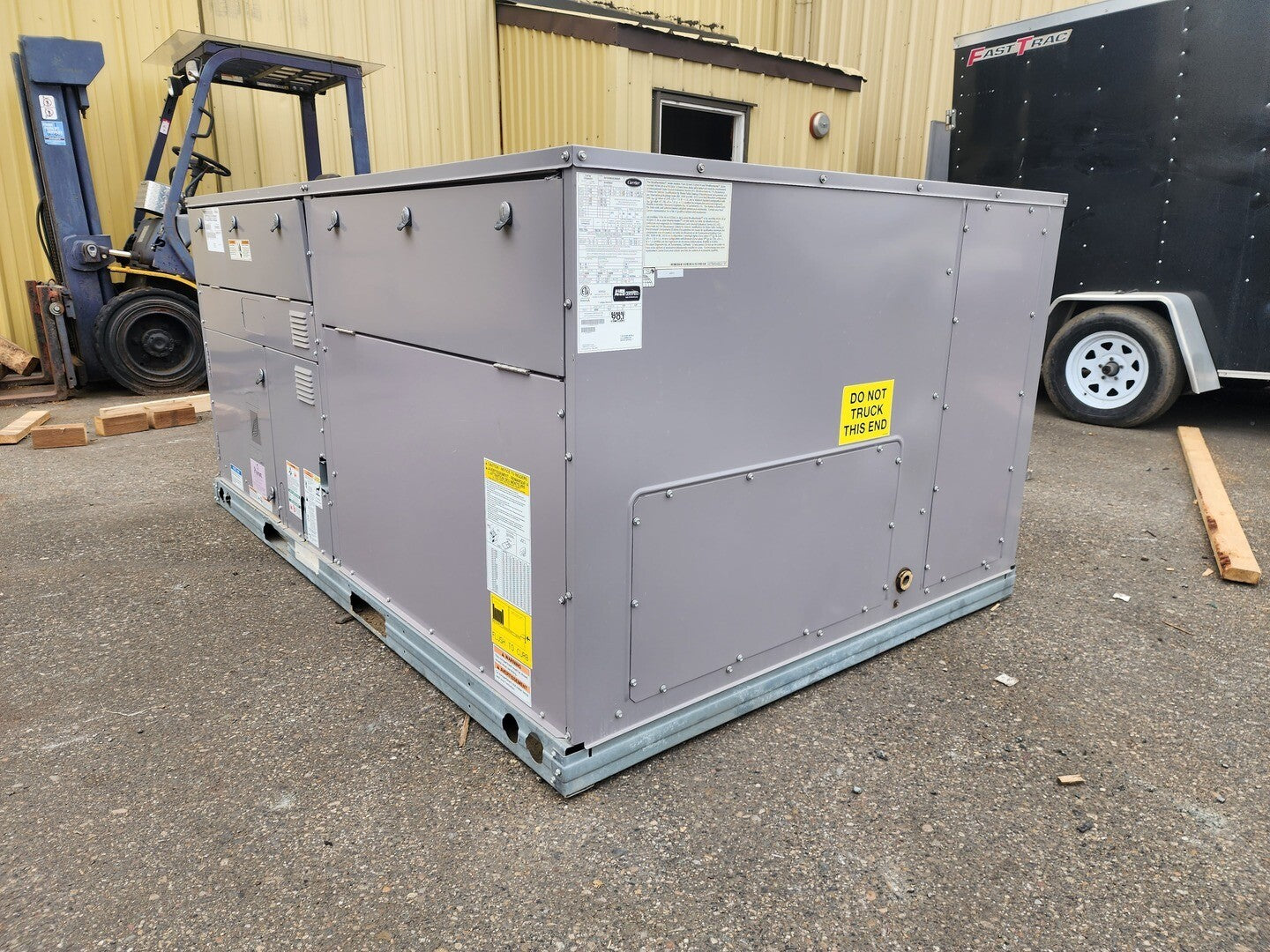

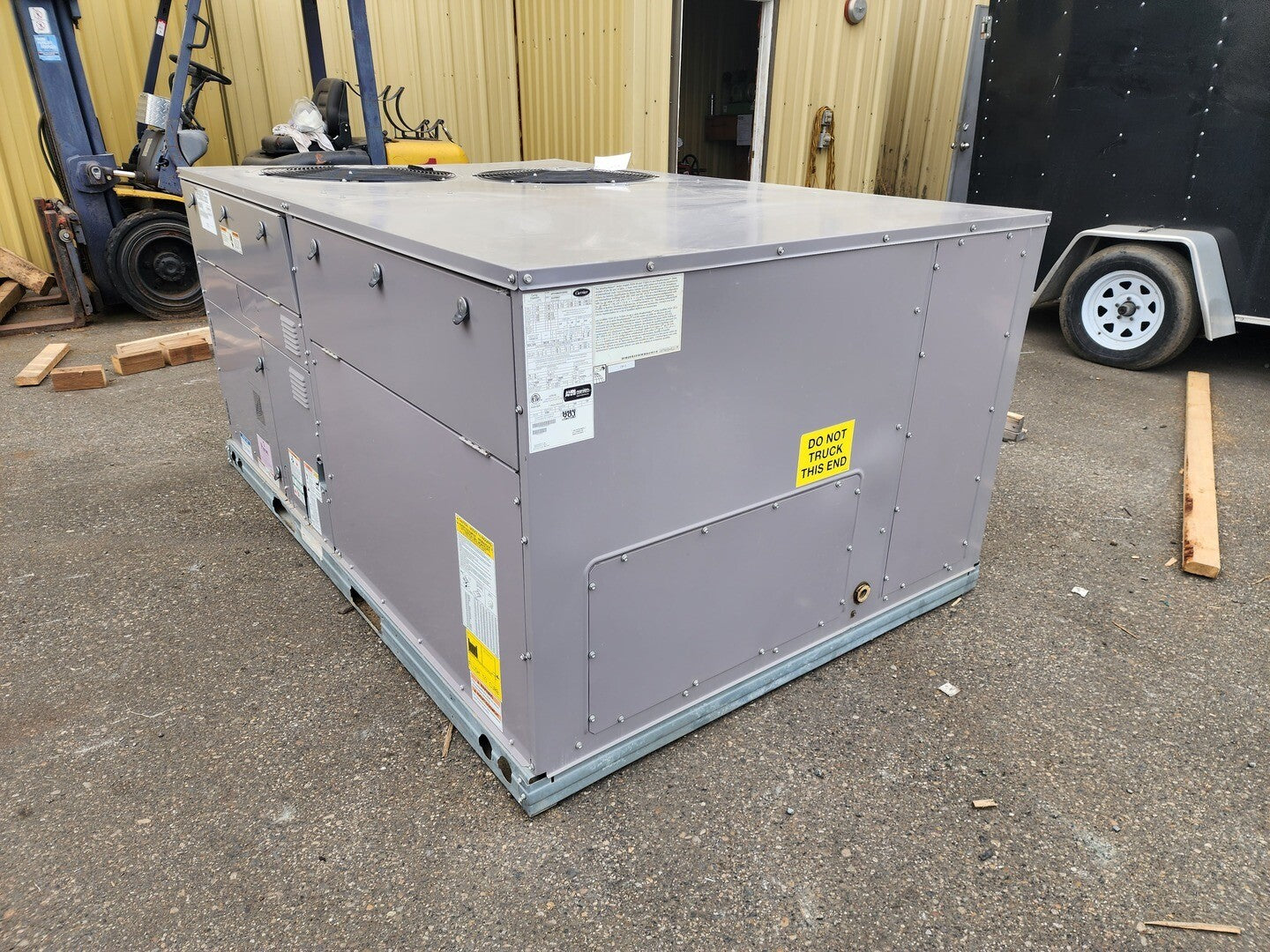

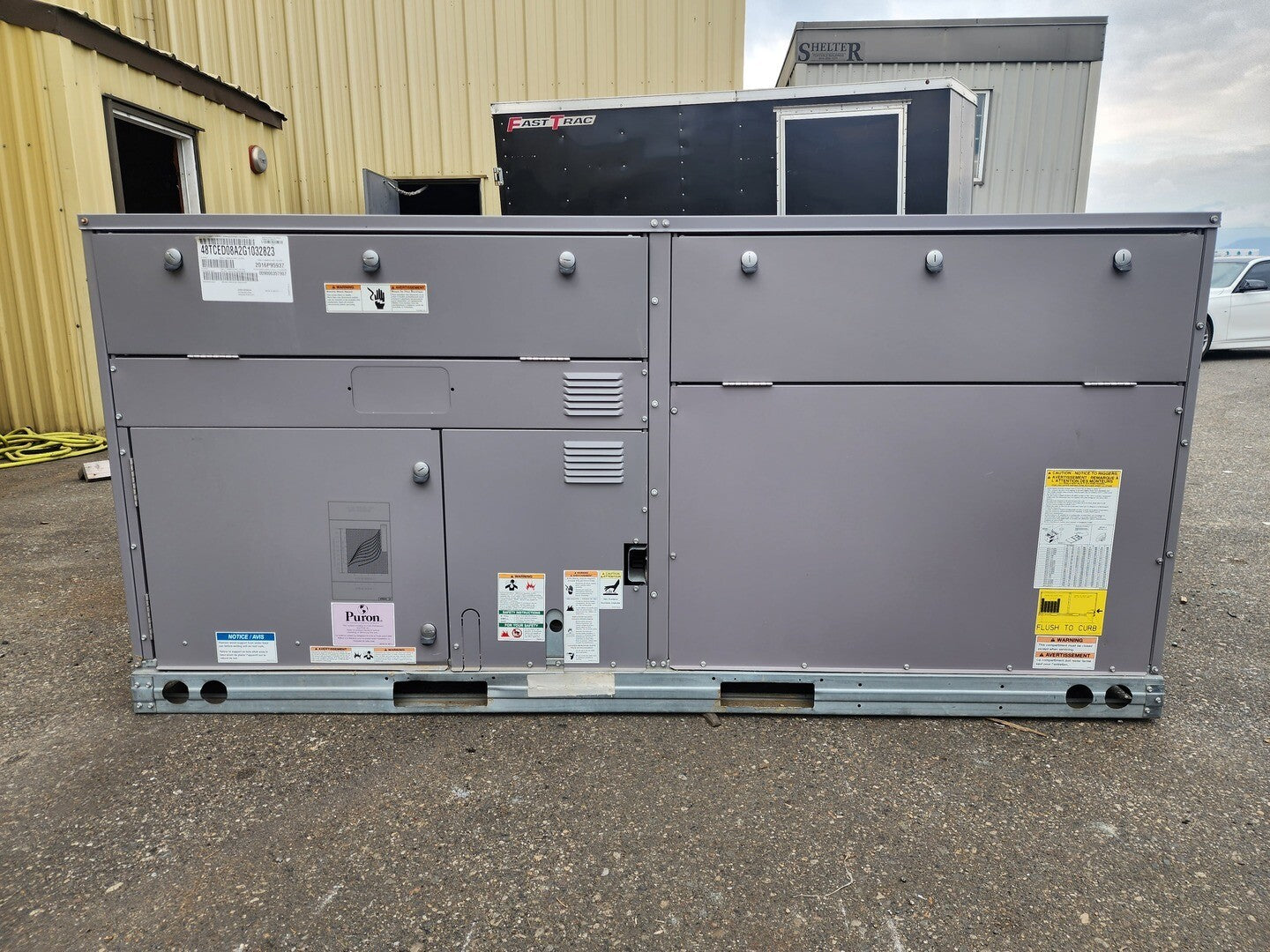

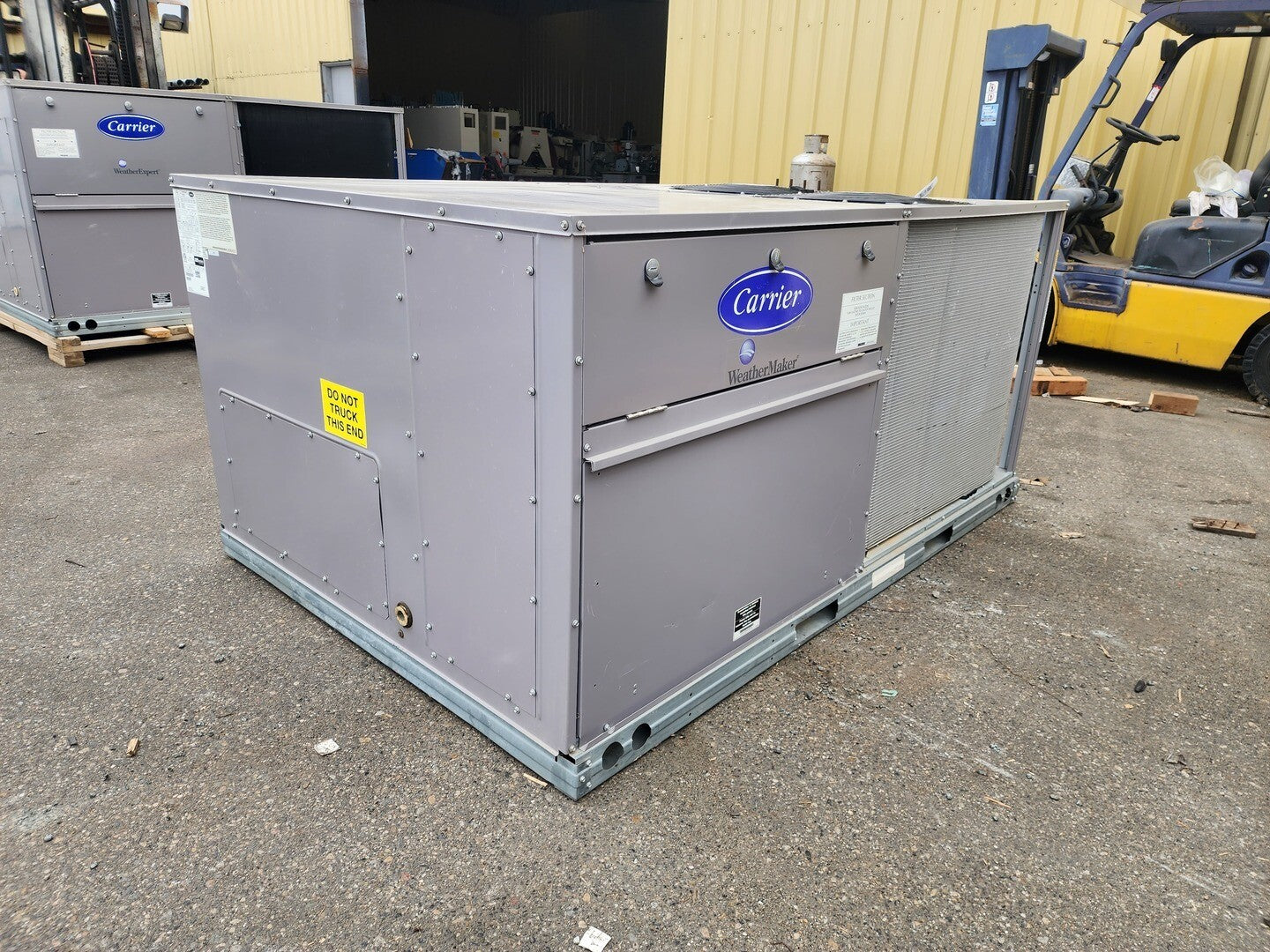

| Model | 48TCED08A2G1032823 |
| S/N: | 2016P95937 |
| Made In | UNITED STATES |
| Condition | Surplus New | Electrical |
| Voltage | 600 volts |
| Amps | 4.2 amps |
| BTU | 180000 |
| Other Specifications |
|---|
|
Accessory Power Exhaust Model: CRPWREXH 022A, 028A
Accessory Power Exhaust FLA: 3.8
Minimum Circuit Amps: 14-18
Max Fuse or HACR Breaker Per NEC: 15-20
Minimum Unit Disconnect: 14-19FLA, 92-96LRA
Down Supply: 0" - 0mm(Top) 1" - 25mm(Bottom) 0" - 0mm(Sides) 48" - 1219mm(Flue Side)
Side Supply: 0" - 0mm(Top) 1" - 25mm(Bottom) 0" - 0mm(Sides) 48" - 1219mm(Flue Side)
Air Temp Rise: 35-65 Deg Fahrenheit / 19.4-36.1 Deg Celsius
Max Eternal Static Pressure: 1 in W.C. 0.25kPa
Designed Maximum Outlet Air Temperature: 165 Deg Fahrenheit / 73.9 Deg Celsius
Input Min: 120,000 BTU/HR 35.2KW
Input Max: 180,000 BTU/HR 52.8KW
Output Cap: 148,000 BTU/HR 43.4KW
Therman Efficiency: 82.0%
Equipped For Use With: Natural
Gas Supply Pressure: 13 in W.C. 3.24kPa Max / 4 in W.C. 1 kPa Min
Manifold Pressure: 3.5 in W.C. 0.87 kPa Max / 2 in W.C. 0.5 kPa Min
Cooling: 83,000 Capacity BTU/HR, 24.3 Capacity KW, 11 EER
|
