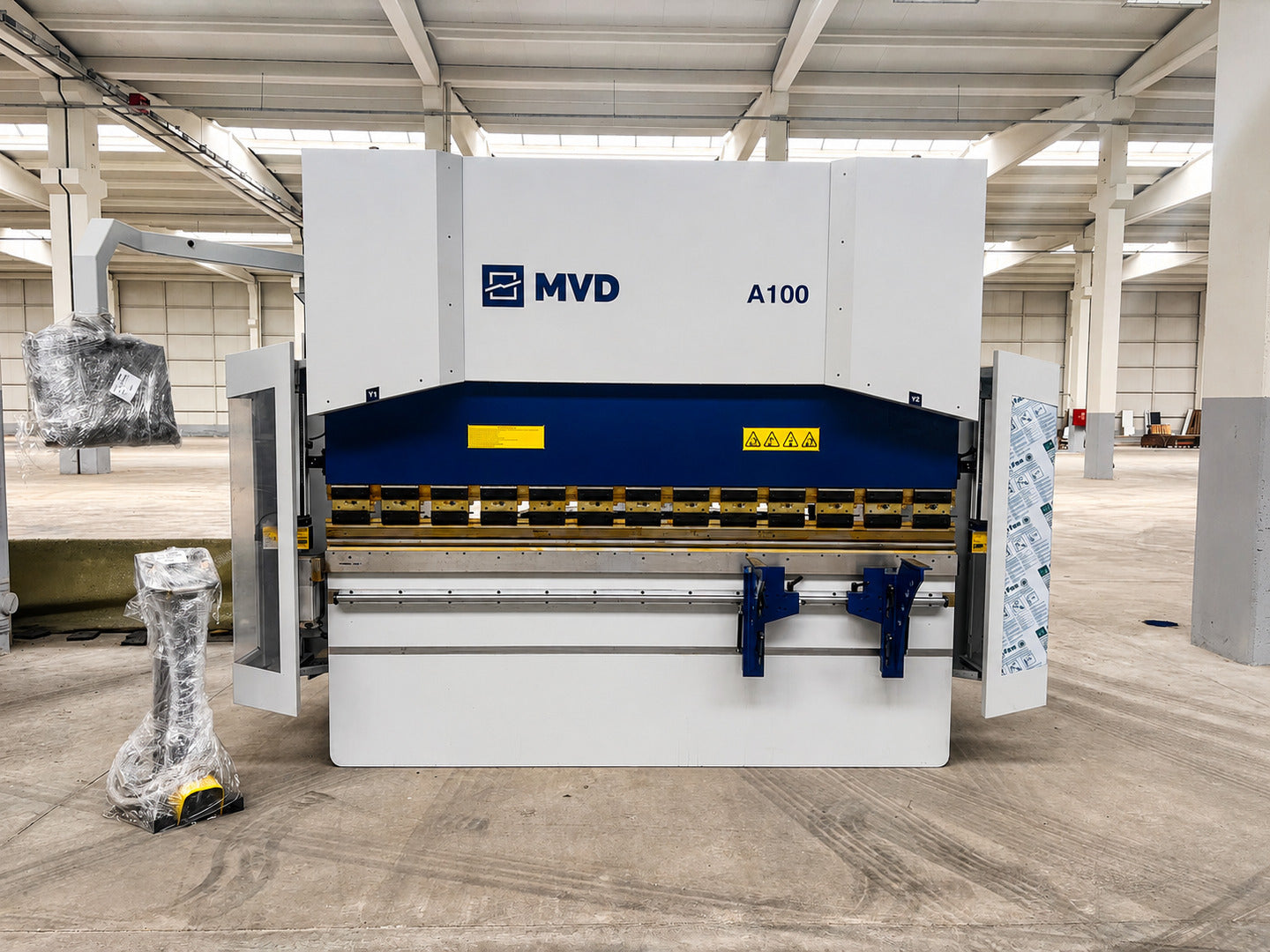

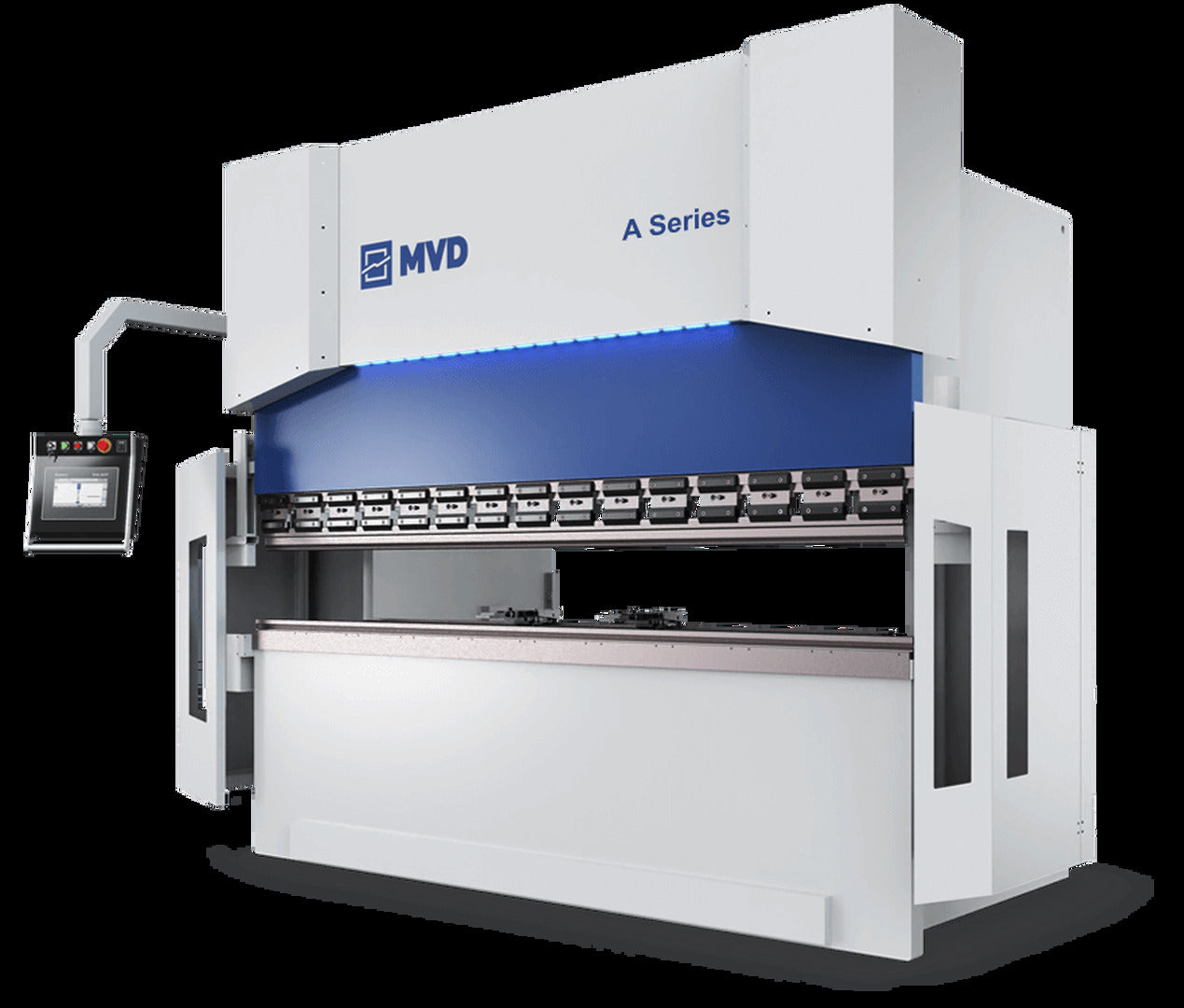

100 ton iBend Hydraulic Press Brake A-Series A100-2600

SKU: 155215
Precio:
$113,369 CAD

Gastos de envío calculados en la caja

Stock:
Solo queda 1 unidad
Make an Offer

¿Necesita una respuesta ahora?

Finance

Amount:
Email Finance

Descripción

Specifications
Model A100-2600
Year: 2026
Made In TURKEY
Condition New
General
Bed Length 2600 mm
Tons 100 ton
Brake Type Hydraulic
CNC Yes
Other Specifications

PDF Catalog

Features:

  1. Y1, Y2, X, R (4 axis with X=750mm, R=250mm) - AC Motorised
  2. CNC unit Delem DA-53T, 10" Touch screen 2D Graphical (3-4 Axes)
  3. Stroke 210mm & Throat depth 410 mm
  4. MVD Servo motorised backgauge with ball screws, linear guided, AC Motor and inverter
  5. CNC Controlled Type#1 Crowning (by MVD wedges and GEC motor)
  6. Magnetic Linear Scales (Turkiye)
  7. 2 Pieces backgauge fingers, manually movable along the linear guide, precisely adjusted
  8. Side safety doors and cylinder covers
  9. HAWE=Hoerbiger (Germany) hydraulic blocks with proportional valves
  10. Eckerle (Germany) oil pump, internal gear type
  11. Promecam European type "quick clamping" system
  12. Narrow Bottom table. IW = 60mm (+10mm spacer)
  13. Top Tool : Eurostamp 1260, H:67, 85°, R:0,8
  14. Bottom Die : Eurostamp 2067, 4 way V=16-22-35-50mm, 85°, H:60
  15. 2 Pcs sliding front supports (Standard included)
  16. AKAS(FPBS) front safety lasers + rear light beams
  17. Set-up and Training
  18. 1 Year Warranty

Dimensions (L x W x H): 4220 x 2230 x 2855 mm

Total Weight (approx): 6150 kg
