Descripción

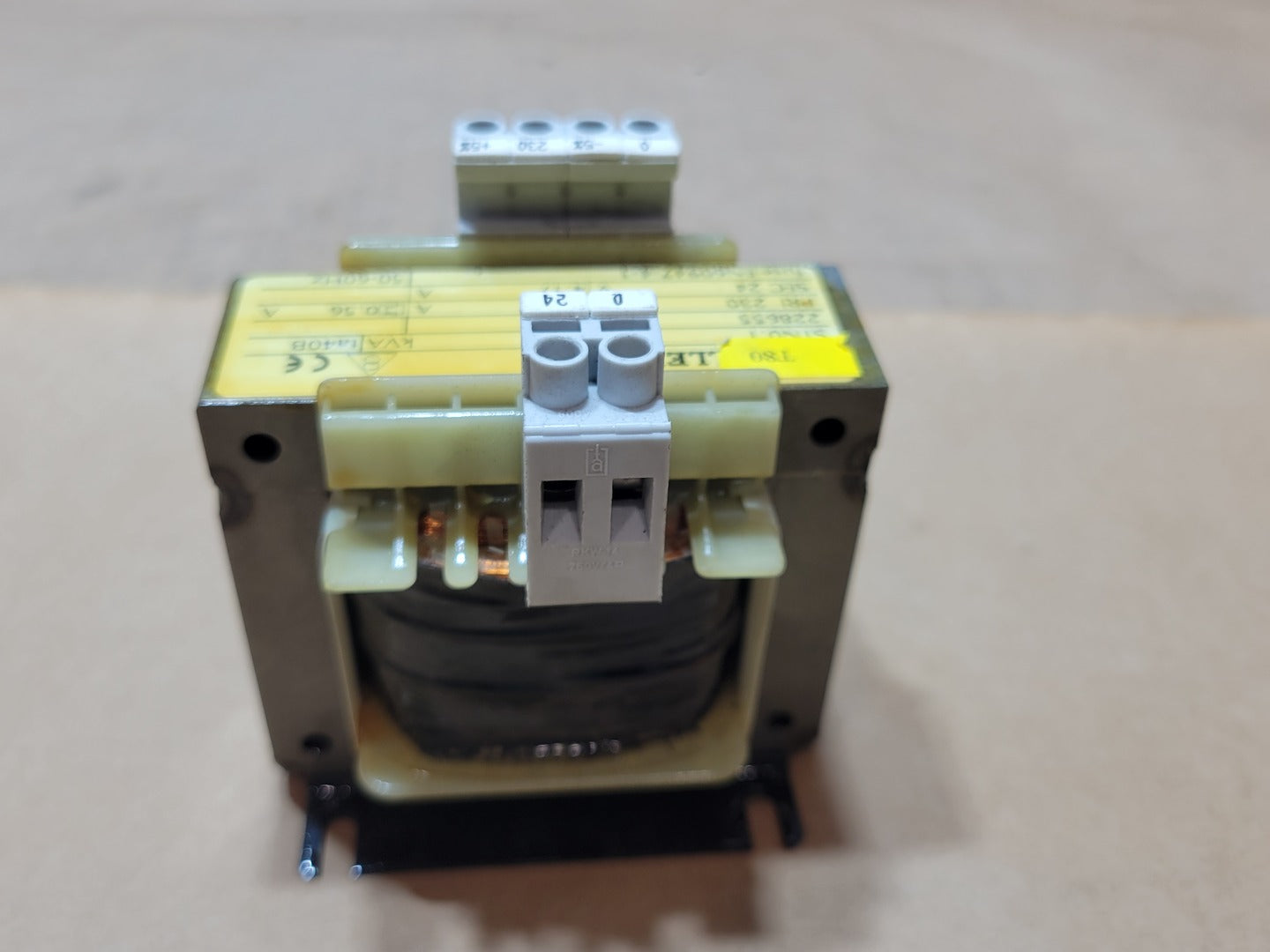

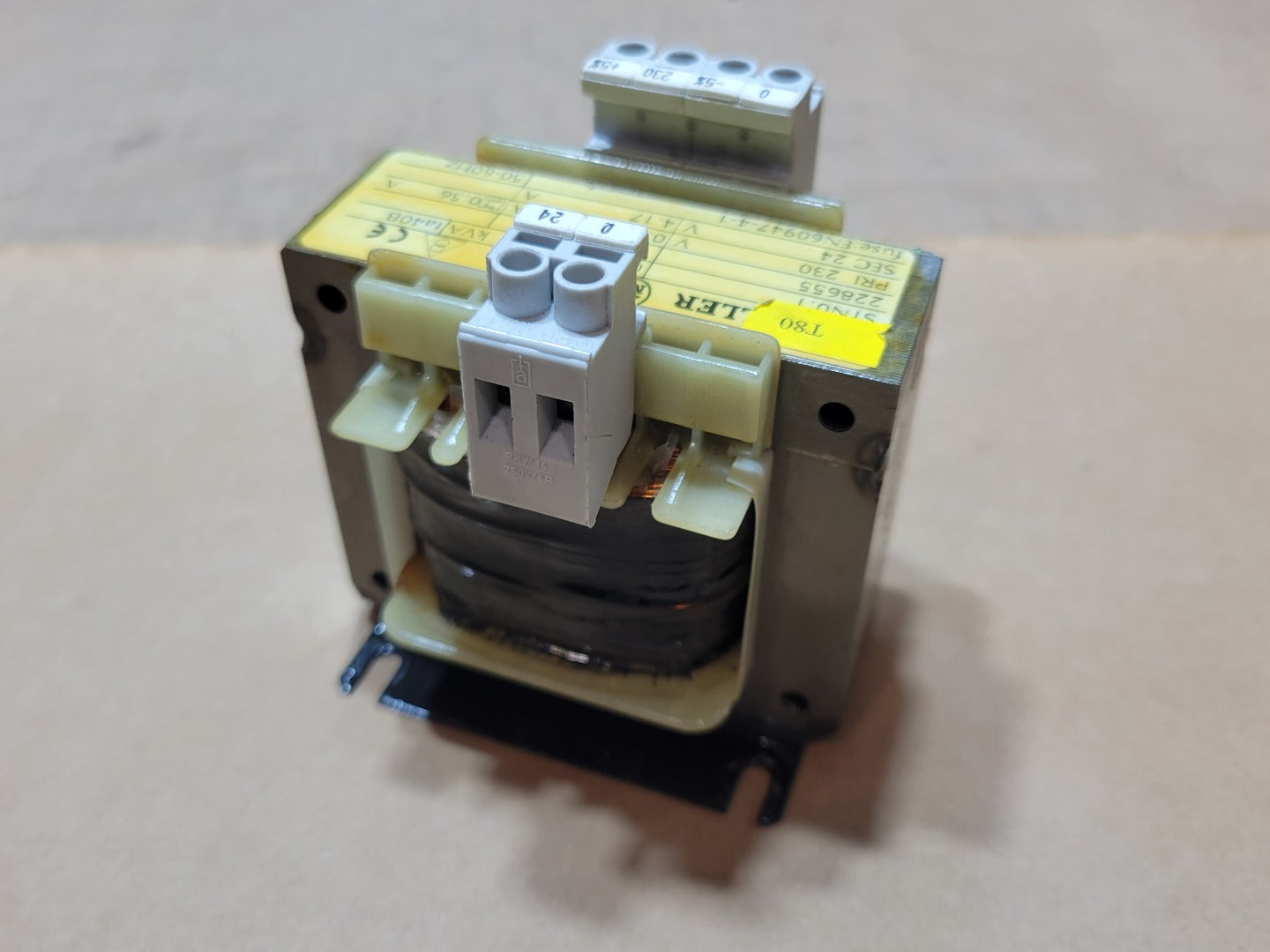

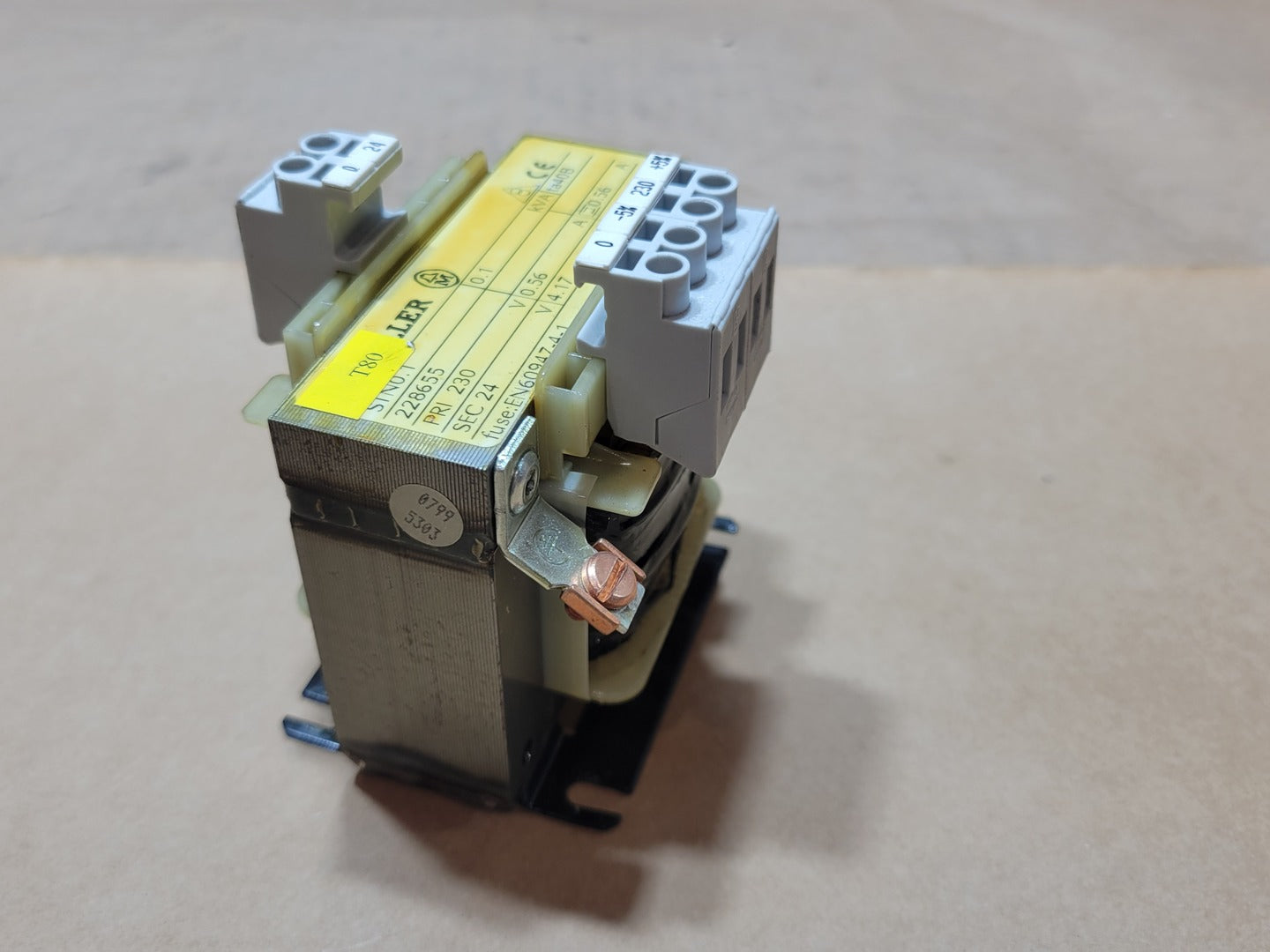

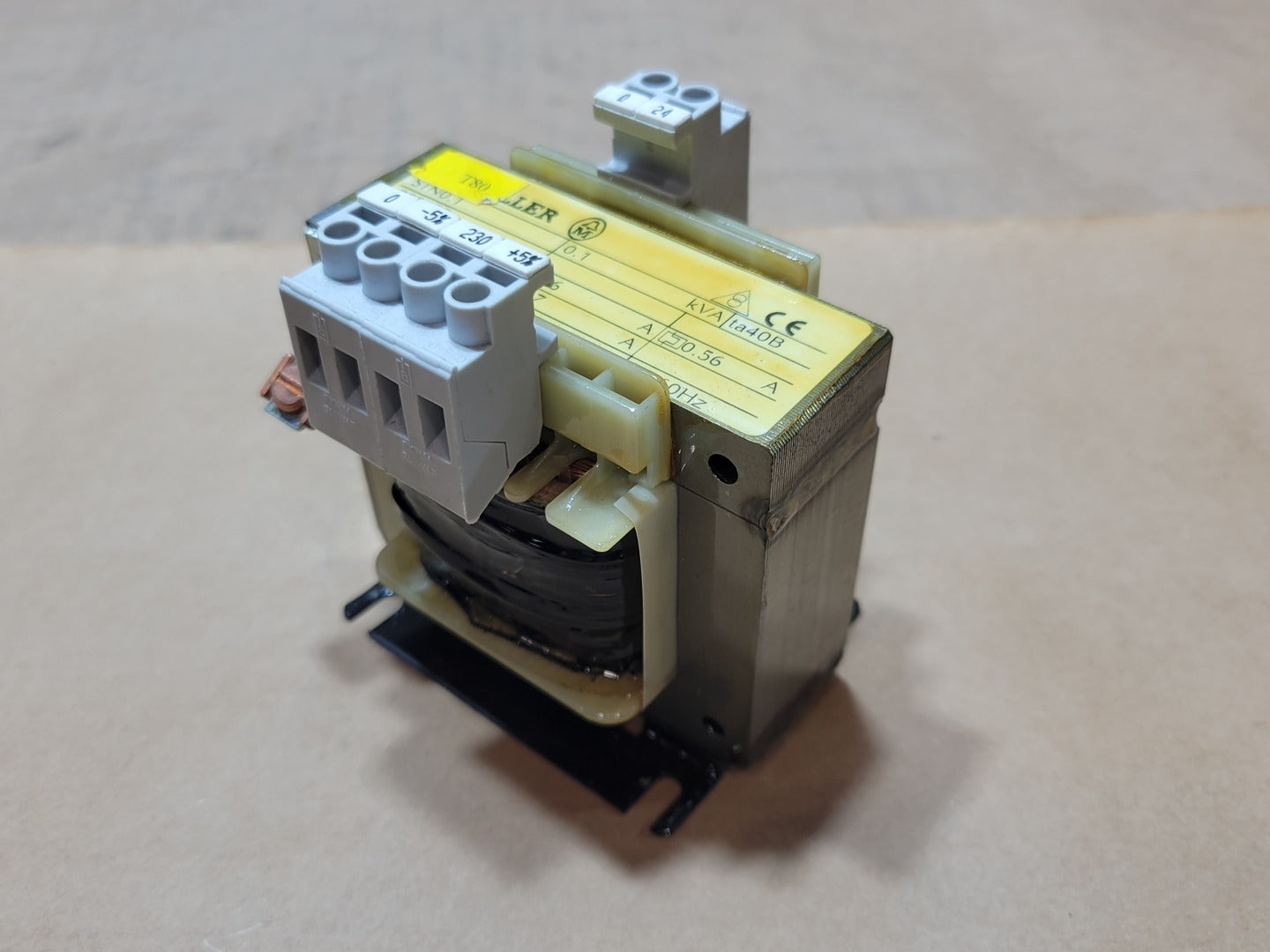

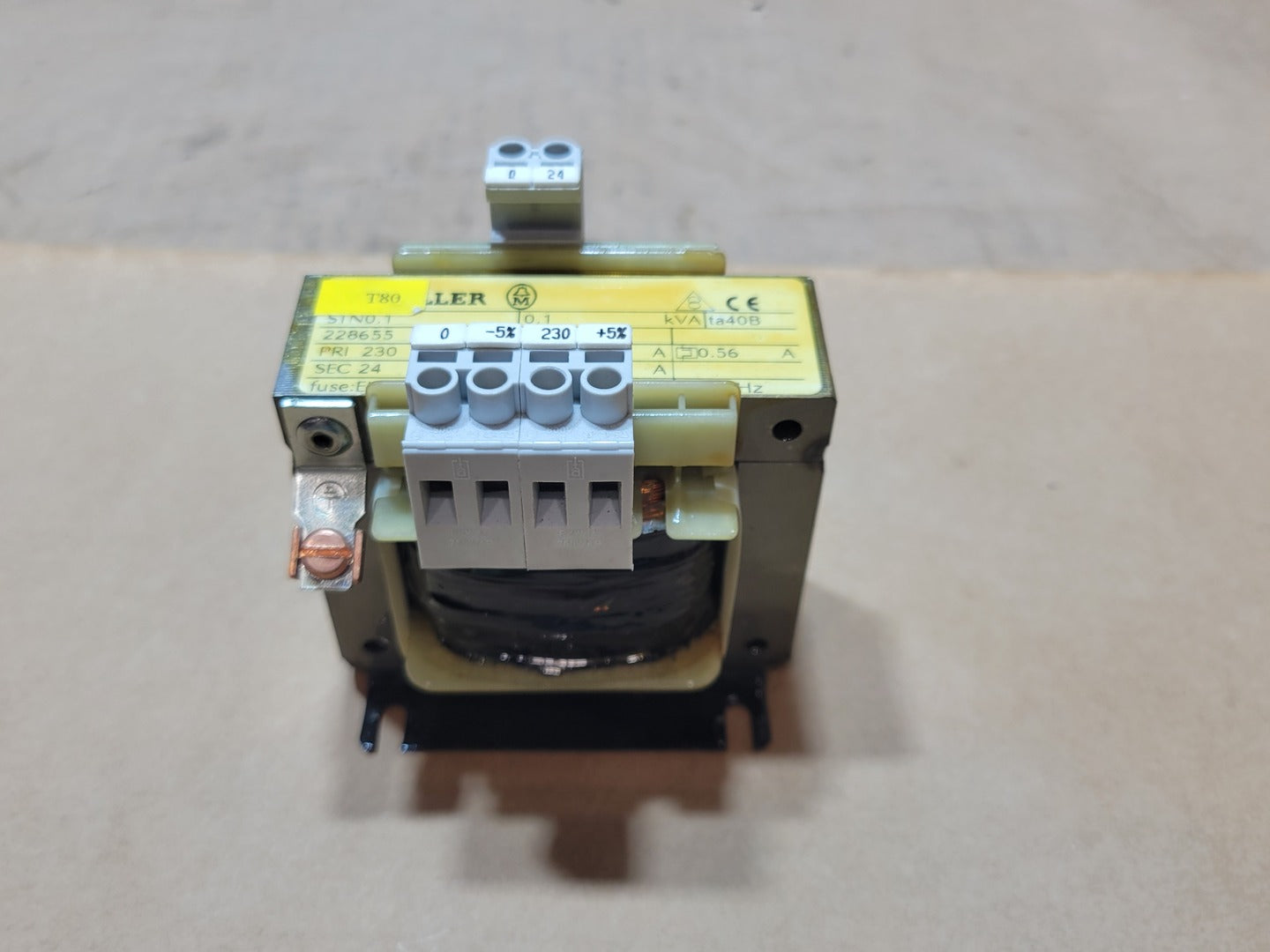

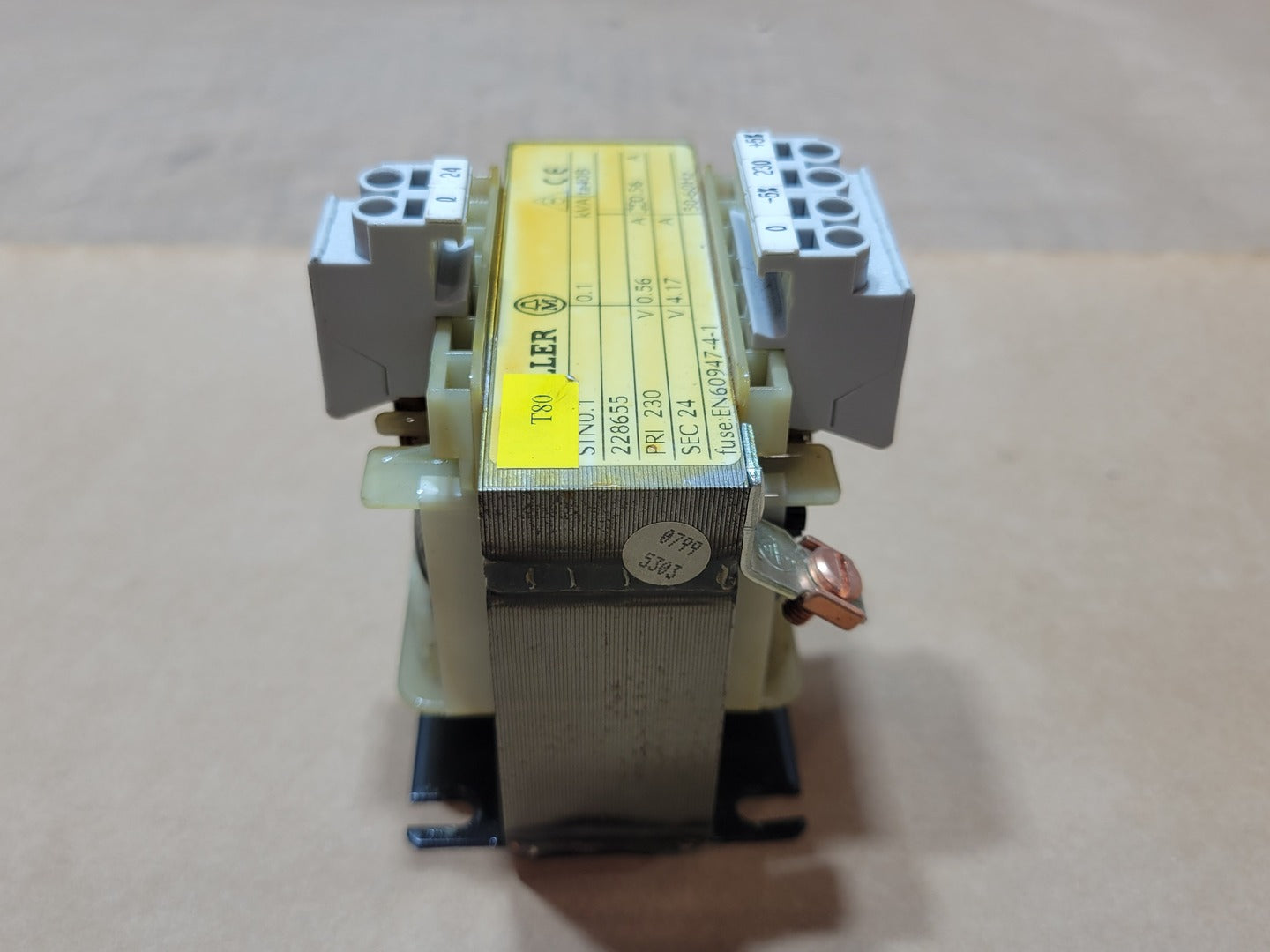

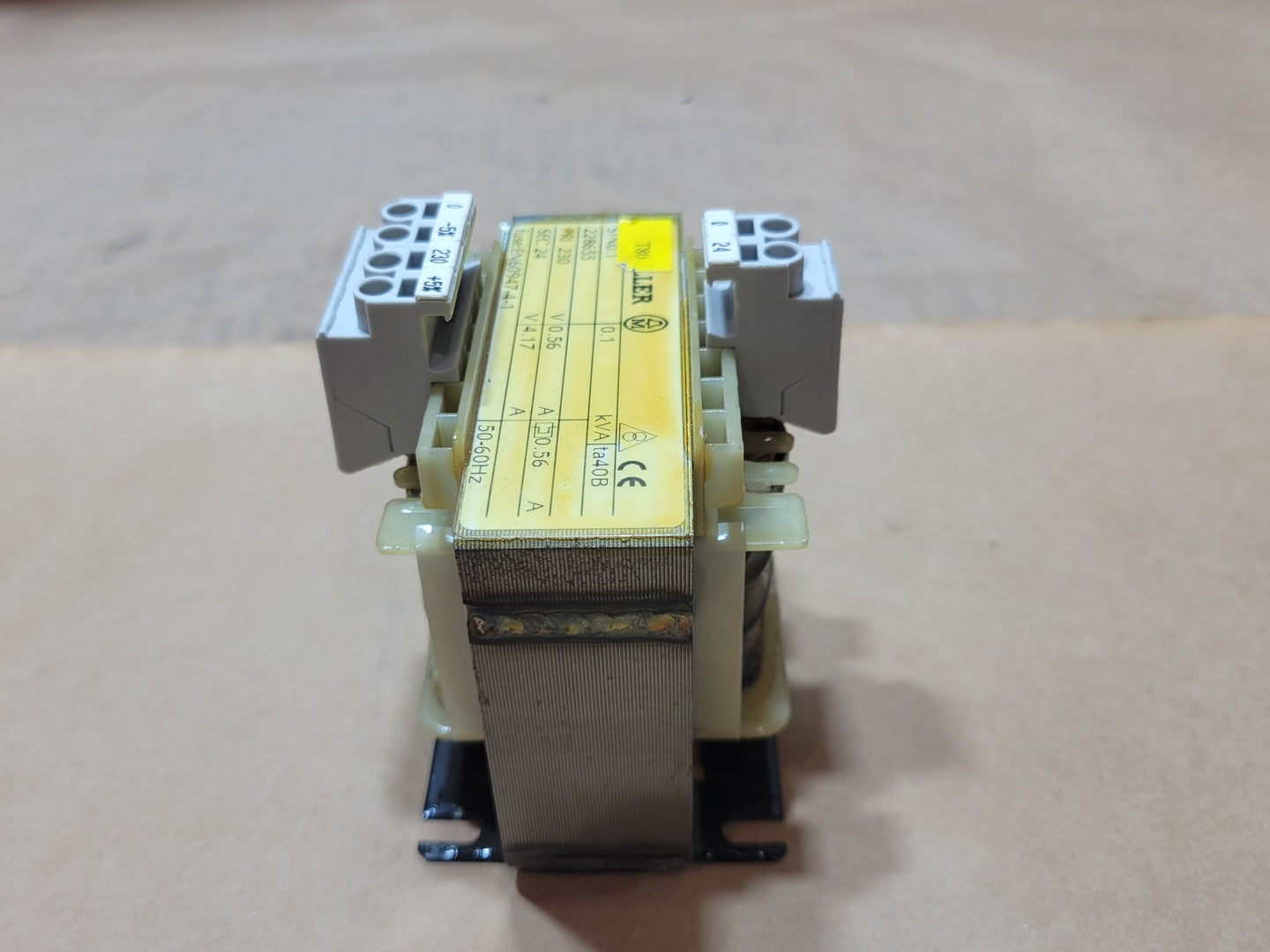

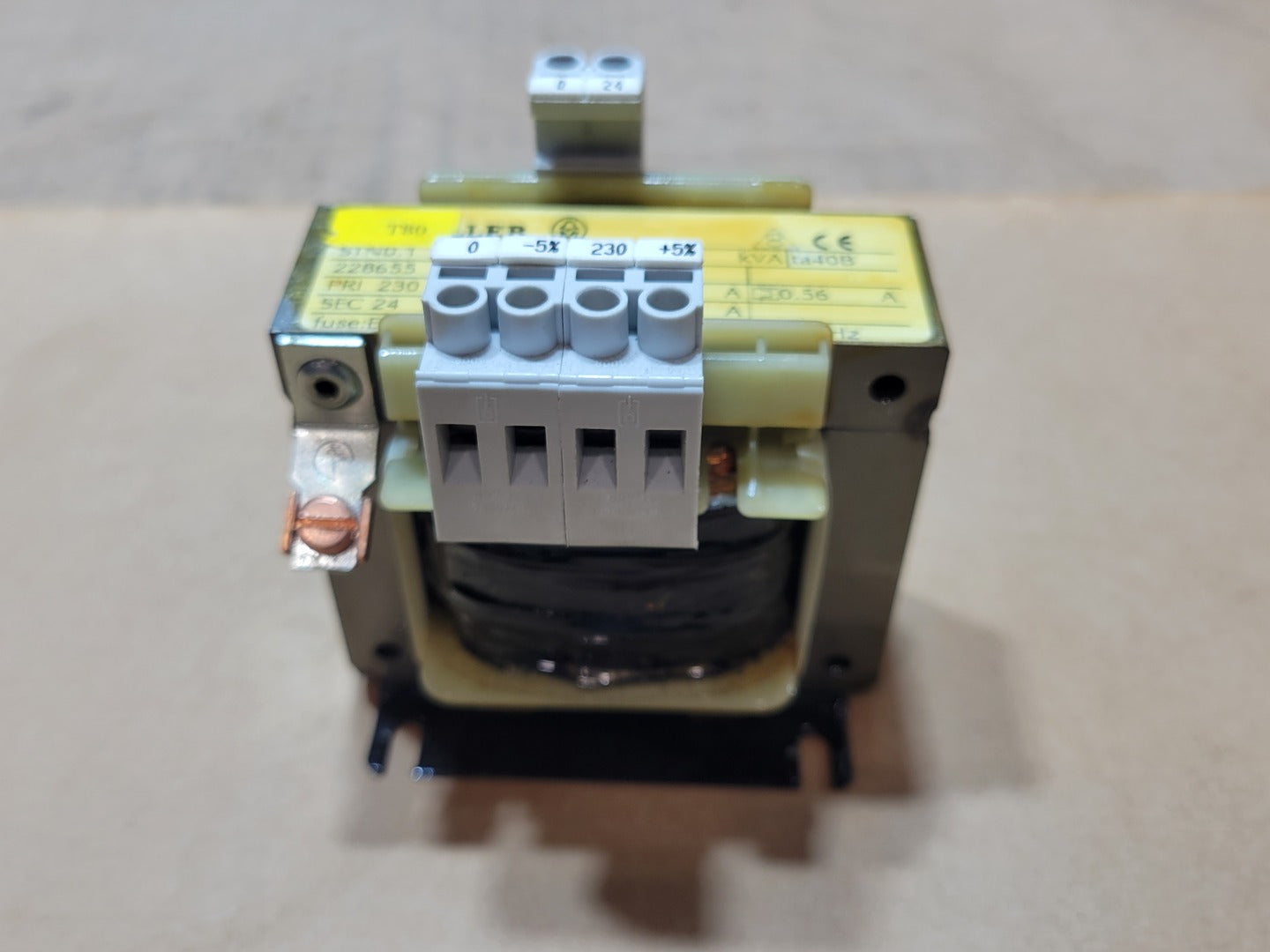

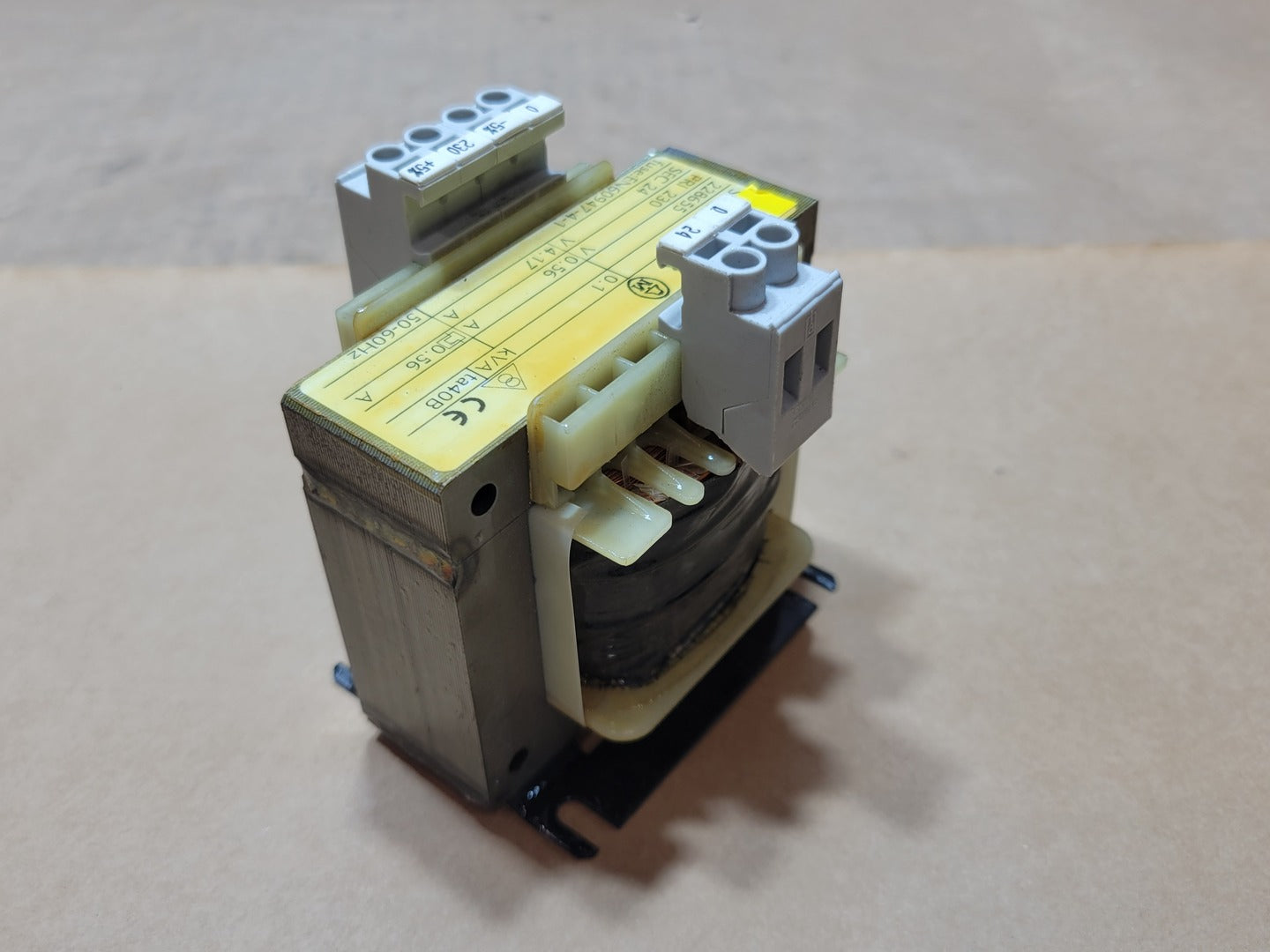

Moeller STN0.1 single-phase industrial control transformer rated at 0.1 kVA. It converts a nominal 230 VAC primary supply to 24 VAC at up to 4.17 A. The transformer provides -5%, nominal and +5% primary connections to compensate for variations in incoming voltage. It has an open-frame laminated-core construction, screw-clamp terminals and a protective-earth connection.
| Specifications | |
|---|---|
| Model | STN0.1 |
| Condition | Used | Electrical |
| kVA | 0.1 kVA |
| Phase | Single-phase |
| Other Specifications |
|---|
|

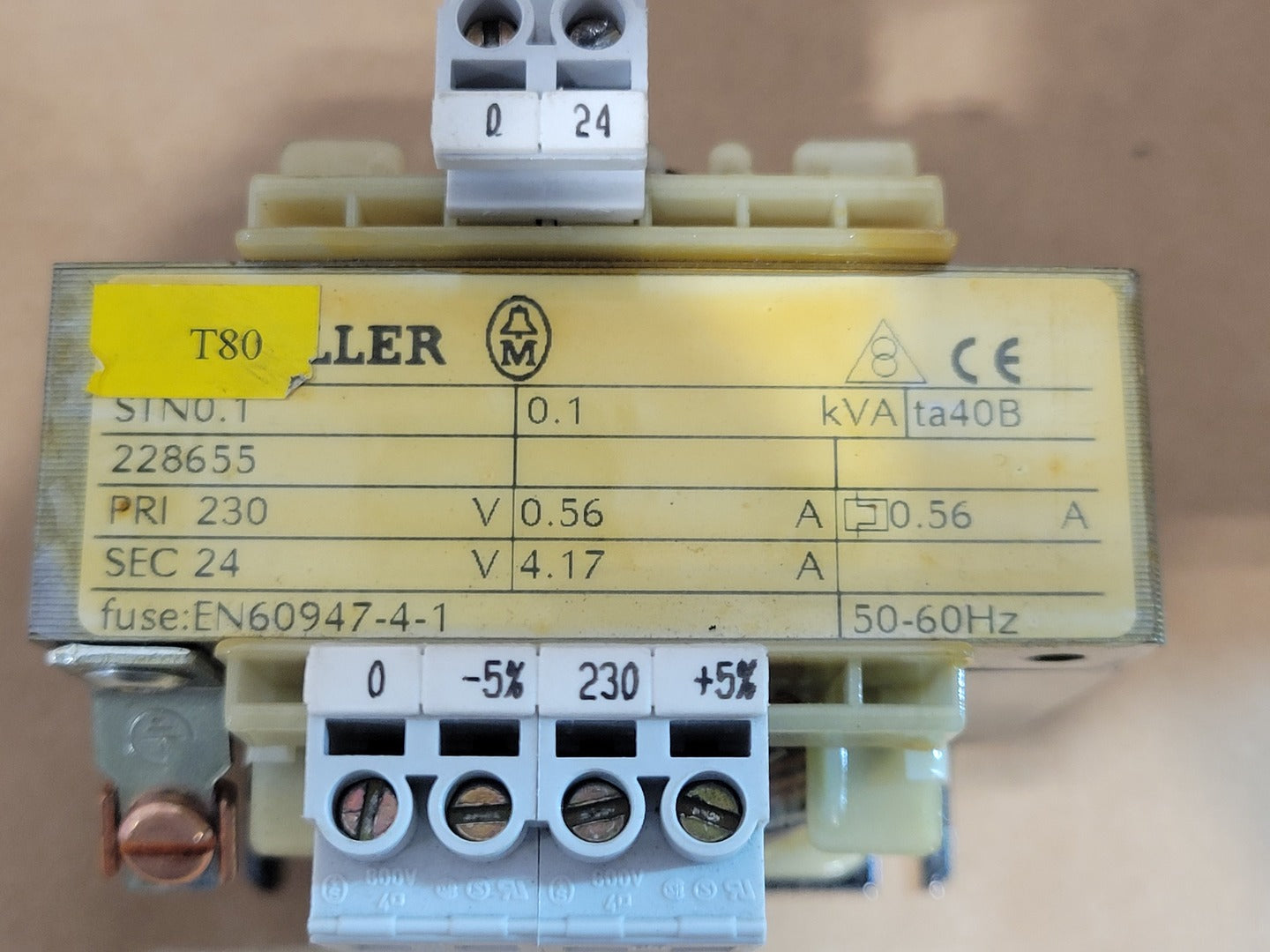

Current Brand Family: Eaton Moeller Type: STN0.1 Number Marking: 228655 Transformer Type: Industrial control transformer Phase: Single-phase Rated Apparent Power: 0.1 kVA / 100 VA Primary Voltage: 230 VAC Primary Adjustment Taps: -5%, nominal 230 V and +5% Approximate -5% Tap Voltage: 218.5 VAC Approximate +5% Tap Voltage: 241.5 VAC Primary Current Marked: 0.56 A Secondary Voltage: 24 VAC Secondary Current: 4.17 A Frequency: 50/60 Hz |
