Descripción
| Specifications | |
|---|---|
| Model | 1336F-BRF50-AA-EN-HASB-L6 |

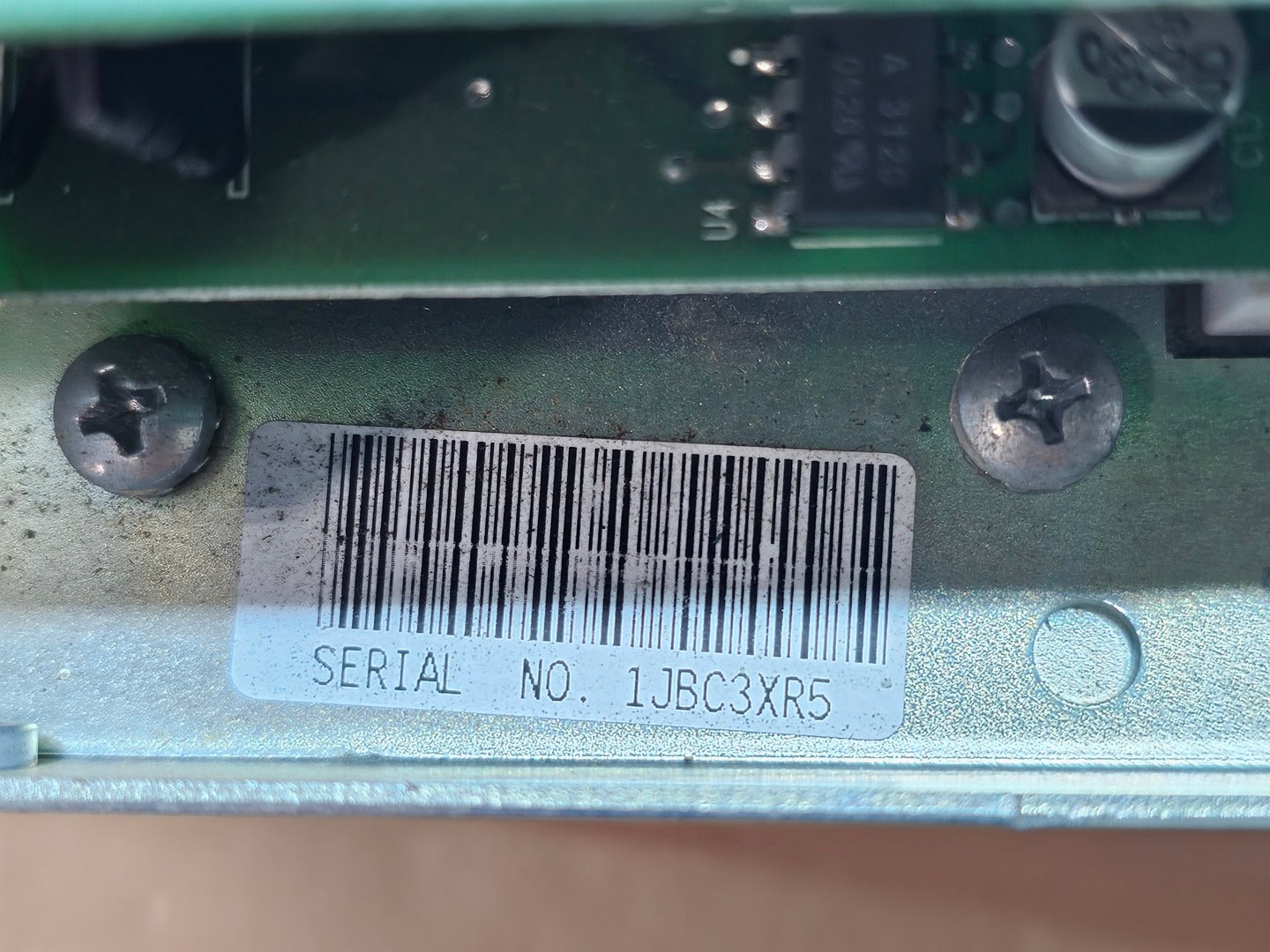

| S/N: | 1JBC3XR5 |
| Made In | UNITED STATES |
| Condition | Used | Electrical |
| Horsepower | 5 hp |
| Voltage | 600 volts |
| Phase | 3-phase |
| Other Specifications |
|---|
|

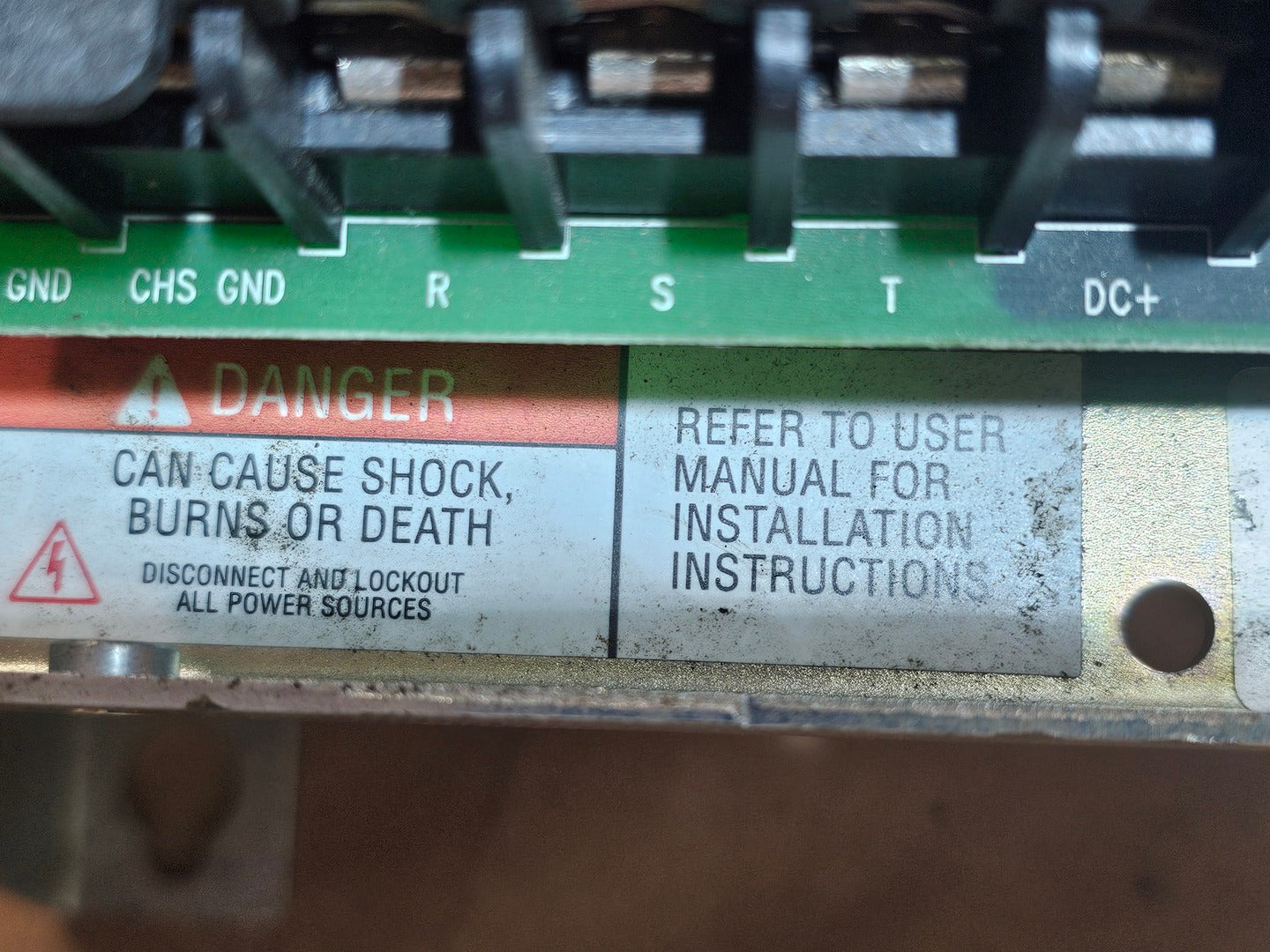

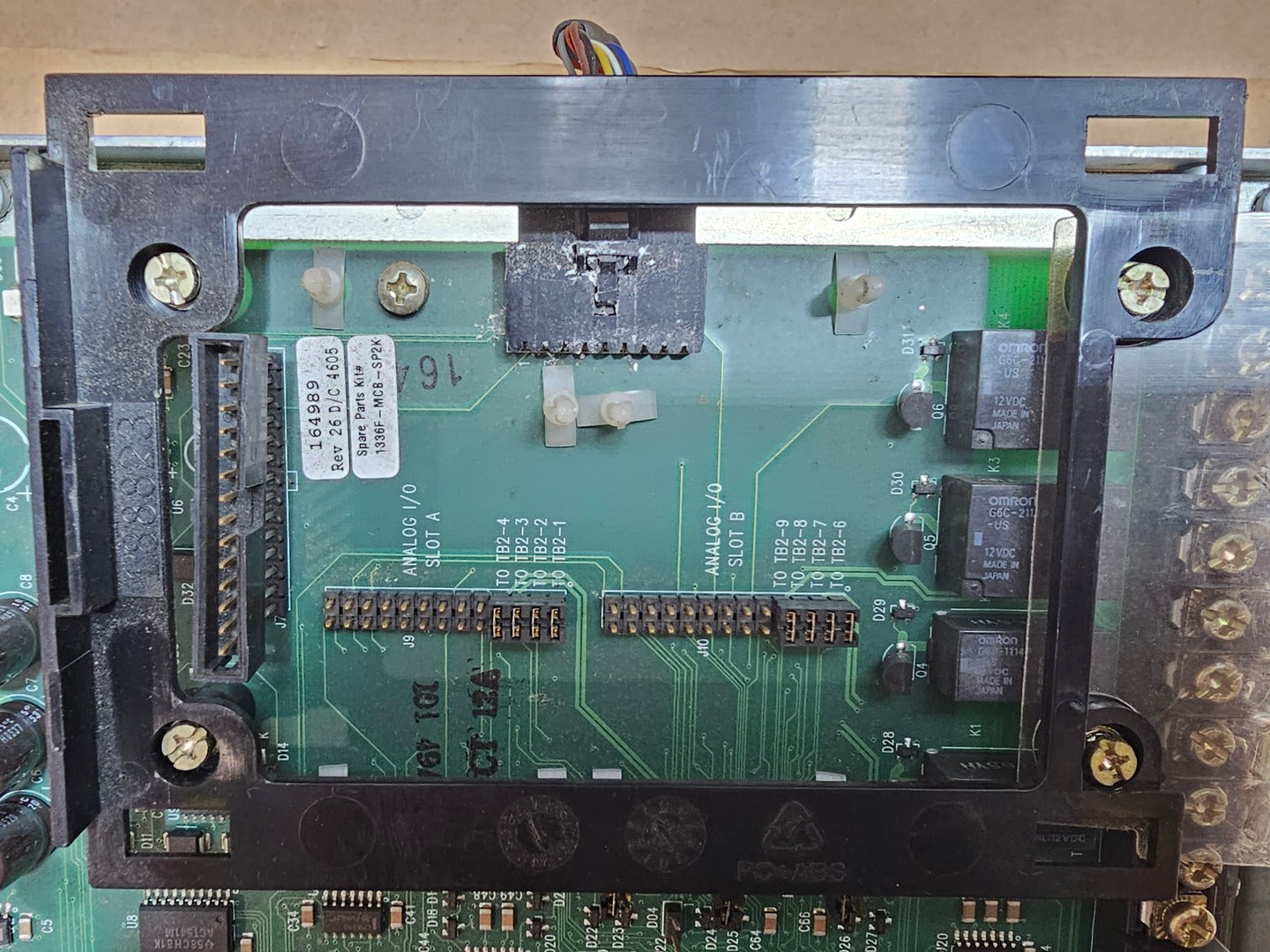

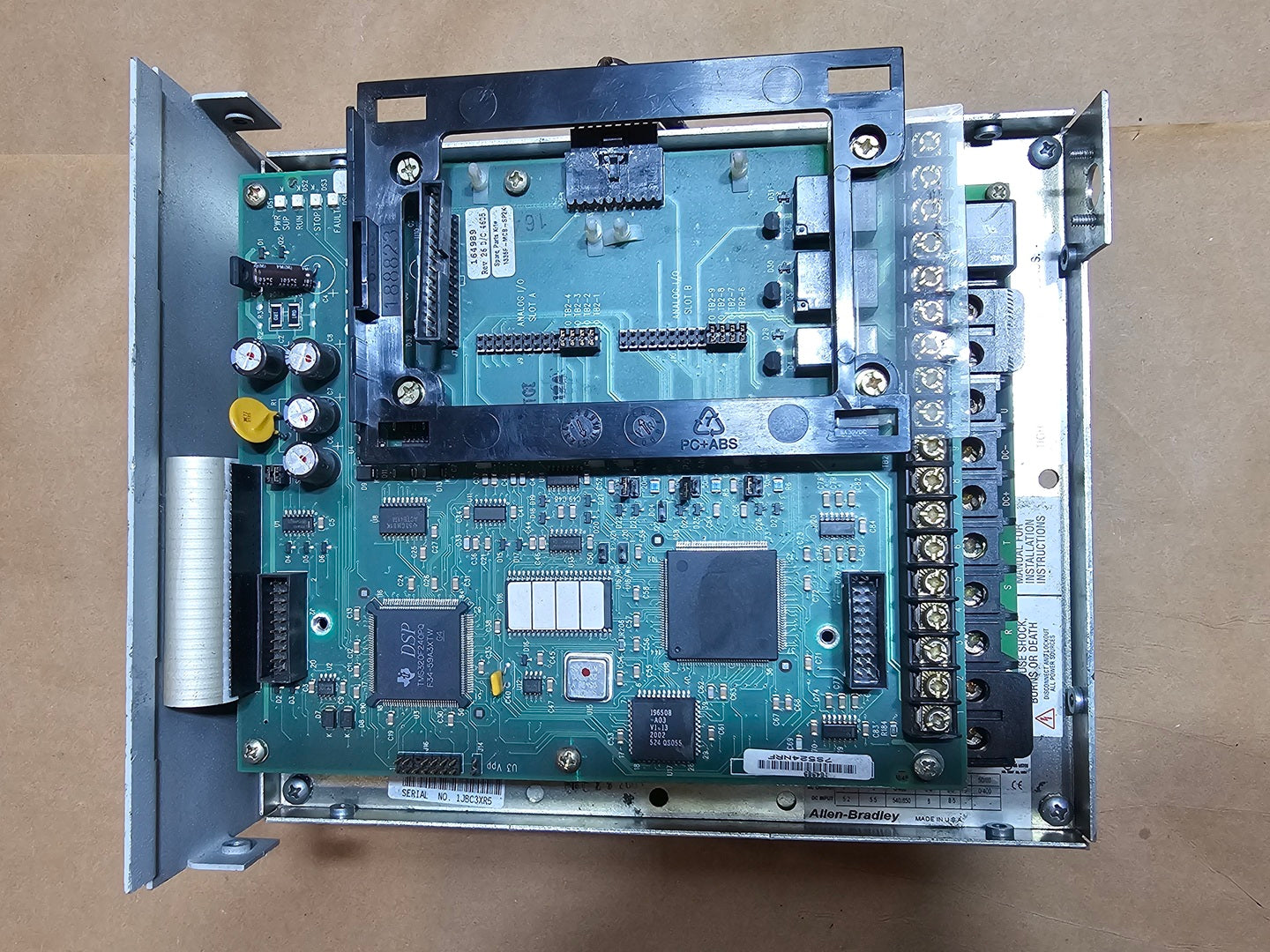

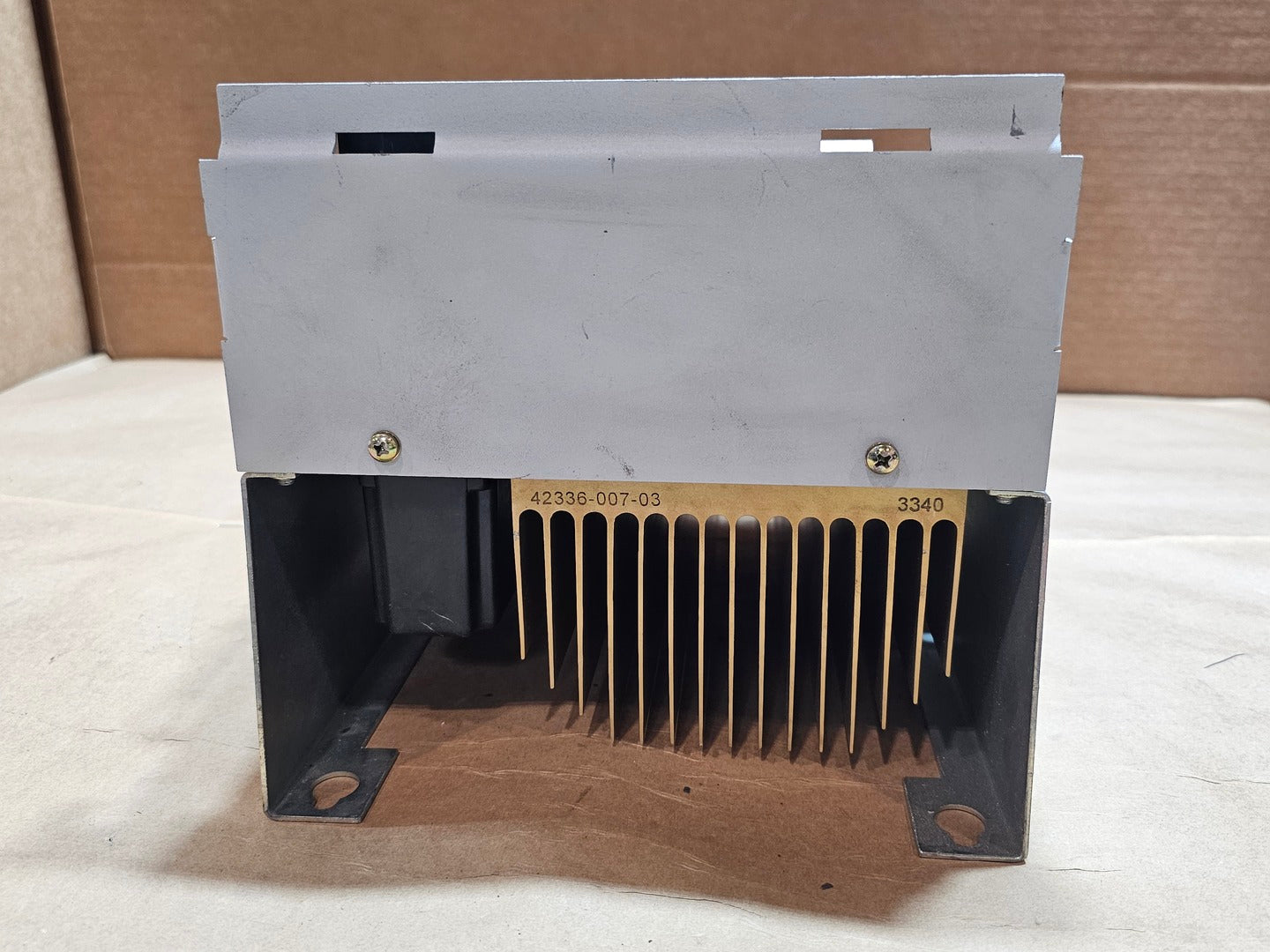

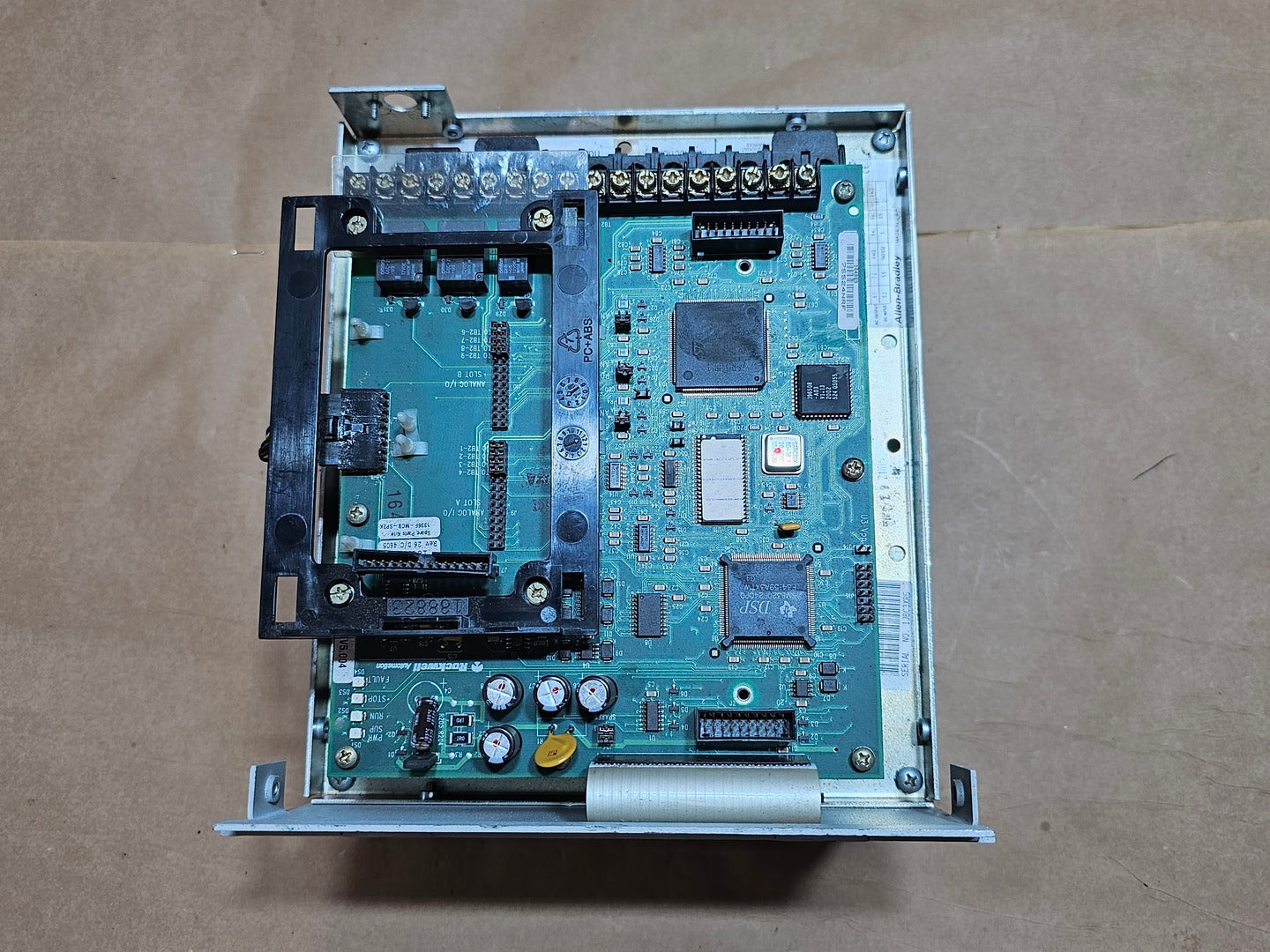

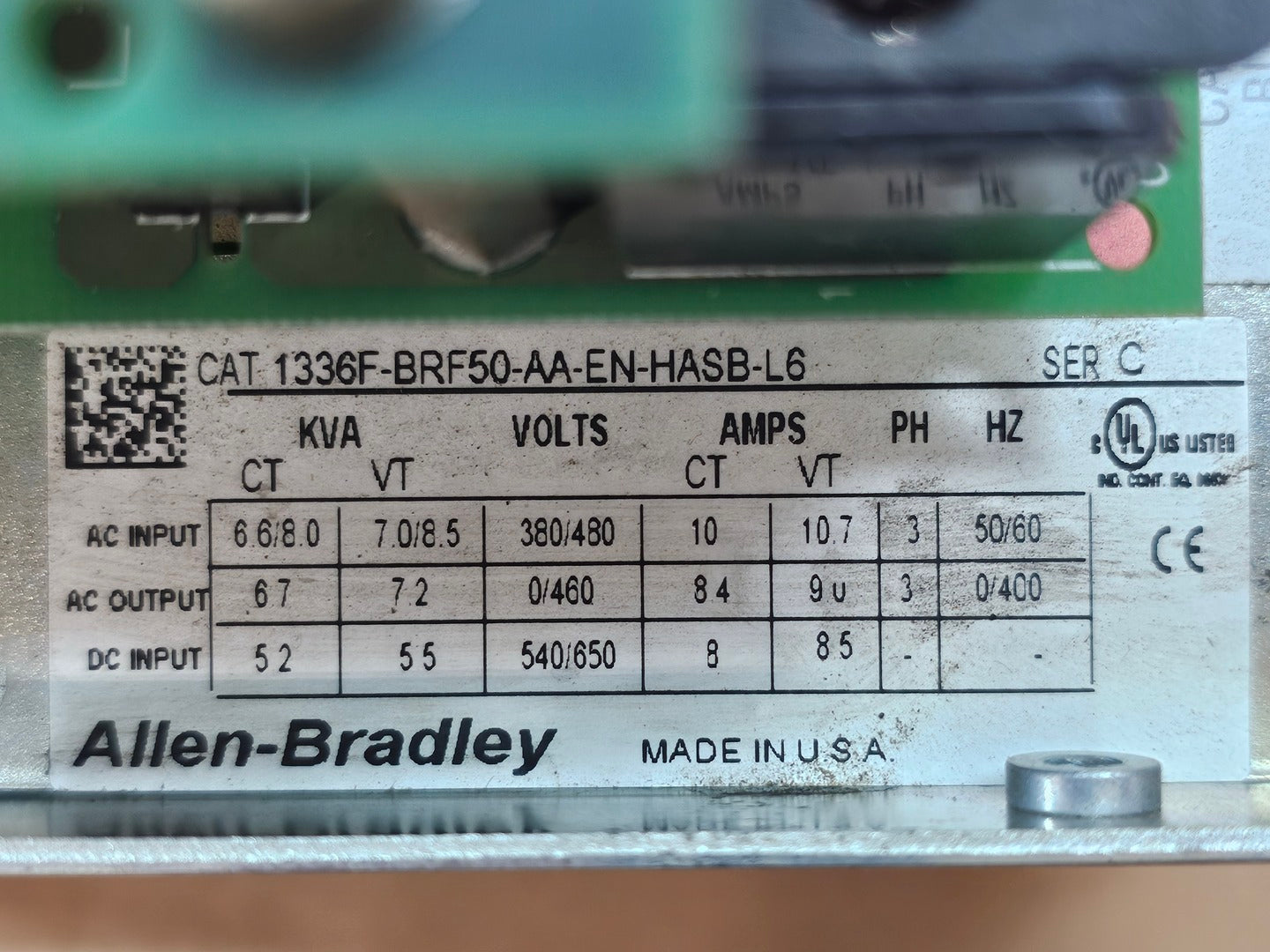

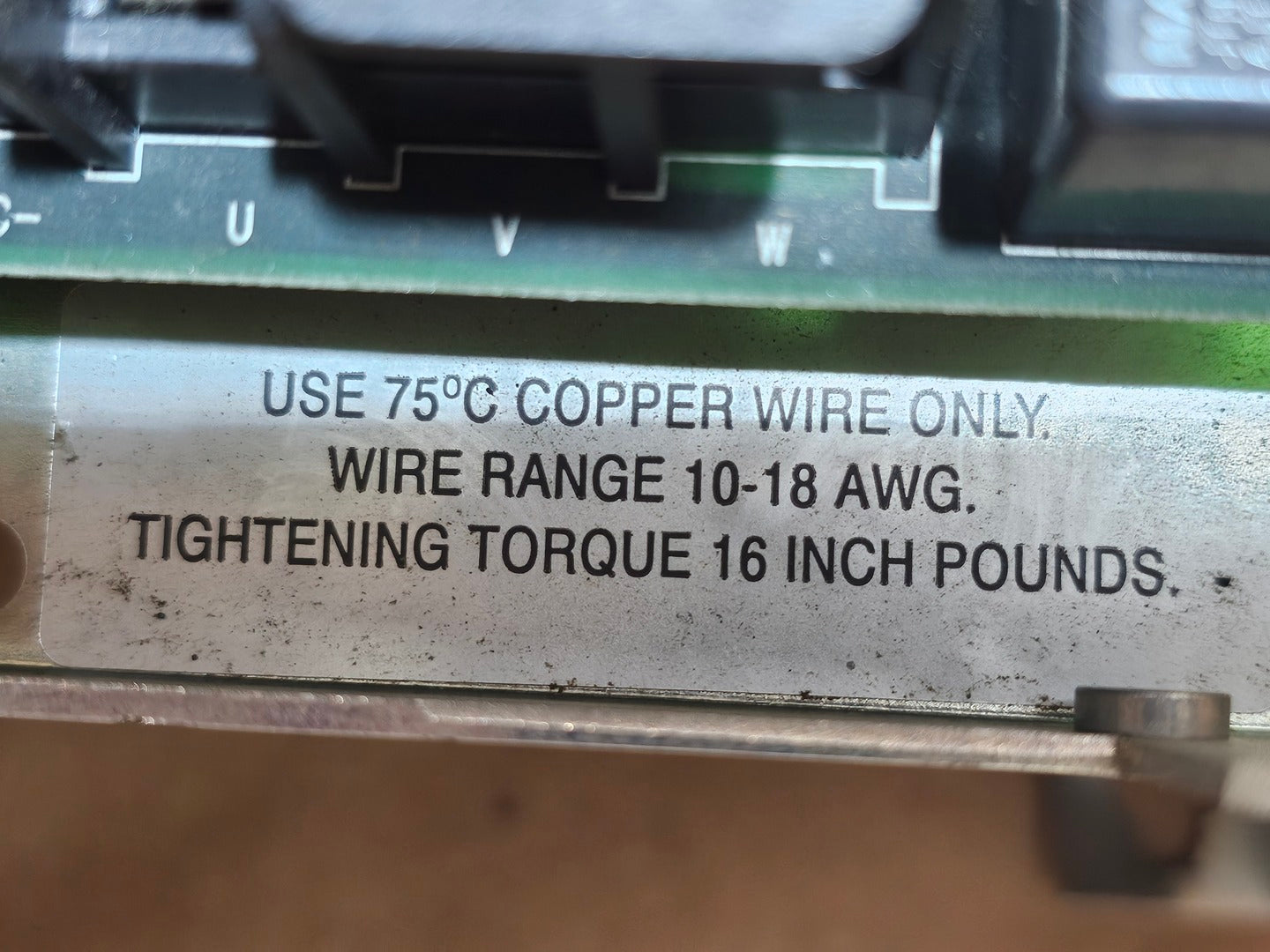

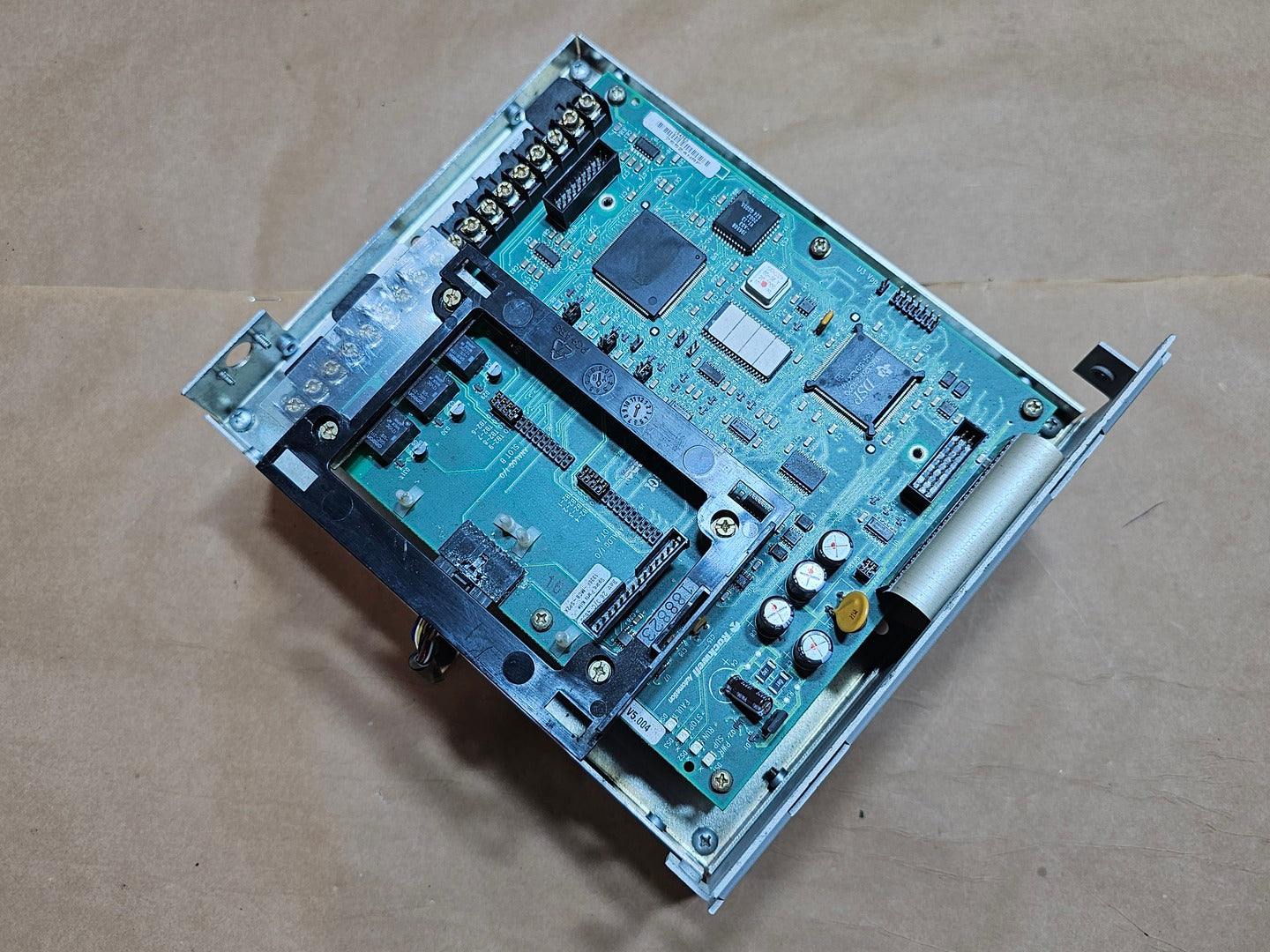

Series: C Nominal Motor Rating: 3.7 kW / 5 HP Enclosure: IP20 / NEMA Type 1 Language: English Human Interface Option: HASB - Snap-In Cradle / Blank Plate Control Interface Option: L6 - 115 VAC AC Input: Voltage: 380/480 VAC Phase: 3 Phase Frequency: 50/60 Hz CT Rating: 6.6/8.0 kVA, 10 A VT Rating: 7.0/8.5 kVA, 10.7 A AC Output: Voltage: 0-460 VAC Phase: 3 Phase Frequency: 0-400 Hz CT Rating: 6.7 kVA, 8.4 A VT Rating: 7.2 kVA, 9.0 A DC Input: Voltage: 540/650 VDC CT Rating: 5.2 kVA, 8 A VT Rating: 5.5 kVA, 8.5 A Control Board Spare Kit: 1336F-MCB-SP2K Main Control Board Number: 164989 Analog I/O Provision: Slot A and Slot B positions Power Terminals: Screw terminal type Recommended Conductor: 75°C copper wire only Wire Range: 10-18 AWG Terminal Tightening Torque: 16 in-lb Cooling: Large finned heatsink |
