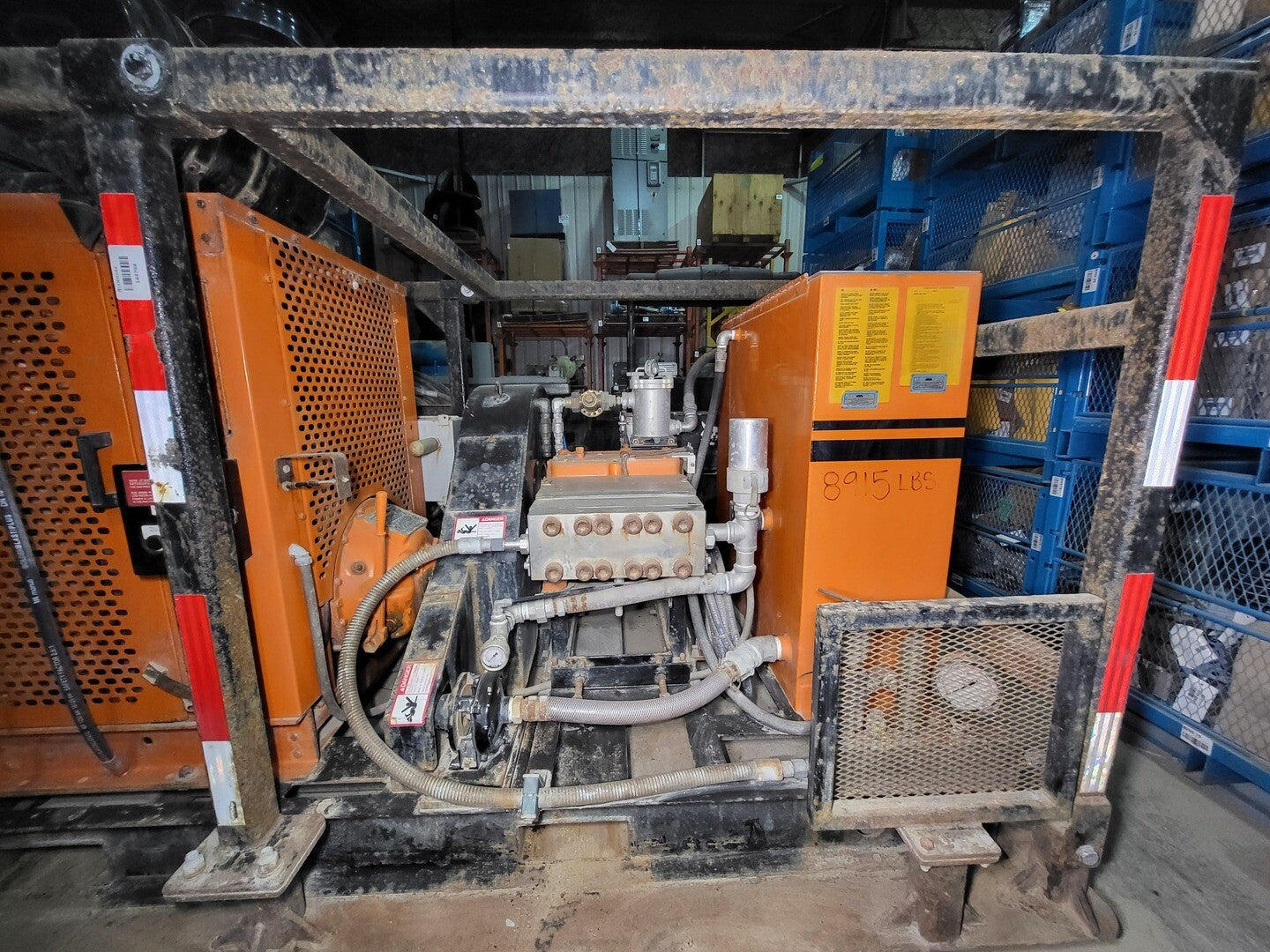

145 hp Diesel Water Jetting Unit 10145DB-1.1/8

SKU: 144794
Precio:
$50,500 CAD

Gastos de envío calculados en la caja

Stock:
Agotado
Make an Offer

¿Necesita una respuesta ahora?

Finance

Amount:
Email Finance

Descripción

Specifications

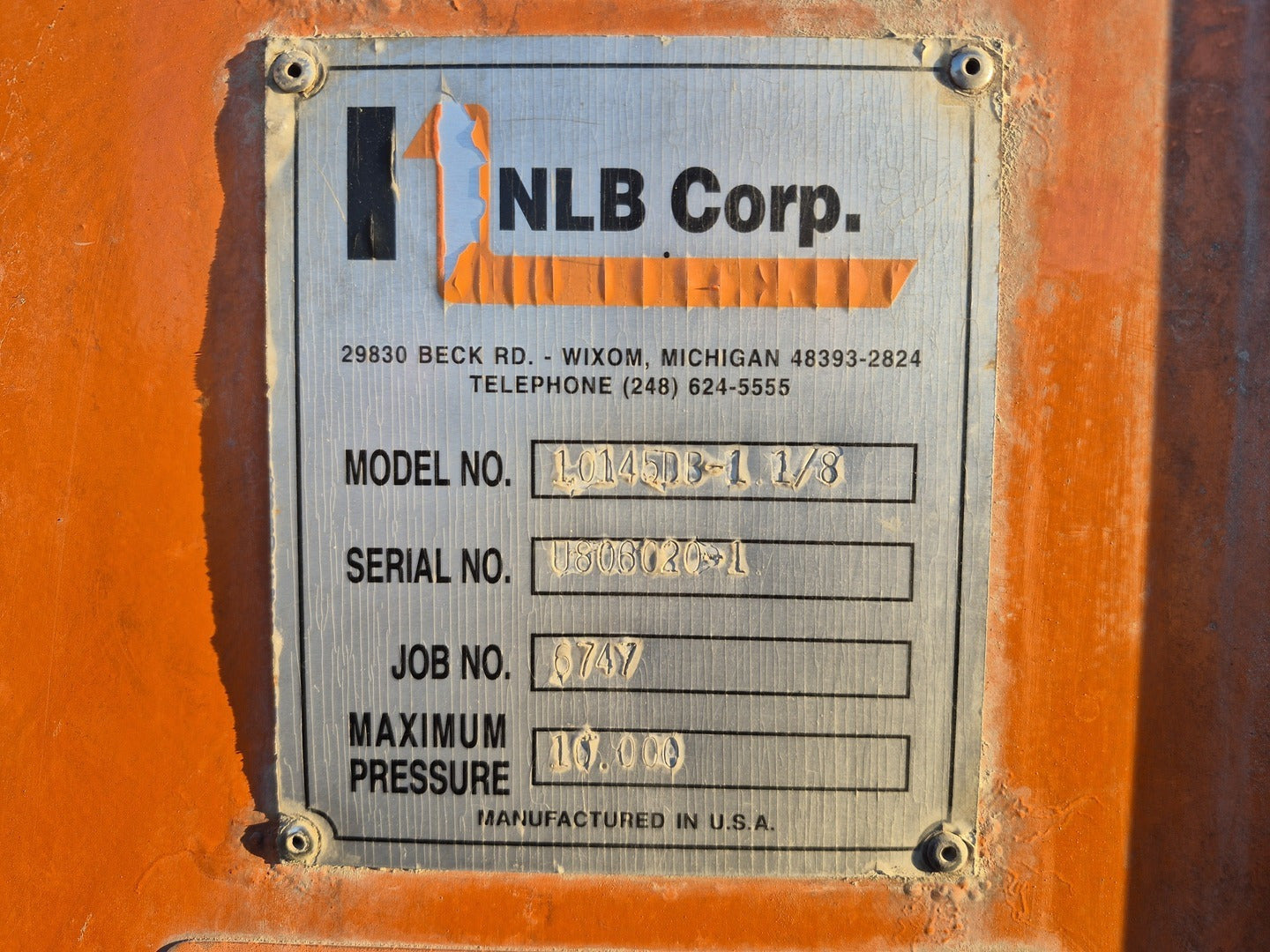

Model 10145DB-1.1/8
S/N: U806020-1
Made In UNITED STATES
Condition Used
Other Specifications

PDF Catalog

Features Include

  • The durable and easy to service fluid end accepts conversion kits that allow the pump to operate at pressures between 6,000 psi (414 bar) and 40,000 psi (2,800 bar) and makes maintenance fast and easy.
  • All operating controls, including the pressure compensating by-pass valve, pressure gauge with snubber, and rupture disc assembly are mounted on an accessory manifold to provide additional protection for these components.
  • Water pressure actuated throttle automatically returns the engine to idle when the operator disengages the cleaning tool, saving fuel and minimizing wear.
  • Pressure switch on the suction piping shuts down the pump if the inlet pressure drops below a factory pre-set level.
  • Water tank with heavy duty boost pump.

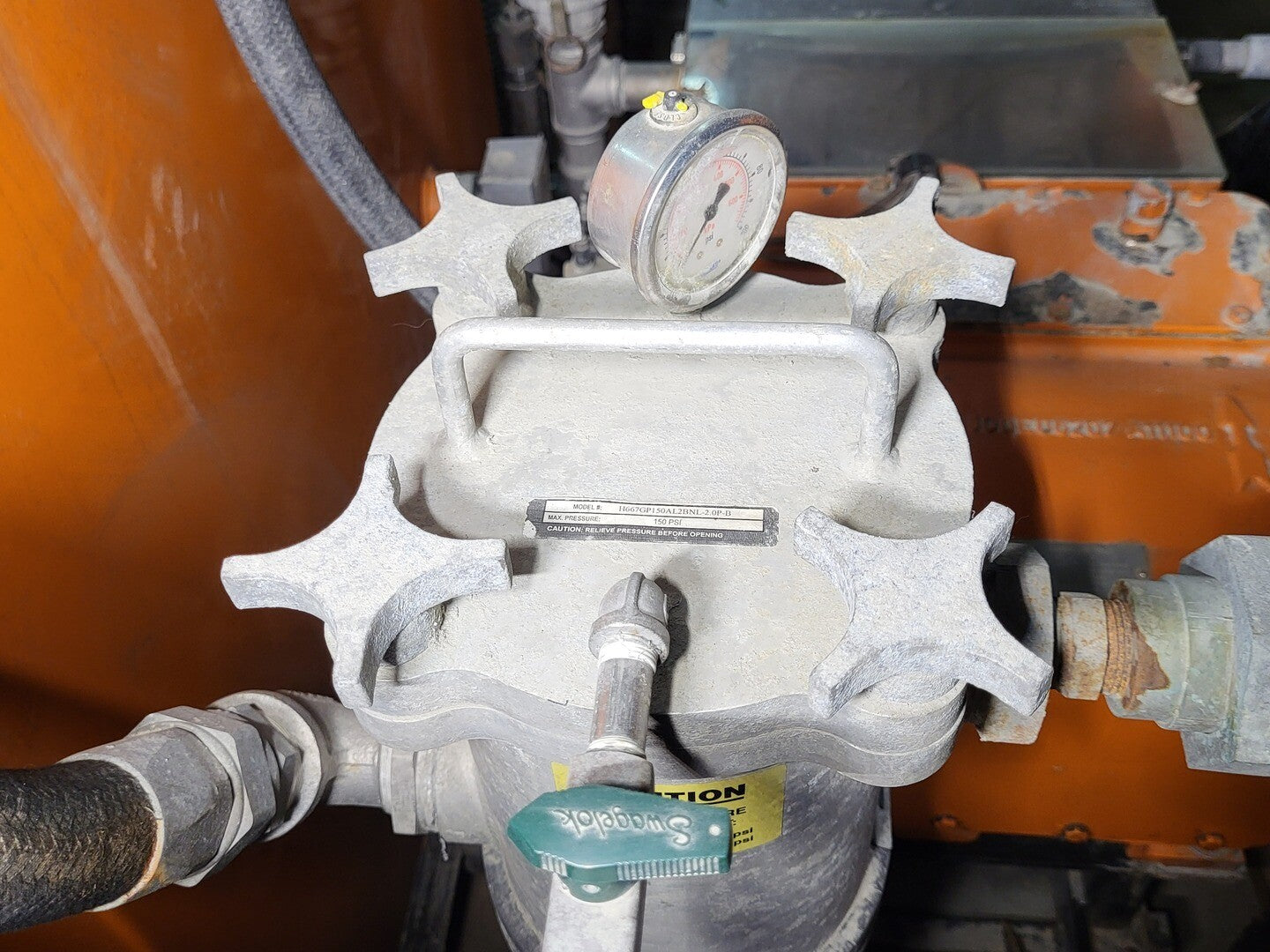

  • Inlet water is piped through a high flow filter assembly.

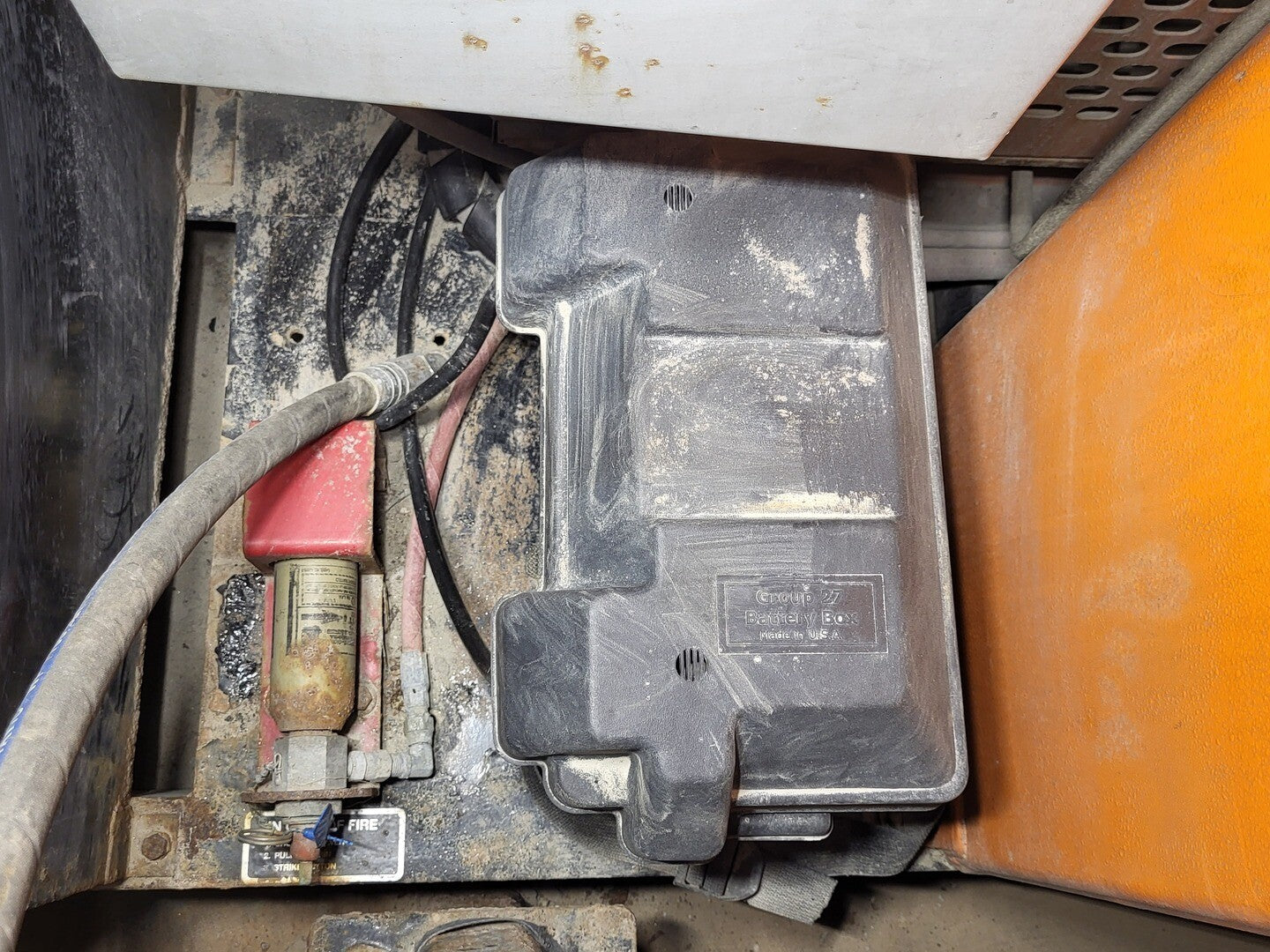

  • Heavy-duty 12-volt system with battery enclosed in a weather tight box.
  • 80-gallon (302 L) aluminum fuel tank with theft resistant fill port.
  • The unit is primed and painted with industrial grade enamel.

125H Triplex Plunger Pump

  • The NLB 125H pump is an advanced design triplex pump that can adapt to a wide range of pumping services
  • Plunger Diameter 1-1/8"
  • Horizontal configuration provides easy access and low center of gravity.
  • Forged steel crankshaft mounted in tapered roller bearings. Symmetrical design permits east conversion to opposite-hand drive.
  • A single stainless steel frame plate is used for all operating pressures.
  • The design features minimum volumetric clearance and stress, with maximum shock & pressure resistance.
  • Rugged, cast-iron housing with gravity lubrication and large oil reservoir.
