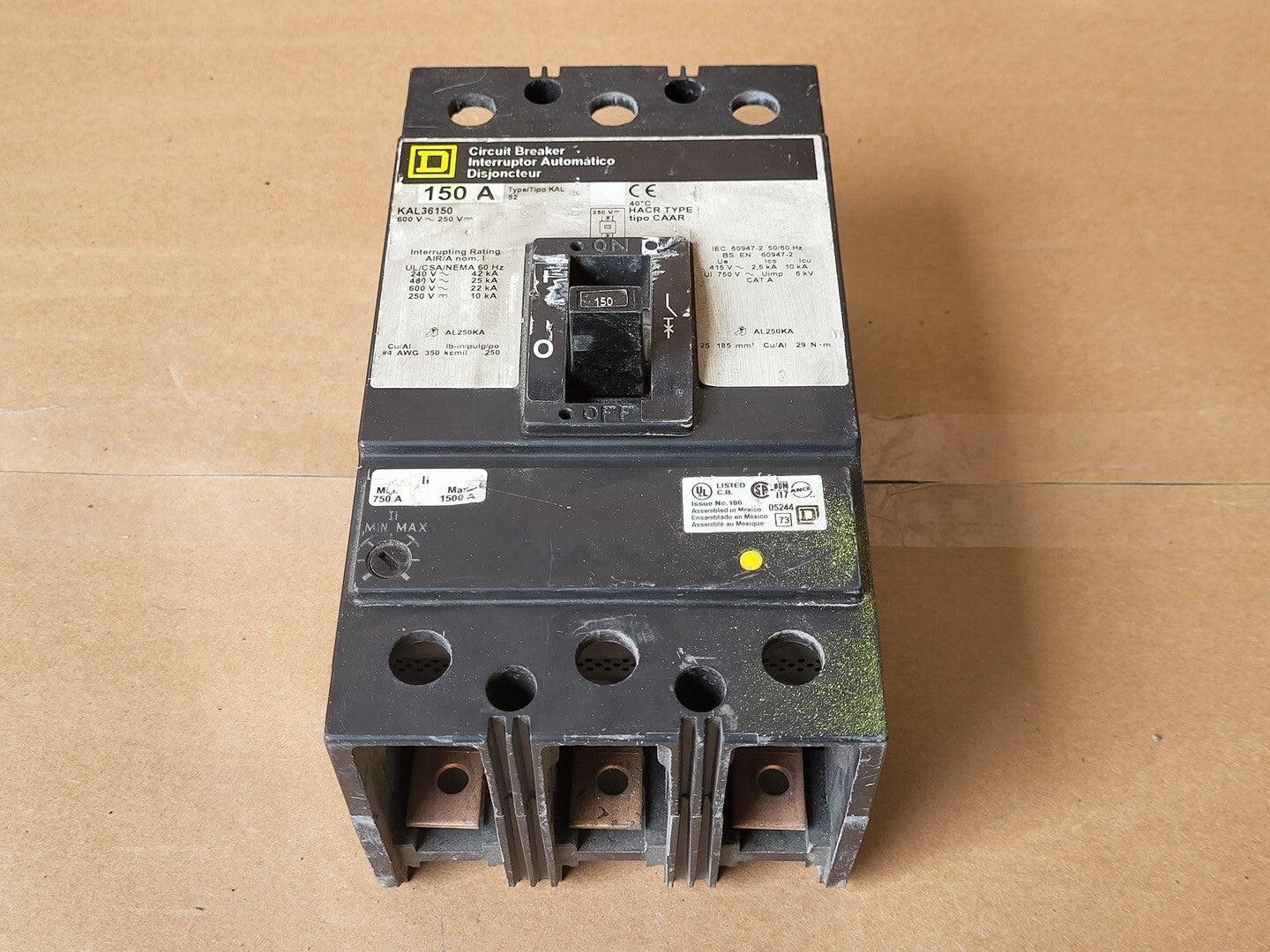

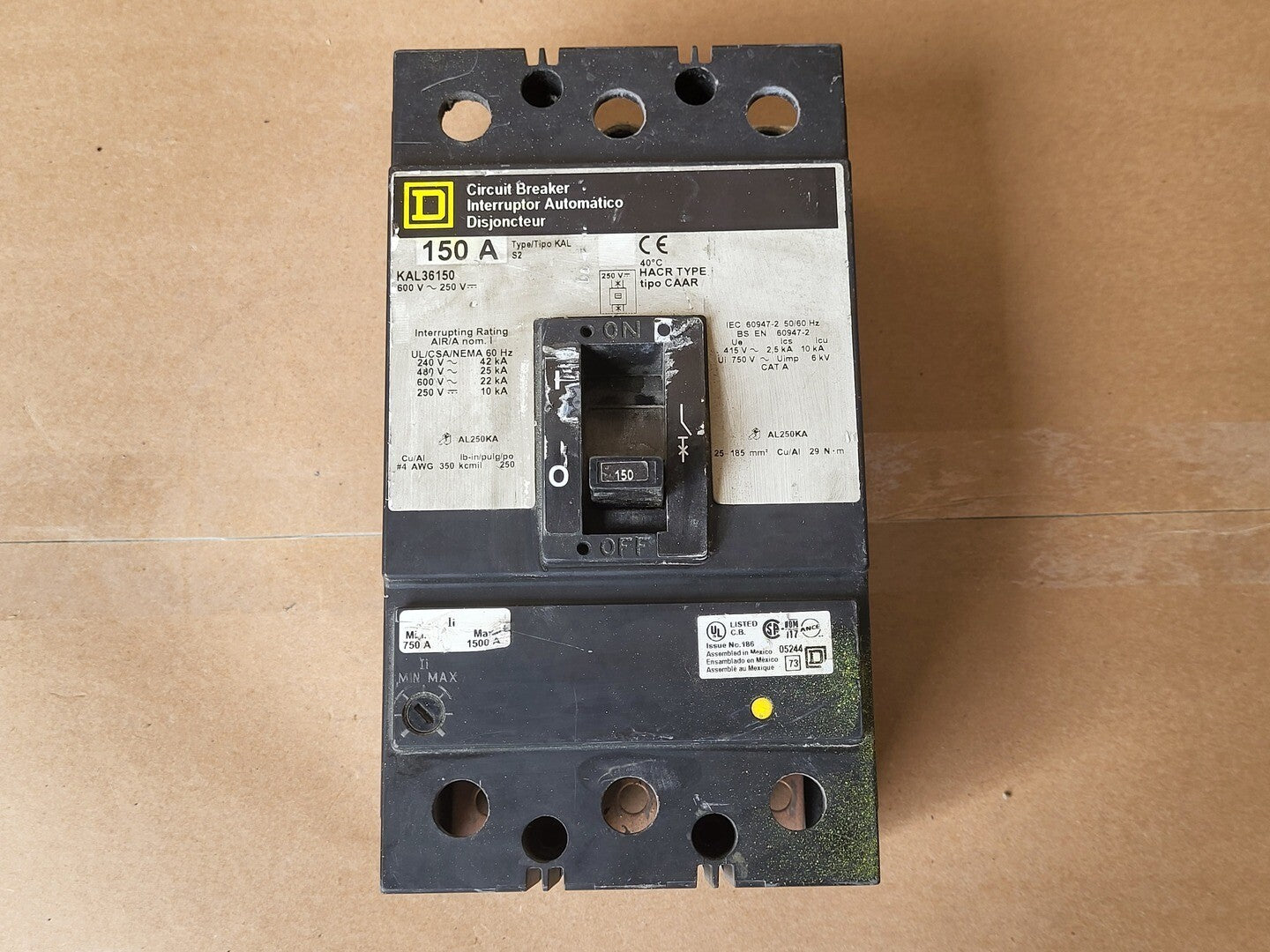

150 Amp, 3 Pole, 600 Volts Circuit Breaker KAL36150

SKU: 139955
Precio:
$150 CAD

Gastos de envío calculados en la caja

Stock:
Solo queda 1 unidad
Make an Offer

¿Necesita una respuesta ahora?

Descripción

The Square D KAL36150 is a 3-pole molded case circuit breaker designed for reliable and durable electrical protection in industrial and commercial environments. It carries a rated current of 150 A and supports voltages up to 600 VAC and 250 VDC. The breaker features a thermal-magnetic trip unit that protects against overloads and short circuits. With an interrupting capacity of 35 kA at 480 VAC and 22 kA at 600 VAC, it meets the demands of robust electrical systems. It mounts bolt-on for easy installation and is certified to UL 489, CSA, and IEC 60947-2 standards.
Specifications
Model KAL36150
Made In MEXICO
Condition Used
General
Amps 150 amps
Series KAL
# of Poles 3
Mounting Style Bolt-On
Voltage 600 volts
Phase 3-phase
AFCI No
GFCI No
Other Specifications

Overview:

  • Part Number: KAL36150
  • Frame: KAL series (Square D)
  • Type: Molded Case Circuit Breaker (MCCB)
  • Number of Poles: 3-pole
  • Rated Current: 150 A
  • Rated Voltage: 600 VAC / 250 VDC
  • Interrupting Capacity:
  • 35 kA at 480 VAC
  • 22 kA at 600 VAC
  • Trip Type: Thermal-magnetic
  • Mounting Style: Bolt-on
  • Certifications: UL 489, CSA, IEC 60947-2
