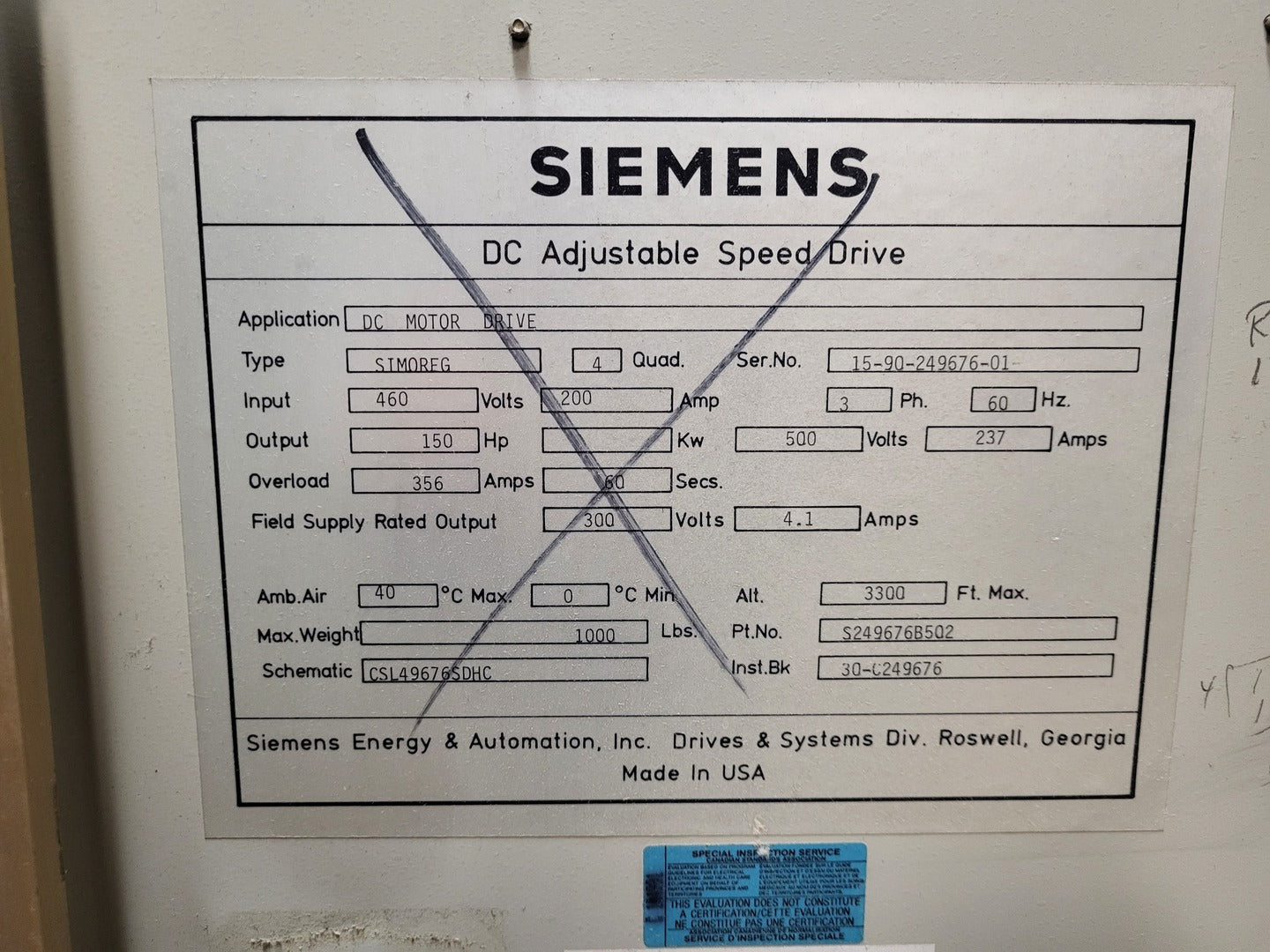

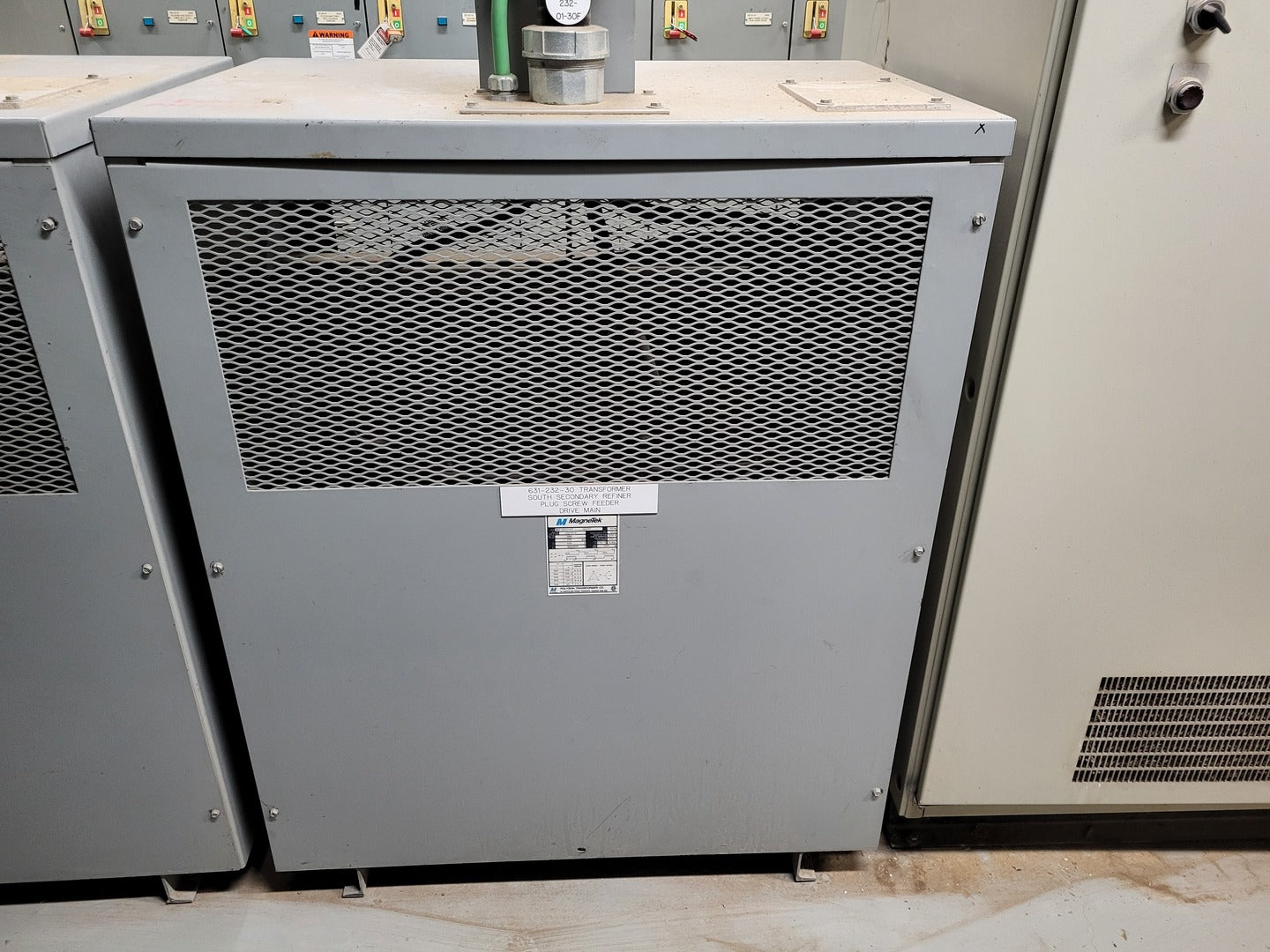

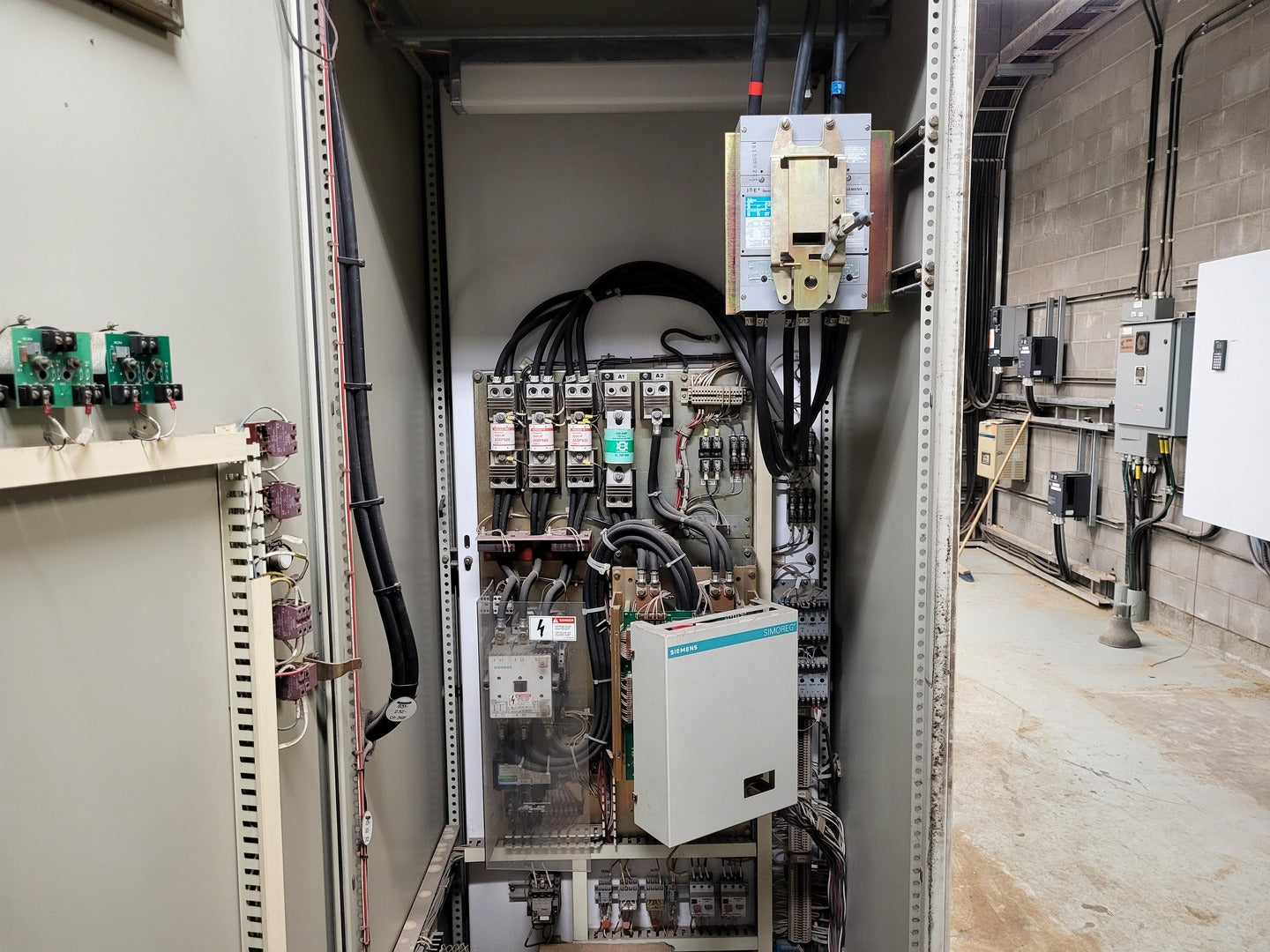

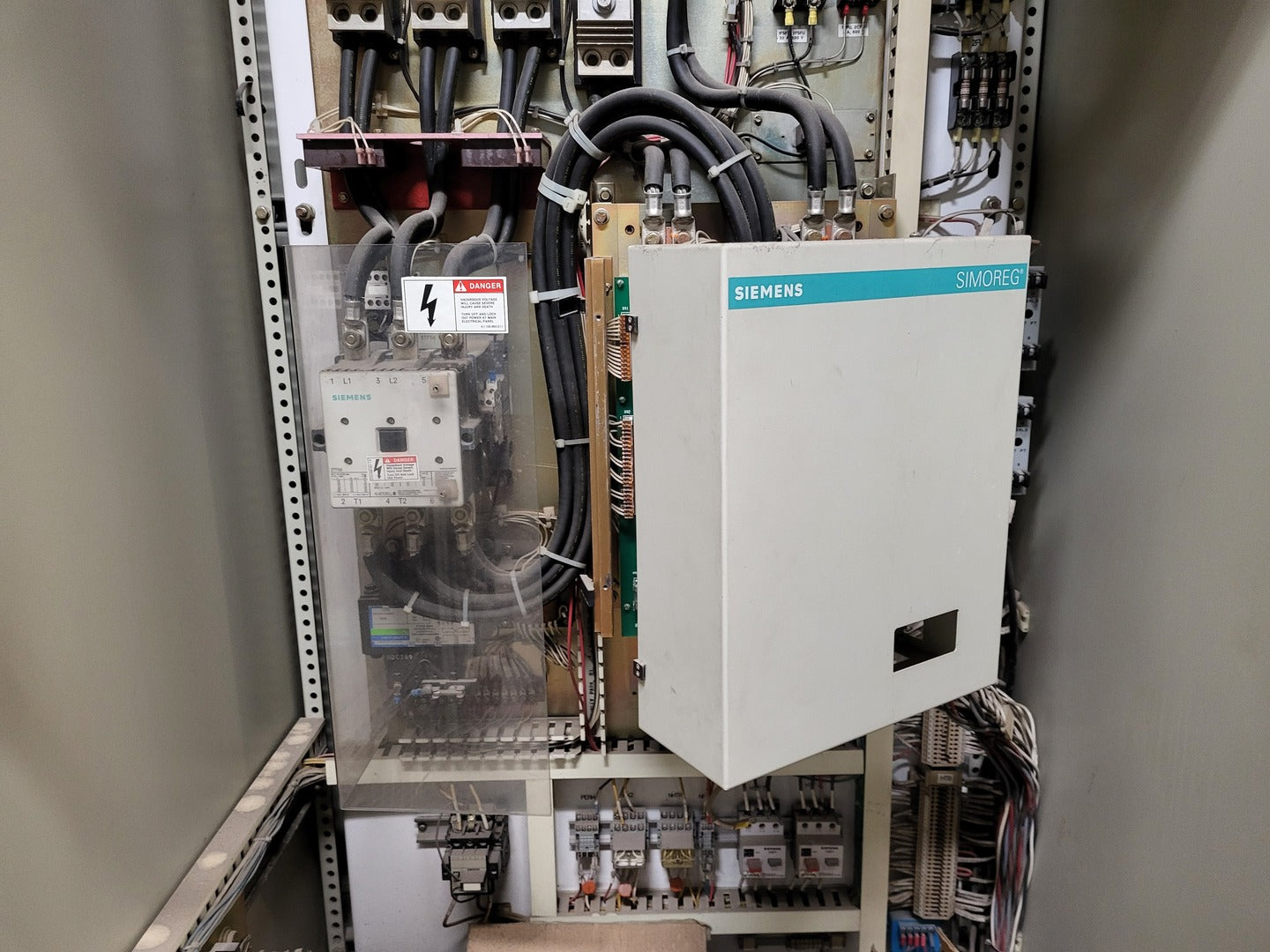

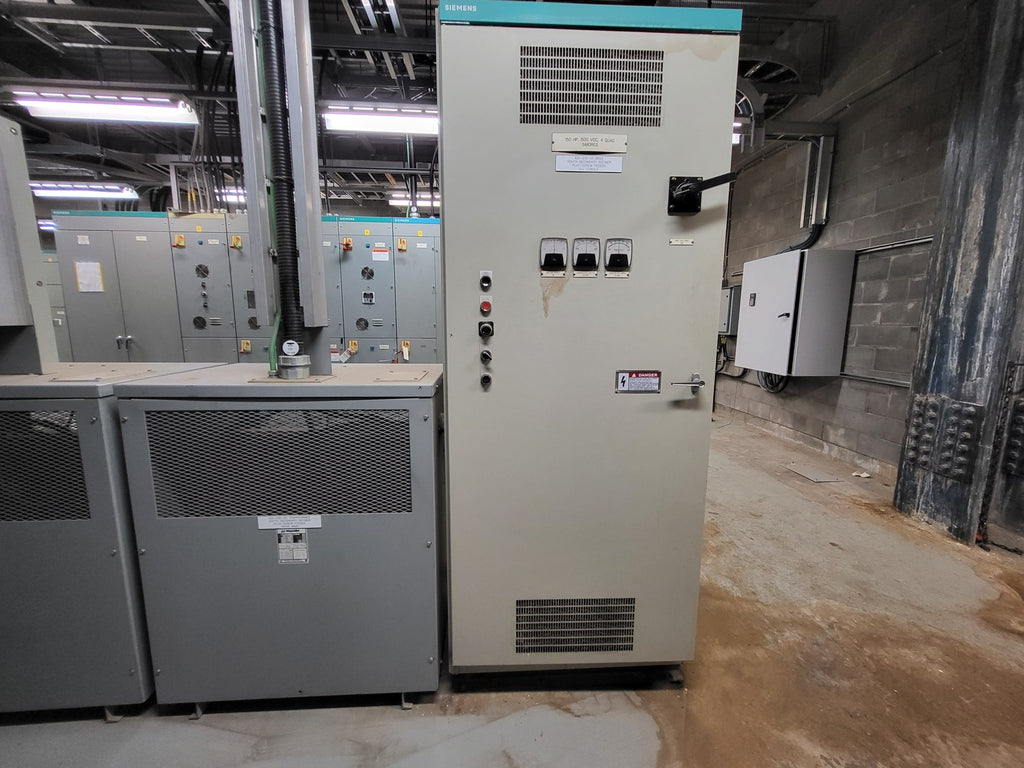

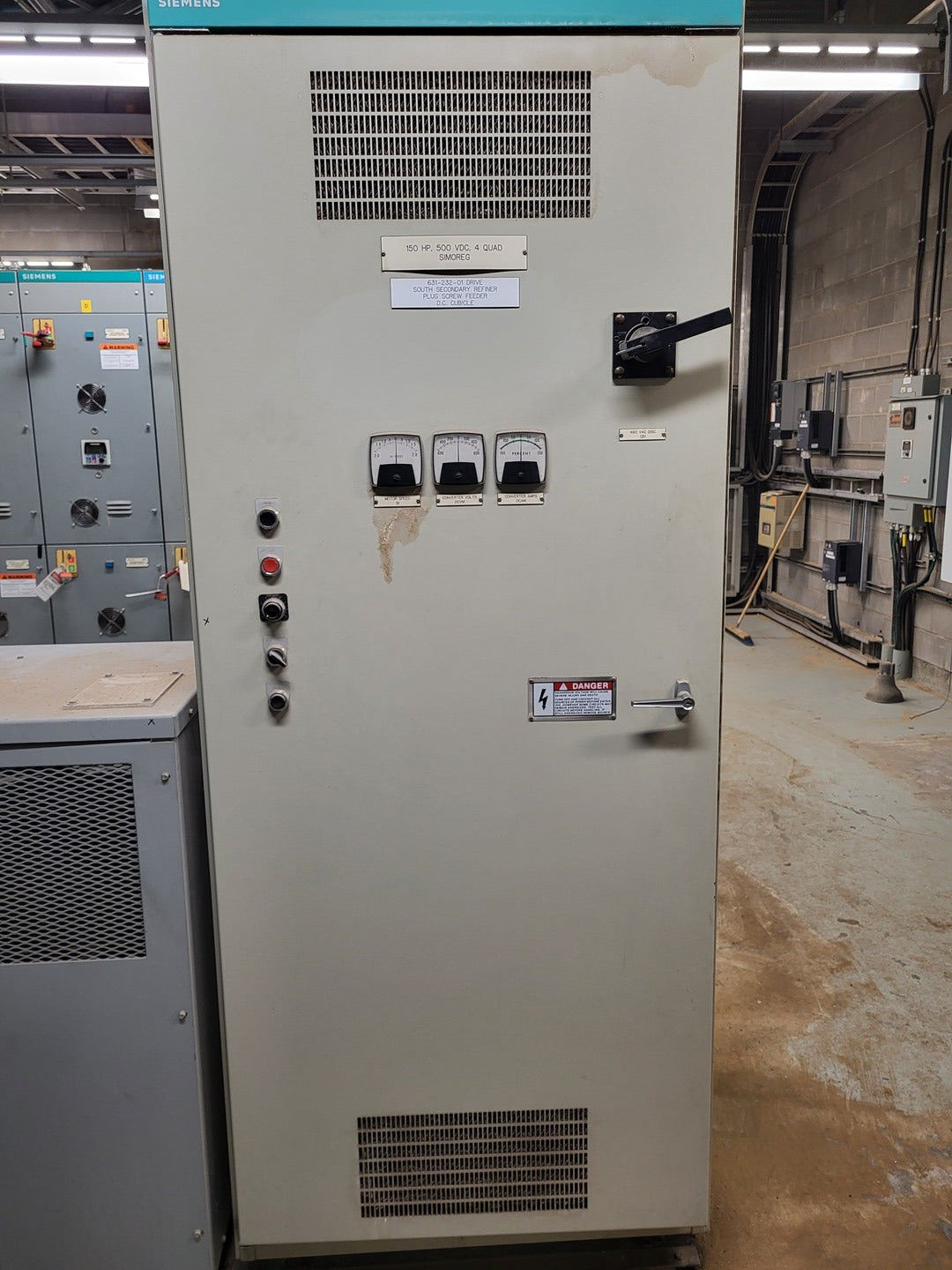

This is a 150 hp DC Adjustable Speed Drive (VFD) accompanied by a 175 kVA Isolation Transformer. The drive is a SIEMENS SIMOREG model with an input voltage of 460 V and output voltage of 500 V. It has an input amp rating of 200 A, output amp rating of 237 A, and overload amp capacity of 356 A. The drive also features a Field Supply Output Ratings of 300 V and 4.1 A. The accompanying Isolation Transformer is a Magnetek ANN type, with a power rating of 175 kVA and primary voltage of 575 V. The basic insulation level stands at 10 kV. This drive and transformer combo is part of the VFD Drives collection, designed for 3-phase applications.
| S/N: | 15-90-249676-01 |
| Condition | Used | Electrical |
|---|---|
| Horsepower | 150 hp |
| Voltage | 460 volts |
| Phase | 3-phase |
| Amps | 200 amps |
| Other Specifications |
|---|
|

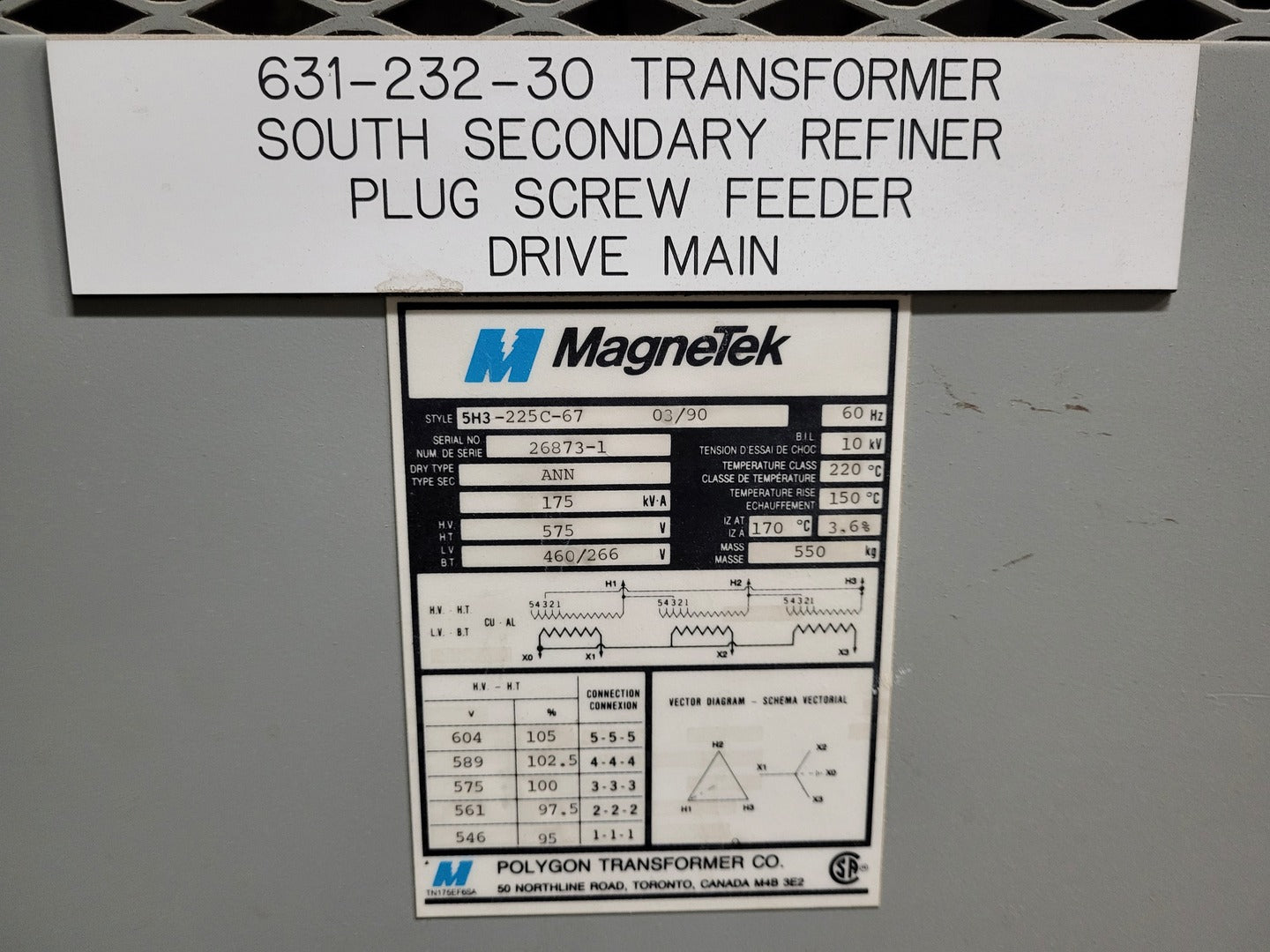

Type: SIMOREG Input Voltage: 460 V Input Amps: 200 A Output Voltage: 500 V Output Amps: 237 A Overload Amps: 356 A Field Supply Output Ratings: 300 V, 4.1 A Part No.: S2-49676-B-502 Isolation Transformer:- Style No.: 5H3-225C-67 Make: Magnetek Power: 175 kVA Type: ANN (Dry) Primary Voltage: 575 V Secondary Voltage: 460/266 V Basic Insulation Level: 10 kV |
