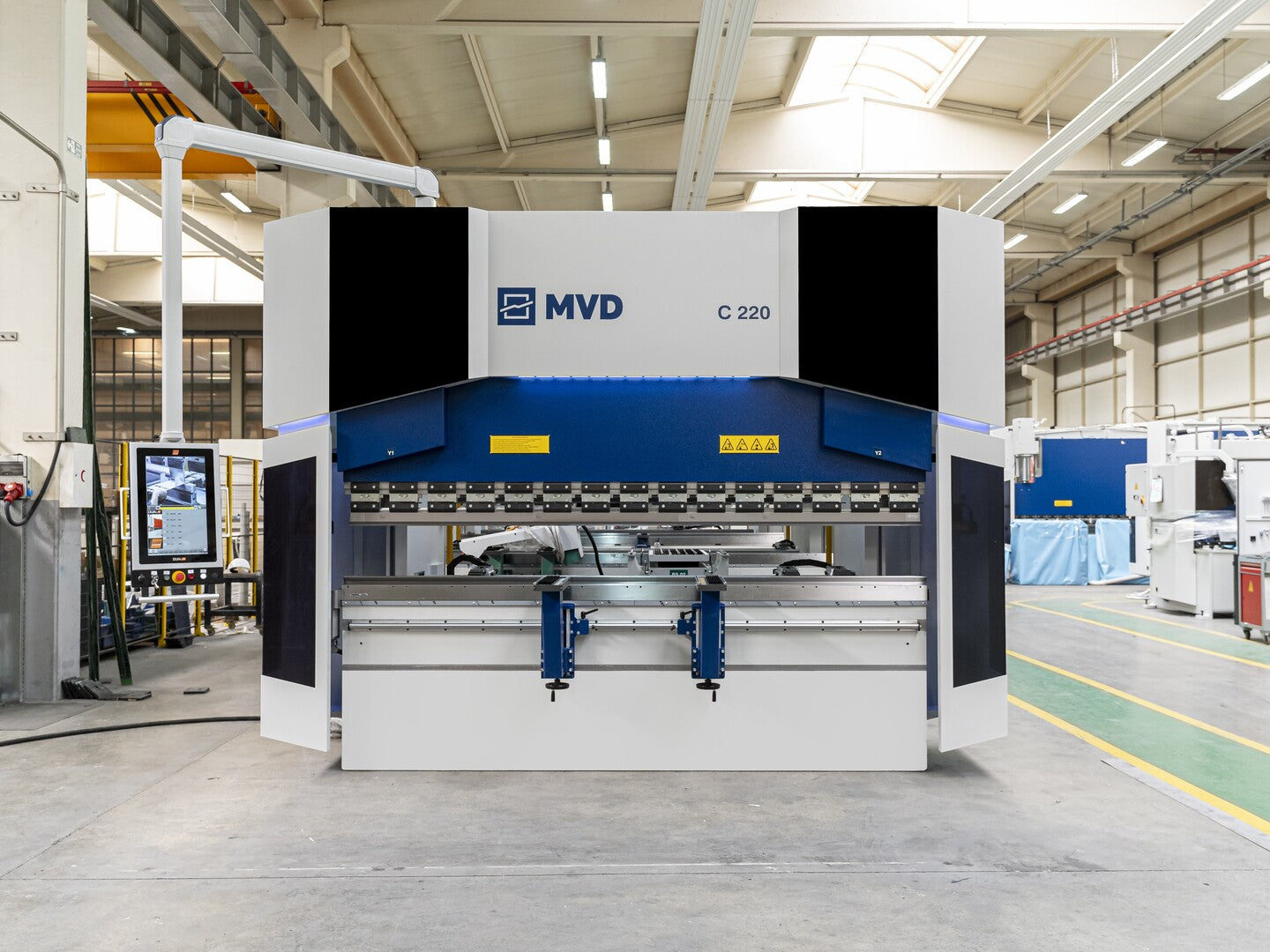

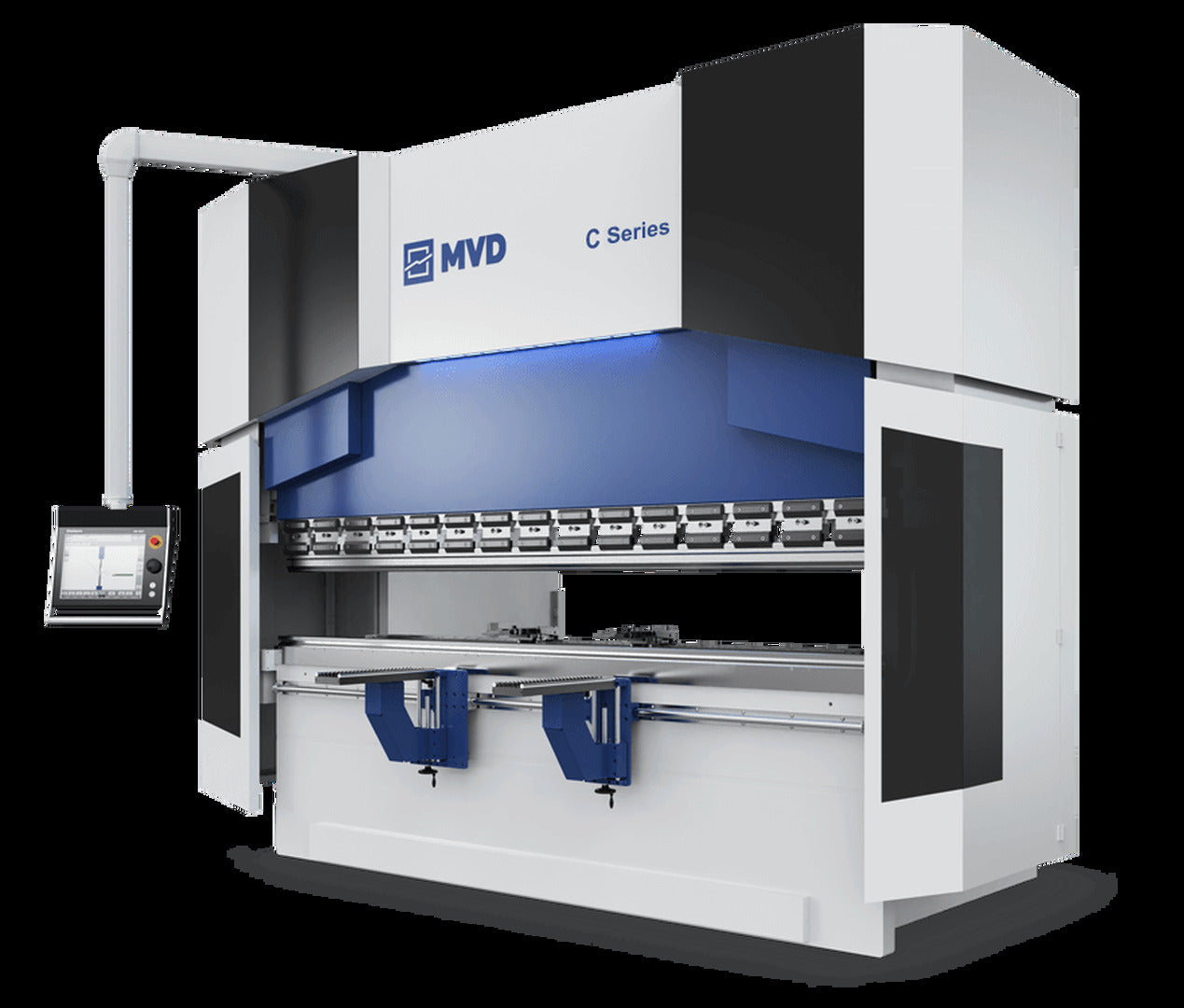

220 ton iBend Hydraulic Press Brake C Series C220-3100

SKU: 155301
Precio:
$212,456 CAD

Gastos de envío calculados en la caja

Stock:
Pronto en stock
Make an Offer

¿Necesita una respuesta ahora?

Finance

Amount:
Email Finance

Descripción

Specifications
Model C220-3100
Year: 2026
Made In TURKEY
Condition New
General
Bed Length 3100 mm
Tons 220 ton
Brake Type Hydraulic
CNC Yes
Other Specifications

PDF Catalog

Features:

  1. Y1, Y2, X + R + Z1 + Z2 (6 axis with X=750mm, R= 250mm)
  2. CNC unit Delem DA-69S, 24" Touch Screen, 3D Graphical, (3-12 axis) *.dxf
  3. Stroke 310mm & Throat depth 410mm
  4. MVD Servo motorised backgauge with ball screws, linear guided, Mitsubishi/LS/Delta Motors&Drivers
  5. CNC Controlled Type#1 Crowning (by Wila wedges and Framo motor)
  6. GIVI (Italy) Optic Linear Scales
  7. 2 Pieces CNC-Controlled Backgauge Fingers, servo-positioned along linear guides for automatic, precise adjustment
  8. HAWE=Hoerbiger (Germany) hydraulic blocks with proportional valves
  9. Eckerle (Germany) oil pump, internal gear type
  10. M-EASY Manual promecam ES4389/Z1 (vertical removal/insertion)
  11. Narrow Bottom table (MVD Special design) IW = 60mm+10mm spacer (F<= 270Tons) IW=90mm (F>=320 ton)
  12. C-Type Stronger front support arms with hand-wheel for vertical adjustment (2pcs)
  13. Top Tool : Eurostamp 1260, H:67, 85°, R:0,8 (853mm x lengths + 1x805mm segm. Set)
  14. Bottom Die : Eurostamp 2067, 4 way V=16-22-35-50mm, 85°, H:60, (853mm x lengths + 1x805mm segm. Set)
  15. Full front safety cover with LED lights and with aluminum controller arm
  16. AKAS(FPBS) front safety lasers + rear light beams
  17. Set-up and Training
  18. 1 Year Warranty

Dimensions (L x W x H): 5180 x 2650 x 2950 mm

Total Weight (approx): 11300 kg
