| Specifications | |
|---|---|
| Model | E4X-25325 |
| Made In | UNITED STATES |
| Condition | Surplus New |
| Other Specifications |
|---|
|

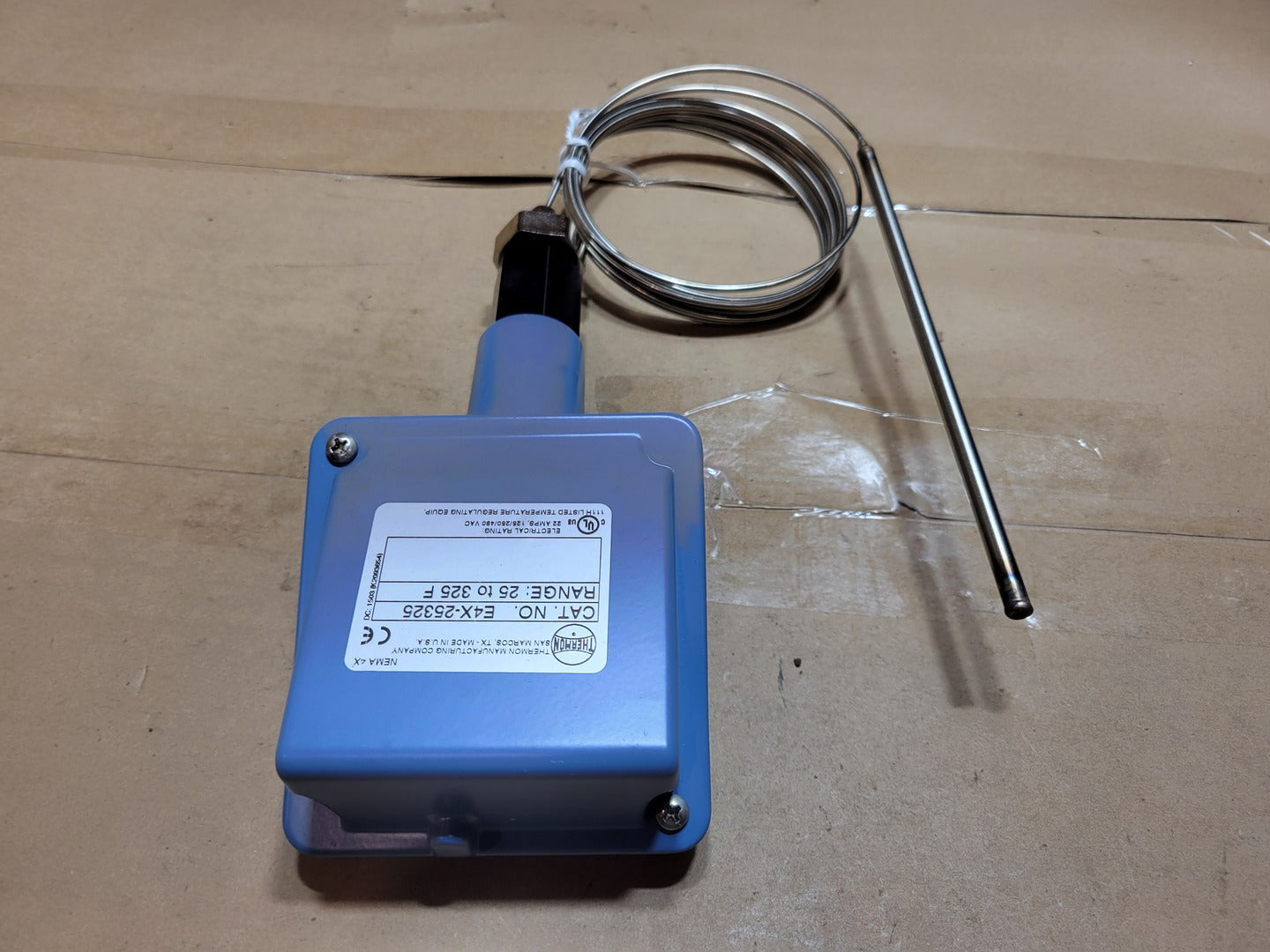

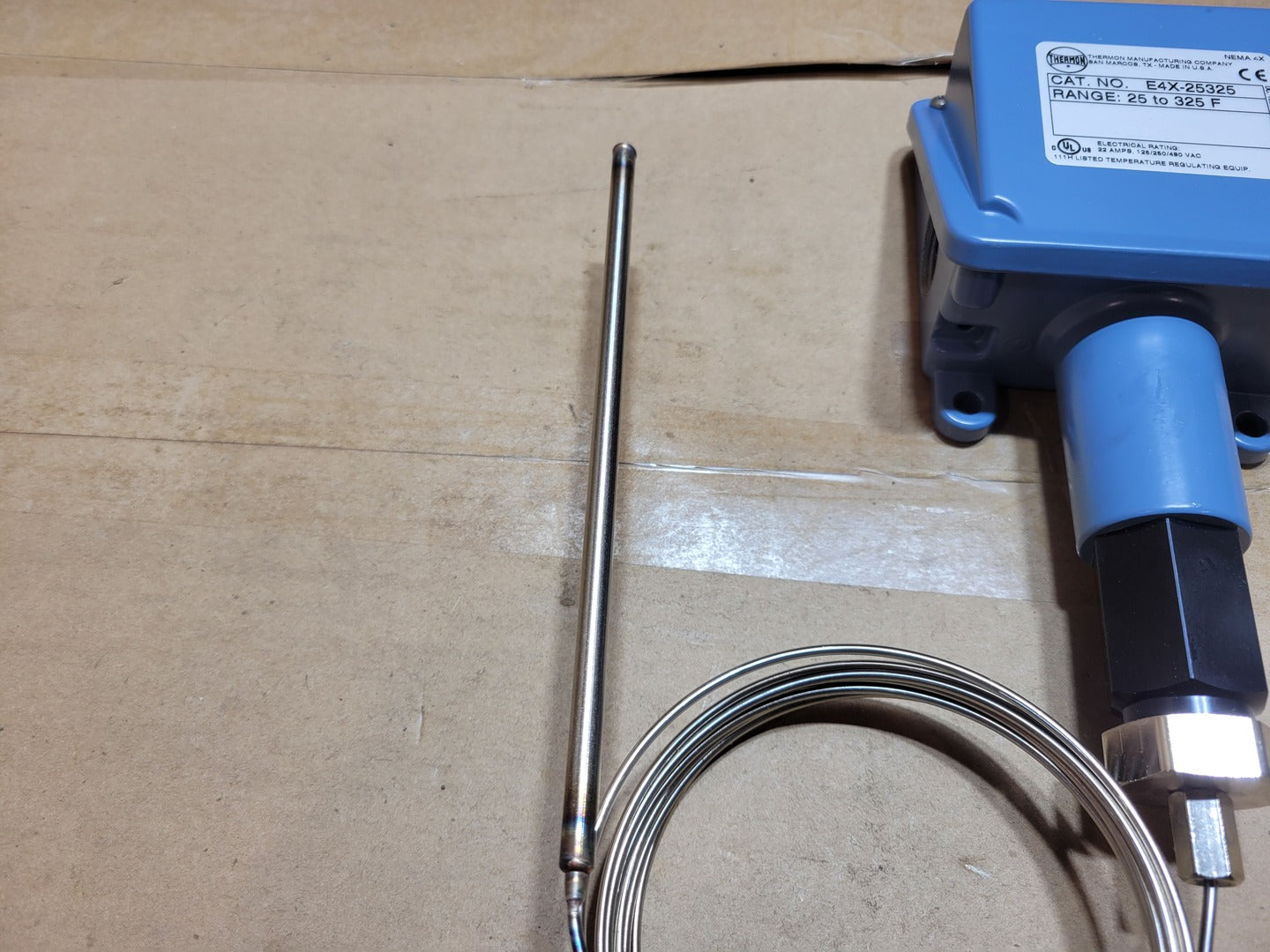

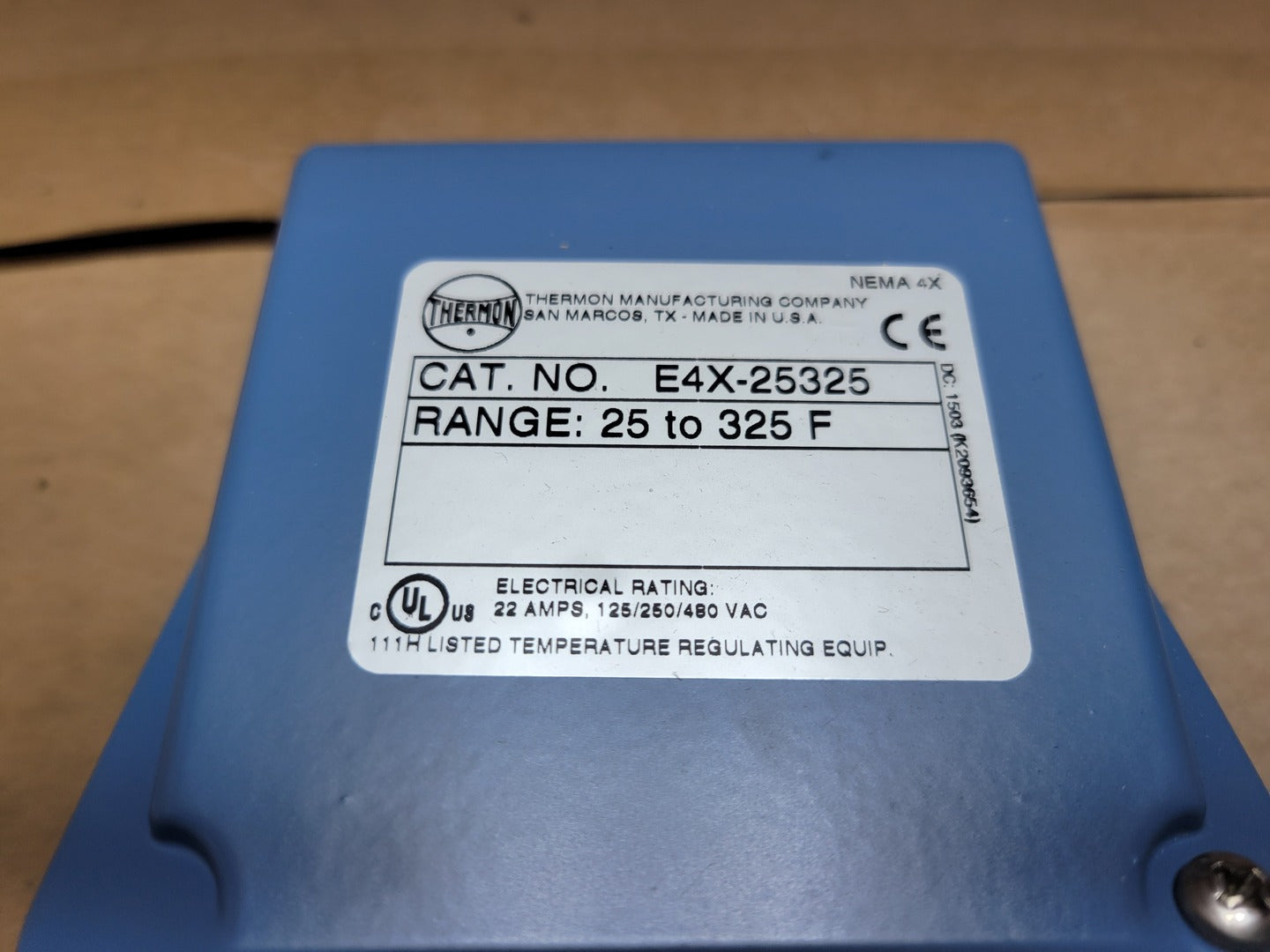

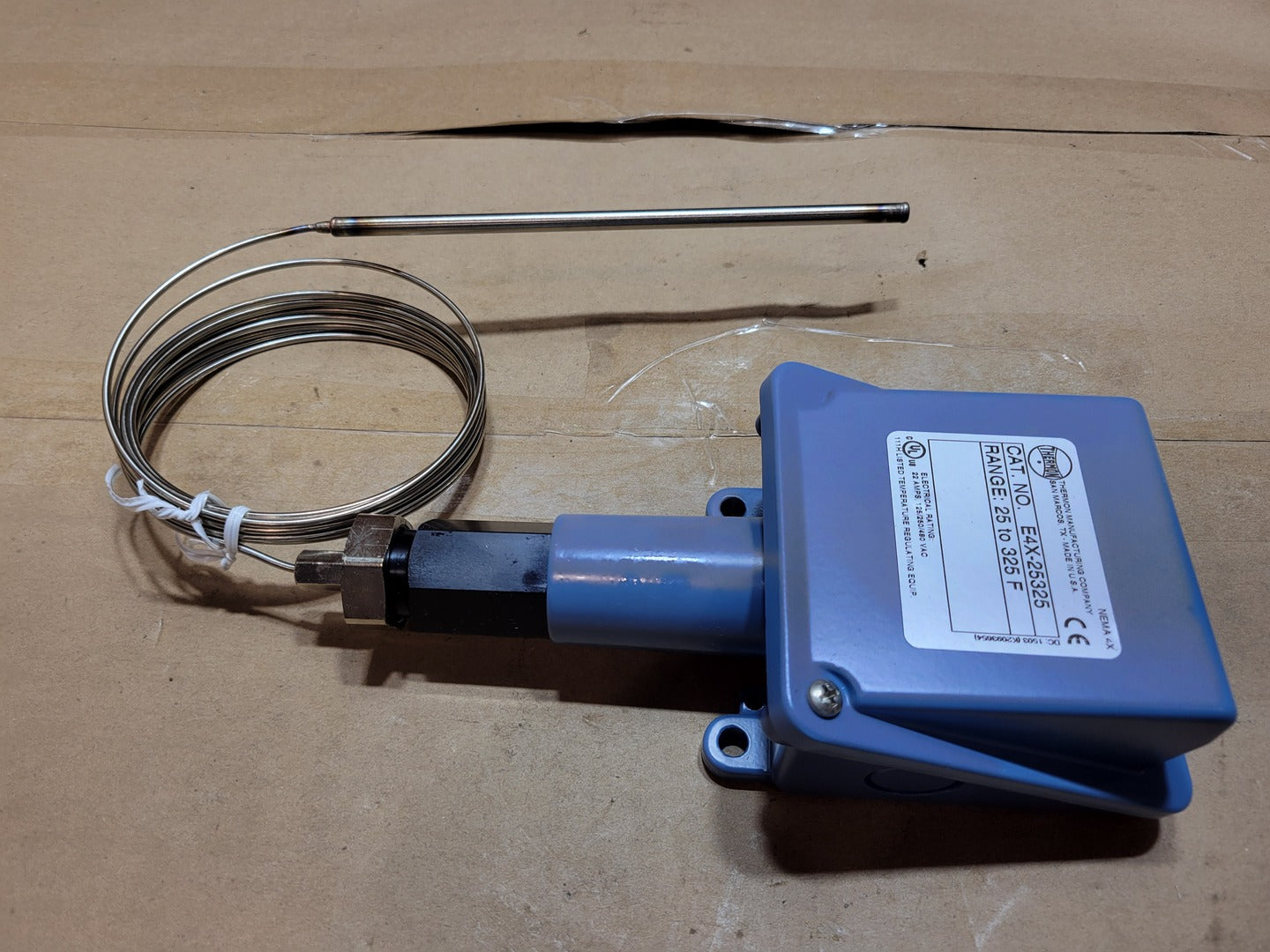

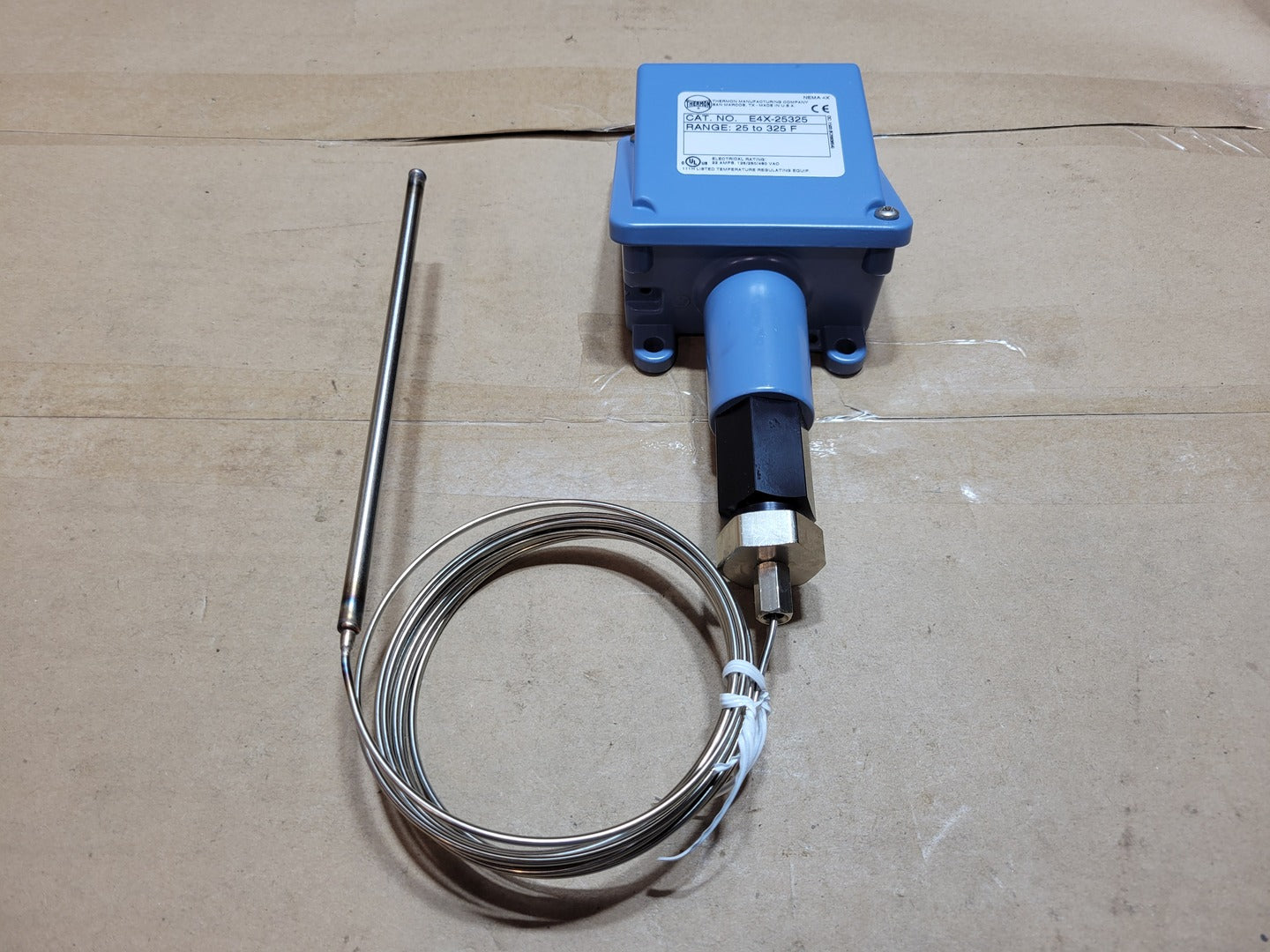

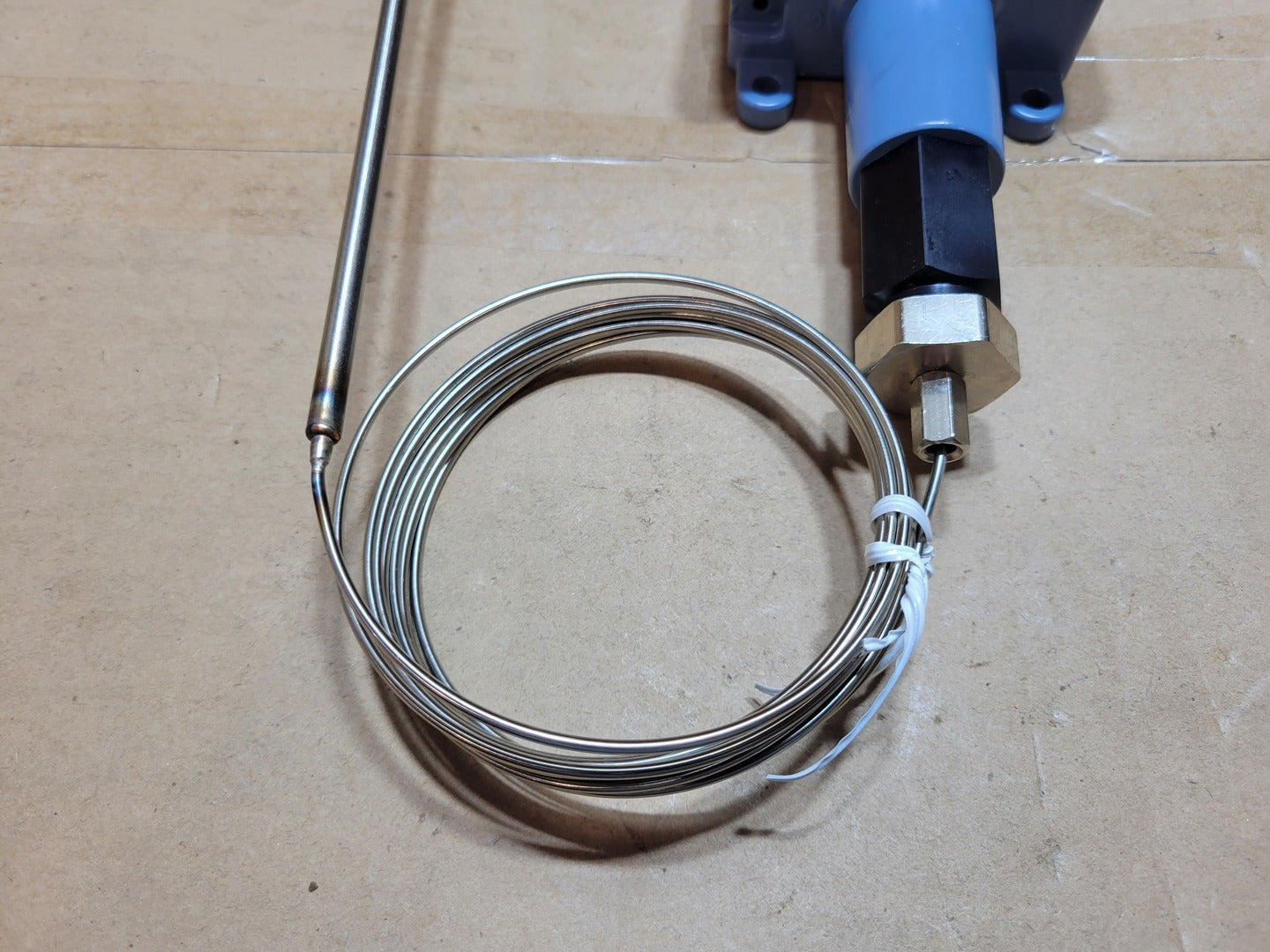

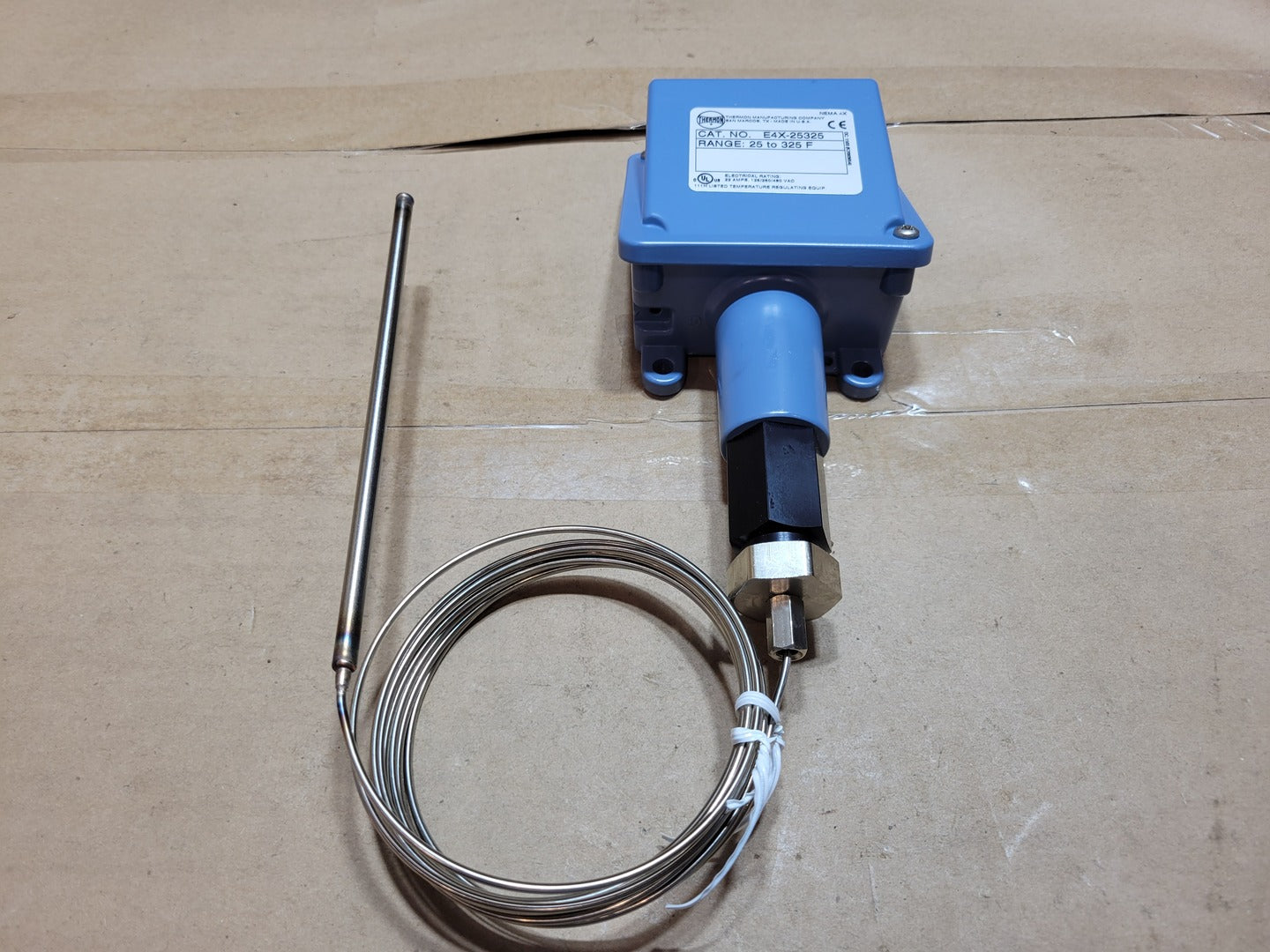

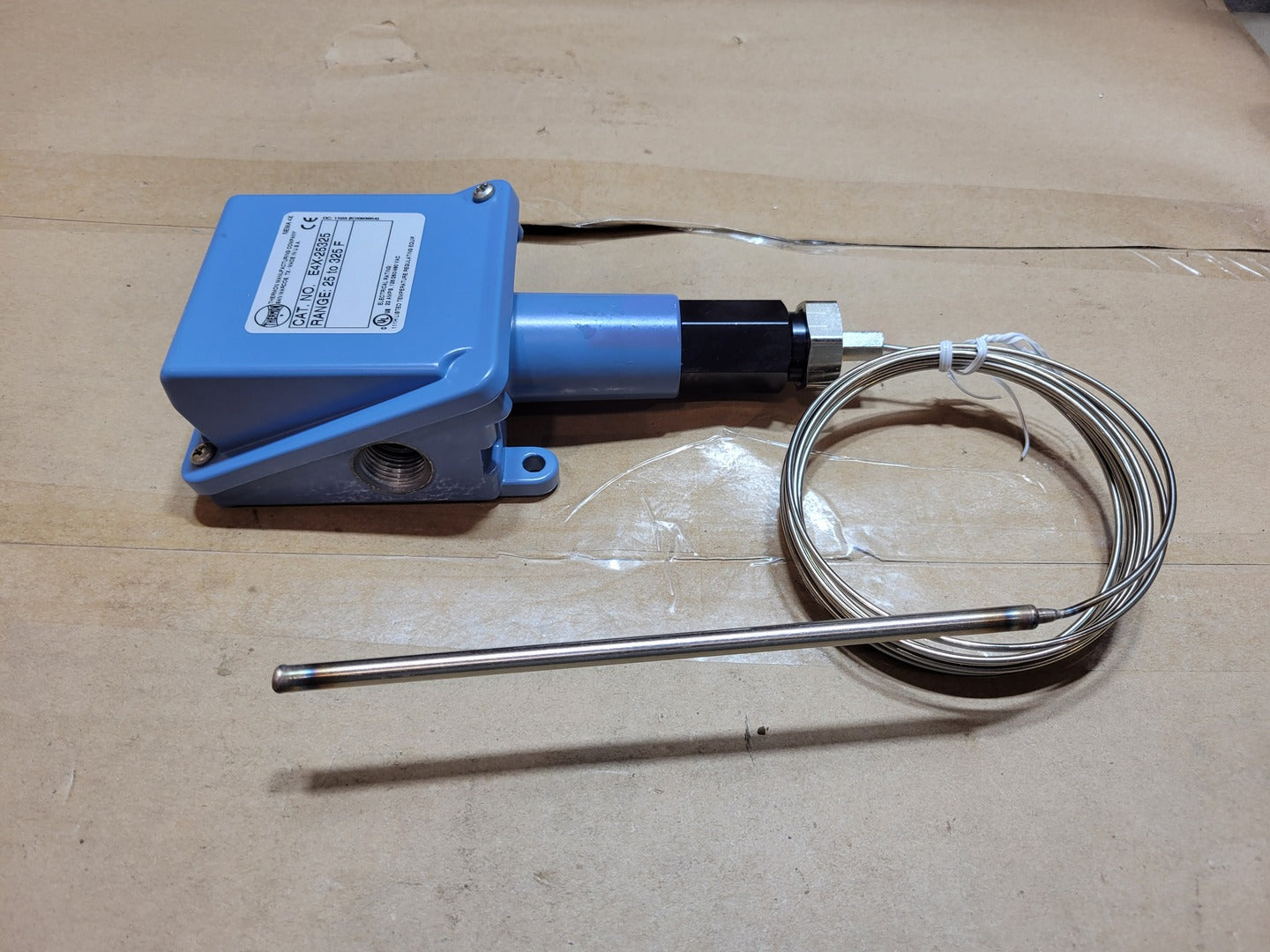

Model / Catalog No.: E4X-25325 Type: Mechanical Adjustable Control Thermostat Application: Freeze protection and temperature maintenance; pipe-wall or tank-wall temperature sensing Temperature Range: 25°F to 325°F (-4°C to 163°C) Factory Setting: 125°F, falling Voltage Rating: 125 / 250 / 480VAC Current Rating: 22 Amps Switch Type: SPDT Maximum Control Differential: 7 °F // 3.9 °C Setpoint Repeatability: +/- 3.5 °F // 1.9 °C Maximum Bulb Exposure Temperature: 650°F // 343 °C Sensing Bulb: 1/4" x 8-1/4" stainless steel Capillary Length: 10 ft // 3 m Capillary Material: Stainless steel Enclosure: NEMA 4X, epoxy/polyamide-coated die-cast aluminum Protection: Watertight, dust-tight and corrosion-resistant Electrical Connection: Screw terminals Conduit Connection: 1/2" NPT Certification: UL Listed, CE |
