Descripción
| Specifications | |
|---|---|

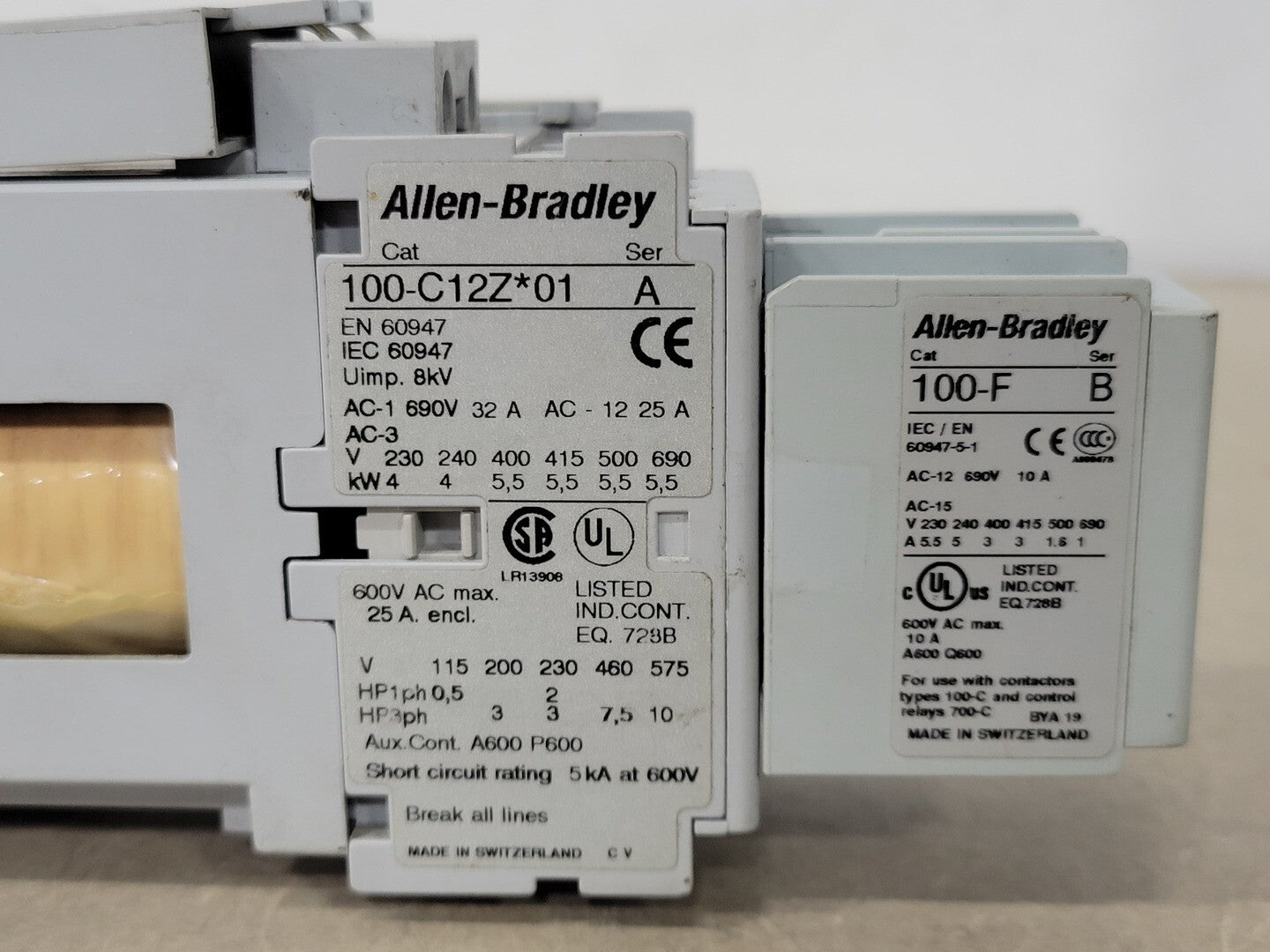

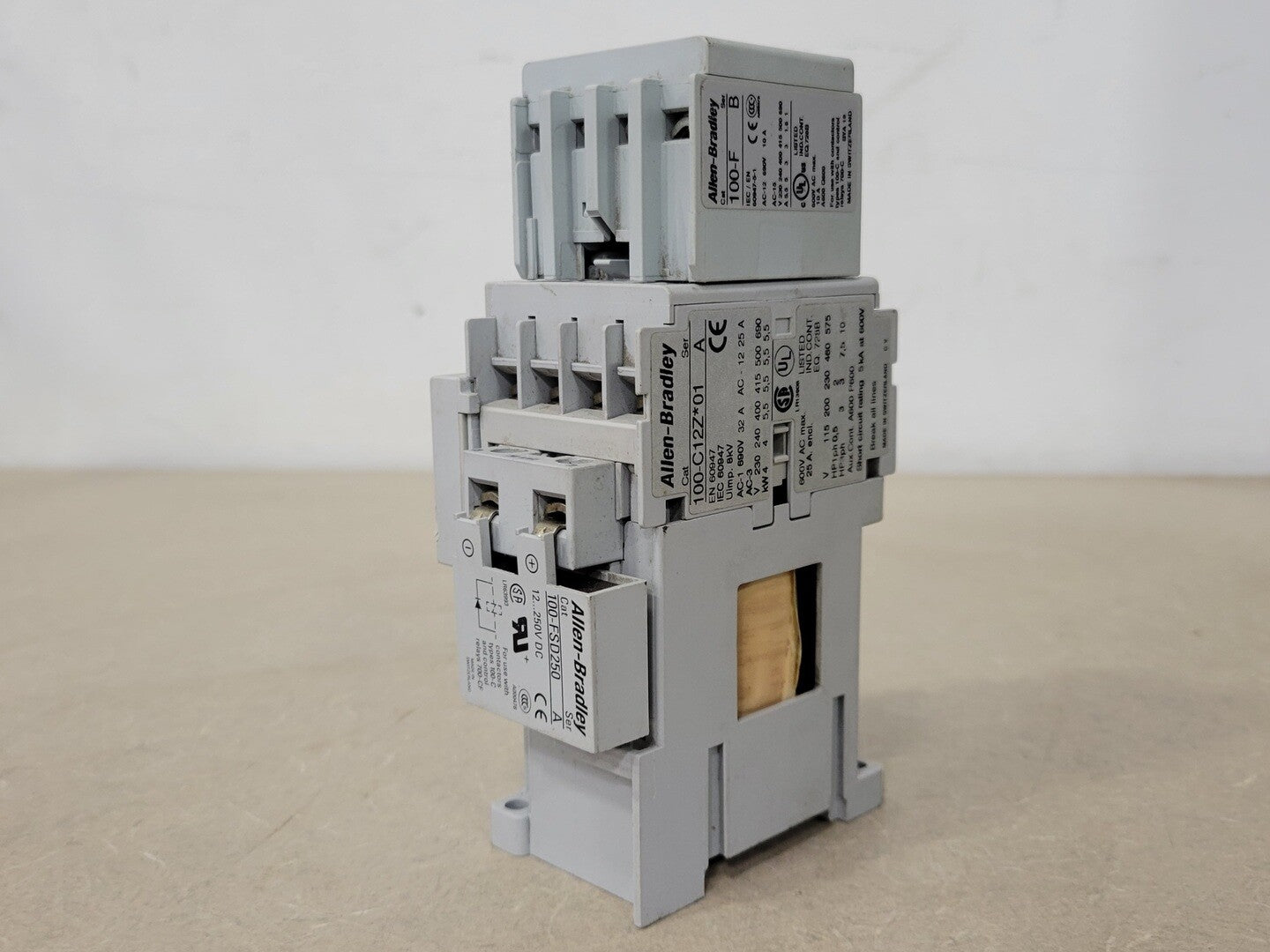

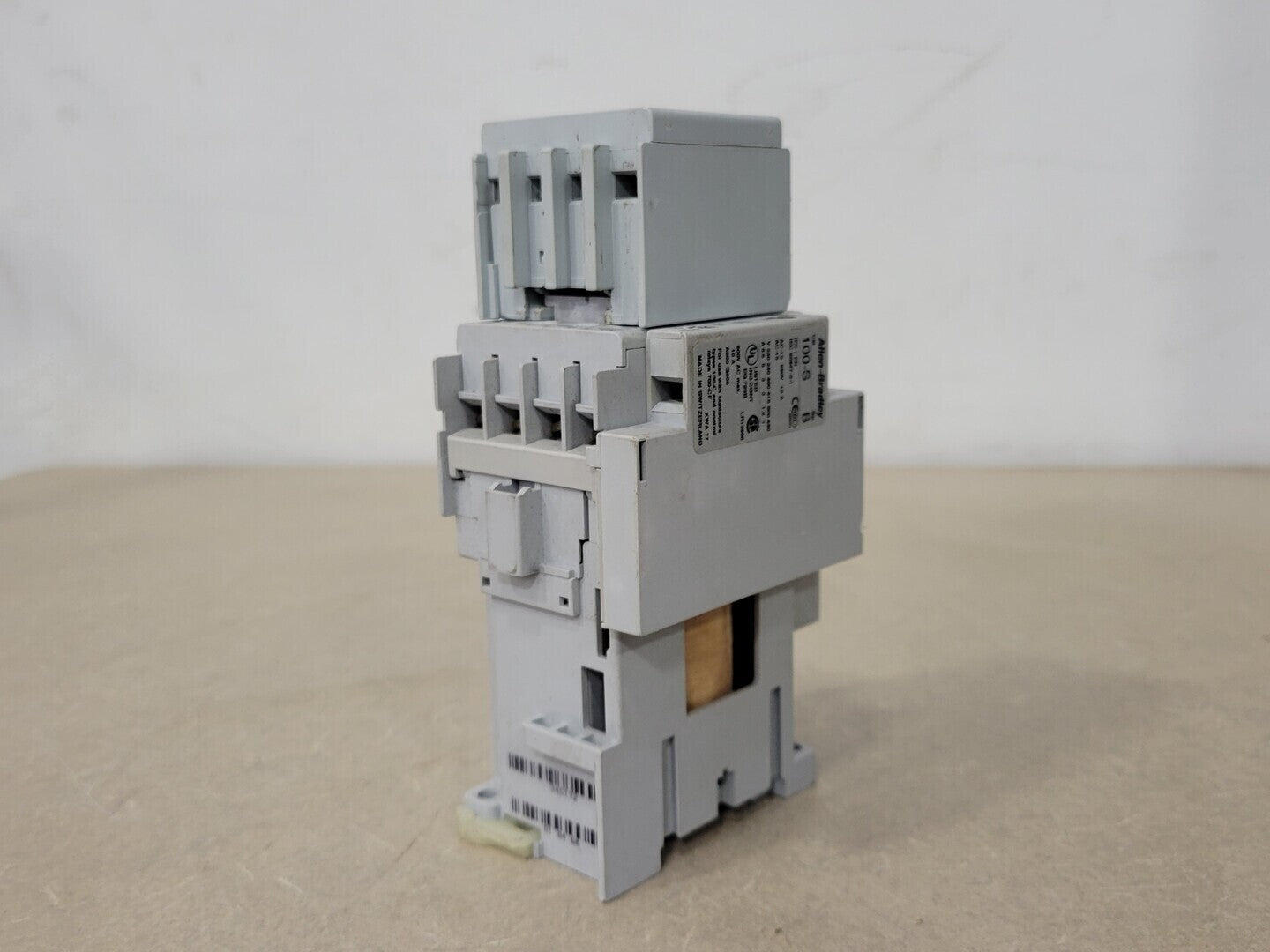

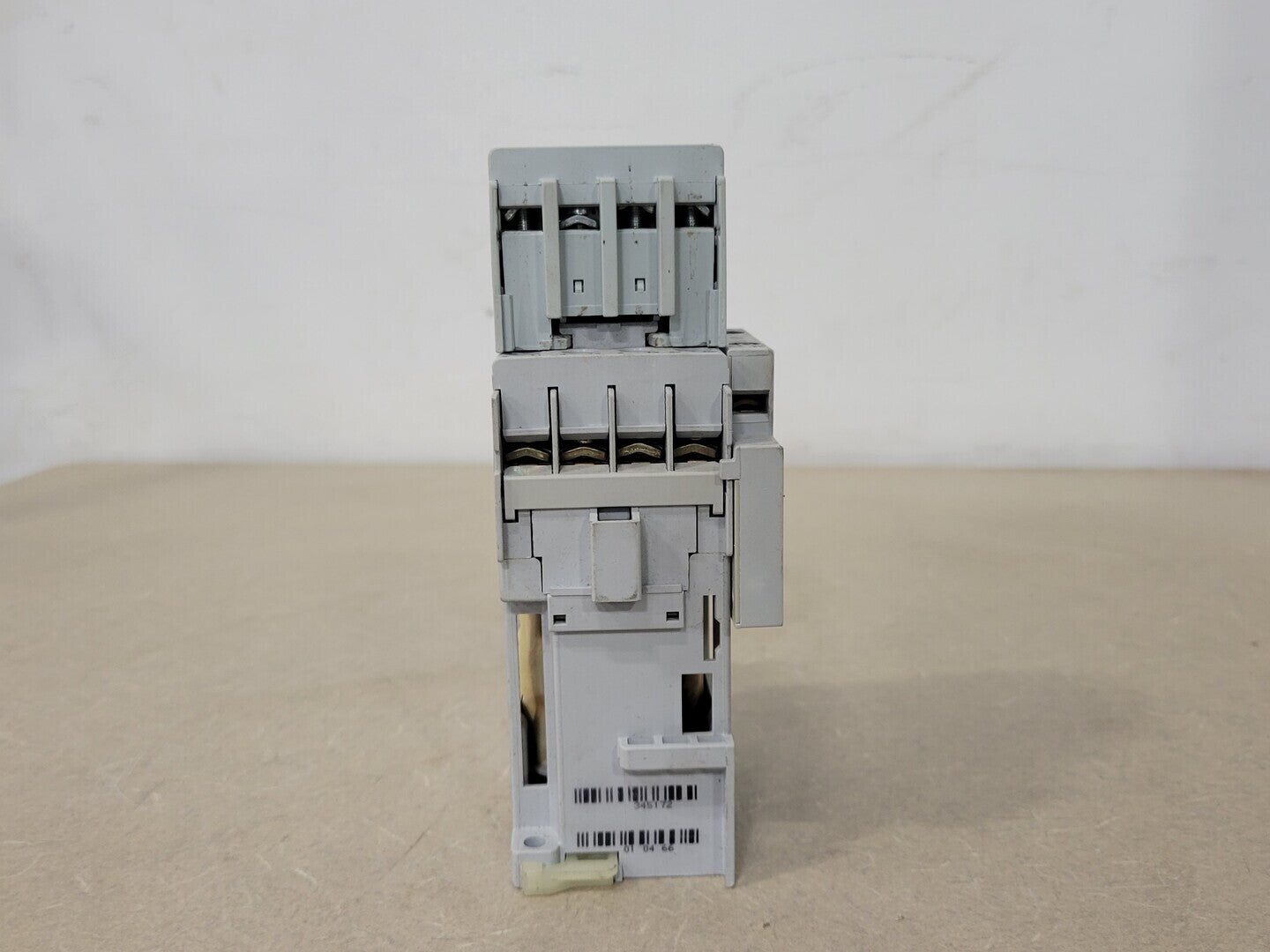

| Model | 100-C12Z*01 |
| Condition | Used |
| Other Specifications |
|---|
|
Rated Insulation Voltage (Uimp): 8 kV Rated Operational Current (AC-1): 32 A at 690 V Rated Operational Current (AC-3): 230V: 4 kW 240V: 4 kW 400V: 5.5 kW 415V: 5.5 kW 500V: 5.5 kW 690V: 5.5 kW UL/CSA Ratings: Max Voltage: 600V AC Max Current: 25 A enclosed Horsepower Ratings: 115V 1-phase: 0.5 HP 230V 1-phase: 2 HP 200V 3-phase: 3 HP 230V 3-phase: 3 HP 460V 3-phase: 7.5 HP 575V 3-phase: 10 HP Auxiliary Contact Ratings: A600 P600 Short Circuit Rating: 5 kA at 600V Standards Compliance: EN 60947, IEC 60947 Country of Manufacture: Switzerland Auxiliary Contact Block (100-F) Rated Operational Current (AC-12): 10 A at 690 V Rated Operational Current (AC-15): 230V: 5.5 A 240V: 5 A 400V: 3 A 415V: 3 A 500V: 1.5 A 690V: 1 A Max Voltage: 600V AC Max Current: 10 A Auxiliary Contact Ratings: A600 Q600 Standards Compliance: IEC/EN 60947-5-1 Compatible With: 100-C contactors and 700-C control relays |
