Descripción

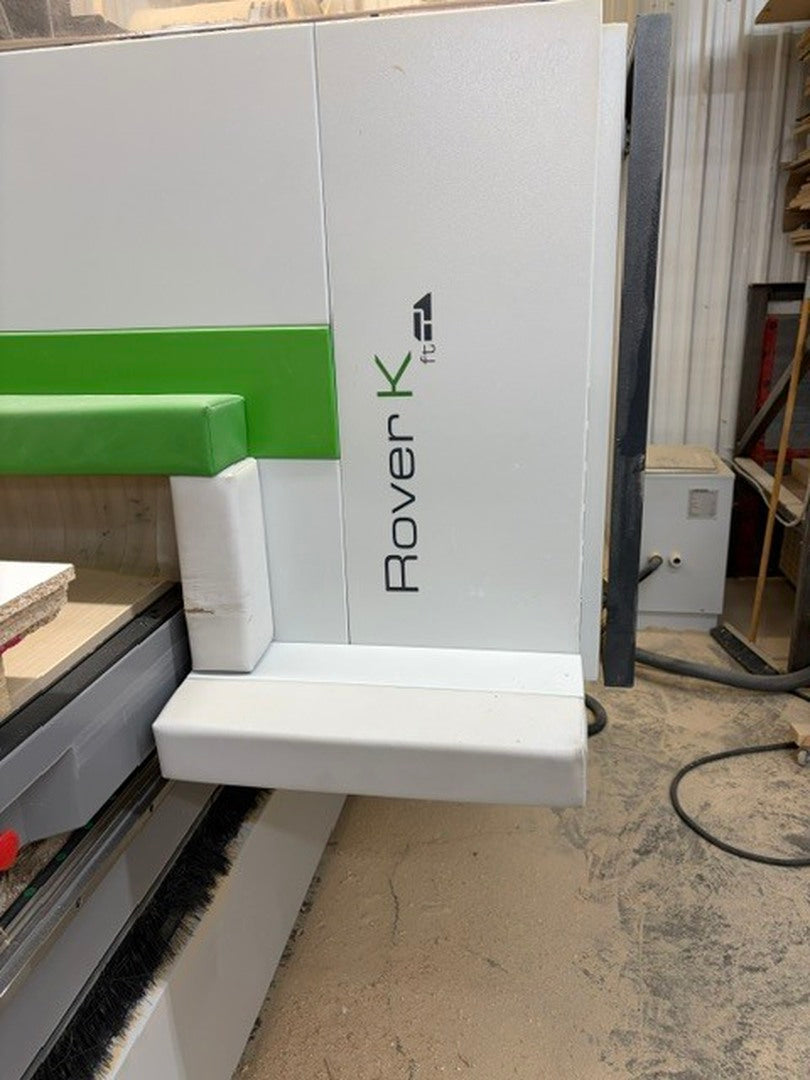

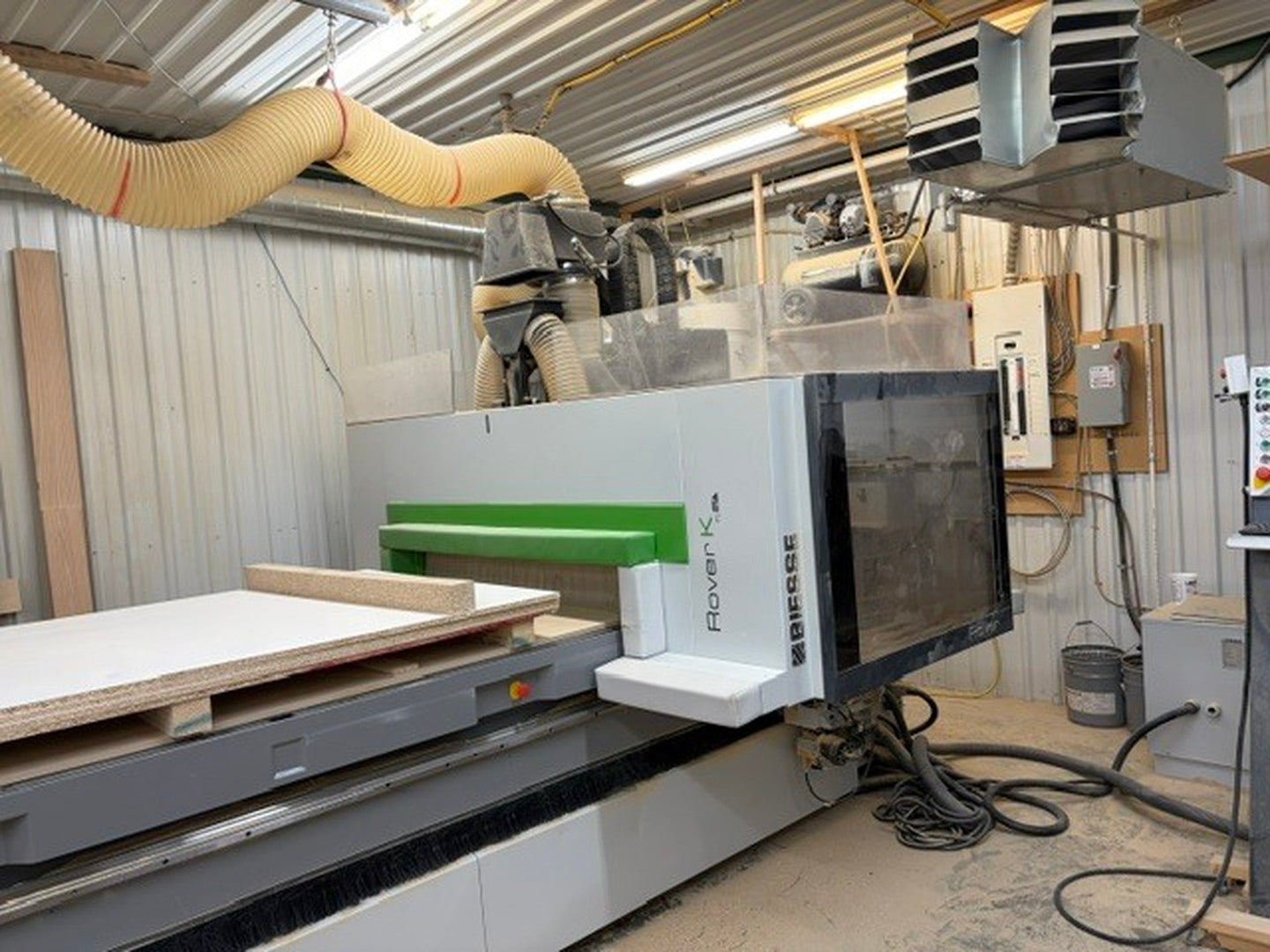

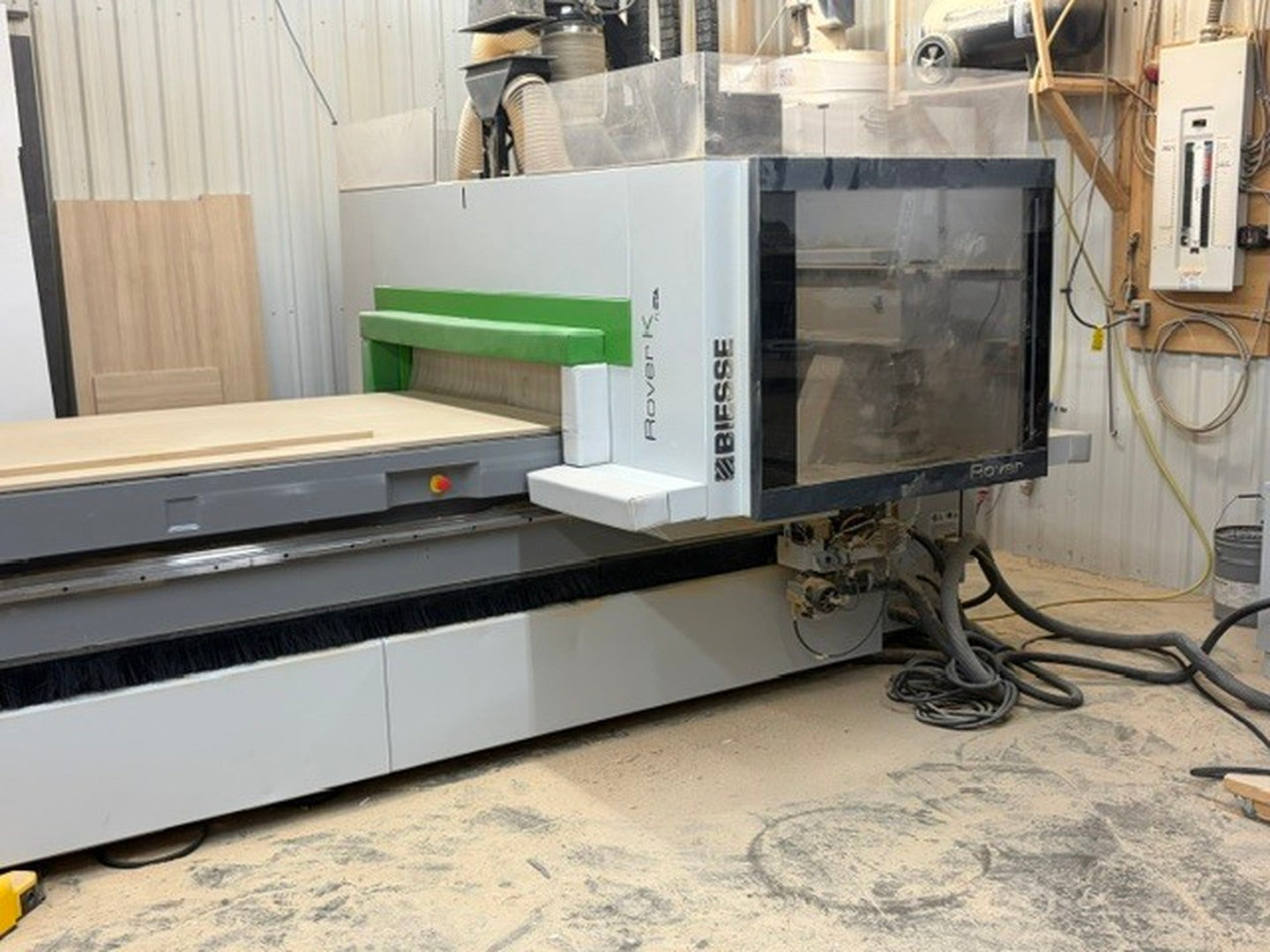

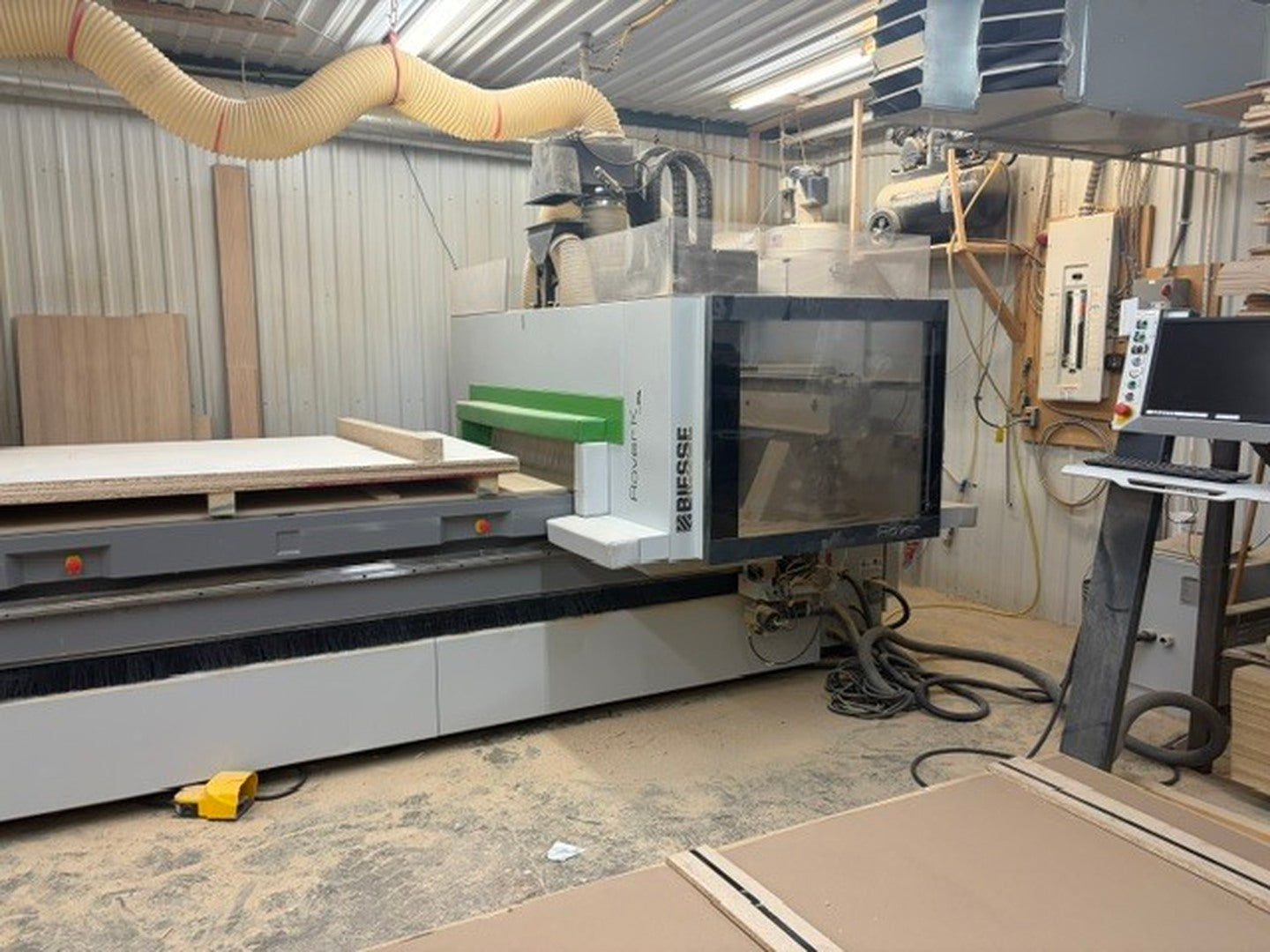

Biesse Rover K FT 1224 industrial CNC machining center designed primarily for nested-based production of wood panels, MDF, particleboard and similar sheet materials. The large flat vacuum table permits machining of full-size panels while the CNC head performs routing, drilling, grooving and related operations.
| Specifications | |
|---|---|
| Model | Rover K FT 1224 |
| Year: | 2019 |

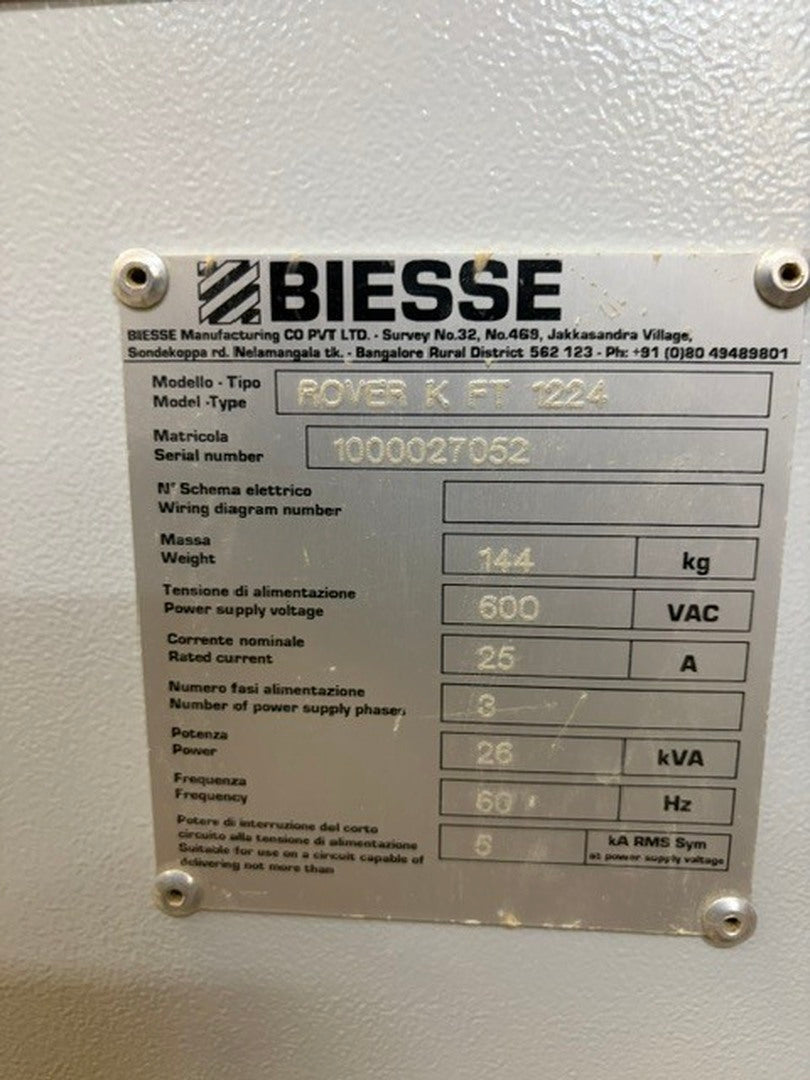

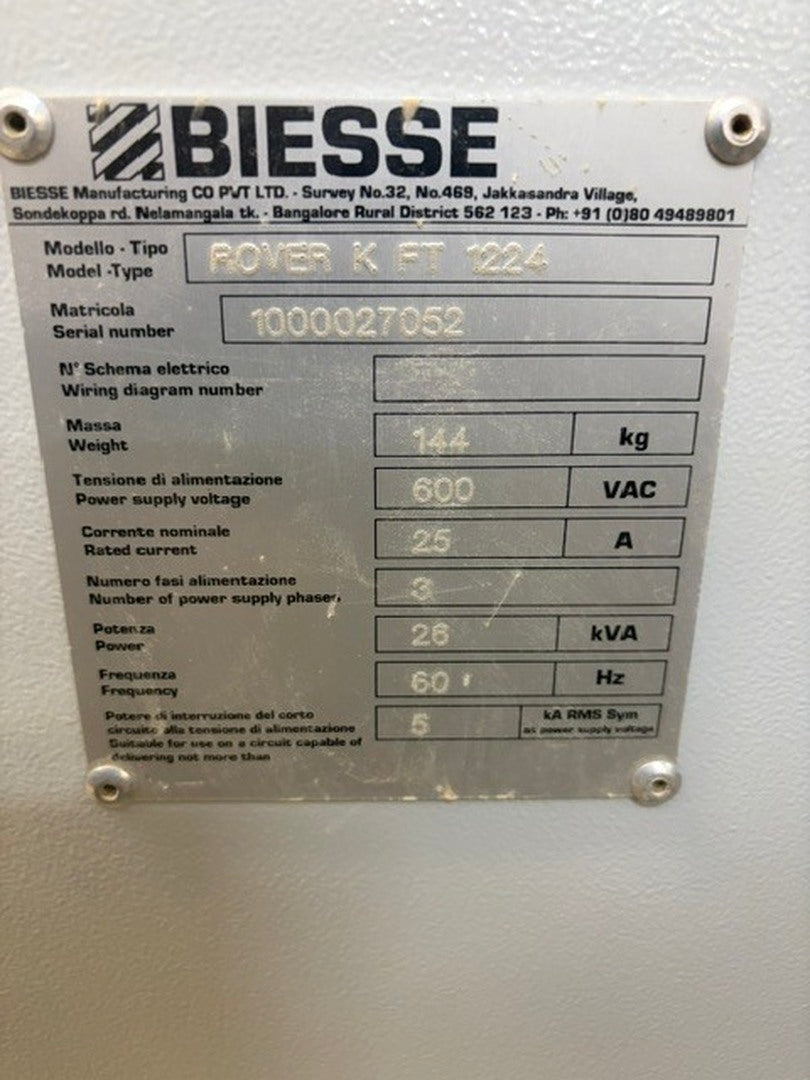

| S/N: | 1000027052 |
| Condition | Used | General |
| Table Size | 48" x 96" |
| CNC | Yes | Electrical |
| Voltage | 600 volts |
| Phase | 3-phase |
| Other Specifications |
|---|
|
Power Supply: 600 VAC Frequency: 60 Hz Phase: 3-phase Rated Current: 25 A Rated Power: 26 kVA X-Axis Travel: 2,465 mm // 97 in Y-Axis Travel: 1,260 mm // 50 in Z-Axis Stroke: 170 mm // 6.7 in Spindle speed: up to 24,000 RPM Routing Spindles: 1 Main Spindle Motor Power: 9 kW // 12.1 HP Maximum Spindle Speed: 24,000 RPM Tool Clamping System: HSK-F63 Tool Changer Capacity: 10 Positions Machine Design: Gantry Type Table Type: Matrix Table Vacuum Pumps: 1 Vacuum Pump Capacity: 250 m3/h // 147 CFM Safety System: Bumper Safety Device DXF Interface: Equipped Control System: PC Control with Biesse bTouch |
