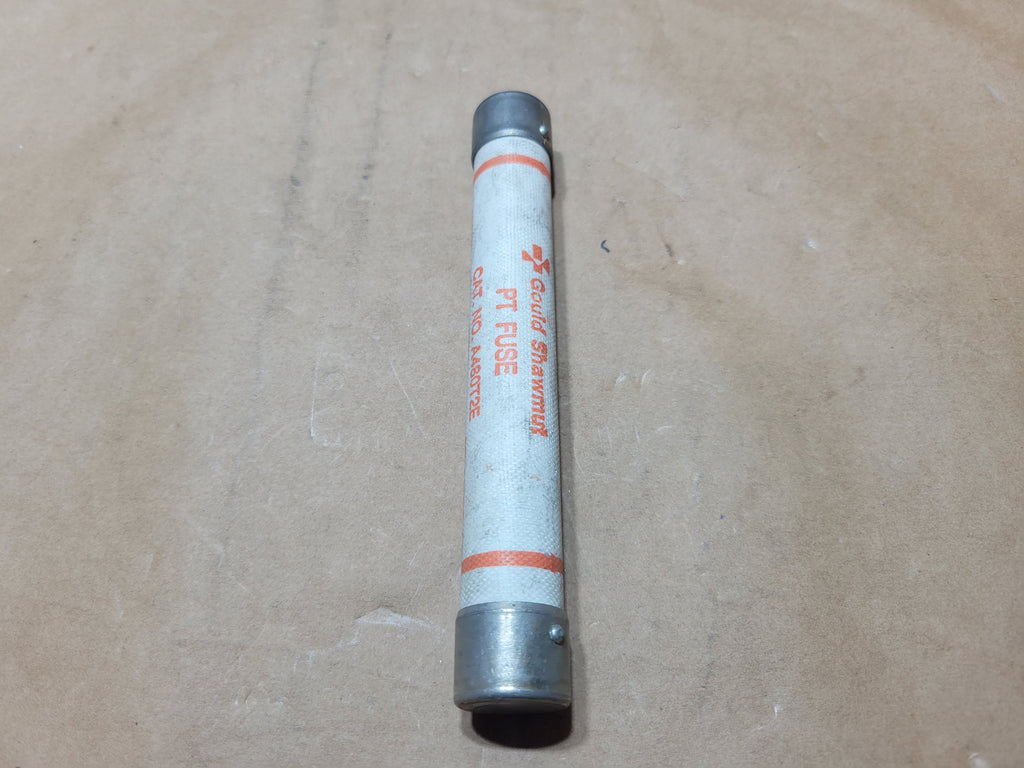

Gould Shawmut A480T2E Amp-Trap potential transformer fuse rated for 4,800 V AC, with a 2E current designation and 50,000 A RMS symmetrical interrupting rating. This is a cylindrical, ferrule-terminal, current-limiting Class E fuse intended primarily for potential transformer or control power transformer protection.
| Specifications | |
|---|---|
| Model | A480T2E |
| Condition | Used | Electrical |
| Amps | 2 amps |
| Voltage | 480 volts |
| Phase | Multi-phase |
| Fuse Type | Medium Volt |
| Current Type | AC |
| Class | E |
| Interrupting Rating | 50kA |
| Other Specifications |
|---|
|
Fuse type: Potential transformer fuse Fuse class: Class E Current designation: 2E Nominal current rating: 2 A Operating characteristic: Current-limiting Indication type: Non-indicating Body style: Cylindrical Terminal style: Ferrule |
