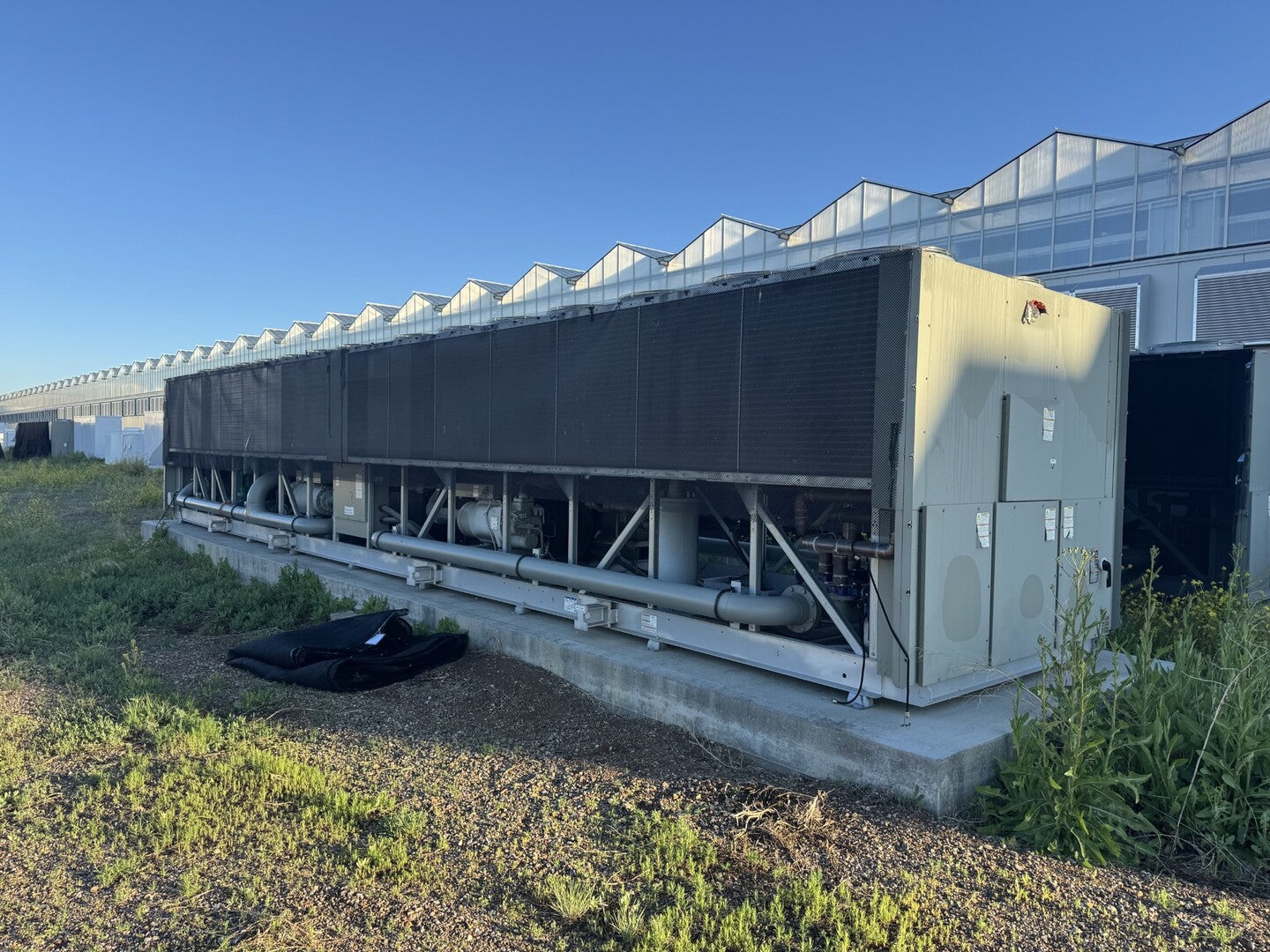

500 Ton Air Cooled Helical Rotary Chiller RTAC 5005

SKU: 156467
Condition: Surplus New
Precio:
$350,000 CAD

Gastos de envío calculados en la caja

Stock:
Agotado
Make an Offer

¿Necesita una respuesta ahora?

Finance

Amount:
Email Finance
Looking for more Enfriadores?
Browse all Enfriadores →

Descripción

Specifications

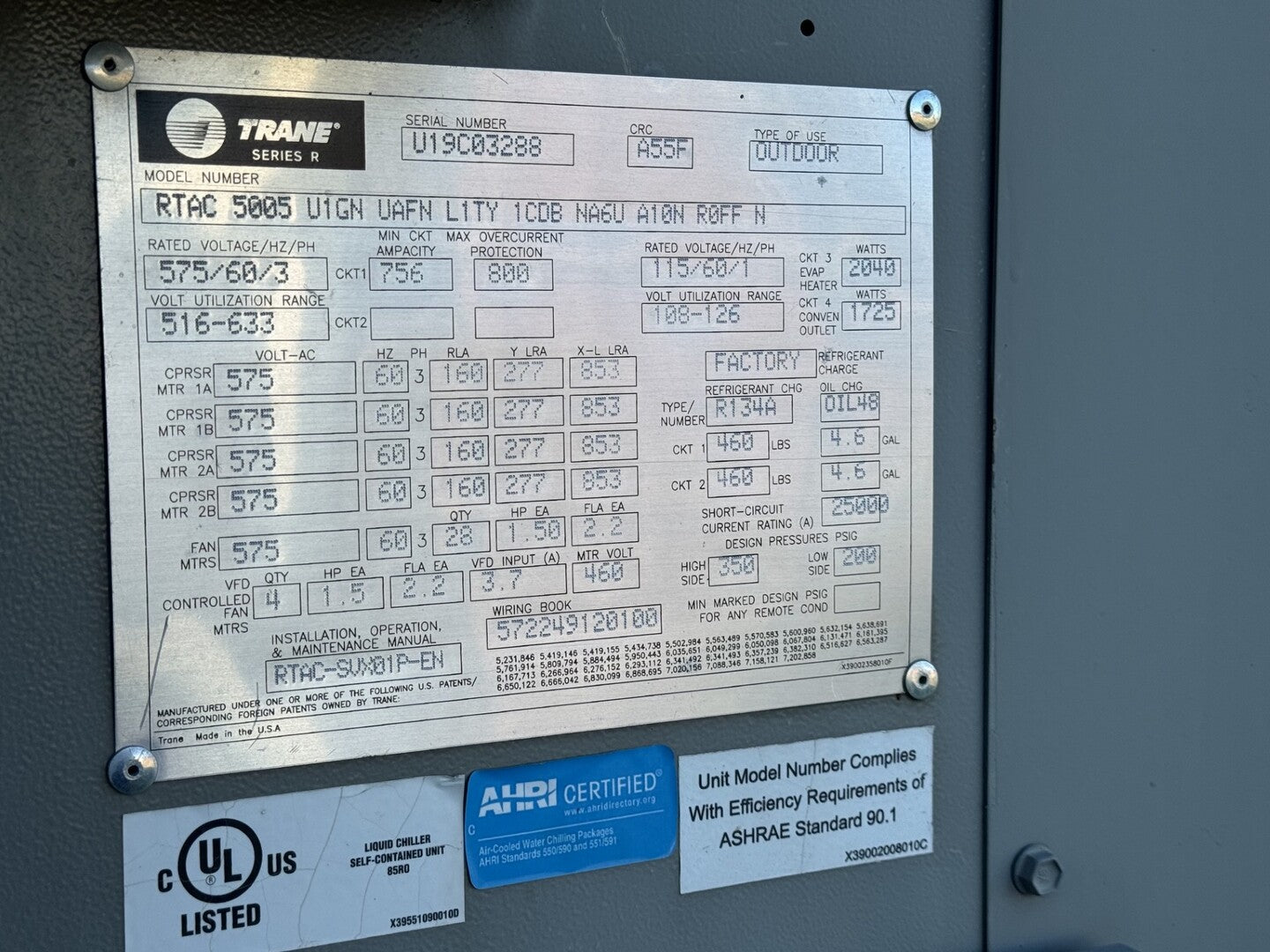

Model RTAC 5005 U1GN UAFN L1TY 1CDB NA6U A10N R0FF N
S/N: U19C03288
Made In UNITED STATES
Condition Surplus New
Other Specifications

**Unused - Unit was placed onsite but never connected, commissioned, or charged with refrigerant.


PDF Product Catalog

Type Of Use: Outdoor

Nominal Capacity: 500 tons

Rated Voltage: 575 V, 60 Hz, 3-ph

Volt Utilization Range: 516-633 V

Min. Circuit Ampacity: 756 A

Max. Overcurrent Protection: 800 A

Compressor Qty: 4

Compressor Motors: 575 VAC, 60 Hz, 3-ph, 160 RLA, 277 Y LRA, 853 X-L LRA

Fan Qty: 28

Fan Motors: 1.5 HP, 575 VAC, 60 Hz, 3-ph, 2.2 FLA

VFD Controlled Fan Motors (4): 1.5 HP, 2.2 FLA, 3.7 A VFD Input, 460 Volt

Evaporator Heater: 2040 Watts, 115 VAC, 60 Hz, 1-ph

Convenience Outlet: 1725 Watts, 108-126 Volt Utilization Range

Refrigerant: R134A, 460 lbs each, for circuit 1 & circuit 2

Oil: OIL48, 4.6 Gal each, for circuit 1 & circuit 2

Short Circuit Current Rating: 25000 A

High Side Design Pressure: 350 psig

Low Side Design Pressure: 200 psig

Condenser Fin Material: Standard Aluminum Slit Fins

Operating Weight: 27912 lbs (includes refrigerant and water)
