Descripción

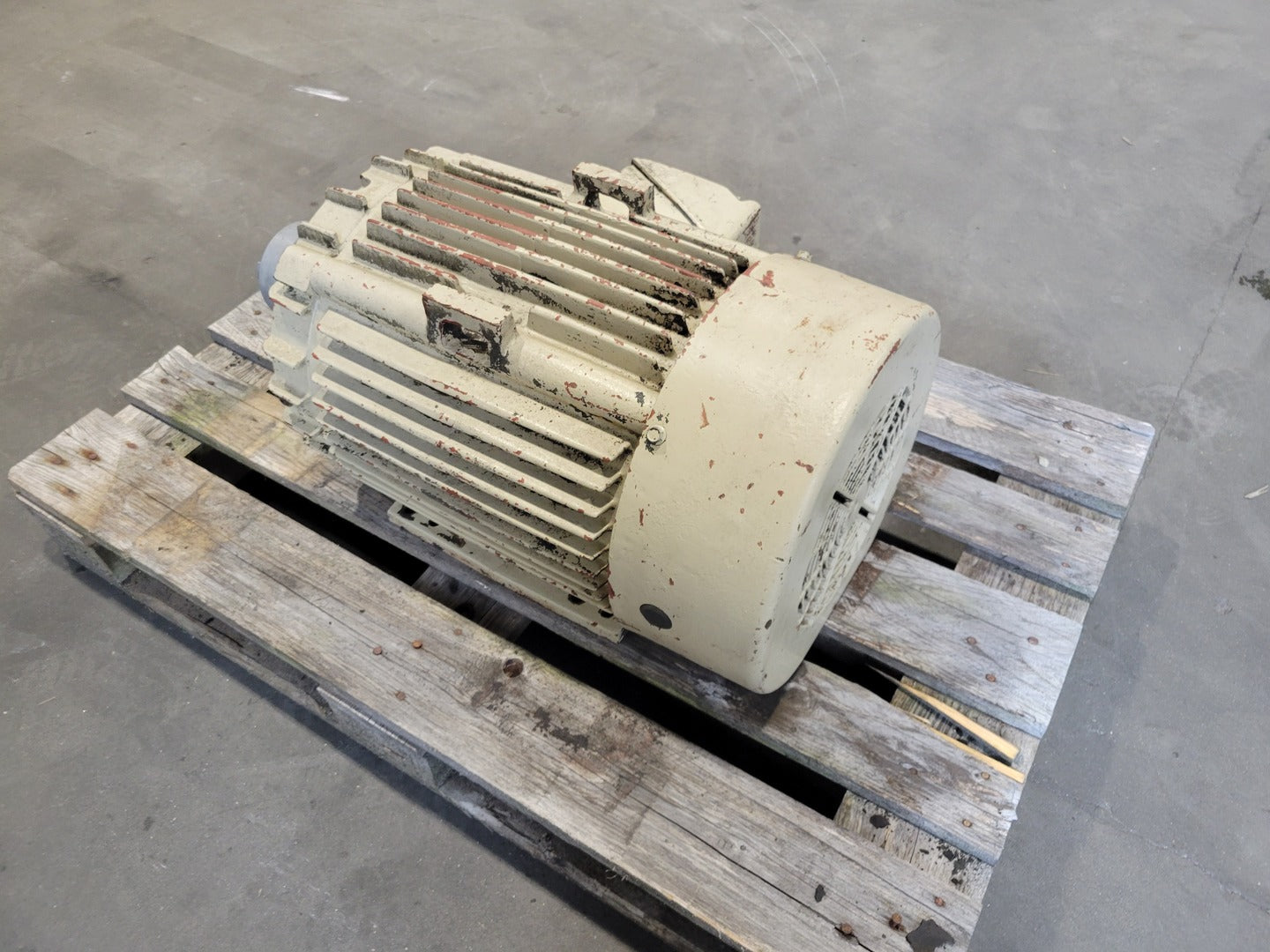

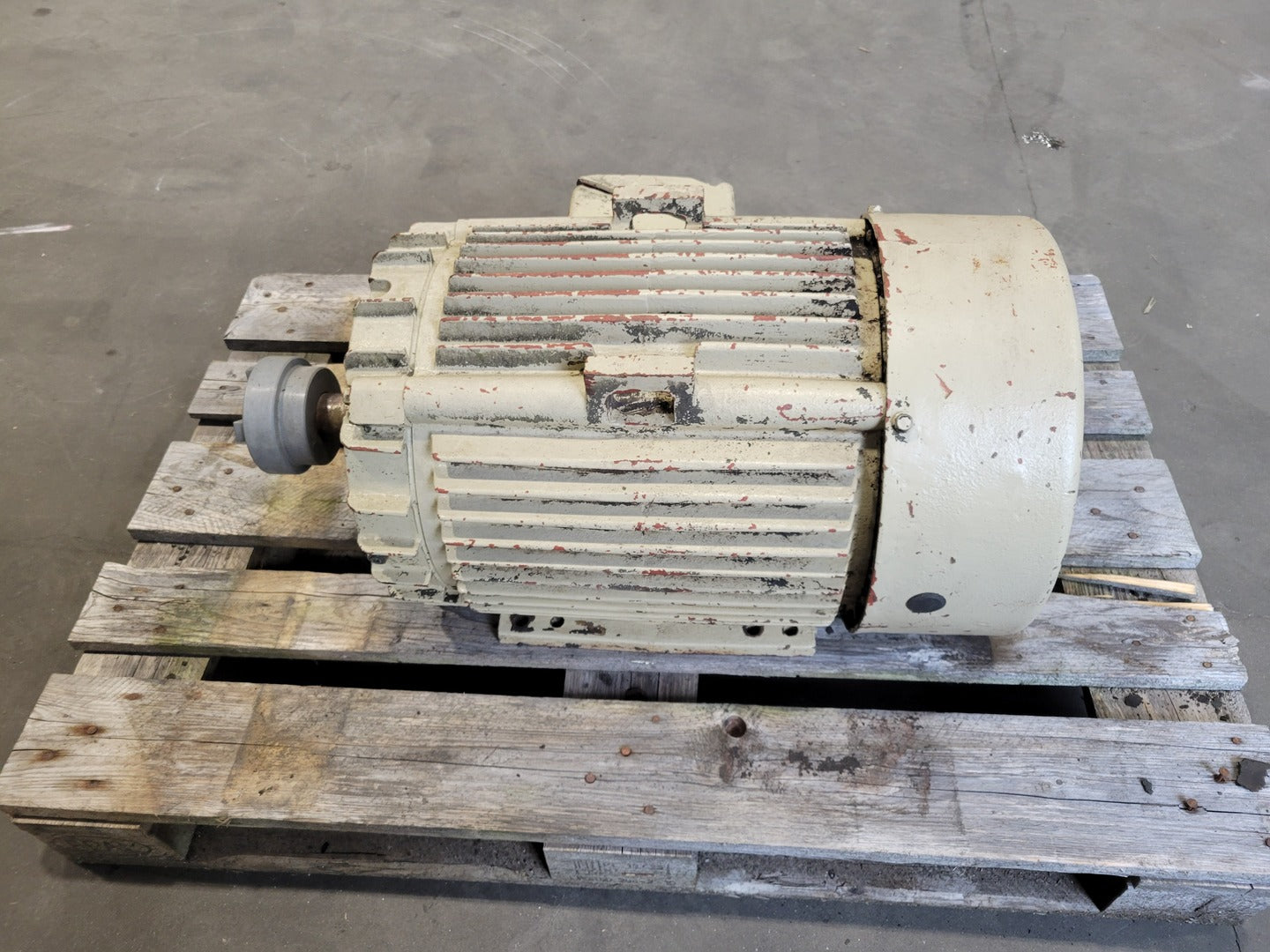

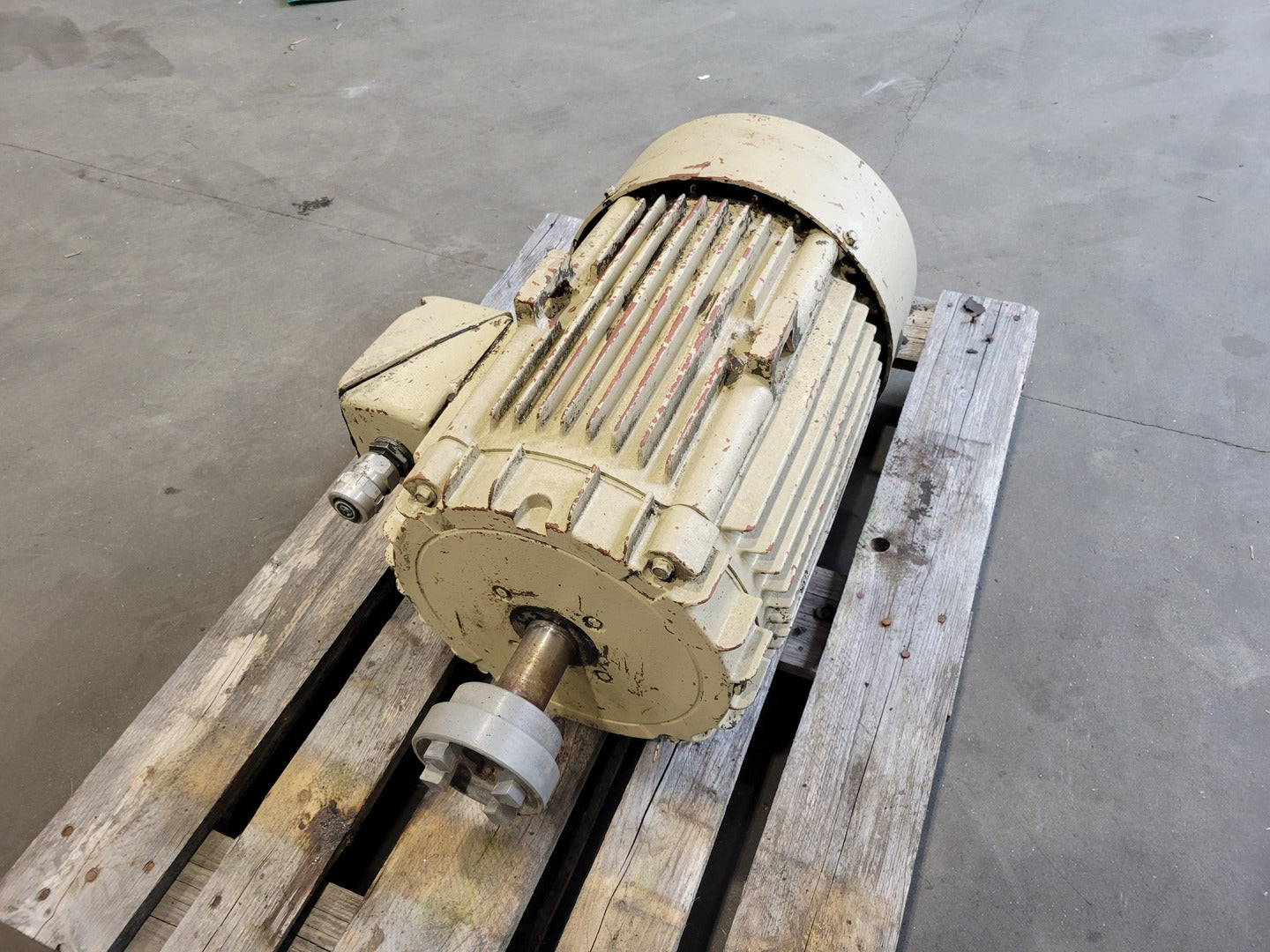

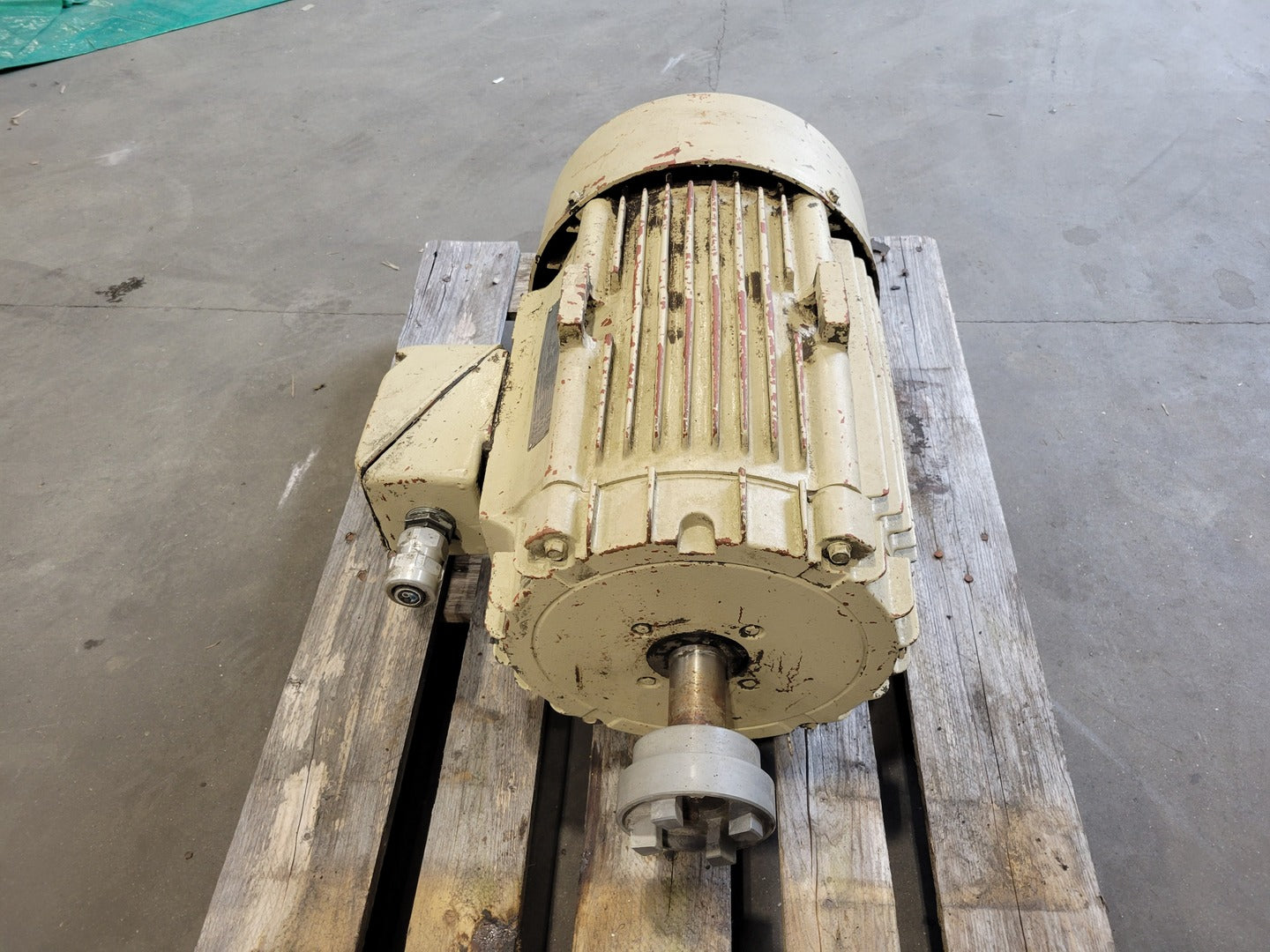

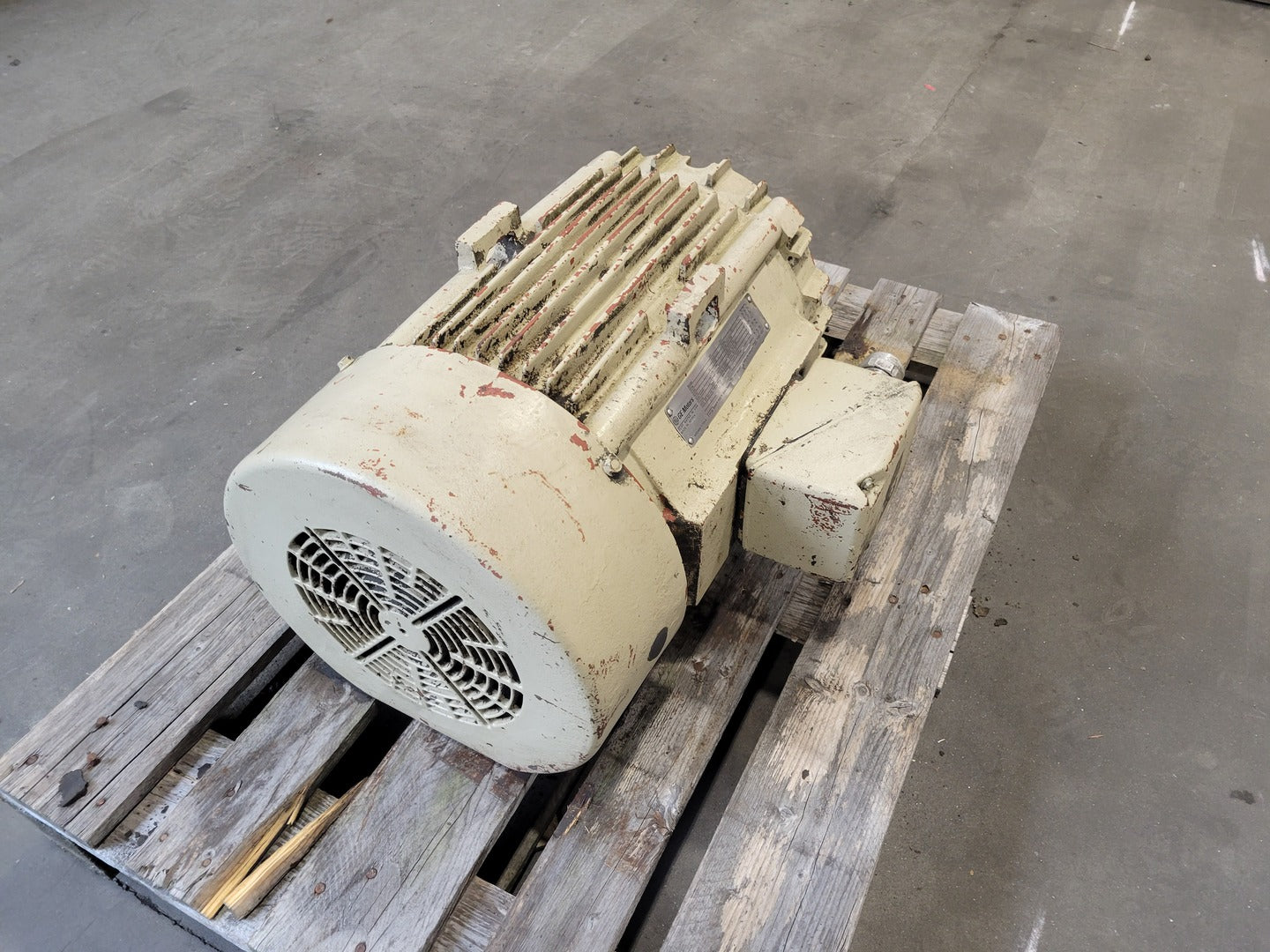

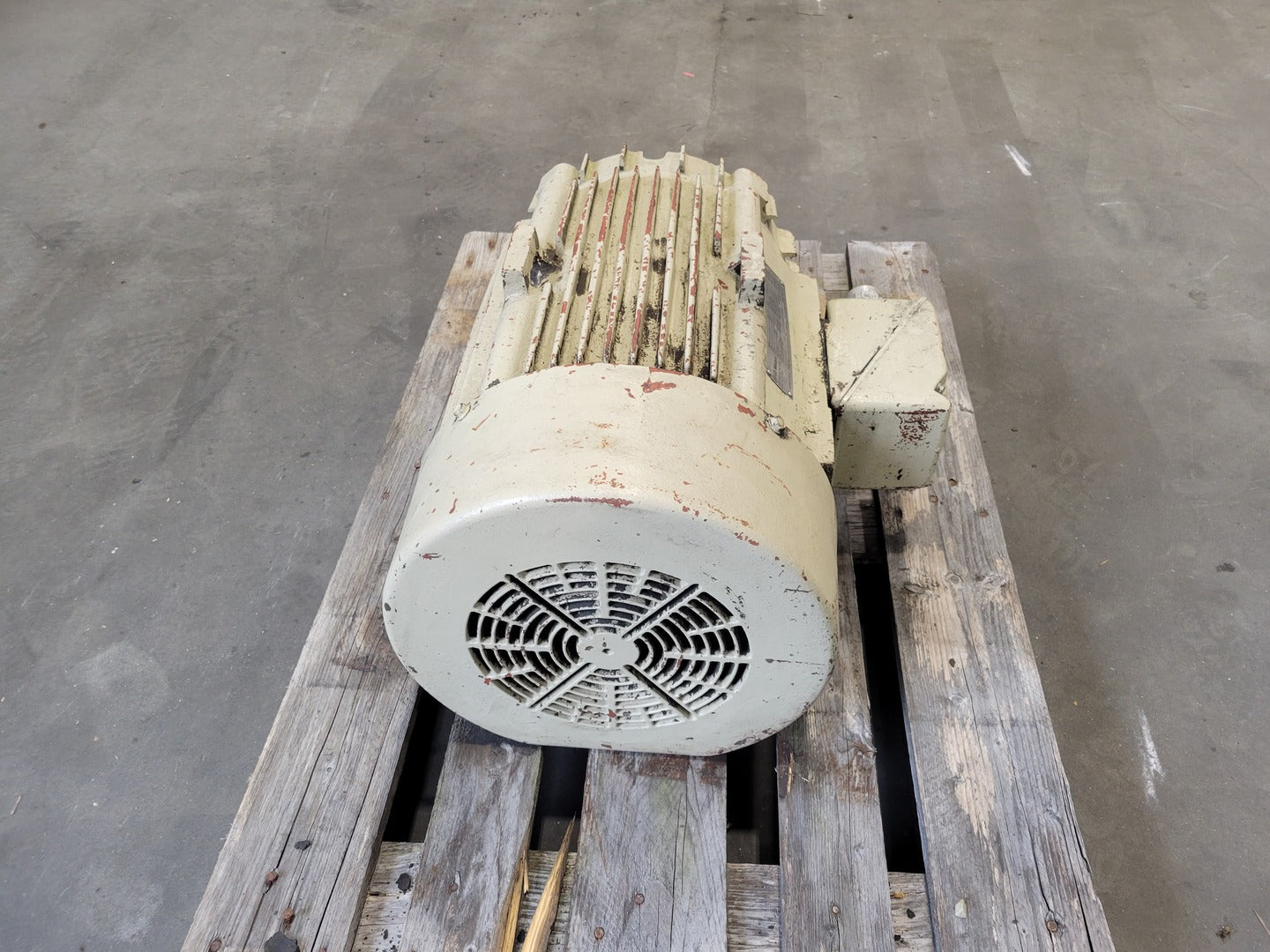

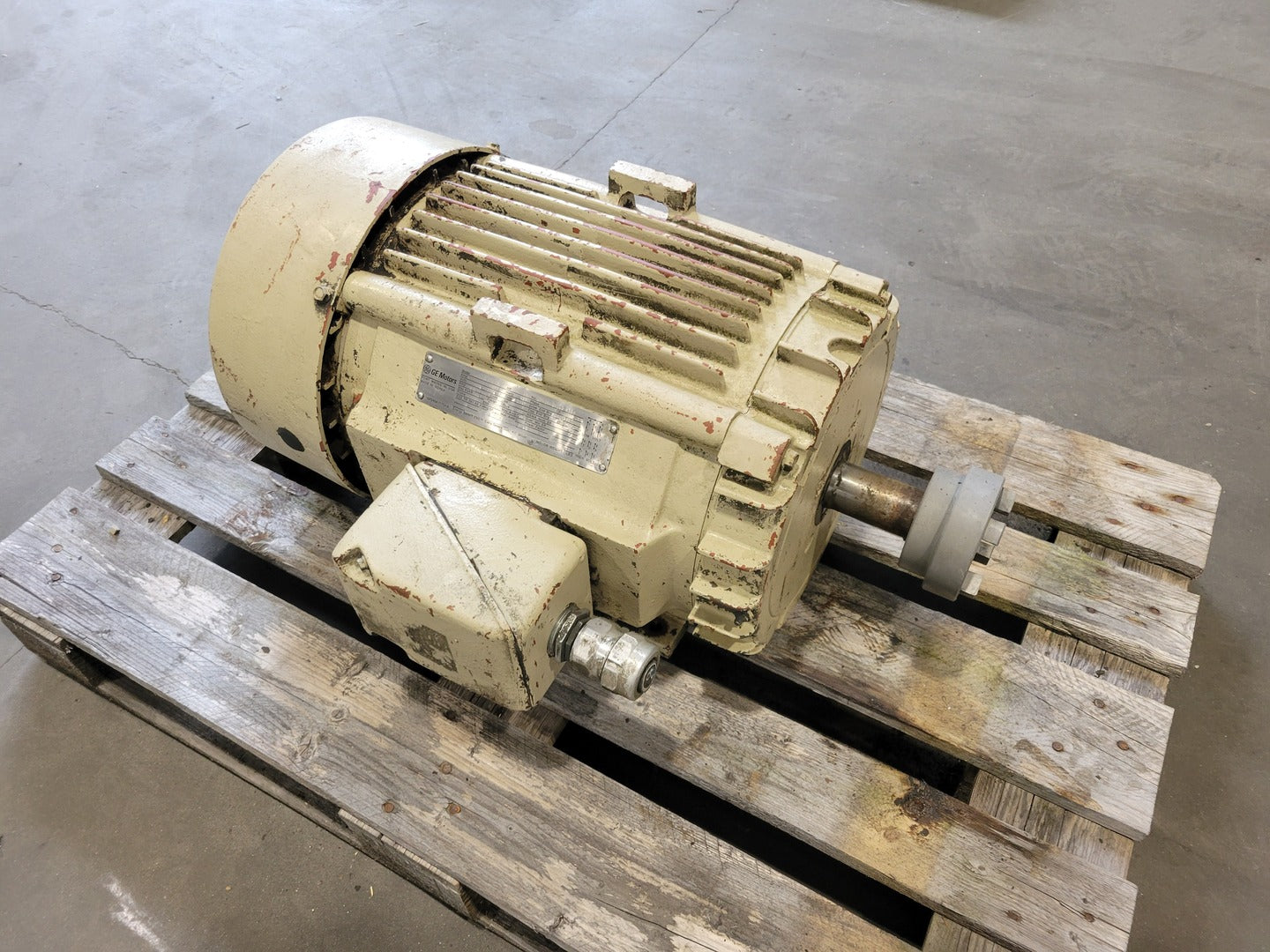

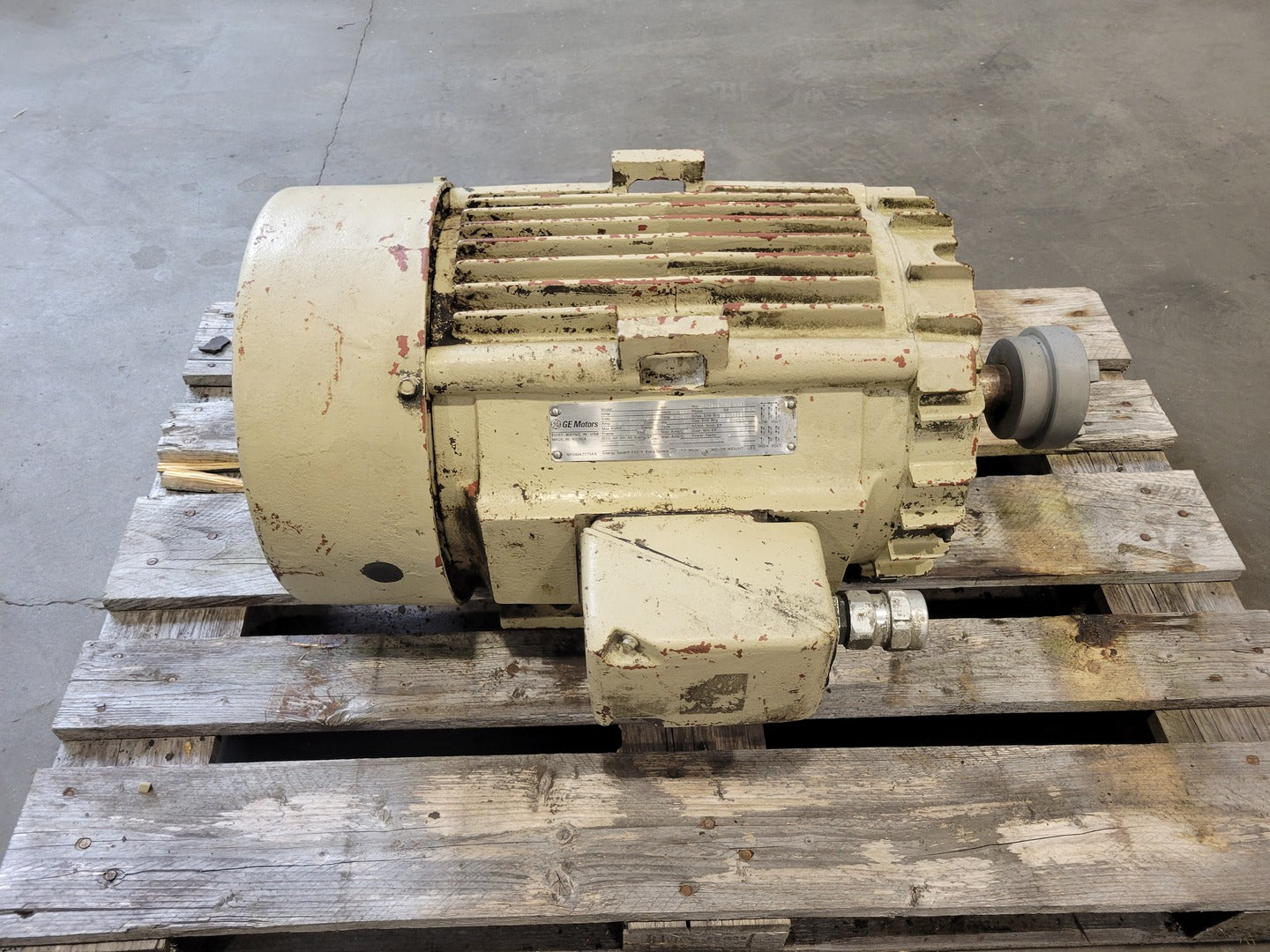

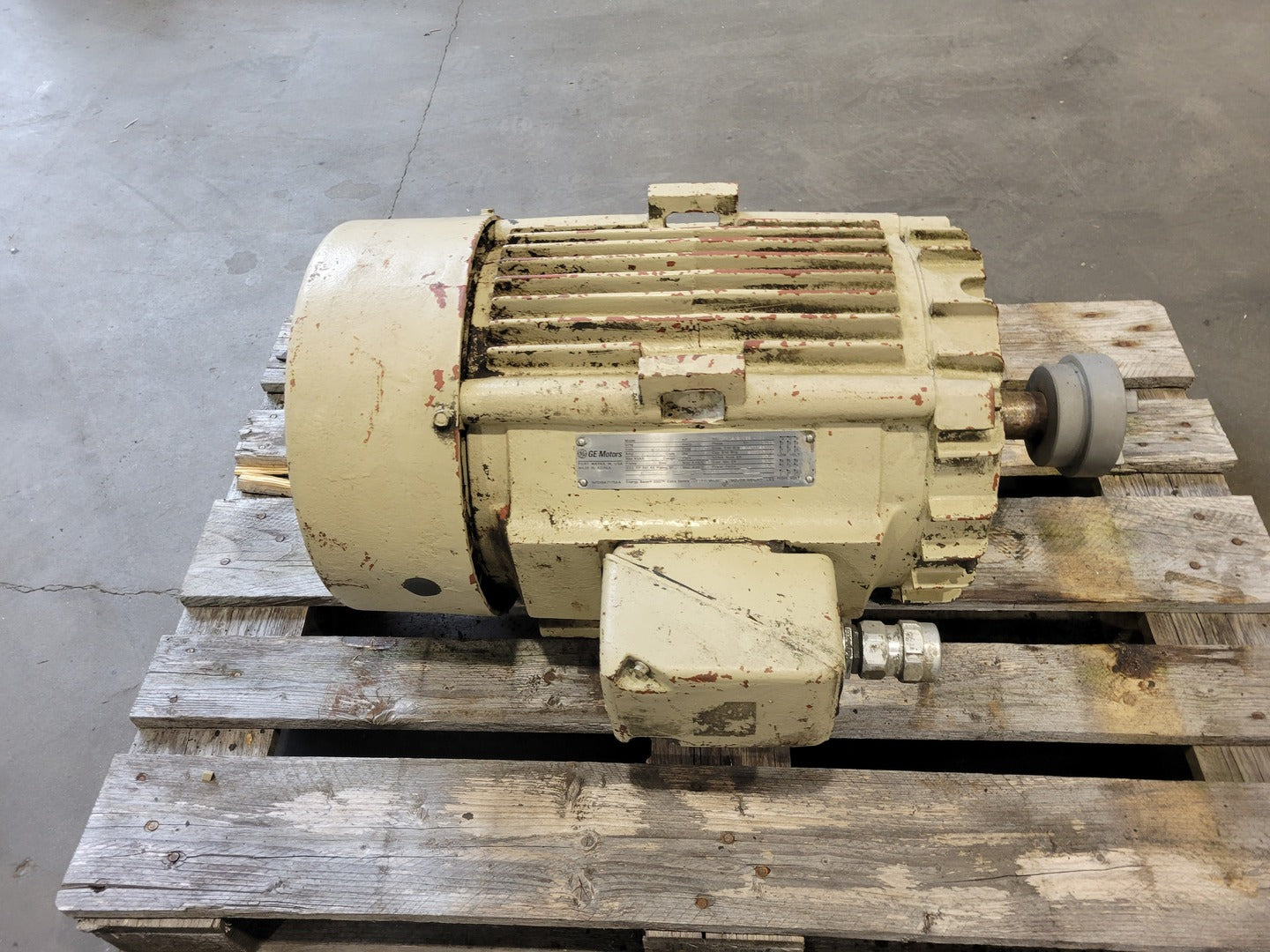

GE Motors model 5KS284SE2030 Energy $aver XSD Extra Severe Duty AC Motor rated at 25 HP, 1770 RPM, 200-230/460 V, 60 Hz, and 3-phase. Features a NEMA 284T frame, continuous-duty rating, NEMA Design B, and 93.0% nameplate nominal efficiency. Heavy-duty industrial motor with foot mounting and an installed shaft coupling component. Used industrial condition with chipped paint, dirt/residue, scratches, and surface oxidation.
| Specifications | |
|---|---|
| Model | 5KS284SE2030 |
| Condition | Used | General |
| Current Type | AC |
| Horsepower | 25 hp |
| Voltage | 230/460 volts |
| Phase | 3-phase |
| RPM | 1770 rpm |
| Frame | 284T | Additional Data |
| Duty | Continuous |
| Other Specifications |
|---|
|

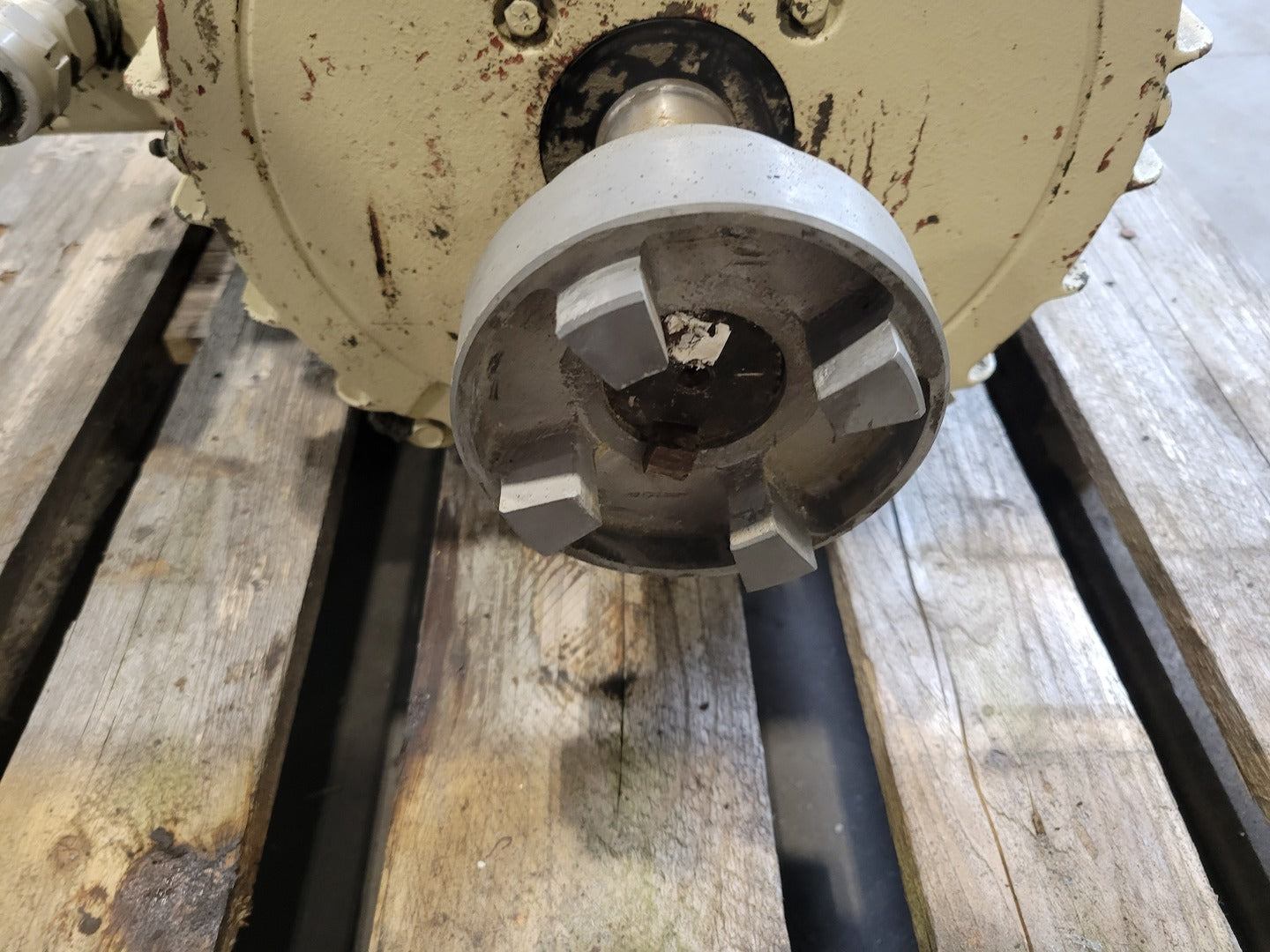

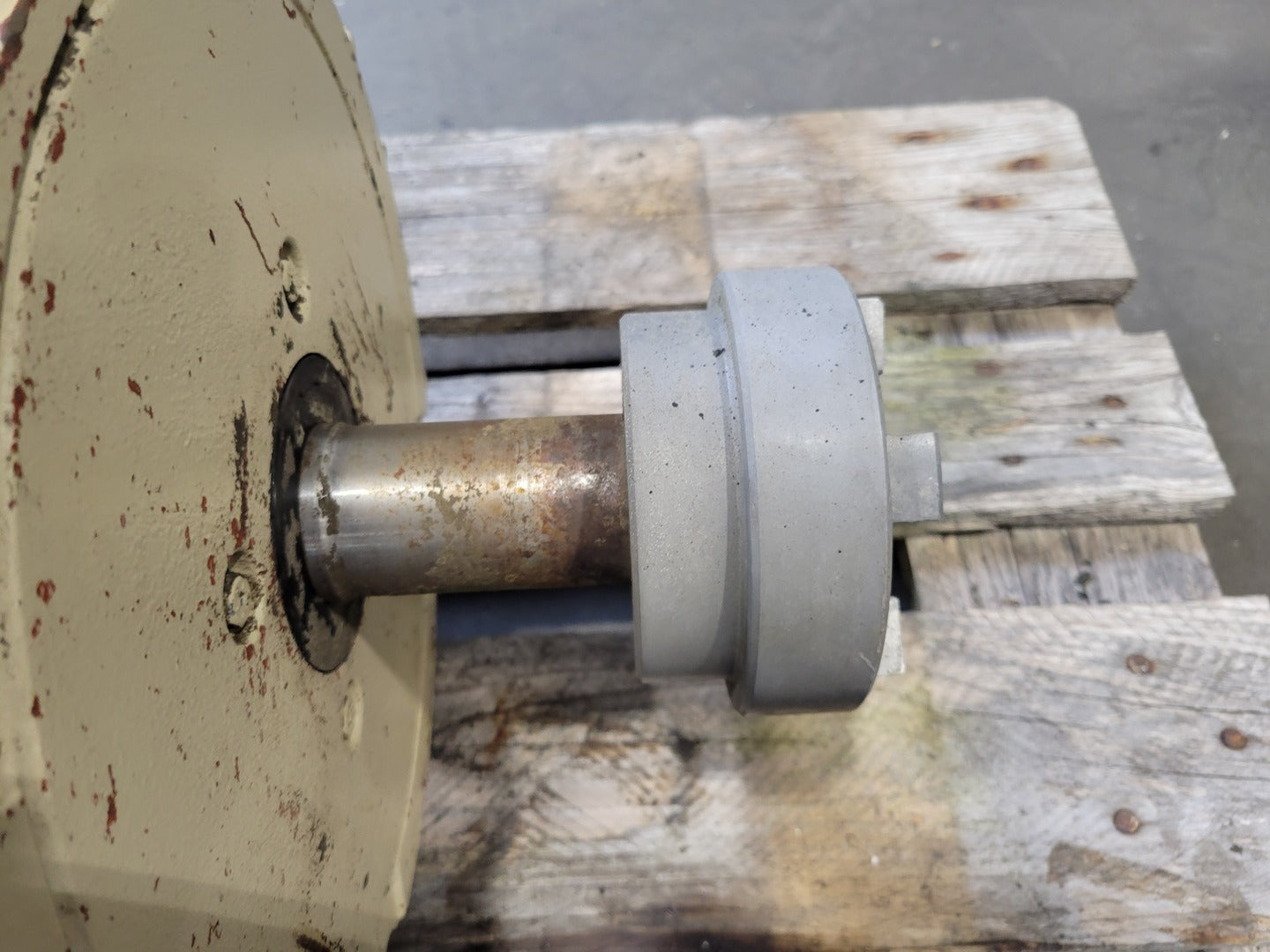

Series: Energy $aver XSD Motor Type: Extra Severe Duty AC Motor Frequency: 60 Hz Amperage: 60.0/30.0 A for 230/460 V 200 V Rating: 25 HP, 72.1 A, 1.0 SF NEMA Design: B Type: KS Insulation: F Service Factor: 1.15 at standard rating NEMA Nominal Efficiency: 93.0% Guaranteed Minimum Efficiency: 93.0% Power Factor: 83.5% Maximum Ambient Temperature: 40°C IEEE RP 841 Rating: SF 1.0 at maximum ambient 65°C Maximum KVAR: 6.9 Mounting: Foot mounted Enclosure: XSD Extra Severe Duty industrial constructio Shaft: Single output shaft Shaft Accessory: Flexible coupling component installed |
