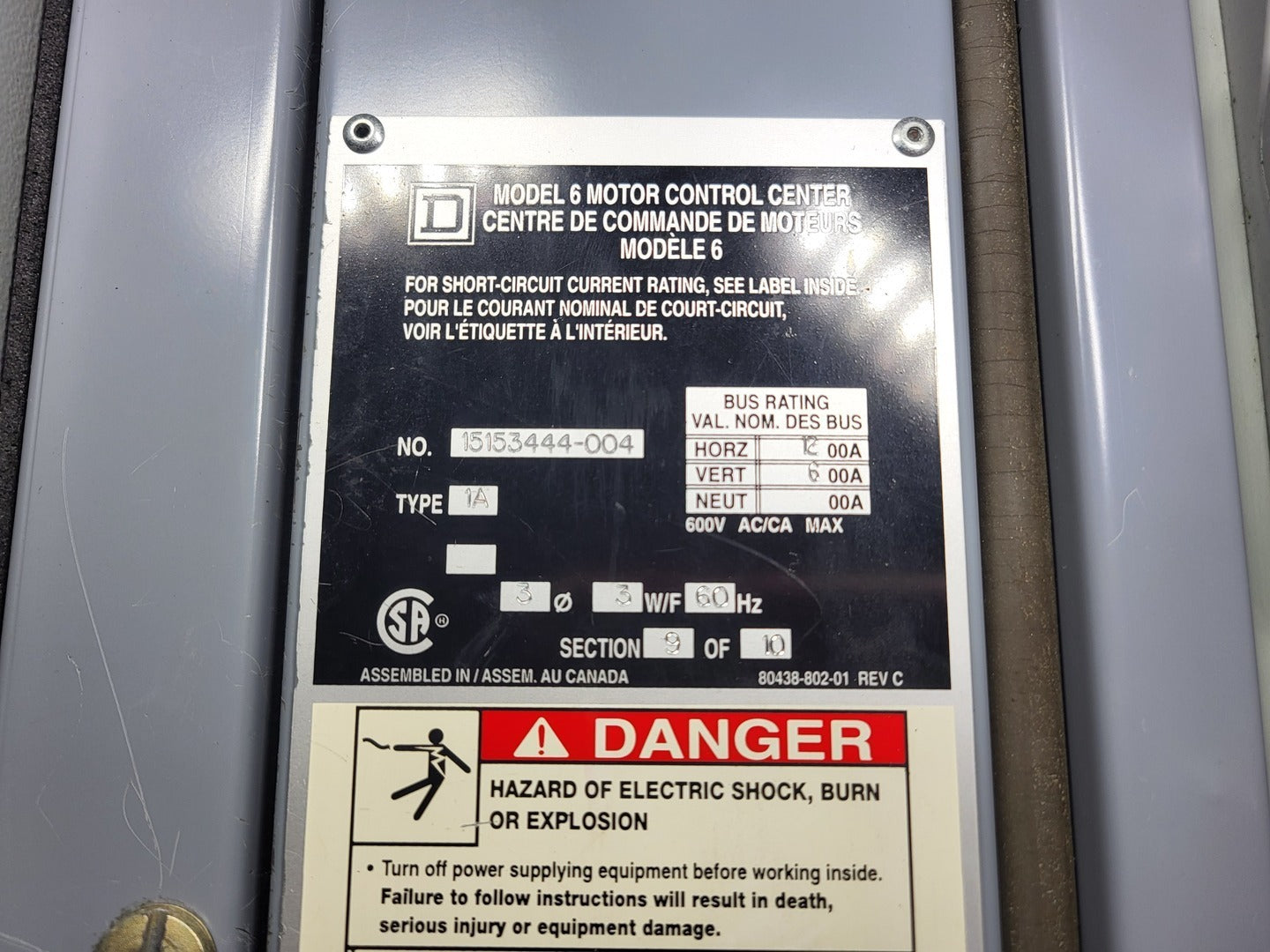

SQUARE D Model 6 Motor Control Center MCC Section, 600V, 3PH, 1200A Bus
SQUARE D

Model 6 Motor Control Center MCC Section, 600V, 3PH, 1200A Bus

SKU: 151552
Precio:
$9,400 CAD

Gastos de envío calculados en la caja

Stock:
Solo queda 1 unidad
Make an Offer

¿Necesita una respuesta ahora?

604-449-1880

Descripción

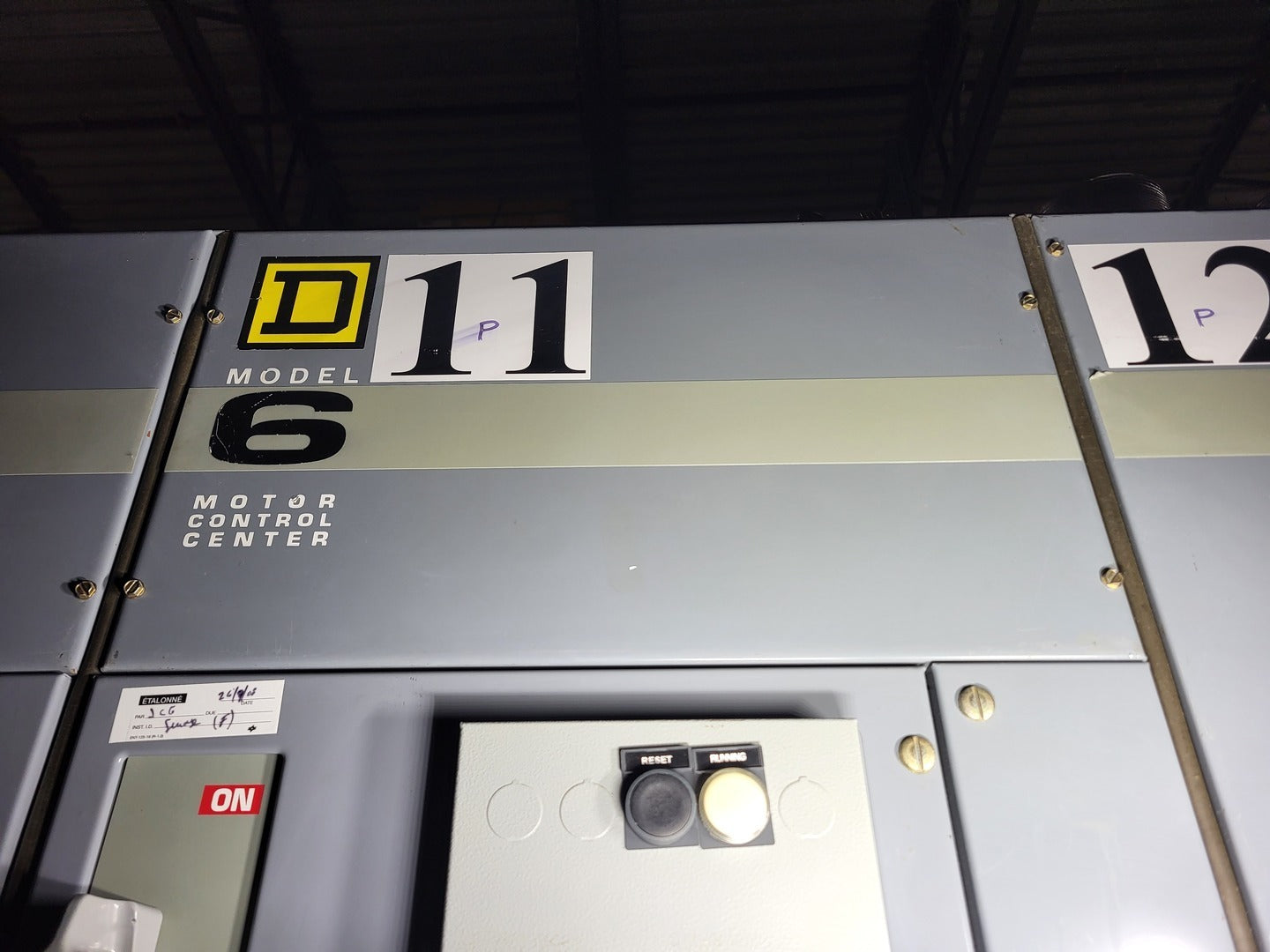

Square D Model 6 motor control center section rated for 600V, 3-phase power distribution. This MCC column includes multiple motor starter buckets with Motor Logic Plus protection modules, fused disconnects, control transformer, and Schneider Electric communication components. Ideal for industrial motor control systems, pump stations, processing plants, and heavy industrial electrical distribution.
Specifications
Model Model 6
Condition Used
Other Specifications

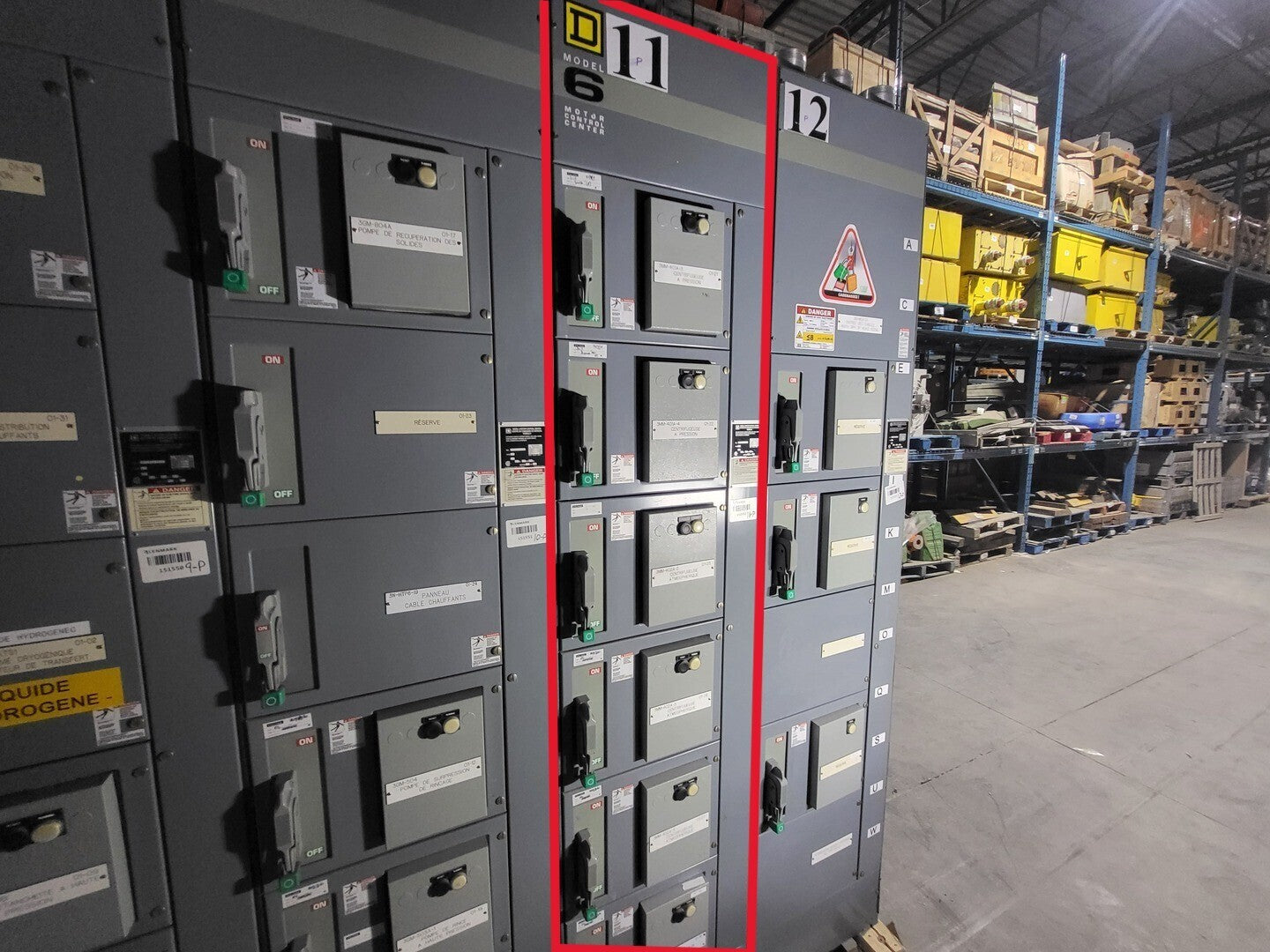

Note: Section 11 only

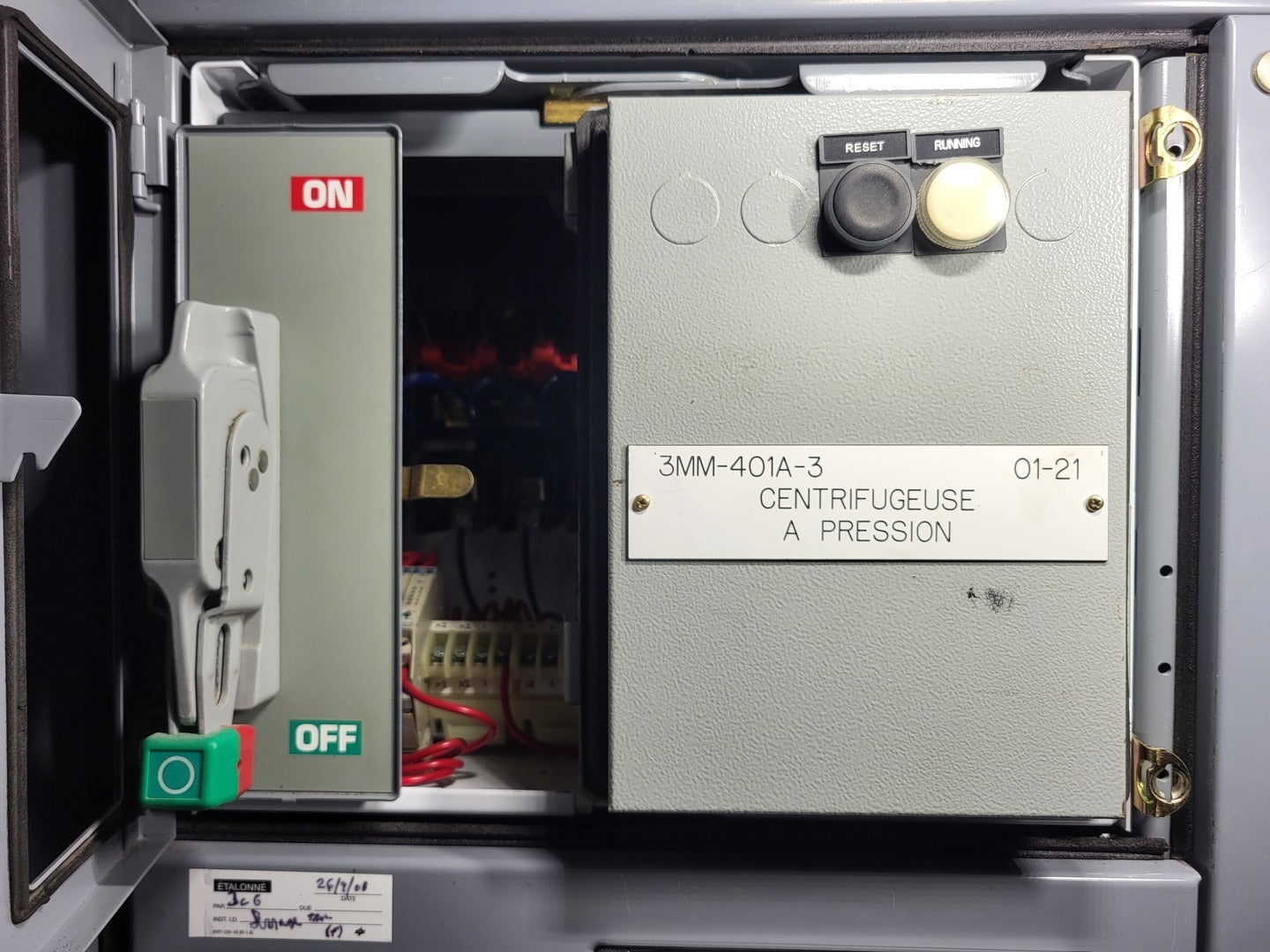

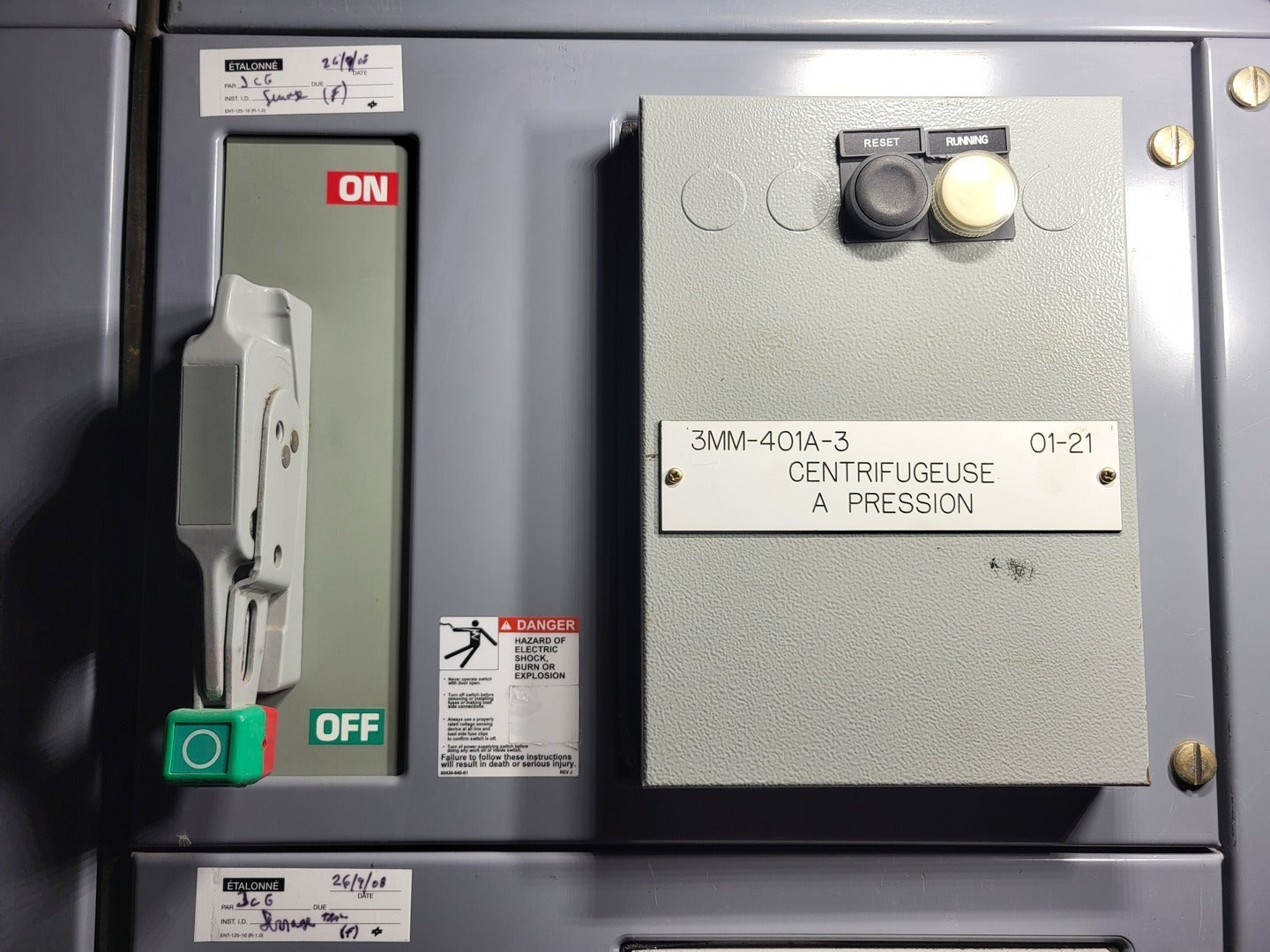

Bucket #1 3MM-401A-3

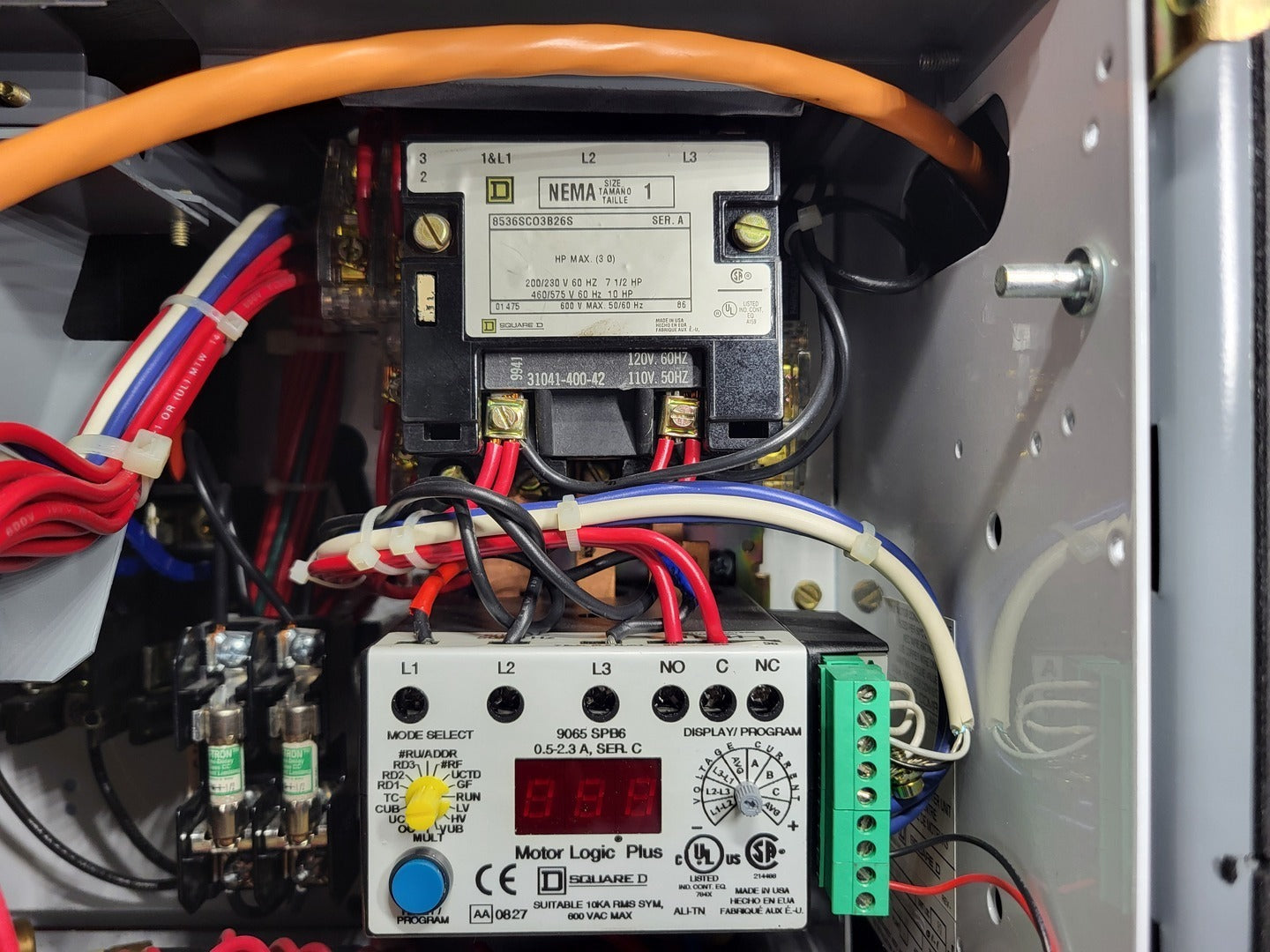

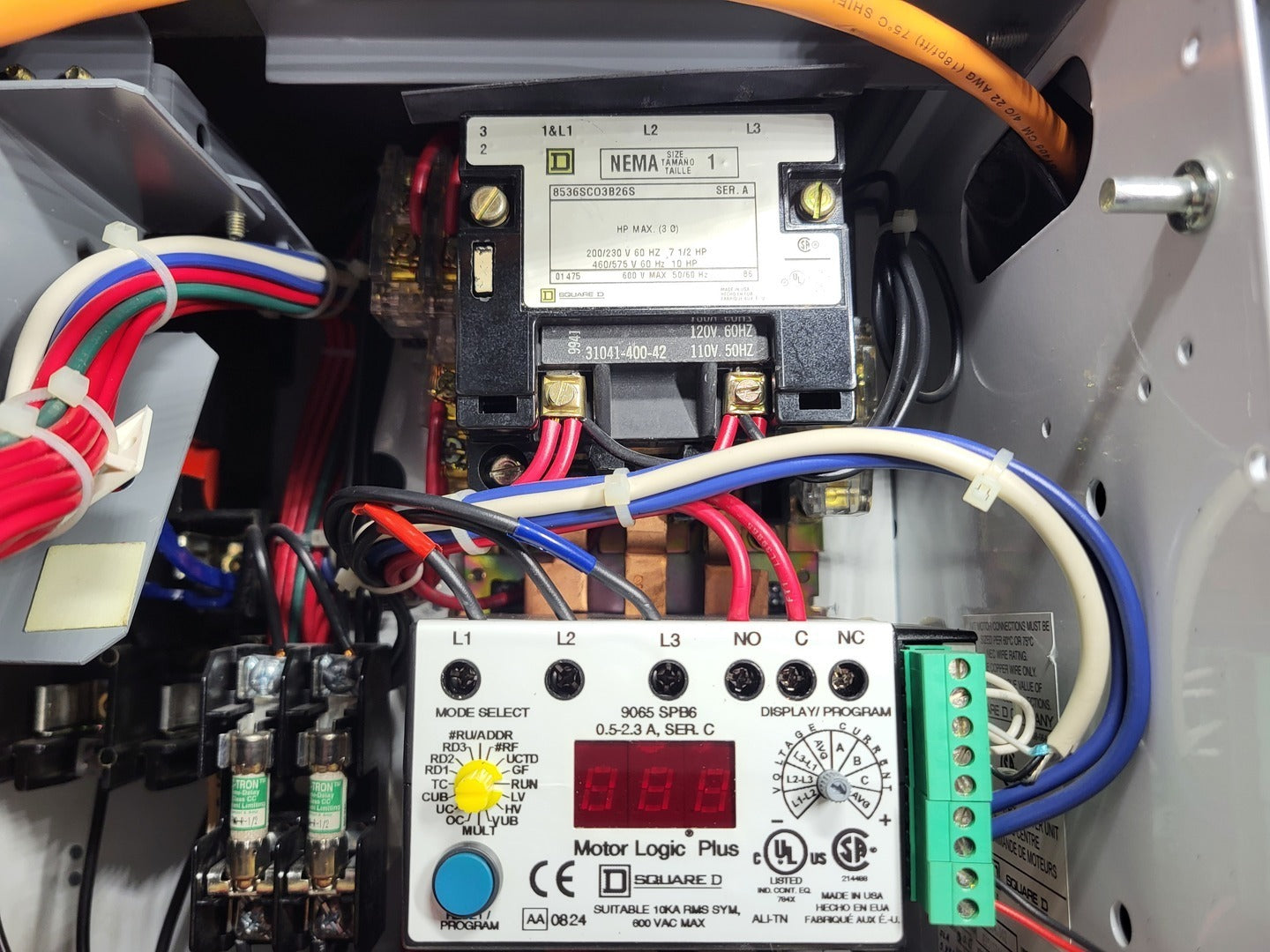

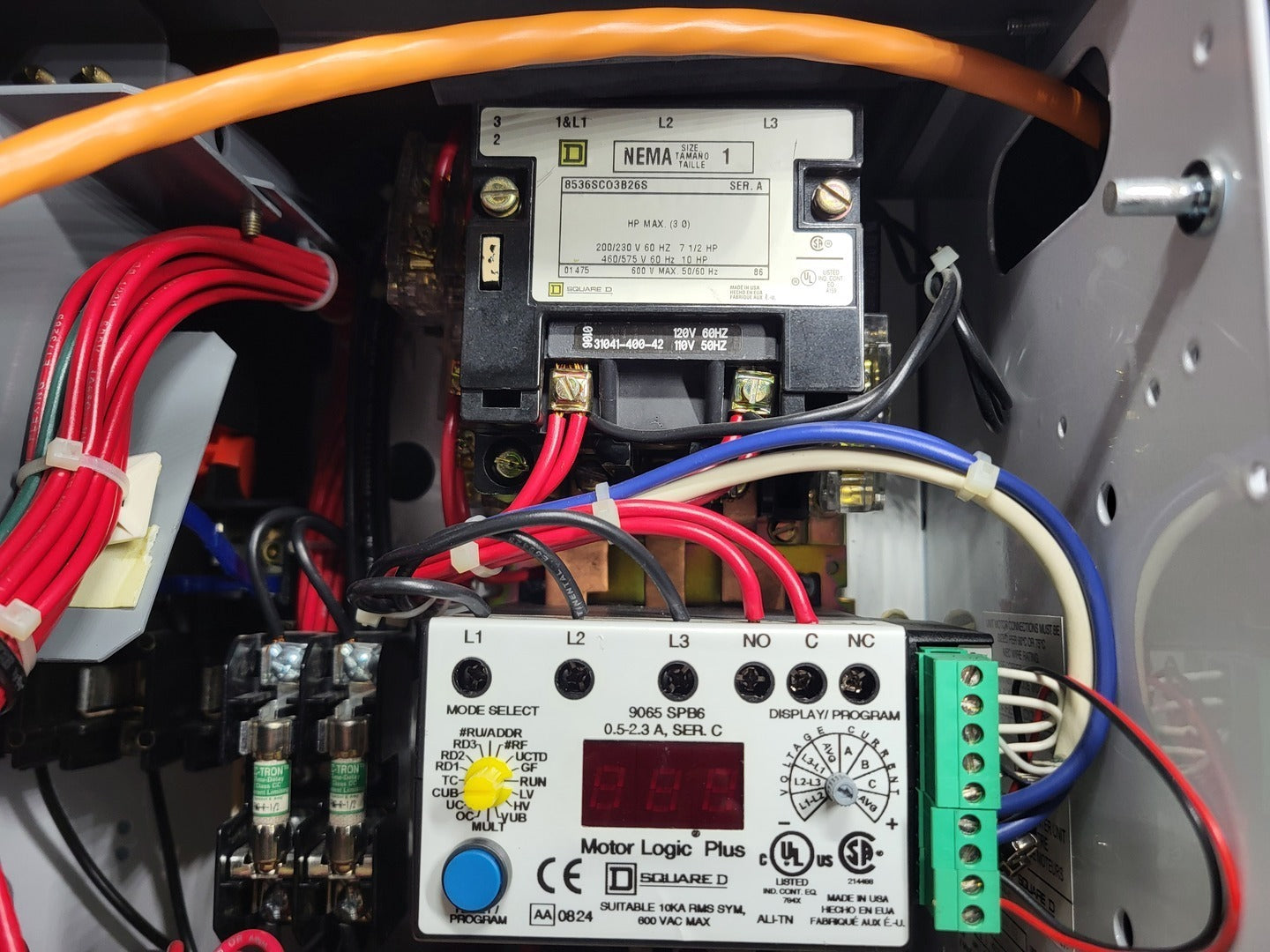

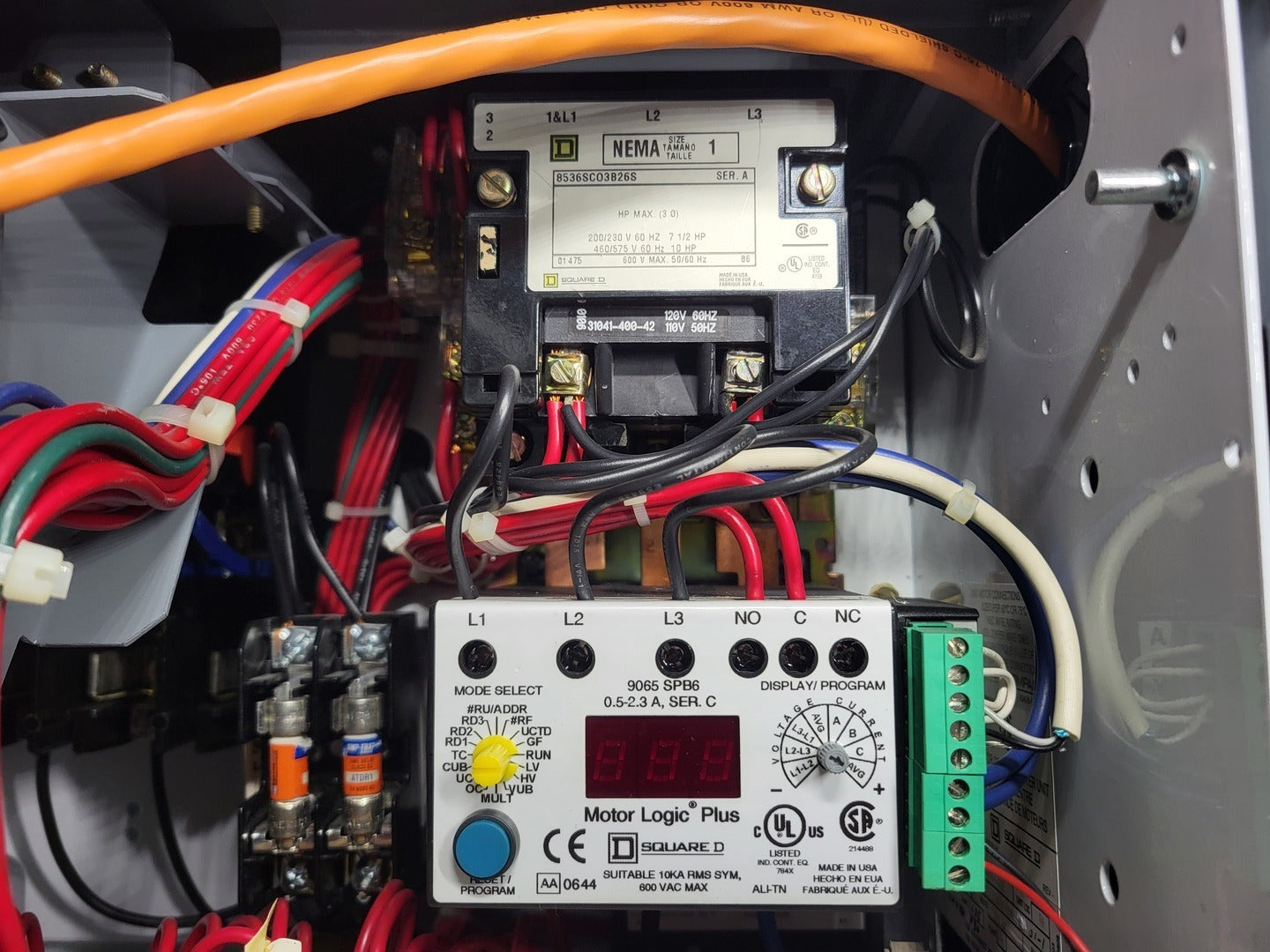

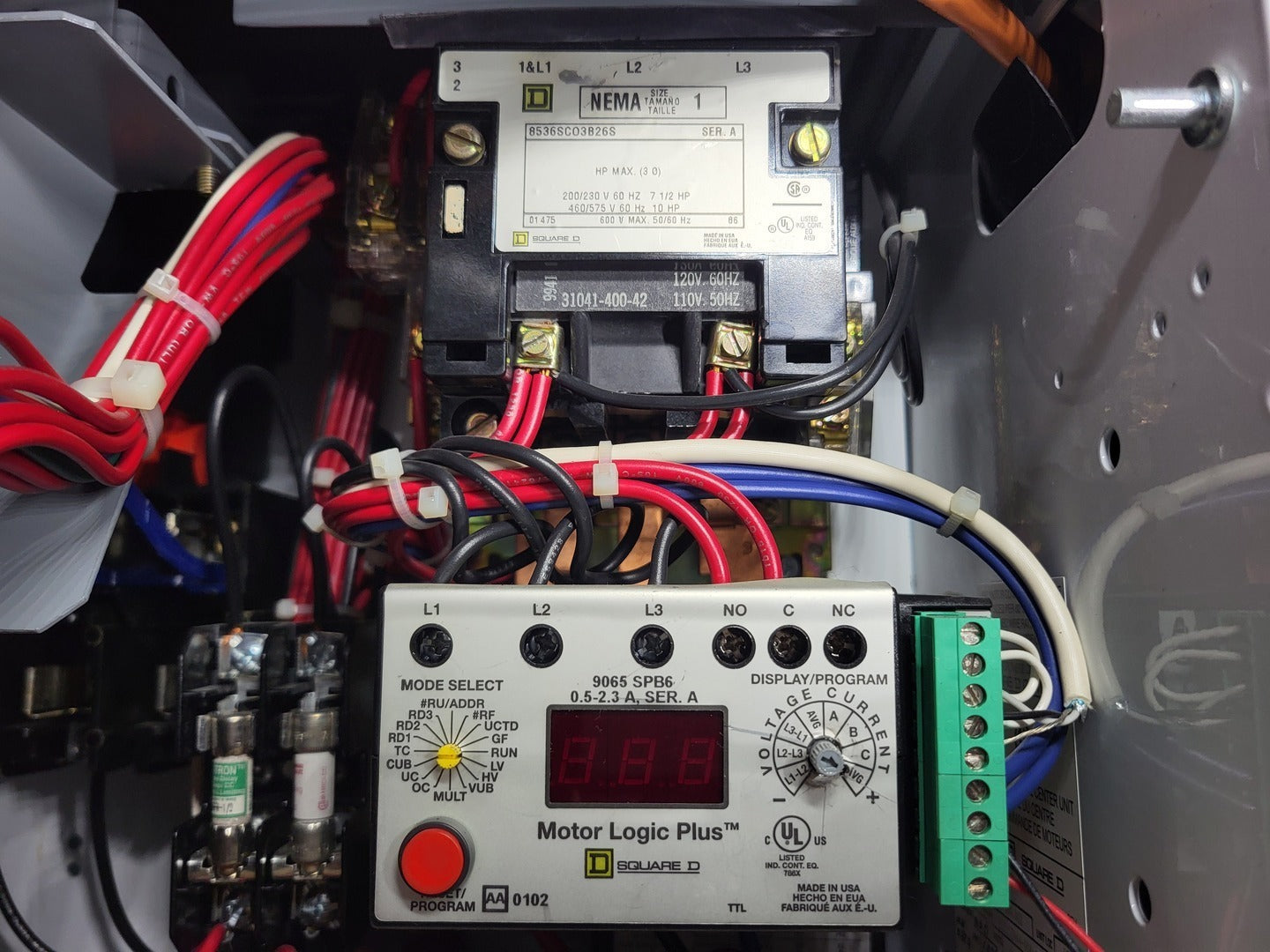

  1. Square D 8536SCO3B26S, NEMA Size 1 contactor, 10 HP @ 460/575V, 120V 60Hz coil
  2. Square D Motor Logic Plus 9065 SPB6, motor protection relay, 0.5-2.3A range, 600VAC max

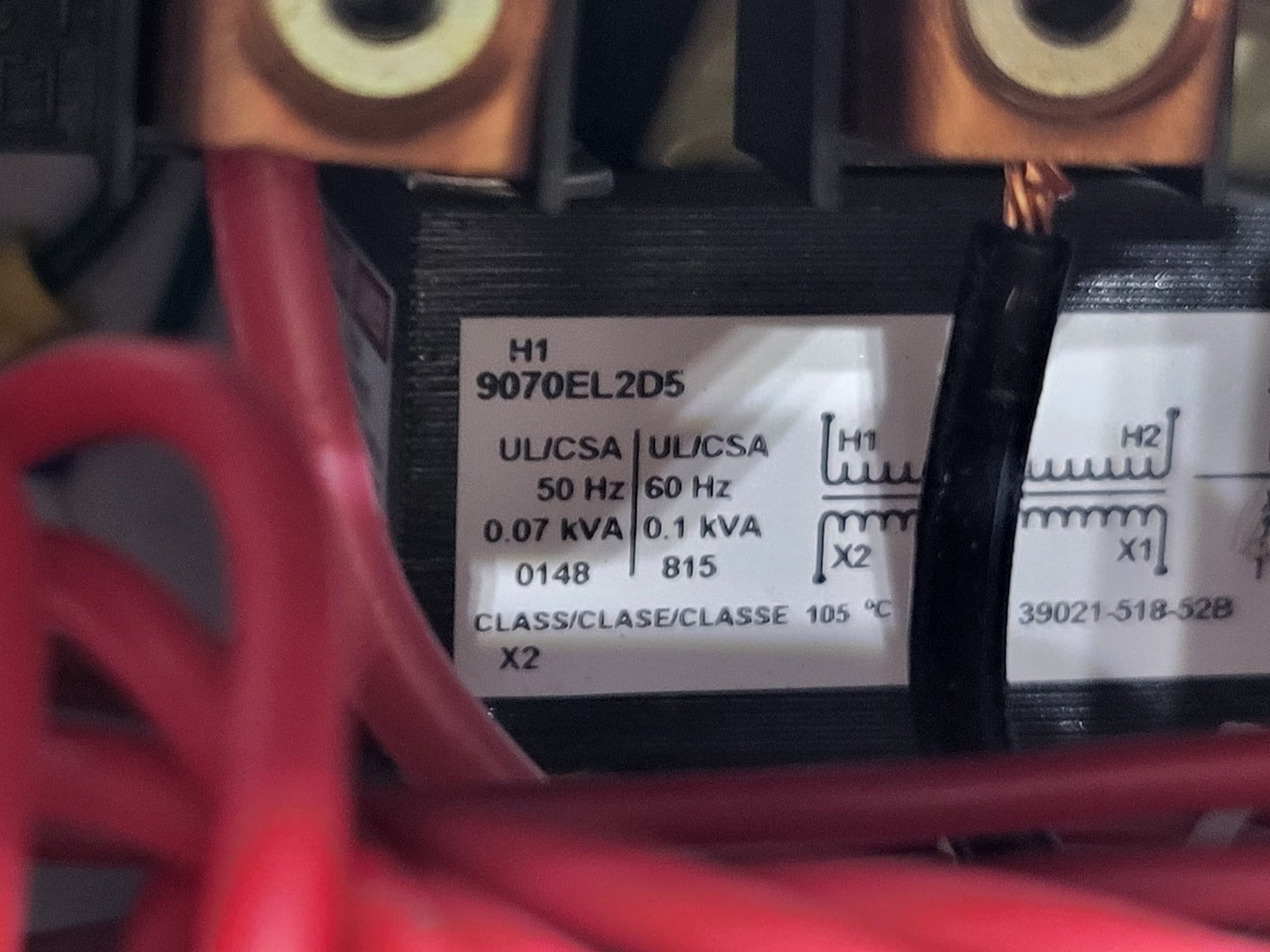

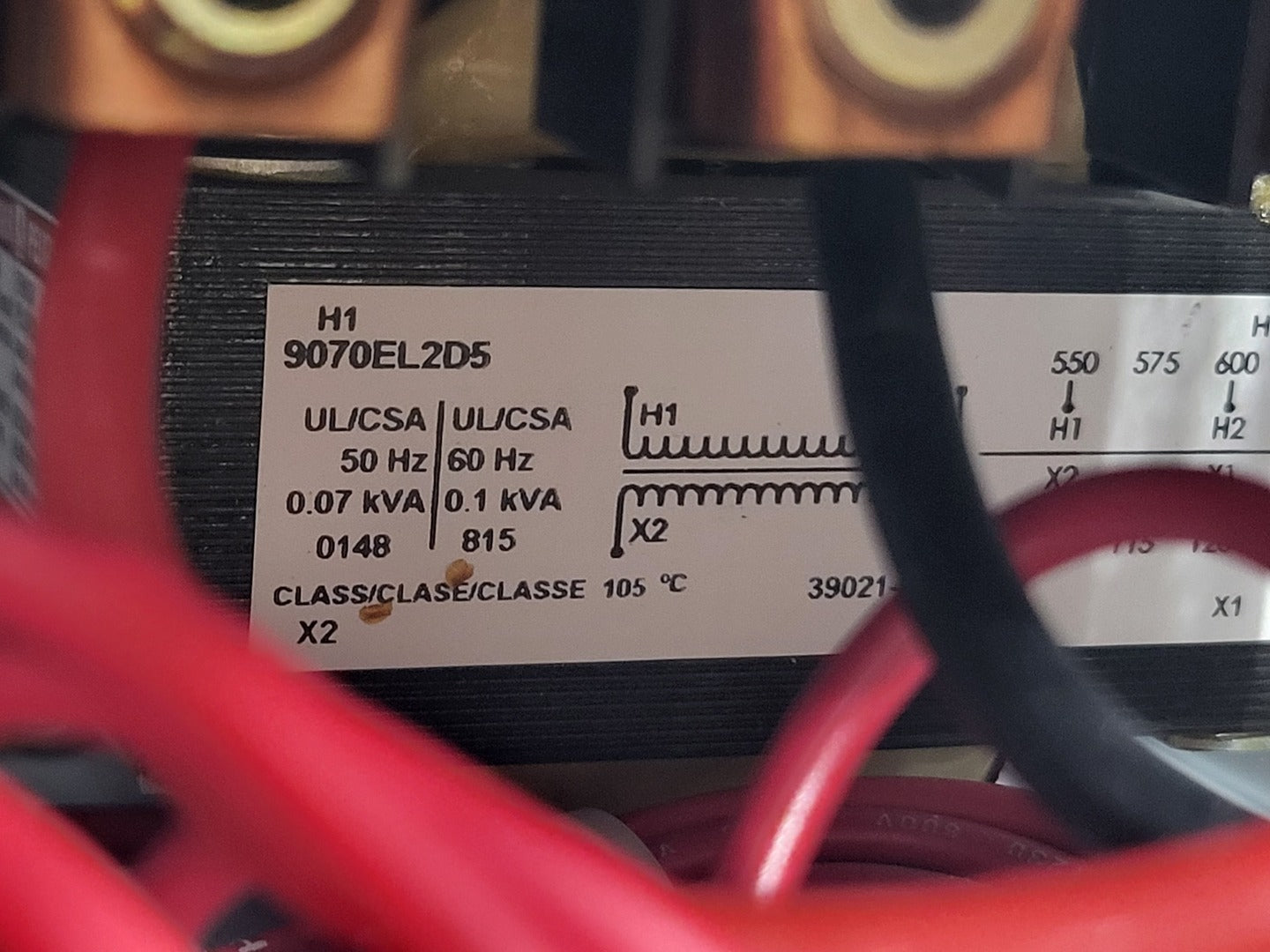

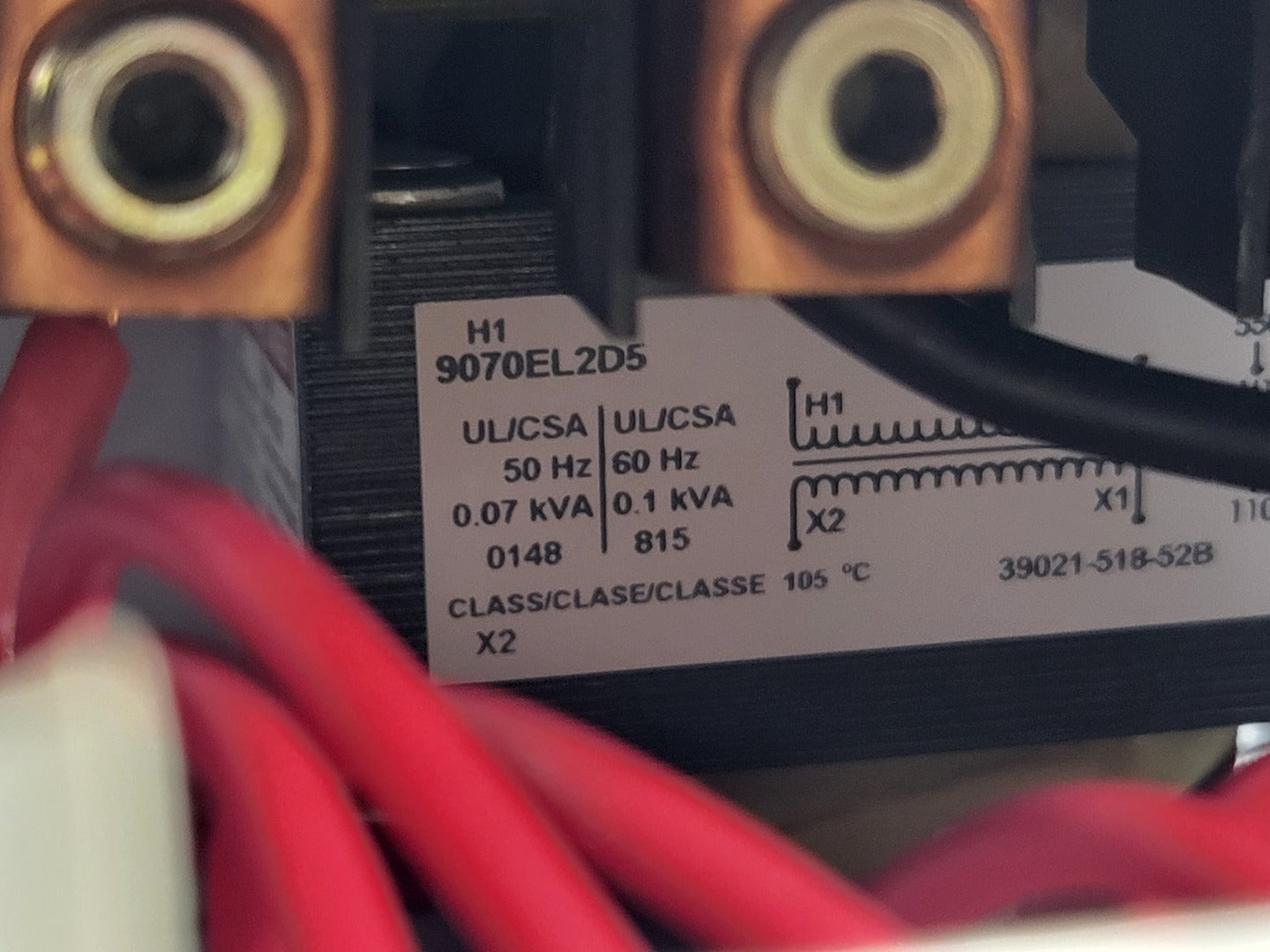

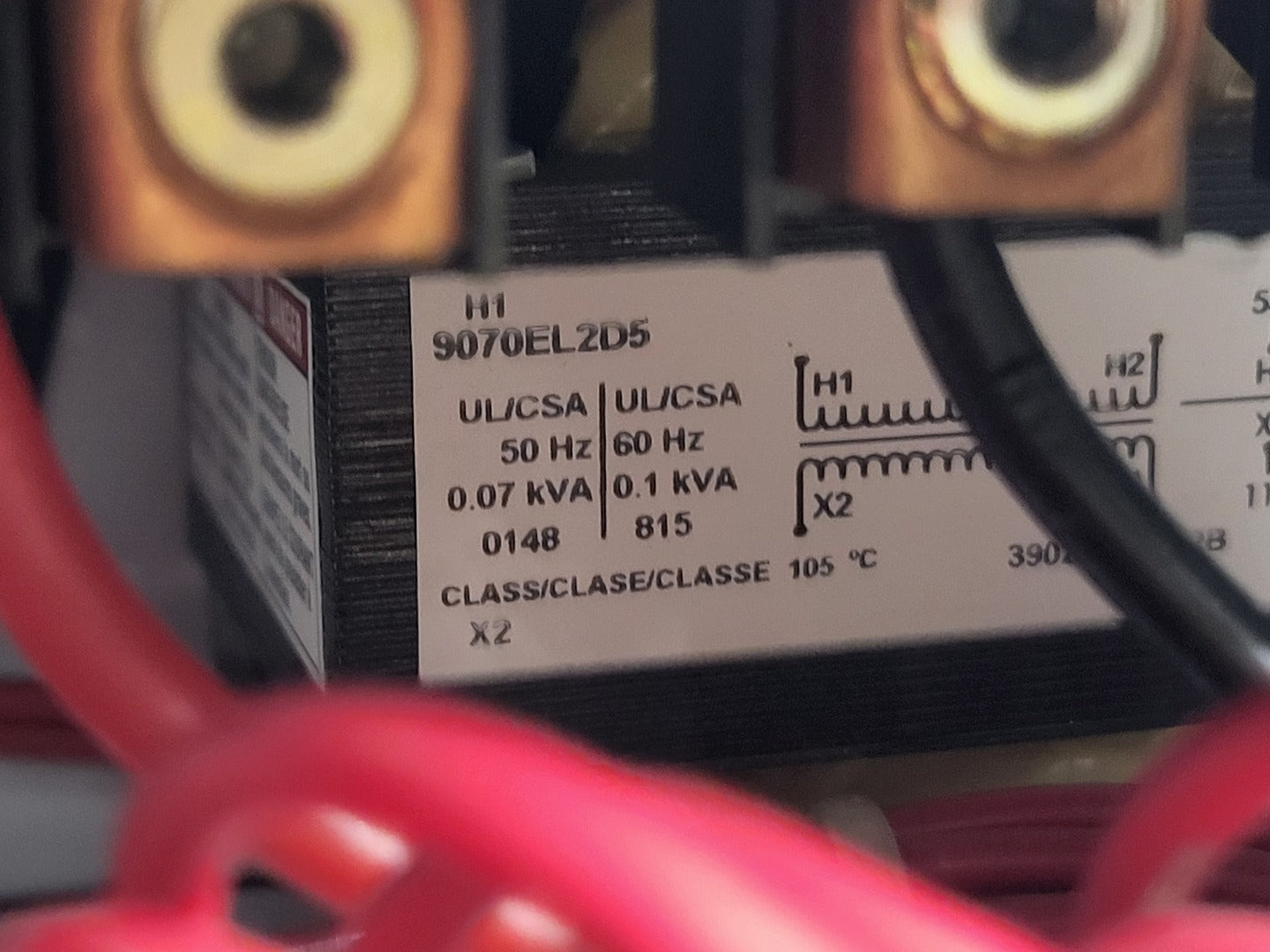

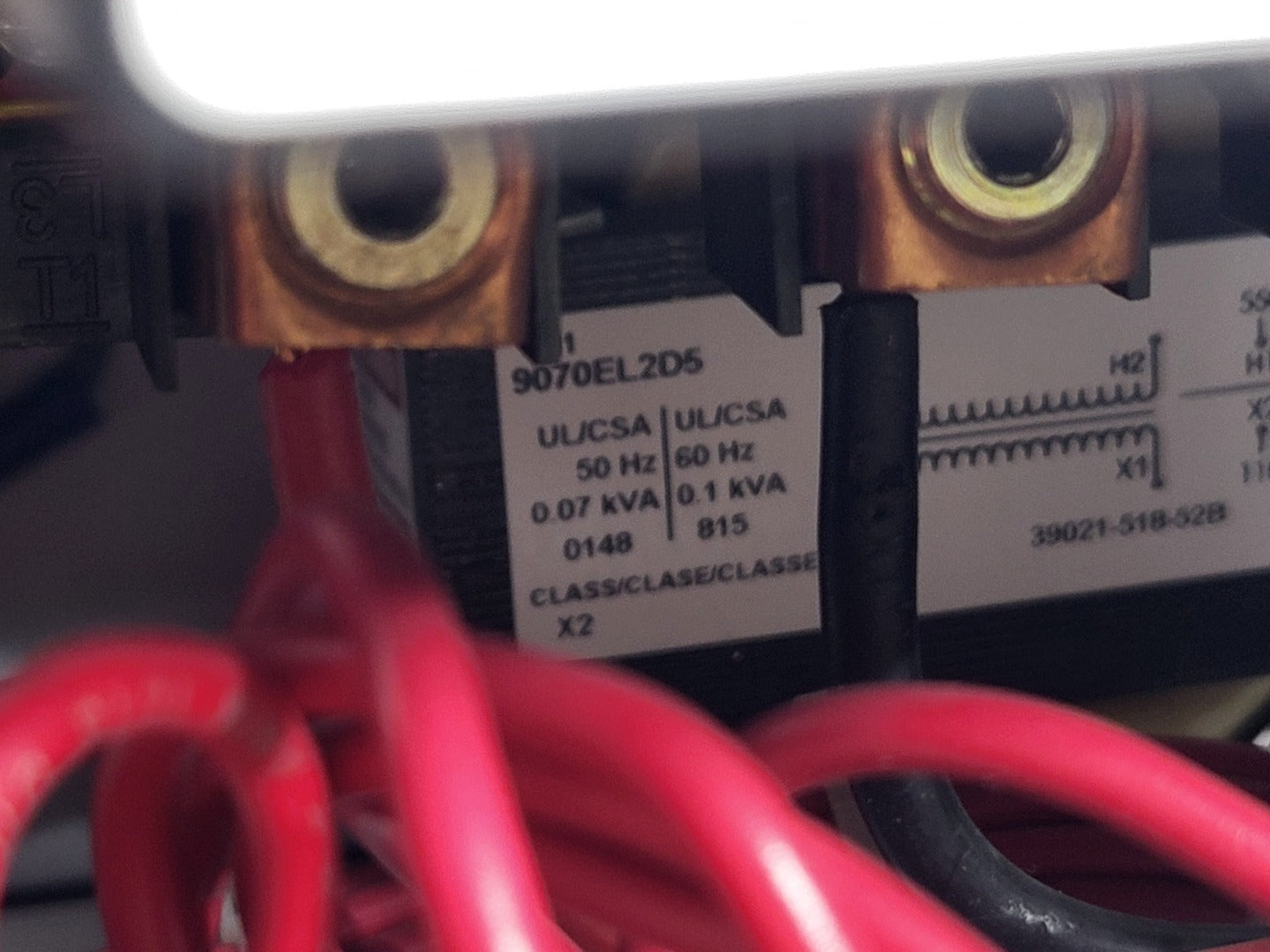

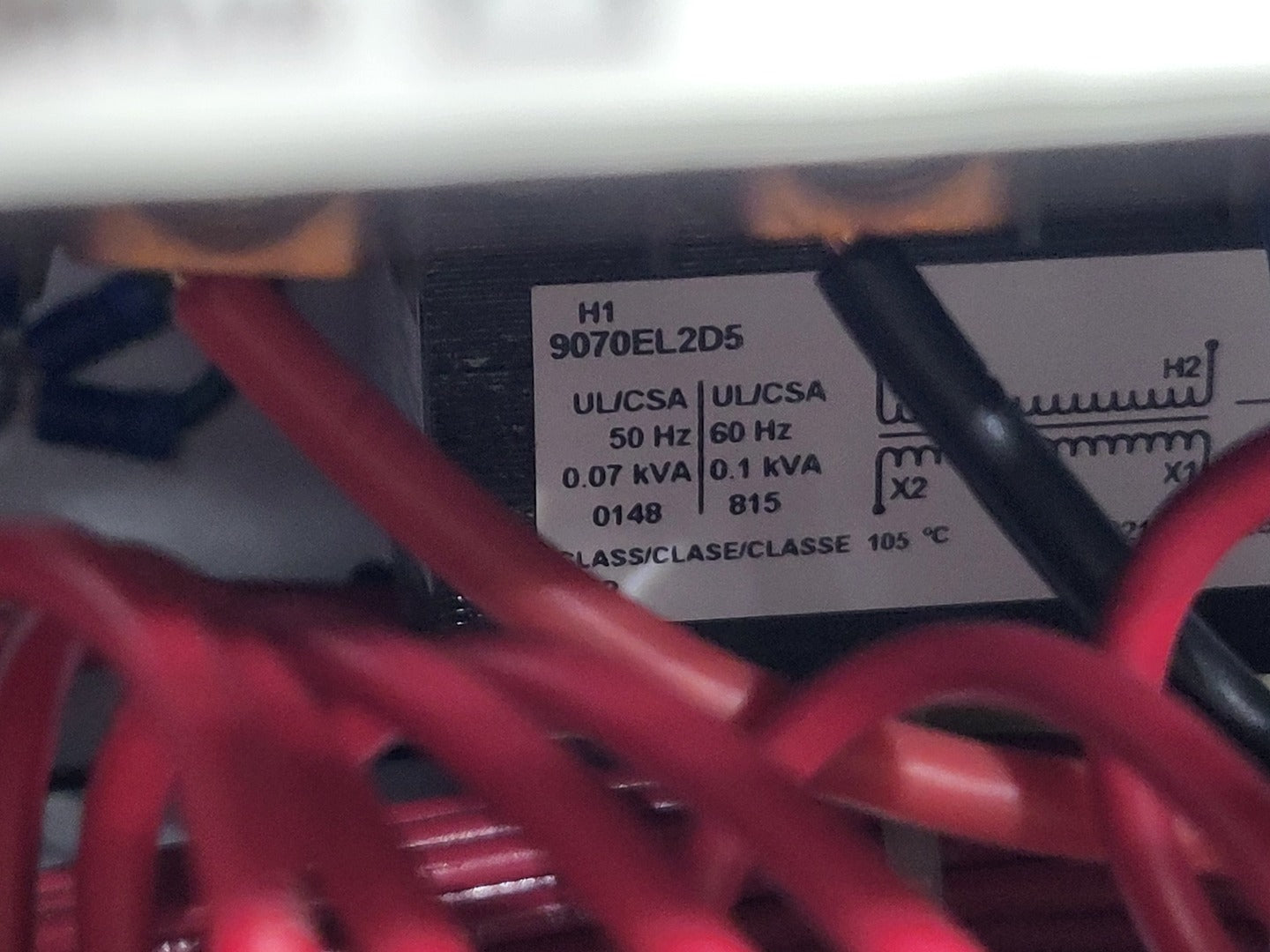

  3. Square D 9070EL2D5, control transformer, 0.07 kVA @ 50Hz / 0.1 kVA @ 60Hz

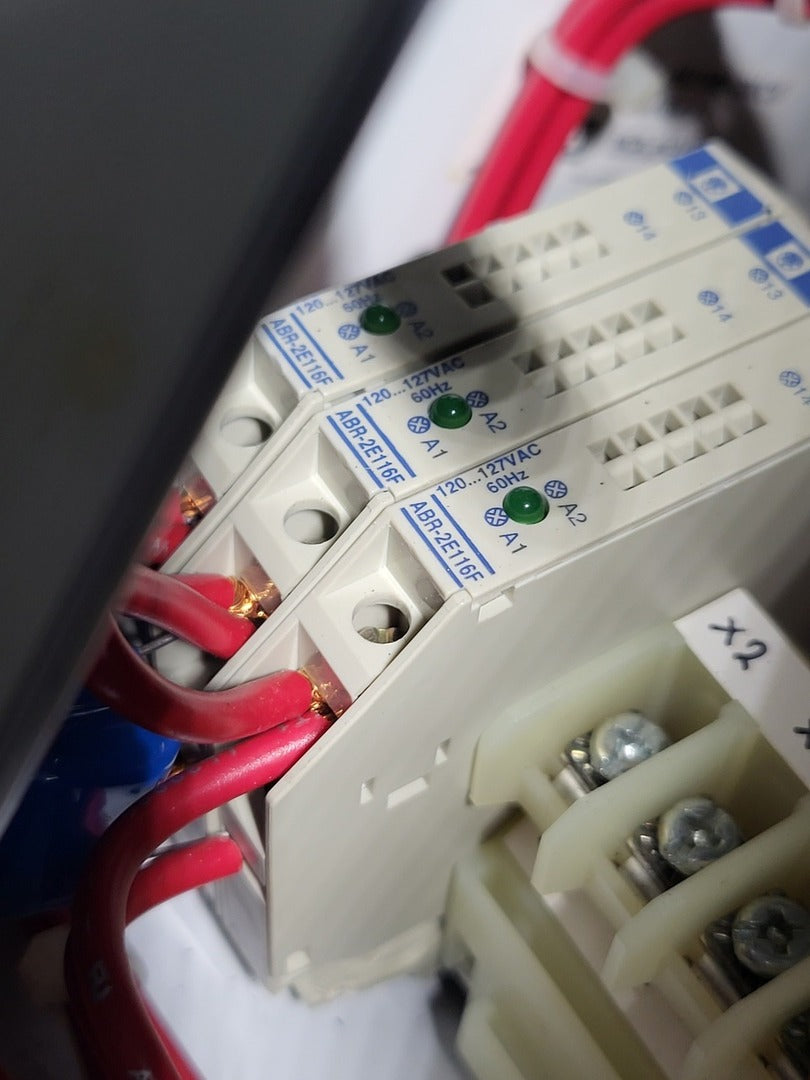

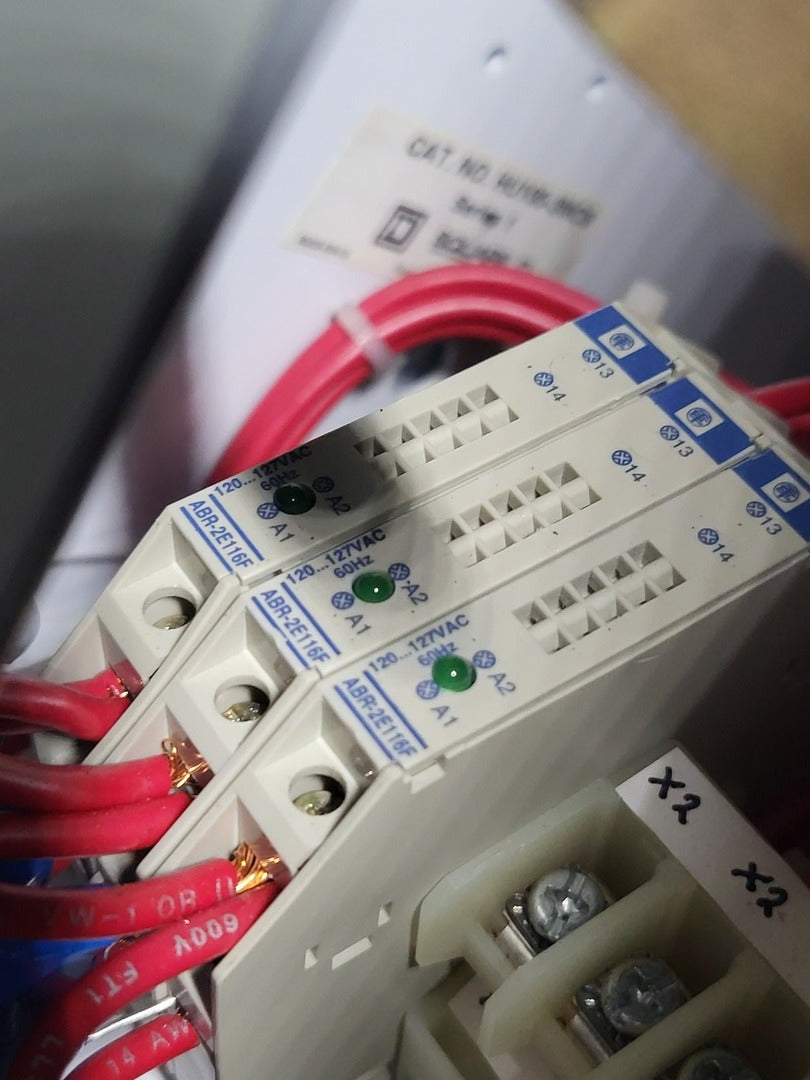

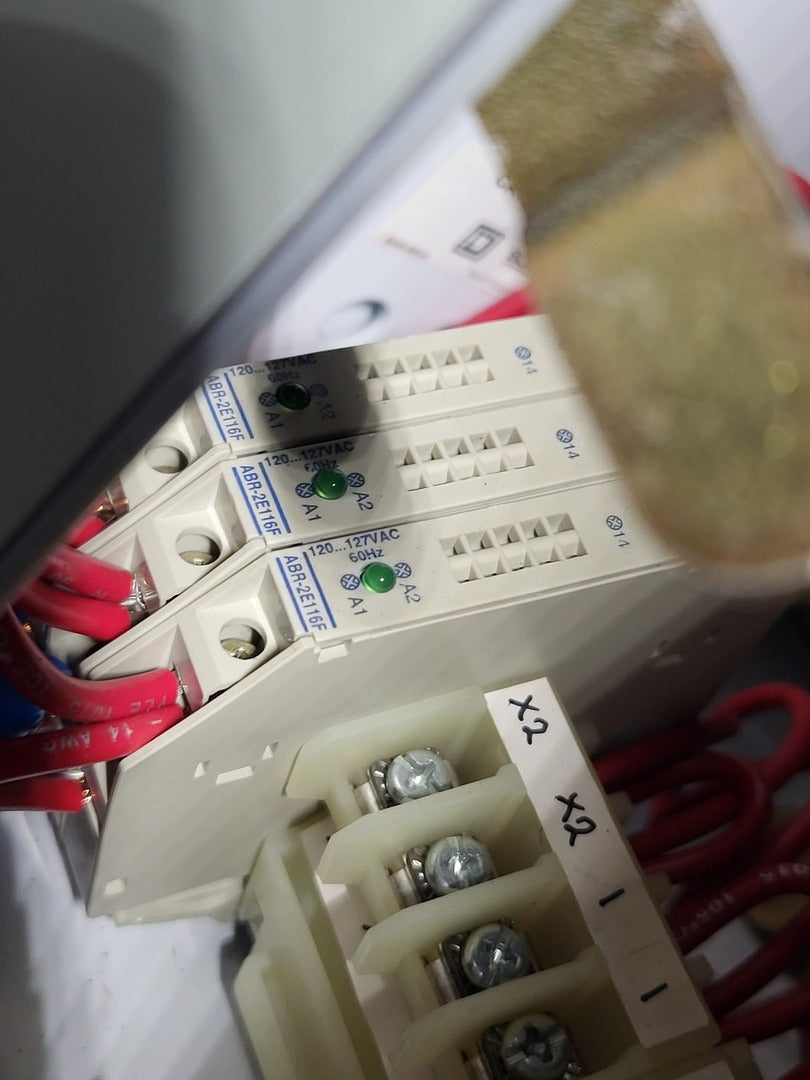

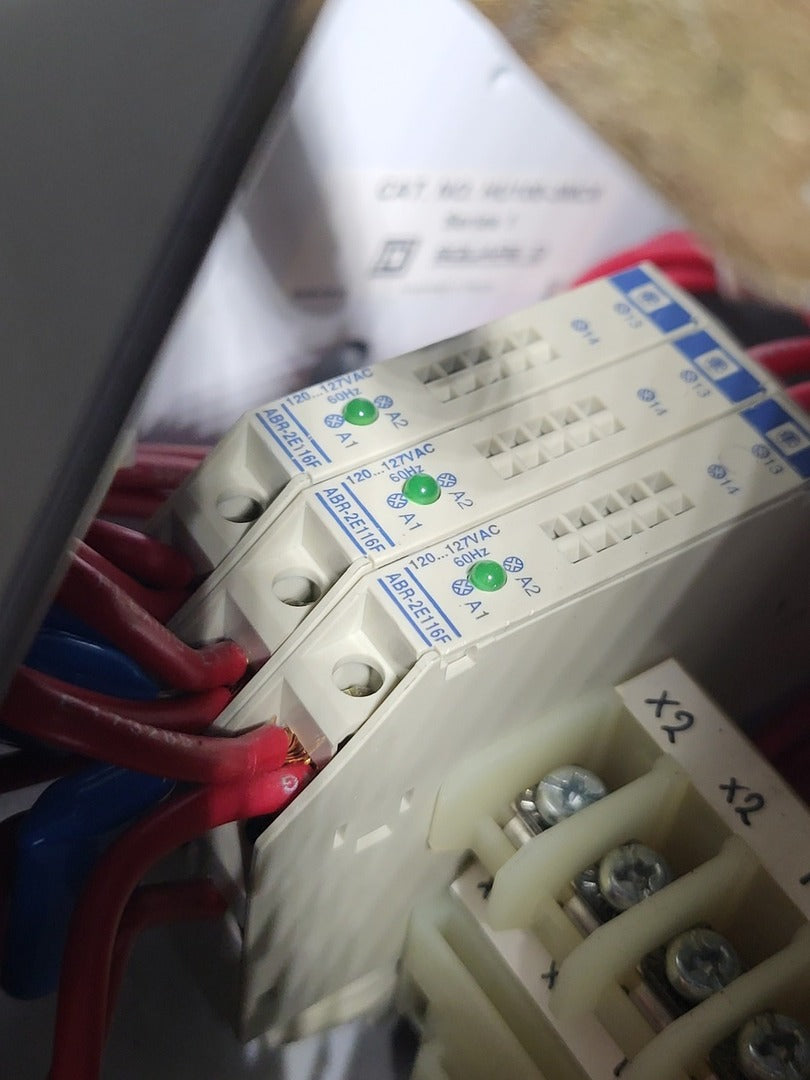

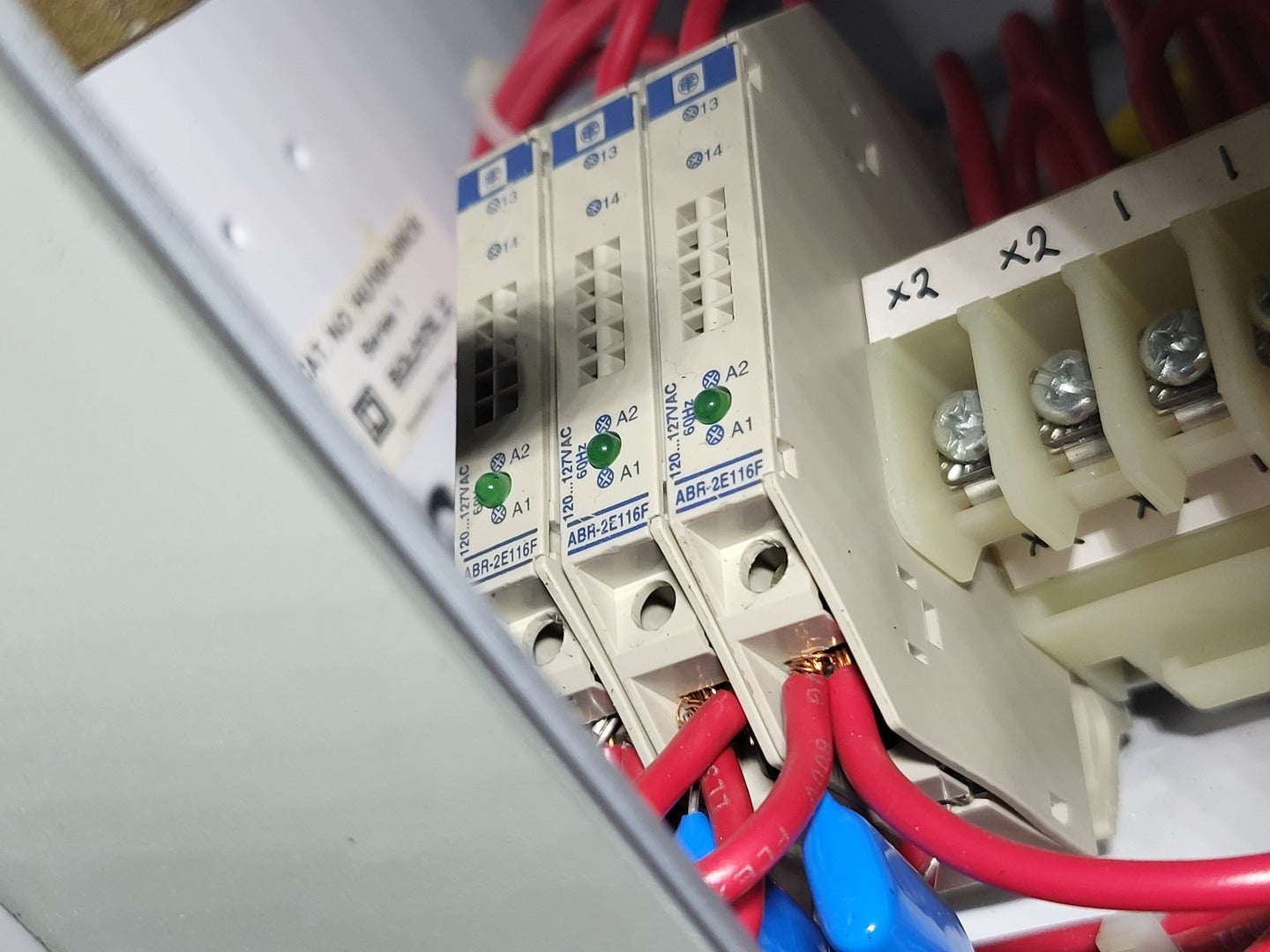

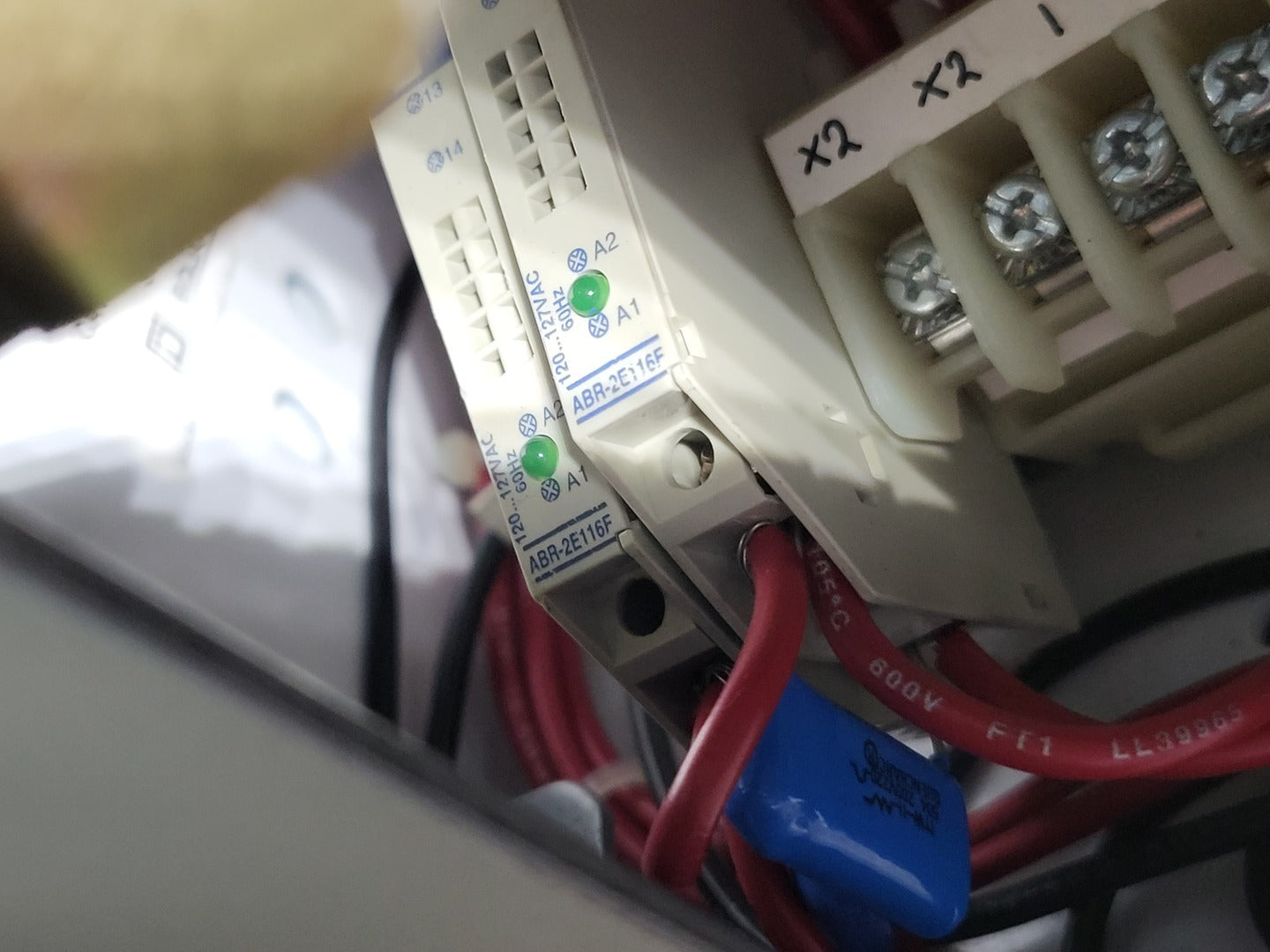

  4. 3 x Telemecanique ABR-2E116F slim relay modules, 120-127VAC coil

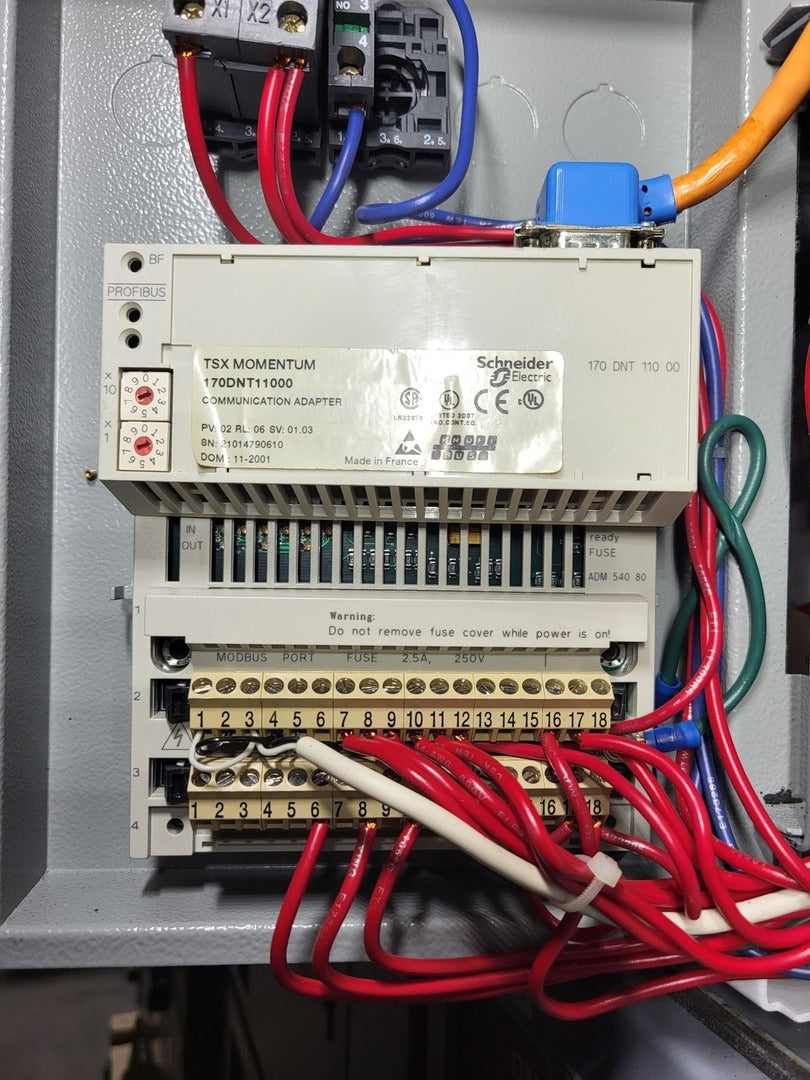

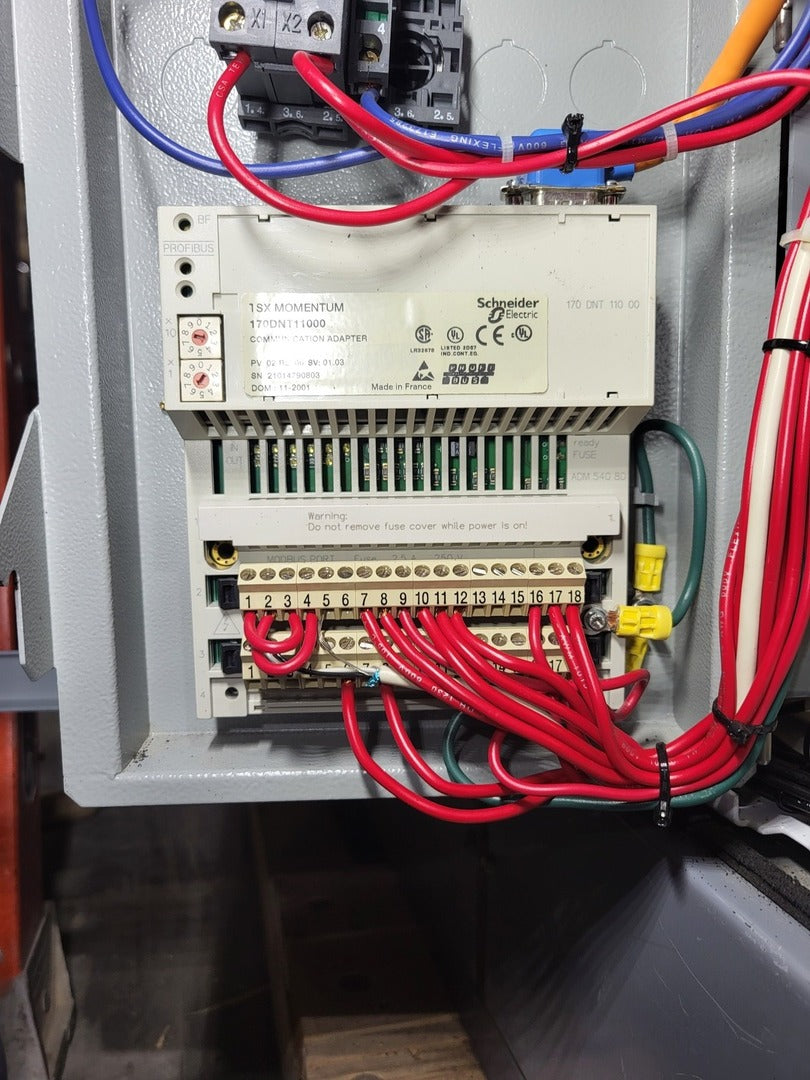

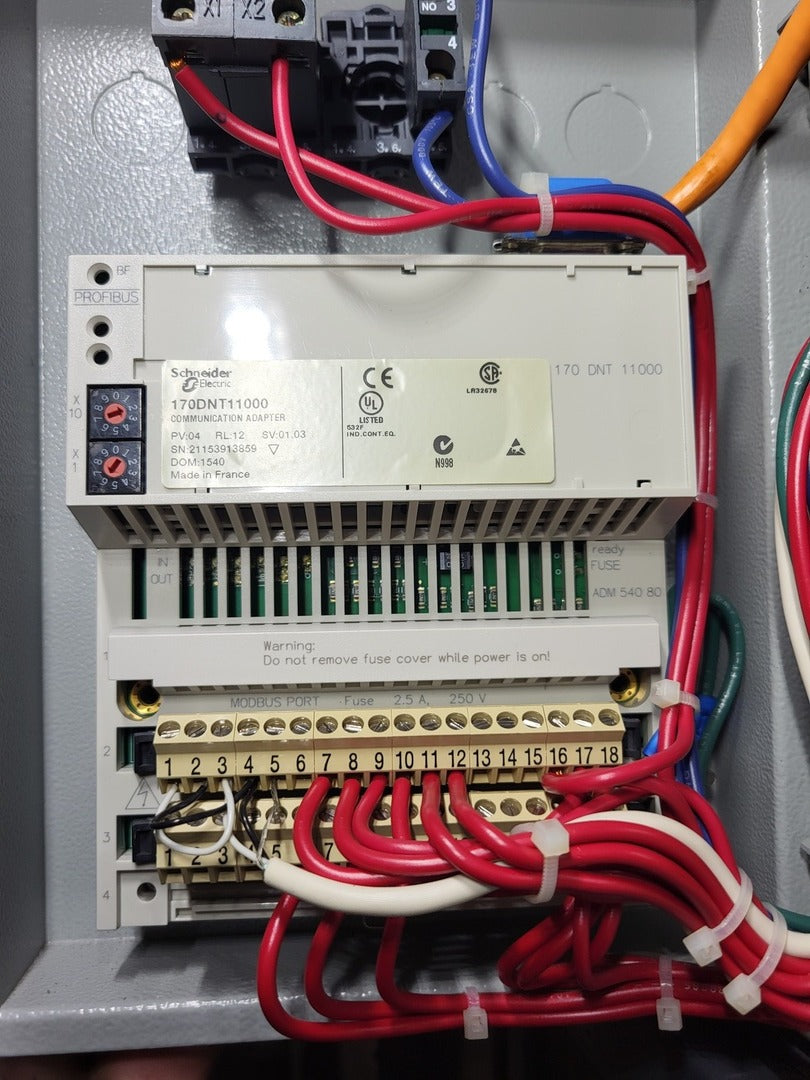

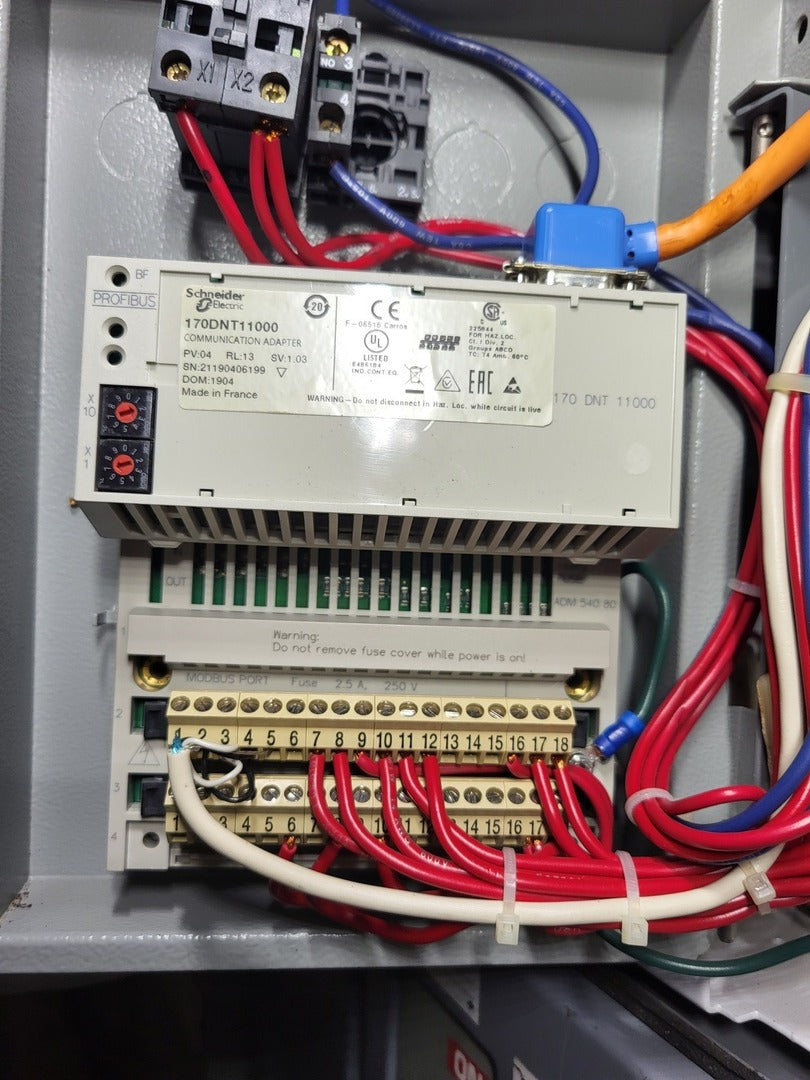

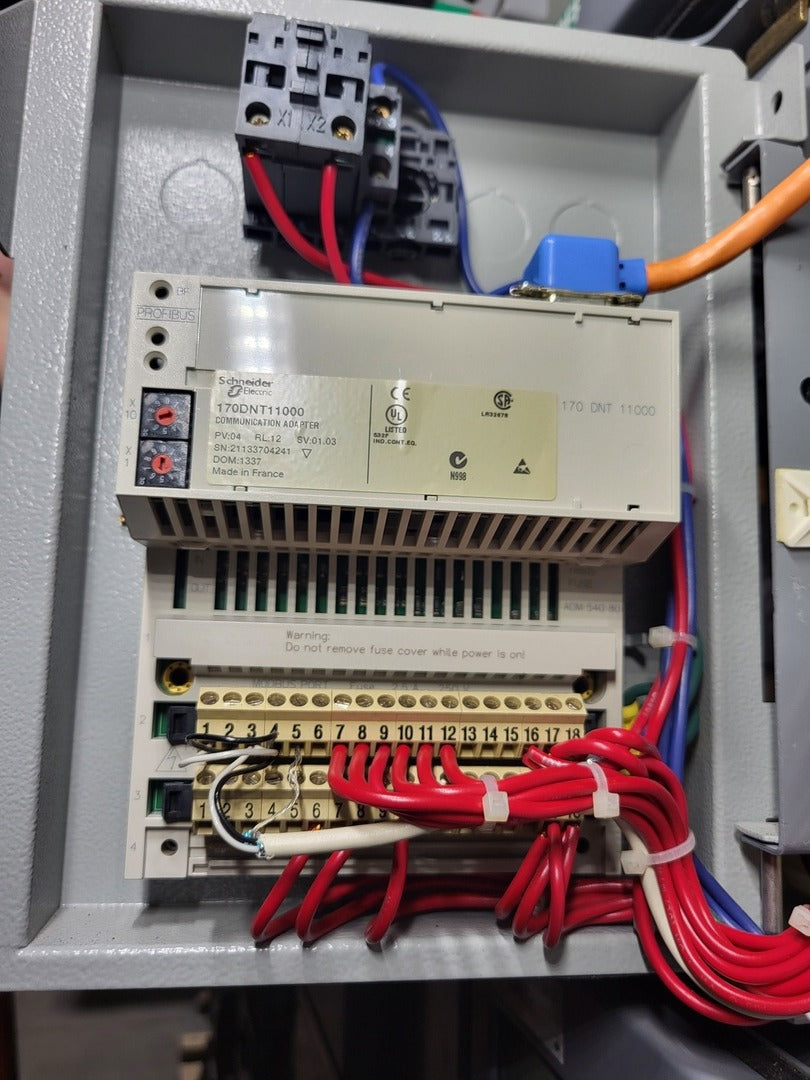

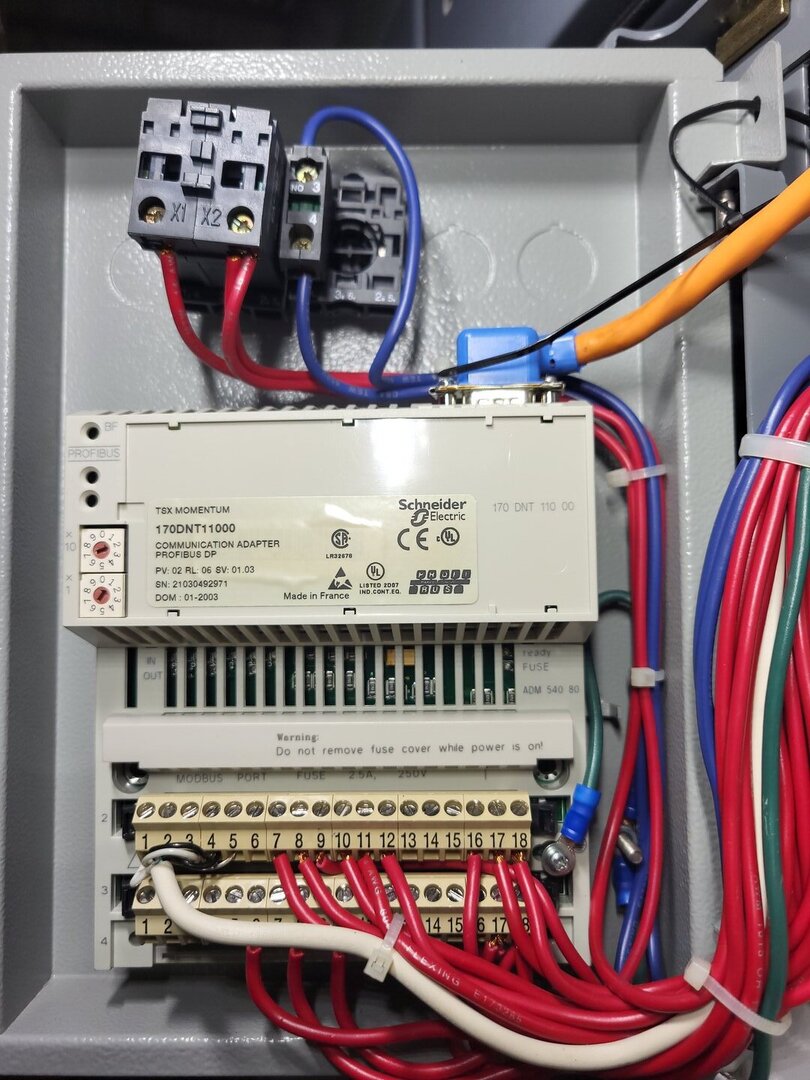

  5. Schneider Electric TSX Momentum 170DNT11000 communication adapter / PROFIBUS DP module

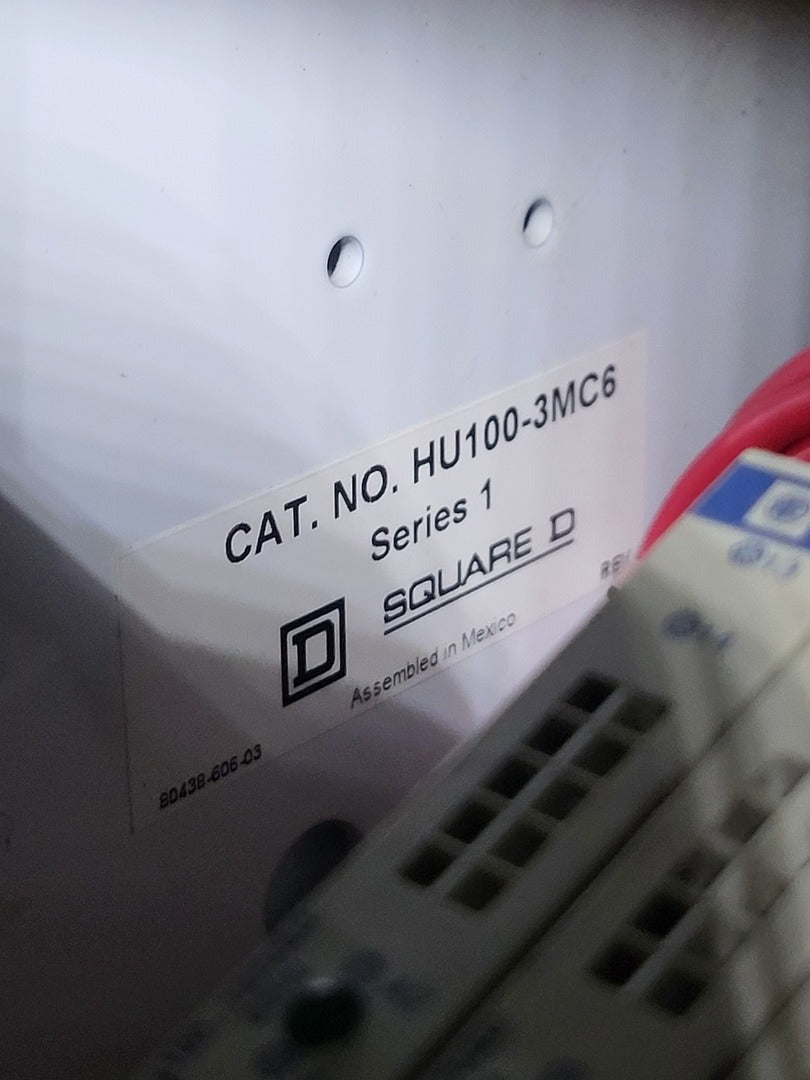

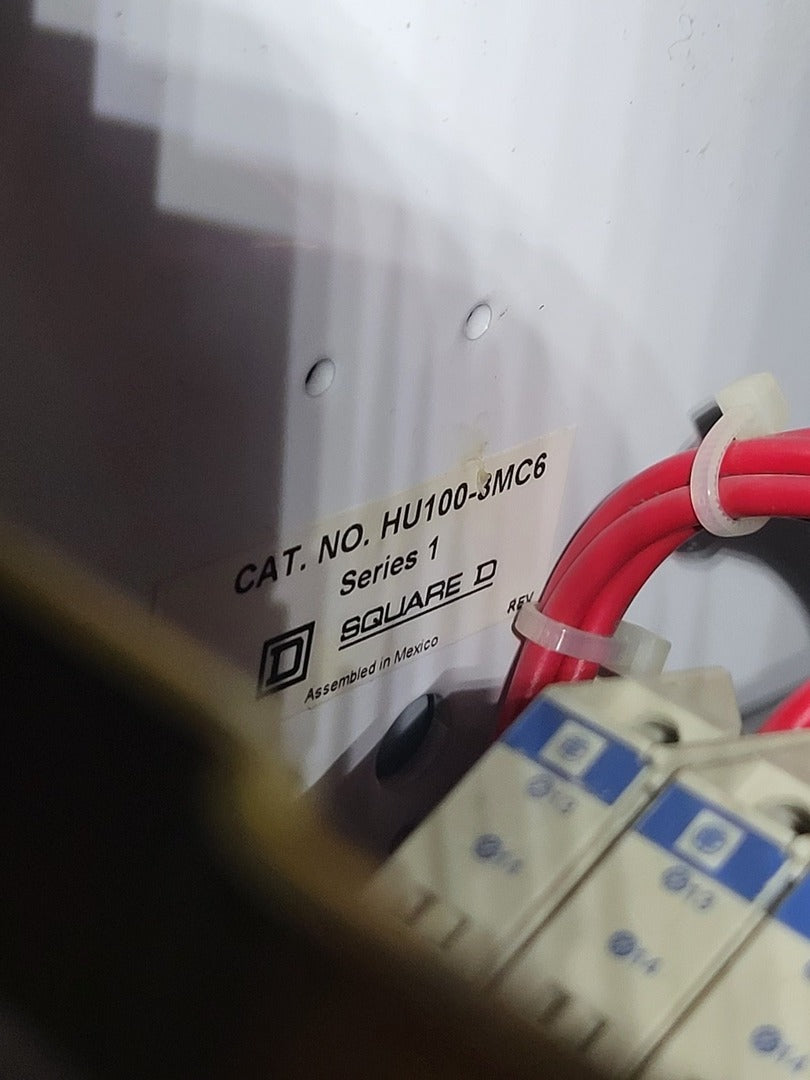

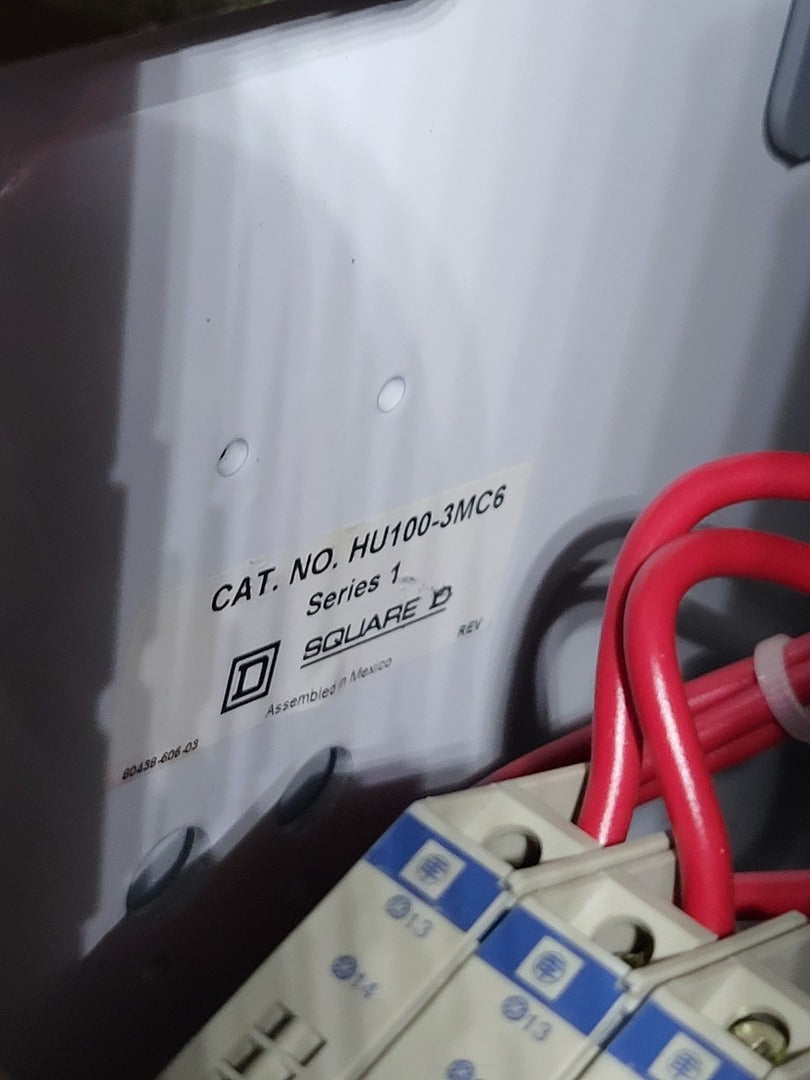

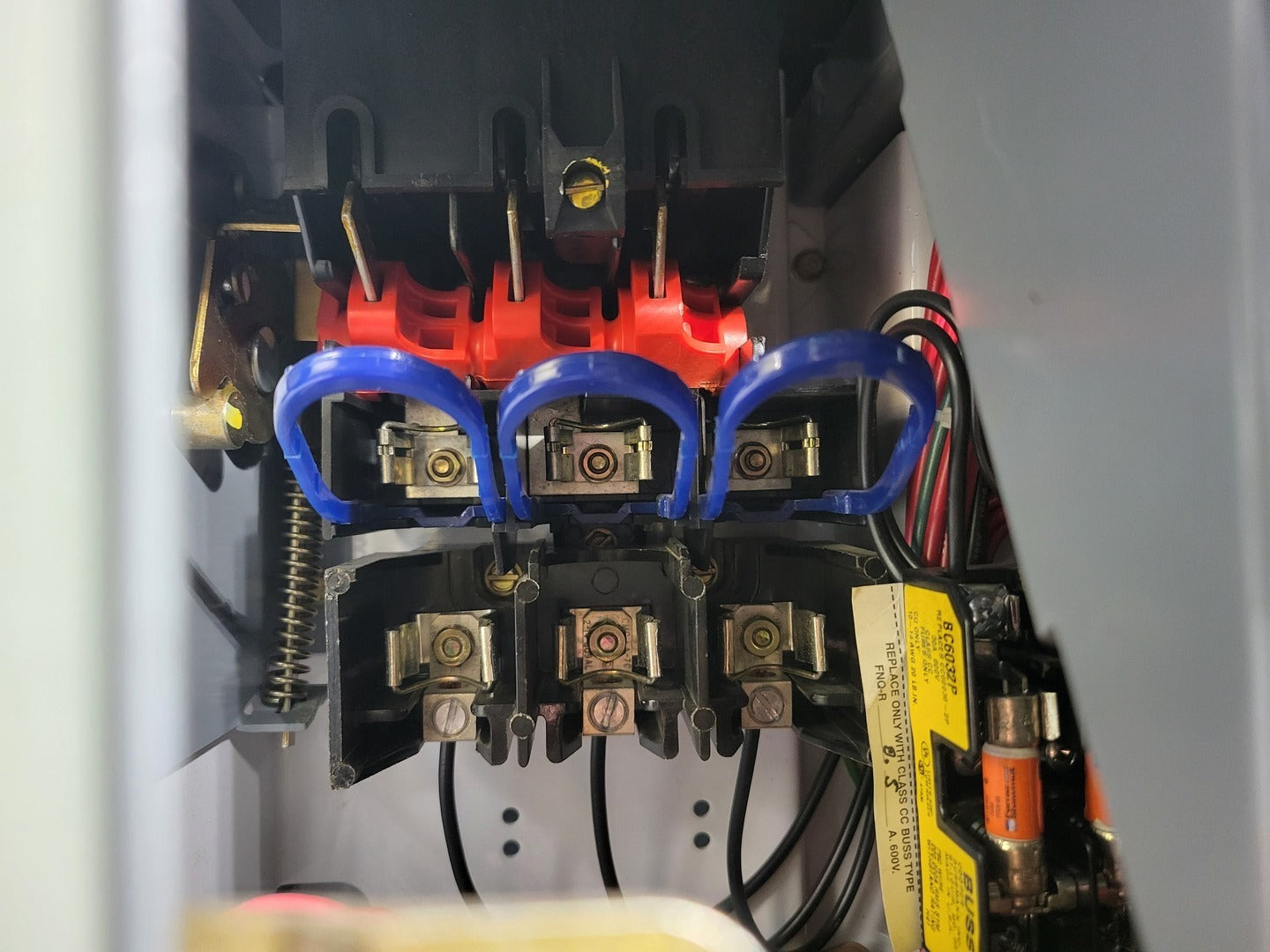

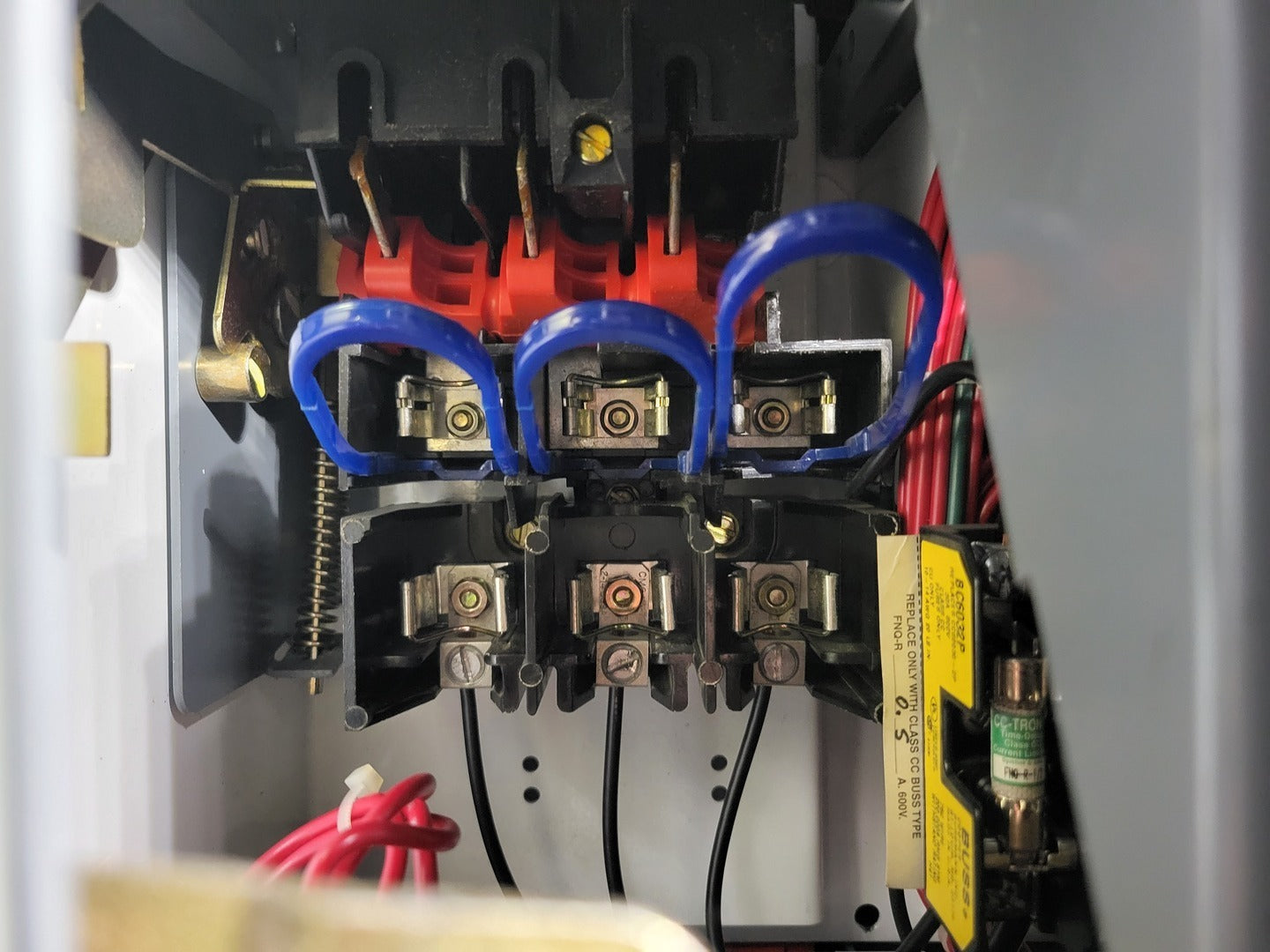

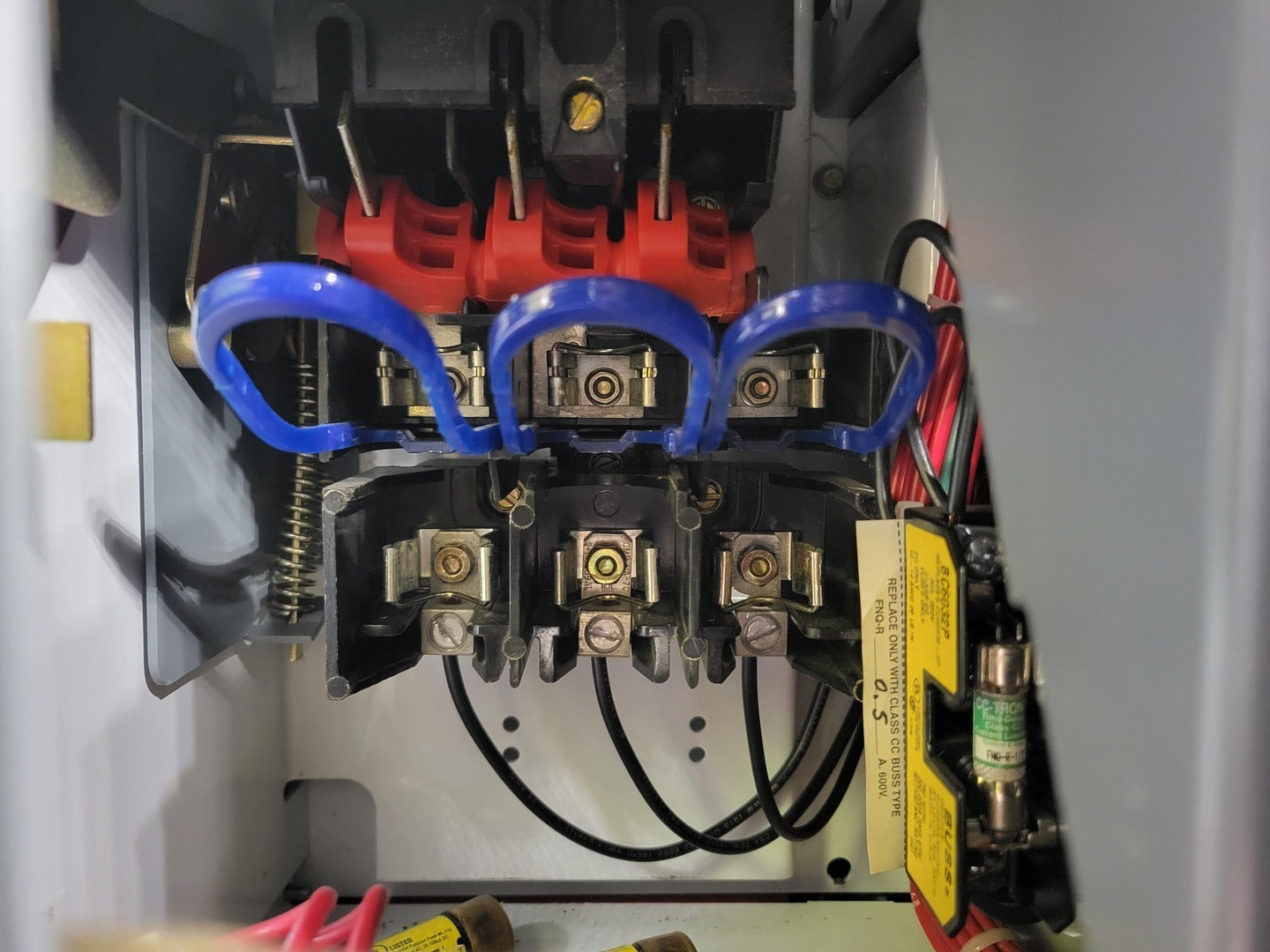

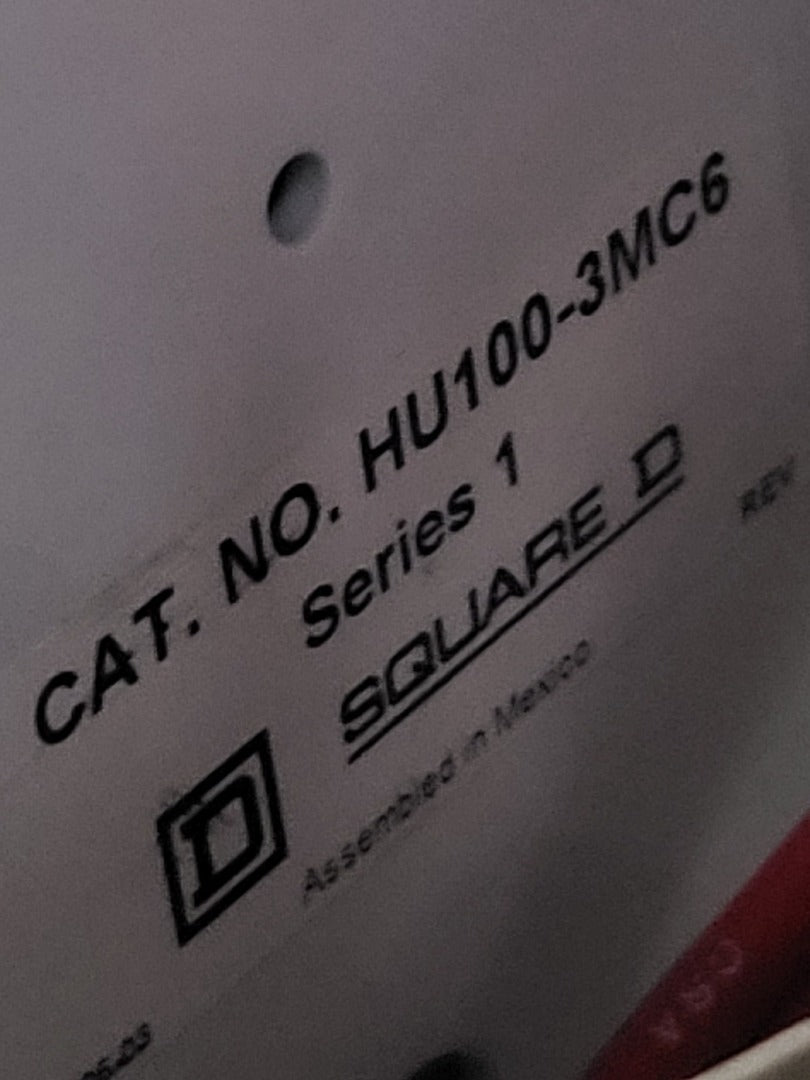

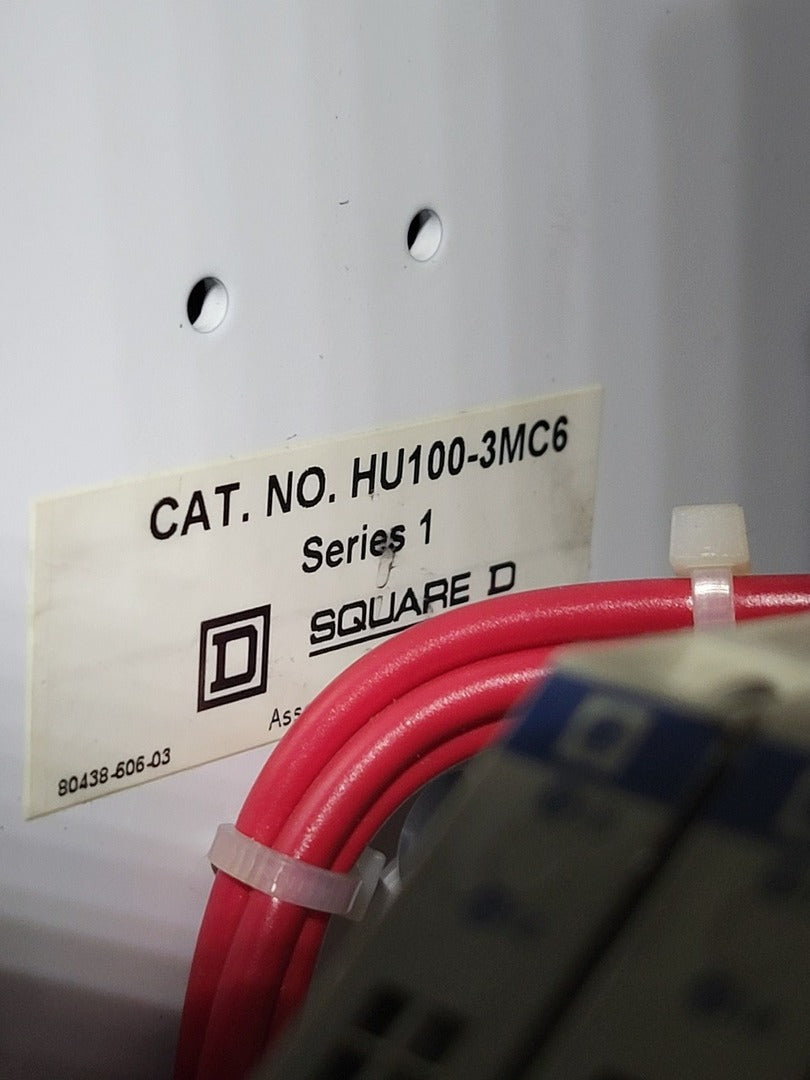

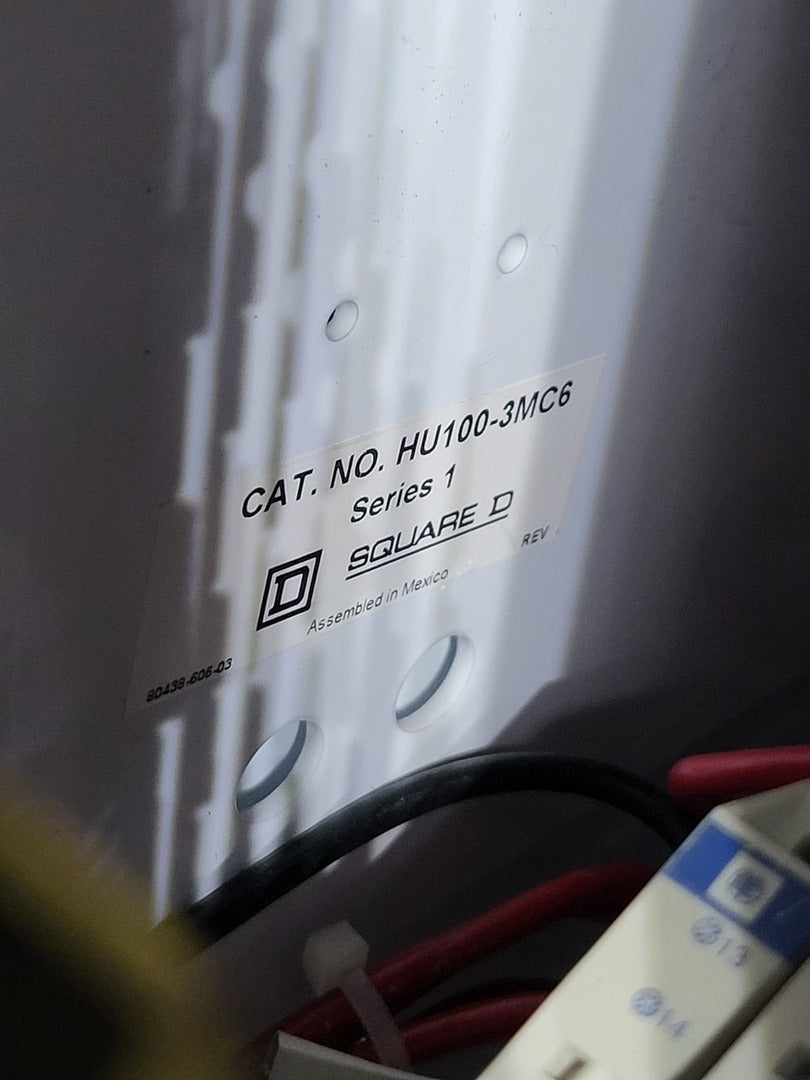

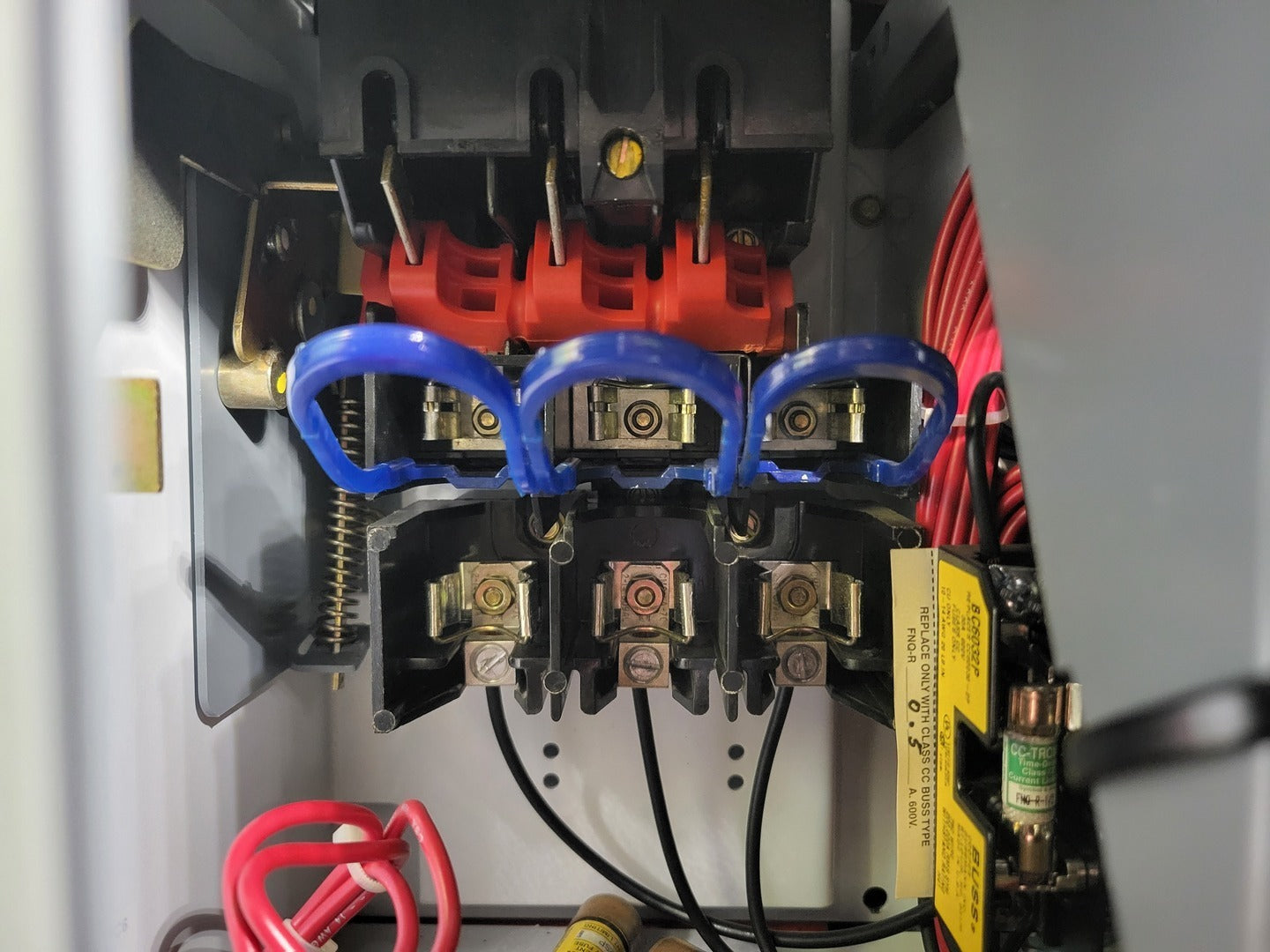

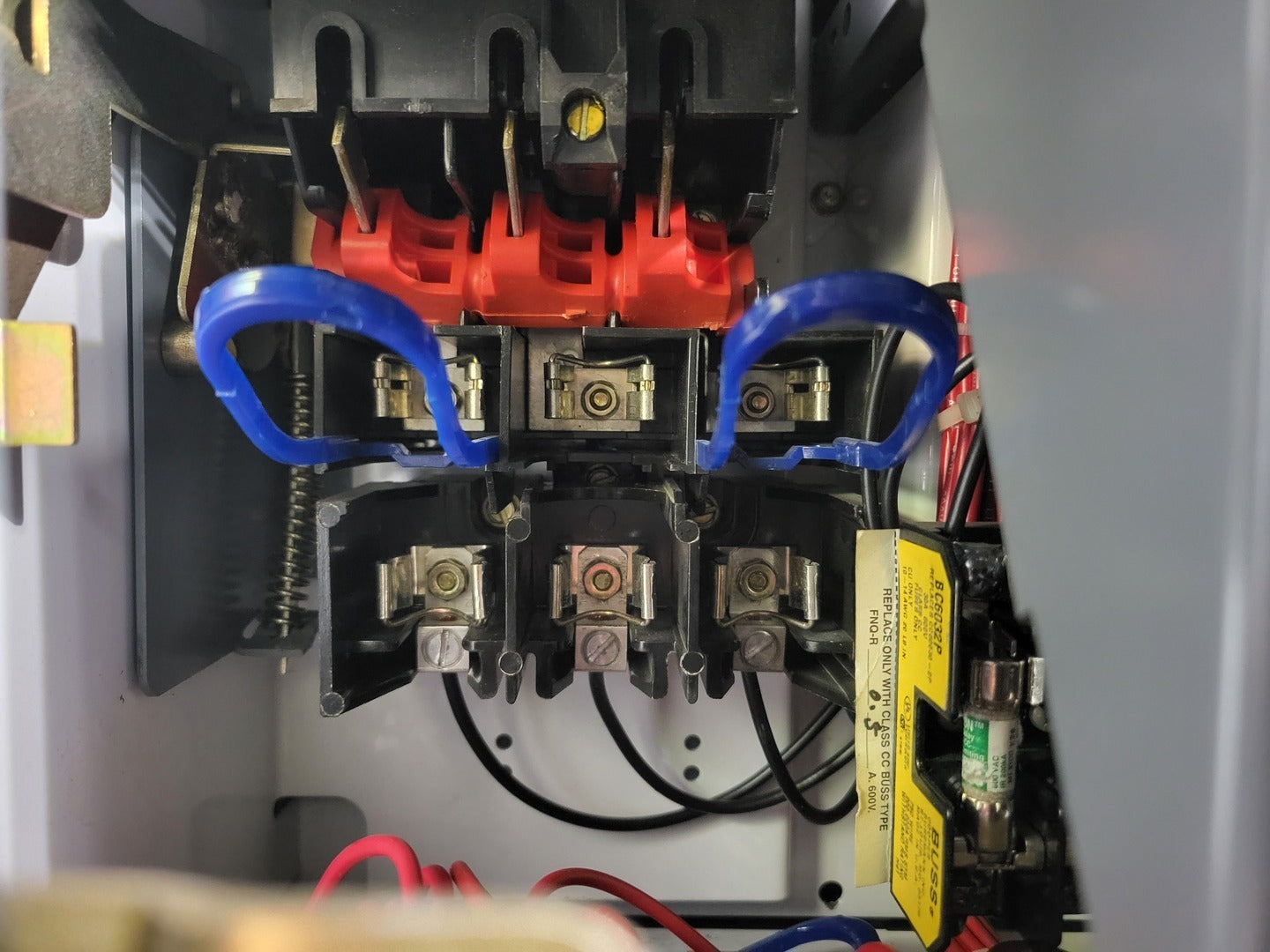

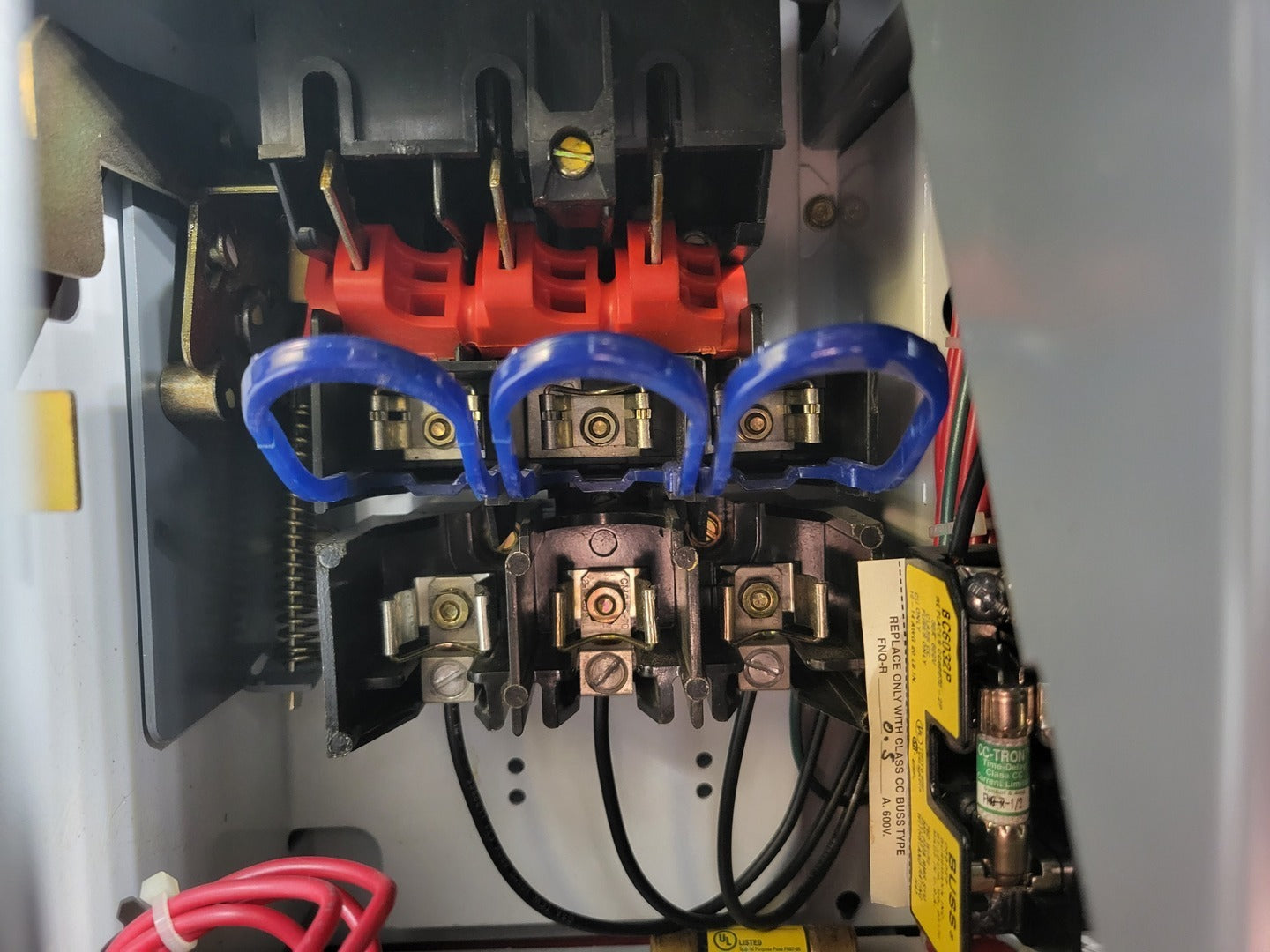

  6. Square D HU100-3MC6, Series 1, 100A MCC bucket disconnect unit
  7. 2 x Ferraz Shawmut ATDR1 fuses

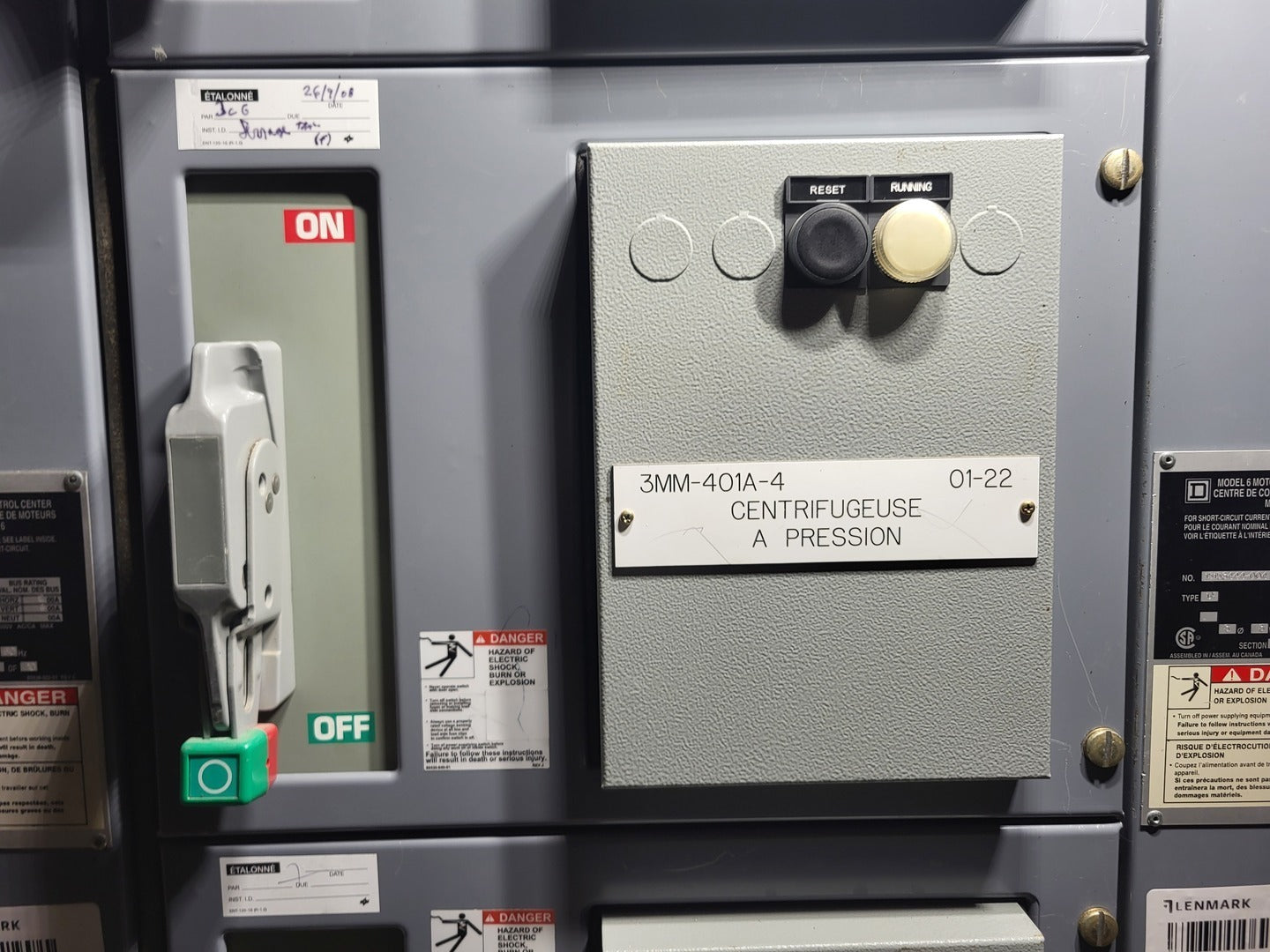

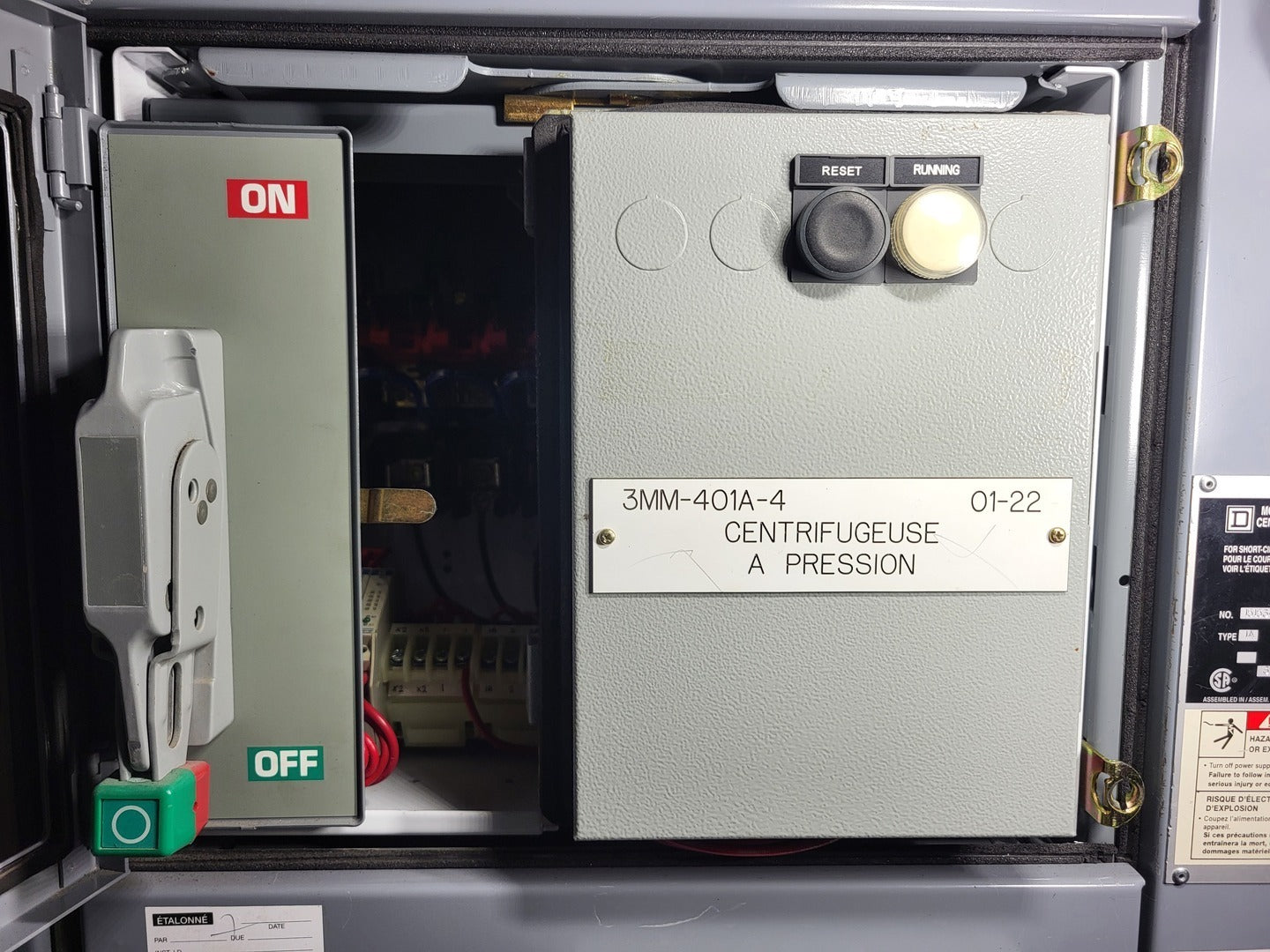

Bucket #2 3MM-401A-4

  1. Square D 8536SCO3B26S, NEMA Size 1 contactor, 10 HP @ 460/575V, 120V 60Hz coil
  2. Square D Motor Logic Plus 9065 SPB6, motor protection relay, 0.5-2.3A range, 600VAC max
  3. Square D 9070EL2D5, control transformer, 0.07 kVA @ 50Hz / 0.1 kVA @ 60Hz
  4. 3 x Telemecanique ABR-2E116F slim relay modules, 120-127VAC coil
  5. Schneider Electric TSX Momentum 170DNT11000 communication adapter / PROFIBUS DP module
  6. Square D HU100-3MC6, Series 1, 100A MCC bucket disconnect unit

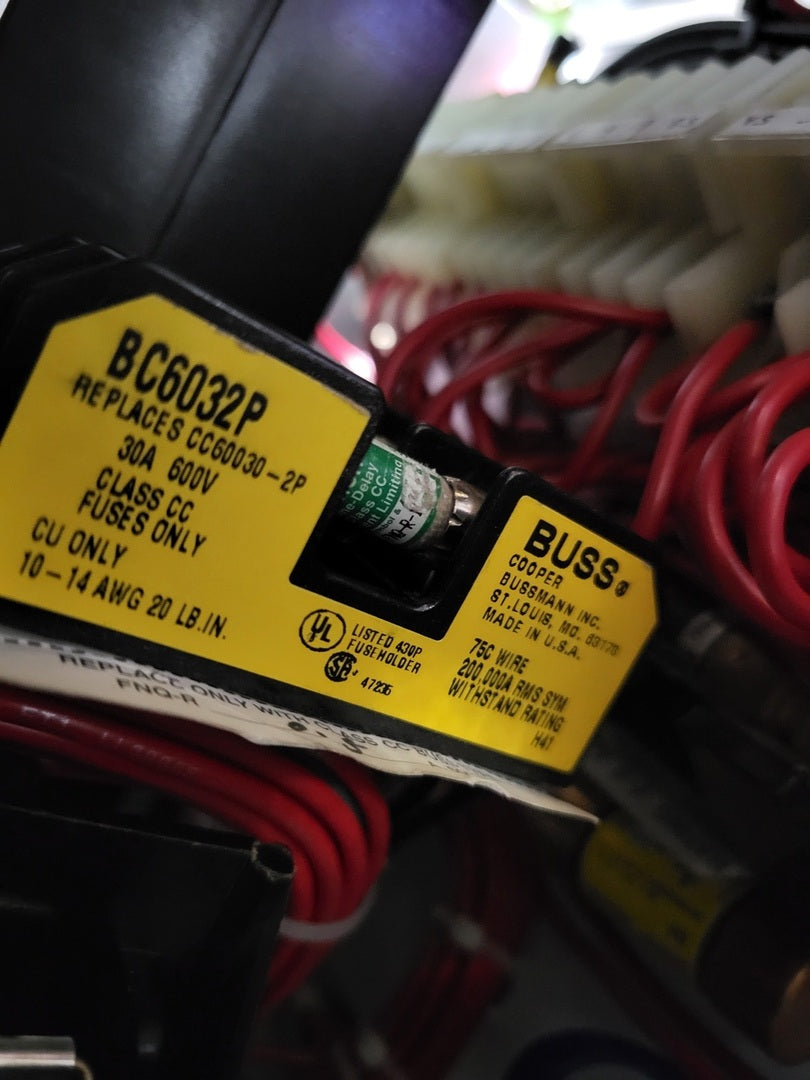

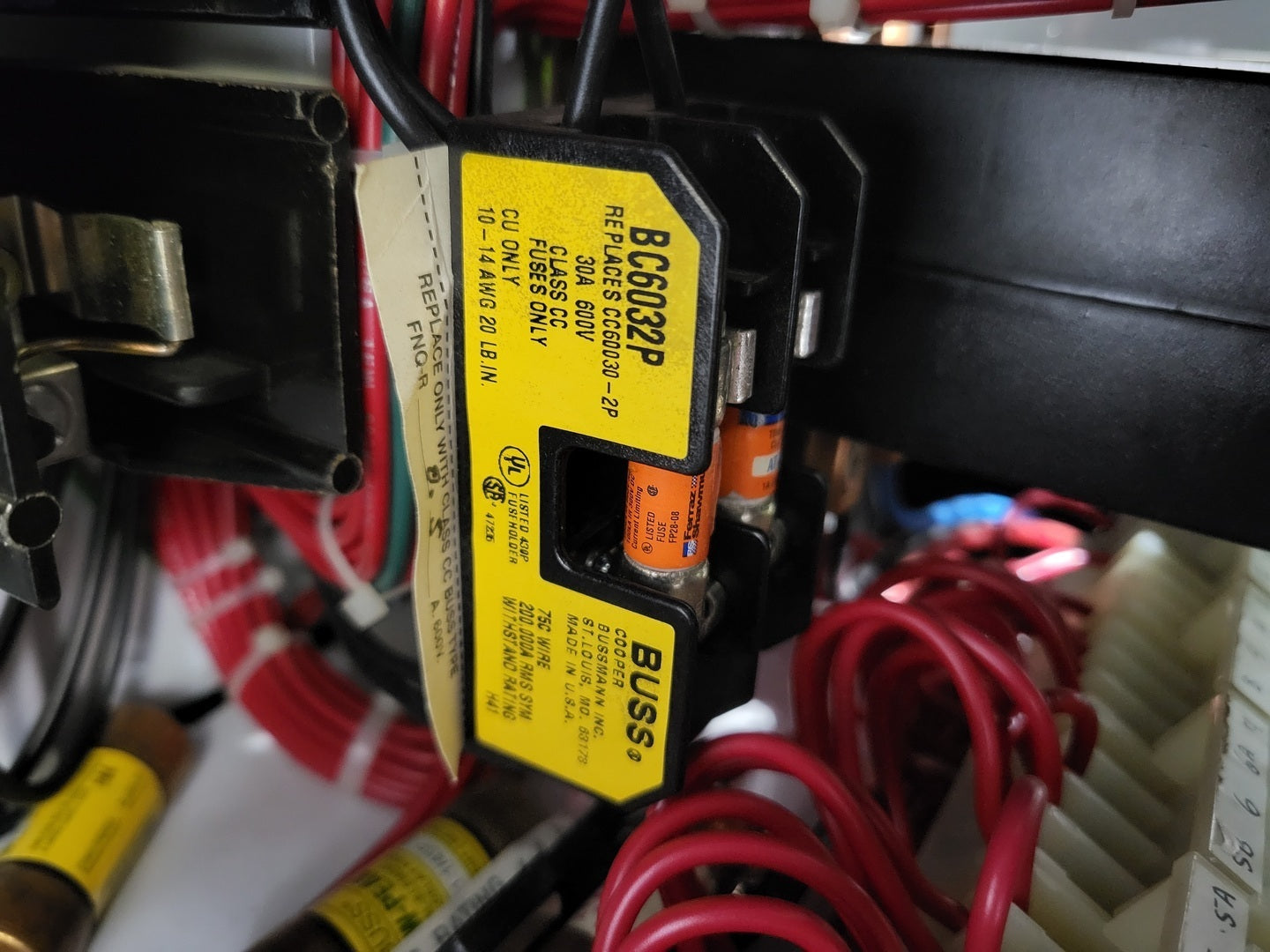

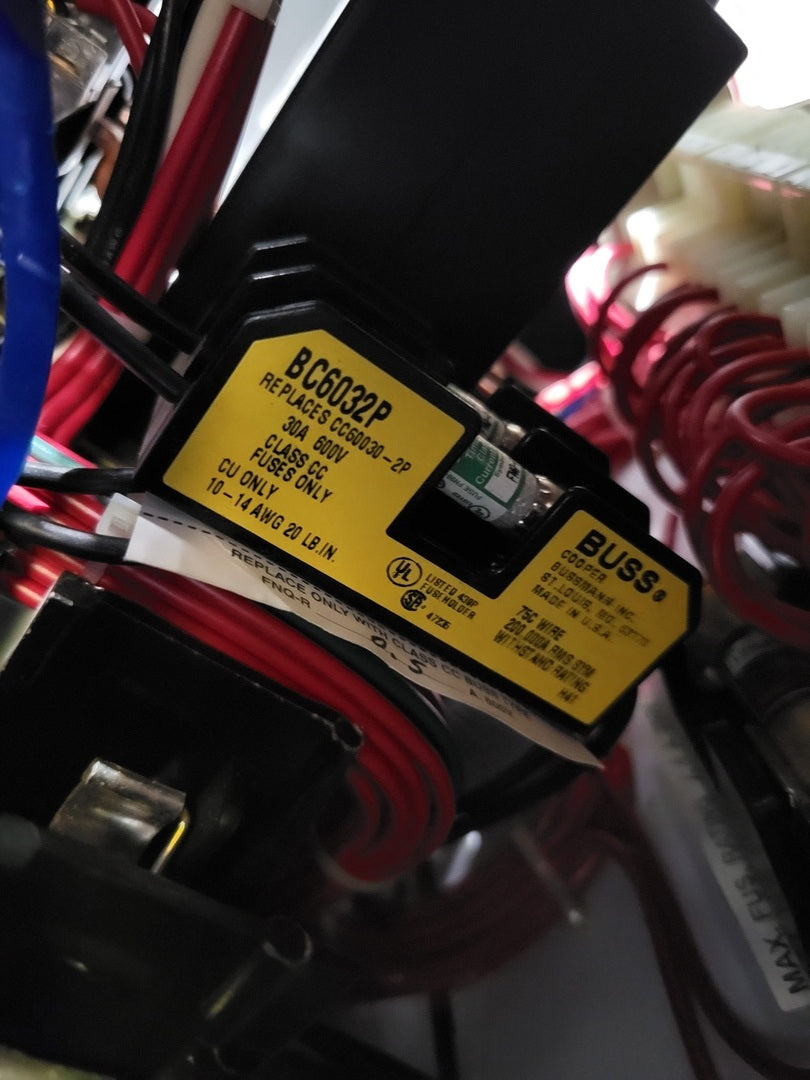

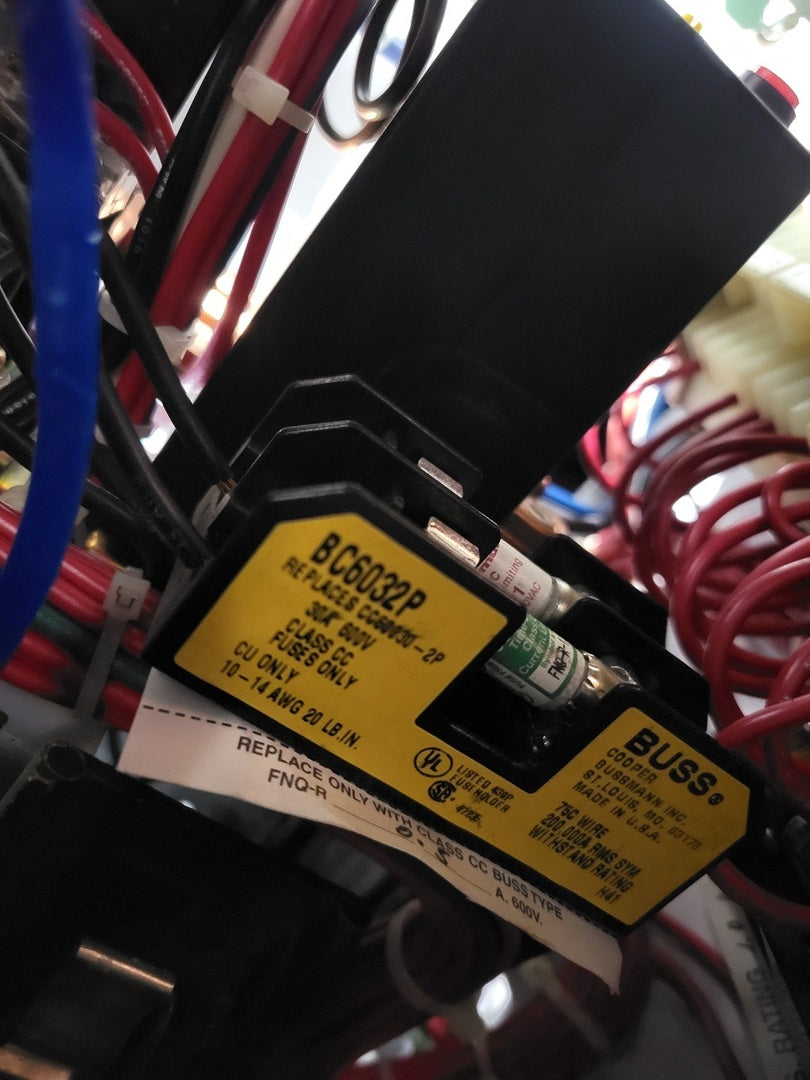

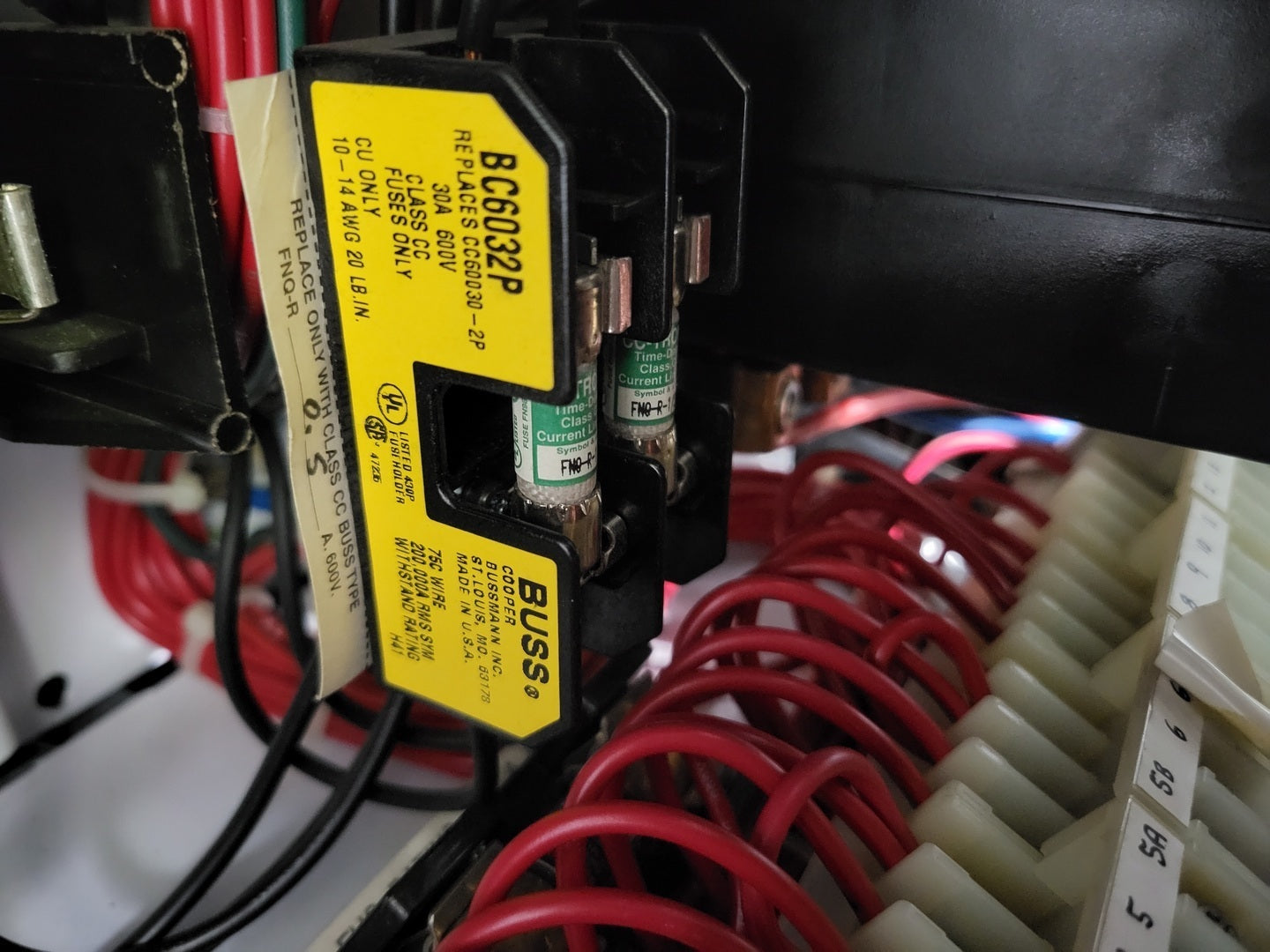

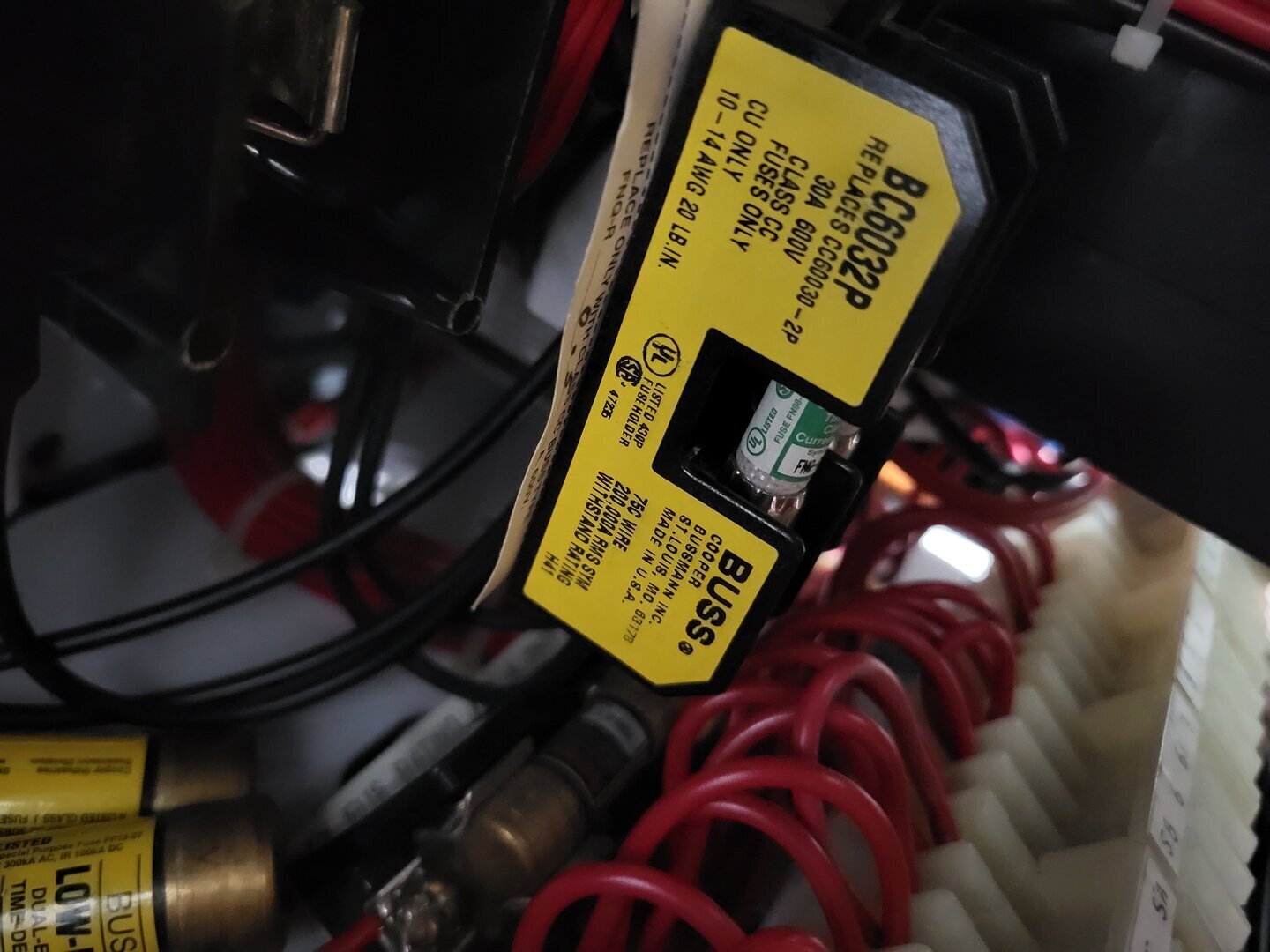

  7. 2 x Bussmann CC-Tron fuses FNQ-R-1/2

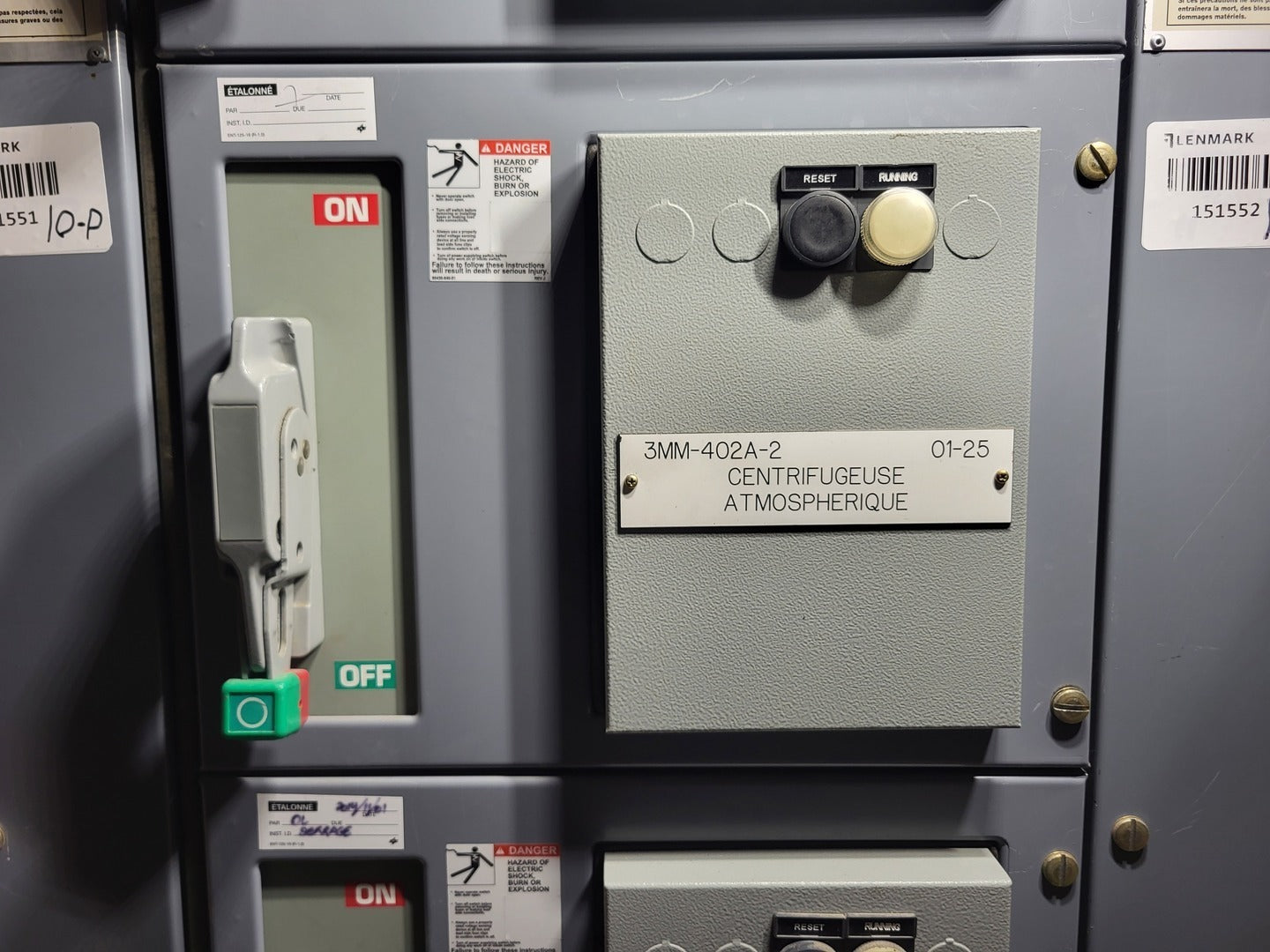

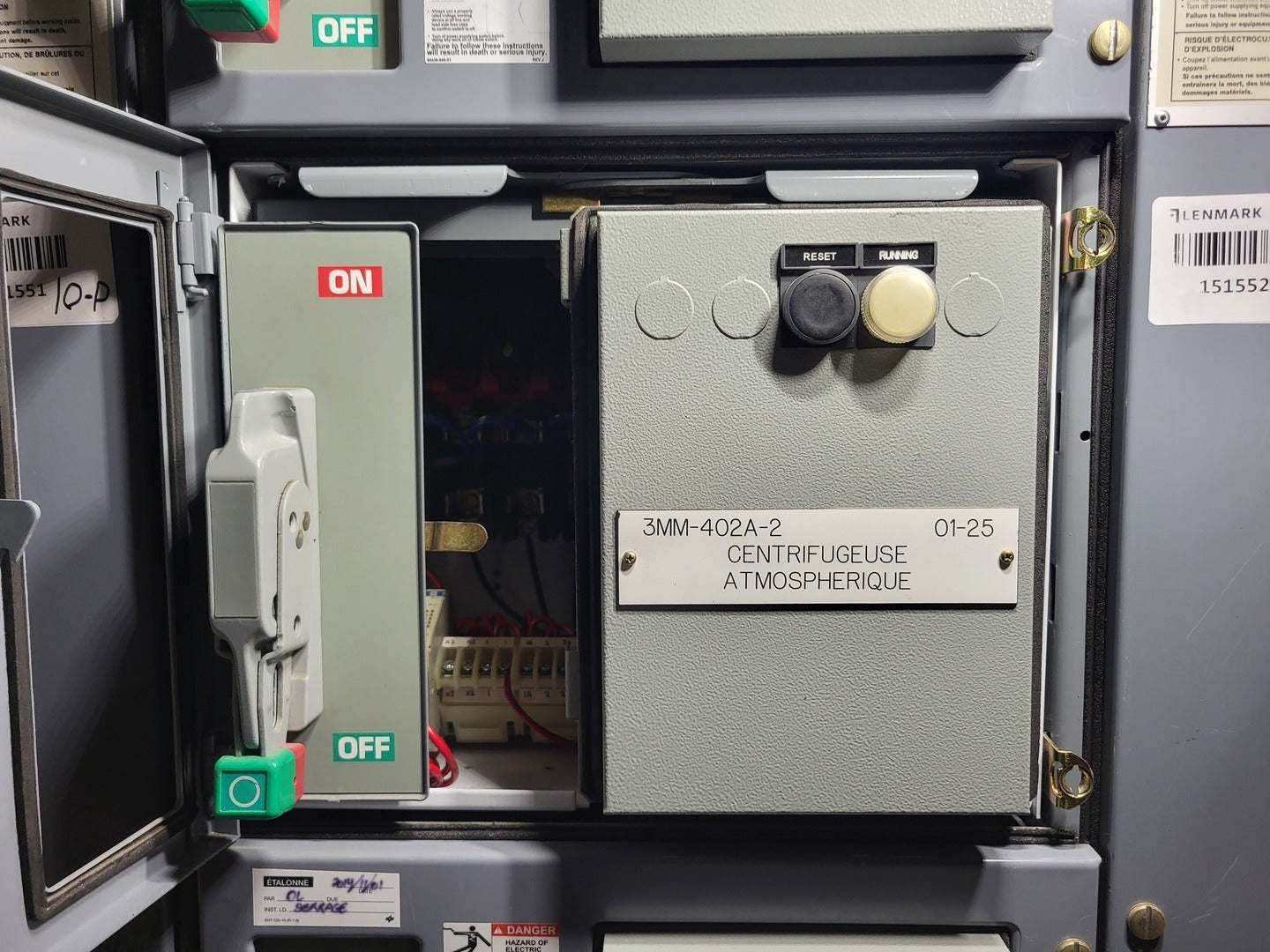

Bucket #3 3MM-402A-2

  1. Square D 8536SCO3B26S, NEMA Size 1 contactor, 10 HP @ 460/575V, 120V 60Hz coil
  2. Square D Motor Logic Plus 9065 SPB6, motor protection relay, 0.5-2.3A range, 600VAC max
  3. Square D 9070EL2D5, control transformer, 0.07 kVA @ 50Hz / 0.1 kVA @ 60Hz
  4. 3 x Telemecanique ABR-2E116F slim relay modules, 120-127VAC coil
  5. Schneider Electric TSX Momentum 170DNT11000 communication adapter / PROFIBUS DP module
  6. Square D HU100-3MC6, Series 1, 100A MCC bucket disconnect unit
  7. 2 x Bussmann CC-Tron fuses FNQ-R-1/2

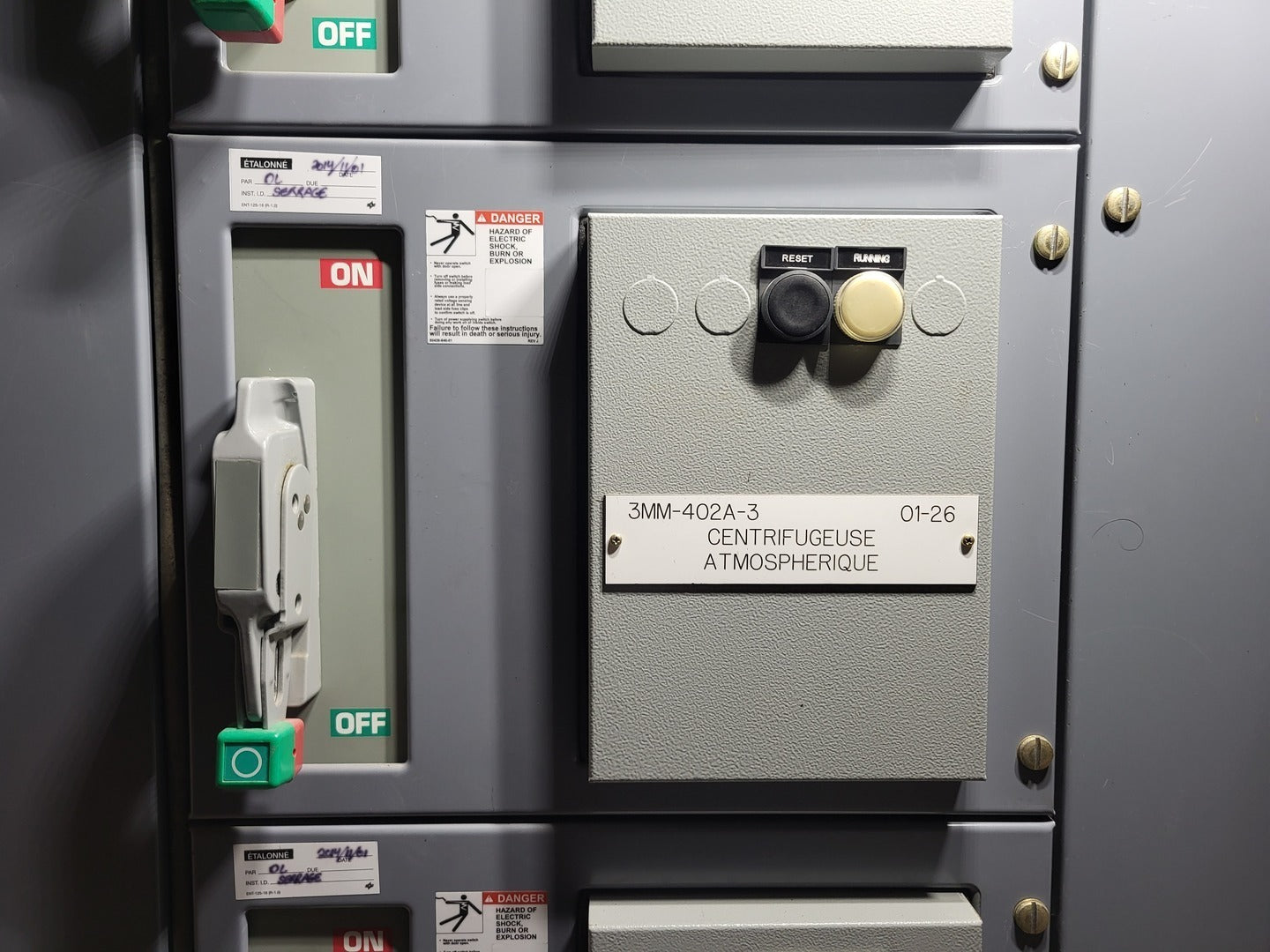

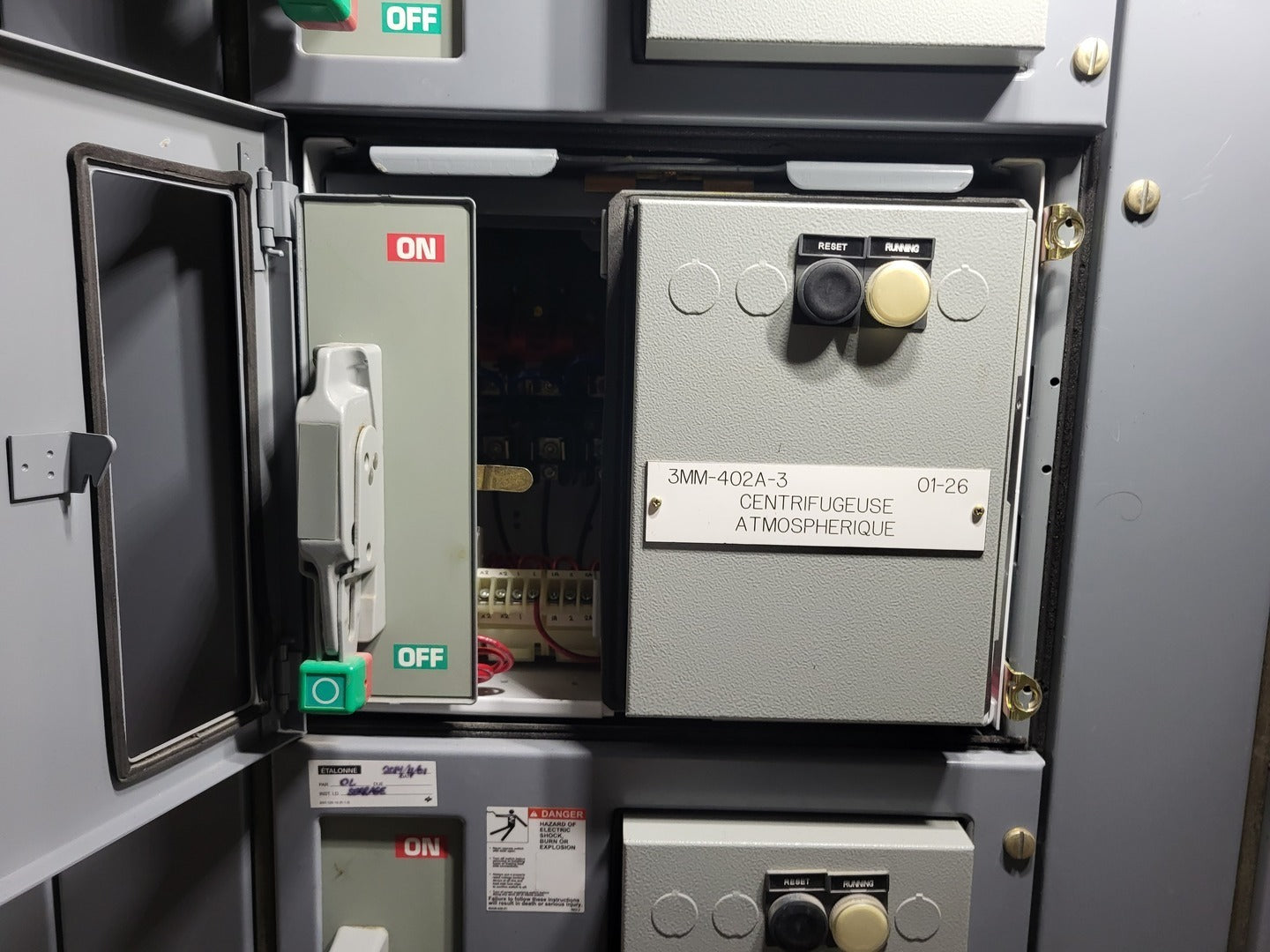

Bucket #4 3MM-402A-3

  1. Square D 8536SCO3B26S, NEMA Size 1 contactor, 10 HP @ 460/575V, 120V 60Hz coil
  2. Square D Motor Logic Plus 9065 SPB6, motor protection relay, 0.5-2.3A range, 600VAC max
  3. Square D 9070EL2D5, control transformer, 0.07 kVA @ 50Hz / 0.1 kVA @ 60Hz
  4. 3 x Telemecanique ABR-2E116F slim relay modules, 120-127VAC coil
  5. Schneider Electric TSX Momentum 170DNT11000 communication adapter / PROFIBUS DP module
  6. Square D HU100-3MC6, Series 1, 100A MCC bucket disconnect unit
  7. 2 x Bussmann CC-Tron fuses FNQ-R-1/2

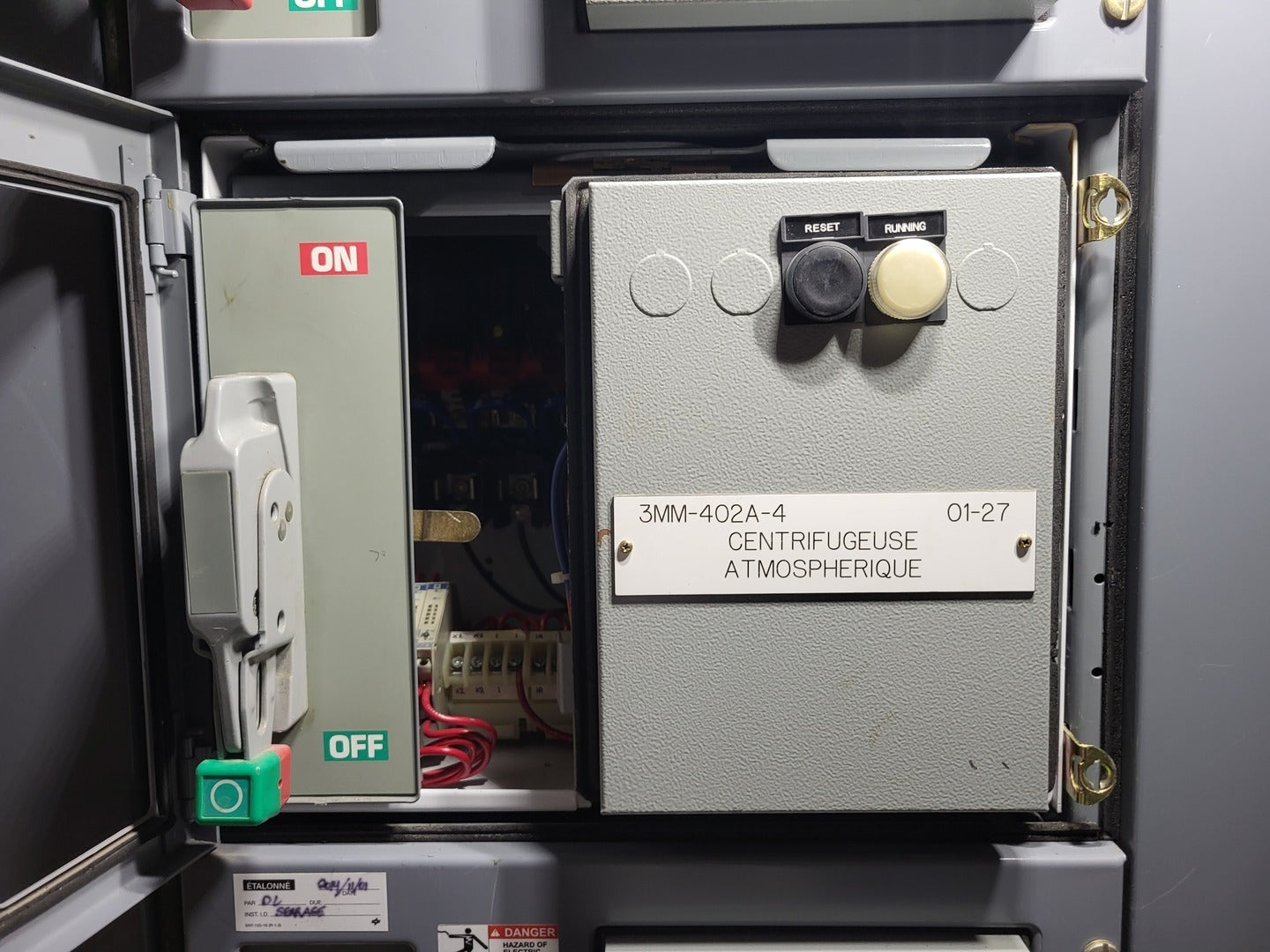

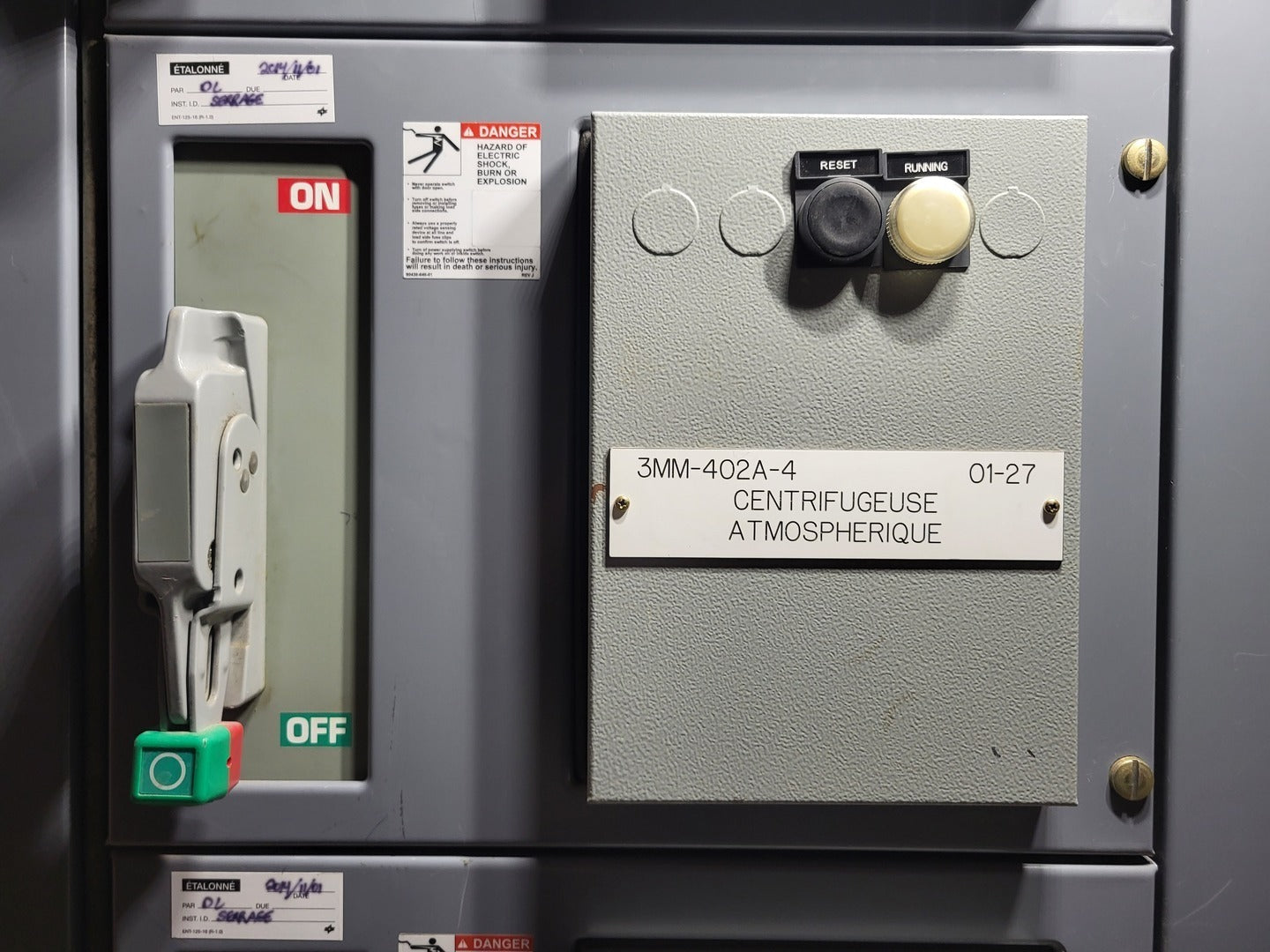

Bucket #5 3MM-402A-4

  1. Square D 8536SCO3B26S, NEMA Size 1 contactor, 10 HP @ 460/575V, 120V 60Hz coil
  2. Square D Motor Logic Plus 9065 SPB6, motor protection relay, 0.5-2.3A range, 600VAC max
  3. Square D 9070EL2D5, control transformer, 0.07 kVA @ 50Hz / 0.1 kVA @ 60Hz
  4. 3 x Telemecanique ABR-2E116F slim relay modules, 120-127VAC coil
  5. Schneider Electric TSX Momentum 170DNT11000 communication adapter / PROFIBUS DP module
  6. Square D HU100-3MC6, Series 1, 100A MCC bucket disconnect unit
  7. 2 x Bussmann CC-Tron fuses FNQ-R-1/2

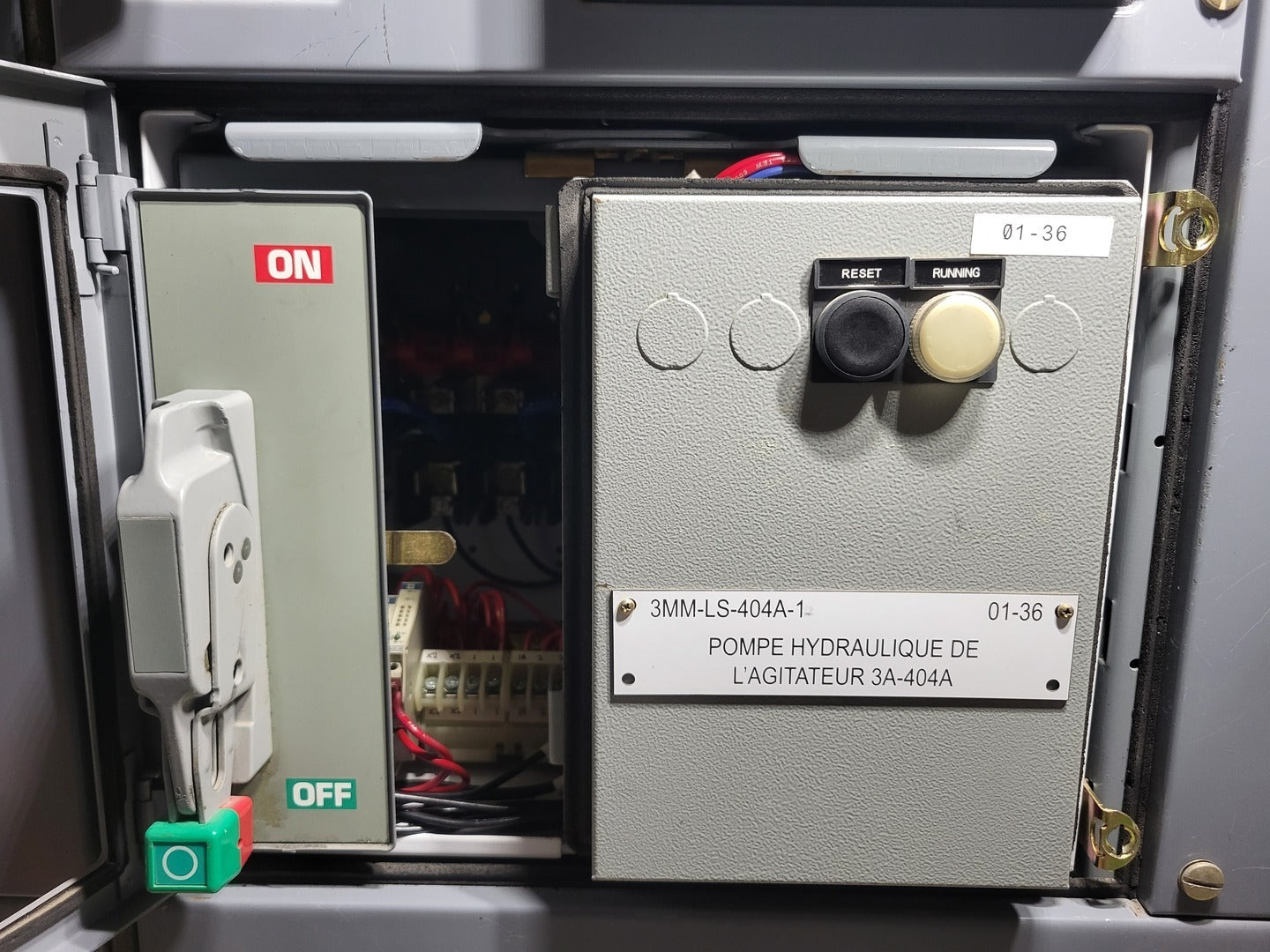

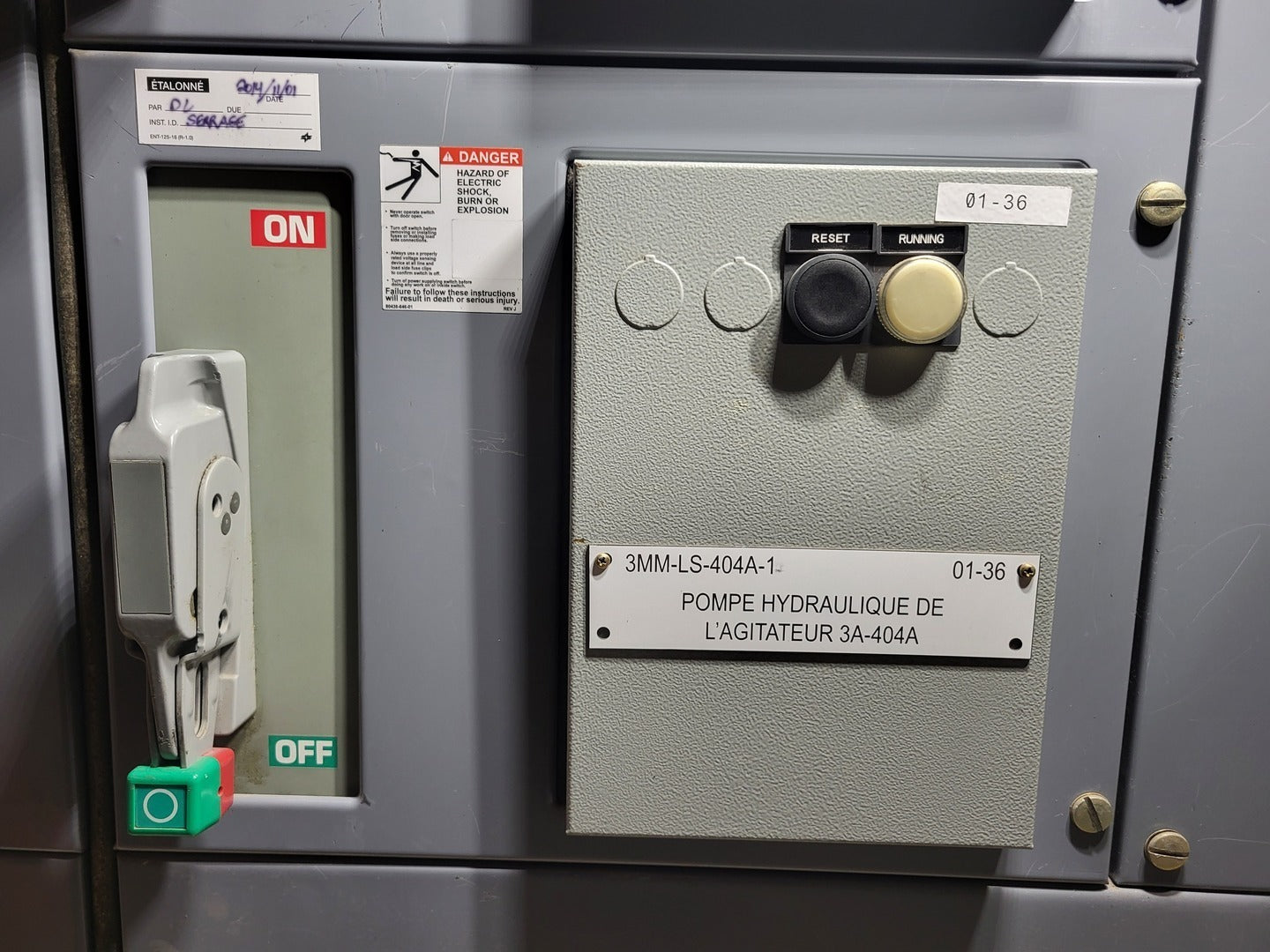

Bucket #6 3MM-LS-404A-1

  1. Square D 8536SCO3B26S, NEMA Size 1 contactor, 10 HP @ 460/575V, 120V 60Hz coil

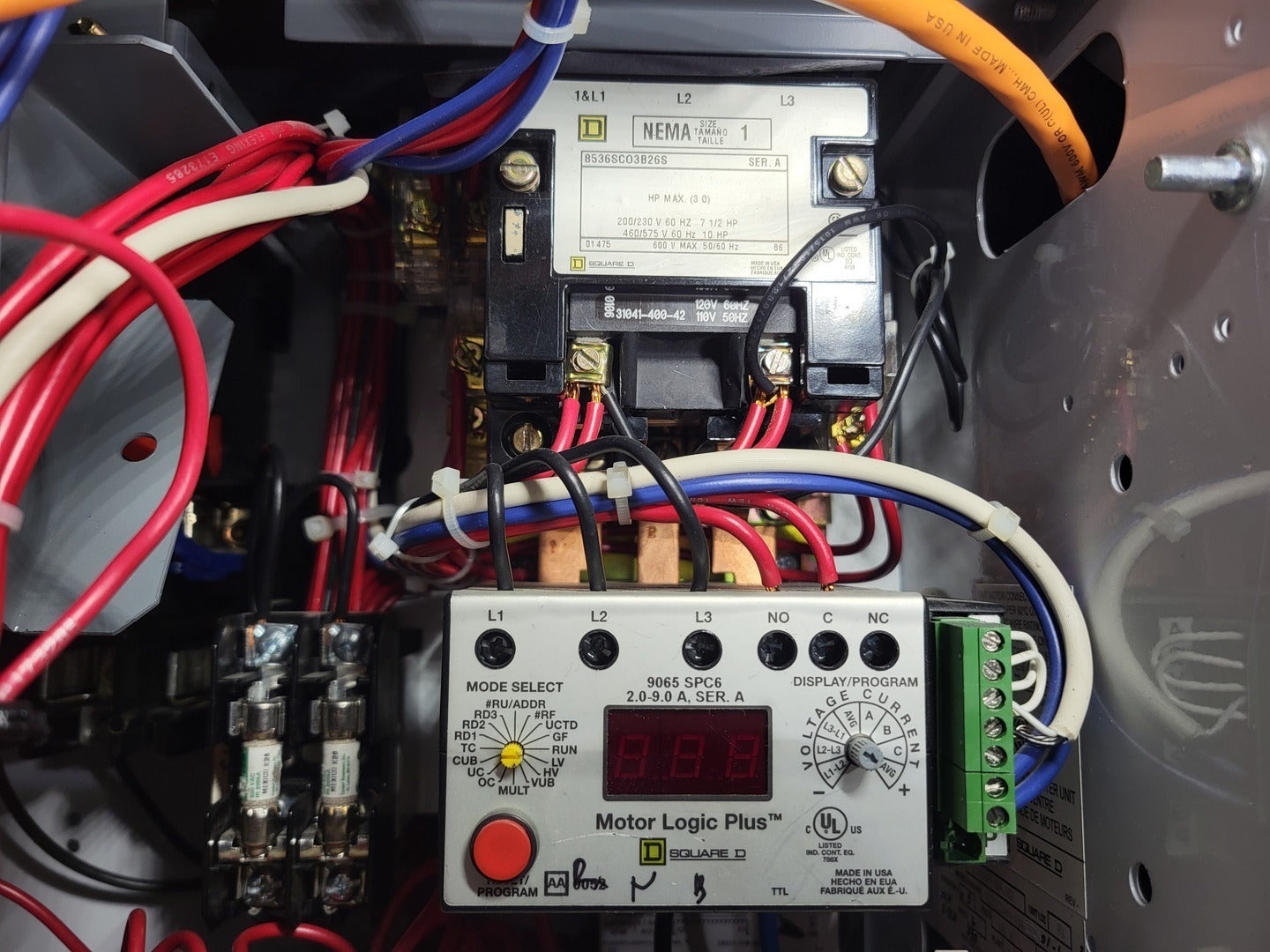

  2. Square D Motor Logic Plus 9065 SPC6, motor protection relay, 2.0-9.0A range, 600VAC max
  3. Square D 9070EL2D5, control transformer, 0.07 kVA @ 50Hz / 0.1 kVA @ 60Hz
  4. 2 x Telemecanique ABR-2E116F slim relay modules, 120-127VAC coil
  5. Schneider Electric TSX Momentum 170DNT11000 communication adapter / PROFIBUS DP module
  6. Square D HU100-3MC6, Series 1, 100A MCC bucket disconnect unit
  7. 2 x Bussmann CC-Tron fuses FNQ-R-1/2
