MCG 7-10A Class 10 Thermal Overload Relay MR2D09314
MCG

7-10A Class 10 Thermal Overload Relay MR2D09314

SKU: 157355
Precio:
$25 CAD

Gastos de envío calculados en la caja

Stock:
Disponibles (3 unidades), listas para ser enviadas
Make an Offer

¿Necesita una respuesta ahora?

604-449-1880

Descripción

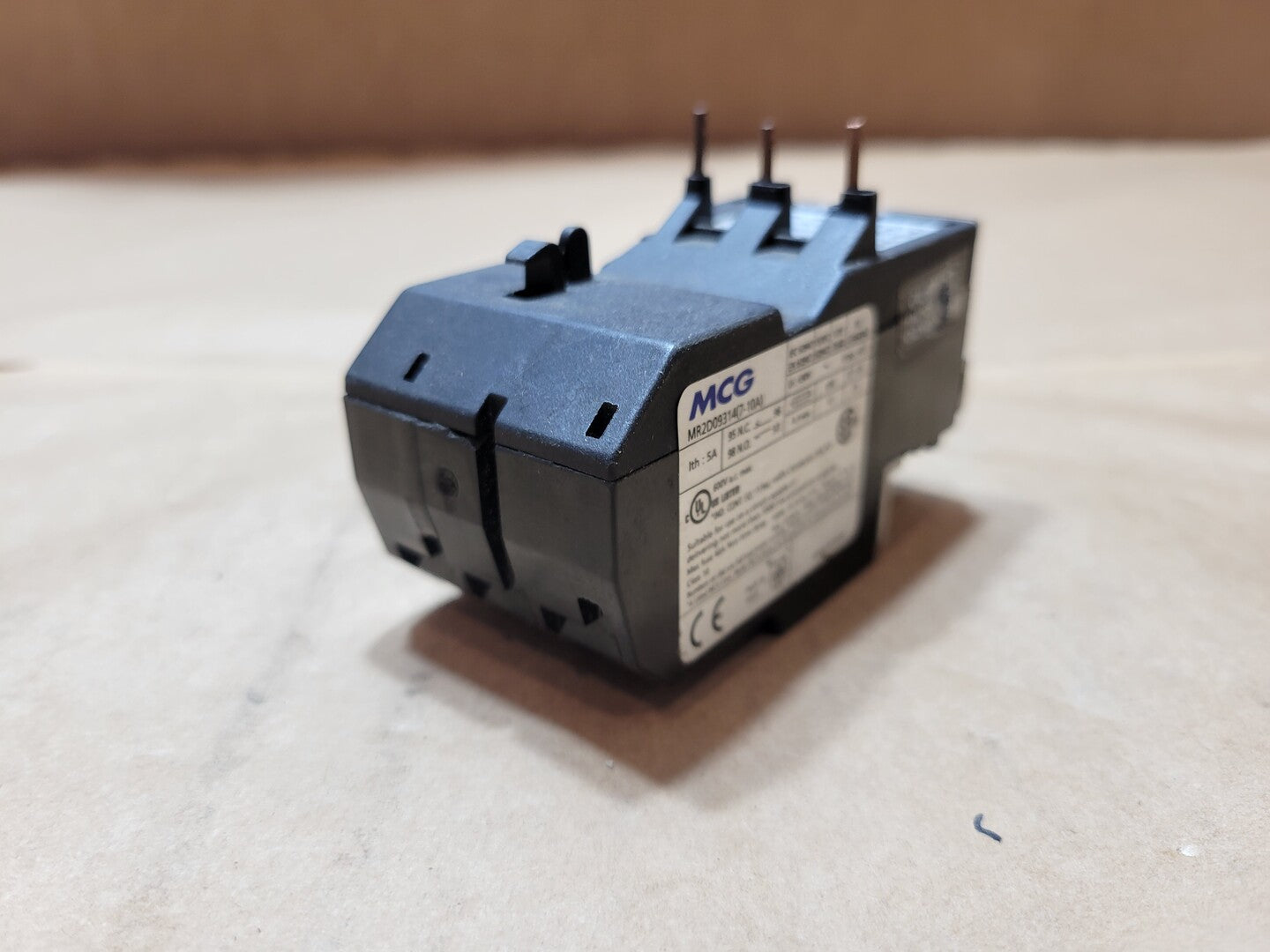

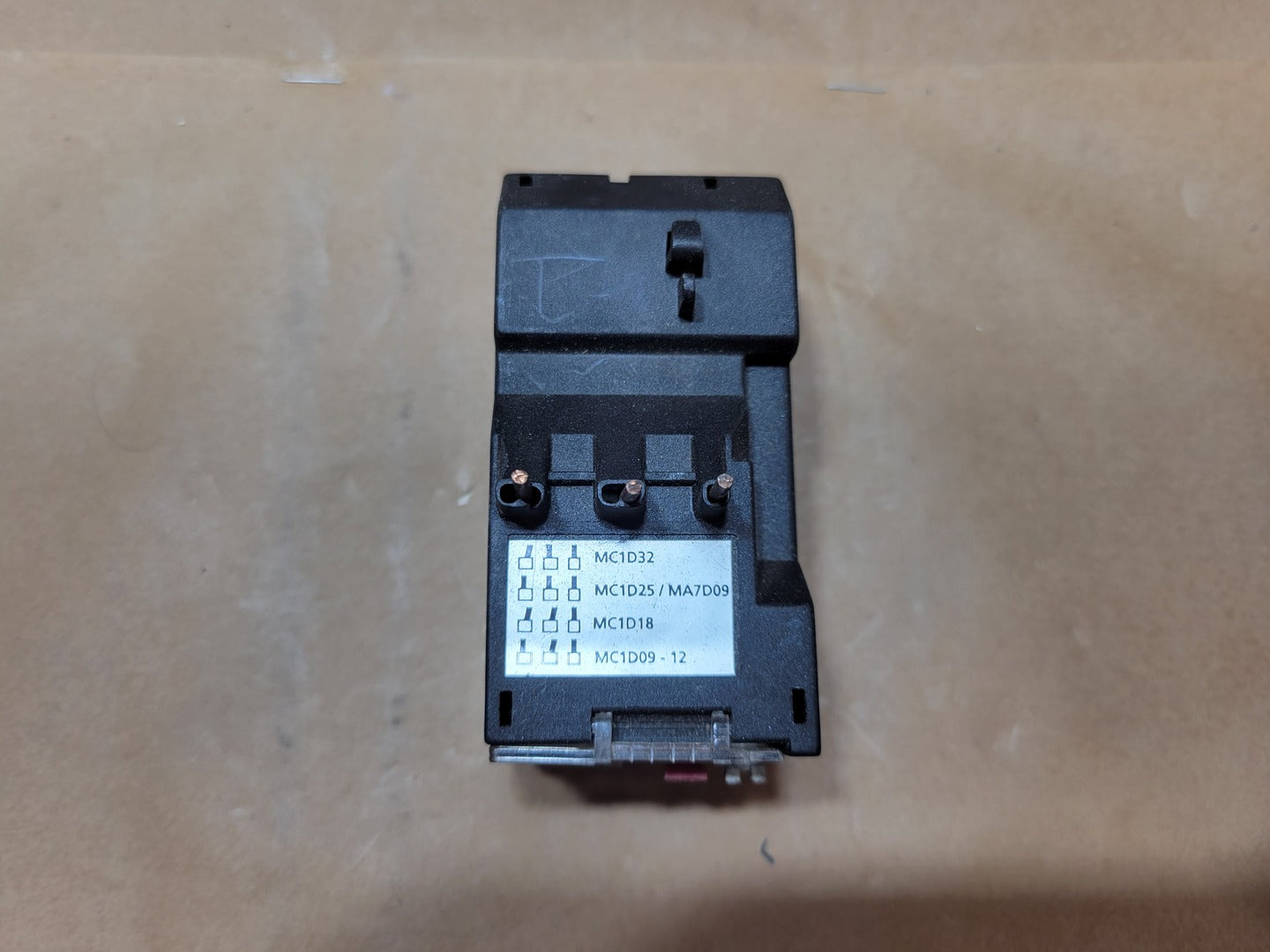

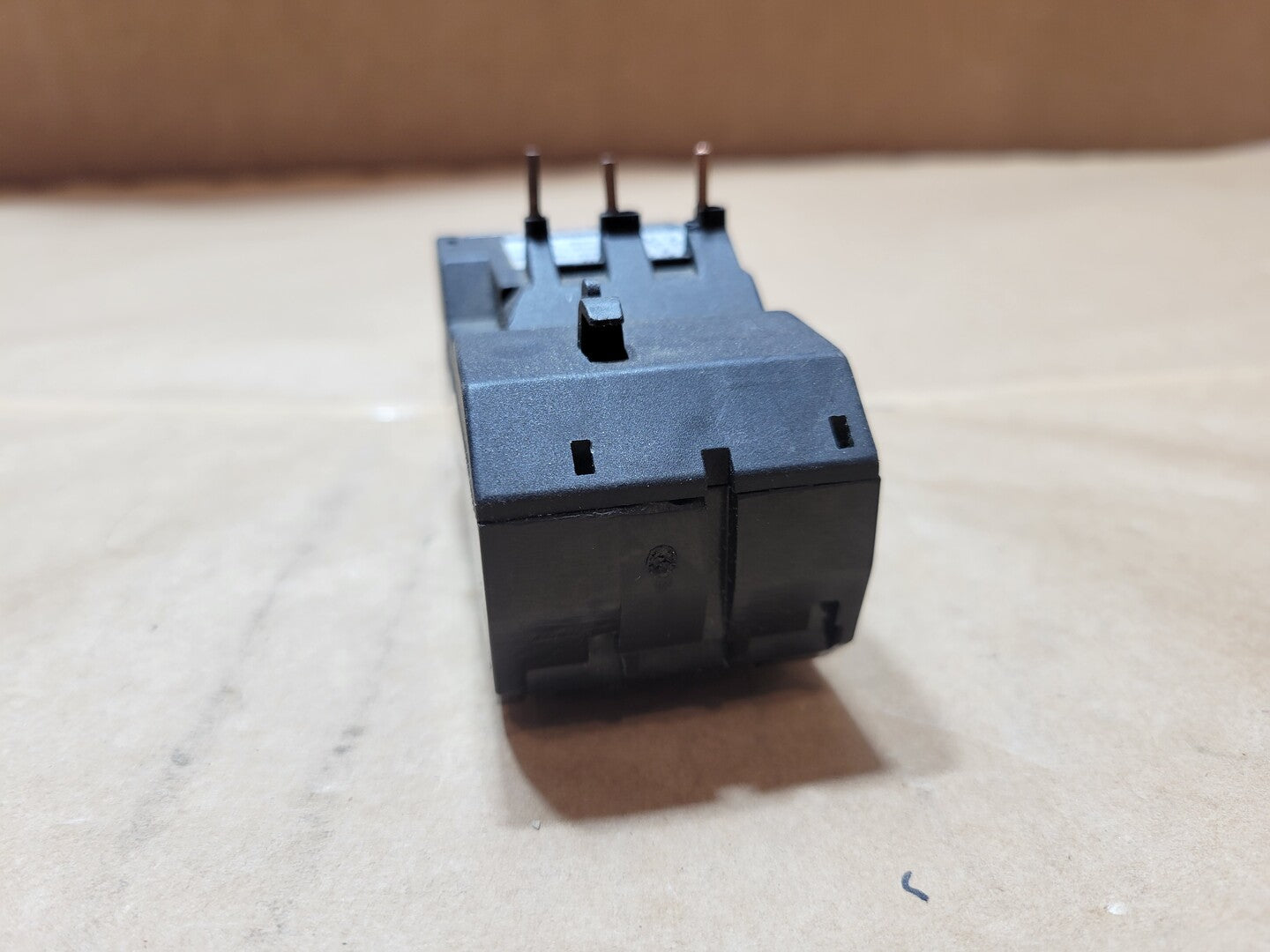

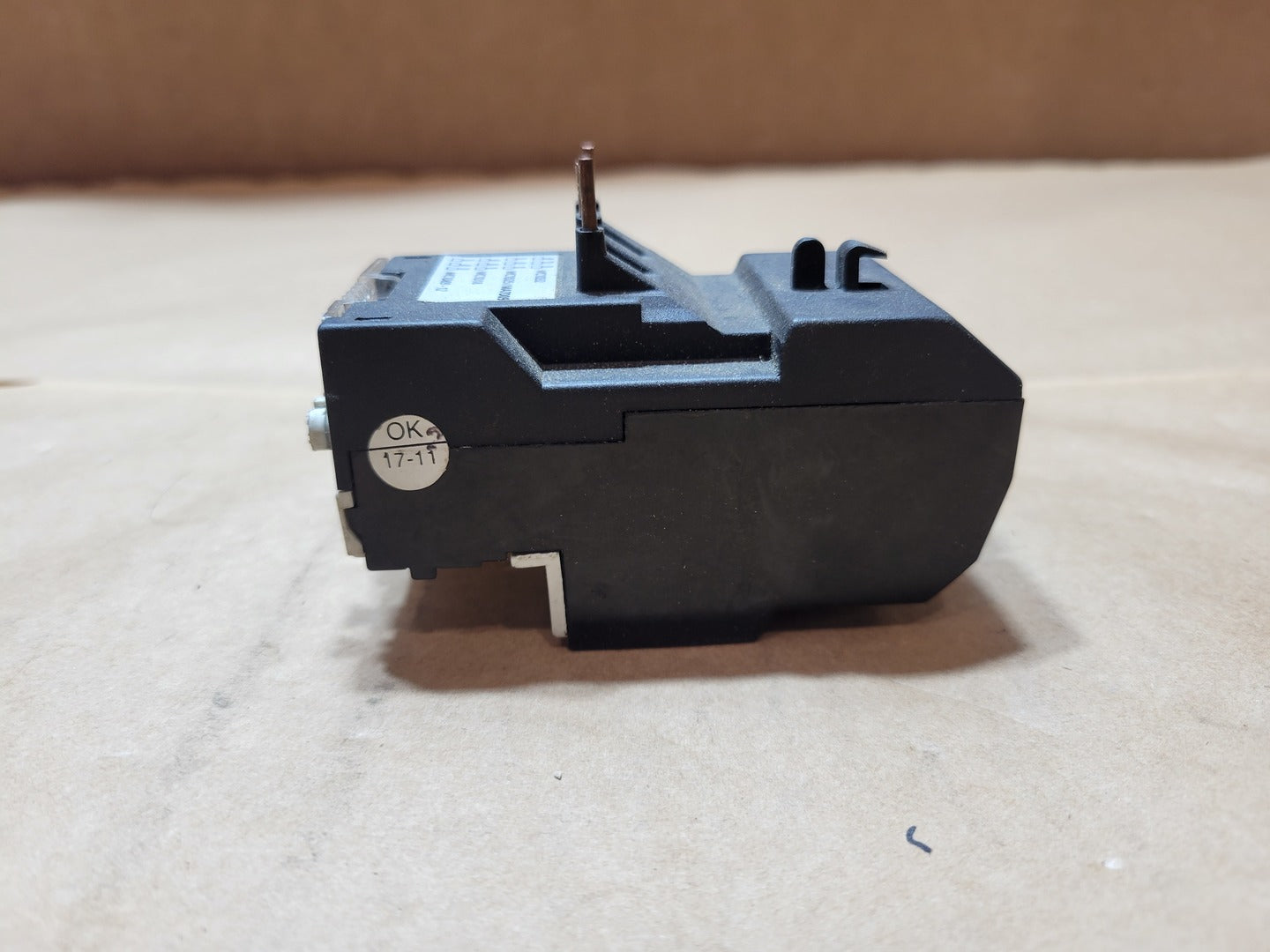

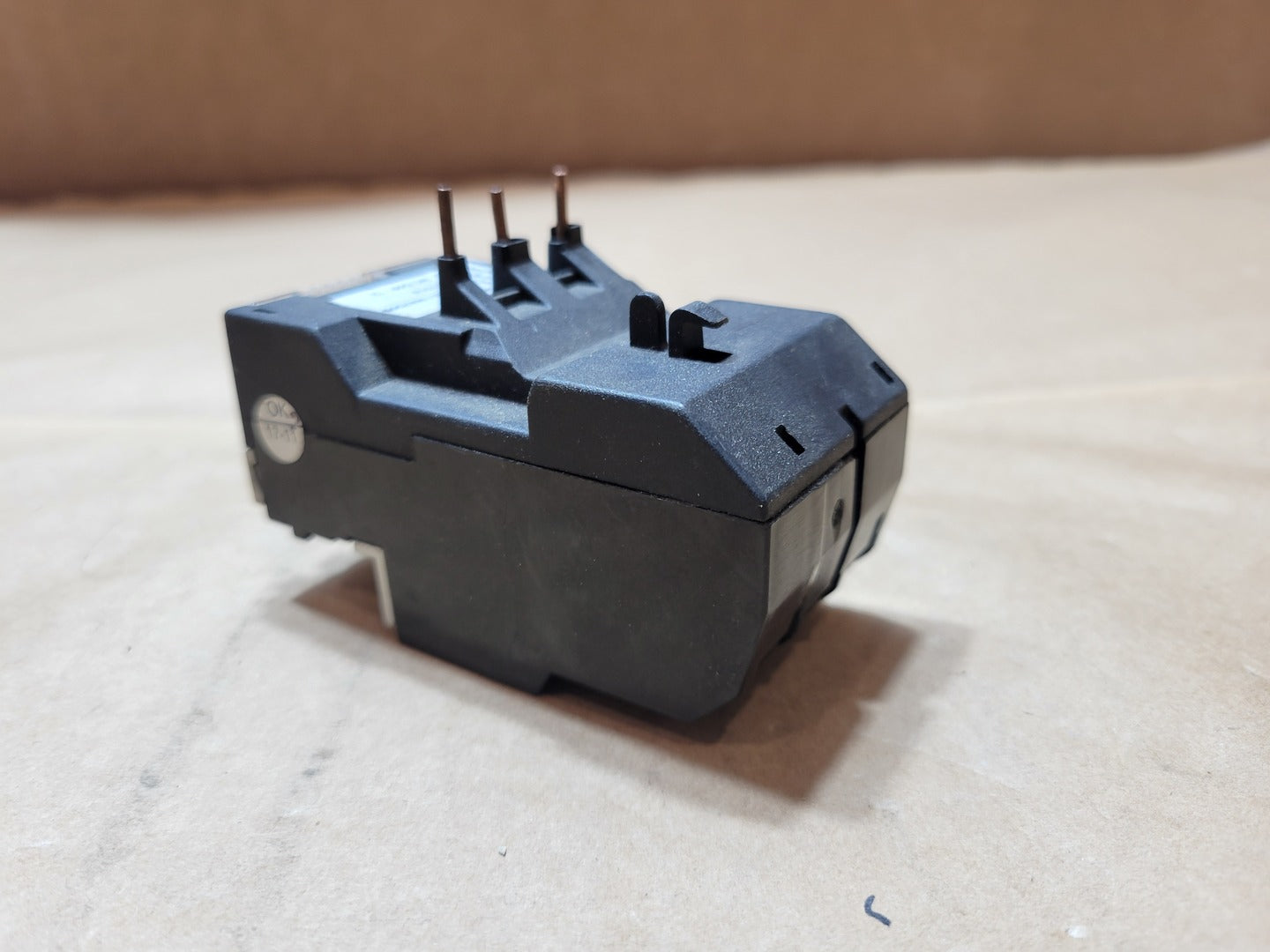

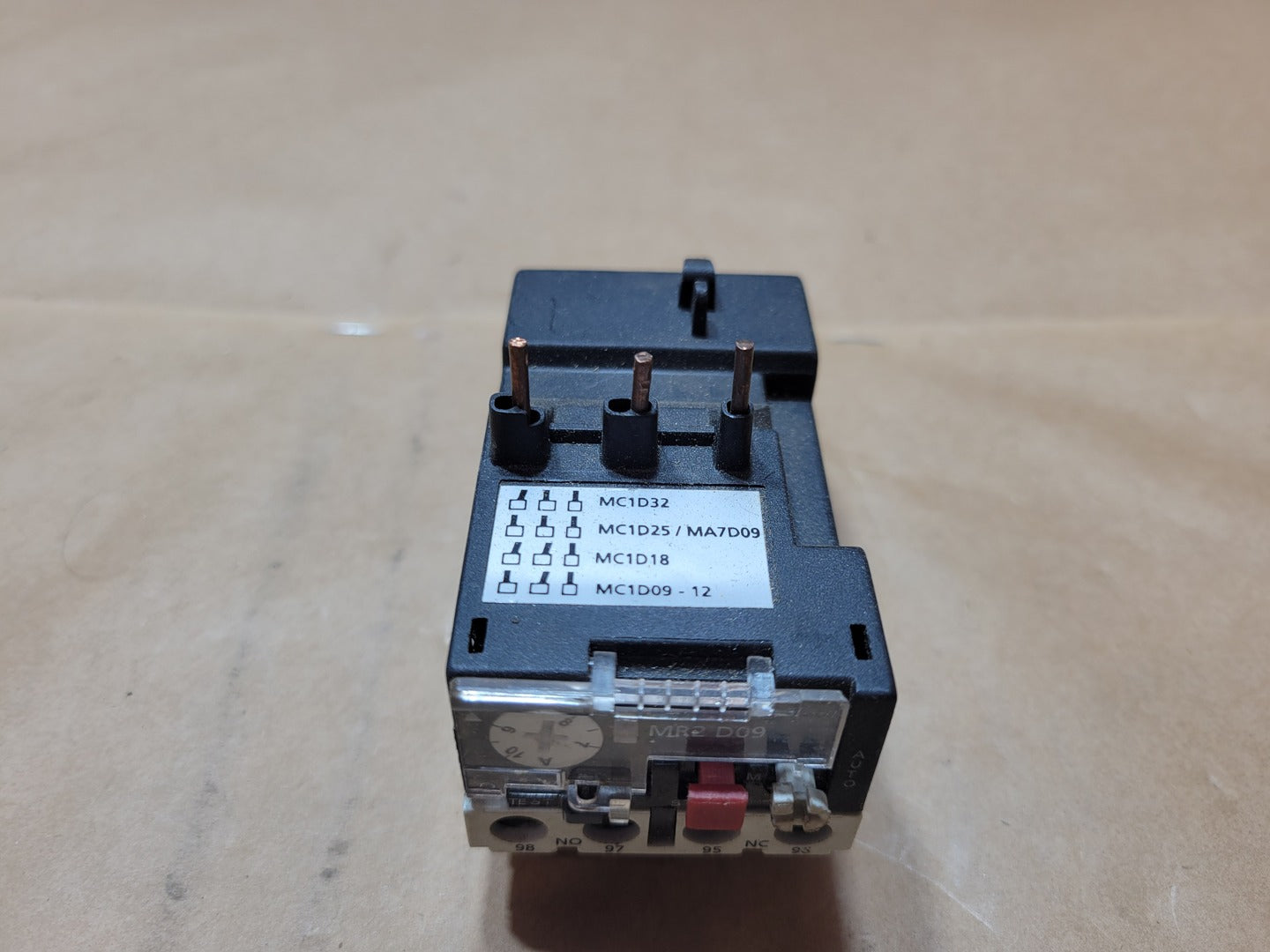

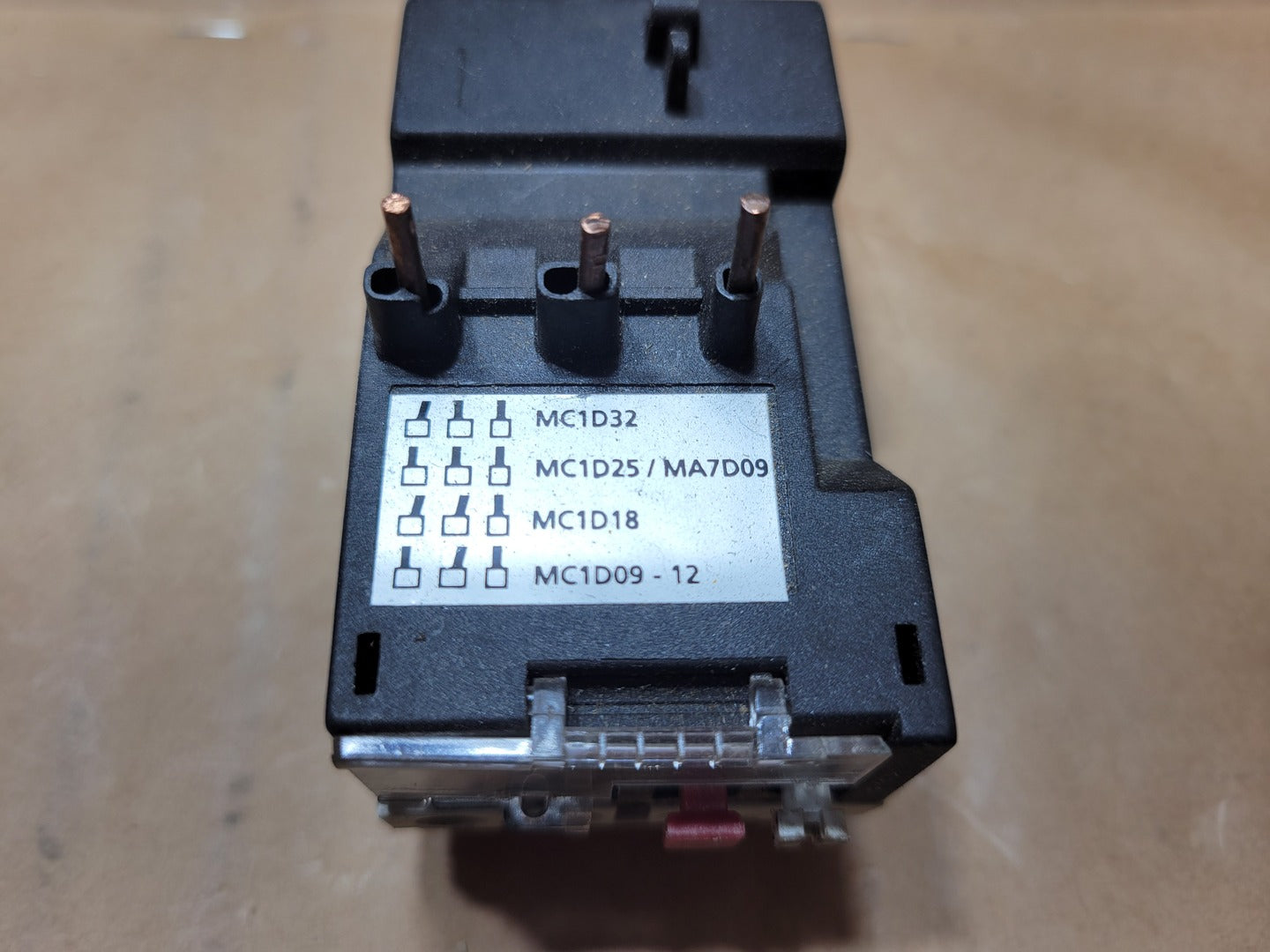

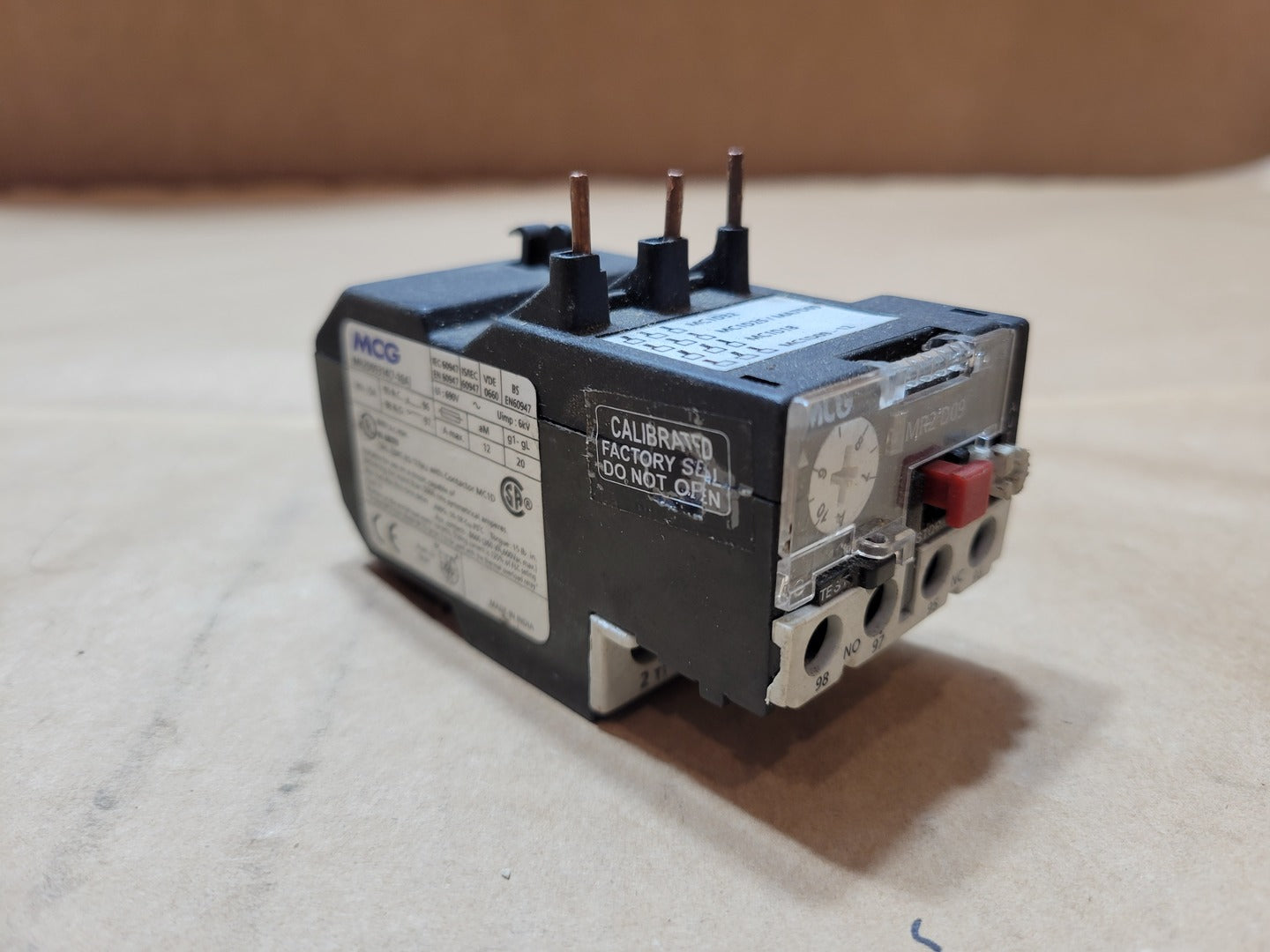

MCG MR2D09314 three-pole bimetallic thermal overload relay with a 7-10 A adjustable current range and Class 10 trip response. It is designed for use with compatible MCG MC1D-series contactors. The relay includes normally closed and normally open auxiliary contacts, a stop/reset control, test function and automatic/manual reset selection.
Specifications

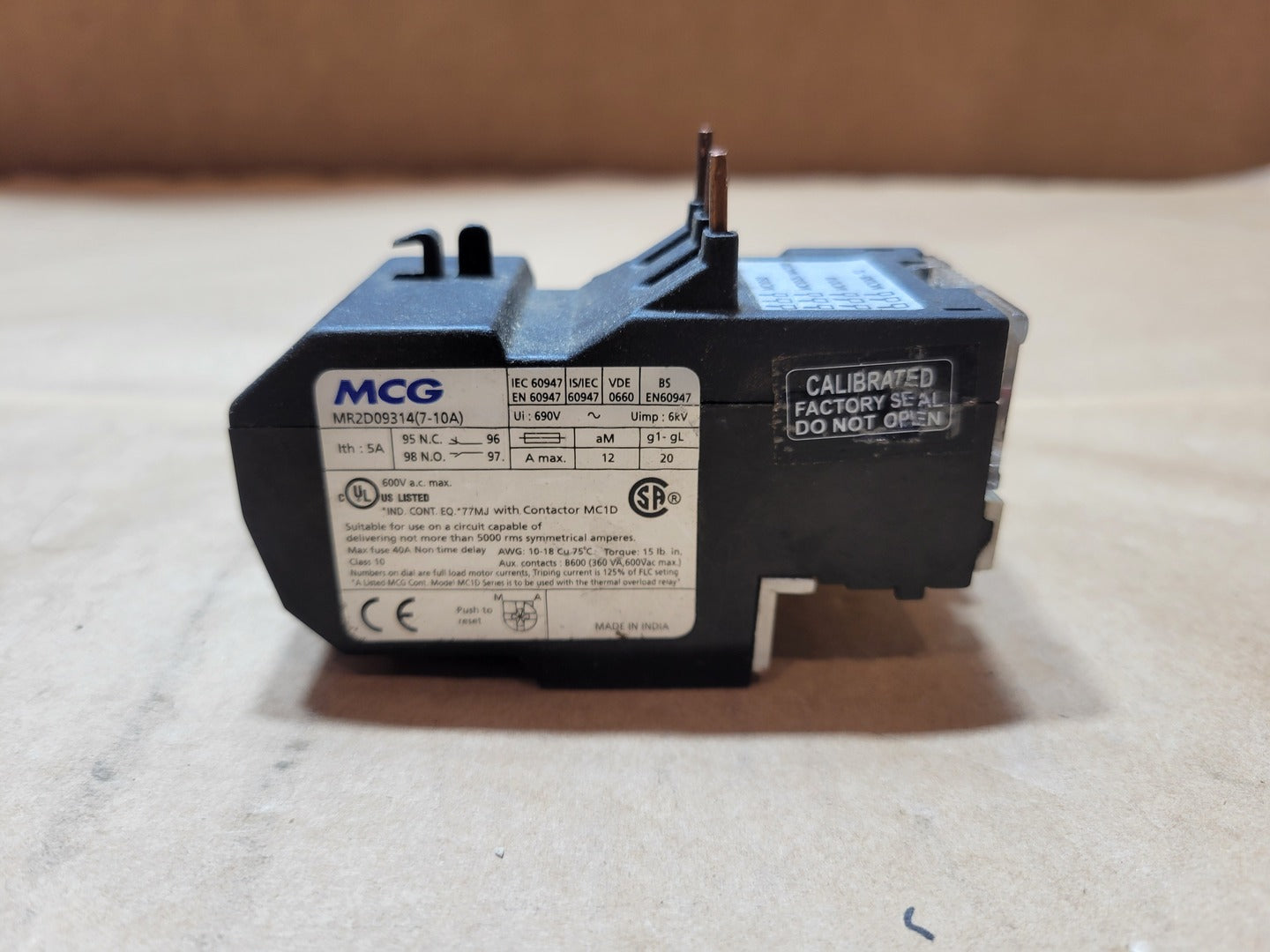

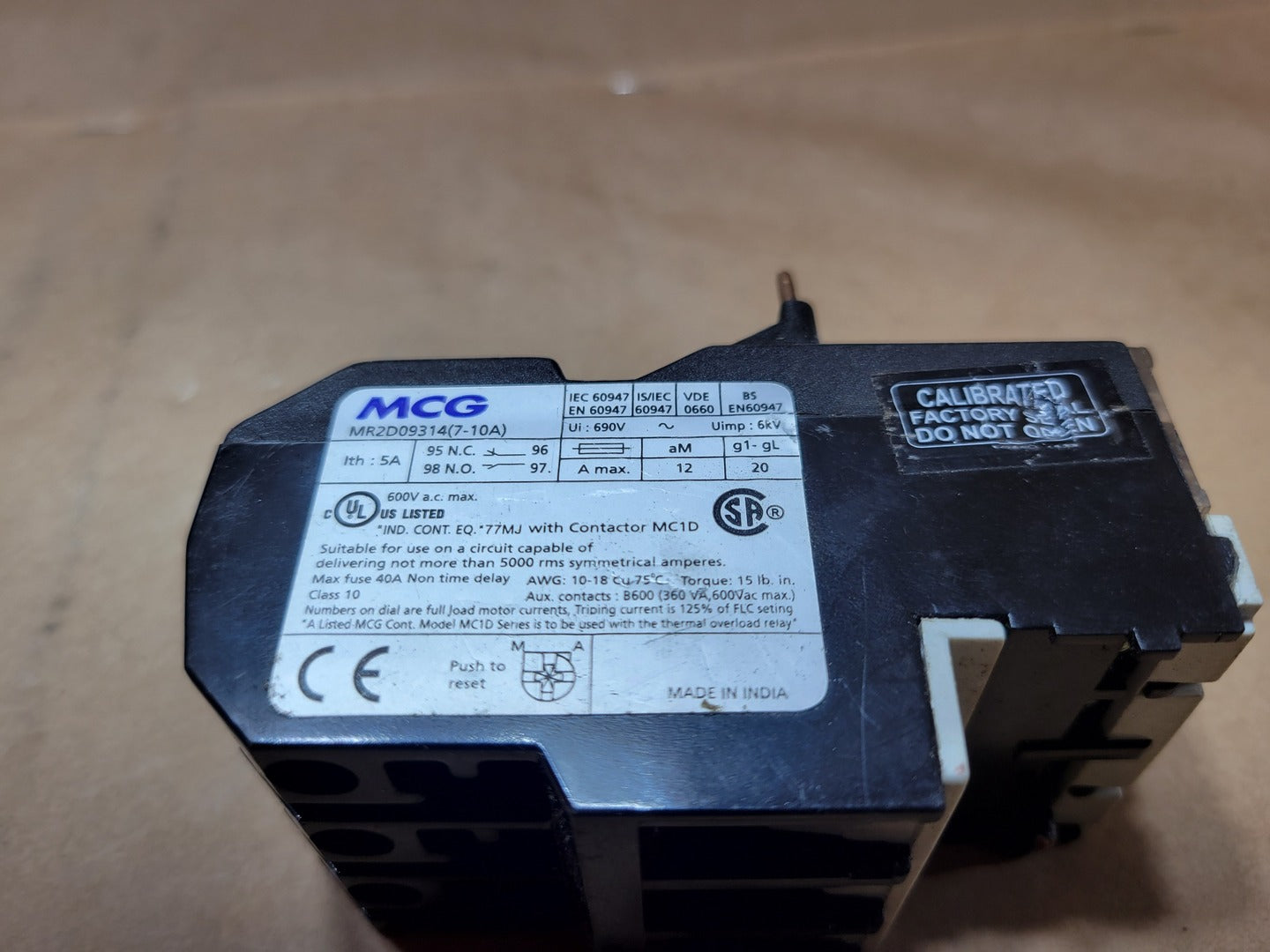

Model MR2D09314
Condition Used
General
Amps 7-10 amps
Voltage 600 volts
Relay Type Overload Relay
Other Specifications

Series: MR2D / MR2 D09

Catalog number: MR2D09314

Device type: Bimetallic thermal overload relay

Current adjustment range: 7-10 A

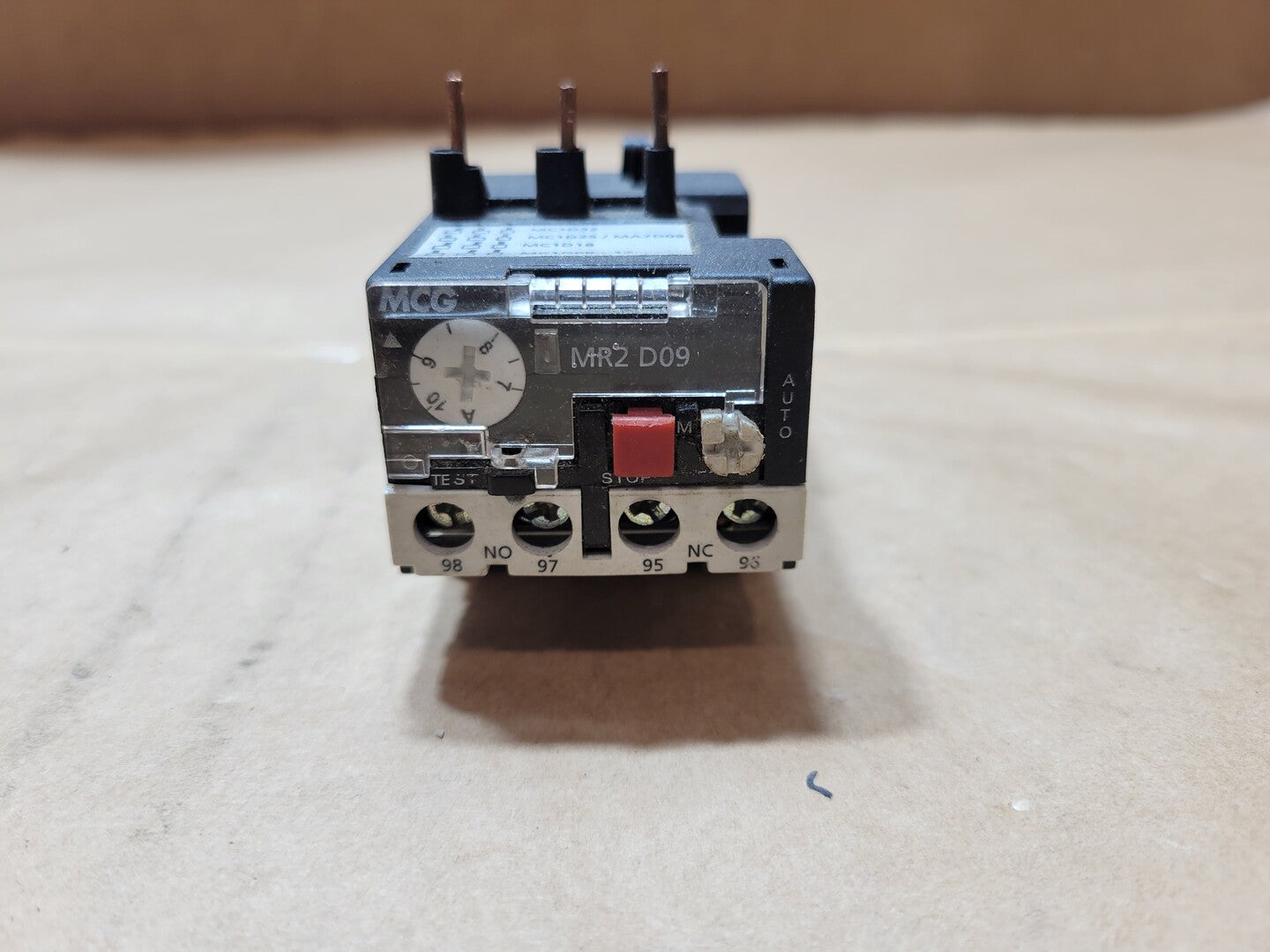

Visible dial markings: 7, 8, 9 and 10 A

Number of poles: Three

Trip class: Class 10

Tripping current: 125% of selected full-load current

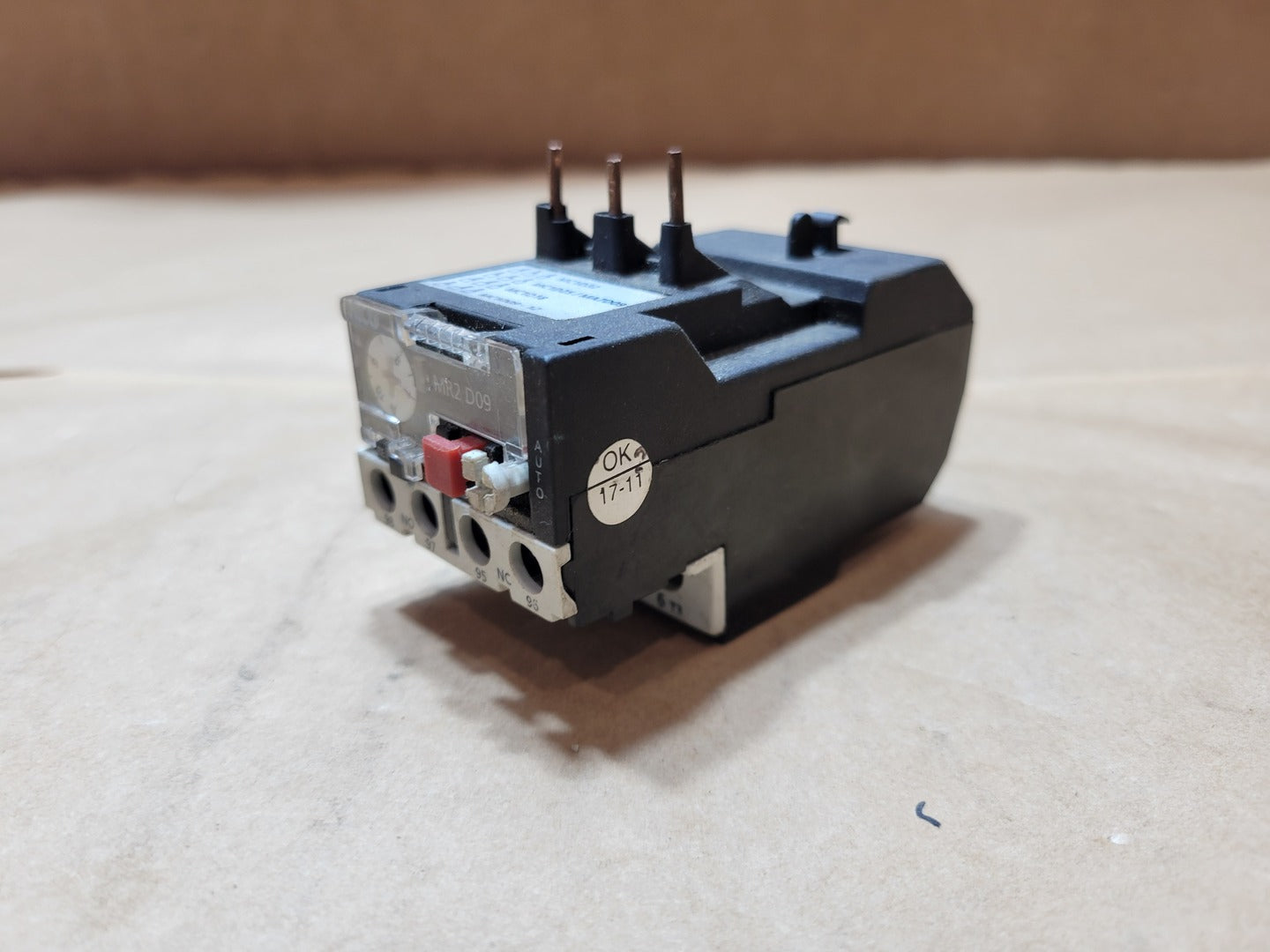

Reset modes: Automatic and manual selectable

Stop/reset control: Yes

Test function: Yes

Normally closed contact: Terminals 95-96

Normally open contact: Terminals 97-98

Auxiliary-contact thermal current: 5 A

Auxiliary-contact designation: B600

Auxiliary maximum voltage: 600 VAC

Rated insulation voltage: 690 V

Impulse withstand voltage: 6 kV

Maximum aM backup fuse: 12 A

Maximum gI/gL backup fuse: 20 A

Maximum non-time-delay fuse: 40 A
