Descripción
| Specifications | |
|---|---|

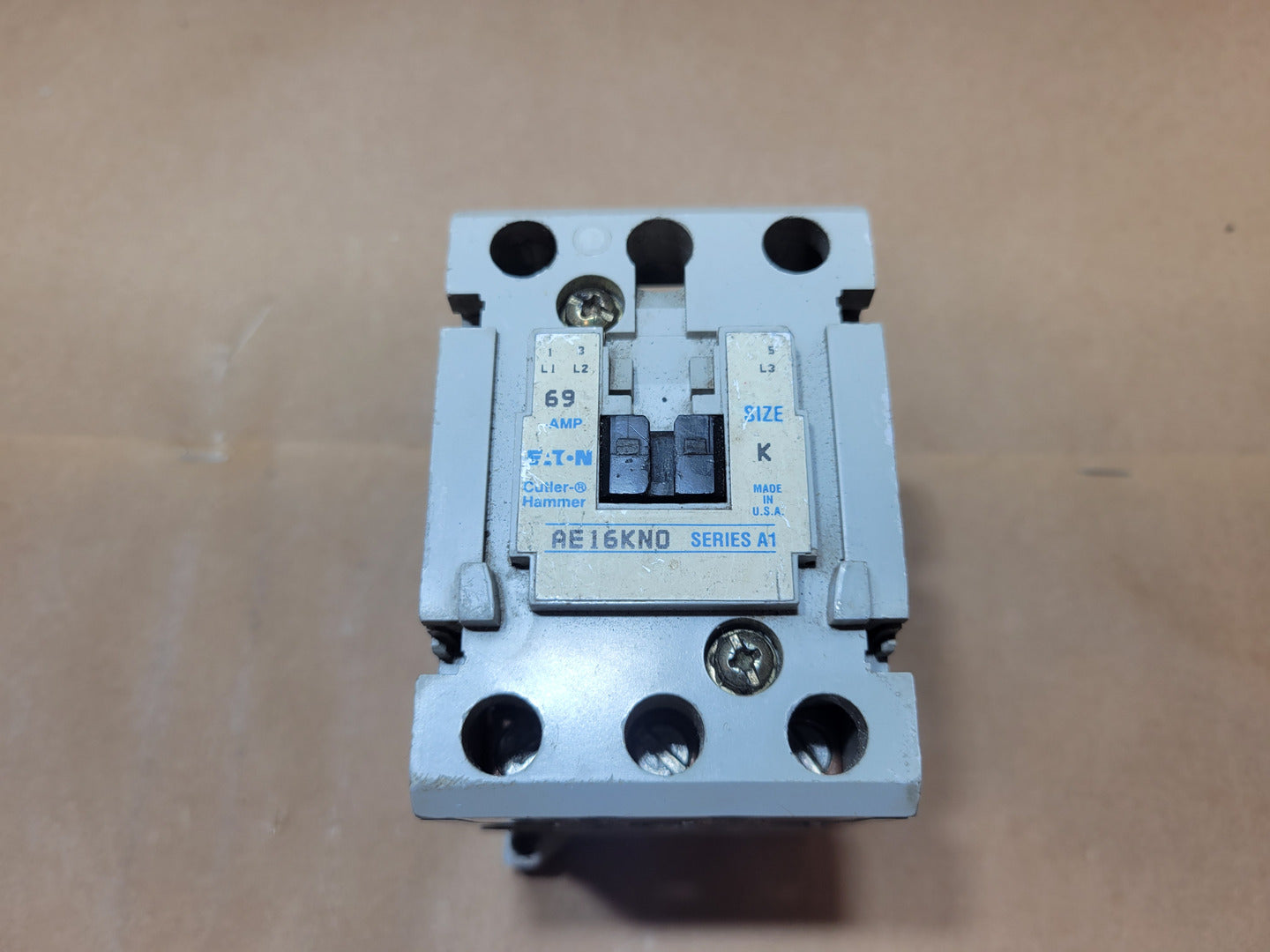

| Model | AE16KN0 |
| Made In | UNITED STATES |
| Condition | Surplus New | Electrical |
| Voltage | 600 volts |
| Amps | 69 amps |
| Other Specifications |
|---|
|

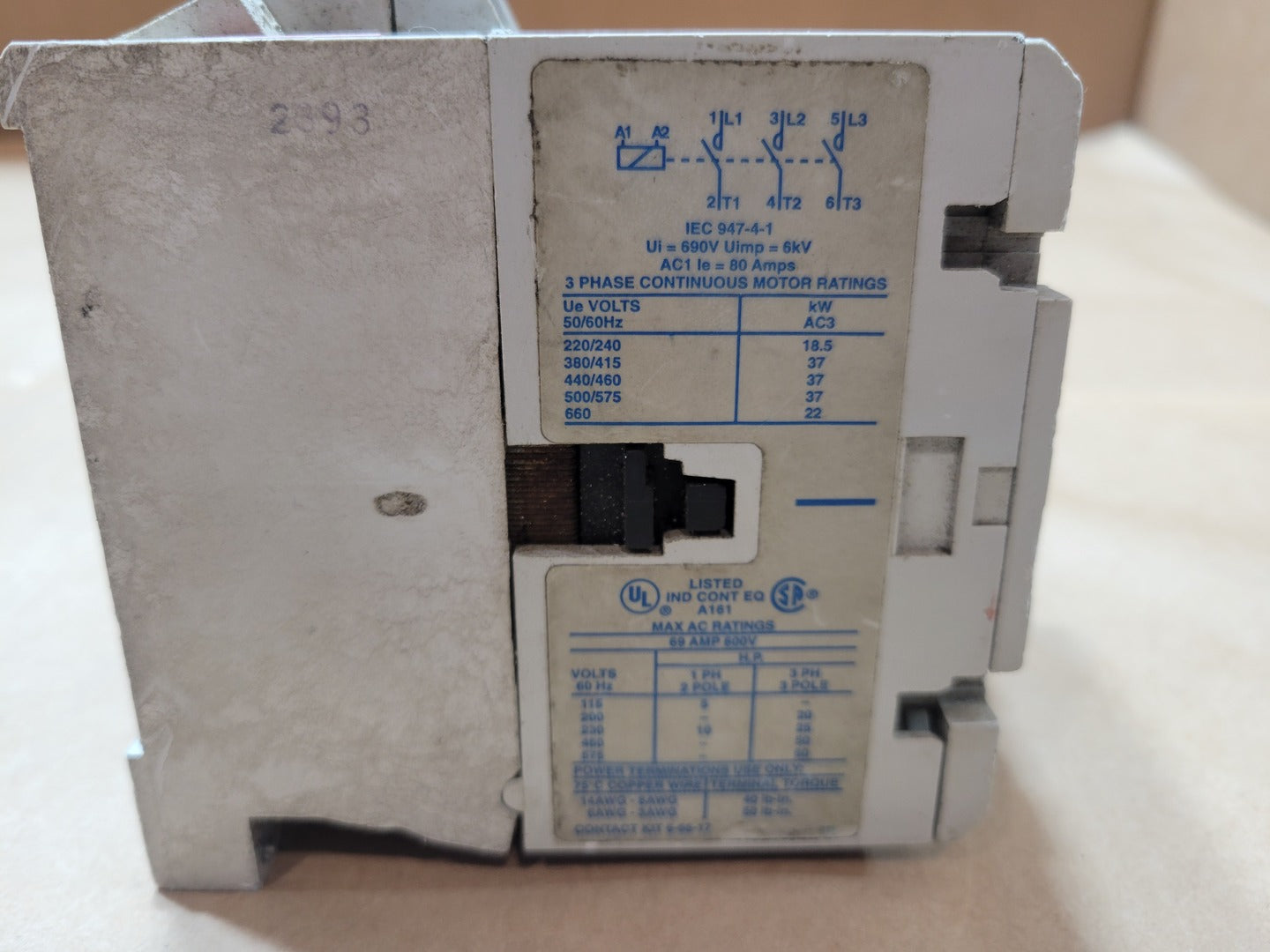

Series: A1 Size: K Type: Magnetic motor contactor Number of Poles: 3 Main Terminals: 1/L1, 3/L2, 5/L3 input; 2/T1, 4/T2, 6/T3 output Maximum AC Rating: 69 A at 600 V IEC Standard: IEC 947-4-1 Rated Insulation Voltage (Ui): 690 V Rated Impulse Withstand Voltage (Uimp): 6 kV IEC AC-1 Rated Operational Current (Ie): 80 A Frequency: 50/60 Hz AC-3 Motor Rating at 220/240 V: 18.5 kW AC-3 Motor Rating at 380/415 V: 37 kW AC-3 Motor Rating at 440/460 V: 37 kW AC-3 Motor Rating at 500/575 V: 37 kW AC-3 Motor Rating at 660 V: 22 kW UL Listing: Industrial control equipment, UL marking visible Phase: Suitable for 3-phase motor control Coil Terminals: A1 / A2 |
