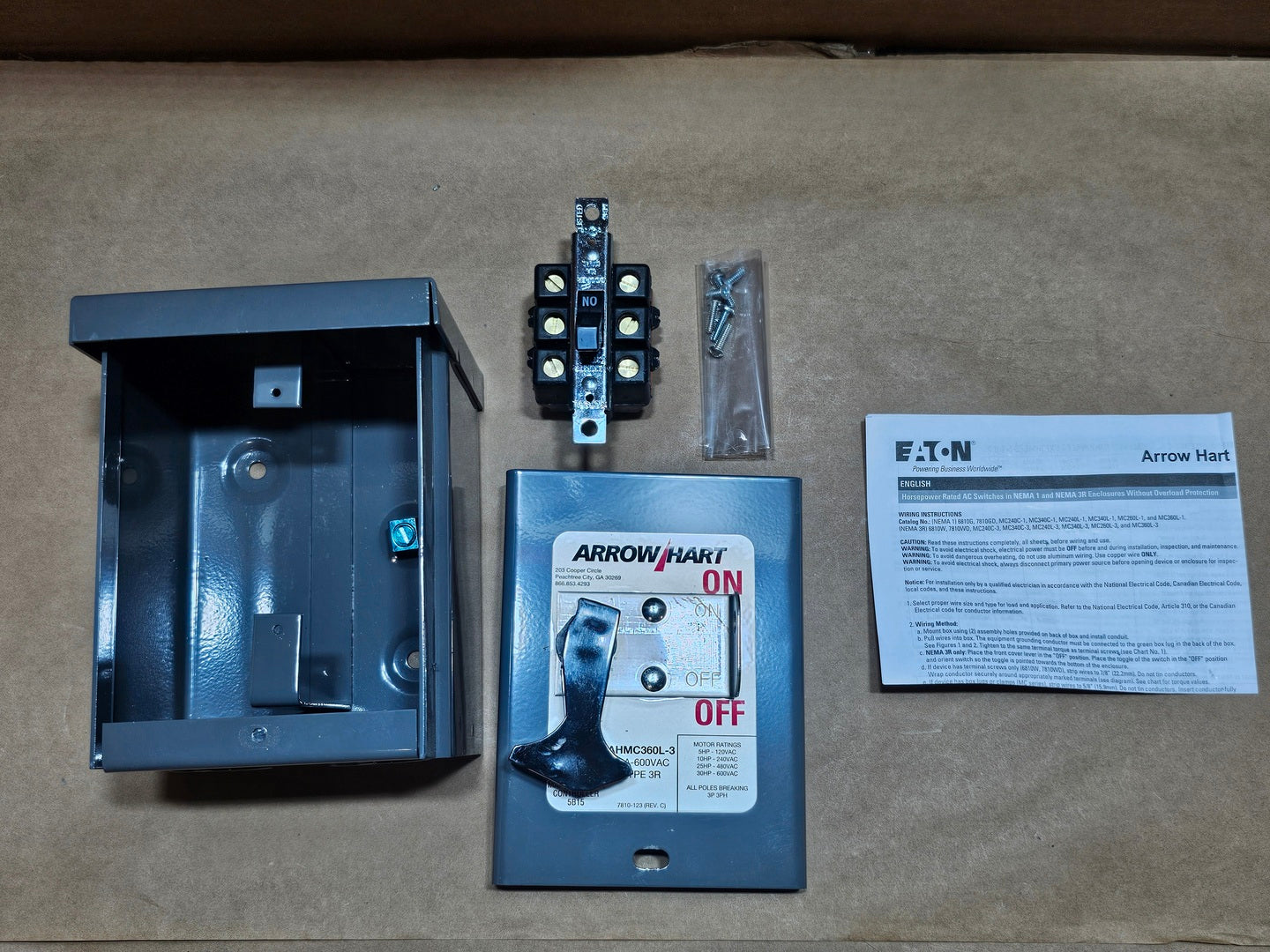

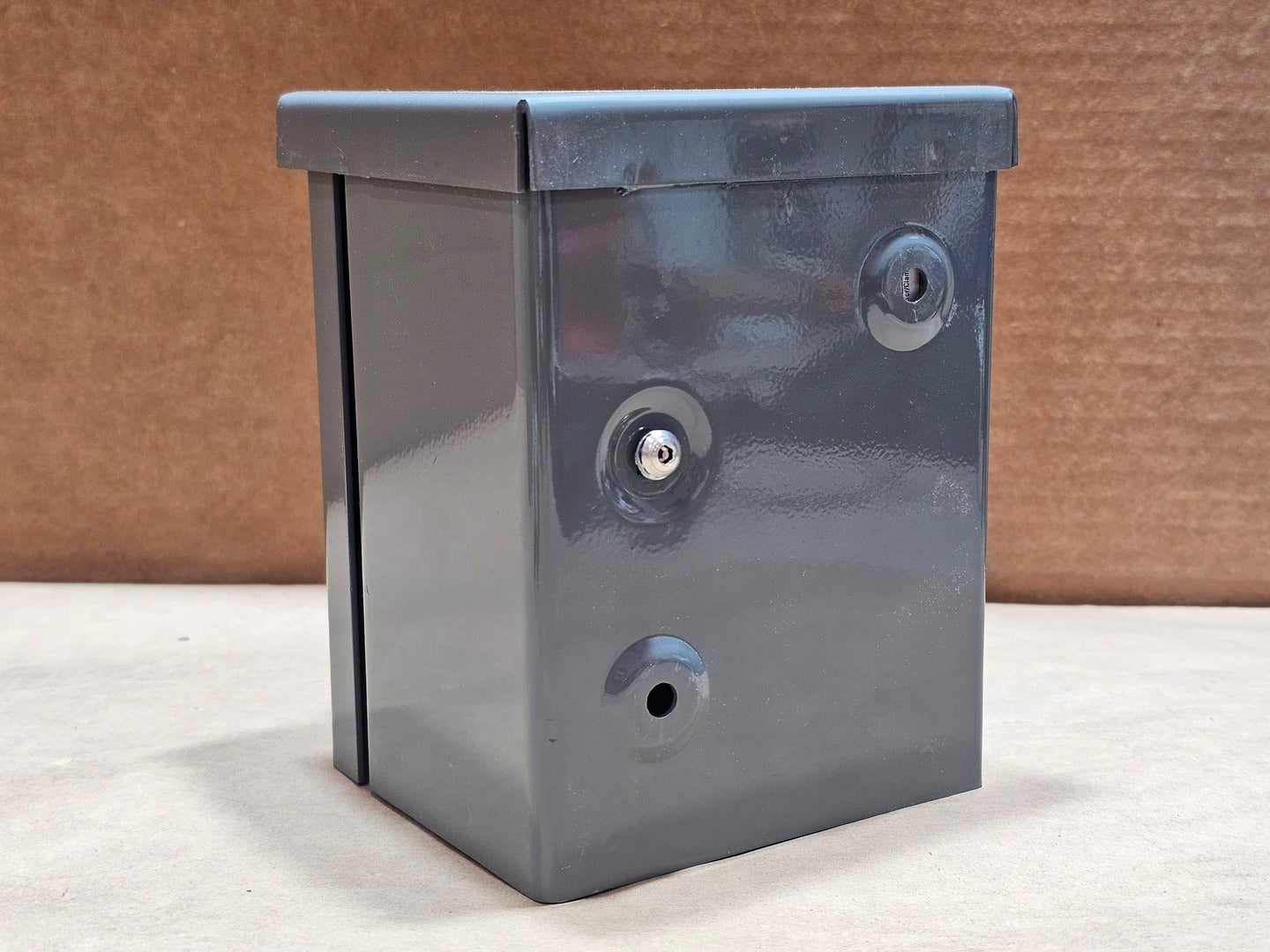

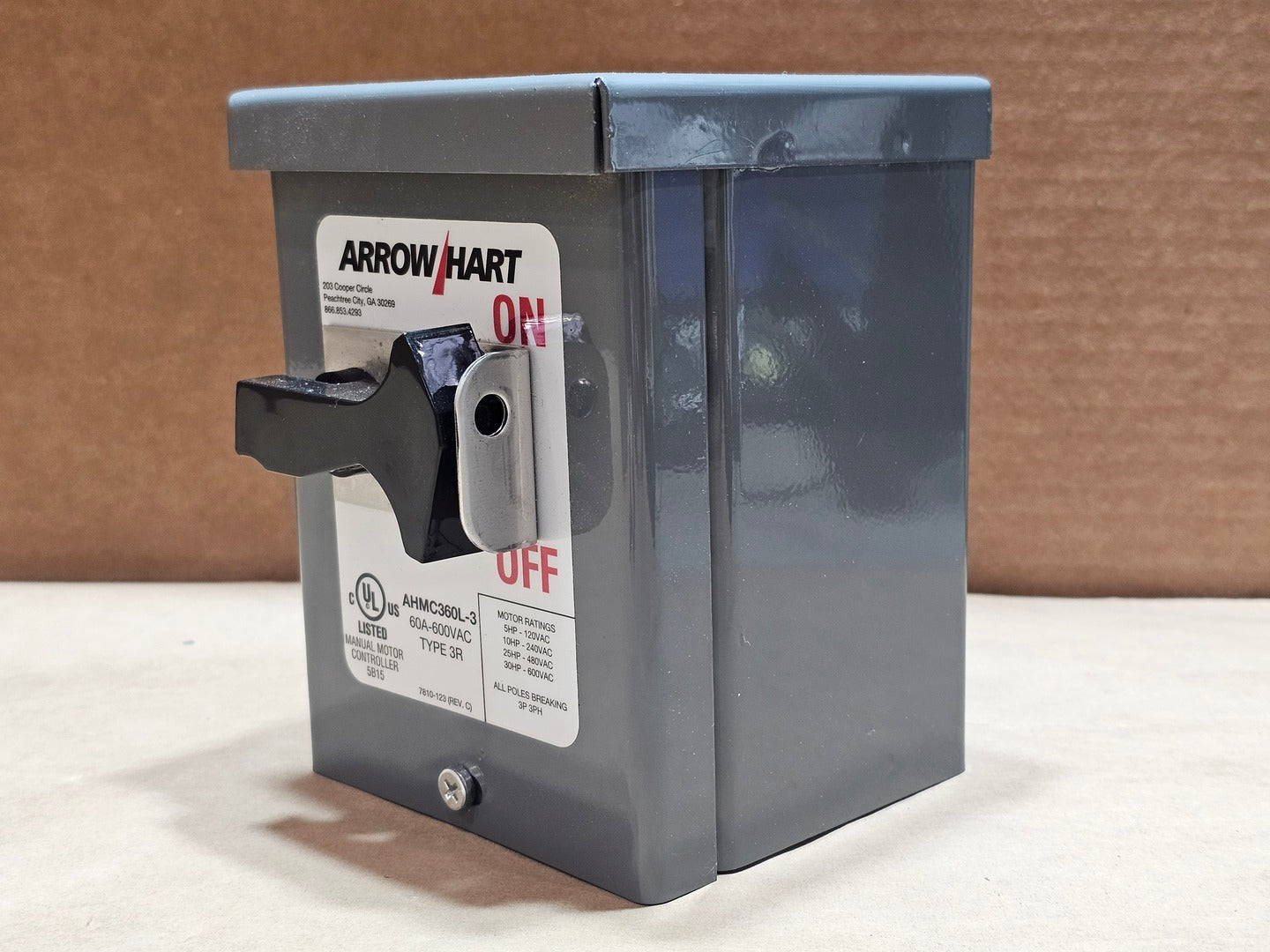

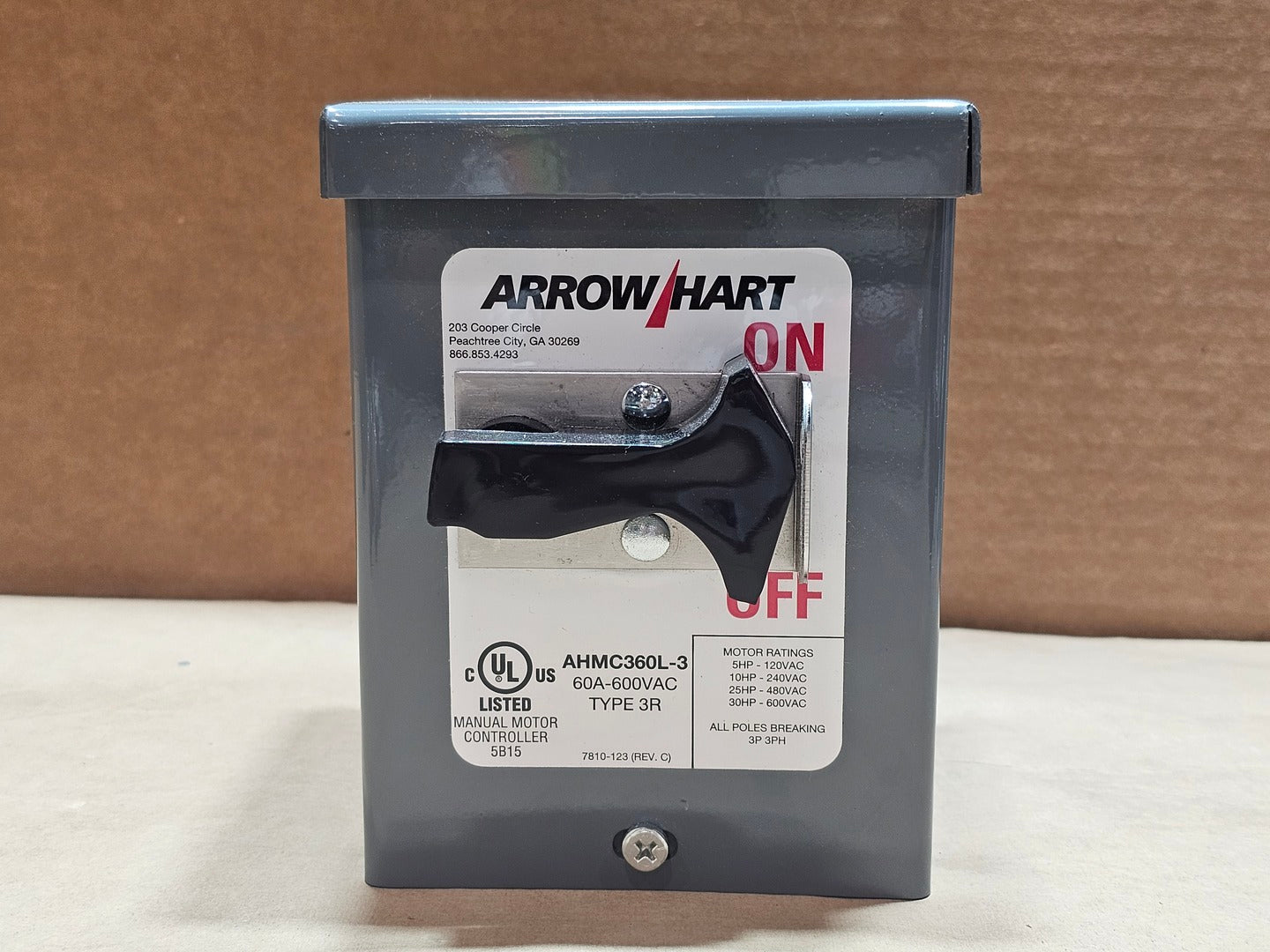

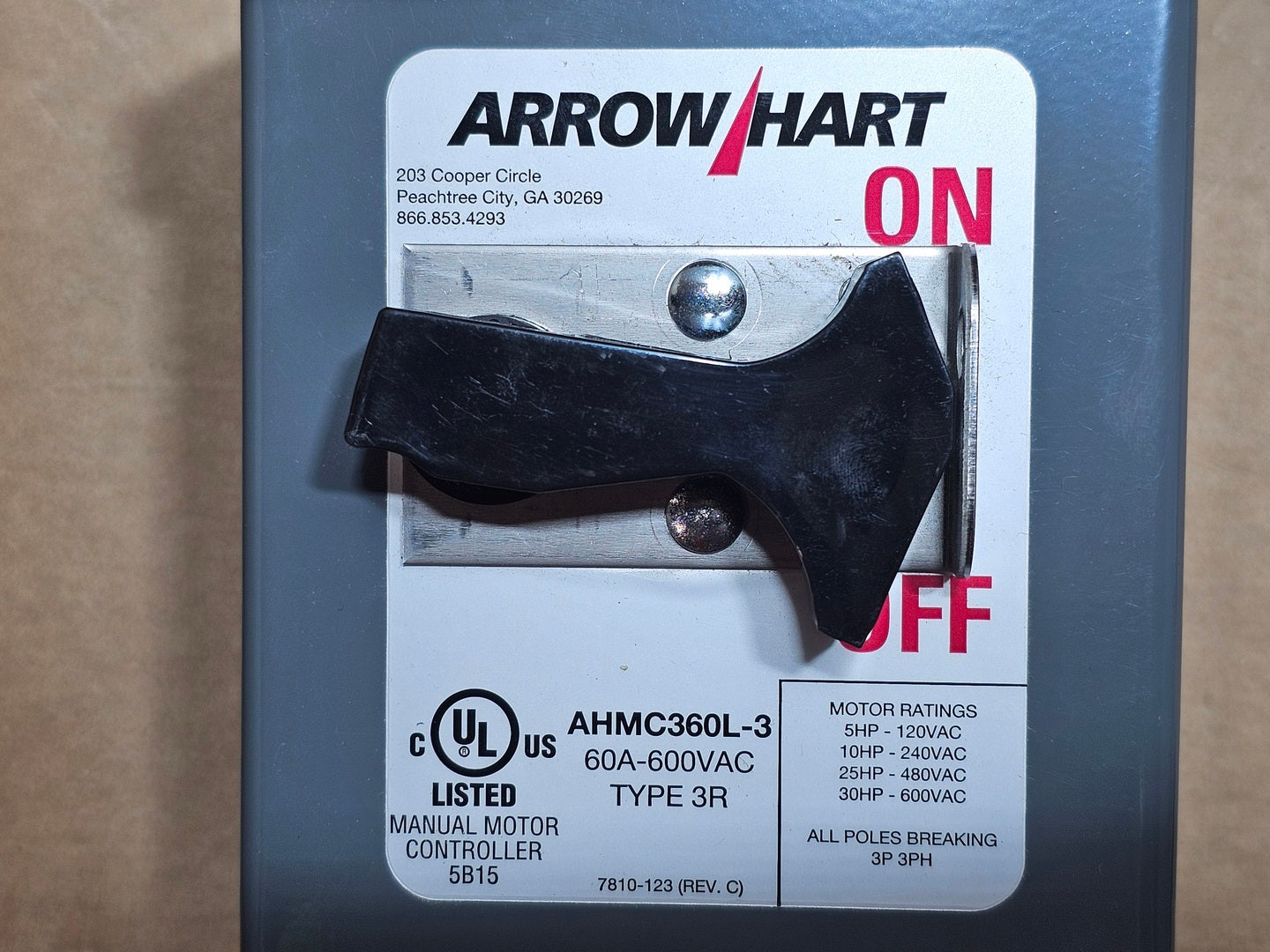

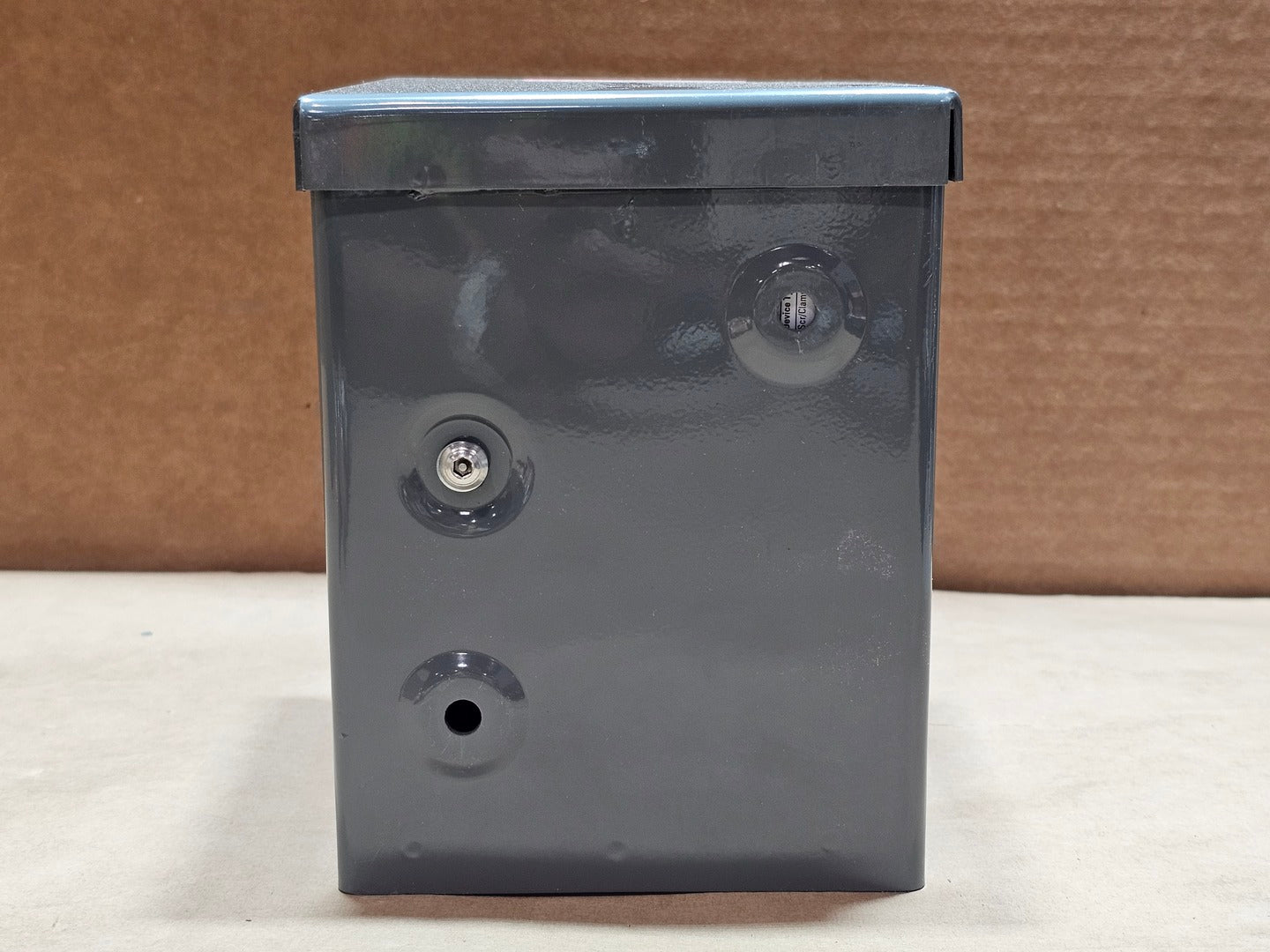

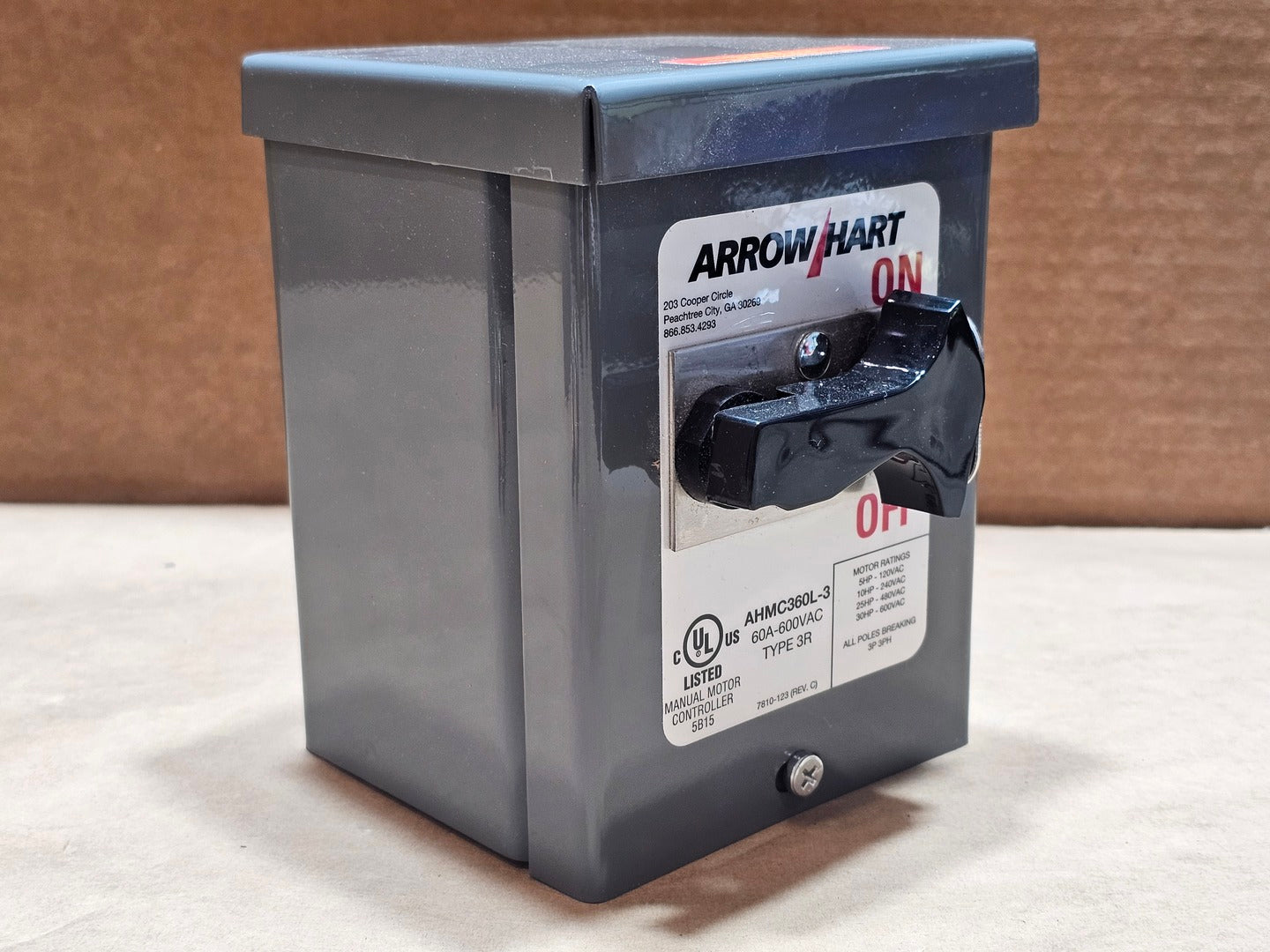

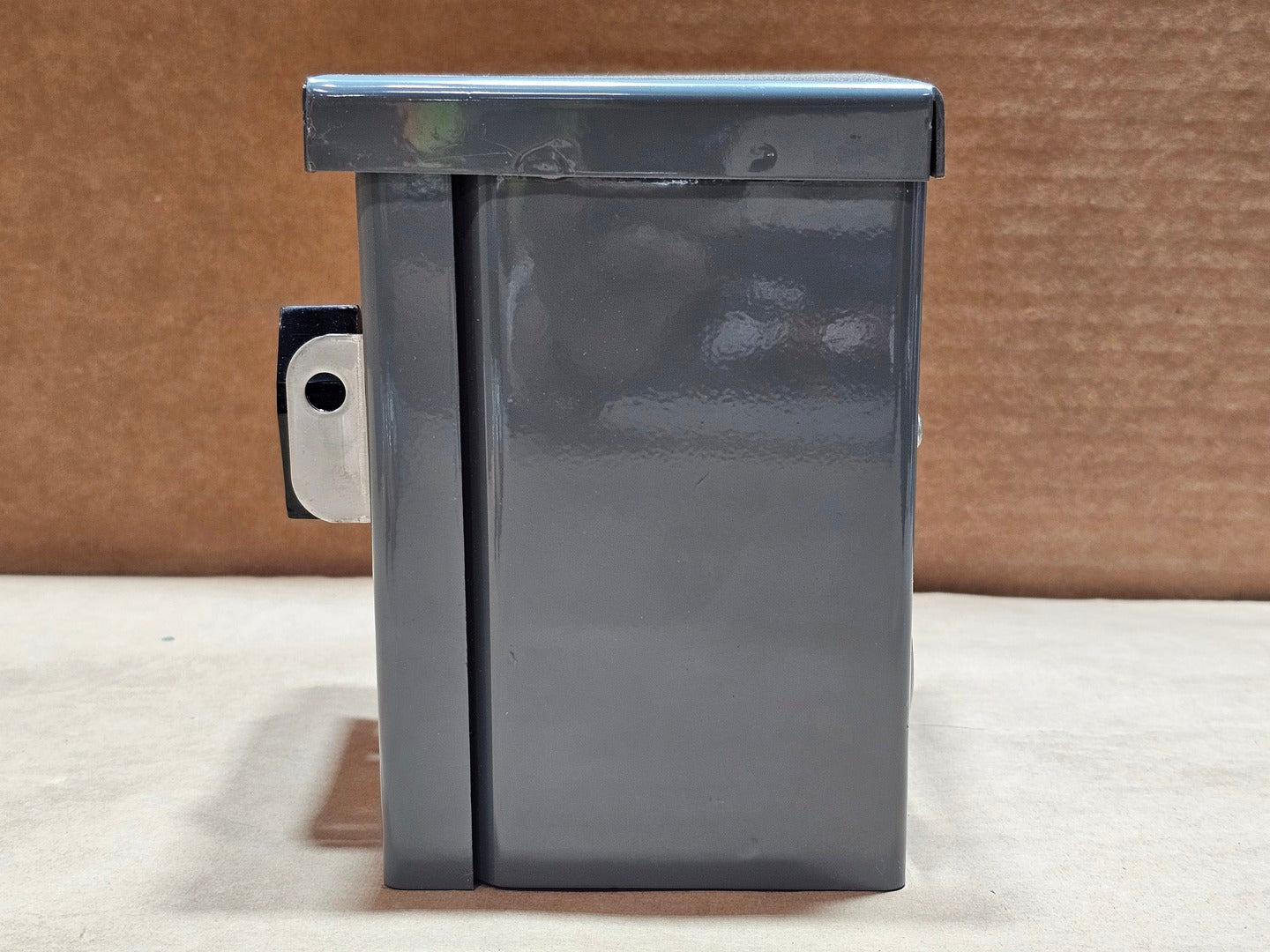

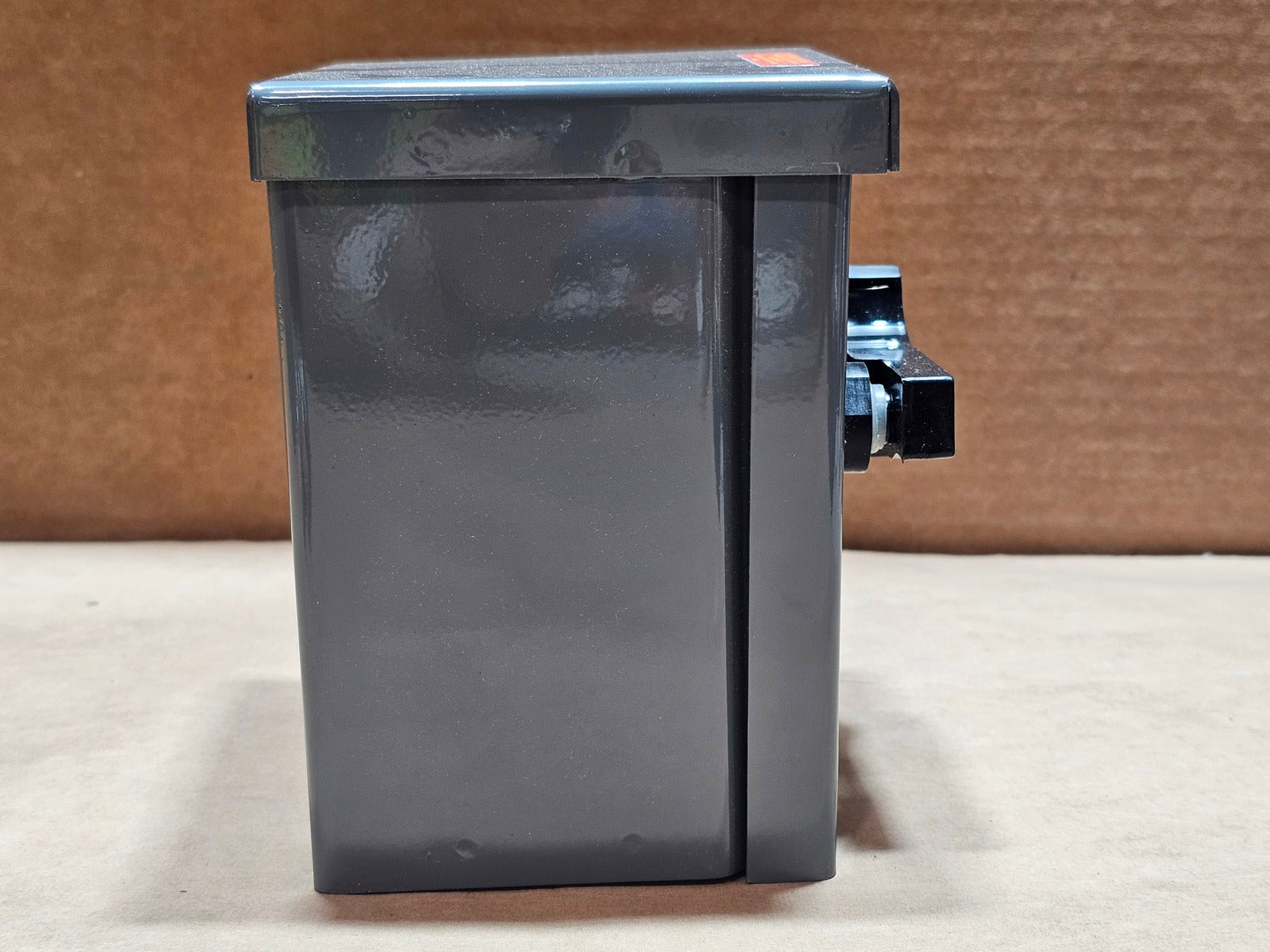

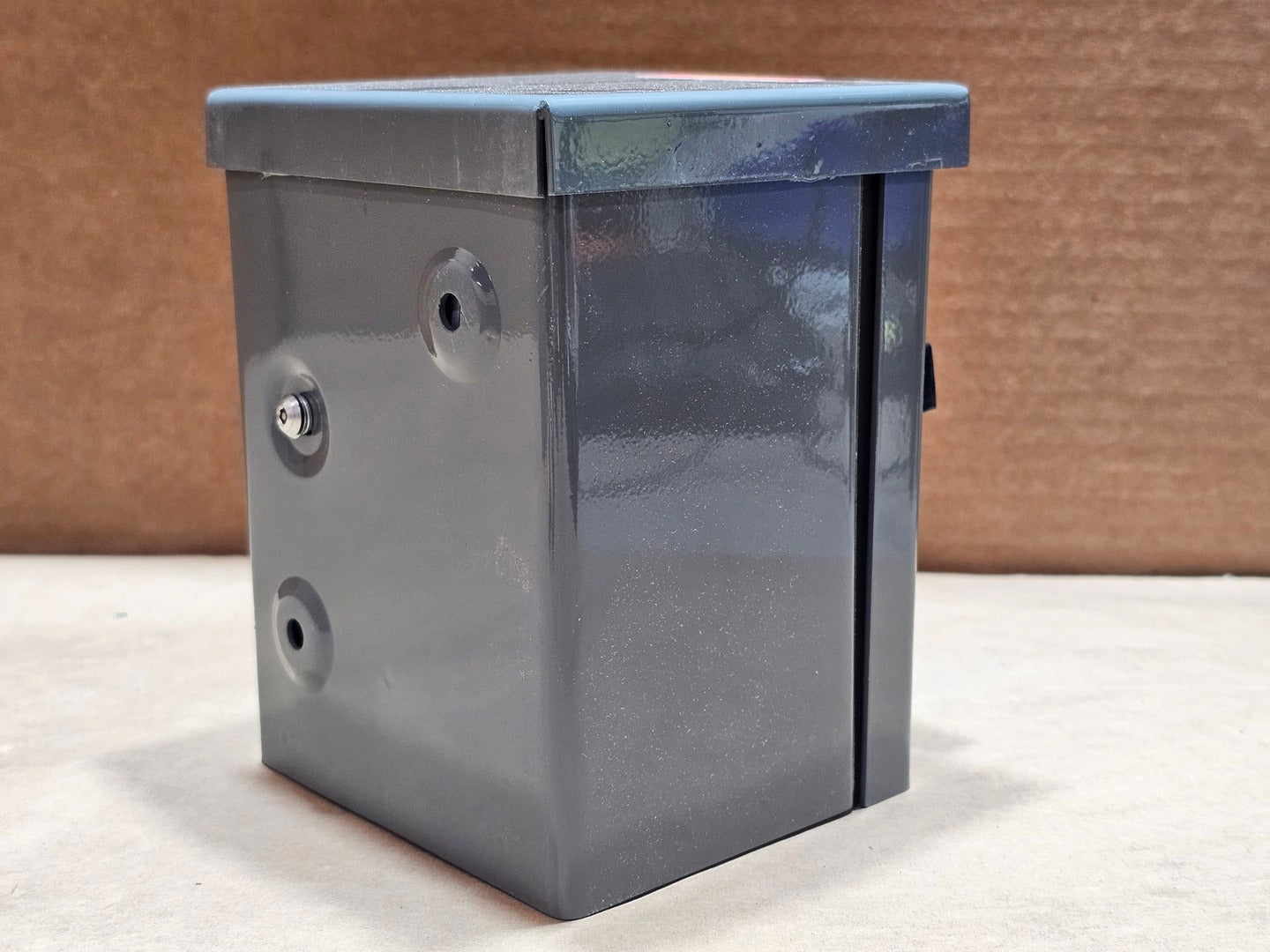

Eaton / Arrow Hart AHMC360L-3 enclosed manual motor controller, rated 60 A at 600 VAC, with a 3-pole, 3-phase configuration and weather-resistant NEMA Type 3R enclosure. The controller uses a maintained ON/OFF manual toggle and provides simultaneous breaking of all three poles. The nameplate lists motor ratings of 5 HP at 120 VAC, 10 HP at 240 VAC, 25 HP at 480 VAC, and 30 HP at 600 VAC. The unit is cULus Listed as a manual motor controller.
| Specifications | |
|---|---|
| Model | AHMC360L-3 |
| Condition | Surplus New |
| Other Specifications |
|---|
|
Configuration: Enclosed Current Rating: 60 A Maximum Voltage Rating: 600 VAC Number of Poles: 3 Phase: 3-Phase Switch Operation: Manual ON/OFF, maintained contact Switch Type: Single-throw Enclosure Rating: NEMA Type 3R Motor Rating
Pole Operation: All poles breaking Maximum Conductor Size: #4 AWG Connection: Side-wired box lug Enclosure Material: Copperless aluminum Color: Gray |
