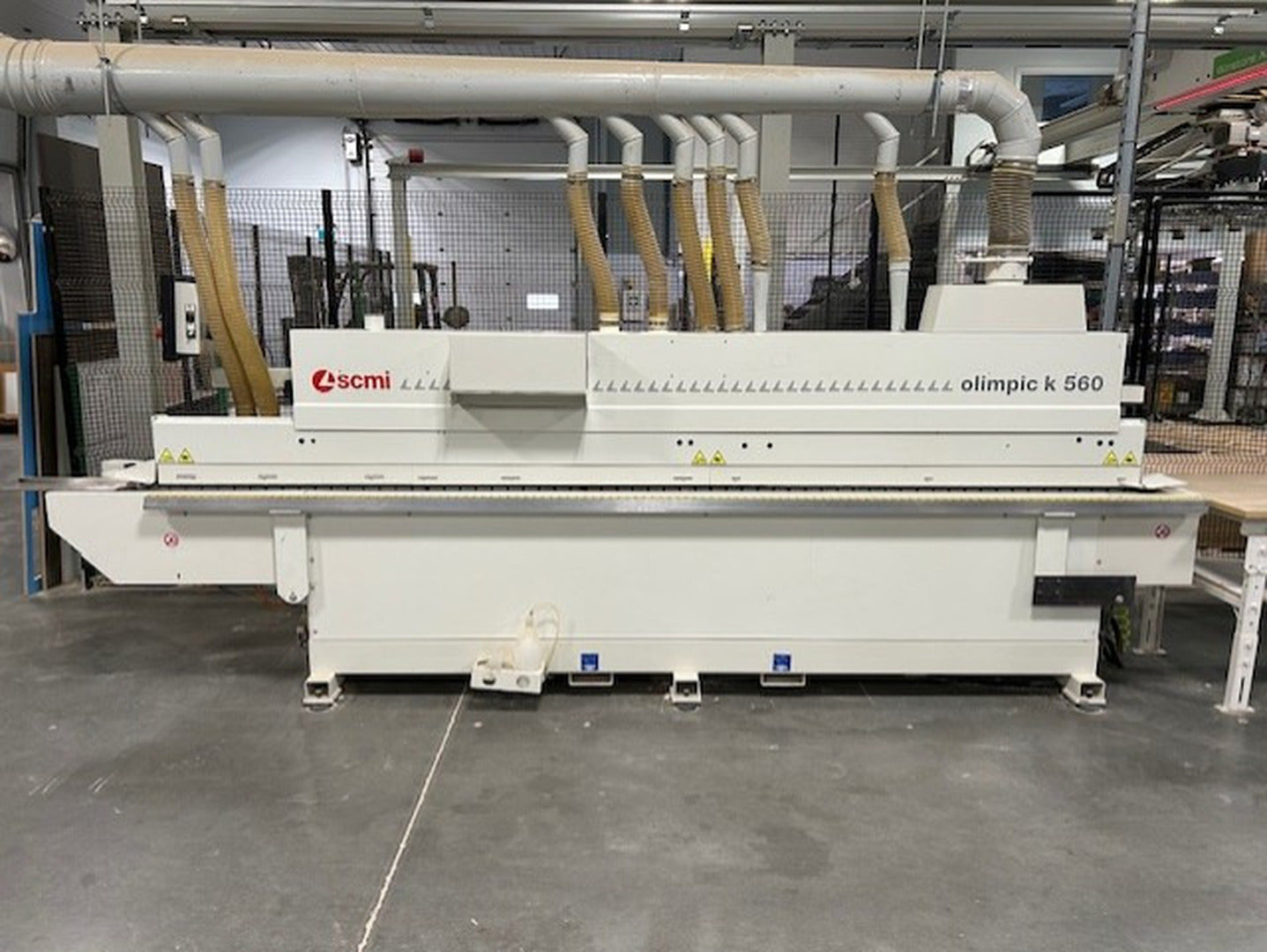

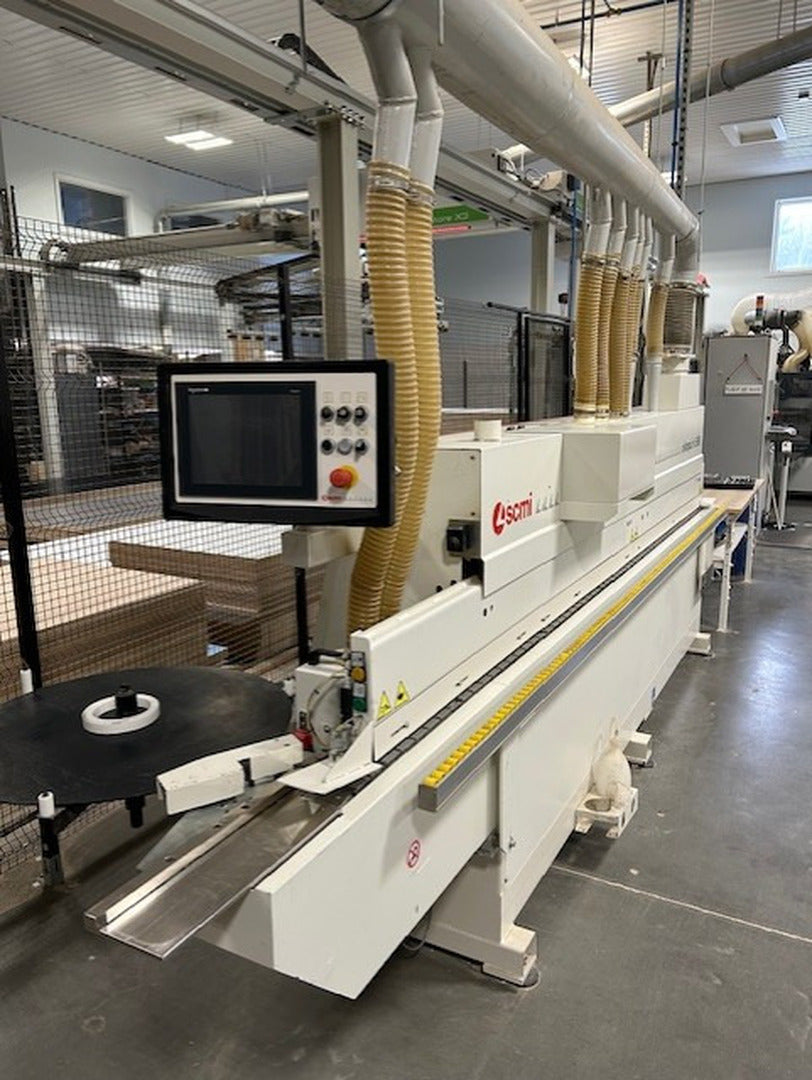

SCM Automatic Single-sided Edgebander OLIMPIC K 560 HP T-ER2
SCM

Automatic Single-sided Edgebander OLIMPIC K 560 HP T-ER2

SKU: 154390
Precio:
$35,500 CAD

Gastos de envío calculados en la caja

Stock:
Solo queda 1 unidad
Make an Offer

¿Necesita una respuesta ahora?

604-449-1880
Finance
Amount:
For more information, please contact finance@lenmark.com or reach out to your sales rep.
Email Finance

Descripción

Specifications
Model OLIMPIC K 560
Year: 2017

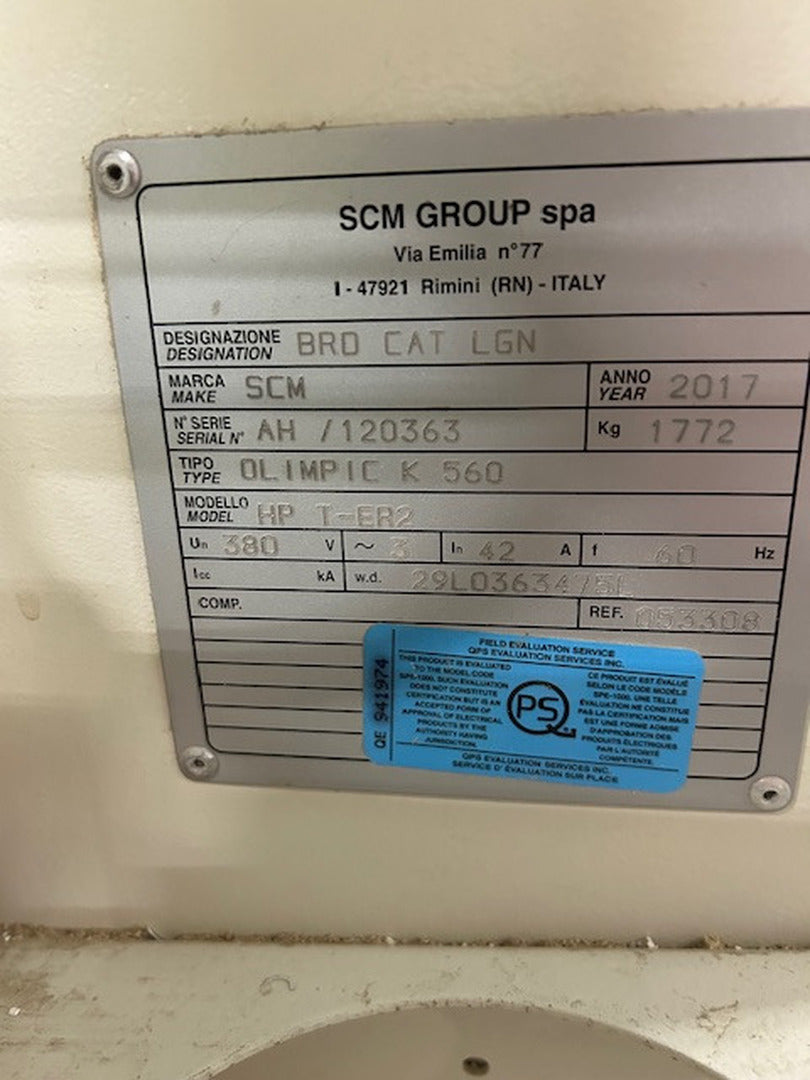

S/N: AH/120363
Condition Used
General
Control System Startouch
CNC Yes
Electrical
Voltage 380 volts
Phase 3-phase
Other Specifications

Aggregates

  1. Gluing unit
  2. Pre-milling unit RT-V
  3. End cutting unit K/SEL
  4. Trimming unit: possibility to trim 2 different radius edges, thin edges and solid wood edges in 2 versions:
  5. Automatic unit adjustment through 4 NC-controlled axes
  6. Pneumatic positioning
  7. Rounding unit ROUND X: simultaneous trimming and rounding operations , distance between panels of 600 mm
  8. Edge scrapping unit: possibility to trim 2 different radii with the NC automatic set up of 4 axes

Technical specifications

  1. Panel thickness: 8 - 60 mm
  2. Edge thickness: 0,4 - 8 (12) mm
  3. feed speed: 12 / 18 m/min
  4. compressed air: 6 bar

Statistics

Switch on time:

  1. Partial: 17,140 h
  2. Absolute: 22,996 h

Machined panels:

  1. Partial: 1,595,902 pcs
  2. Absolute: 1,595,902 pcs

Machined edging:

  1. Partial: 12,866.7 m
  2. Absolute: 156,250.7 m

Track:

  1. Partial: 17,923.3 km
  2. Absolute: 17,923.3 km
