Descripción

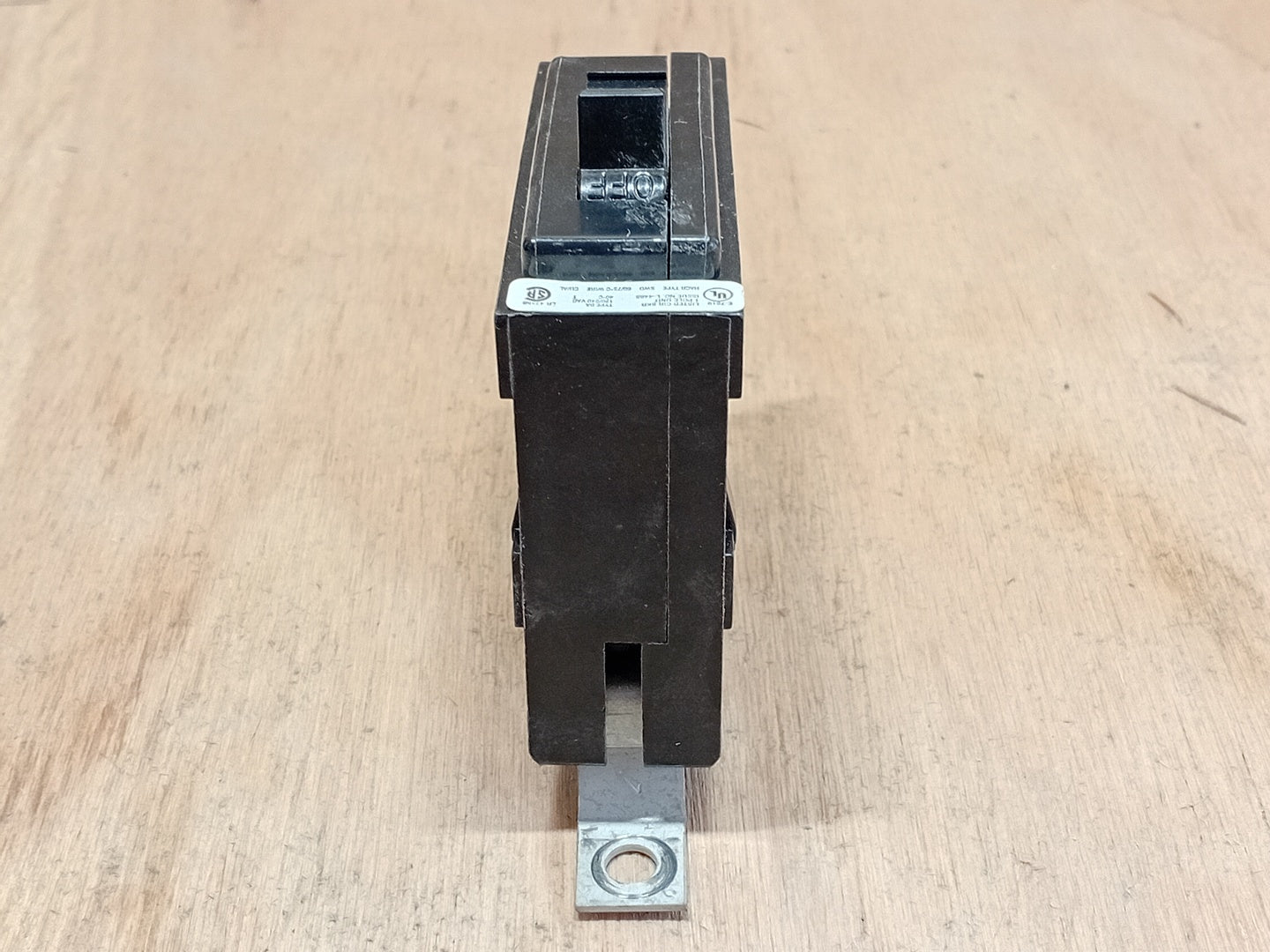

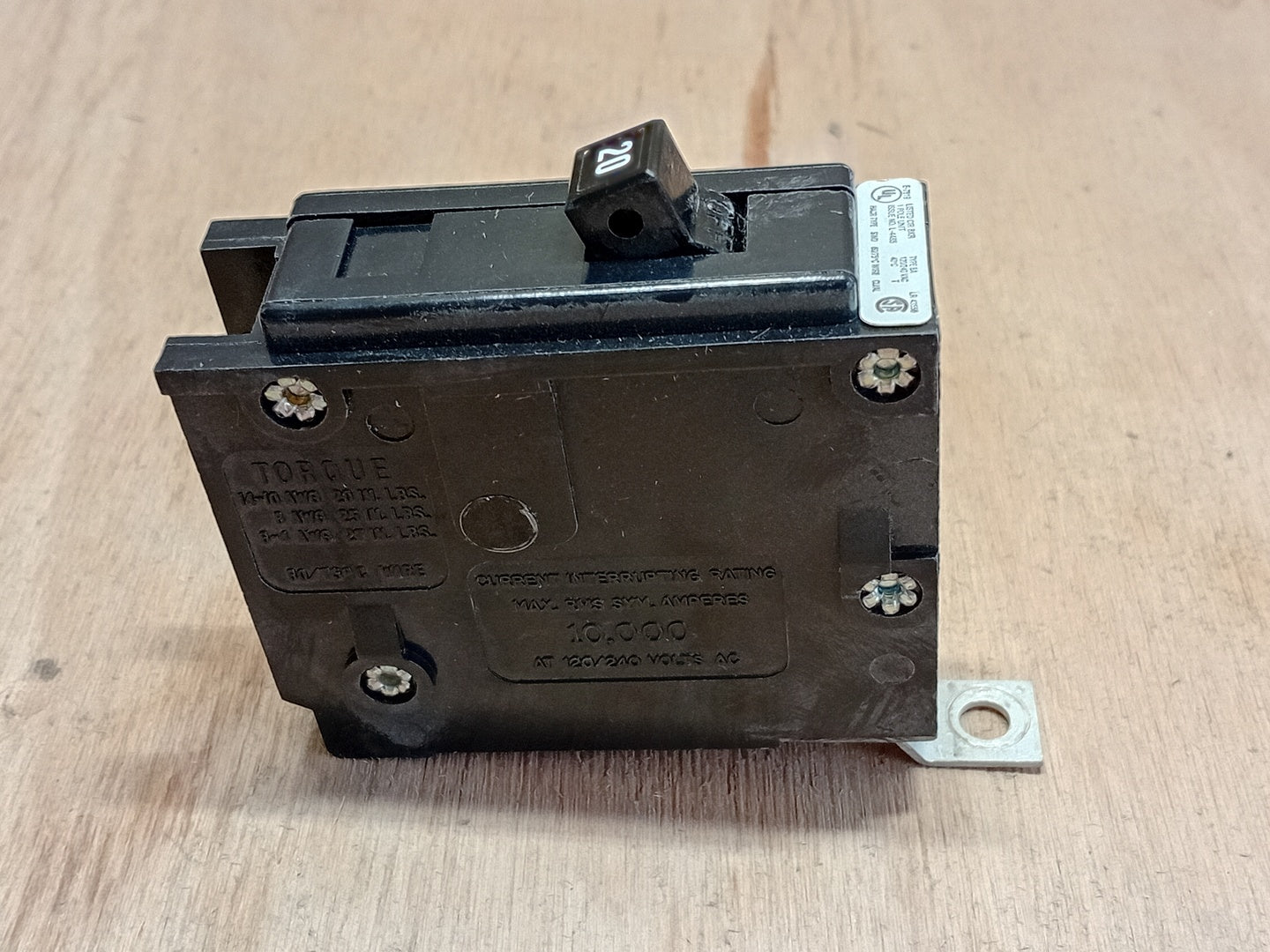

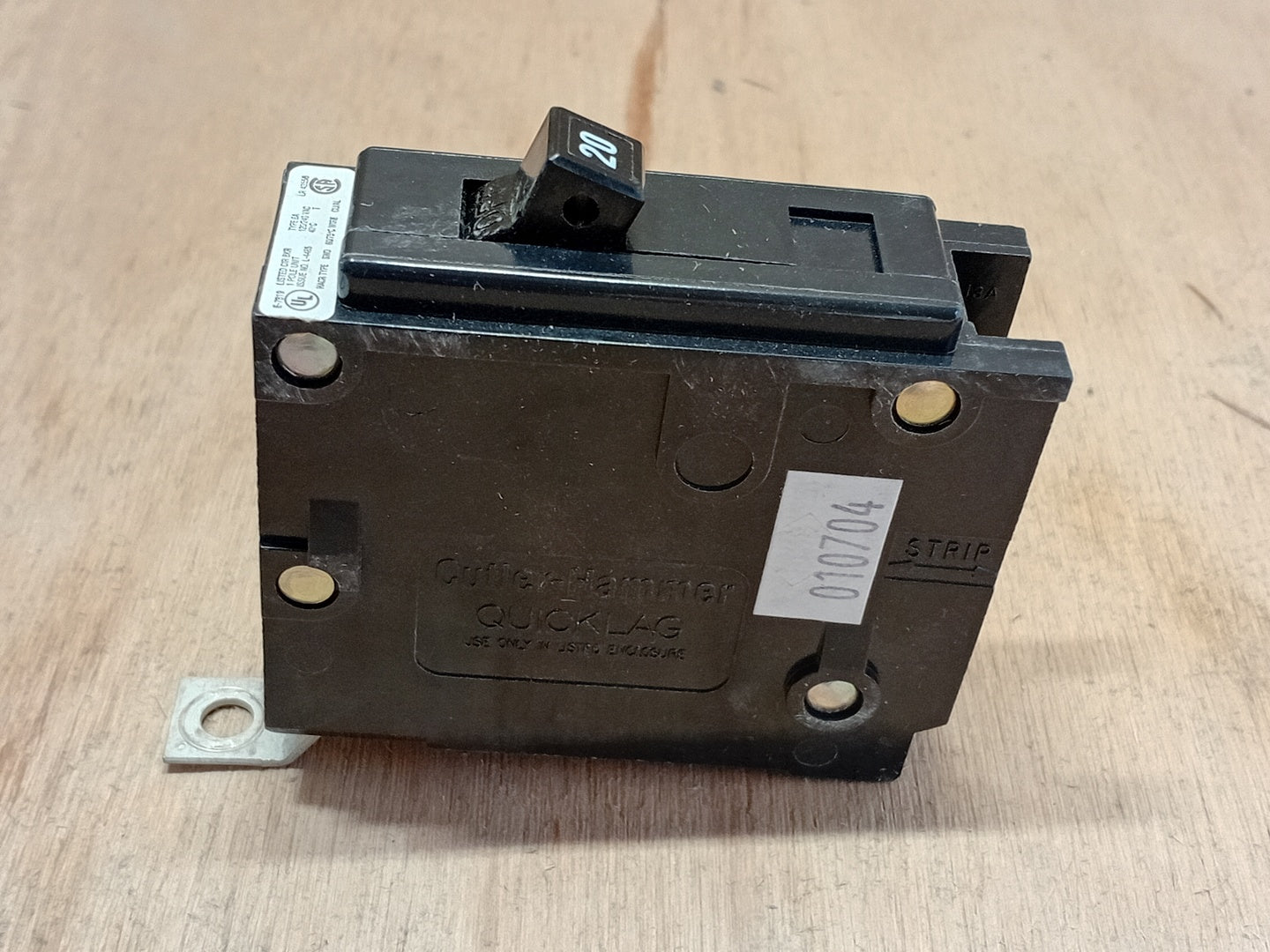

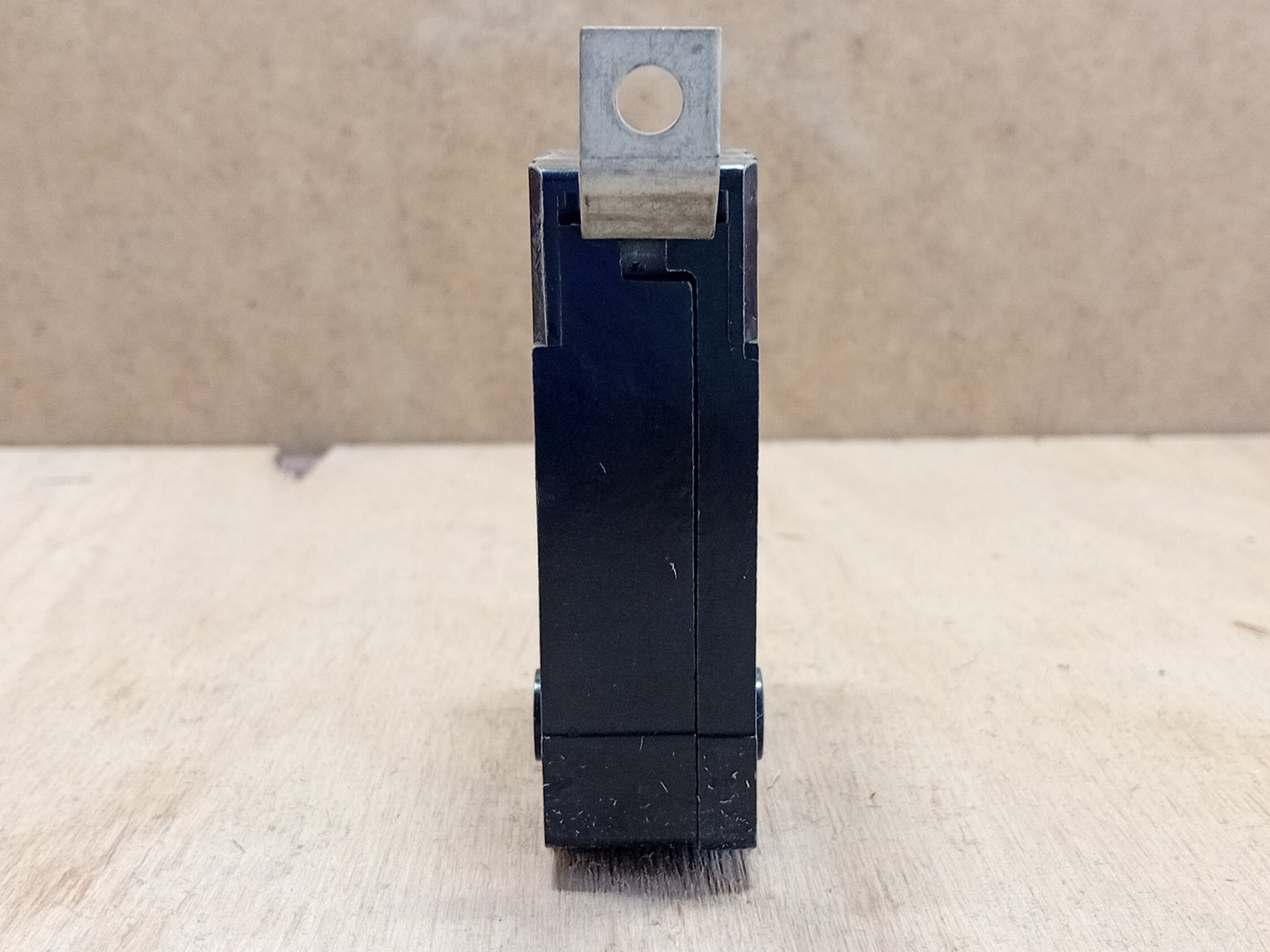

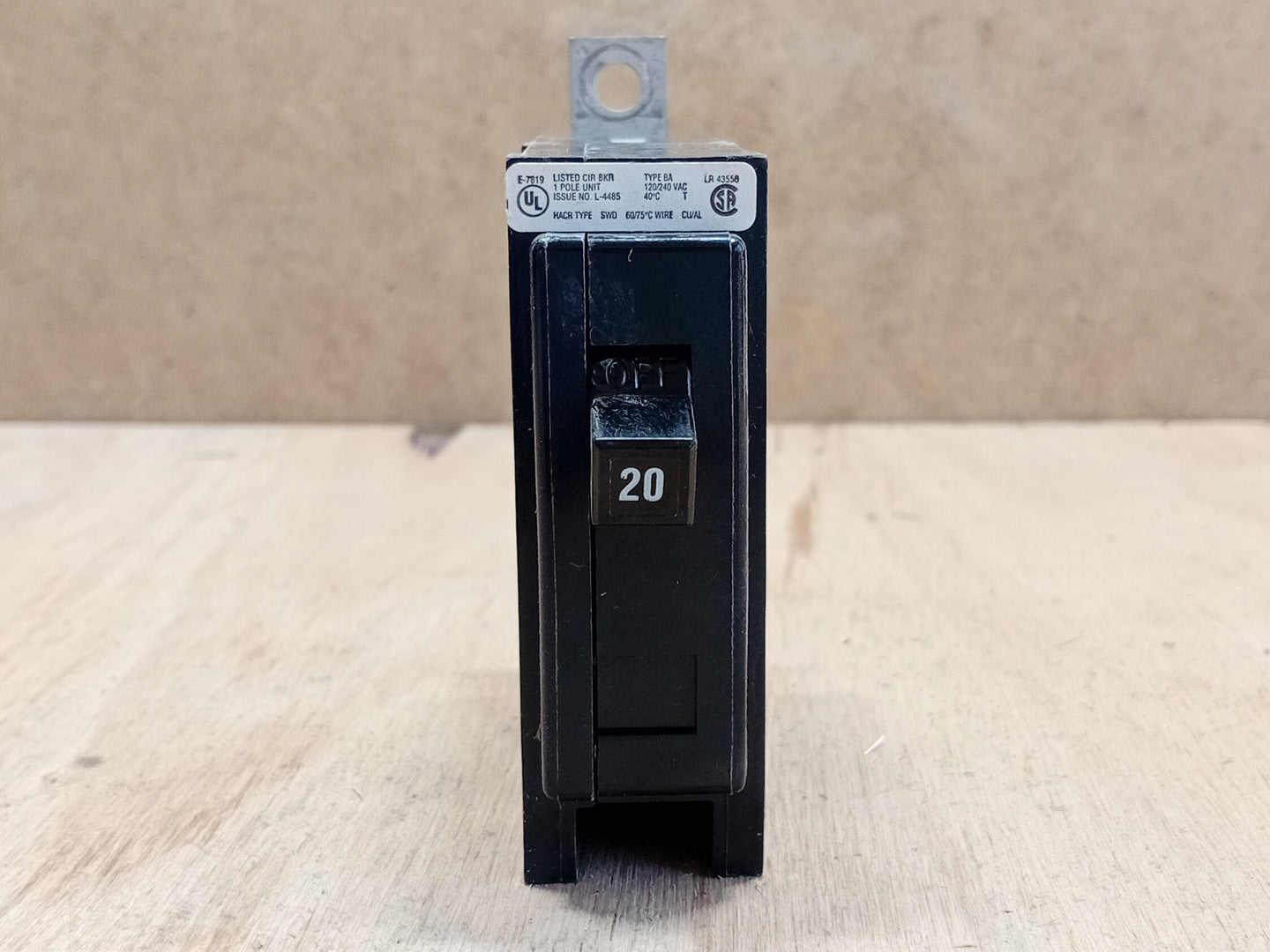

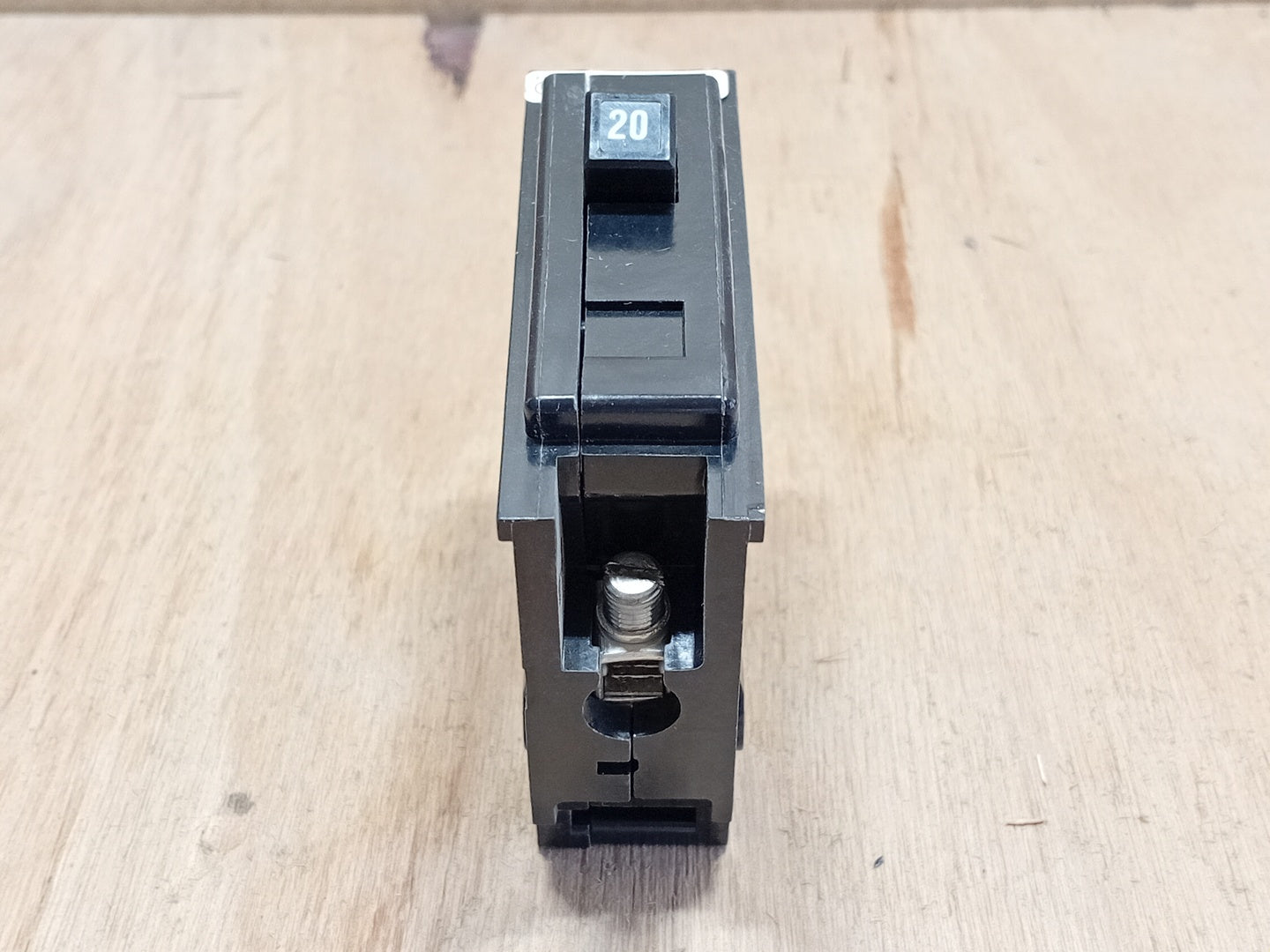

Cutler-Hammer Type BA120 single-pole bolt-on thermal magnetic circuit breaker rated at 20 amps for 120/240 VAC applications. This Quicklag breaker provides branch circuit protection with a 10 kA interrupting rating and is suitable for compatible Cutler-Hammer/Eaton BA load centers.
| Specifications | |
|---|---|
| Model | BA120 |
| Made In | MEXICO |
| Condition | Used | General |
| Amps | 20 amps |
| Series | BA |
| # of Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120/240 volts |
| Phase | Single-phase |
| Other Specifications |
|---|
|

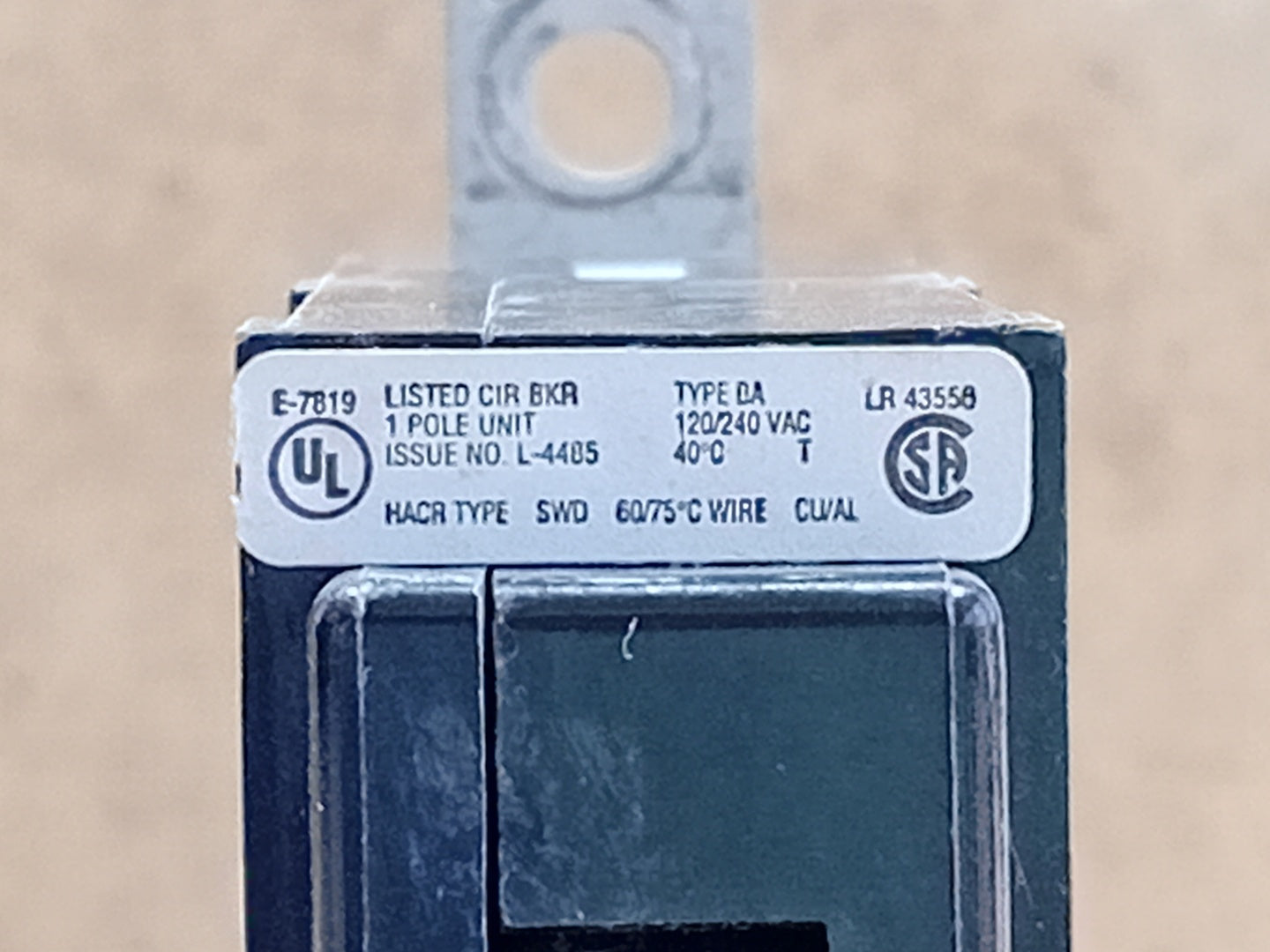

Product Type: Thermal Magnetic Circuit Breaker Frequency: 50/60 Hz Interrupting Rating: 10,000 A RMS Symmetrical Wire Compatibility: Copper/Aluminum (Cu/Al) Wire Temperature Rating: 60/75°C Maximum Ambient Temperature: 40°C Switching Duty Rated: SWD HACR Rated: Yes Certifications: UL Listed, CSA Certified |
