Descripción

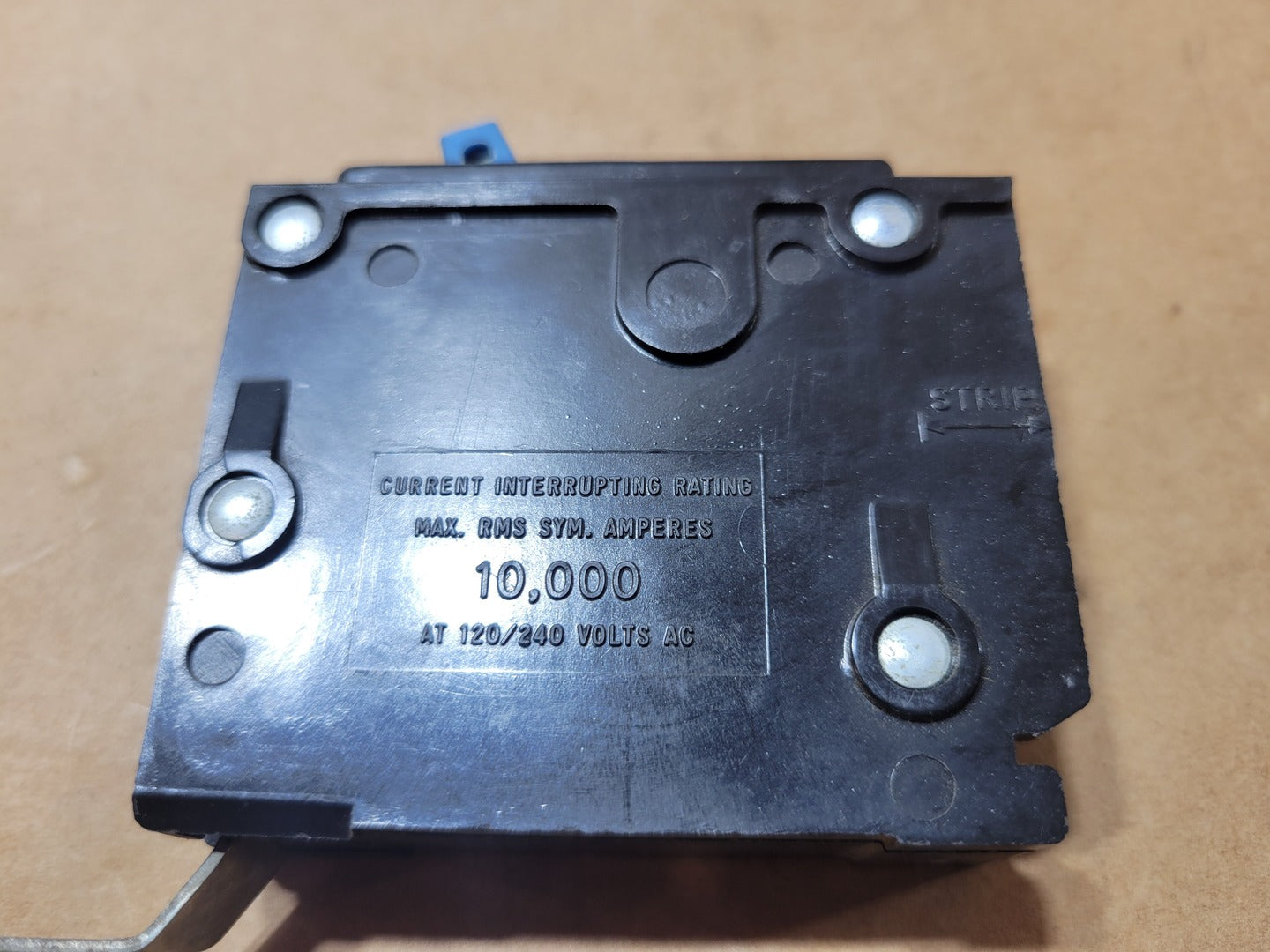

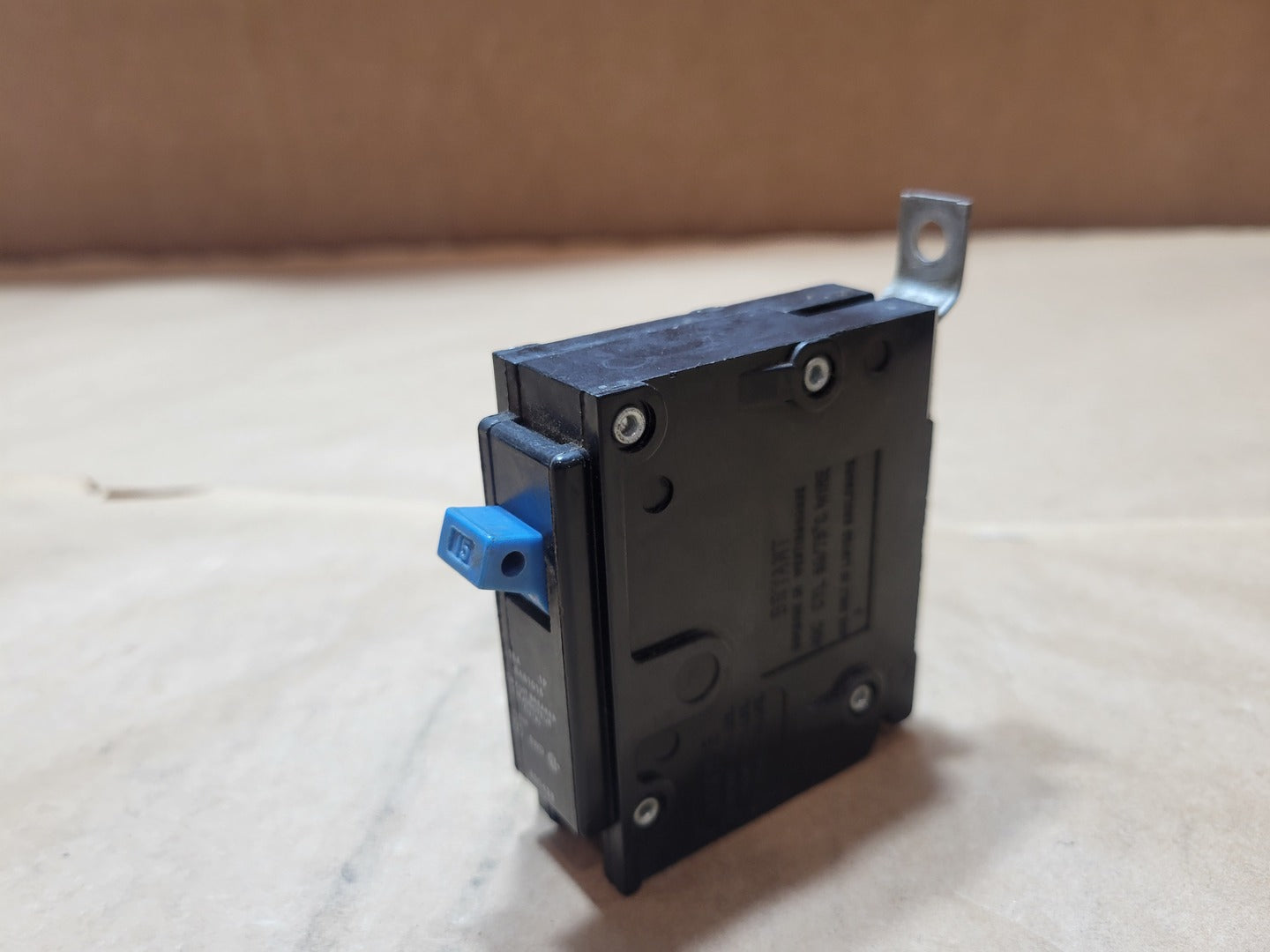

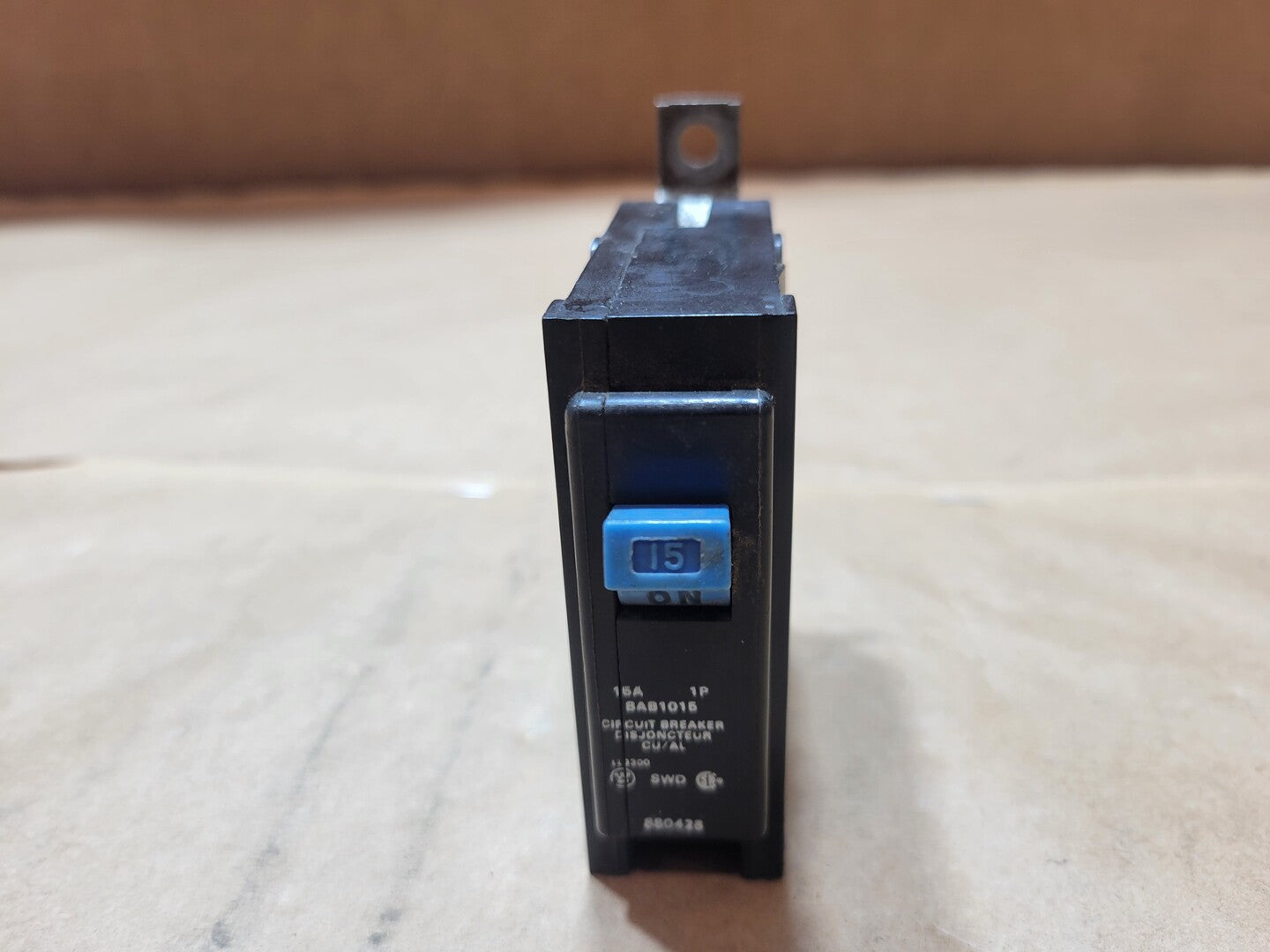

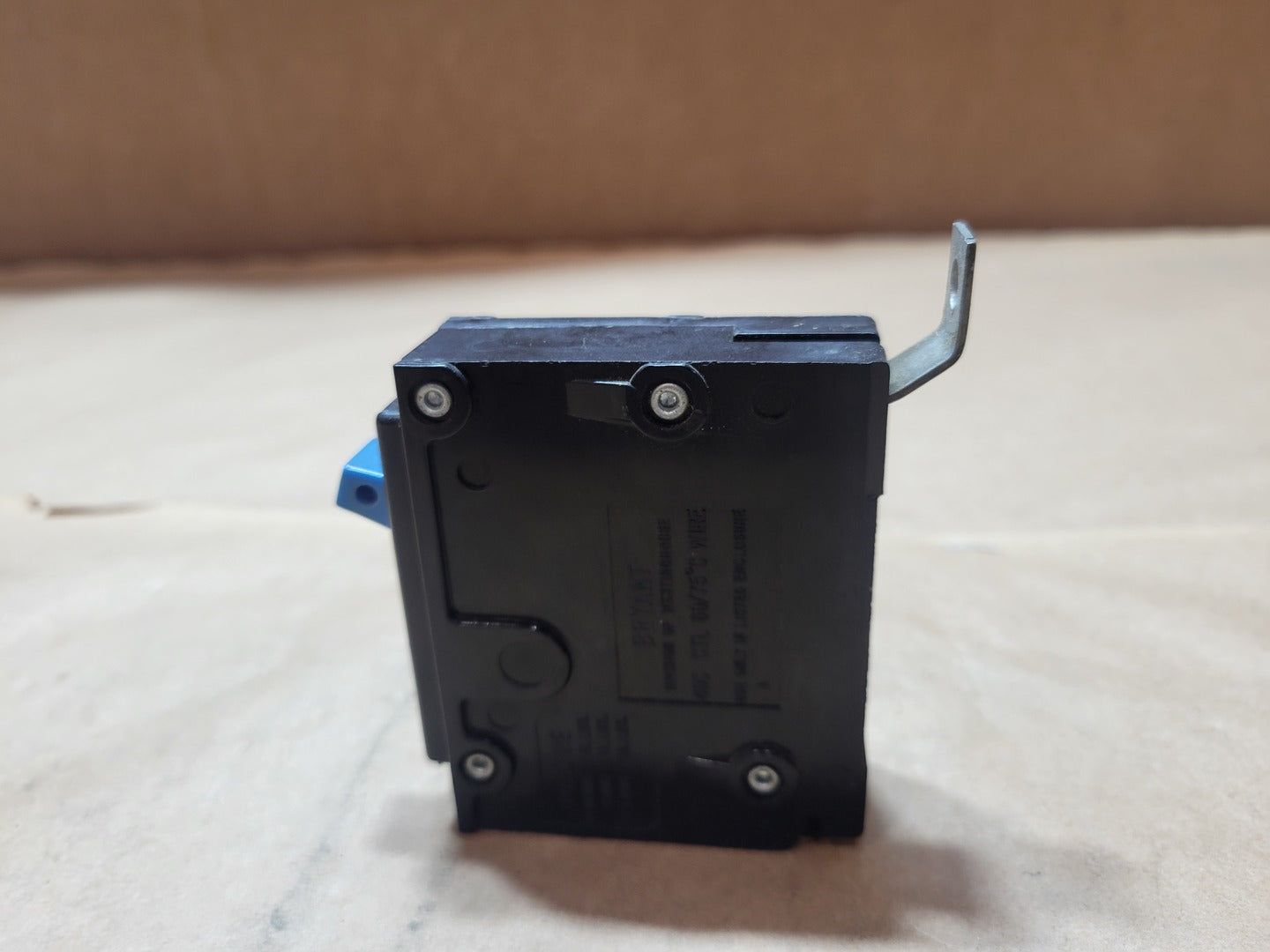

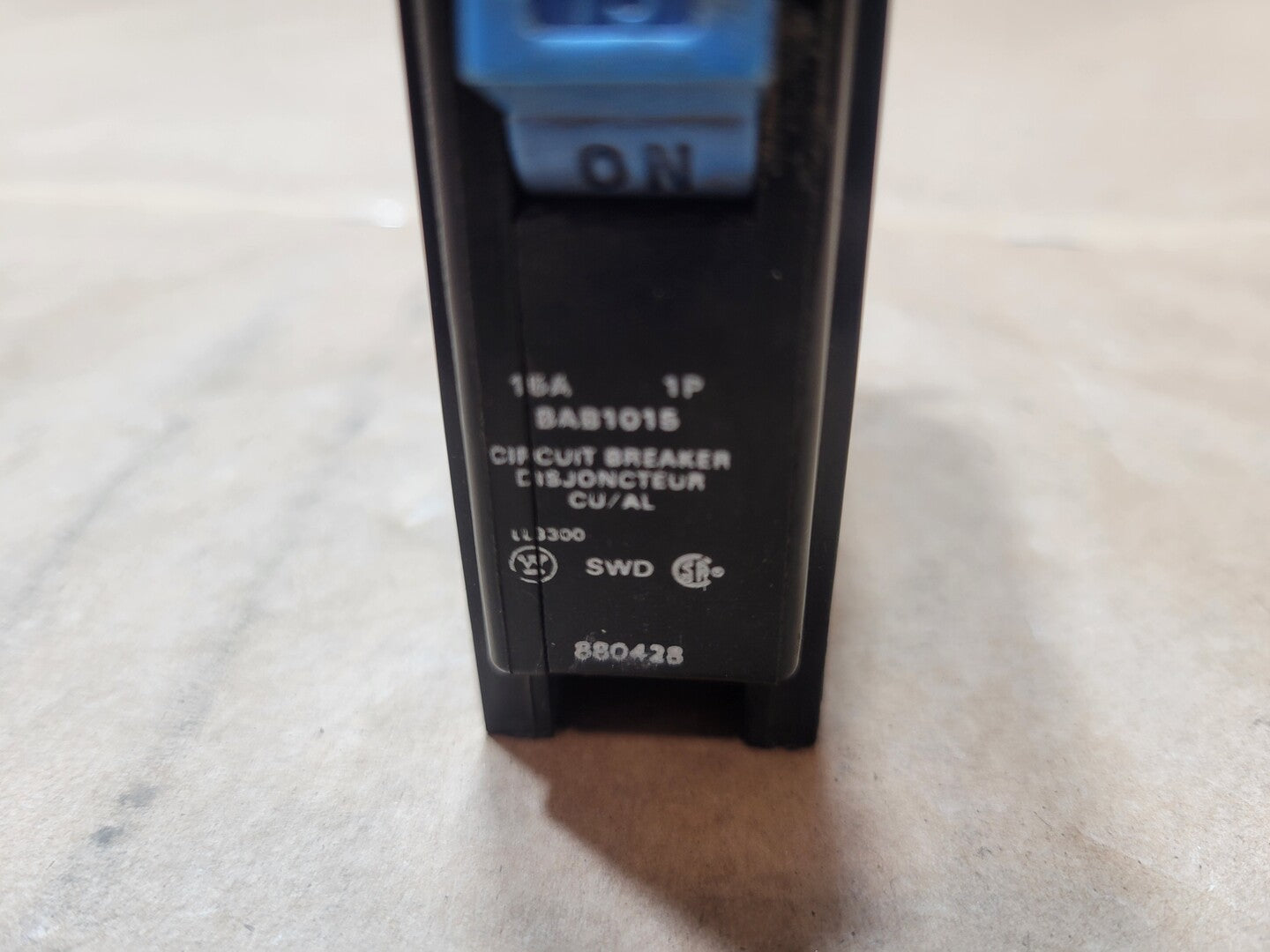

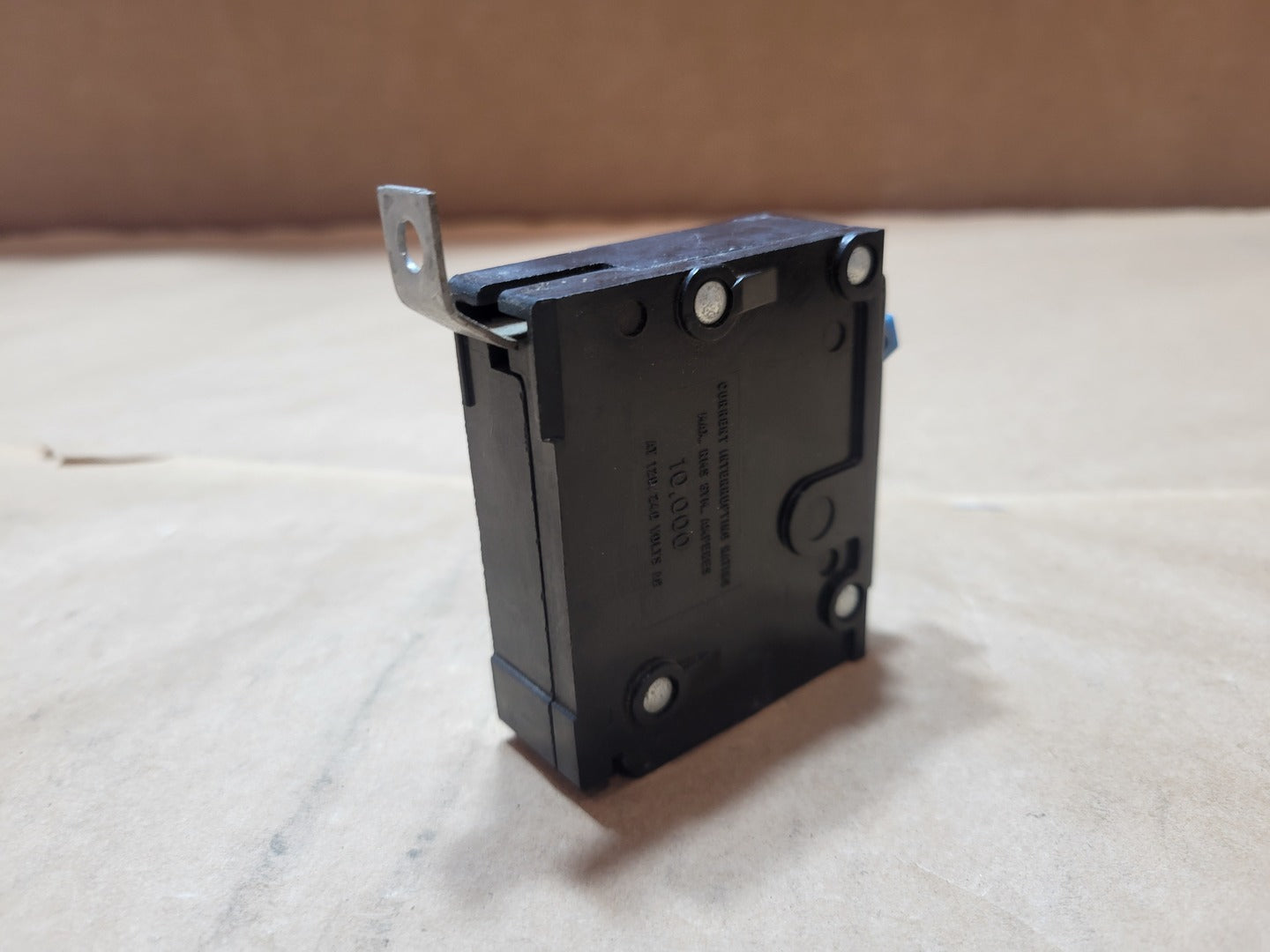

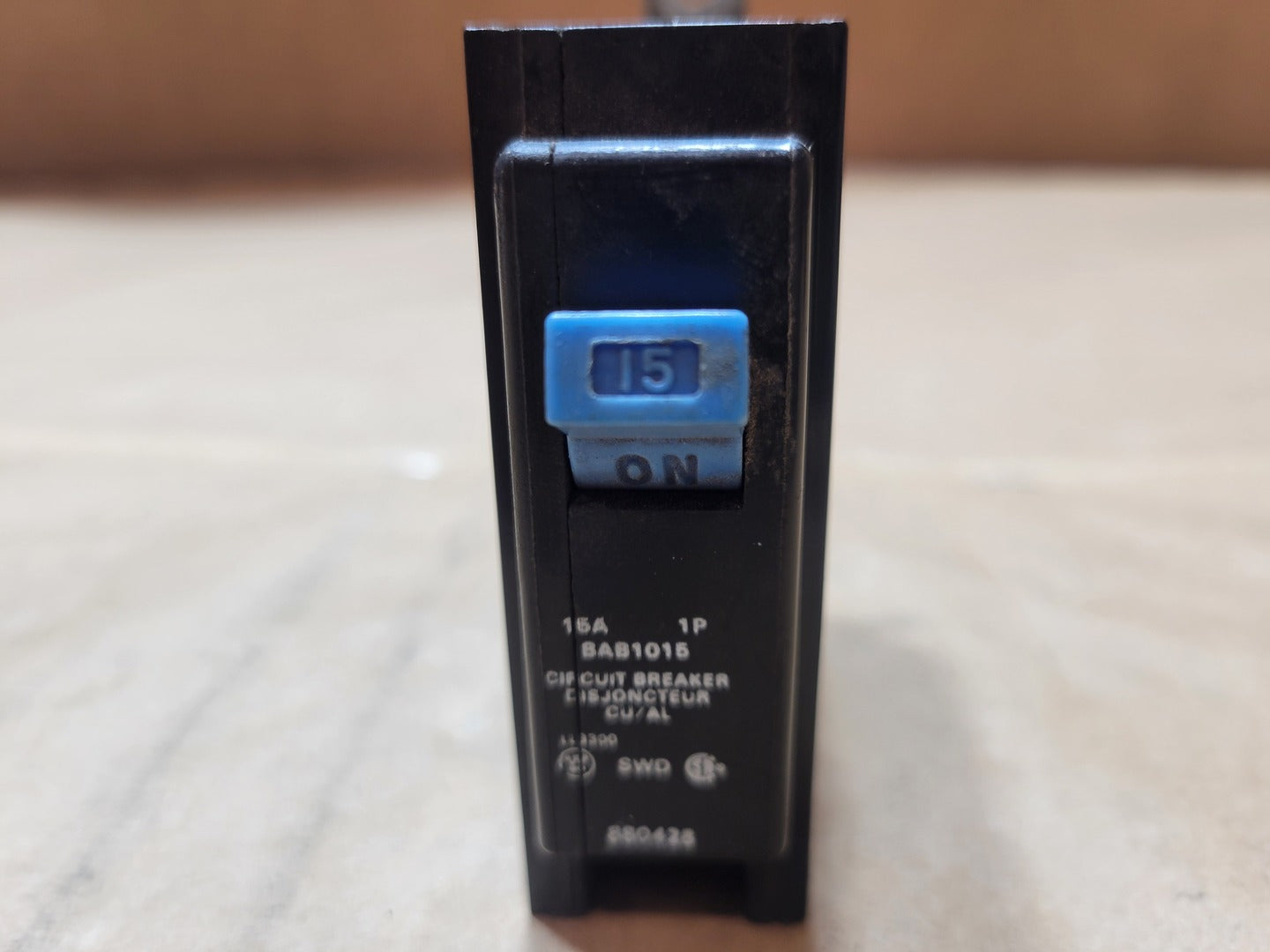

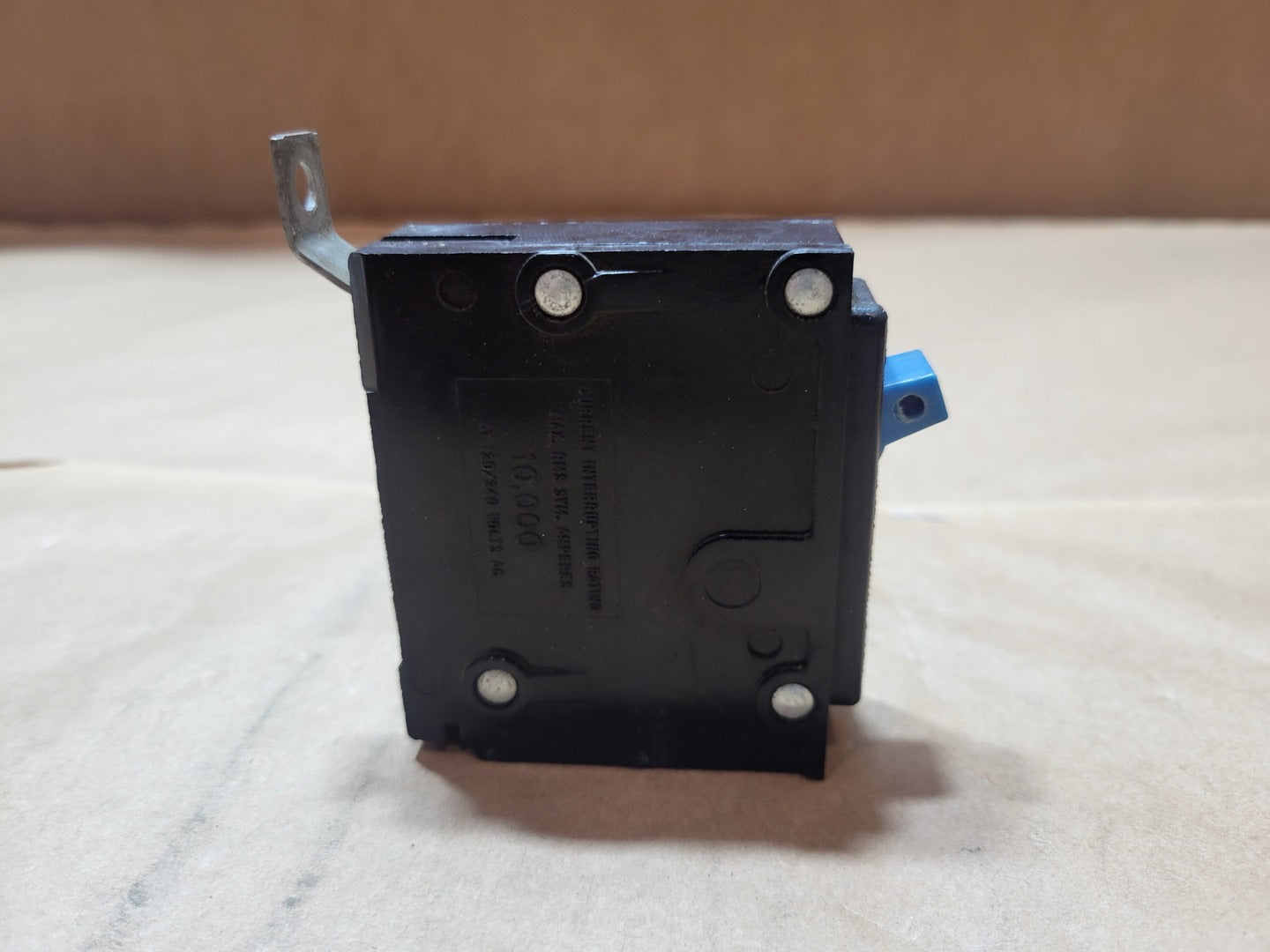

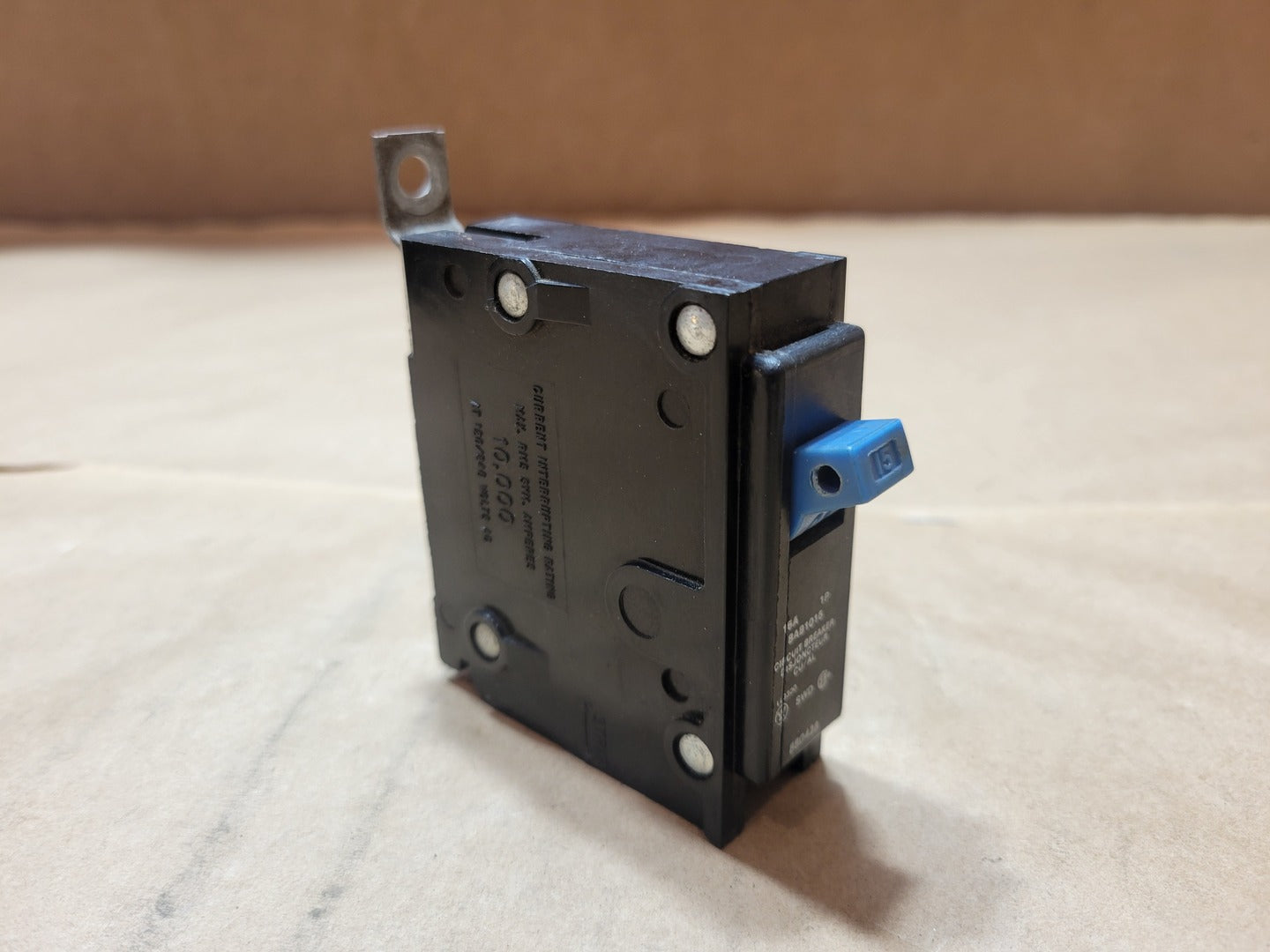

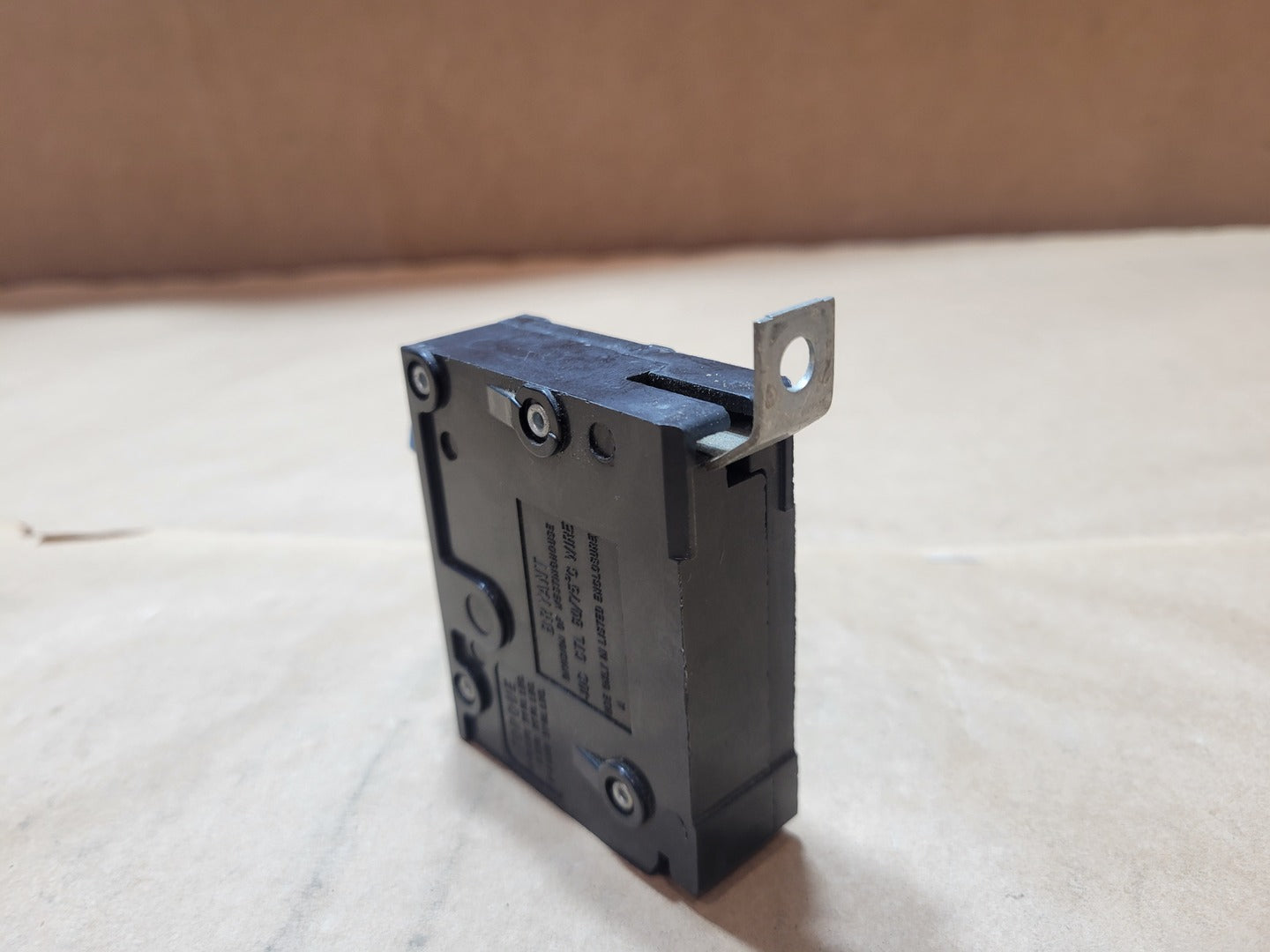

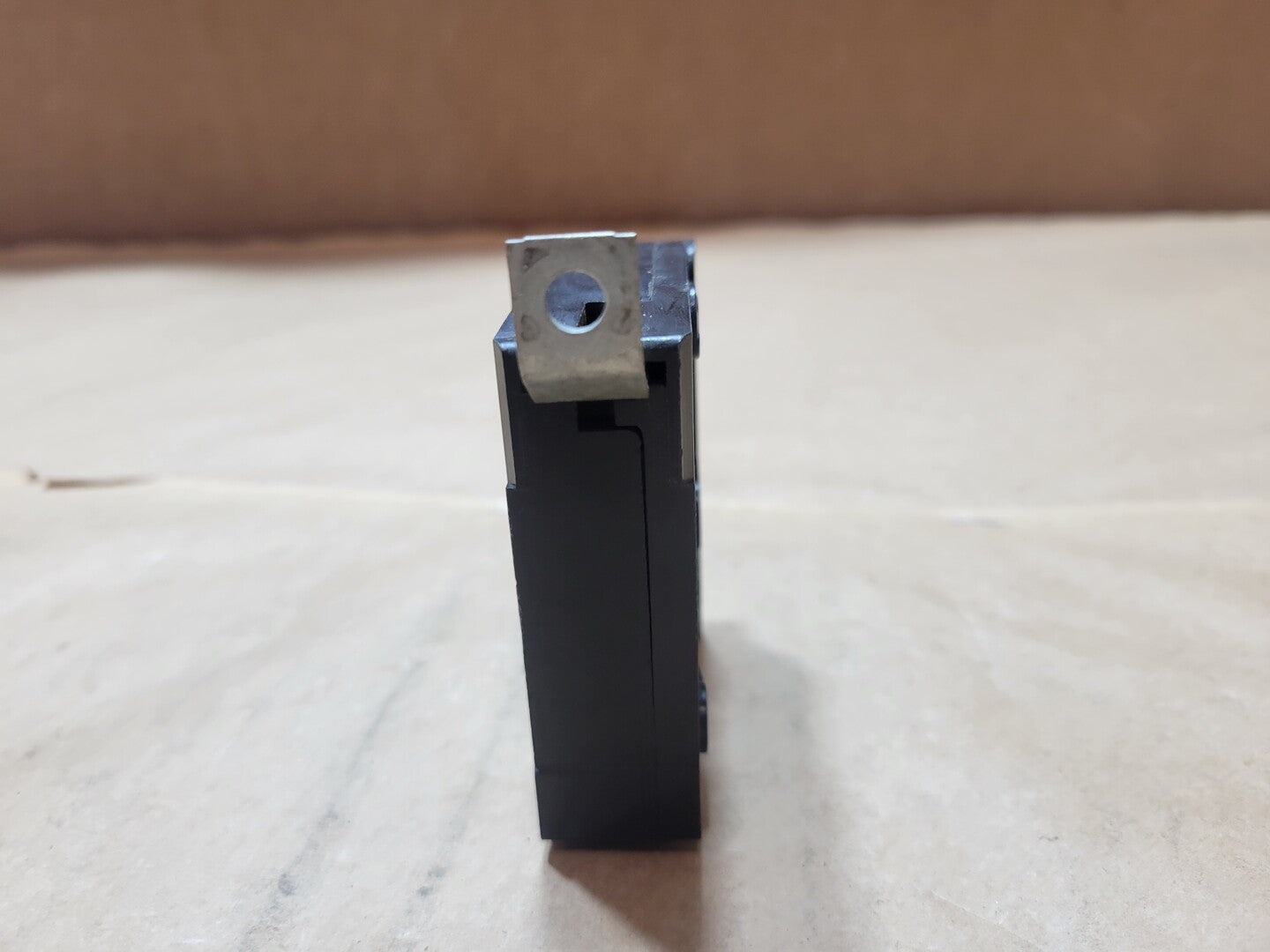

Bryant / Westinghouse BAB1015 single-pole circuit breaker rated at 15 amps and 120/240 VAC. This bolt-on breaker has a marked interrupting rating of 10,000 RMS symmetrical amps and a blue 15A operating handle.
| Specifications | |
|---|---|
| Model | BAB1015 |
| Condition | Used | General |
| Amps | 15 amps |
| Series | BAB |
| # of Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120/240 volts |
| Phase | Single-phase |
| Other Specifications |
|---|
|

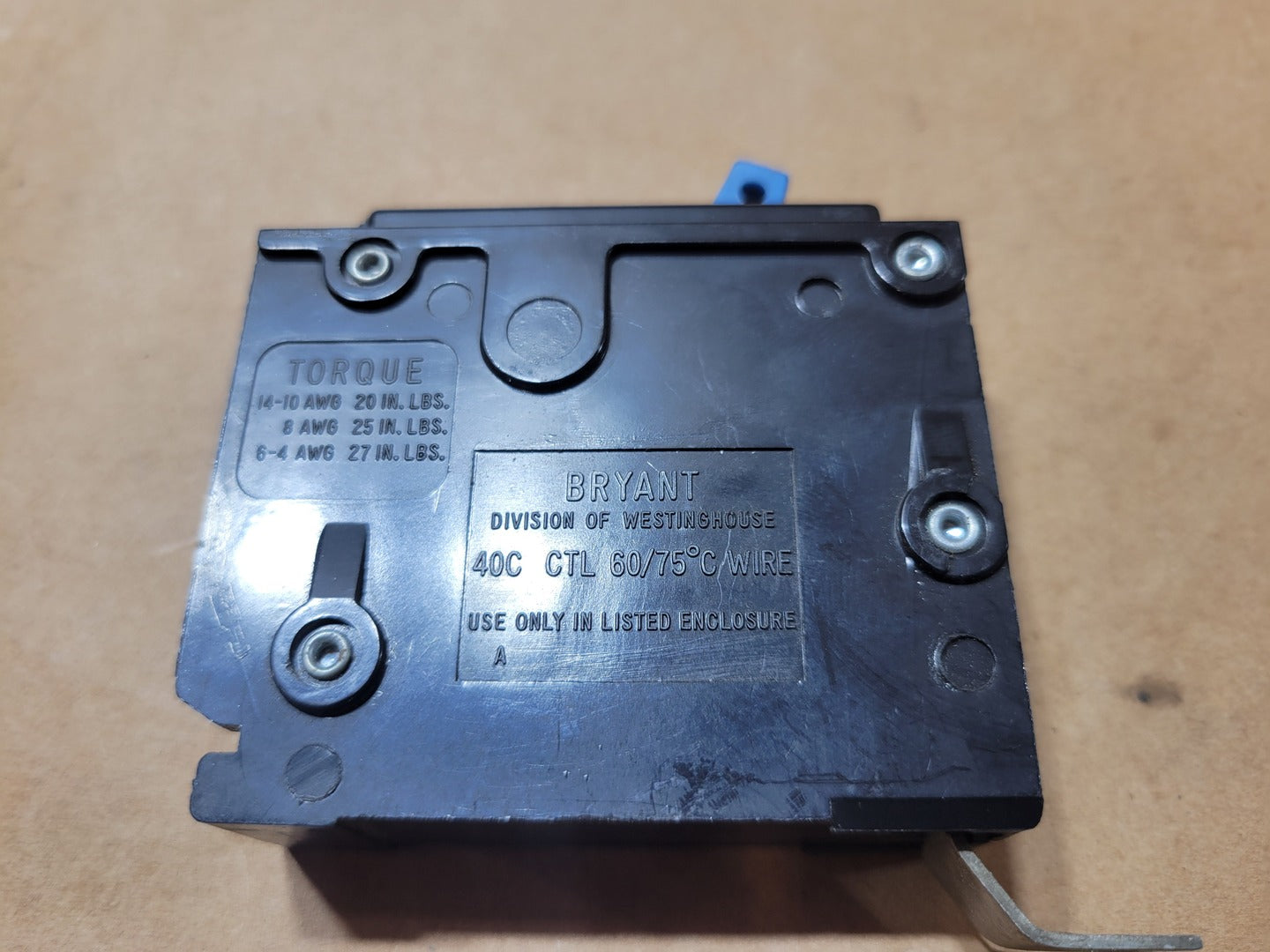

Trip Type: Thermal-Magnetic Interrupting Rating: 10,000 A RMS Symmetrical at 120/240 VAC Conductor Temperature Rating: 60/75°C wire Ambient / Marking: 40°C CTL Terminal Wire Range: 14-4 AWG, based on molded torque markings Terminal Torque, 14-10 AWG: 20 in-lb Terminal Torque, 8 AWG: 25 in-lb Terminal Torque, 6-4 AWG: 27 in-lb |
