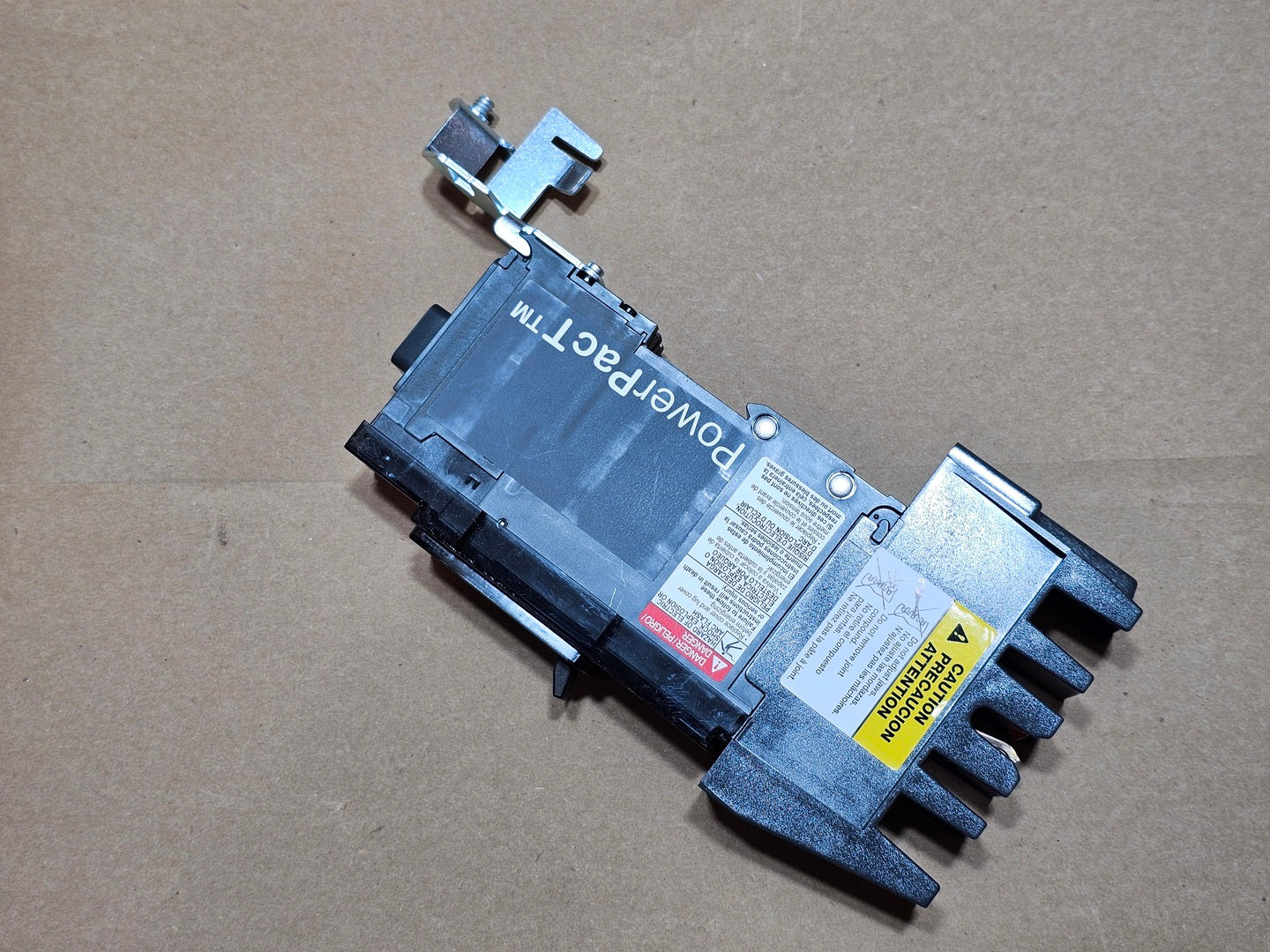

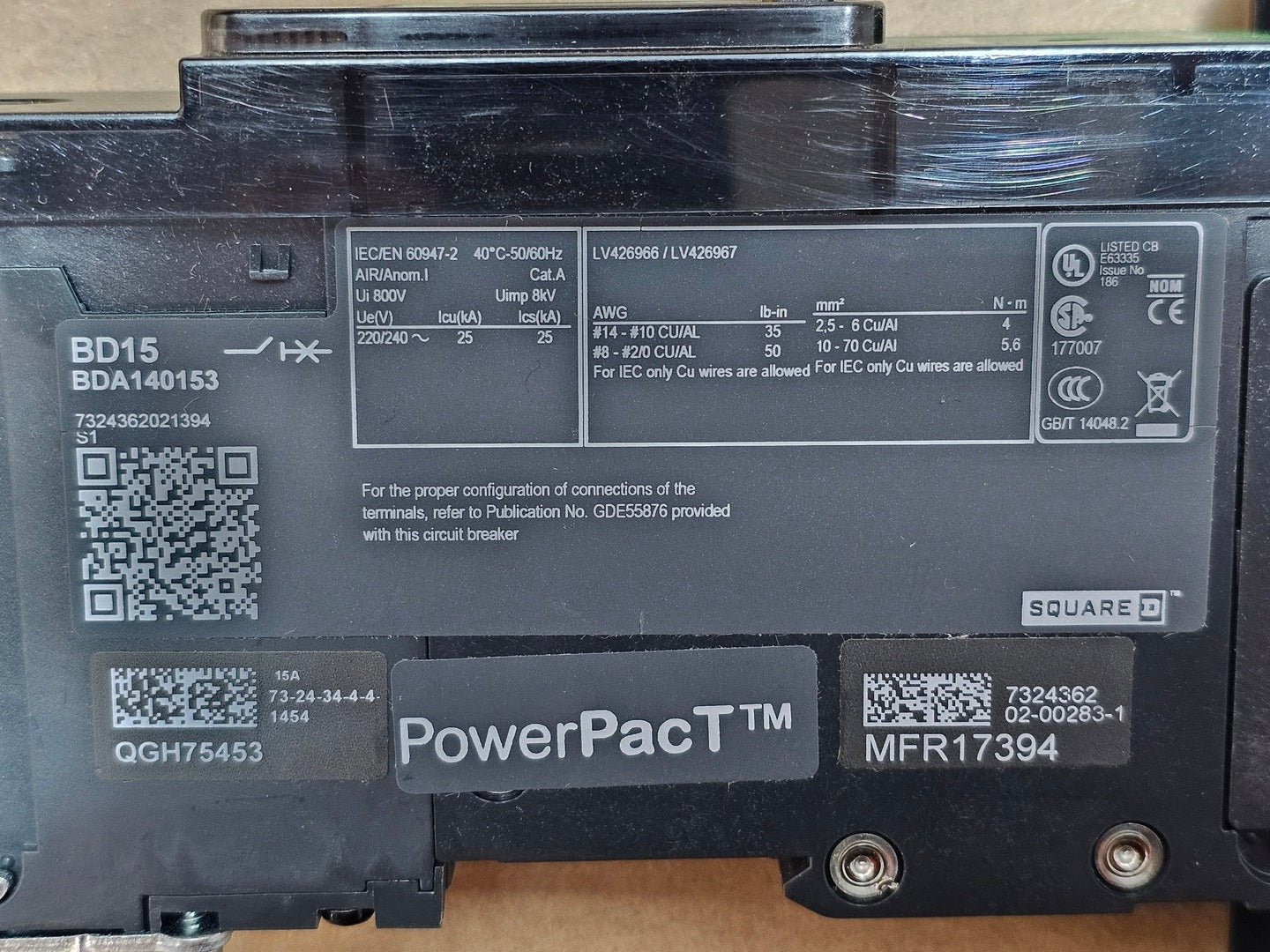

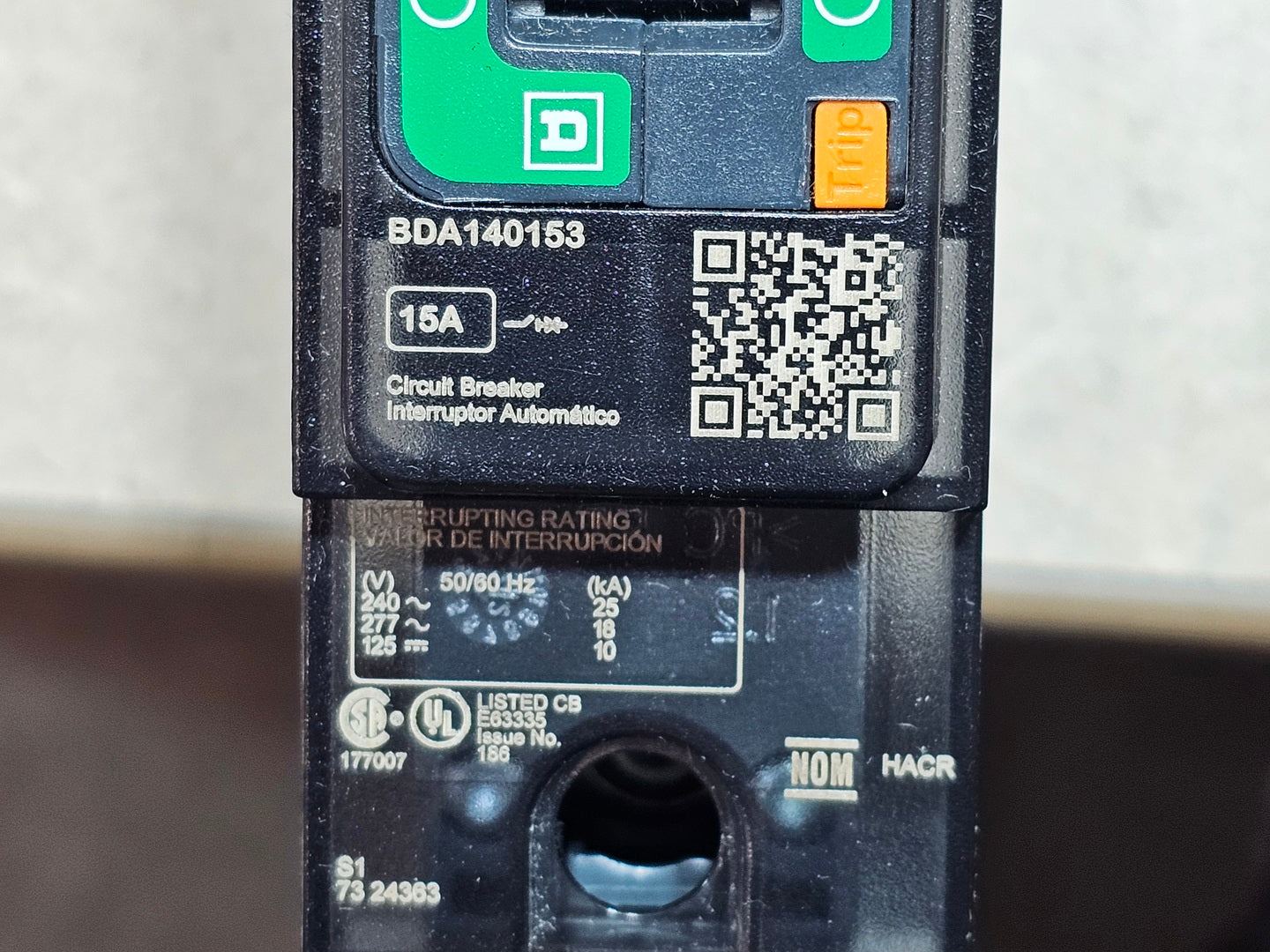

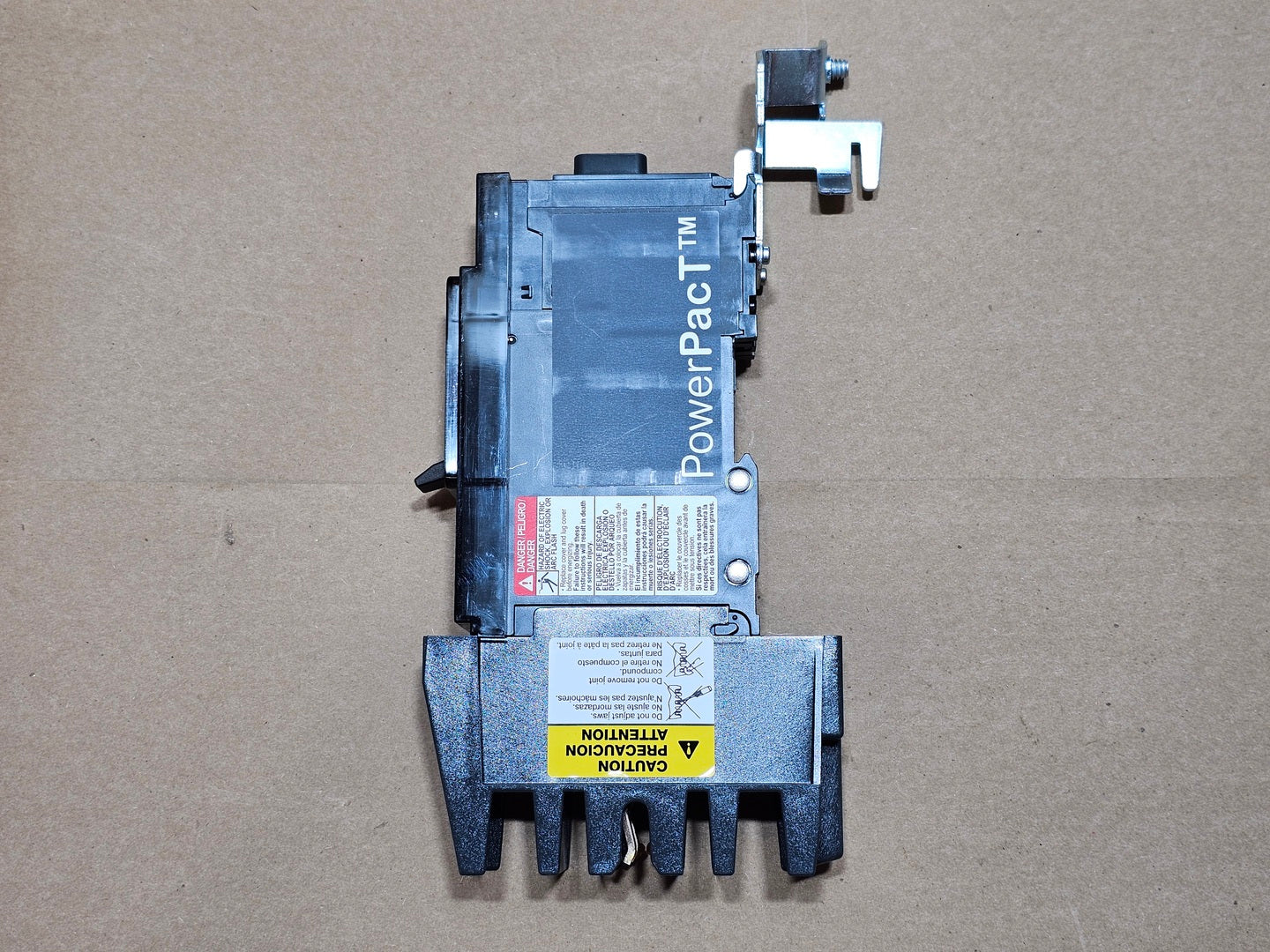

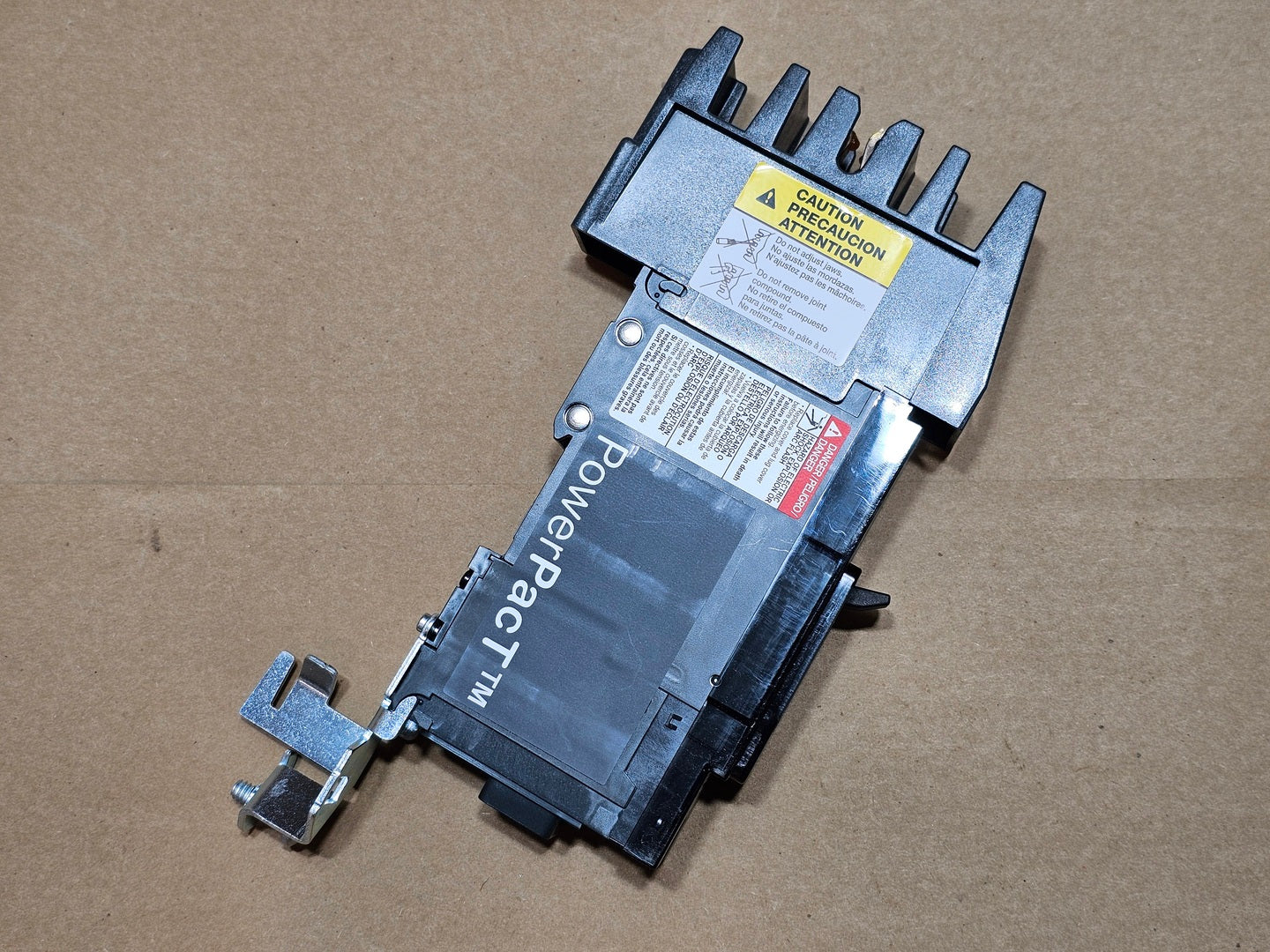

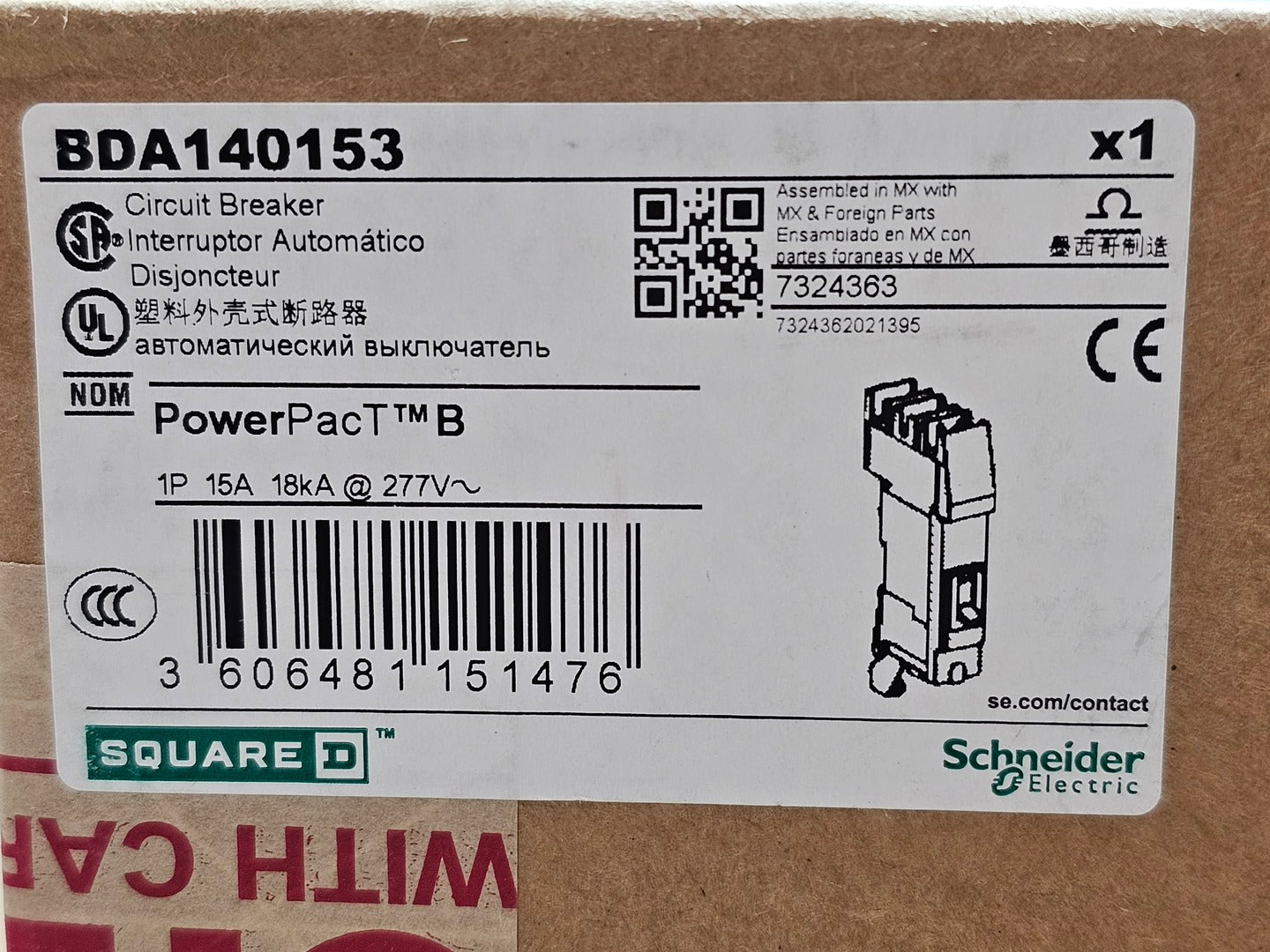

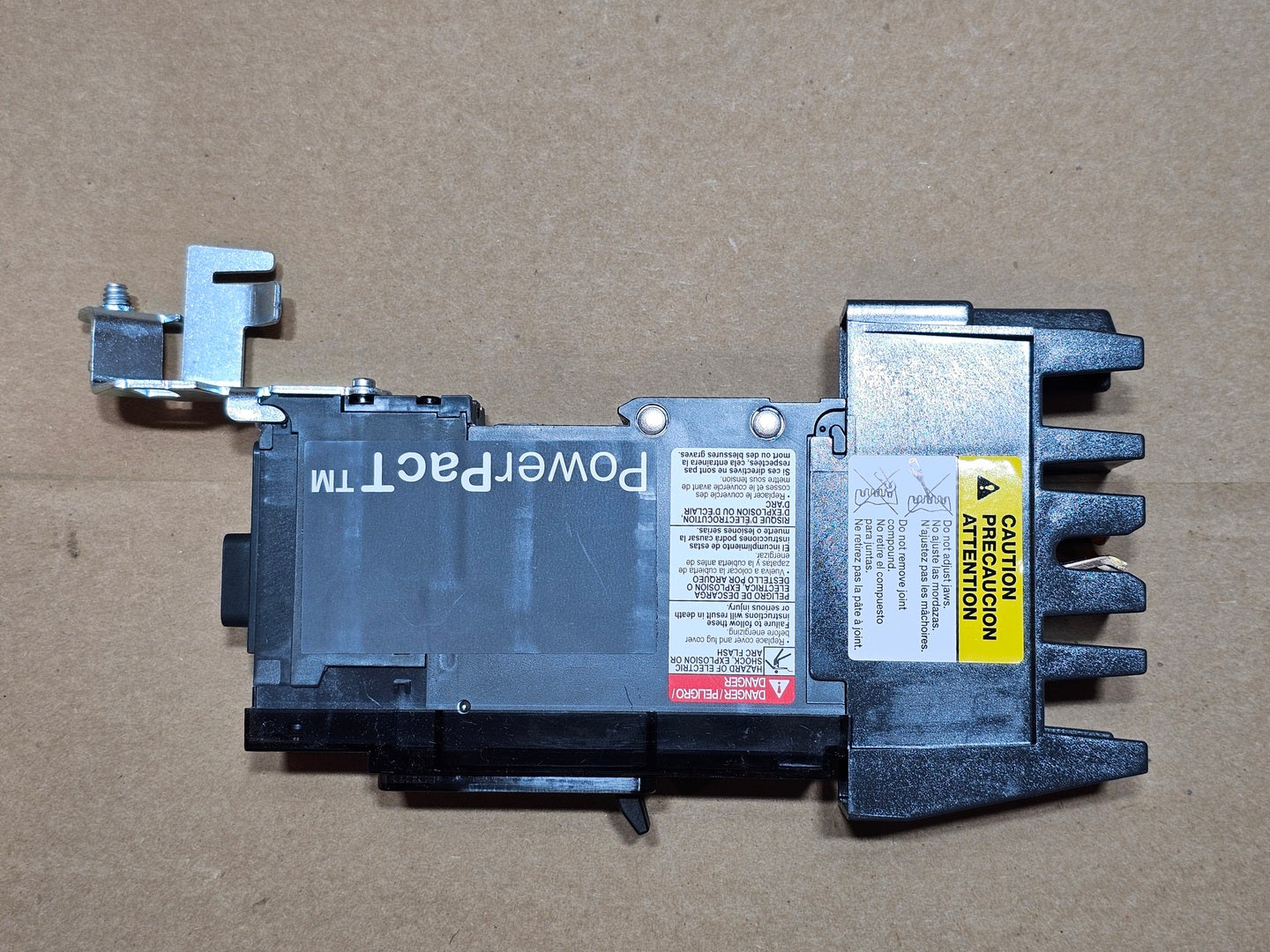

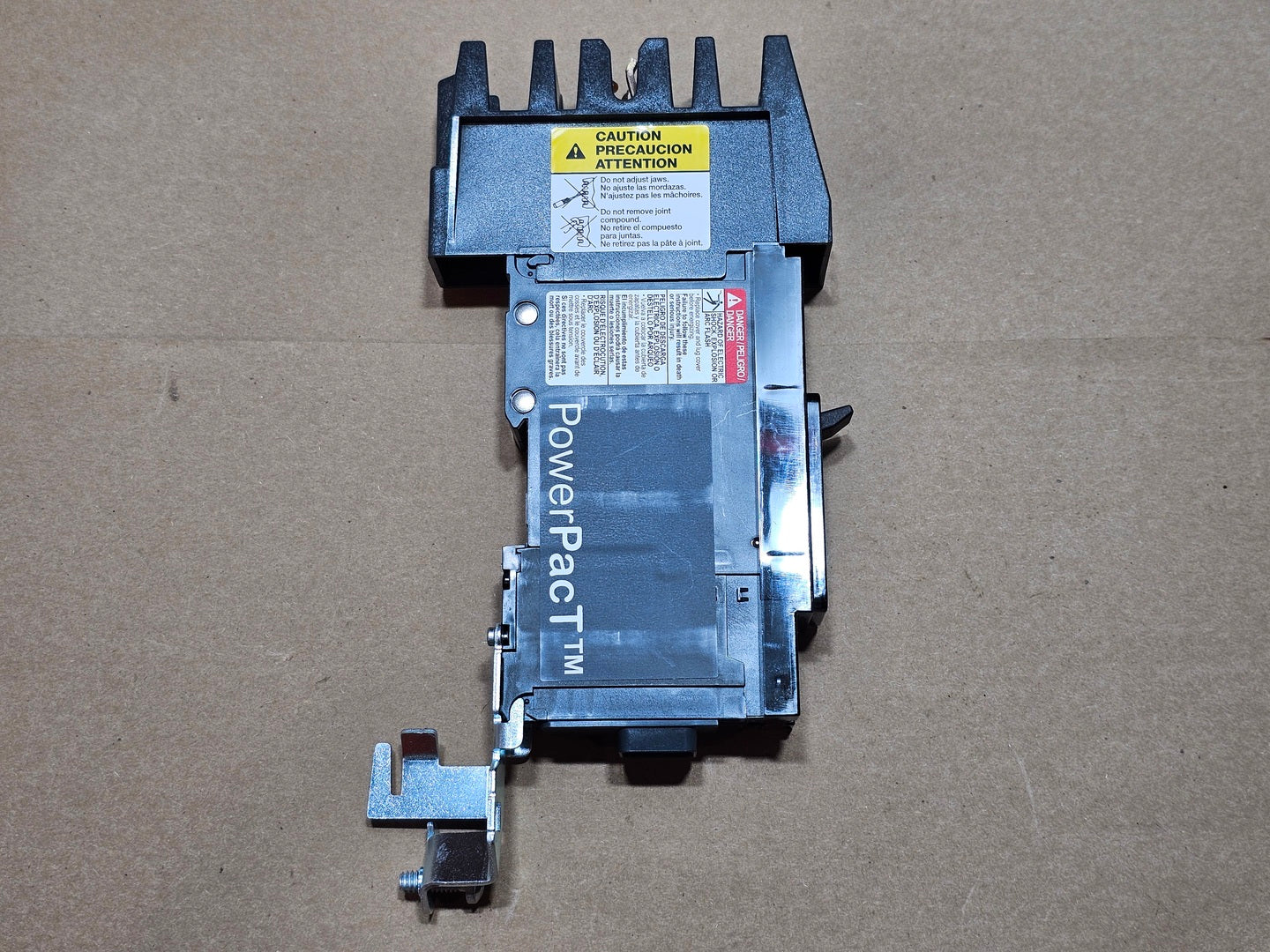

Schneider Electric / Square D BDA140153 PowerPacT B molded-case circuit breaker rated 15A, 1-pole, with I-Line mounting and thermal-magnetic protection. The original factory label identifies it as 1P, 15A, 18kA @ 277V, while Schneider's current technical information identifies the model as a 480Y/277VAC PowerPacT B I-Line breaker.
| Specifications | |
|---|---|
| Model | BDA140153 |
| Condition | Surplus New | General |
| Amps | 15 amps |
| Series | PowerPacT |
| # of Poles | 1 |
| Mounting Style | Plug-In |
| Other Specifications |
|---|
|
Frame / Marking: BD15 Product Type: Molded-Case Circuit Breaker Mounting: I-Line Trip Type: Thermal-Magnetic Continuous Rating: 80% Frequency: 50/60 Hz UL Interrupting Rating at 240 VAC: 25 kA UL Interrupting Rating at 480Y/277 VAC: 18 kA Interrupting Rating at 125 VDC: 14 kA IEC Rated Insulation Voltage (Ui): 800 V Impulse Withstand Voltage (Uimp): 8 kV IEC Standard: IEC/EN 60947-2 UL Standard: UL 489 |
