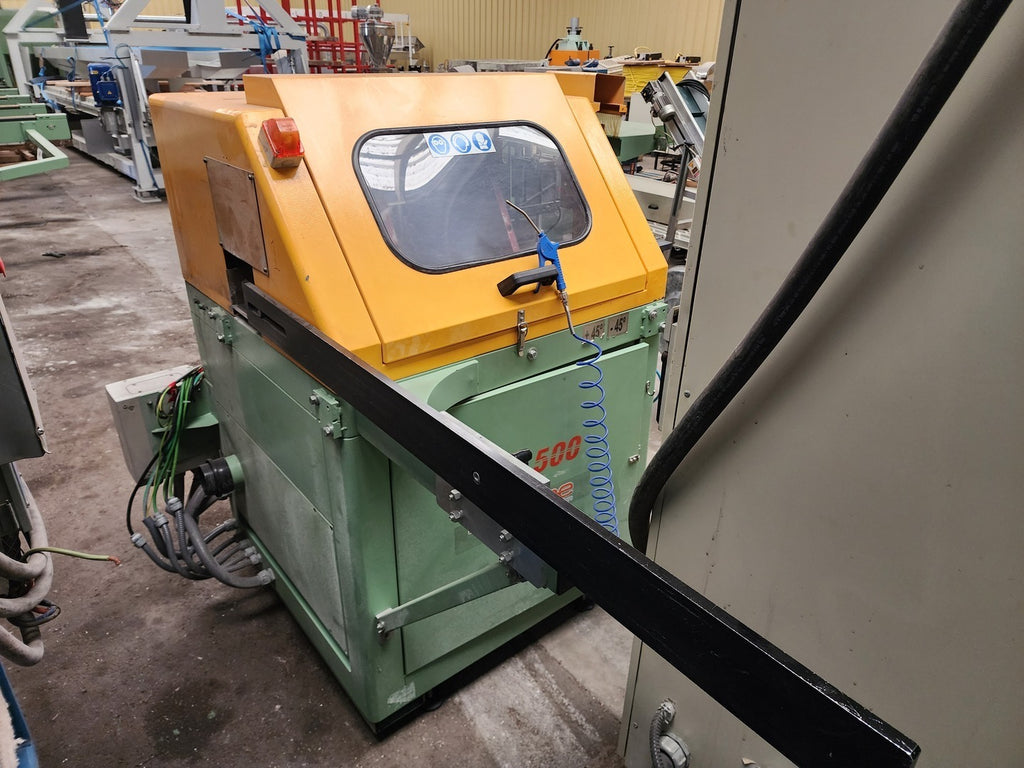

The Winline CAT500 is a heavy-duty industrial automatic crosscut saw designed for high-volume production of PVC and uPVC window and door profiles. Manufactured in Italy, this machine features a fully enclosed cutting chamber, automatic profile feeding system, pneumatic clamping, servo-controlled positioning, and integrated material handling tables for efficient production. The machine utilizes a 500 mm carbide saw blade driven by a 4.5 kW motor and is designed to accurately process vinyl window and door extrusions while minimizing operator intervention.
| Specifications | |
|---|---|
| Model | CAT500 |
| Year: | 2007 |
| S/N: | 26551 |
| Made In | ITALY |
| Condition | Used | General |
| Horsepower | 6 hp |
| Voltage | 480 volts |
| Phase | 3-phase |
| Saw Type | Cold Saw |
| CNC | Yes |
| Other Specifications |
|---|
|
Ideal for:
Voltage: 480V AC, 3 Phase Frequency: 60 Hz Current: 8 A Motor: 4.5 kW Blade Diameter: 500 mm Blade Bore: 30 mm Blade Speed: 3,600 RPM Maximum Kerf: 4.2 mm Air Requirement: 7 Bar Machine Weight: 2,300 kg (5,070 lb) Included:
|
