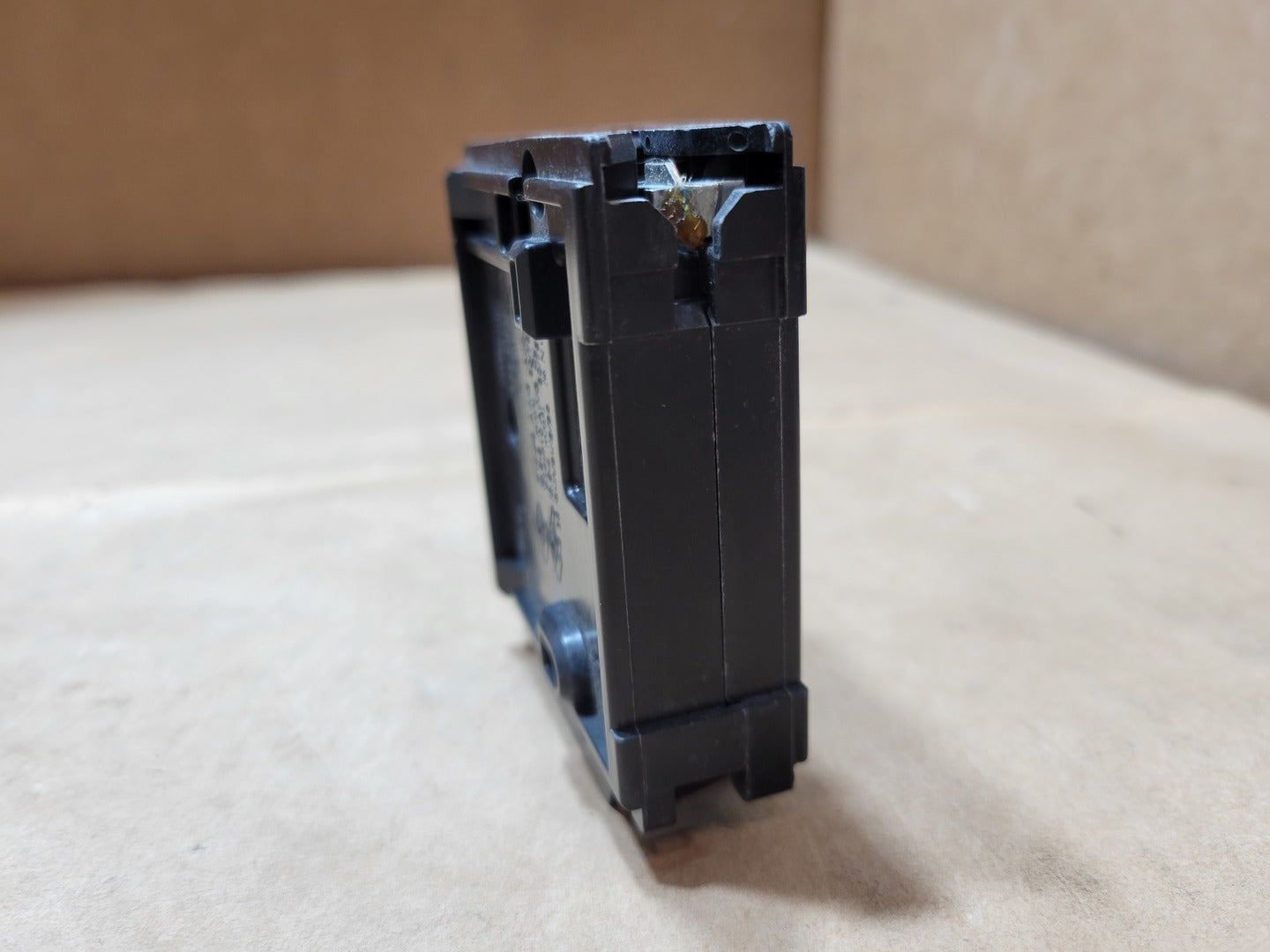

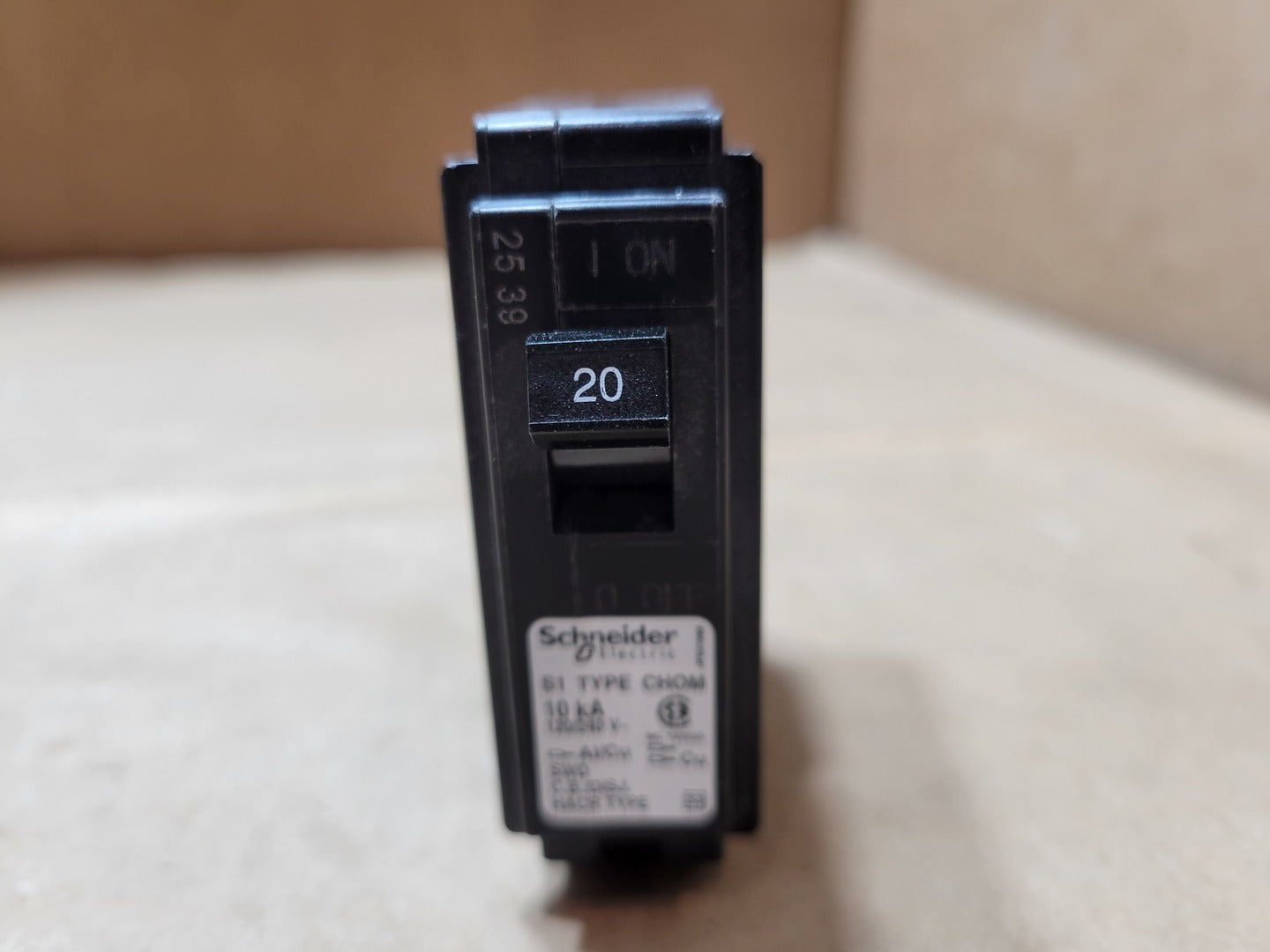

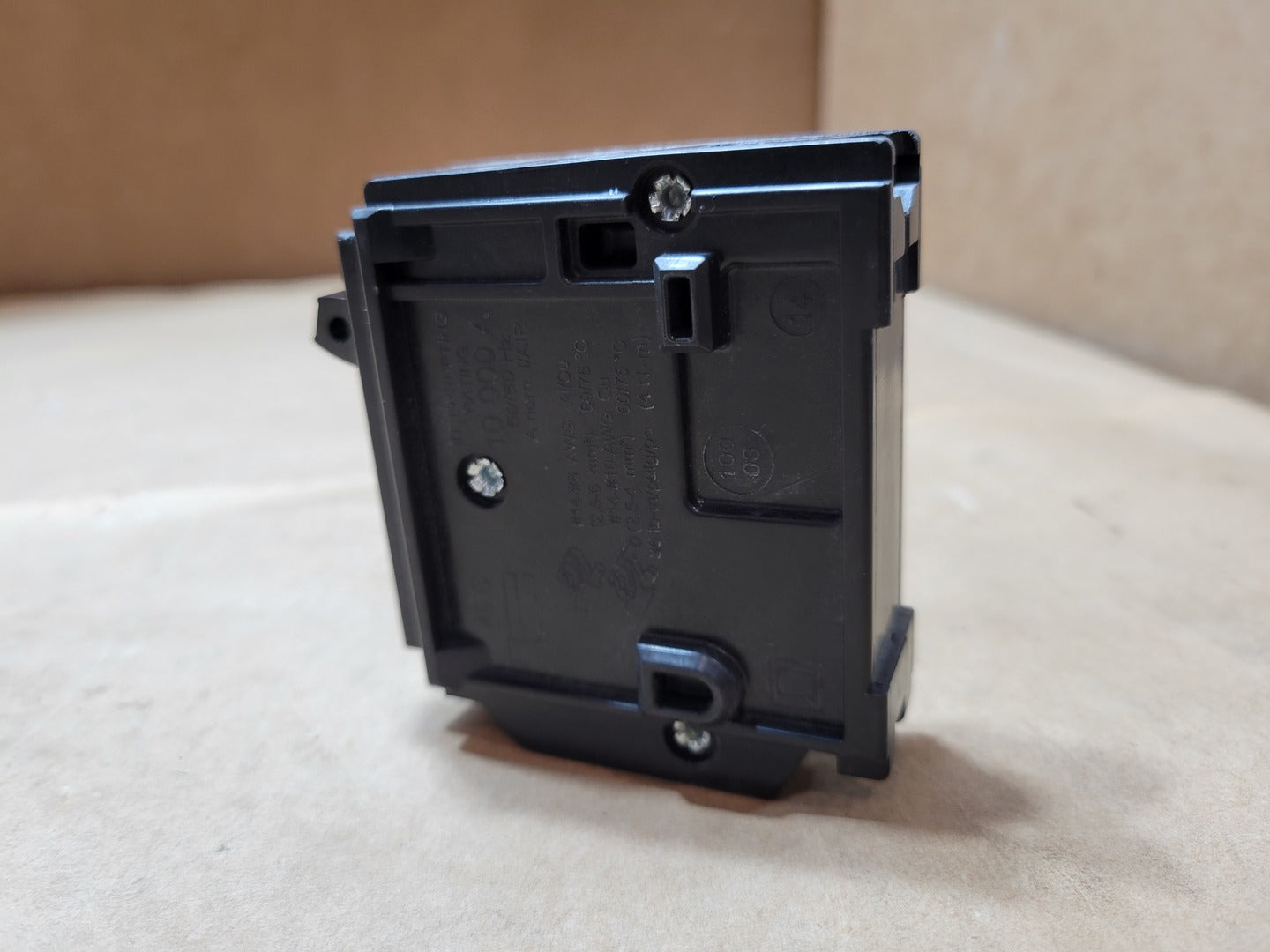

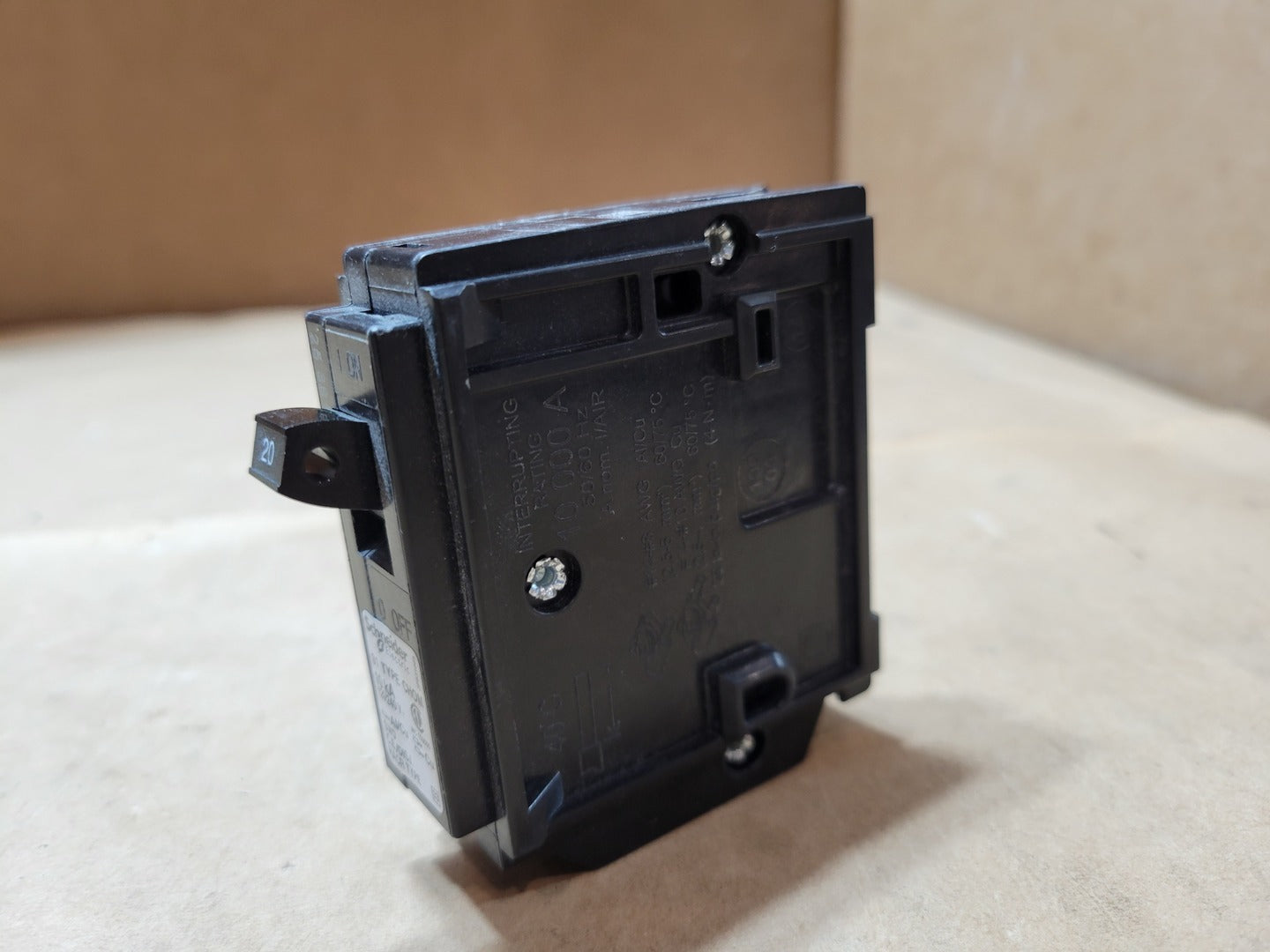

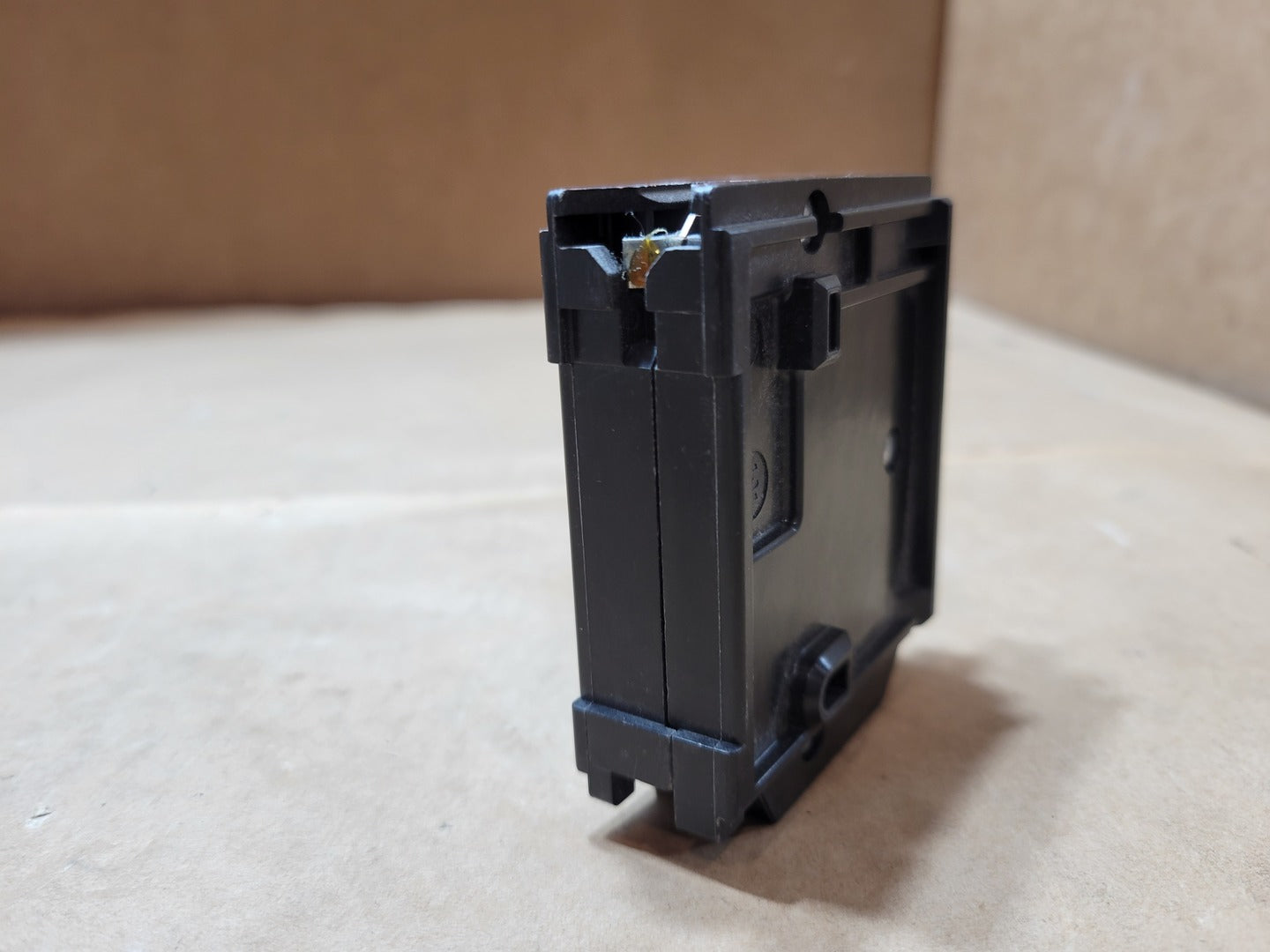

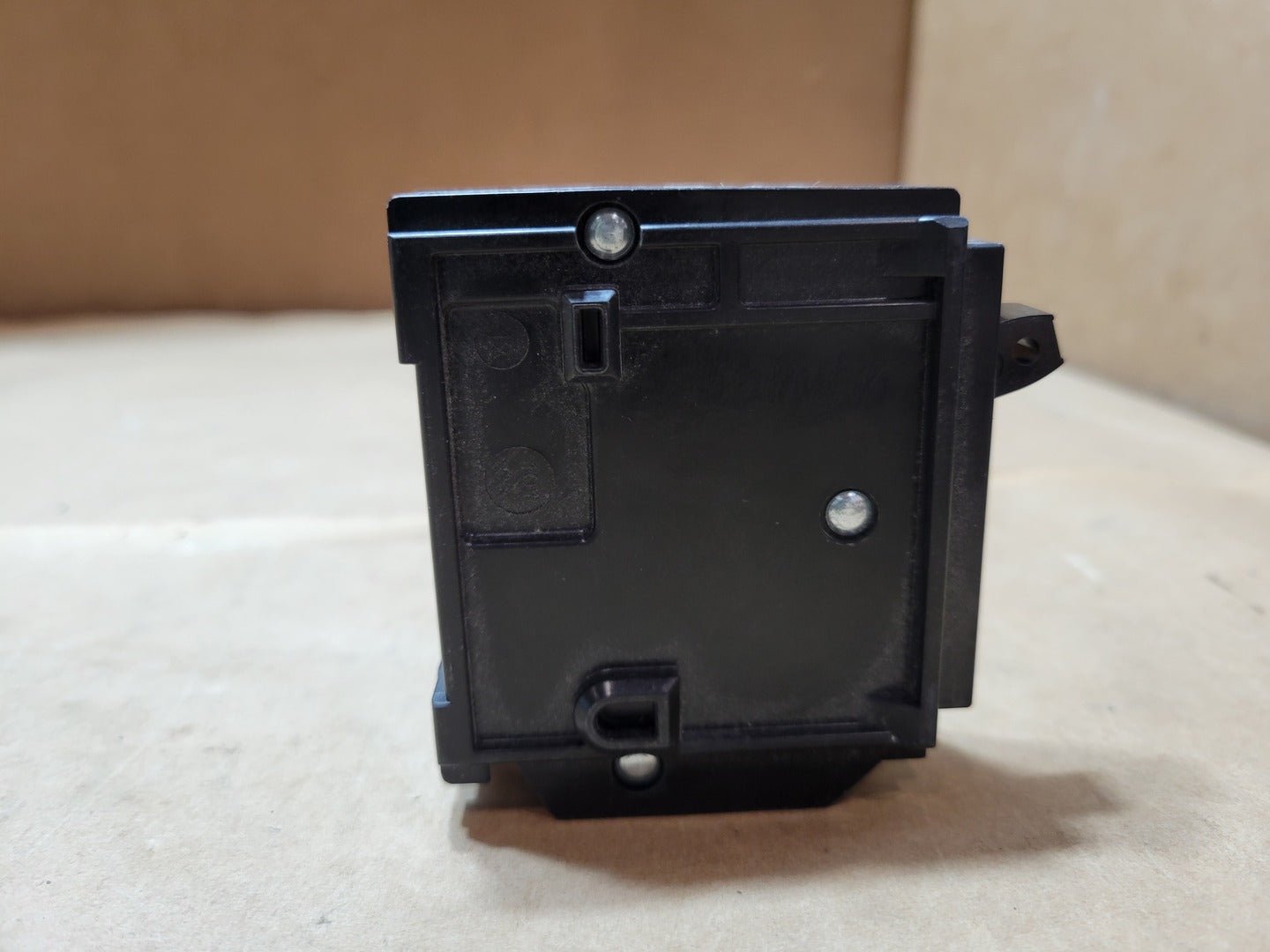

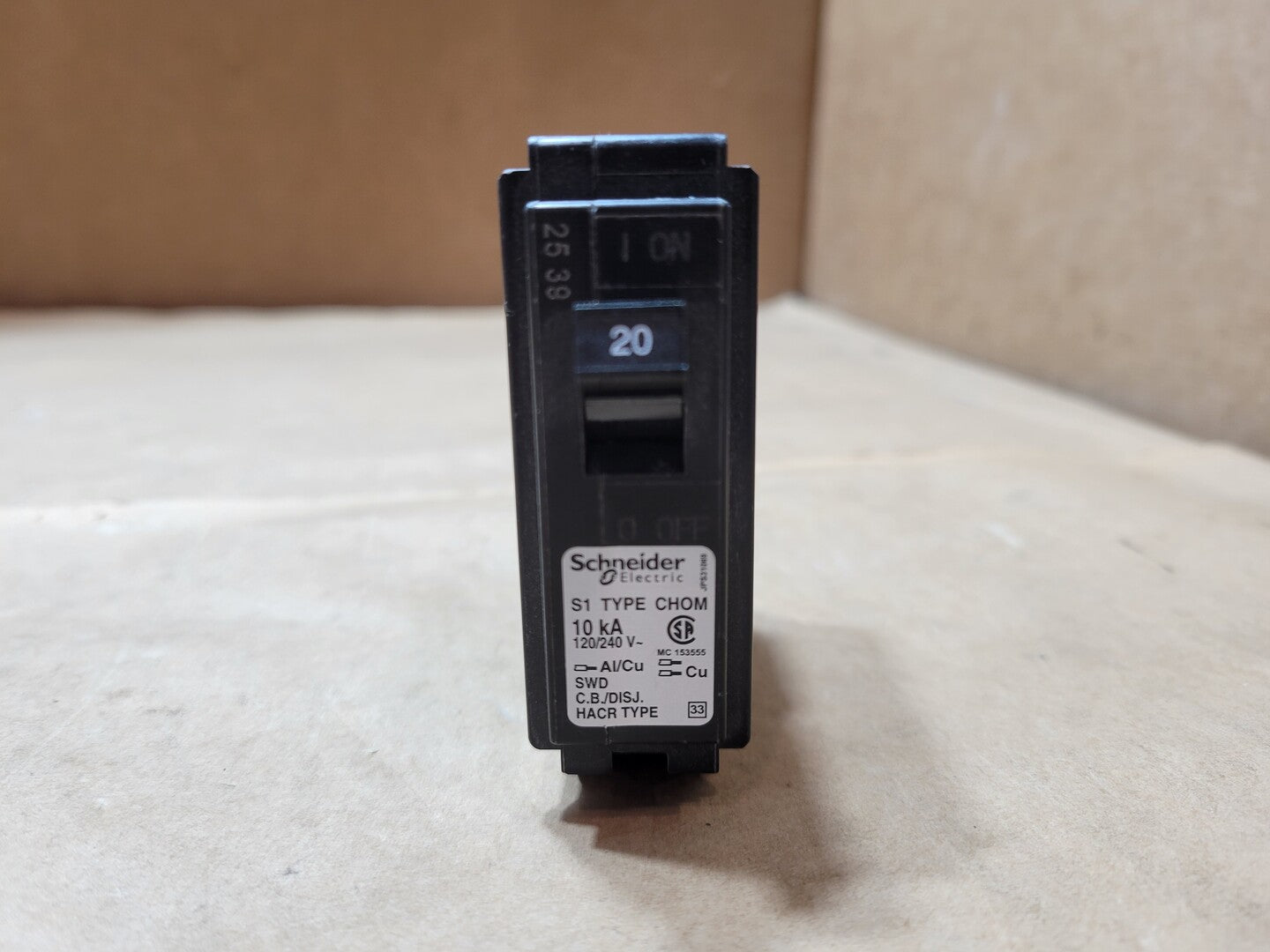

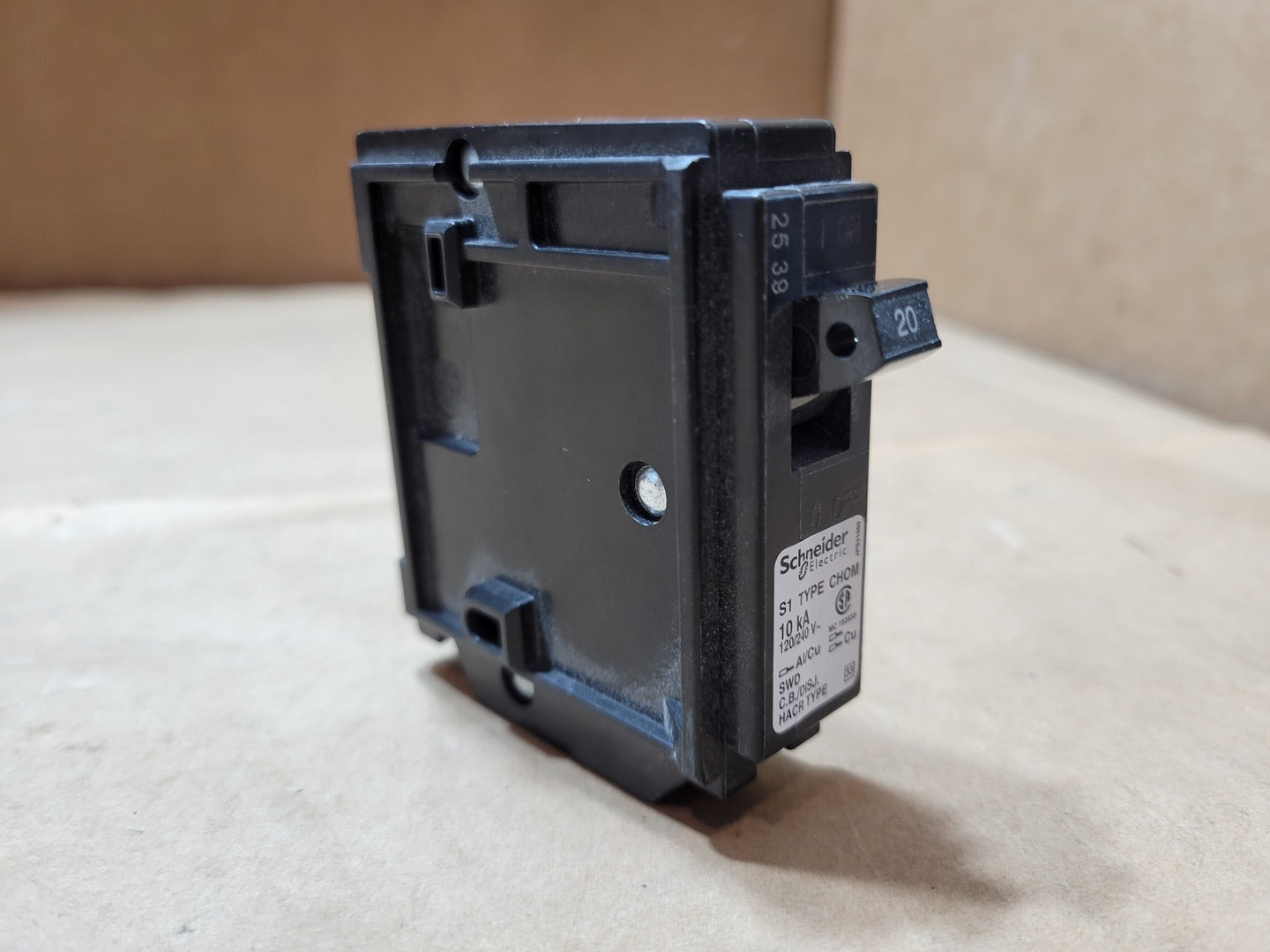

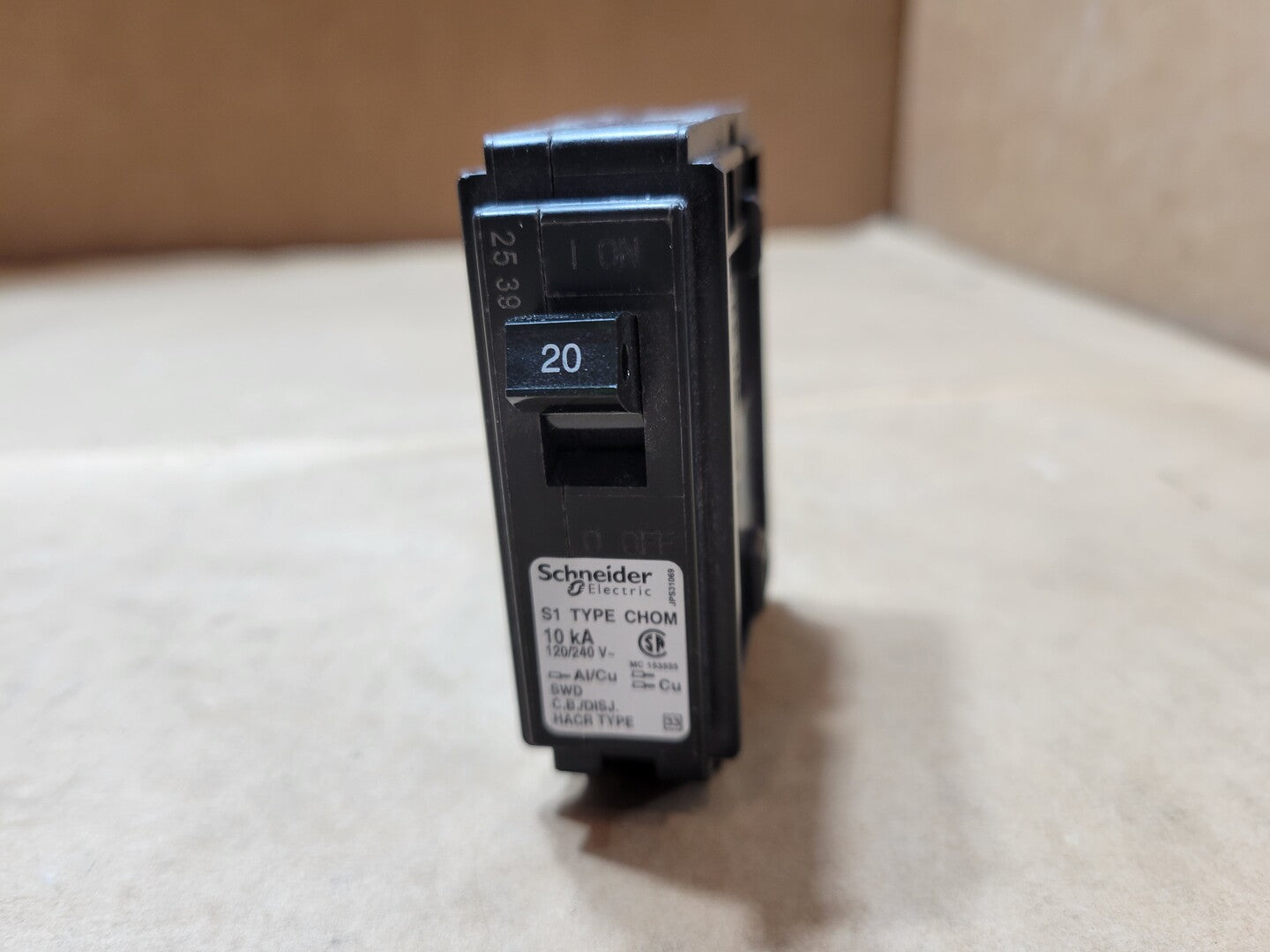

Schneider Electric CHOM120 Type CHOM single-pole circuit breaker rated 20A at 120/240VAC with a 10kA interrupting rating and plug-in mounting configuration. The breaker is marked HACR Type and SWD, and is intended for compatible electrical distribution/load-center applications. The photographed unit appears used/surplus with minor cosmetic handling and installation wear. Electrical operation and trip performance have not been confirmed from the photos.
| Specifications | |
|---|---|
| Model | CHOM120 |
| Condition | Used | General |
| Amps | 20 amps |
| Series | CHOM |
| # of Poles | 1 |
| Mounting Style | Plug-In |
| Voltage | 120/240 volts |
| Other Specifications |
|---|
|

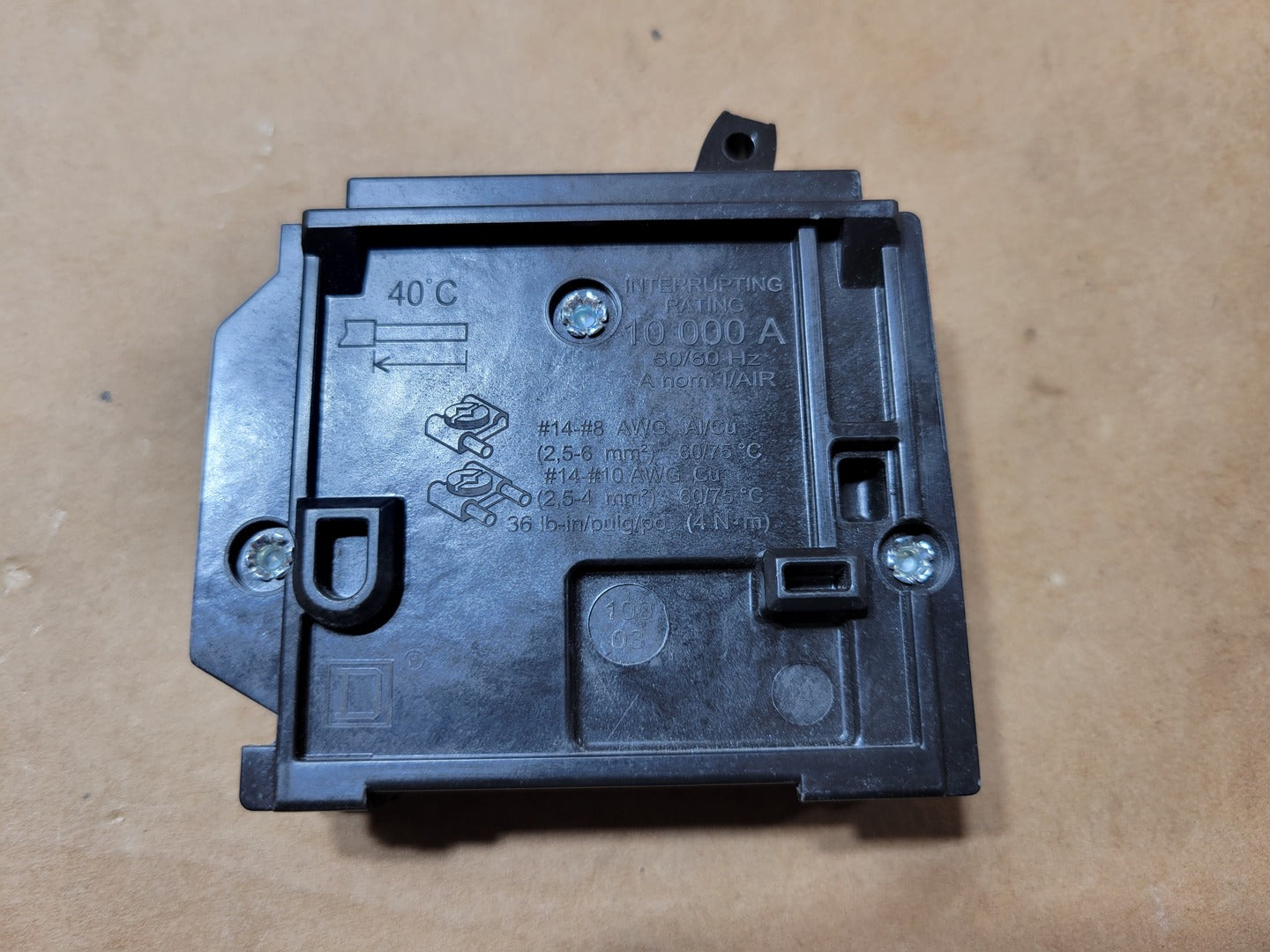

Interrupting Rating: 10kA Frequency: 50/60Hz Operating Temperature Marking: 40°C HACR Rated: Yes Switching Duty: SWD Conductor Type: Al/Cu and Cu Al/Cu Wire Range: #14-#8 AWG / 2.5-6 mm2 Cu Wire Range: #14-#10 AWG / 2.5-4 mm2 Wire Temperature Rating: 60/75°C Terminal Torque: 36 lb-in / 4 N-m Certification Marking: CSA |
