EATON DILER-40 XTRM10A40D 4-NO Mini Contactor Relay 550V 50Hz / 600V 60Hz AC Coil
EATON

DILER-40 XTRM10A40D 4-NO Mini Contactor Relay 550V 50Hz / 600V 60Hz AC Coil

SKU: 157766
Precio:
$120 CAD

Gastos de envío calculados en la caja

Stock:
Disponibles (3 unidades), listas para ser enviadas
Make an Offer

¿Necesita una respuesta ahora?

604-449-1880

Descripción

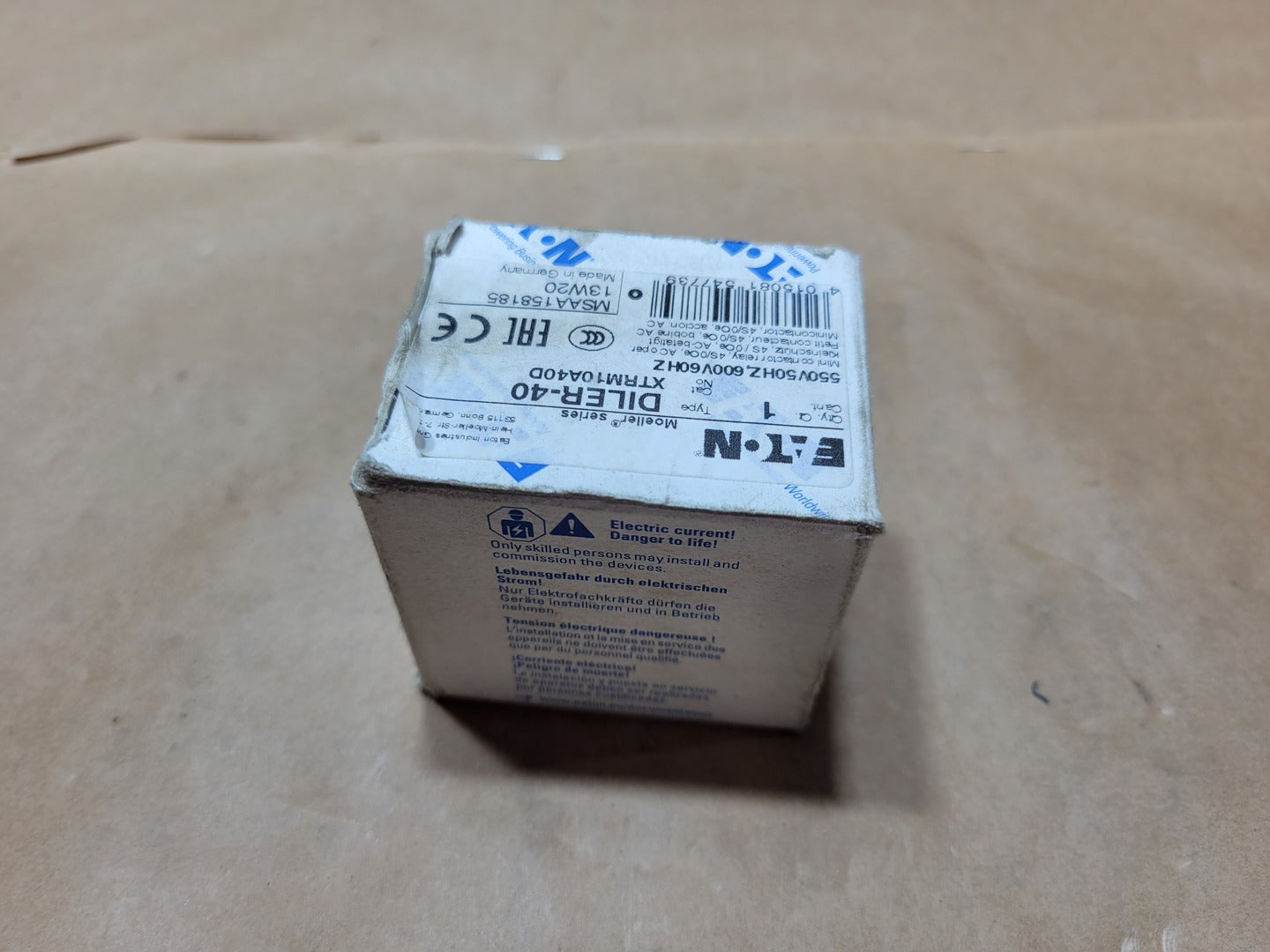

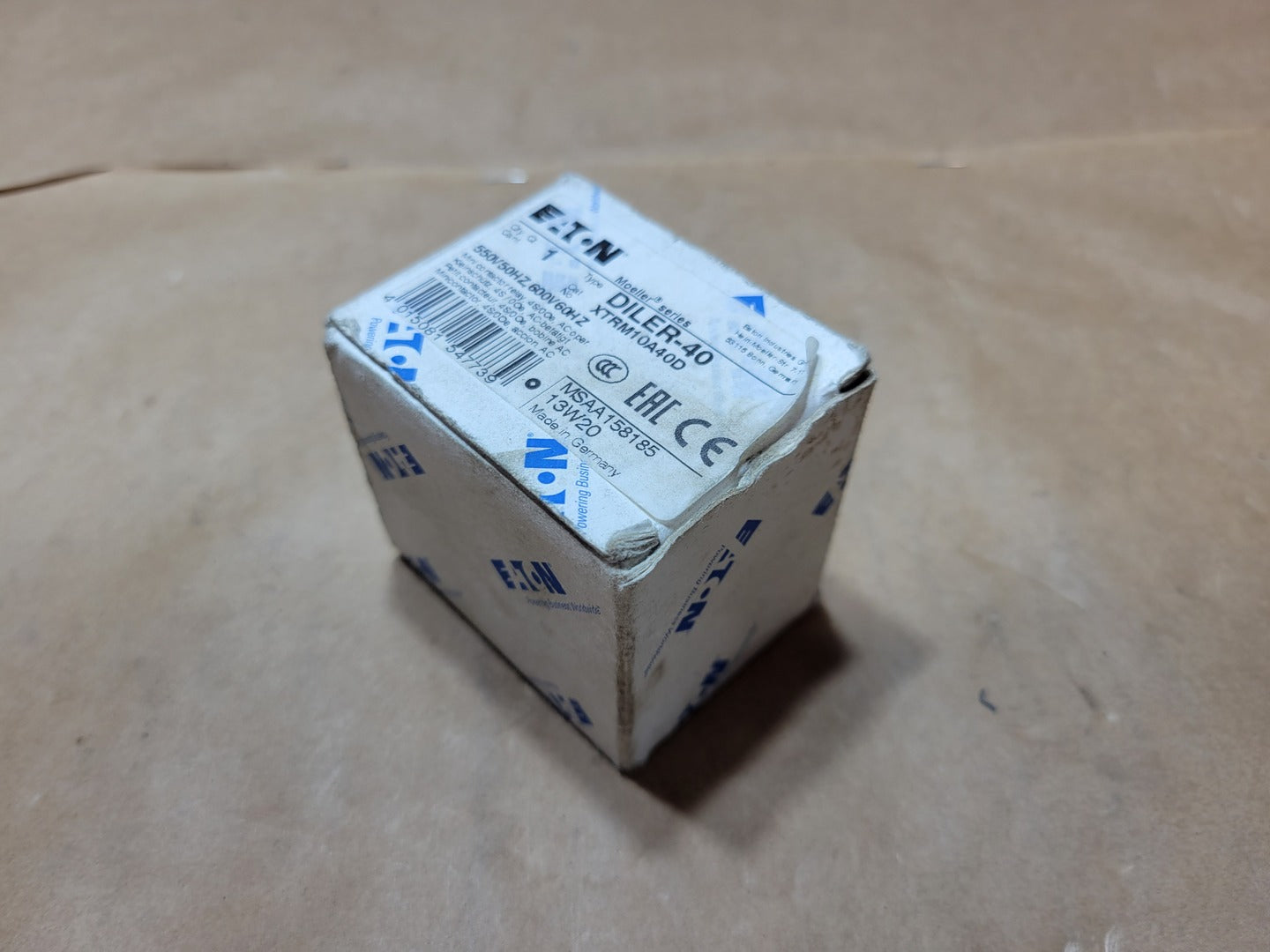

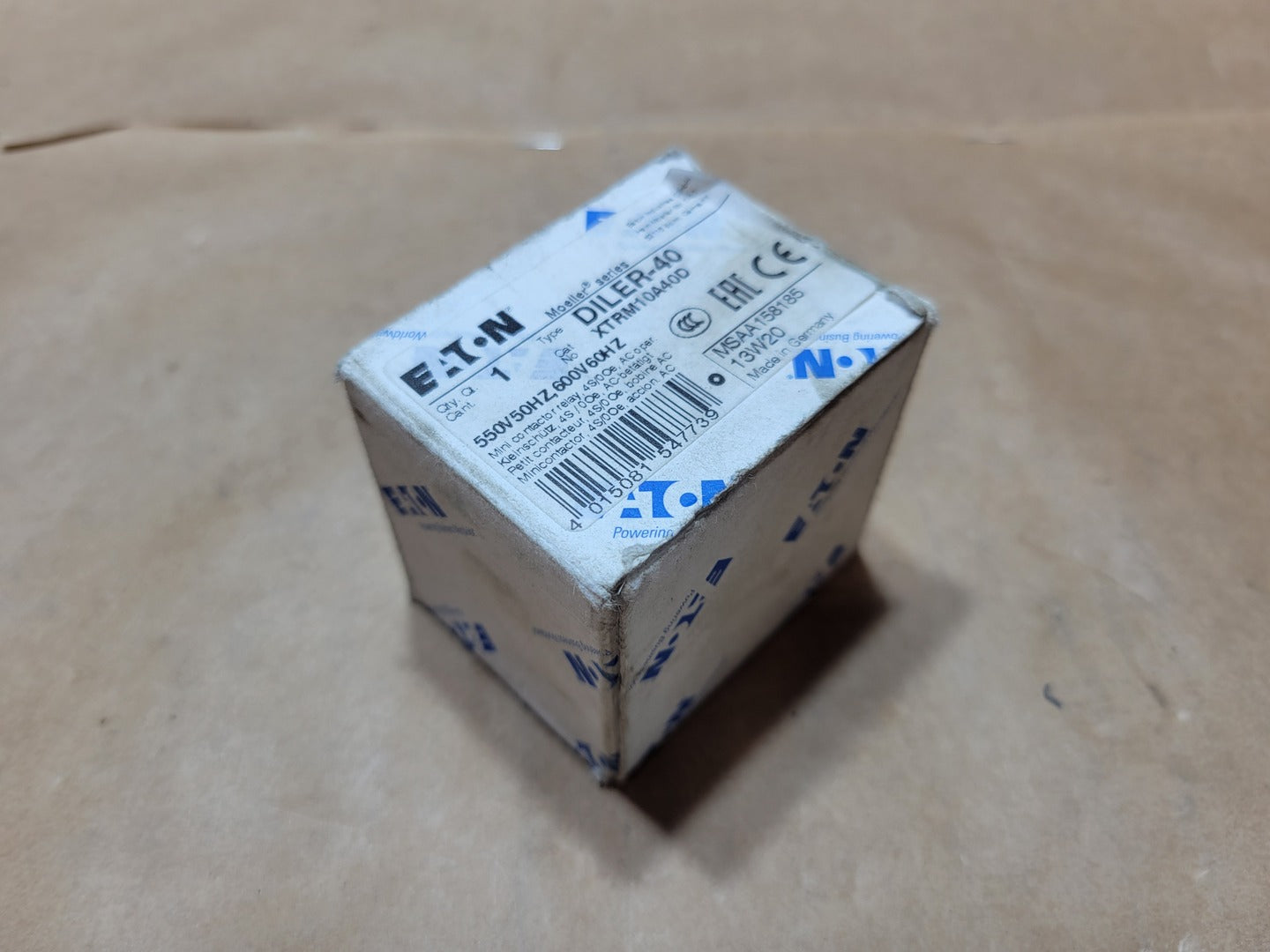

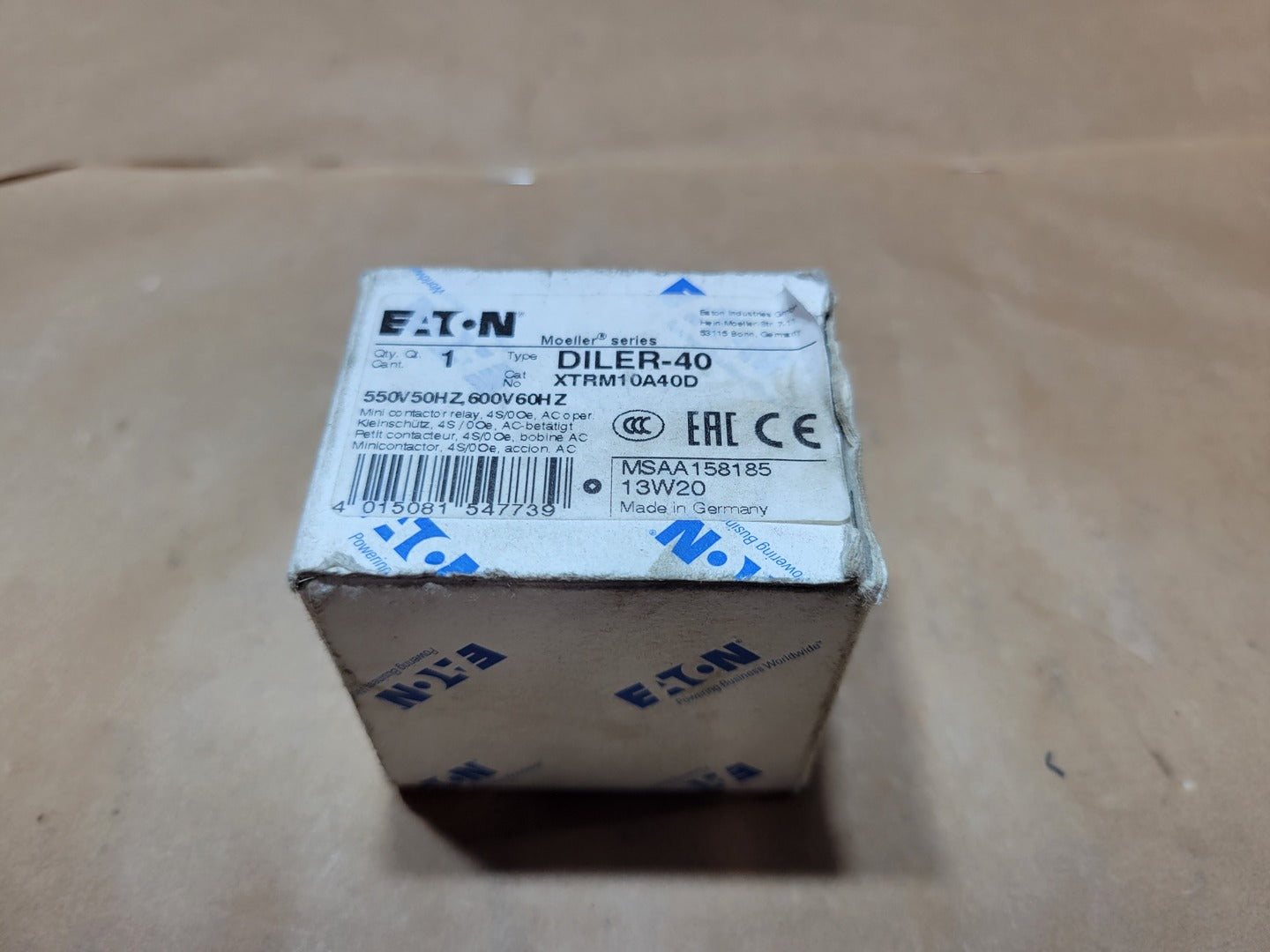

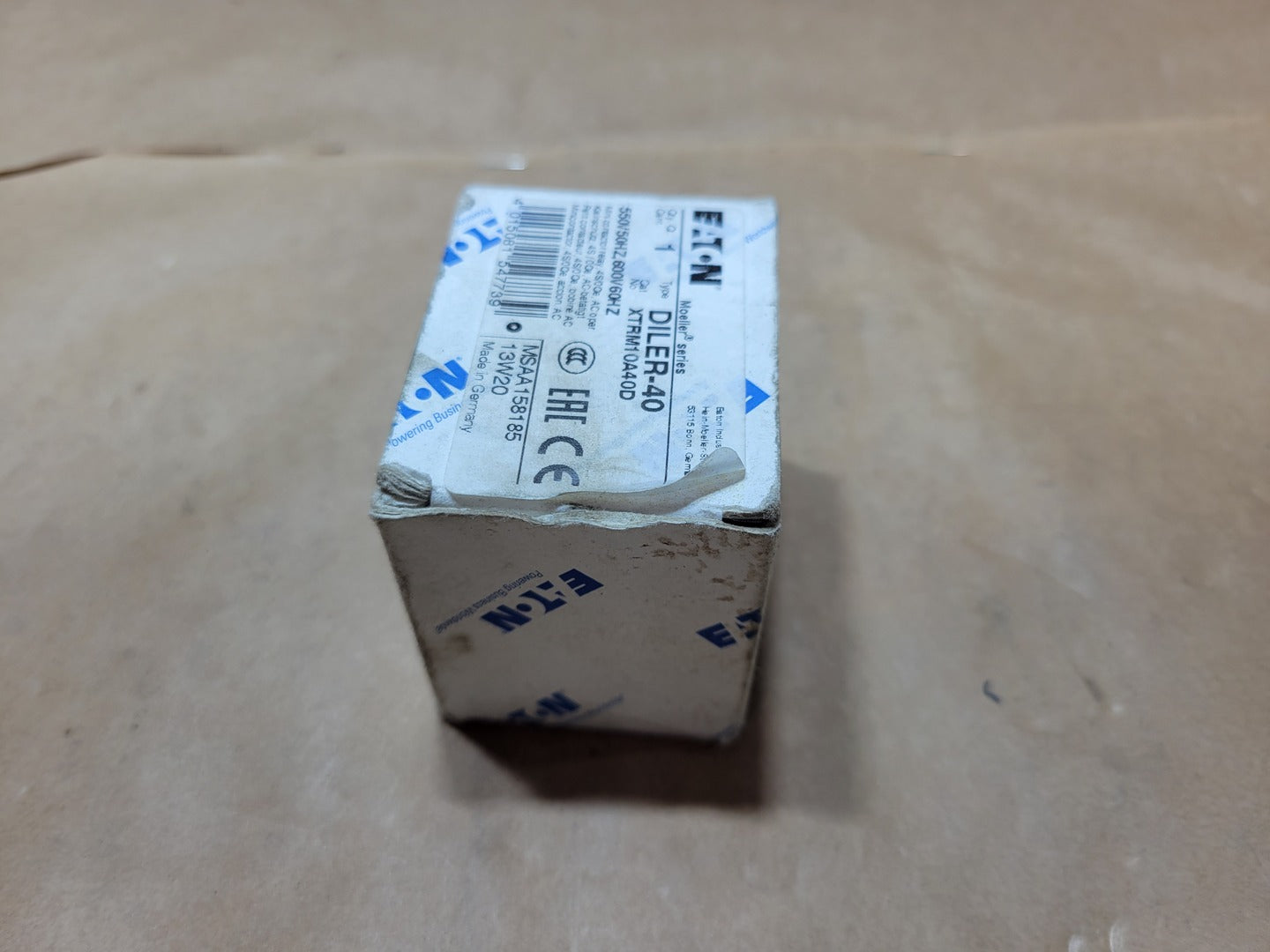

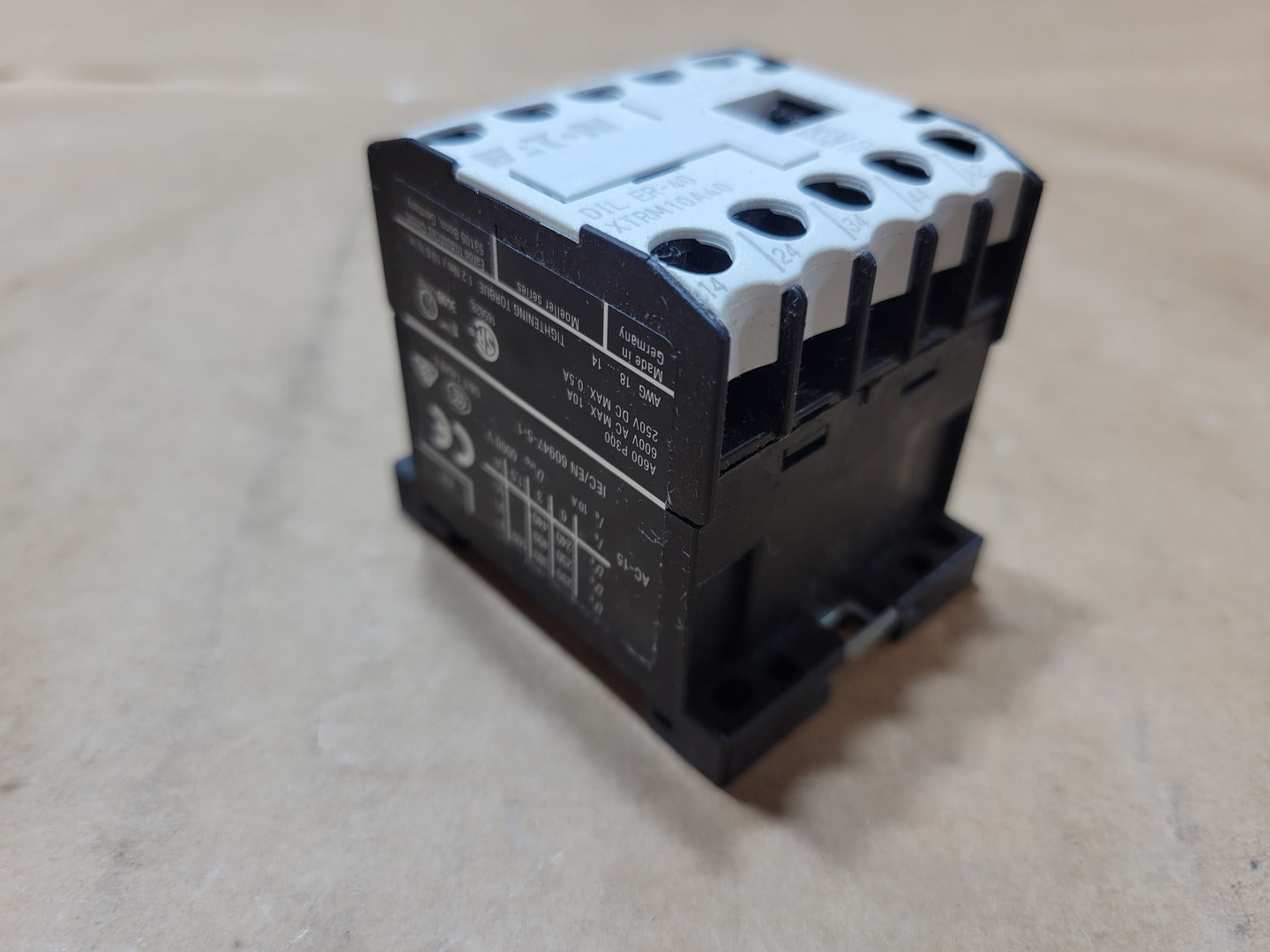

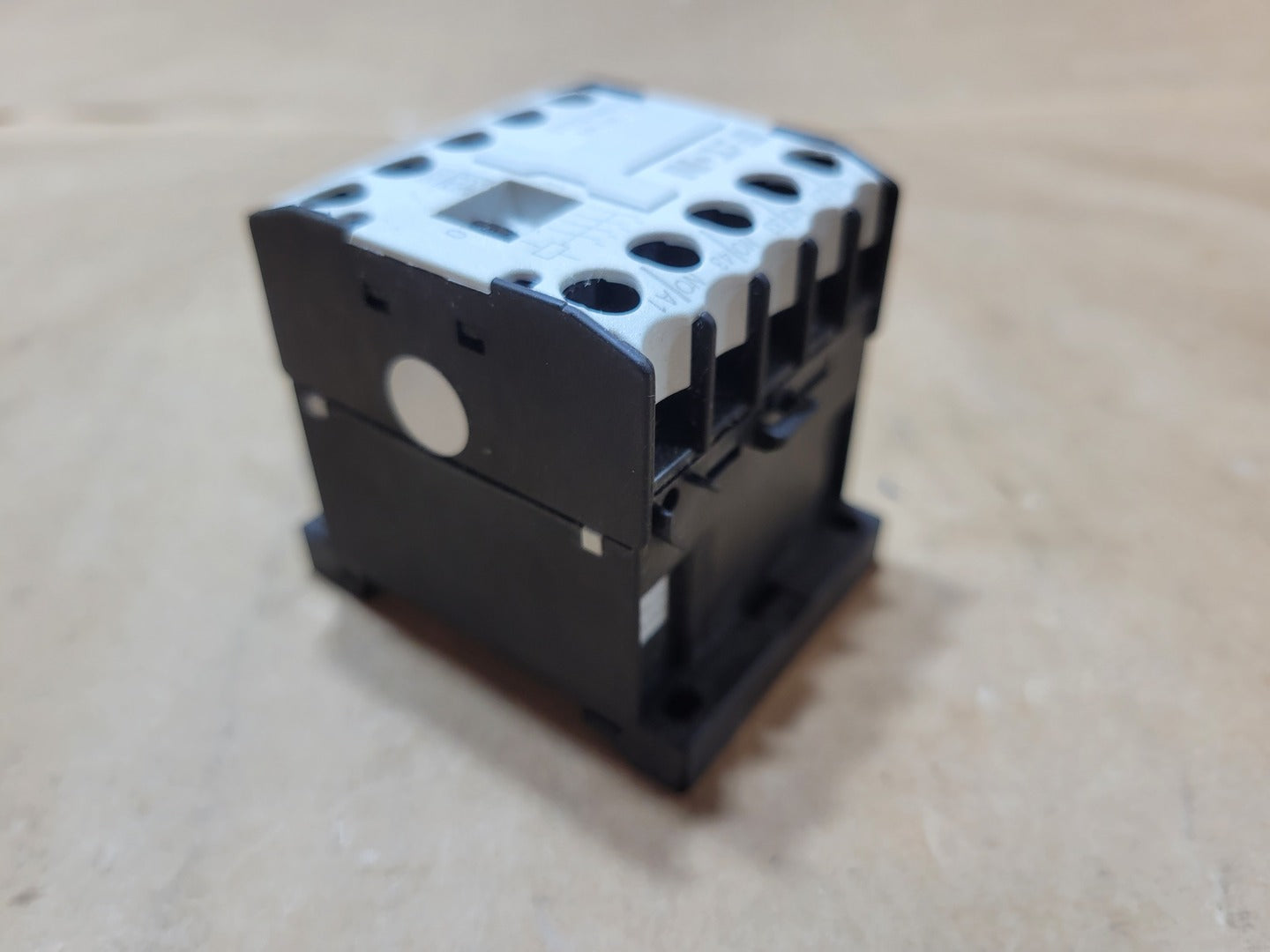

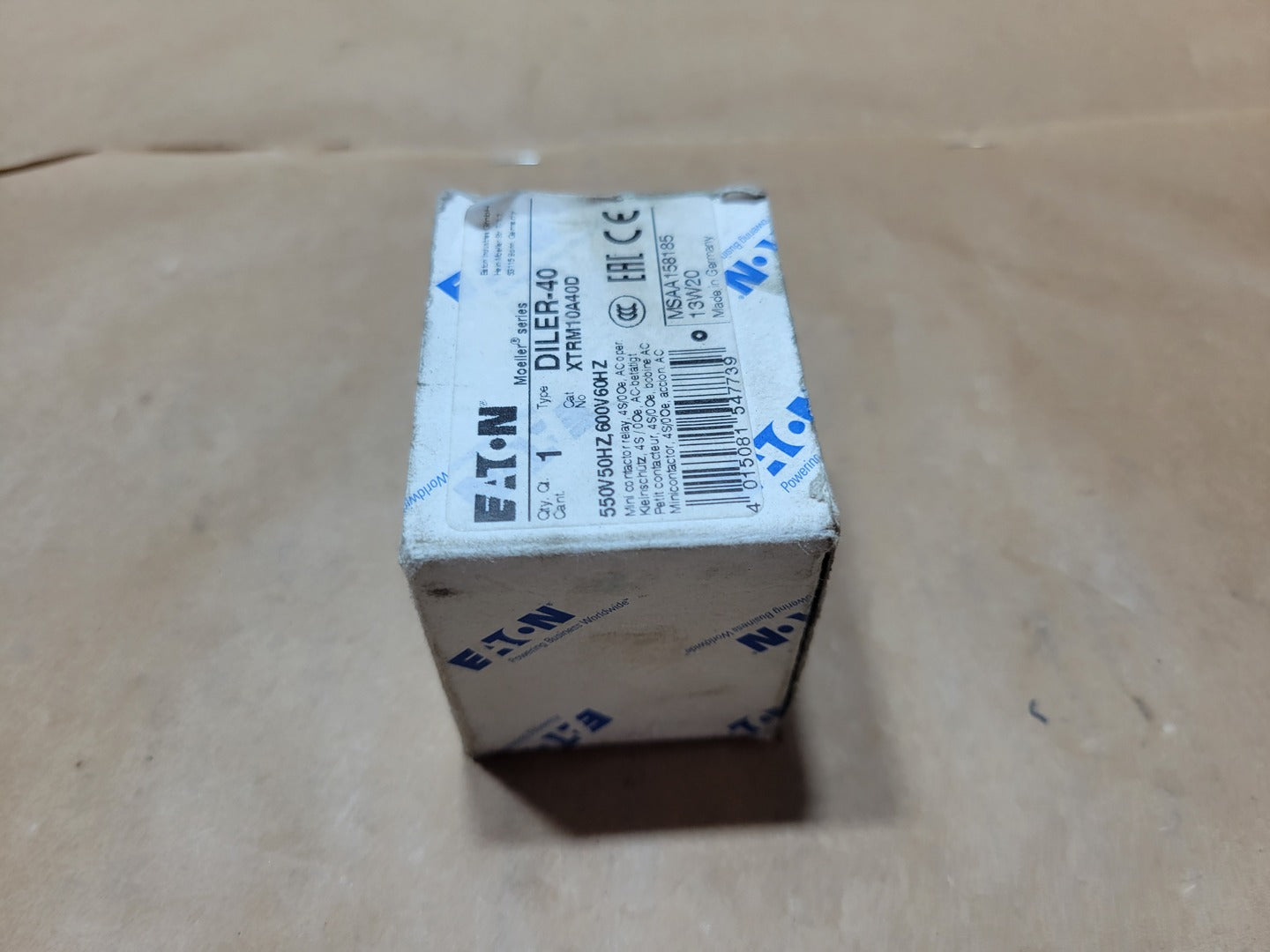

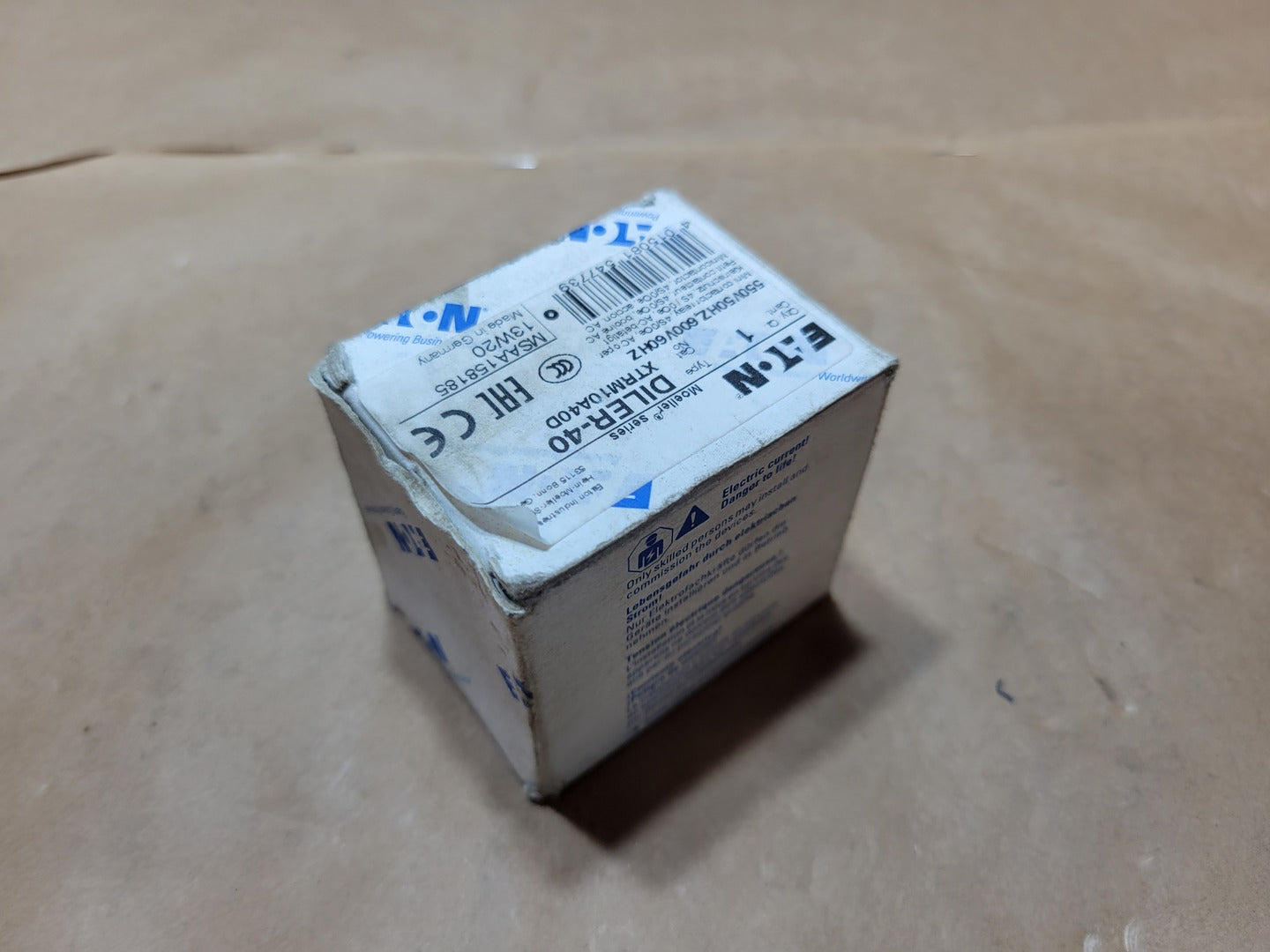

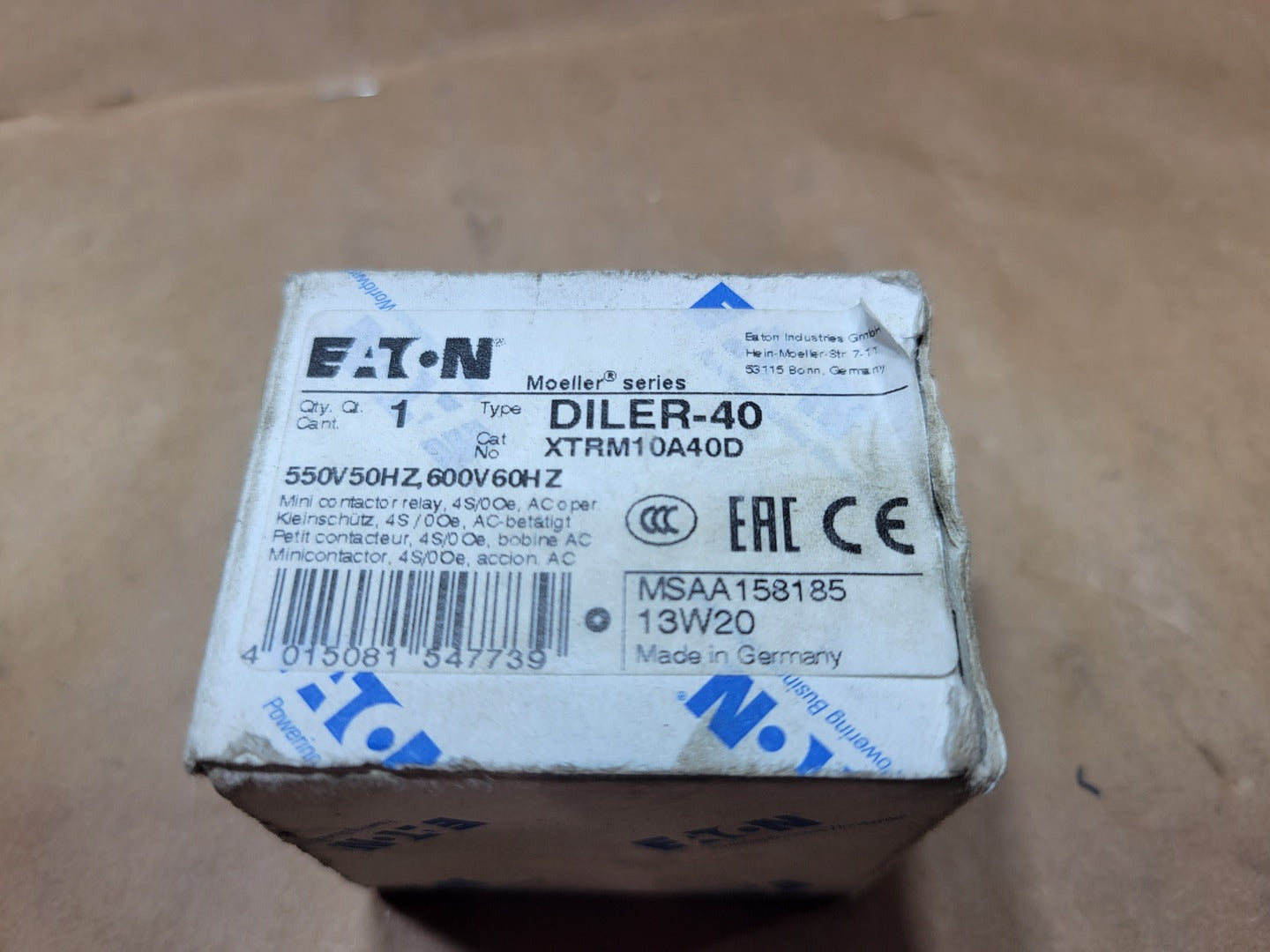

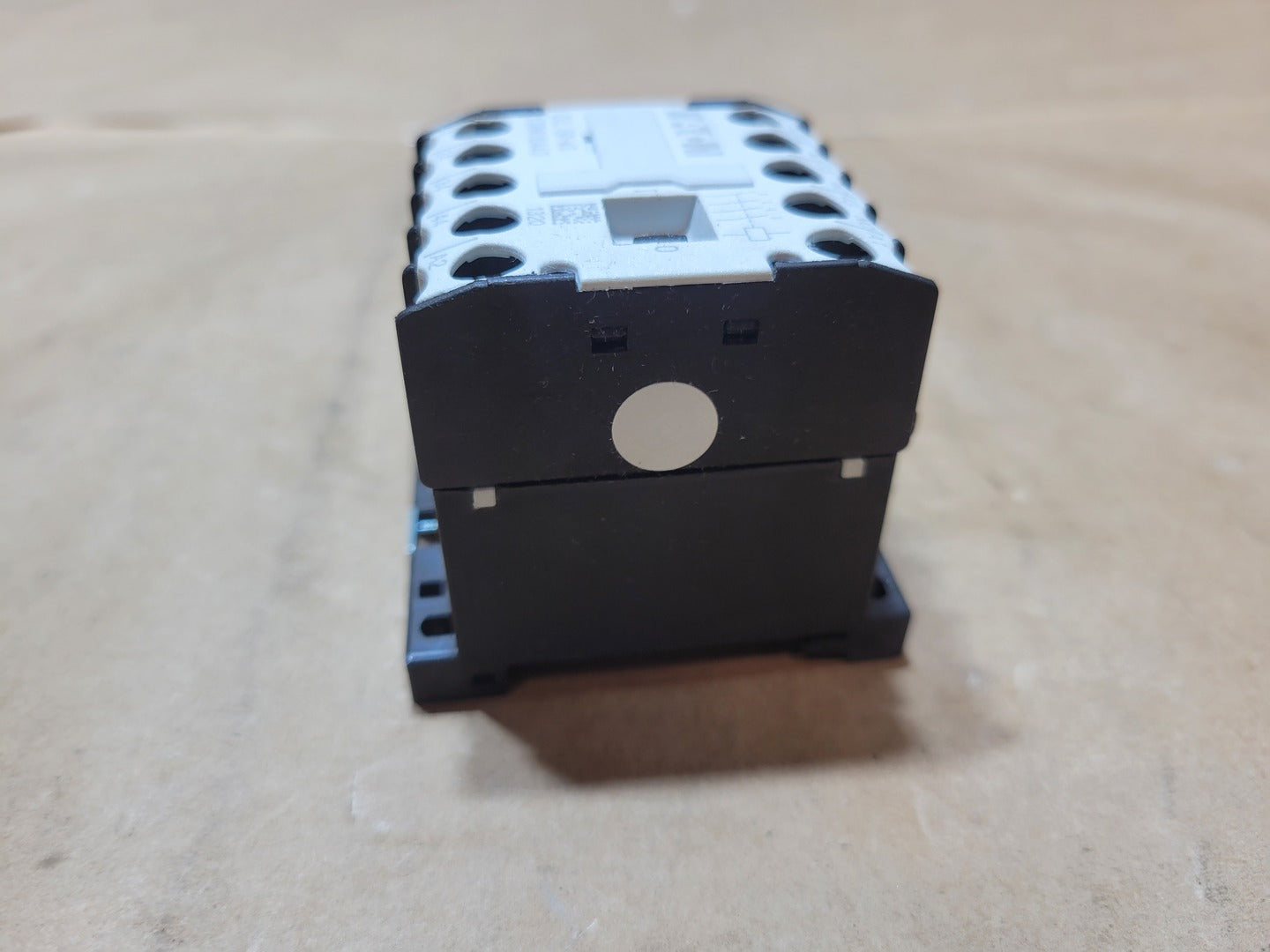

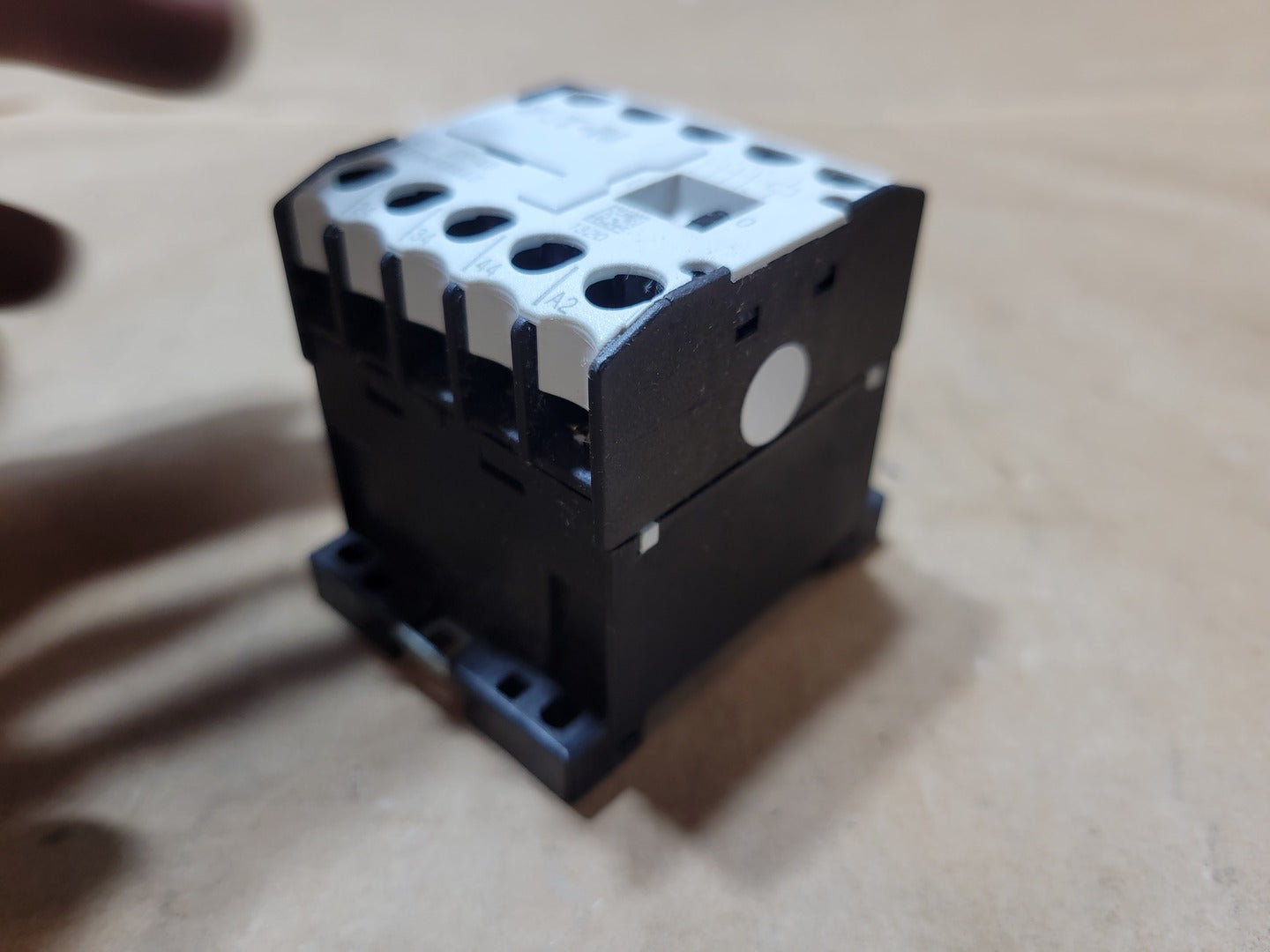

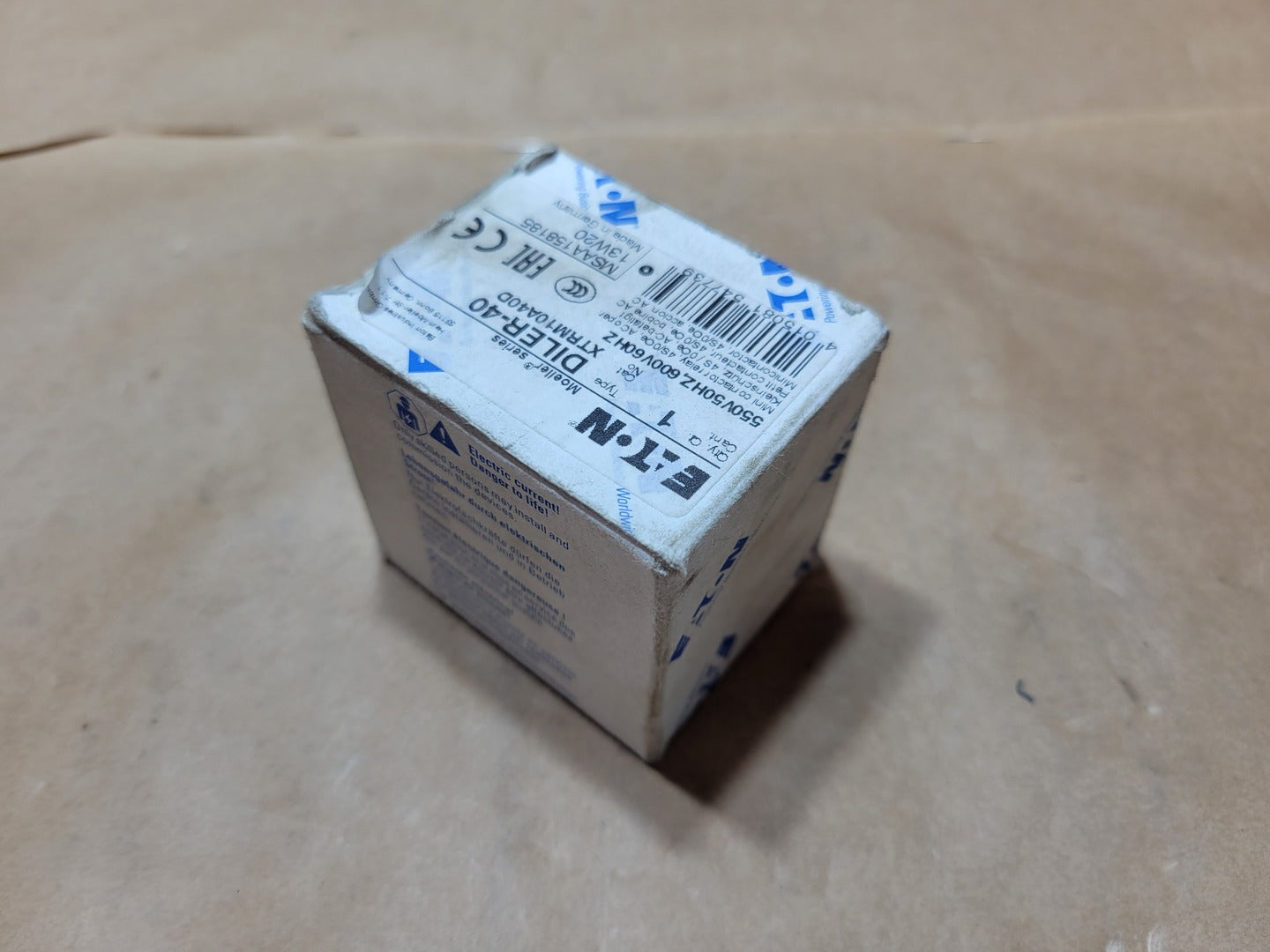

Eaton Moeller DILER-40 mini contactor/control relay, catalog number XTRM10A40D, configured with four normally open contacts. The original Eaton carton identifies this particular version for a 550V 50Hz / 600V 60Hz AC operating coil.
Specifications
Model DILER-40
Made In GERMANY
Condition Used
Other Specifications

Catalog Number: XTRM10A40D

Equipment Type: Mini Contactor / Control Relay

Contact Configuration: 4 Normally Open (4 NO)

Coil Operation: AC

Coil Voltage: 550V AC at 50 Hz / 600V AC at 60 Hz

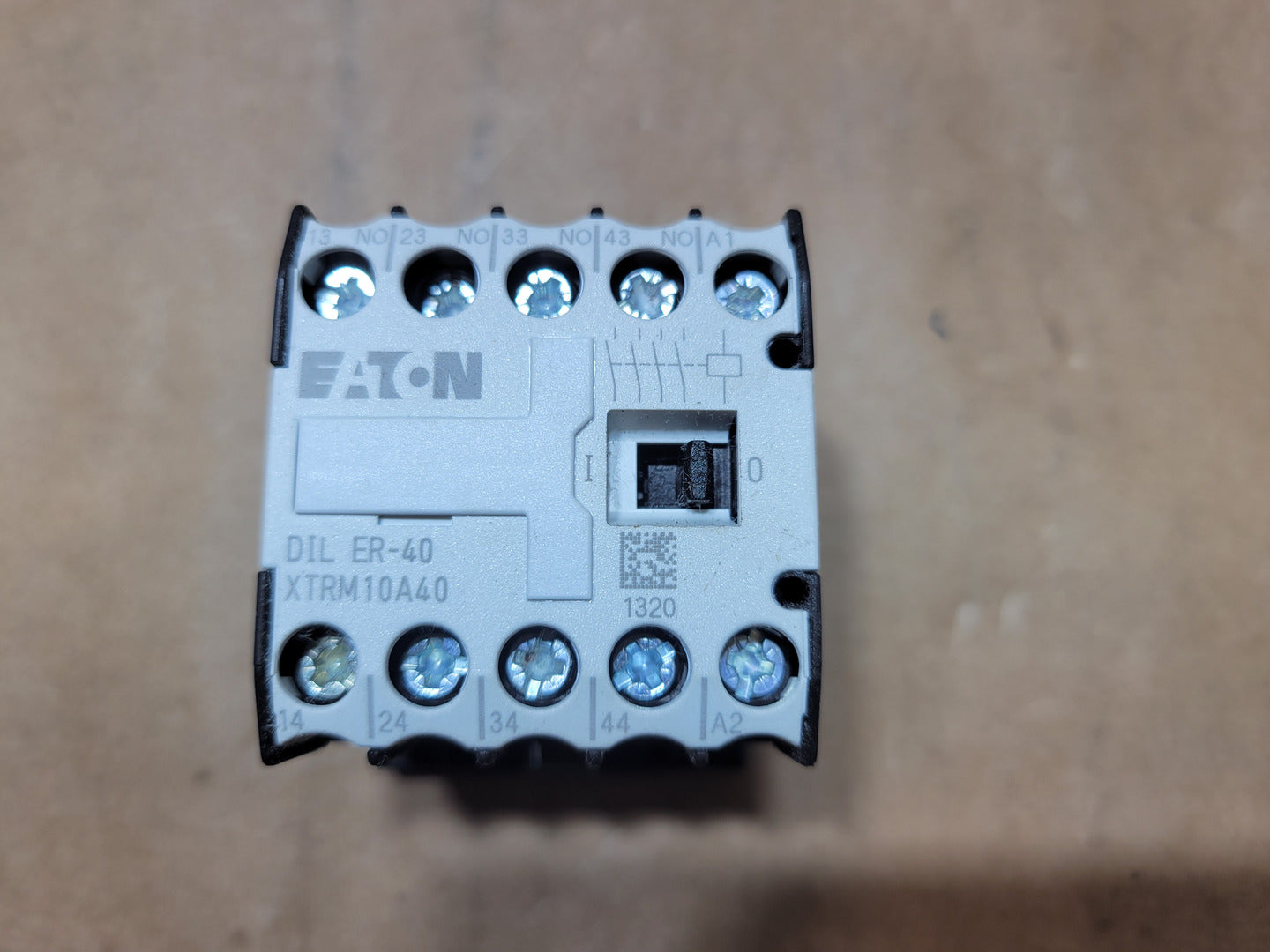

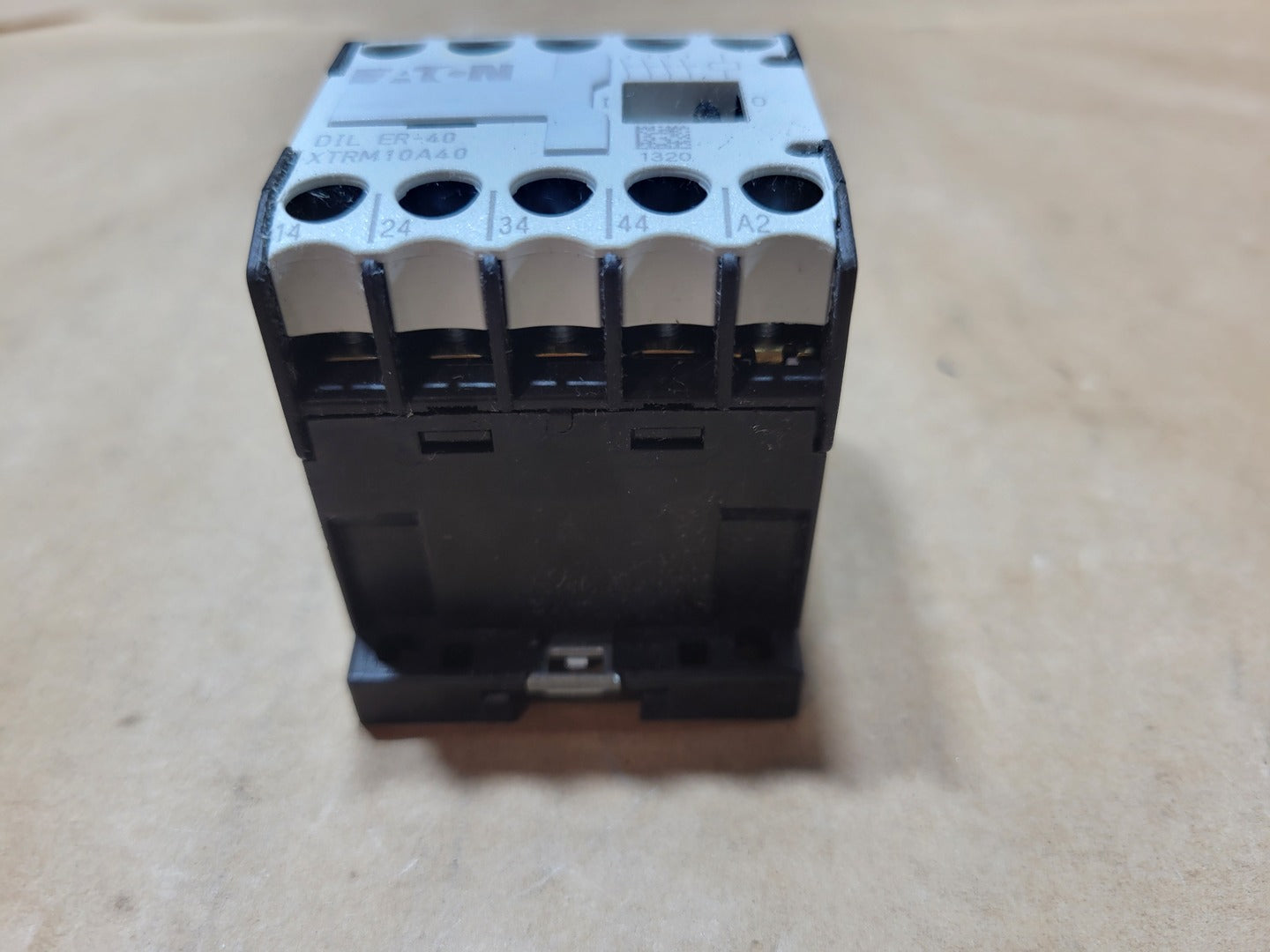

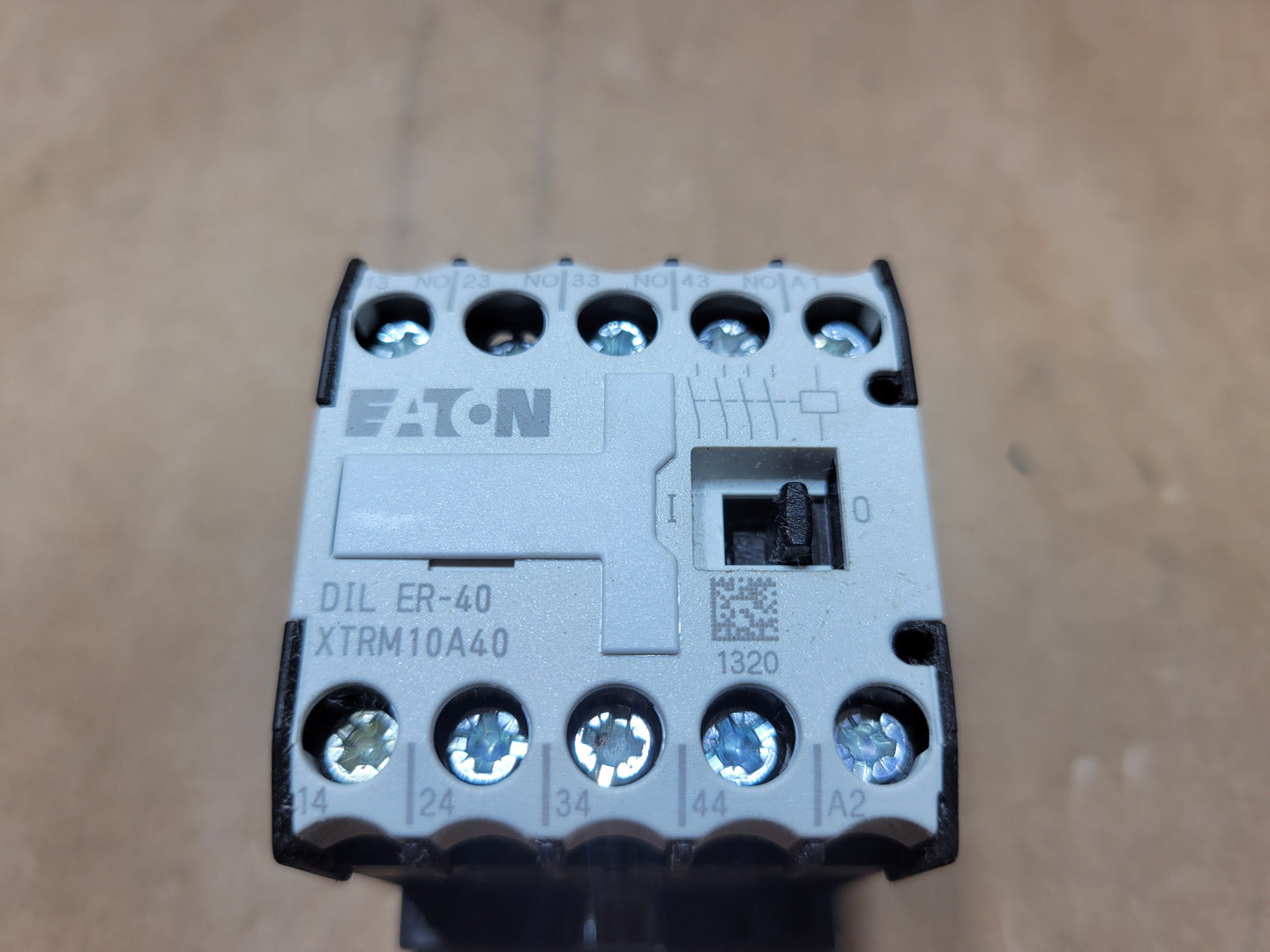

Contact Terminal Markings: 13-14, 23-24, 33-34, 43-44

Coil Terminals: A1 / A2

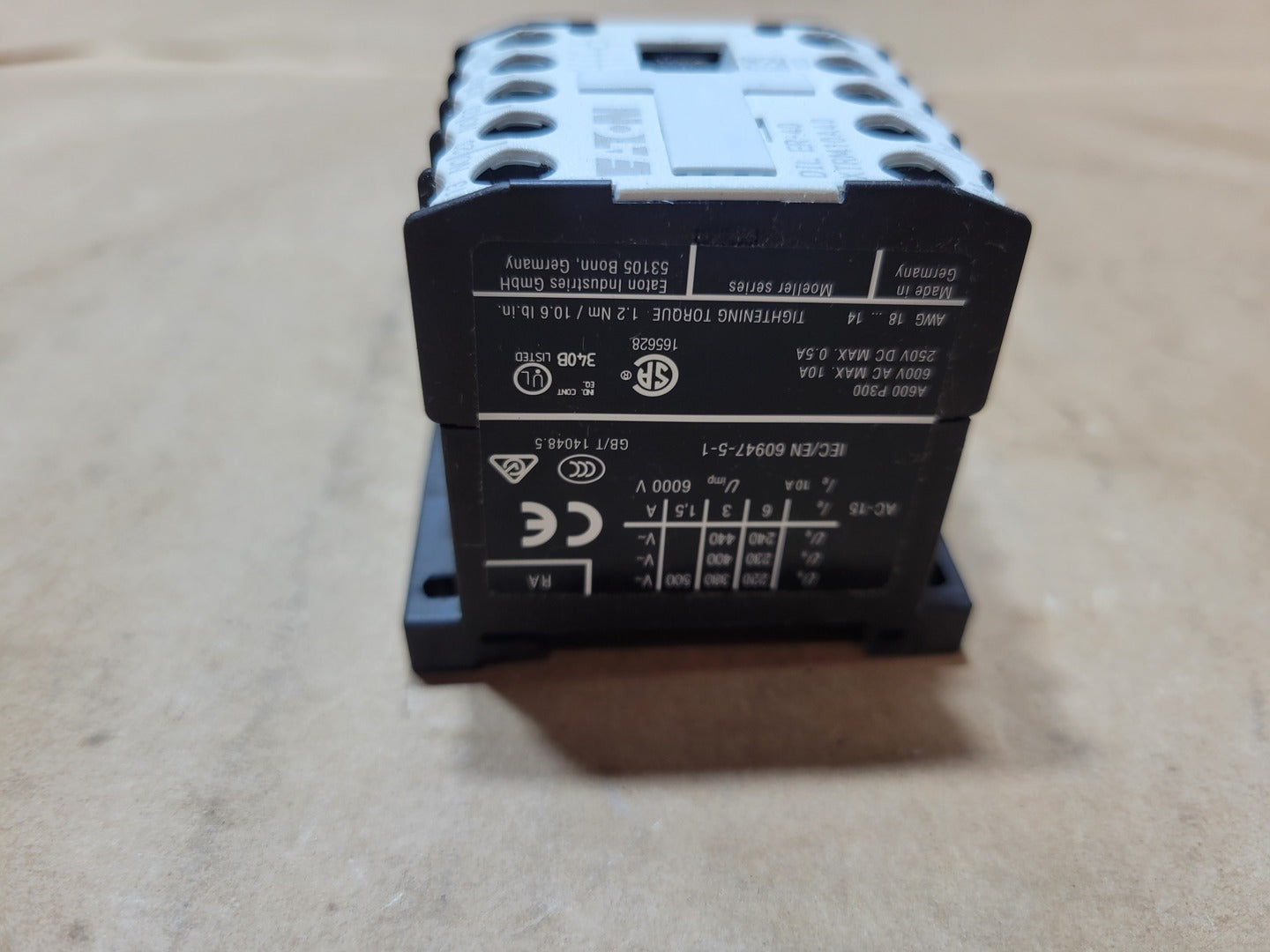

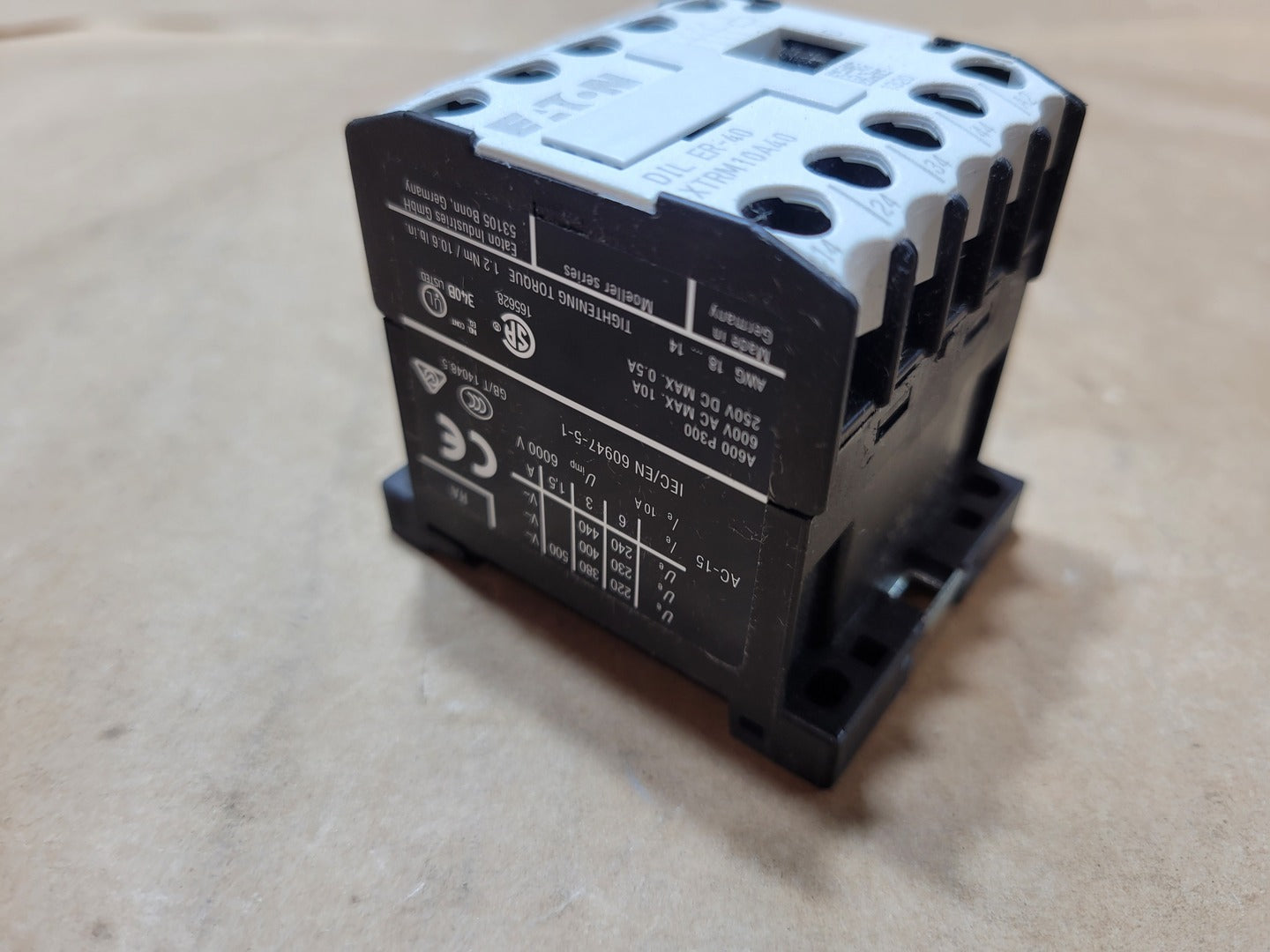

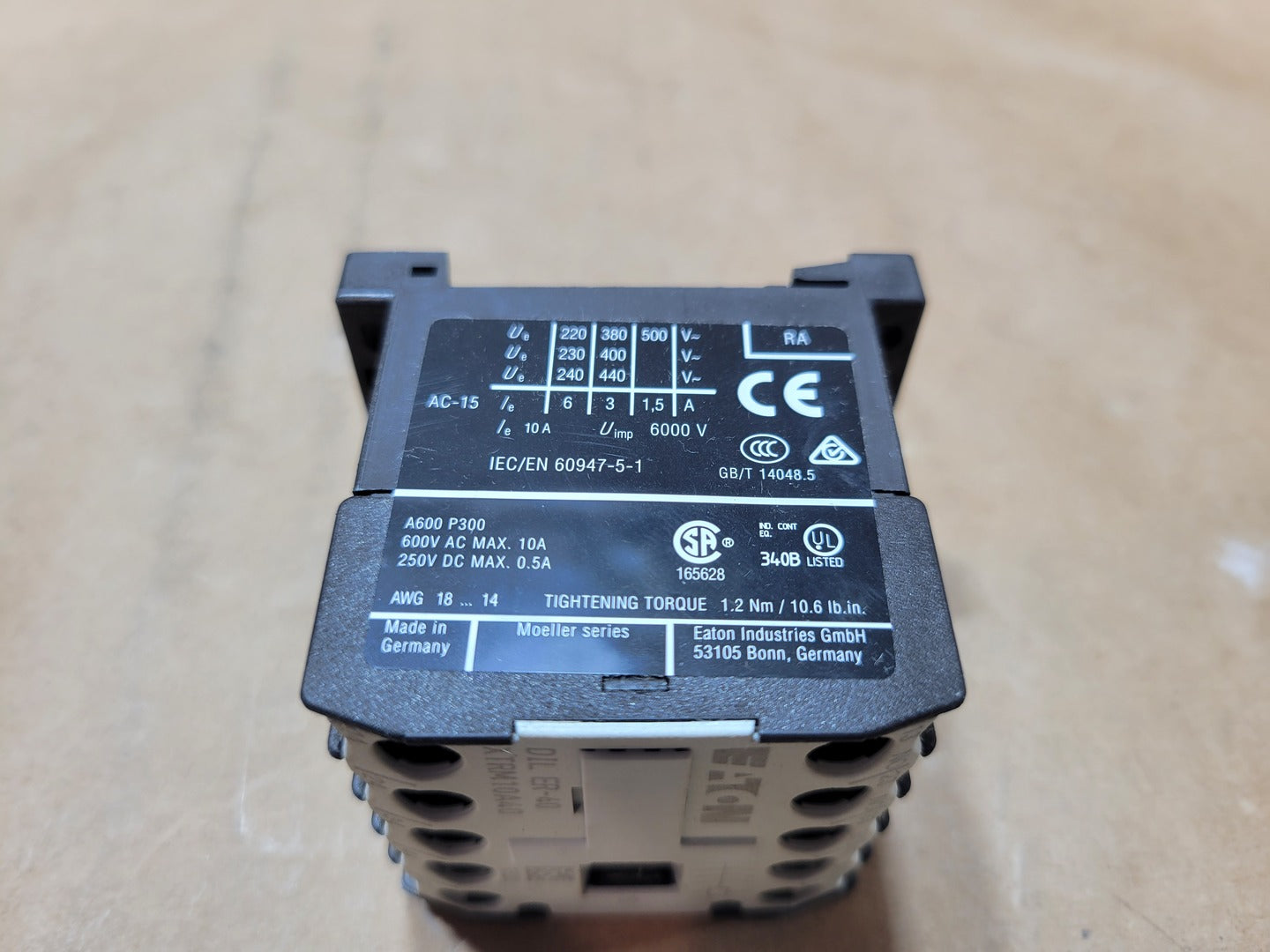

AC-15 Rated Operational Current: 6 A at 220/230/240 V; 3 A at 380/400/440 V; 1.5 A at 500 V

Conventional Thermal Current (Ie shown on unit): 10 A

Maximum AC Rating: 600V AC, 10 A

Maximum DC Rating: 250V DC, 0.5 A

Impulse Withstand Voltage (Uimp): 6000 V

Terminal Wire Range: AWG 18-14

Terminal Tightening Torque: 1.2 Nm / 10.6 lb-in

Connection Type: Screw Terminal

Mounting: DIN rail / panel mounting typical of DILER series
