Descripción

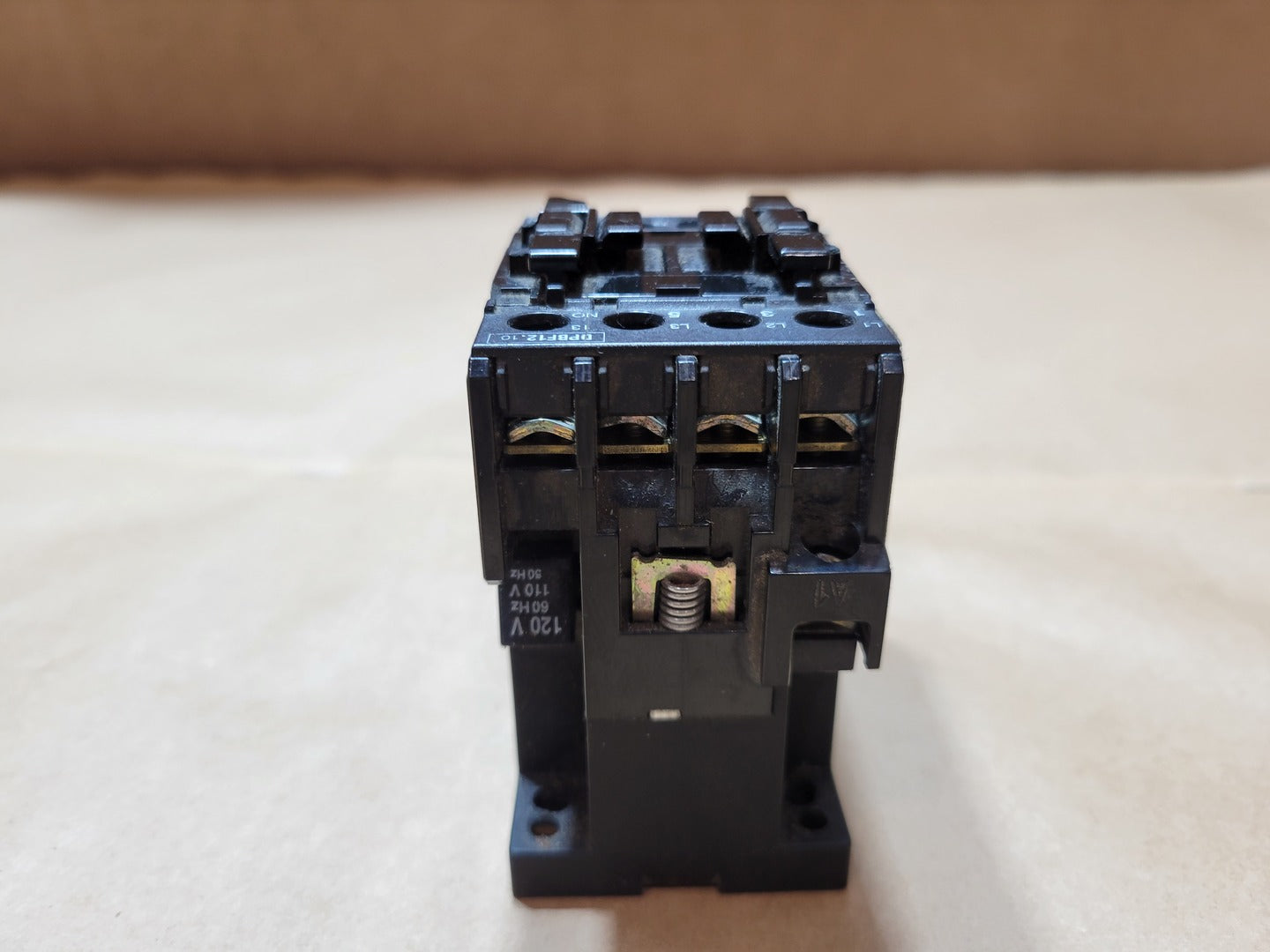

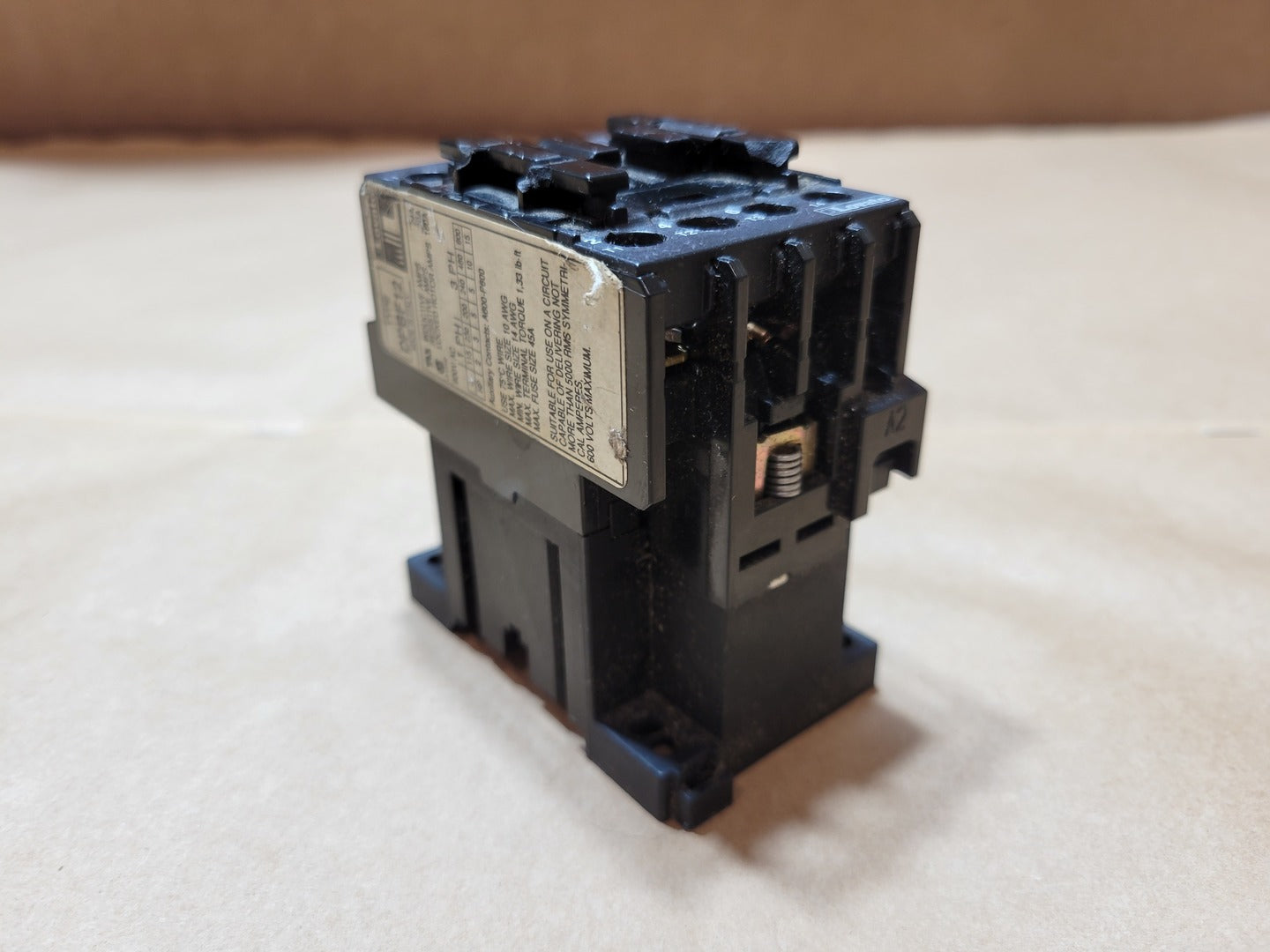

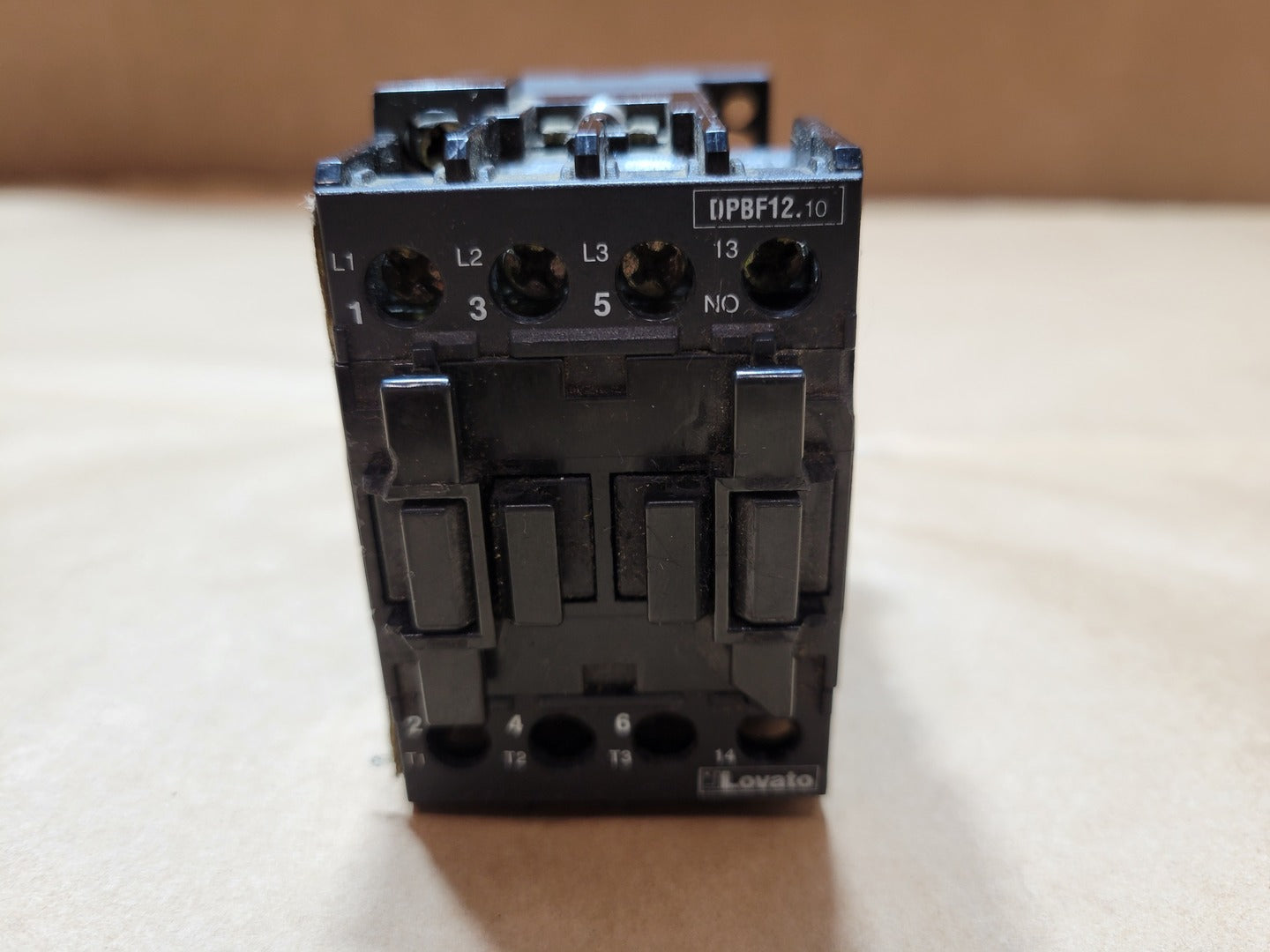

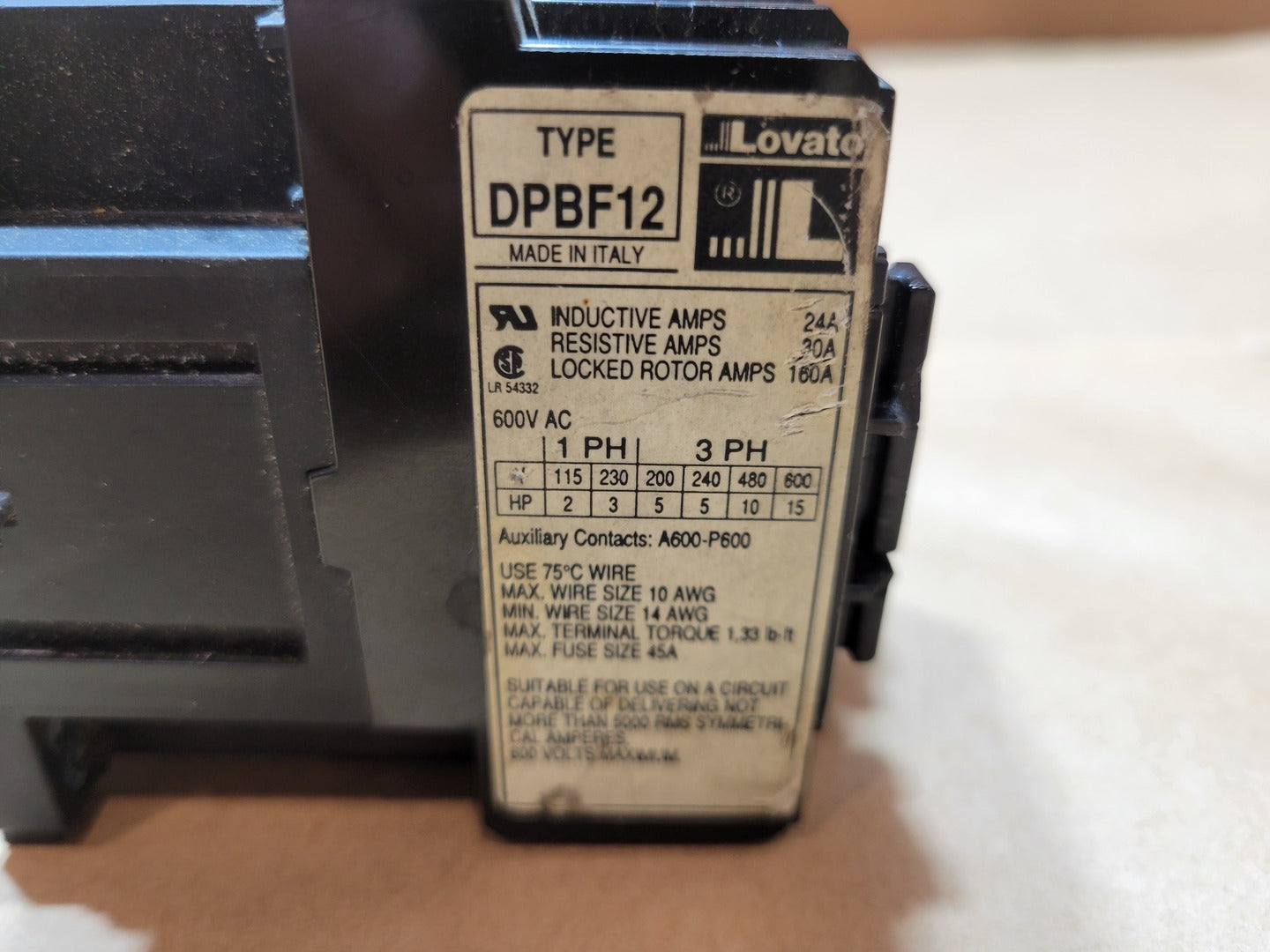

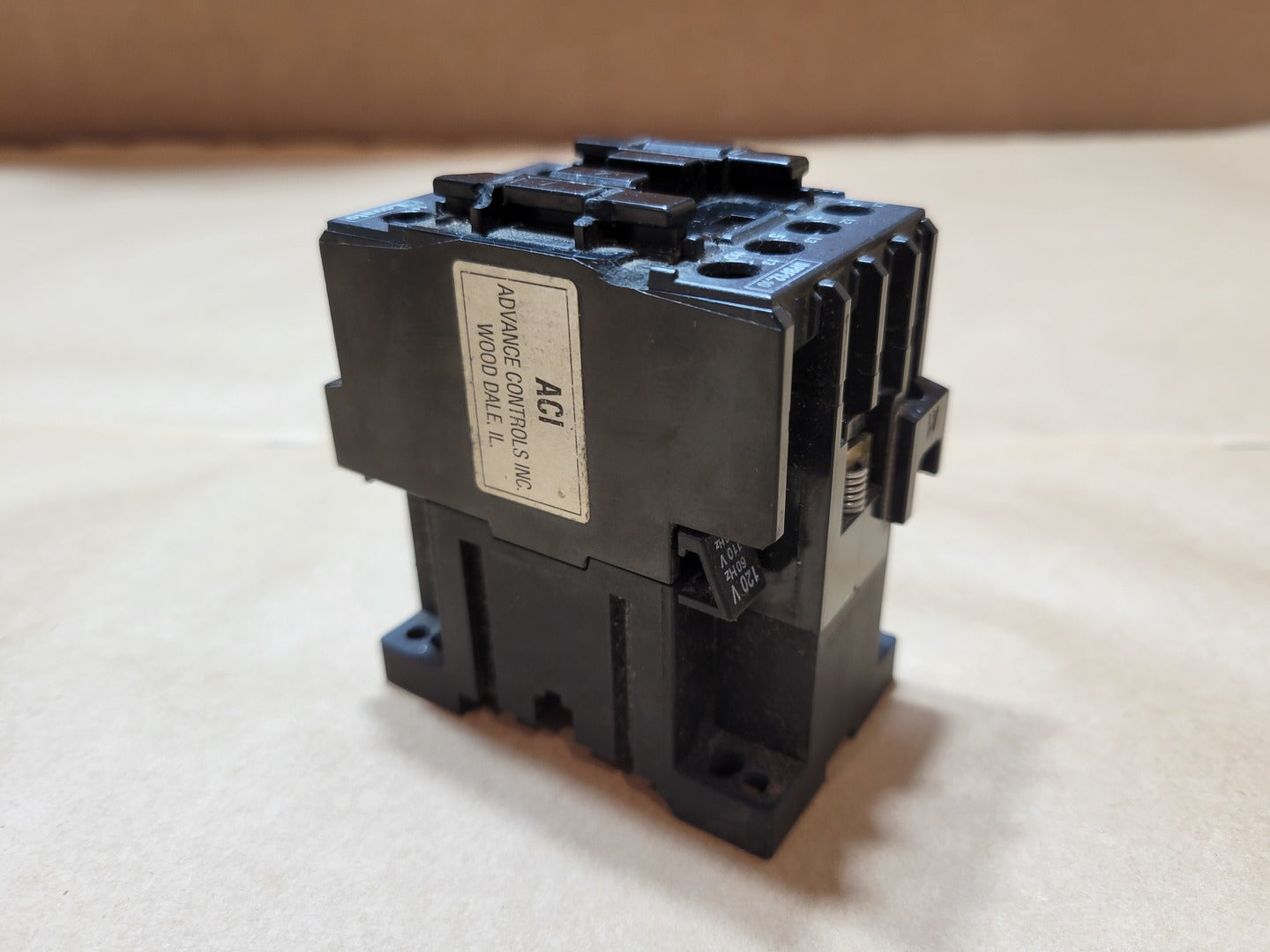

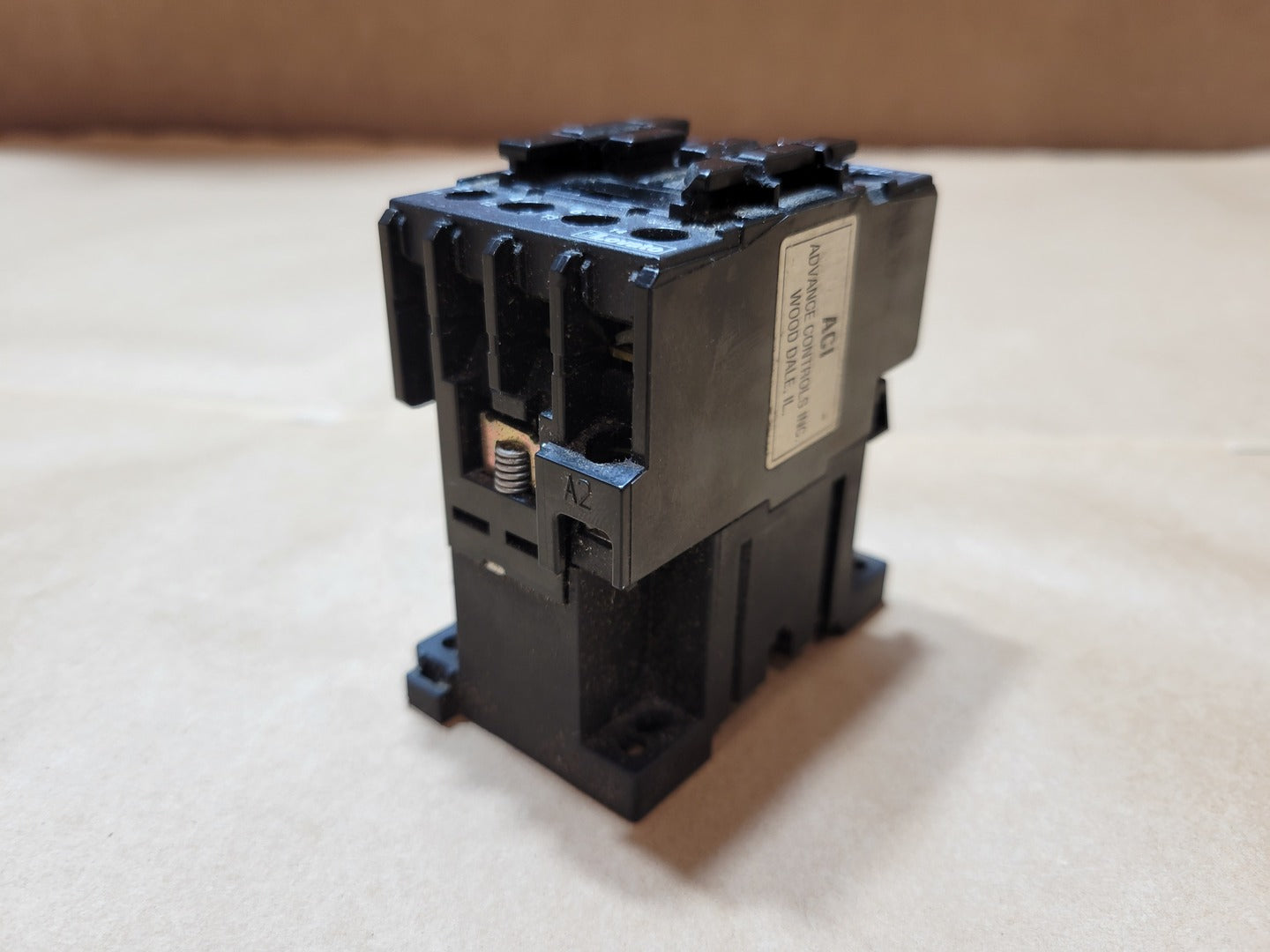

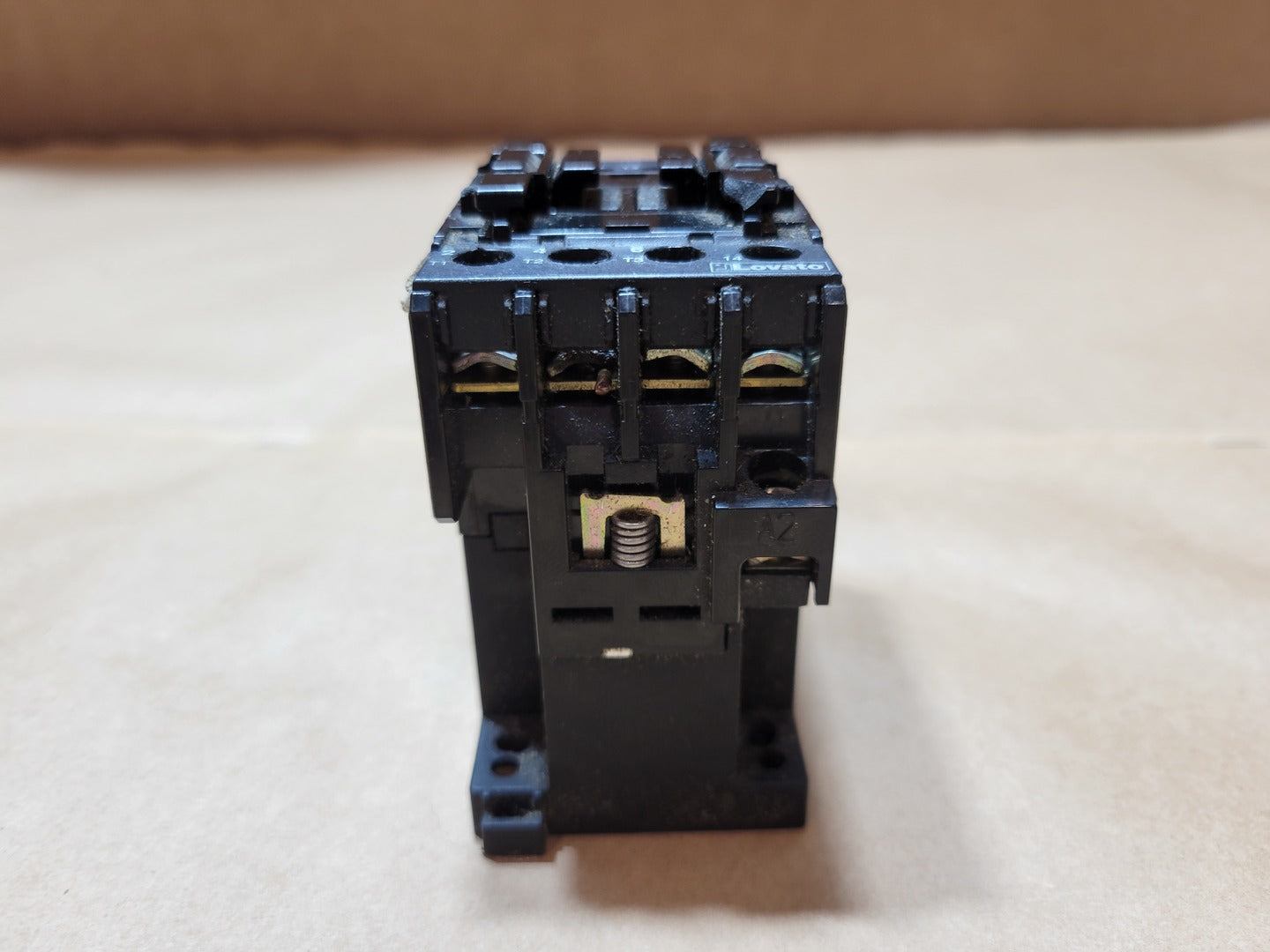

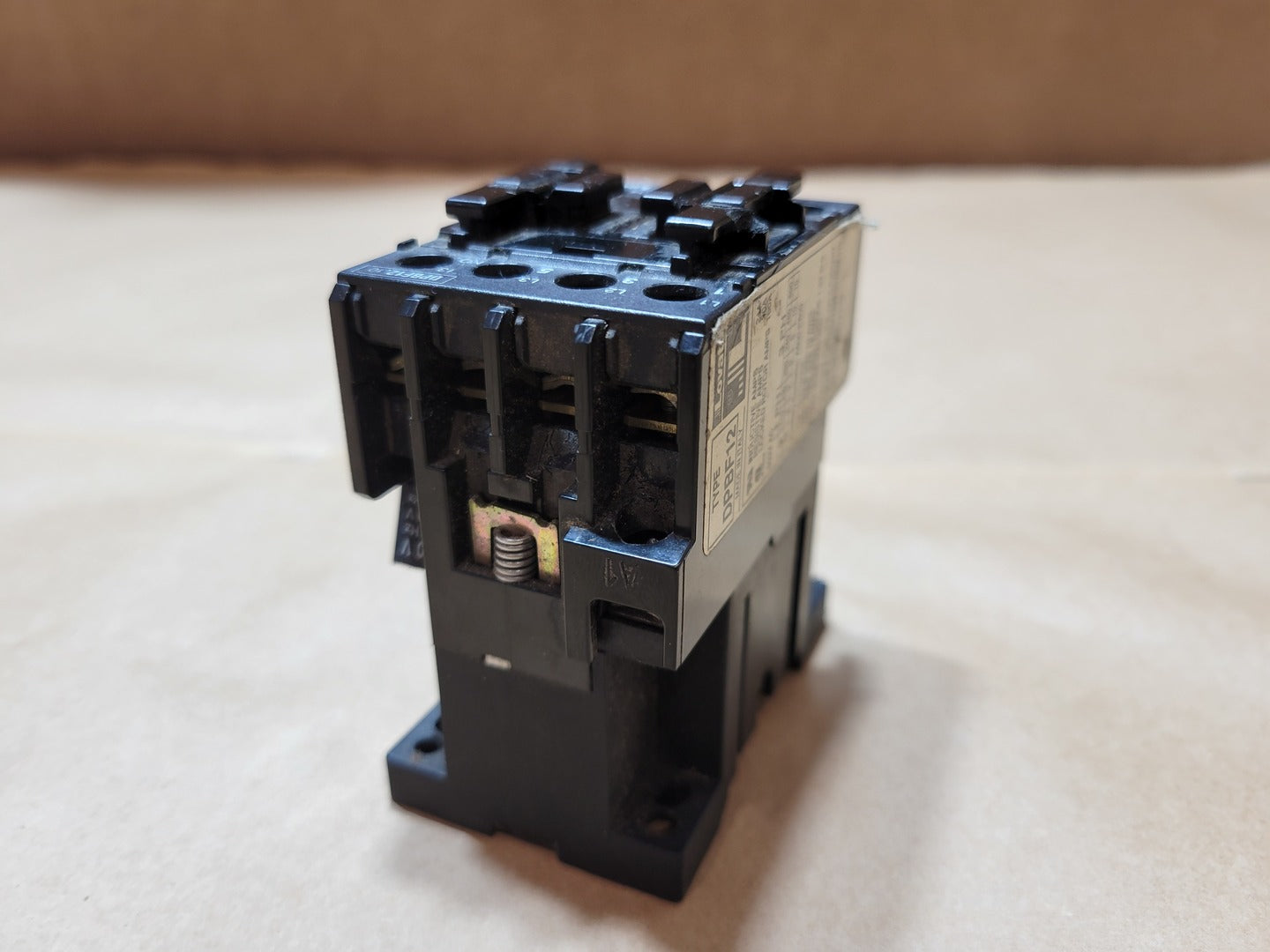

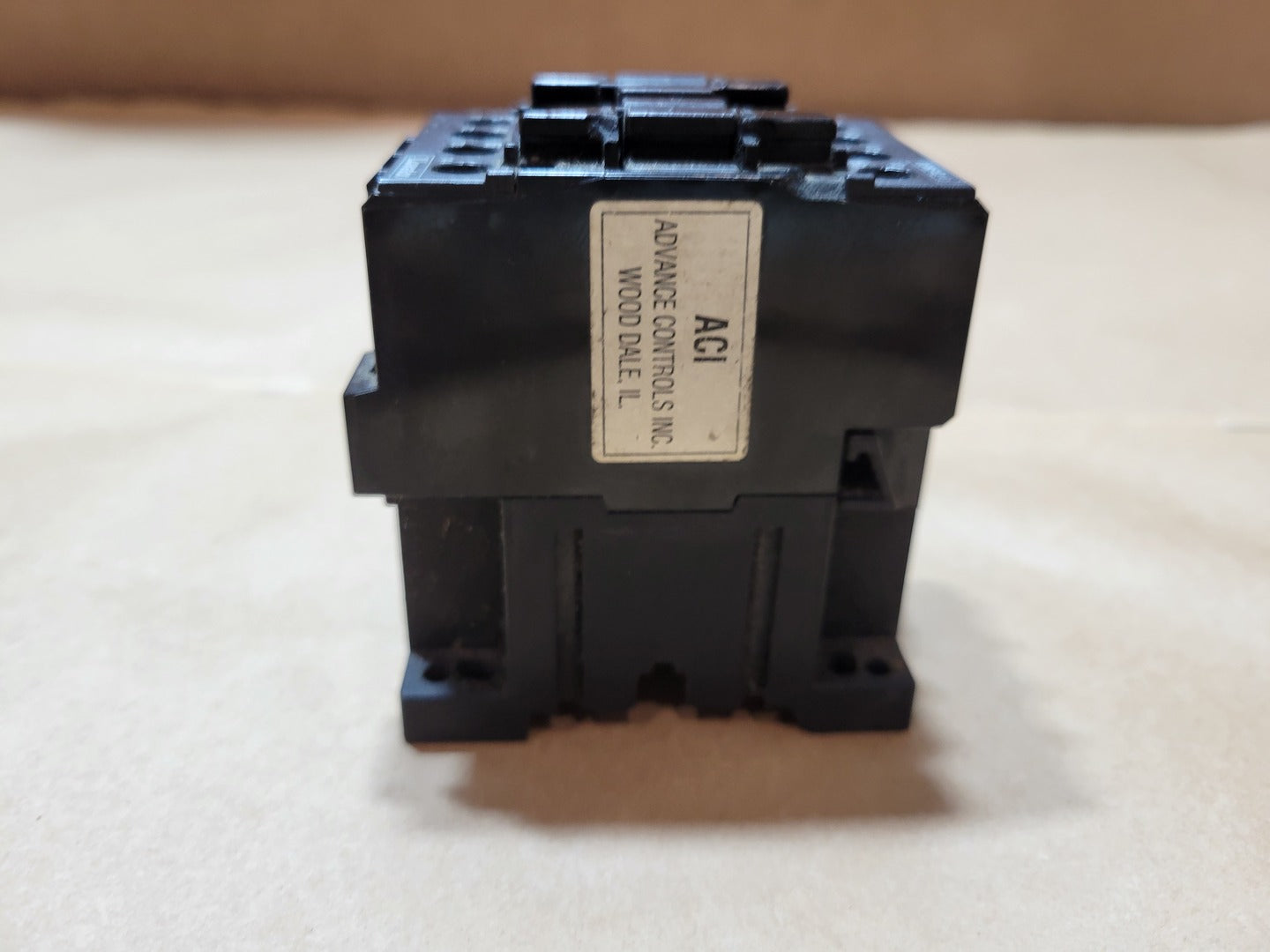

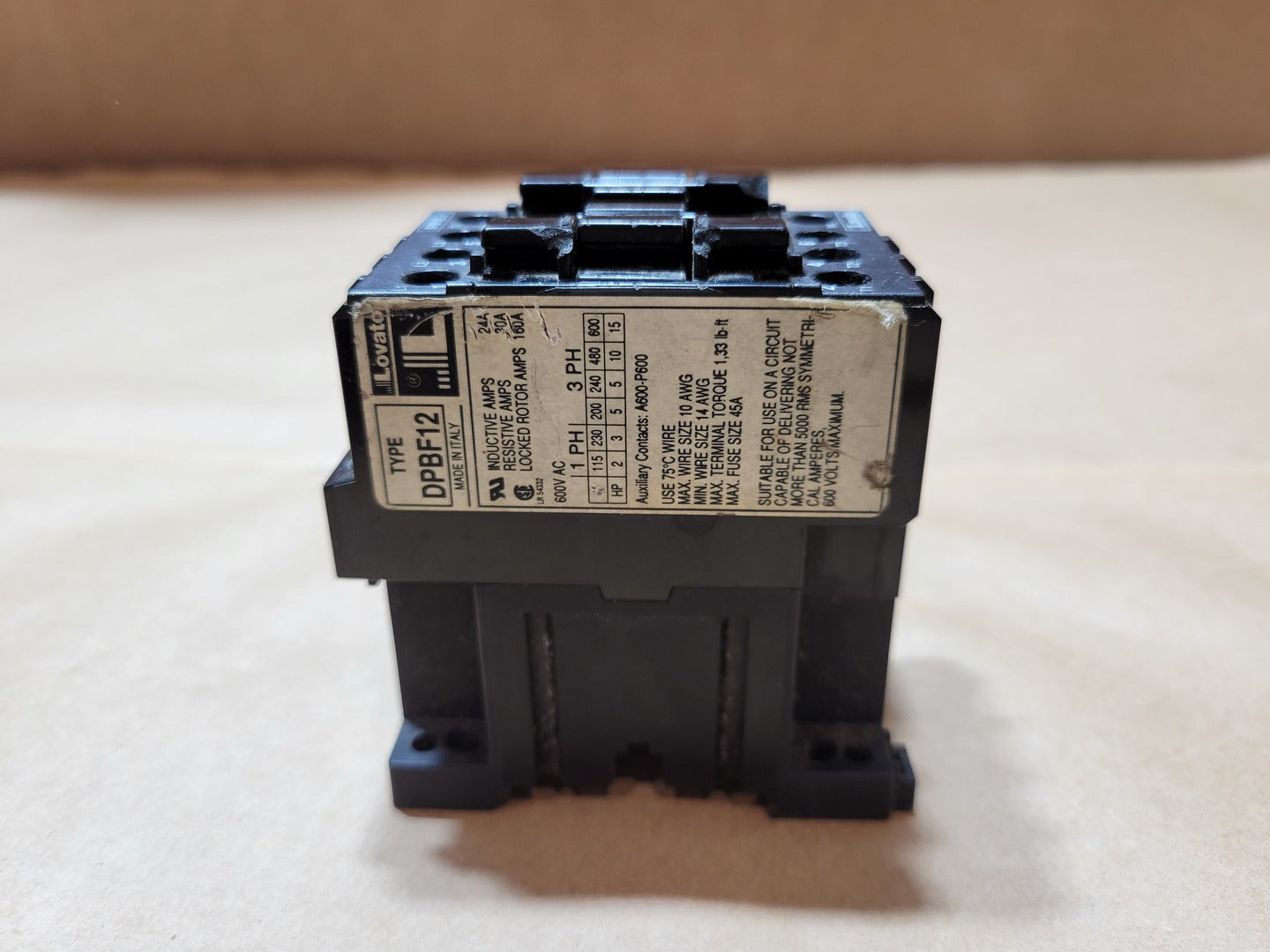

Lovato DPBF12.10 three-pole magnetic contactor with a 120 VAC 60 Hz coil and one normally-open auxiliary contact. The nameplate identifies ratings up to 600 VAC, with 24 A inductive and 30 A resistive ratings.
| Specifications | |
|---|---|
| Model | DPBF12 |
| Made In | ITALY |
| Condition | Surplus New | General |
| Horsepower | 15 hp | Electrical |
| Voltage | 600 volts |
| Amps | 24 amps |
| Other Specifications |
|---|
|
Equipment Type: Magnetic Power Contactor Main Poles: 3 Auxiliary Contact: 1 NO, terminals 13-14 Coil Voltage: 120 VAC Coil Frequency: 60 Hz Maximum Voltage: 600 VAC Inductive Current Rating: 24 A Resistive Current Rating: 30 A Locked Rotor Current: 160 A Auxiliary Contact Rating: A600-P600 Maximum Wire Size: 14 AWG - 10 AWG Maximum Terminal Torque: 1.33 lb-ft Maximum Fuse Size: 45 A Recommended Wire Temperature Rating: 75°C |
