REMCO Dual 1530 Series OreMax VSI Crusher, 350HP, 575V
REMCO

Dual 1530 Series OreMax VSI Crusher, 350HP, 575V

SKU: 137917
Precio:
$250,000 CAD

Gastos de envío calculados en la caja

Stock:
Solo queda 1 unidad
Make an Offer

¿Necesita una respuesta ahora?

604-449-1880
Finance
Amount:
For more information, please contact finance@lenmark.com or reach out to your sales rep.
Email Finance

Descripción

Specifications
Model SD-GEKKO 1530-304-14
Condition Used
Other Specifications

PDF Manual

PDF Clearance Dimensions

Equipment Included

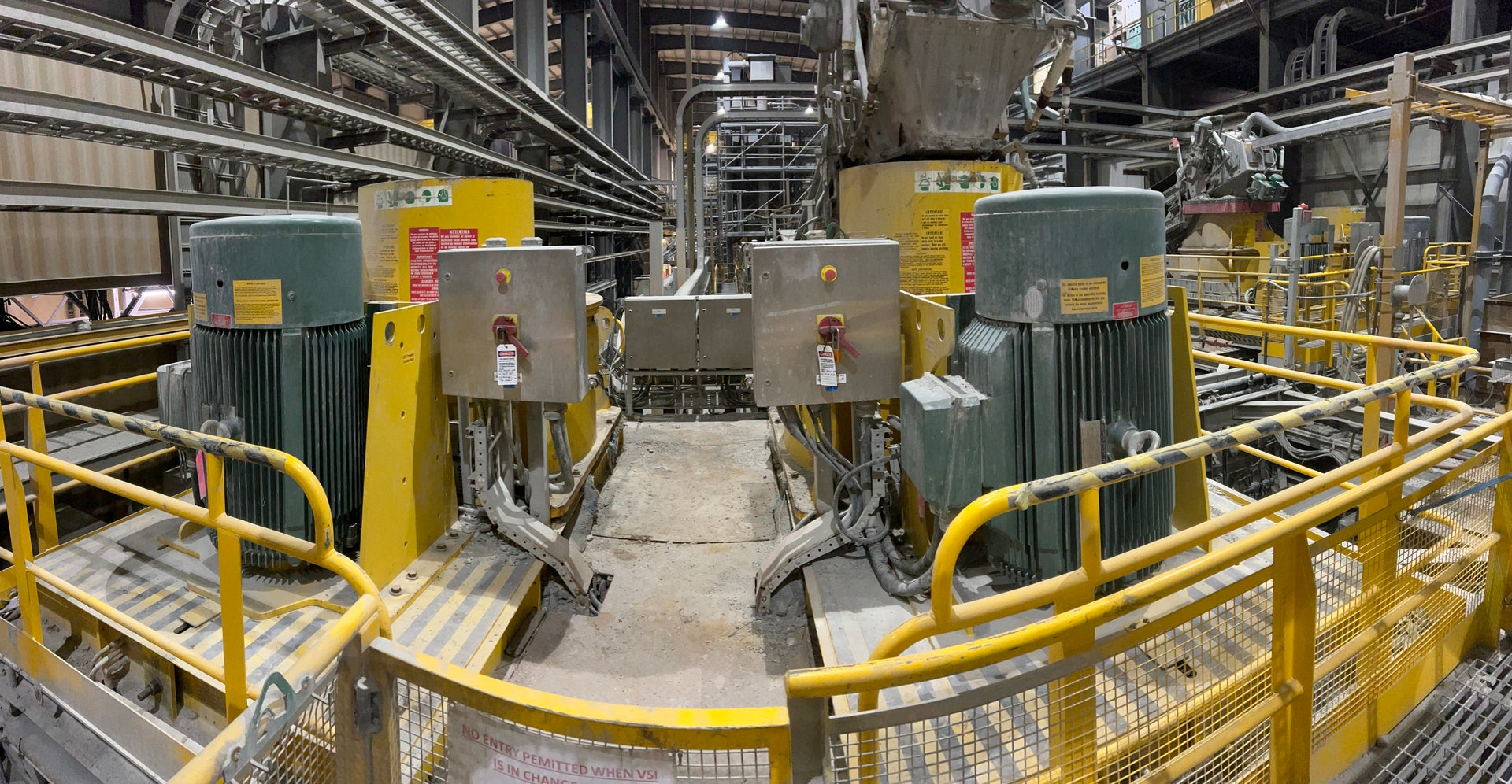

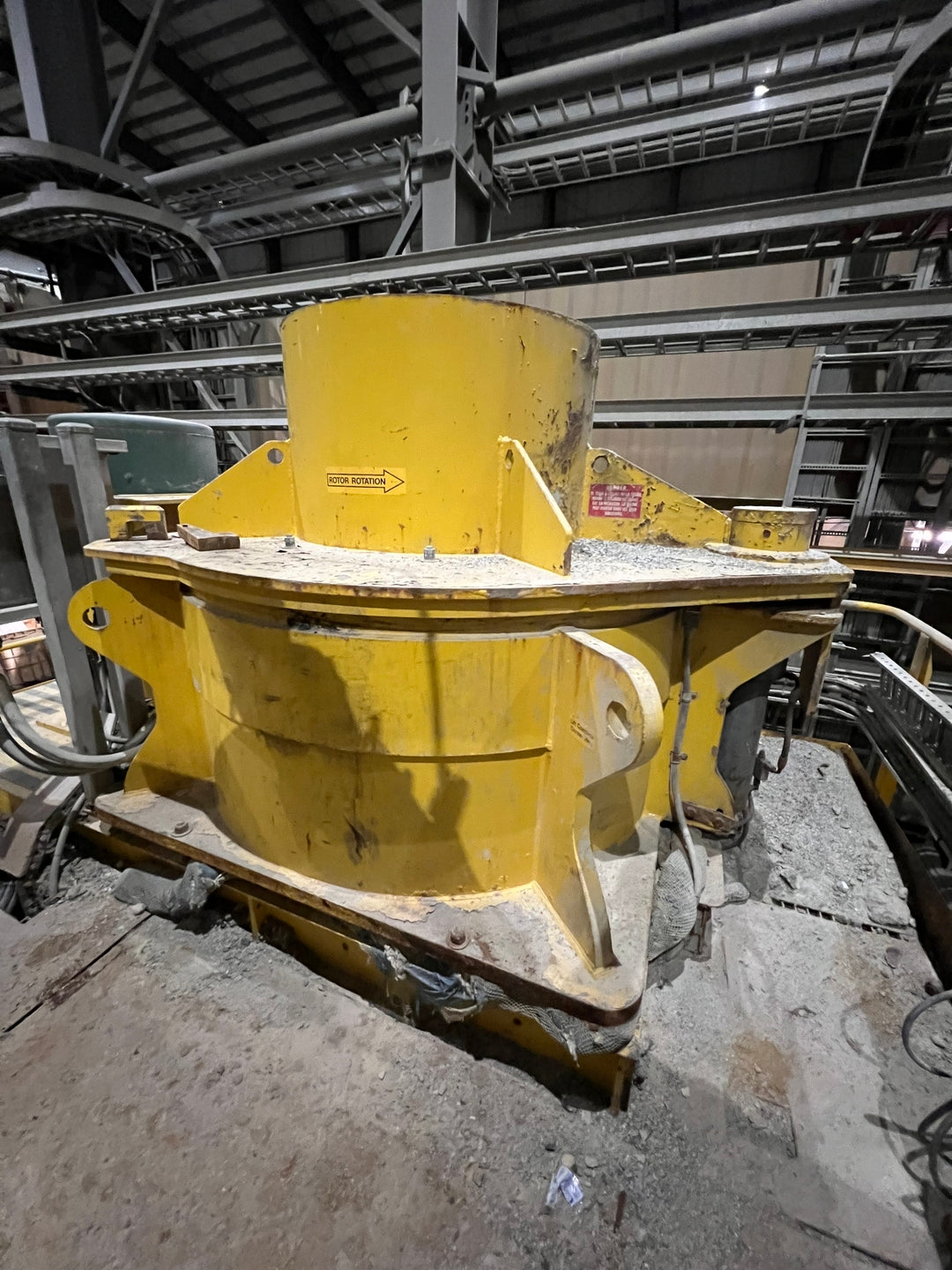

This product consists of 2 x 1530 OreMax VSI Crushers and 2 x 350HP Motors

Crusher Fabrication

  1. All steel, HD fabricated construction with one motor mount
  2. Crusher Base is 2" A36 steel plate
  3. Four corner base-reinforcing gussets with lifting eyes, 2" thick

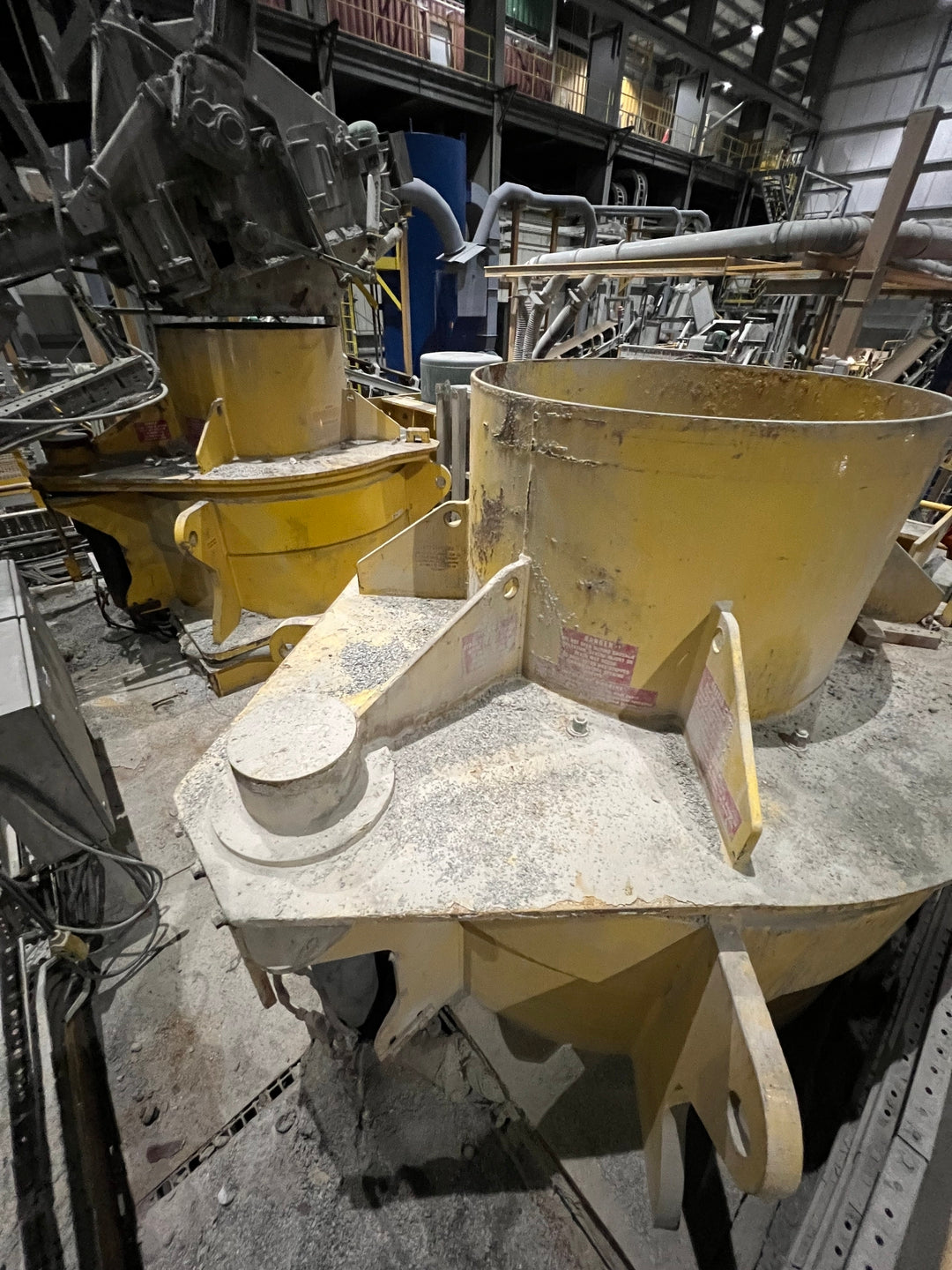

  4. 44" circular receiving hopper with feed diverter plate and two hopper wedge locks
  5. Cast steel heavy-duty feed tube assembly with feed diverter

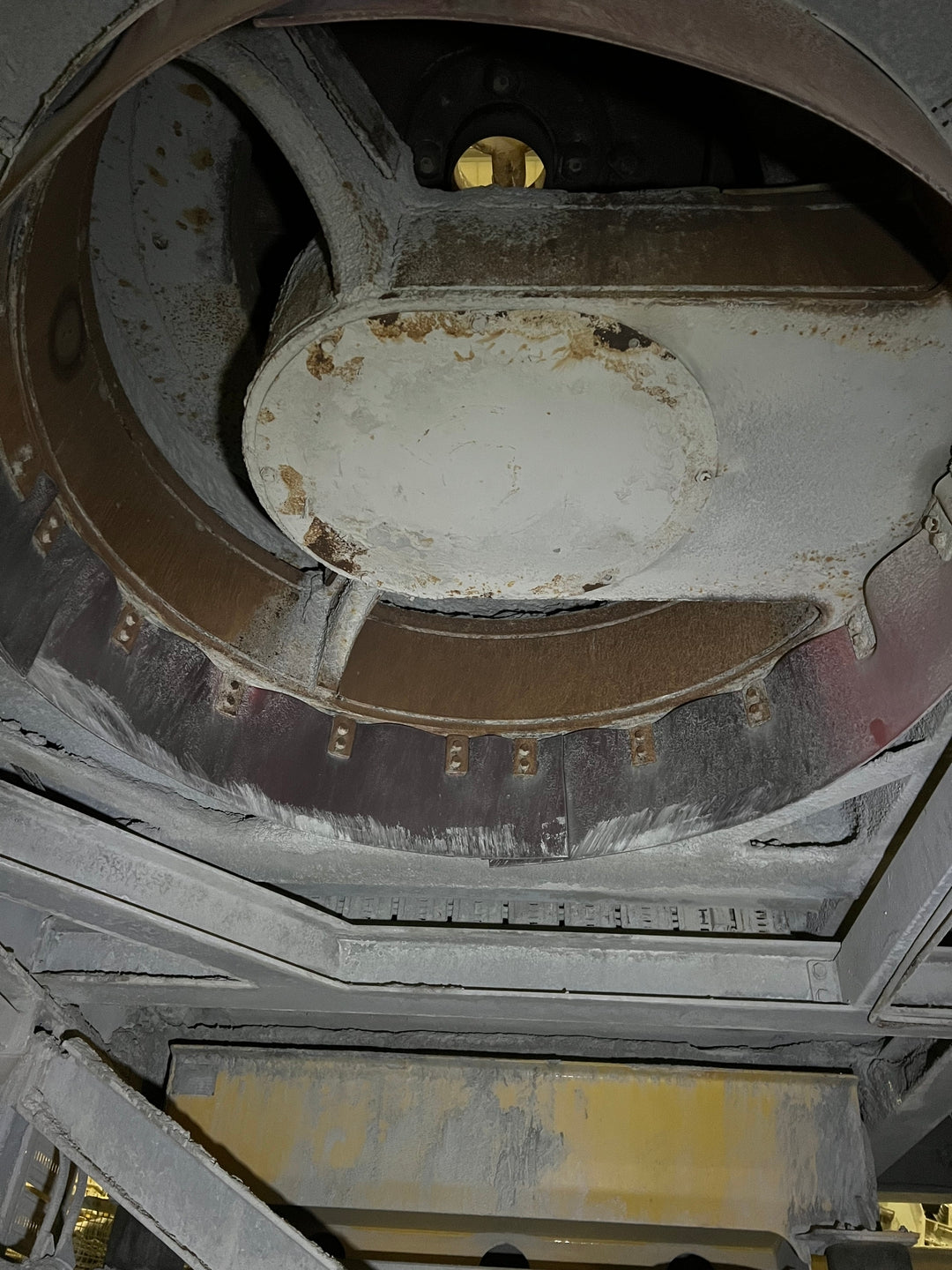

  6. Two-piece autogenetic crushing chamber with 16 deep well pockets & AR gusset protectors
  7. One 30" 4- port, 14" open-sided rotor with all wear parts and taper lock
  8. Oil lubricated main shaft assembly with radial bearings and oil lines
  9. Oil lubrication system complete with oil tank, oil pump and safety devices
  10. Fabricated support frame with four self-centering laminated rubber isolation mounts
  11. ACME thread, single-shaft v-belt adjustment rod and tensioner
  12. Hydraulically lifted feed hopper assembly with lift cylinder and hydraulic ram

Specifications

Capacity: Rated up to 235 metric TPH of minus 2" feed (when powered by 225 kW)

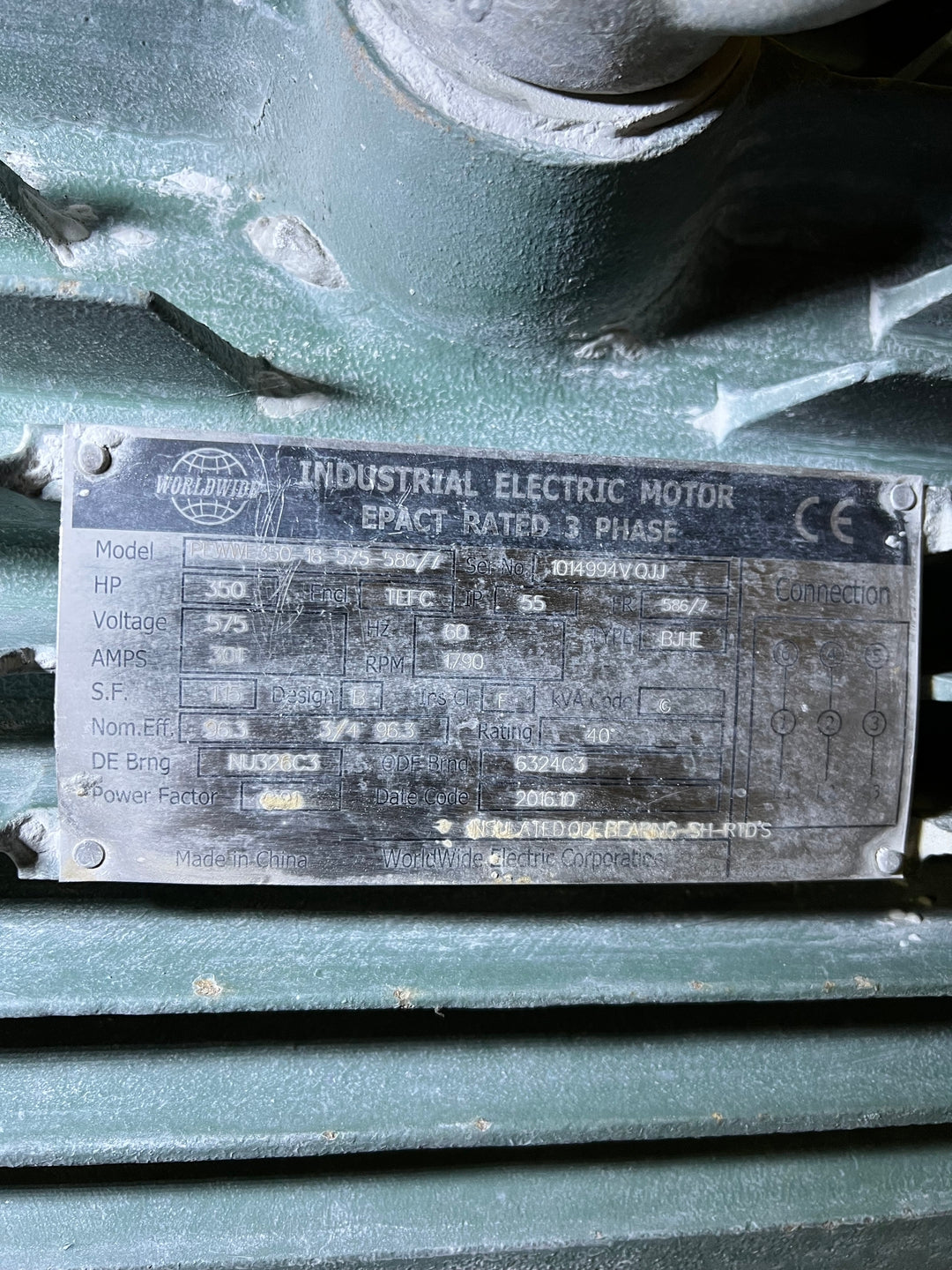

Horsepower: 350 hp

Motor Speed: 1790 rpm

Volts: 575 V, 3-ph

Current: 301 A

Rated Torque: 1157.29 lb.-ft.

Locked Rotor Torque: 212%

Breakdown Torque: 287%
