TRIAC ES-L1-0600-VSF-XF 6" Class 150 Stainless Butterfly Valve w/ Spring Return Pneumatic Actuator
TRIAC

ES-L1-0600-VSF-XF 6" Class 150 Stainless Butterfly Valve w/ Spring Return Pneumatic Actuator

SKU: 158524
Condition: Used
Precio:
$1,600 CAD

Gastos de envío calculados en la caja

Stock:
Solo queda 1 unidad
Make an Offer

¿Necesita una respuesta ahora?

604-449-1880
Looking for more Actuadores?
Browse all Actuadores →

Descripción

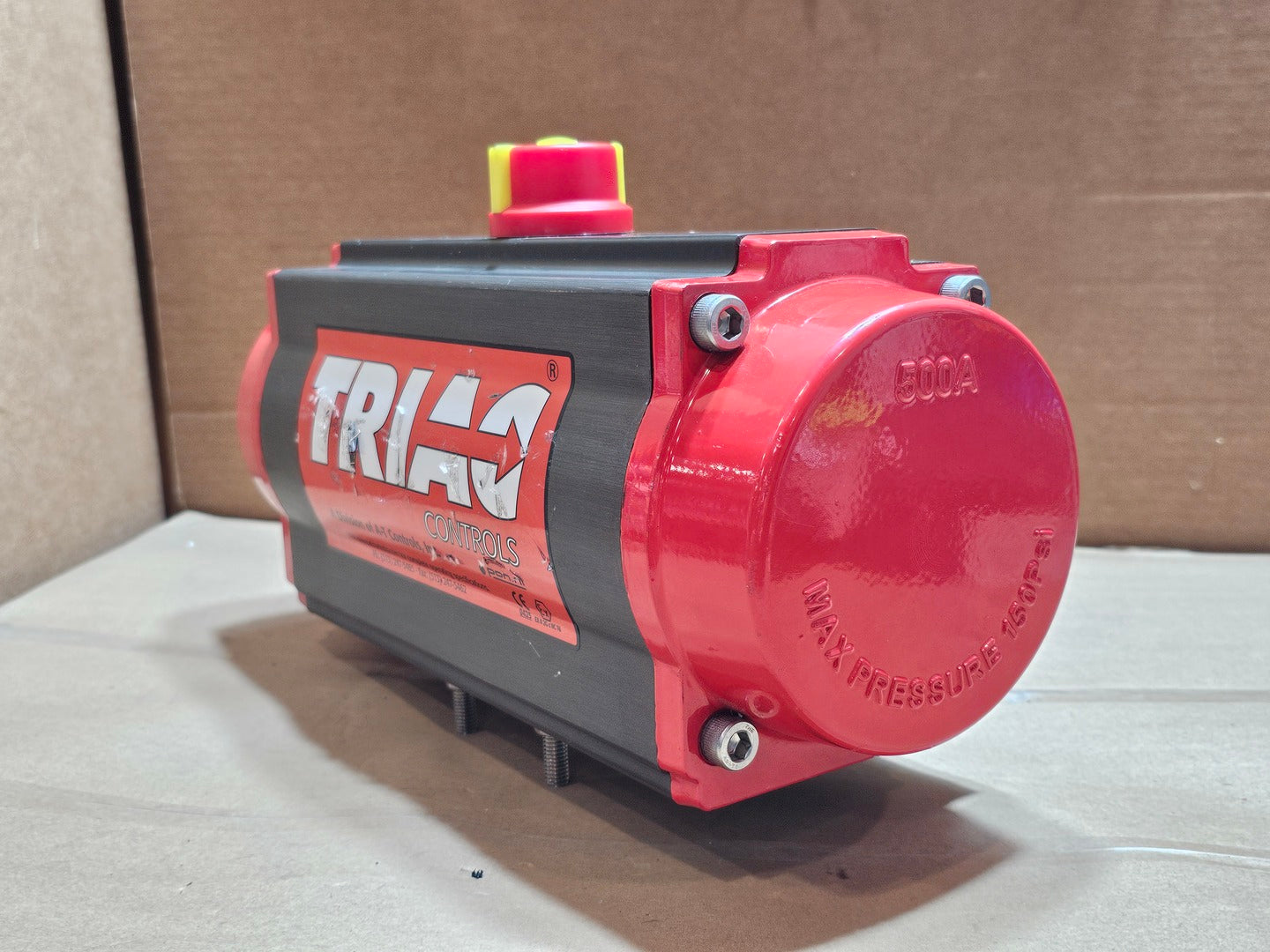

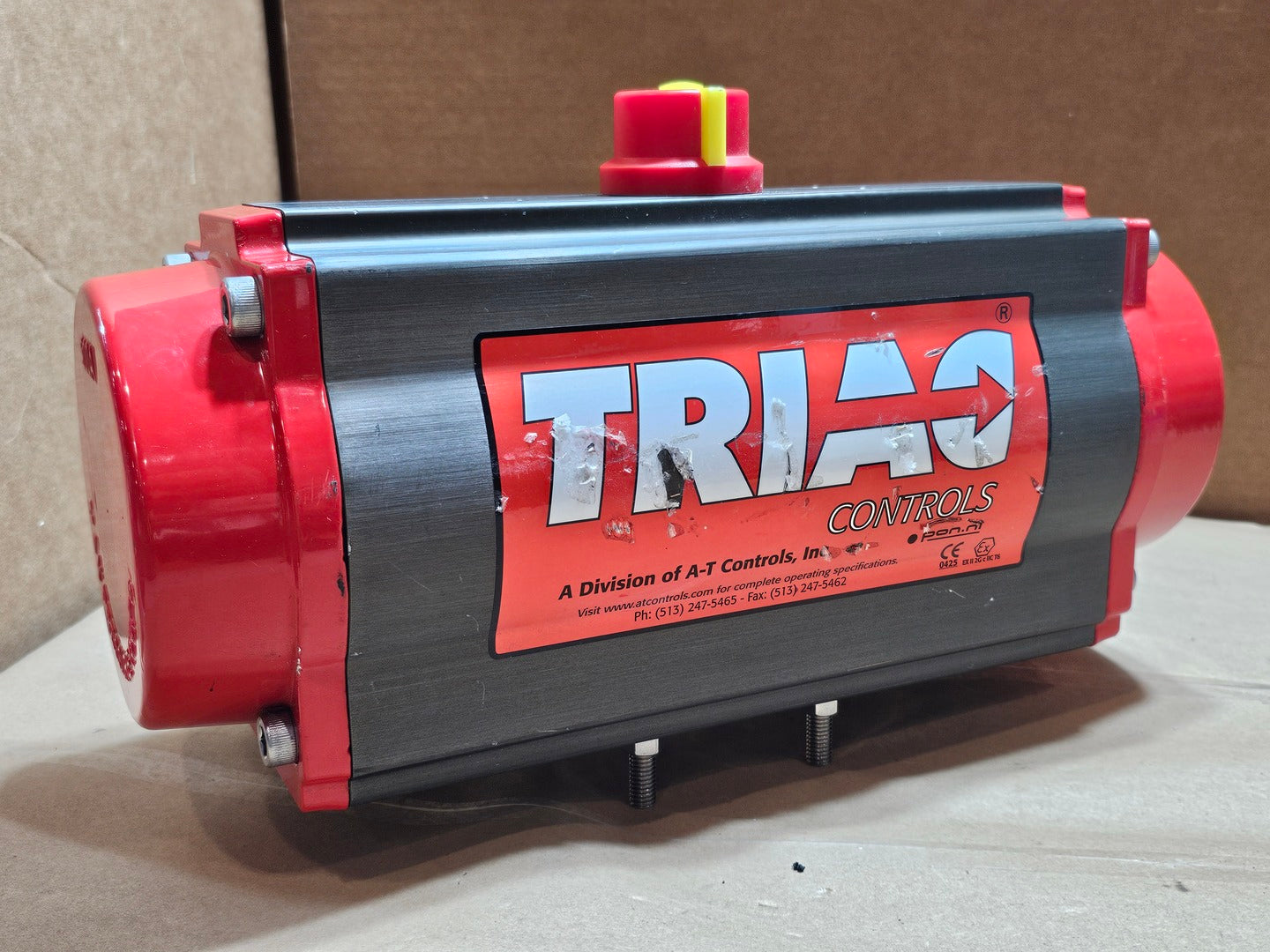

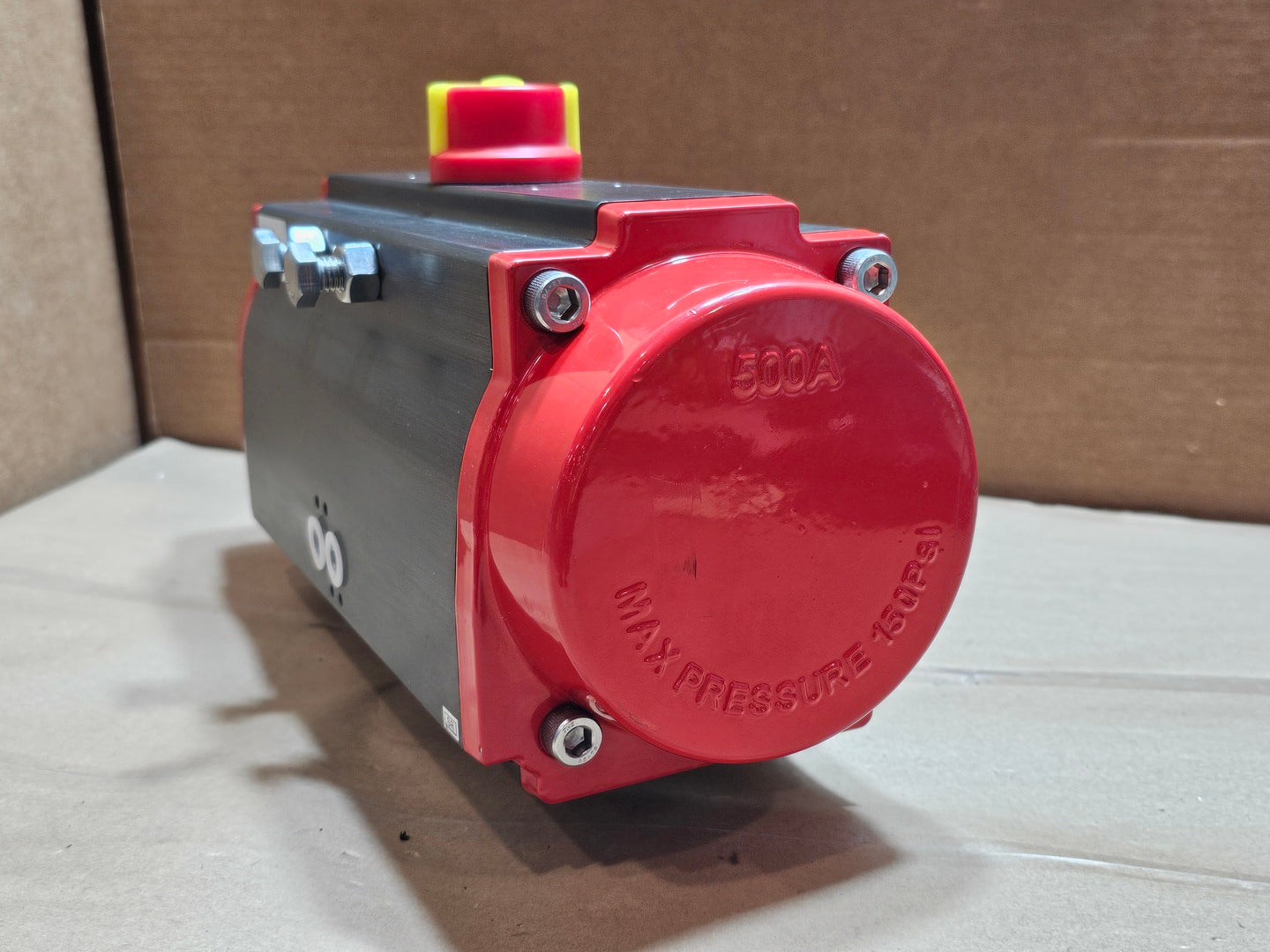

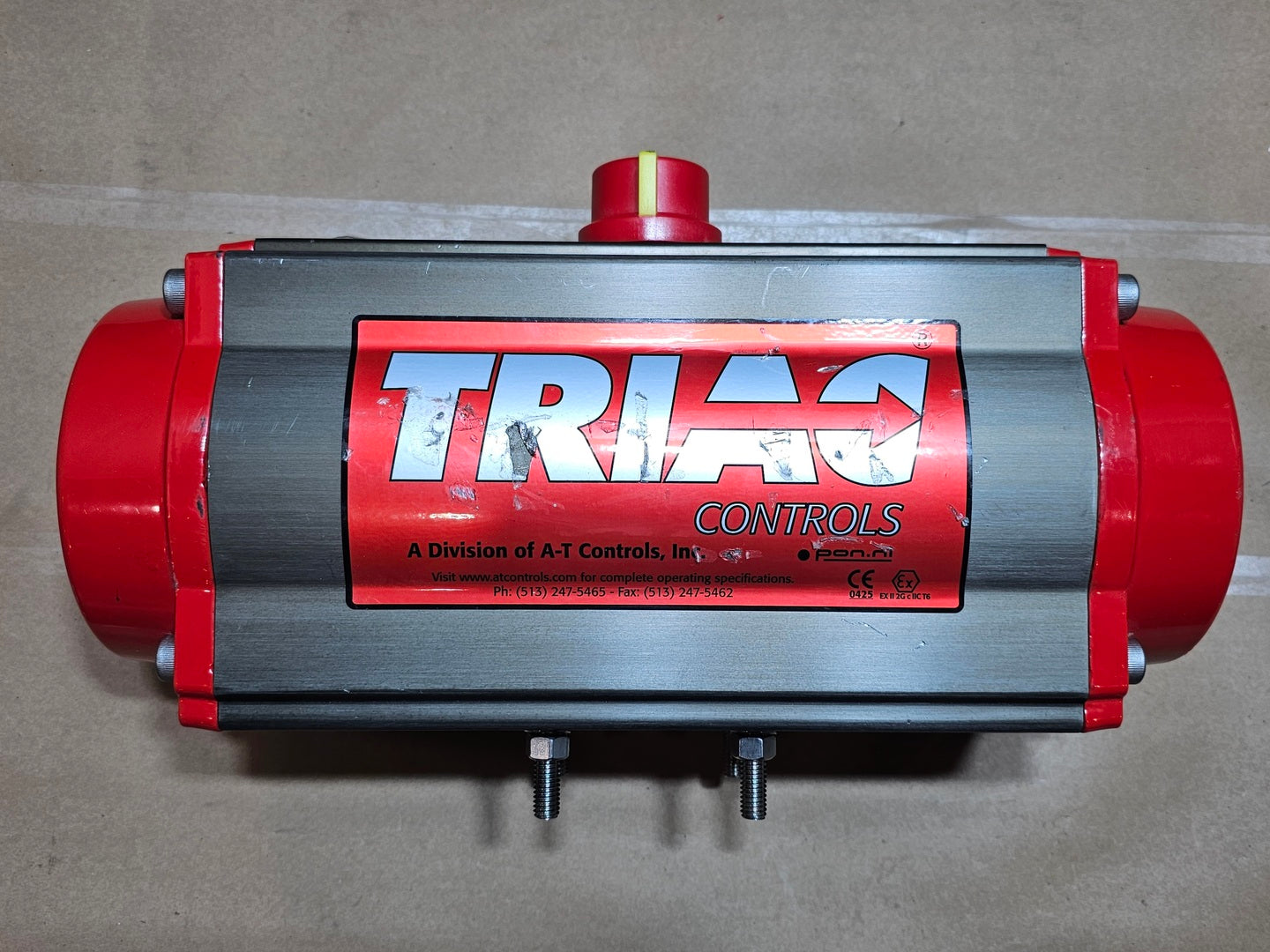

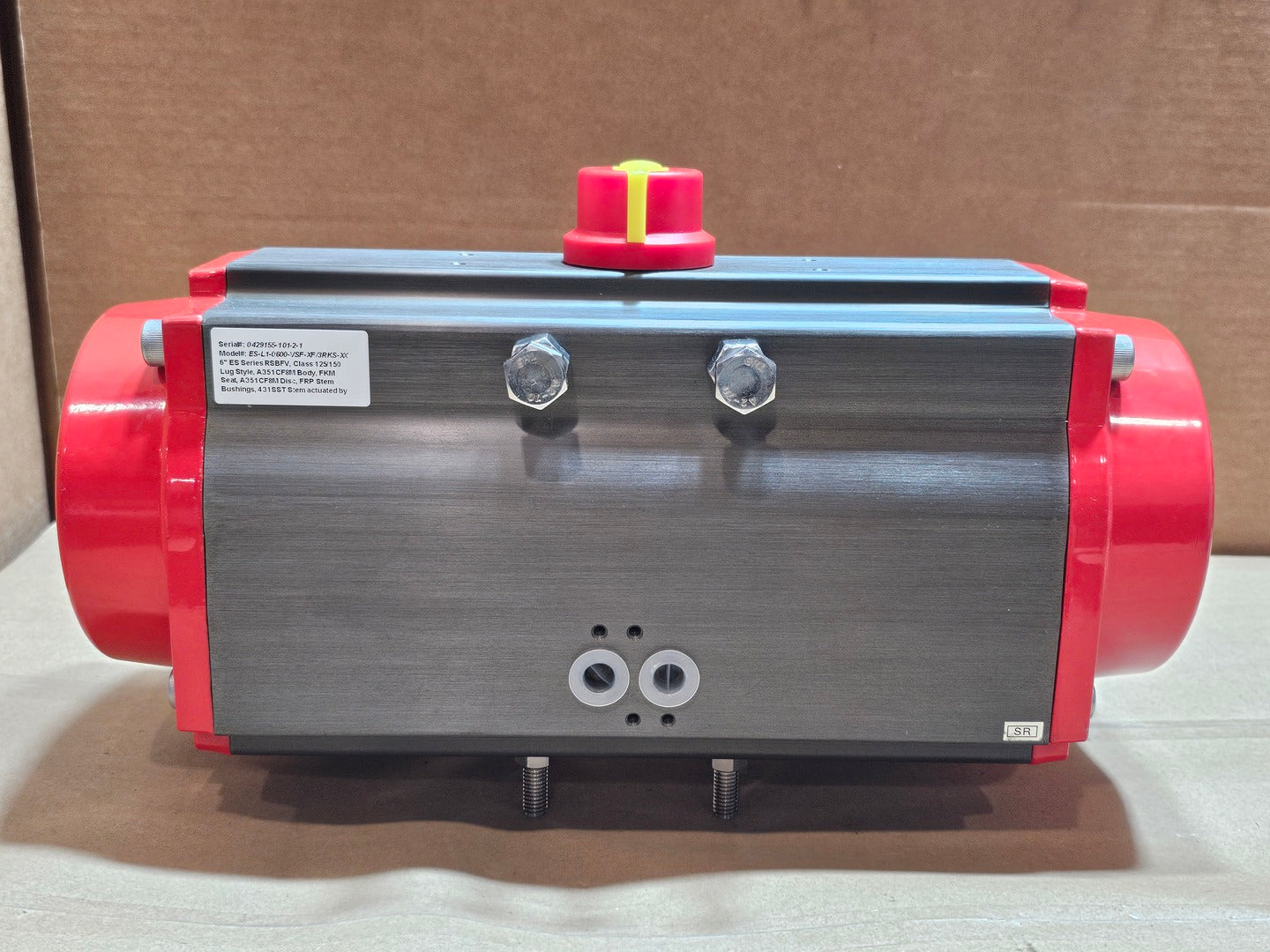

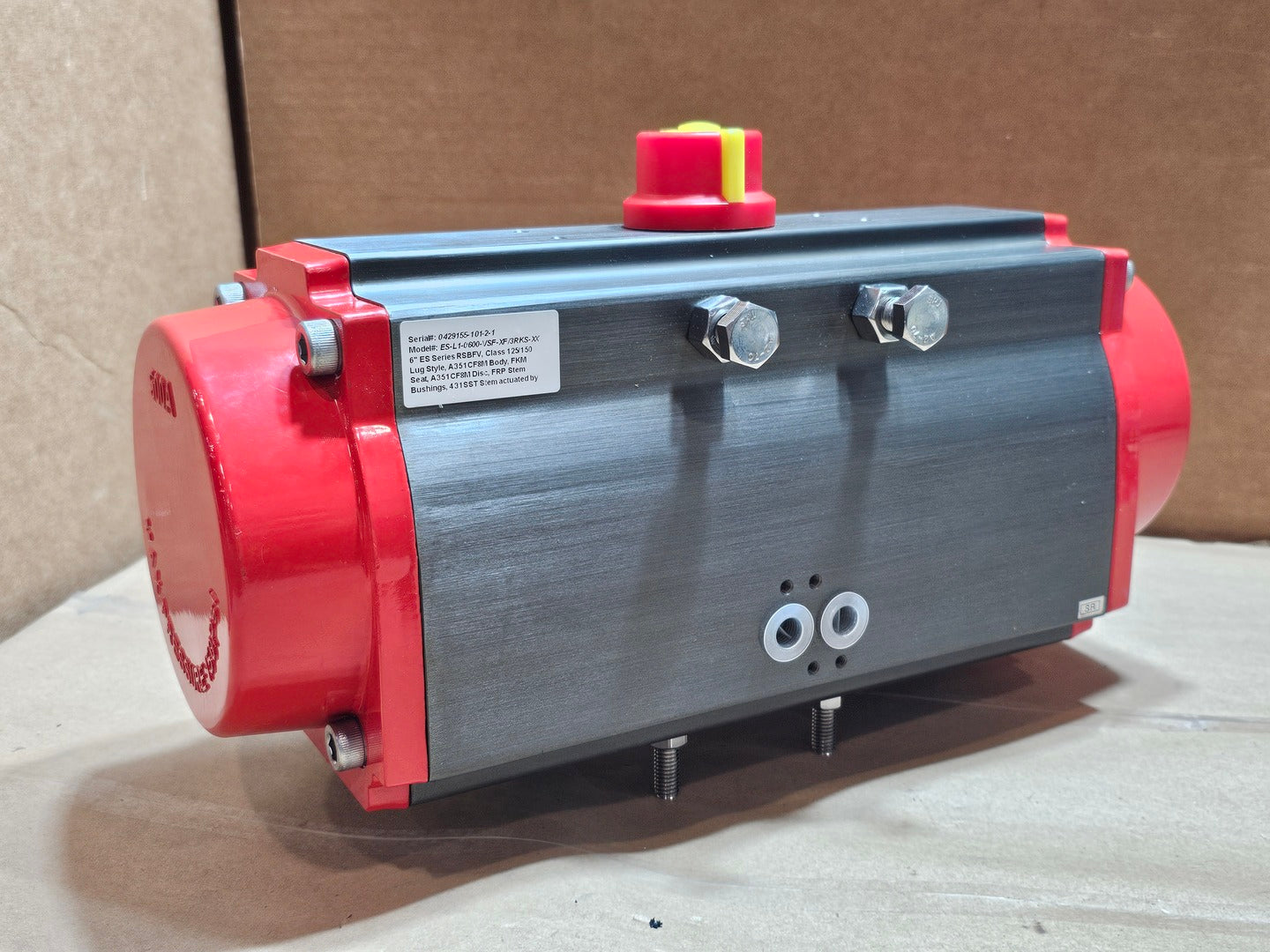

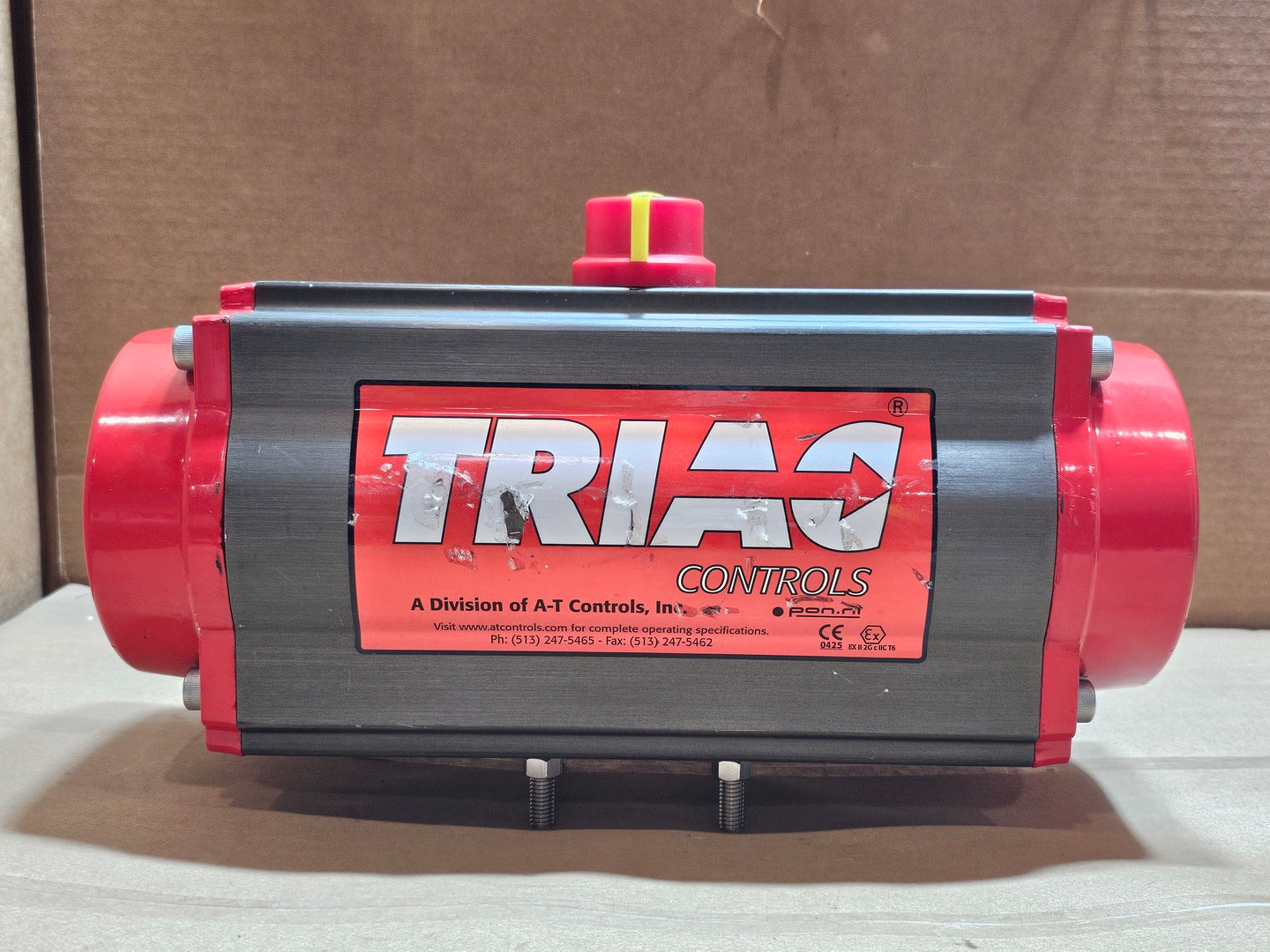

TRIAC Controls / A-T Controls 6-inch ES Series pneumatically actuated resilient-seated butterfly valve, model ES-L1-0600-VSF-XF/3RKS-XX. Features a Class 125/150 lug-style ASTM A351 CF8M stainless steel body, A351 CF8M stainless disc, FKM/Viton seat, 431 stainless stem and FRP stem bushings. Supplied with a TRIAC pneumatic spring-return quarter-turn actuator and visual position indicator. A-T Controls specifies the ES Series for industrial applications including chemical, food and beverage, pulp and paper, wastewater and general process service.
Specifications
Model ES-L1-0600-VSF-XF

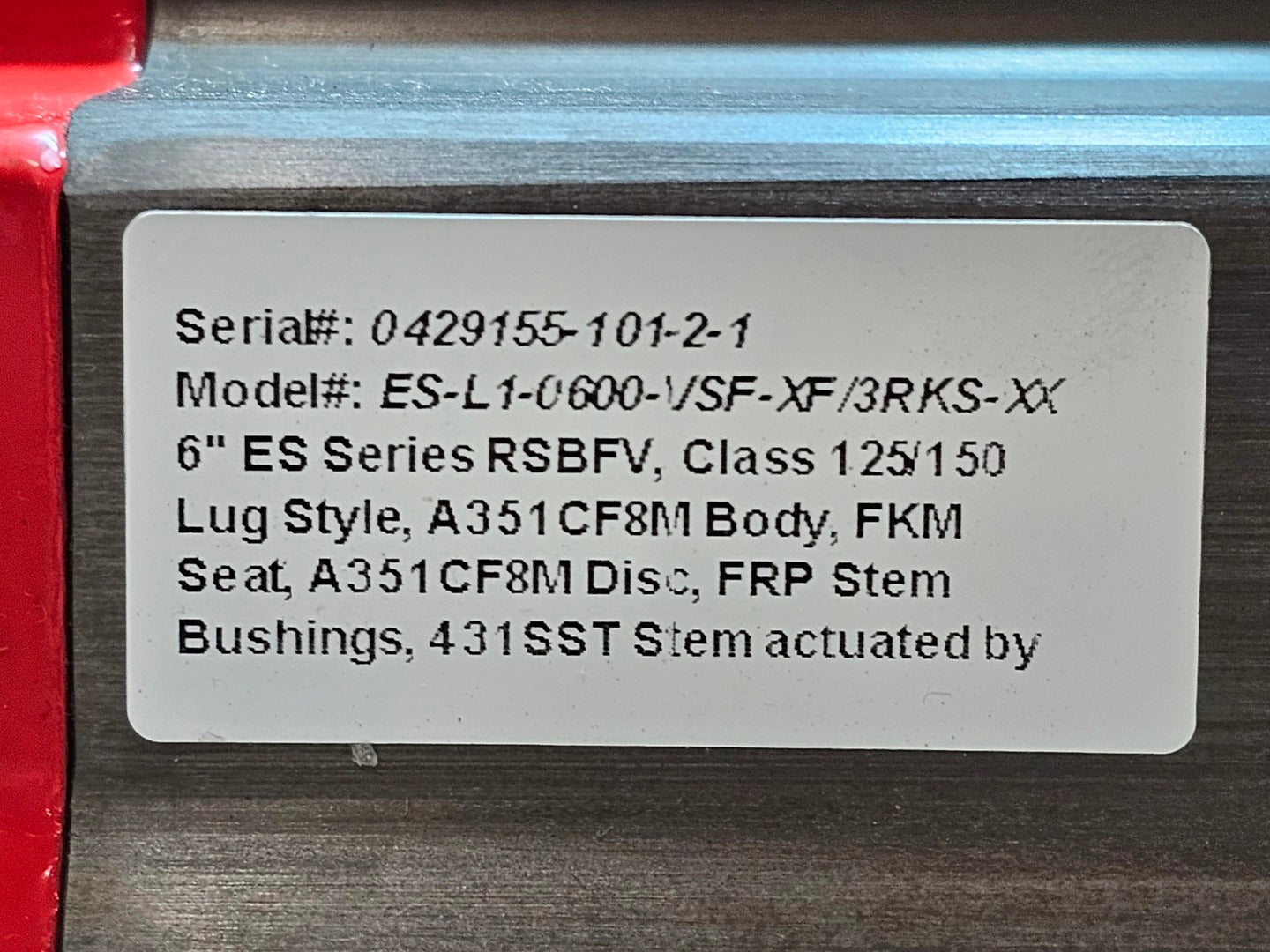

S/N: 0429155-101-2-1
Condition Used
Other Specifications

Valve Series: ES Series RSBFV

Complete Model: ES-L1-0600-VSF-XF/3RKS-XX

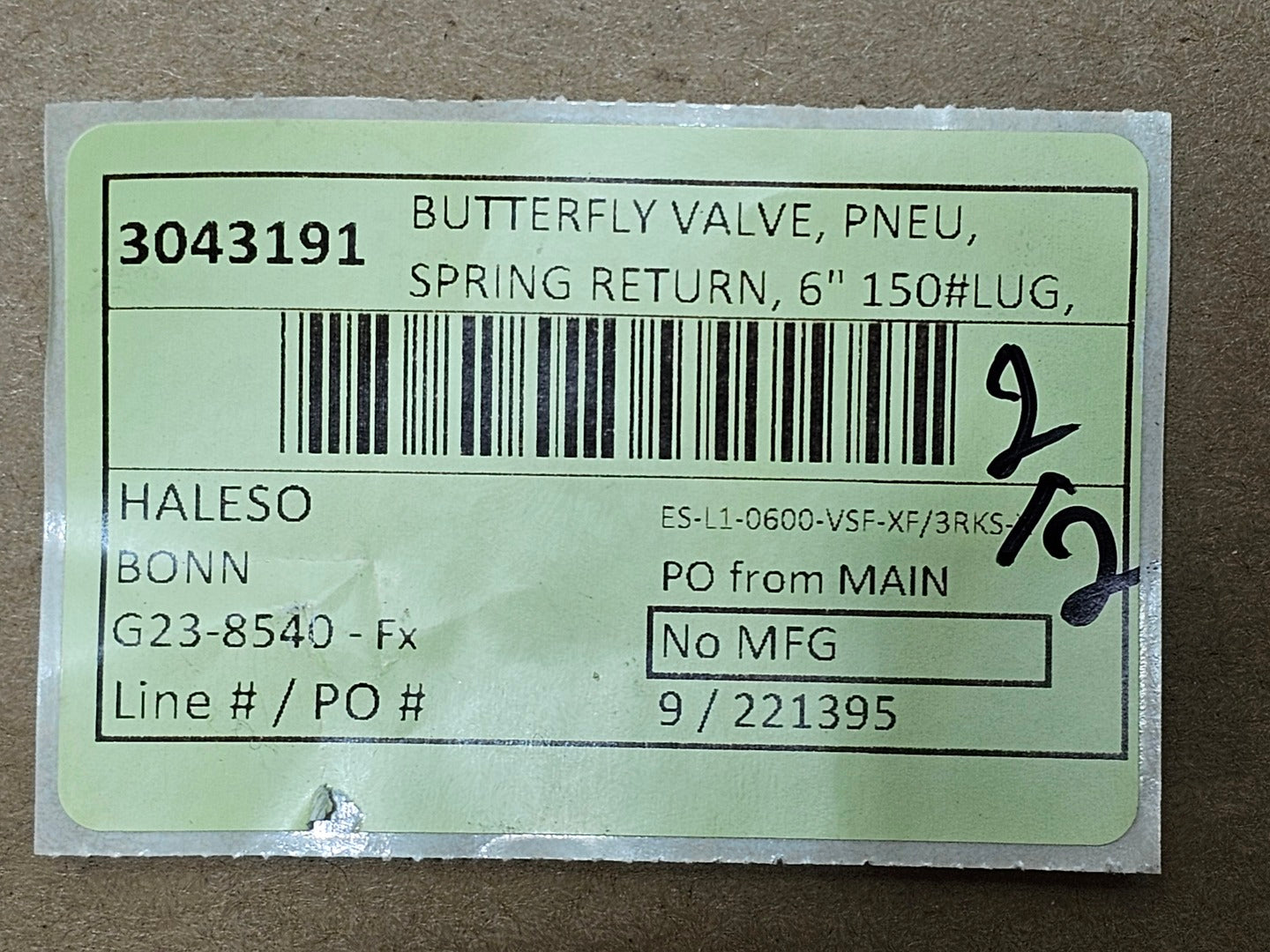

Inventory / Reference Number: 3043191

Nominal Size: 6 in.

Pressure Class / Flange Compatibility: Class 125/150

Connection: Lug Style

Seat Material: FKM / Viton

Disc Material: ASTM A351 CF8M Stainless Steel

Stem Material: 431 Stainless Steel

Stem Bushings: FRP

Operation: Pneumatic

Actuation: Spring Return

Actuator Series: TRIAC 3R Series, as indicated by package code

Actuator Configuration Code: 3RKS-XX

Valve Action: Quarter-Turn

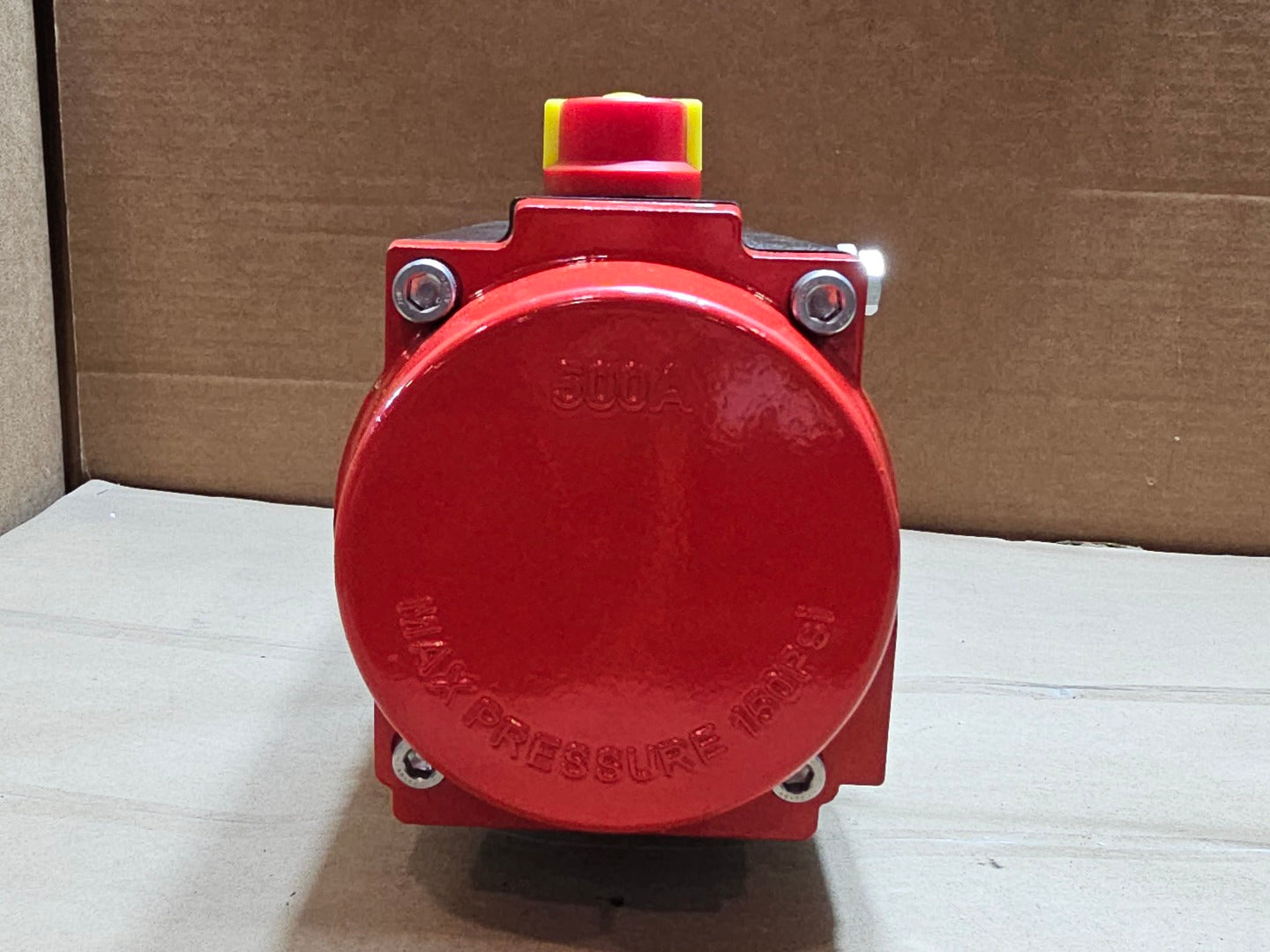

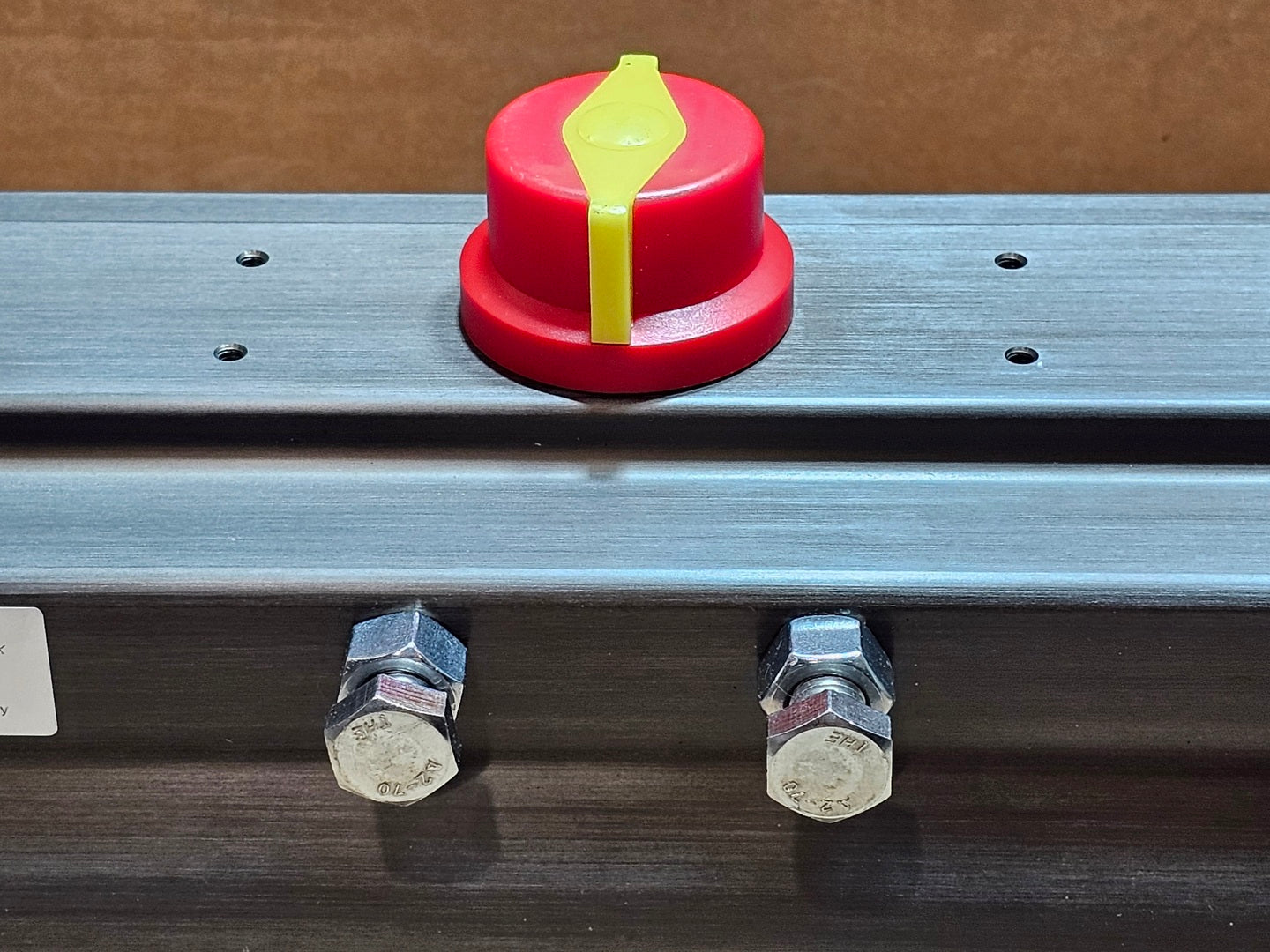

Position Indicator: Top-mounted visual open/closed indicator

Flow Direction: Bidirectional.

Valve Mounting: Lug-style between compatible flanges
