Descripción

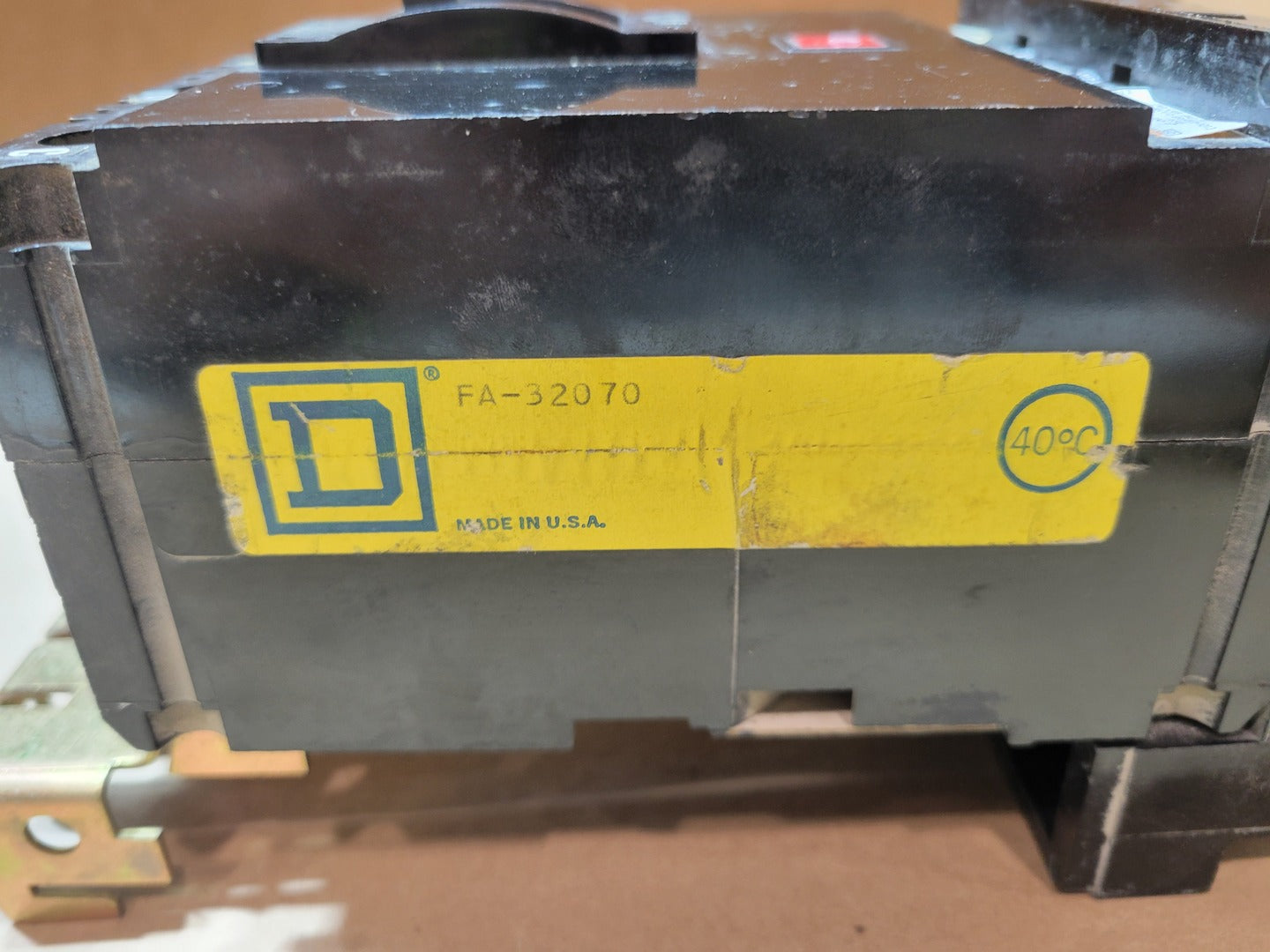

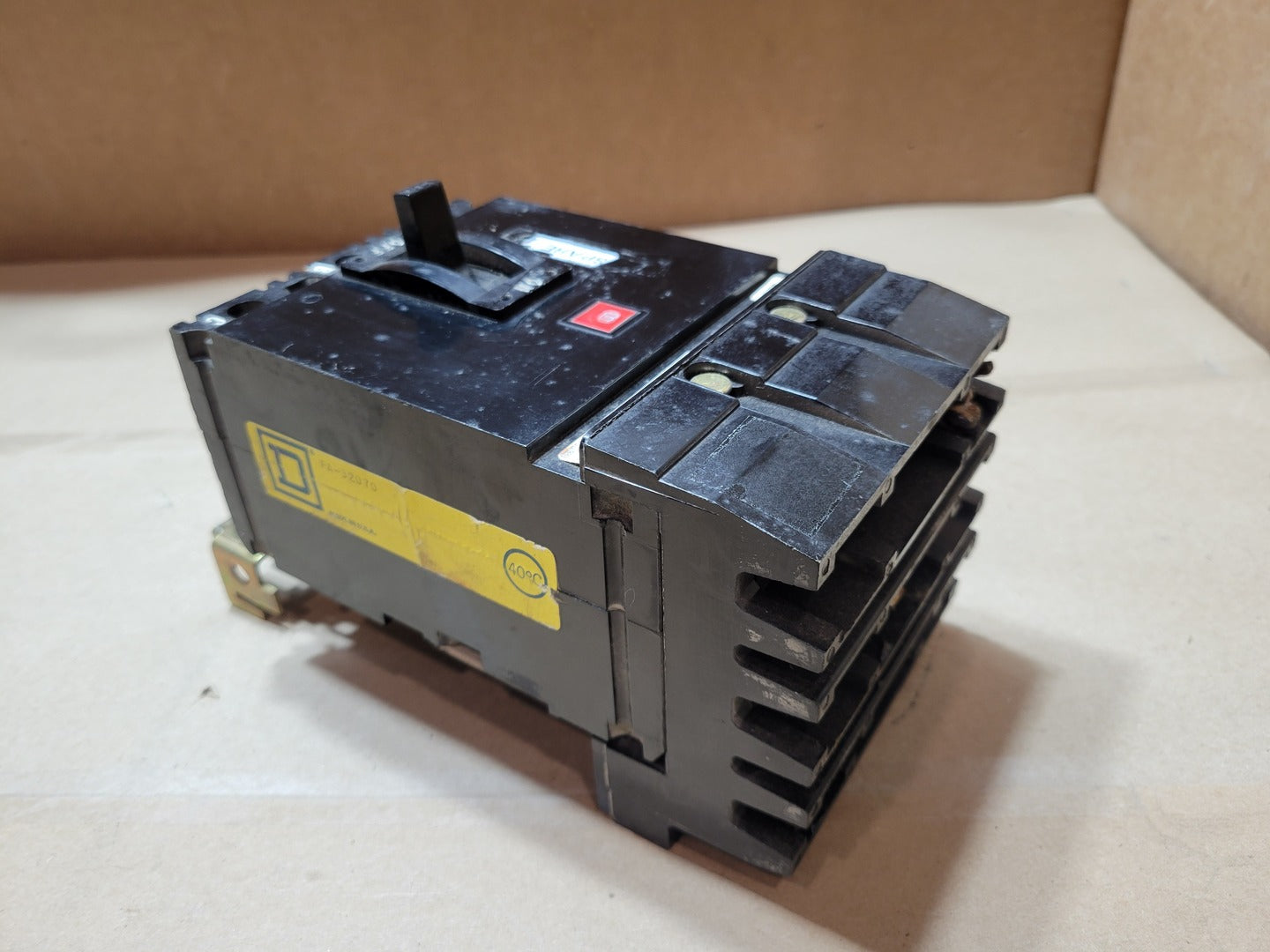

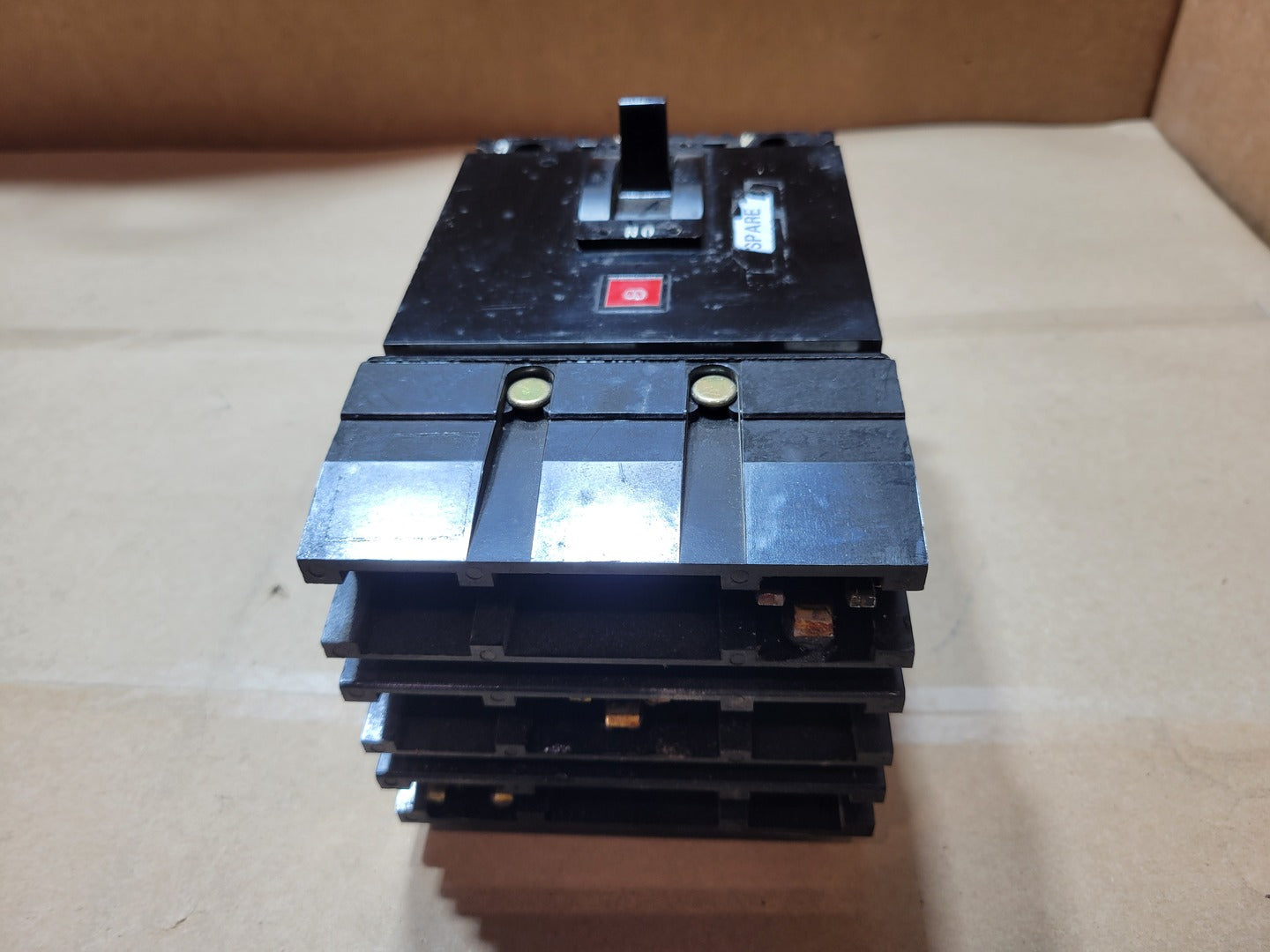

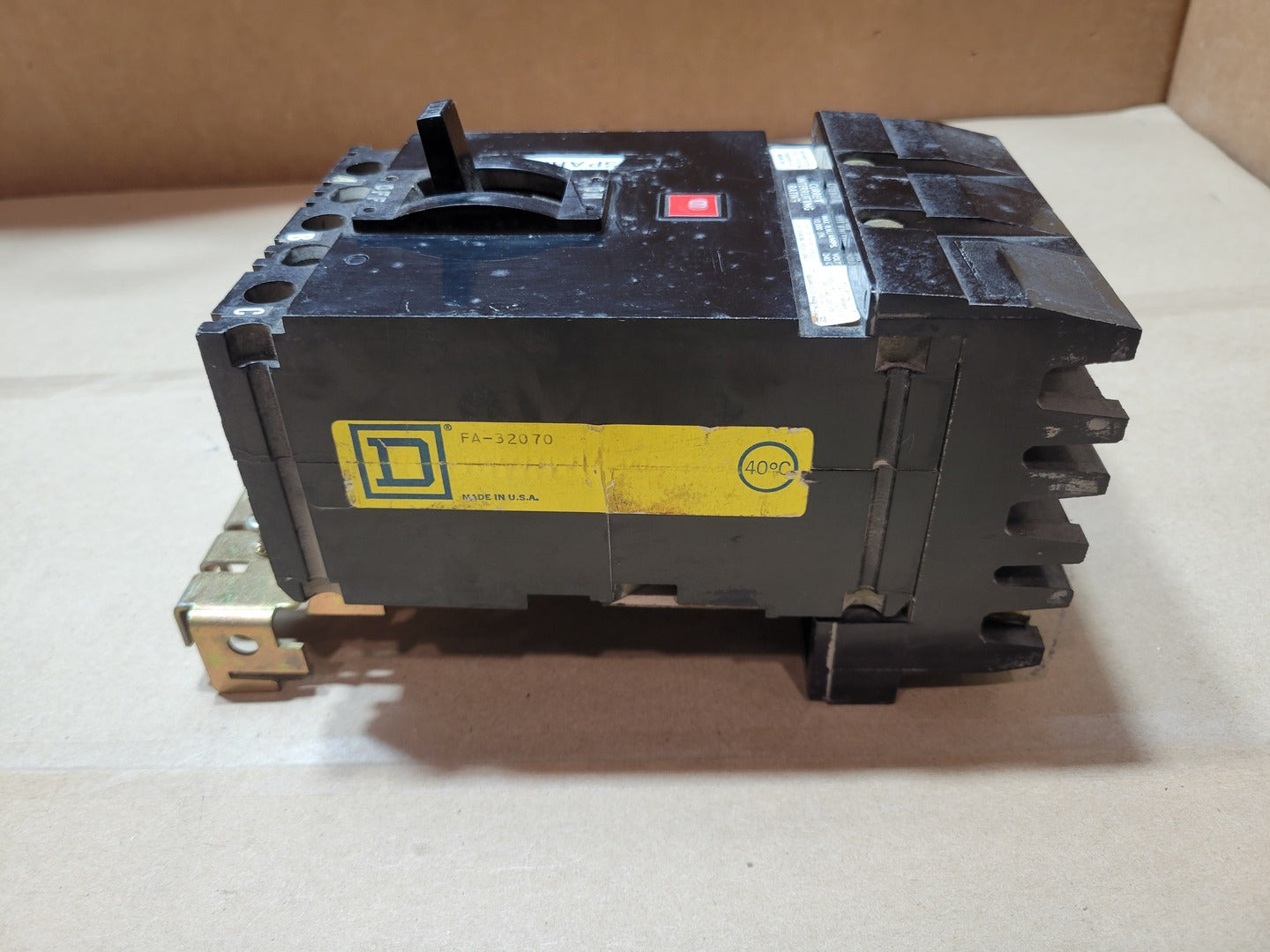

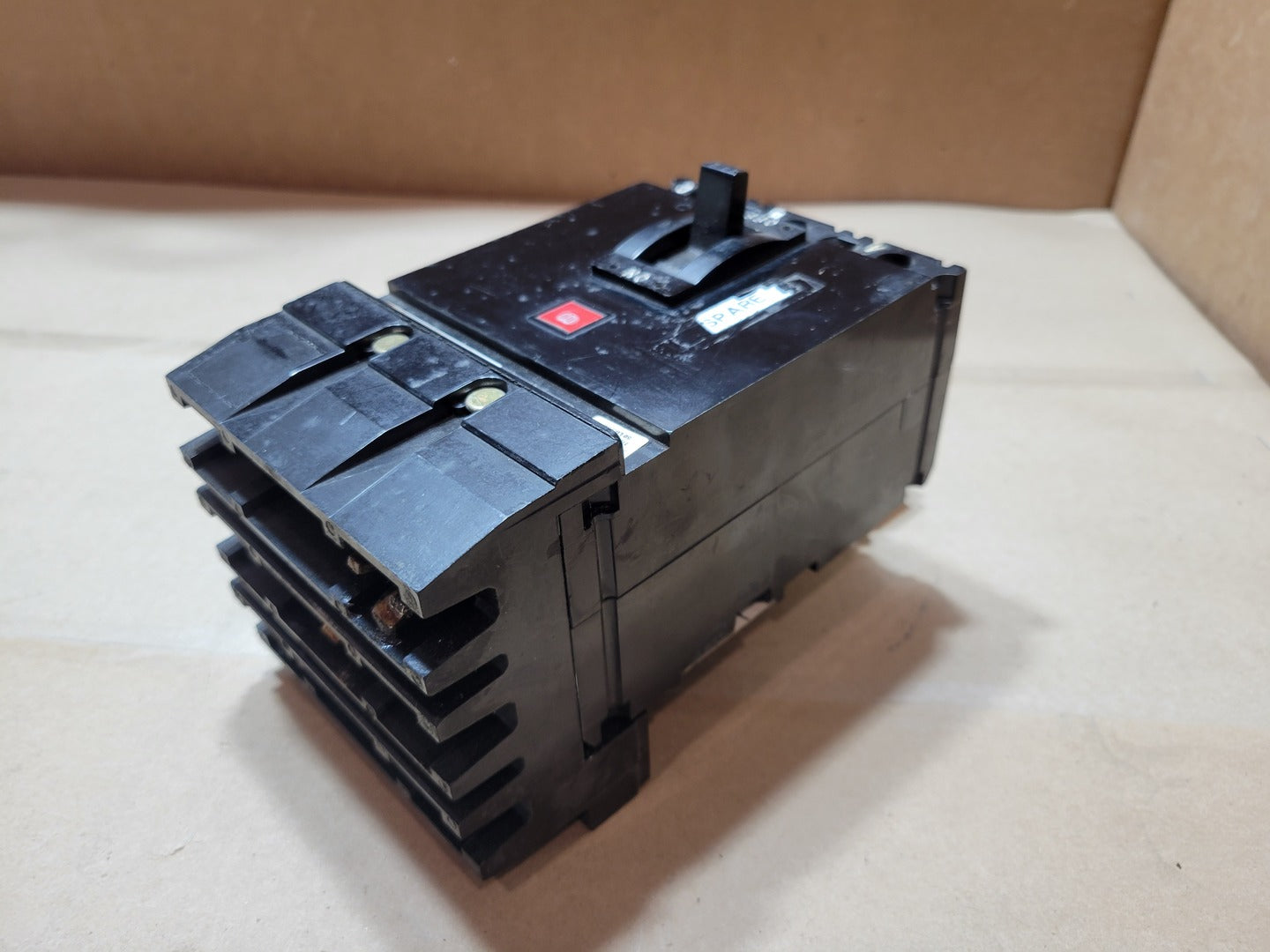

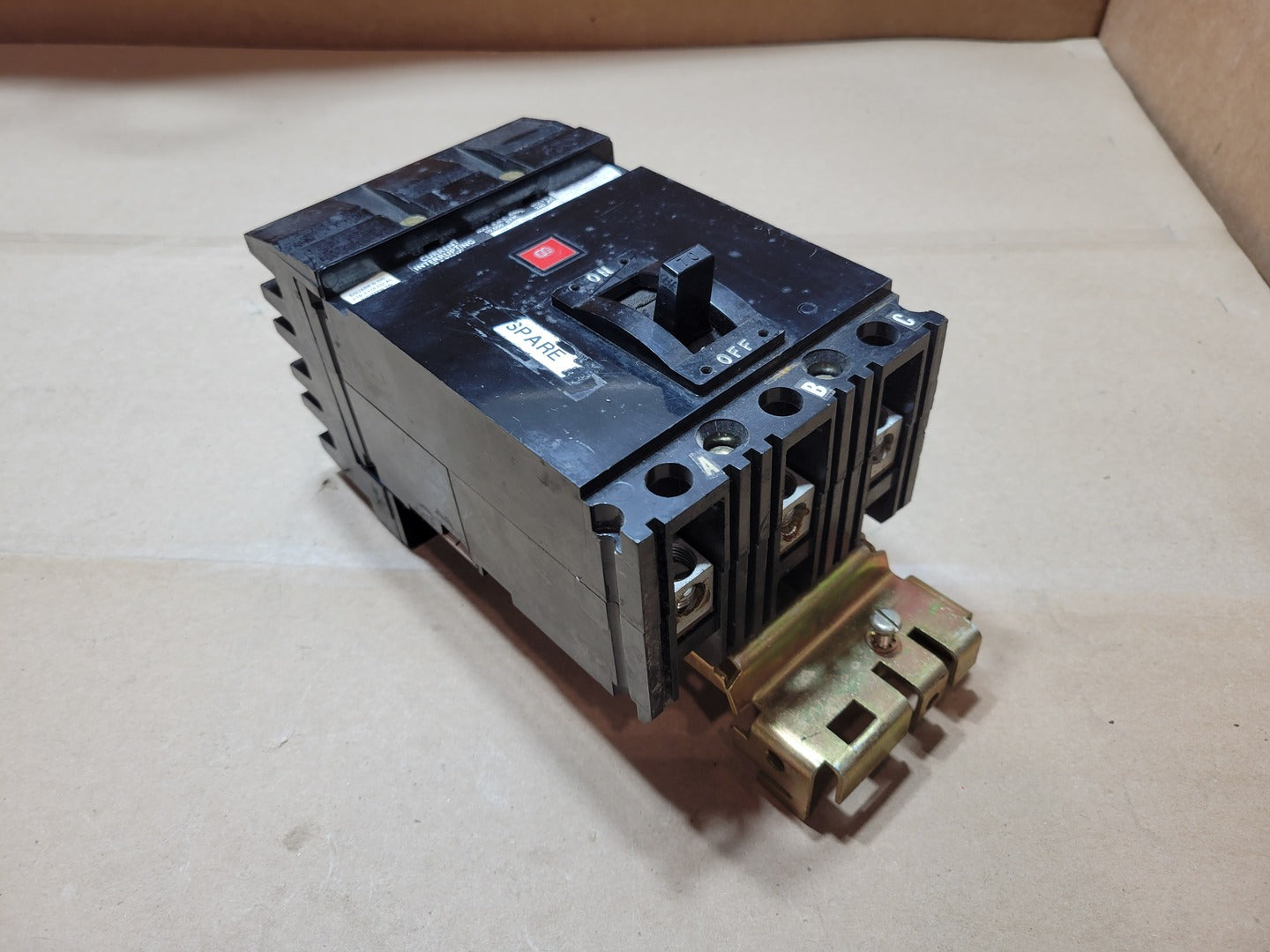

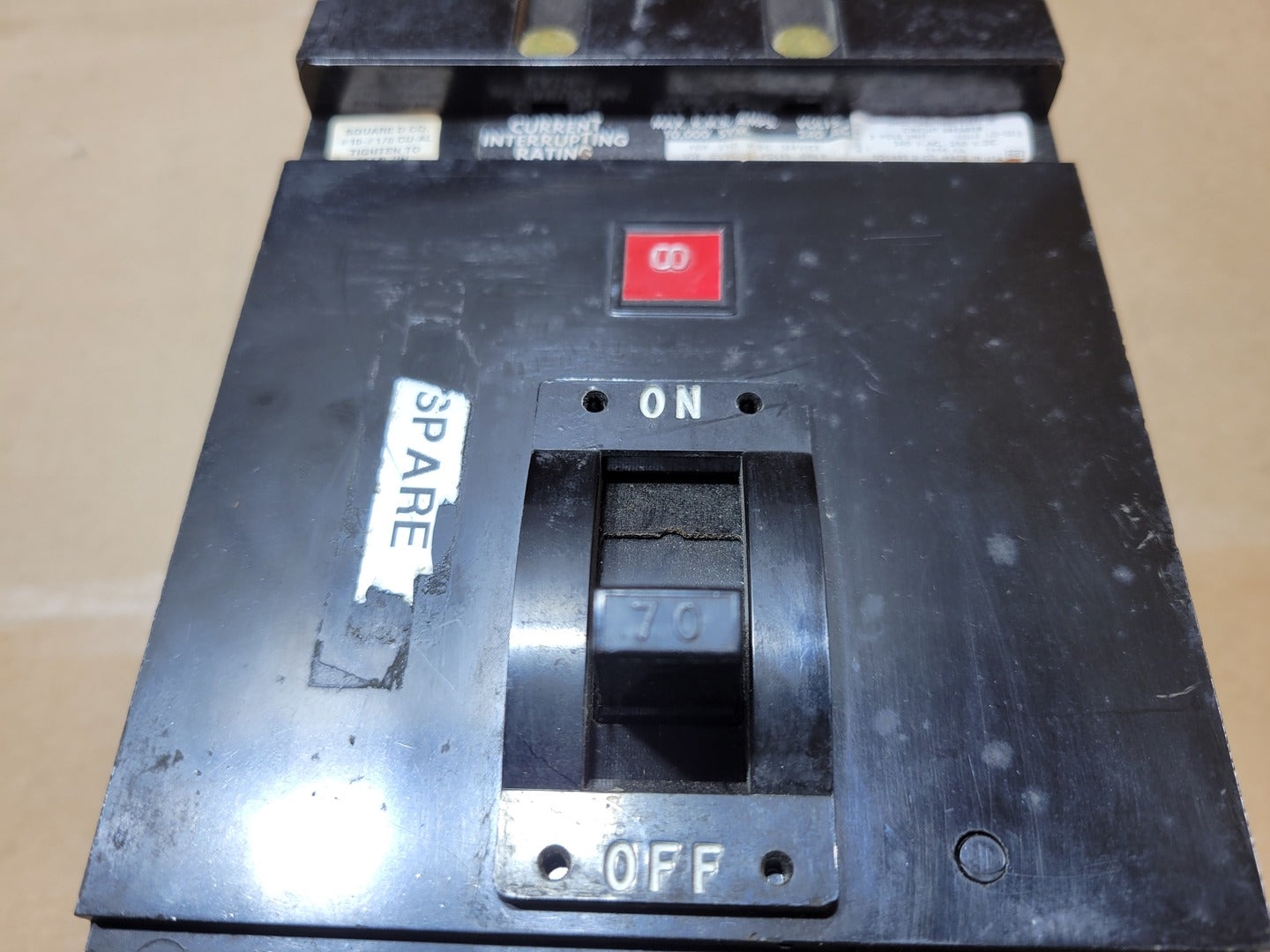

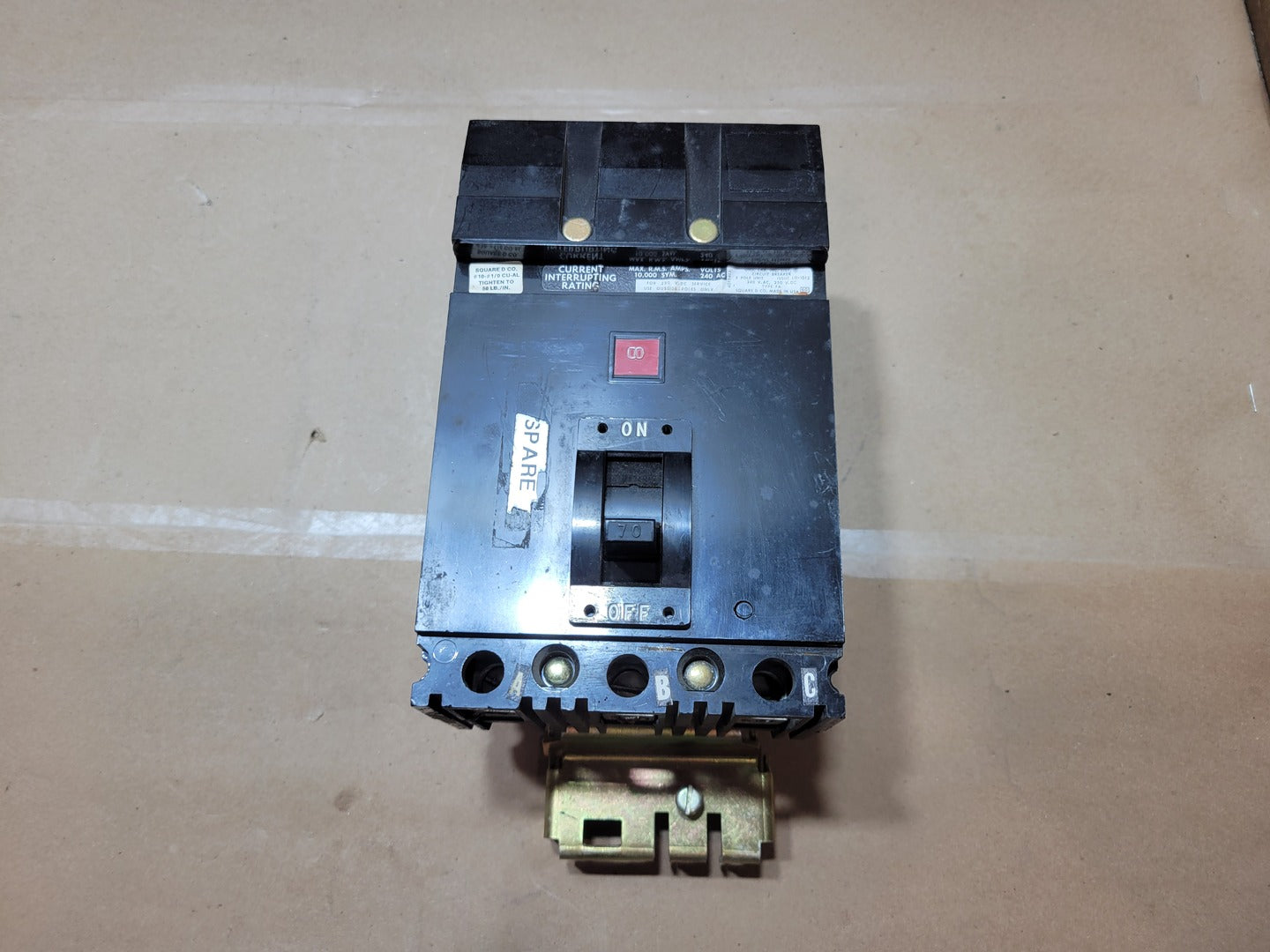

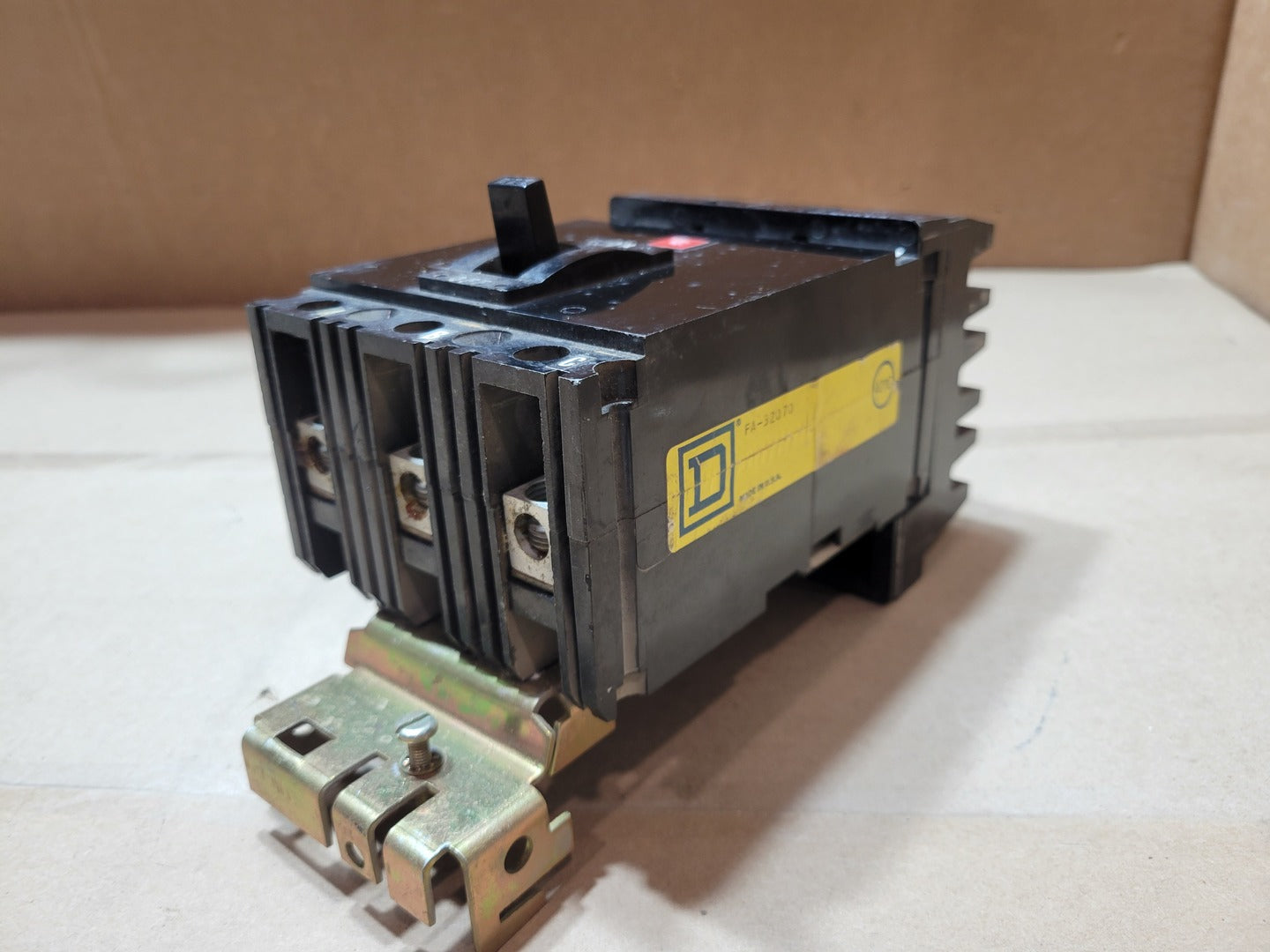

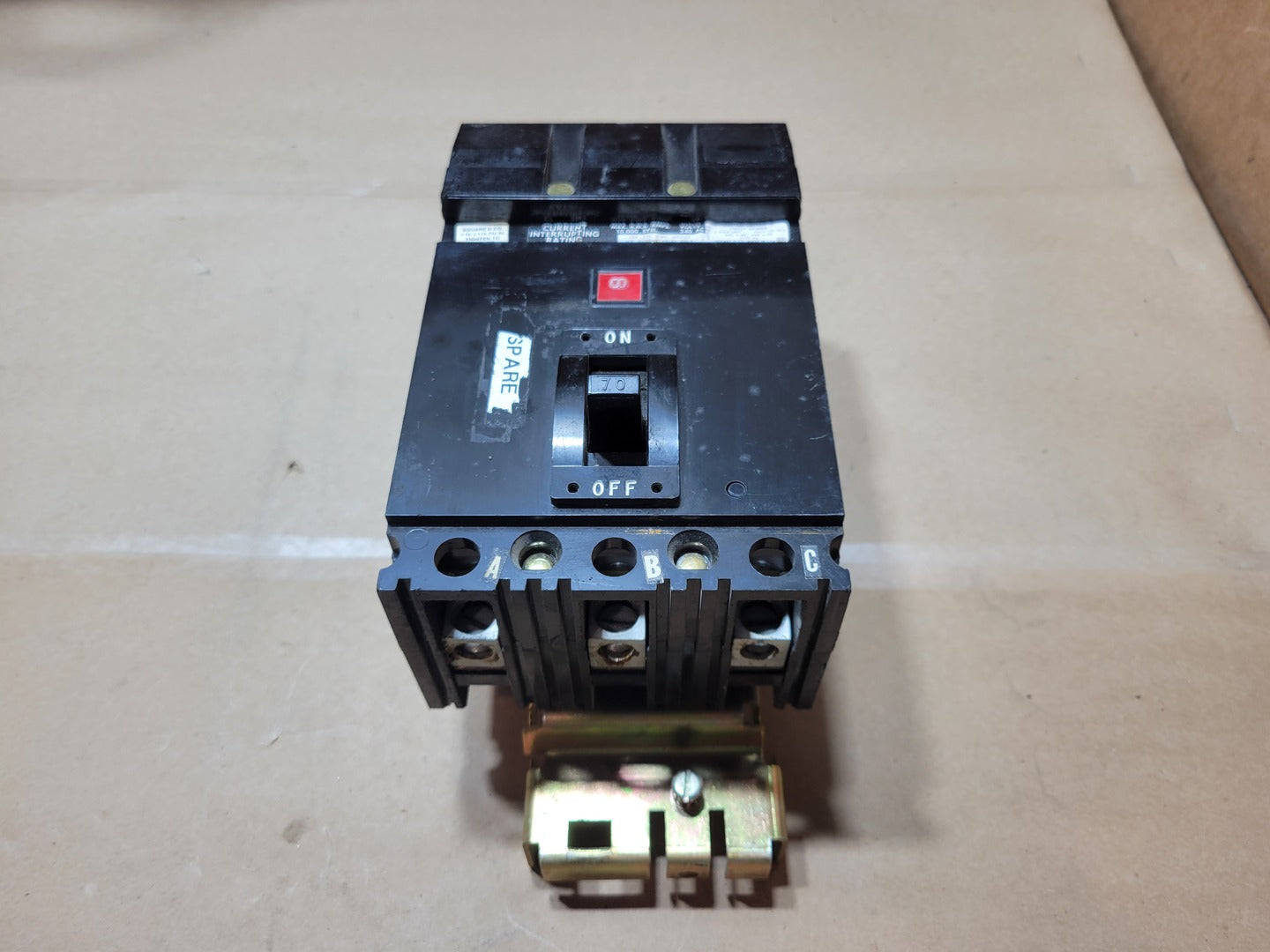

Square D FA32070 Type FA industrial molded-case circuit breaker rated 70 amps, 3-pole and 240VAC. Features an I-Line line-side connection, three load-side mechanical lugs, thermal-magnetic protection and 10kA interrupting rating. This breaker is discontinued and may be useful as a replacement for existing Square D I-Line equipment requiring the FA32070 configuration.
| Specifications | |
|---|---|
| Model | FA32070 |
| Made In | UNITED STATES |
| Condition | Used | General |
| Amps | 70 amps |
| Series | FA |
| # of Poles | 3 |
| Mounting Style | Plug-In |
| Voltage | 240 volts |
| Other Specifications |
|---|
|

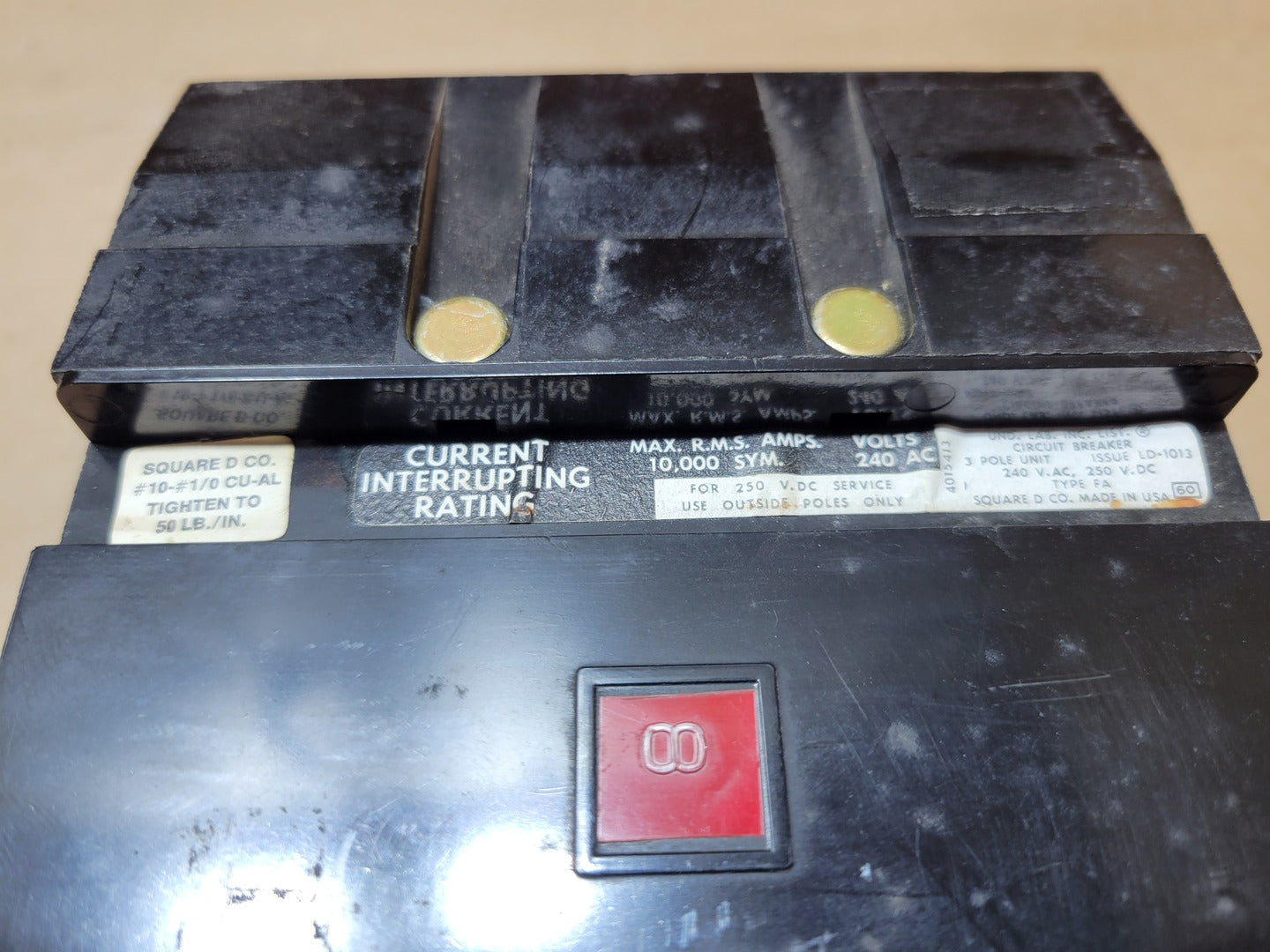

Equipment Type: Molded Case Circuit Breaker DC Voltage Rating: 250 VDC Interrupting Rating: 10,000 RMS symmetrical amps at 240VAC Trip Type: Thermal-magnetic Mounting / Line Connection: I-Line Load Connection: Mechanical lugs Load Lug Wire Range: #10-#1/0 Cu/Al Lug Torque: 50 lb-in Phase Positions: A / B / C Temperature Marking: 40°C |
