Descripción

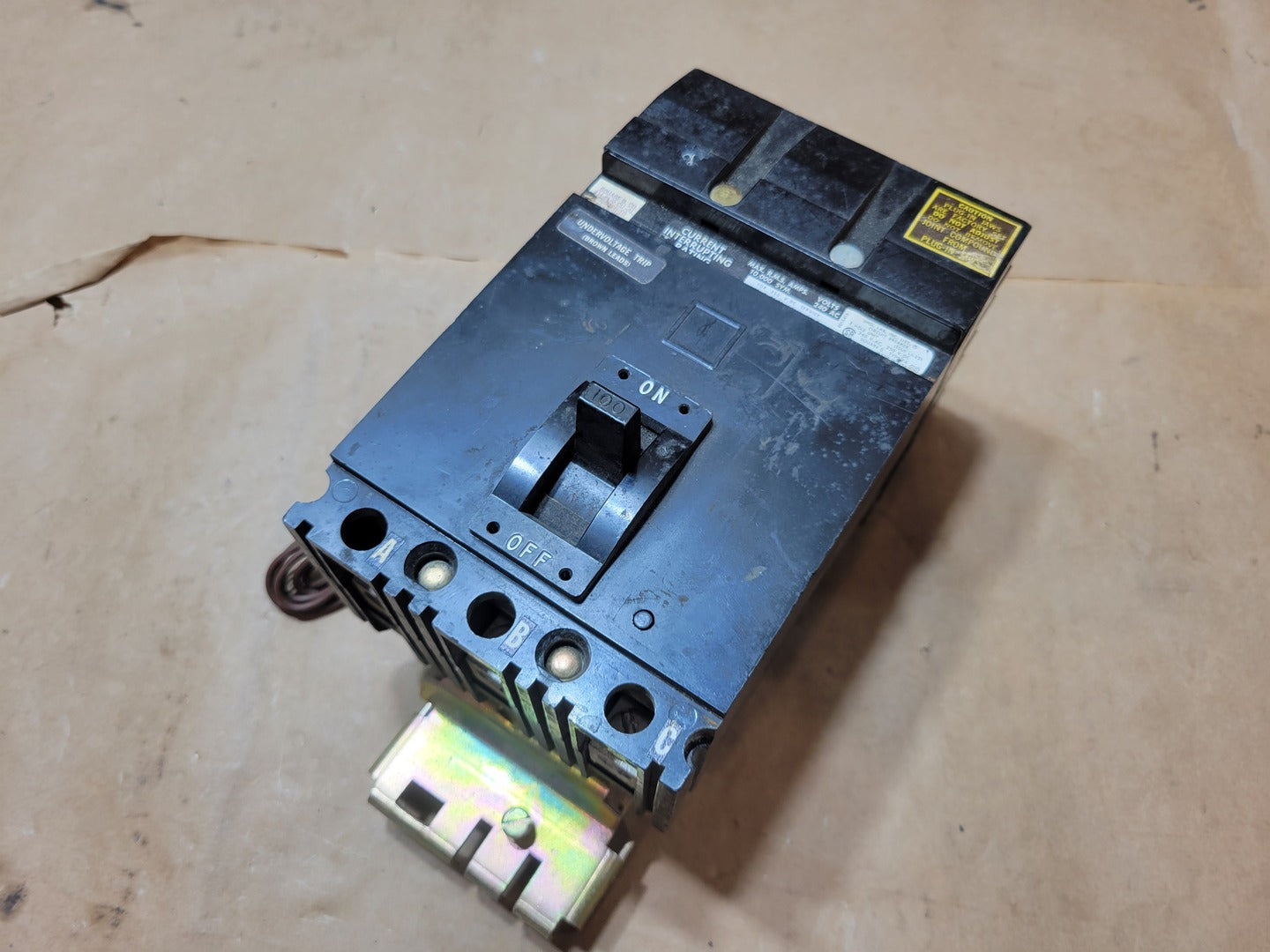

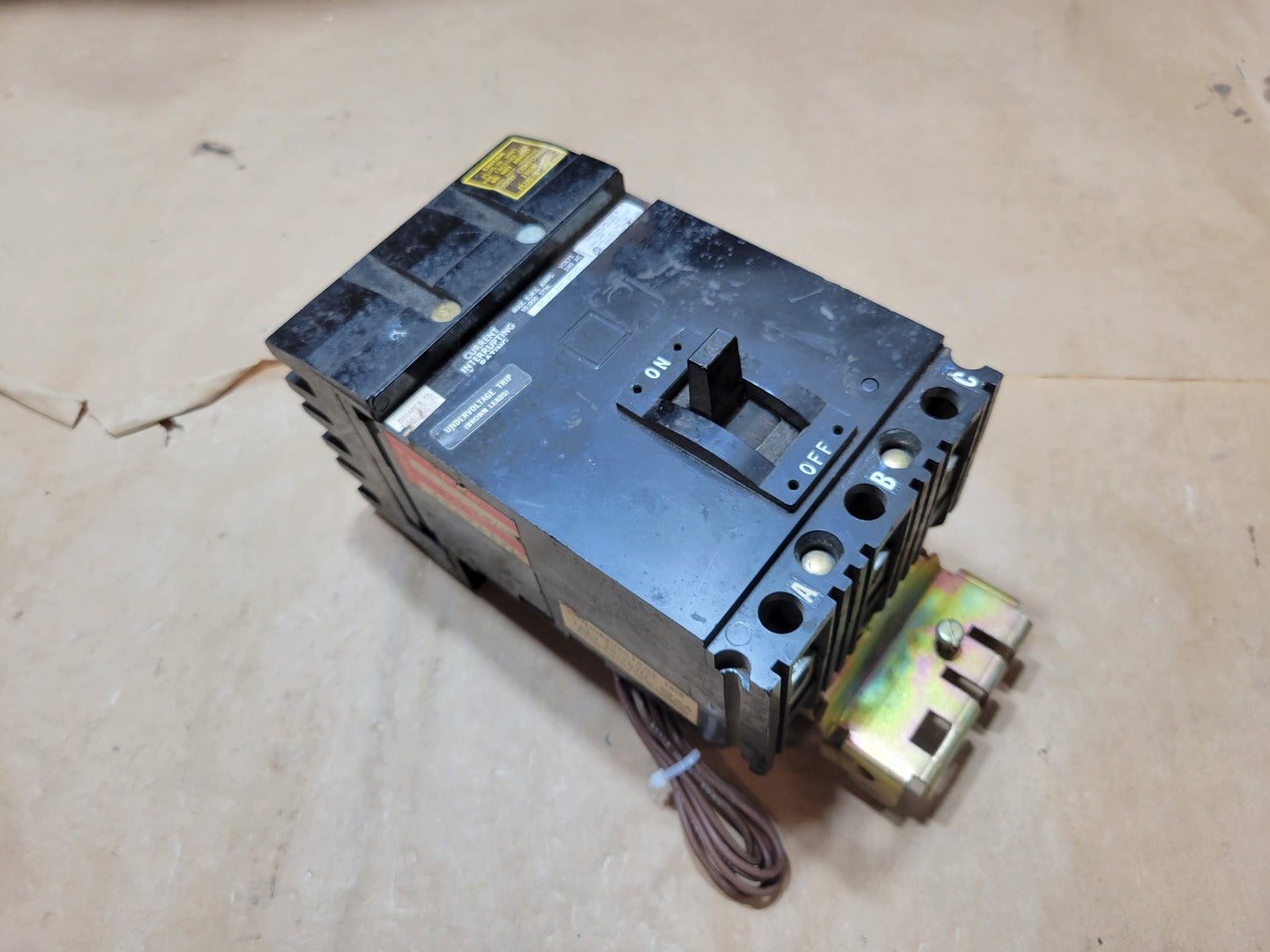

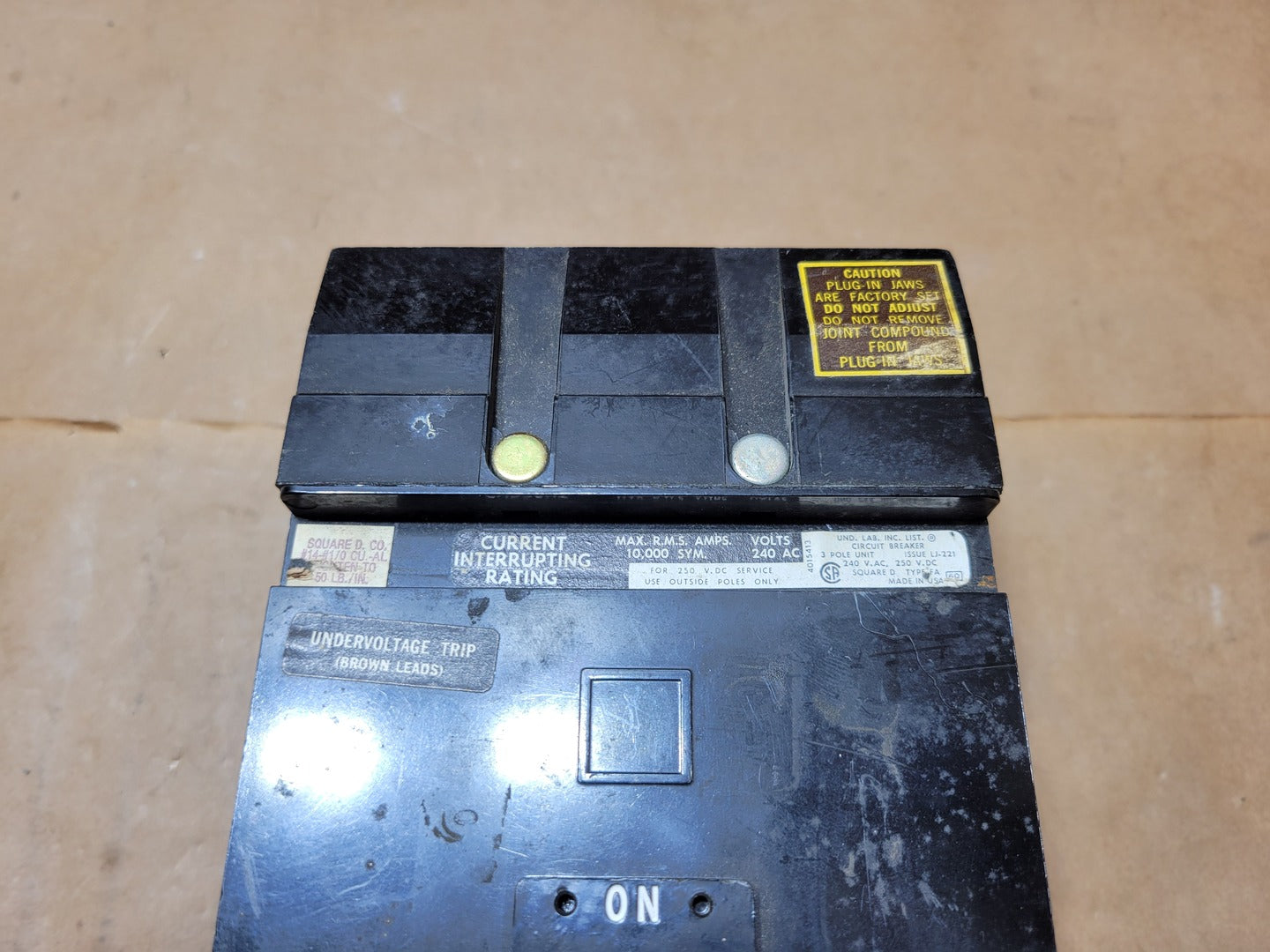

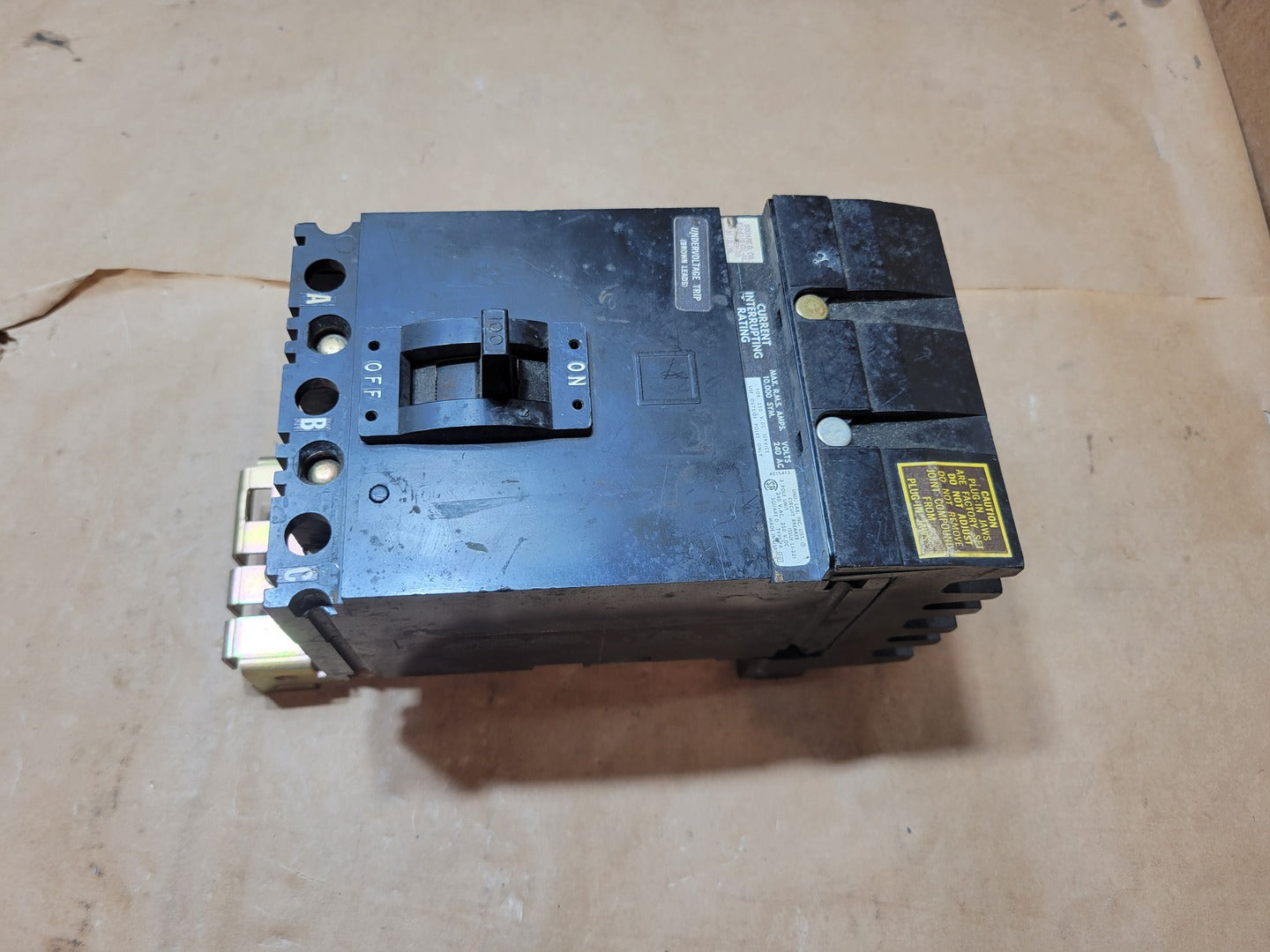

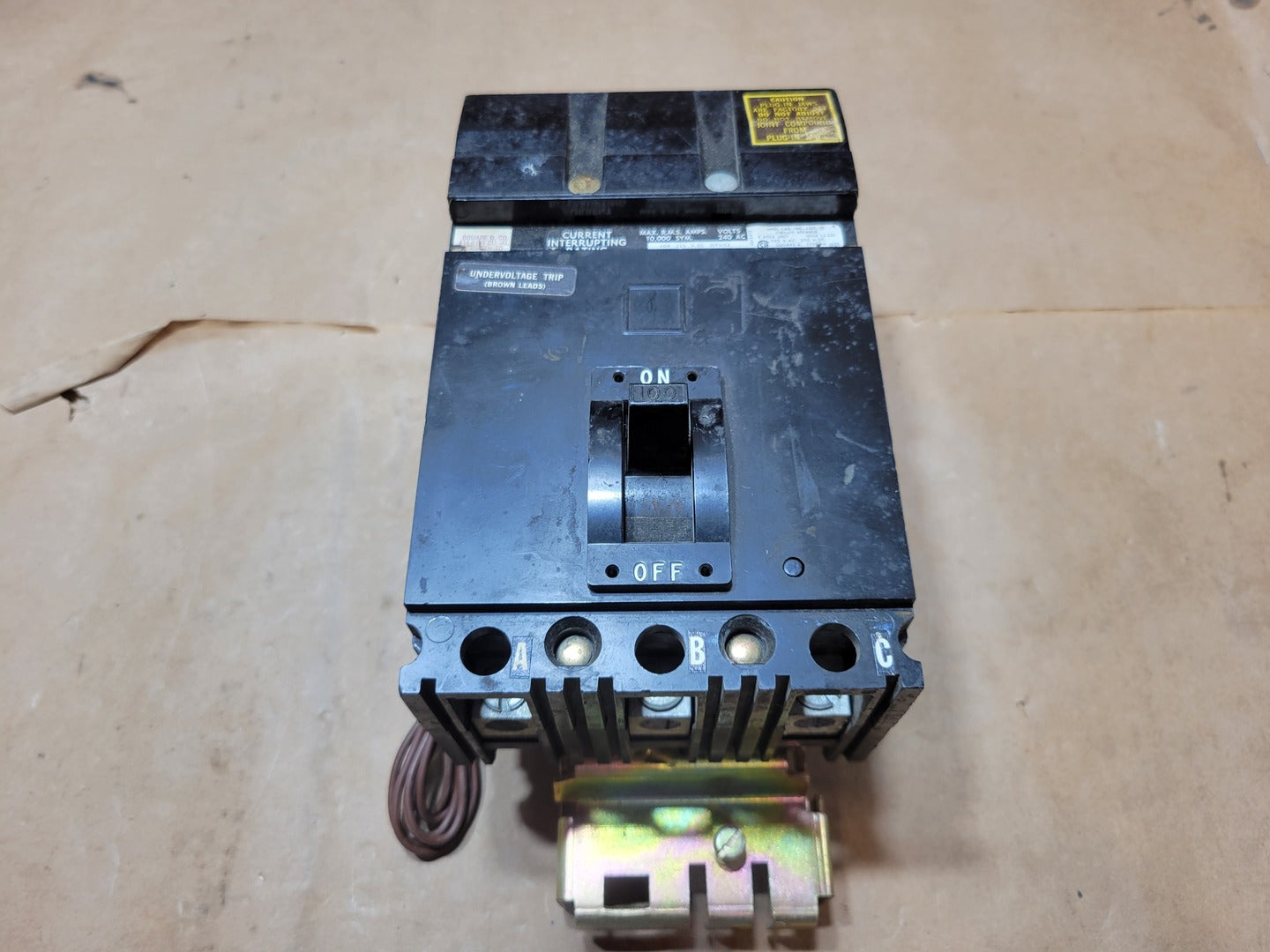

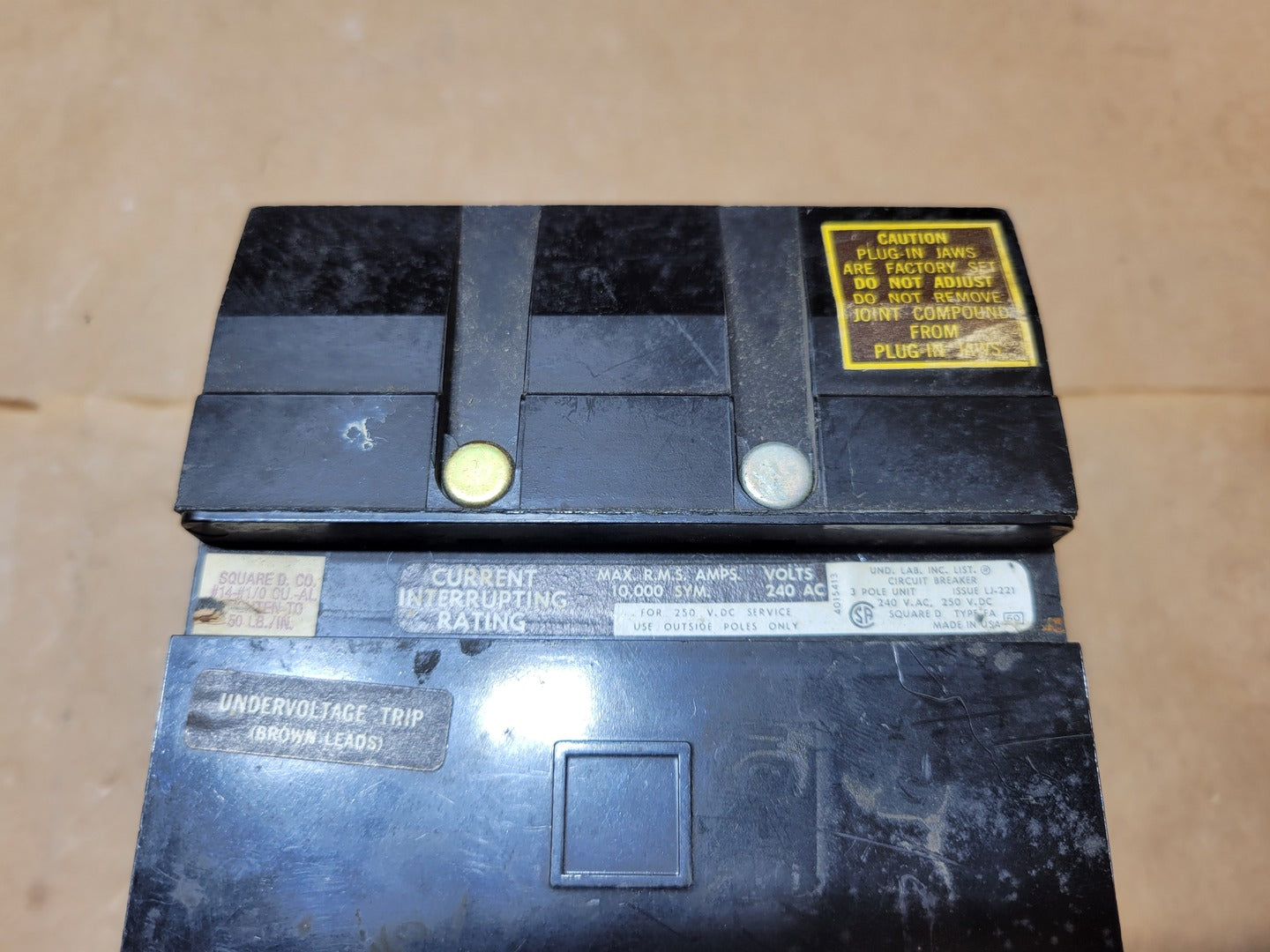

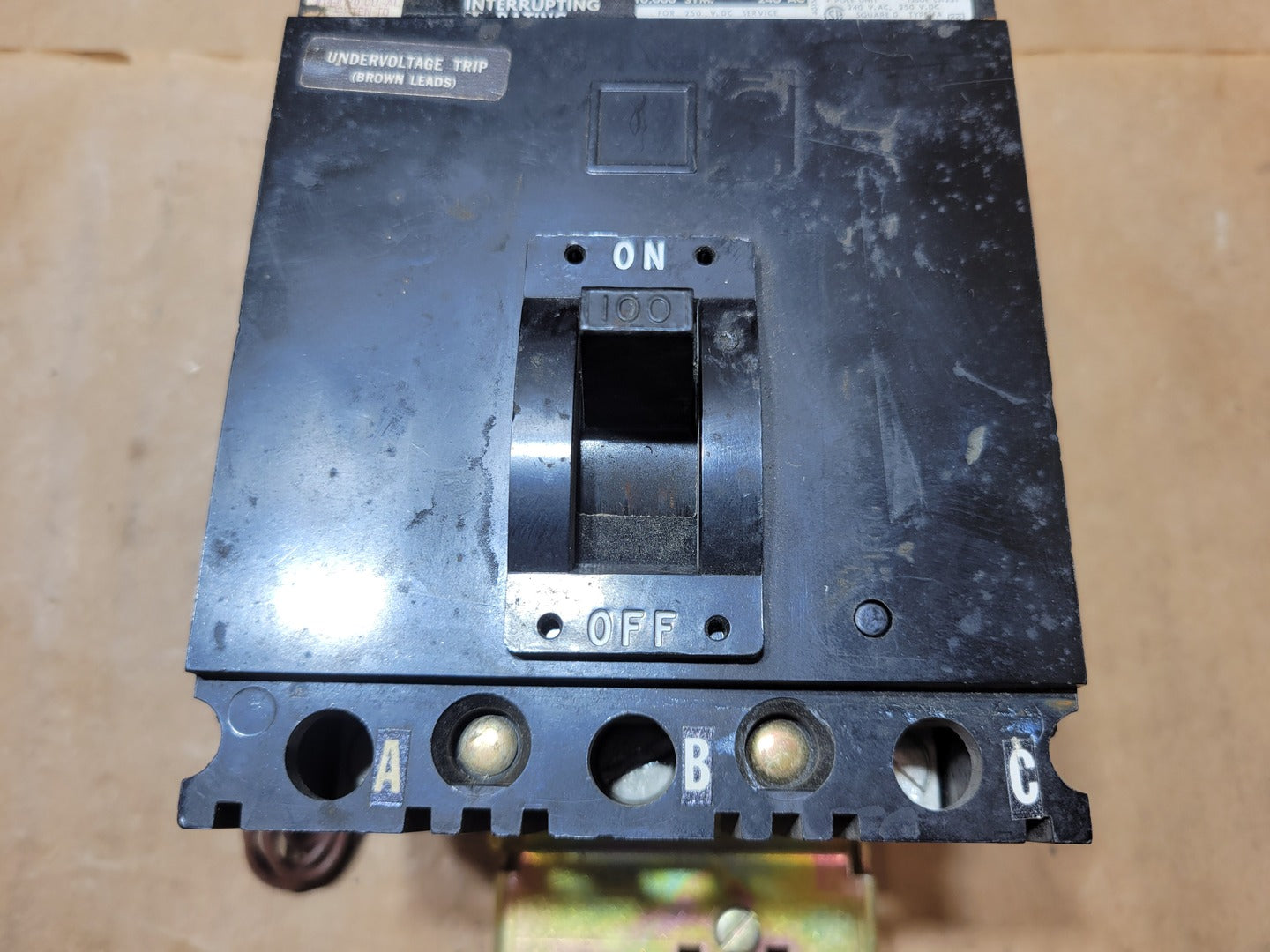

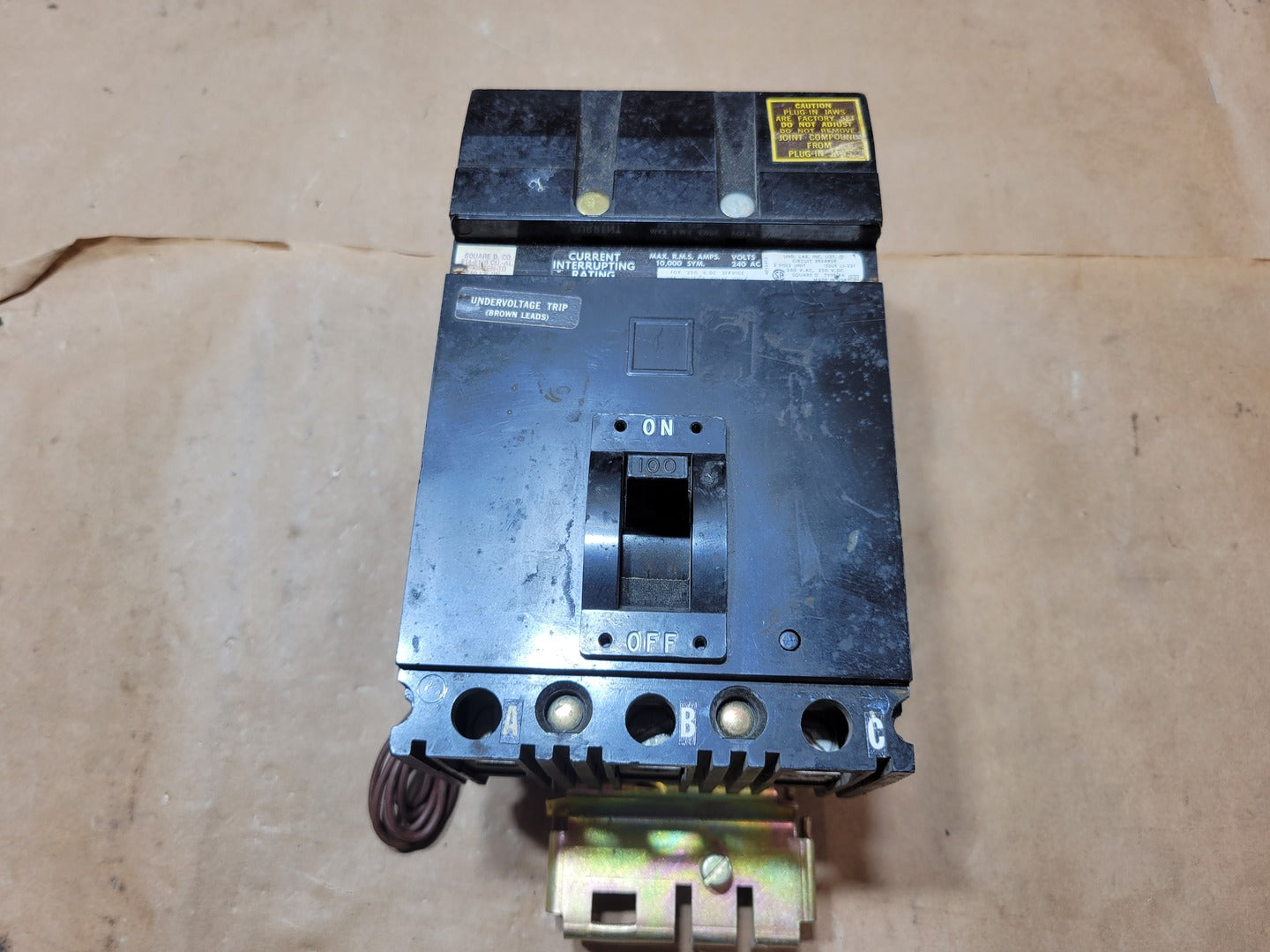

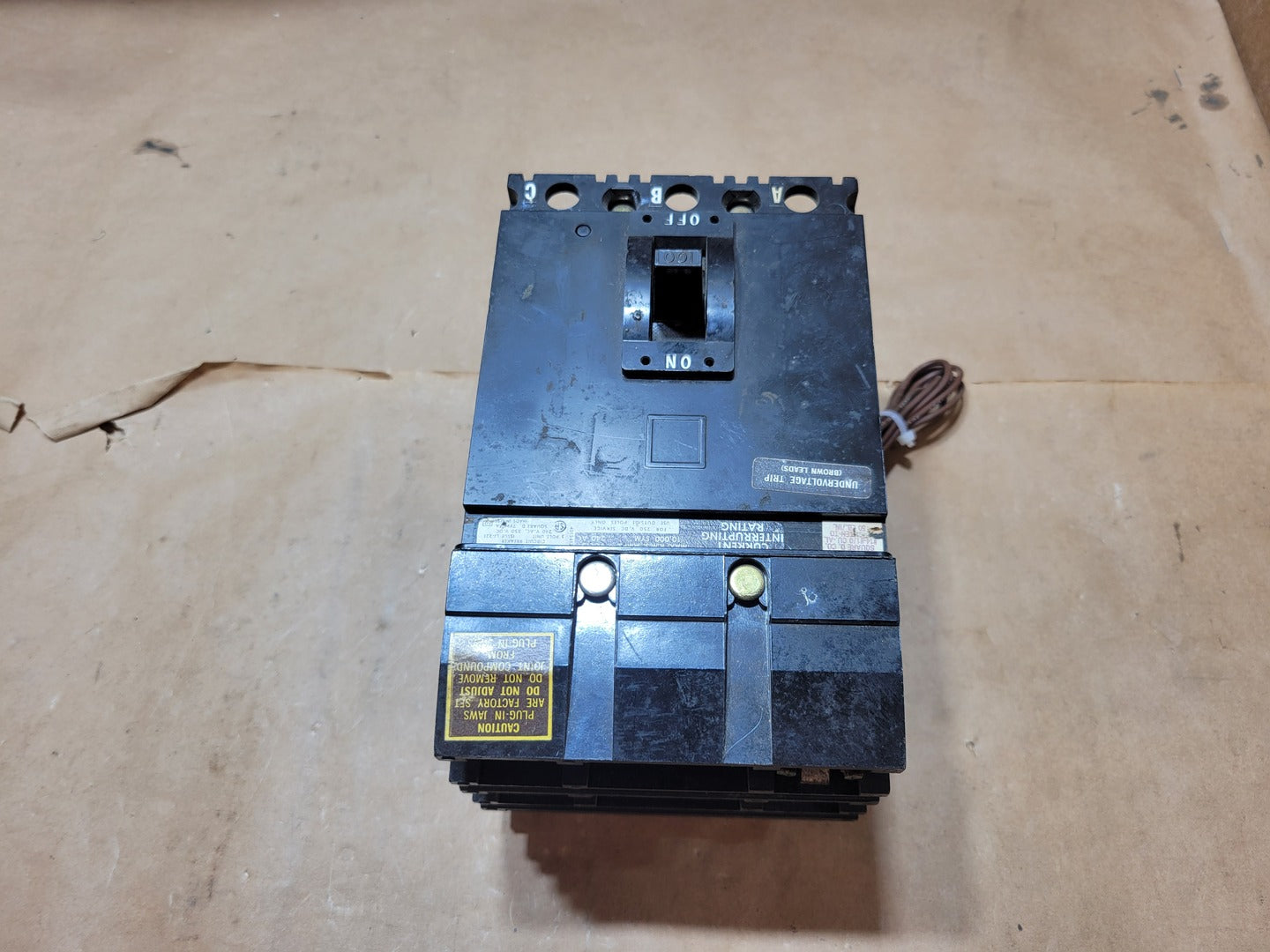

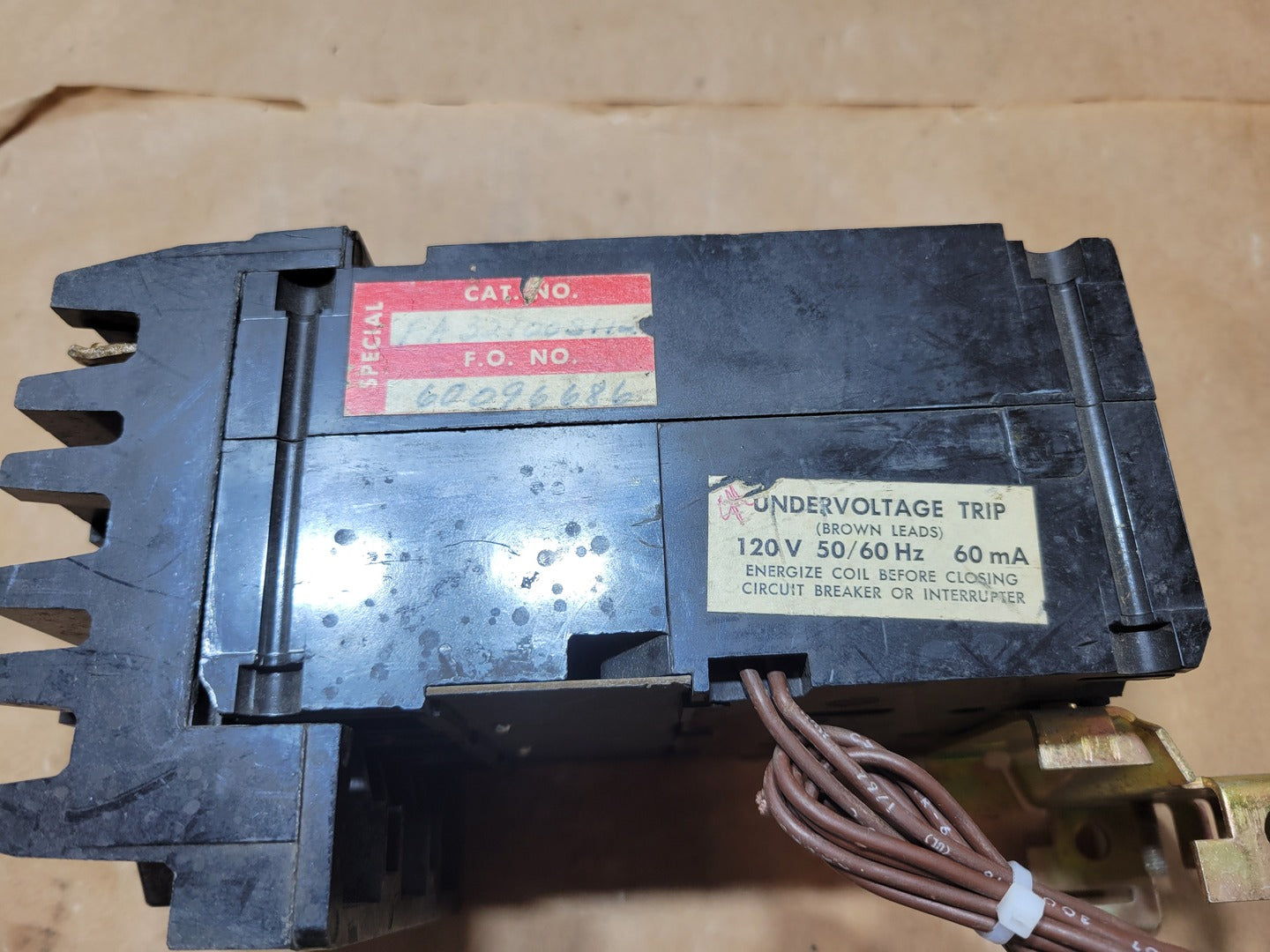

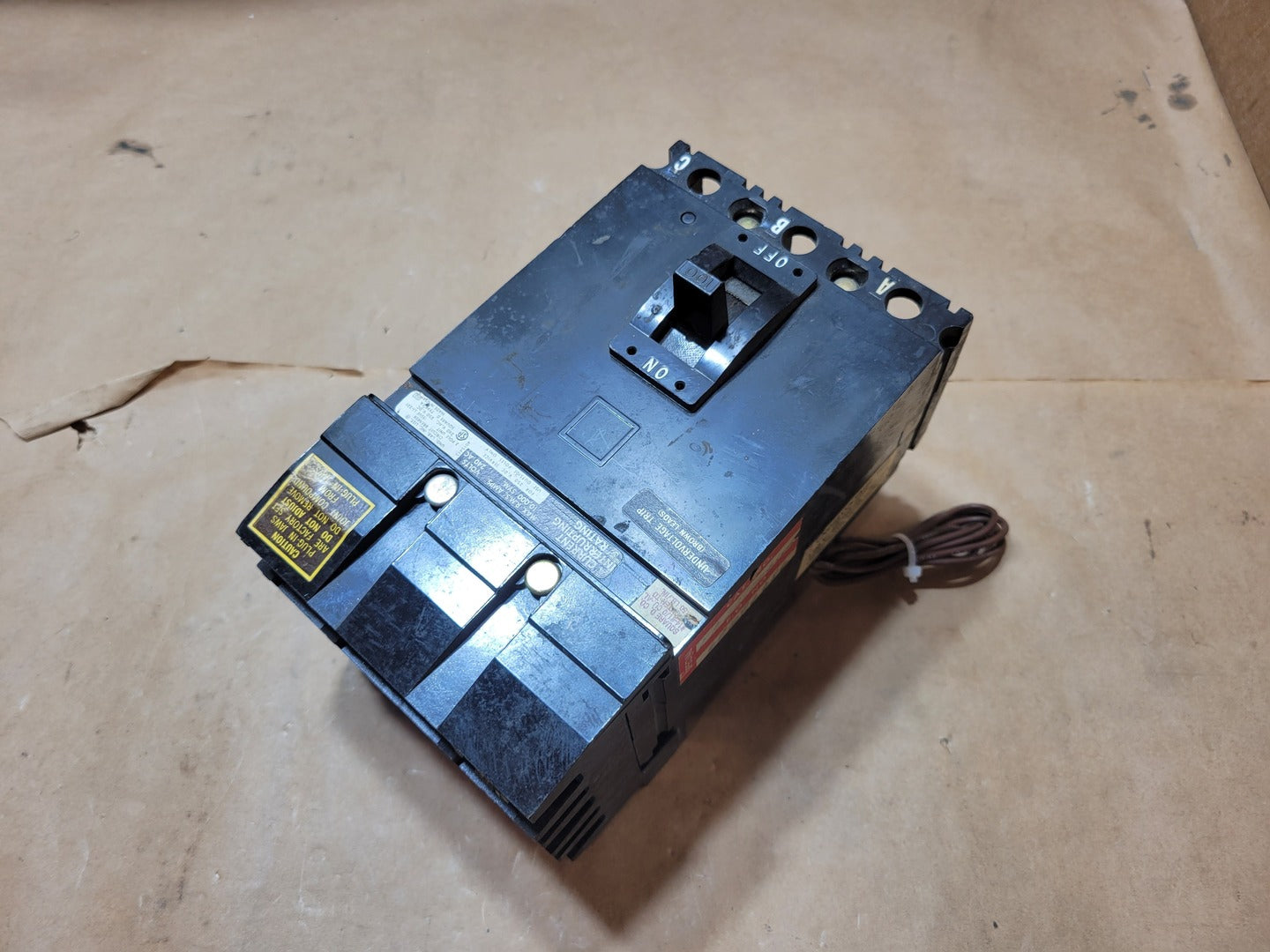

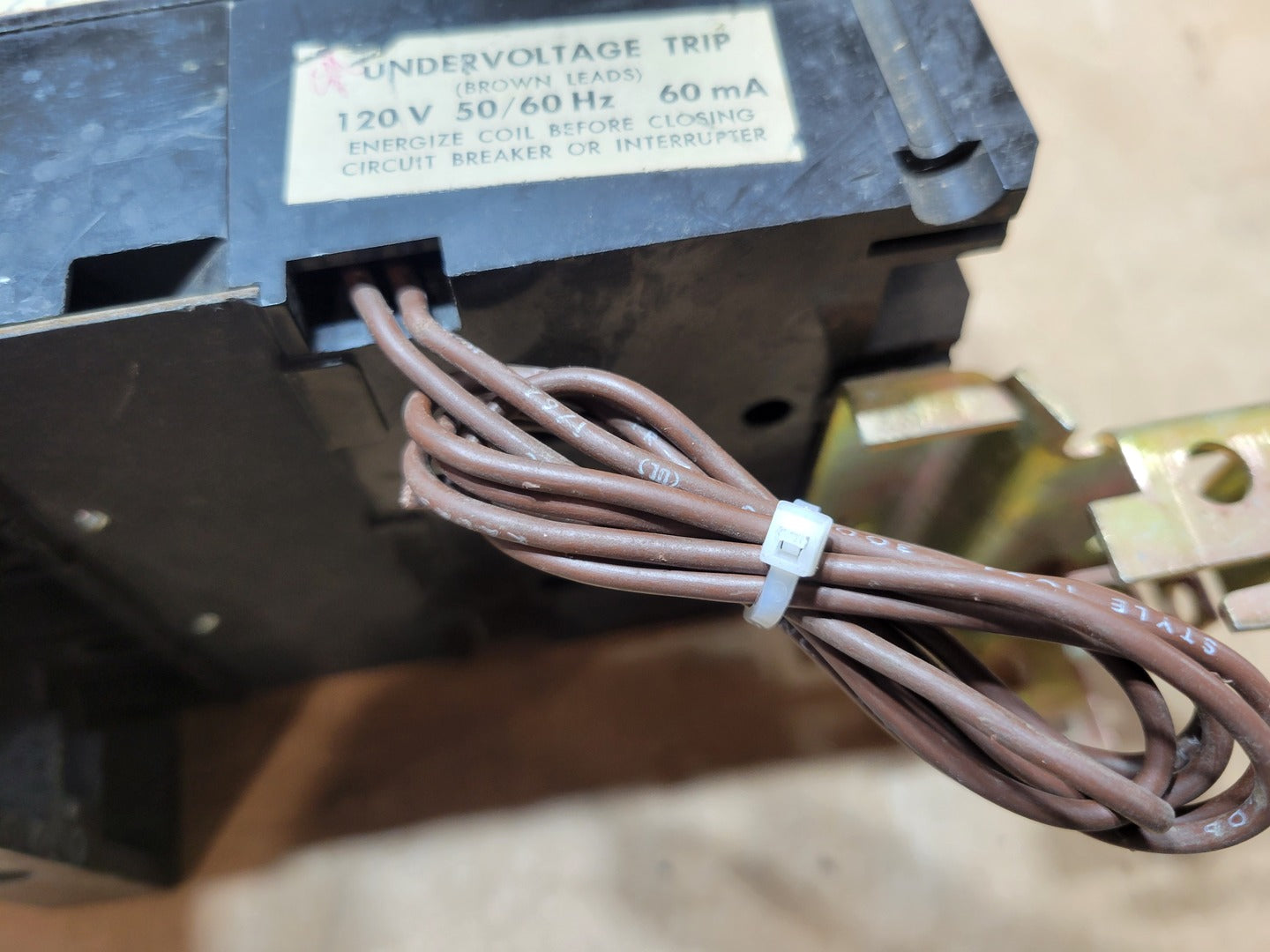

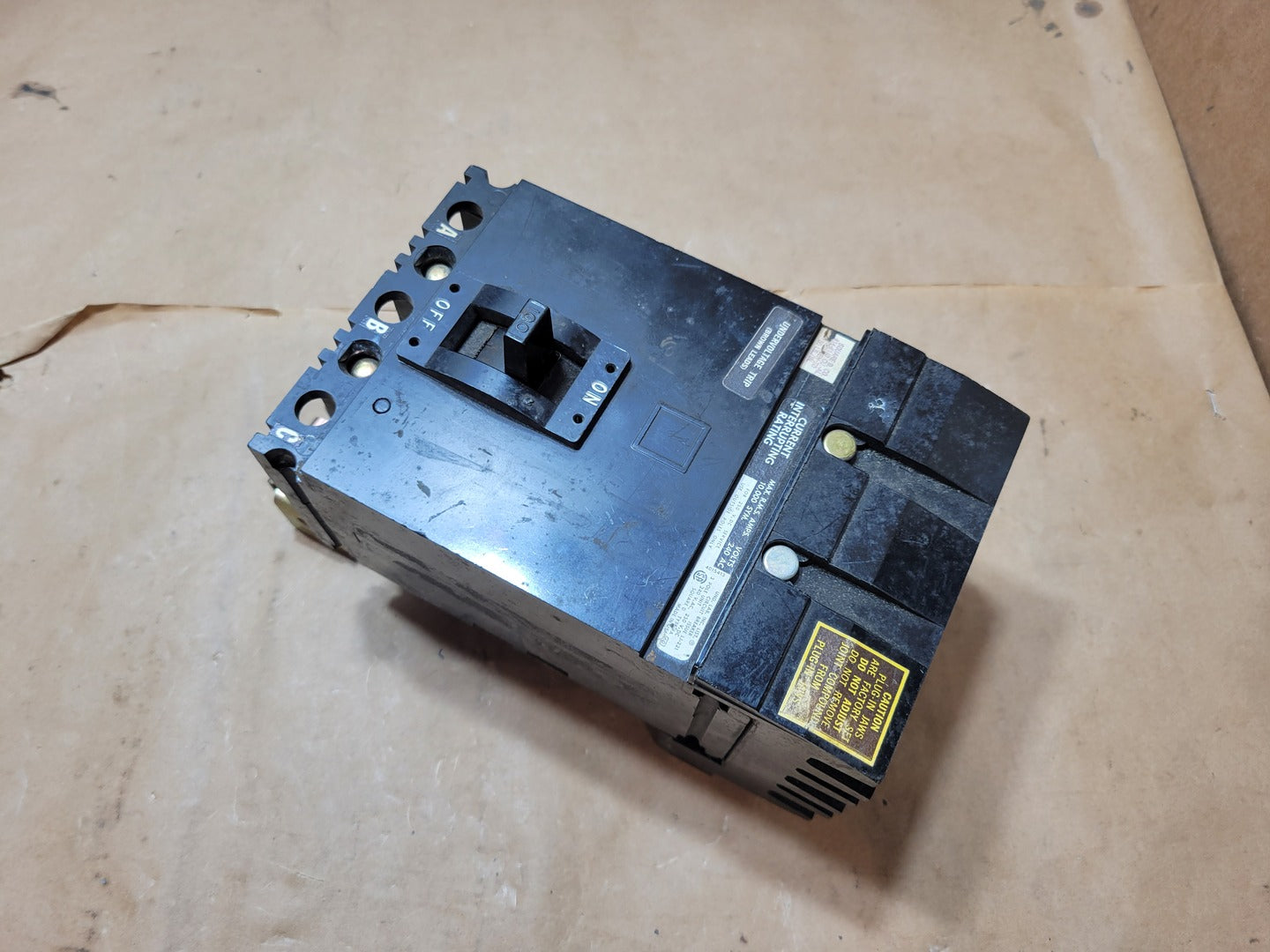

Square D FA32100 100 A 3-pole molded-case circuit breaker with I-Line plug-in mounting and factory-installed 120 V undervoltage trip. Breaker markings show a 10,000 A symmetrical interrupting rating at 240 VAC and 250 VDC service using the outside poles as specified on the label. The undervoltage-trip accessory uses brown leads and is rated 120 V, 50/60 Hz, 60 mA. Used industrial surplus condition.
| Specifications | |
|---|---|
| Model | FA32100 |
| Made In | UNITED STATES |
| Condition | Used | General |
| Amps | 100 amps |
| # of Poles | 3 |
| Mounting Style | Plug-In |
| Voltage | 240 volts |
| Other Specifications |
|---|
|
DC Voltage Marking: 250 VDC Interrupting Rating: 10,000 A RMS symmetrical at 240 VAC Phase Positions: A / B / C Trip Accessory: Undervoltage Trip / Undervoltage Release Undervoltage Trip Voltage: 120 V Undervoltage Trip Frequency: 50/60 Hz Undervoltage Trip Current: 60 mA Undervoltage Trip Leads: Brown |
