Descripción

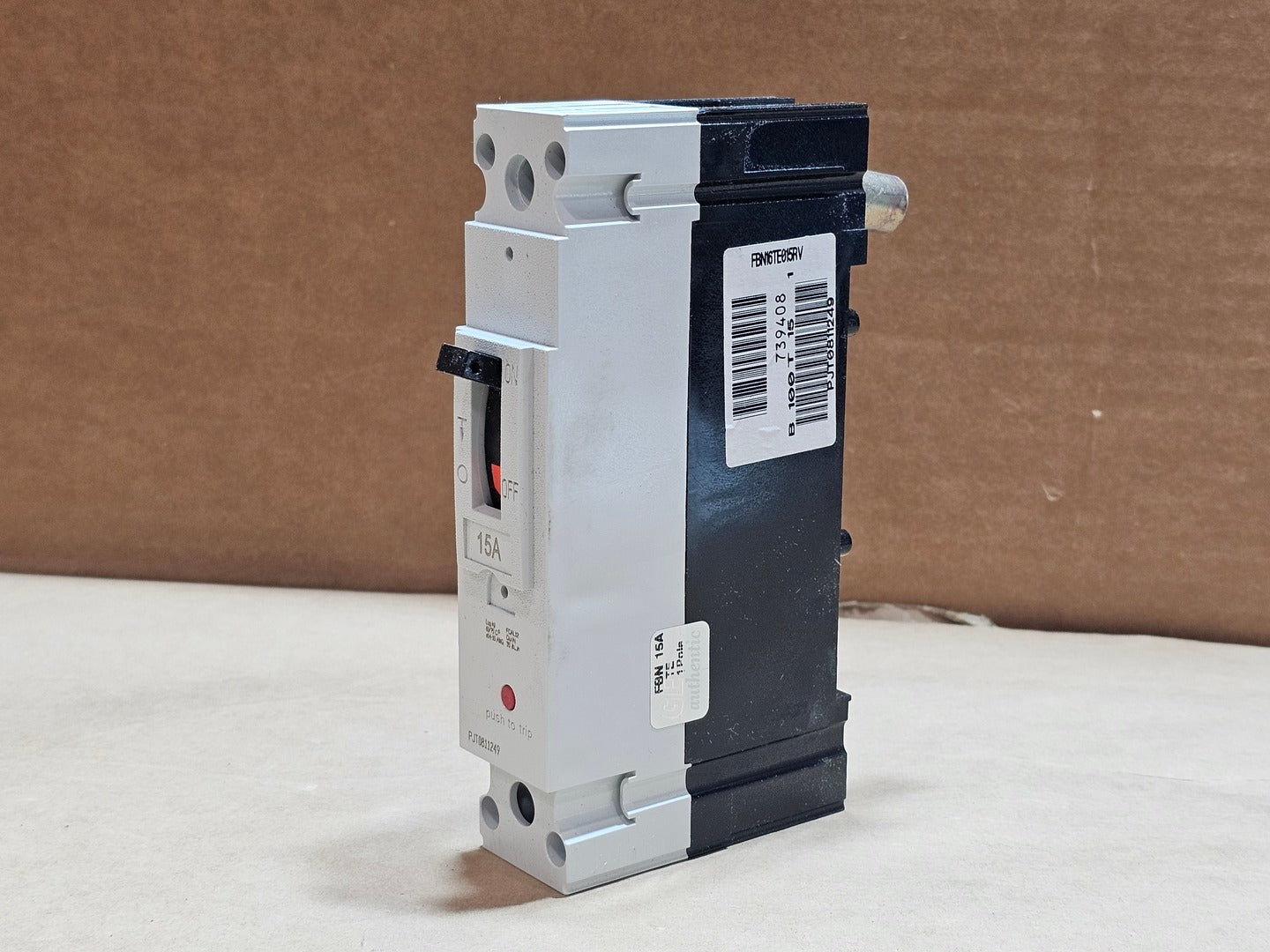

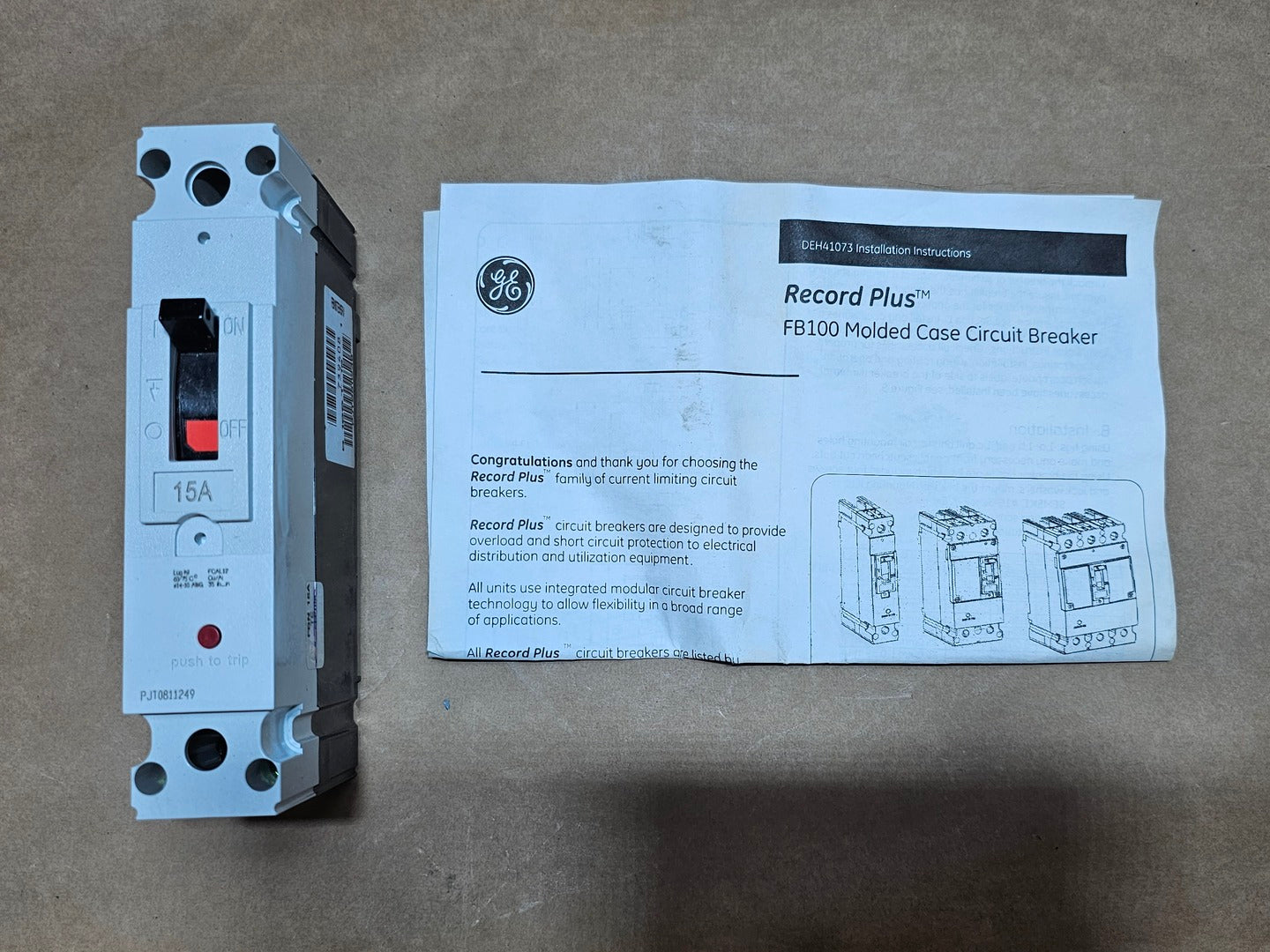

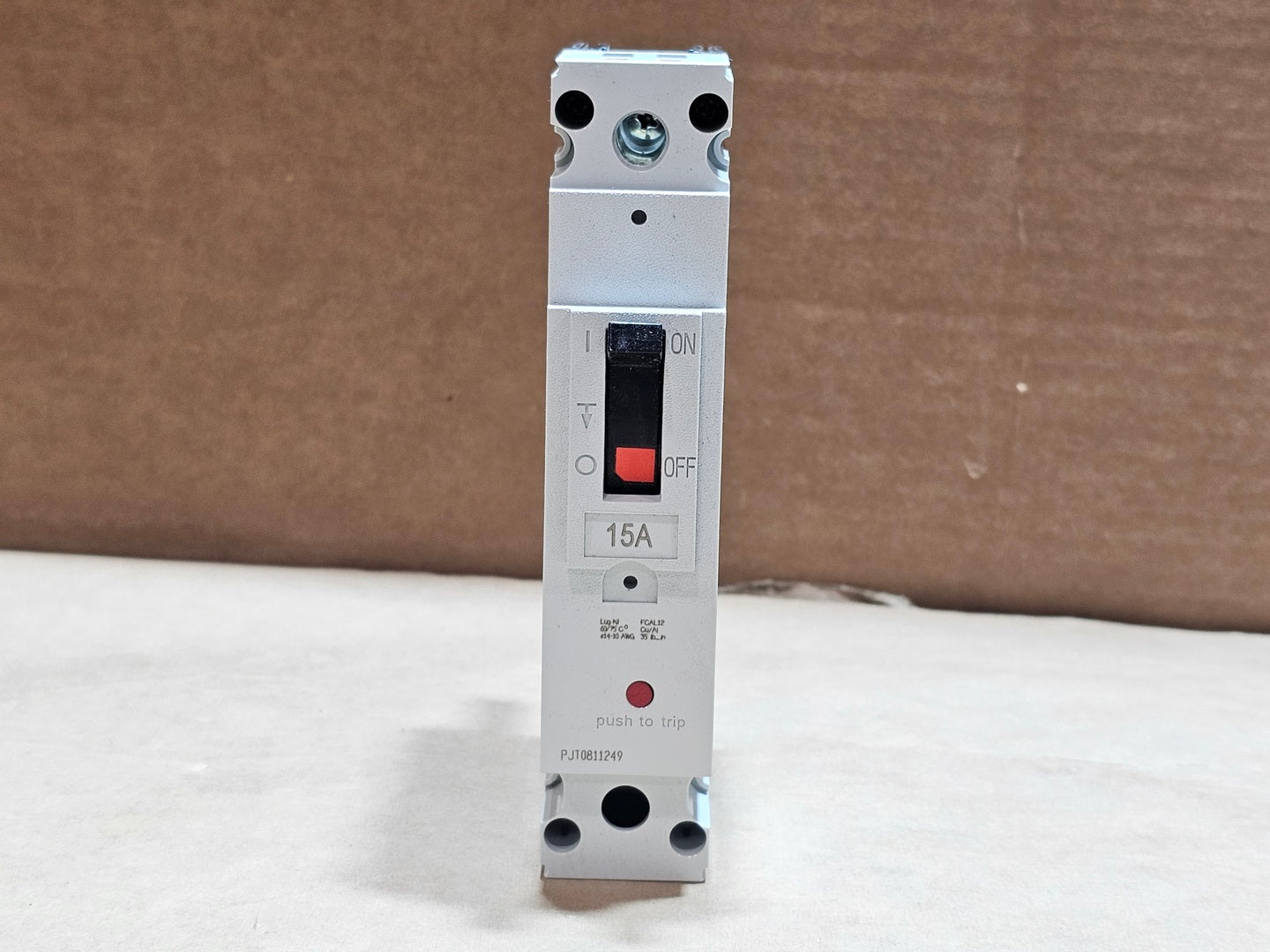

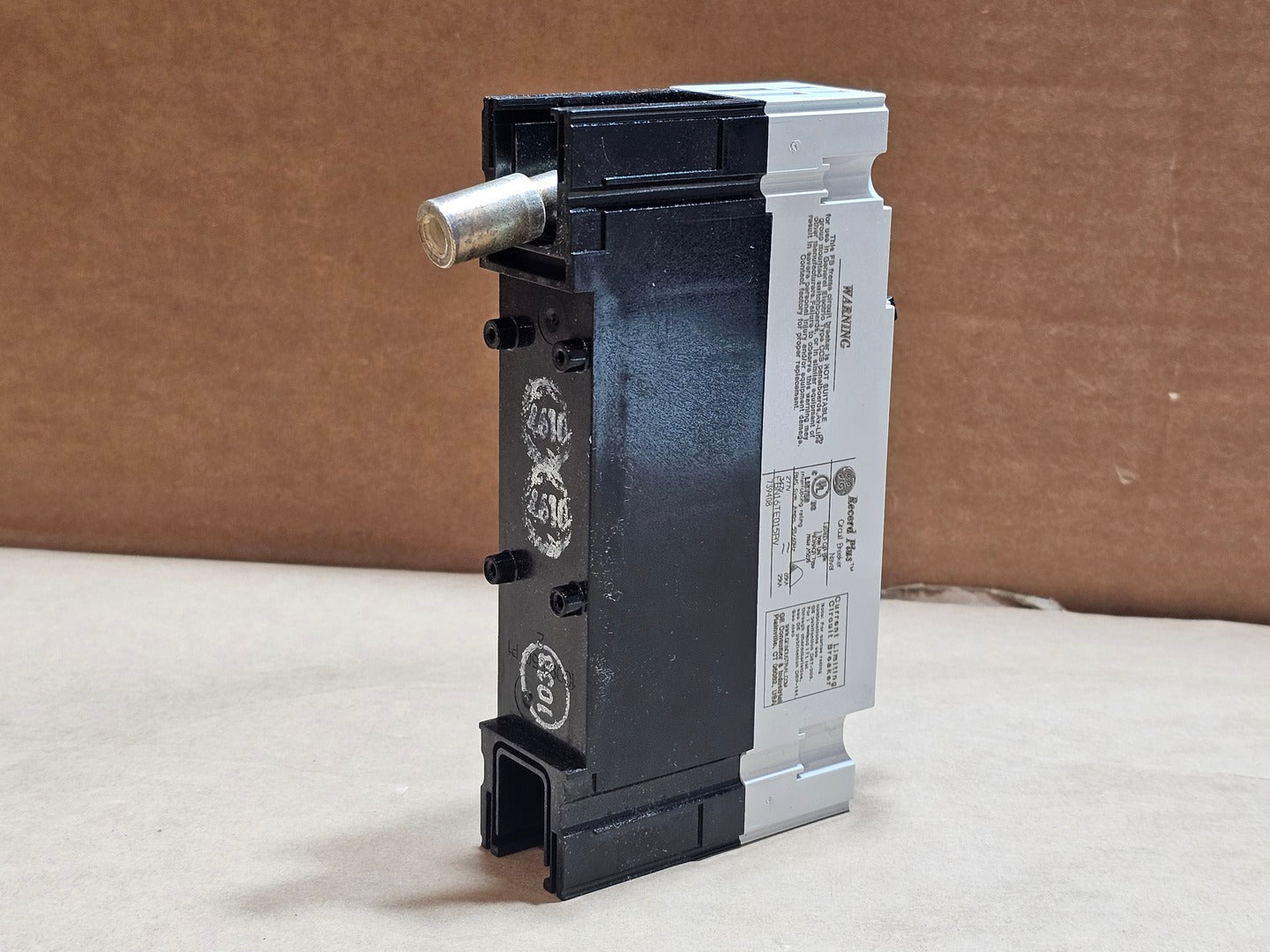

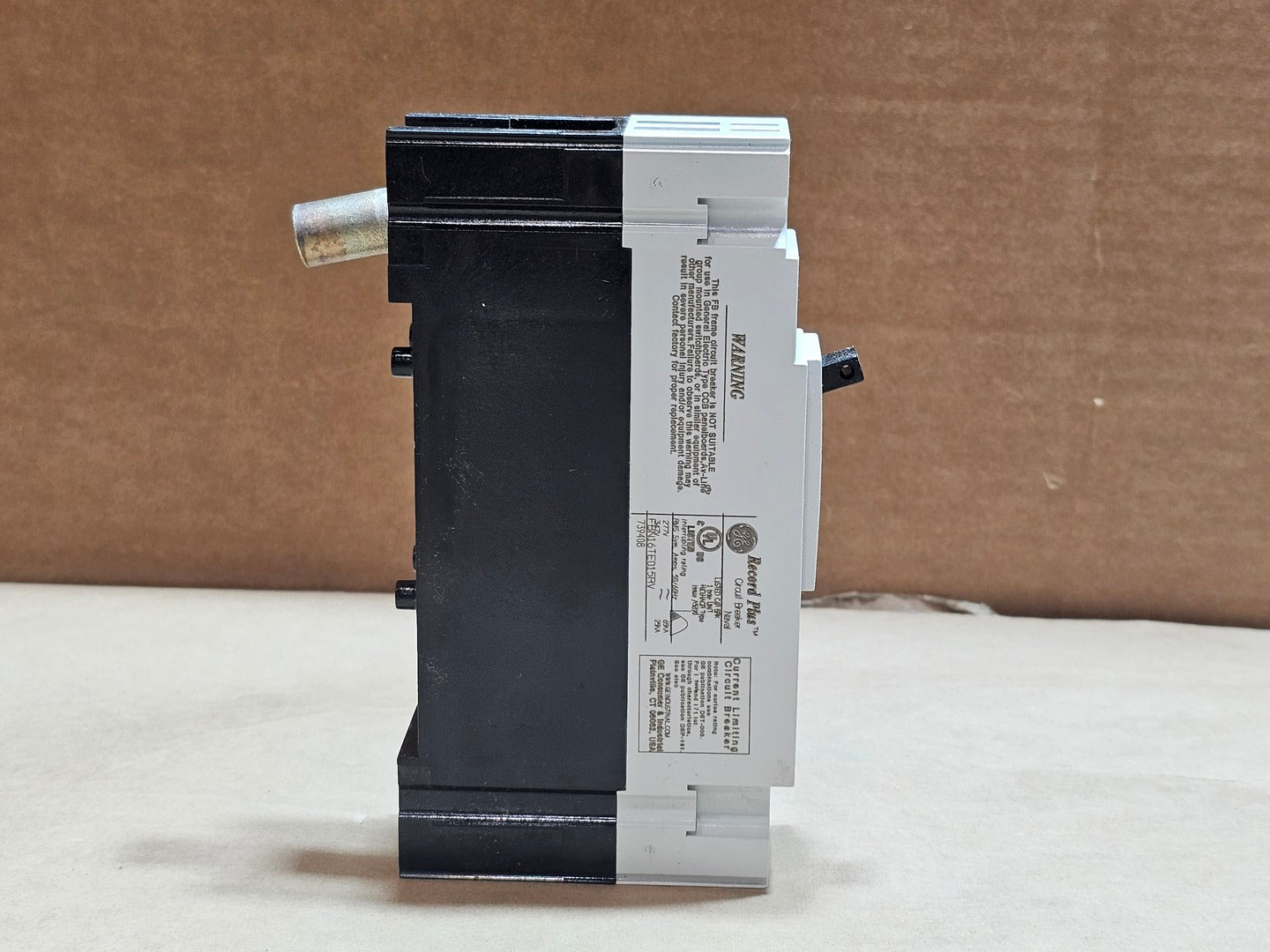

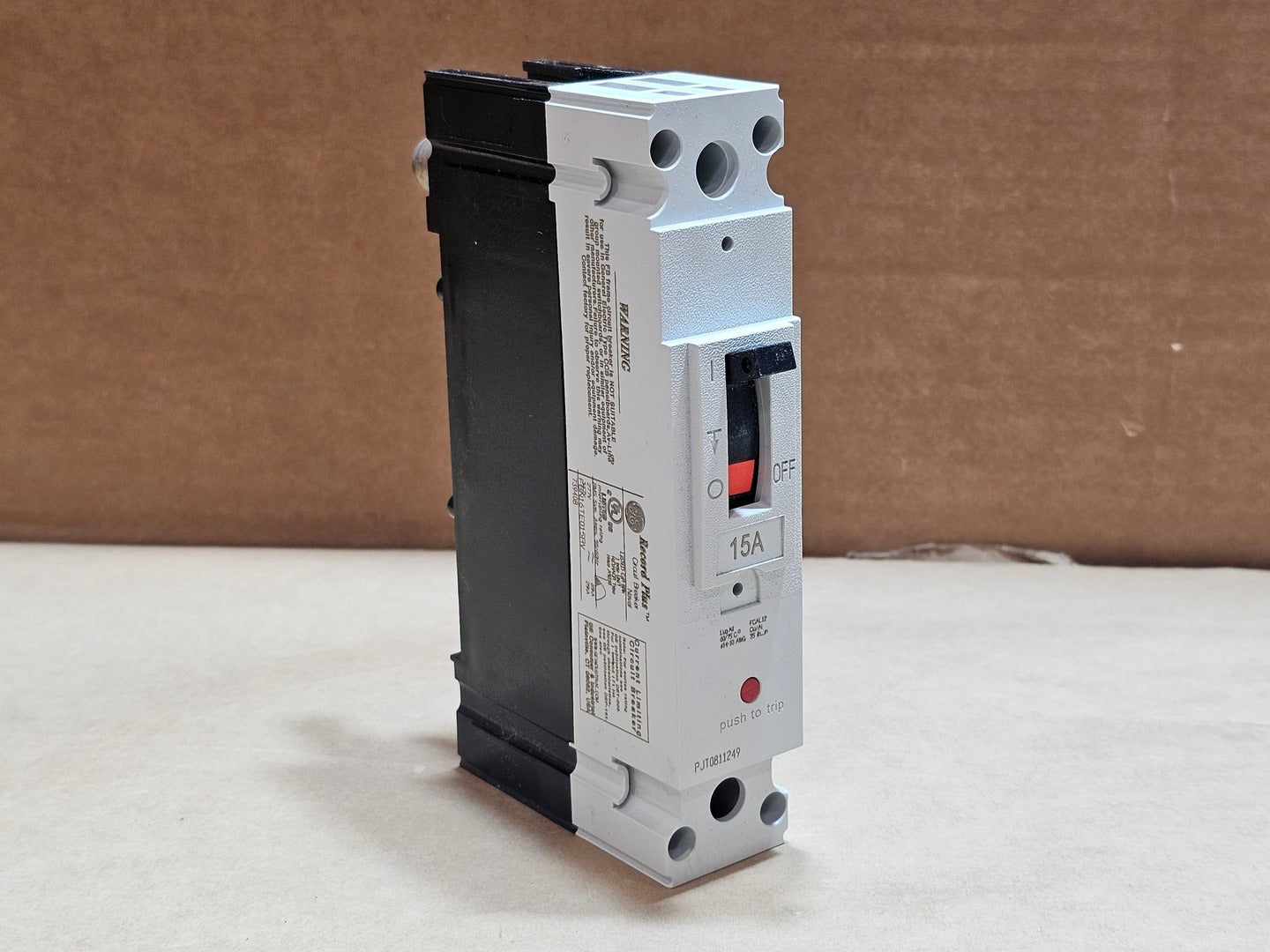

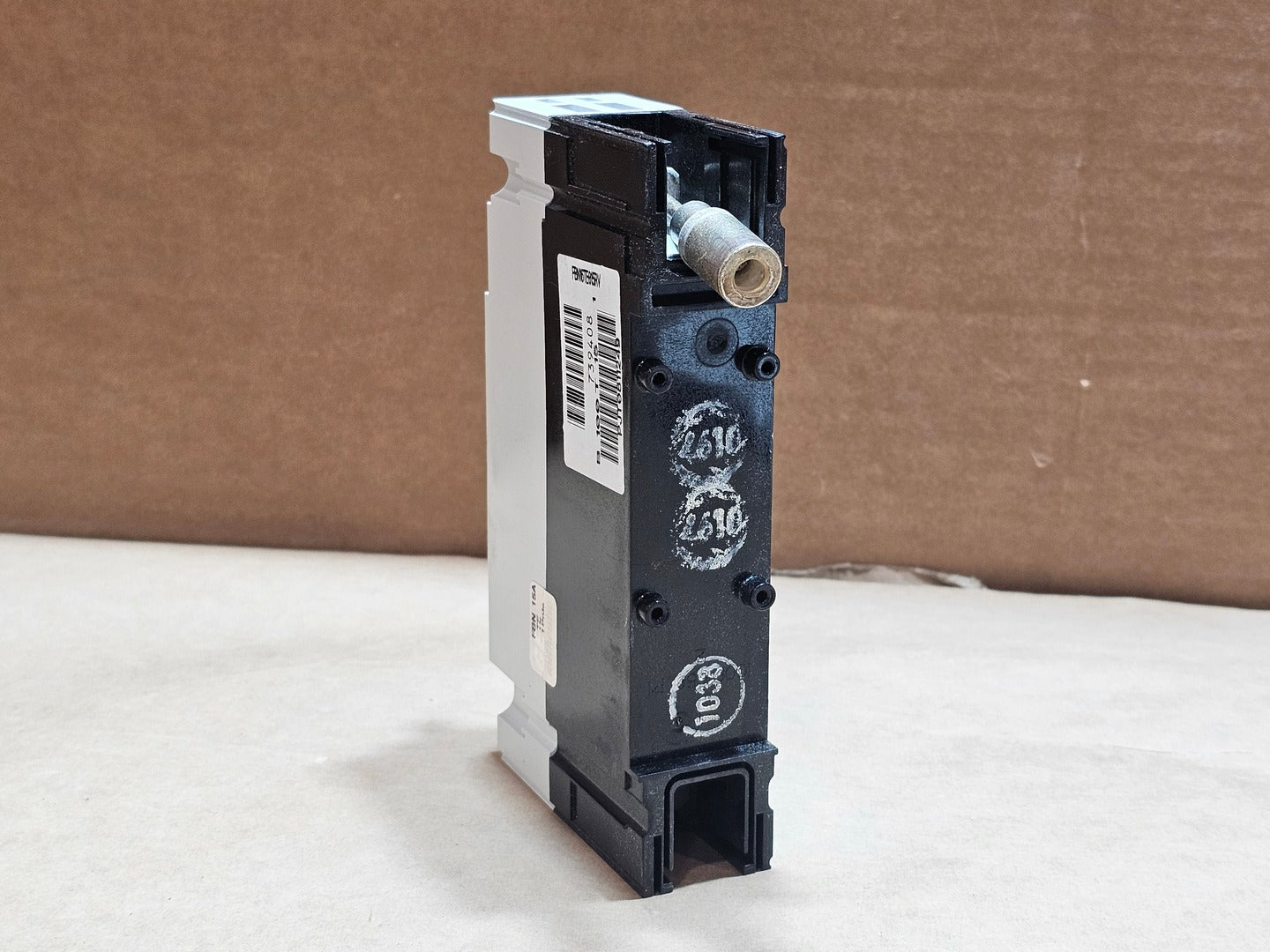

GE FBN16TE015RV Record Plus FB100 current-limiting molded case circuit breaker rated 15 amps, 1 pole and 347 VAC. The breaker uses a fixed thermal-magnetic trip and the RV configuration incorporates the load lug and panel connection arrangement used with compatible GE panel systems. Manufacturer documentation identifies this model as a Record Plus FB100 breaker.
| Specifications | |
|---|---|

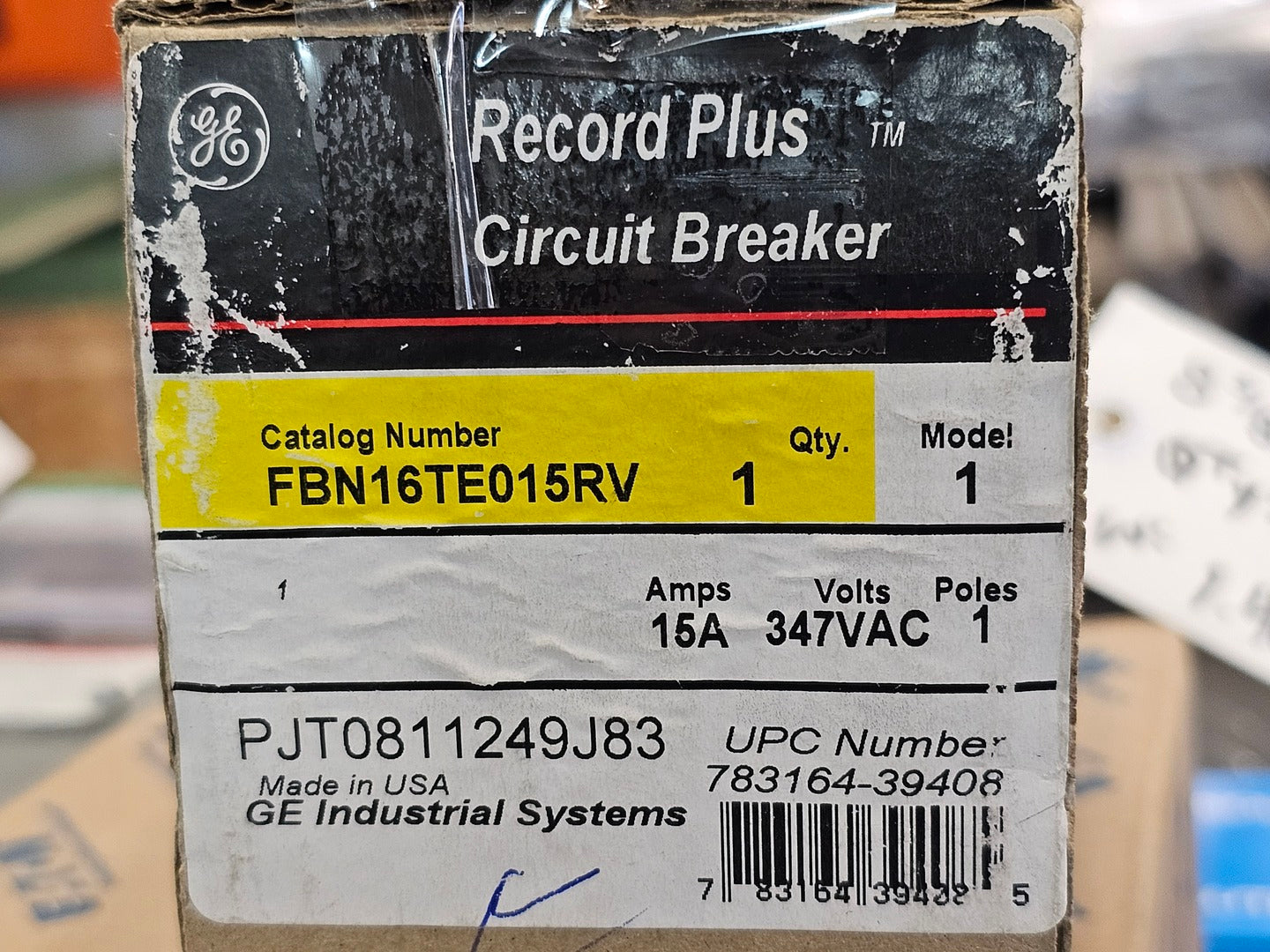

| Model | FBN16TE015RV |
| Made In | UNITED STATES |
| Condition | Surplus New | General |
| Amps | 15 amps |
| # of Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 347 volts |
| Phase | Single-phase |
| Other Specifications |
|---|
|

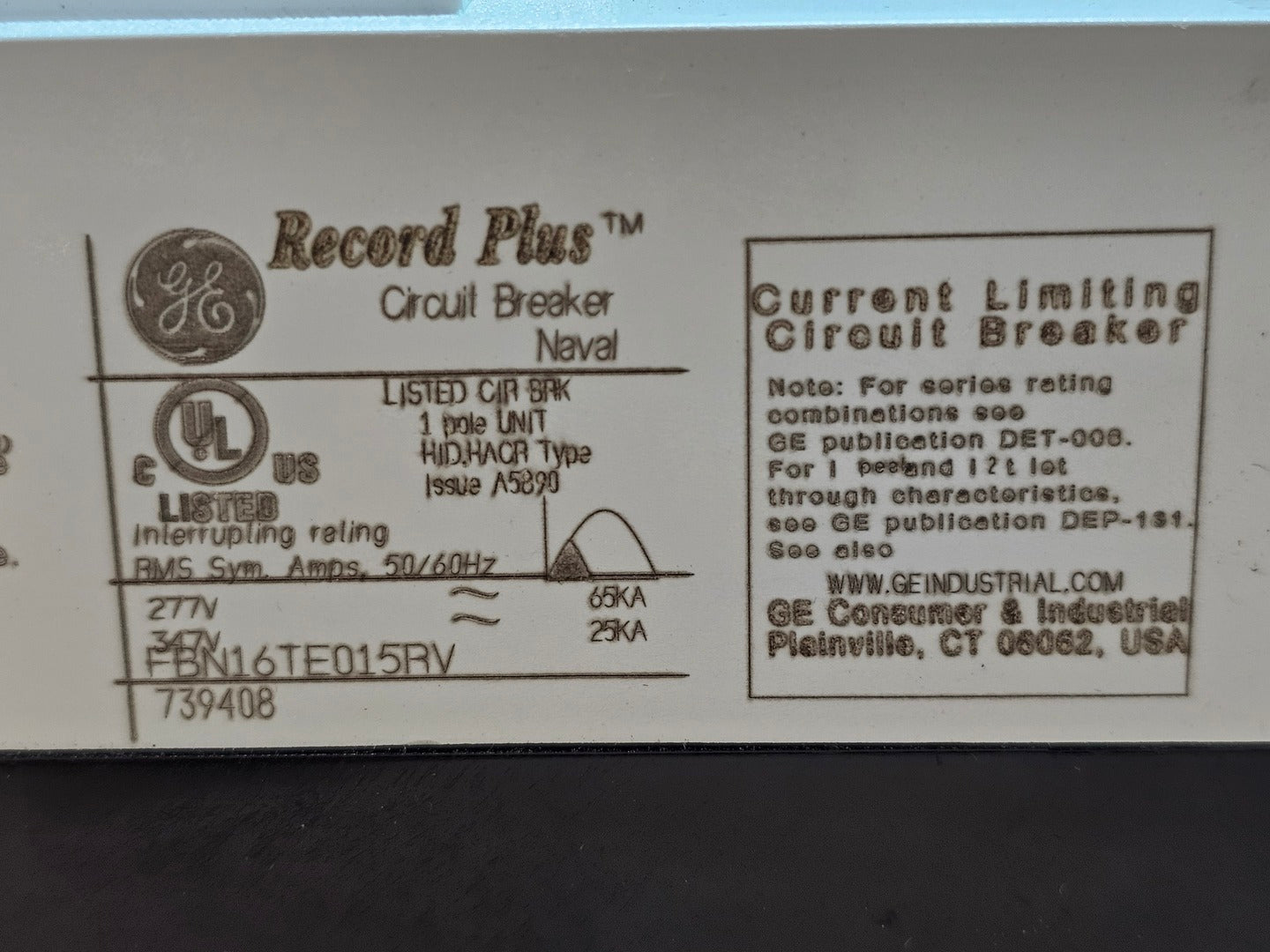

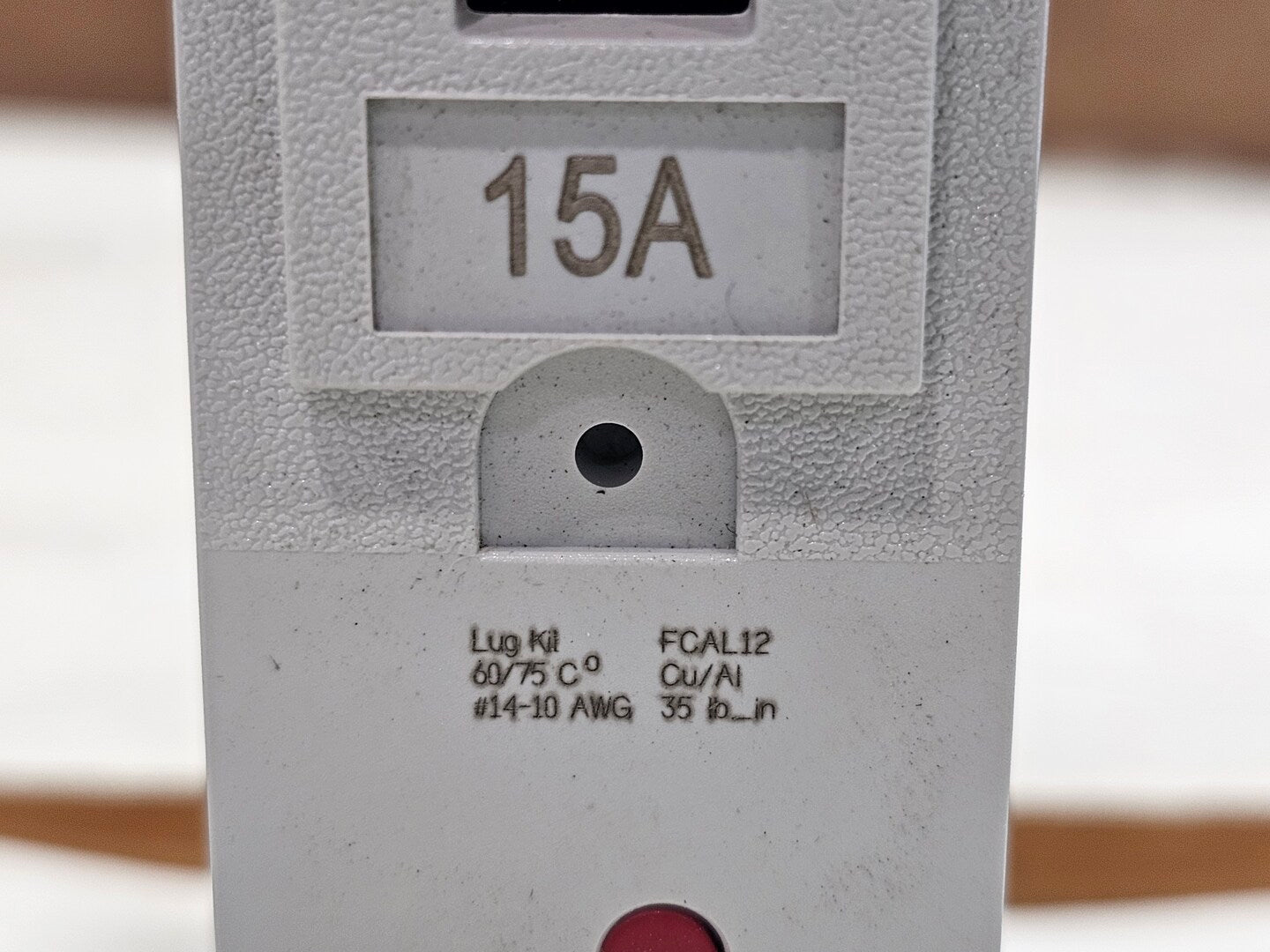

Breaker Type: Current Limiting Number of Poles: 1 Frequency: 50/60 Hz Trip Type: Fixed Thermal-Magnetic Interrupting Rating at 277 VAC: 65 kA RMS symmetrical Interrupting Rating at 347 VAC: 25 kA RMS symmetrical Lug Kit: FCAL12 Lug Conductor Material: Copper / Aluminum Wire Range: #14-10 AWG Terminal Temperature Rating: 60/75°C Terminal Torque: 35 lb-in |
