TRIAC FD9-6C-200 2-Inch Class 600 Flanged Ball Valve with 3R300SR Pneumatic Actuator & APL-510N Limit Switch
TRIAC

FD9-6C-200 2-Inch Class 600 Flanged Ball Valve with 3R300SR Pneumatic Actuator & APL-510N Limit Switch

SKU: 158523
Condition: Used
Precio:
$1,000 CAD

Gastos de envío calculados en la caja

Stock:
Solo queda 1 unidad
Make an Offer

¿Necesita una respuesta ahora?

604-449-1880
Looking for more Actuadores?
Browse all Actuadores →

Descripción

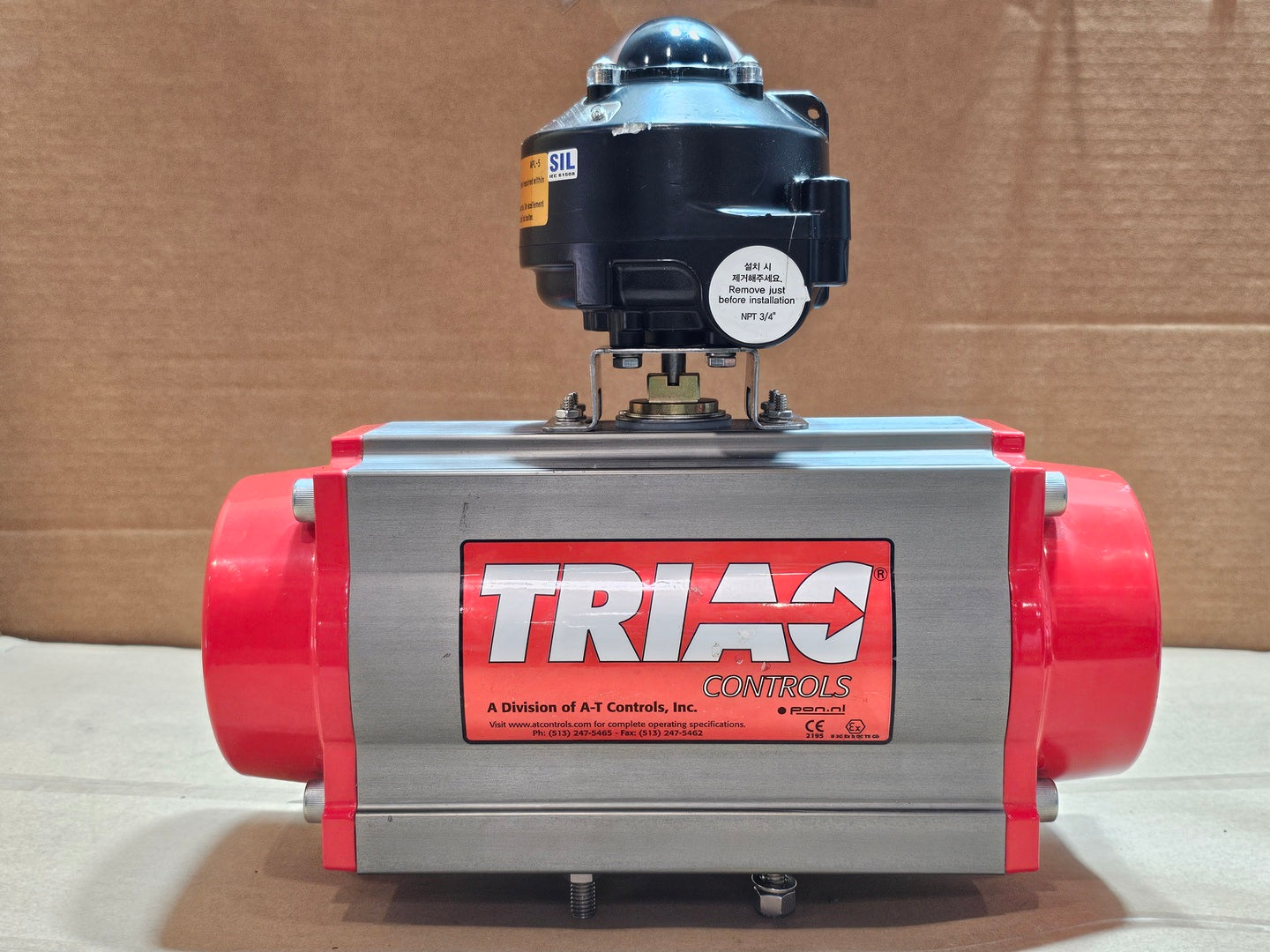

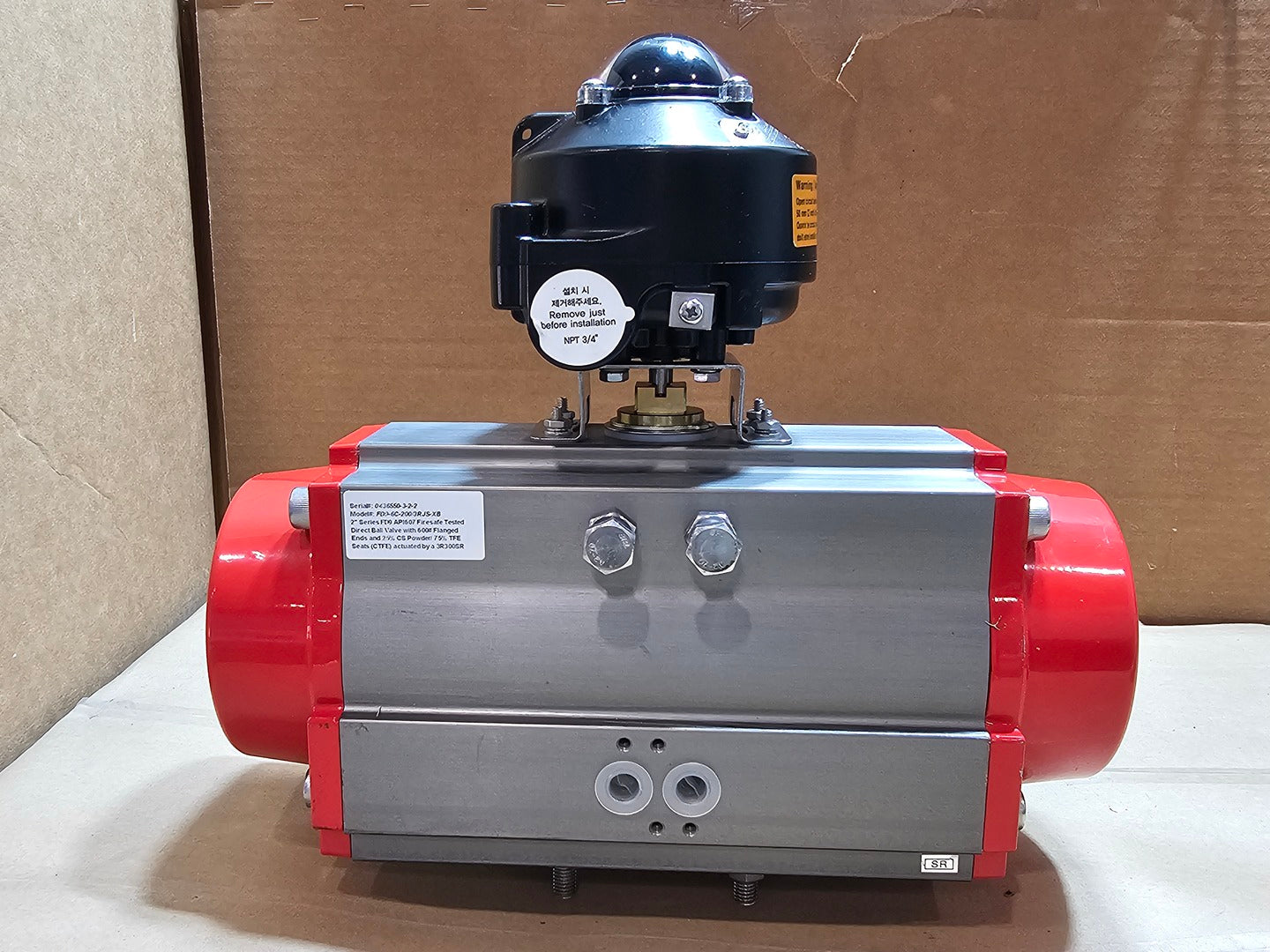

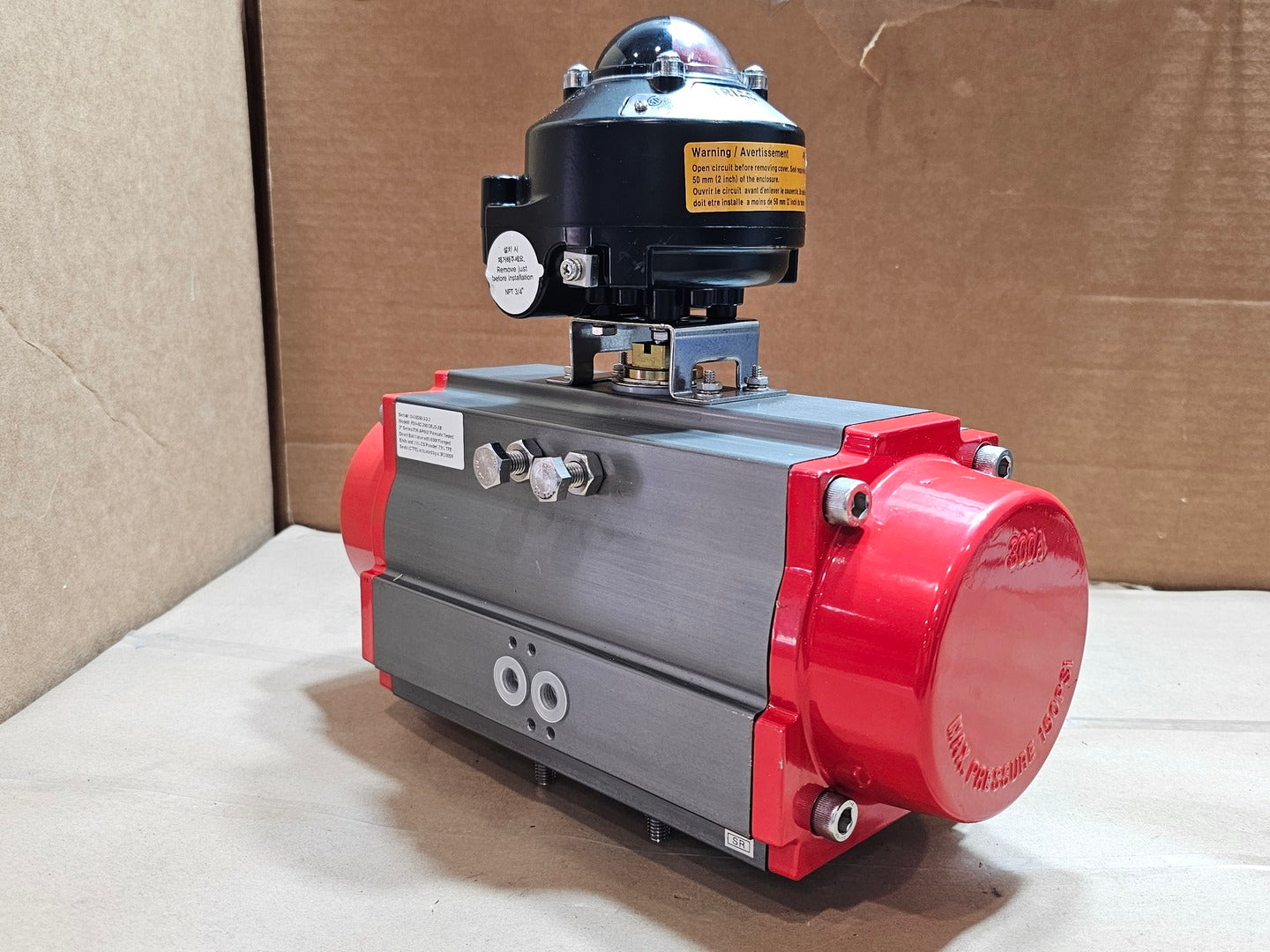

TRIAC Controls 2-inch automated ball valve package consisting of an FD9-F6 Series Class 600 fire-safe flanged ball valve, 3R300SR pneumatic spring-return actuator, and APL-510N hazardous-location valve position indicator. The identification label specifies 25% carbon-filled PTFE seats and API 607 fire-safe testing. Suitable for demanding industrial process, oil and gas, chemical, steam, and pipeline isolation applications, subject to compatibility verification.
Specifications
Model 3R300SR
Condition Used
Other Specifications

Valve model: FD9-6C-200/3R/S X8, as shown on label

Series:FD9 -F6

Valve type: Split-body, full-port ball valve

Nominal size: 2 in.

End connection: Flanged

Pressure class: ANSI/ASME Class 600

Body material: Carbon steel, indicated by model coding; verify before service

Seat material: 25% carbon powder / 75% TFE, identified as CTFE on label

Actuation: Pneumatic, quarter-turn

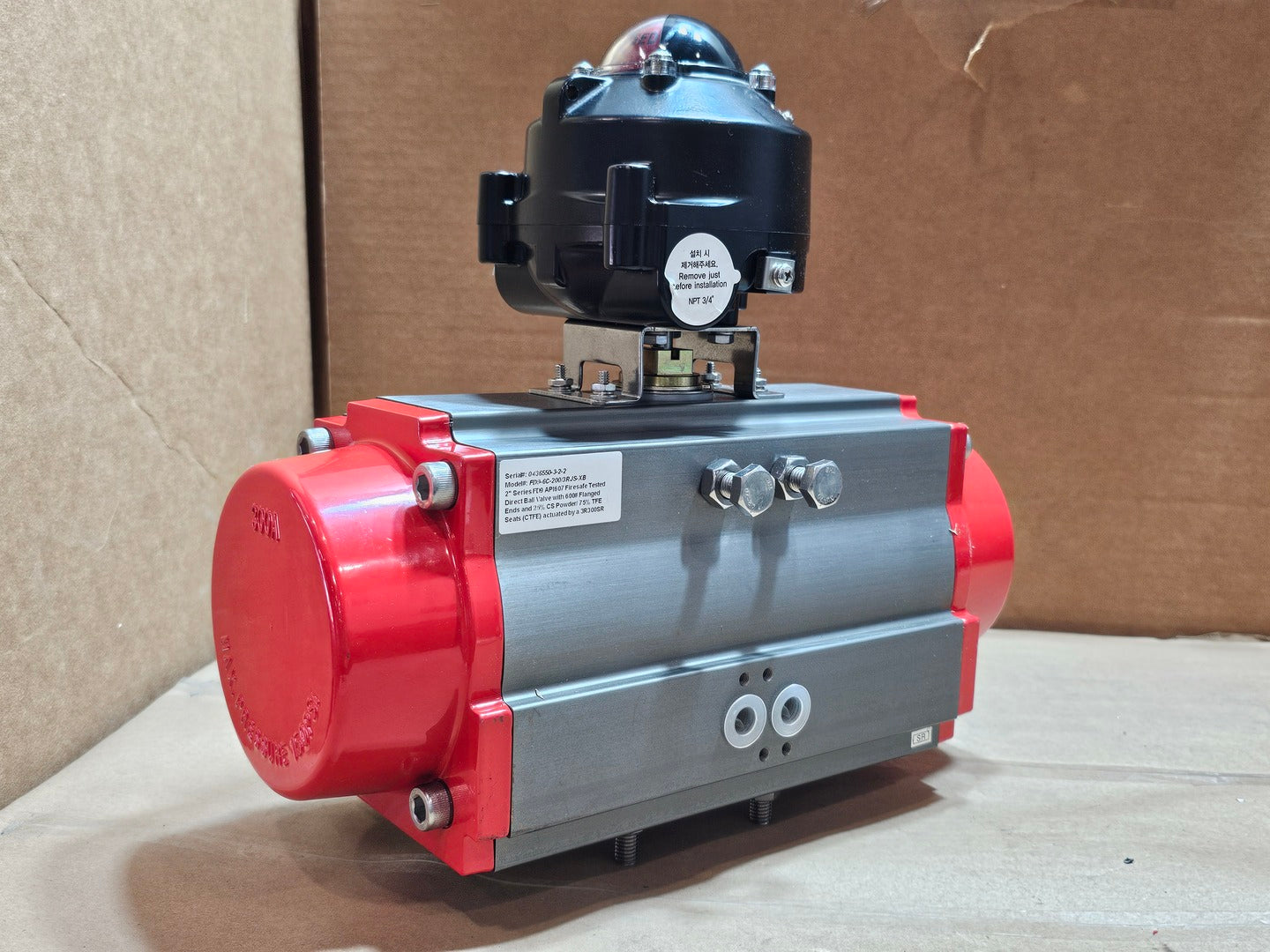

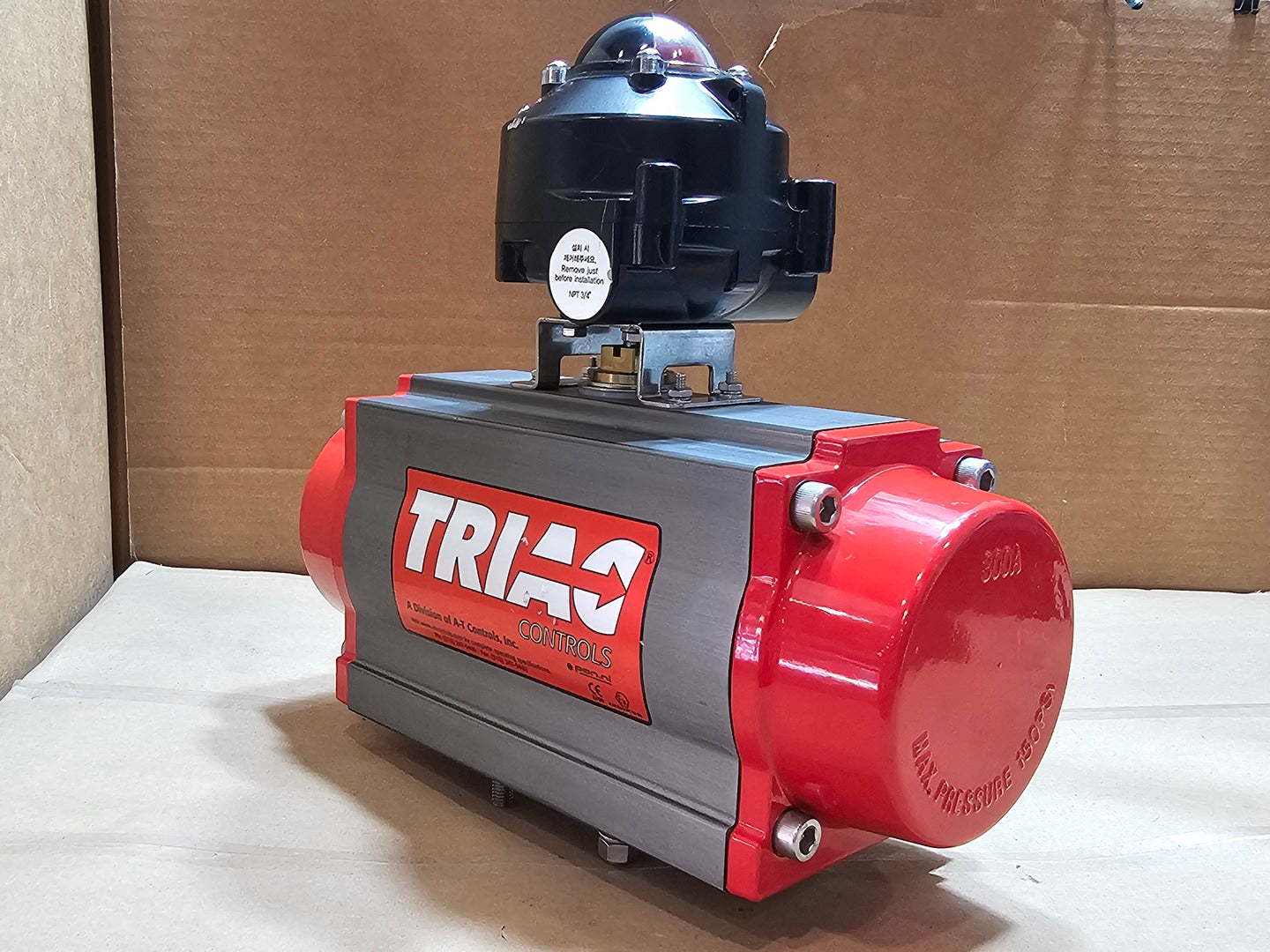

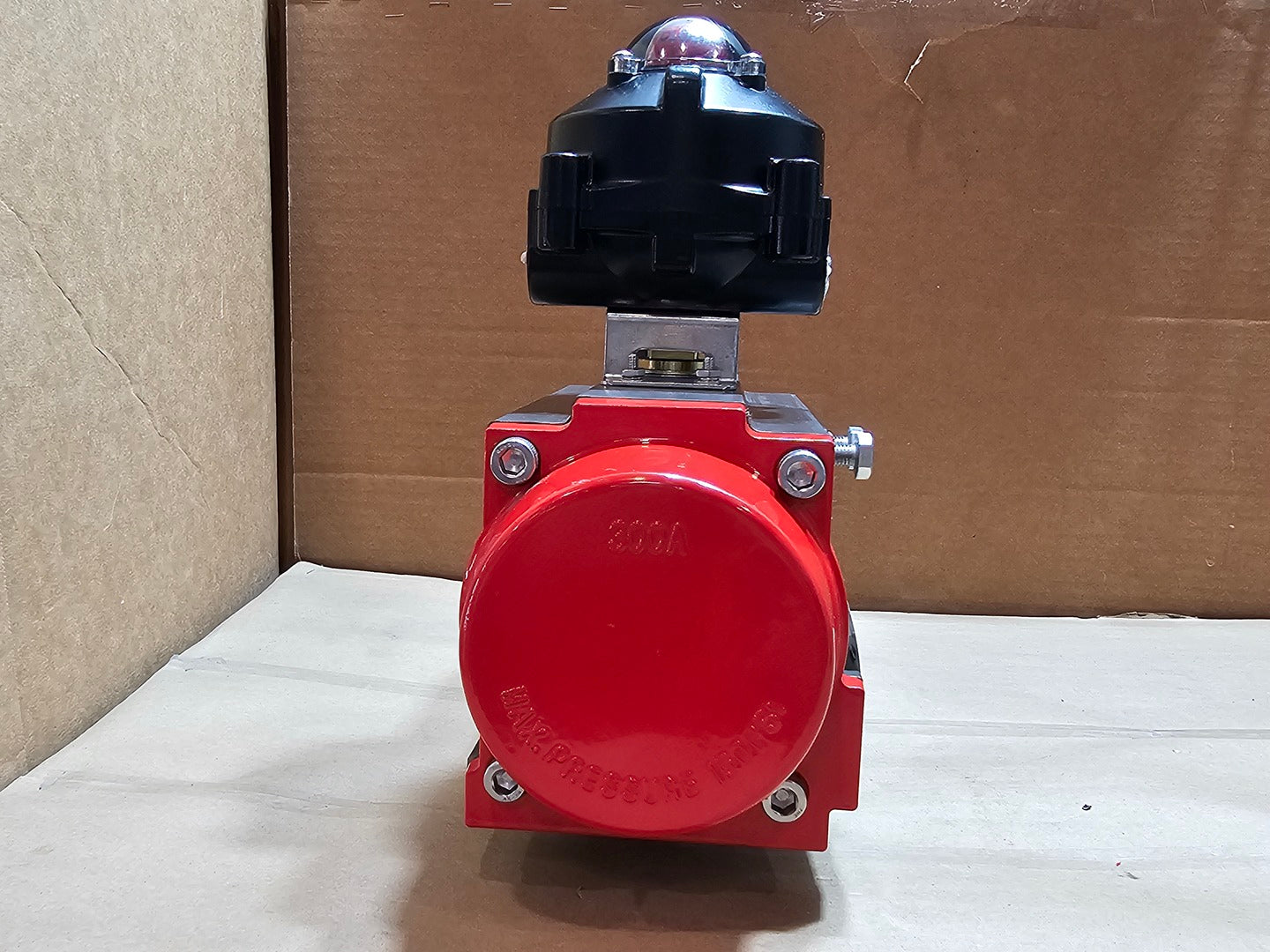

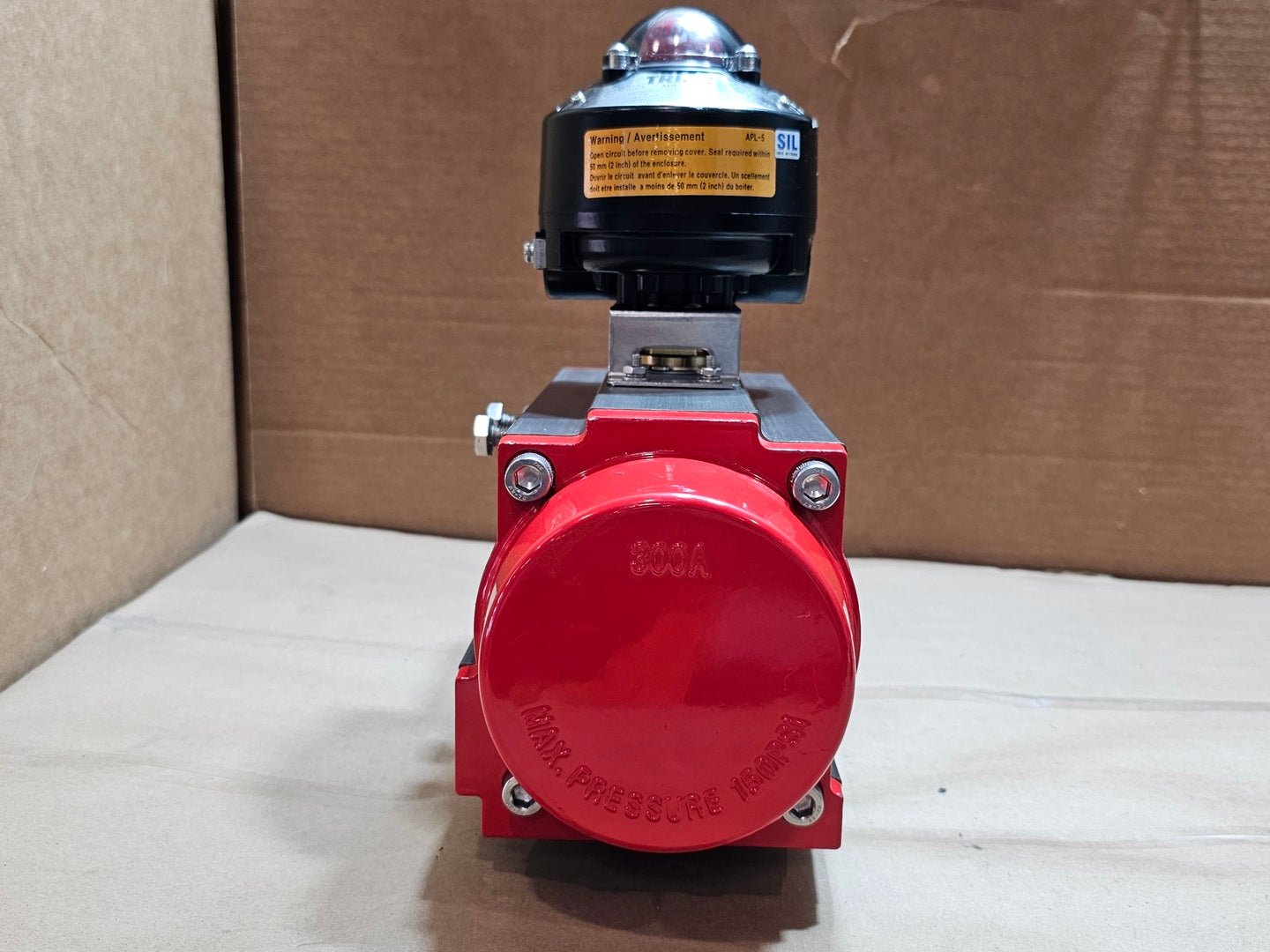

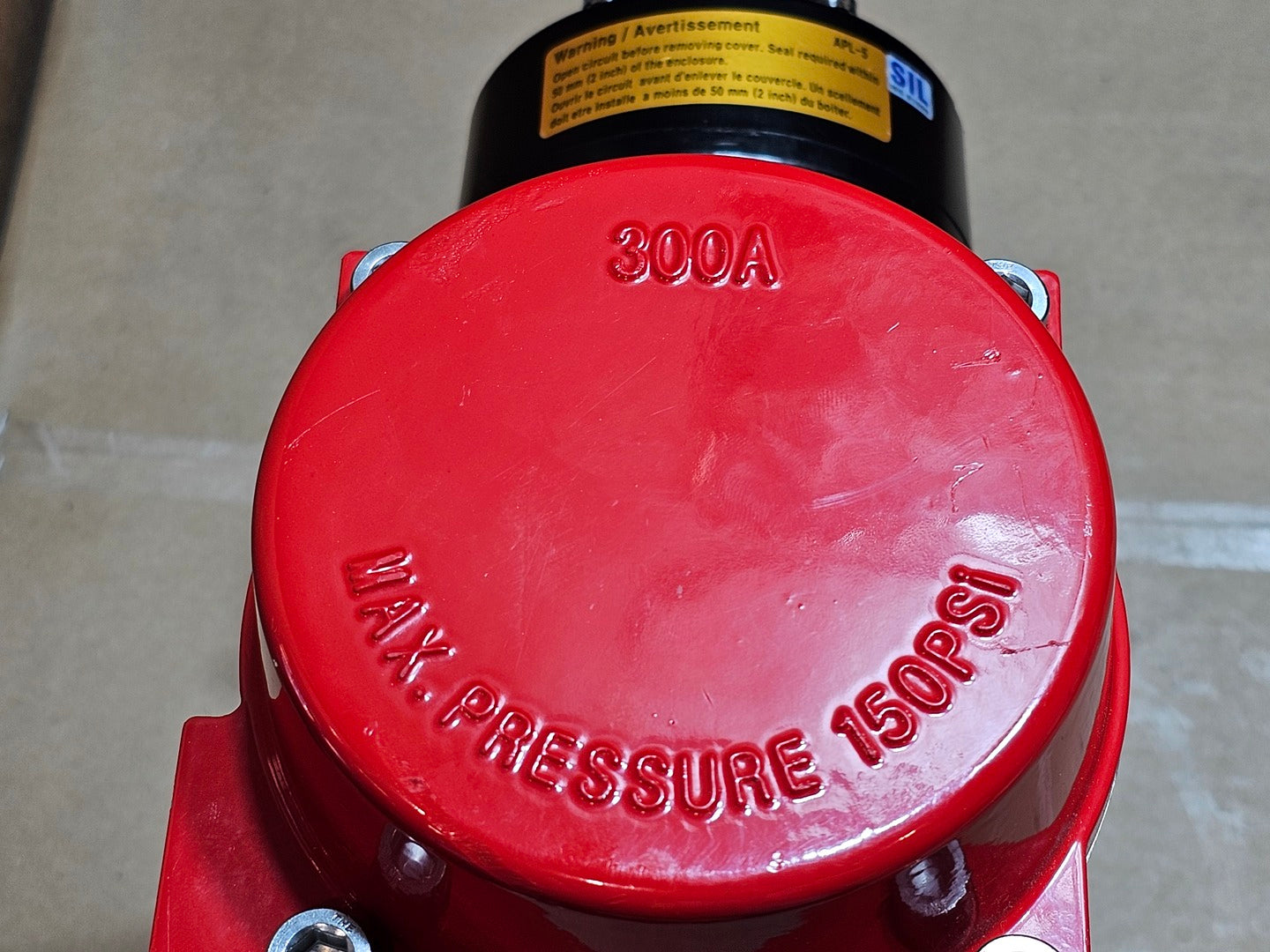

Actuator model: 3R300SR

Actuator action: Spring return

Fire-safe standard: API 607

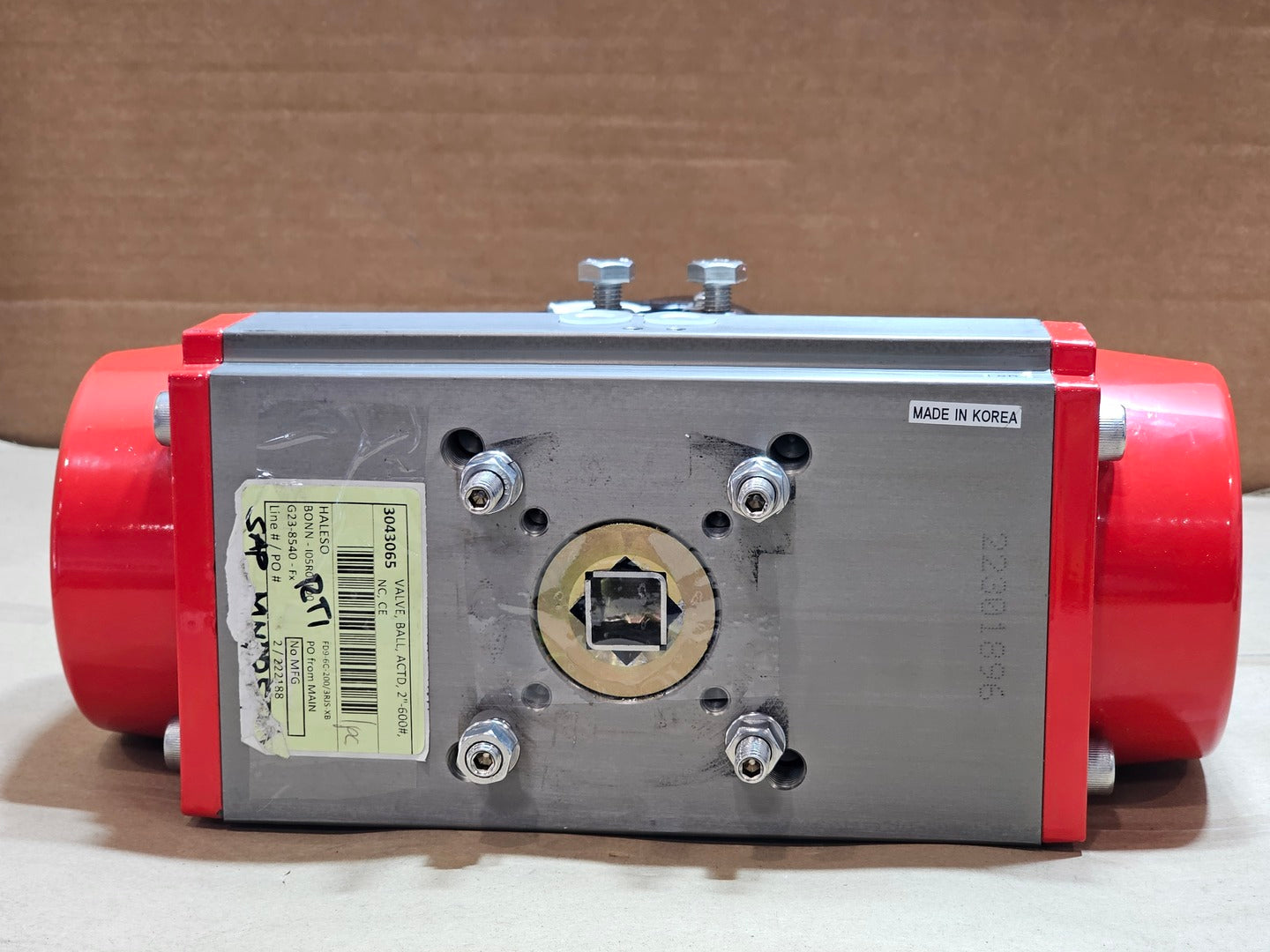

Valve mounting: Direct mount

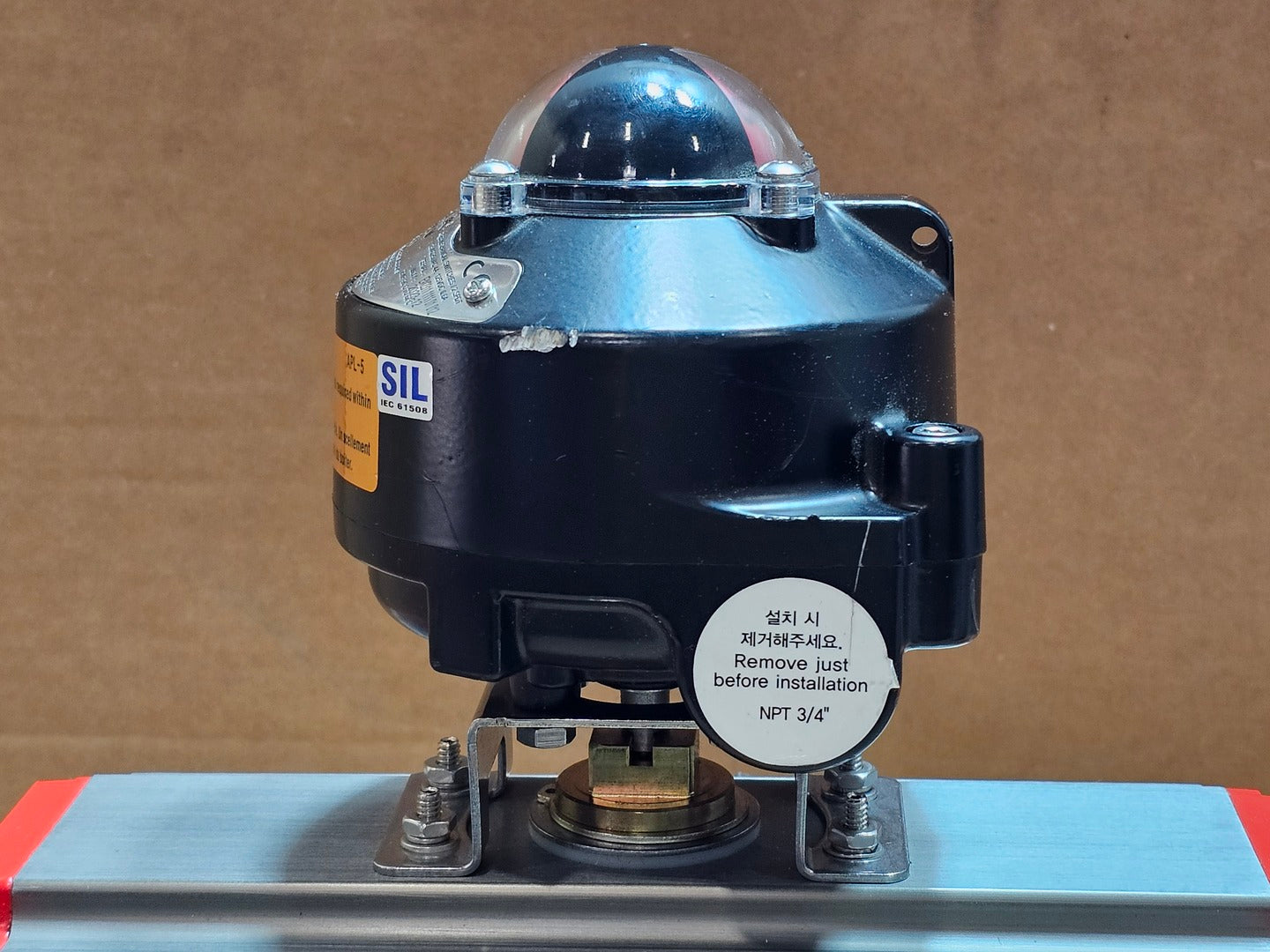

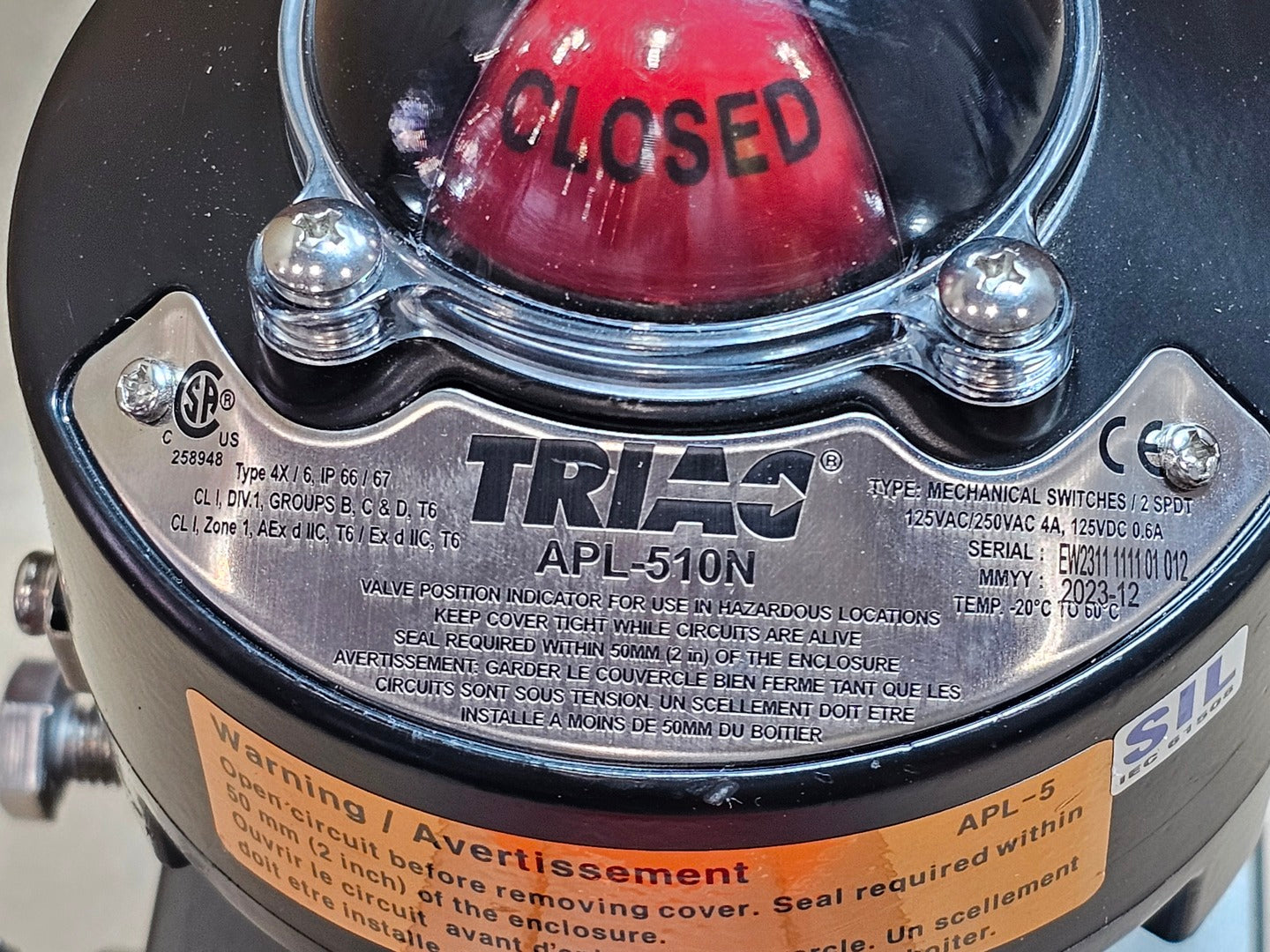

Position monitor: TRIAC APL-510N

Switches: Two SPDT mechanical switches

Switch ratings: 125 VAC/250 VAC, 4 A; 125 VDC, 0.6 A

Enclosure: Type 4X/6; IP66/67
