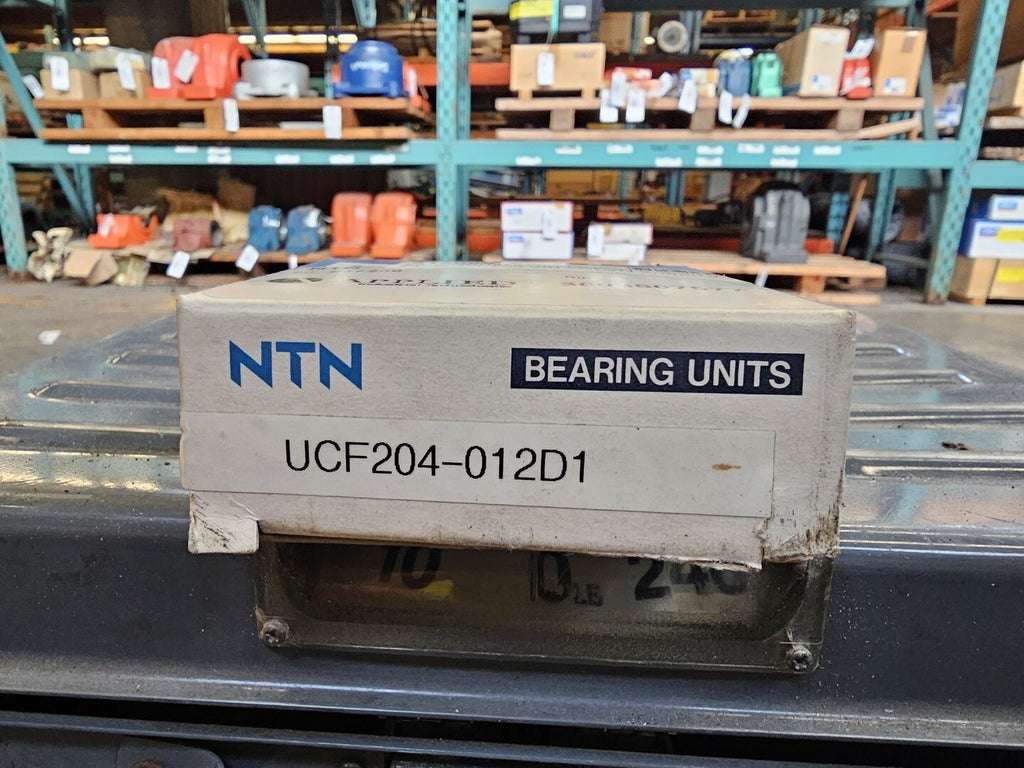

Flanged Mounted Bearing UCF204-012D1

SKU: 146262
Precio:
$53.78 CAD

Gastos de envío calculados en la caja

Stock:
Agotado
Make an Offer

¿Necesita una respuesta ahora?

Descripción

Flange-Mount Ball Bearing Unit - 3/4 in Bore, 4-Bolt Flange Mount, Set Screw Locking, Cast Iron Housing Material, Non-Expansion Bearing (Fixed), Intermediate Duty, Contact Seal Seal
Specifications
Model UCF204-012D1
Condition Surplus New
Other Specifications

Overview:

  • Product Type: Flange-Mount Ball Bearing Units
  • Bore Diameter: 3/4 in
  • Housing Material: Cast Iron
  • Duty Type: Intermediate Duty
  • Bolt Center To Center Length: 2.5156 in
  • Overall Length: 3.3750 in
  • Bolt Circle Diameter: 2.5156 in
  • Bearing Number: UC204-012D1
  • Locking Device: Set Screw
  • Expansion Type: Non-Expansion Bearing (Fixed)
  • Seal Type: Contact Seal
  • Overall Length Diameter: 3.3750 in
  • Seal Material: Nitrile Rubber
  • Housing Width: 1.0000 in
  • Lubrication Type: Relubricatable
  • Overall Width: 1.3125 in
  • Bore Type: Straight
  • Radial Dynamic Load Capacity: 2890 lbf
  • Radial Static Load Capacity: 1500 lbf
  • End Type: Open
  • Length Through Bore: 1-5/16 in
  • Operating Temperature Range: -40 to 250 F
  • Finish Coating: Uncoated
  • Series: UCF2
  • Standards Met: AFBMA, ISO
  • Replacement Bearing: UC204-012D1
  • Housing ID: F204D1
  • Housing Construction: Solid
  • Type Of Bearing: Ball
  • Mounting Type: 4-Bolt Flange
