Descripción

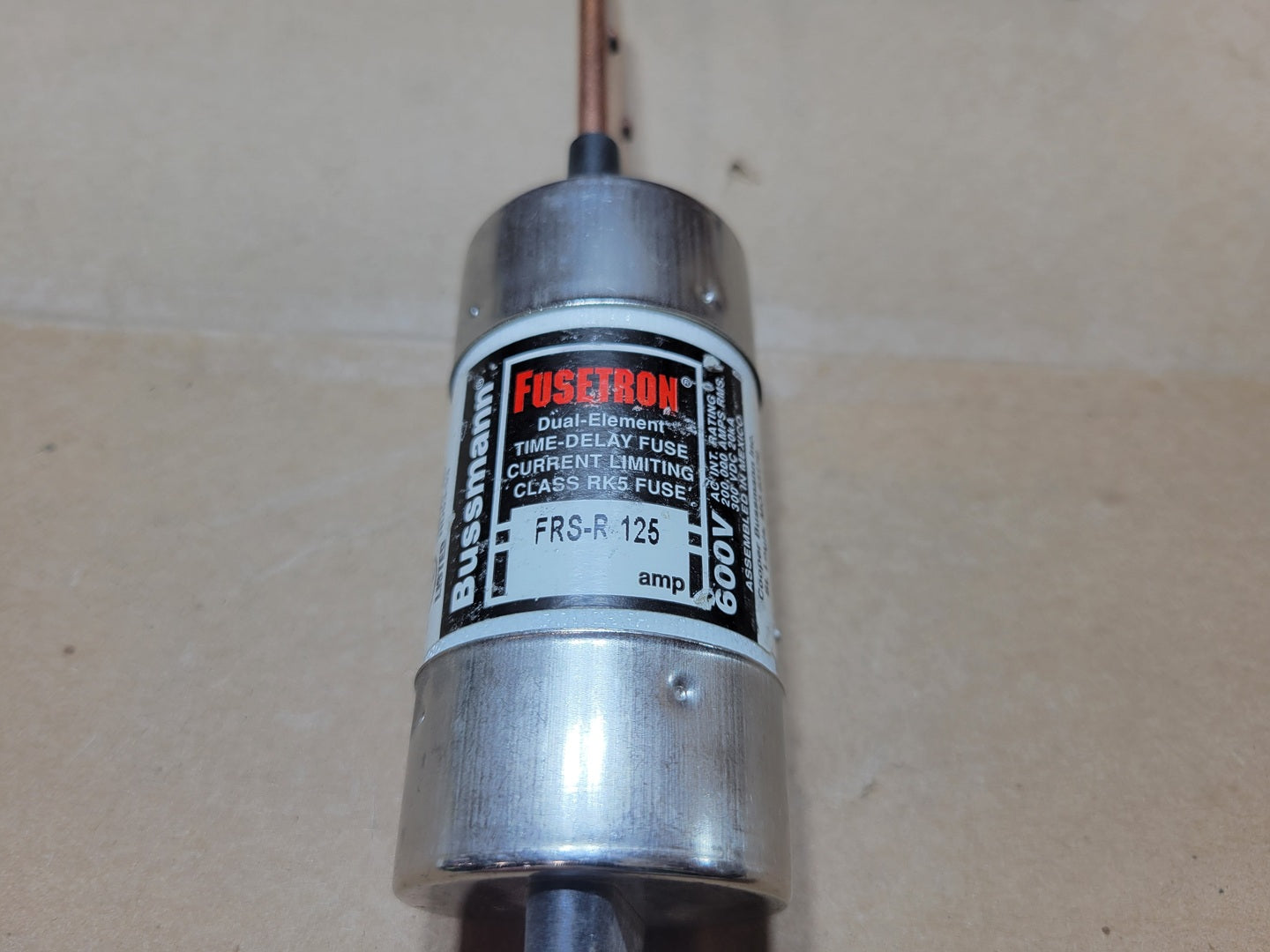

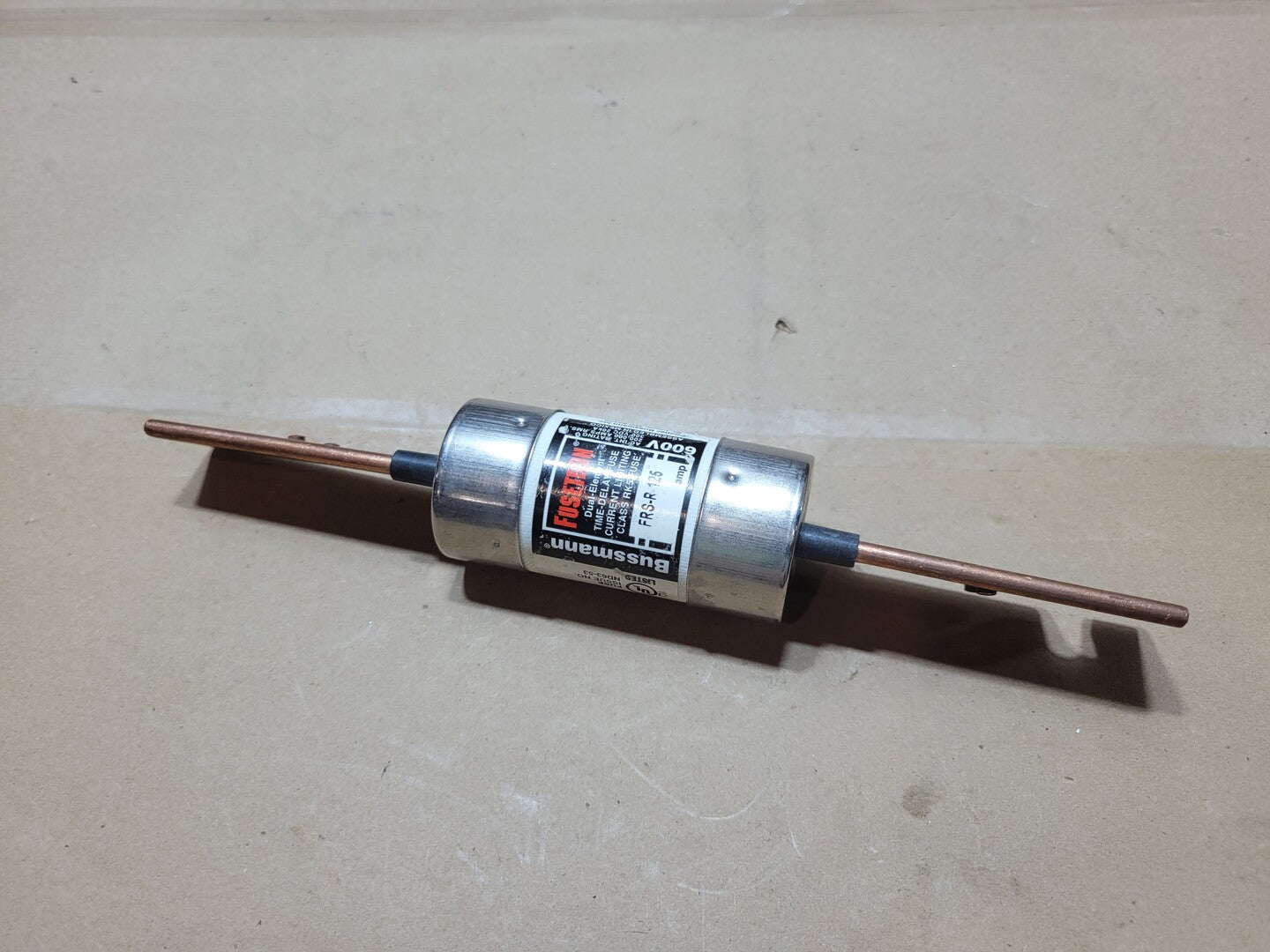

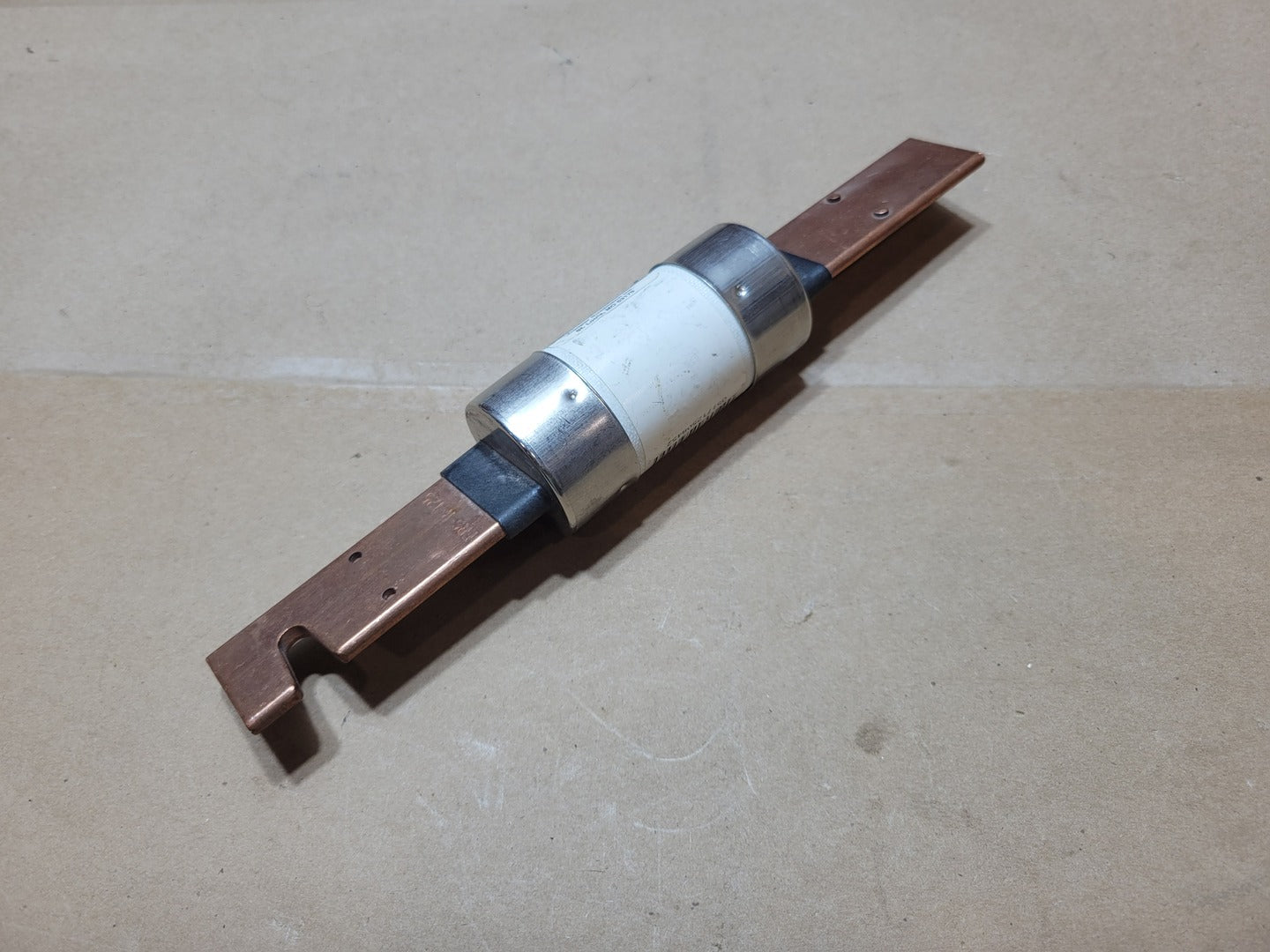

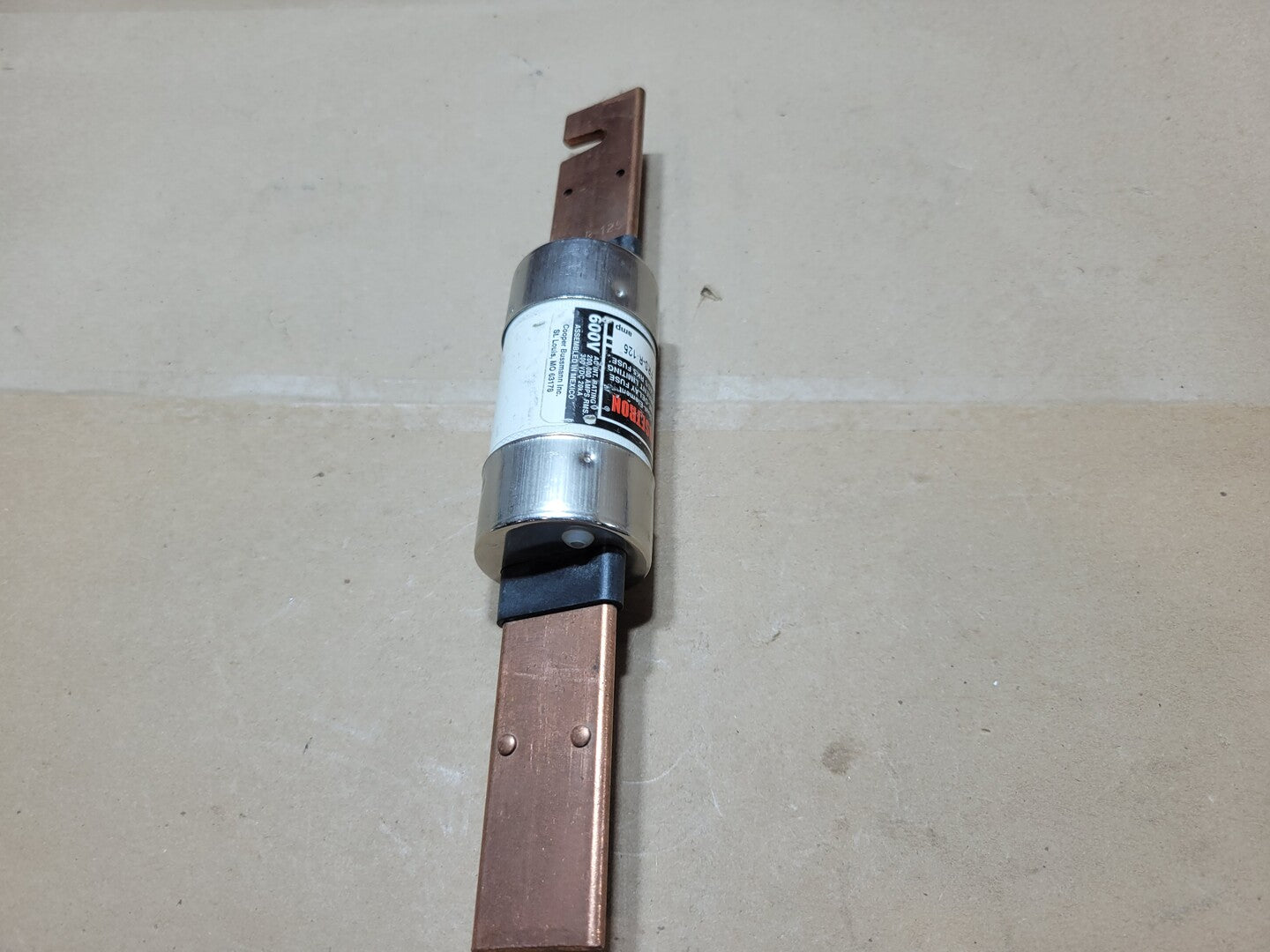

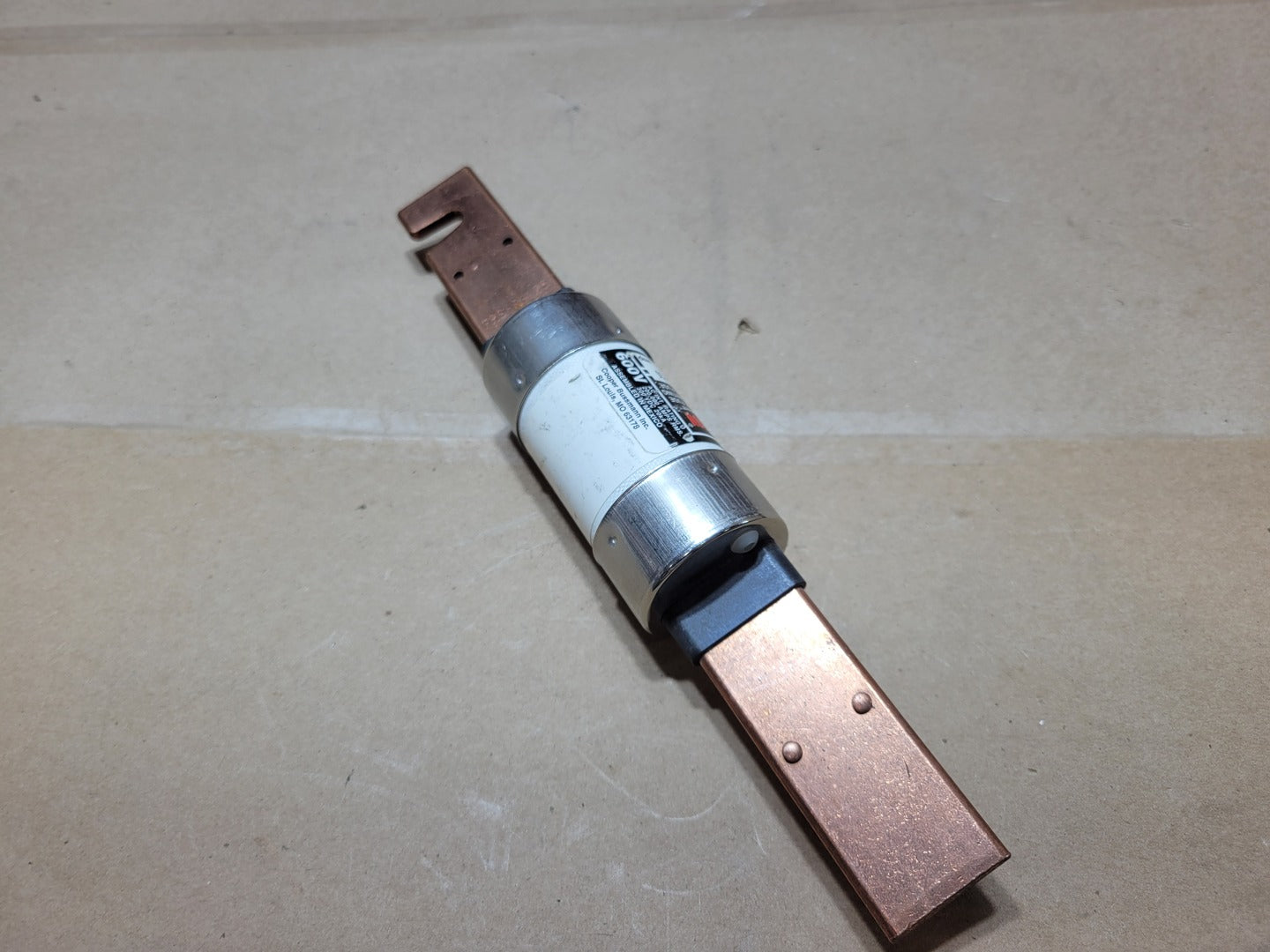

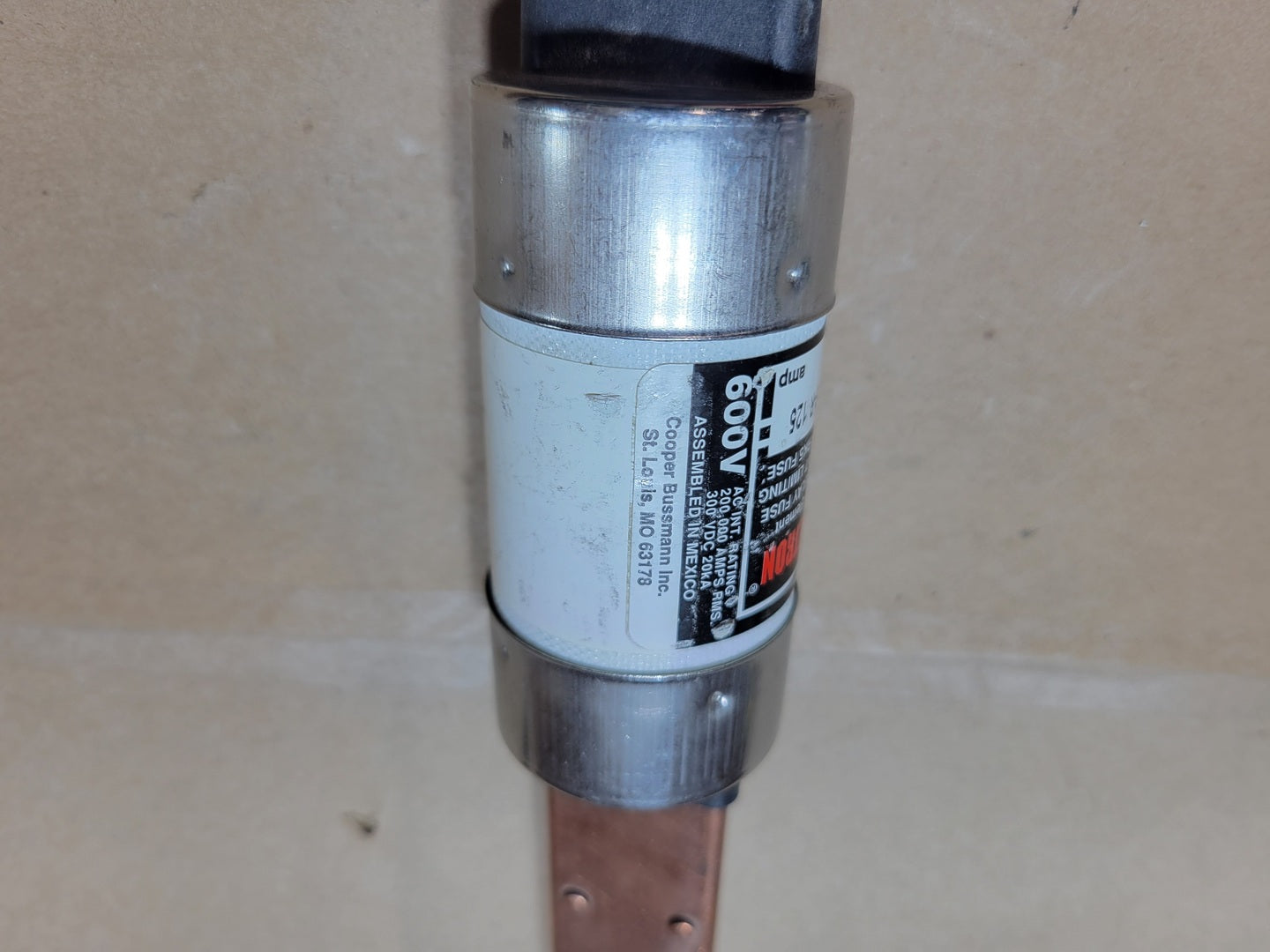

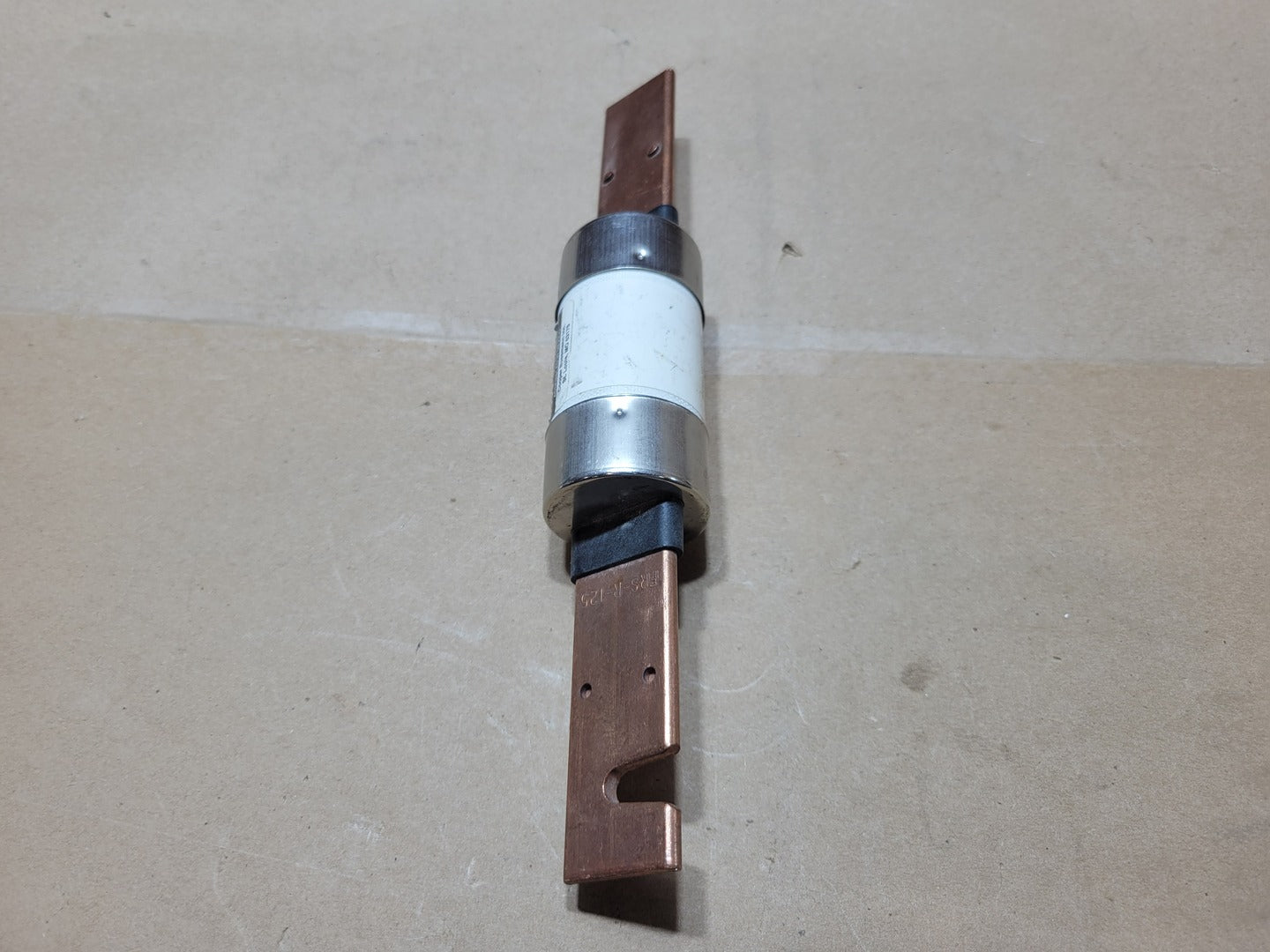

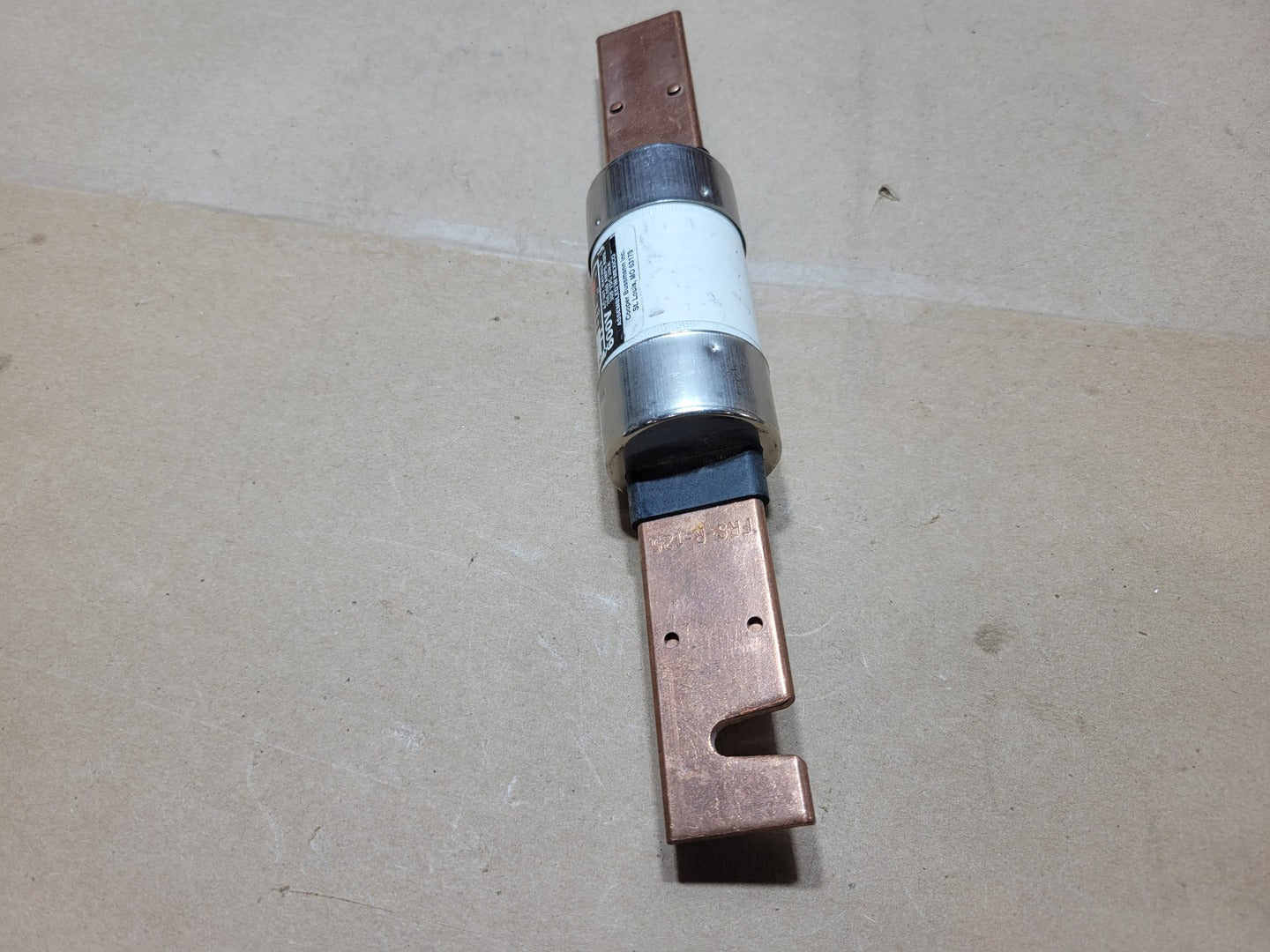

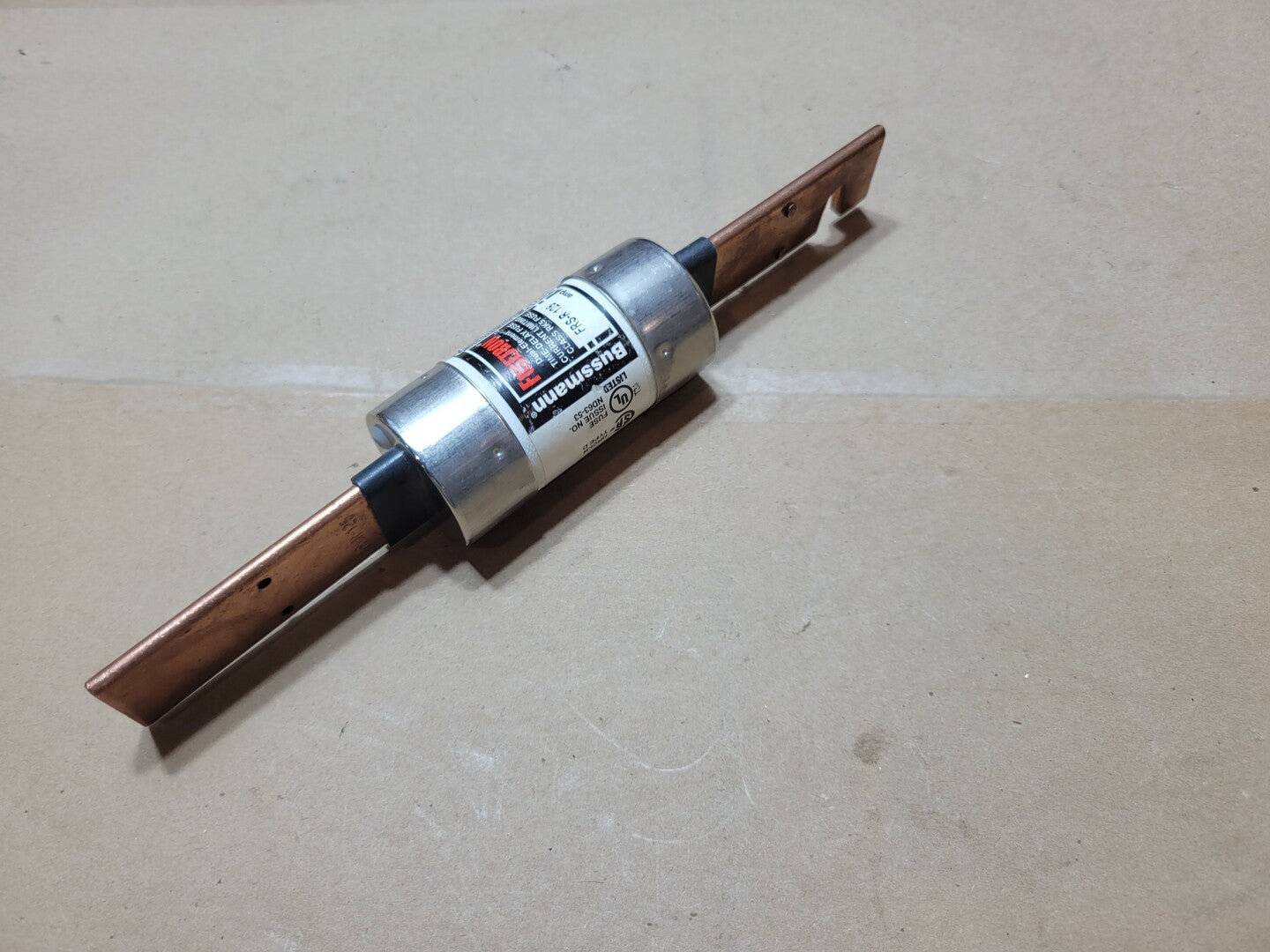

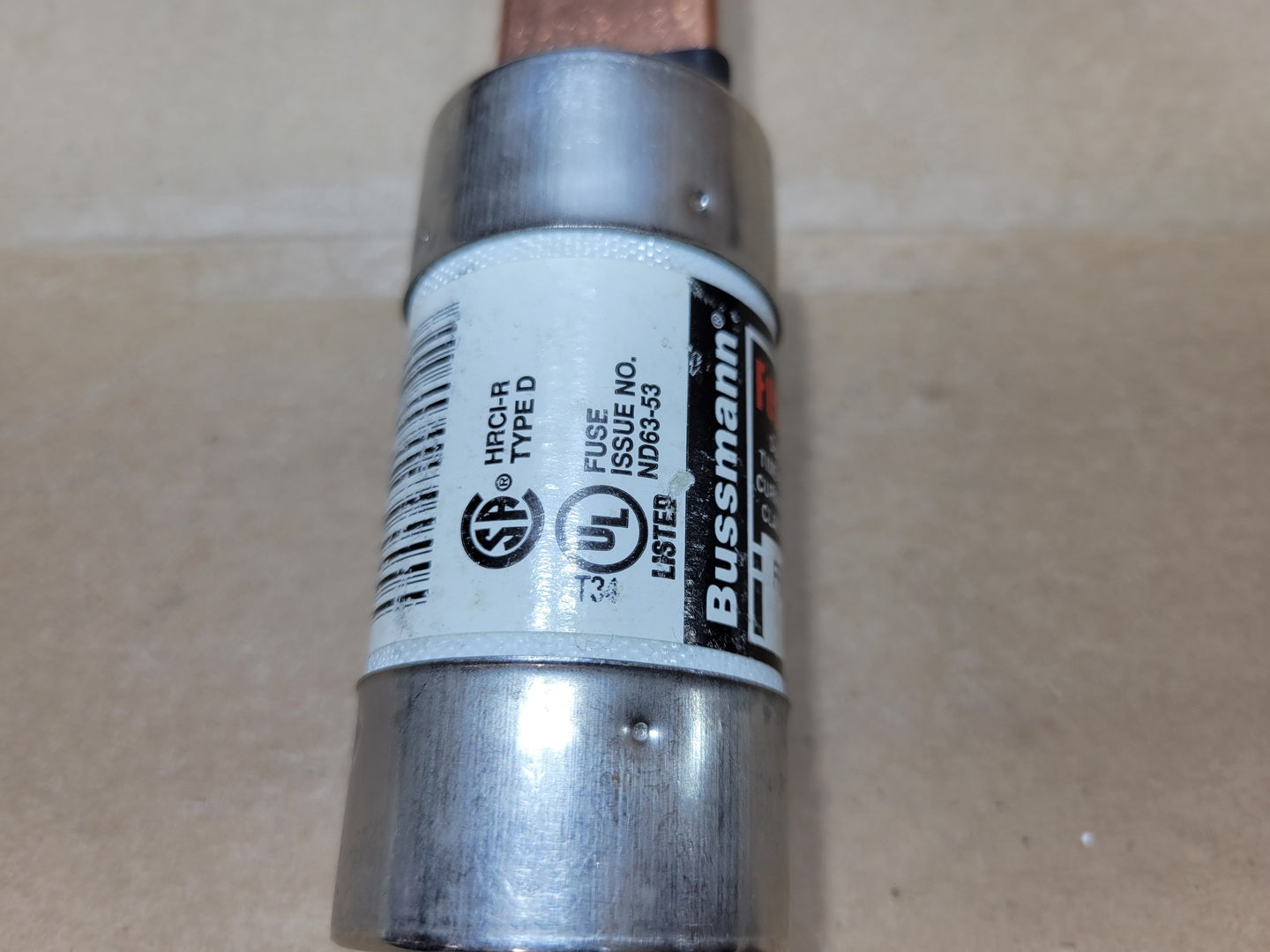

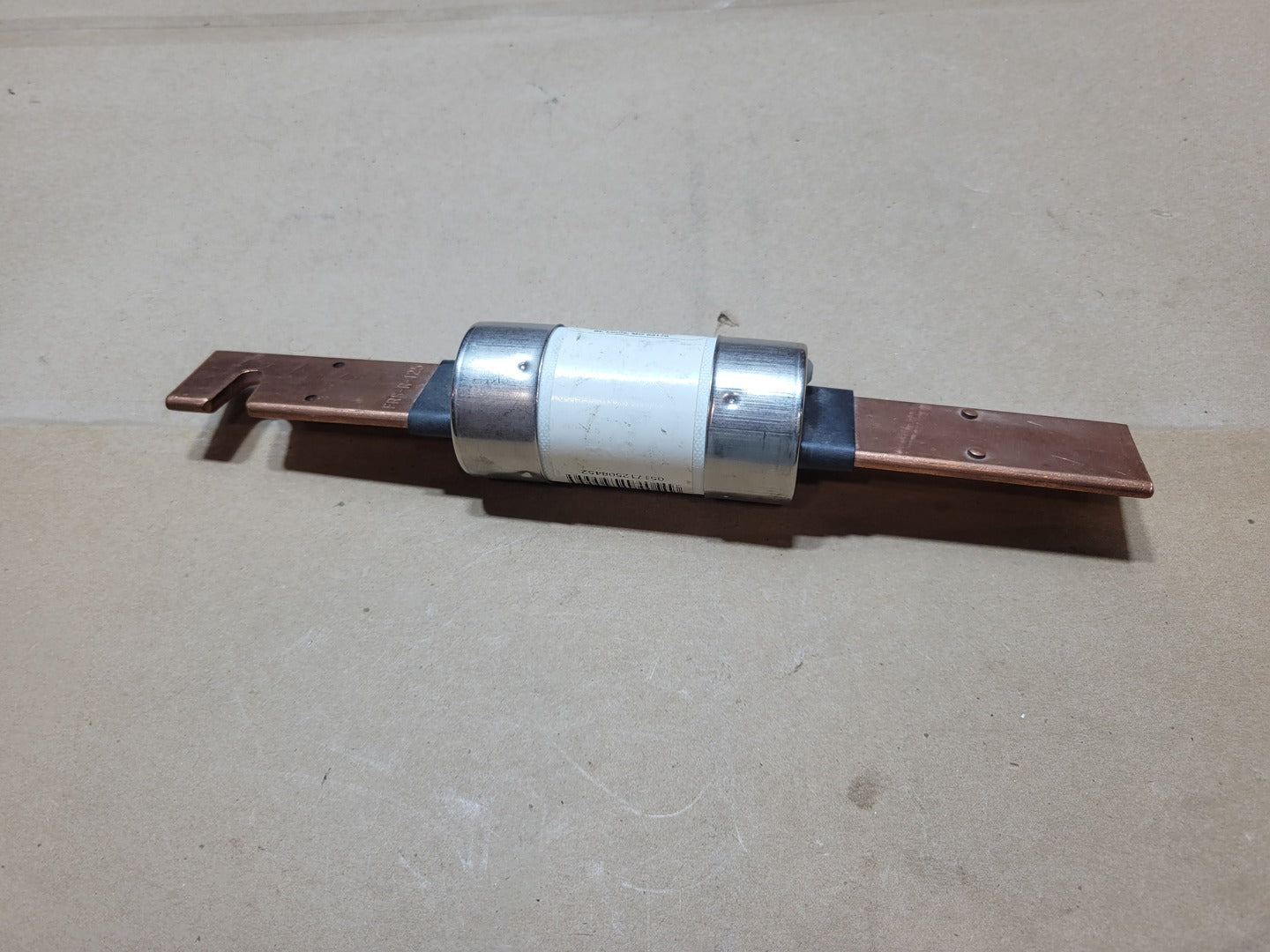

Bussmann Fusetron FRS-R-125 Class RK5 industrial fuse rated 125 A and 600 VAC. Features dual-element time-delay construction and current-limiting protection for industrial branch circuits, motors, transformers, and other loads with inrush current. Eaton specifies the FRS-R family for 600 VAC applications with a 200 kA RMS symmetrical AC interrupting rating.
| Specifications | |
|---|---|
| Model | FRS-R-125 |
| Condition | Used | Electrical |
| Amps | 125 amps |
| Voltage | 600 volts |
| Fuse Type | Low Volt |
| Current Type | AC |
| Class | RK5 |
| Interrupting Rating | 200 kA |
| Other Specifications |
|---|
|
Product Line: Fusetron DC Voltage Rating: 300 VDC Fuse Type: Dual-element, time-delay, current-limiting DC Interrupting Rating: 20 kA Time Delay: Minimum 10 seconds at 500% rated current Connection: Rejection-style blade terminals Indication: Non-indicating |
