Descripción
| Specifications | |
|---|---|

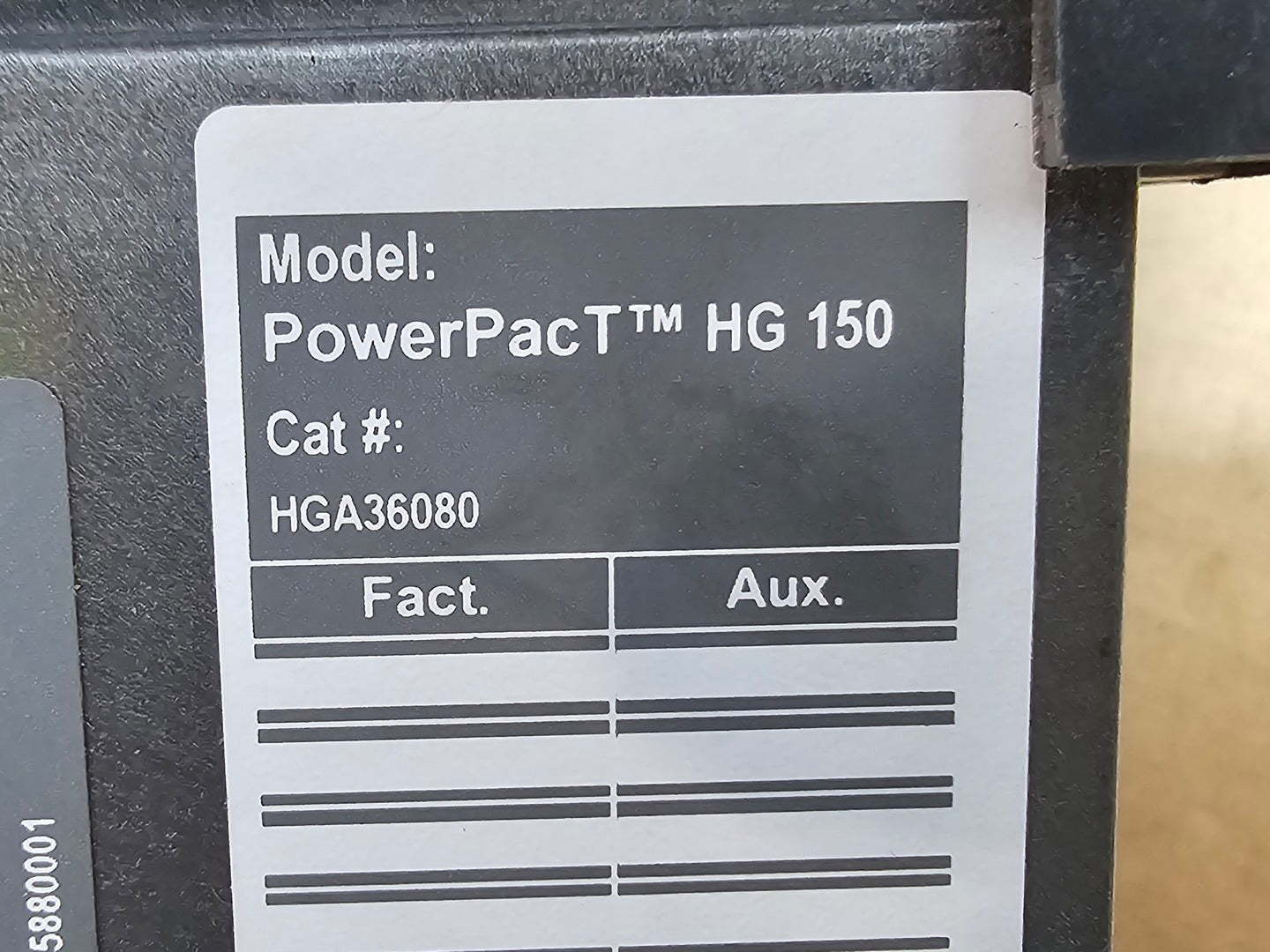

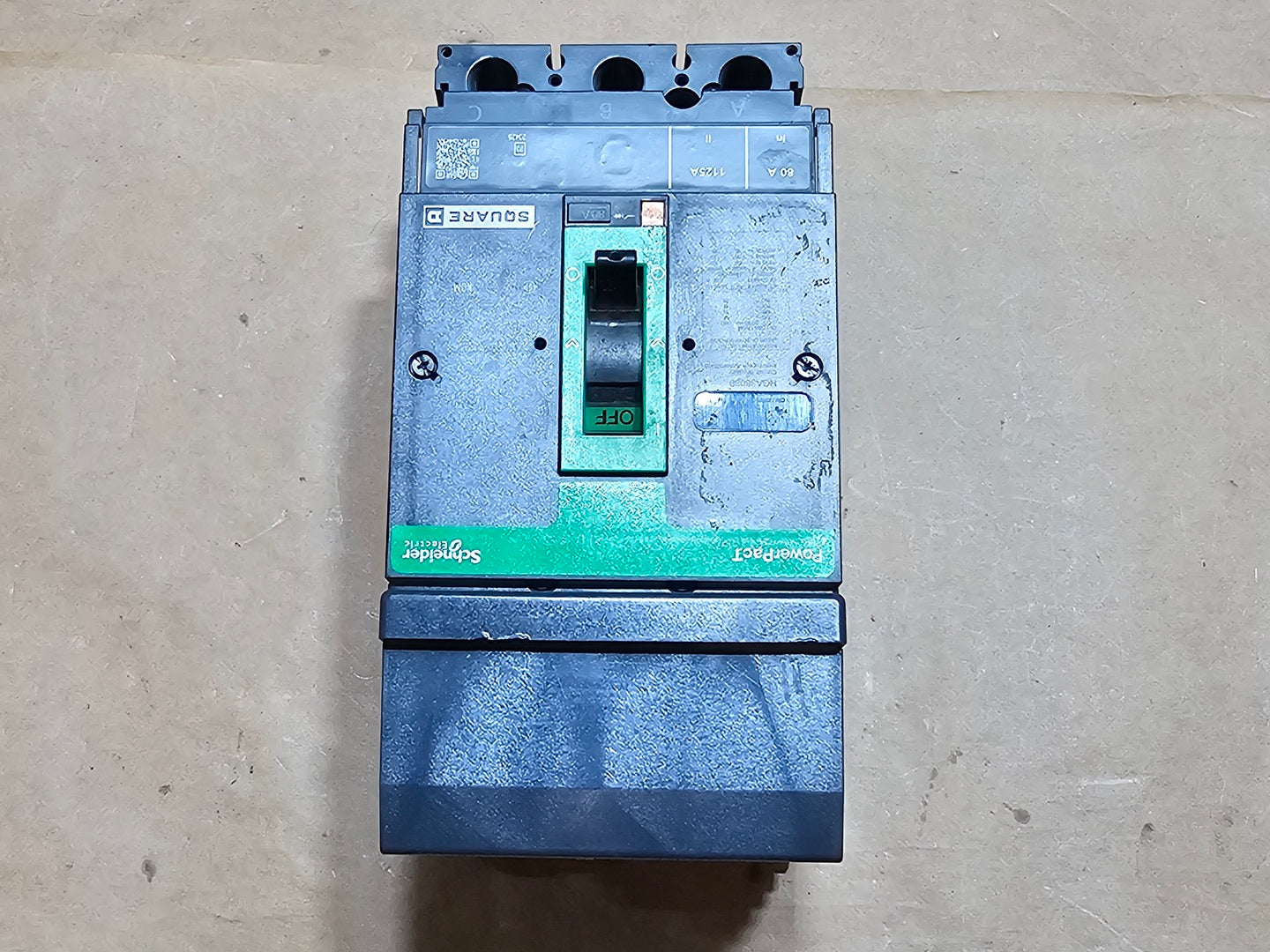

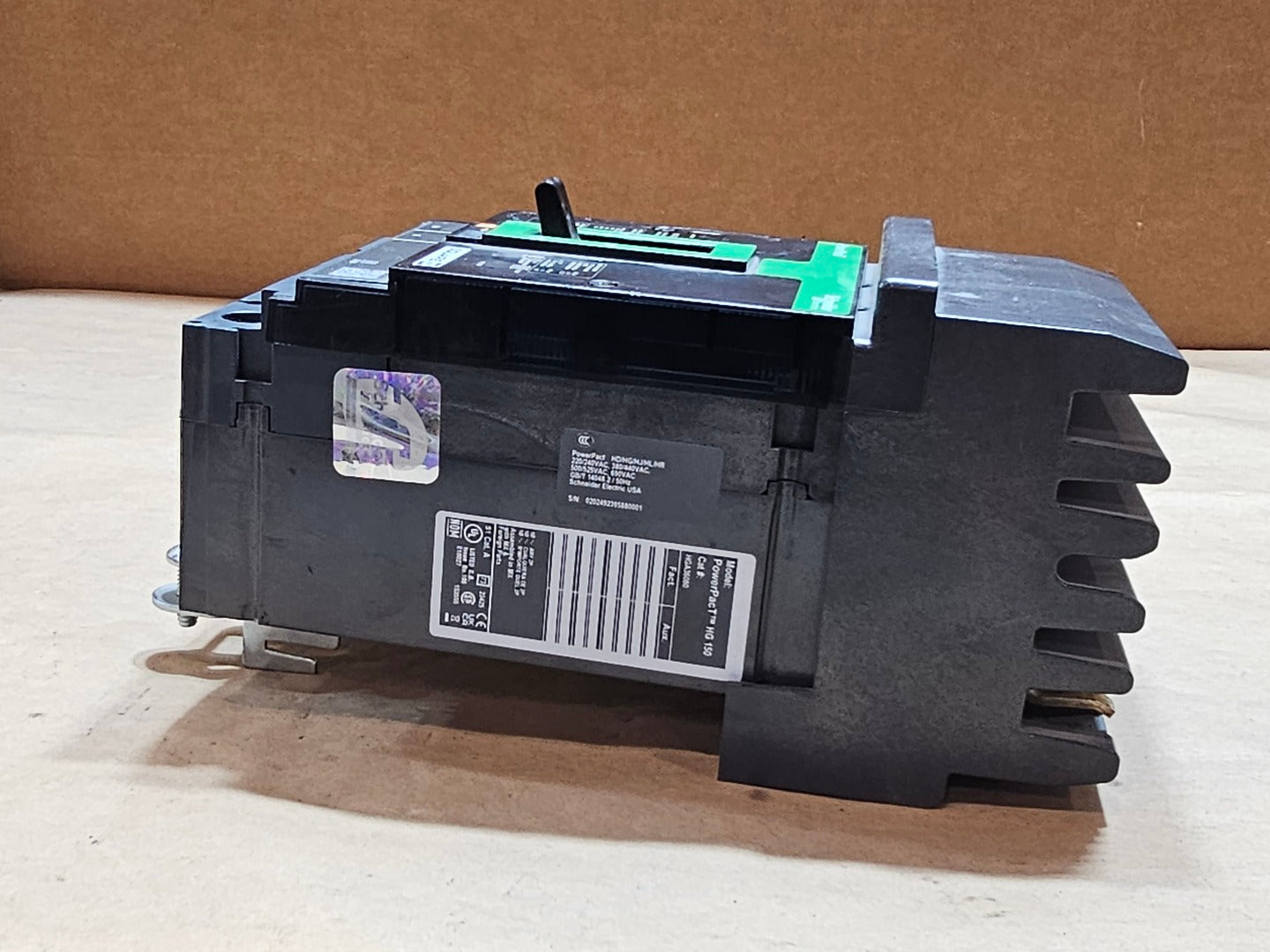

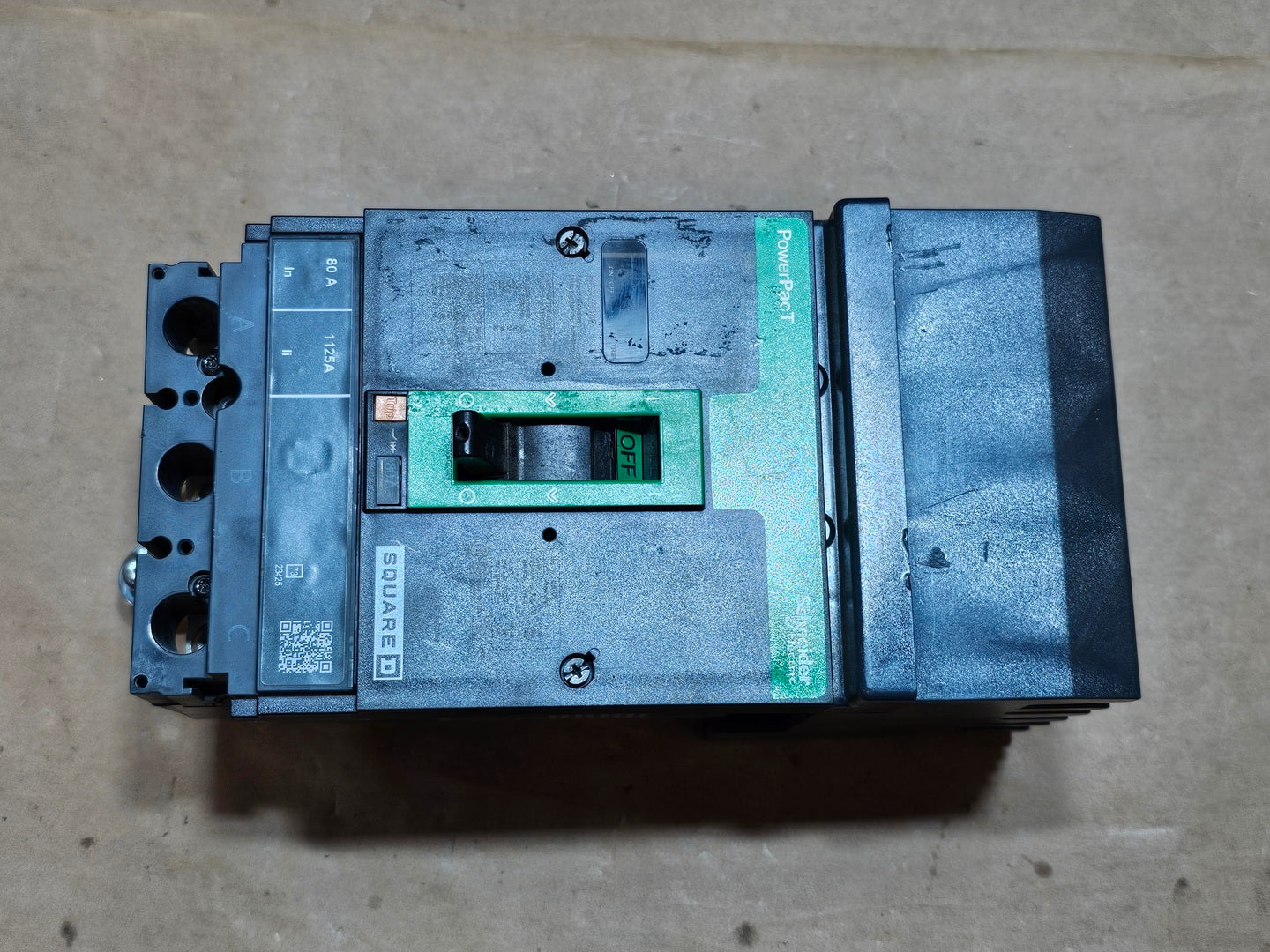

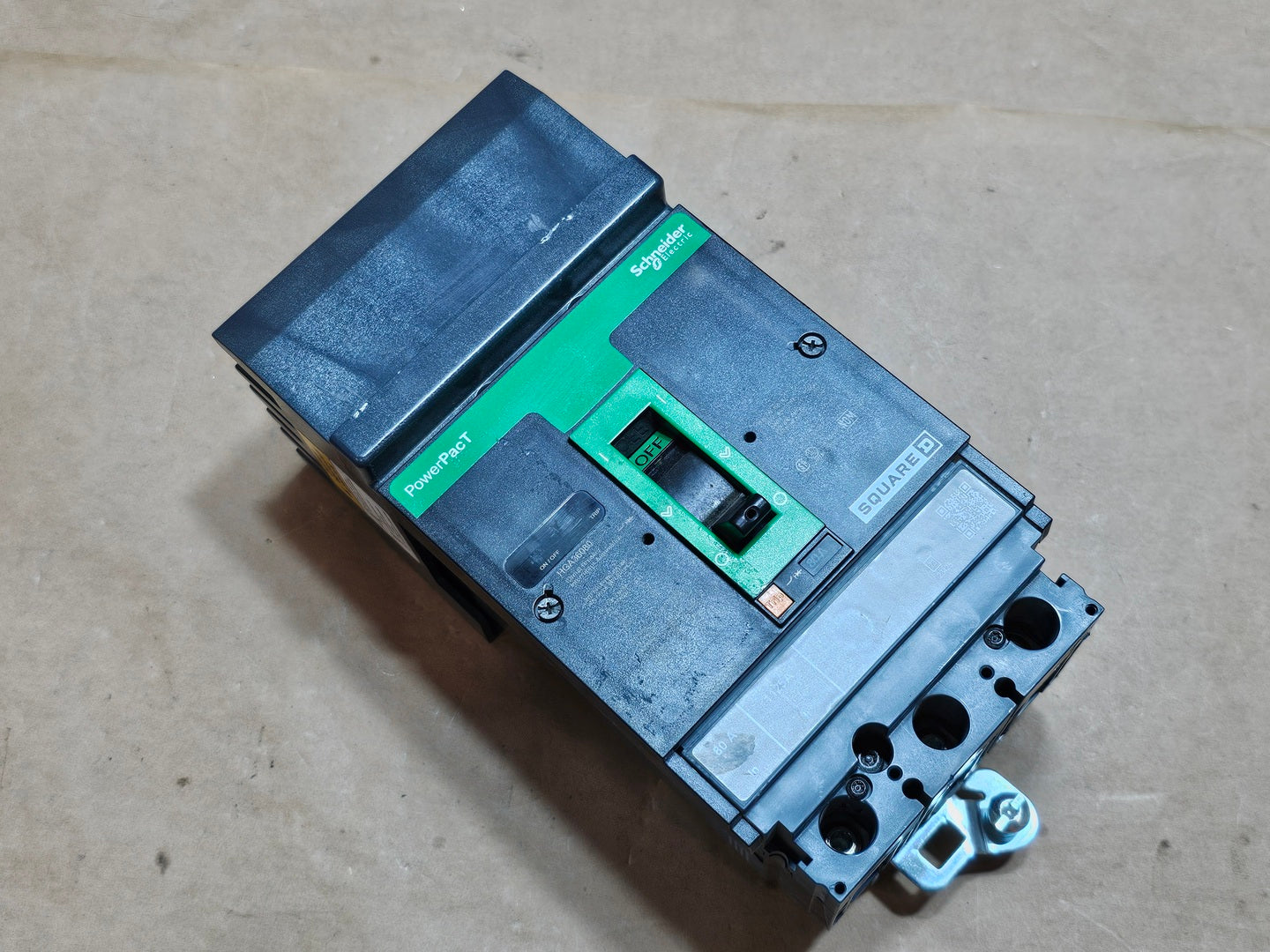

| Model | HGA36080 |
| Condition | Used | General |
| Amps | 80 amps |
| Series | PowerPacT HG 150 |
| # of Poles | 3 |
| Mounting Style | Plug-In |
| Voltage | 600 volts |
| Phase | 3-phase |
| Other Specifications |
|---|
|

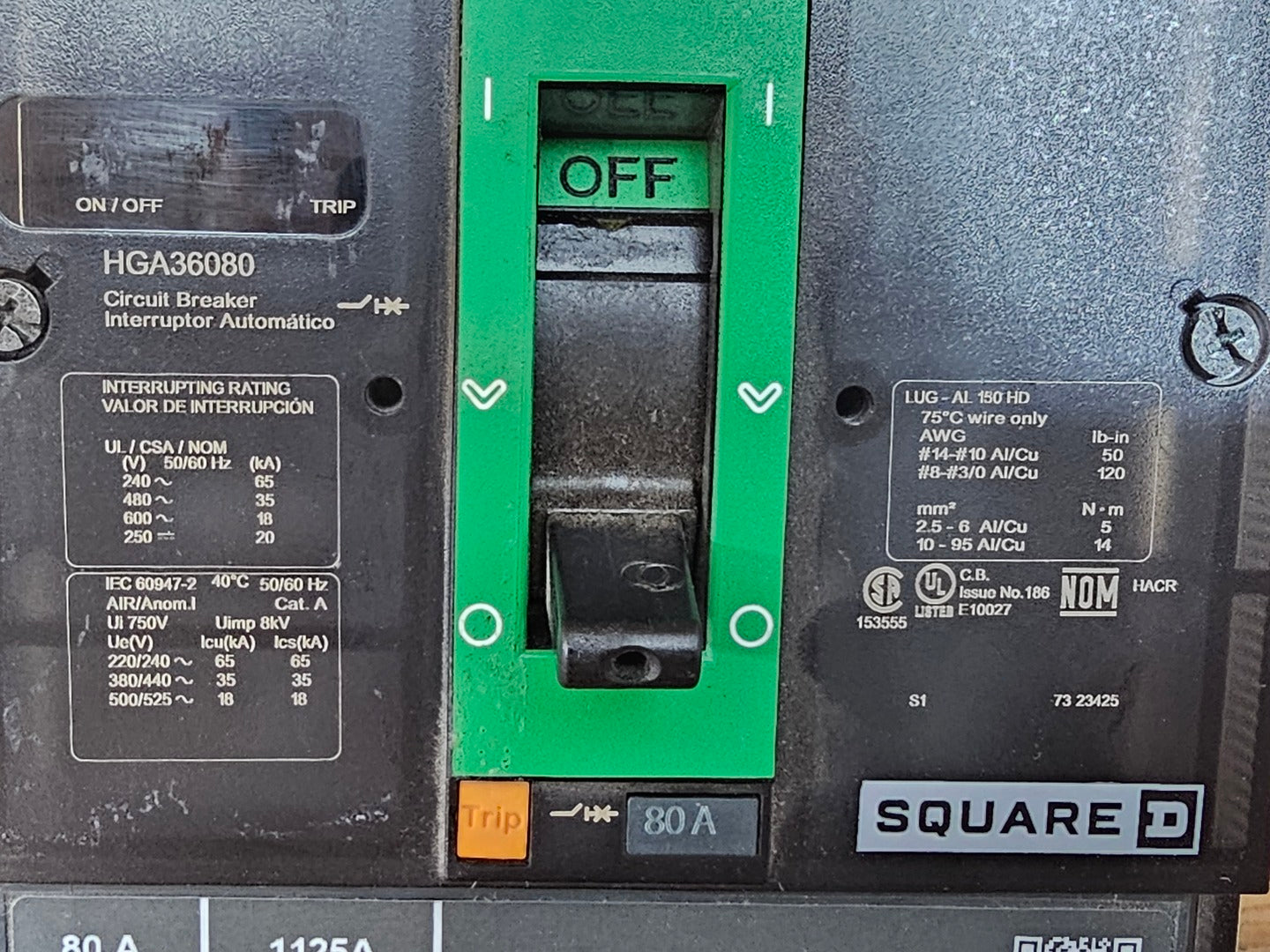

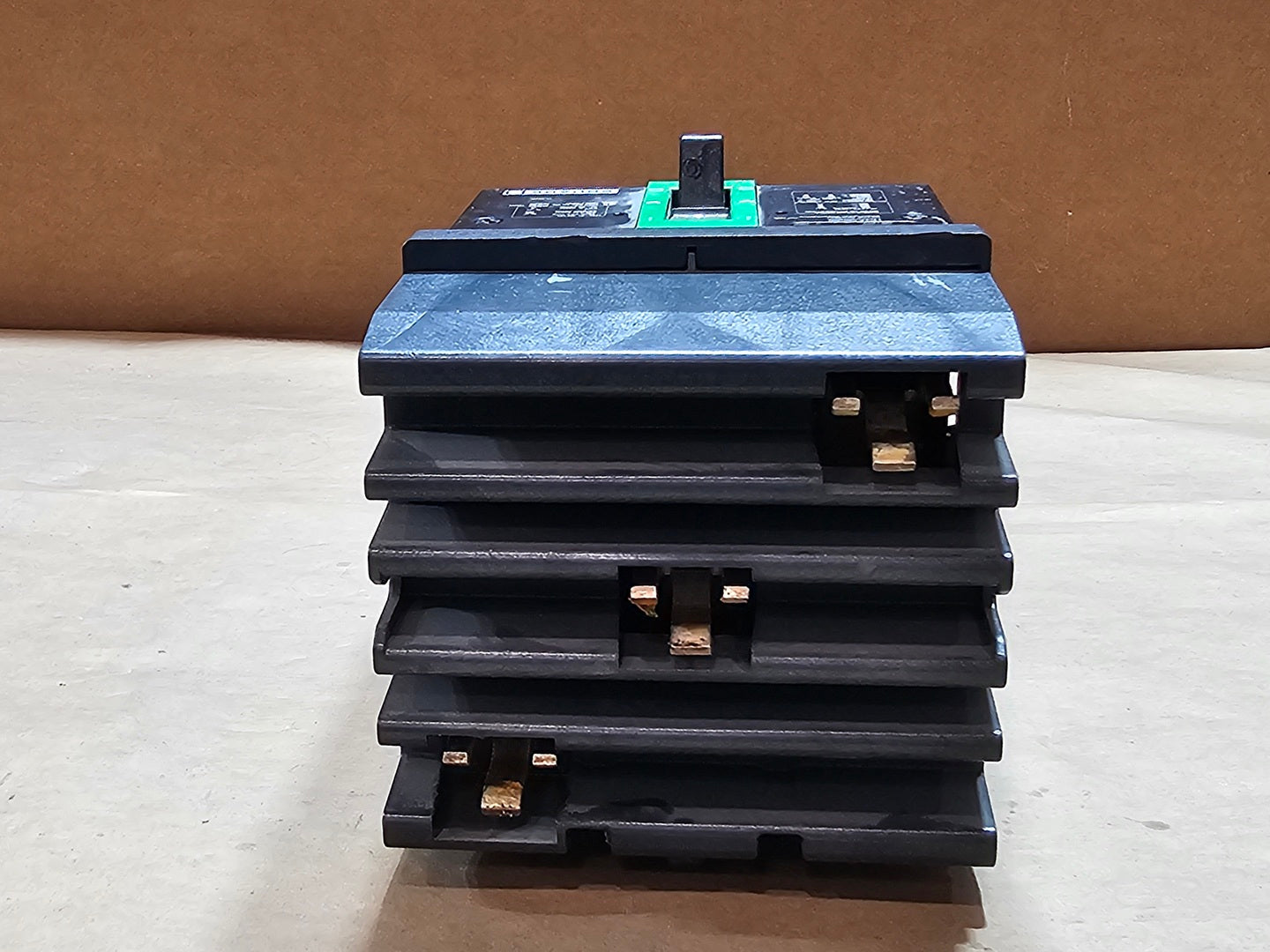

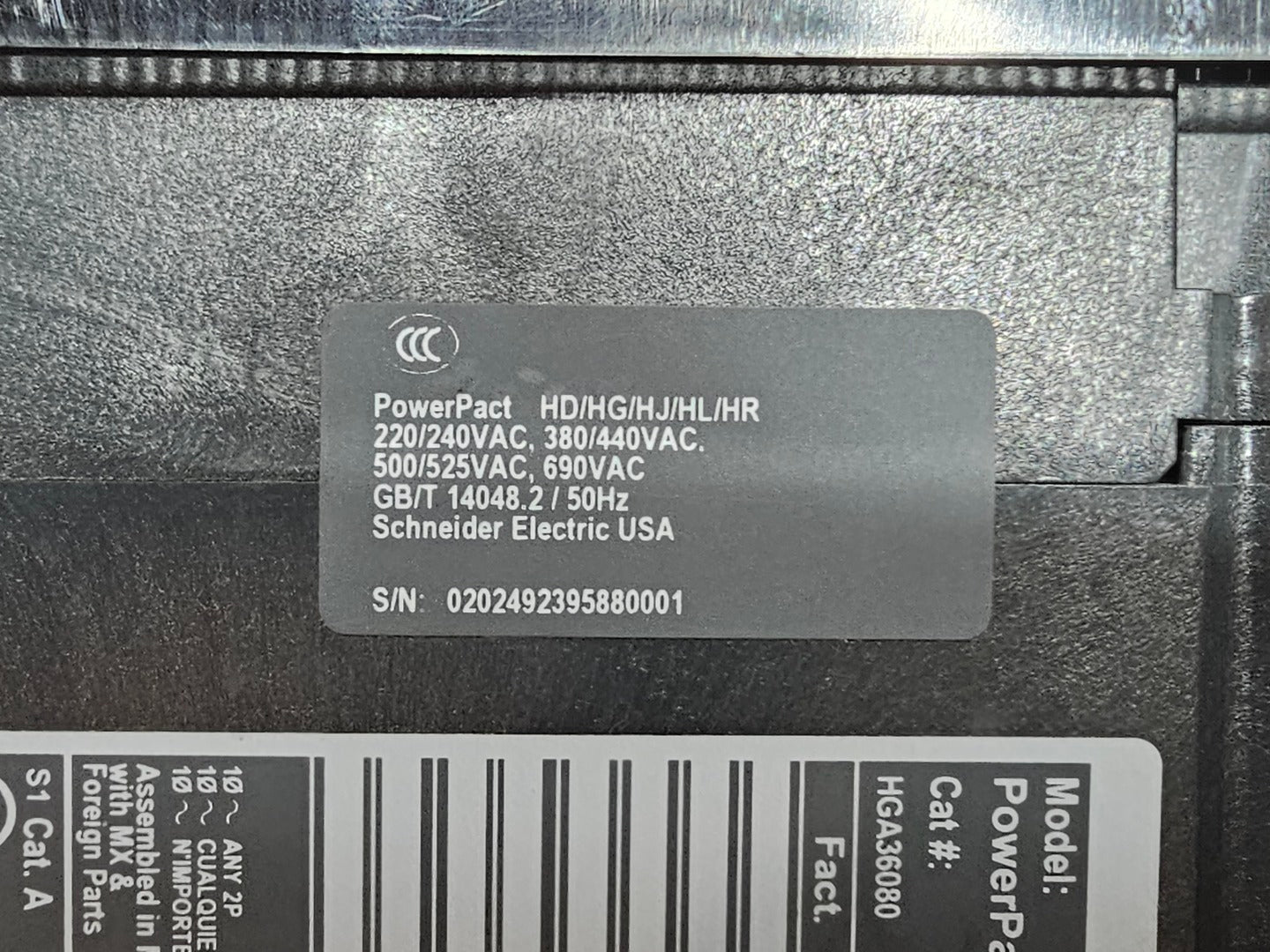

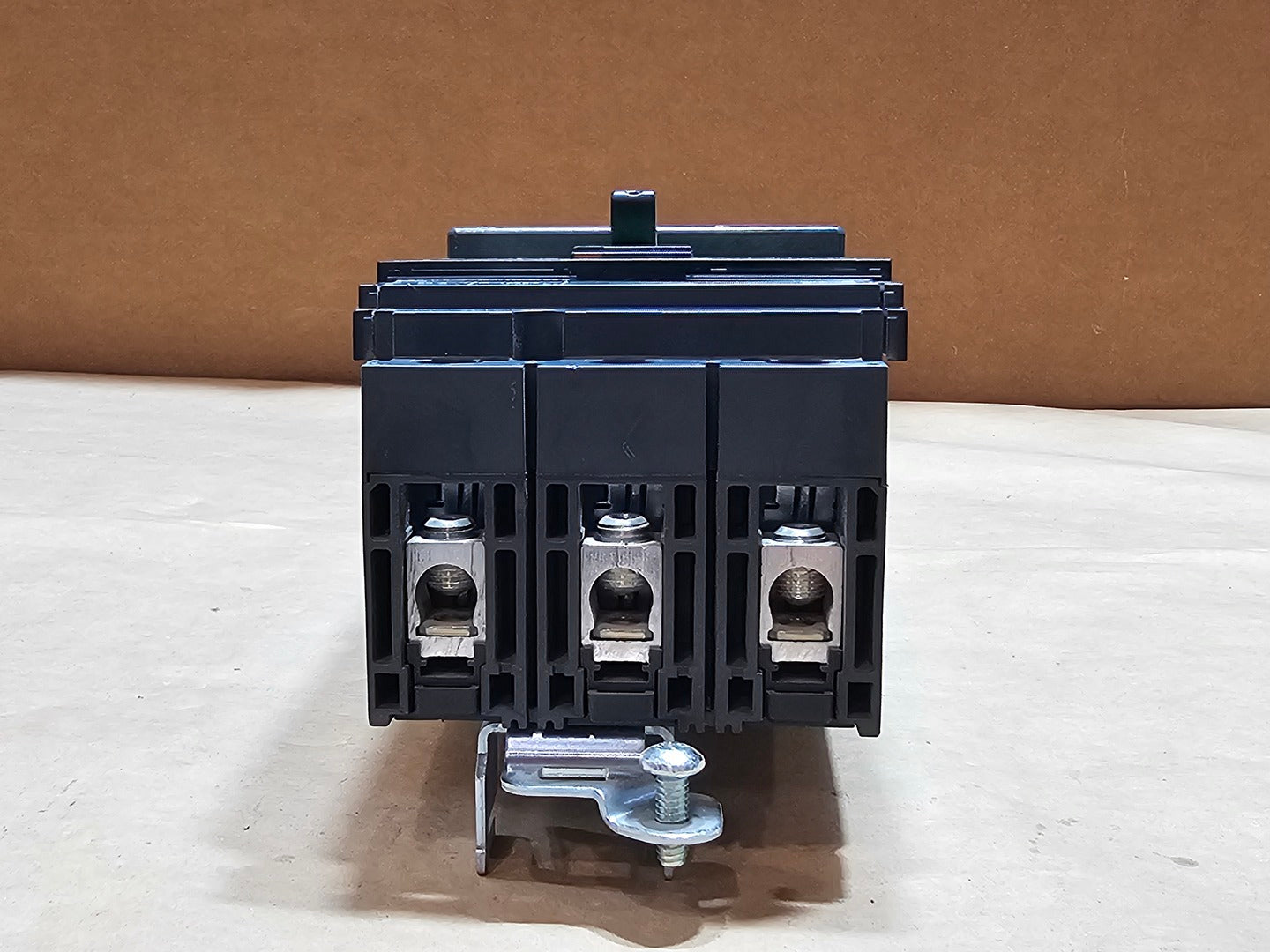

Device type: Molded-case circuit breaker Phase configuration: ABC Trip technology: Thermal-magnetic Trip functions: Long-time and instantaneous protection Maximum DC voltage: 250 VDC Frequency: 50/60 Hz Continuous-current rating: 80% Control type: Manual toggle Line-side connection: Square D I-Line plug-in Load-side connection: Three mechanical lugs UL/CSA/NOM interrupting rating at 240 VAC: 65 kA UL/CSA/NOM interrupting rating at 480 VAC: 35 kA UL/CSA/NOM interrupting rating at 600 VAC: 18 kA UL/CSA/NOM interrupting rating at 250 VDC: 20 kA IEC utilization voltage: 220/240, 380/440 and 500/525 VAC IEC Icu/Ics at 220/240 VAC: 65/65 kA IEC Icu/Ics at 380/440 VAC: 35/35 kA IEC Icu/Ics at 500/525 VAC: 18/18 kA Rated insulation voltage, Ui: 750 V Rated impulse withstand voltage, Uimp: 8 kV IEC utilization category: Category A IEC standard: IEC 60947-2 Conductor temperature rating: 75C wire only Load-lug conductor range: AWG #14-#10 Al/Cu or AWG #8-3/0 Al/Cu Metric conductor range: 2.5-6 mm2 or 10-95 mm2 Al/Cu AWG #14-#10 lug torque: 50 lb-in / 5 Nm AWG #8-3/0 lug torque: 120 lb-in / 14 Nm Visible certifications: UL Listed, CSA, NOM and HACR |
