Descripción

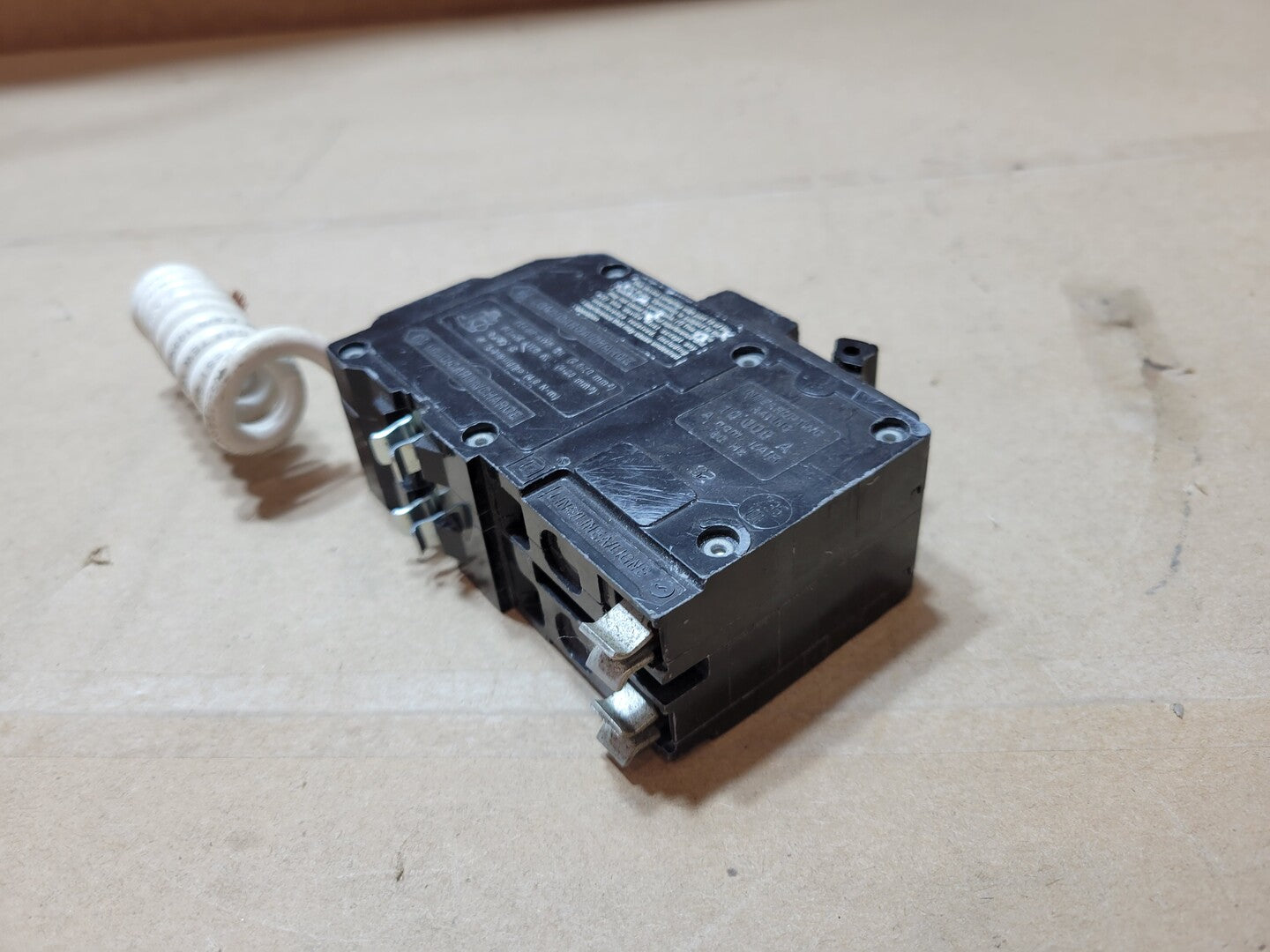

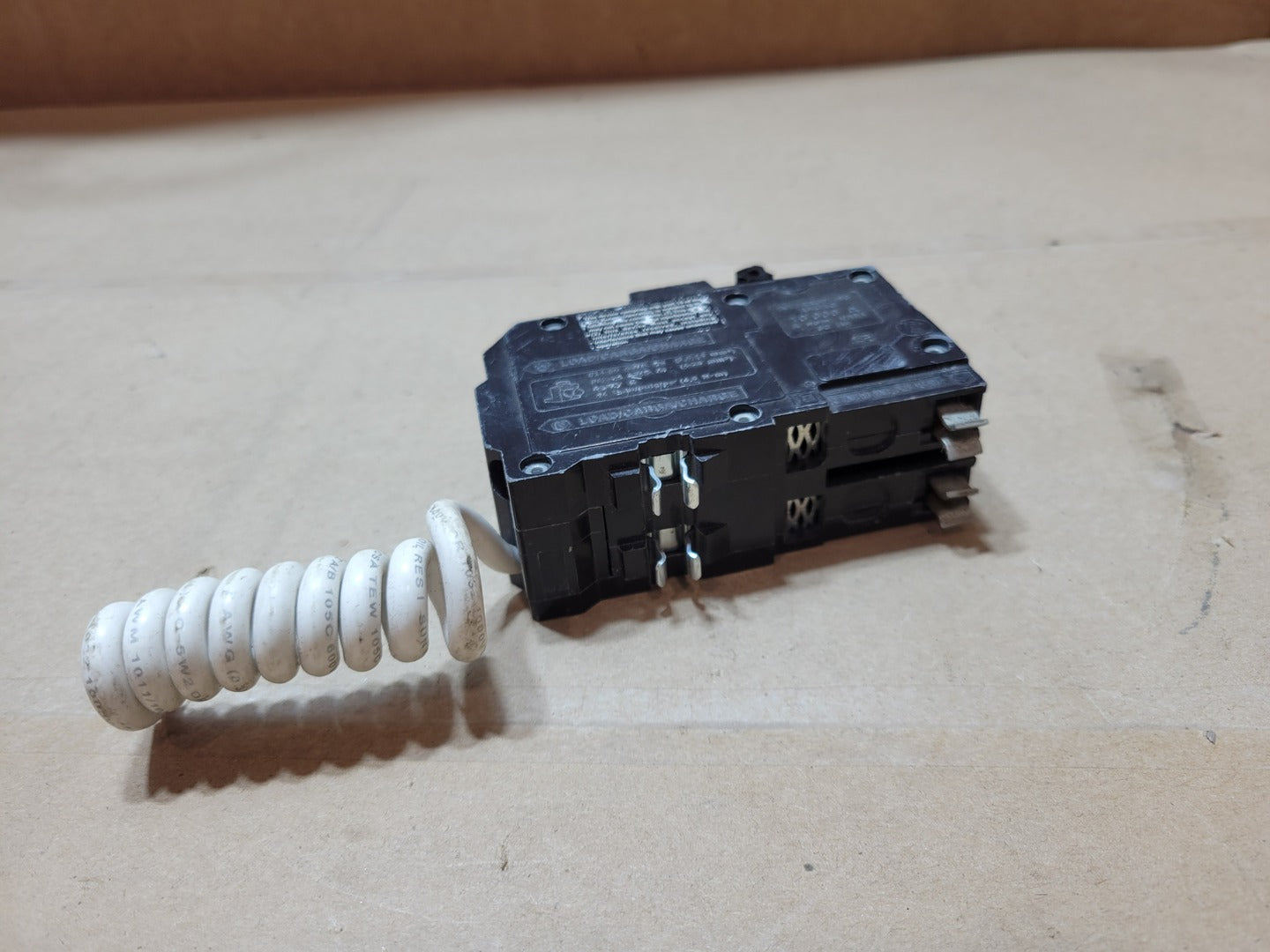

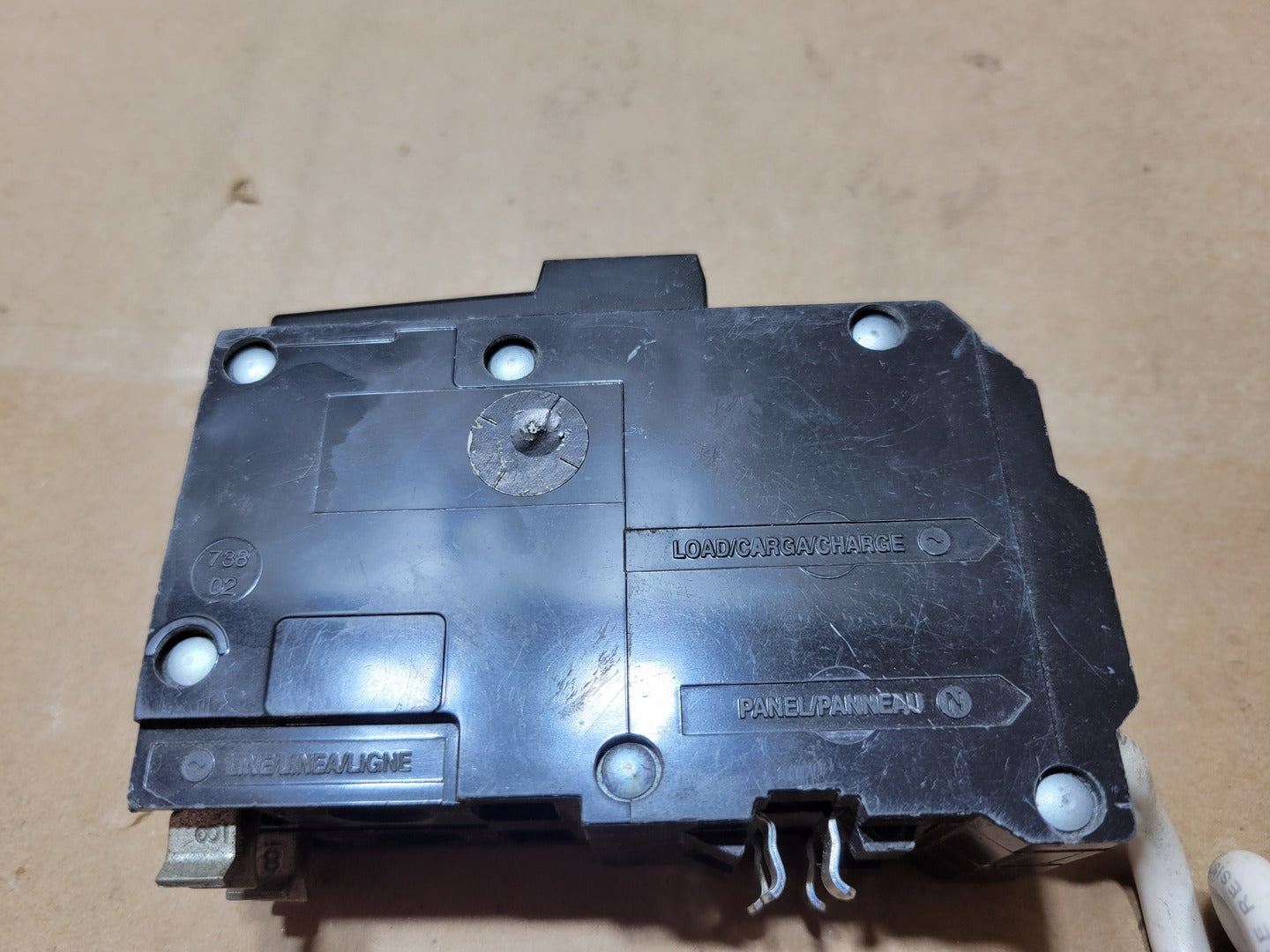

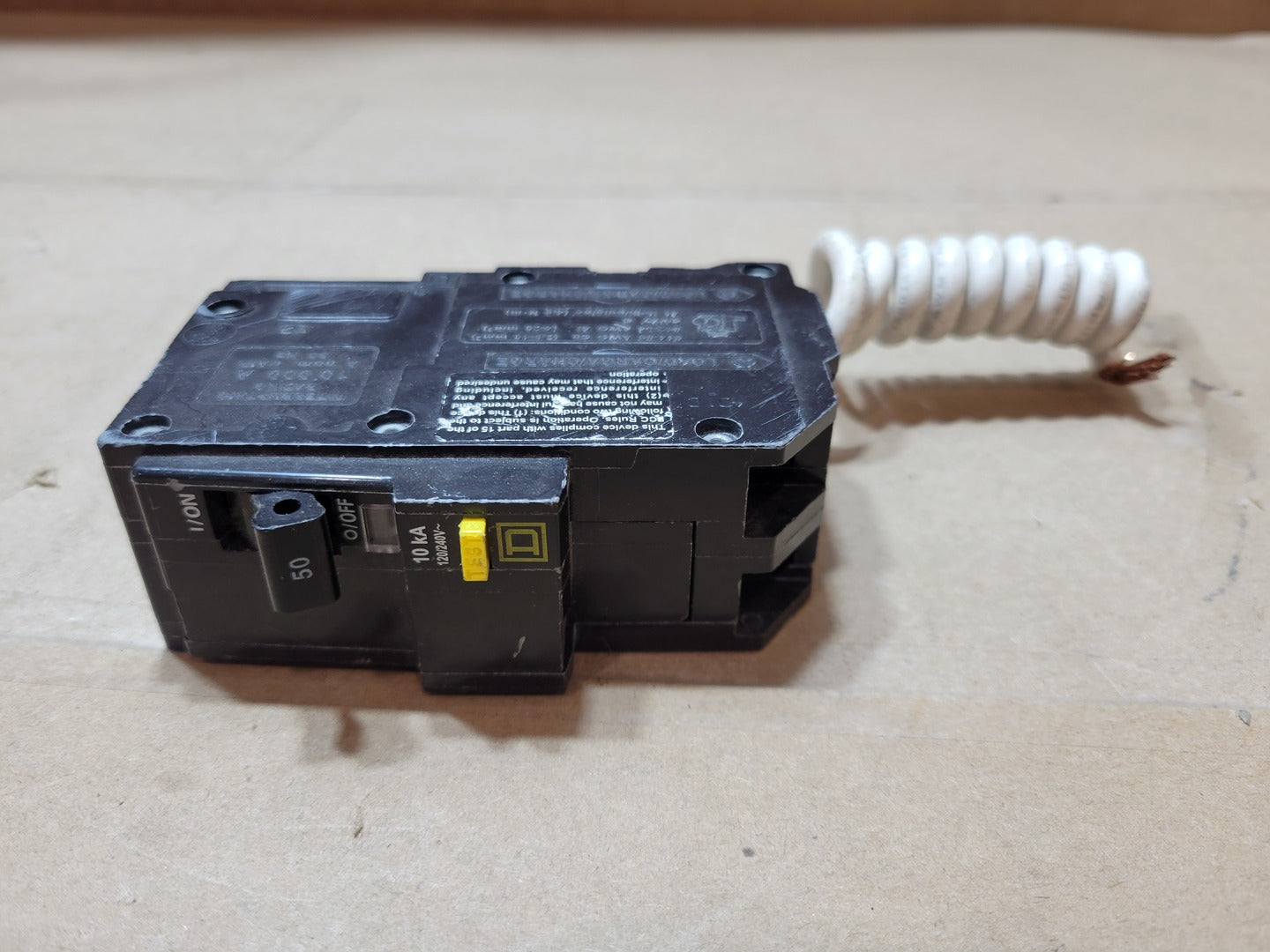

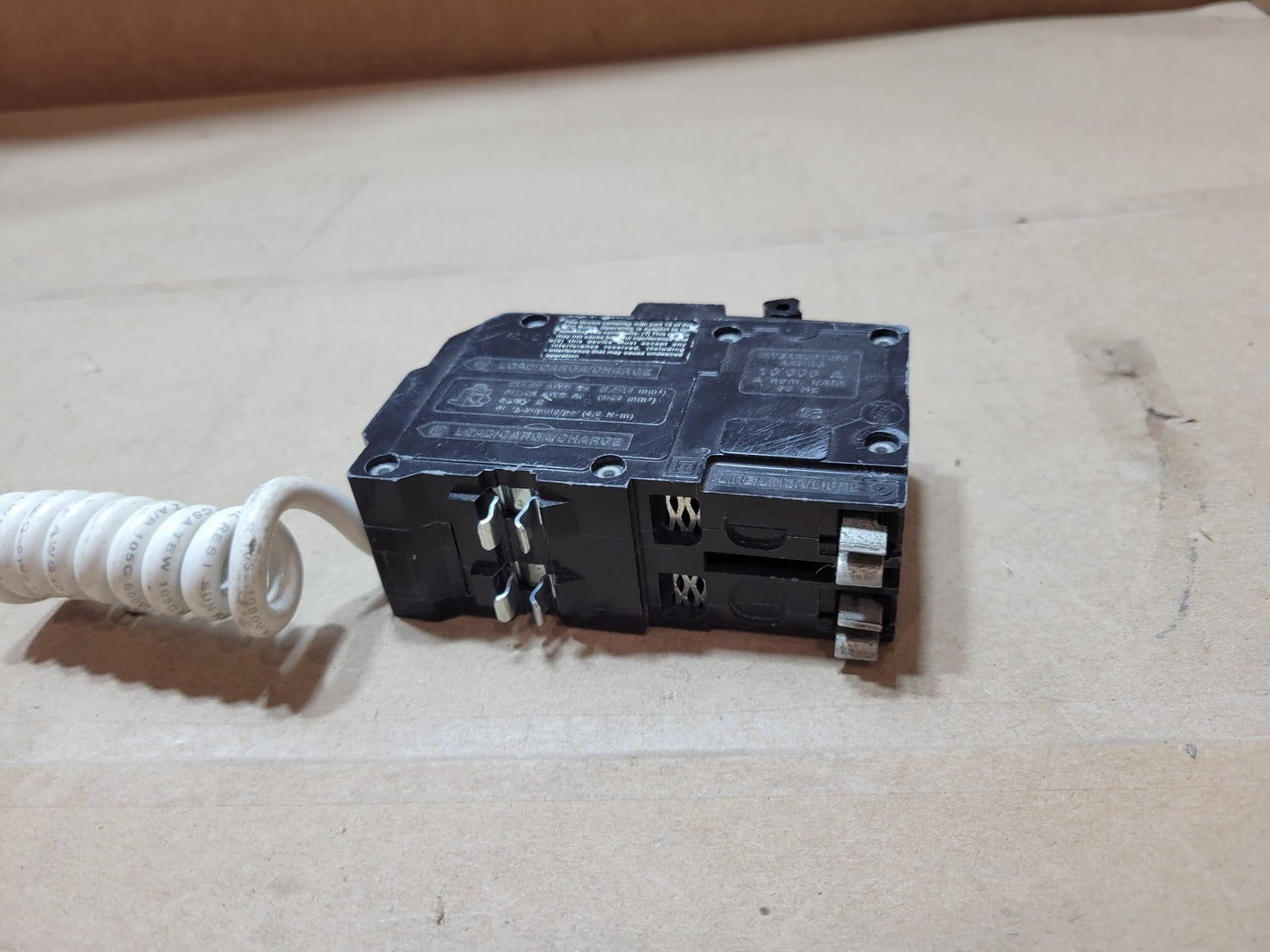

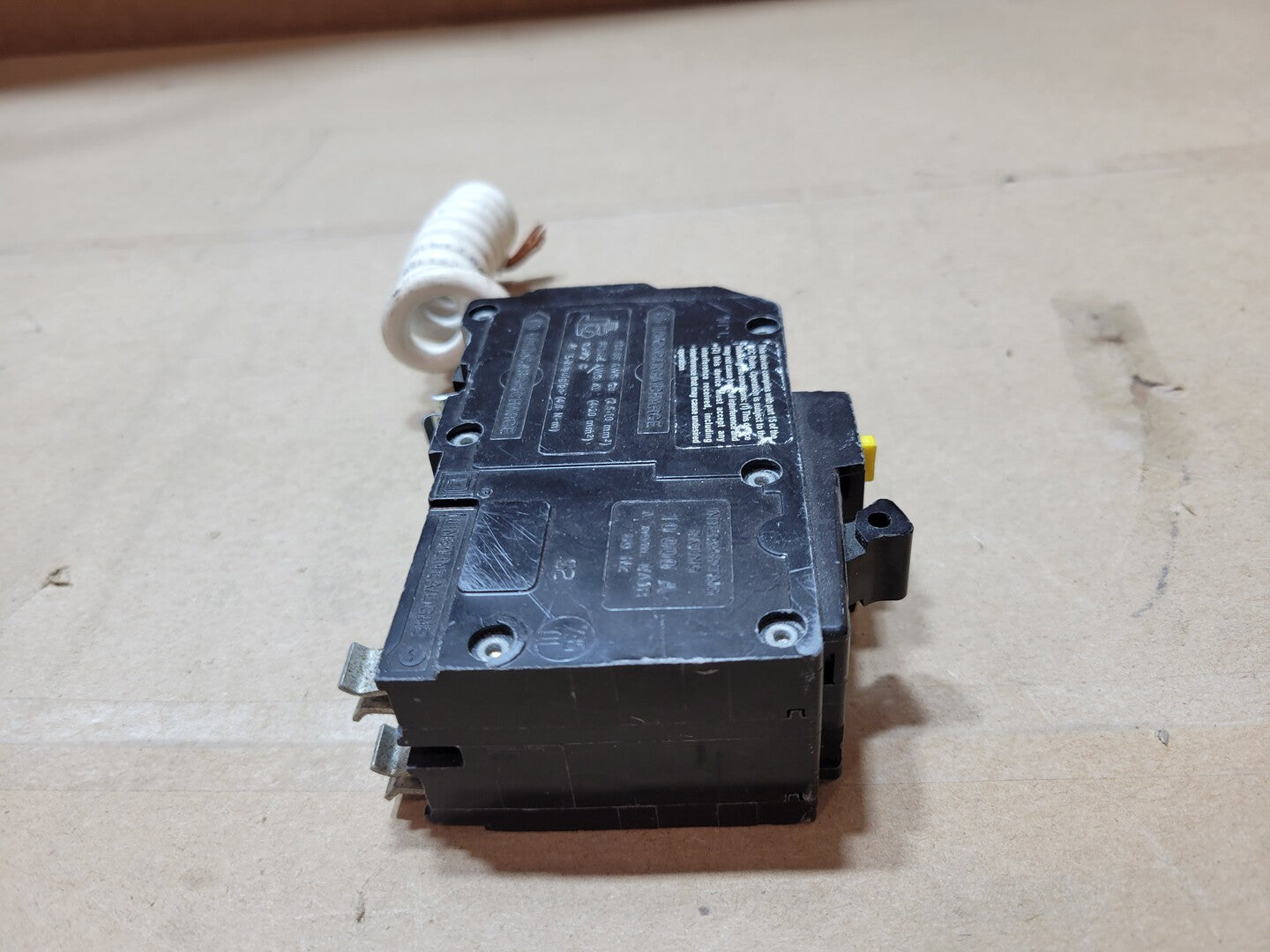

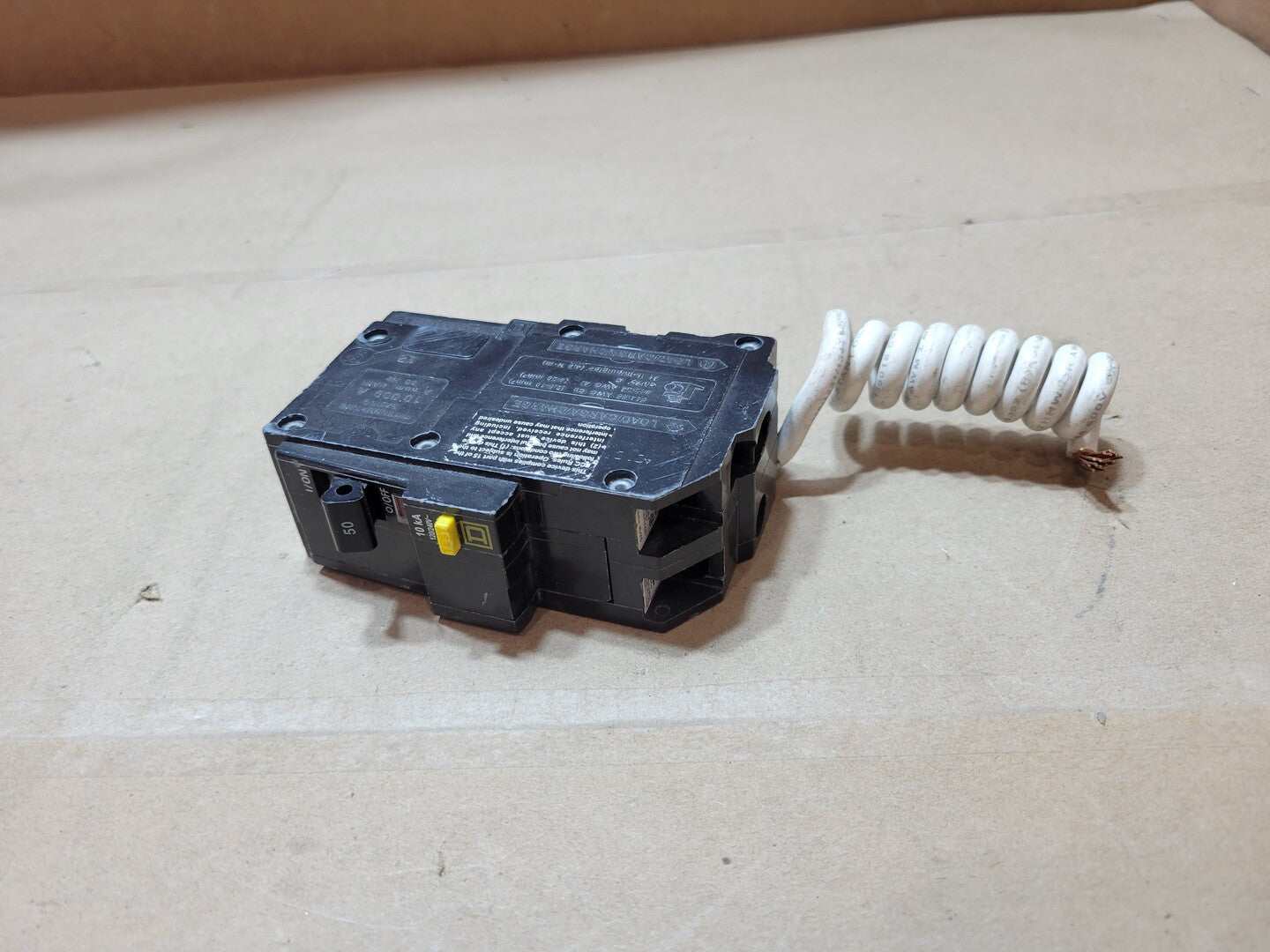

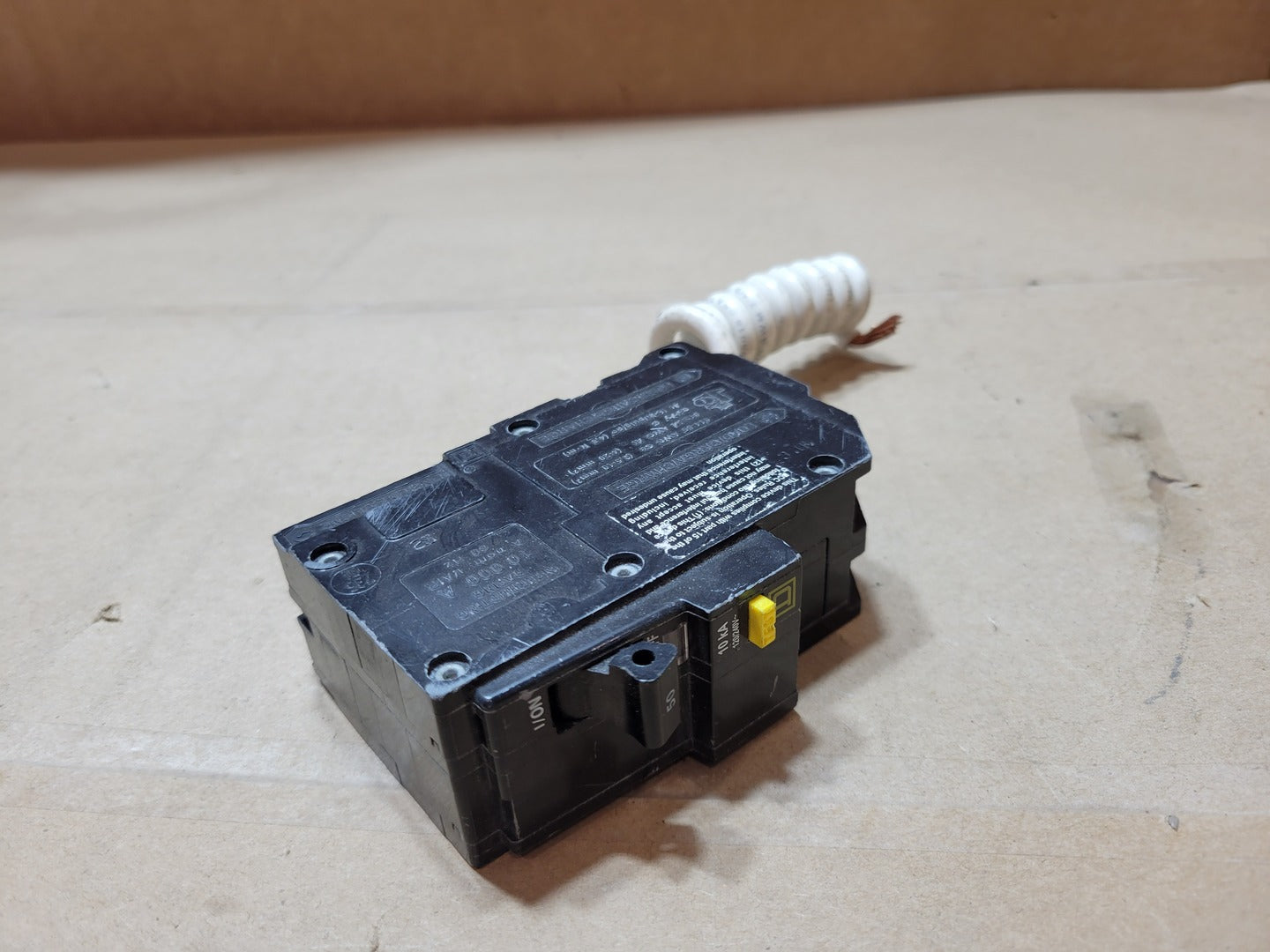

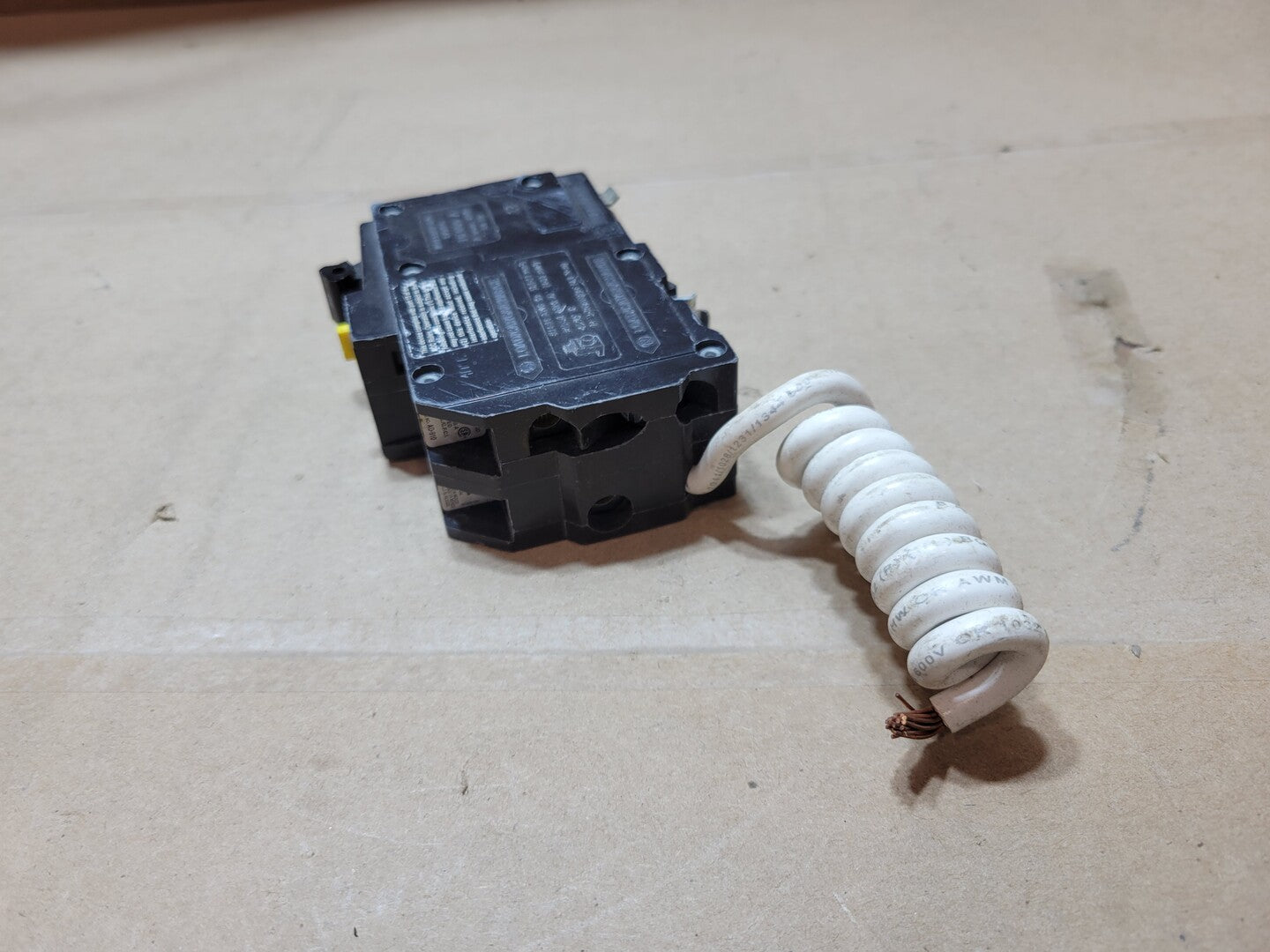

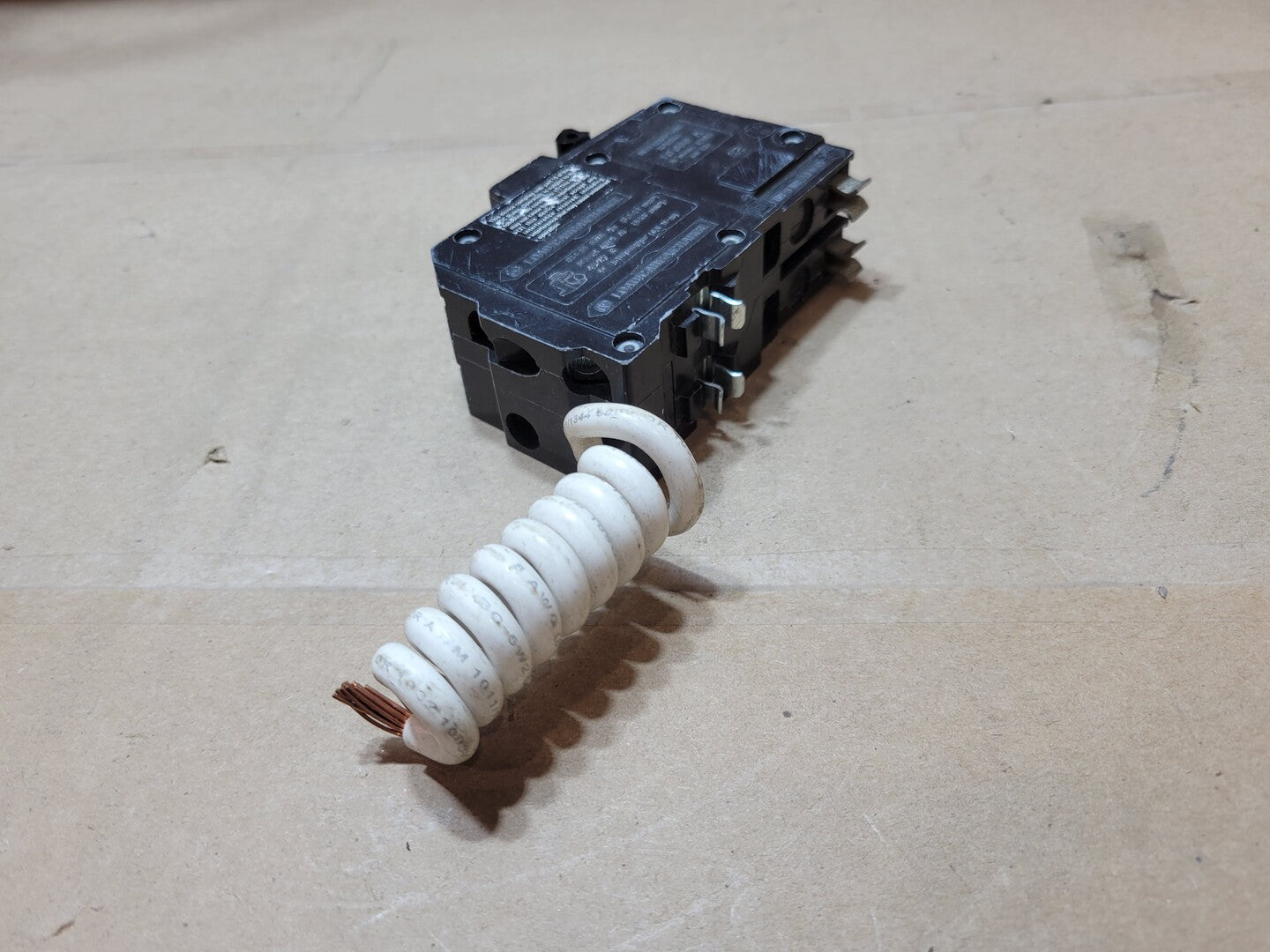

Square D Homeline HOM250GFI 50-amp, 2-pole plug-in GFCI circuit breaker rated for 120/240VAC with a 10kA interrupting rating. Includes integral TEST button and factory neutral pigtail for Class A ground-fault protection. Designed for compatible Square D Homeline load centers and equipment. Schneider states the breaker protects against overloads, short circuits and ground faults greater than 6mA.
| Specifications | |
|---|---|
| Model | HOM250GFI |
| Condition | Used | General |
| Amps | 20 amps |
| Series | Homeline |
| # of Poles | 2 |
| Mounting Style | Plug-In |
| Voltage | 120/240 volts |
| Phase | Single-phase |
| GFCI | Yes |
| Other Specifications |
|---|
|

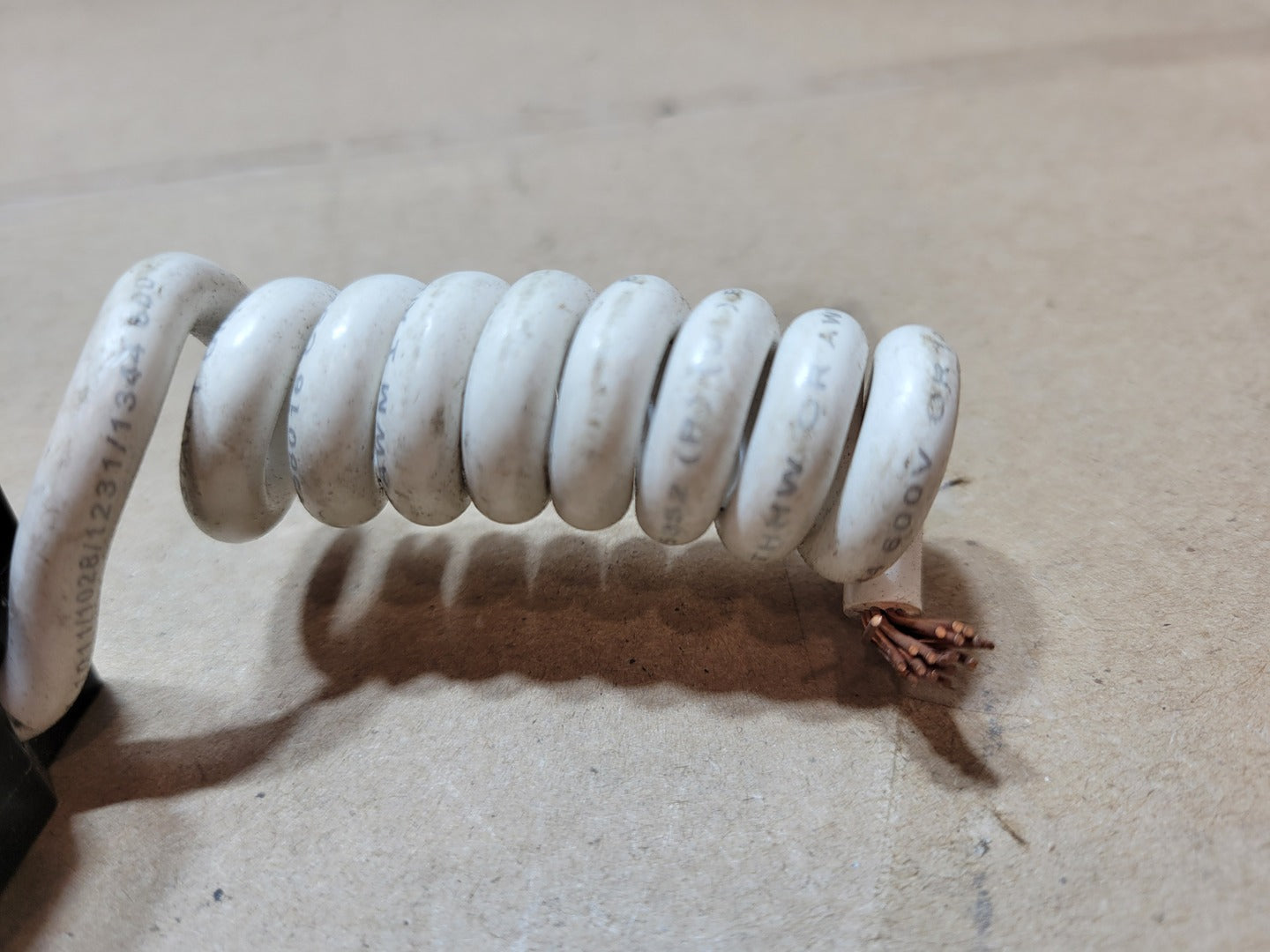

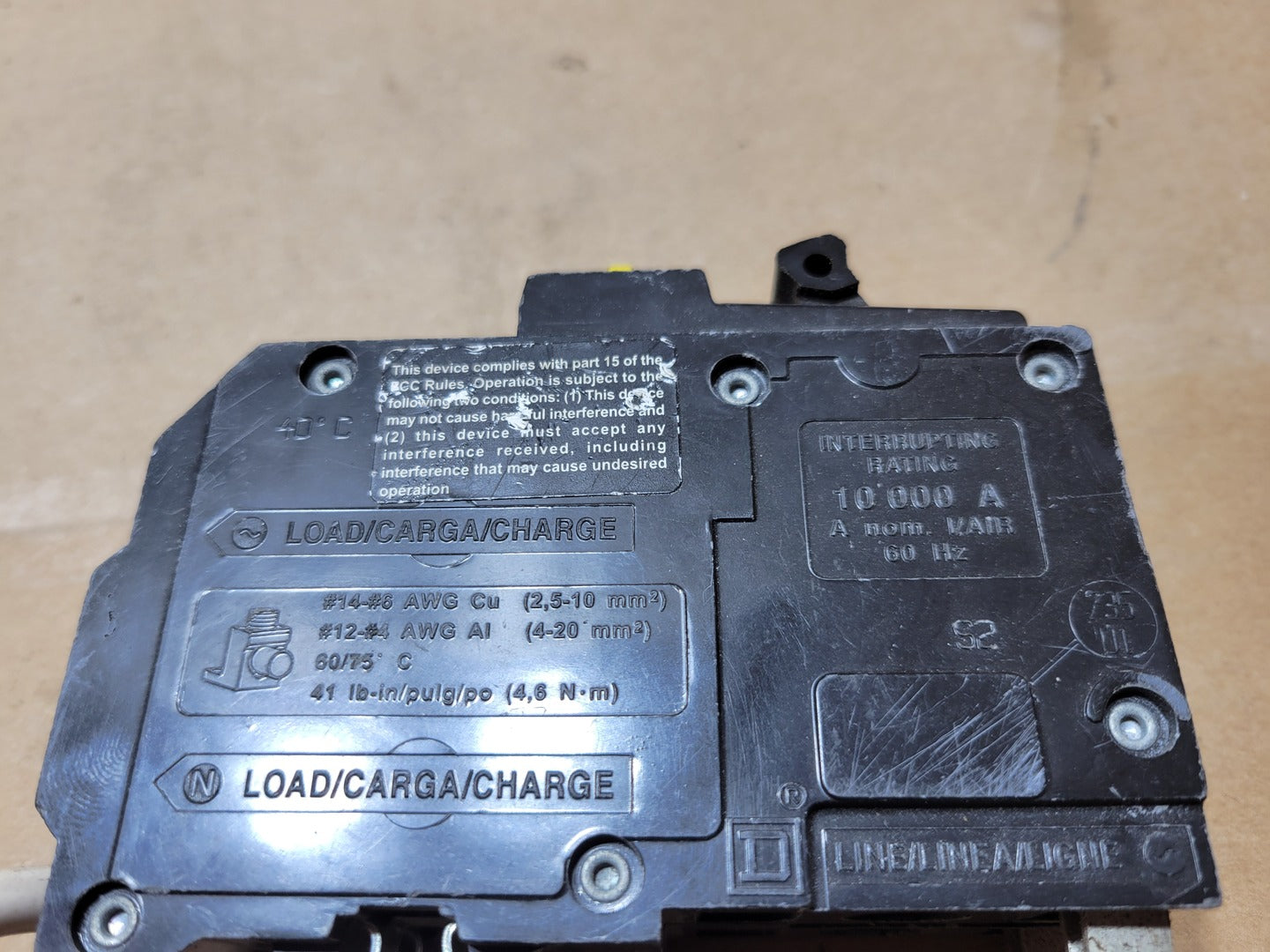

Frequency: 60 Hz visible on breaker Interrupting Rating: 10,000 A / 10 kA Ground-Fault Protection: Class A GFCI, Test Function: Integral yellow TEST button Neutral Connection: White neutral pigtail Copper Wire Range: #14-#6 AWG Cu, visible on breaker Aluminum Wire Range: #12-#4 AWG Al, visible on breaker Terminal Torque: 41 lb-in / 4.6 N-m, visible on breaker Reference Temperature: 40°C |
