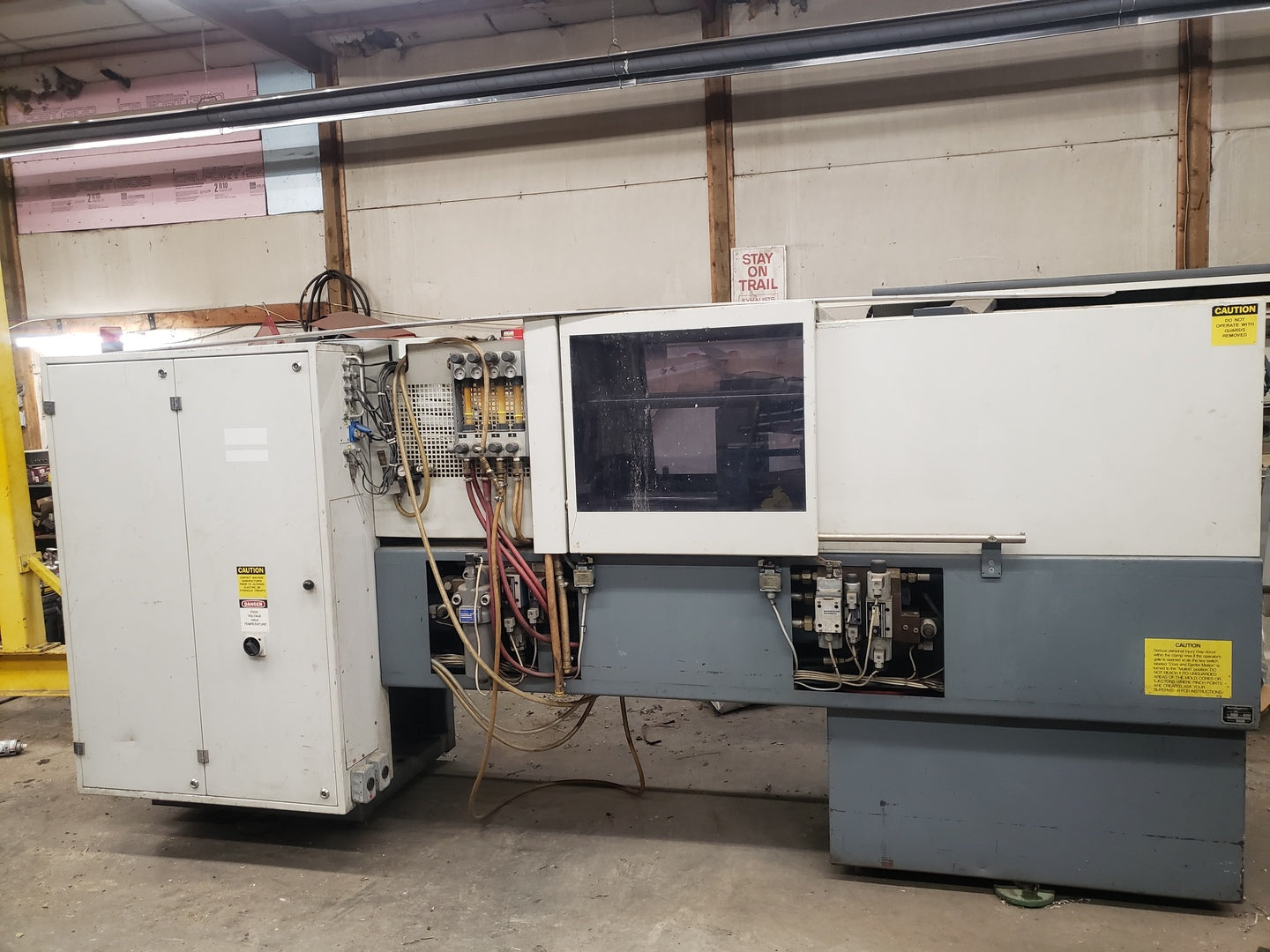

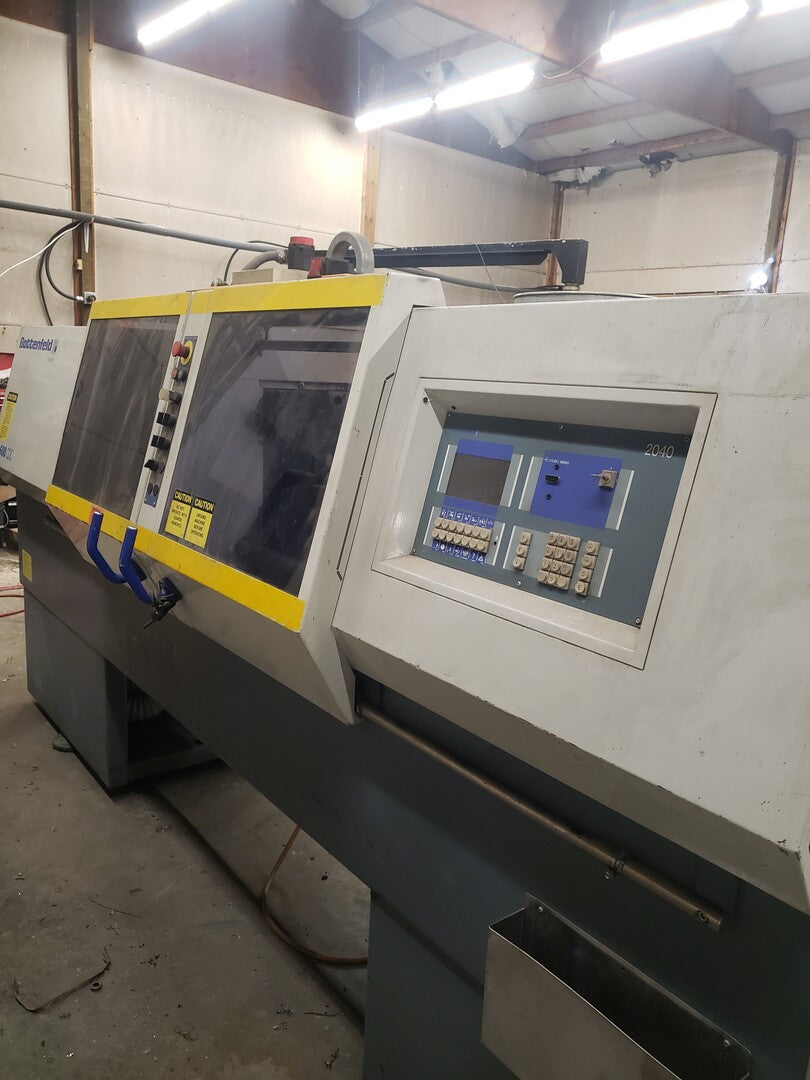

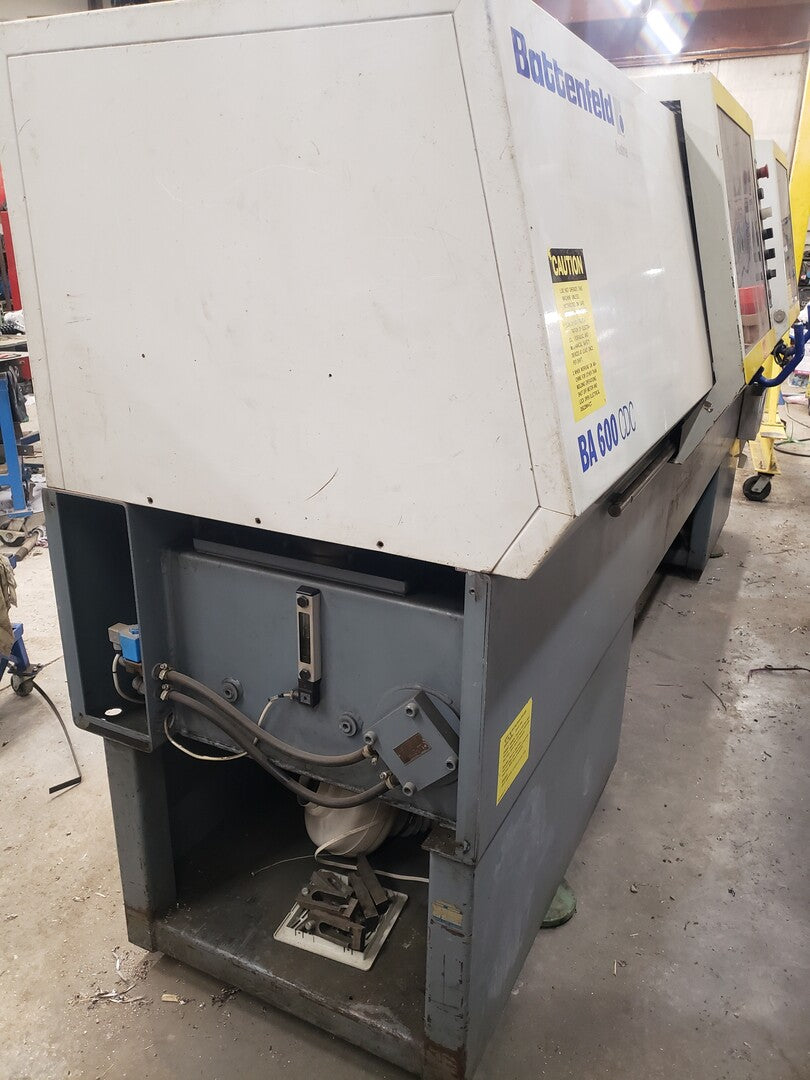

Injection Moulding Machine BA 600/200 CDC

SKU: 149421
Precio:
$22,000 CAD

Gastos de envío calculados en la caja

Stock:
Solo queda 1 unidad
Make an Offer

¿Necesita una respuesta ahora?

Finance

Amount:
Email Finance

Descripción

Specifications
Model BA 600/200 CDC
Year: 1994
Condition Used

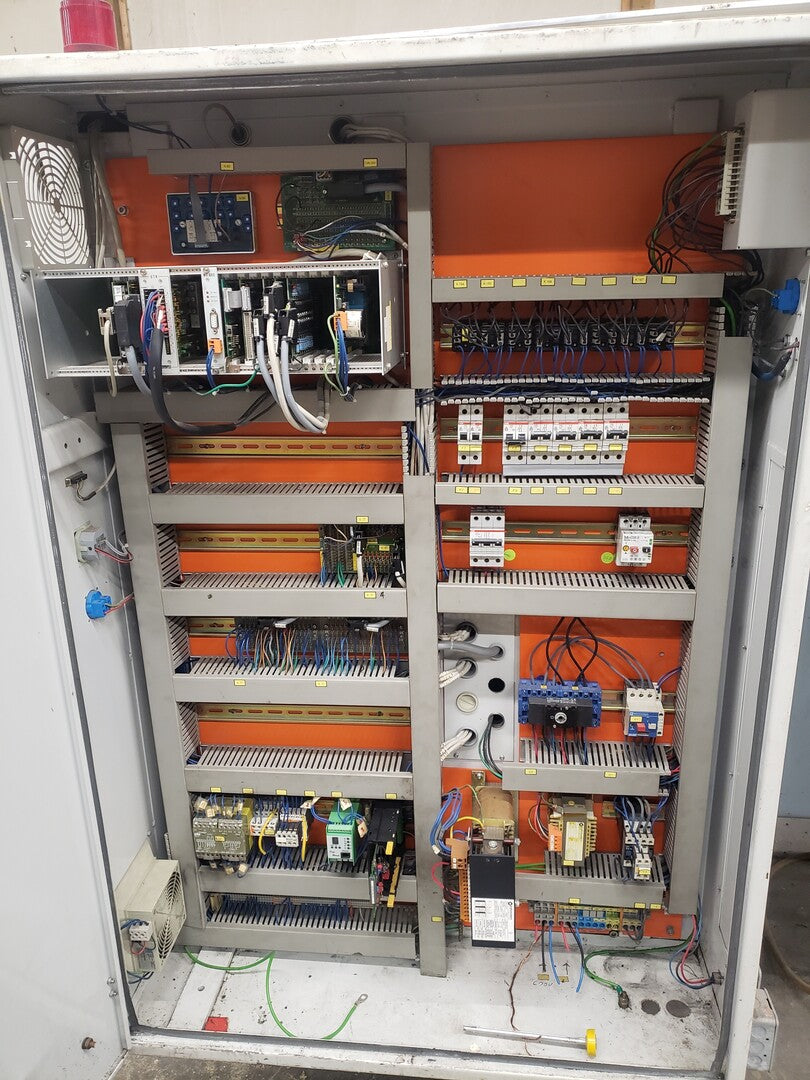

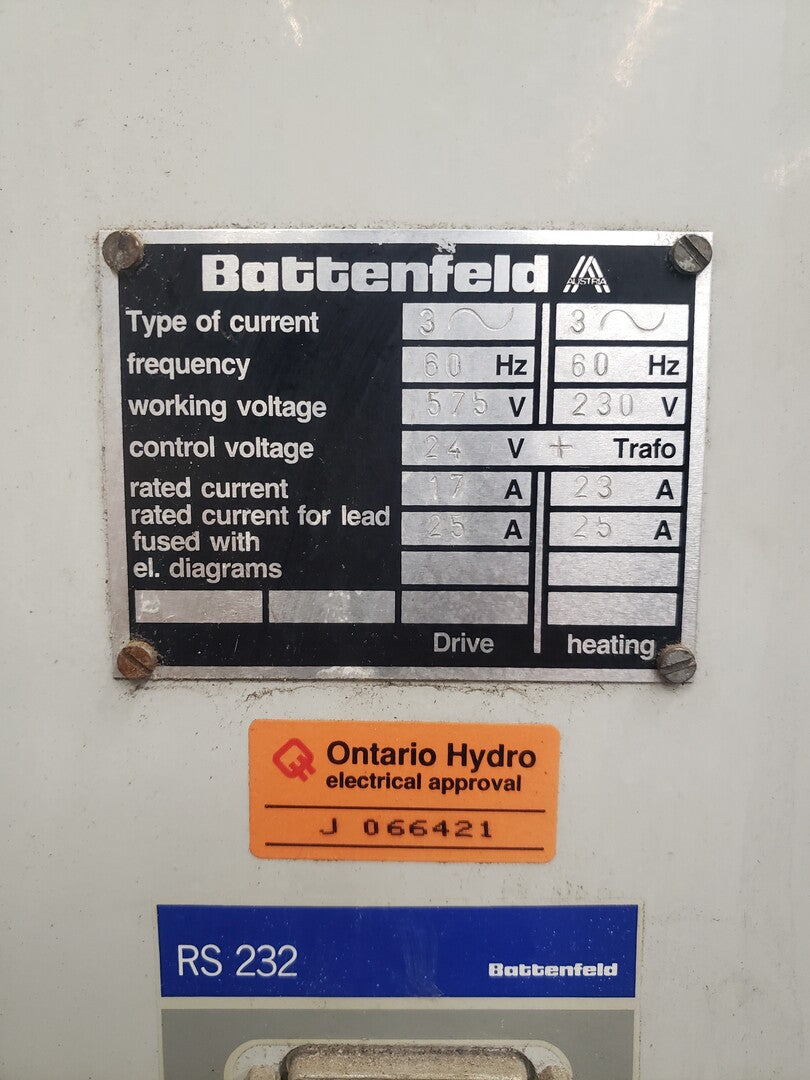

Electrical
Voltage 575 volts
Phase 3-phase
Other Specifications

Clamping unit

  • Clamping force: 600 kN
  • Size of mould platens (h x v): 490 mm x 490 mm // 19.29 in. x 19.29 in.
  • Distance between tie bars (h x v): 320 mm x 320 mm // 12.60 in. x 12.60 in.
  • Mould opening stroke: 425 mm // 16.73 in.
  • Mould height min.: 150 mm // 5.91 in.
  • Mould height max.: - mm
  • Max daylight: 475 mm // 18.70 in.
  • Hydraulic ejector - stroke: 150 mm // 5.91 in.
  • Ejector force forward/backward: 27.5 kN

Injection unit

  • Screw diameter: 35 mm // 1.38 in.
  • Ls/D ratio: 18
  • Injection pressure: 1485 bar
  • Stroke volume: 134.7 ccm
  • Shot weight, PS: 122.5 g
  • Injection stroke: 140 mm // 5.51 in.
  • Screw speed: 228 1/min
  • Plasticising rate max.: 15 g/s
  • Nozzle pressure: 57.7 kN

Electric and Hydraulic Equipment

  • Installed heating capacity: 7.88 kW // 10.57 hp
  • Adjustable barrel heating zones: 1+3
  • Pump power: 11 Kw // 14.75
  • Oil: 170 L
