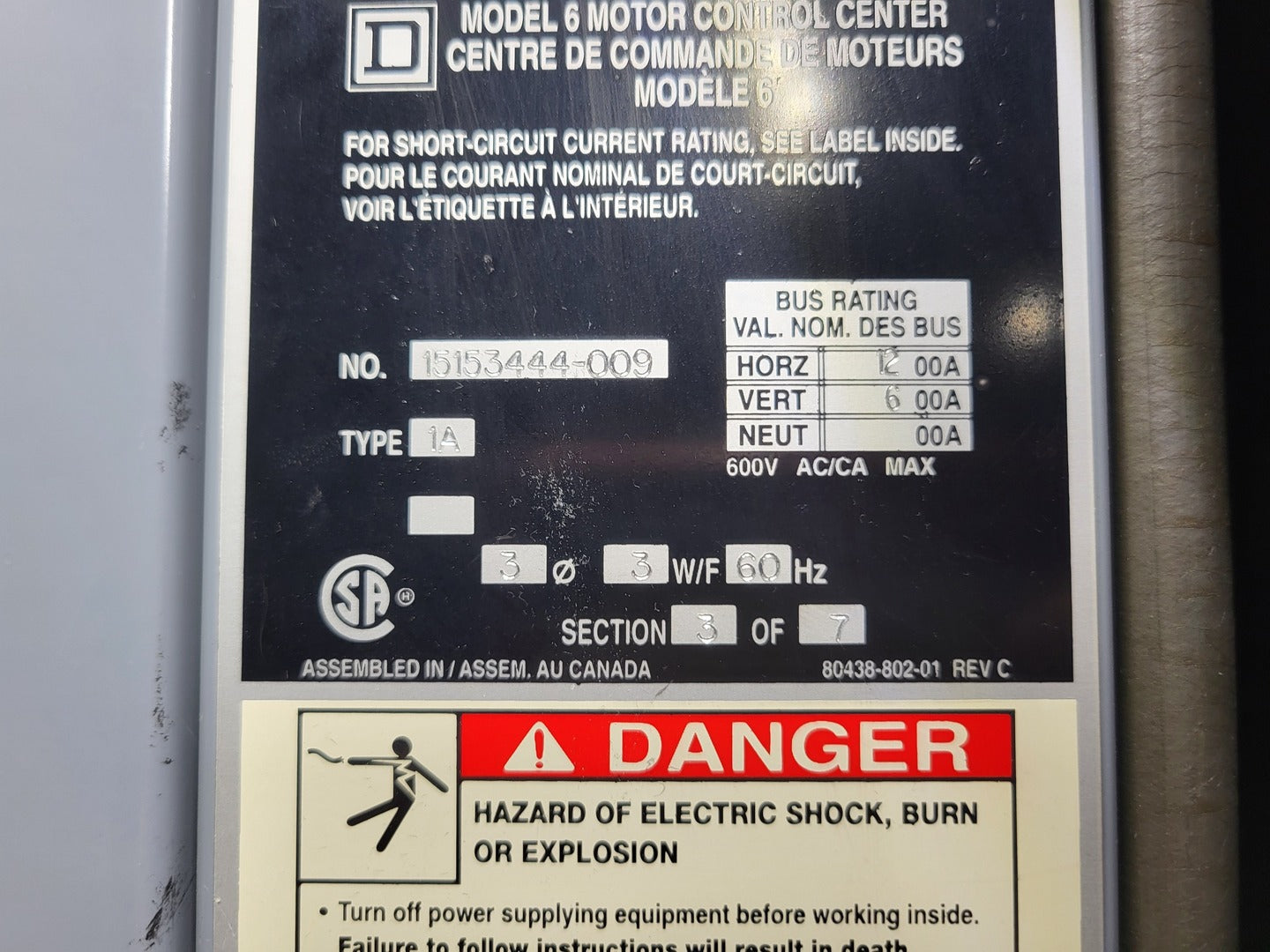

SQUARE D Model 6 Motor Control Center MCC Section, 600V, 3PH, 1200A Bus
SQUARE D

Model 6 Motor Control Center MCC Section, 600V, 3PH, 1200A Bus

SKU: 151817
Precio:
$13,050 CAD

Gastos de envío calculados en la caja

Stock:
Solo queda 1 unidad
Make an Offer

¿Necesita una respuesta ahora?

604-449-1880

Descripción

Specifications
Model Model 6
Condition Used
Other Specifications

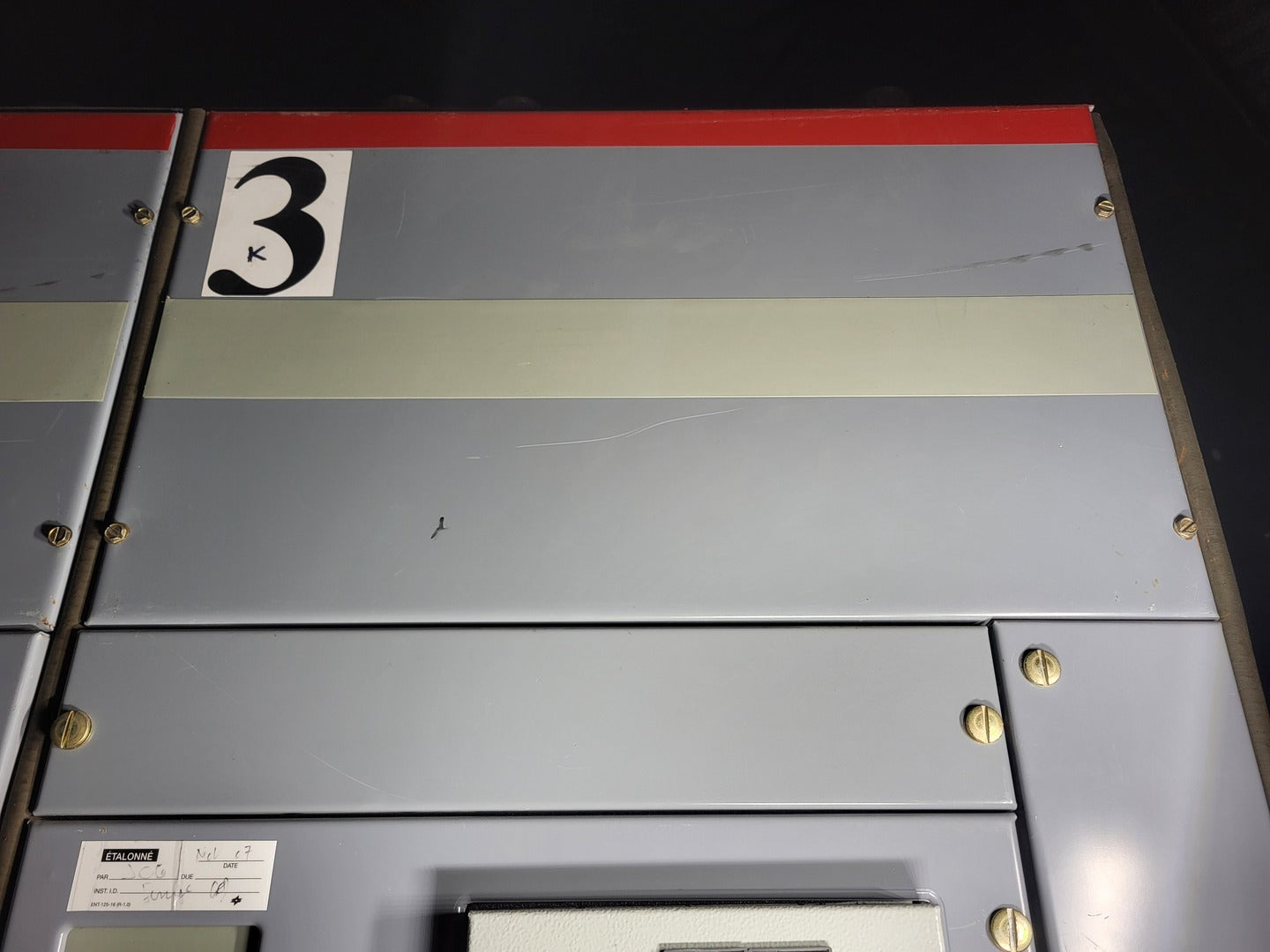

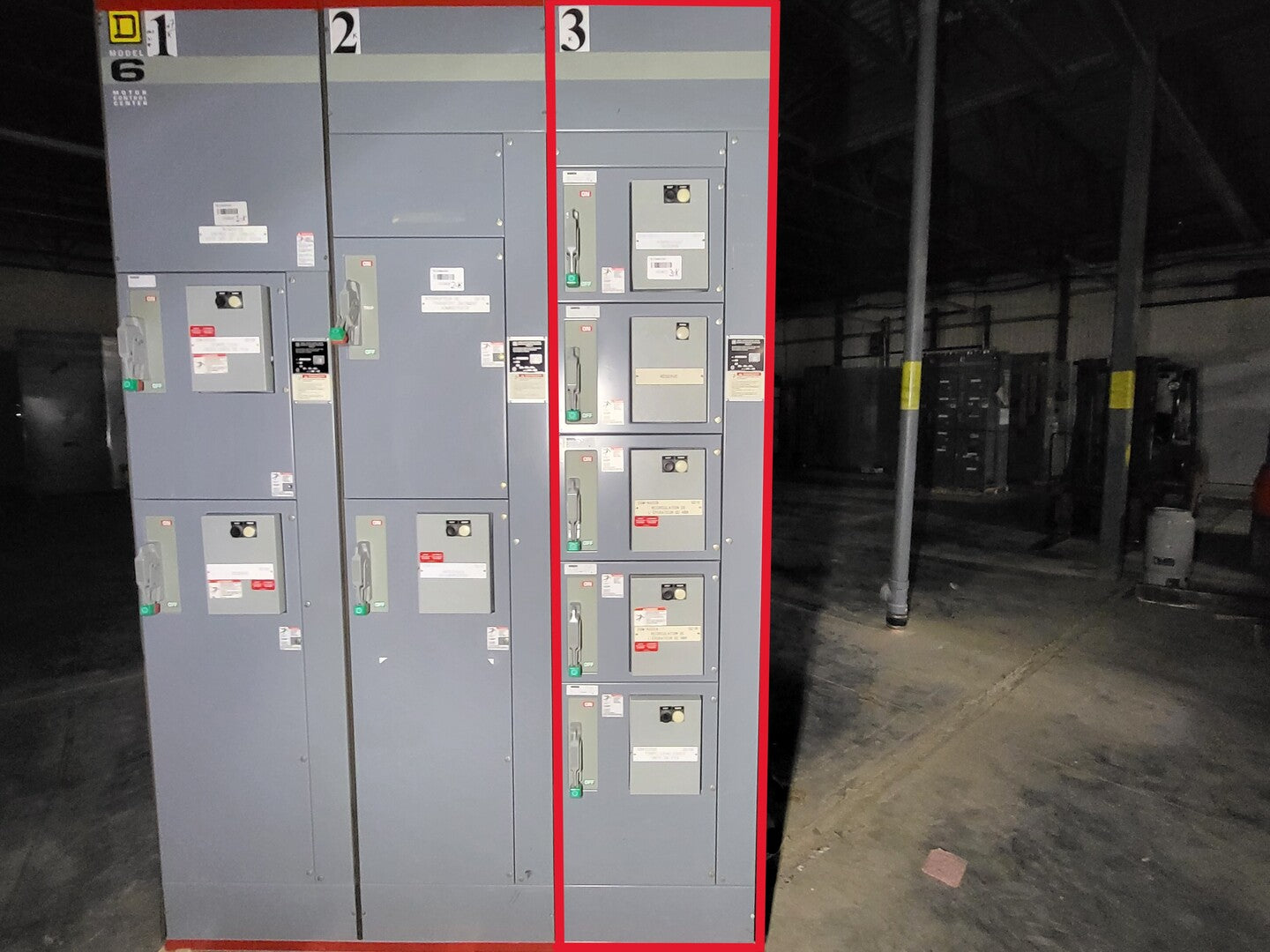

Note: Section 3 only

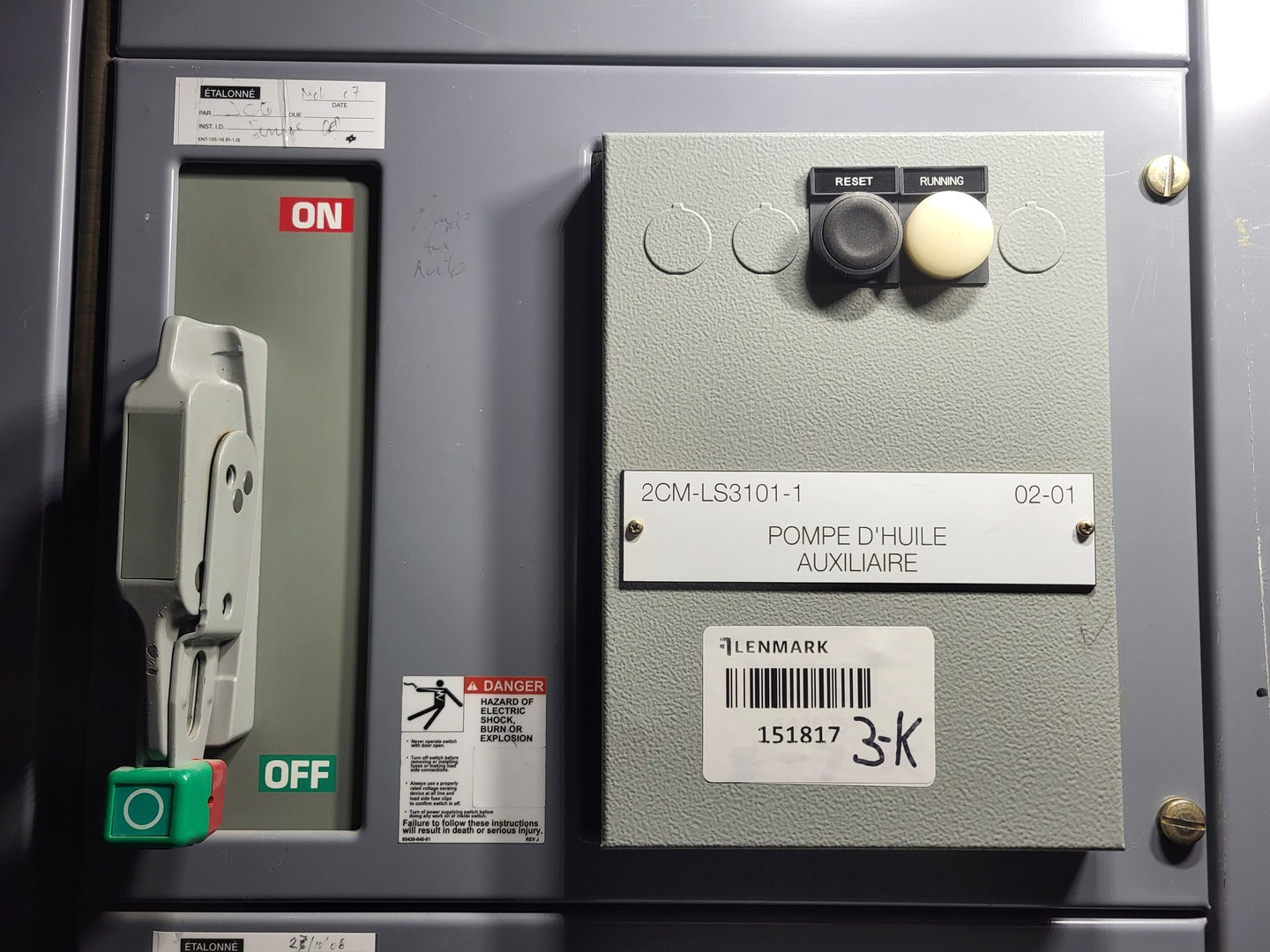

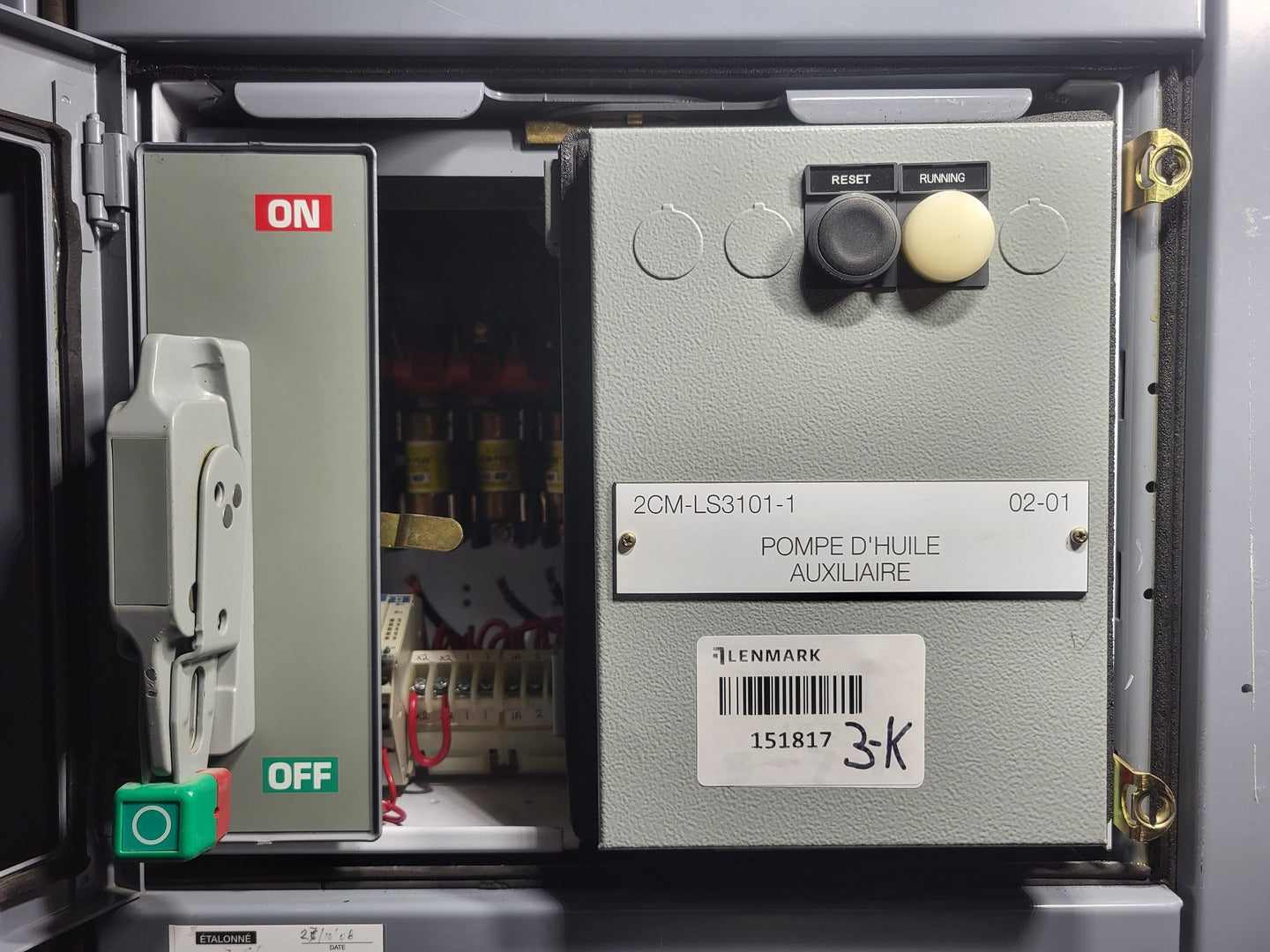

Bucket #1 2CM-LS3101-1

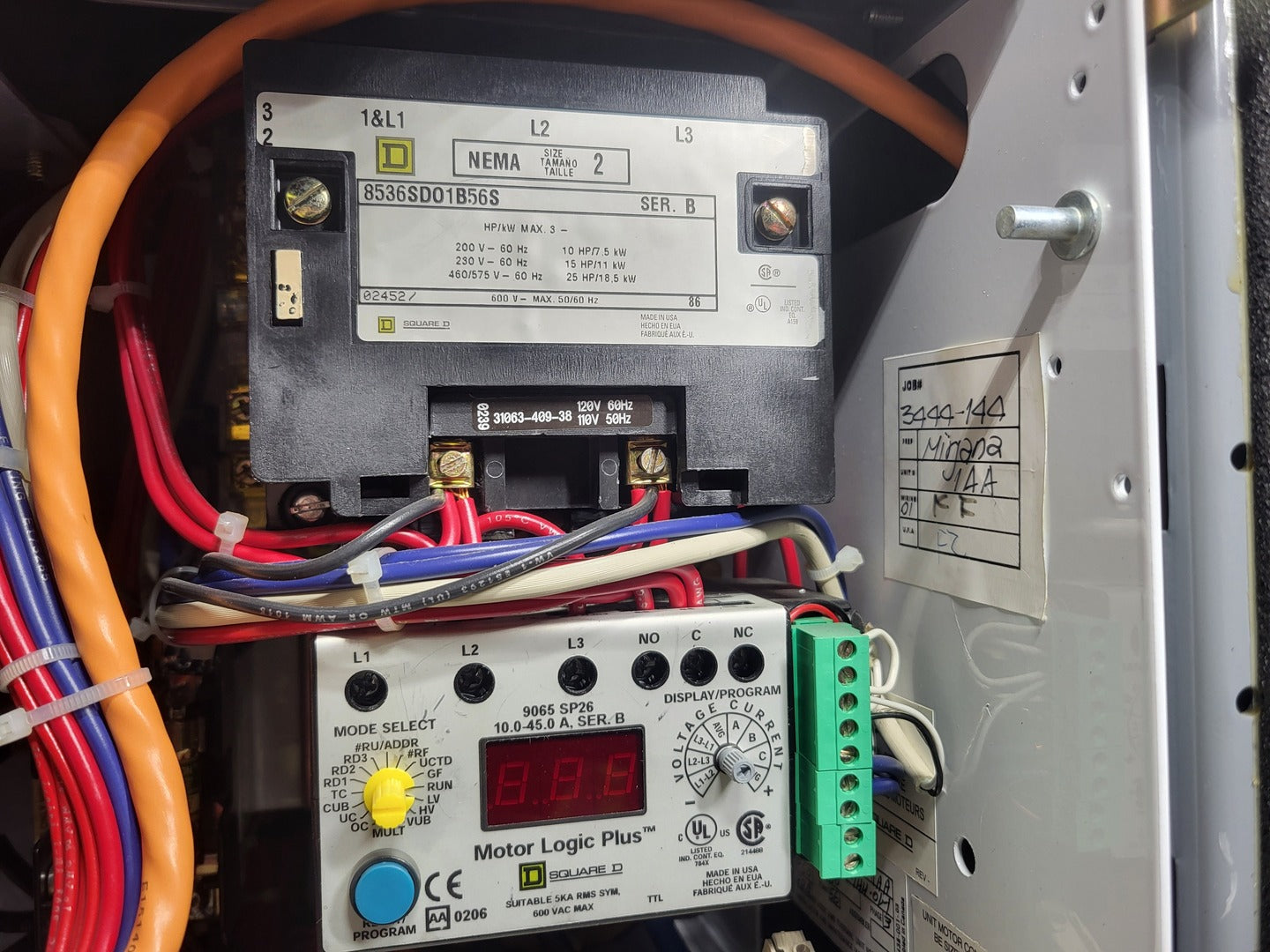

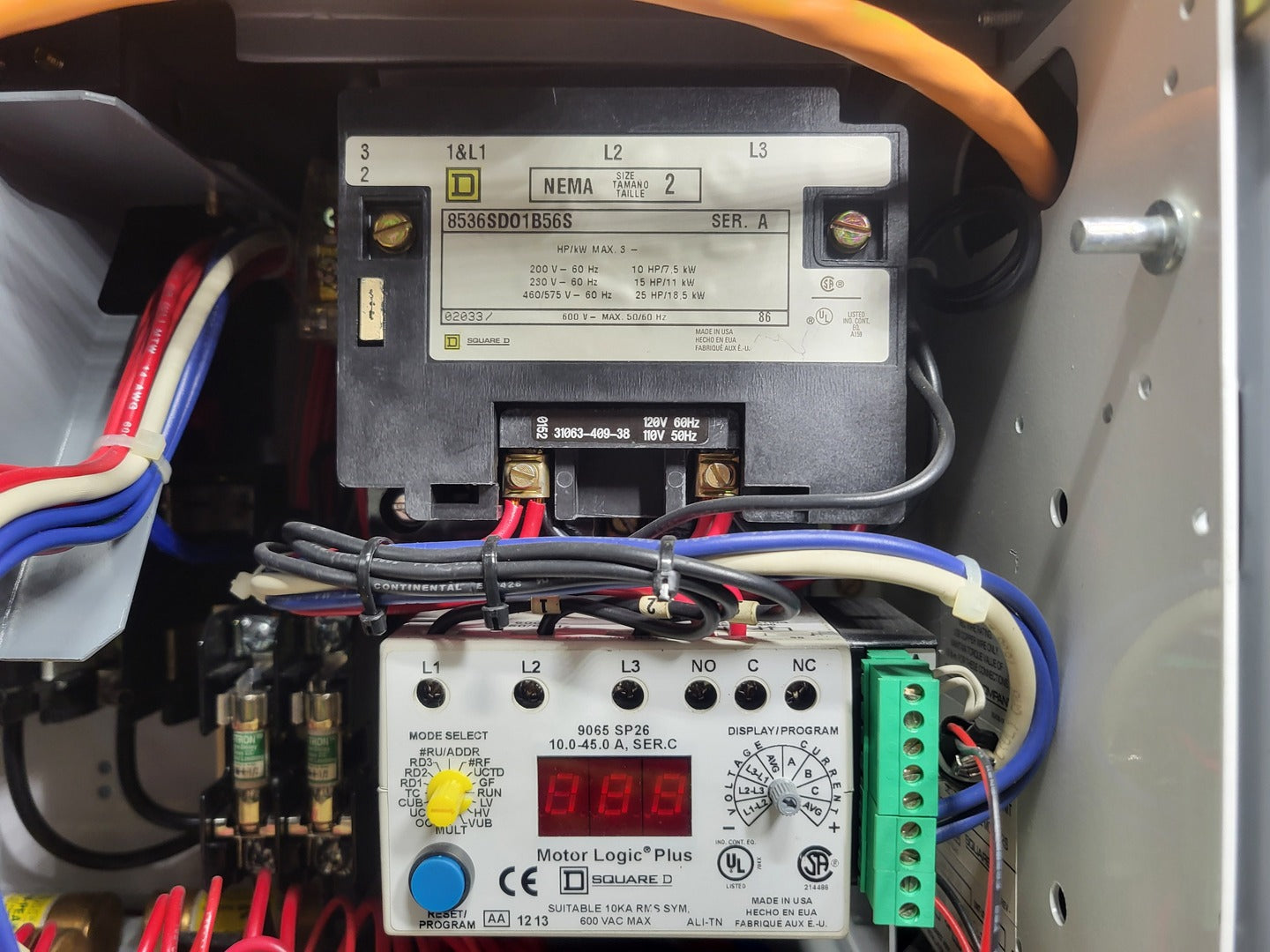

  1. Square D 8536SDO1B56S, NEMA Size 2 contactor, 25 HP @ 460/575V
  2. Square D Motor Logic Plus 9065 SP26, motor protection relay, 10.0-45.0A range, 600VAC max

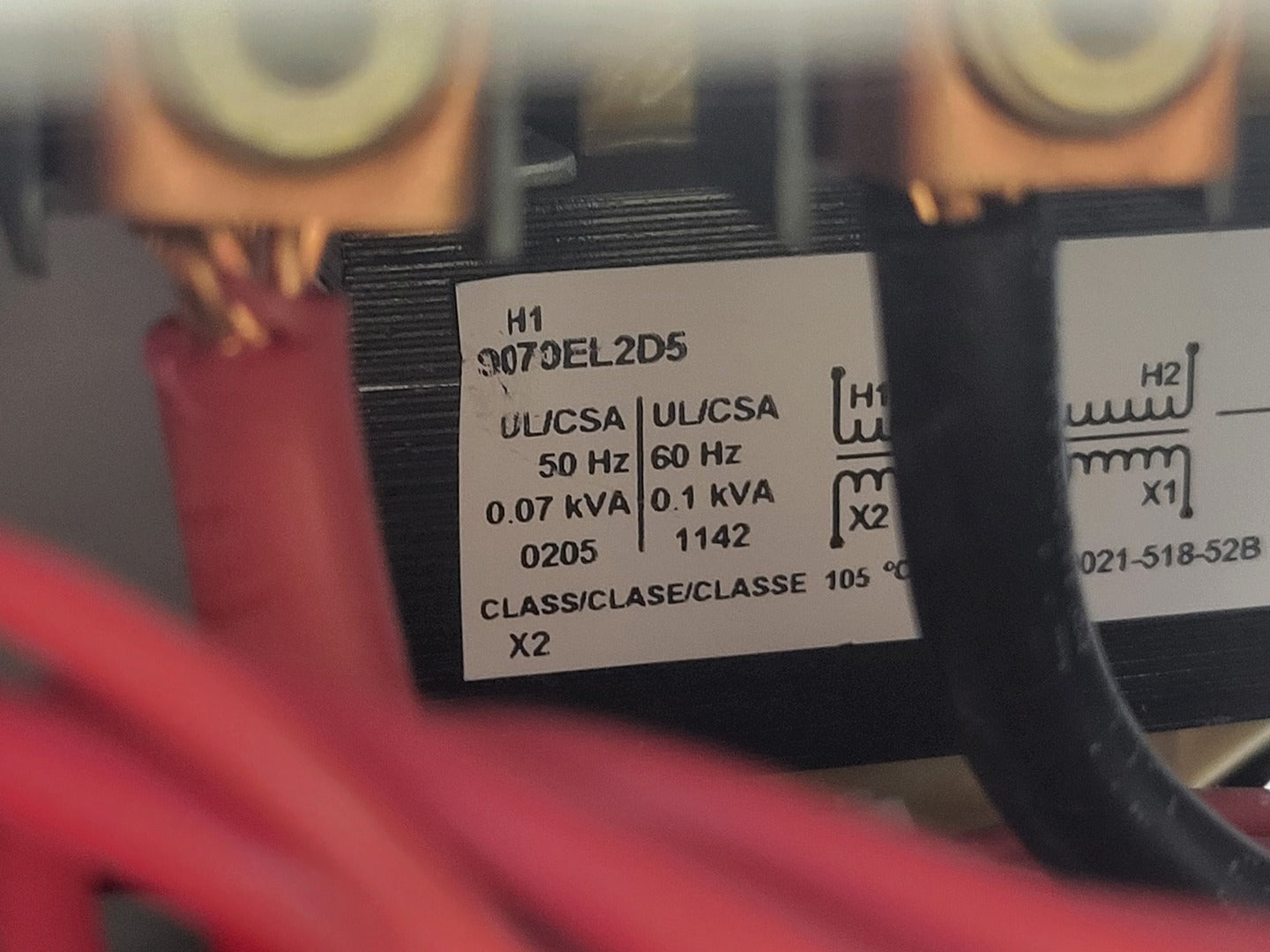

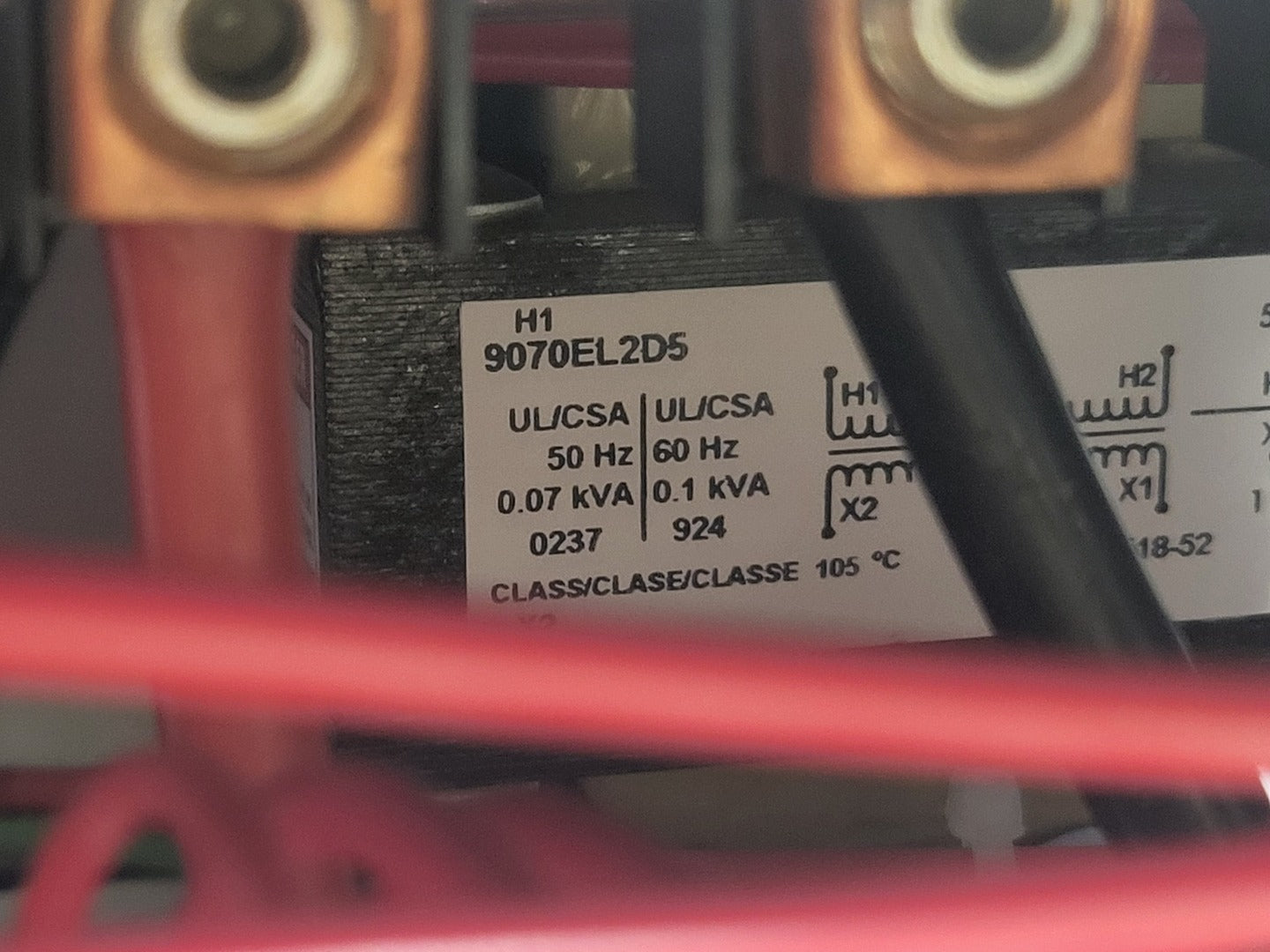

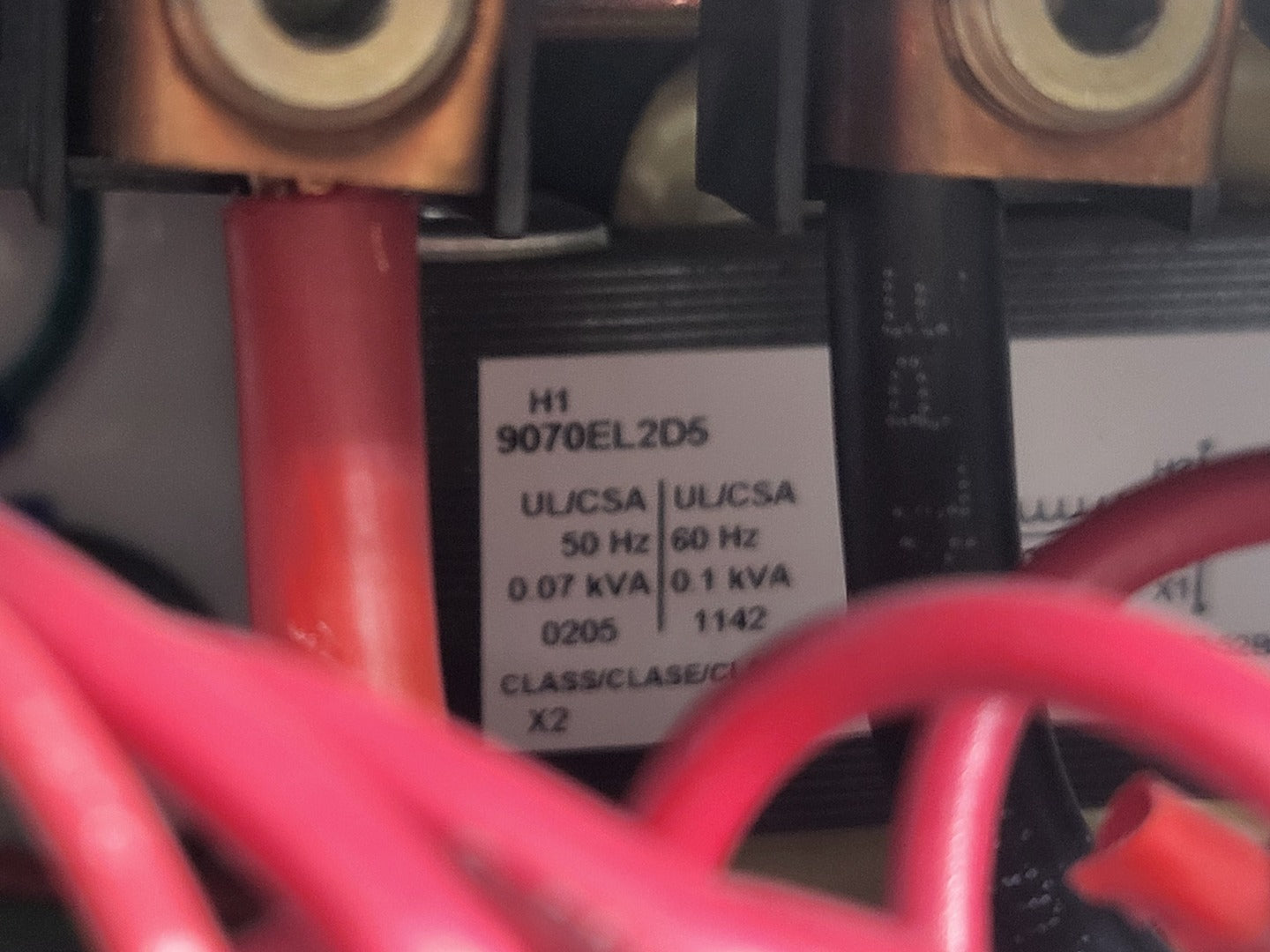

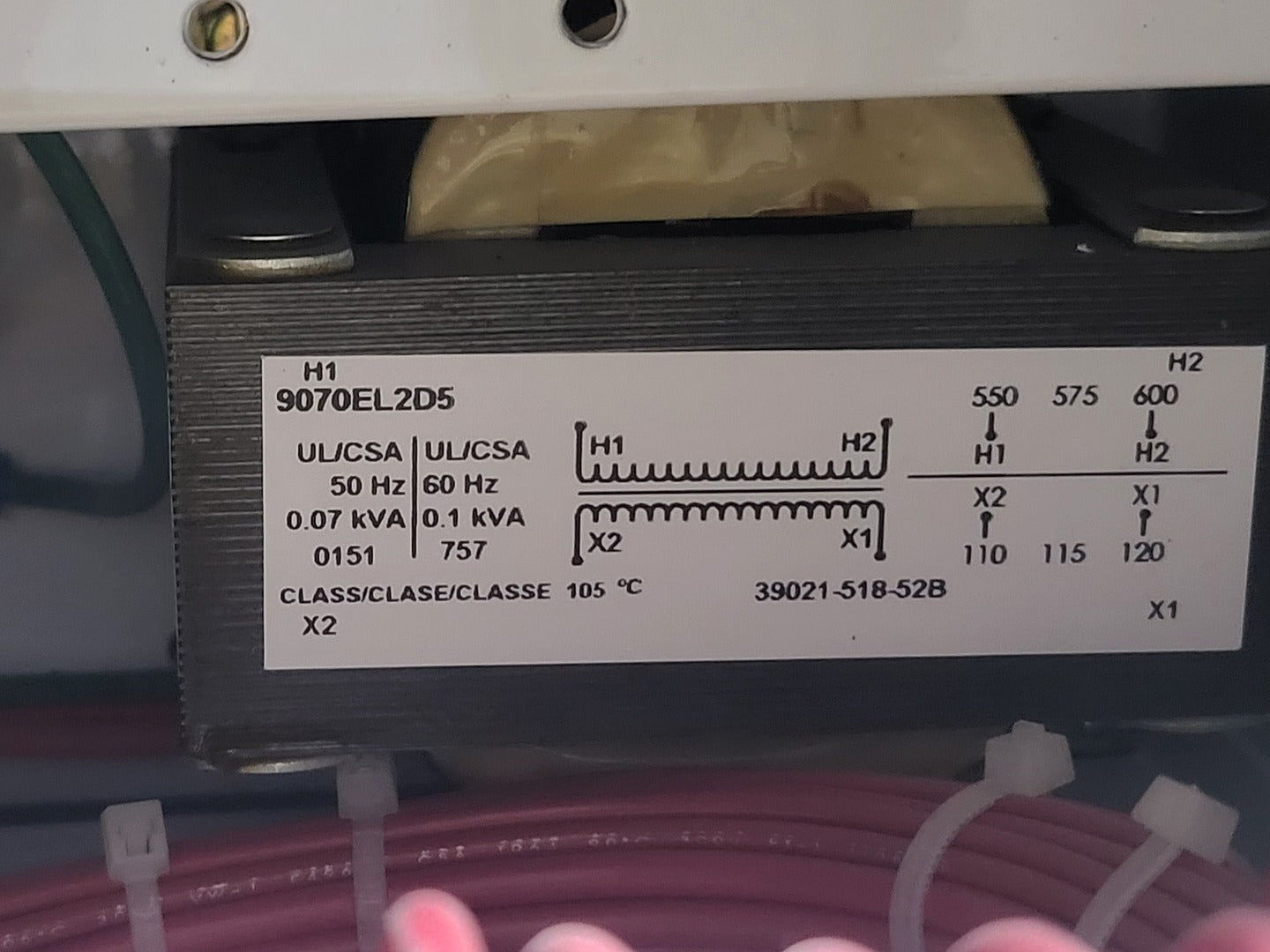

  3. Square D 9070EL2D5, control transformer, 0.07 kVA @ 50Hz / 0.1 kVA @ 60Hz

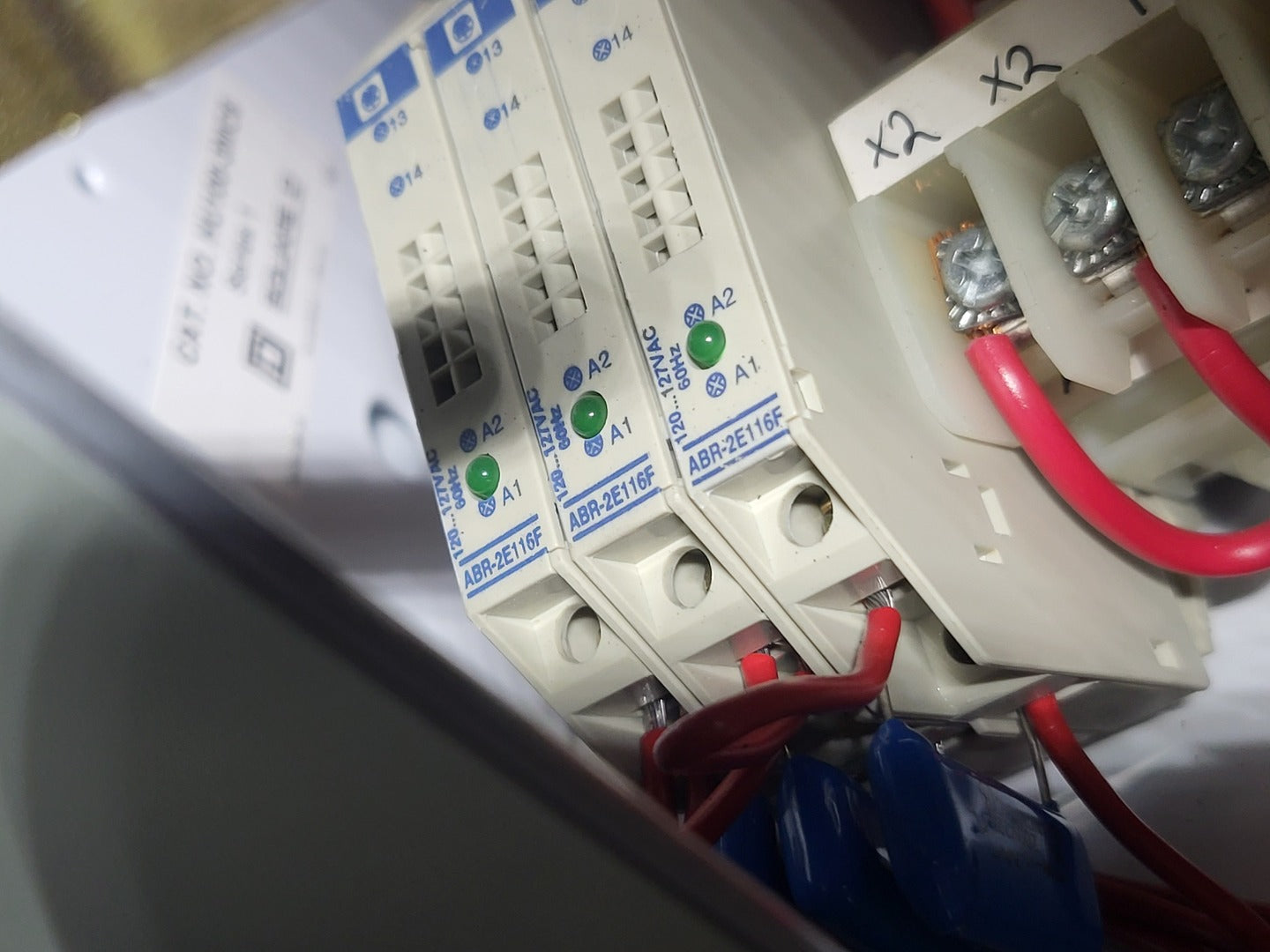

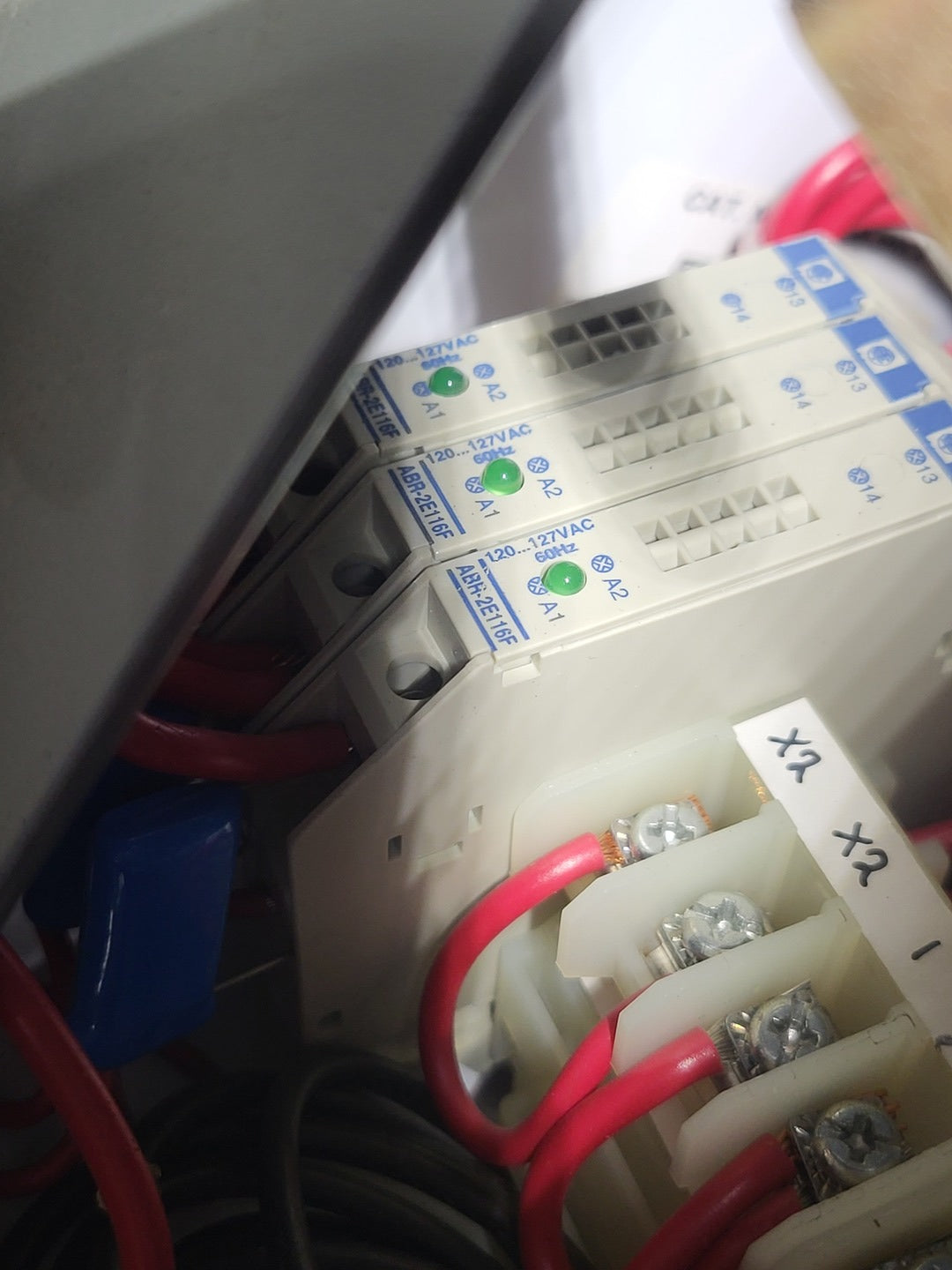

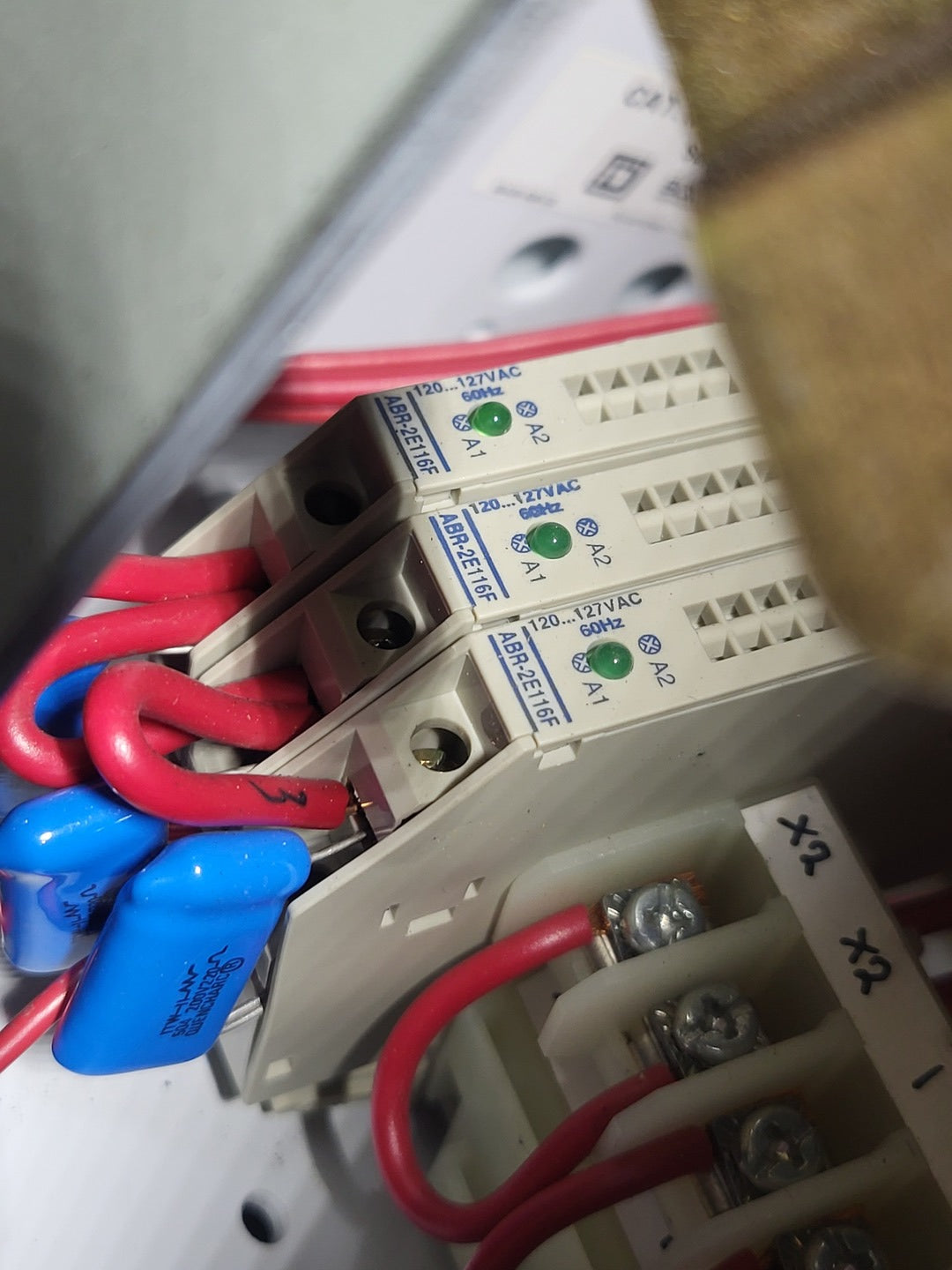

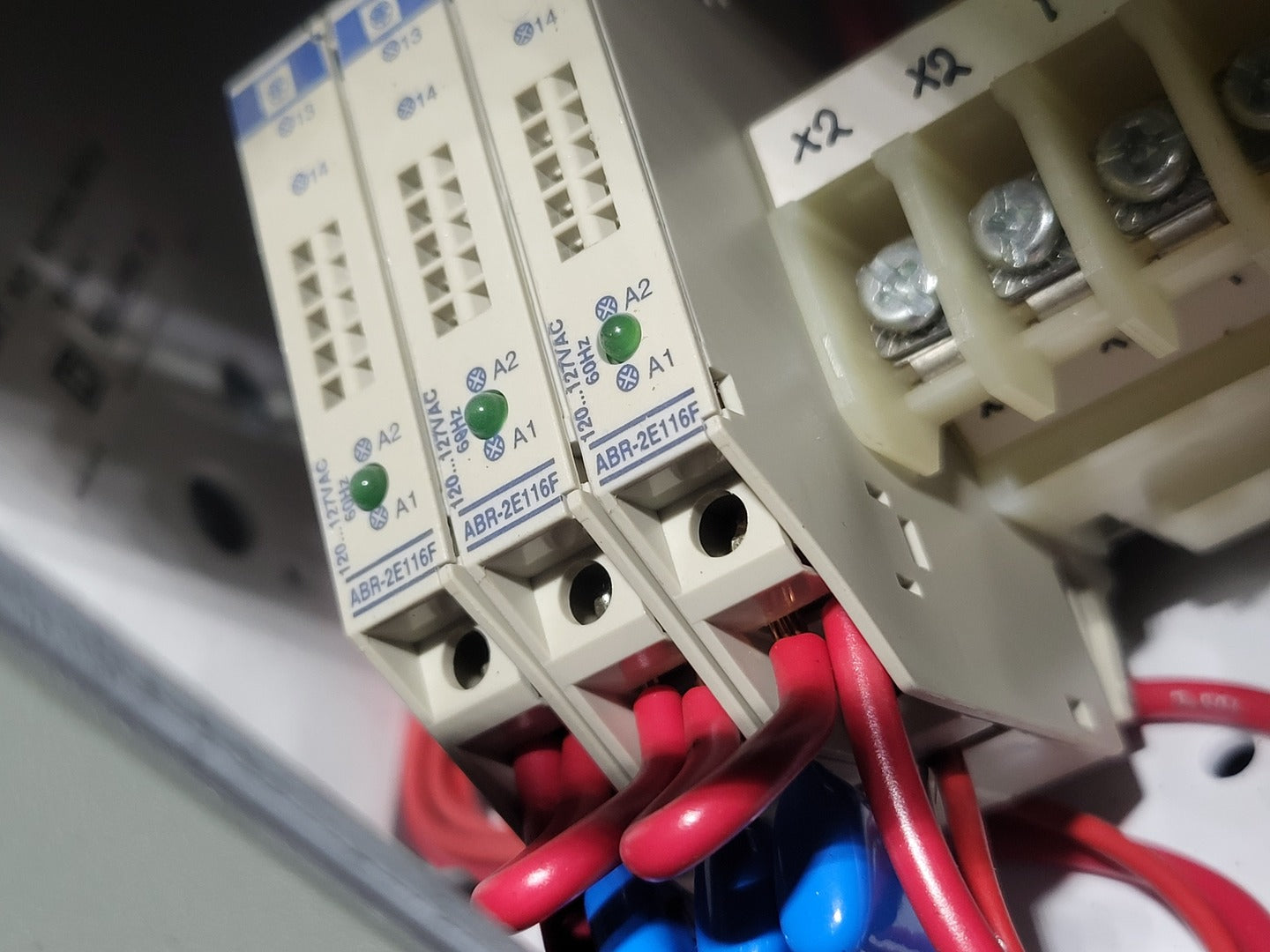

  4. Telemecanique ABR-2E116F slim relay module, 120-127VAC coil

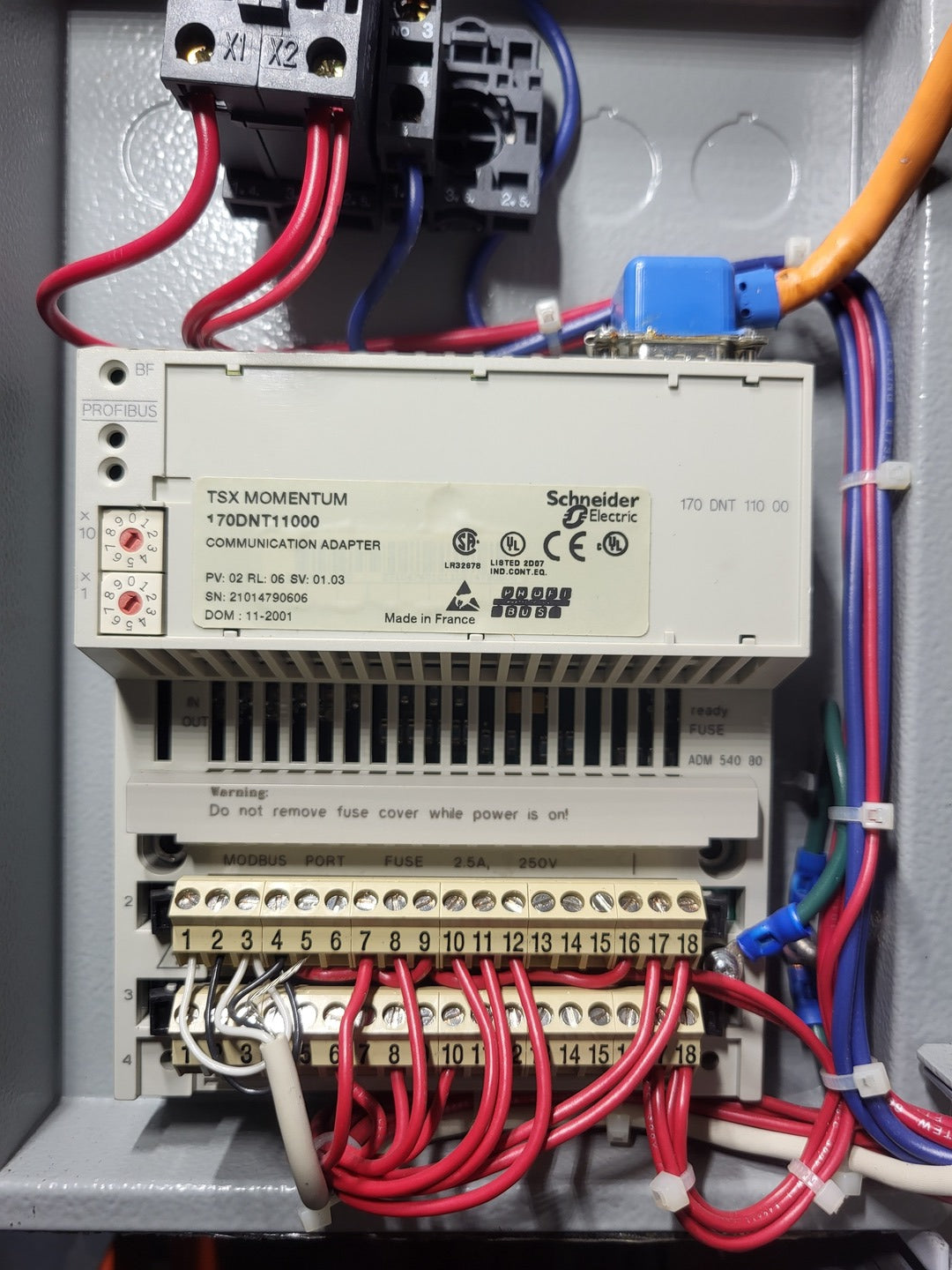

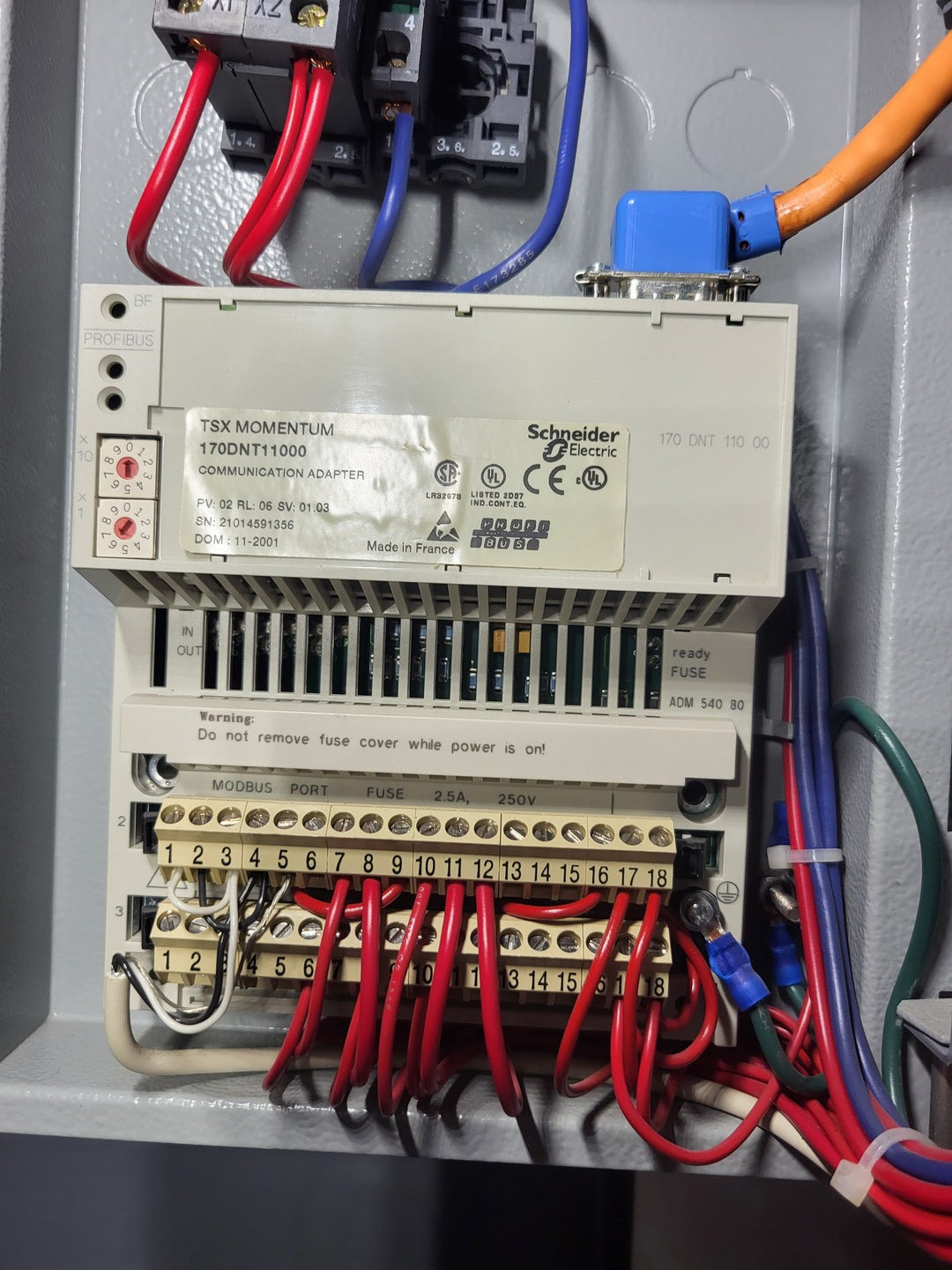

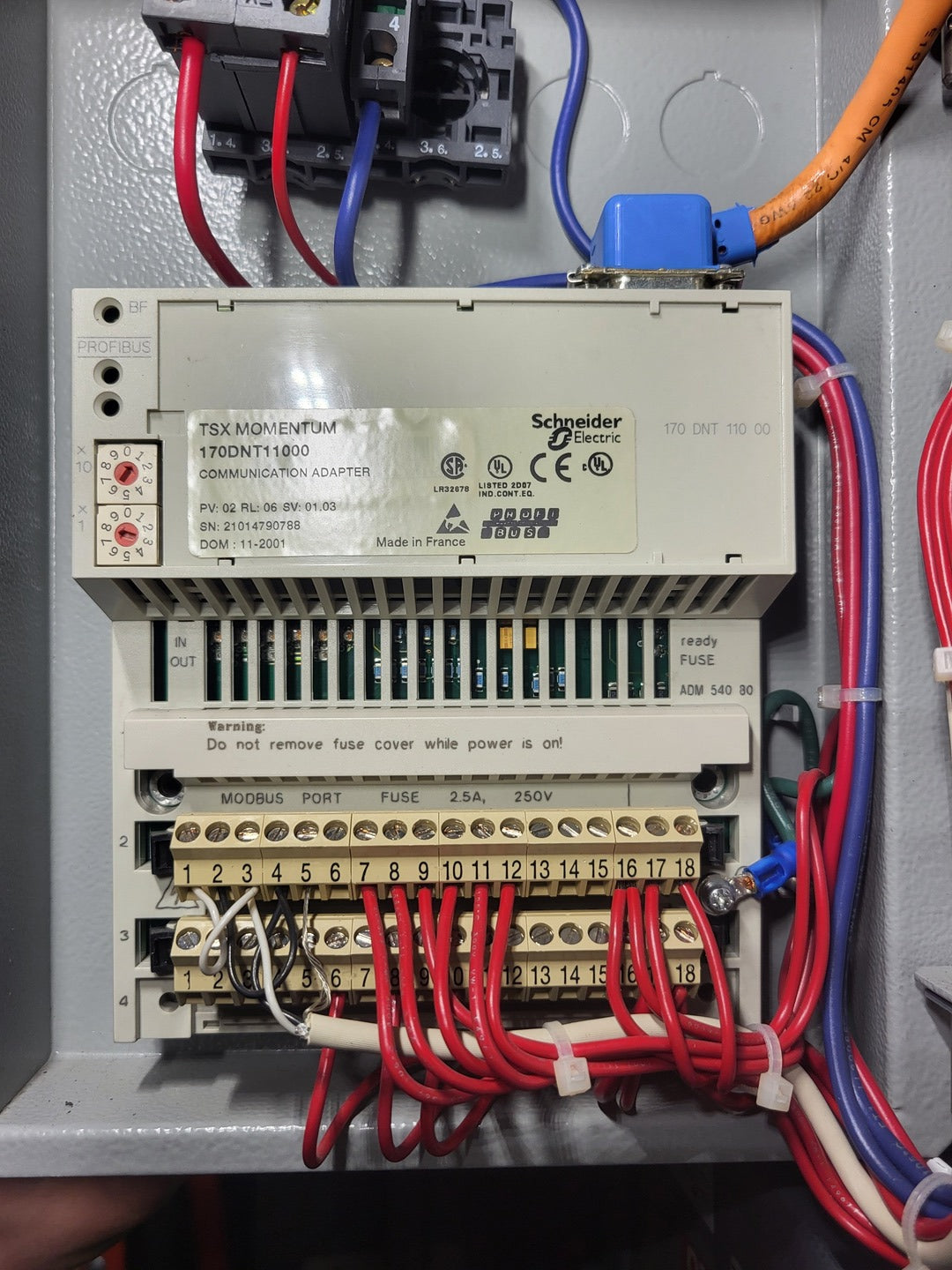

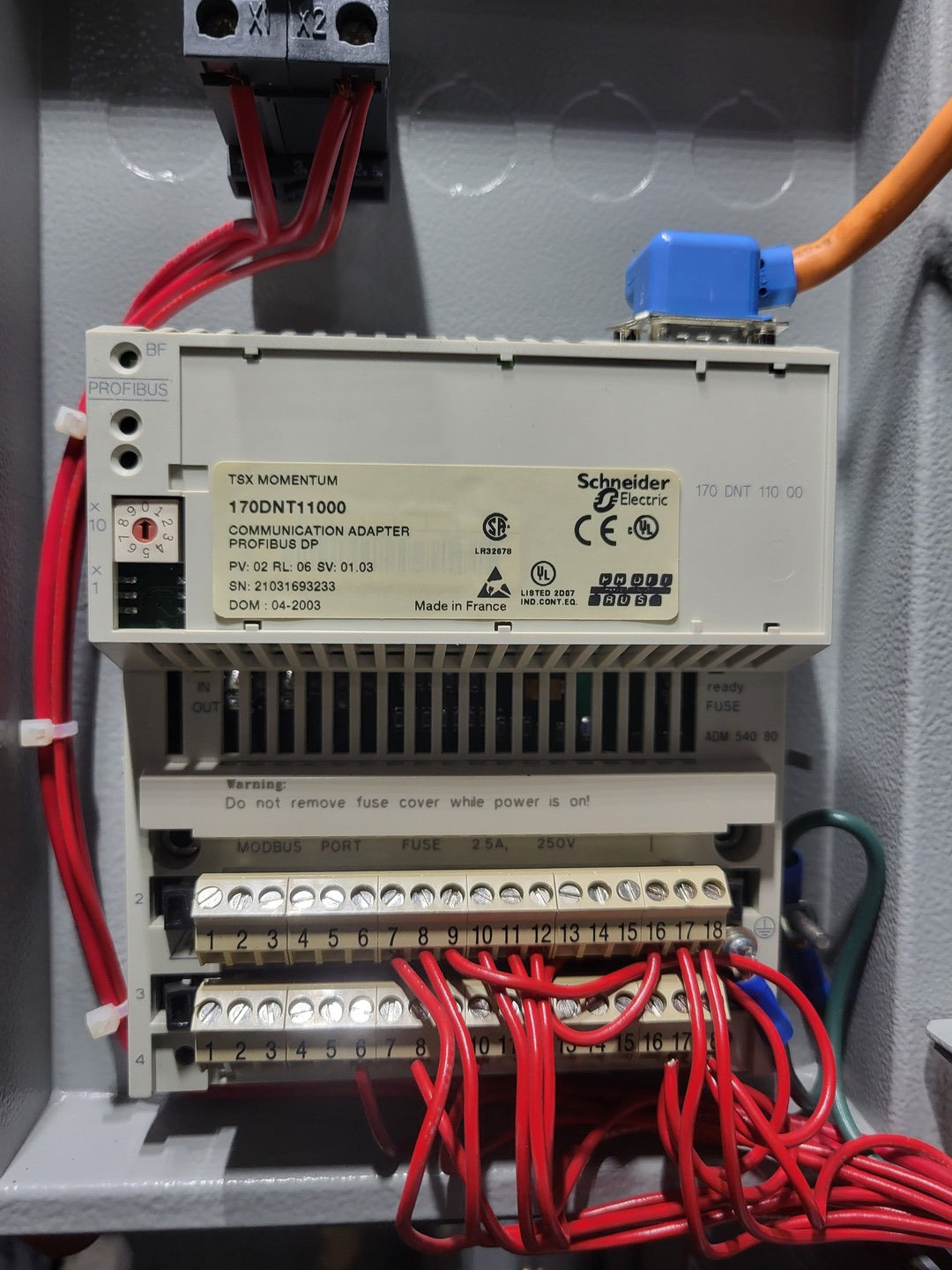

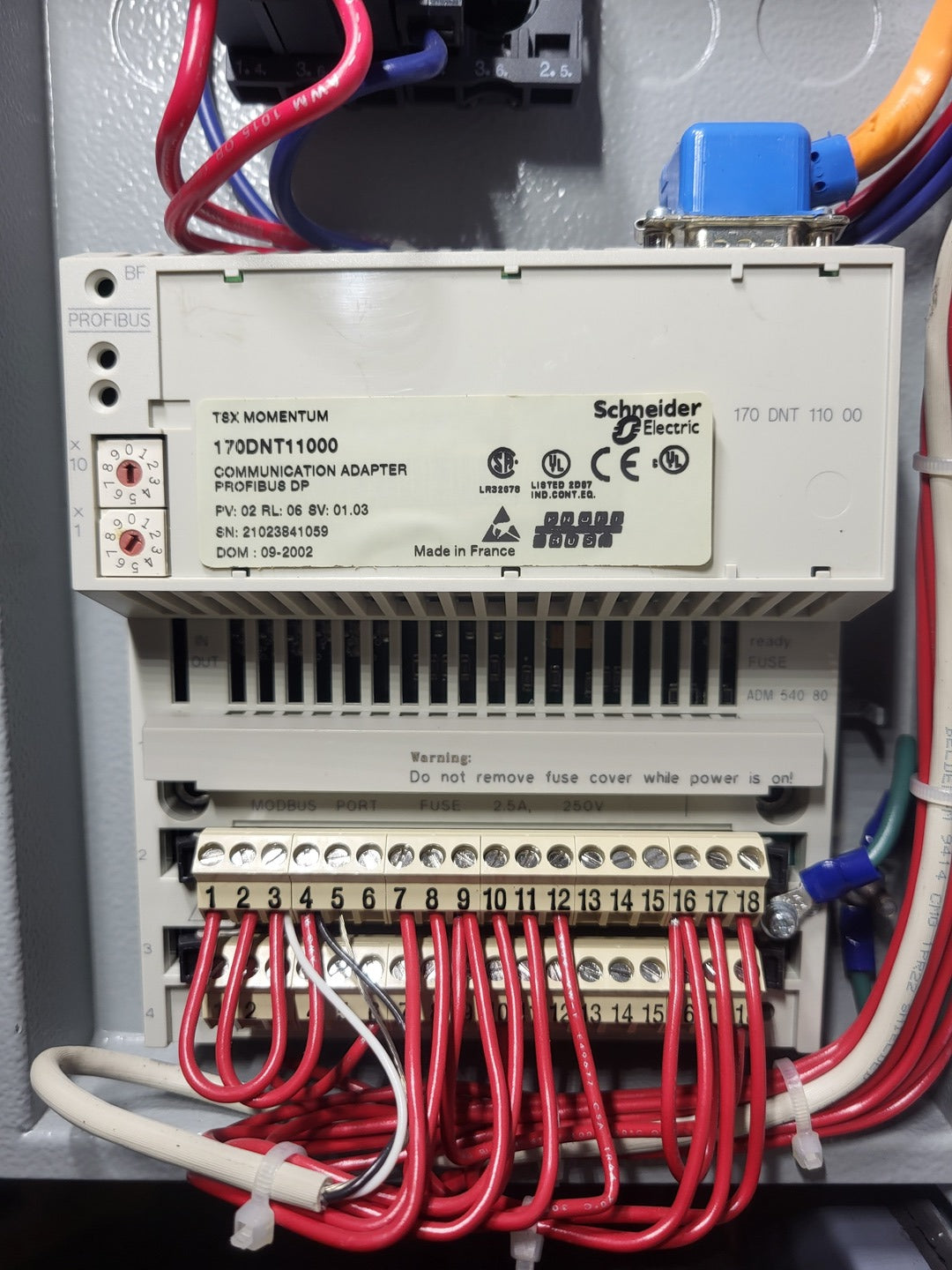

  5. Schneider Electric TSX Momentum 170DNT11000 communication adapter / PROFIBUS DP module

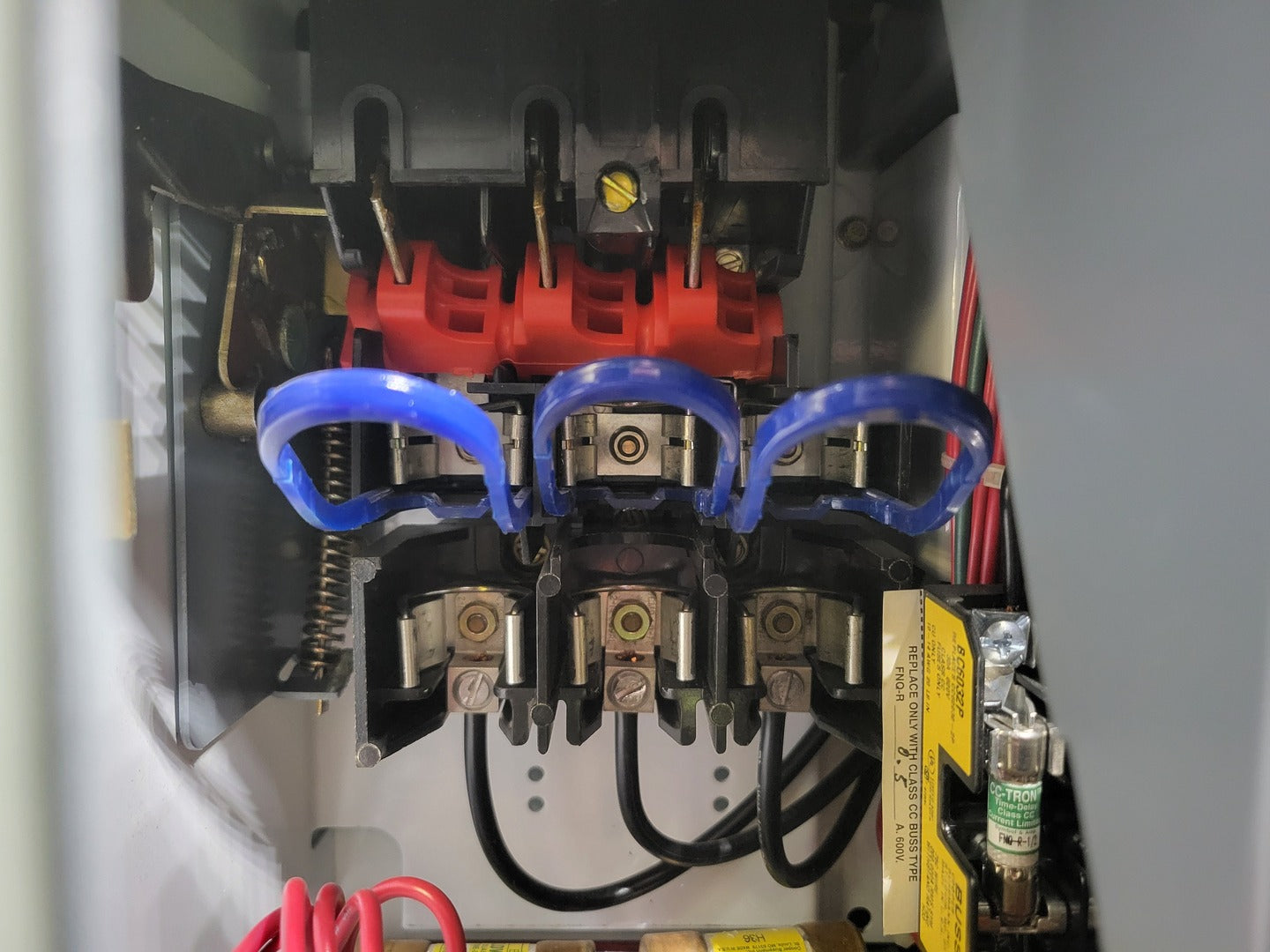

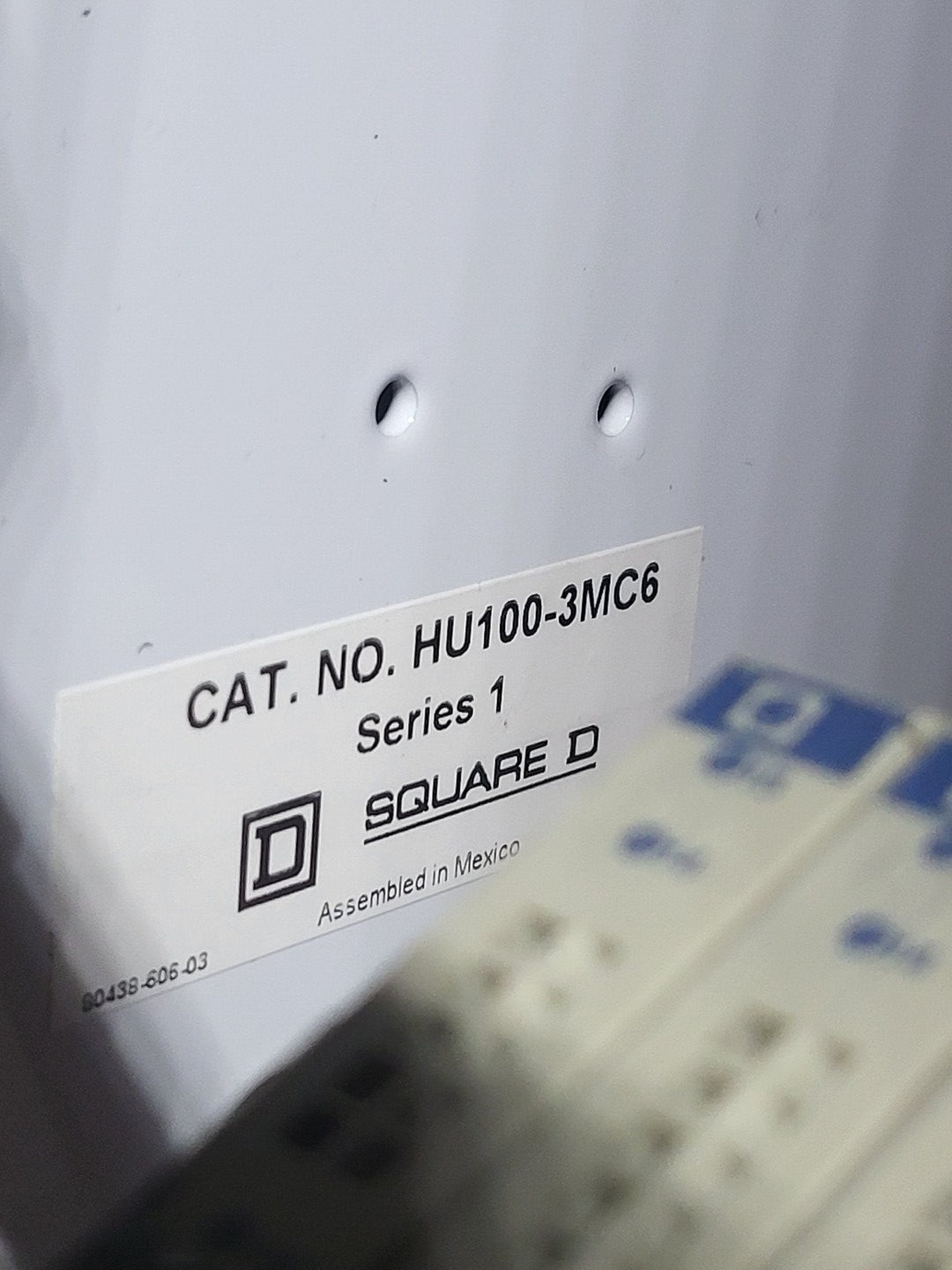

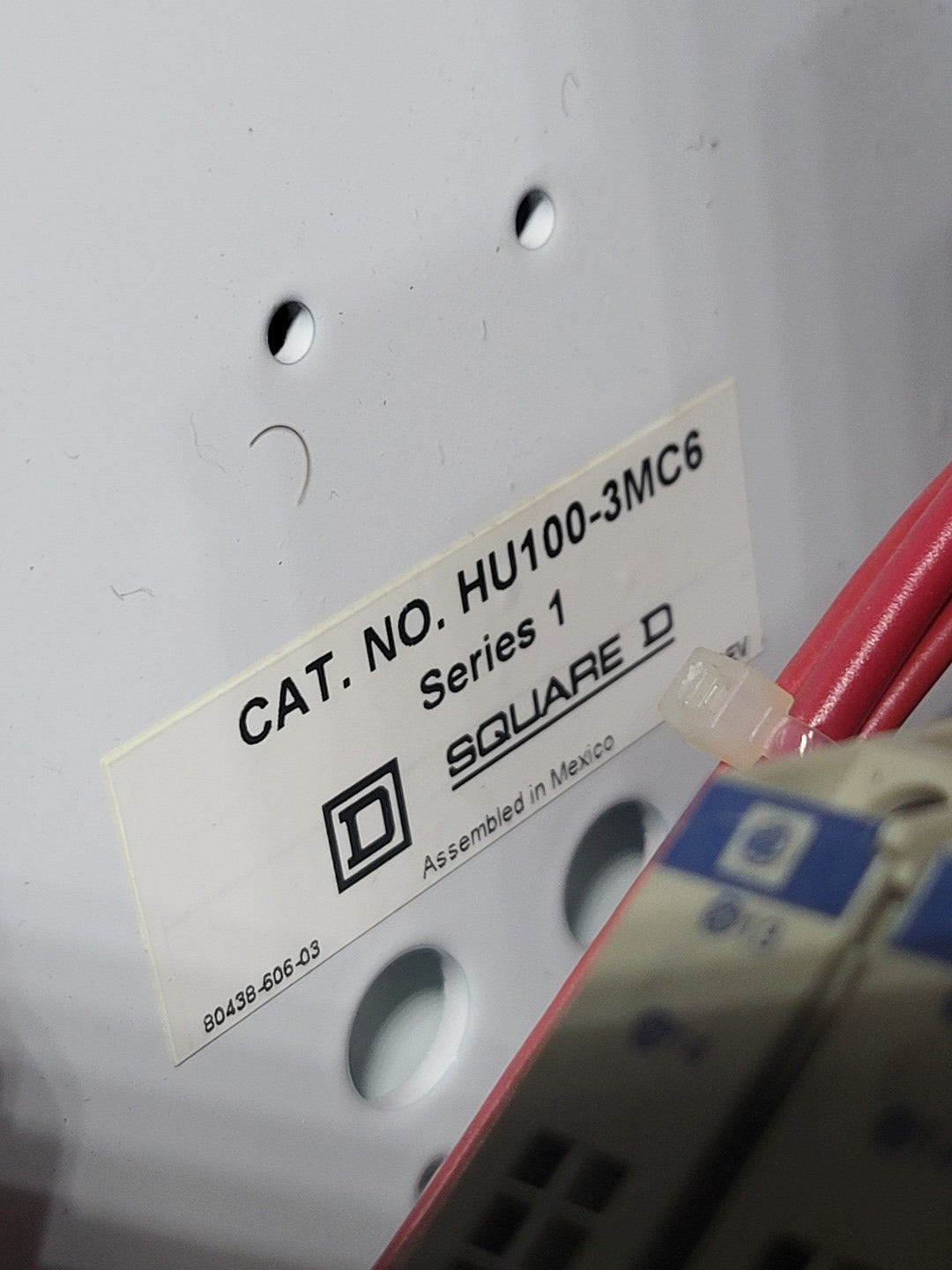

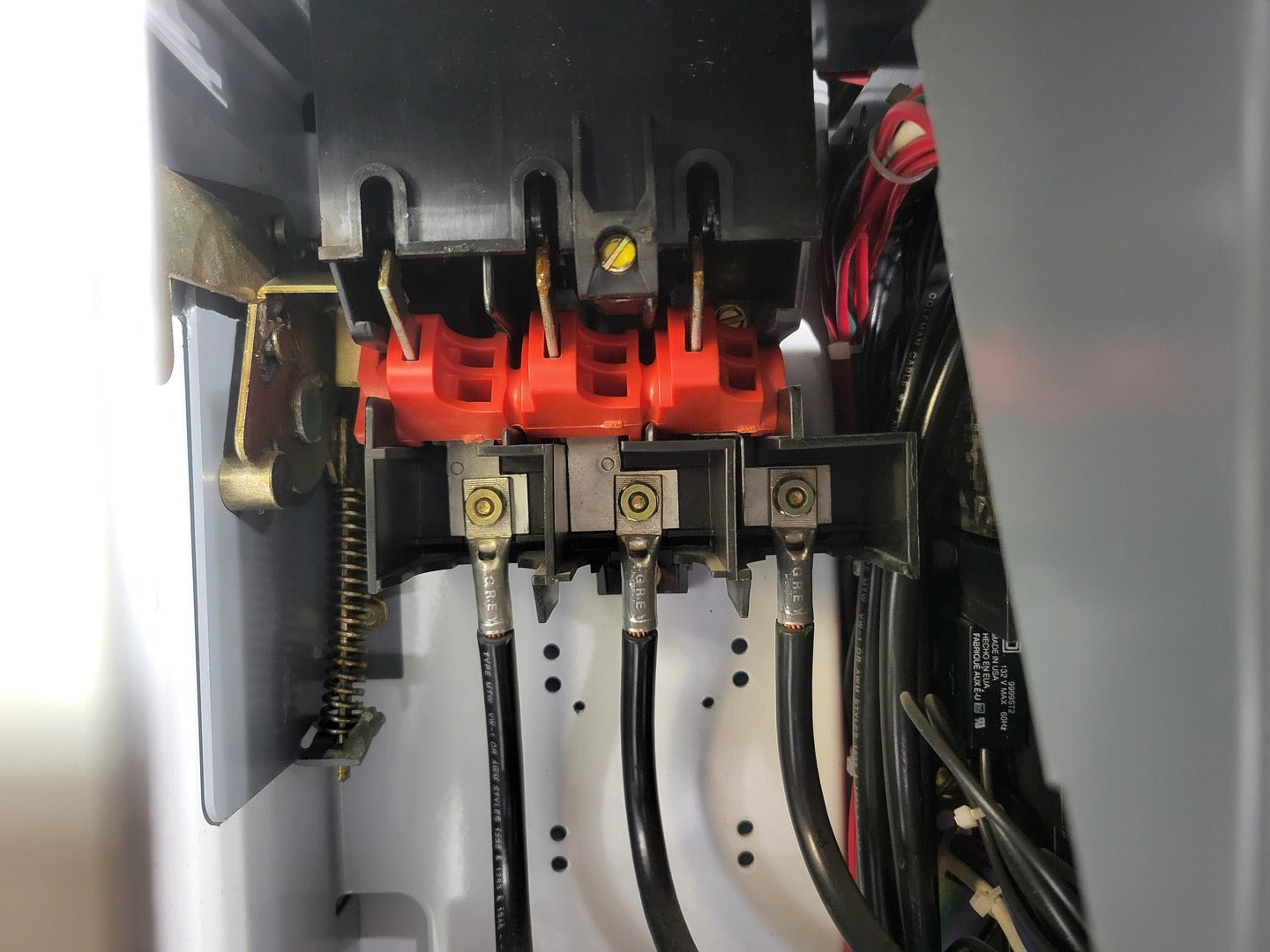

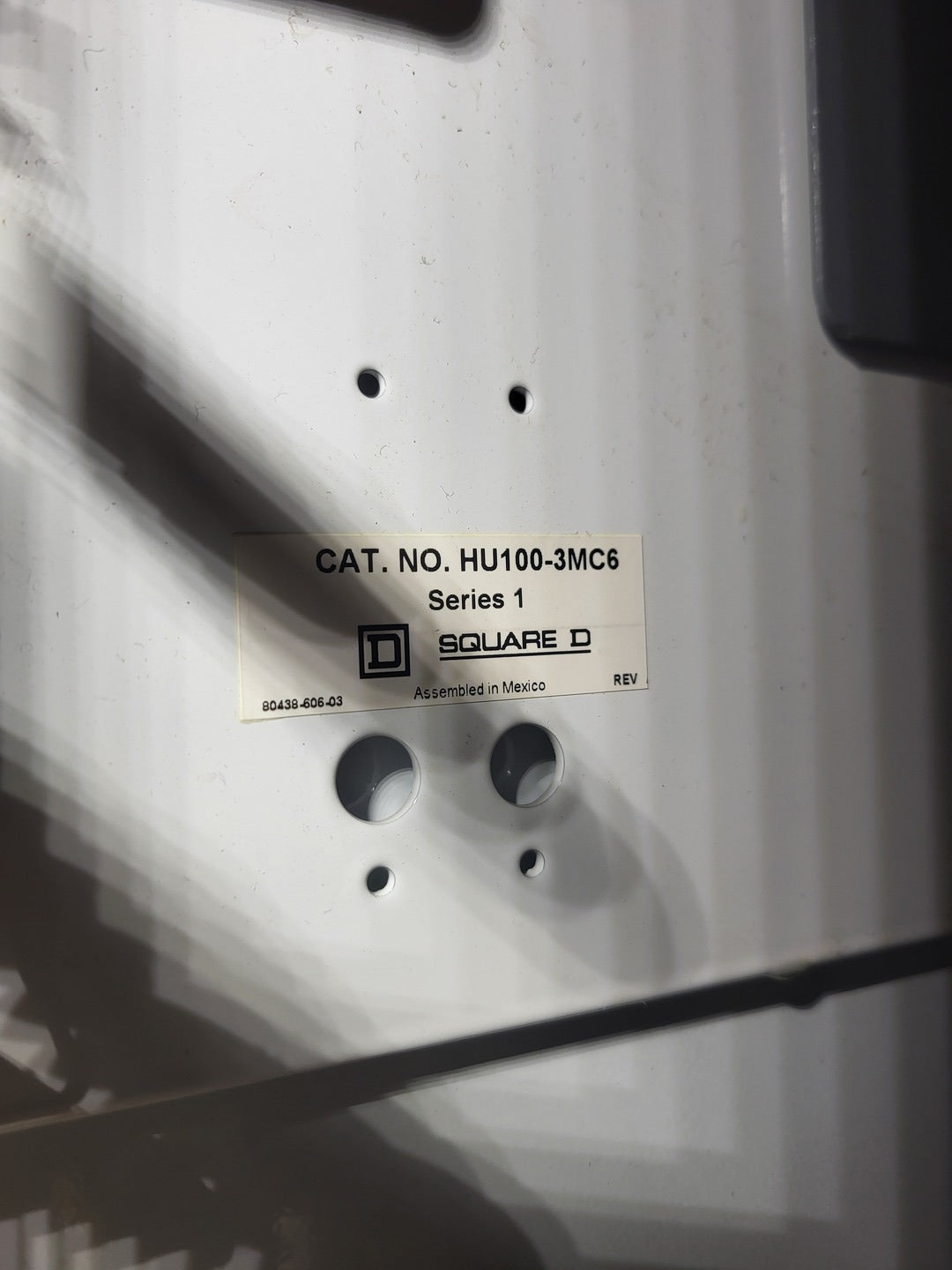

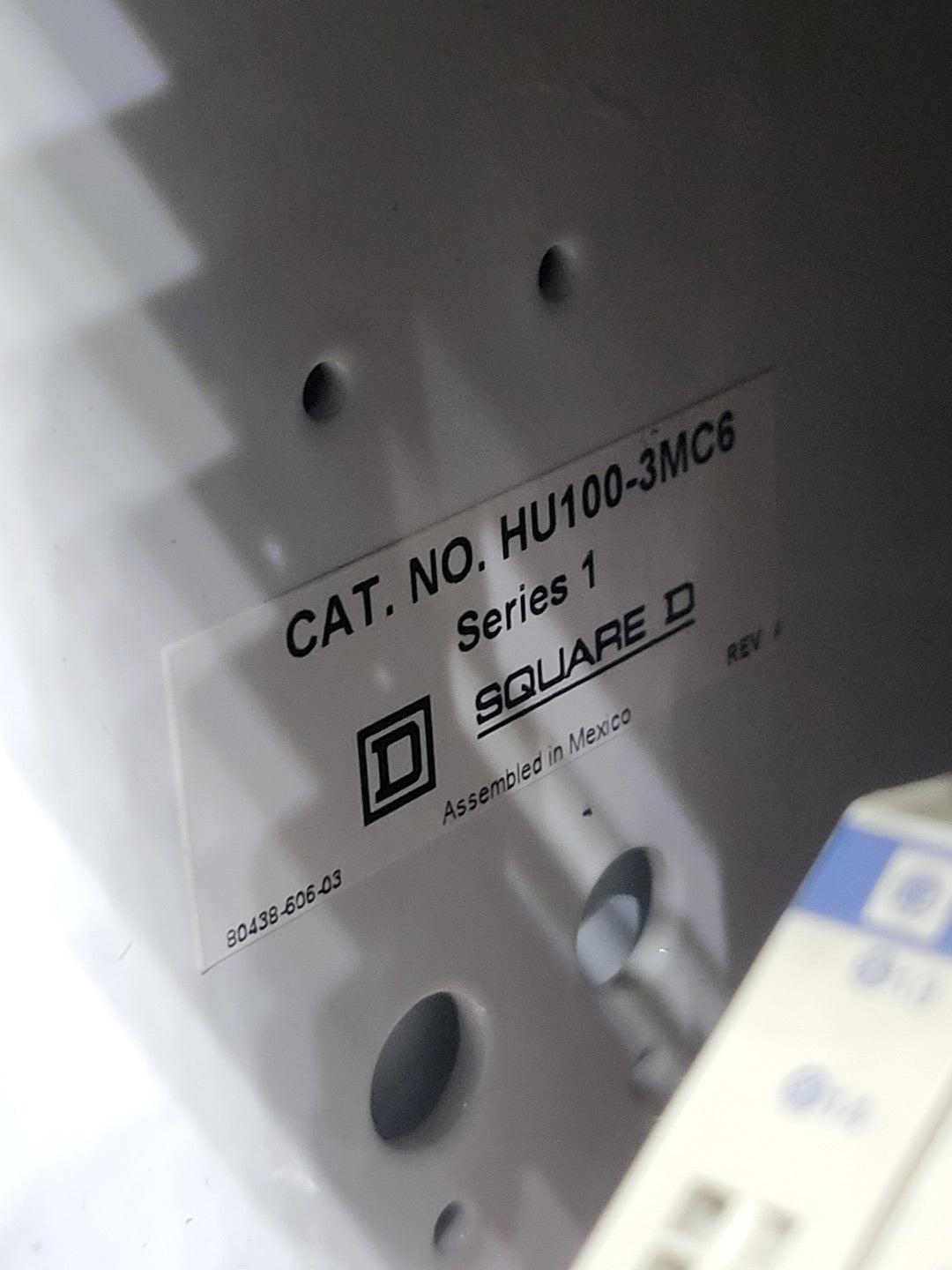

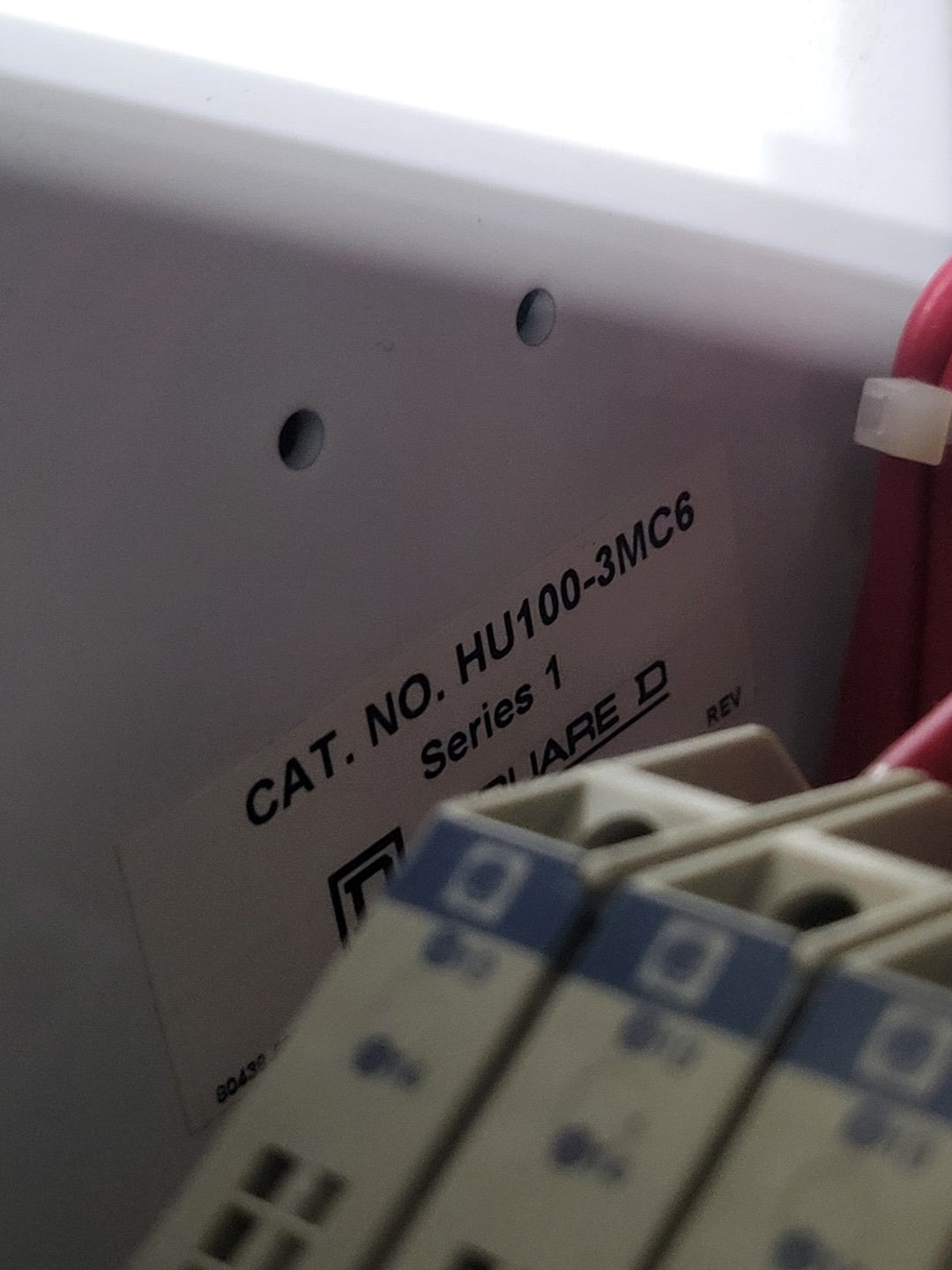

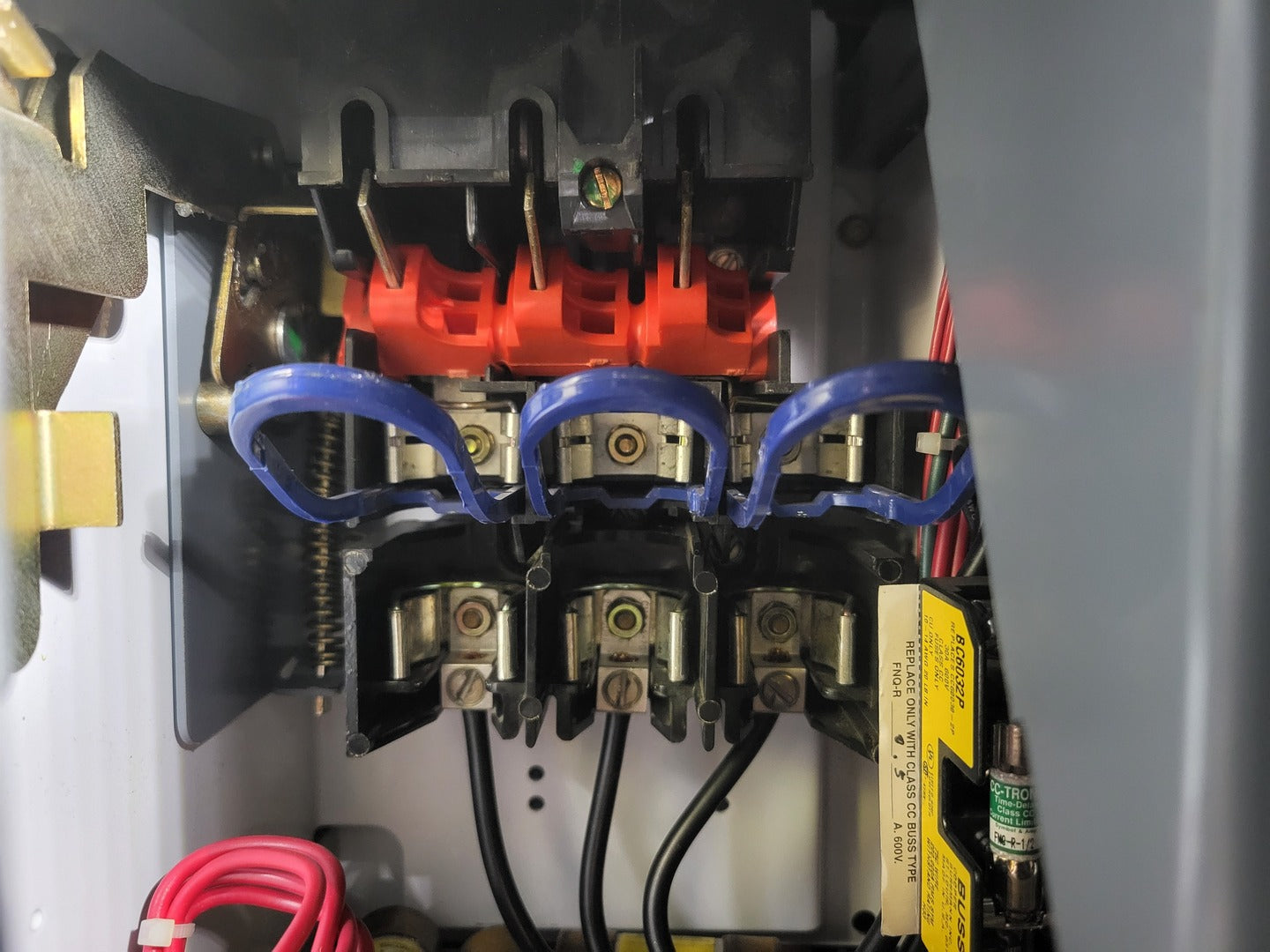

  6. Square D HU100-3MC6, Series 1, 100A MCC bucket disconnect unit

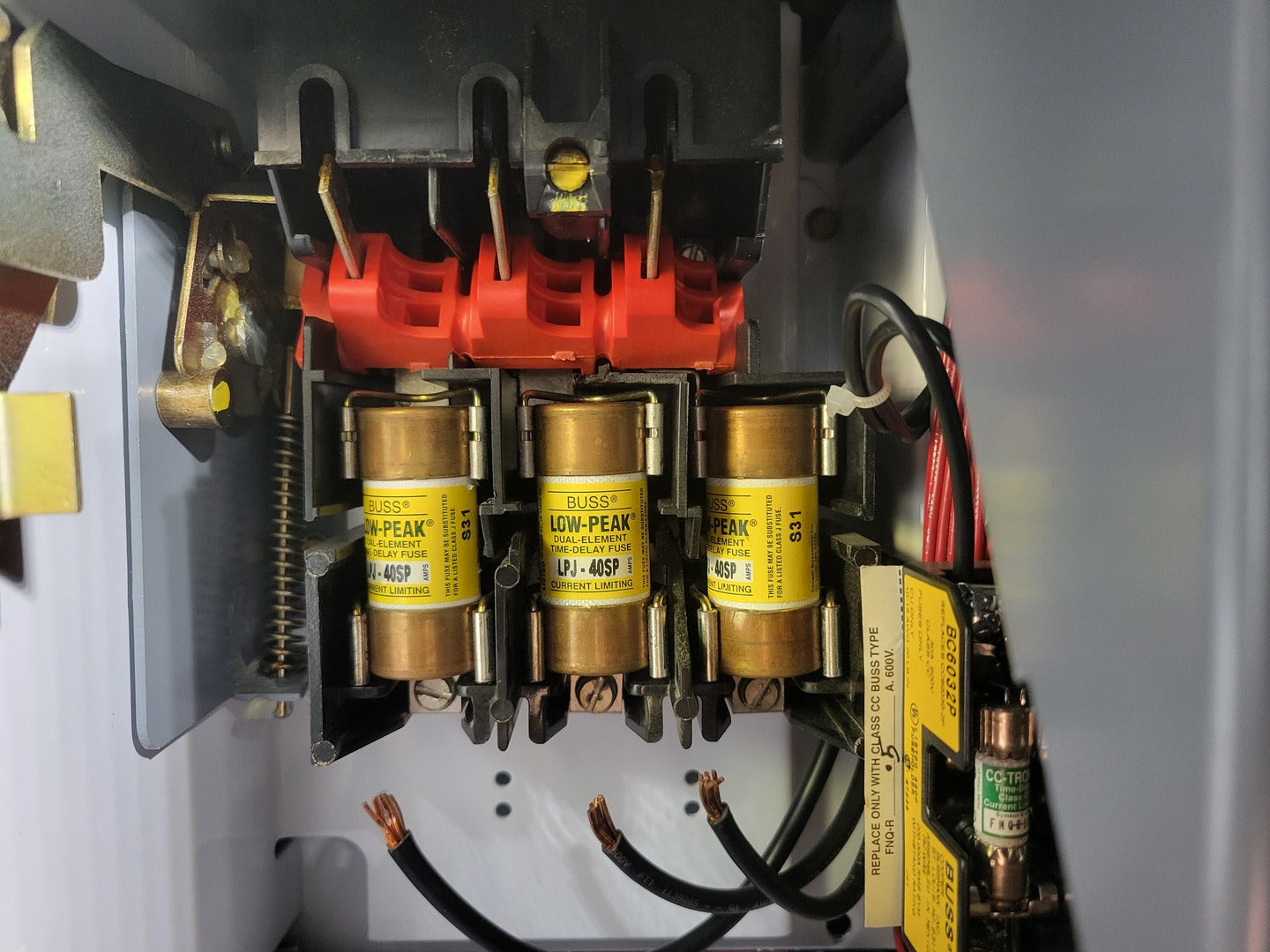

  7. 3 x Bussmann Low-Peak fuses LPJ-40SP

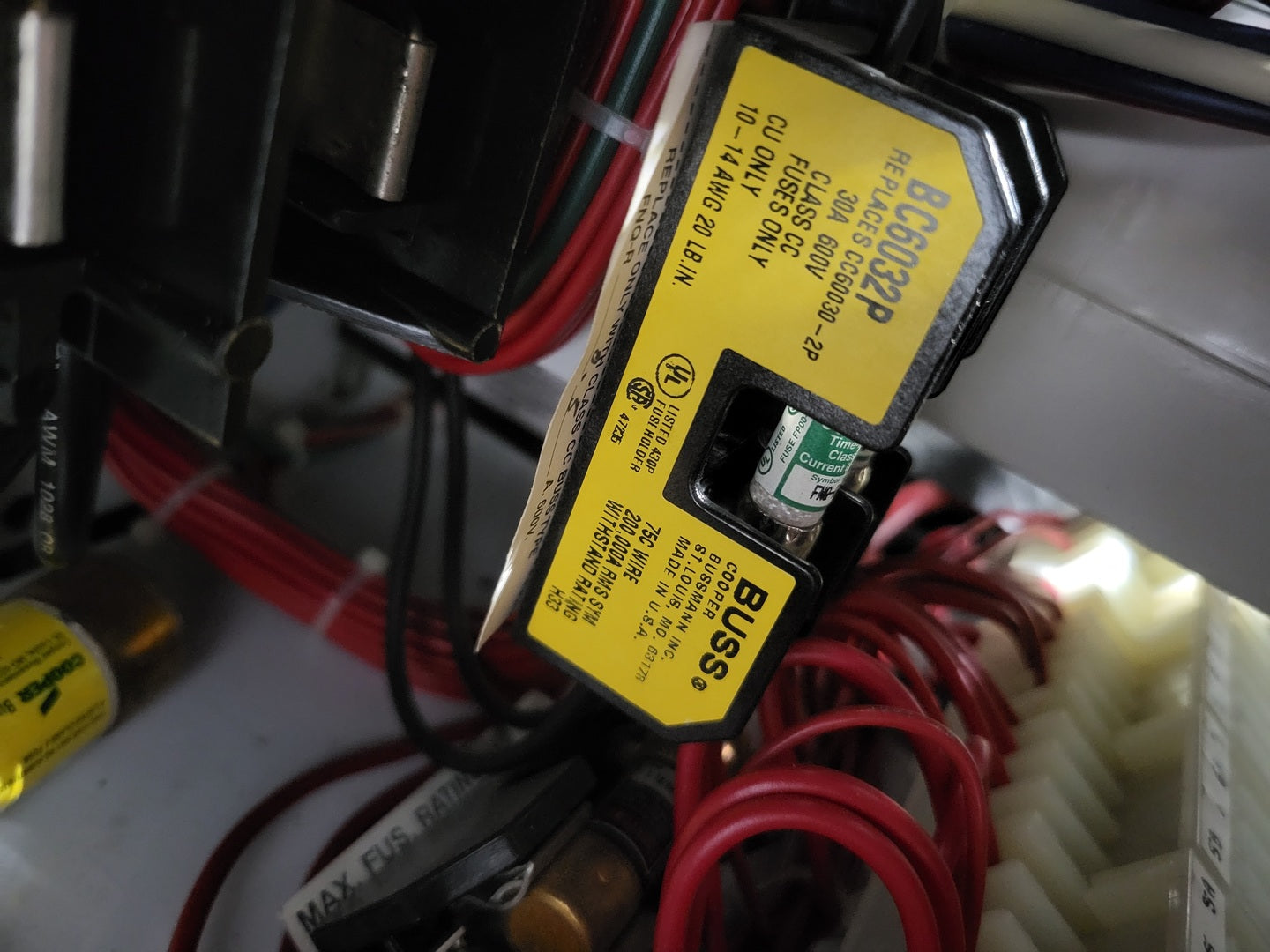

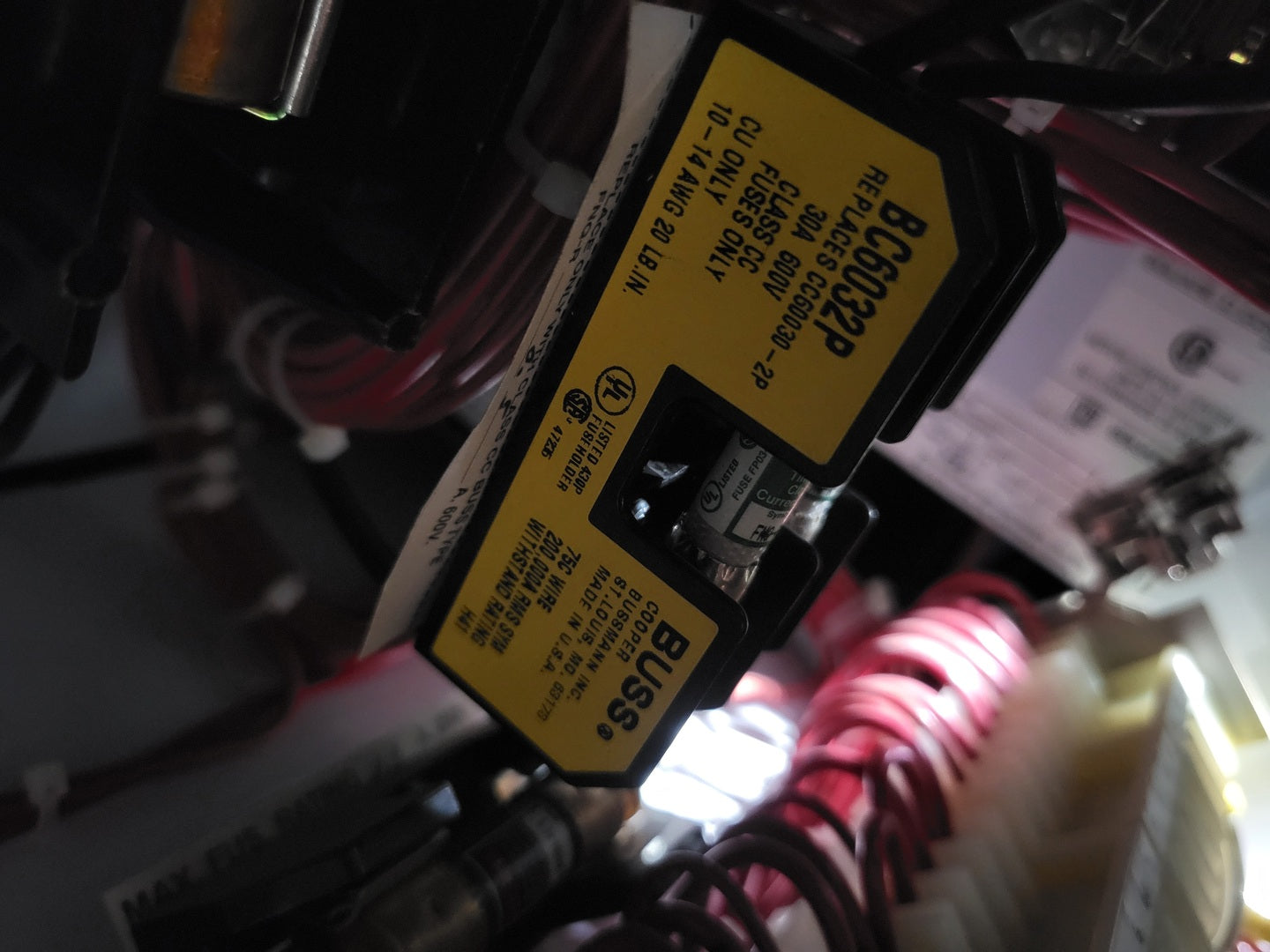

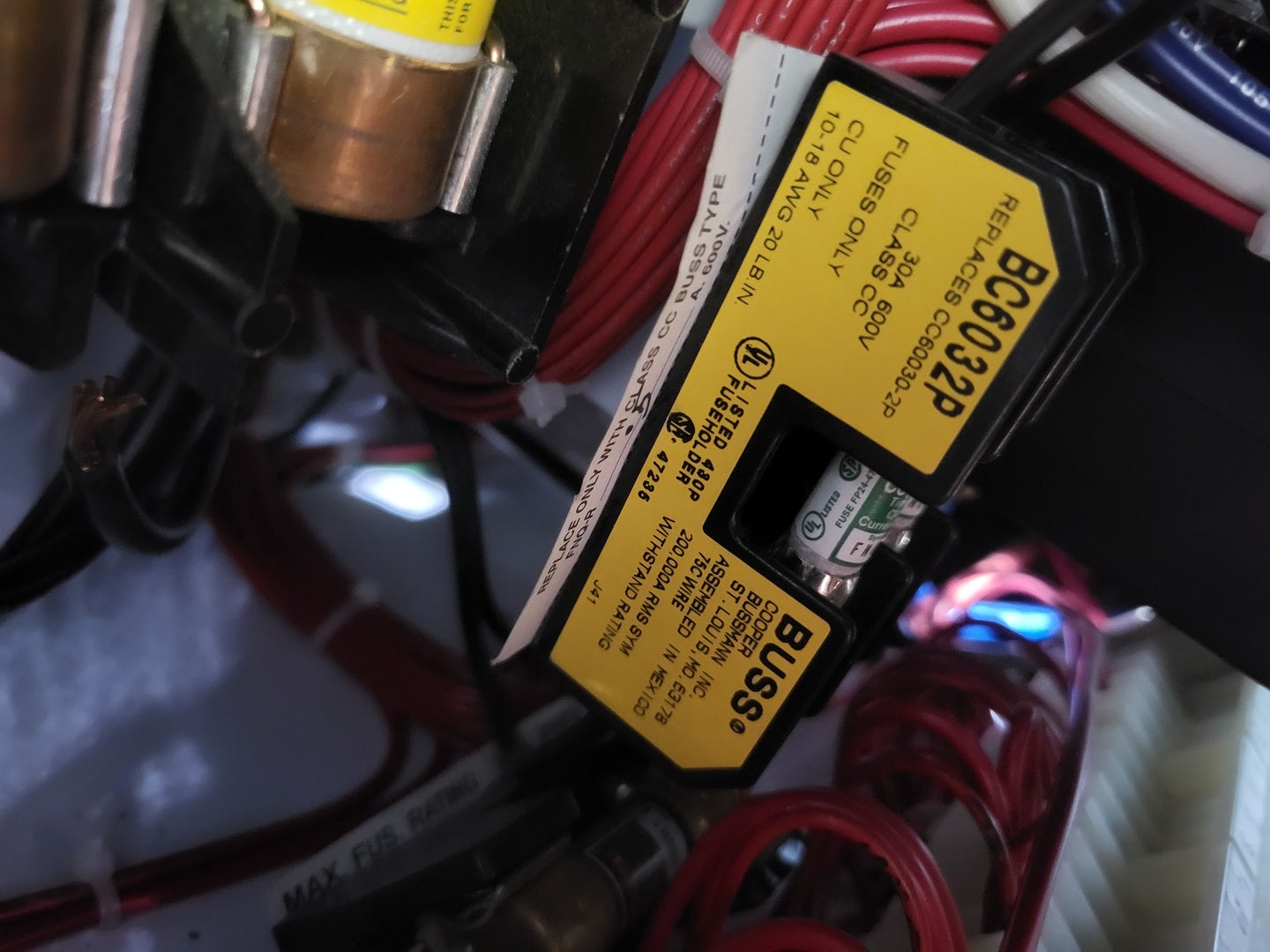

  8. 2 x Bussmann CC-Tron fuse FNQ-R series

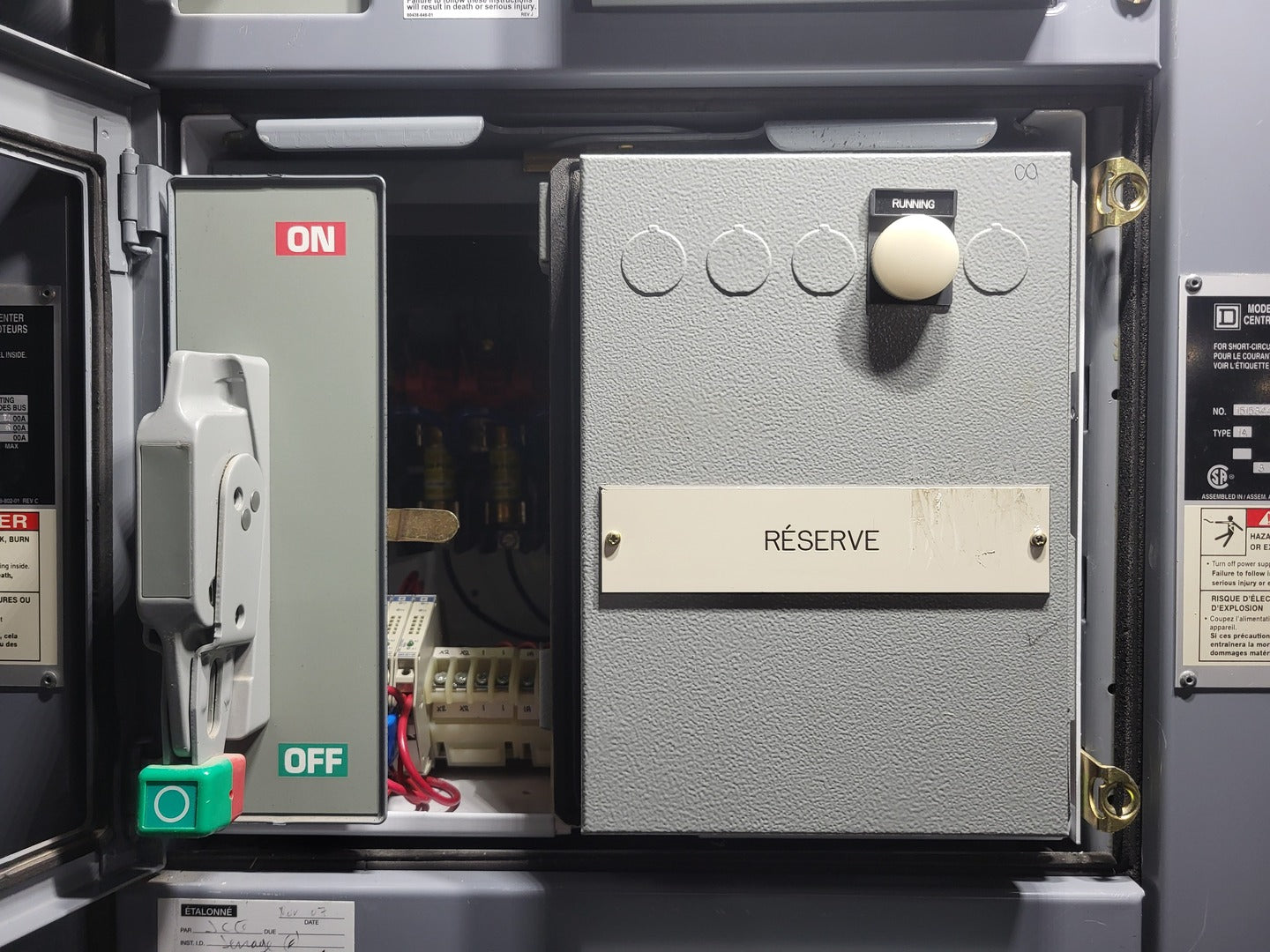

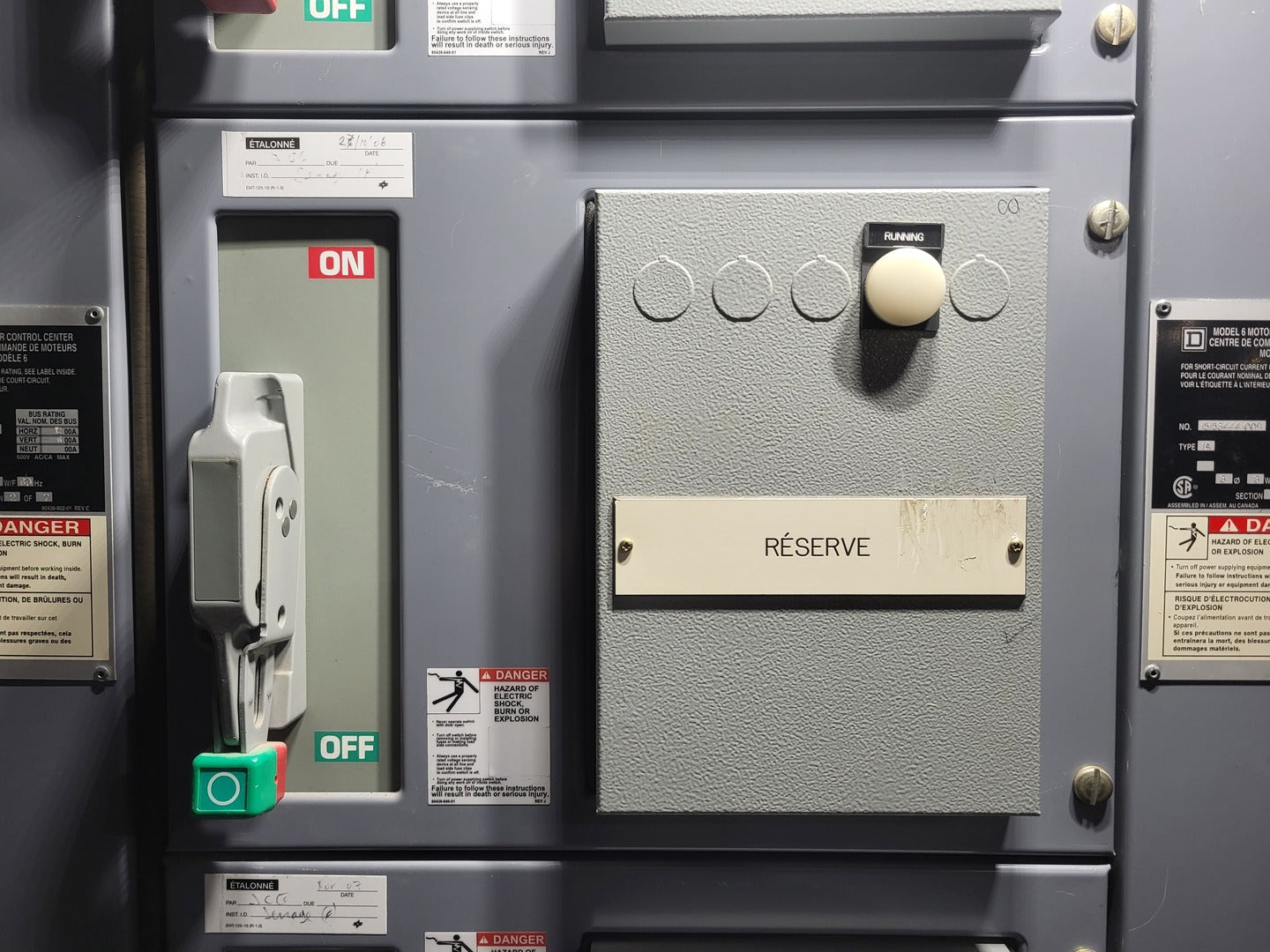

Bucket #2 Reserve

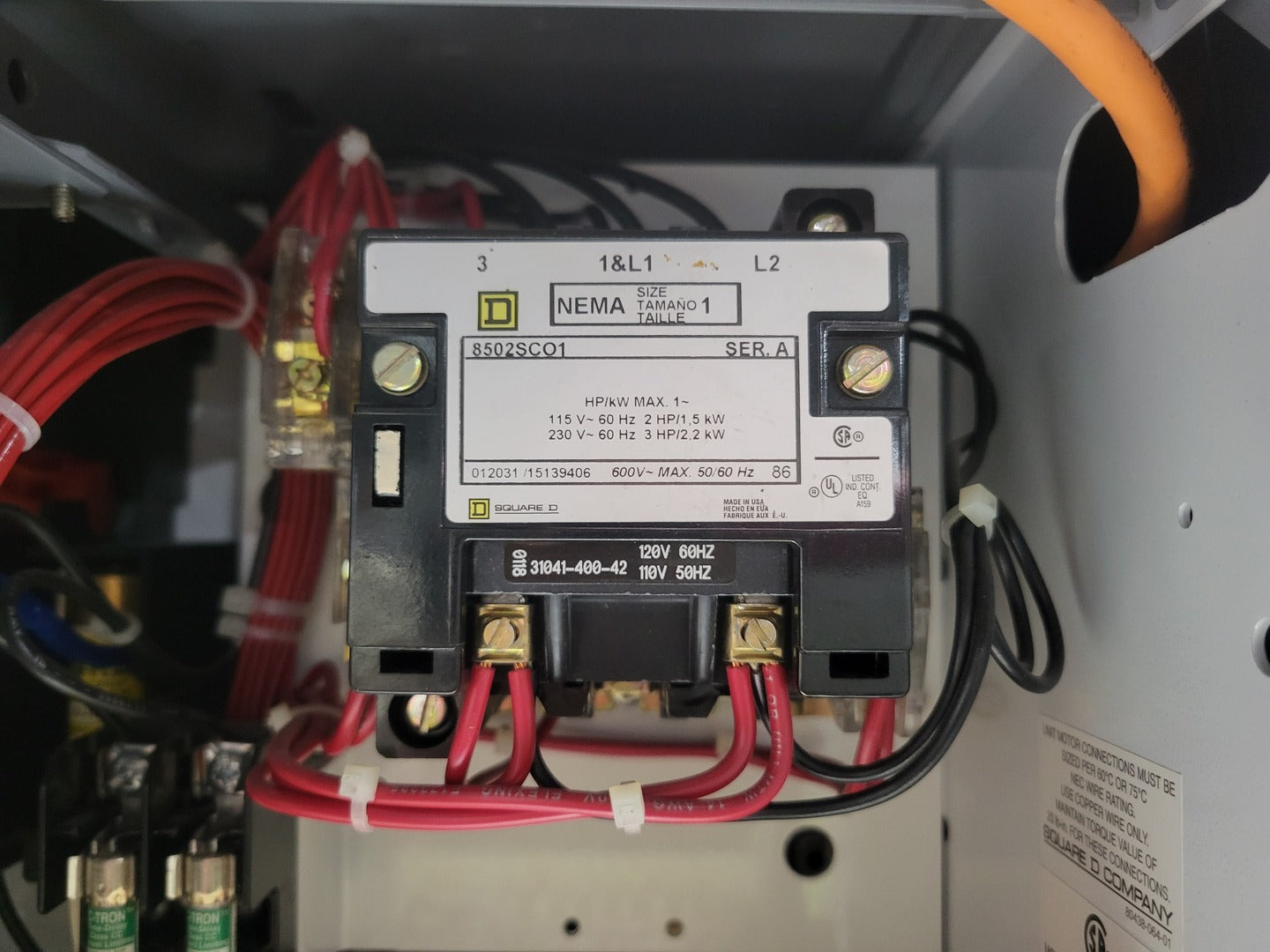

  1. Square D 8502SCO1, NEMA Size 1 contactor, 3 HP @ 230V
  2. Square D 9070EL2D5, control transformer, 0.07 kVA @ 50Hz / 0.1 kVA @ 60Hz
  3. 3 x Telemecanique ABR-2E116F slim relay modules, 120-127VAC coil
  4. Schneider Electric TSX Momentum 170DNT11000 communication adapter / PROFIBUS module
  5. Square D HU100-3MC6, Series 1, 100A MCC bucket disconnect unit

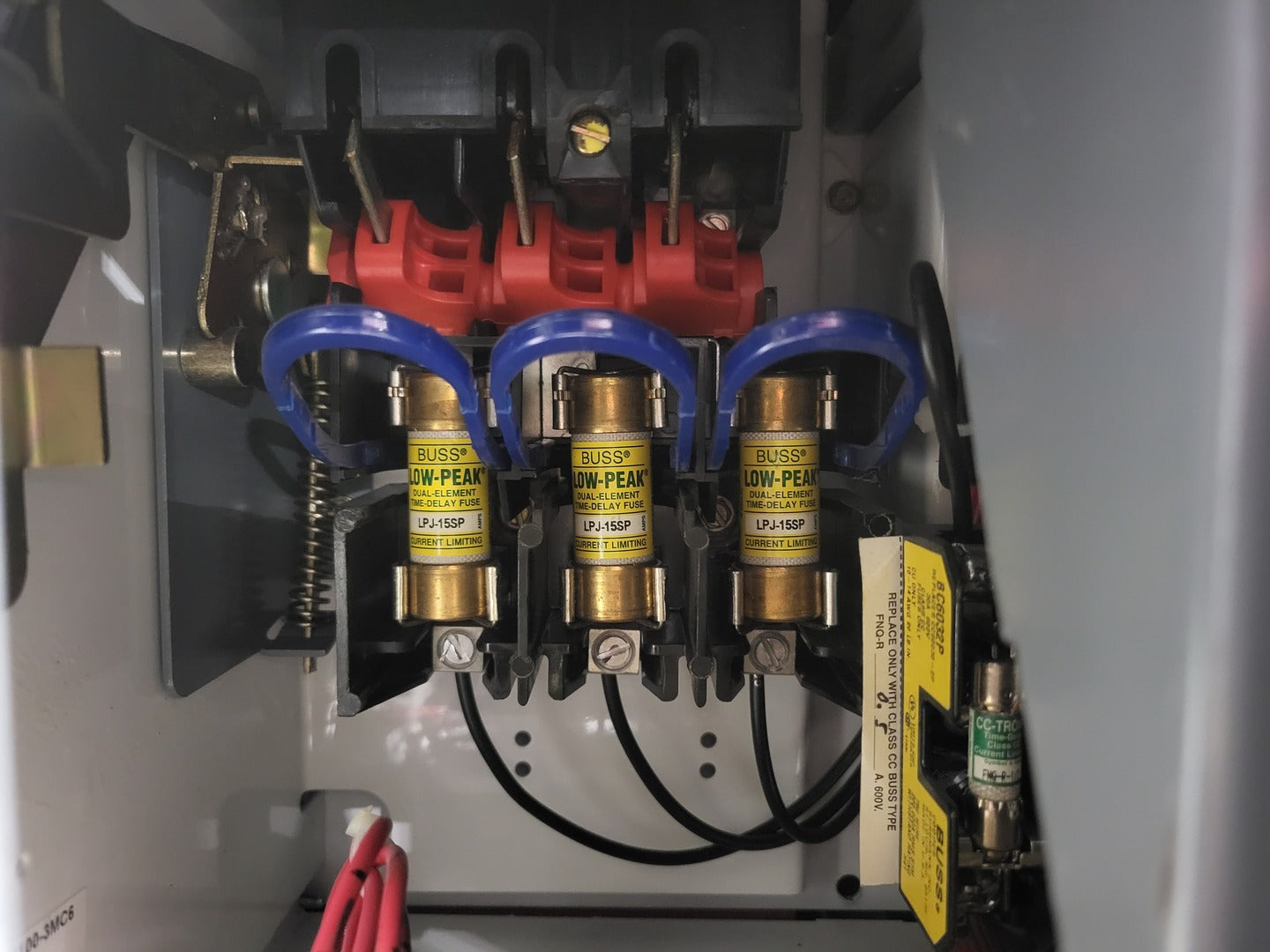

  6. 3 x Bussmann Low-Peak fuses LPJ-15SP
  7. 2 x Bussmann CC-Tron fuses FNQ-R-1/2

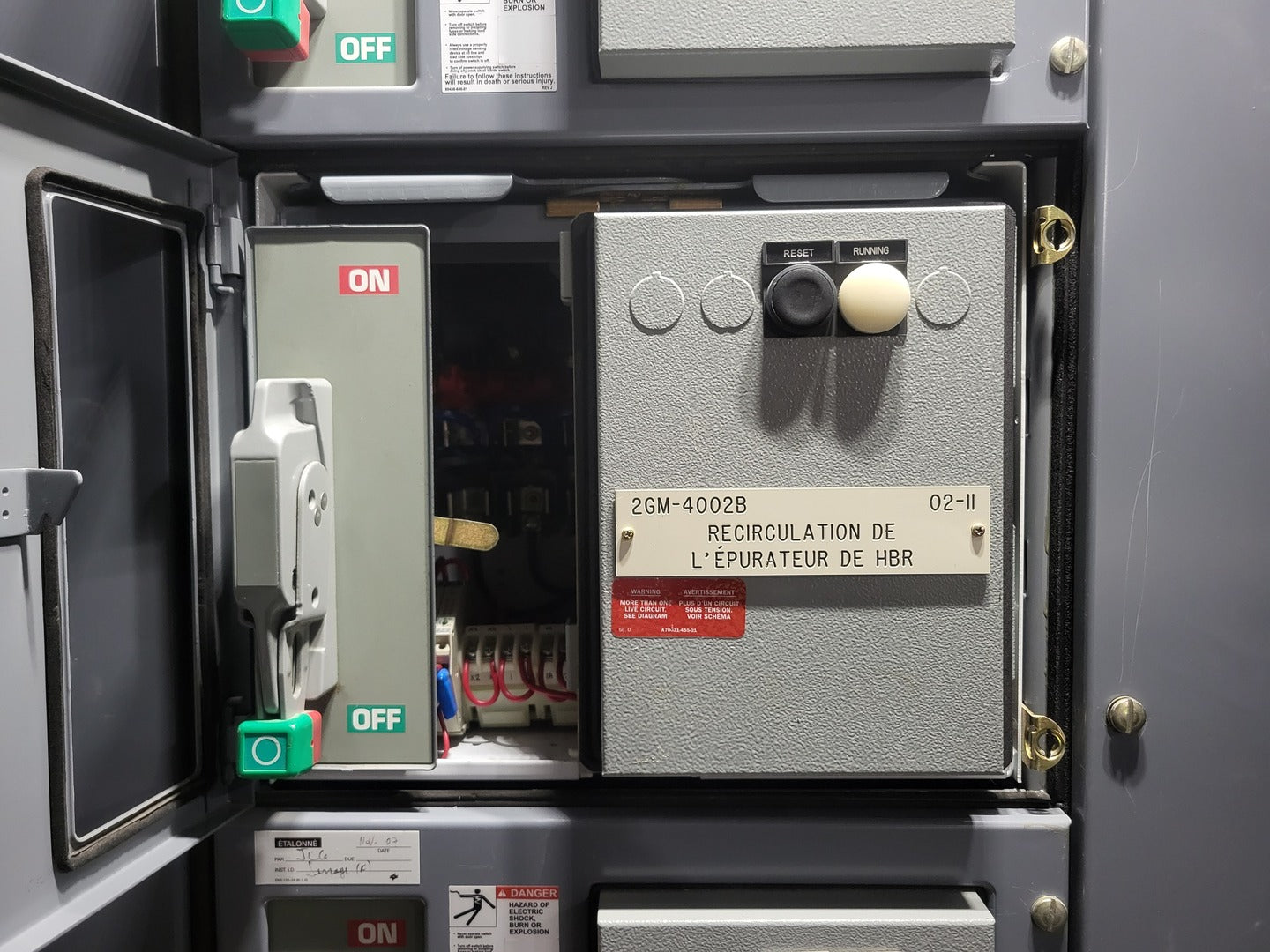

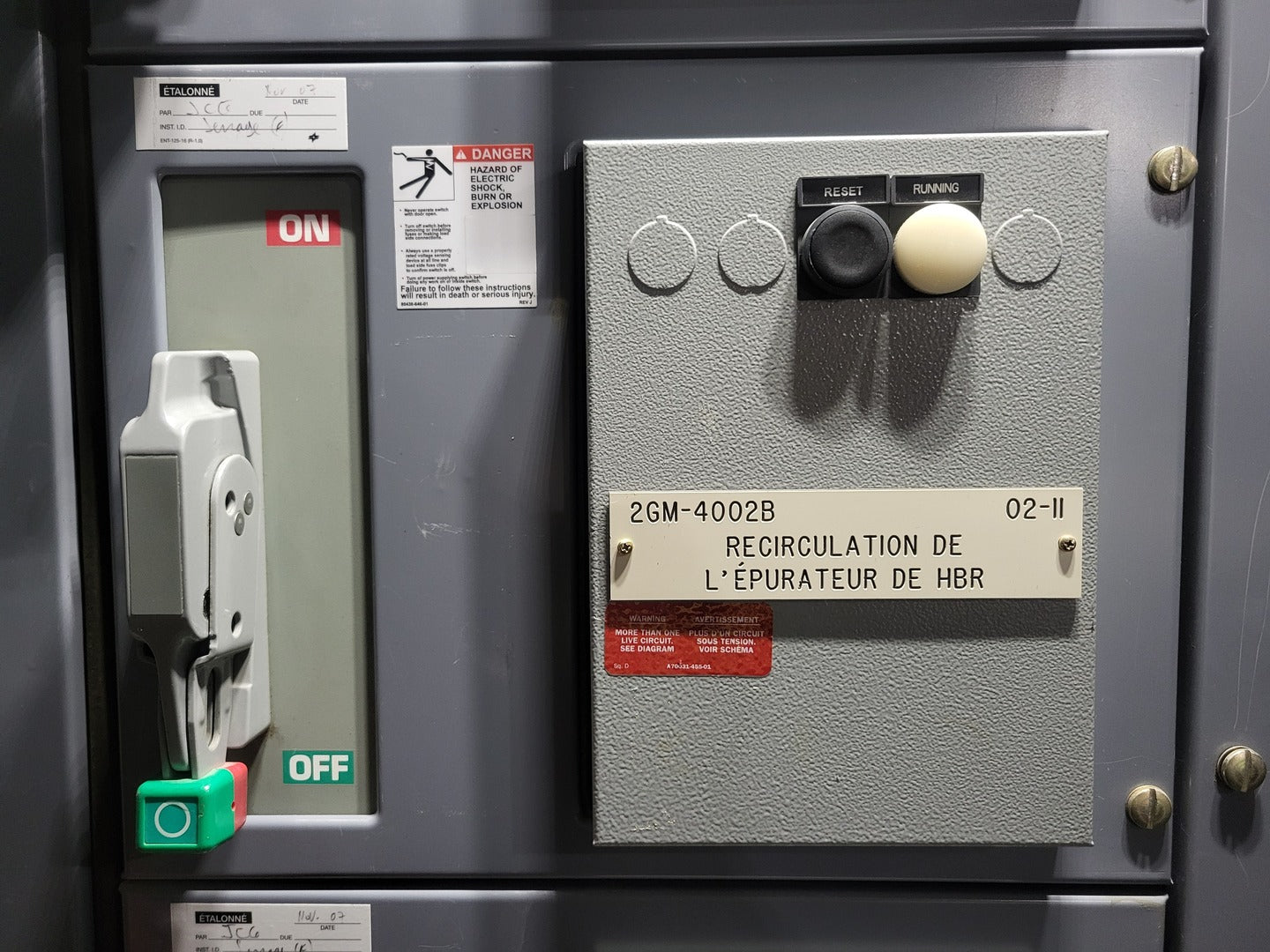

Bucket #3 2GM-4002B

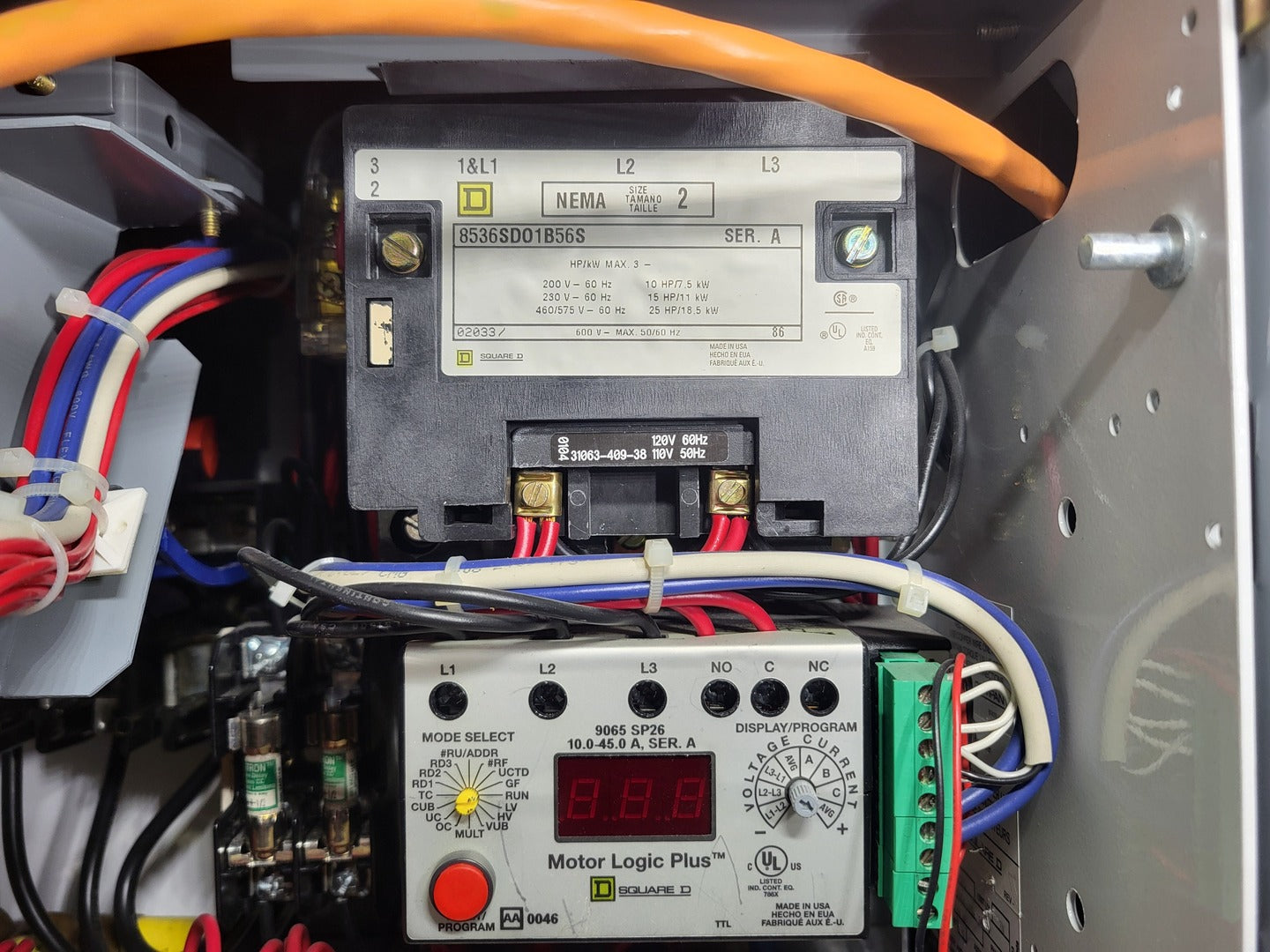

  1. Square D 8536SDO1B56S, NEMA Size 2 contactor, 25 HP @ 460/575V
  2. Square D Motor Logic Plus 9065 SP26, motor protection relay, 10.0-45.0A range, 600VAC max
  3. Square D 9070EL2D5, control transformer, 0.07 kVA @ 50Hz / 0.1 kVA @ 60Hz
  4. 3 x Telemecanique ABR-2E116F slim relay modules, 120-127VAC coil
  5. Schneider Electric TSX Momentum 170DNT11000 communication adapter / PROFIBUS module
  6. Square D HU100-3MC6, Series 1, 100A MCC bucket disconnect unit
  7. 3 x Bussmann Low-Peak fuses LPJ-15SP
  8. 2 x Bussmann CC-Tron fuses FNQ-R-1/2

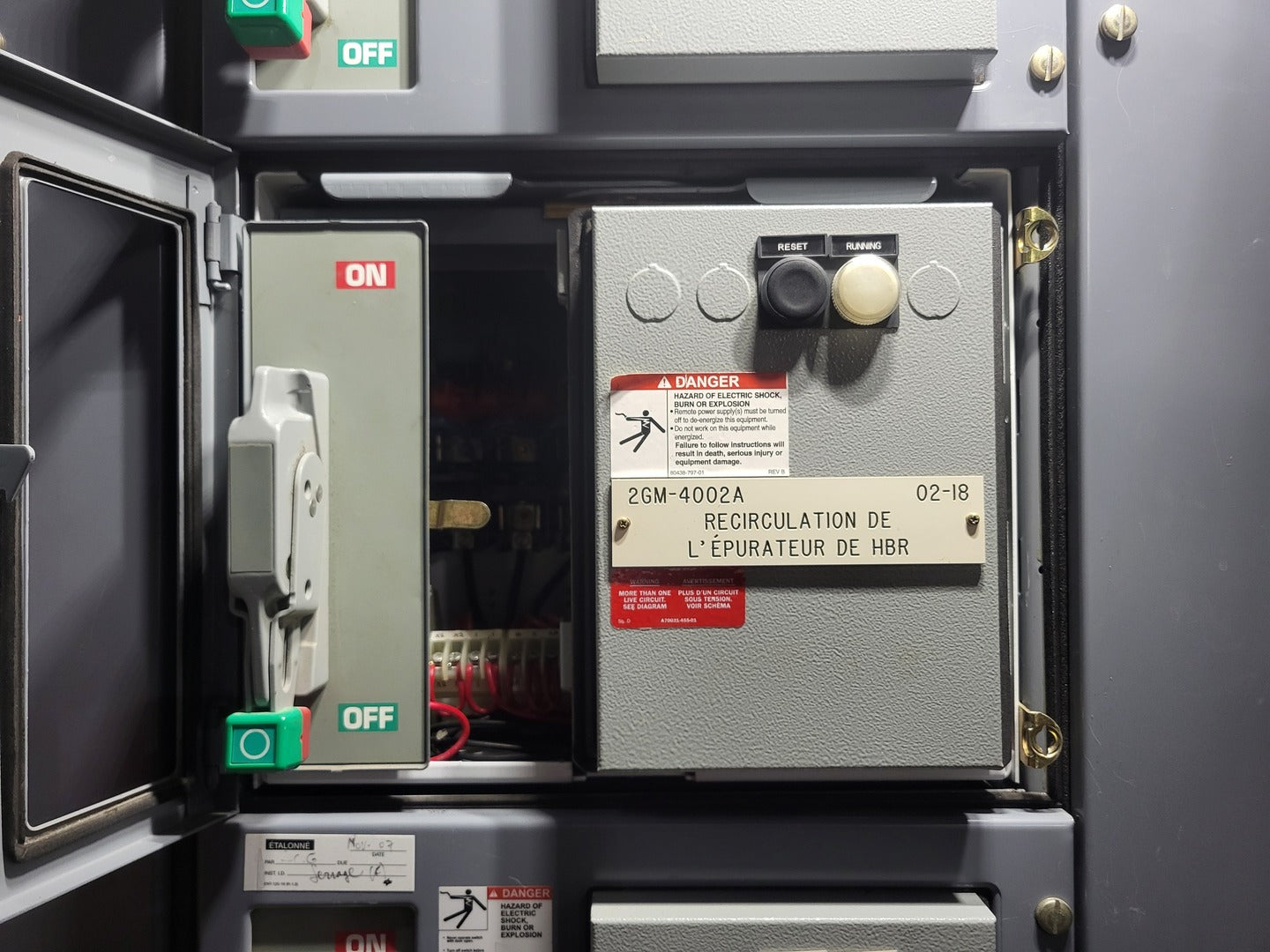

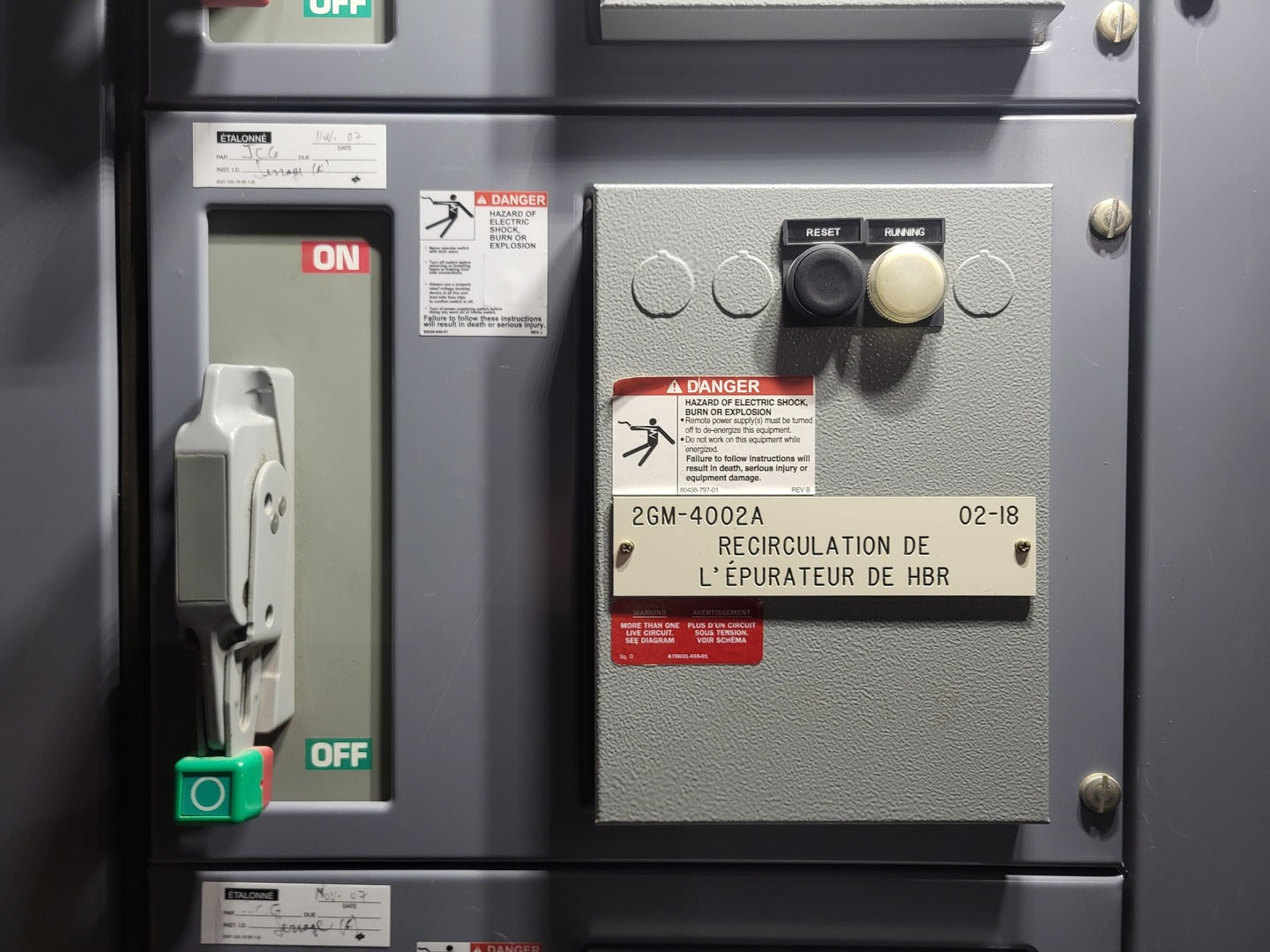

Bucket 2GM-4002A

  1. Square D 8536SDO1B56S, NEMA Size 2 contactor, 25 HP @ 460/575V
  2. Square D Motor Logic Plus 9065 SP26, motor protection relay, 10.0-45.0A range, 600VAC max
  3. Square D 9070EL2D5, control transformer, 0.07 kVA @ 50Hz / 0.1 kVA @ 60Hz
  4. 3 x Telemecanique ABR-2E116F slim relay modules, 120-127VAC coil
  5. Schneider Electric TSX Momentum 170DNT11000 communication adapter / PROFIBUS module
  6. Square D HU100-3MC6, Series 1, 100A MCC bucket disconnect unit
  7. 2 x Bussmann CC-Tron fuses FNQ-R-1/2

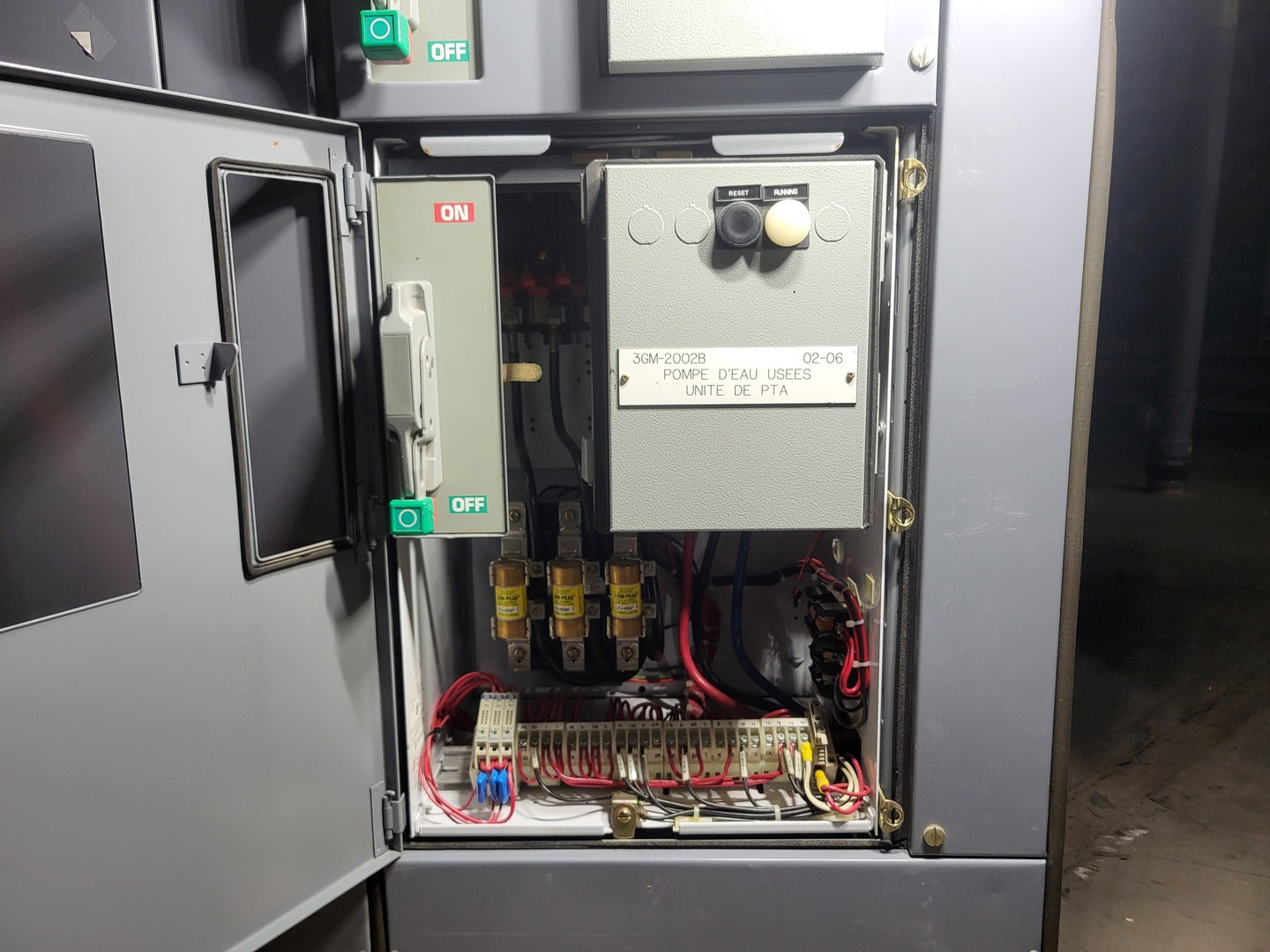

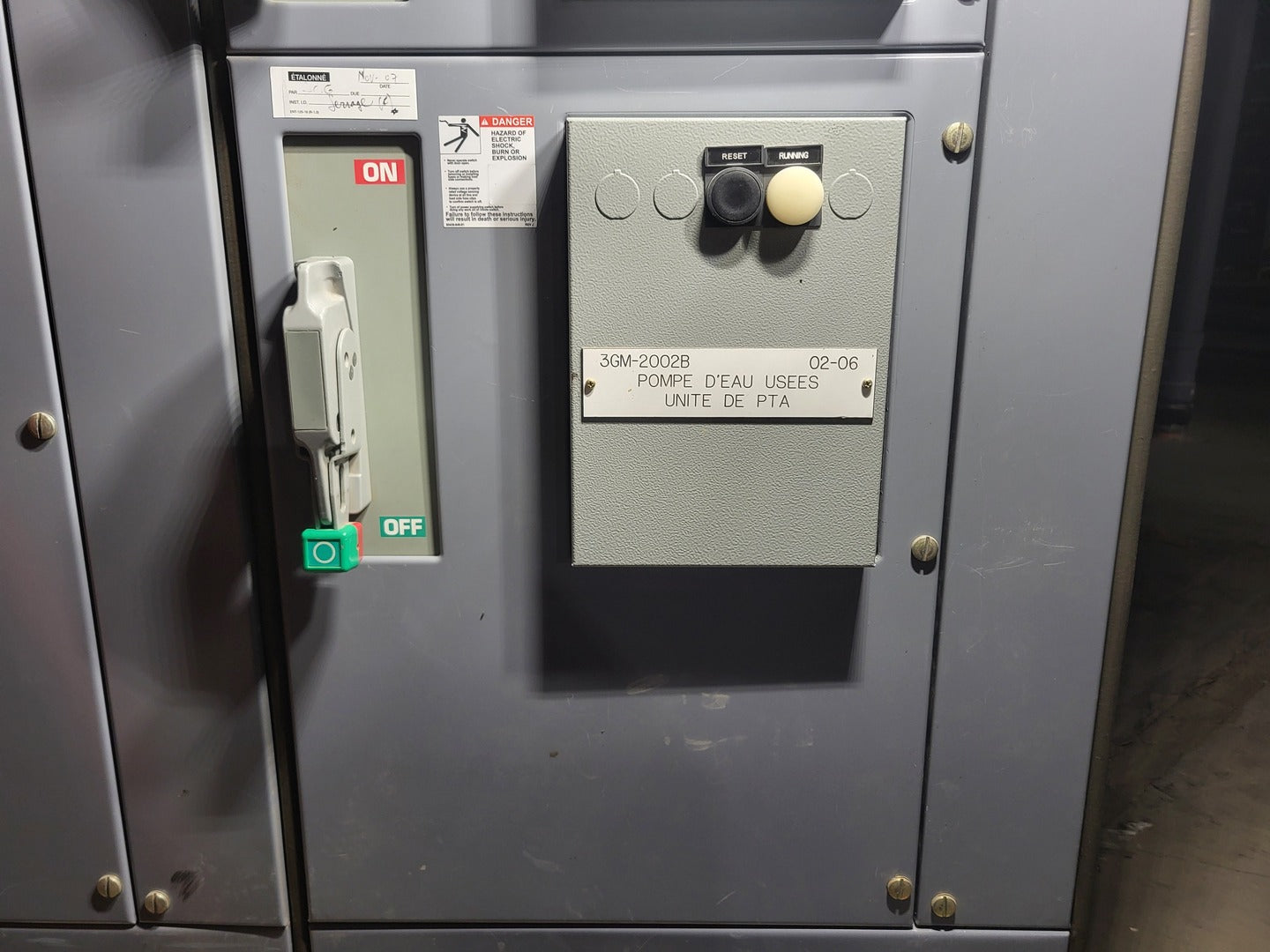

Bucket 3GM-2002B

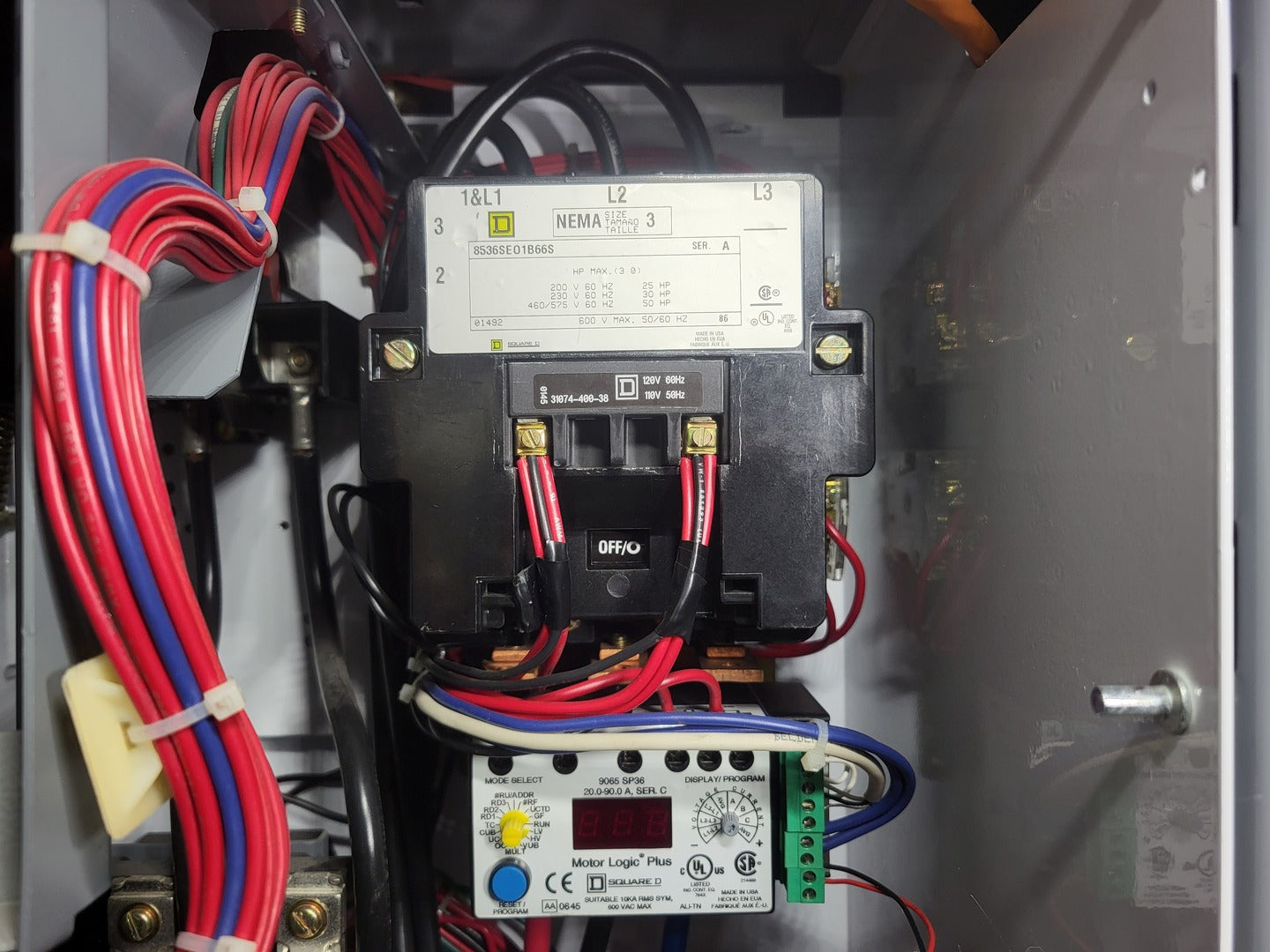

  1. Square D 8536SEO1B66S, NEMA Size 3 contactor, 50 HP @ 460/575V
  2. Square D Motor Logic Plus 9065 SP36, motor protection relay, 20.0-90.0A range, 600VAC max

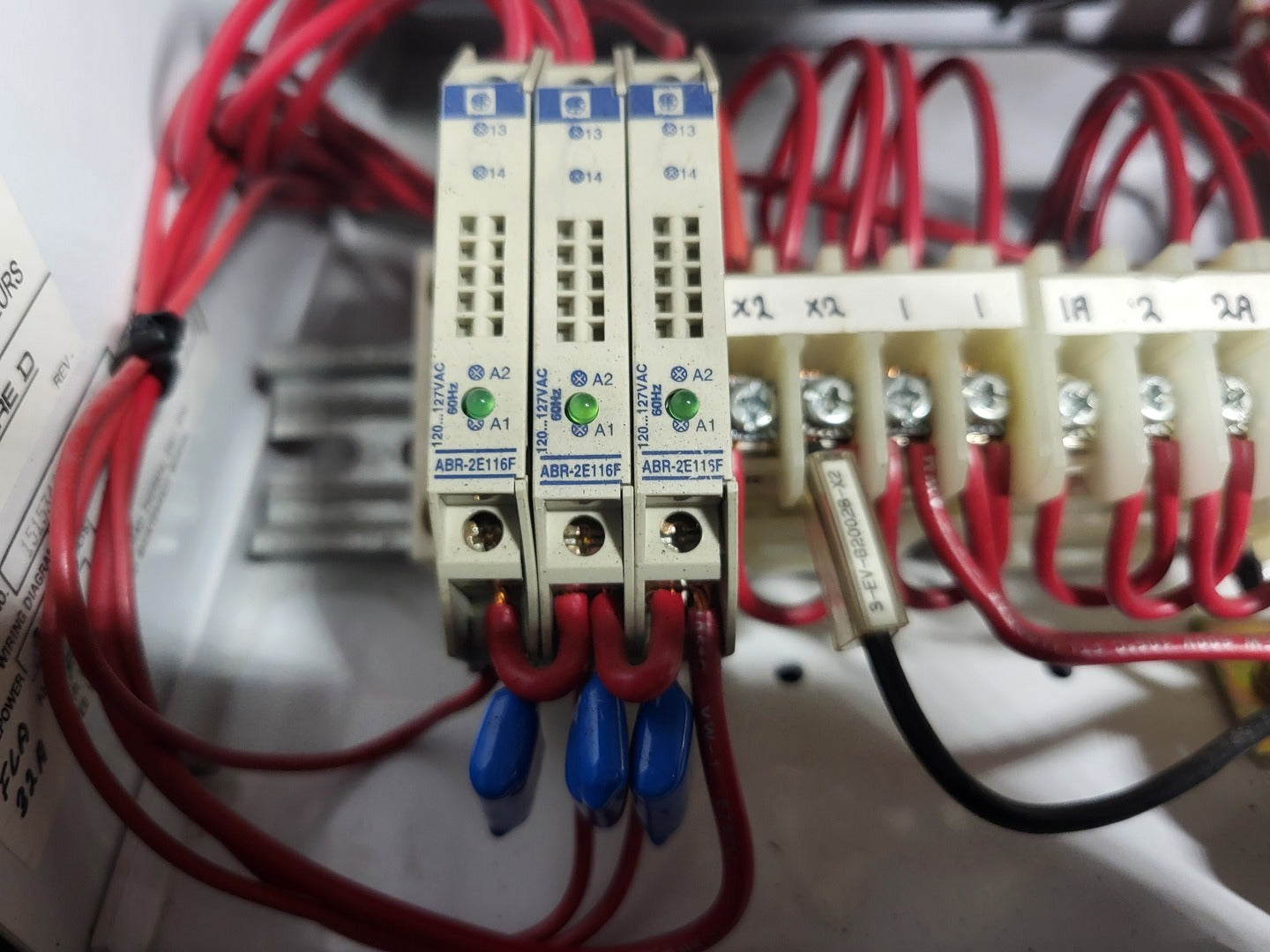

  3. 3 x Telemecanique ABR-2E116F / ABR-2E115F slim relay modules, 120-127VAC coil
  4. Schneider Electric TSX Momentum 170DNT11000 communication adapter / PROFIBUS module

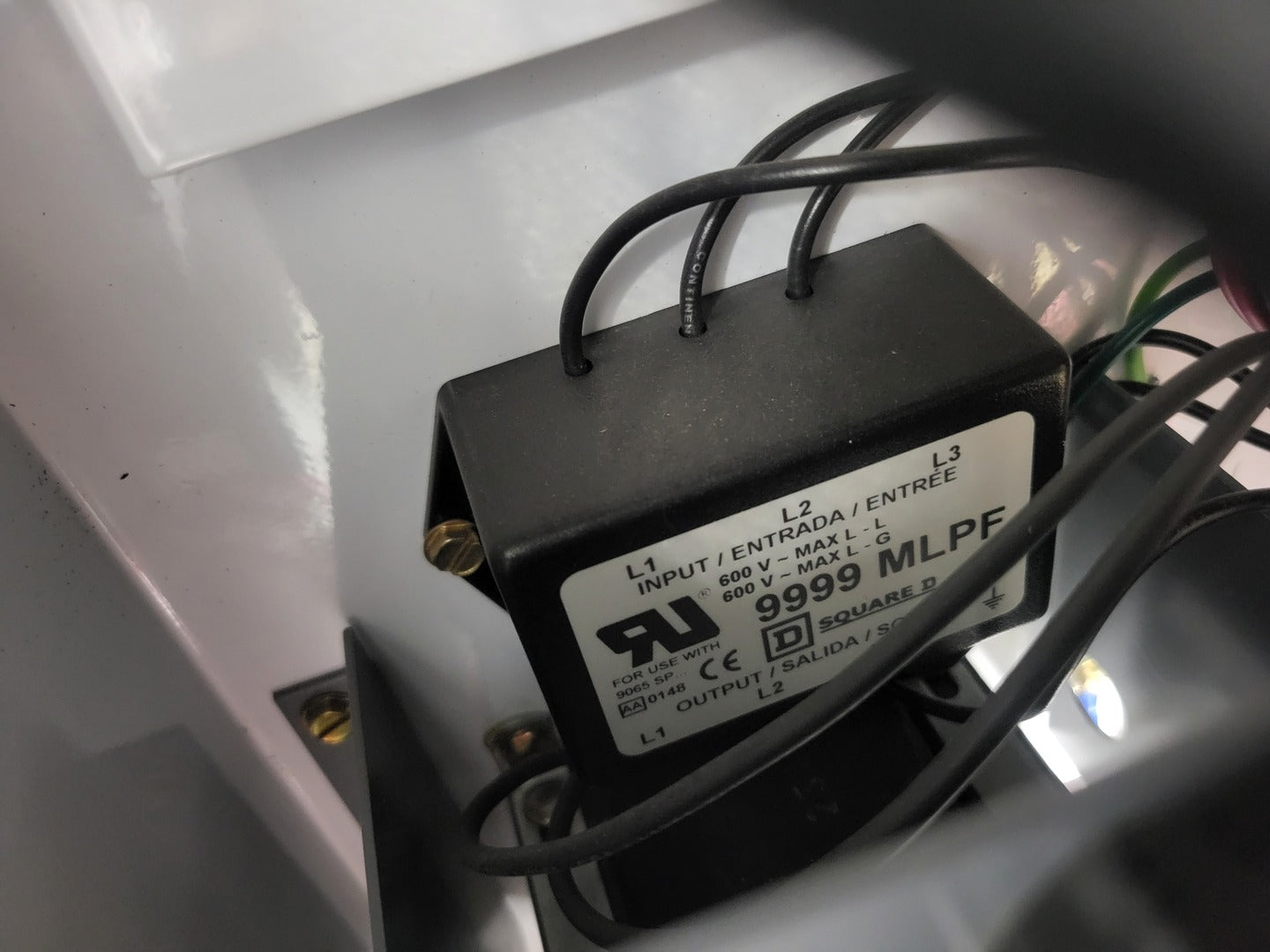

  5. Square D 9999 MLPF, 3-phase surge suppressor / MOV module, 600V max
  6. Square D HU100-3MC6, Series 1, 100A MCC bucket disconnect unit

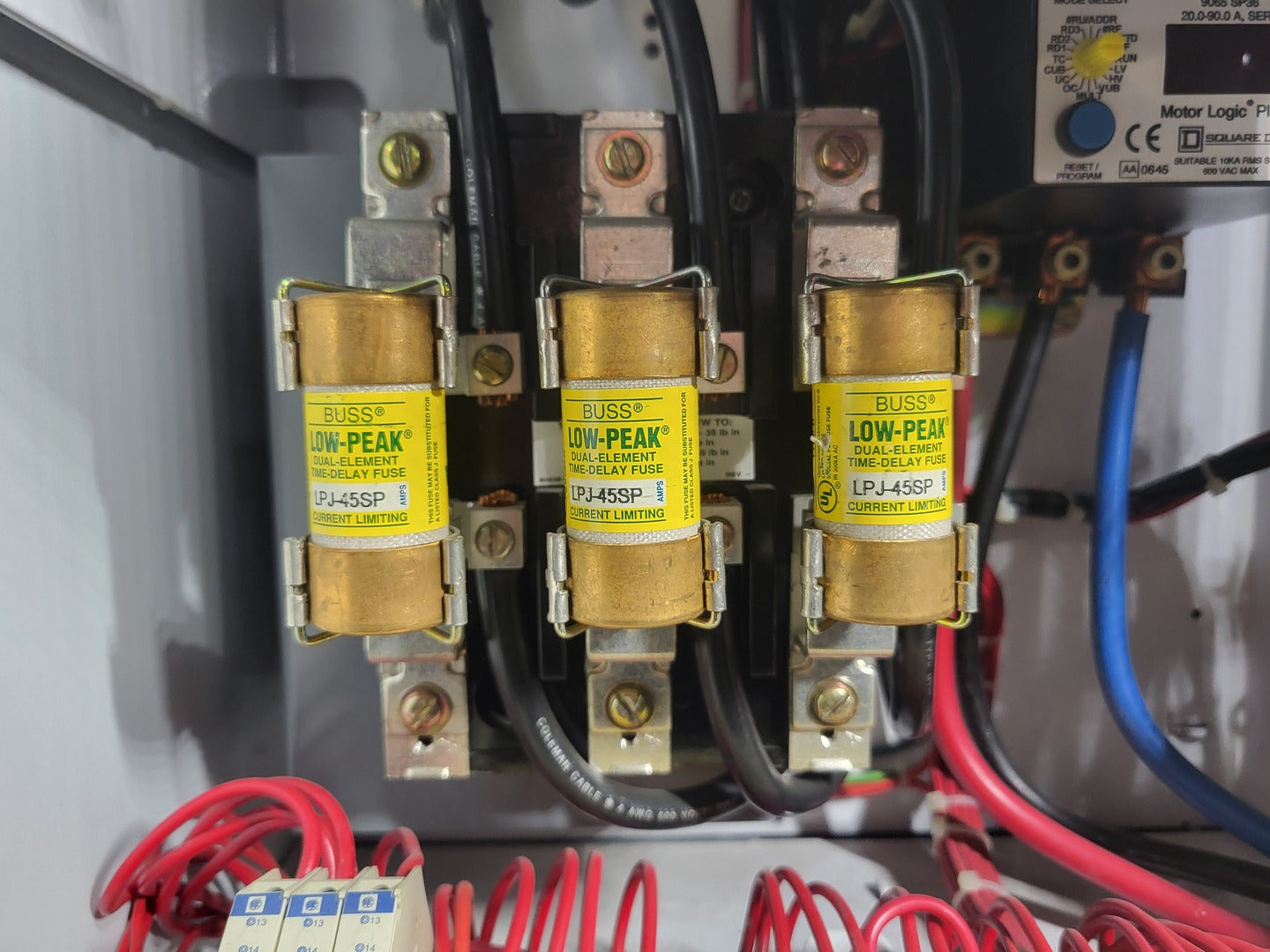

  7. 3 x Bussmann Low-Peak fuses LPJ-45SP
  8. 2 x Bussmann CC-Tron fuses FNQ-R-3/4

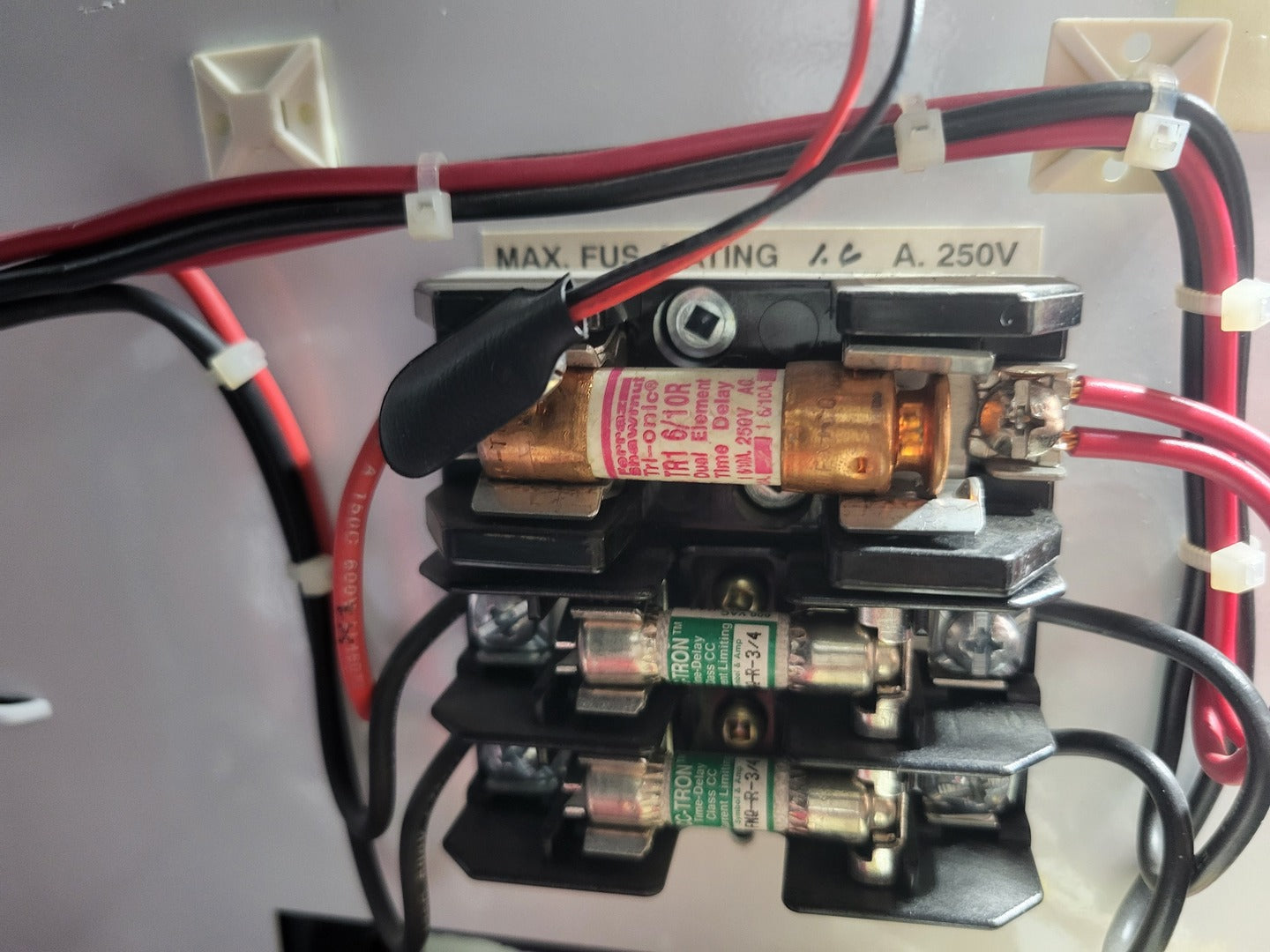

  9. 1 x Ferraz Shawmut Tri-Onic fuse TRM6/10R
